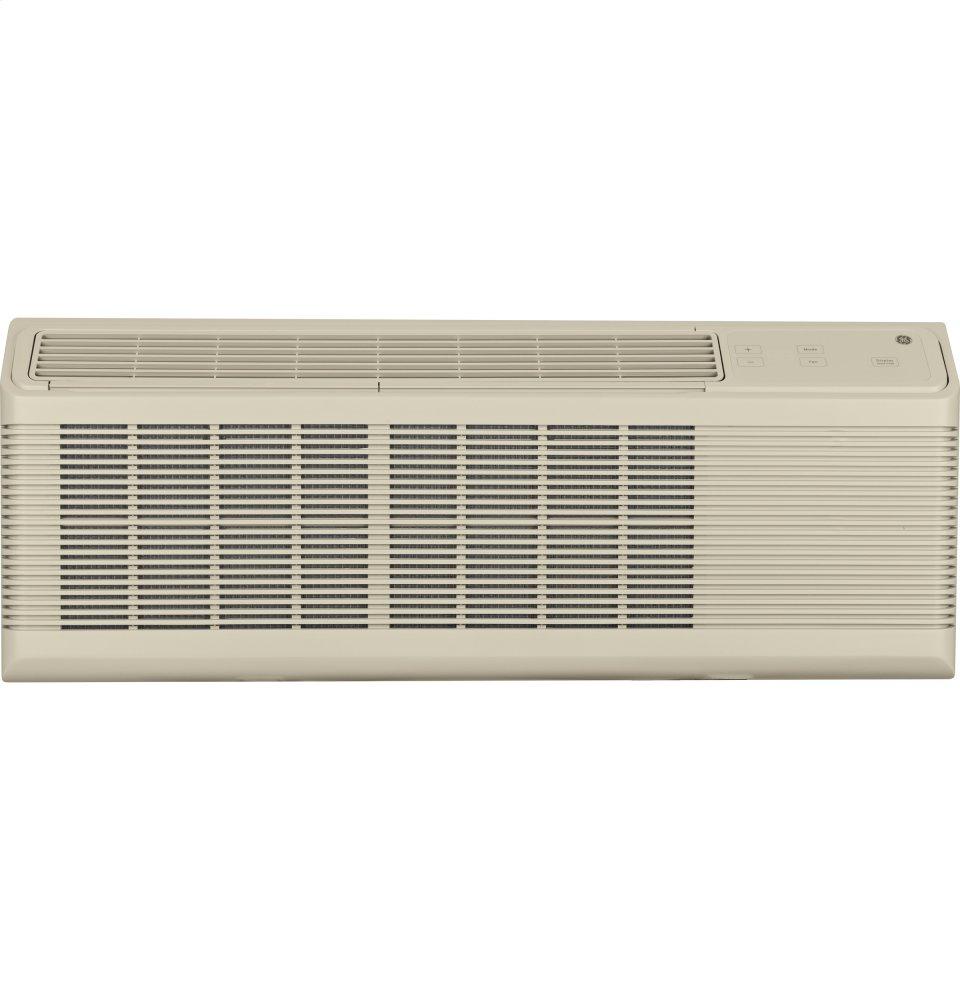

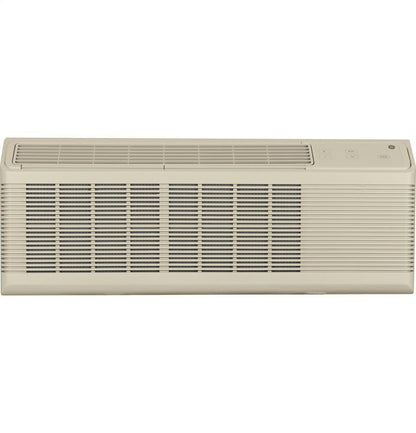

GE Zoneline® Heat Pump Unit, 230/208 Volt AZ65H15DAB

SKU/Model #: AZ65H15DAB
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
GE Zoneline® Heat Pump Unit, 230/208 Volt
Authorized Reseller

GE Zoneline® Heat Pump Unit, 230/208 Volt AZ65H15DAB

SKU/Model #: AZ65H15DAB
Sale price$1,429.00
Pay only $1,357.55 With D&S Exclusive Savings!
Add To Cart For Discounts To Apply.

Product Details

  • Electronic touch controls with LED display
  • R-410A refrigerant
  • SMC base pan
  • Simplified structure
  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Reverse heat cycle
  • Heat pump efficiency
  • Indoor fan CFM (high/low)
  • Fresh air vent CFM (fully open high fan)
  • Quiet operation
  • Heat & Freeze Sentinels
  • Boost heat option
  • Electronic temperature limiting

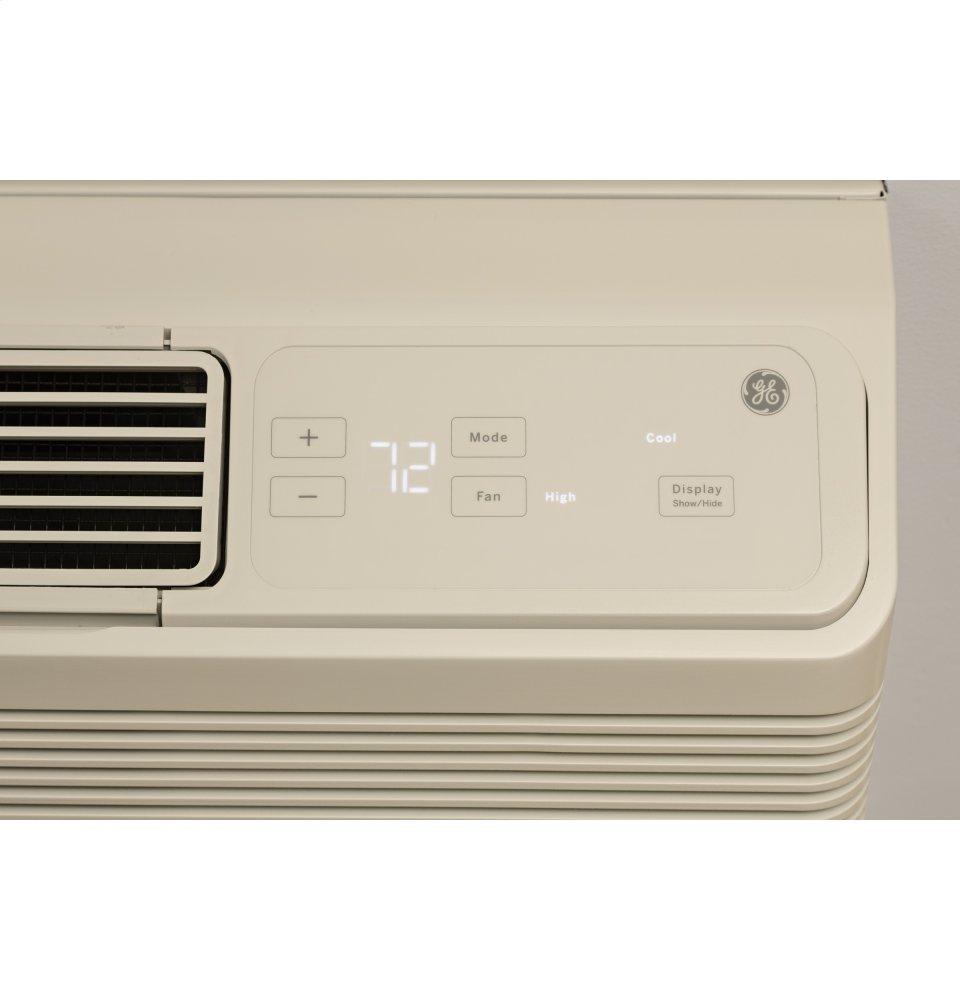

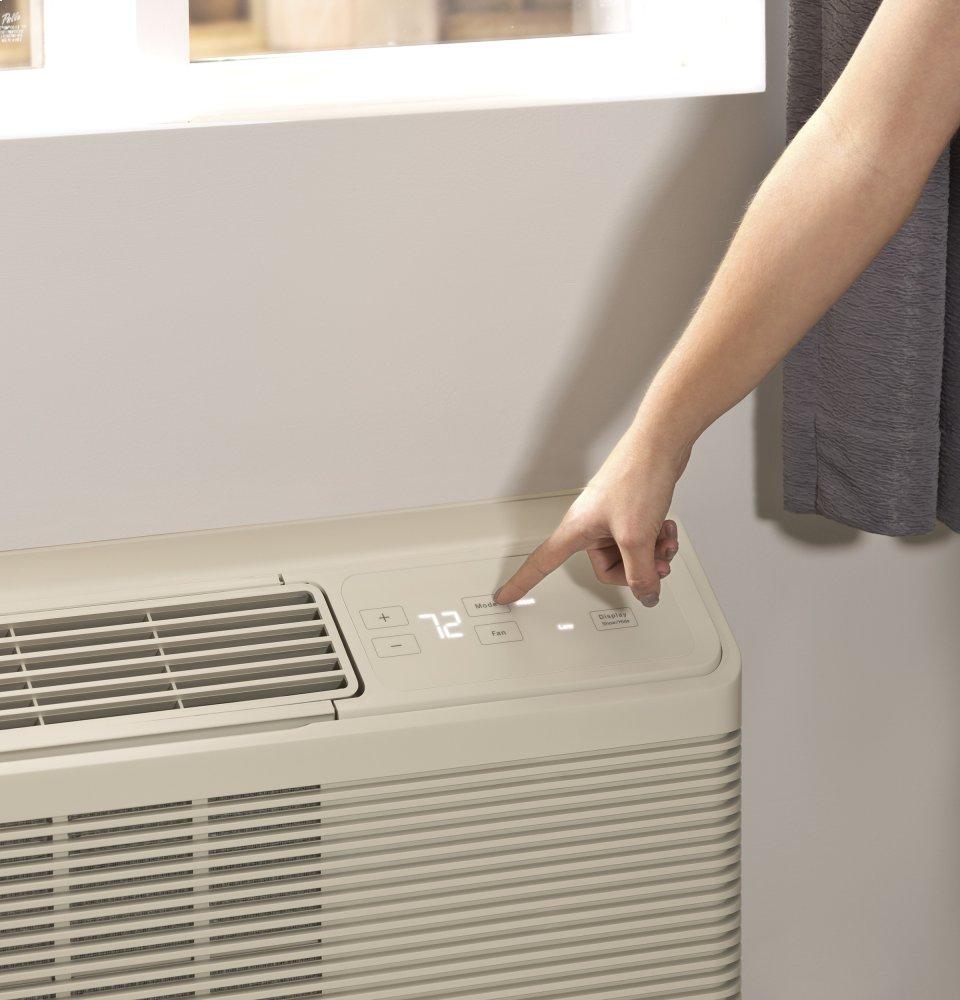

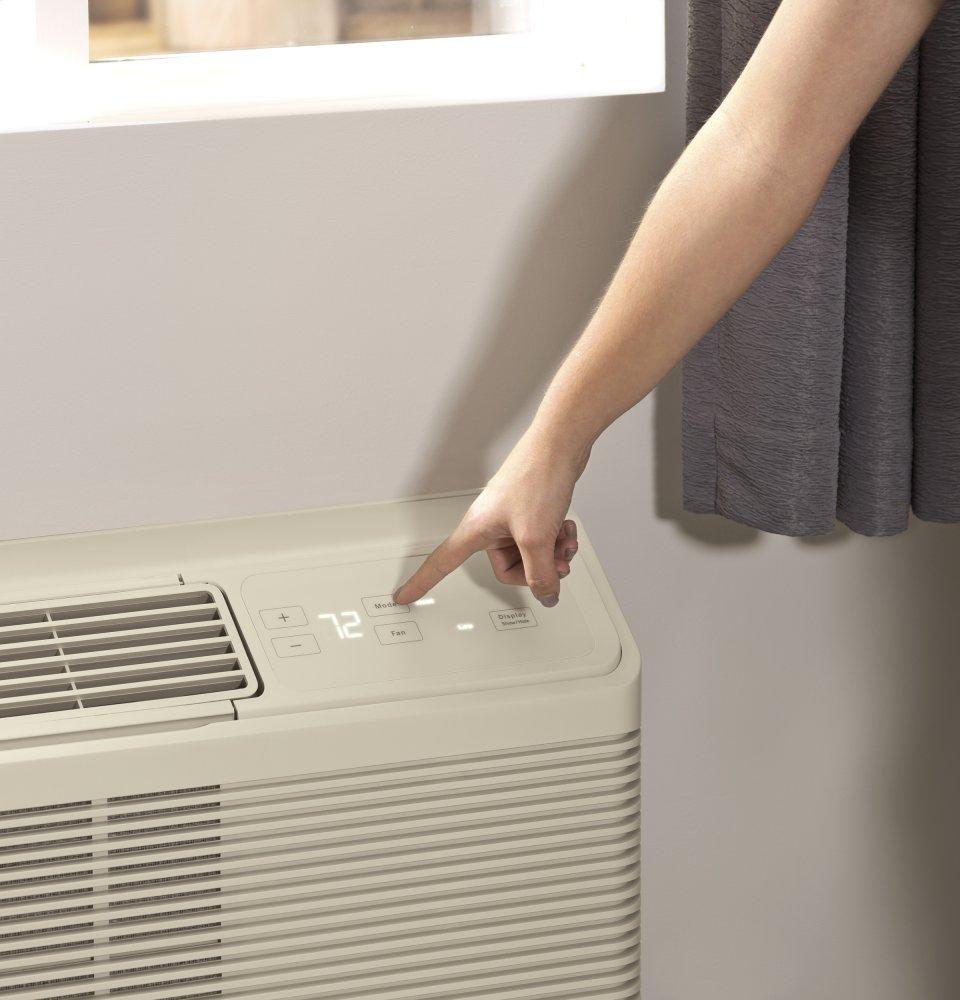

Electronic touch controls with LED display
R-410A refrigerant
SMC base pan

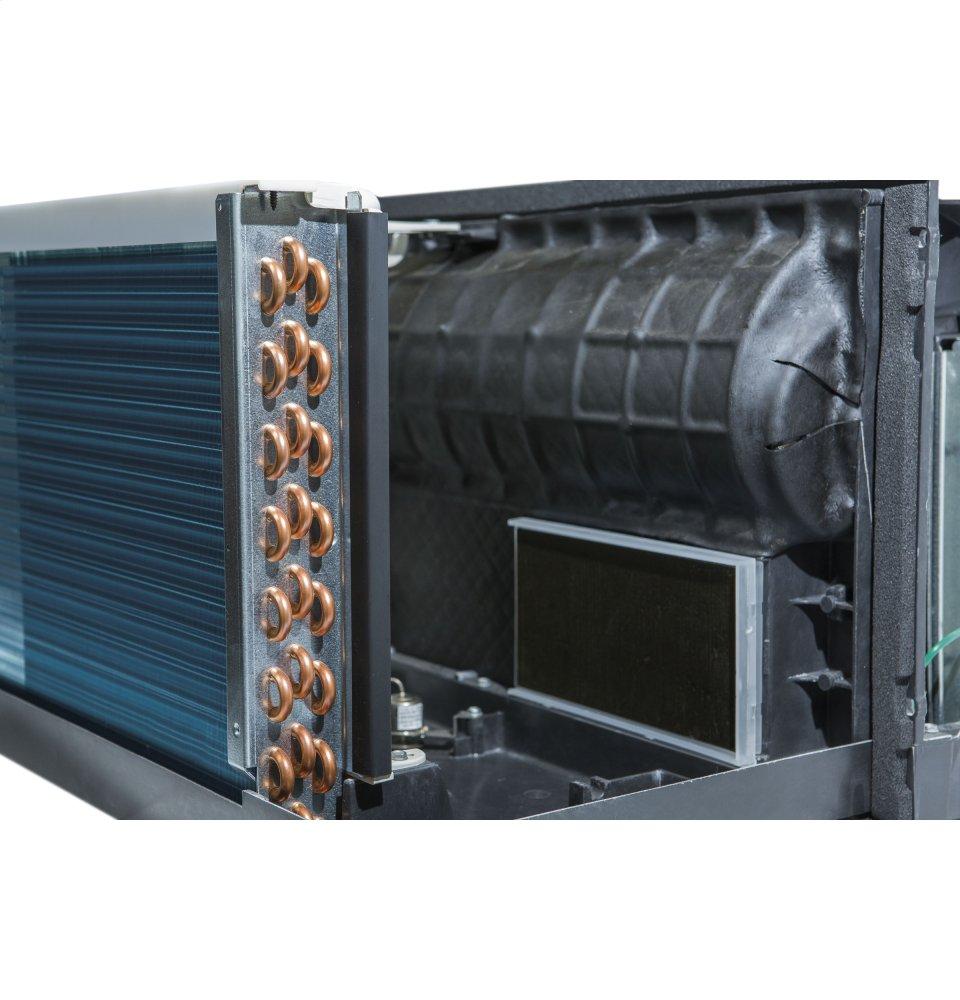

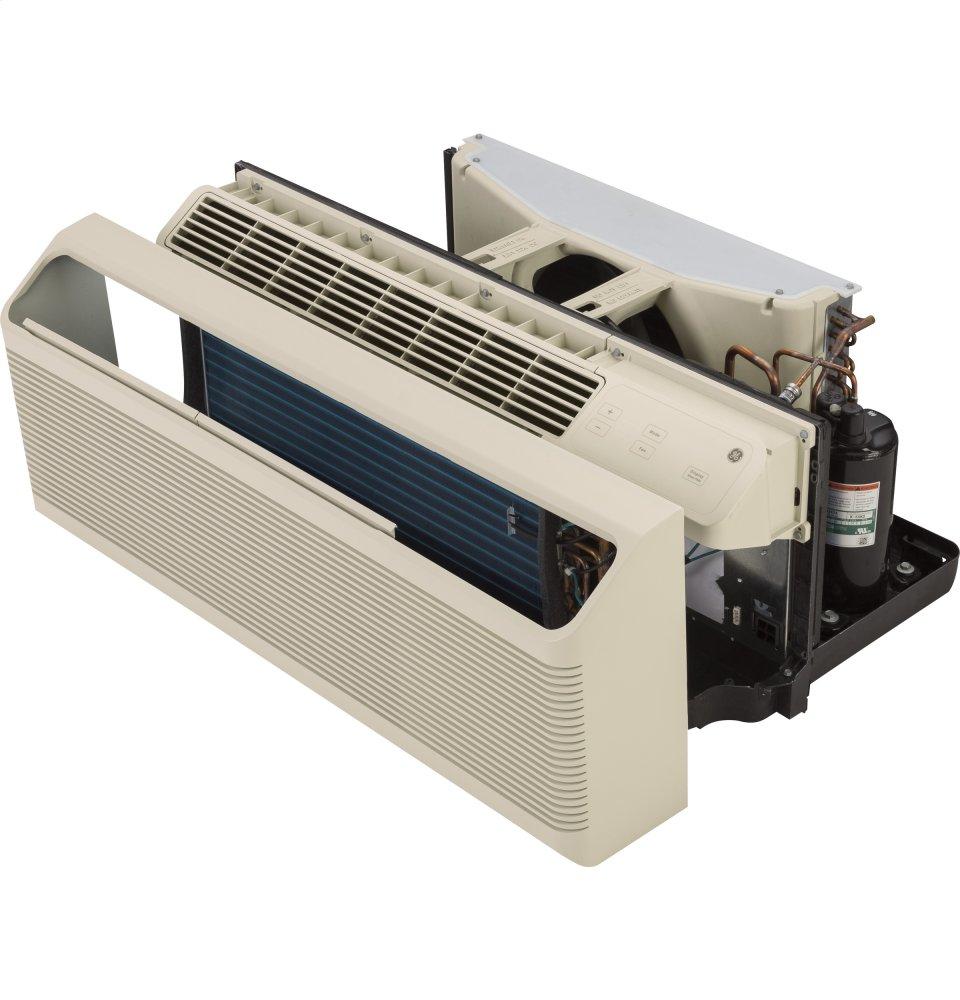

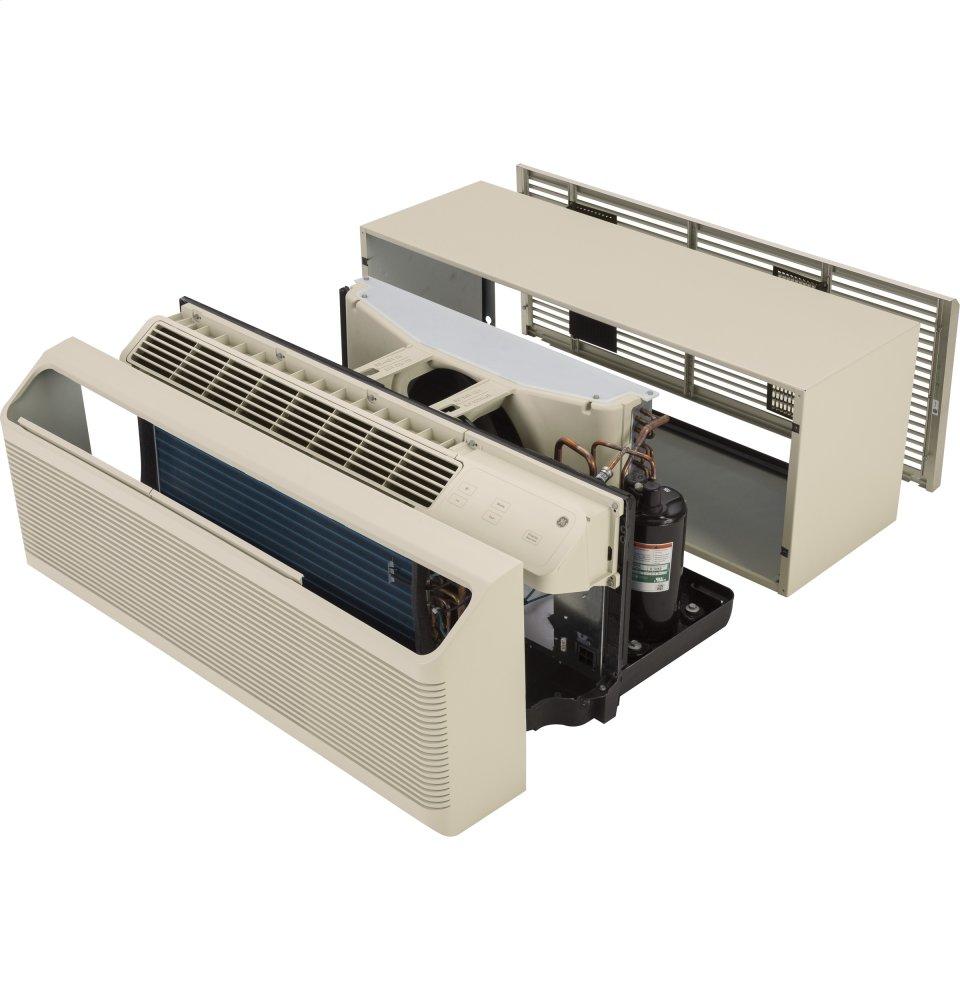

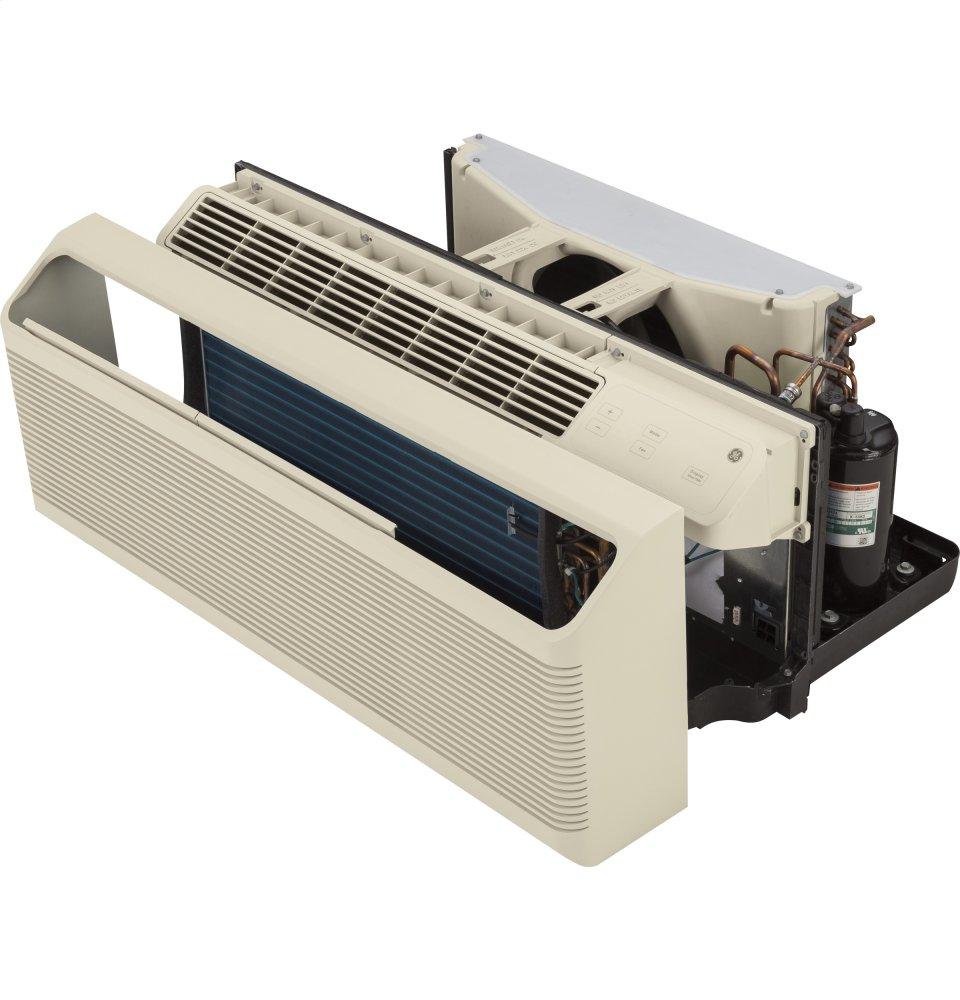

Simplified structure

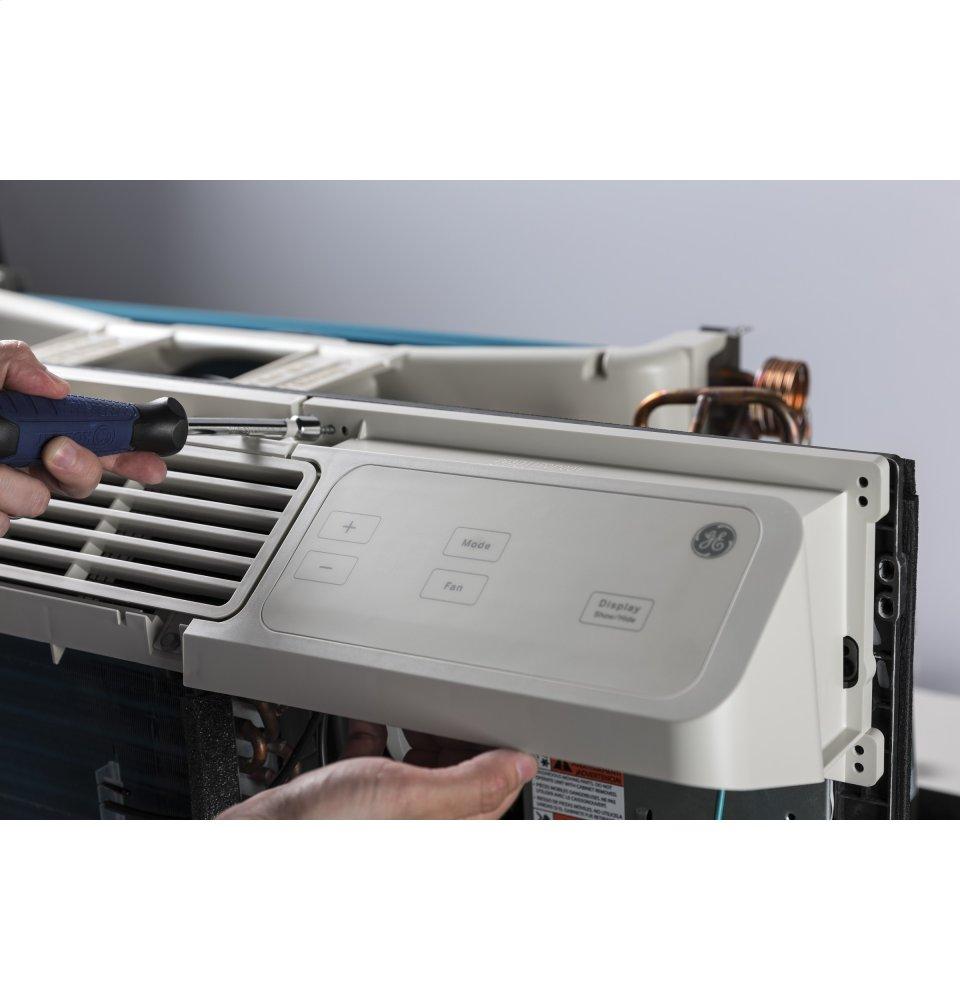

Easy to maintain and service


Cooling capacity

14,400/14,200 BTU


Energy efficiency

10.6/10.6 EER


Dehumidification

4.8 pints/hour


Reverse heat cycle

13,400/13,300 BTU


Heat pump efficiency

3.3/3.3 COP


Indoor fan CFM (high/low)

449/290


Fresh air vent CFM (fully open high fan)

44


Quiet operation

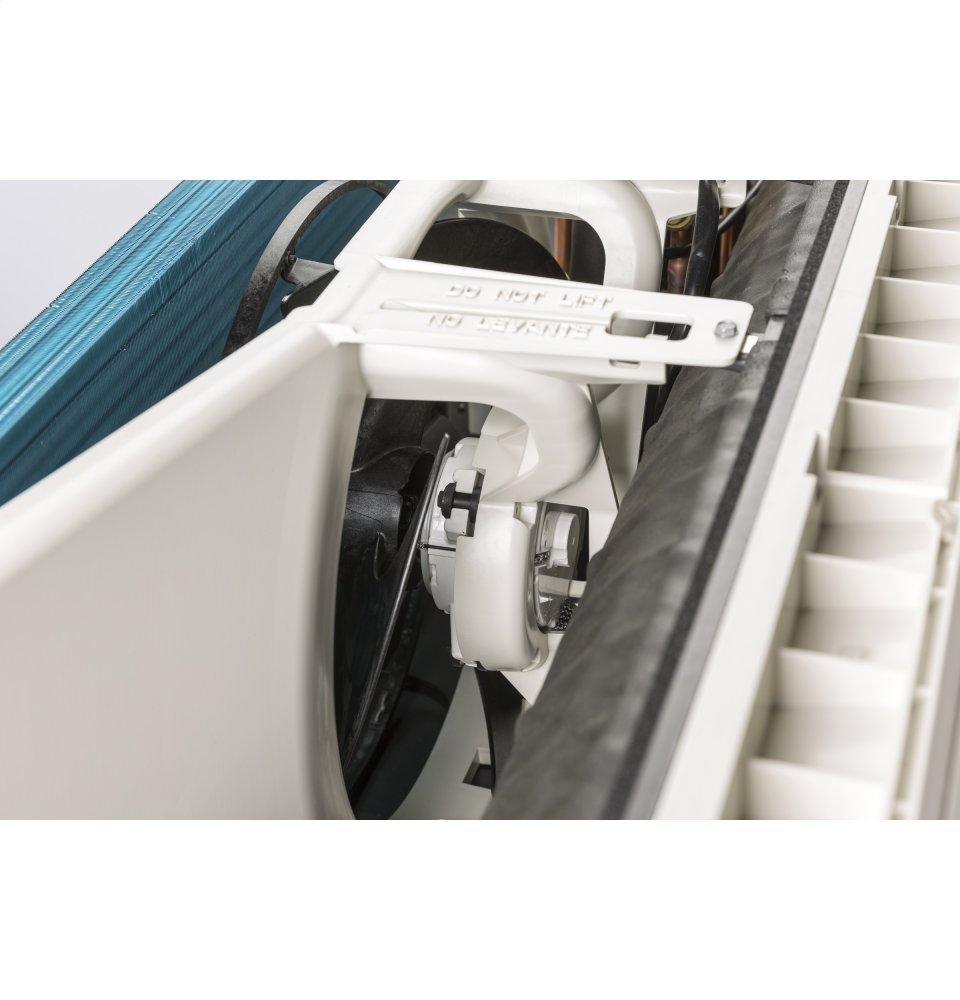

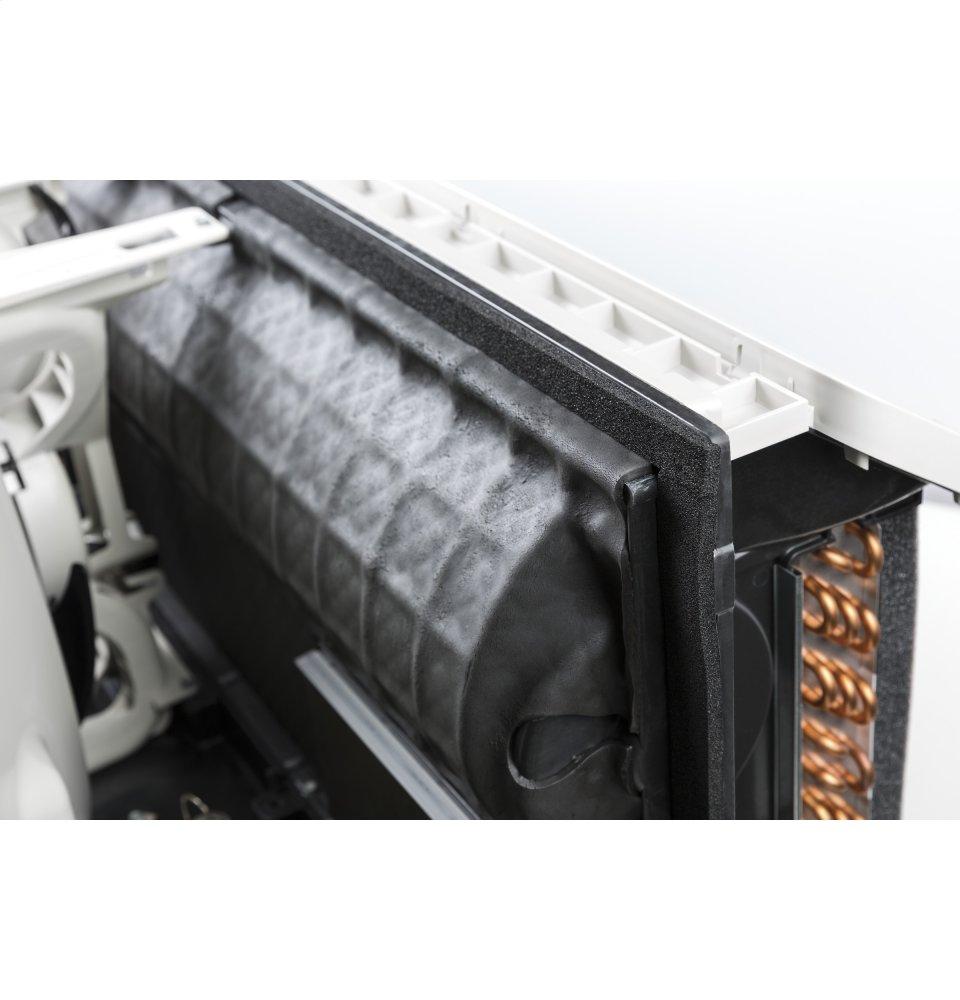

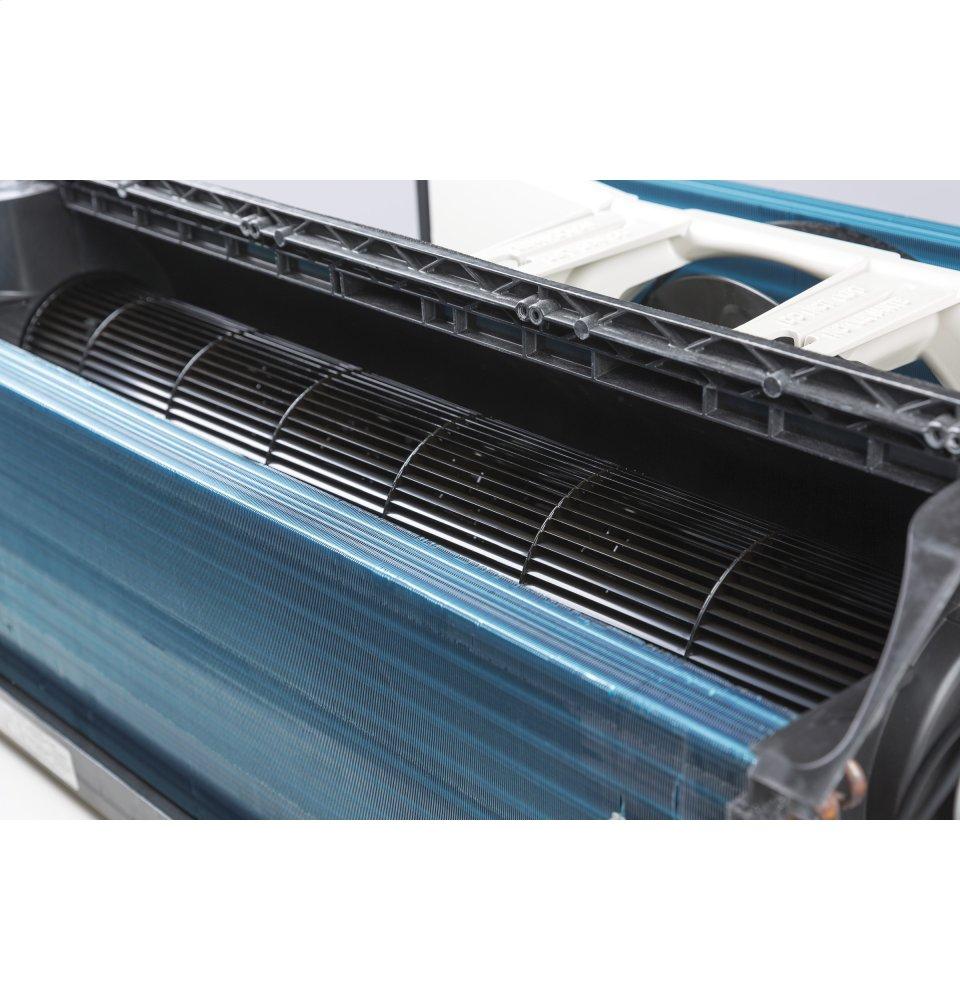

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort


Heat & Freeze Sentinels

Keeps the room from overheating or freezing


Boost heat option

Provides supplemental resistance heat in heat pump mode


Electronic temperature limiting

Prevents expensive over-cooling or over-heating of the room

CAPACITY
Cooling BTUH (MIN) 14200.0 Btu
Cooling BTUH (MAX) 14400.0 Btu
Cooling EER (BTUH / Watt) 10.6/10.6
CFM Indoor Fan High 400
CFM Indoor Fan Low 290
Dehumidification (pts./hr.) 4.8
Heating - Reverse Cycle - BTUH 13400/13300
Vent CFM (high fan at zero ESP) 44
FEATURES
Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating

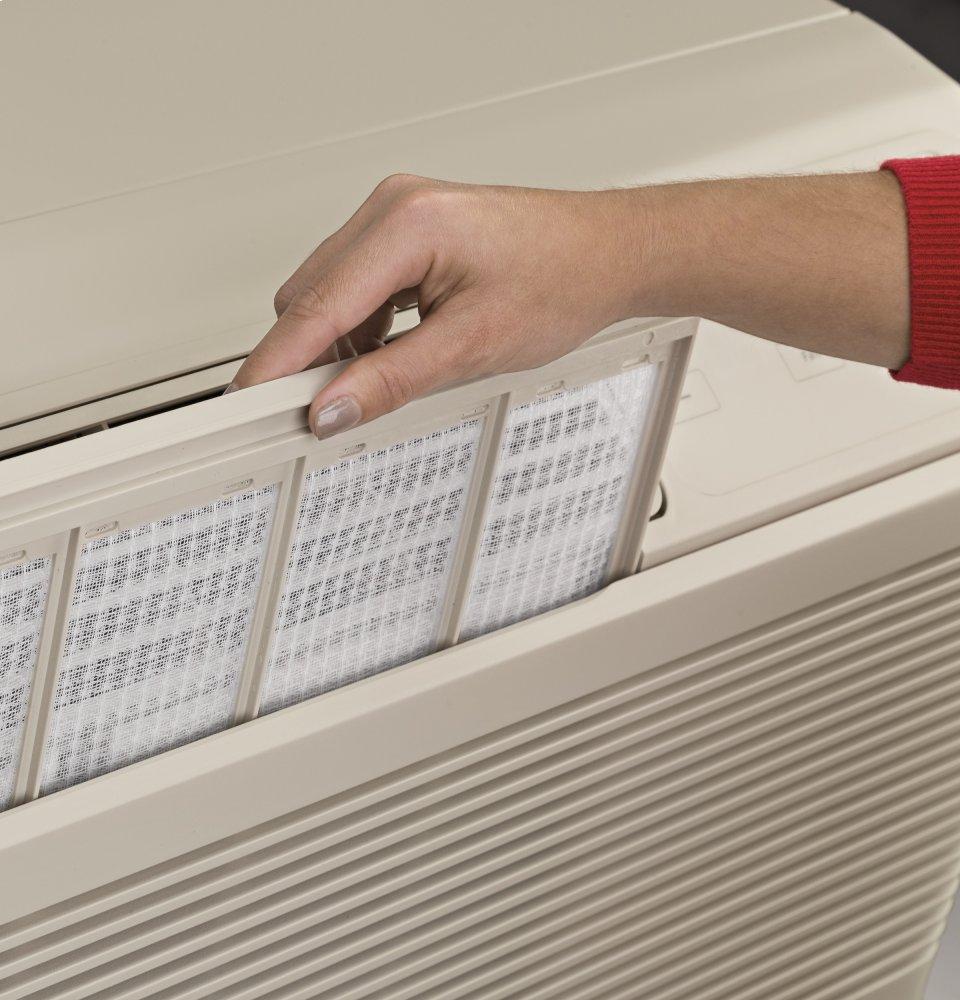

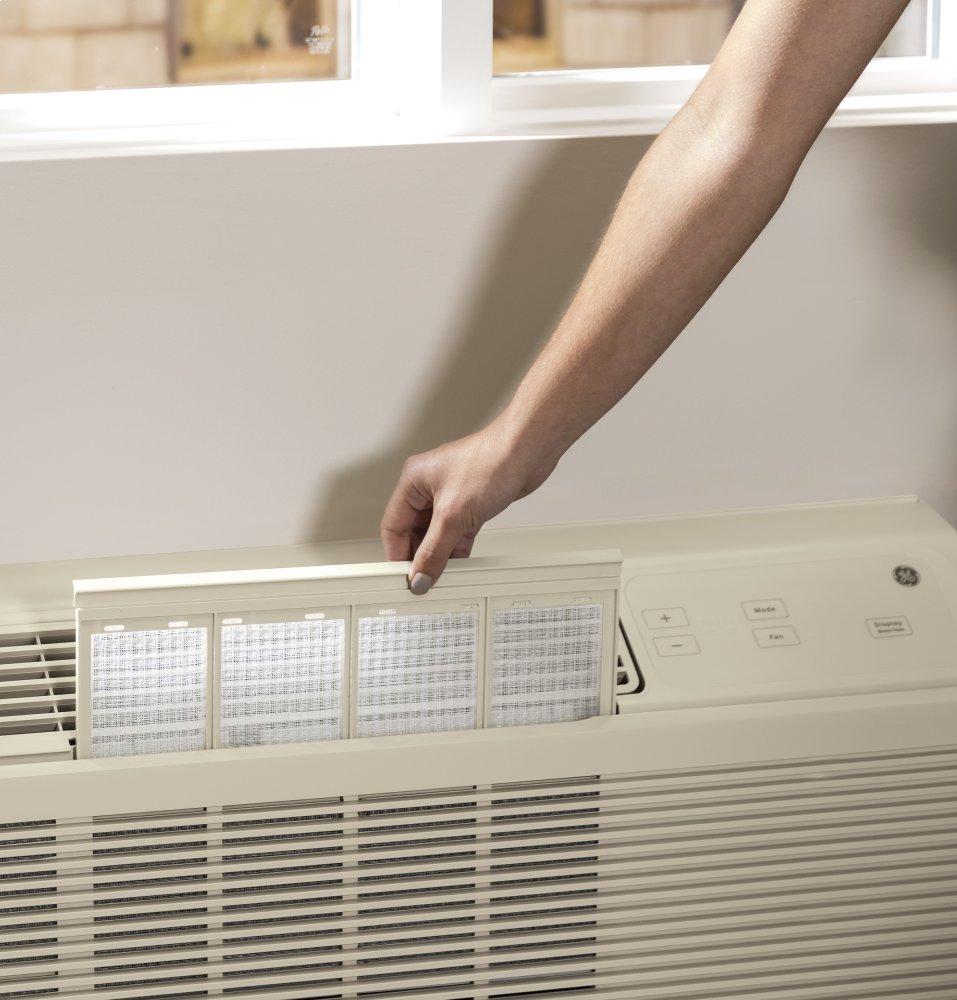

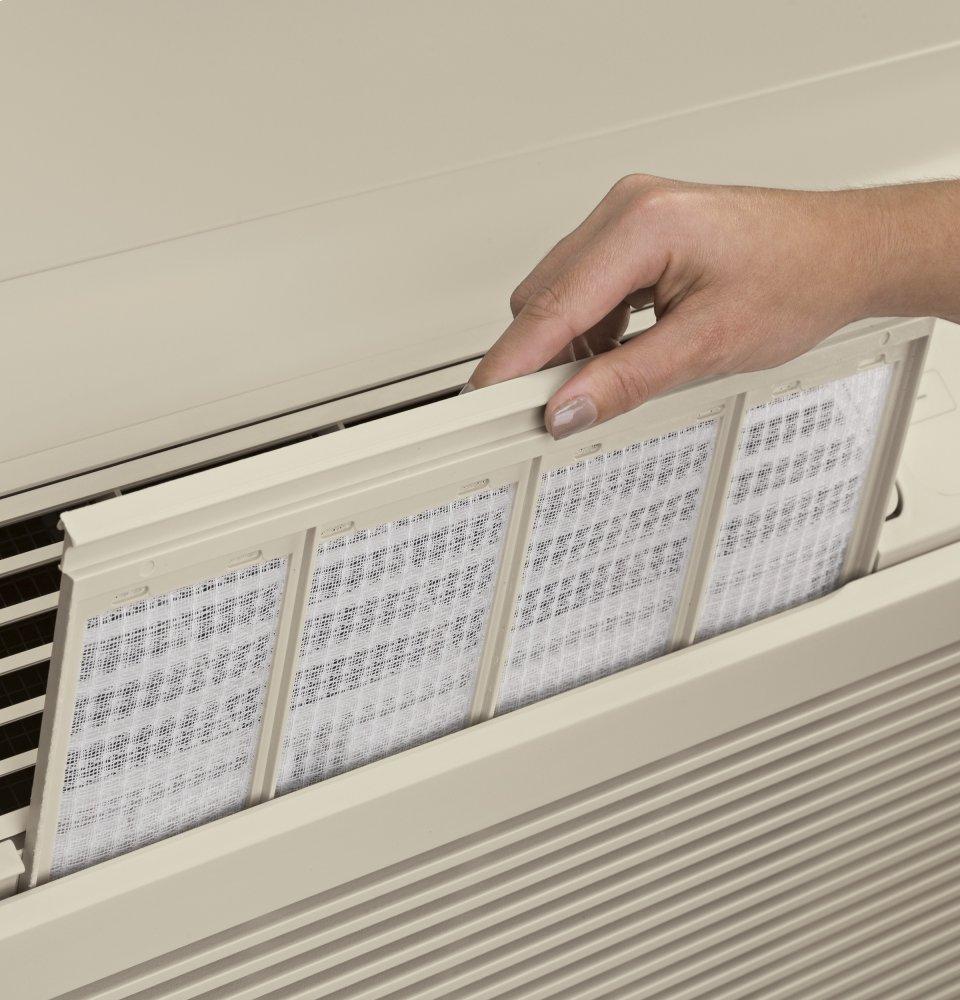

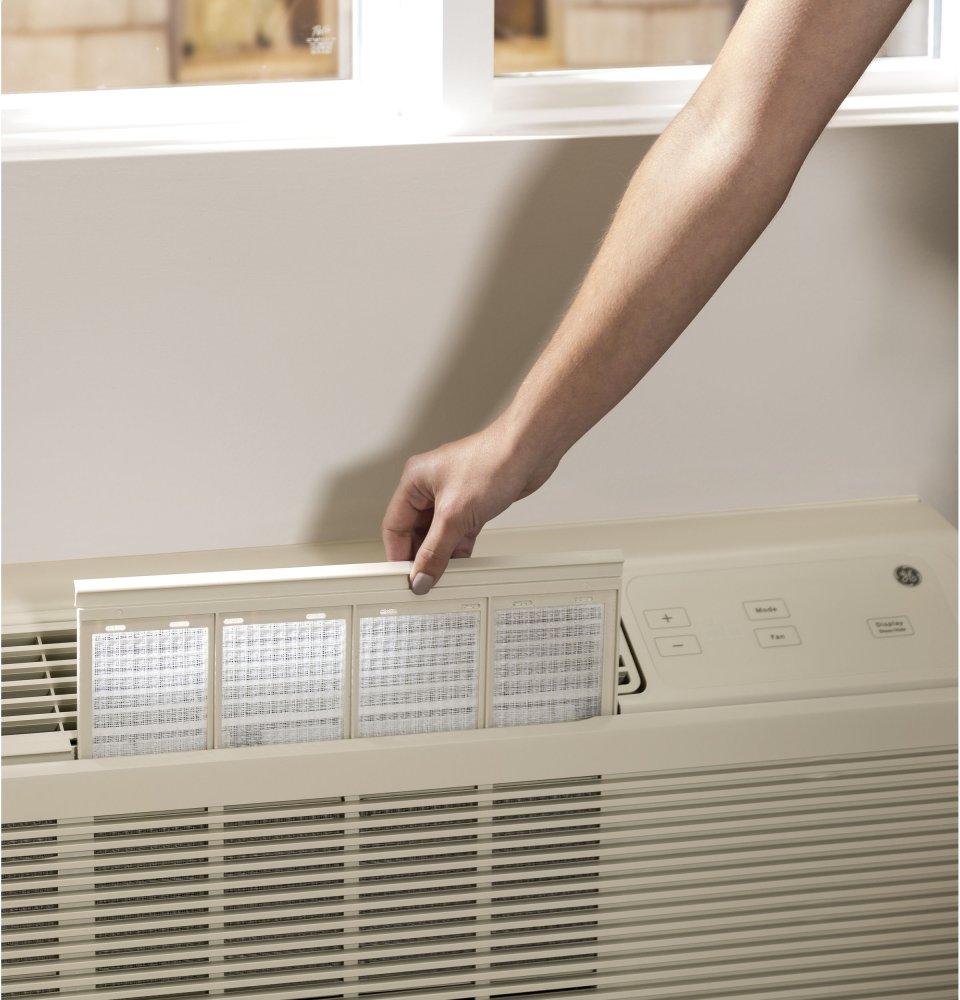

Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Louver Style Reversible
Manual Vent Control Hidden
Rotary Compressor Yes
Temperature Limiting Electronic 7-Step
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Outdoor Vent Control - 3 Positions
Vent Air Filter
Zoneline Features Heat Sentinel
Power Cord (LDCI) included
Proportional - Integral ID Airflow
Quick Heat Recovery
Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Reverse Cycle Defrost
Universal Heaters
Weather Protected Electrical Components
3-Stage Heating Design
Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat
Heating System Heat Pump
Product Type Packaged Terminal Air Conditioners (PTAC)
Temperature Range 60 - 85 F
Sensible Heat Ratio 60%
POWER / RATINGS
Cooling - Amperes; F.L. - Cooling 6.1/6.5
Cooling - Amperes; L.R. 31.5
Cooling - Watts 1355/1335
Heating - Reverse Cycle - Amps 5.2/5.6
Heating - Reverse Cycle - COP 3.3/3.3
Heating - Reverse Cycle - Watts 1190/1180
Power Factor 97
Voltage (MIN) 208.0 V
Voltage (MAX) 230.0 V
WARRANTY
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight 110.0 lb
Overall Depth 20.8125 in
Overall Height 16.0 in
Overall Width 42.0 in
