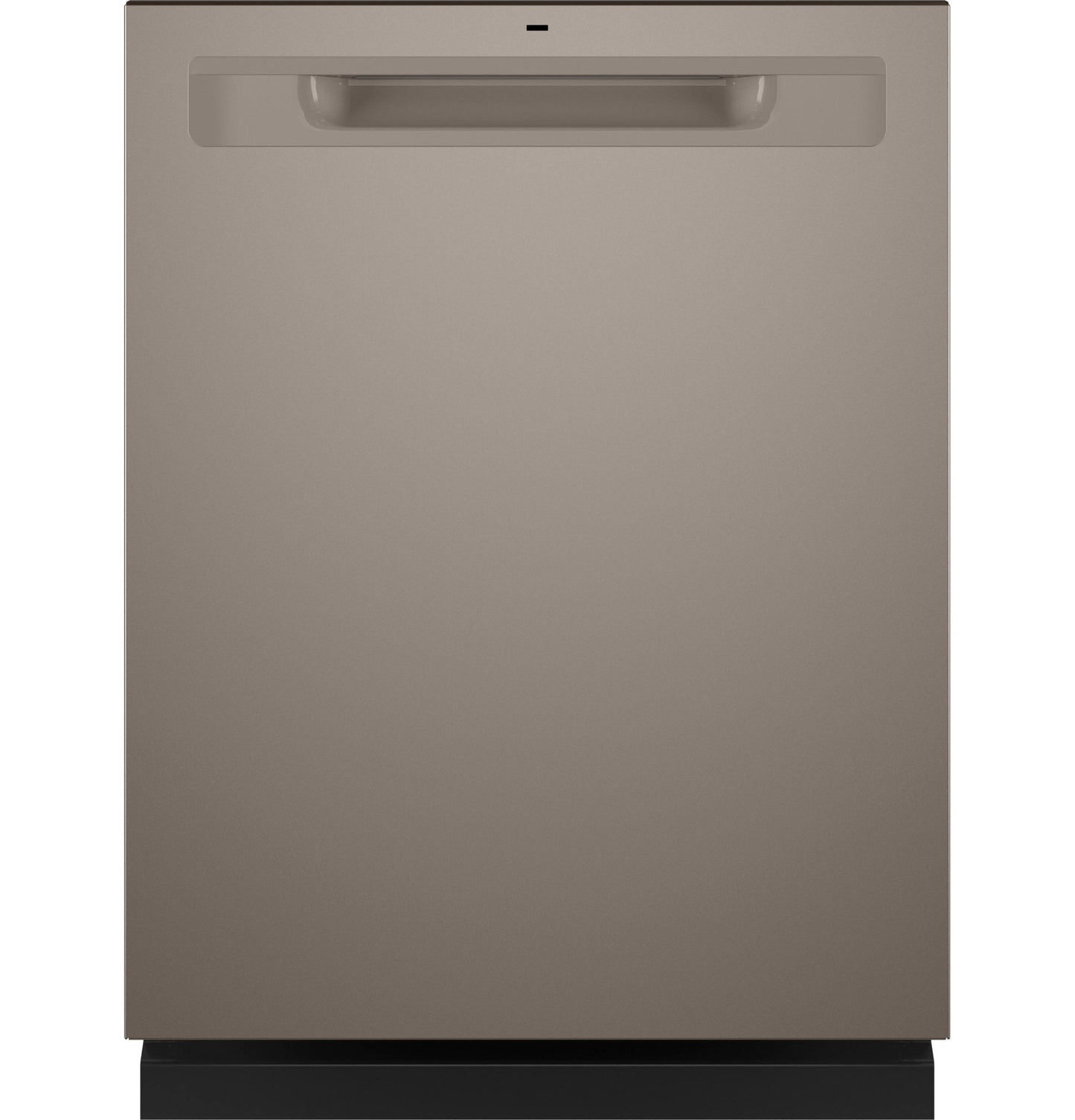

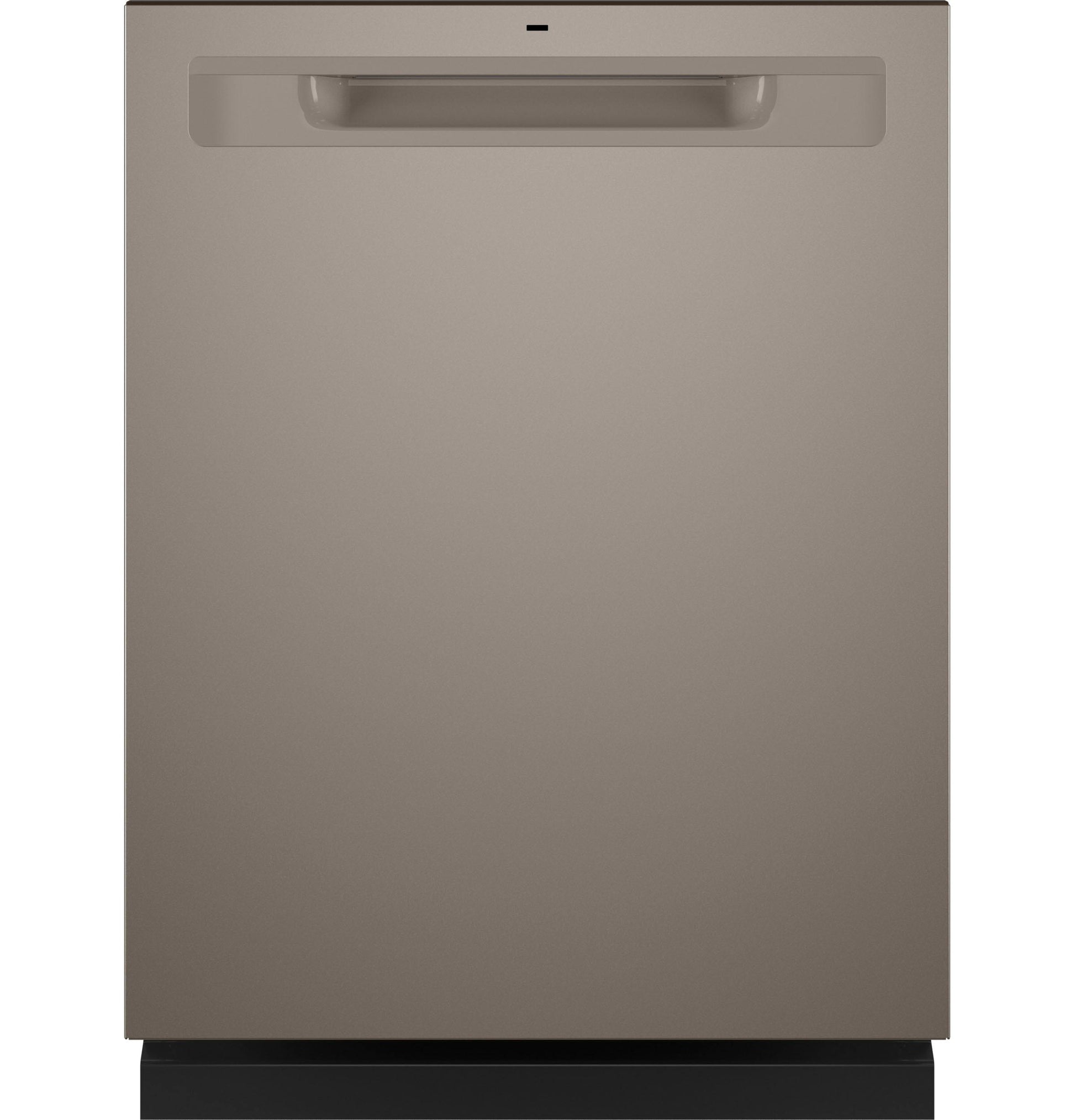

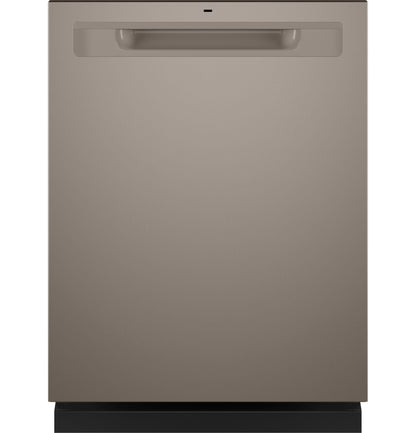

GDP630PMRES GE® ENERGY STAR® Top Control with Plastic Interior Dishwasher with Sanitize Cycle & Dry Boost GDP630PMRES

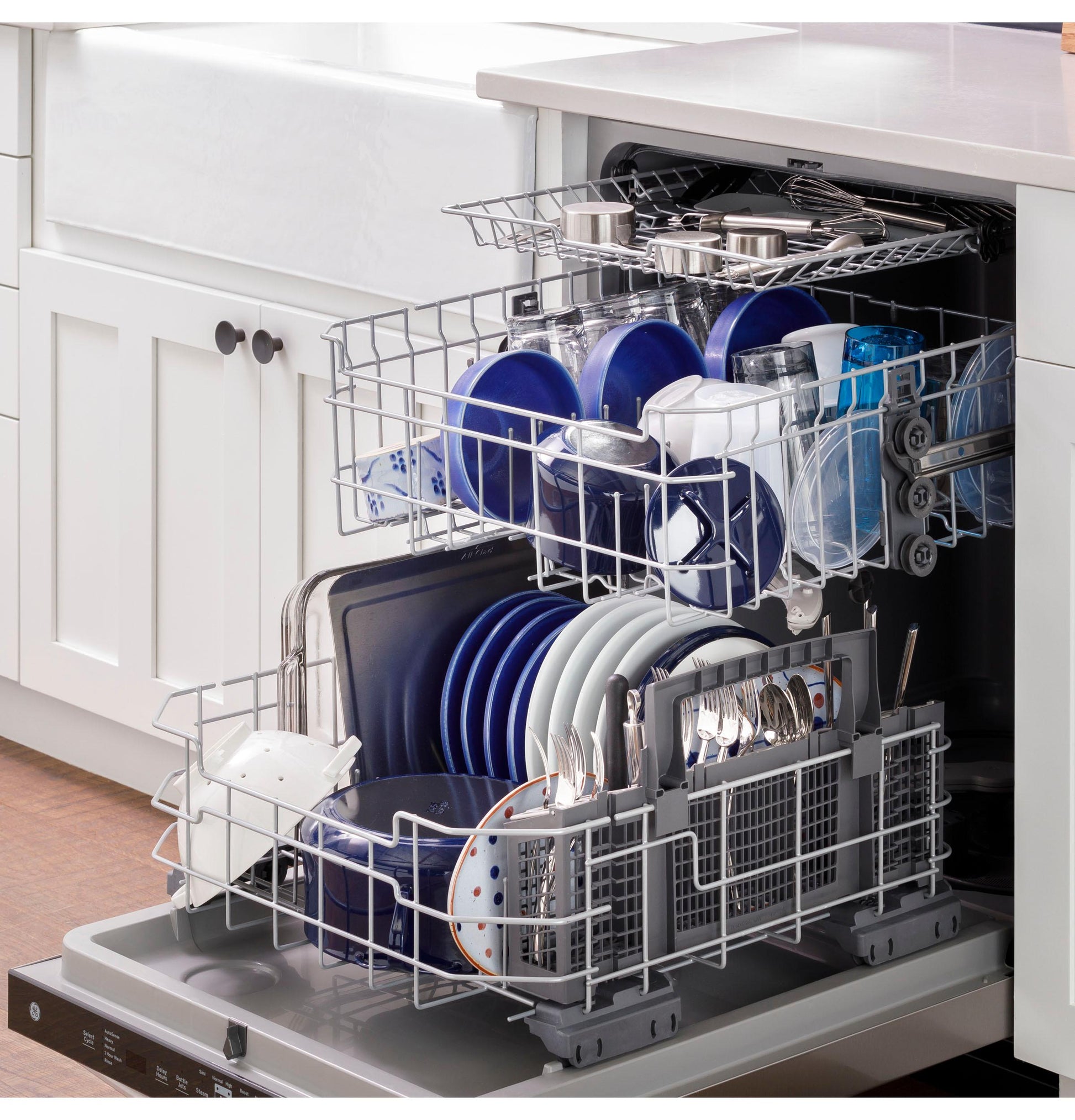

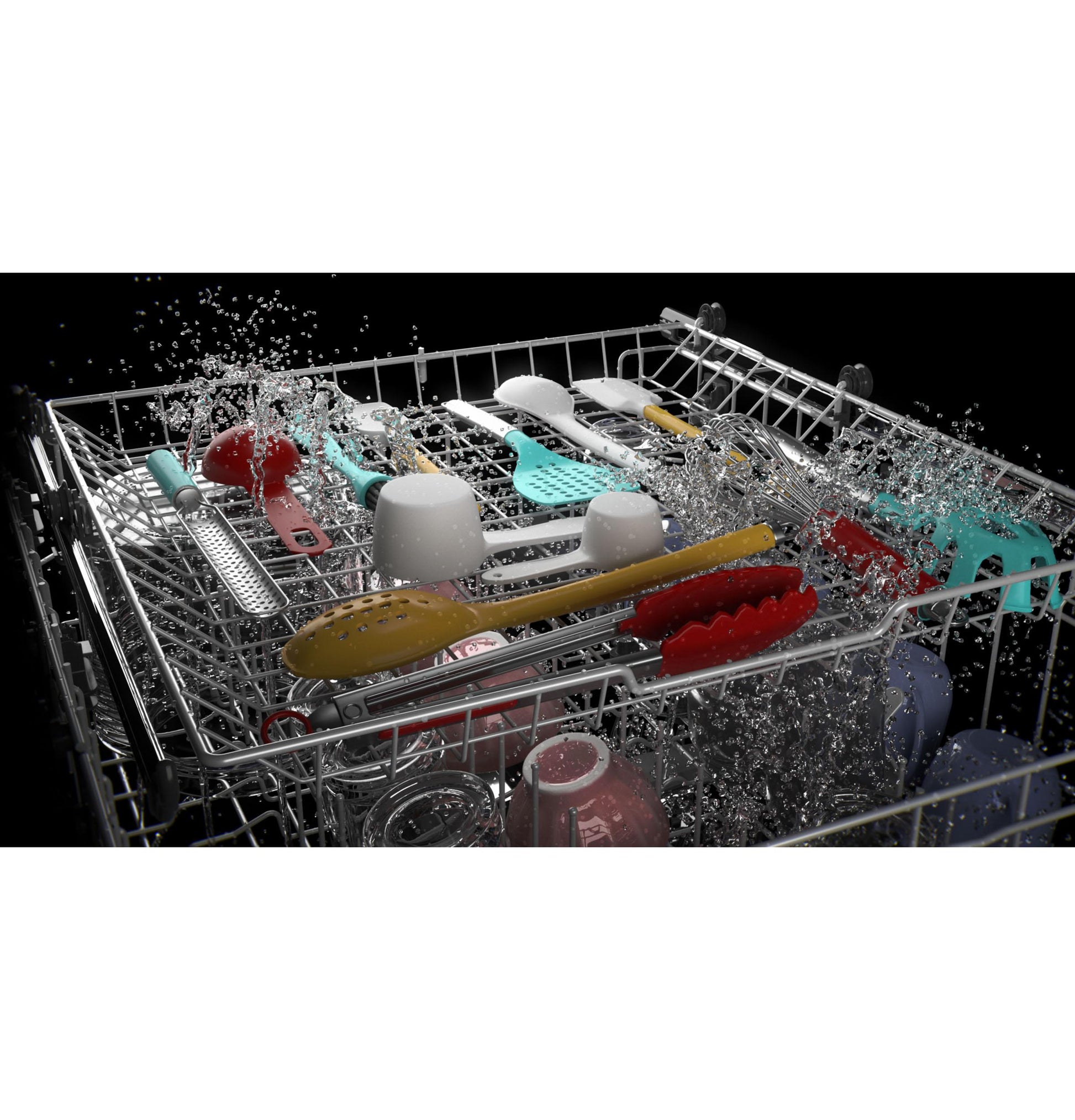

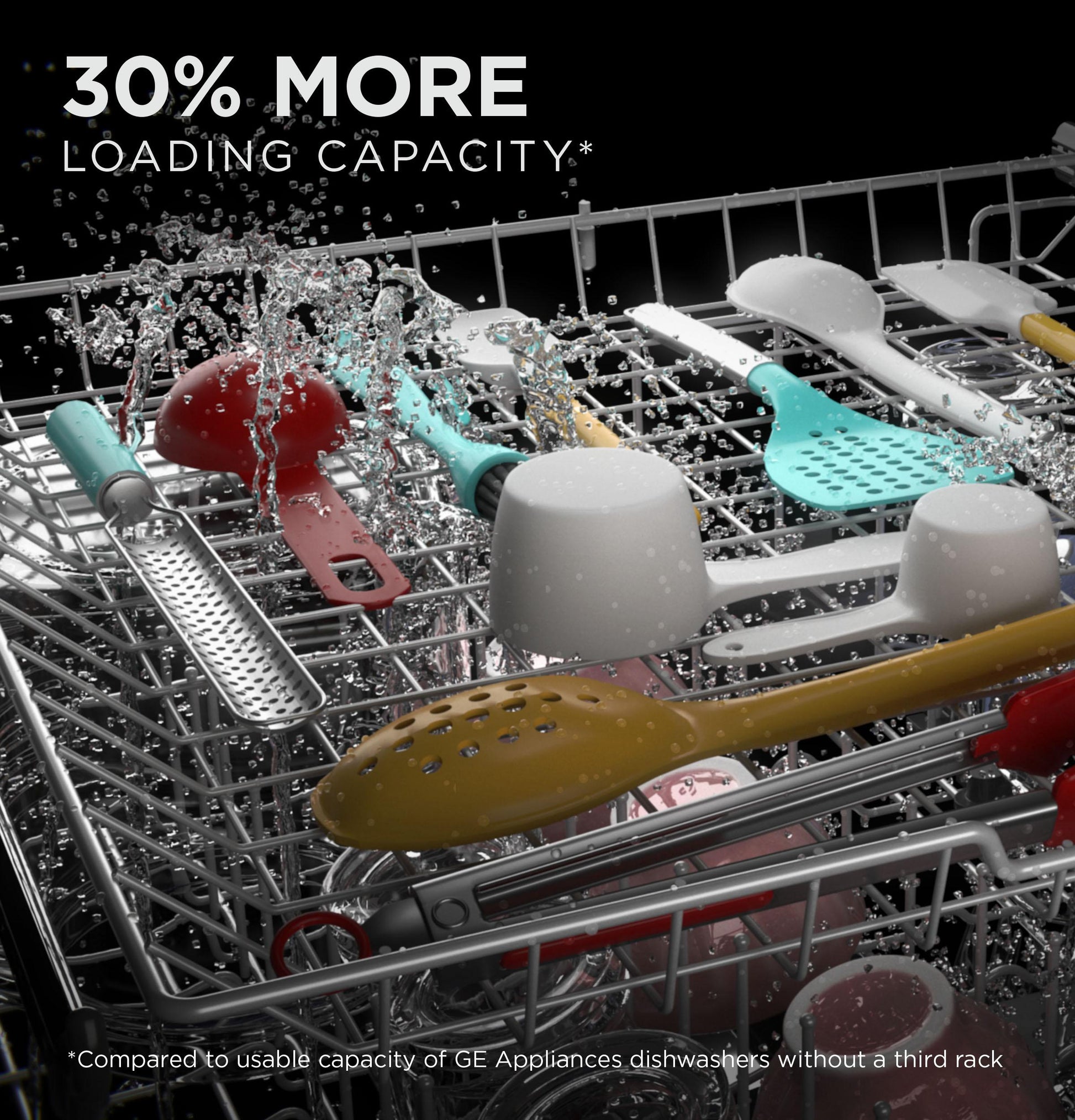

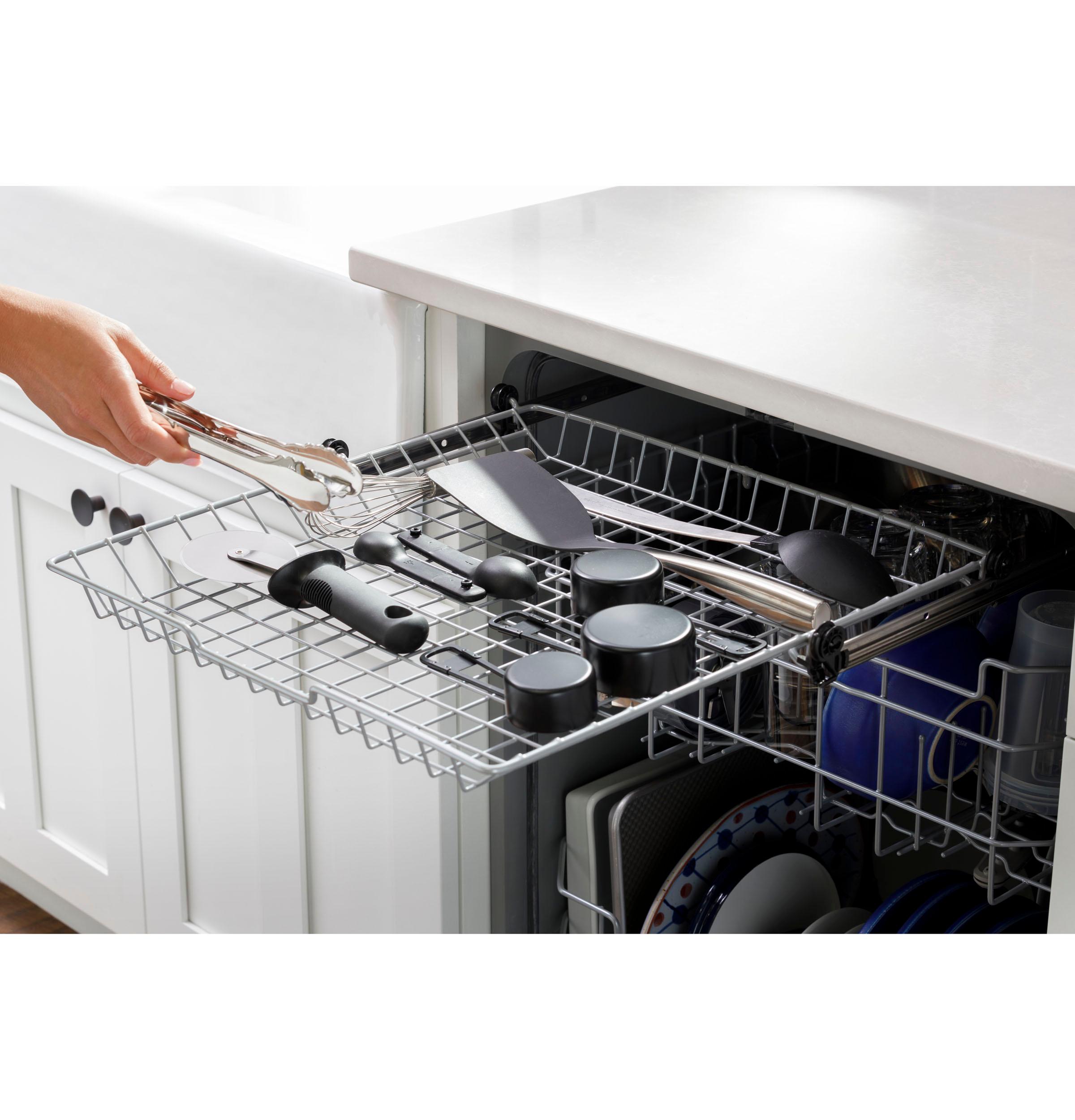

3 Rack Dishwasher
This dishwasher has a third rack without dedicated compartments, giving you extra capacity and flexibility to store everything from lids and serving utensils to small bowls

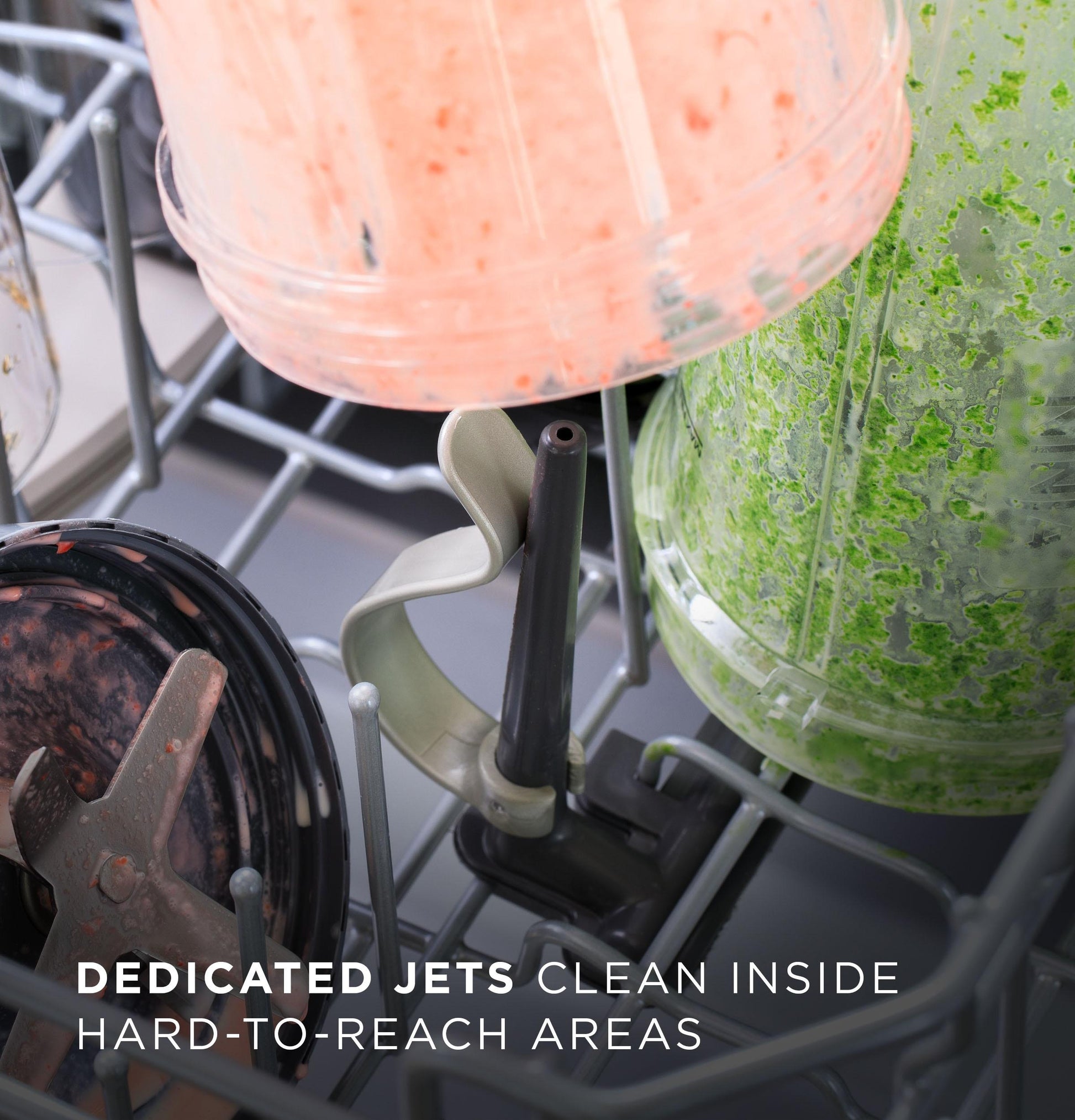

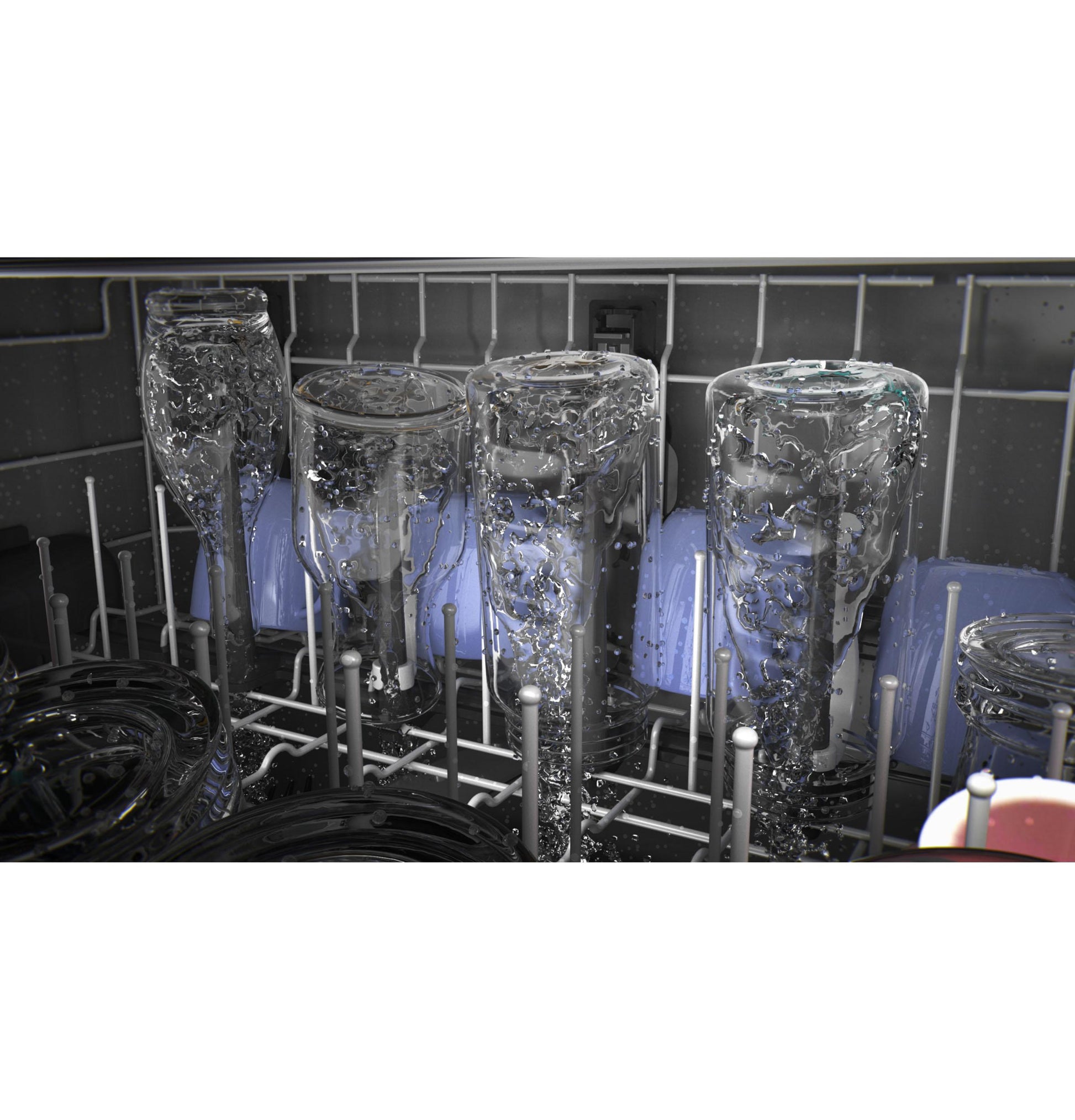

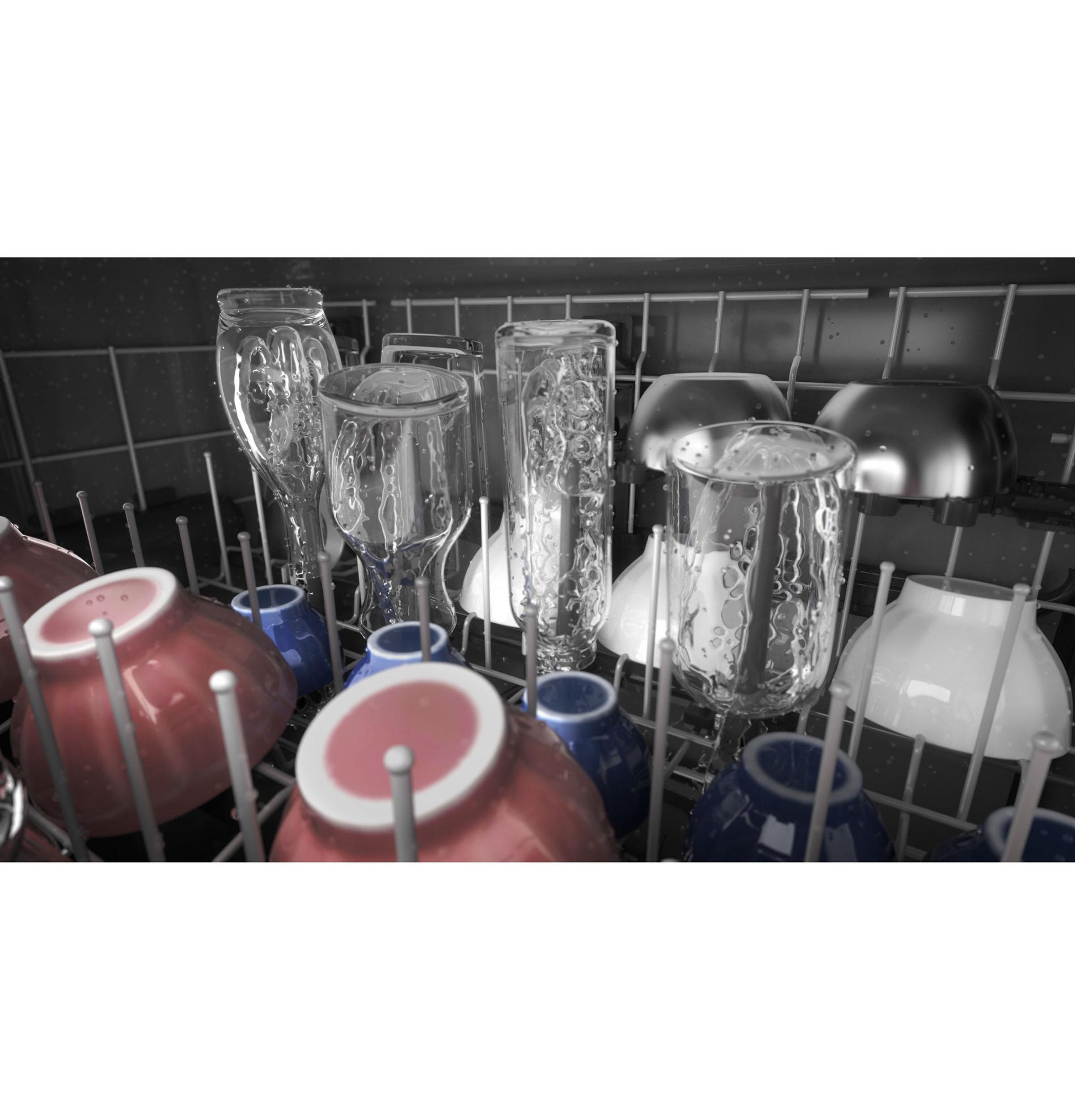

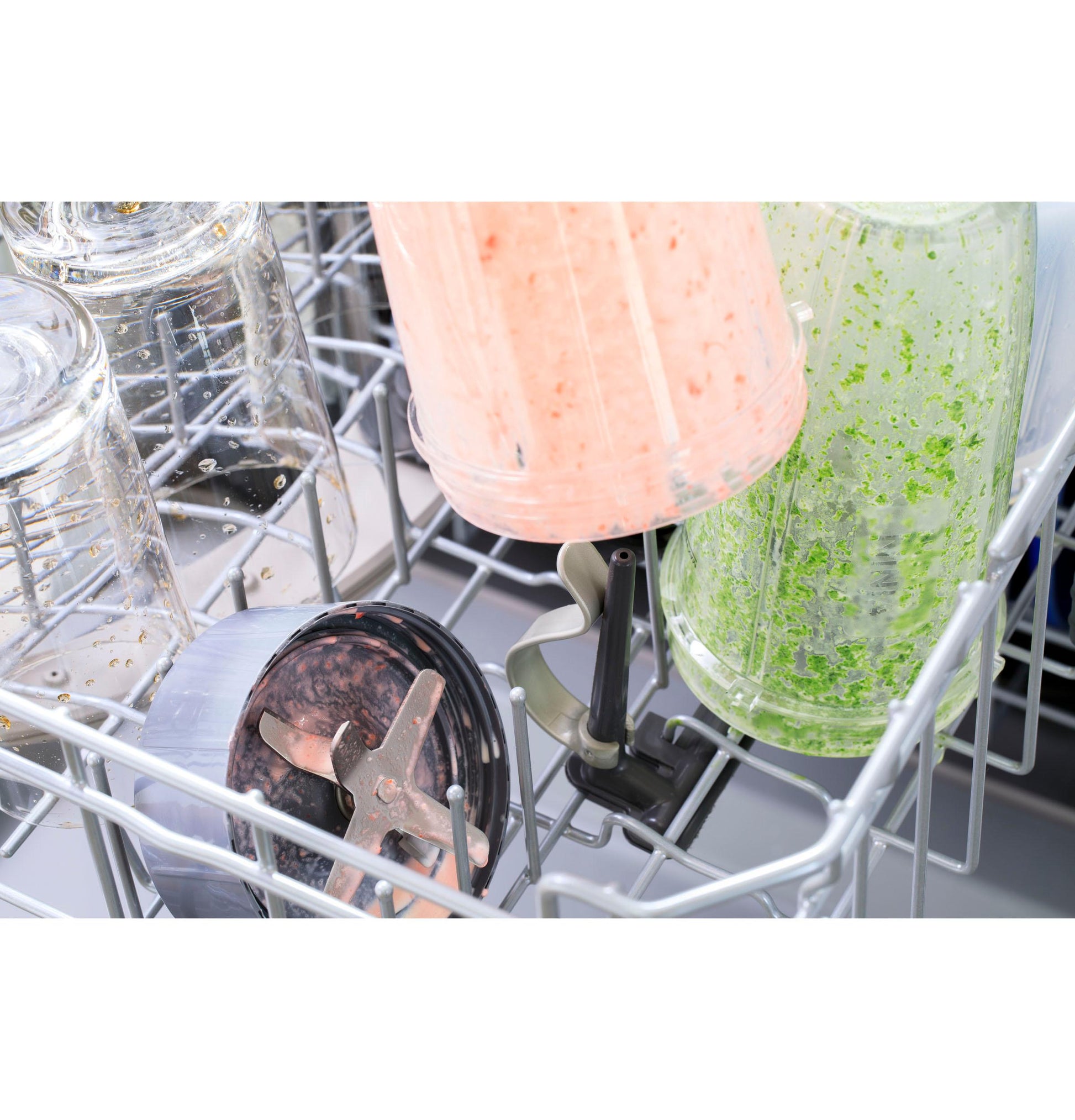

Bottle Jets
This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle jets directs water and detergent inside to effectively wash hard-to-reach areas

Dry Boost™
Dry Boost gets hard-to-dry items like plastics up to 3x drier compared to heated dry

Wash Zone
Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy

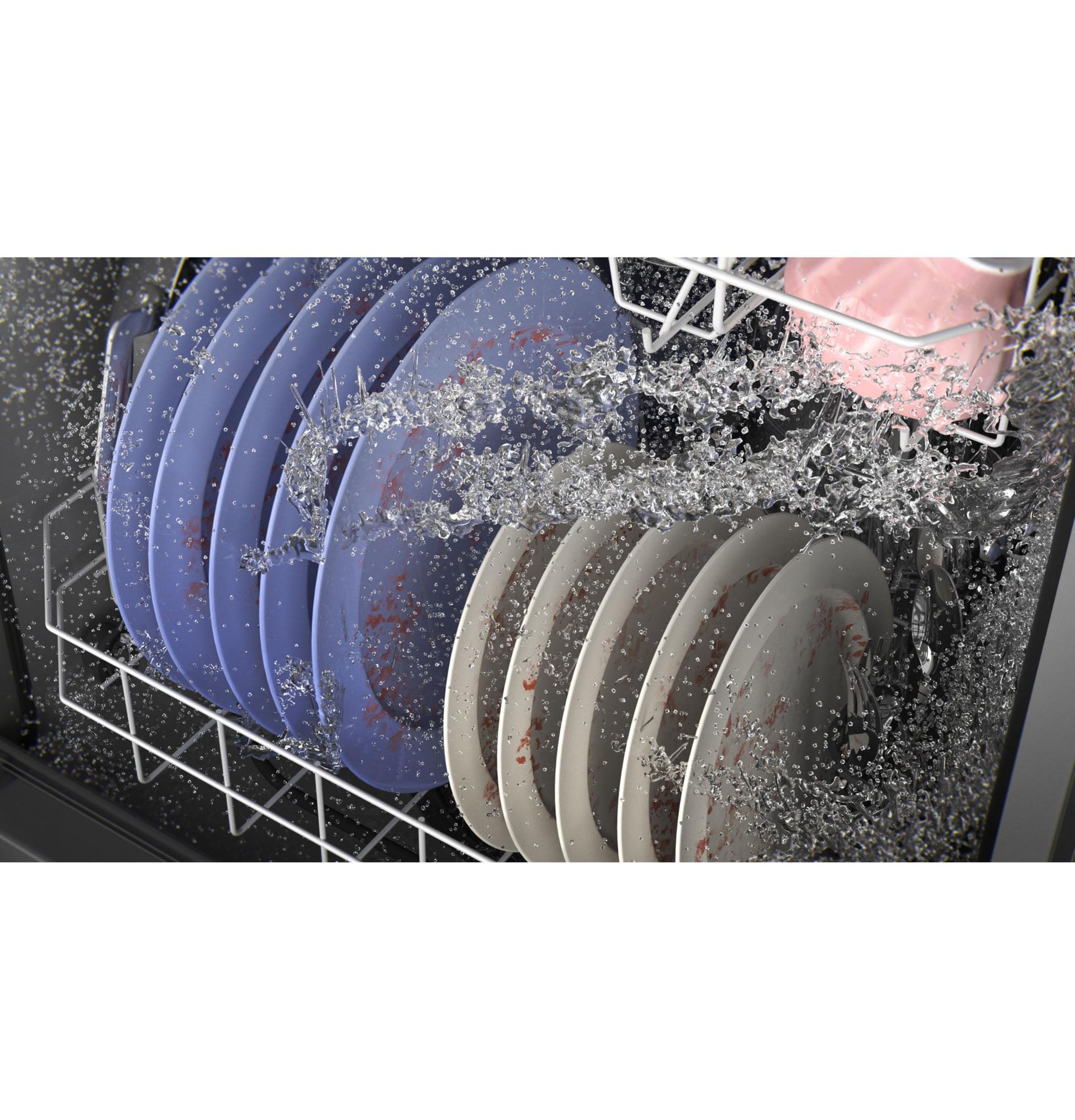

Steam + Sani
Save time with a Steam option that loosens tough soils before the wash cycle begins, so you get a complete clean with no pre-rinsing or soaking necessary. Plus, a Sanitization cycle reduces 99.999% of bacteria on dishes

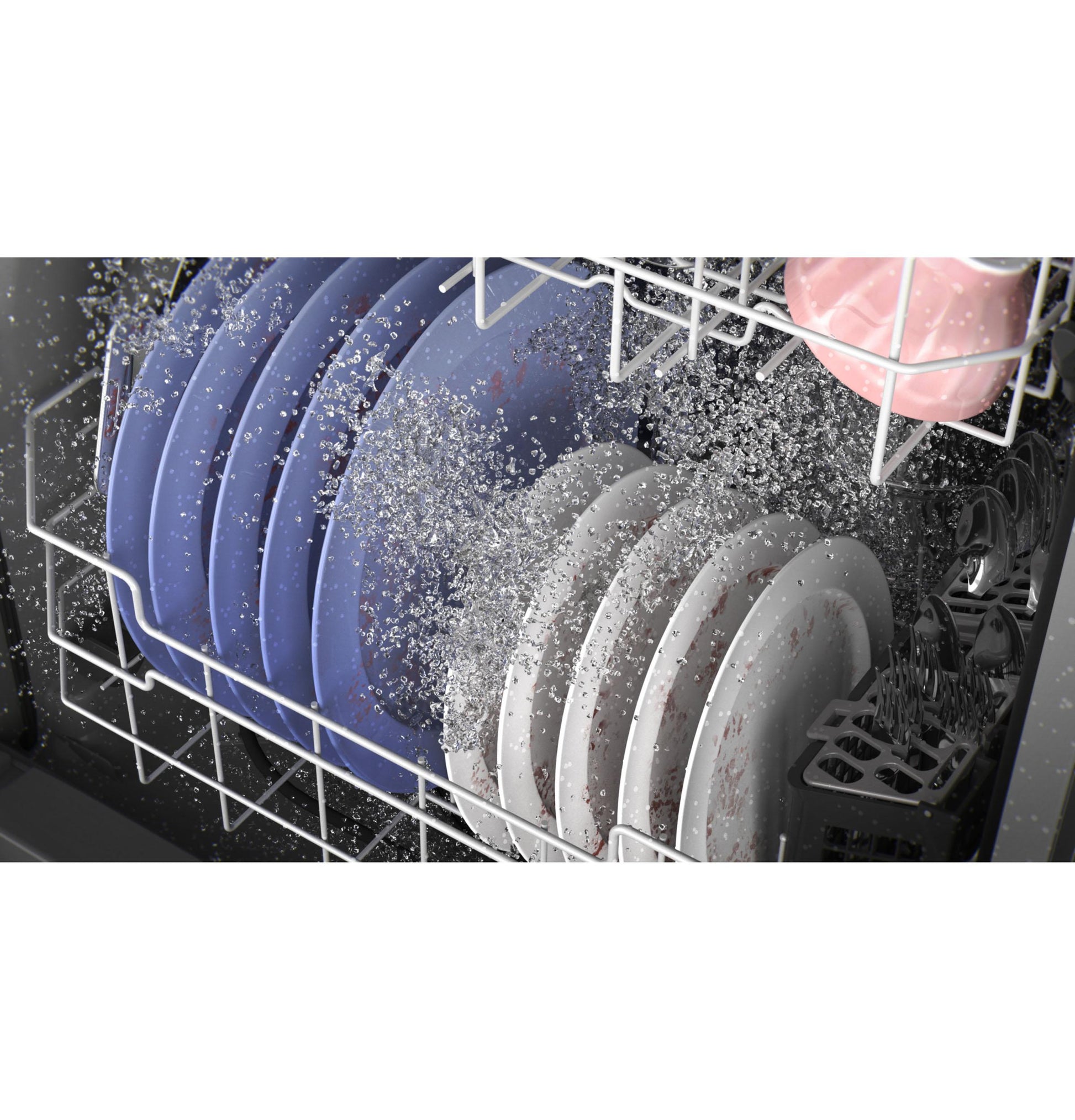

AutoSense Wash Cycle
This energy efficient dishwasher has an AutoSense cycle that detects the soil level and amount of dishes, then automatically adjusts wash settings for the ultimate clean

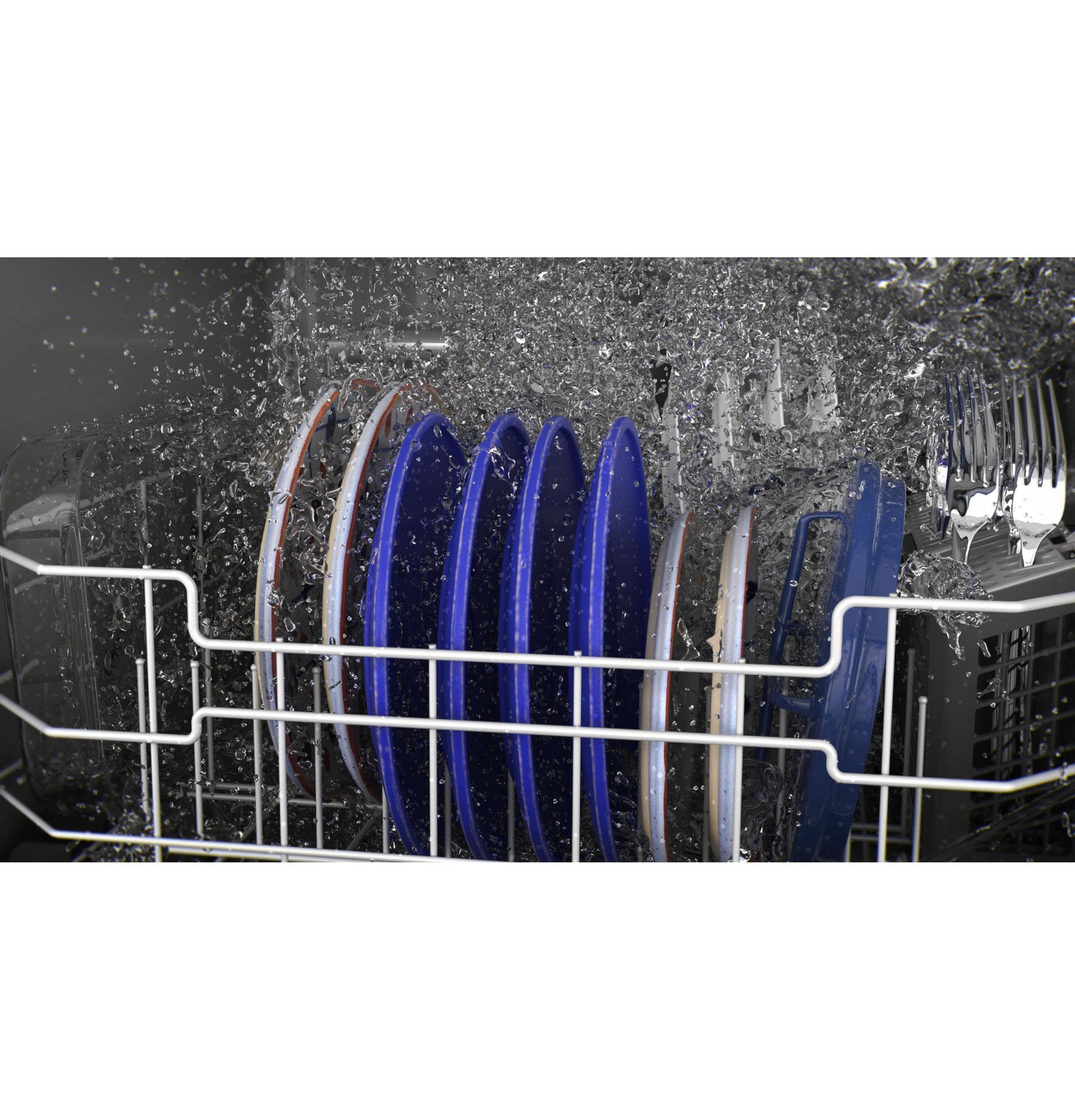

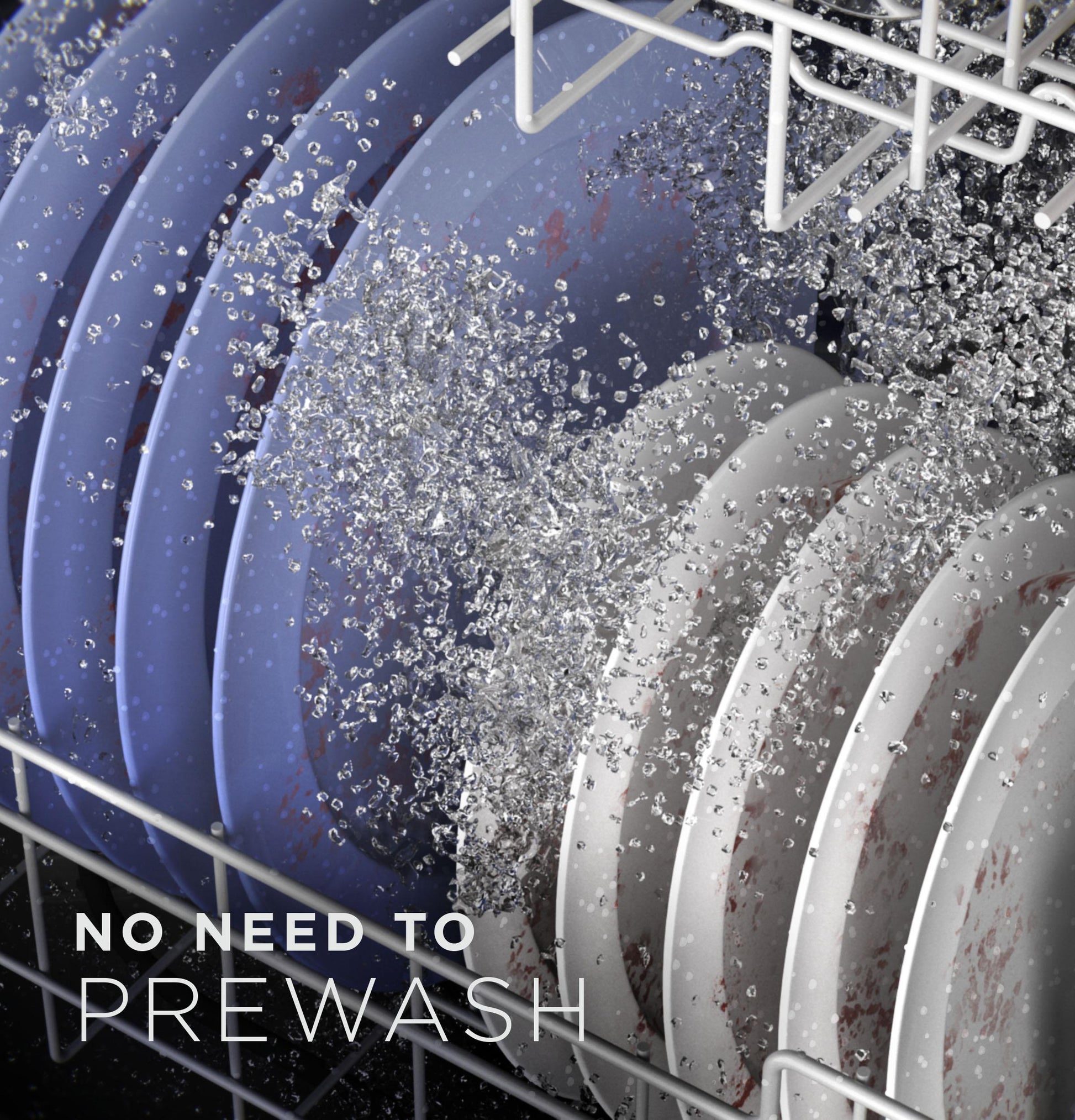

High Wash Performance
Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time

Adjustable Upper Rack
Enjoy flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5

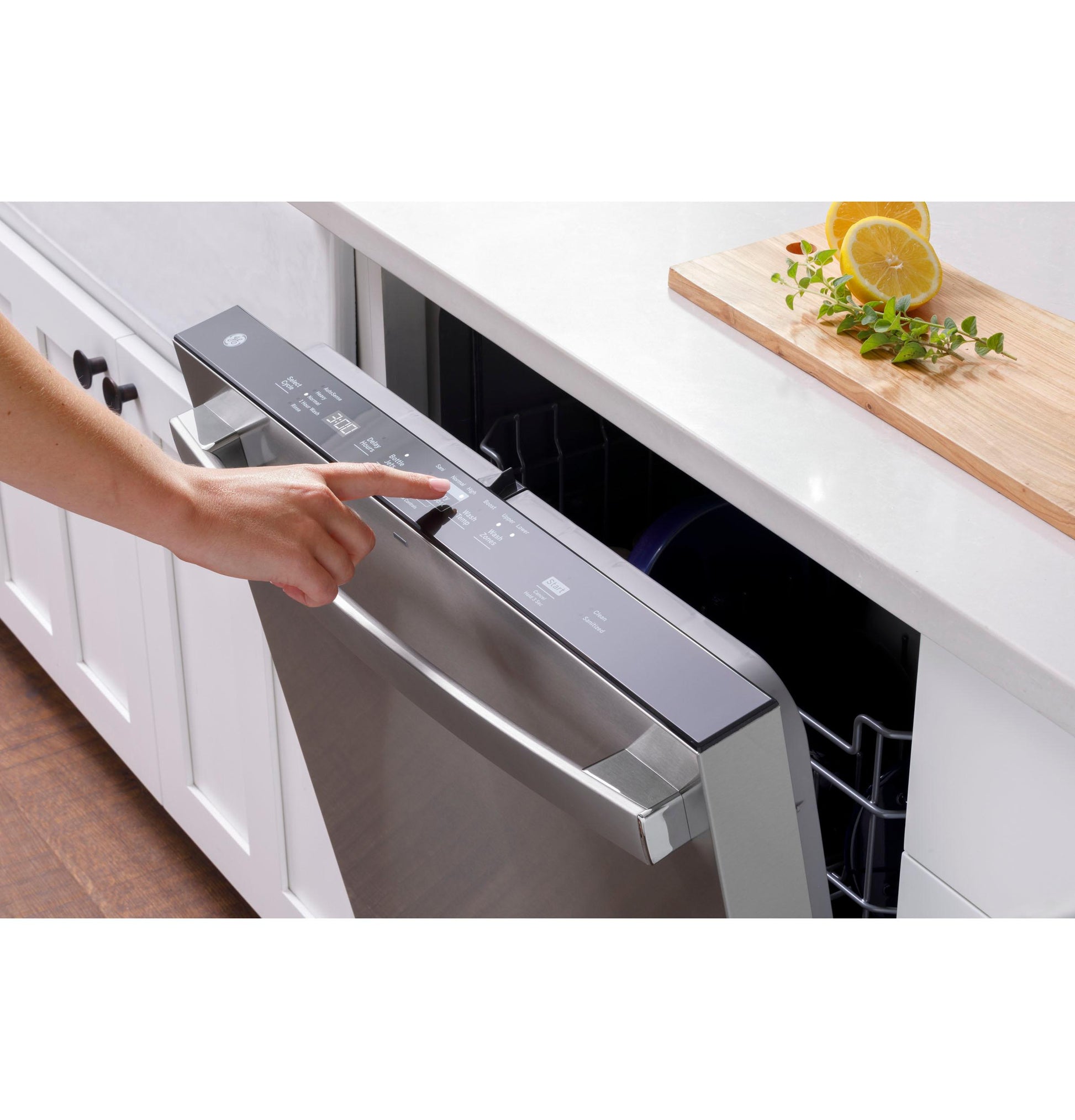

Choose Your Cycle
This dishwasher offers a heavy wash, normal wash, rinse cycle and 1-hour wash cycle for outstanding wash performance and clean dishes every time, no matter the load size

Reliable Performance
This American made dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle

Water Leak Sensor
This dishwasher features Active Flood Protect, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone

Hard Food Disposer
The Piranha™ hard food disposer with a removable filter has a stainless steel blade that rotates at 3,600 RPM, preventing large particles from clogging the wash arms and ensuring consistently clean dishes

ENERGY STAR® Dishwasher
This efficient, ENERGY STAR® dishwasher saves energy without sacrificing features or functionality

Quiet 50 dBA Dishwasher
This quiet dishwasher provides a powerful clean without unwanted noise or disturbances. A status light on the door lets you know when it's running

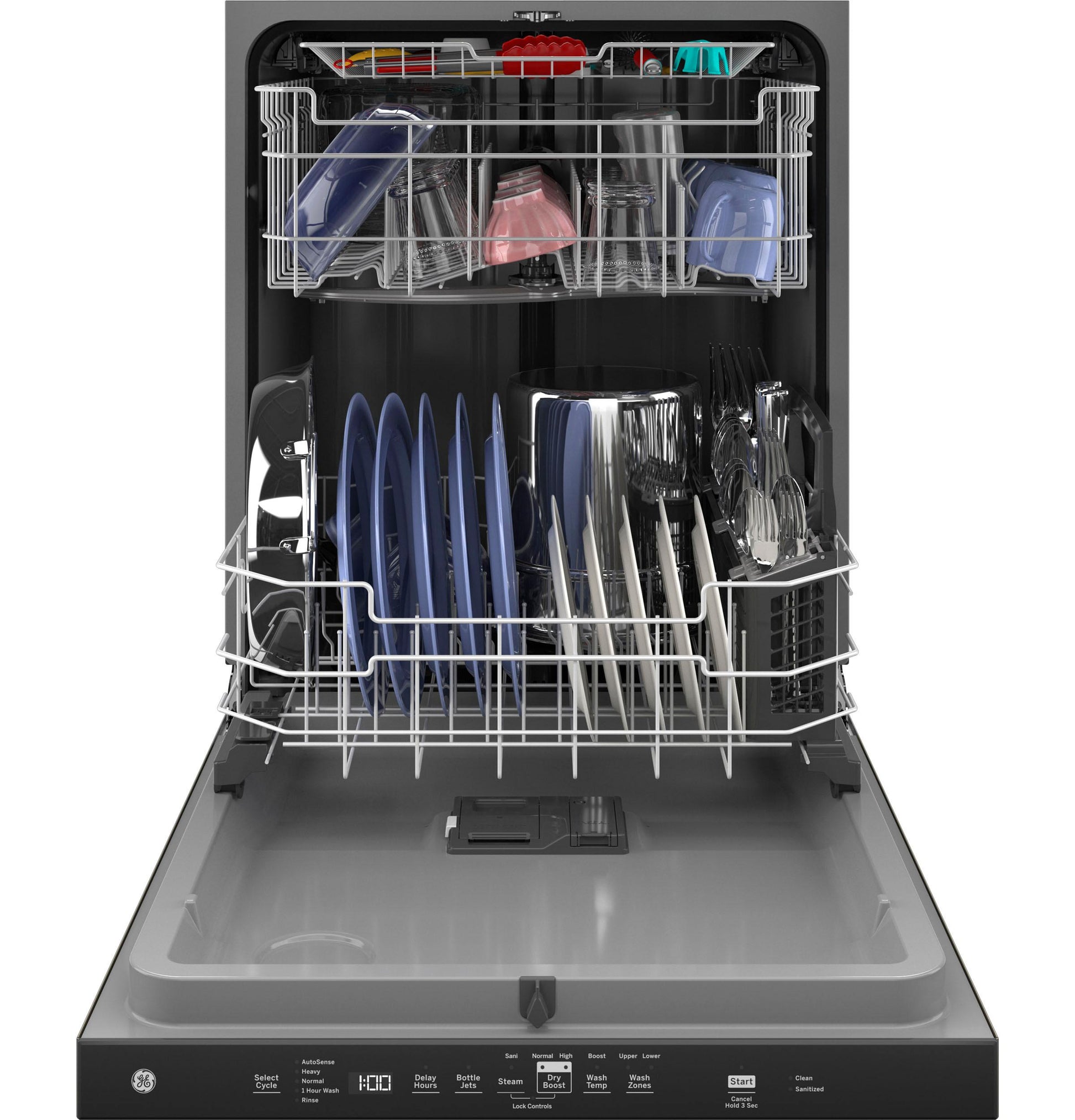

Extra Large Capacity
This extra large capacity dishwasher has enough space for 14 place settings and large dishware, making cleanup easy after gatherings

FILTER
App Filter - Cabinet Width	Dish Traditional 24 in.
App Filter - Stainless Steel Interior	No
App Filter - Product Type	Dish Built-In Top Control
App Filter - WiFi Connect	Optional
App Filter - Food Disposer	Yes
App Filter - Bottle Wash	Yes
APPEARANCE
Handle	Pocket Handle
Installation	Built-Up Floor Capable Side Installation or Top Installation Included
Handle Color	Fingerprint Resistant Slate
Door Style	Flat Door
Door Appearance	Full-length flat door
POWER / RATINGS
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)	240
Electrical Requirements	120V ; 60Hz ; 7.1A
Calrod Heater Watts	800/500
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Quiet Package	50 dBA
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	33.375 in
Cutout Height (in)	33 1/2 in
Cutout Width (in)	24 in
Overall Depth	24 in
Cabinet Width	24 in
Net Weight	60 lb
Overall Width	23.75 in
Approximate Shipping Weight	74 lb
Overall Height	33.375 in
Cutout Depth (in)	24 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	27.5 in
FEATURES
Wash System	3-Level
Sensor	Clean Sensor
Tub Type	Tall Tub
Leveling System	4 Leveling Legs
OU Certified	No
Number of Place Settings	16
Dishwasher Options	Bottle Jets Delay Start 1-12 Hr. with Countdown Dry Boost™ (High) Dry Boost™ (Normal) Lock Controls Sabbath Mode Start/Reset Steam + Sani (Certified to NSF Standard 184) Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only
Latch	Center Pull
Number of Options	8
Style	Built-In Top Control
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
Cutlery Tray	One piece removable 3rd rack
Rack Features	1 Piece Silverware Basket with 3 Cell Covers Ball-Tipped Tines Full 3rd Rack
Dishwasher Cycles	1 Hour Wash AutoSense Heavy Wash Normal Wash Rinse
Rack Color	Silver
Dispenser	Detergent Rinse Aid
WiFi Connect	Optional (Requires part no. PBX23W00Y1)

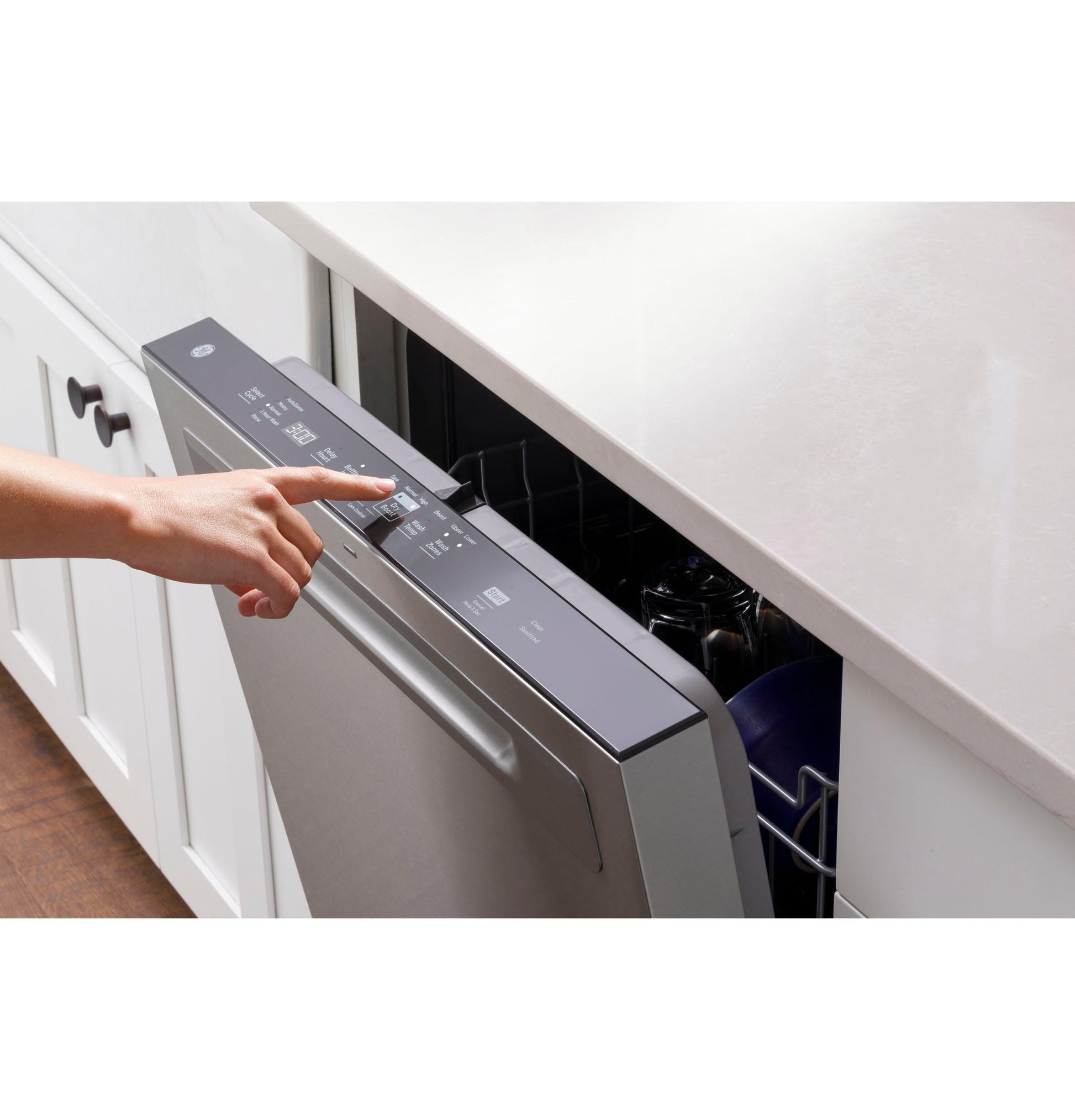

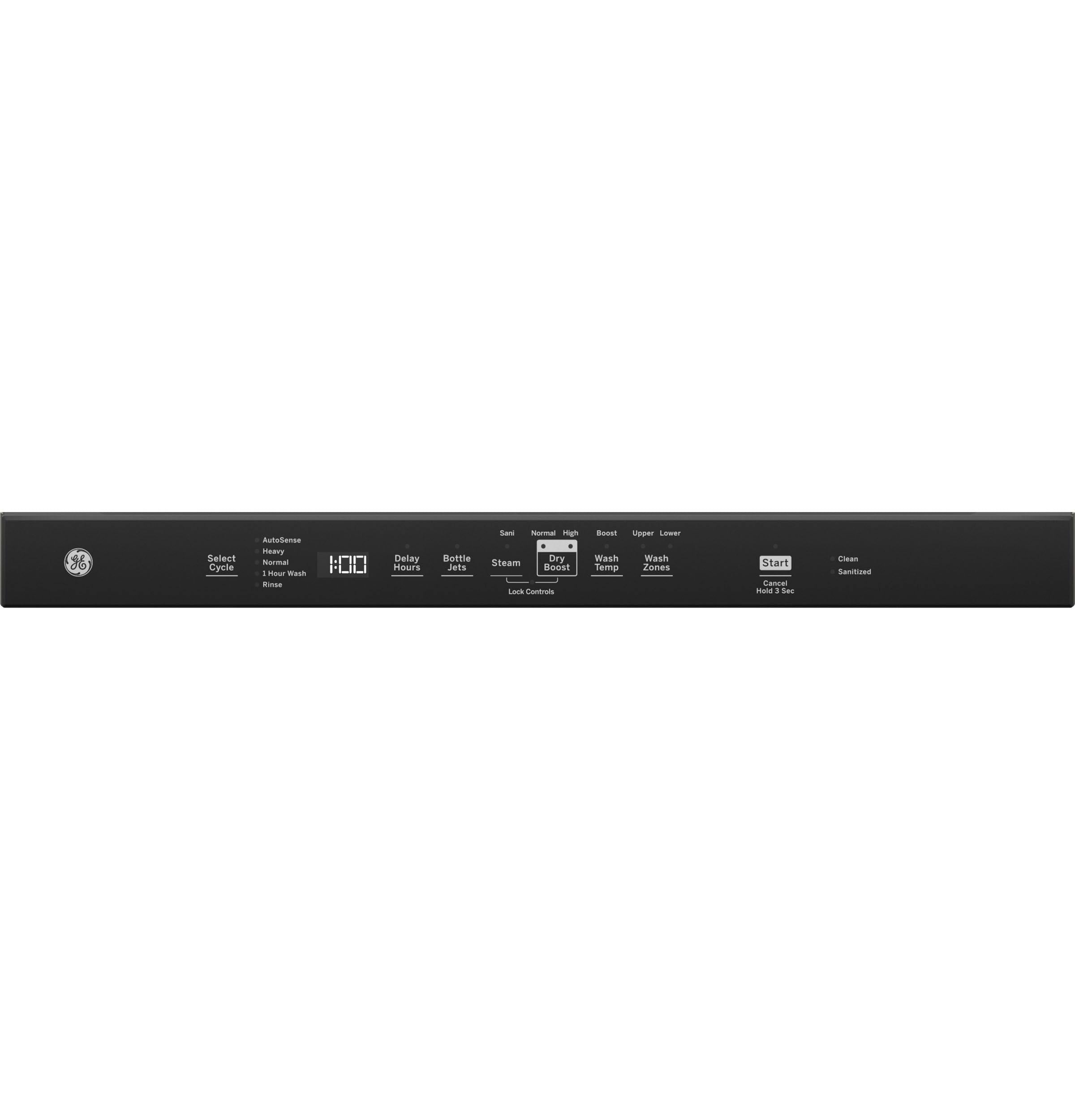

Control Type	8 Touchpads Cap Touch Controls Top Controls
Racking System	Full 3rd rack
Dishwasher Drying Features	Calrod Heater Dry Boost™
Wash Arms	Lower Middle Upper
Wash System Features	Active Flood Protect Automatic HotStart Automatic Temperature Control Fill Level Pressure Sensor Piranha™ Hard Food Disposer with removable filter
Exterior Style	Traditional
Active Flood Protection	Active Flood Protect
Product Type	Built-In
Upper Rack	Adjustable Removable
Dishwasher Control Features	3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Last Cycle Memory
Number of Cycles	5
Tub and Door Liner	Gray Plastic
Sabbath Mode	Yes
Showroom Power Mode	Yes
