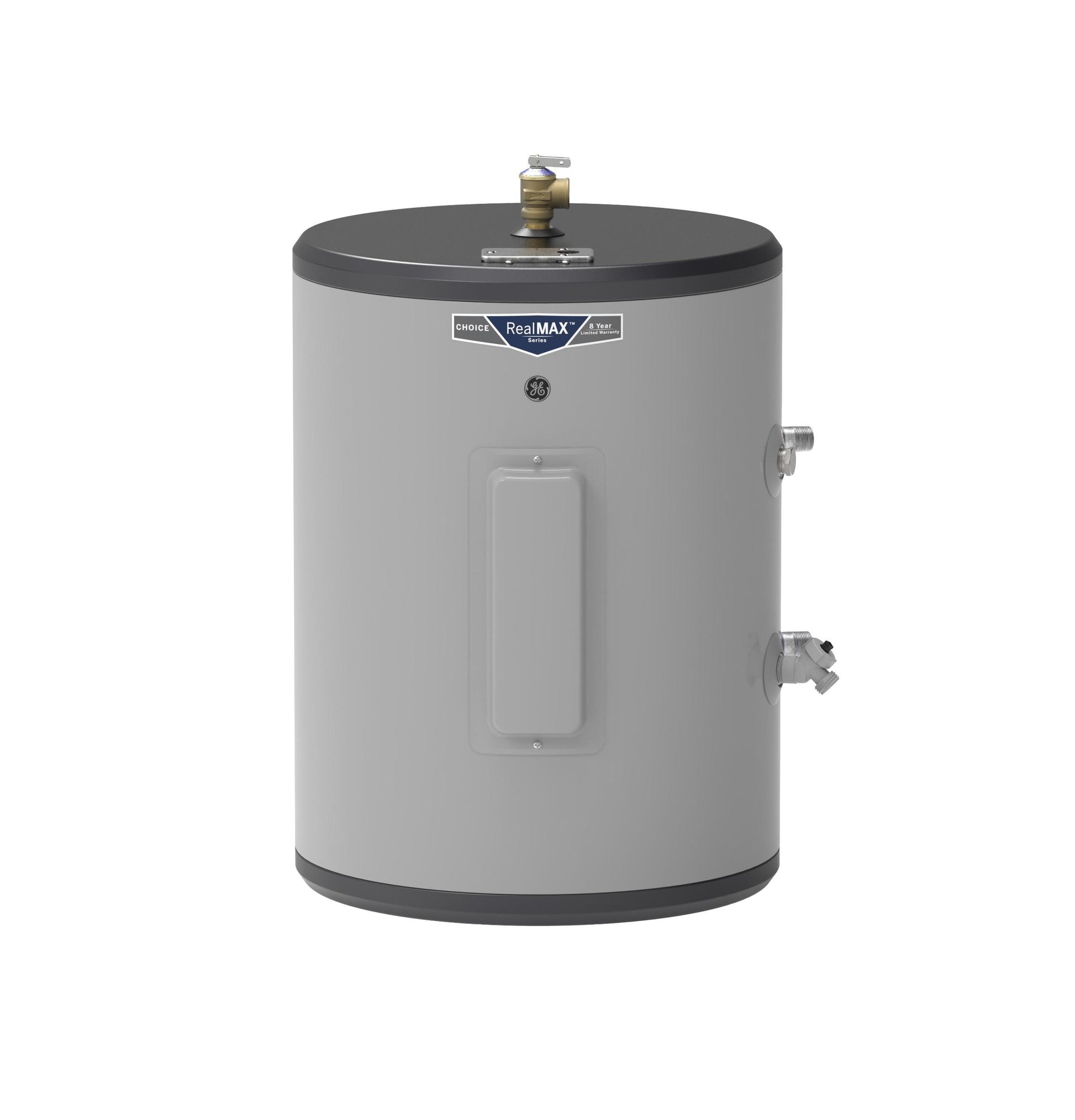

GE20L08BAR GE® 18 Gallon Side Port Lowboy Electric Water Heater
GE20L08BAR GE® 18 Gallon Side Port Lowboy Electric Water Heater
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Lowboy
- Quick Recovery
- Household Size
- Inlet Tube
- Easy Set Up
- Anode Rod
- Drain Valve
- Adjustable Thermostat

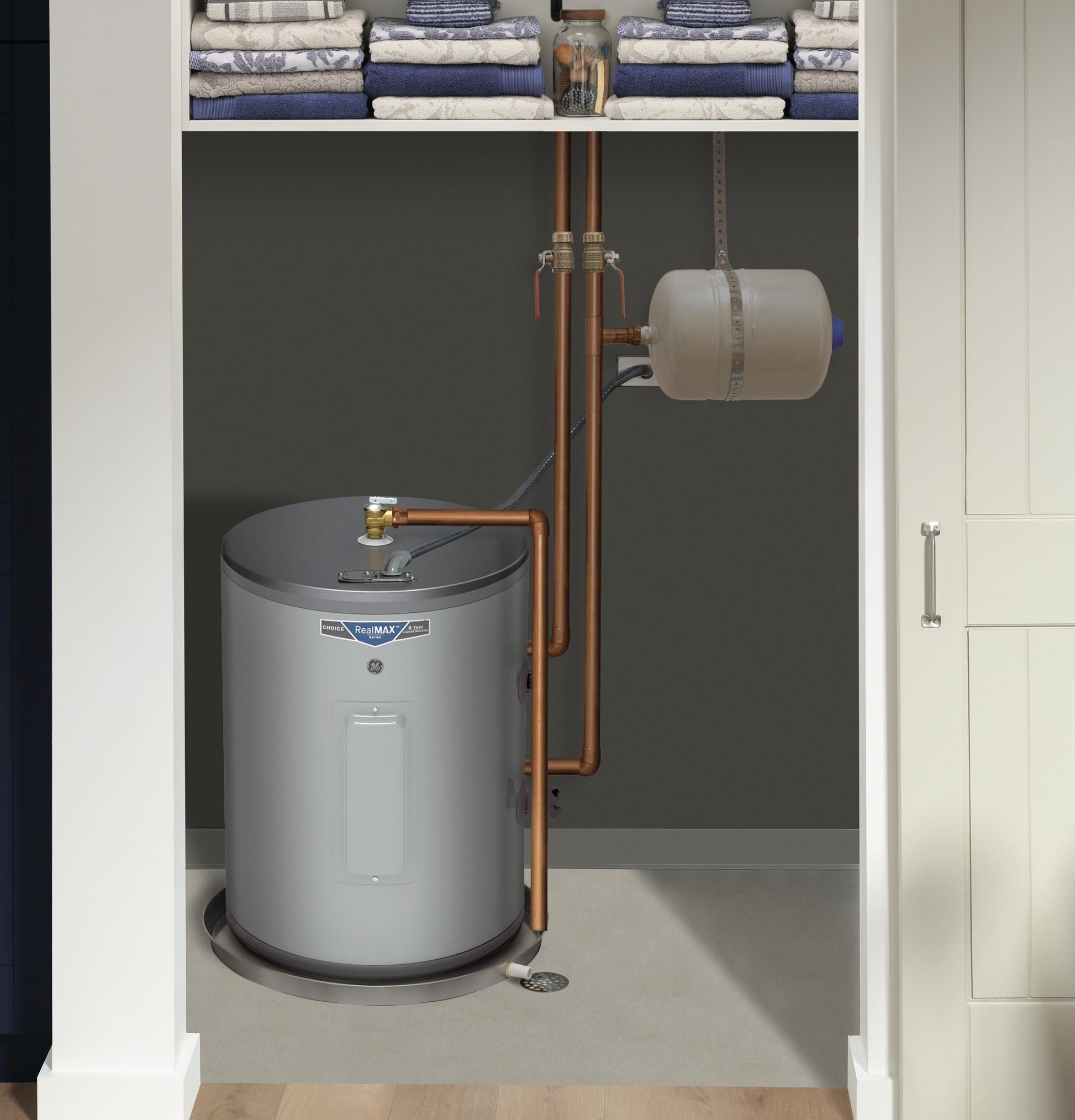

Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Quick Recovery
3800W heating element quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 1 to 2 persons
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
Make the most of tight spaces with a water heater that fits where height is a concern
Quick Recovery
3800W heating element quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 1 to 2 persons
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
| CAPACITY | |
| Unit Capacity | 18 Gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Heating - Electric - Heater Watts | 3800 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 51.470588 in |
| Approximate Shipping Weight | 62 lb |
| Overall Width | 19.25 in |
| Overall Height | 25.75 in |
| Product Height (to top of unit) | 25.75 in |
| Net Weight | 54.2 lb |
| Product Diameter | 19.25 in |
| Overall Depth | 19.25 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| Control Type | Thermostat |
| Controls | Mechanical Temperature Control |
| Mounting Type | Floor |
| Max. operating pressure (psi) | 150 |
| Temp & Pressure Relief Valve | Yes |
| Rated Capacity | 18 gal |
| Height Description | Low Boy with Side Port |
| Heating Element | Stainless steel |
| Max: operating pressure (psi) | 150 |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 18 |
| Drain Valve Type | Plastic |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Product Type | Electric Thermostat |
| Family Size | 1-2 People |
| Water Connection Location | Side |
| Foam Insulation | Yes |
| Point of Use | No |
| Anode Rod | Aluminum |
| Temperature Setting | 90-150° F Range Factory Default 120° F |
