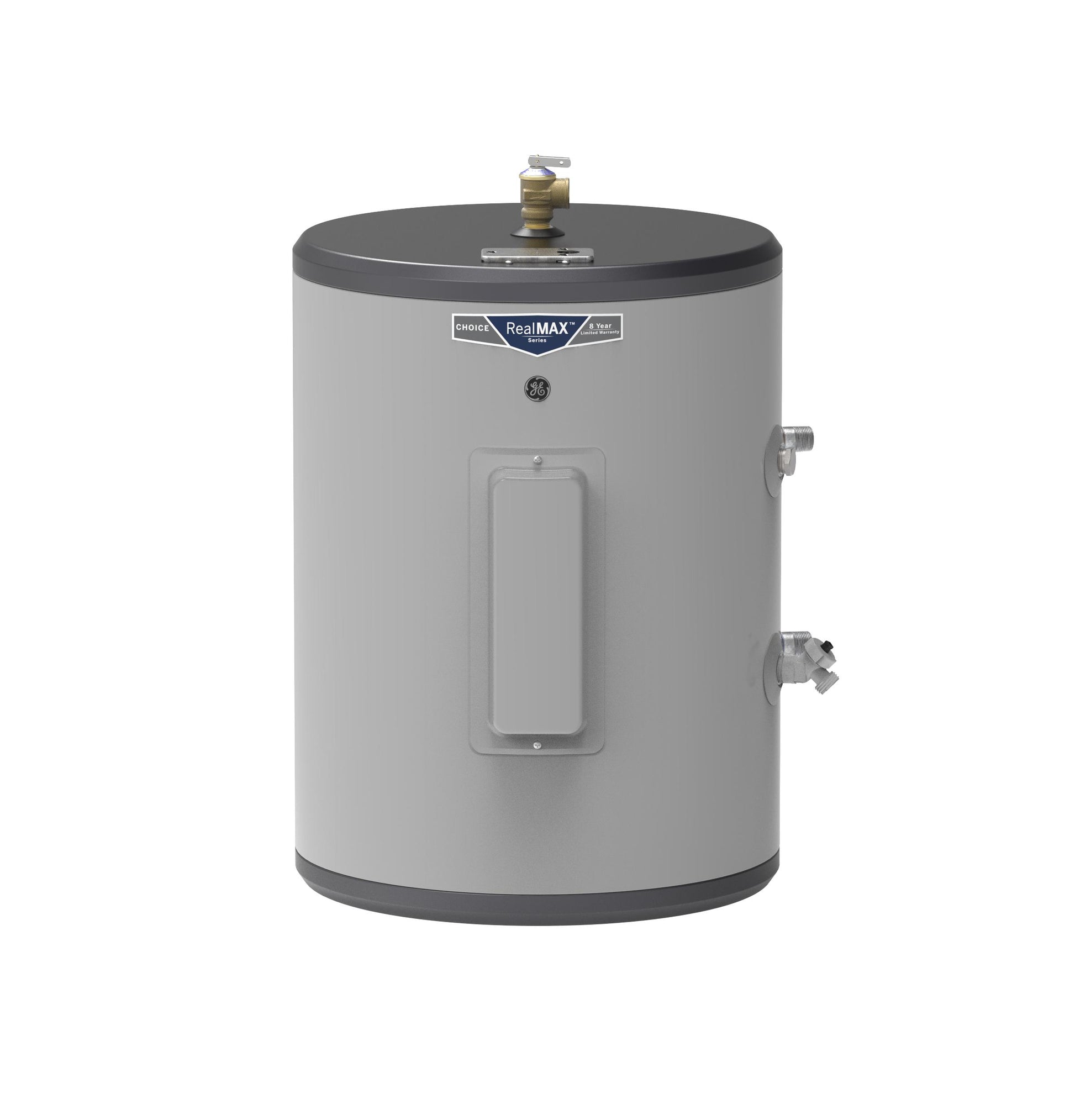

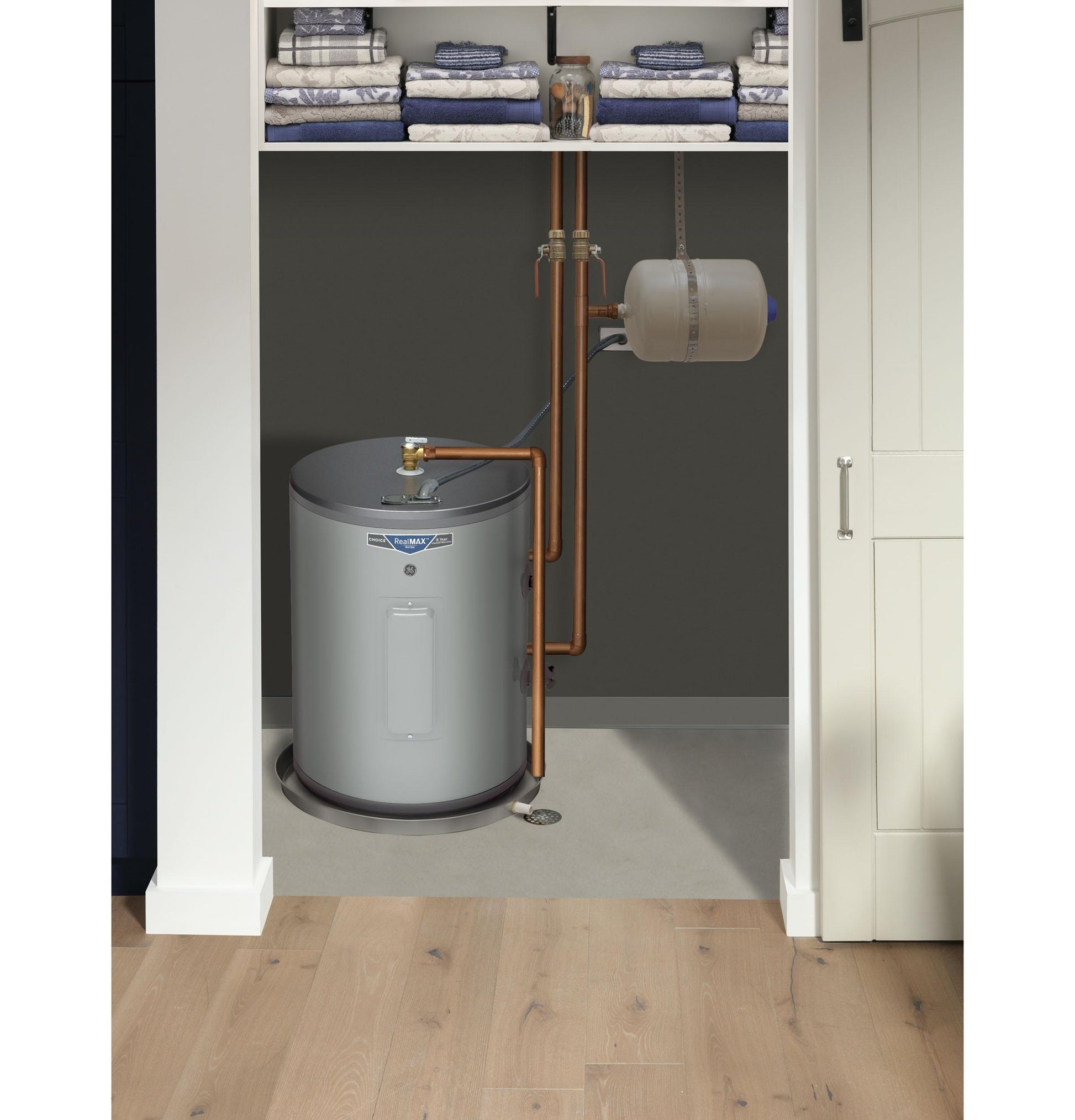

GE20P08BAR GE® 18 Gallon Electric Point of Use Water Heater GE20P08BAR

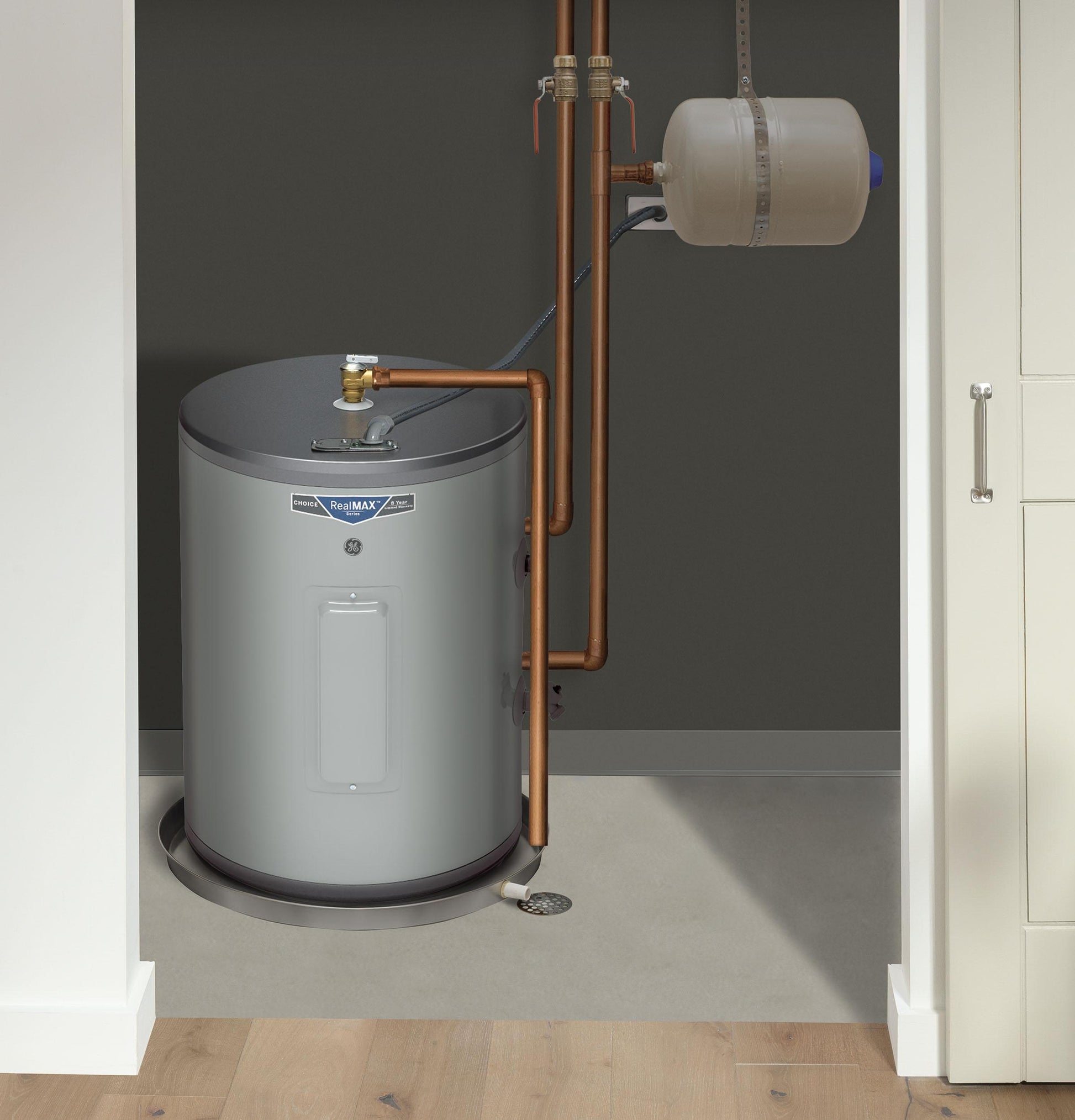

Whole Home Flexibility
Can provide hot water to a single hookup, or to a small house, condo, or apartment

Compact Design
Ideal in limited spaces like kitchens, bathrooms, laundry rooms, cabins, RVs, garages, sheds, etc

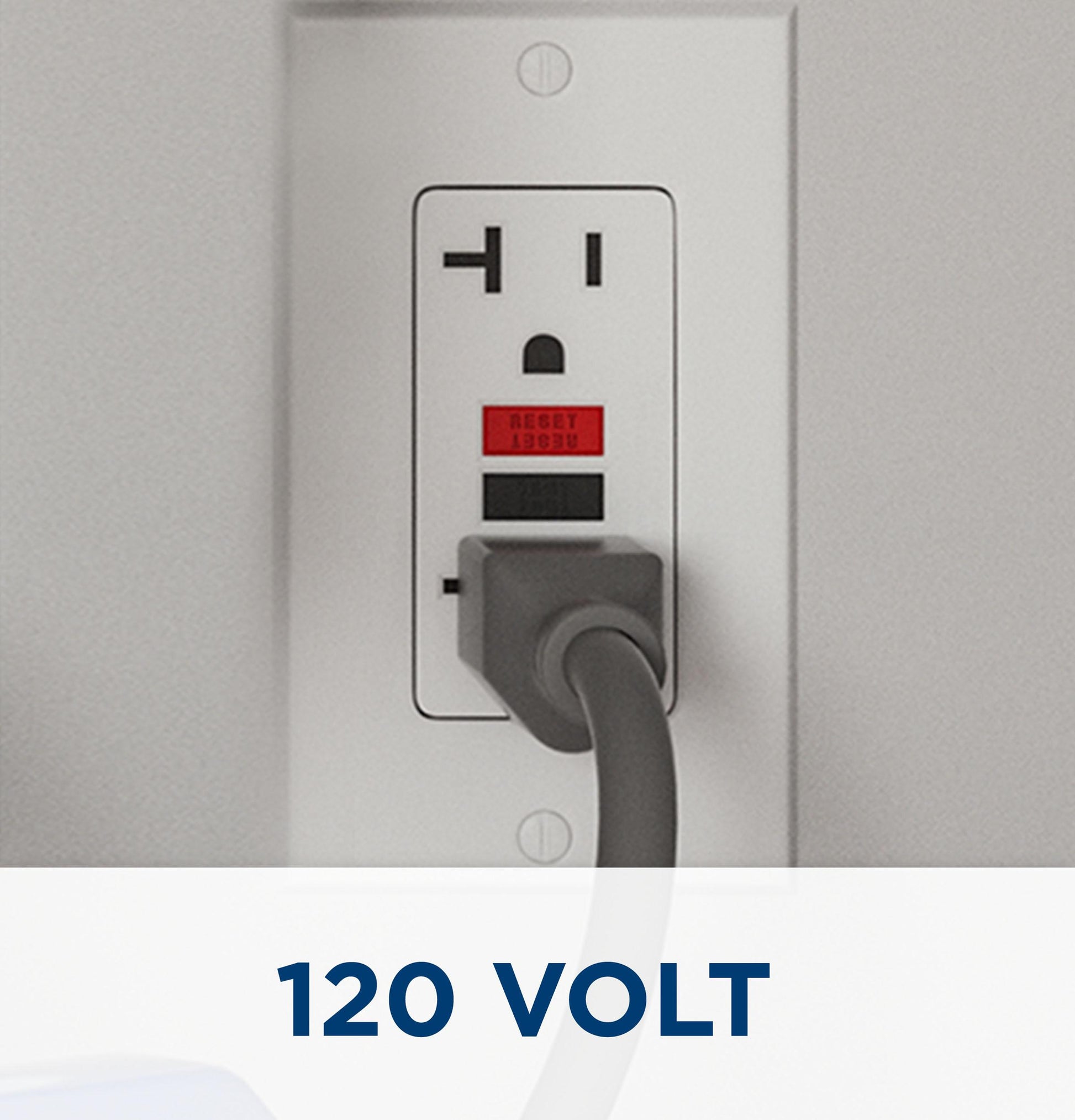

120 Volt
Connects into any 120-Volt supply

Hot Water Booster
Works as a standalone unit, or inline with another water heater to boost long pipe runs or washing machines

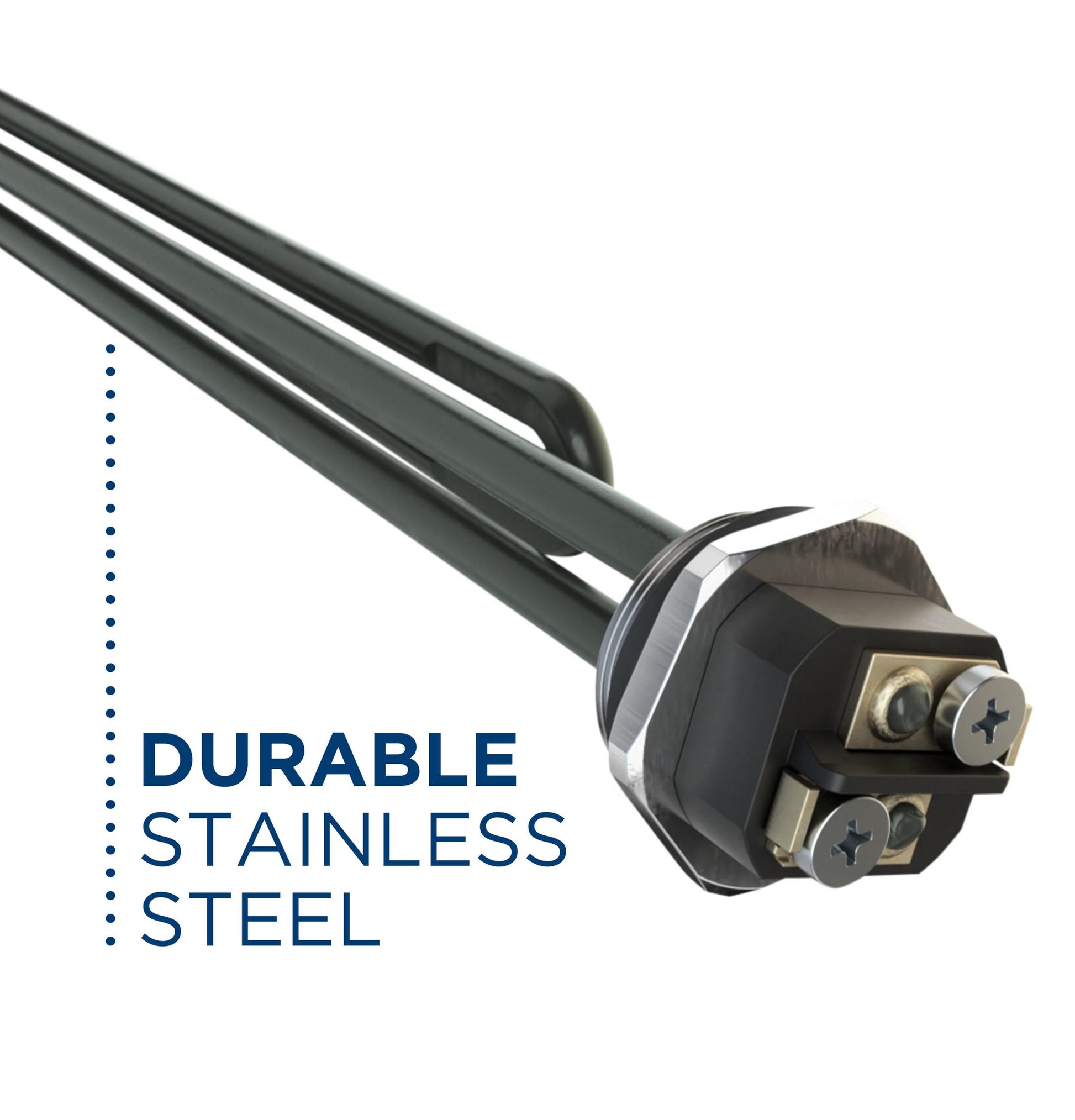

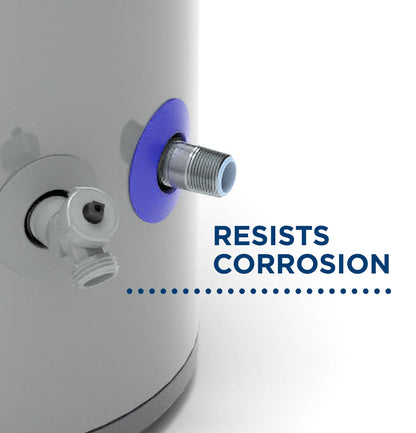

Stainless Steel Heating Element
Provides reliable heat with ultra-durable design that resists rust and corrosion

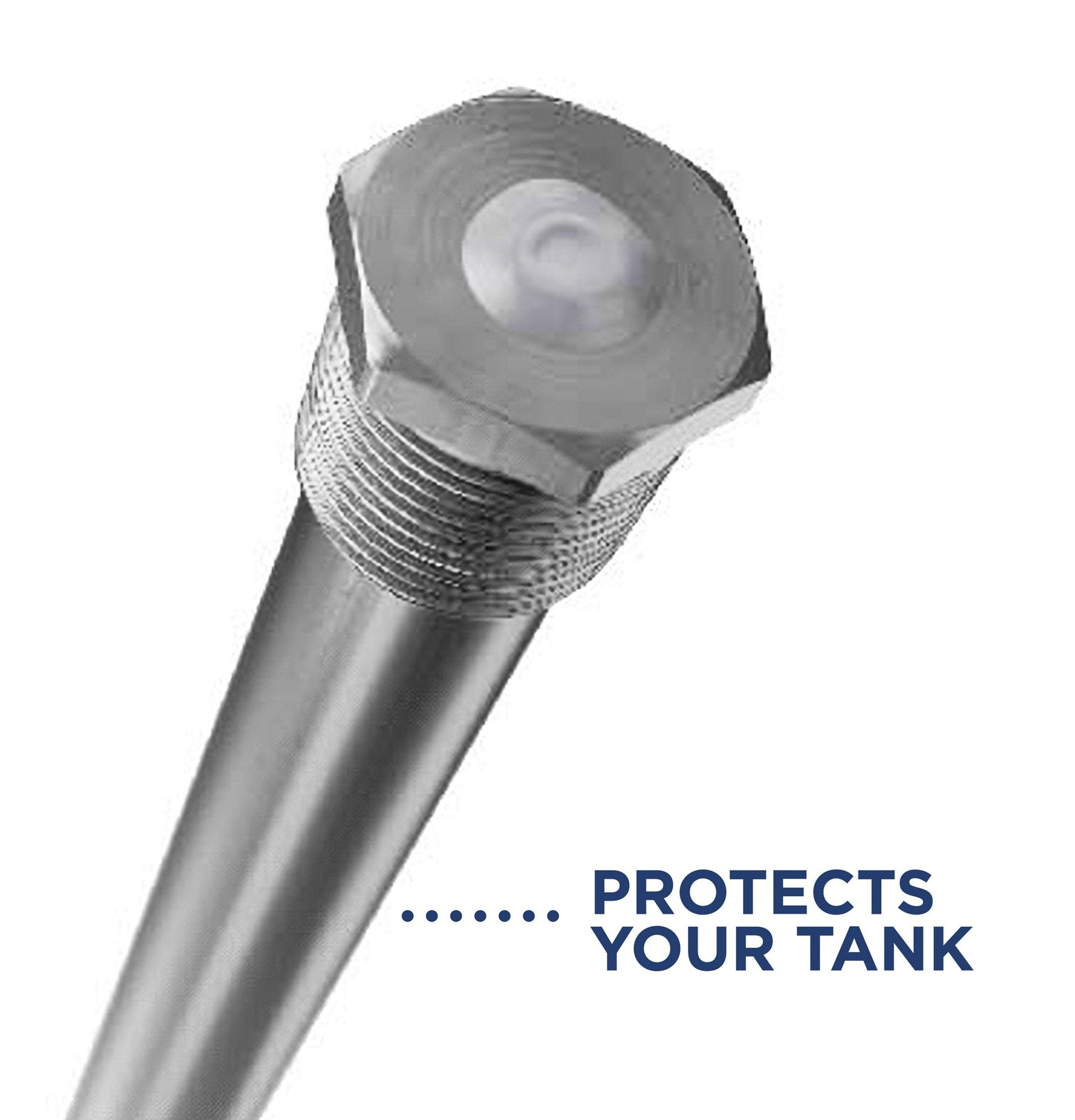

Anode Rod
Durable design extends the life of your water heater with long-lasting protection against corrosion

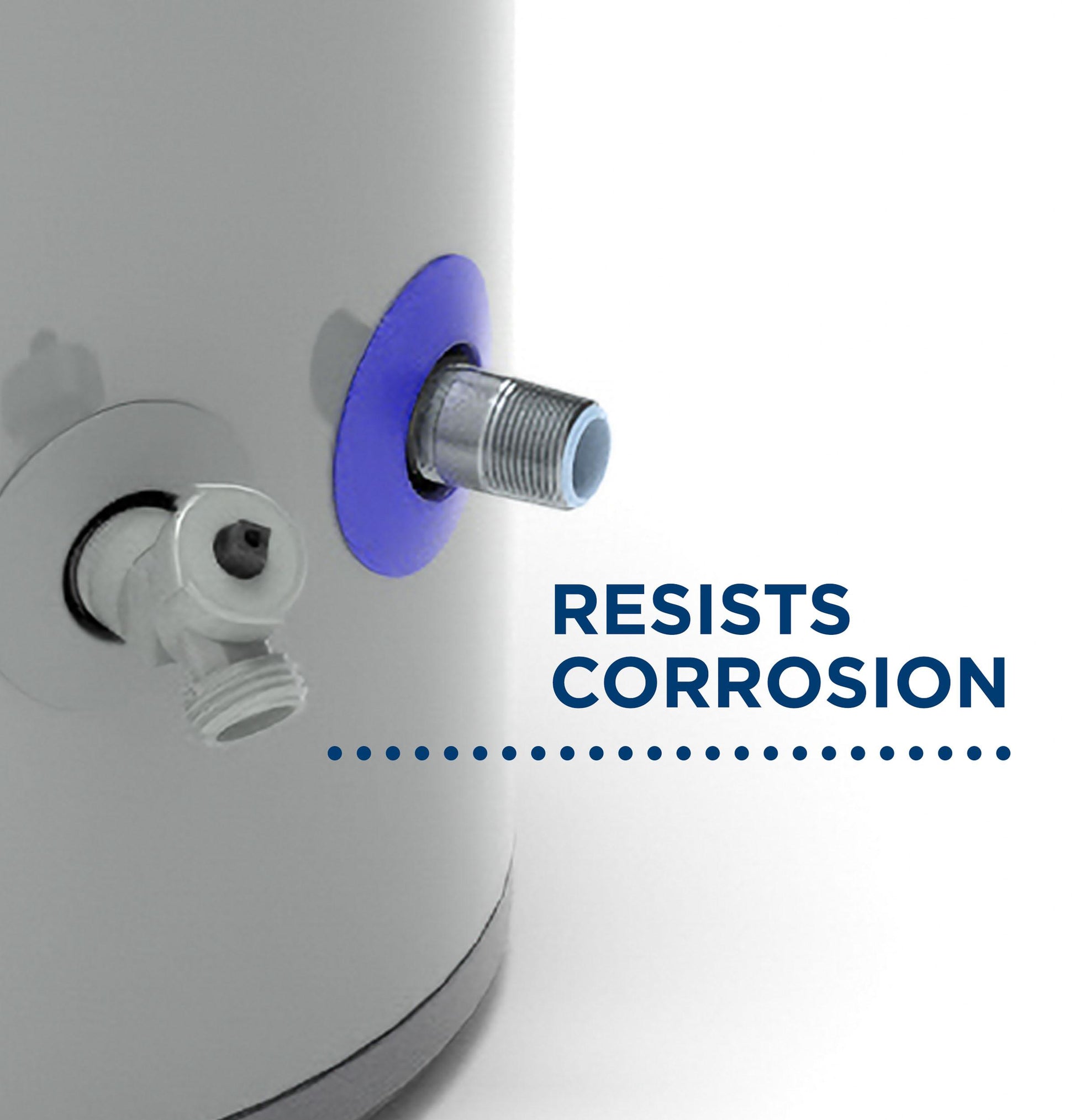

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

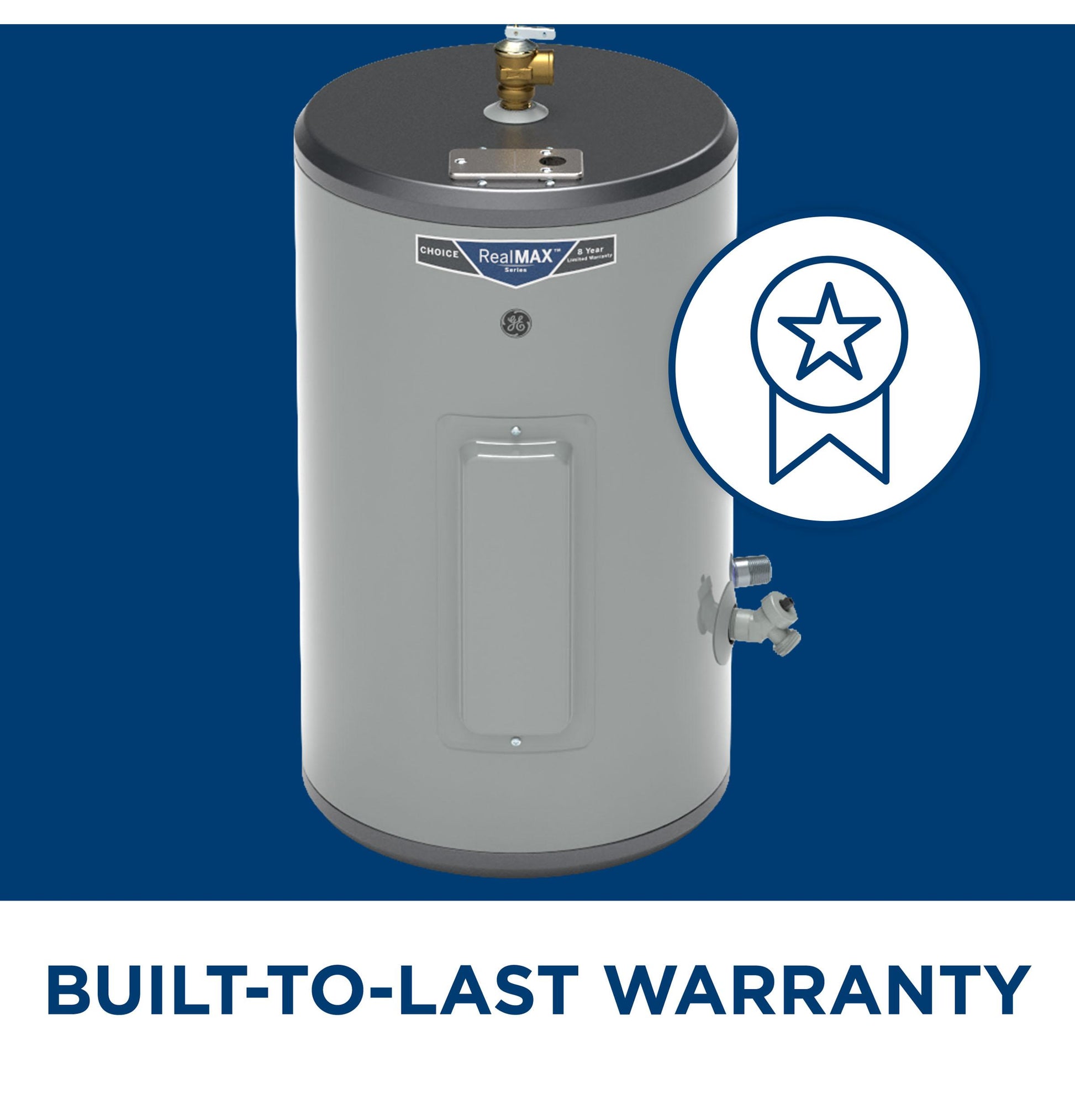

Built-To-Last Warranty
8-year tank and parts/1-yr labor

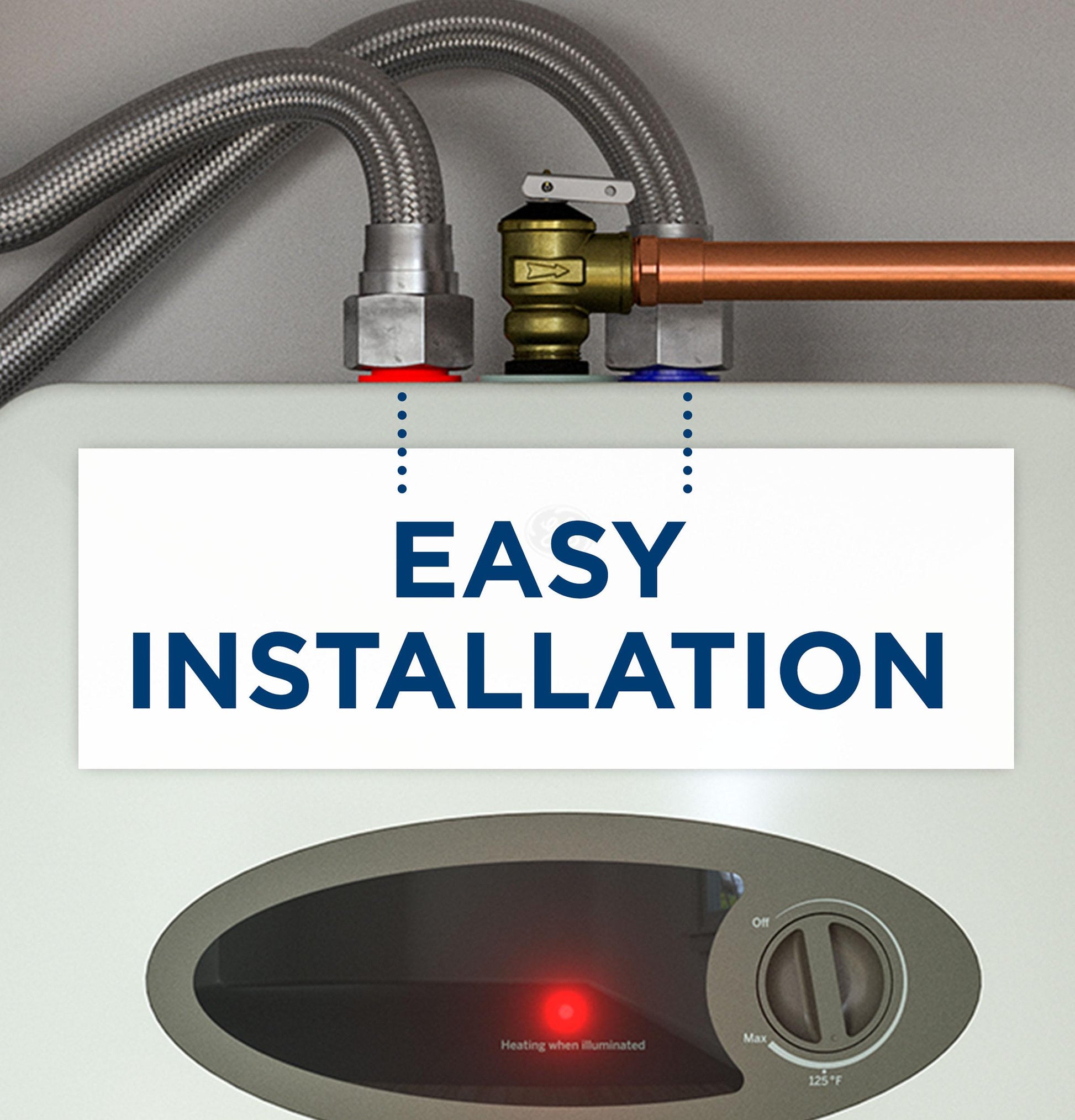

Easy Installation
Uses standard 3/4-in NPT water connections for simple installation

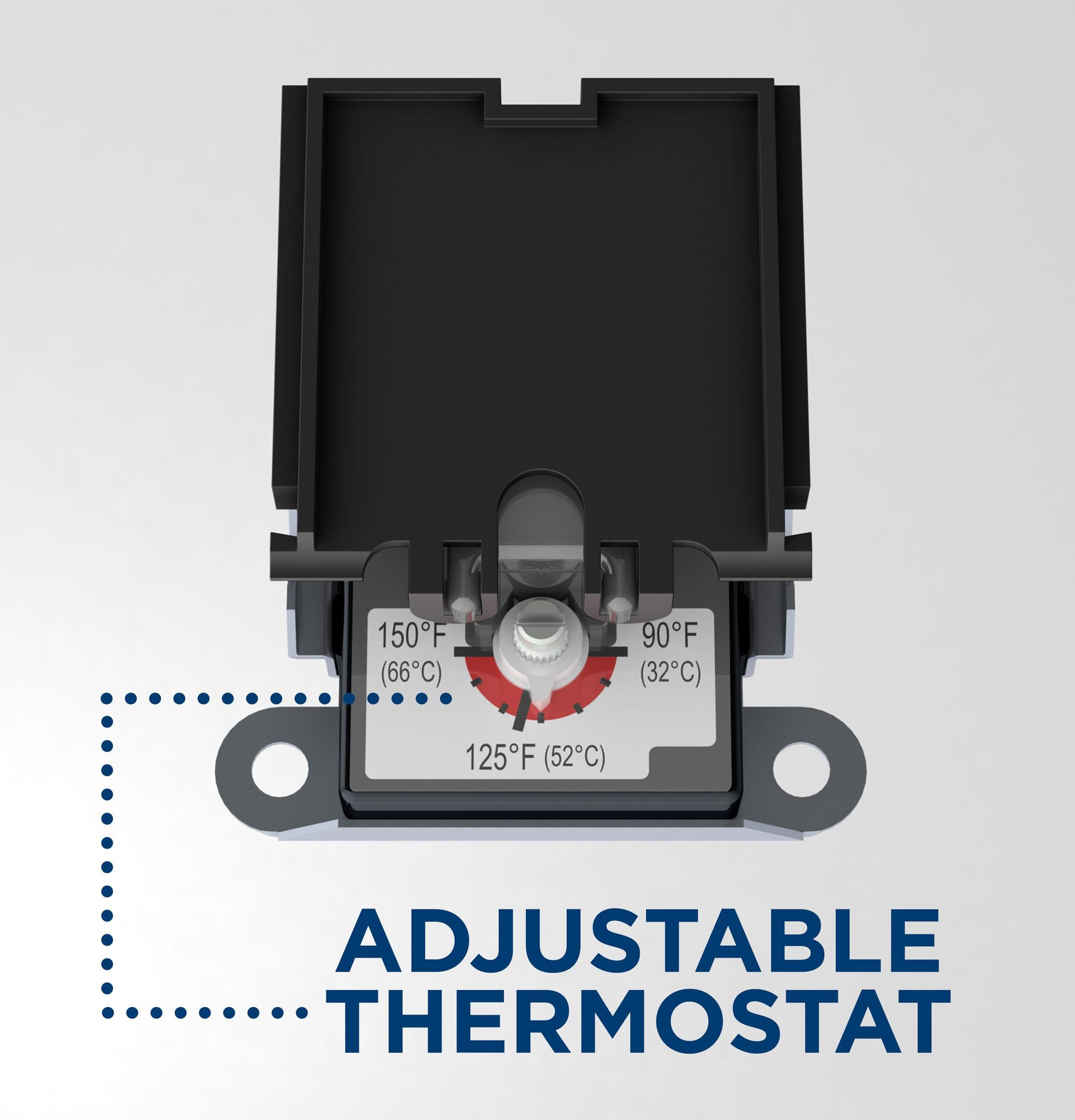

Adjustable Thermostat
Easily change temperatures to your desired settings

CAPACITY
Unit Capacity	18 Gallons
APPEARANCE
Installation	Free-Standing
Color Appearance	Gray
POWER / RATINGS
Power Rating-kW	1.5
Amps	12
Voltage (MAX)	120 V
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	8-year limited

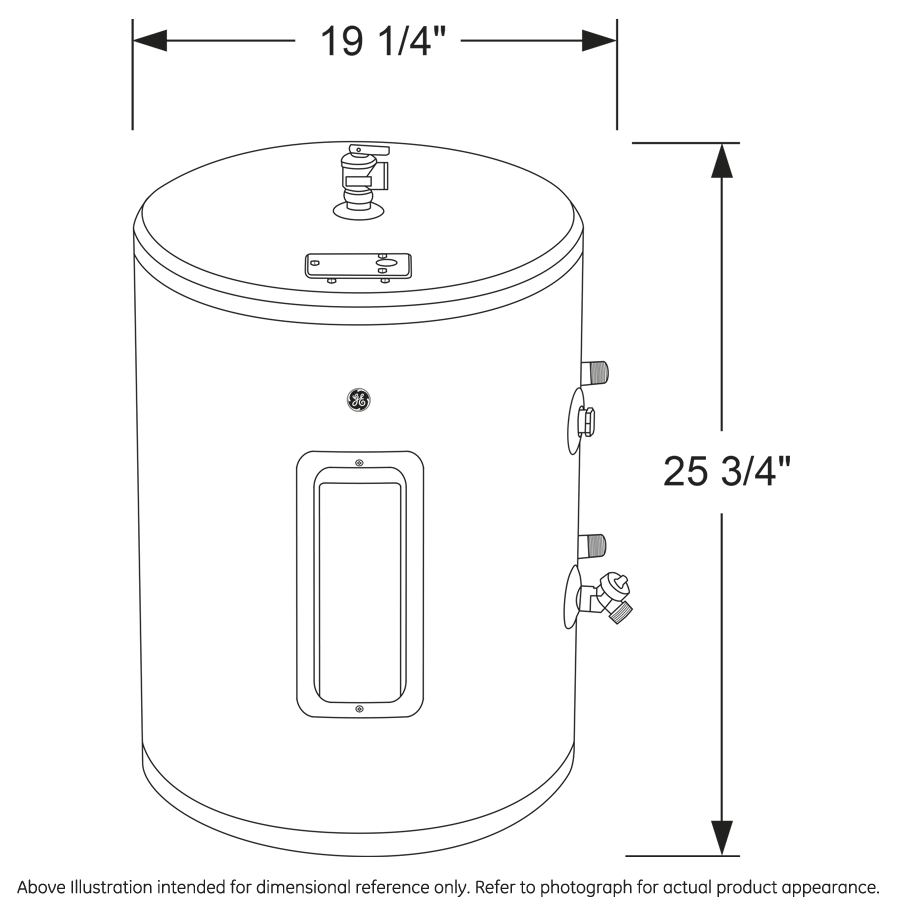

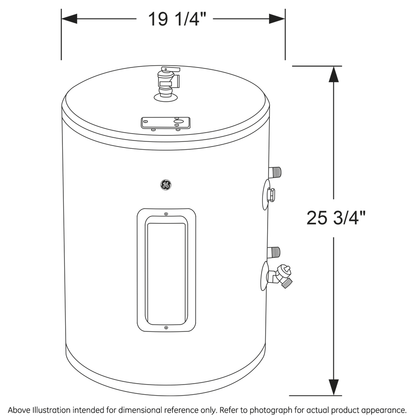

WEIGHTS & DIMENSIONS
Approximate Shipping Weight	62 lb
Overall Width	19.3 in
Overall Height	25.75 in
Product Height (to top of unit)	25.75 in
Net Weight	54.2 lb
Product Diameter	19.3 in
Overall Depth	19.25 in
Connection Sizes - Water Inlet (MNPT)	1/2"
Connection Sizes - Hot Water Outlet (MNPT)	1/2"
FEATURES
Power Cord Length	6' Included
Controls	Mechanical Temperature Control
Max. operating pressure (psi)	150
Temp & Pressure Relief Valve	Top
Rated Capacity	18 gal
Height Description	Point of Use
Max: operating pressure (psi)	150
Heating Element	Stainless steel
Fuel Type	Electric
Configuration	Space Saver
Installation Location	Indoor
Drain Valve Type	Plastic
Temperature Setting Factory Default	120° F
Product Type	Electric Point Of Use
Water Connection Location	Side
Point of Use	Yes
Anode Rod	Aluminum
Temperature Setting	70-140° F Range
