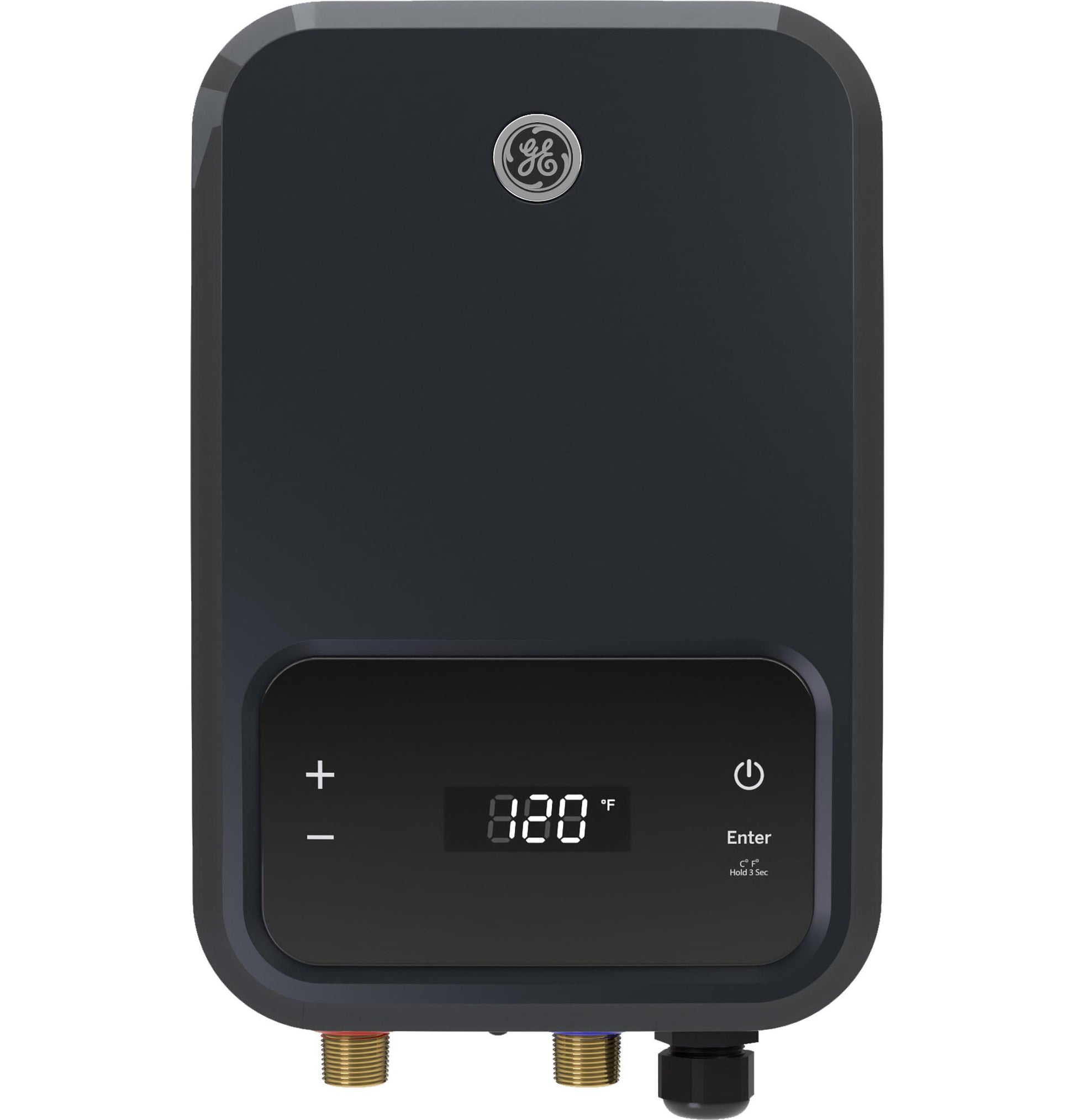

GE27DNHPDG GE® Tankless Electric Water Heater GE27DNHPDG

Unlimited Hot Water on Demand
Tankless electric water heater provides instant, continuous water flow

Whole Home Solution
Easily provides enough hot water for a house or apartment

Performance Up to 5.4 Gallons Per Minute (GPM)
Enough to run 3 showers and 1 faucet simultaneously in warm climates (*Results are based on 72˚F inlet water temperature and 105˚F outlet water temperature)

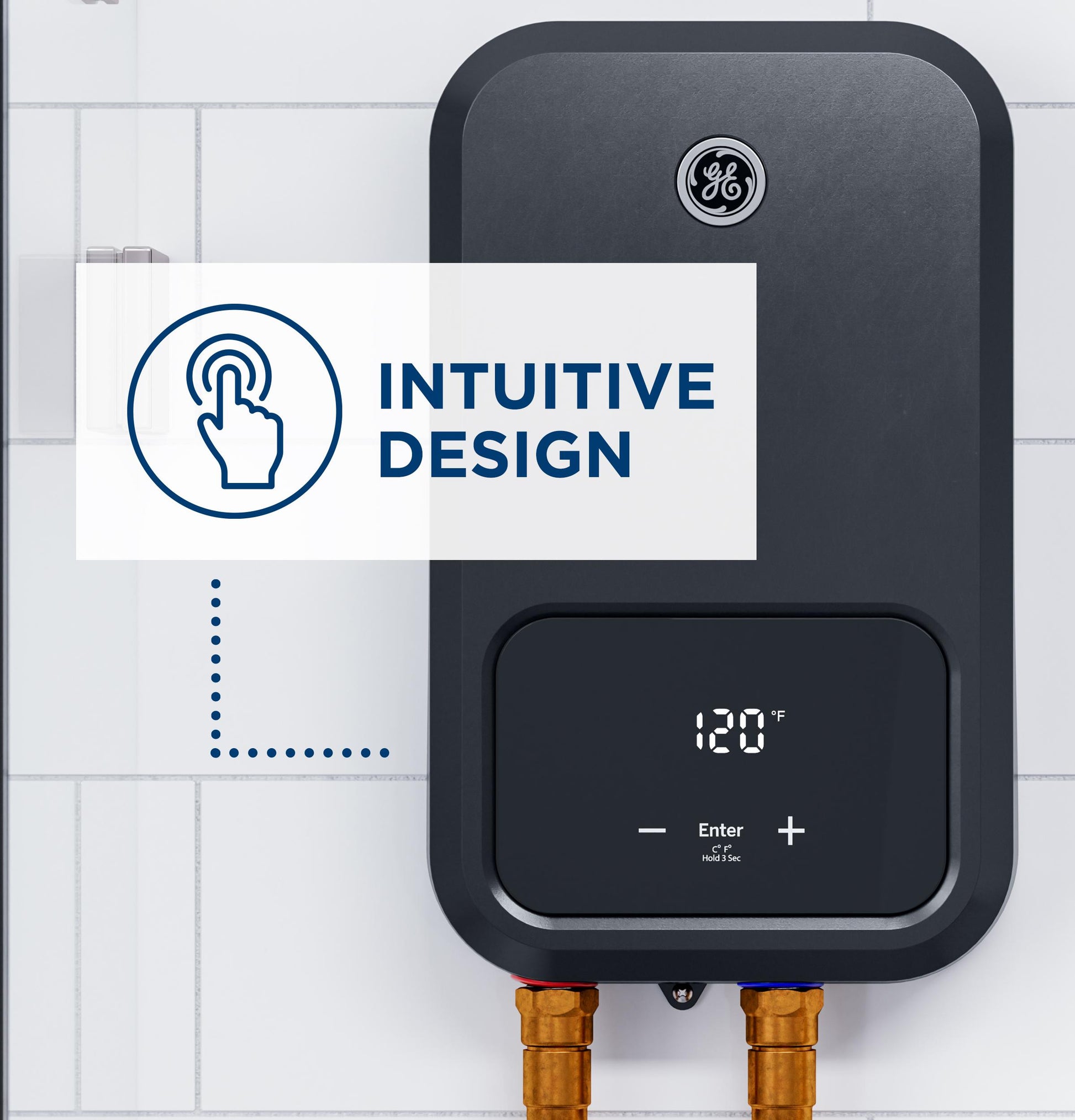

Intuitive Design
Adjust temperature and settings with easy-use touch screen

Energy Efficient
Conserves energy and water by only using energy when hot water is in use, saving you money

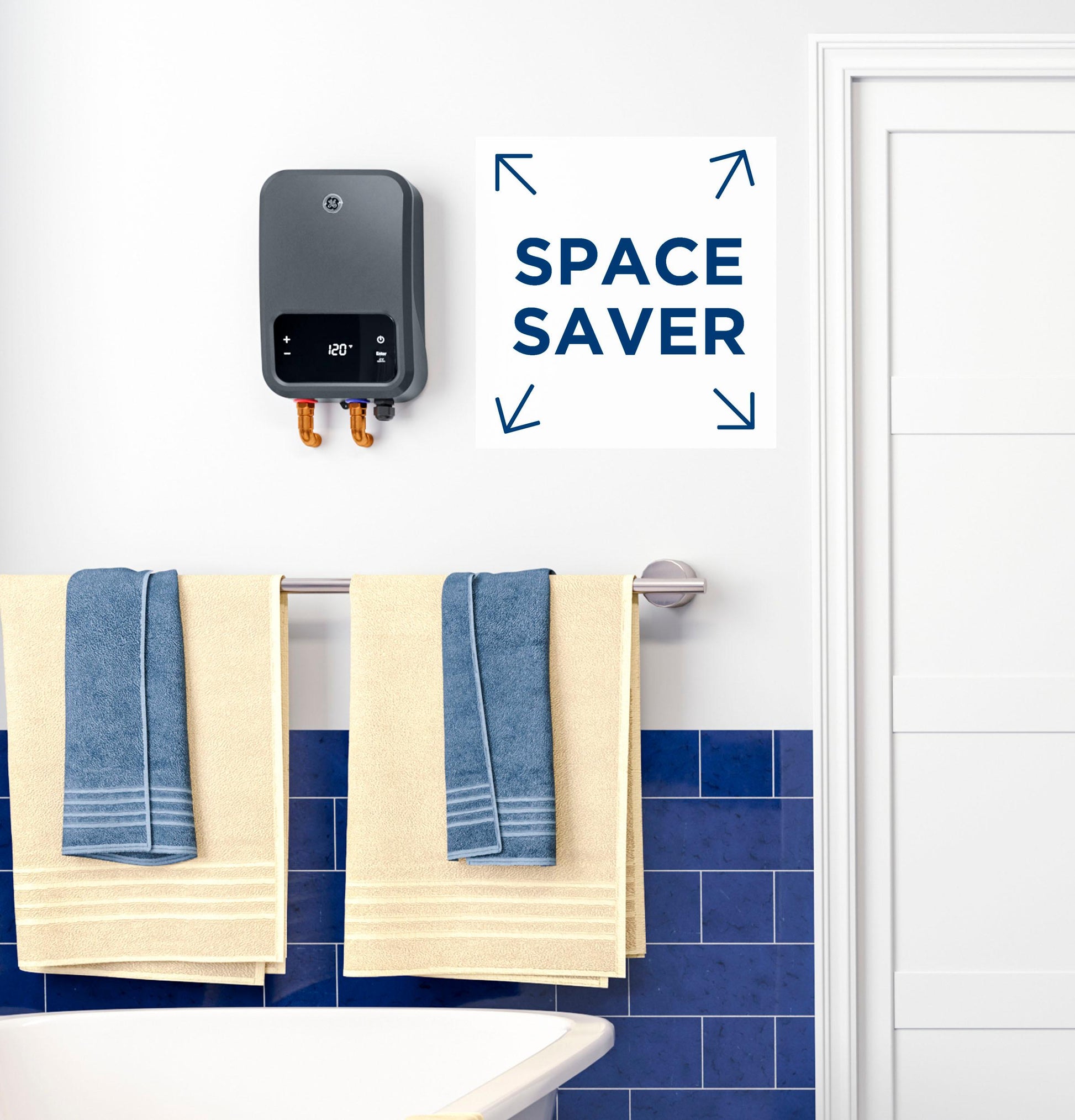

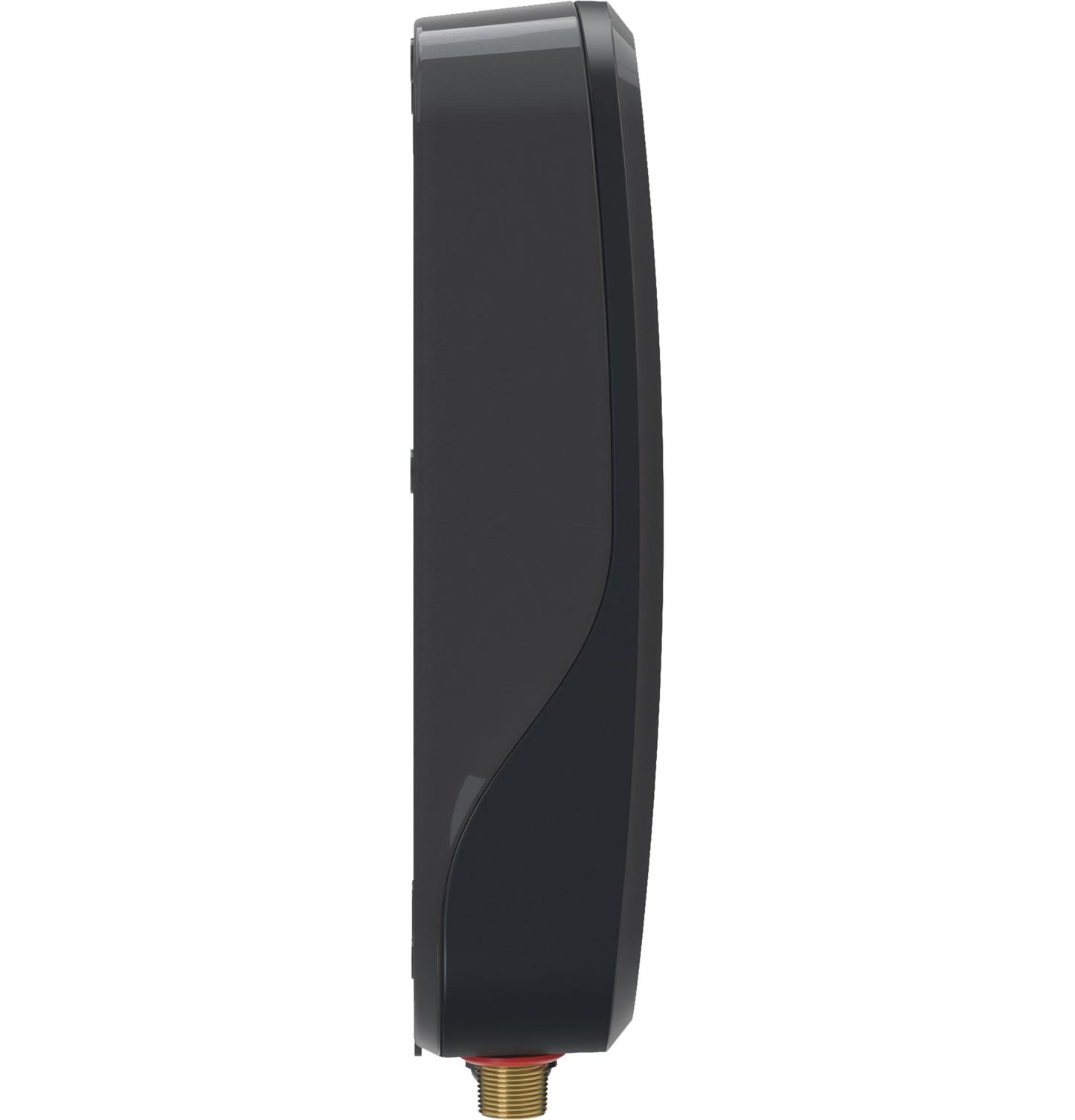

Space Saver
Compact design takes up significantly less space than a tank style water heater

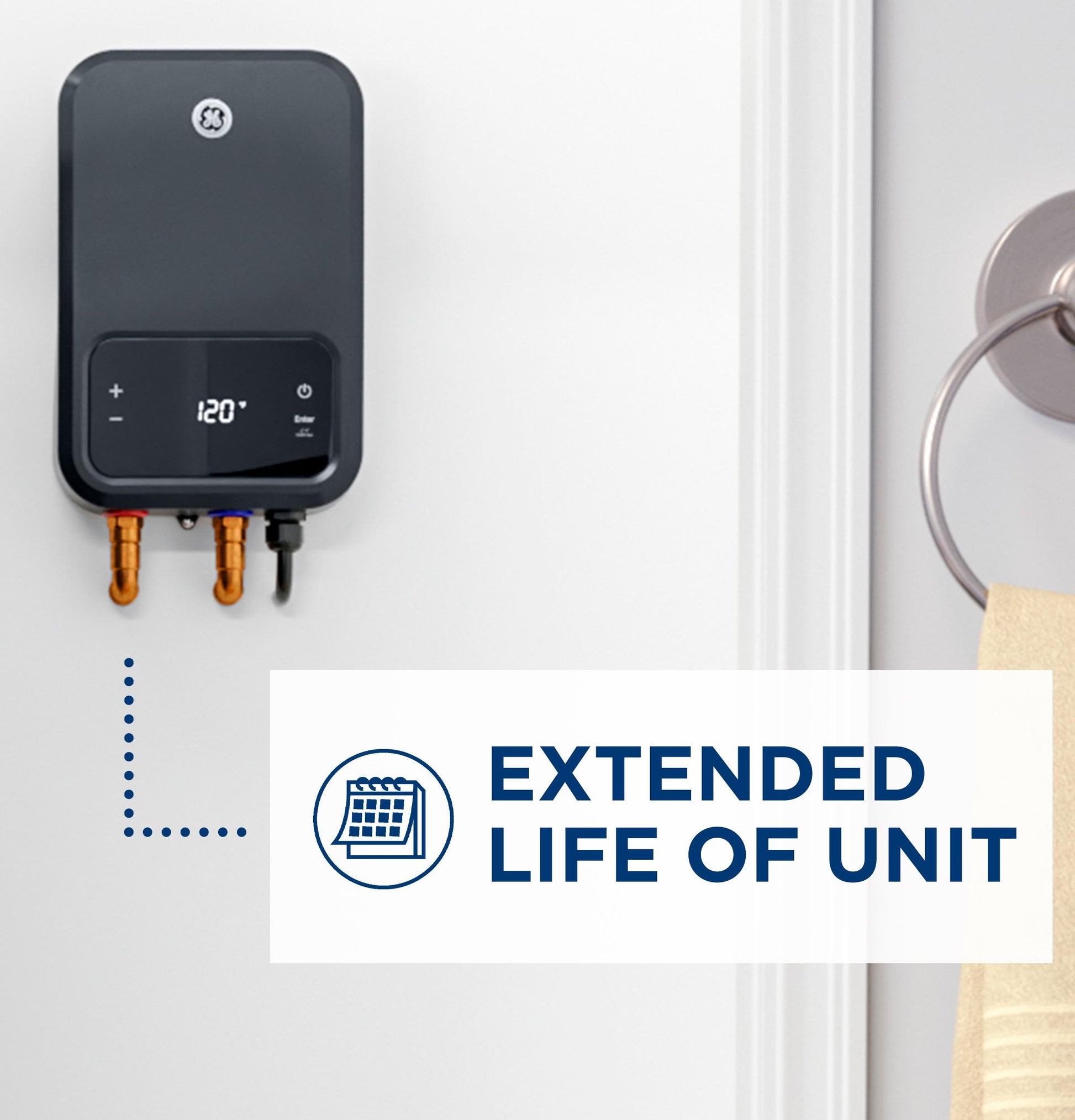

Scale Reduction Technology
Extends the life of the unit by shielding heating element from water and scale buildup

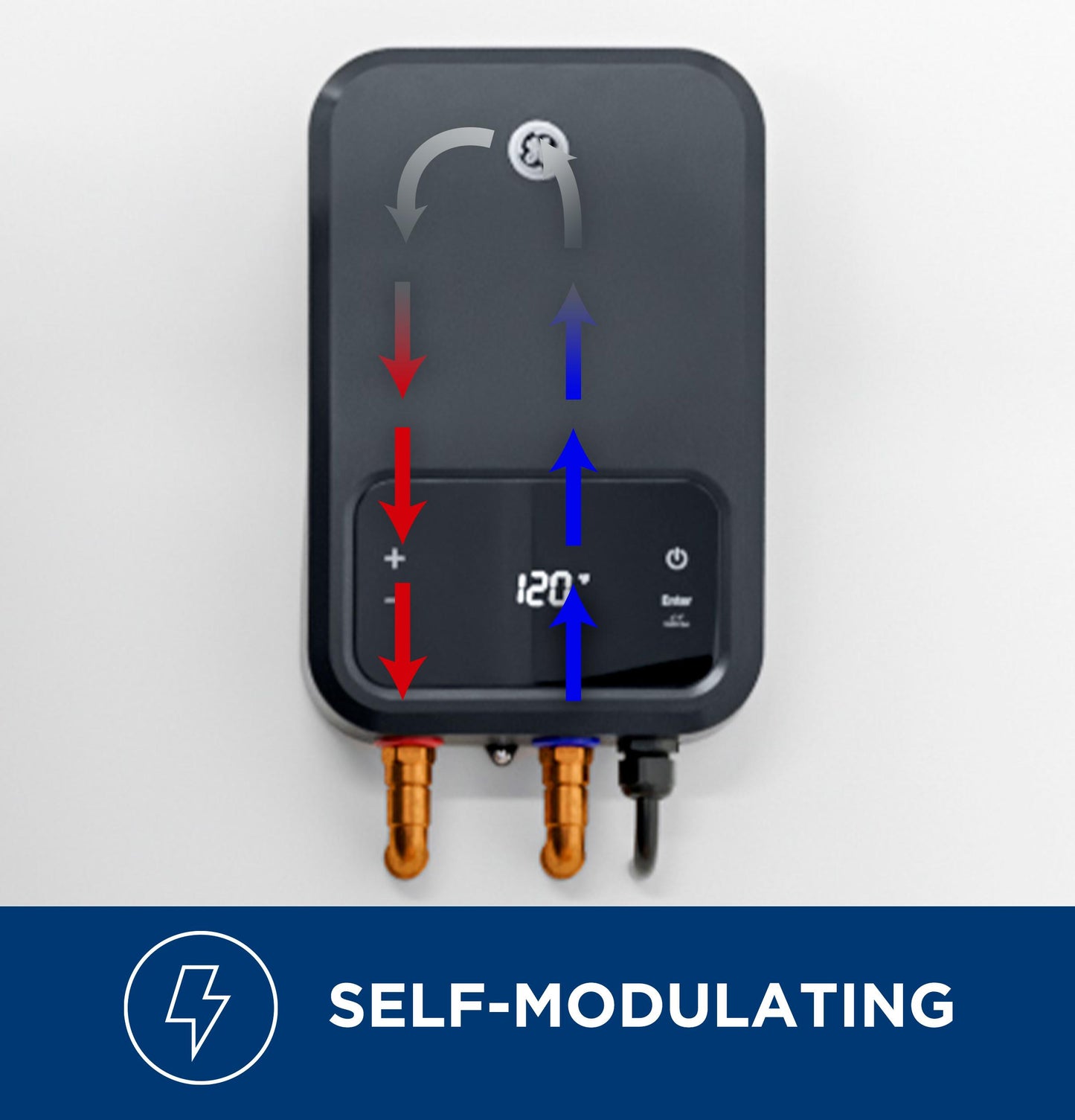

Self Modulating Technology
Utilizes inlet and outlet temperature sensors to optimize energy usage and keep water temperature consistent

Easy Installation
Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation

Digital Temperature Control
Easily set temperatures in 1(degree) increments ranging from 86(degree)F to 140(degree)F

Fahrenheit or Celsius
Switch temperature units with a simple tap on an easy-read digital display

Warranty Length
5-year Limited Replacement Warranty

APPEARANCE
Installation	Wall Mounted
Color Appearance	Diamond Gray

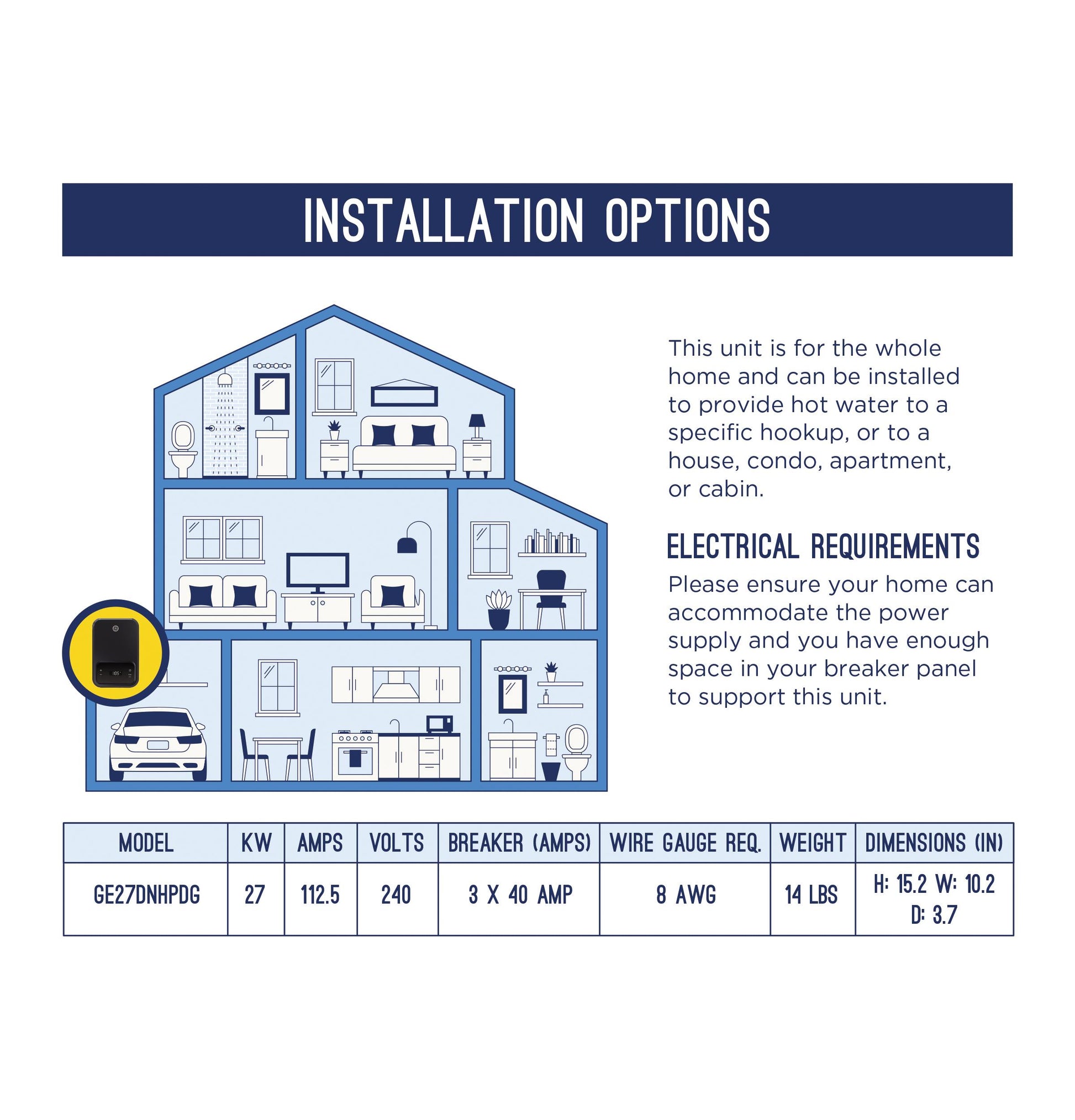

POWER / RATINGS
Electrical Requirements	240V ; 120A
Power Rating-kW	27
First Hour Delivery GPH	180 gal/hr
Amps	112.5
Voltage (MAX)	240 V
Electrical Circuit Required	40 Amp (x3)
WARRANTY
Parts Warranty	5-year Limited Replacement Warranty
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	15.2 lb
Overall Width	10.2 in
Overall Height	15.2 in
Product Height (to top of unit)	15.2 in
Net Weight	14.09 lb
Product Diameter	10.2 in
Overall Depth	3.7 in
FEATURES
Uniform Energy Factor (UEF)	>0.91

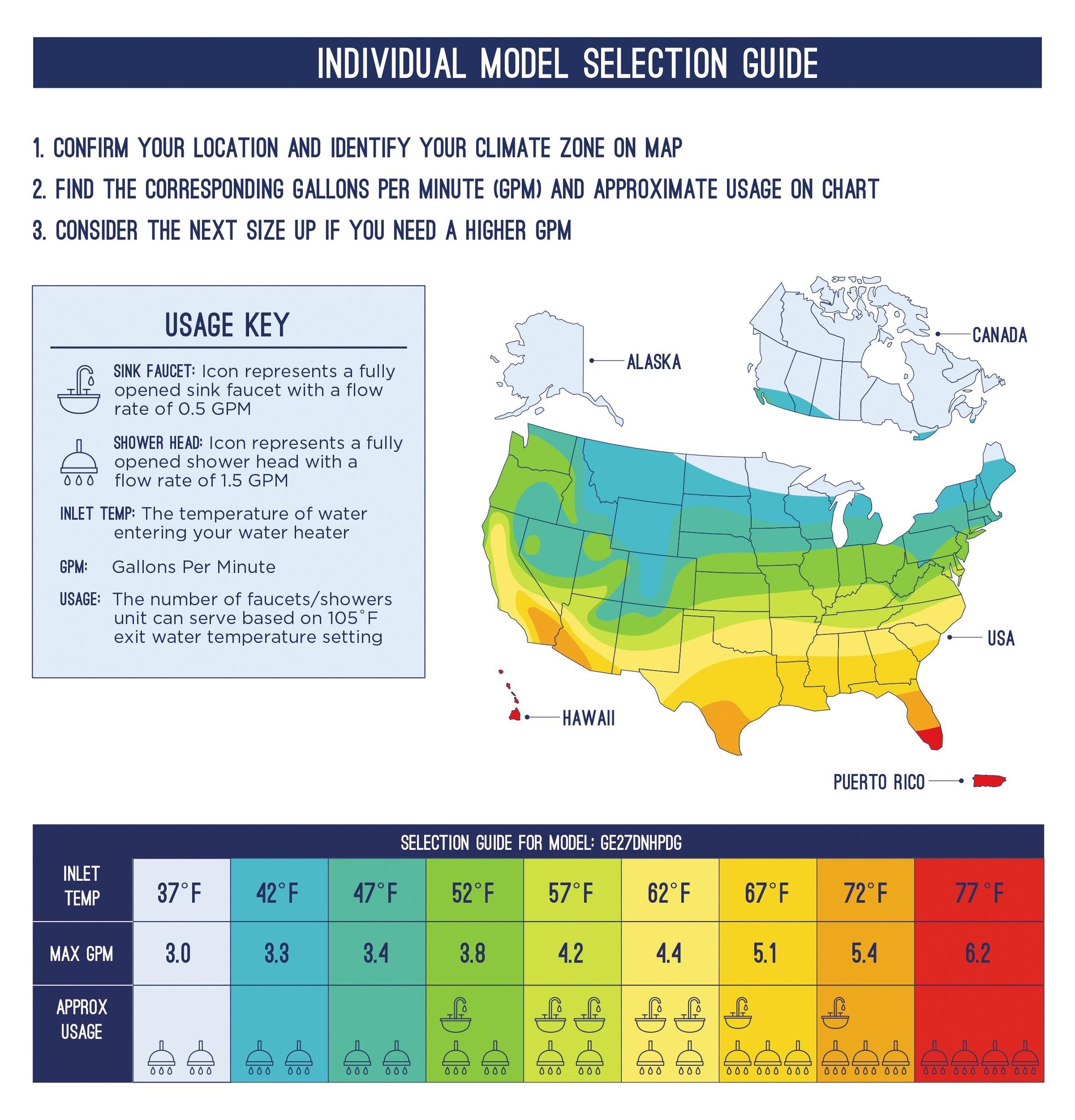

Flowrate (GPM) @ 47 F inlet	3.4
Flowrate (GPM) @ 37 F inlet	3
Flowrate (GPM) @ 77 F inlet	6.19
Flowrate (GPM) @ 62 F inlet	4.4
Min. operating pressure (psi)	25
Controls	Adjust degree Fahrenheit/Celsius Adjustable Temperature Digital Electronic Control
Max. operating pressure (psi)	150
Max: operating pressure (psi)	150
Fuel Type	Electric
Flowrate (GPM) @ 57 F inlet	4.19
Configuration	Space Saver
Installation Location	Indoor
Flowrate (GPM) @ 72 F inlet	5.4
Temperature adjustment amount °	1
Activation Flowrate (GPM)	0.5
Temperature Setting Factory Default	105° F
Product Type	Electric Tankless
Flowrate (GPM) @ 52 F inlet	3.79
Integrated Safety Devices	Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
Maximum Outlet Temperature (F)	140
Water Connection Location	Bottom
Point of Use	Whole Home
Cold/hot water connections (inches)	3/4" Cold Water Inlet; 3/4" Hot Water Outlet
Flowrate (GPM) @ 67 F inlet	5.09
Temperature Setting	86-140° F Range
Flowrate (GPM) @ 42 F inlet	3.29
