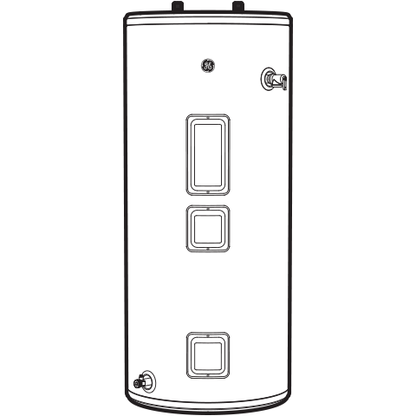

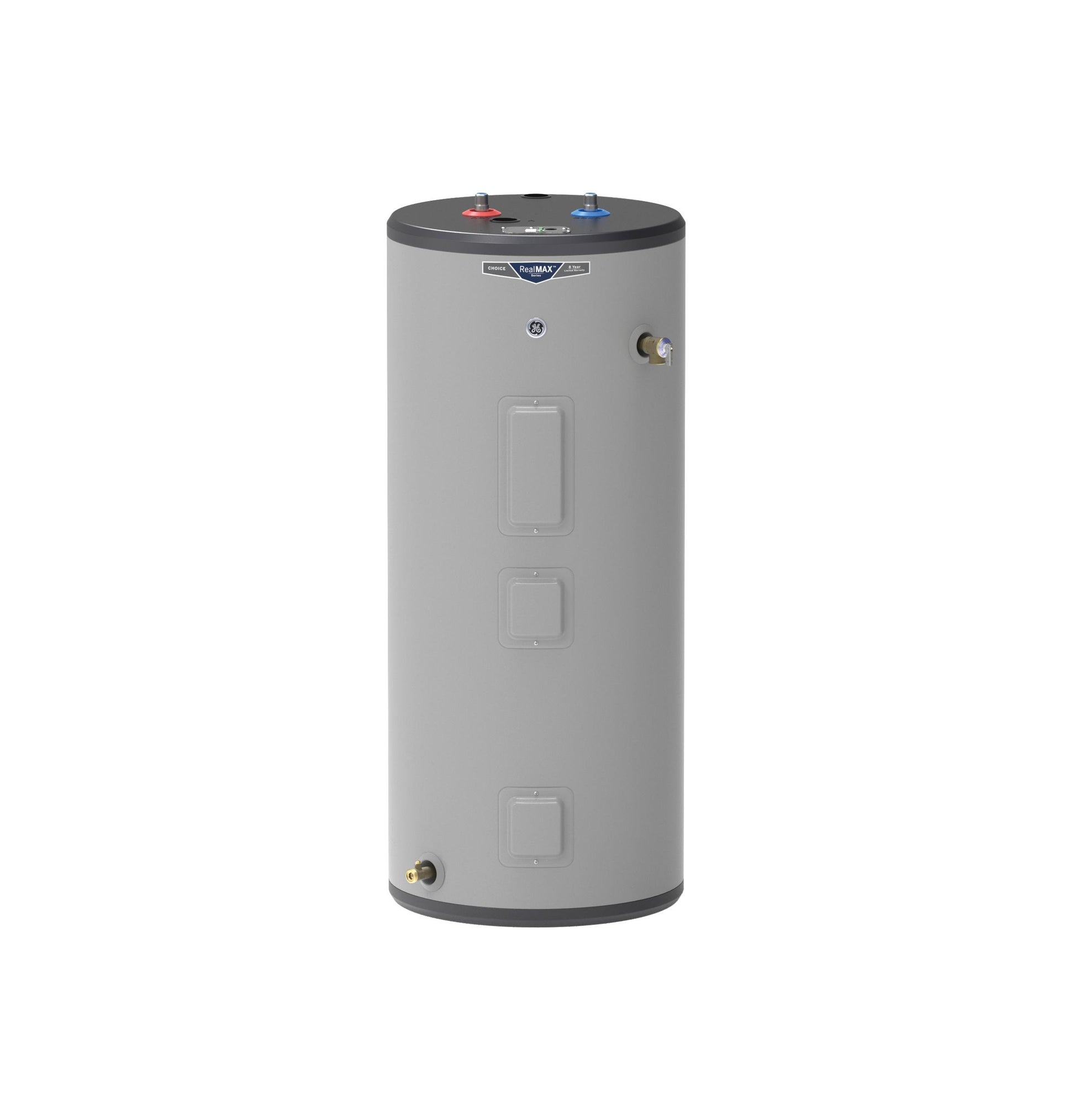

GE40S08DAT GE® 40 Gallon Short 4500W Electric Water Heater
GE40S08DAT GE® 40 Gallon Short 4500W Electric Water Heater
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Real Capacity
- Maximum Performance
- Household Size
- 4500W Heating Elements
- Inlet Tube
- Easy Set Up
- Anode Rod
- Brass Drain Valve
- Adjustable Thermostat
Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Maximum Performance
Live comfortably with this best in class unit that delivers 63 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family of 2 to 4 persons

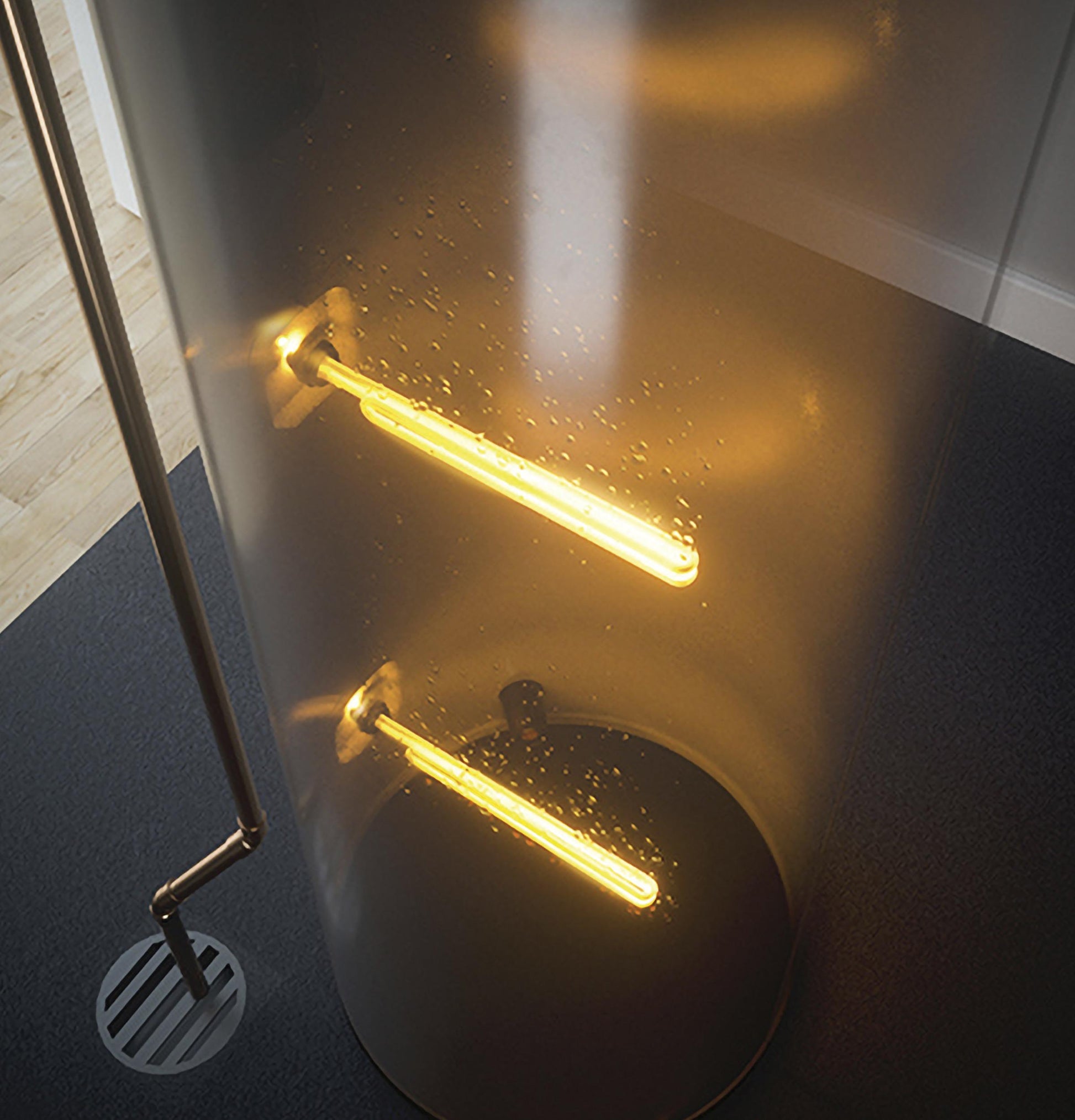

4500W Heating Elements
Two 4500W heating elements that require 25 Amp to operate will increase water temperature for hot water when you need it

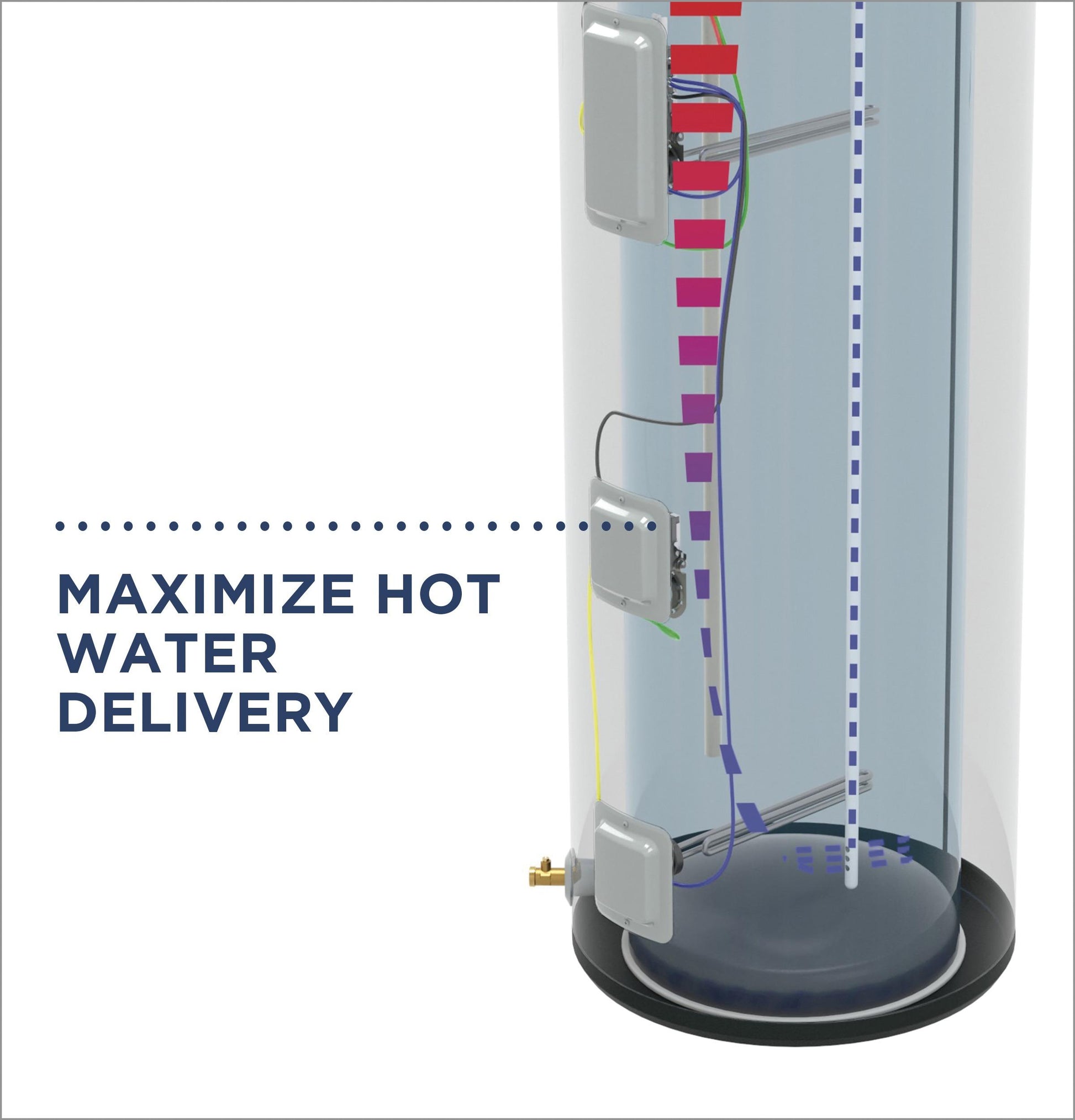

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

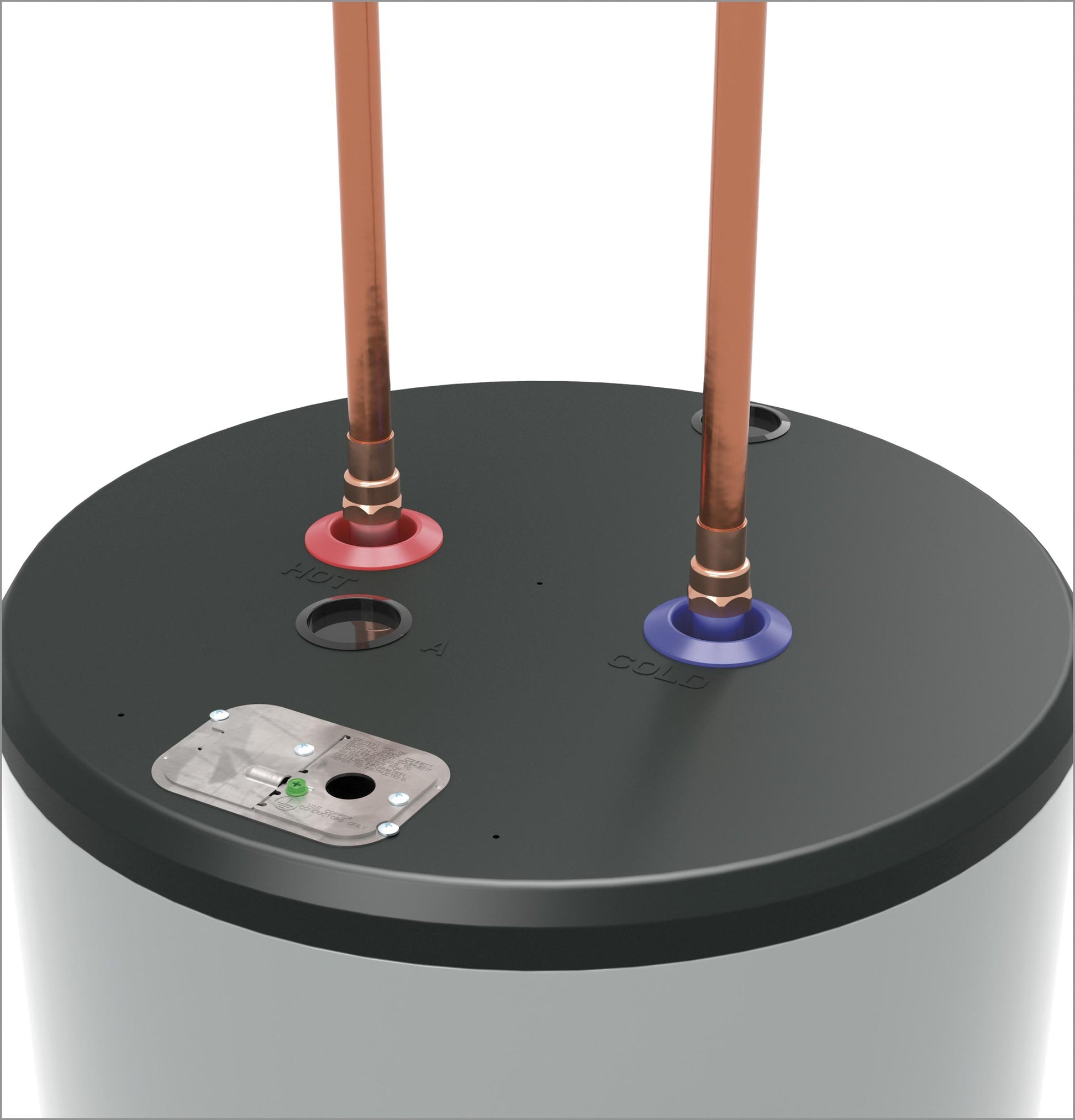

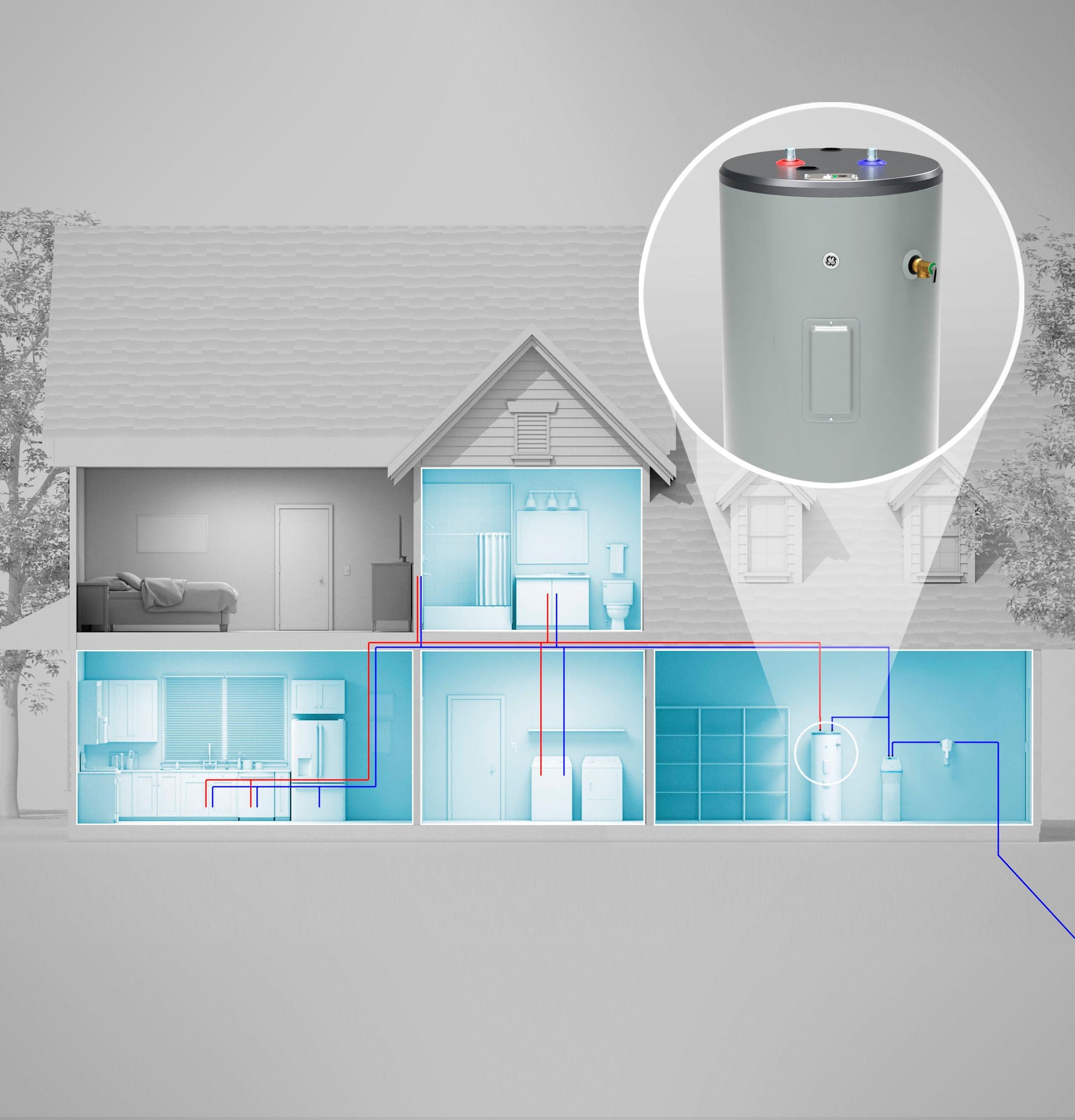

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

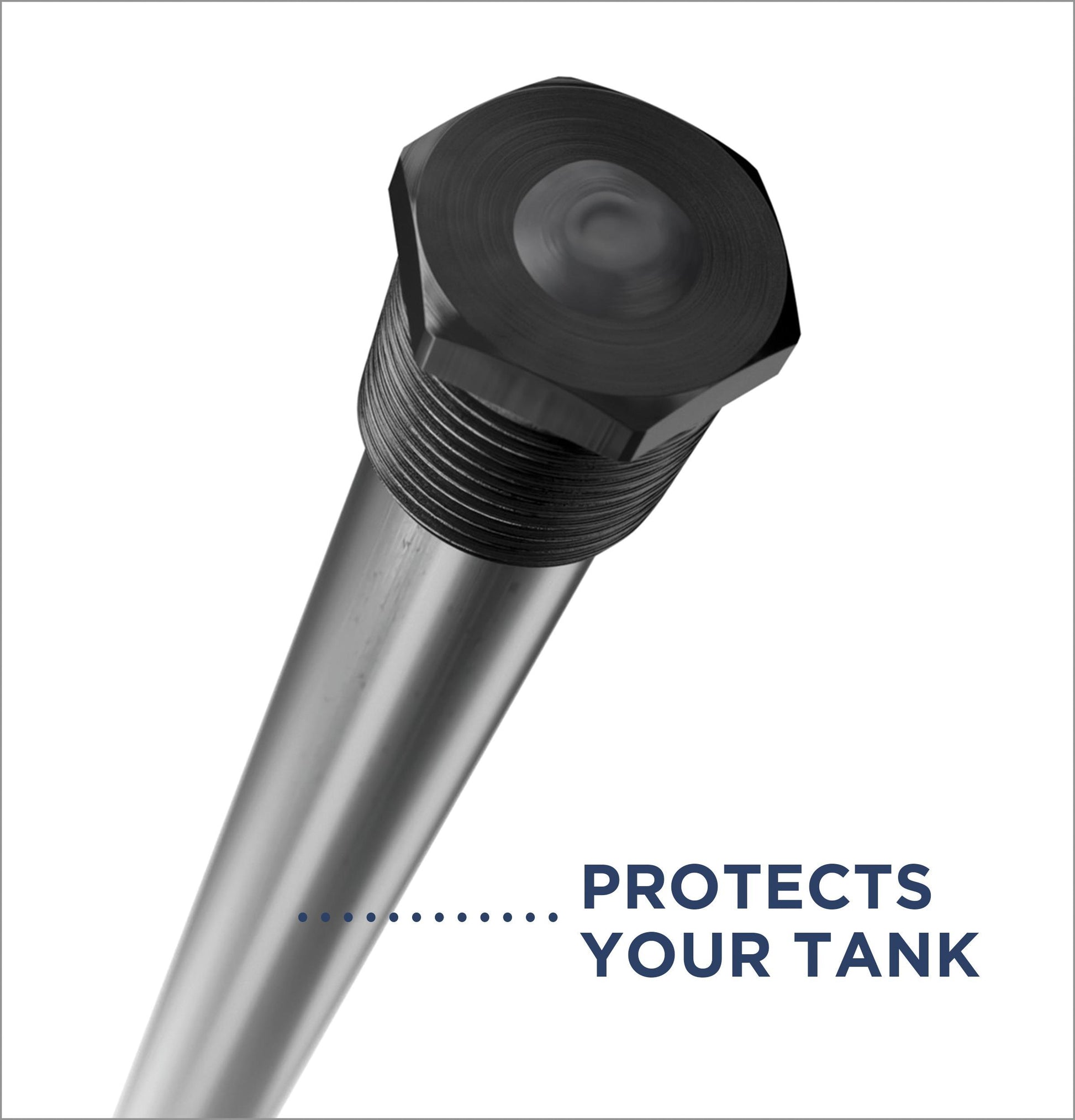

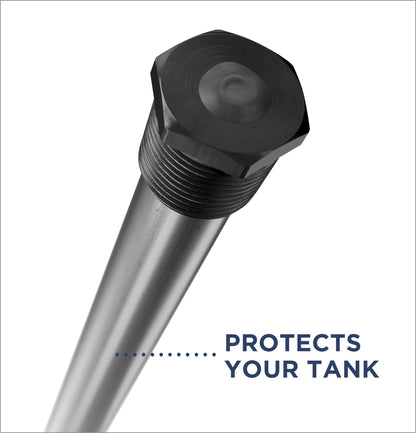

Anode Rod
Durable design offers long-lasting protection against corrosion

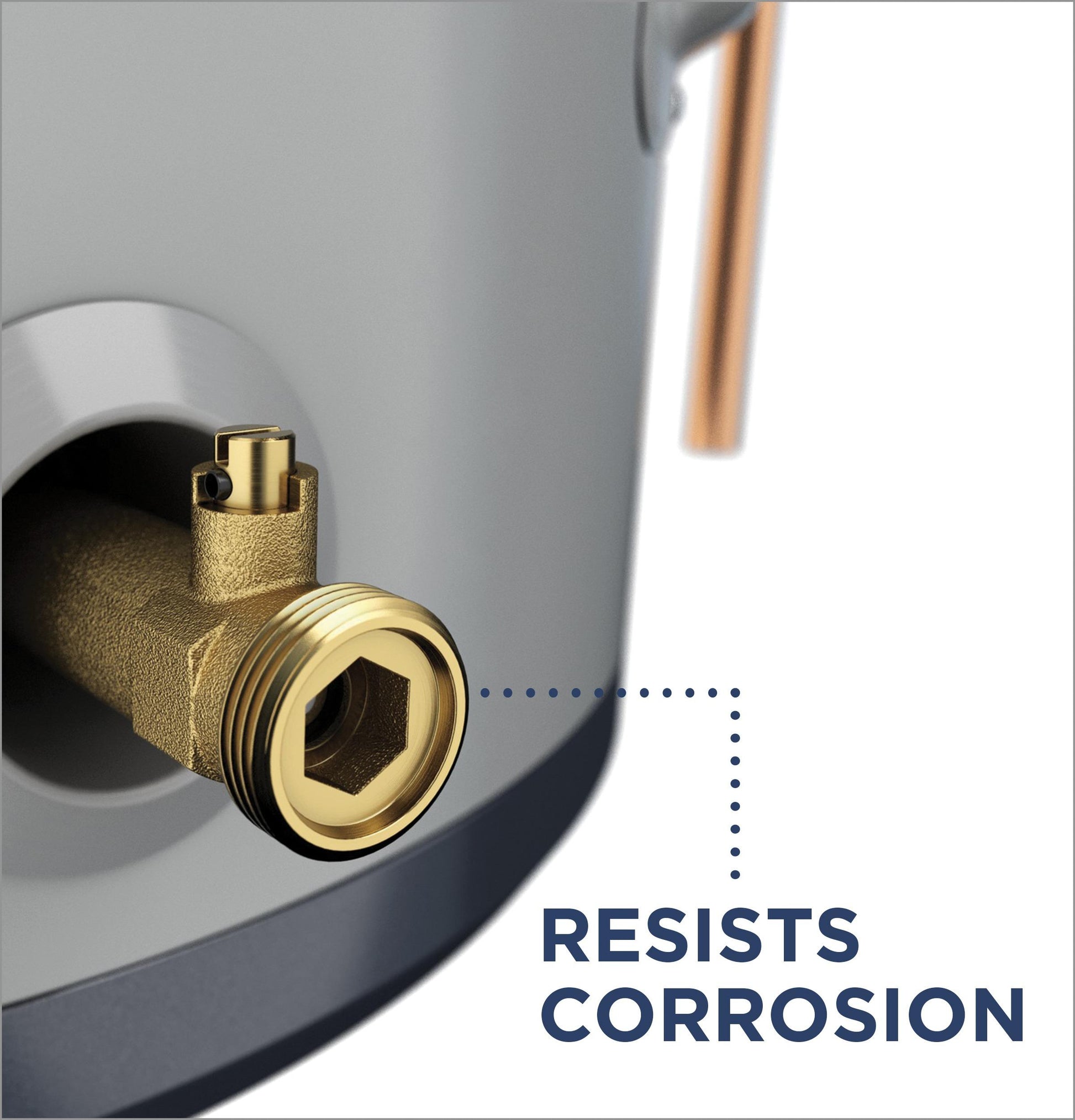

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

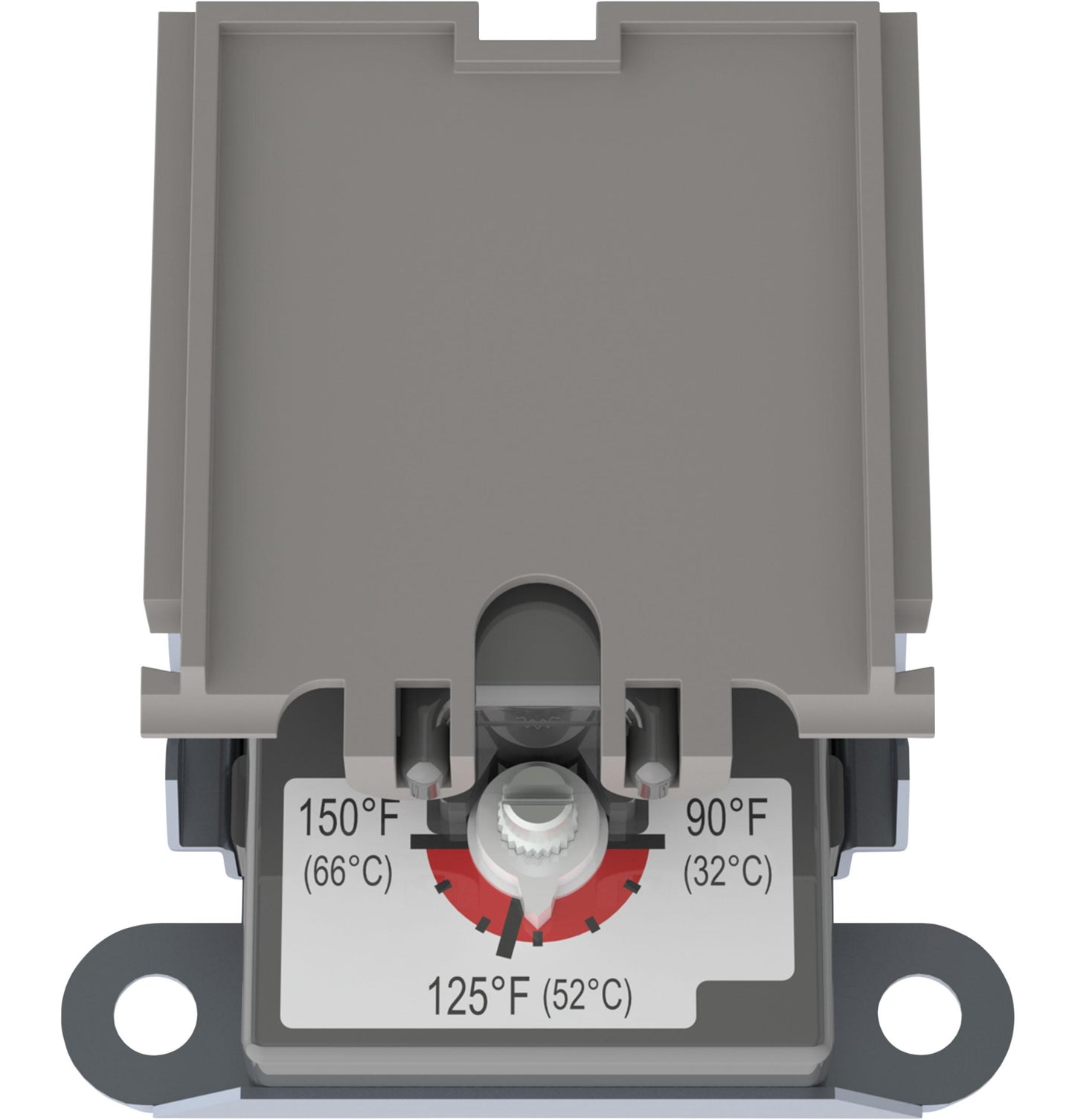

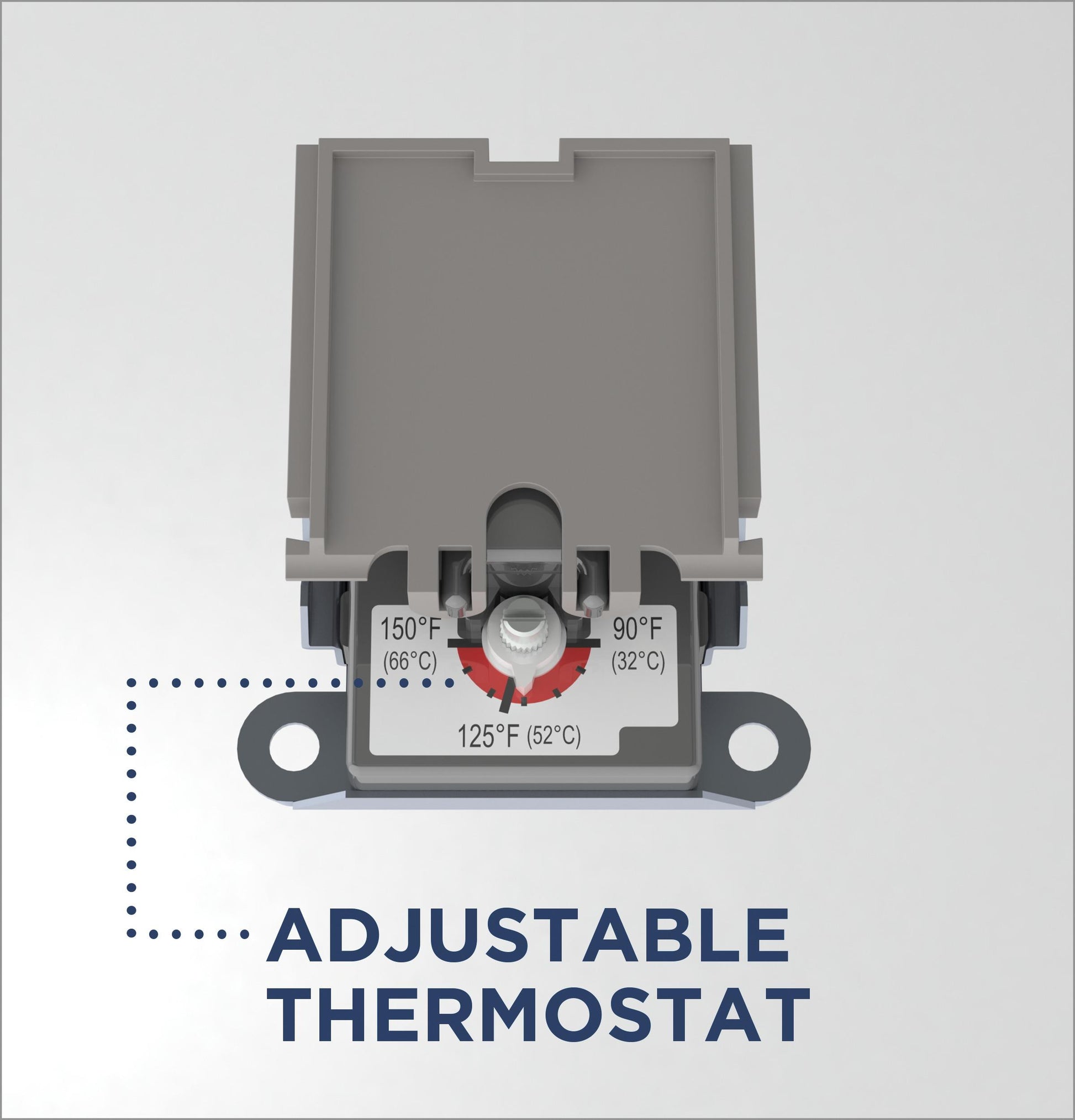

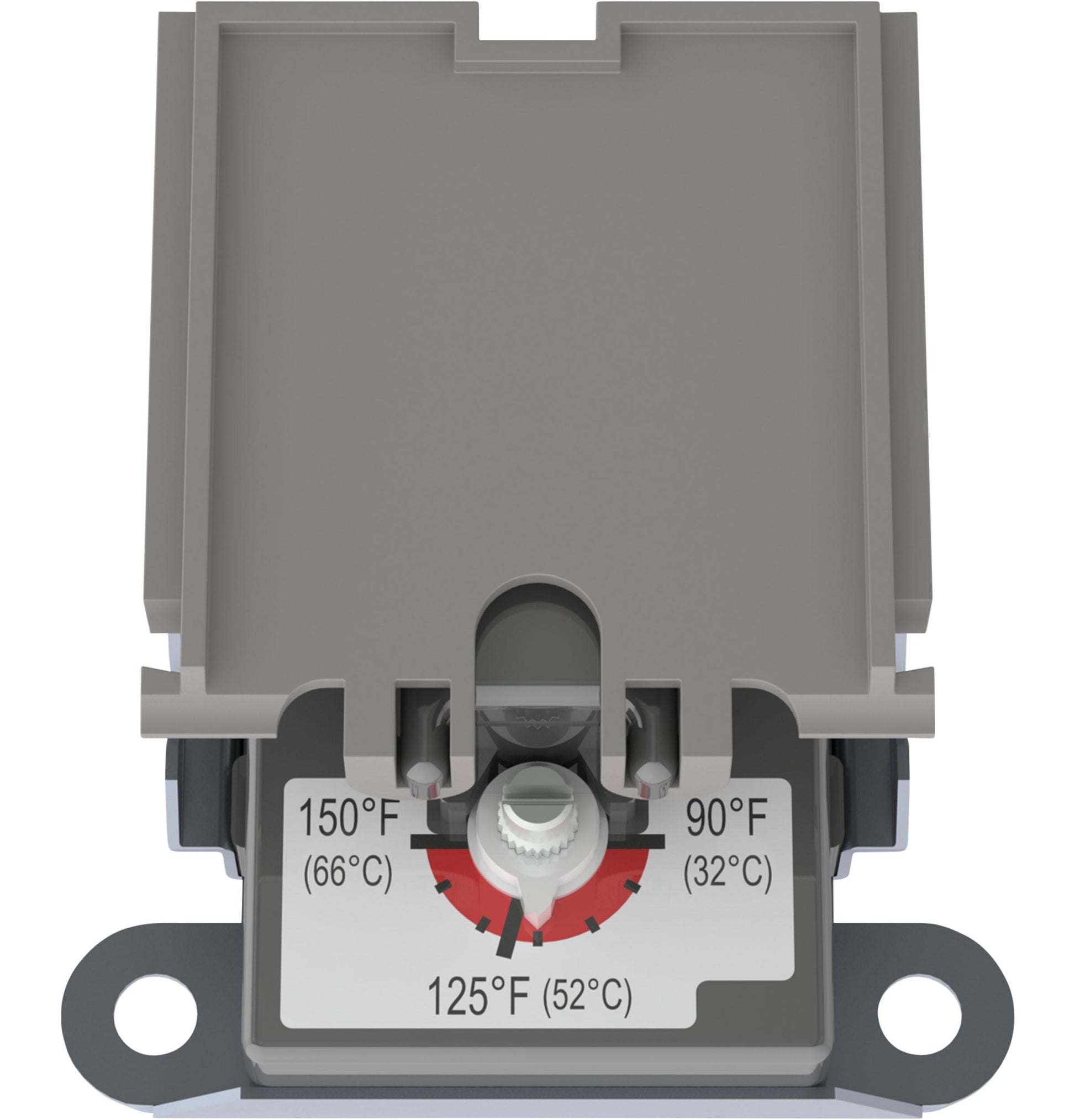

Adjustable Thermostat
Change temperature to your desired setting
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Maximum Performance
Live comfortably with this best in class unit that delivers 63 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family of 2 to 4 persons
4500W Heating Elements
Two 4500W heating elements that require 25 Amp to operate will increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
| CAPACITY | |
| Unit Capacity | 40 Gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 4500/4500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 63 Gallons |
| Voltage (MAX) | 240 V |
| Energy Consumption (kWh/year) | 3531 |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |

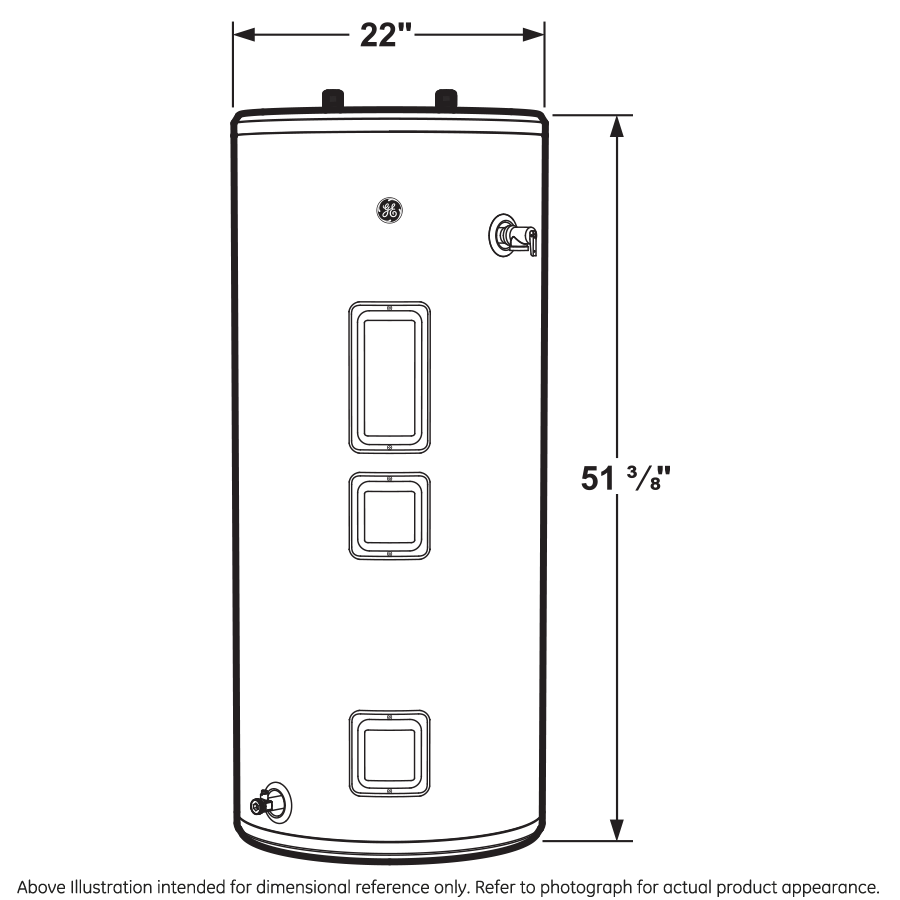

| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 52.875 in |
| Approximate Shipping Weight | 133 lb |
| Overall Width | 22 in |
| Overall Height | 52.875 in |
| Product Height (to top of unit) | 51.375 in |
| Net Weight | 121 lb |
| Product Diameter | 22 in |
| Overall Depth | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Rated Capacity | 40 gal |
| Height Description | Short |
| Heating Element | Copper |
| Fuel Type | Electric |
| Configuration | Short |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 40 |
| Drain Valve Type | Brass |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Product Type | Electric 4500W |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range Factory Default 120° F |
| Insulation Thickness | 2.75 in |
