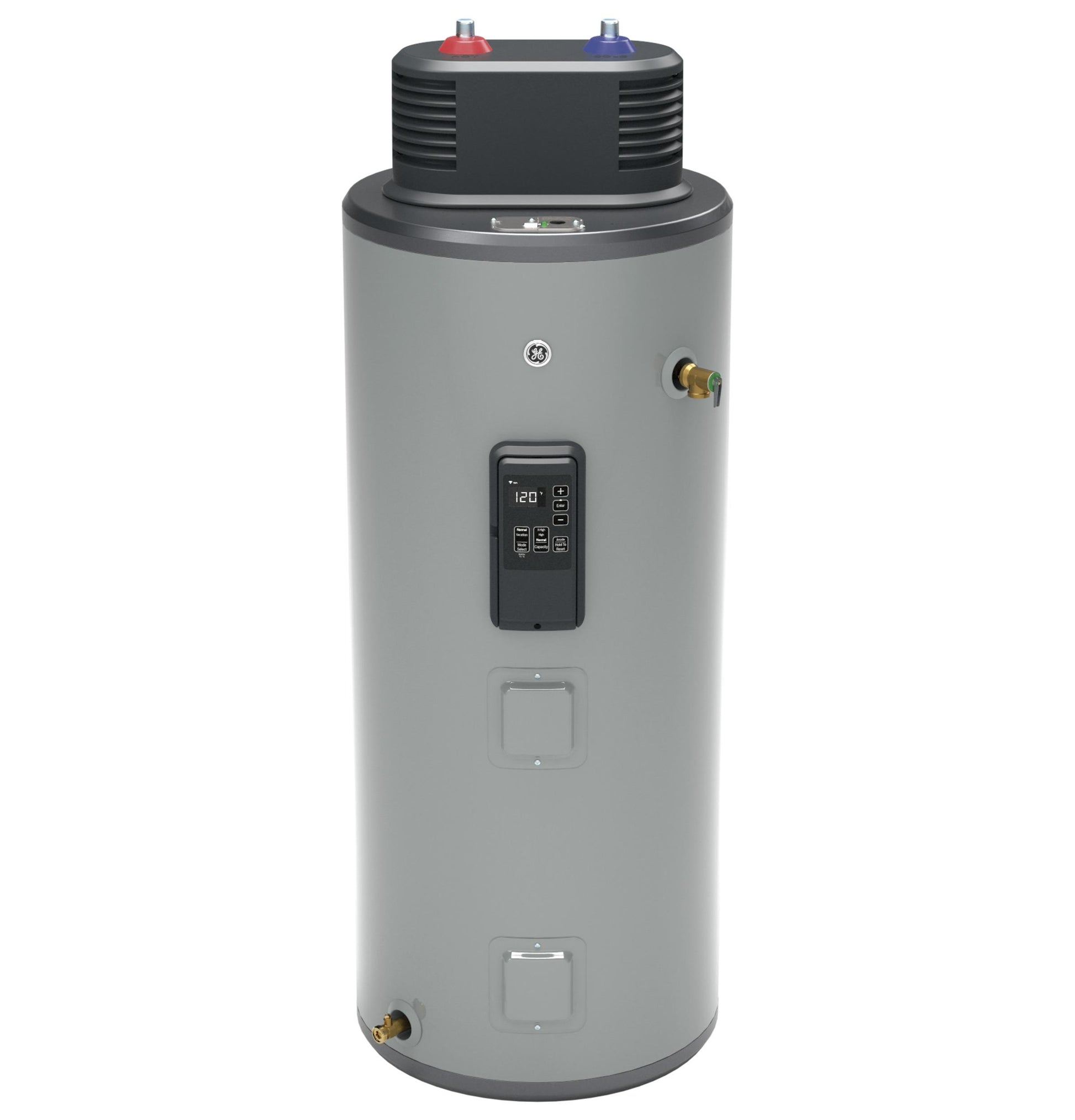

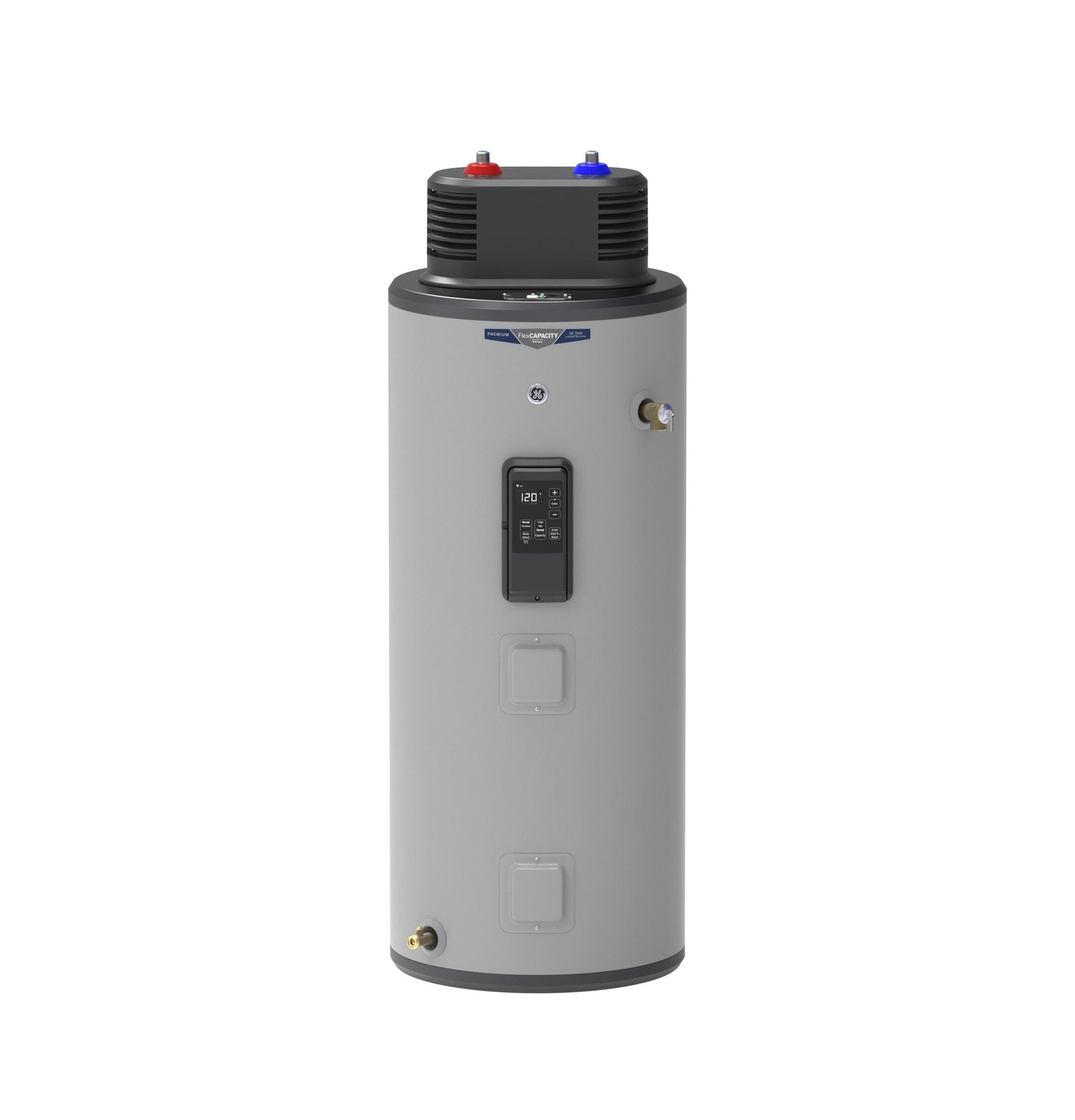

GE40S10BMM GE® Smart 40 Gallon Electric Water Heater with Flexible Capacity

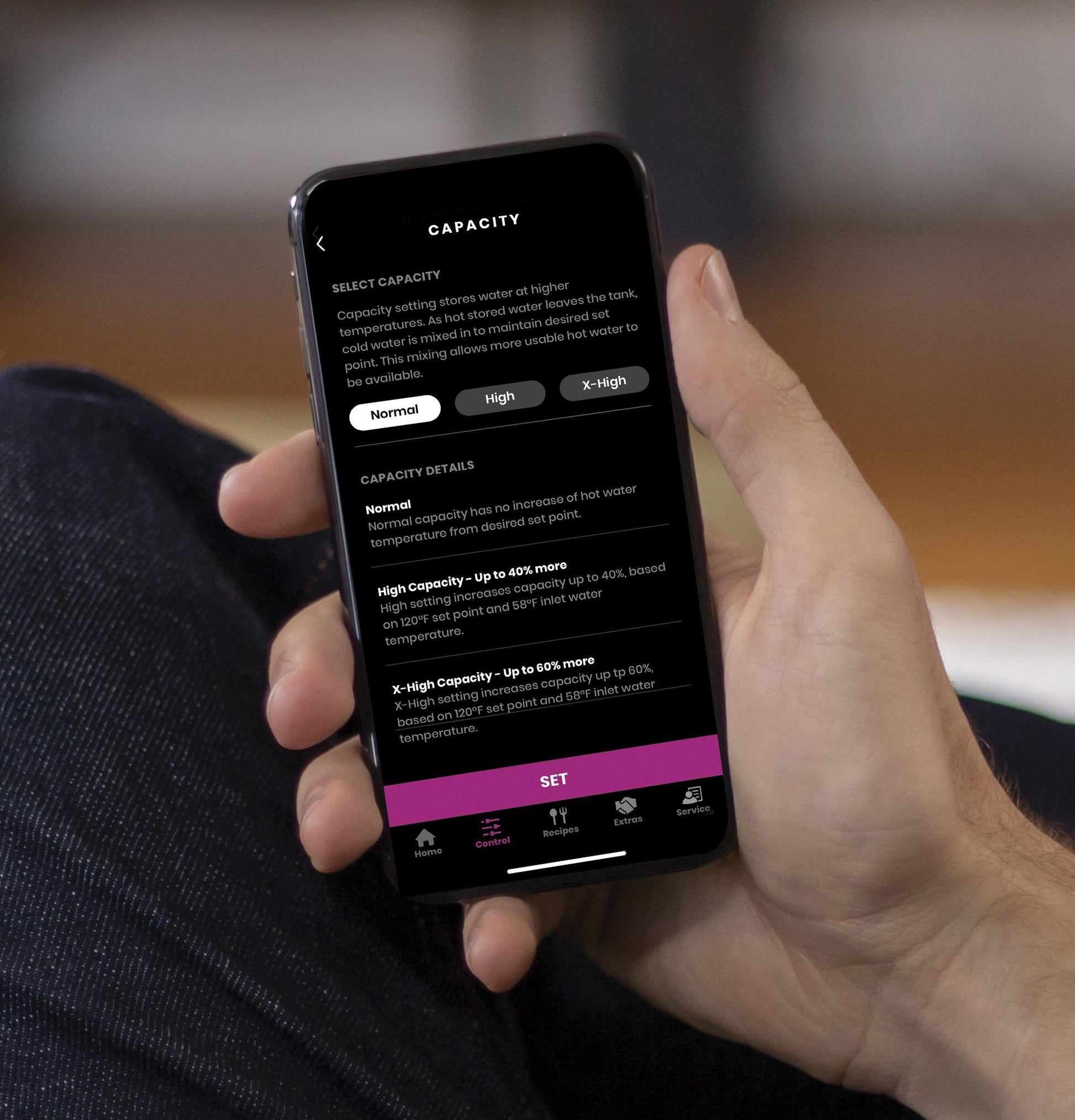

Flexible Capacity
Choose from three capacity settings to enjoy up to 60% additional hot water when you need it* *vs comparable water heaters without mixing valve at 120(degree)F set and 58(degree)F water temperature

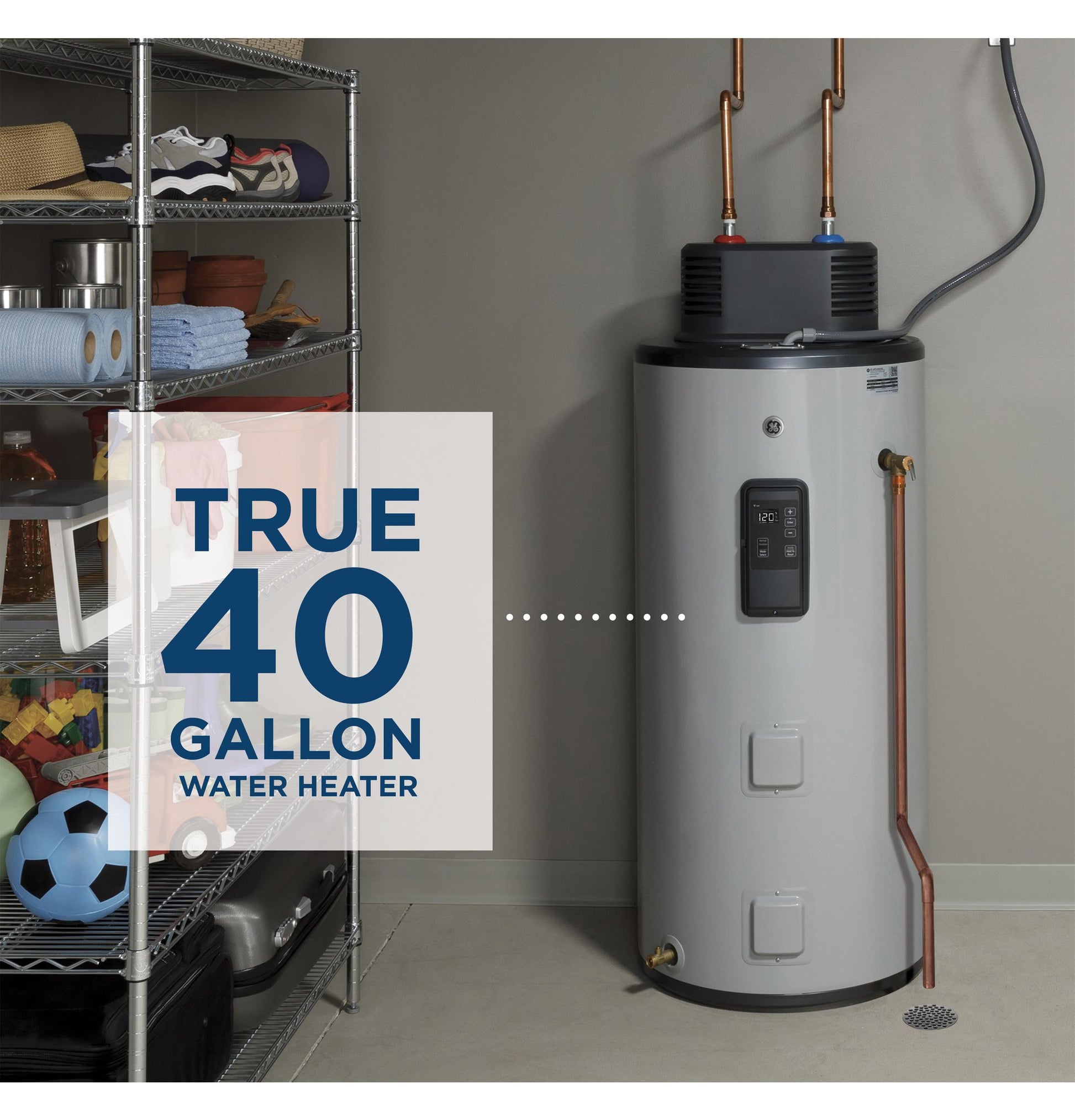

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)

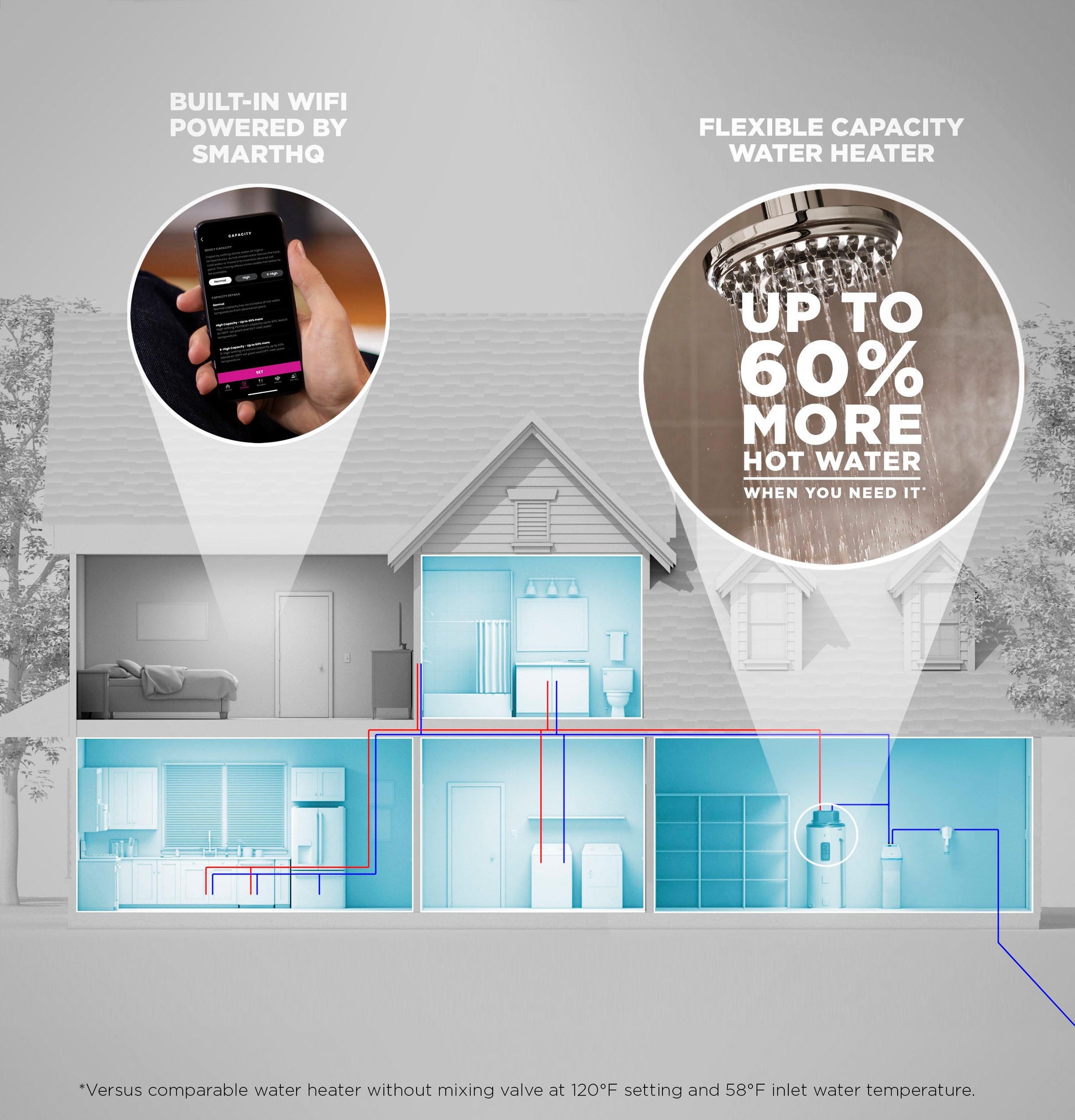

Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

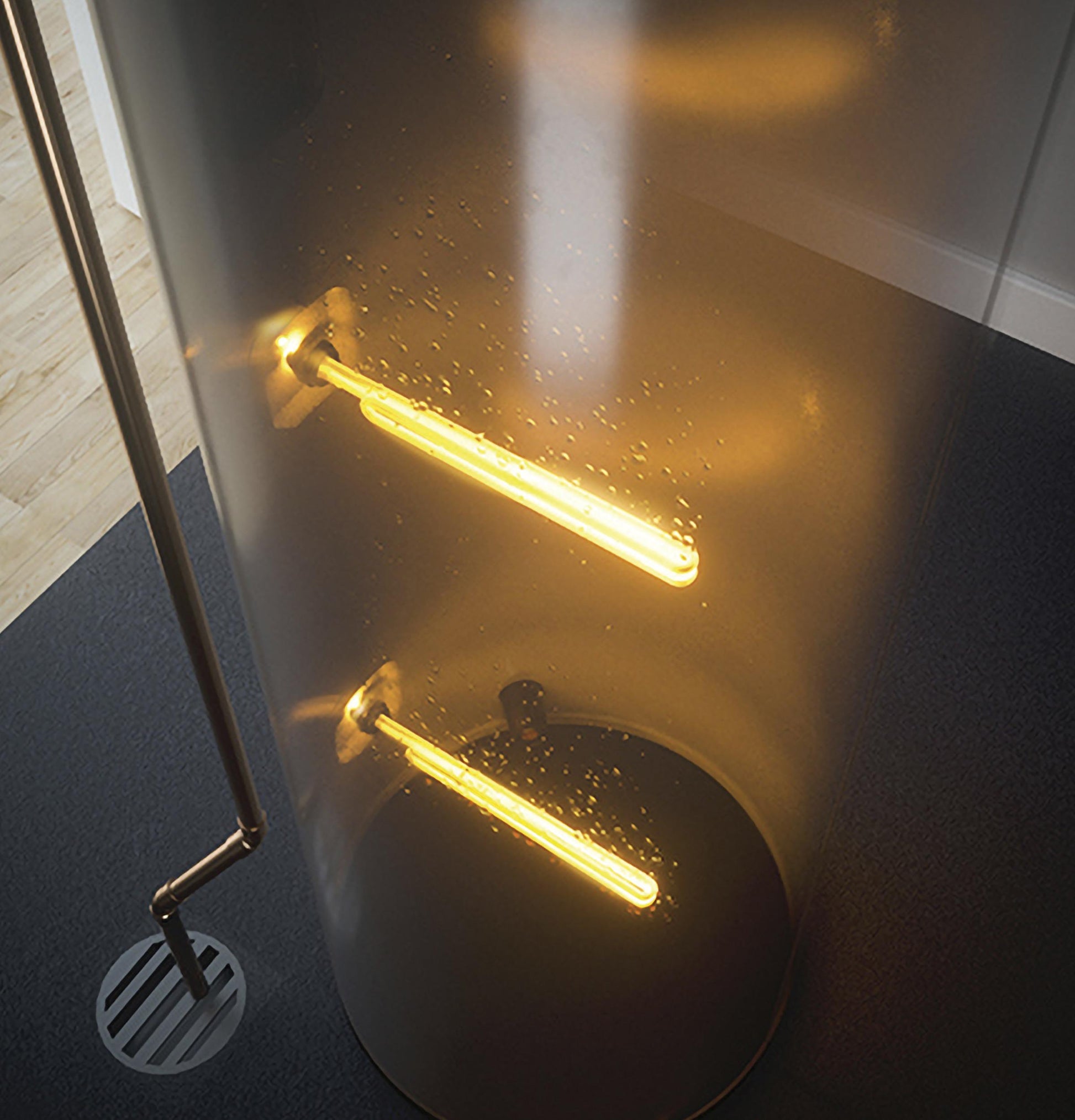

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

Leading Performance
Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Household Size
Provide hot water for the whole family up to 5 persons on X-High setting

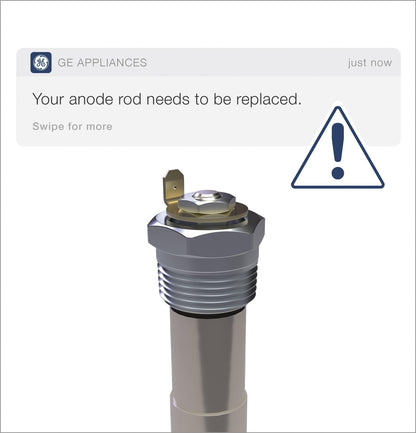

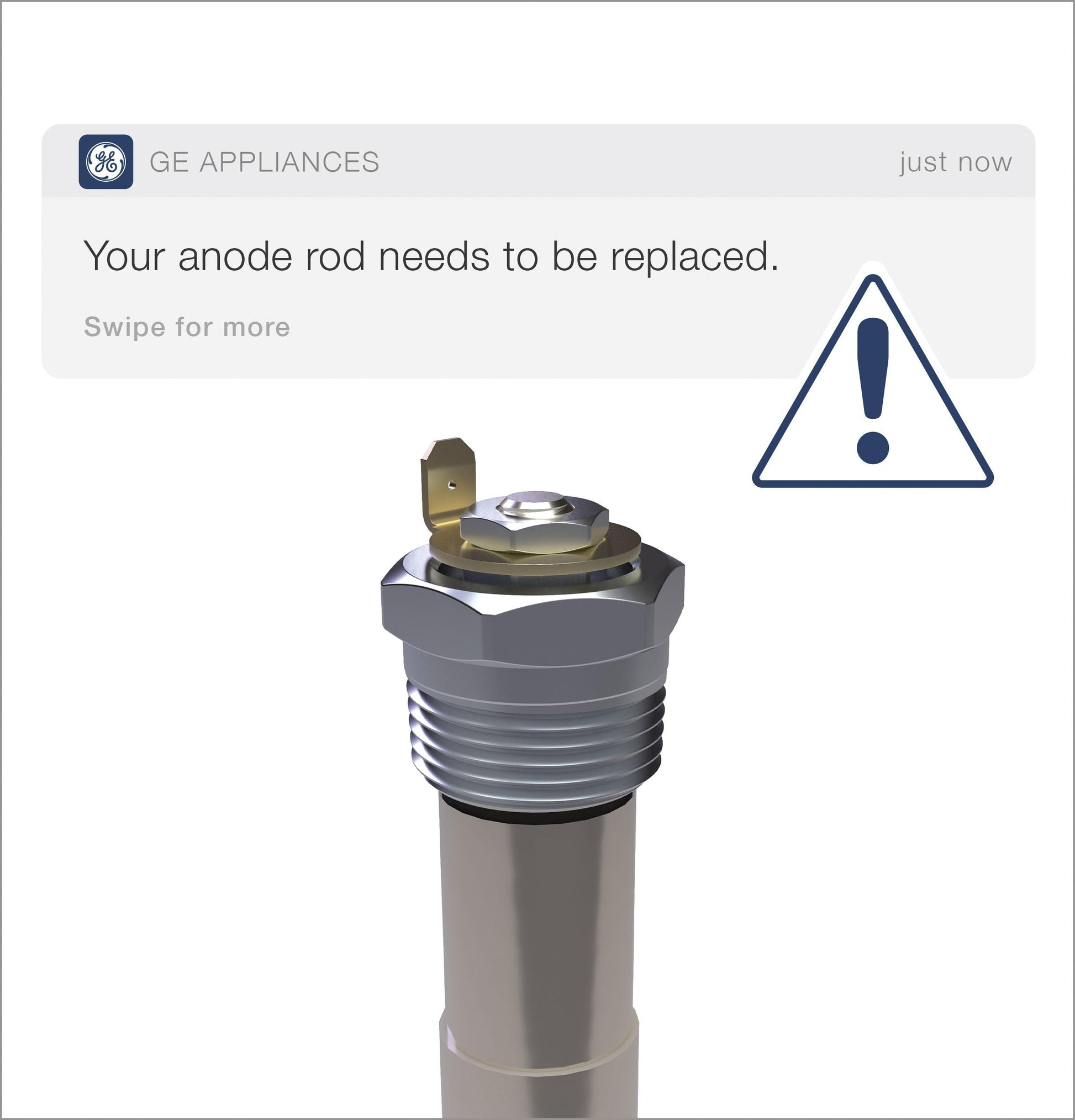

Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank

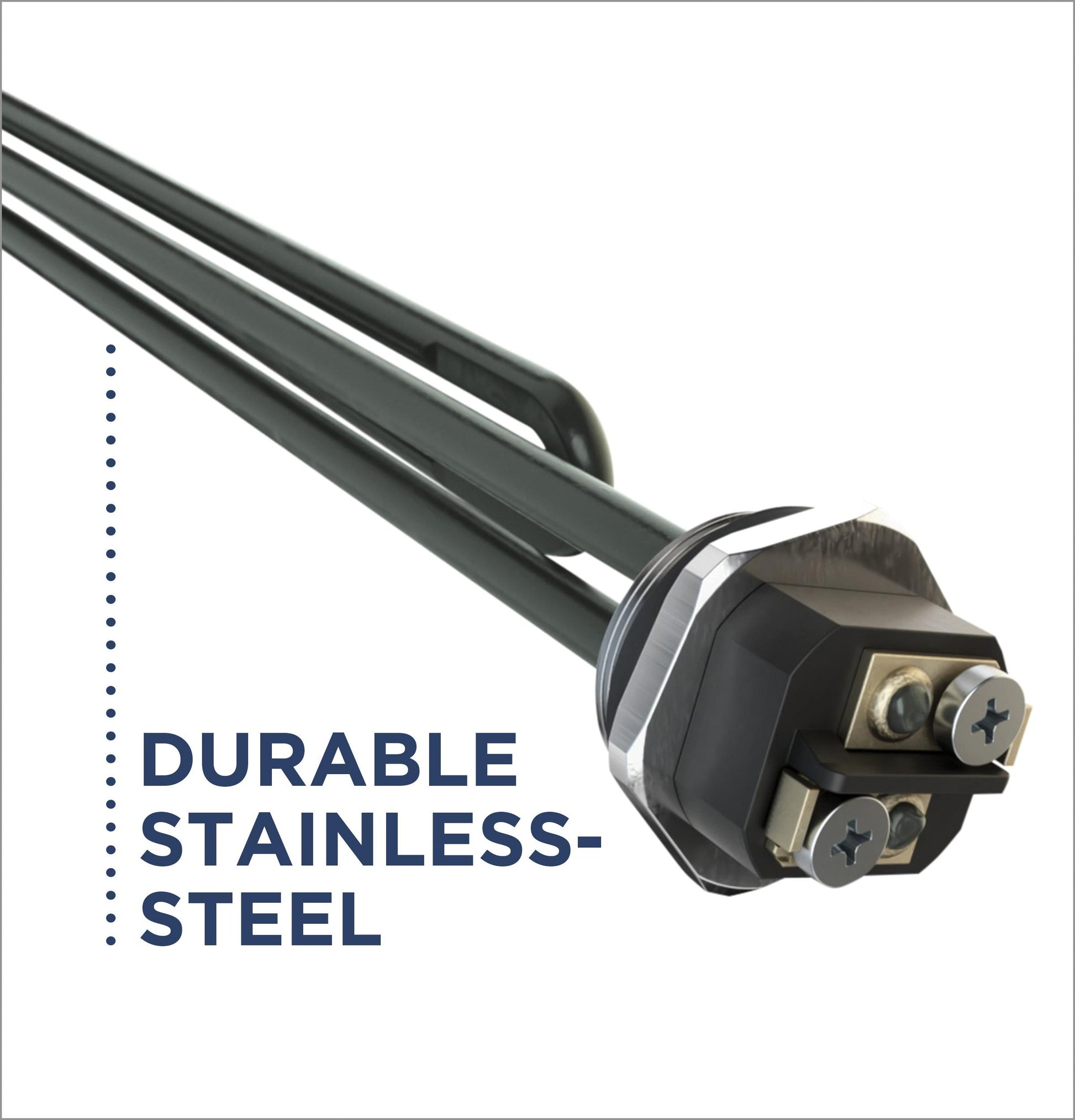

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

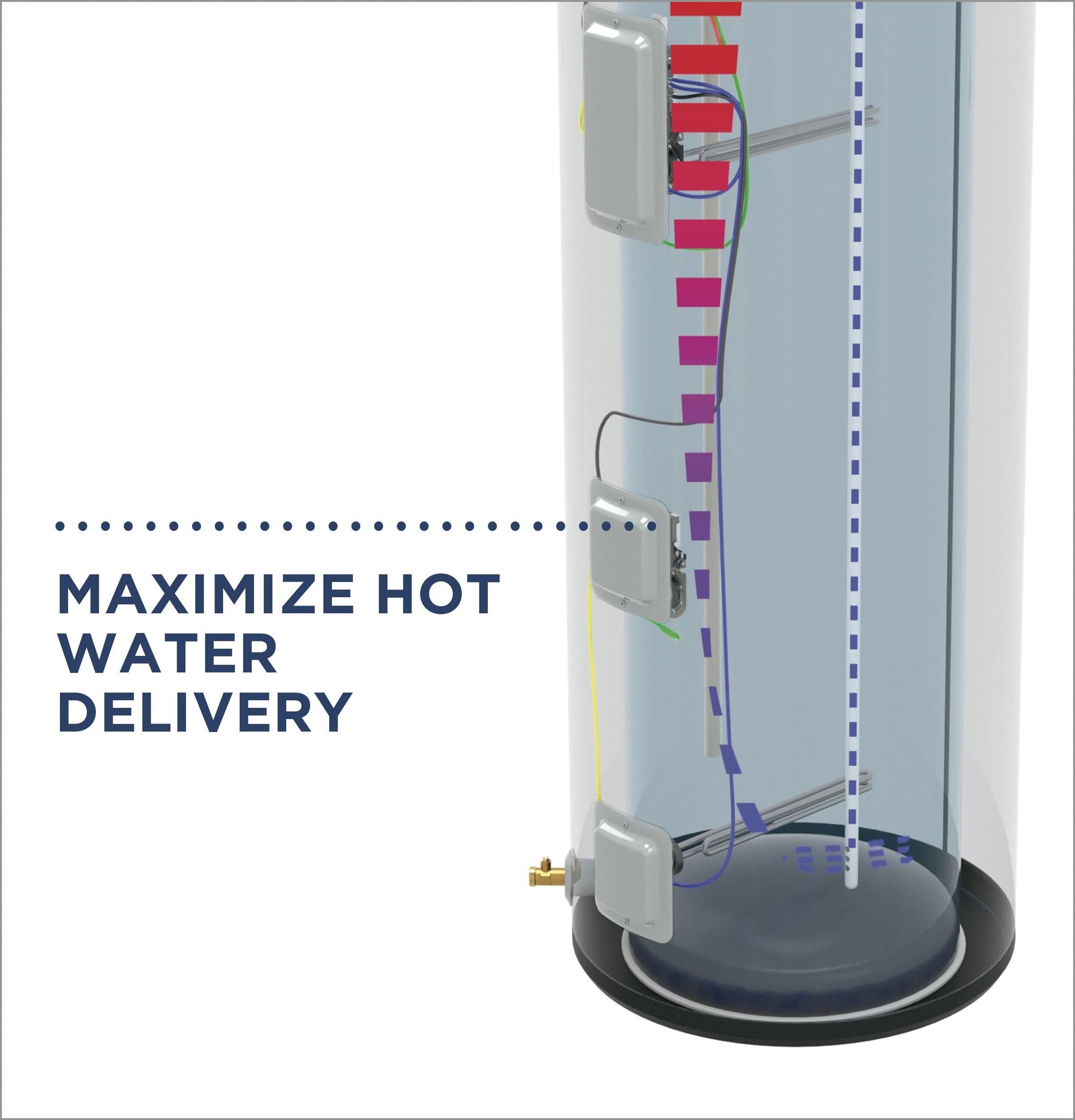

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

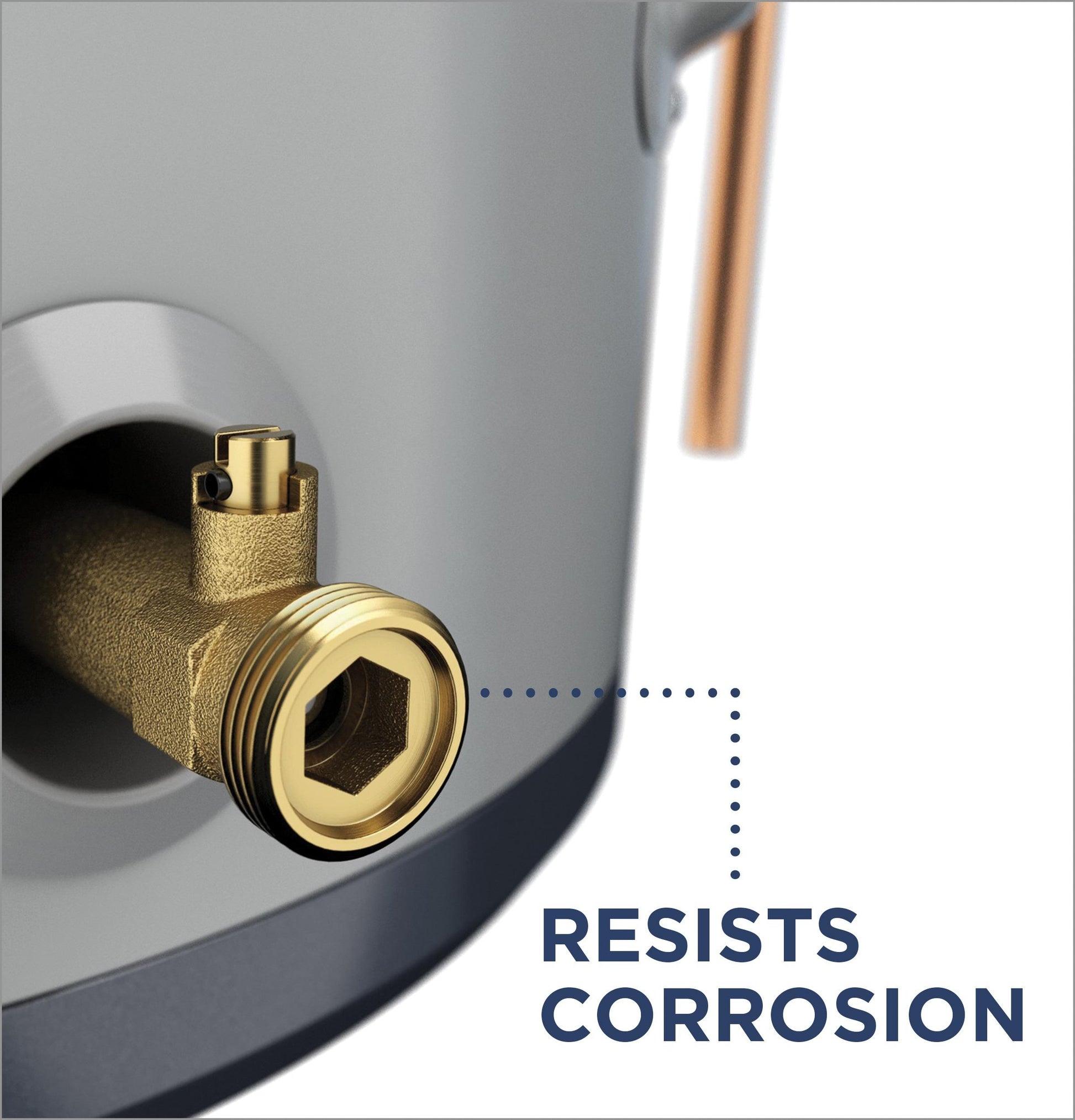

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

CAPACITY
Unit Capacity	40 Gallons
Effective Capacity at X-High Setting (gallons)	64
FILTER
App Filter - WiFi Connect	Built-In
App Filter - Product Type	Water Heaters Electric Standard
App Filter - Vacation Mode	Yes
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
Integrated Energy Factor	0.92
Heating - Electric - Heater Watts	5500/5500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Element Type	Stainless Steel
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	65 Gallons
Voltage (MAX)	240 V
Energy Consumption (kWh/year)	3531
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 10-year tank and parts
Labor Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	60.875 in
Approximate Shipping Weight	143 lb
Overall Width	22 in
Overall Height	60.875 in
Product Height (to top of unit)	59.375 in
Net Weight	131 lb
Product Diameter	22 in
Overall Depth	22 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
FEATURES

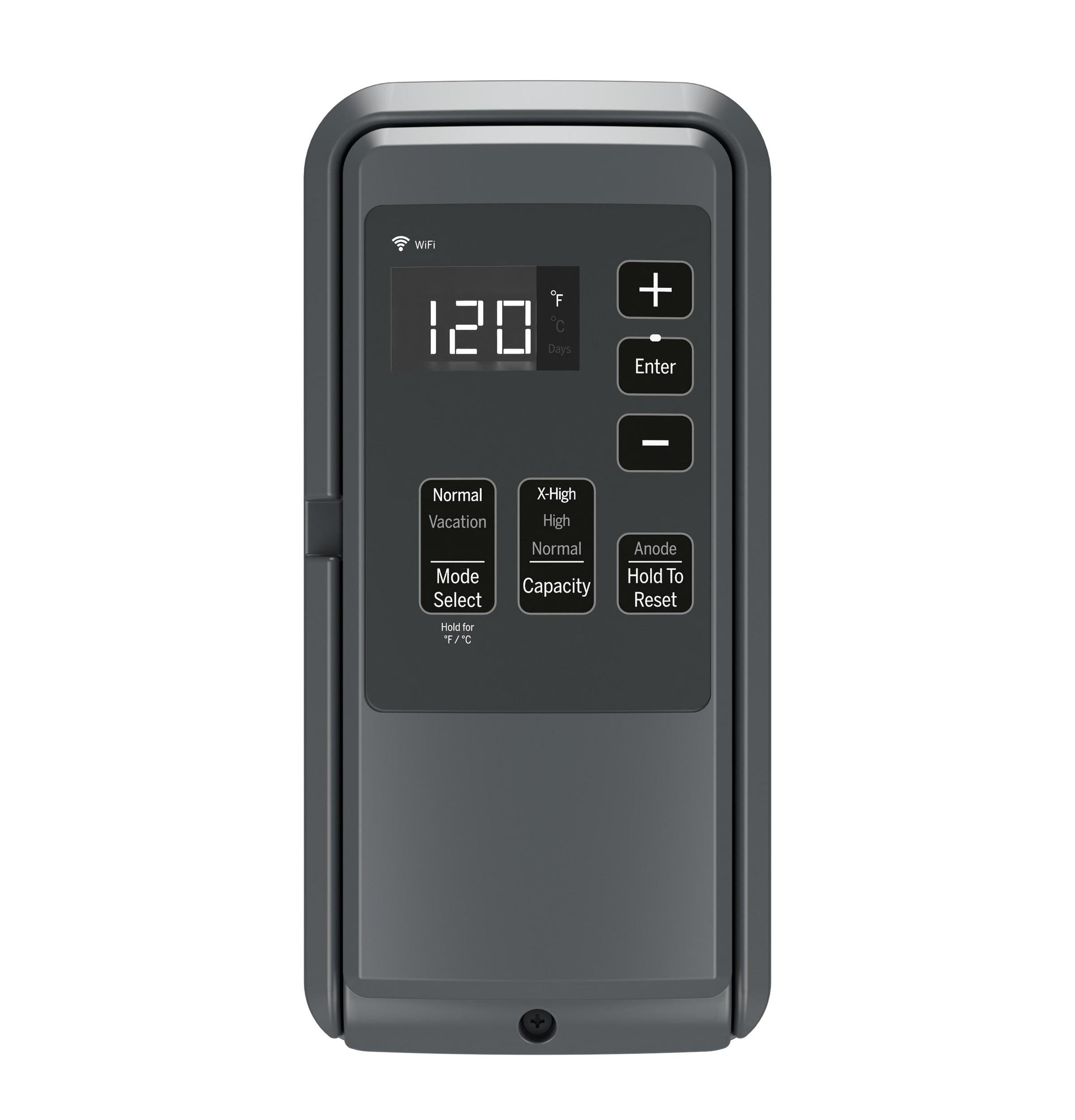

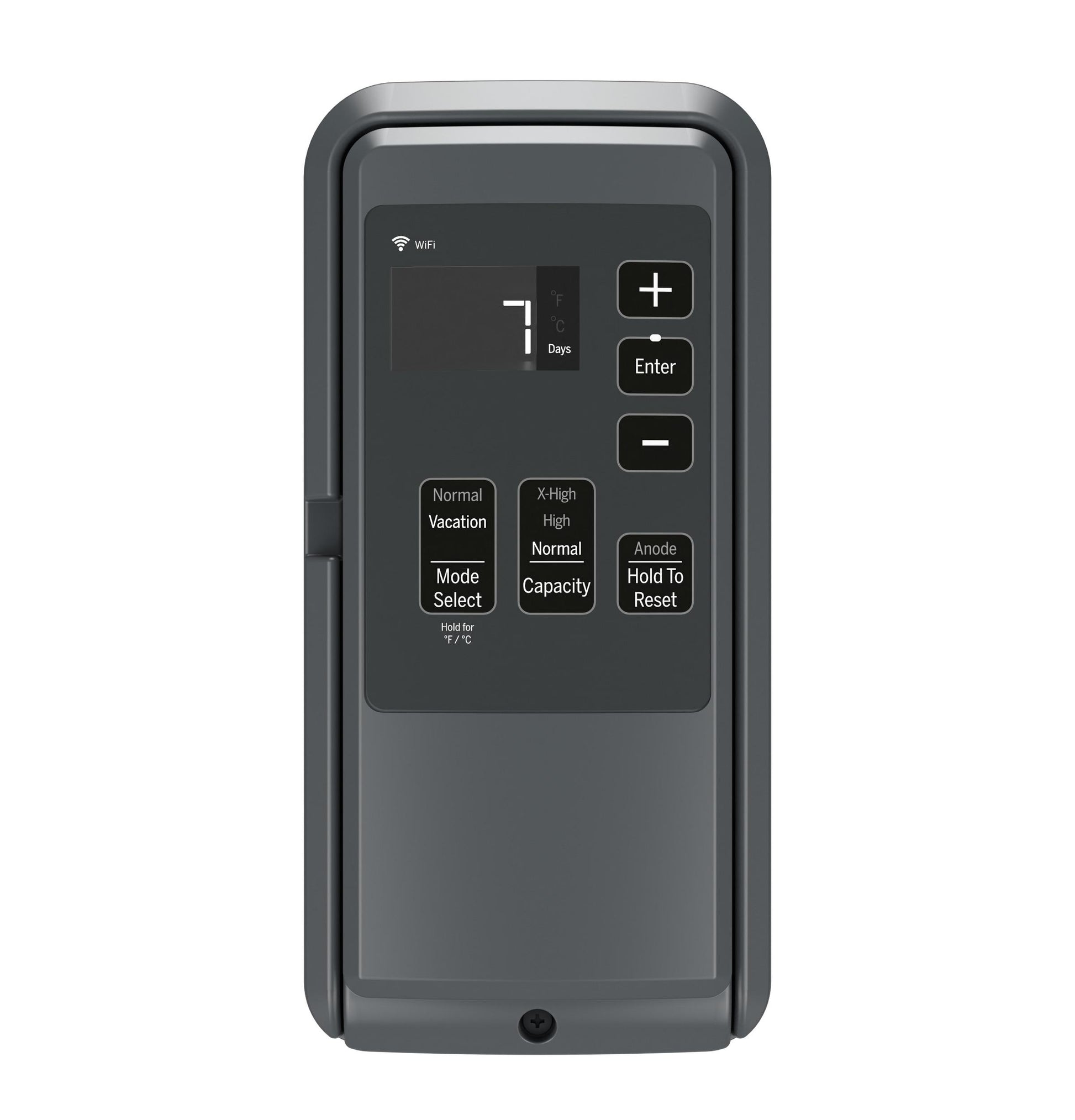

Control Type	Electronic with Digital Display
EcoBalance Compatible	Yes
Fuel Type	Electric
Configuration	Short
Operating Modes	Normal Vacation
Electronic, Integrated Mixing Valve	Yes
Drain Valve Type	Brass
Sensing Anode	Yes
Product Type	Electric Flexible Capacity
WiFi Connect	Built-In
Family Size	2-4 People 3-5 People
Water Connection Location	Top
Overheat Protection	Yes
Vacation Setting	Yes
Effective Capacity Settings	Normal/High/X-High Flexible Capacity
Diagnostic Feedback	Yes
Temperature Setting	100-140° F Range Factory Default 120° F
Connected Capabilities	Amazon Alexa Google Home
