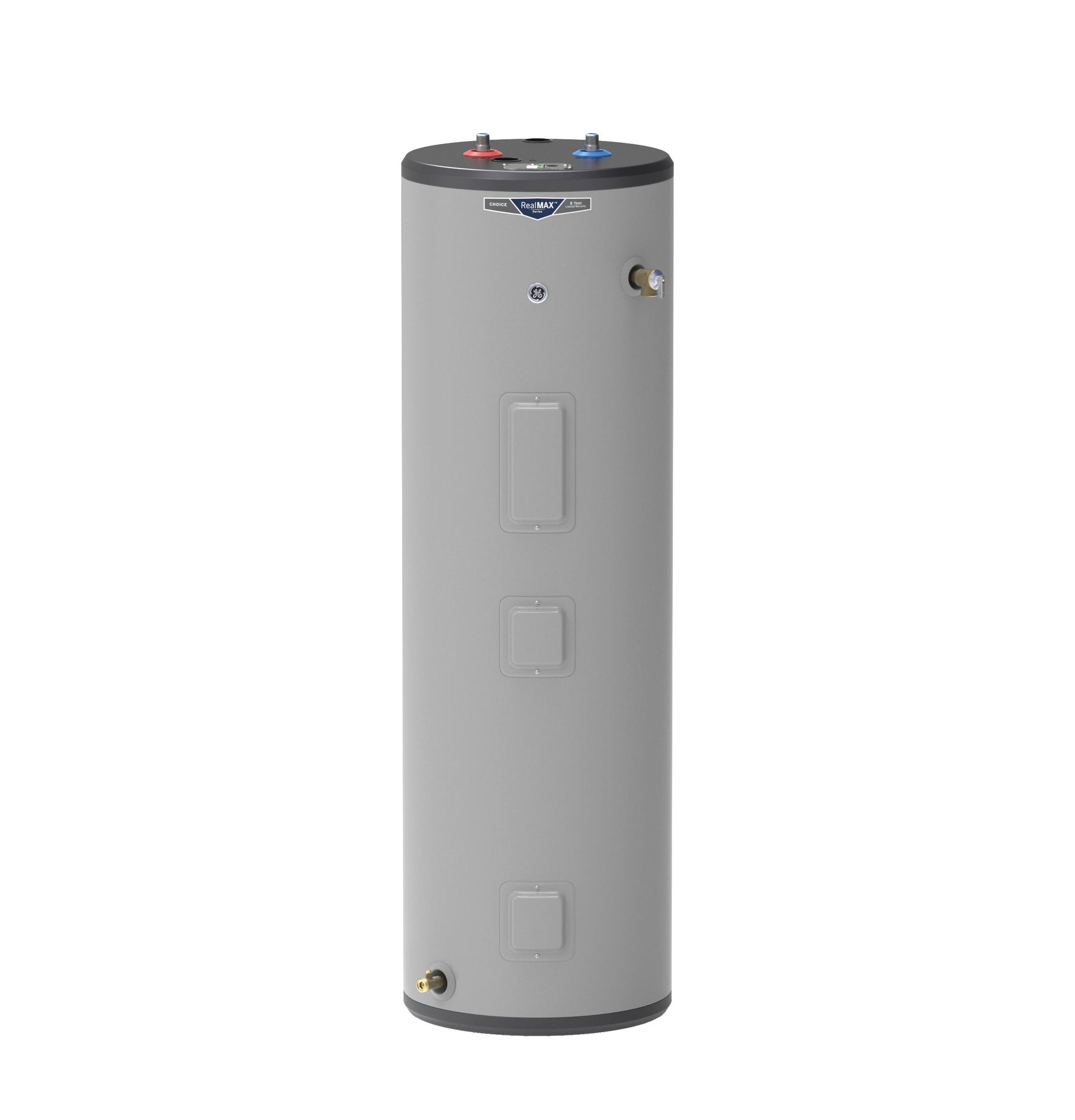

GE40T08BAM GE® 40 Gallon Tall Electric Water Heater

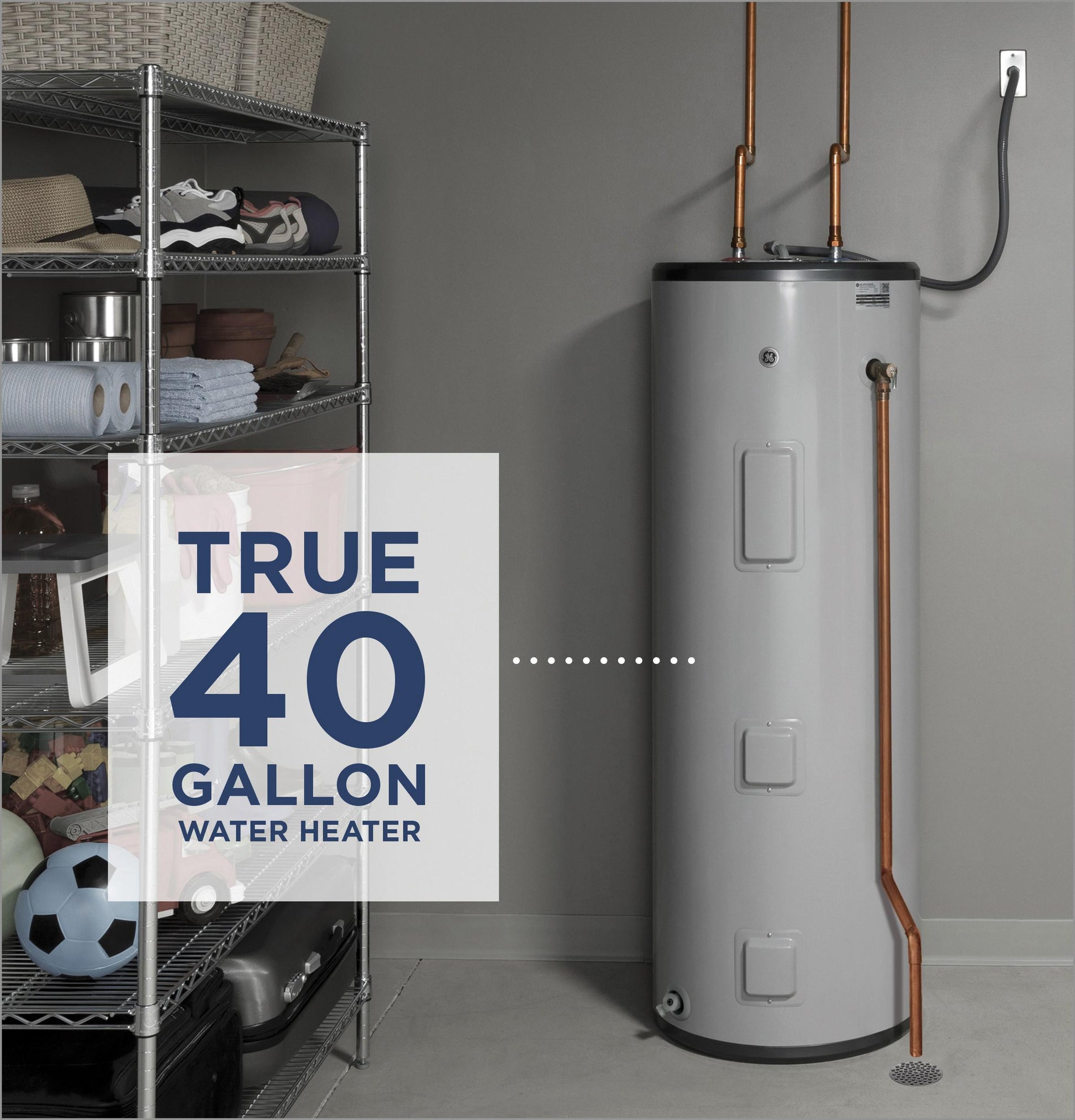

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance
Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

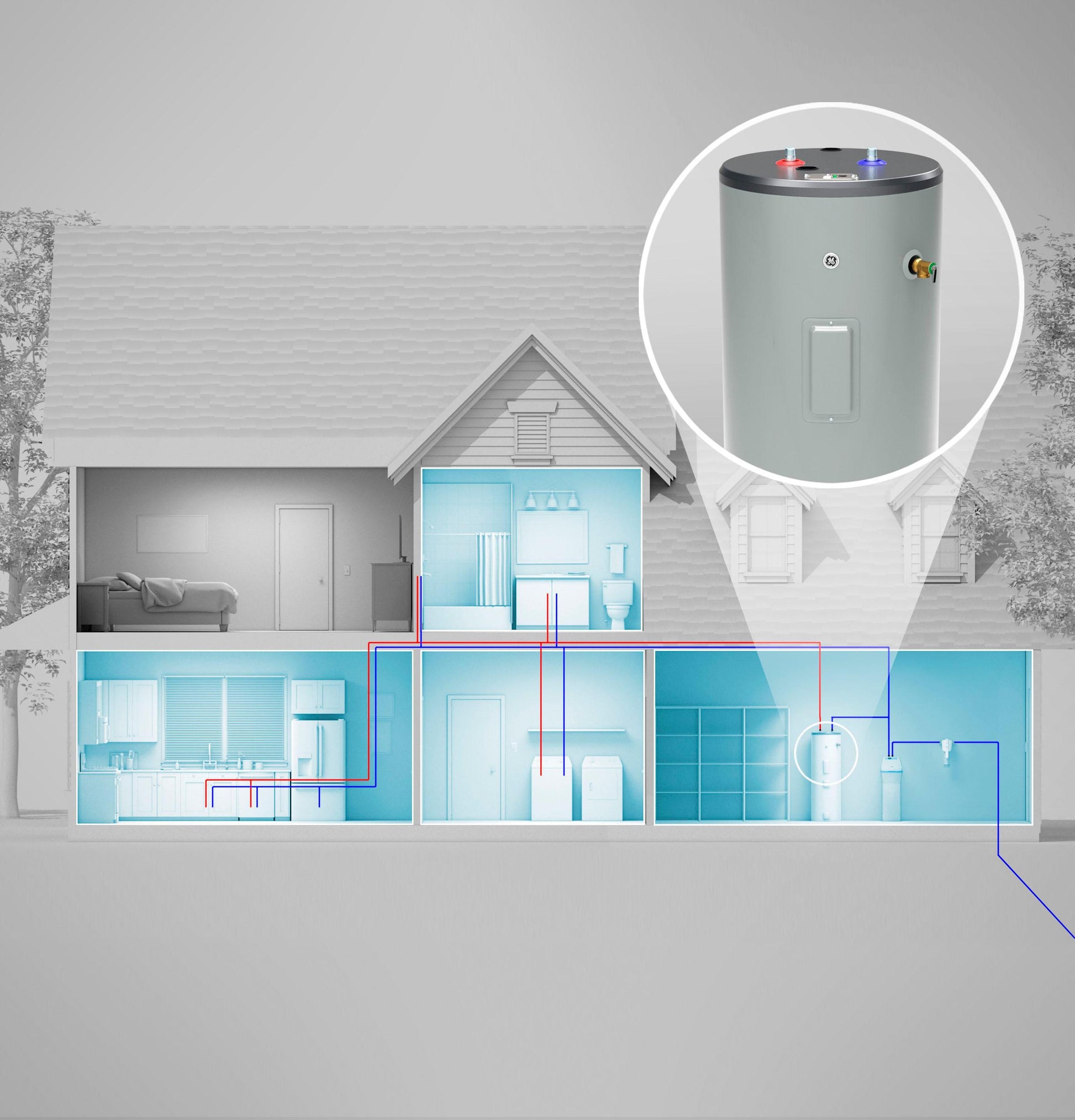

Household Size
Provide hot water for the whole family of 2 to 4 persons

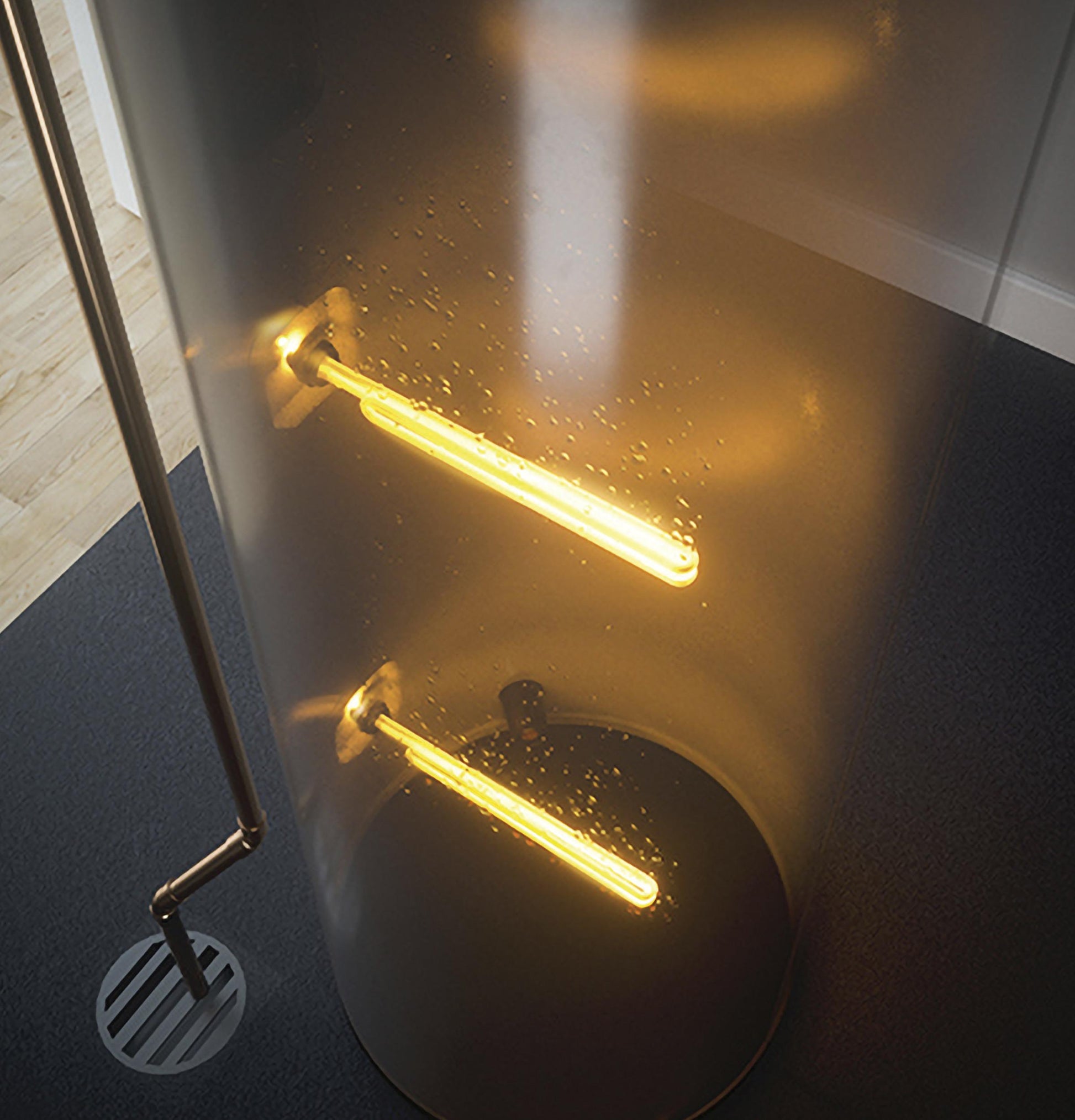

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

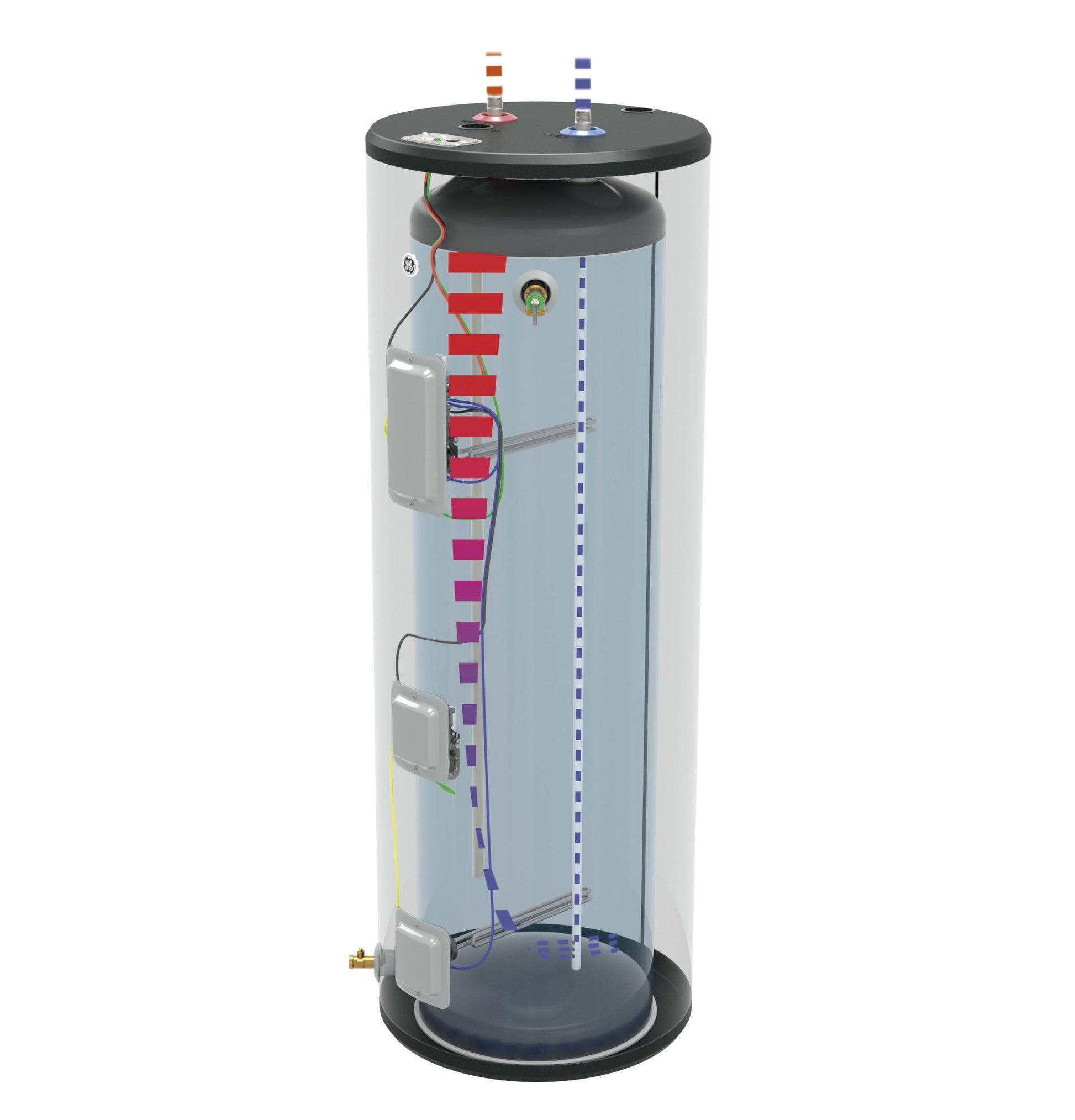

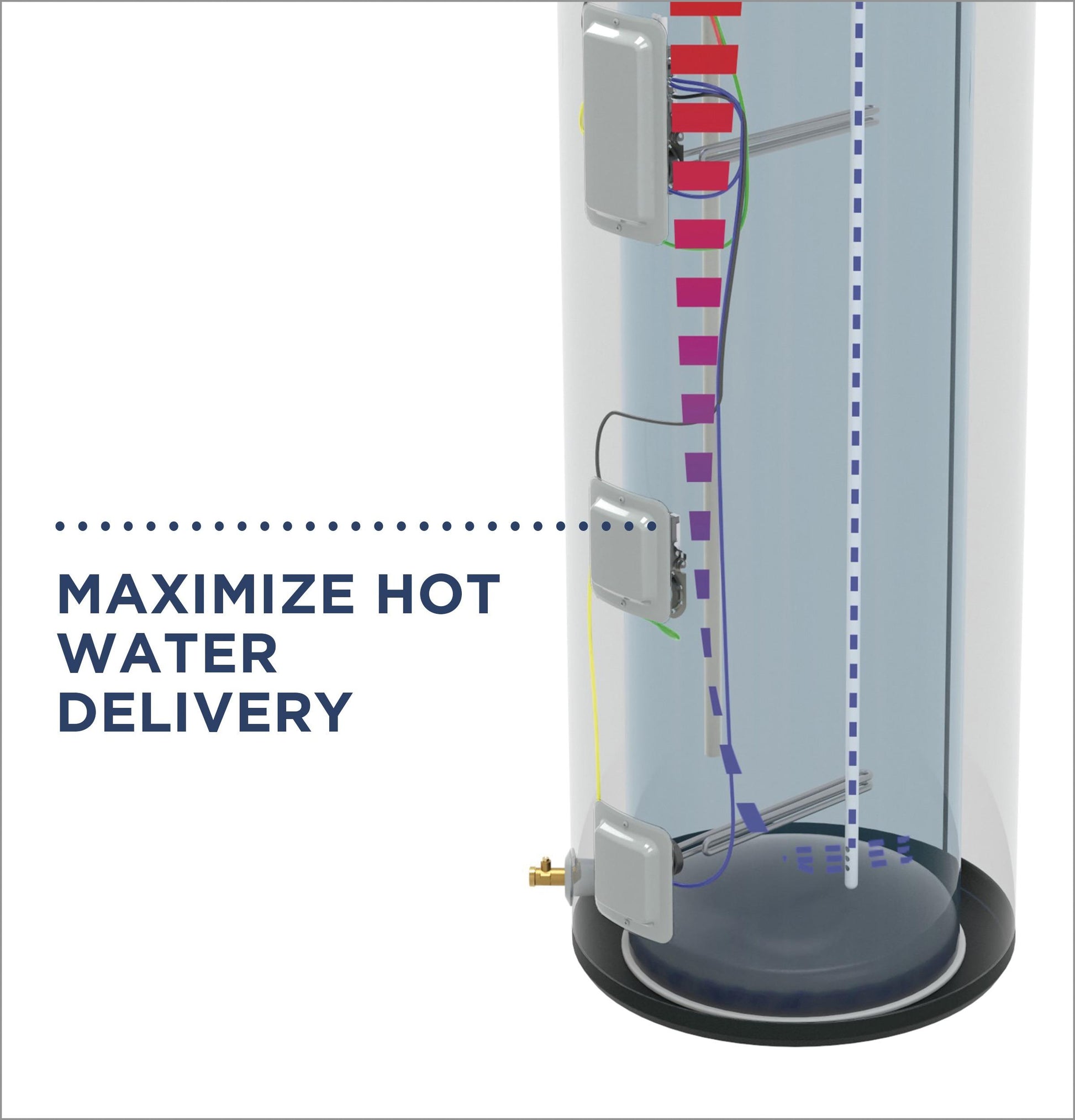

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

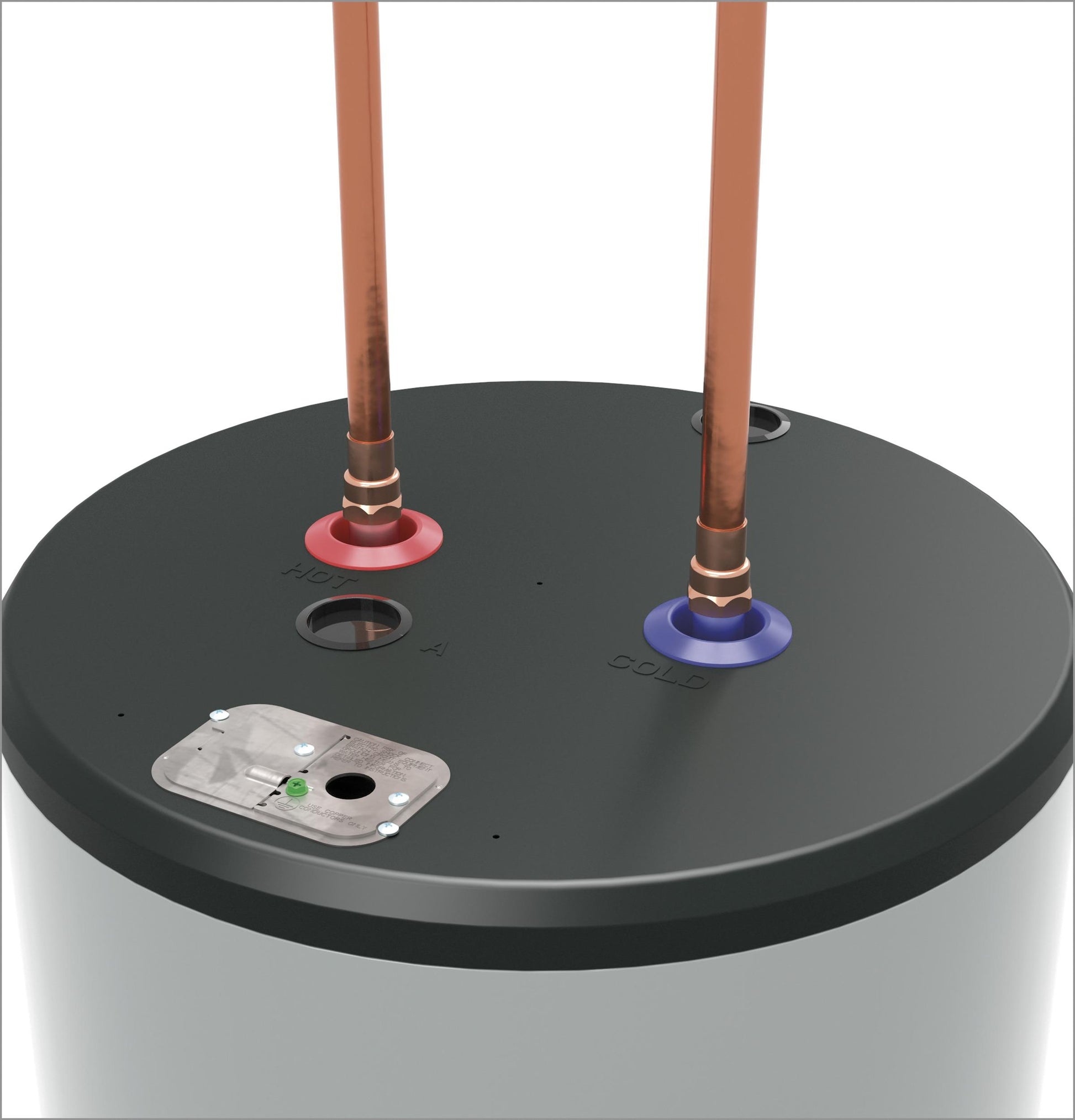

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

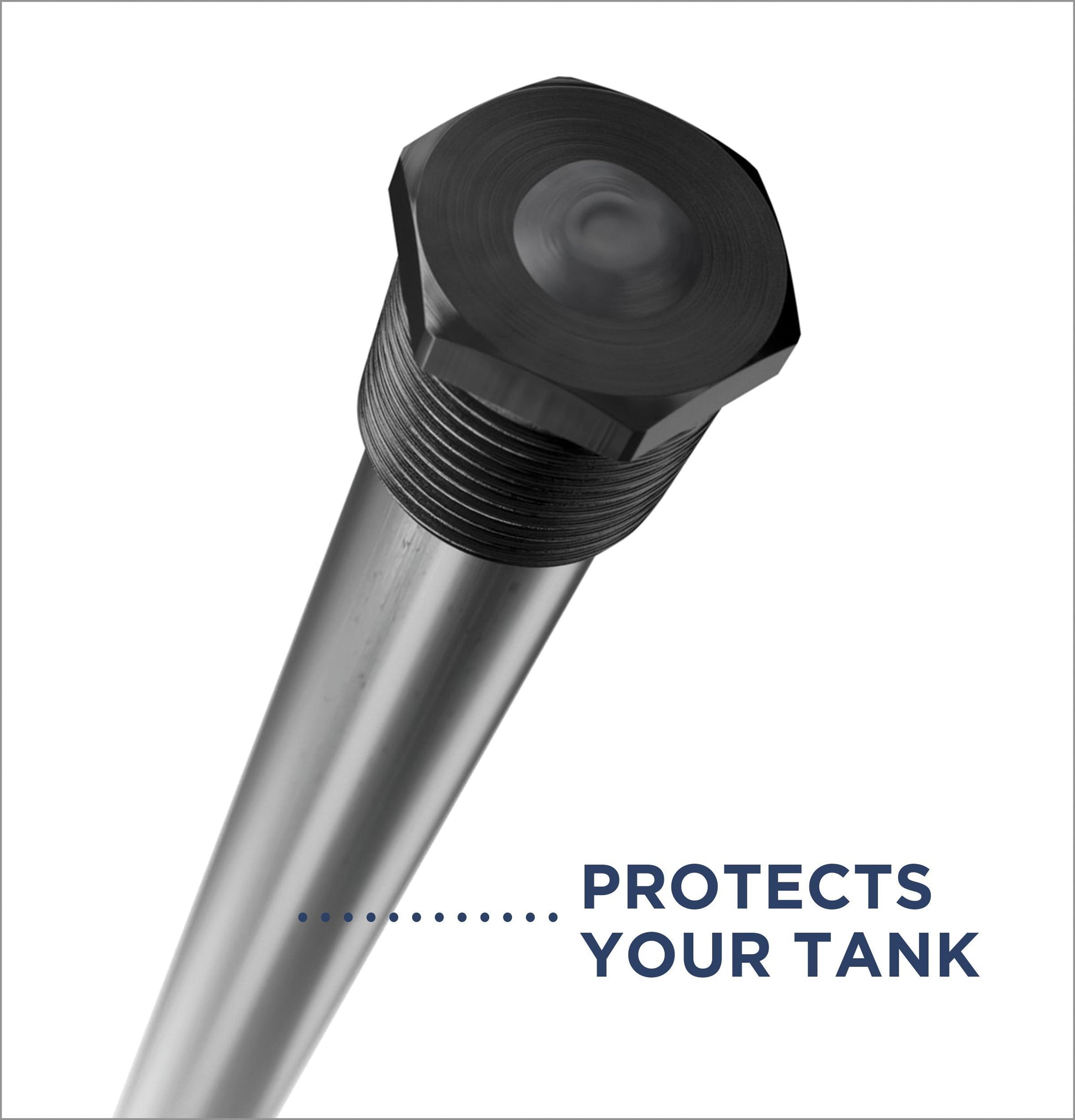

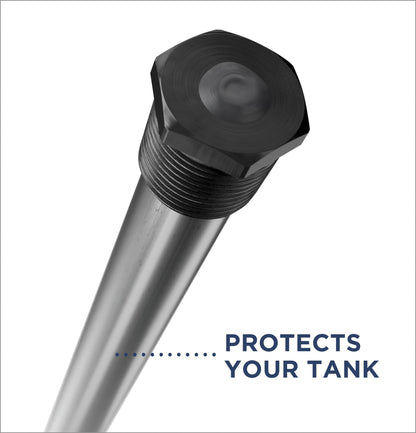

Anode Rod
Durable design offers long-lasting protection against corrosion

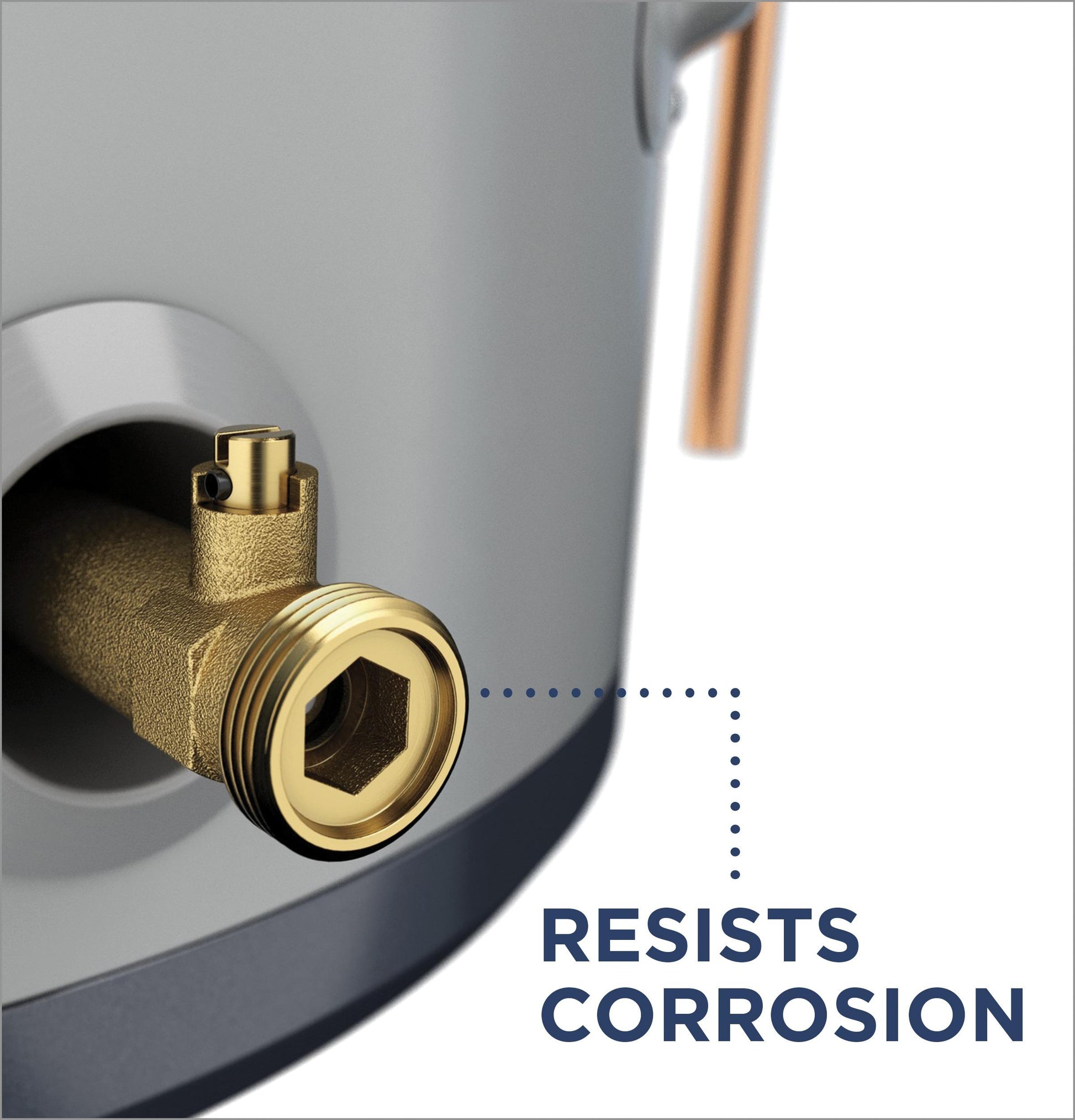

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

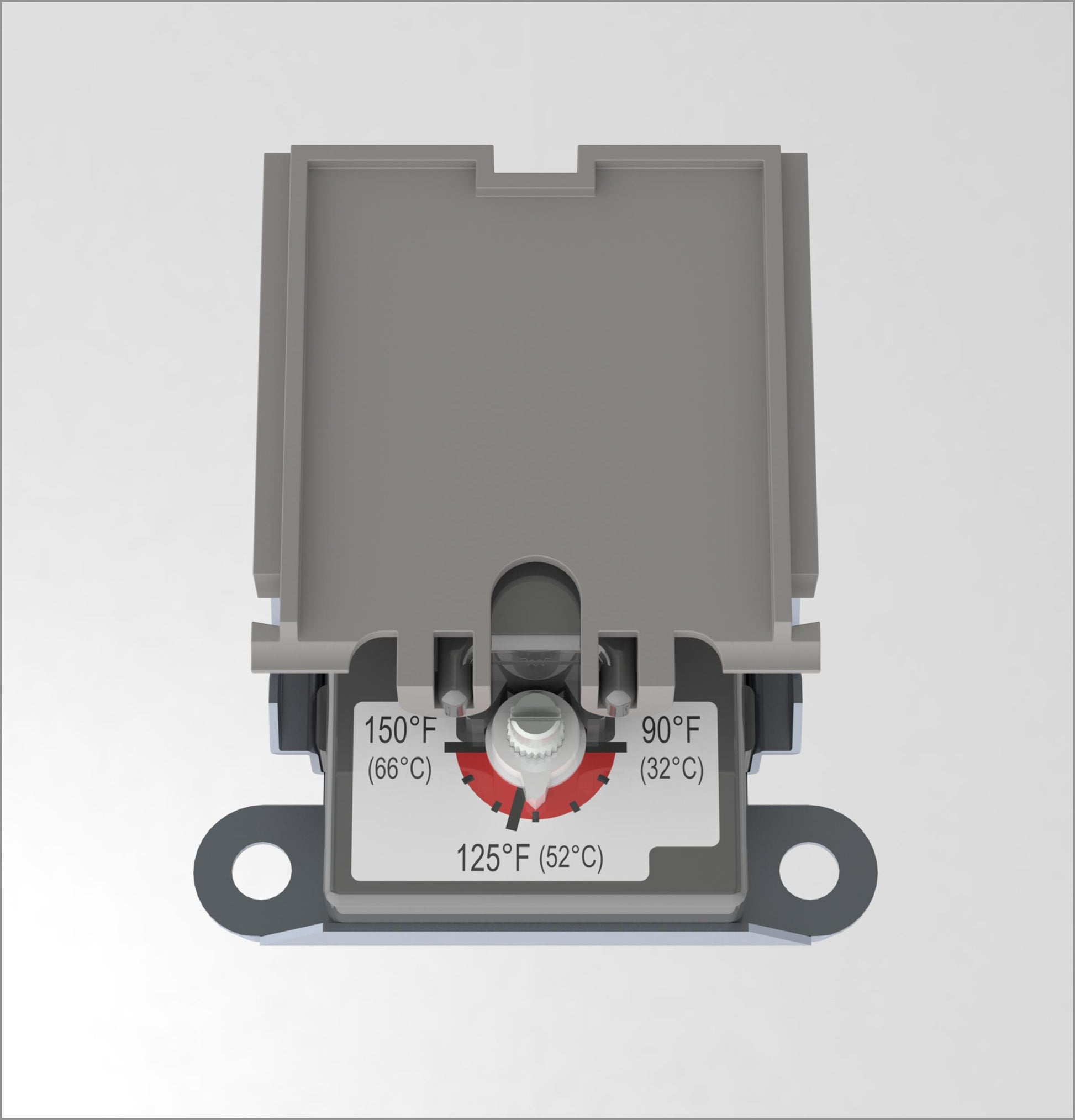

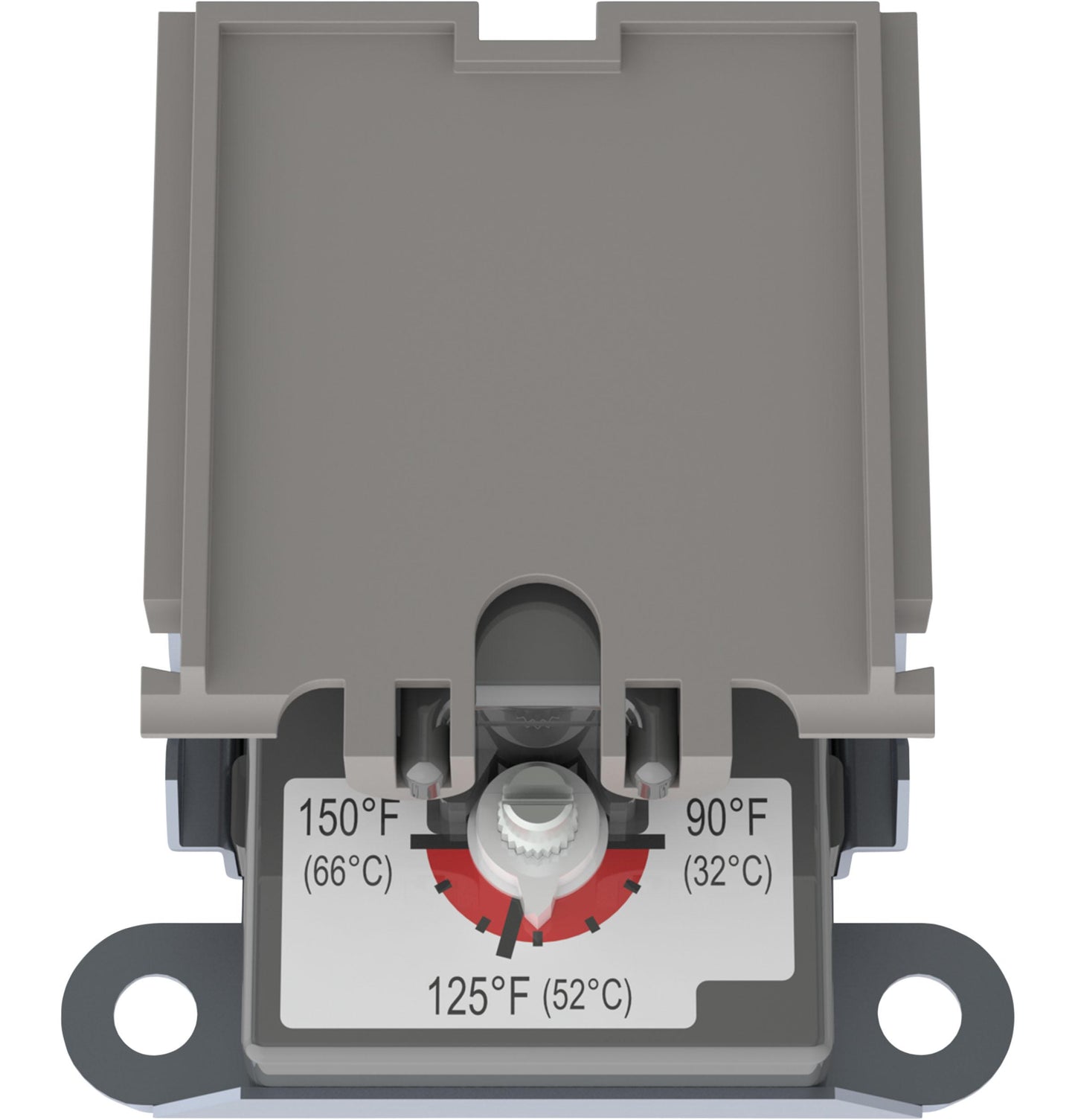

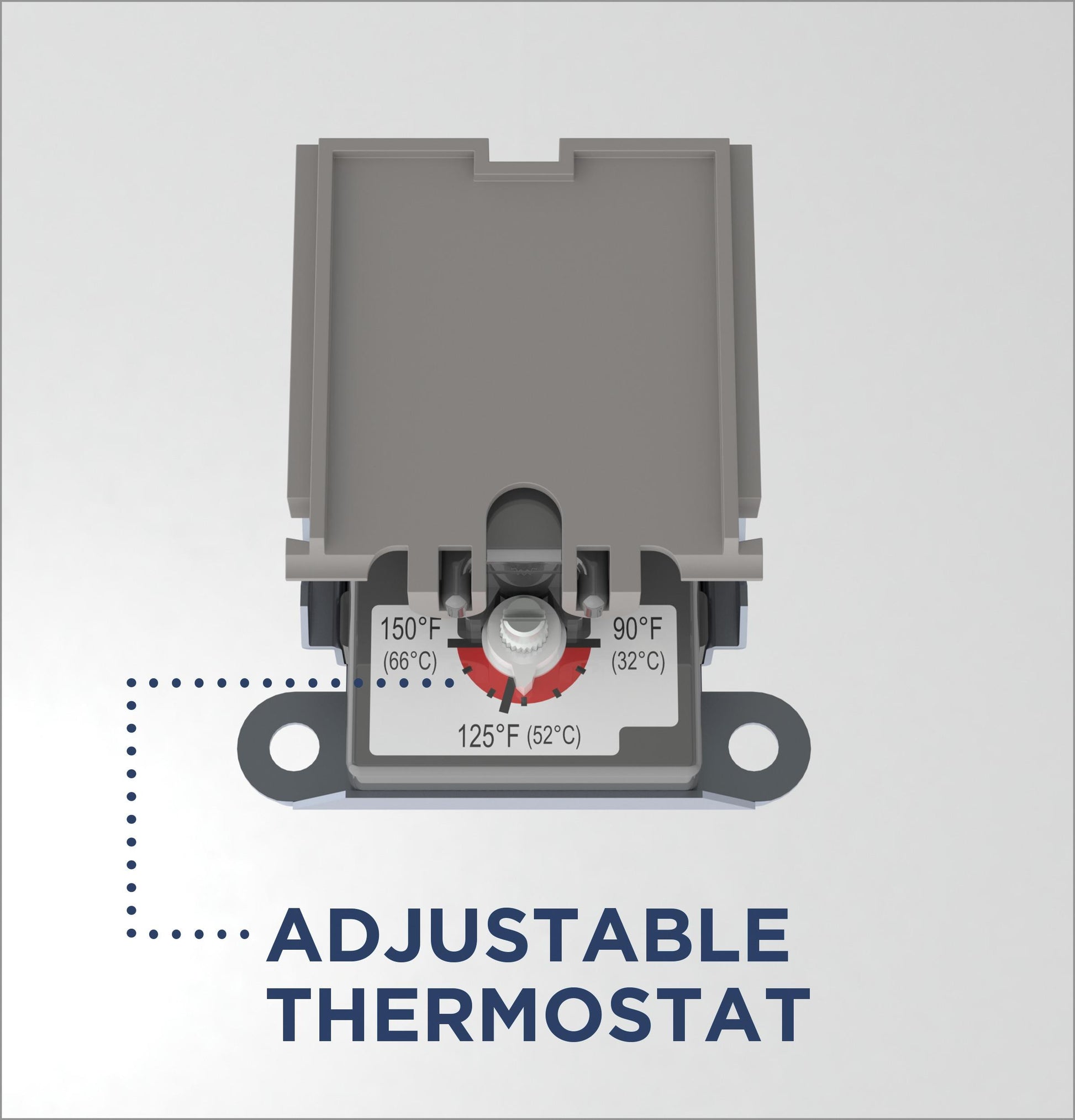

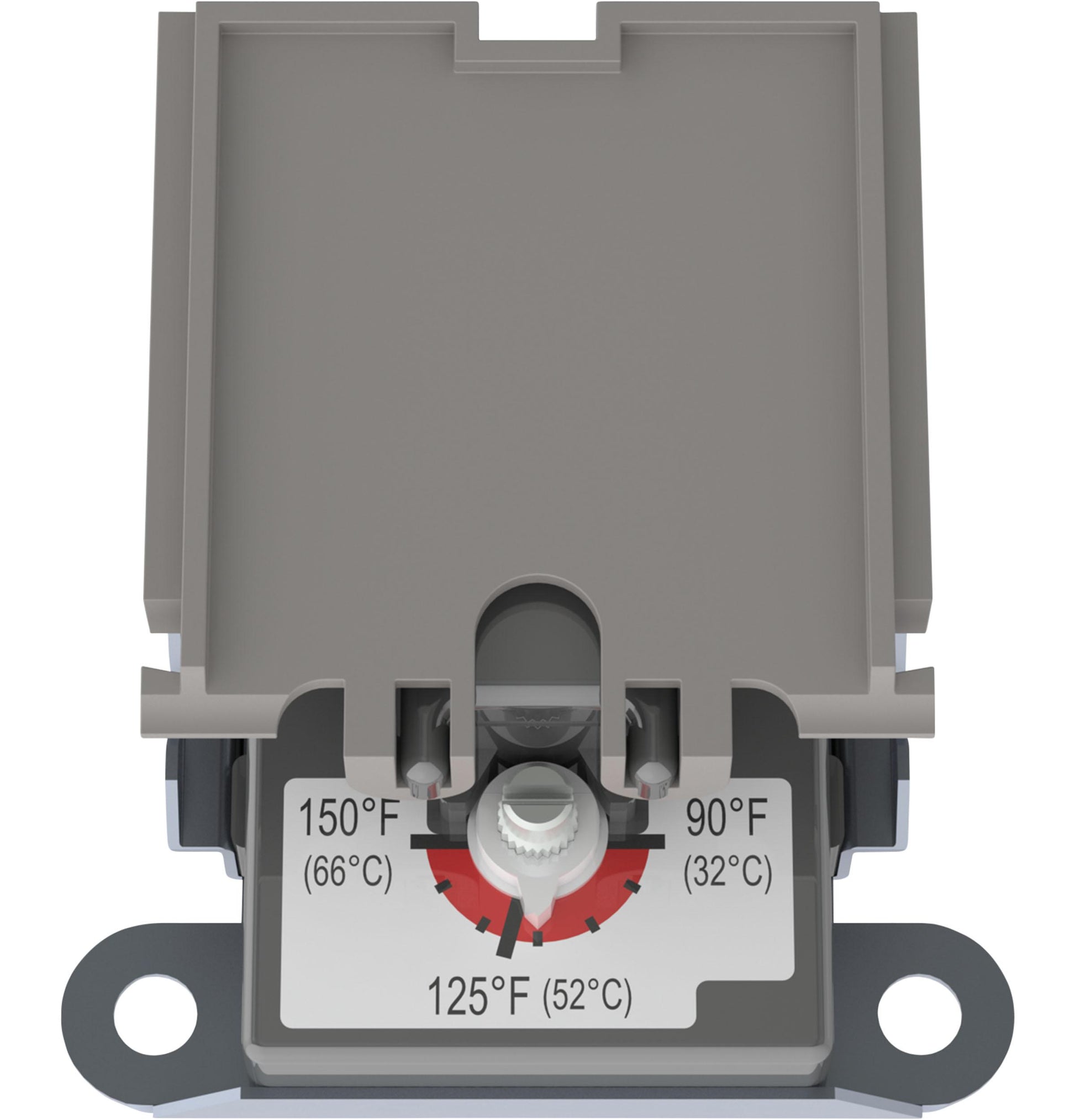

Adjustable Thermostat
Change temperature to your desired setting

CAPACITY
Unit Capacity	40 Gallons
FILTER
App Filter - Tank Warranty	8 year limited
App Filter - Product Type	Water Heaters Electric Standard
App Filter - Tank Diameter	18 1/4 in.-21 3/4 in.
App Filter - Vacation Mode	No
App Filter - Capacity	Water Heater 40-49 gallons
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
Integrated Energy Factor	0.92
Heating - Electric - Heater Watts	5500/5500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	65 Gallons
Voltage (MAX)	240 V
Energy Consumption (kWh/year)	3531
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 8-year tank and parts
Labor Warranty	Limited 1-year entire appliance

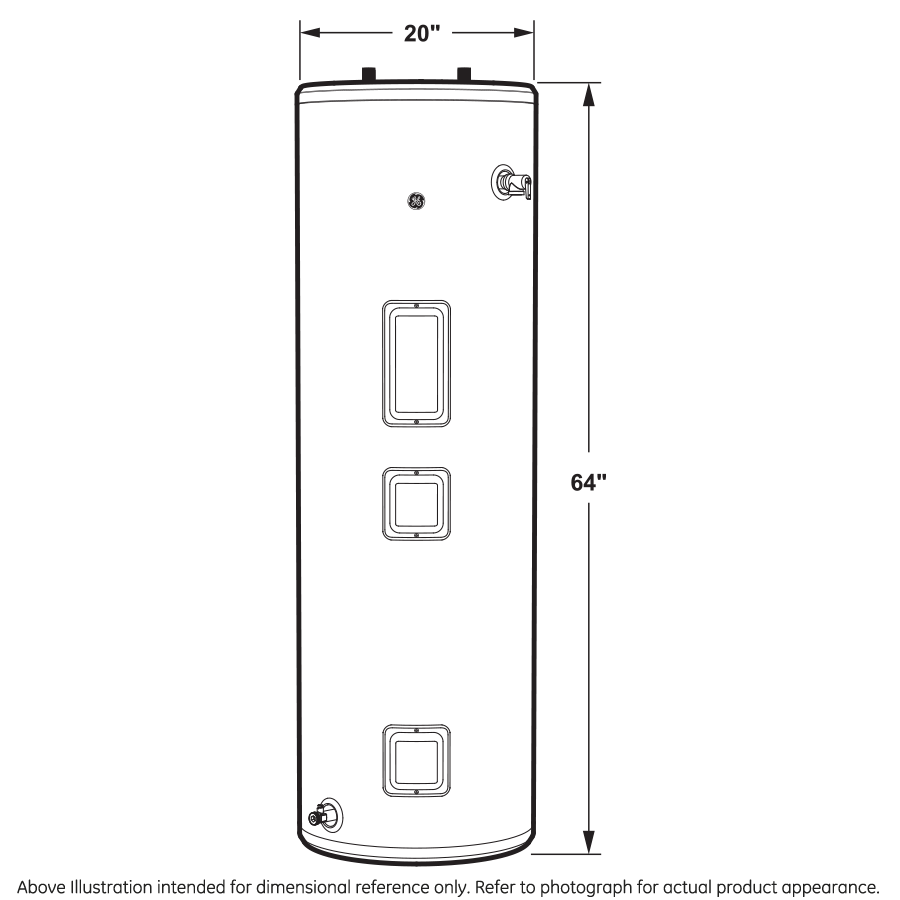

WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	65.5 in
Approximate Shipping Weight	139 lb
Overall Width	20 in
Overall Height	65.5 in
Product Height (to top of unit)	64 in
Net Weight	127 lb
Product Diameter	20 in
Overall Depth	20 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
FEATURES
Control Type	Thermostat
Temp & Pressure Relief Valve	Yes
Height Description	Tall
Heating Element	Copper
Fuel Type	Electric
Configuration	Tall
Installation Location	Indoor
Operating Modes	Standard Electric
Rated Storage Capacity	40
Drain Valve Type	Brass
GPH Recovery @ 90 Degrees F	25.1
Mobile Home Compatible	No
Product Type	Electric Thermostat
Family Size	2-4 People
Water Connection Location	Top
Foam Insulation	Yes
Point of Use	No
Temperature Setting	90-150° F Range Factory Default 120° F
Insulation Thickness	2.75 in
