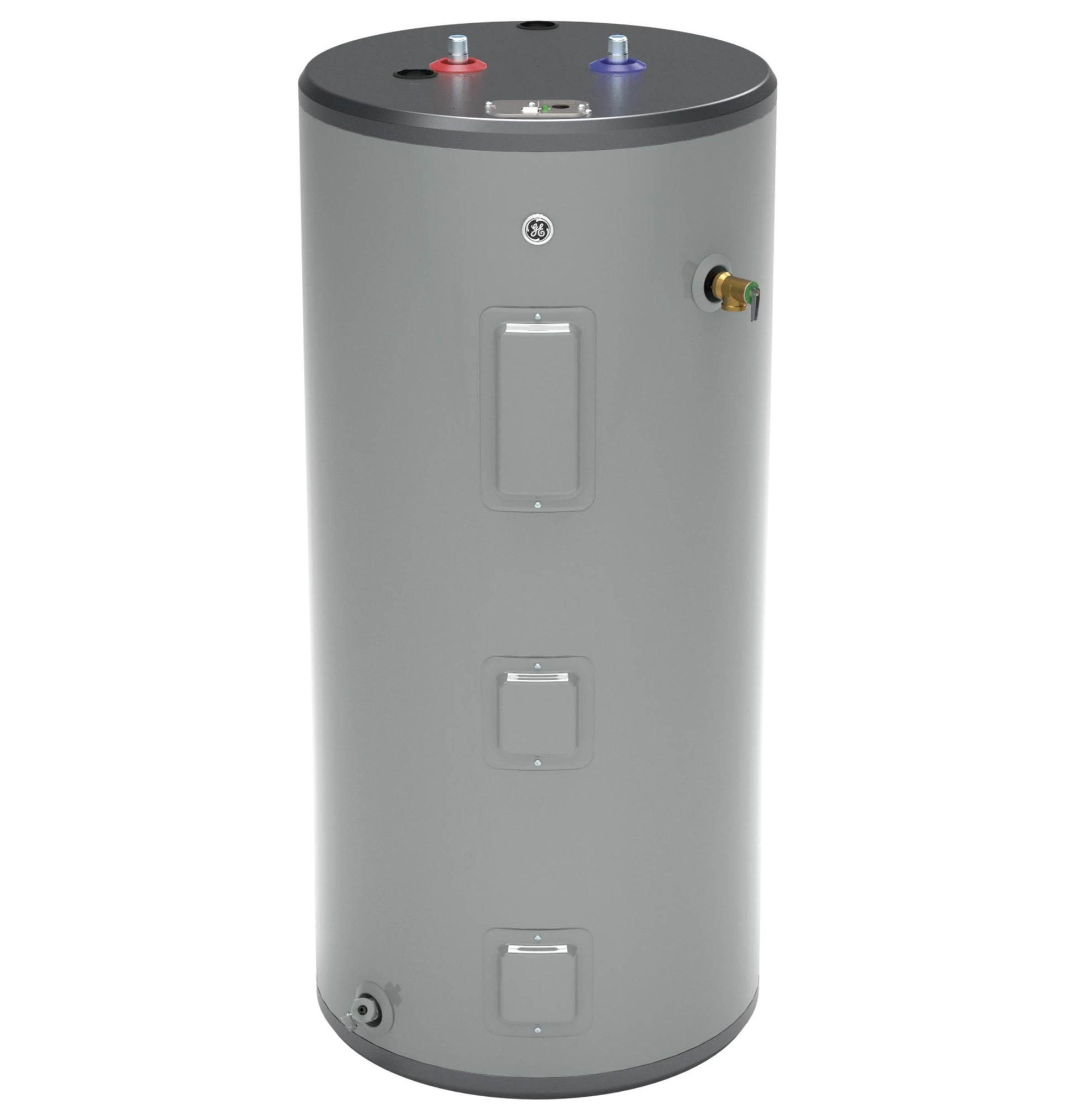

GE50S08BAM GE® 50 Gallon Short Electric Water Heater GE50S08BAM

Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance
Live comfortably with this best in class unit that delivers 76 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

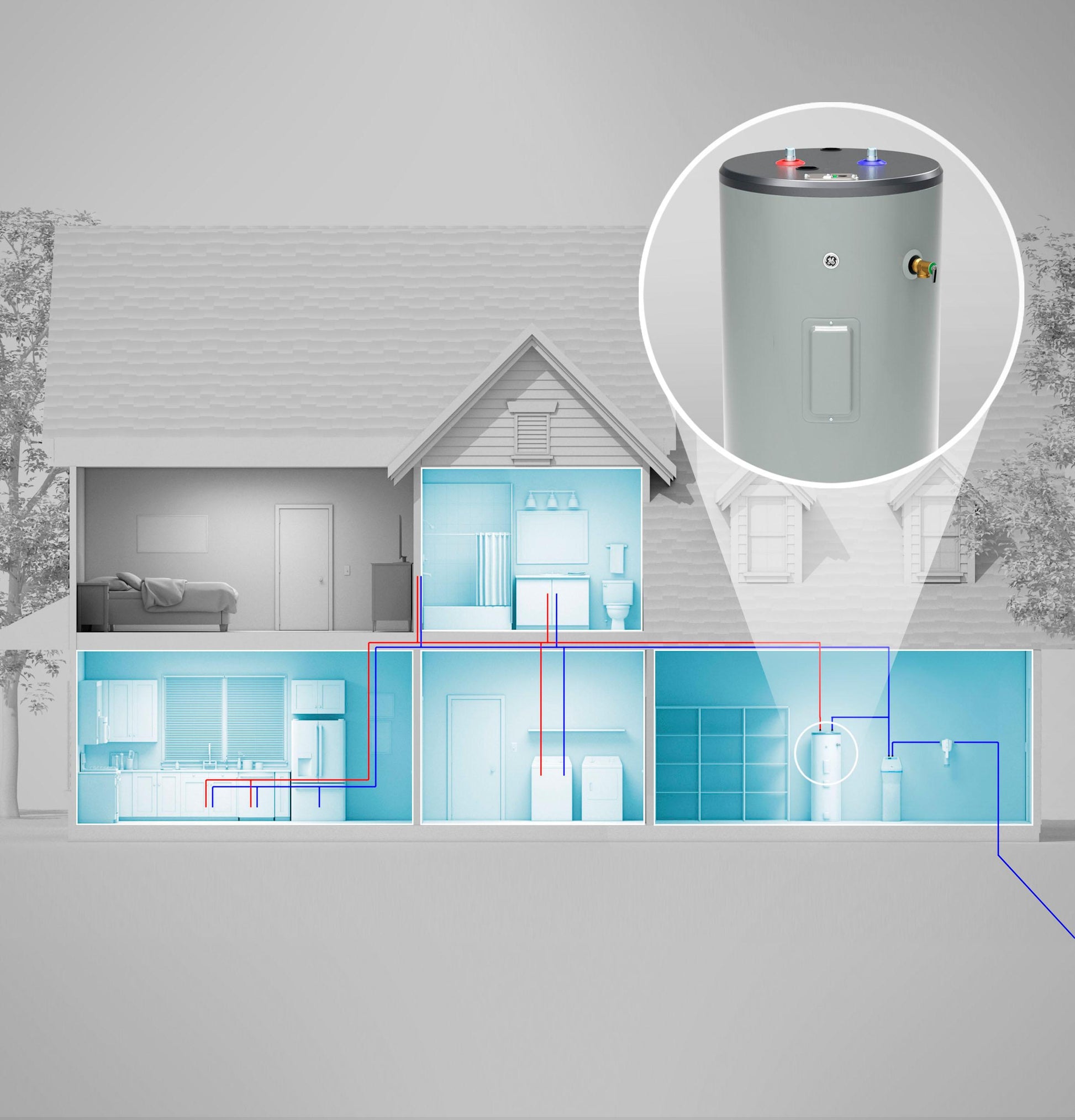

Household Size
Provide hot water for the whole family of 3 to 5 persons

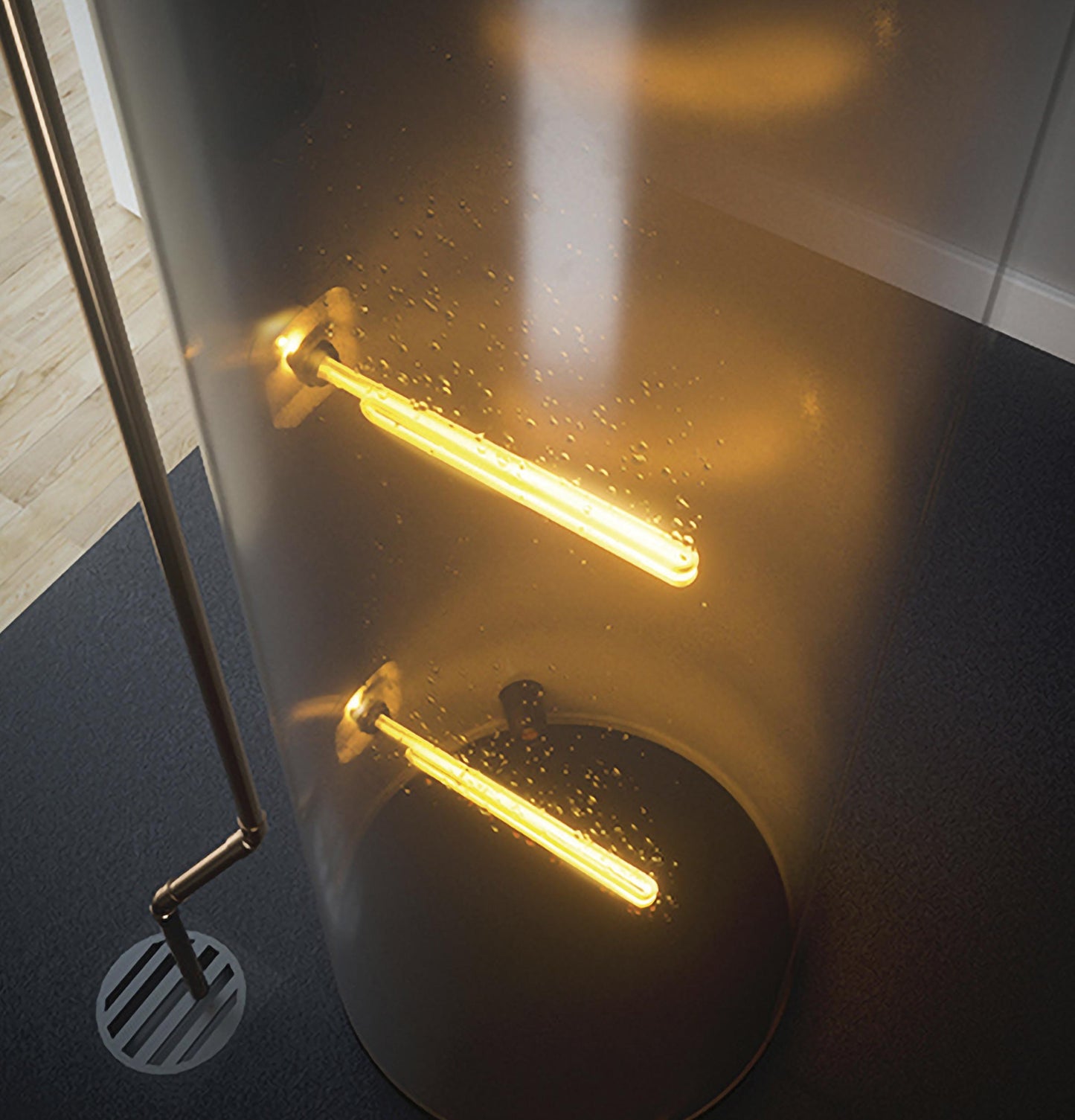

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

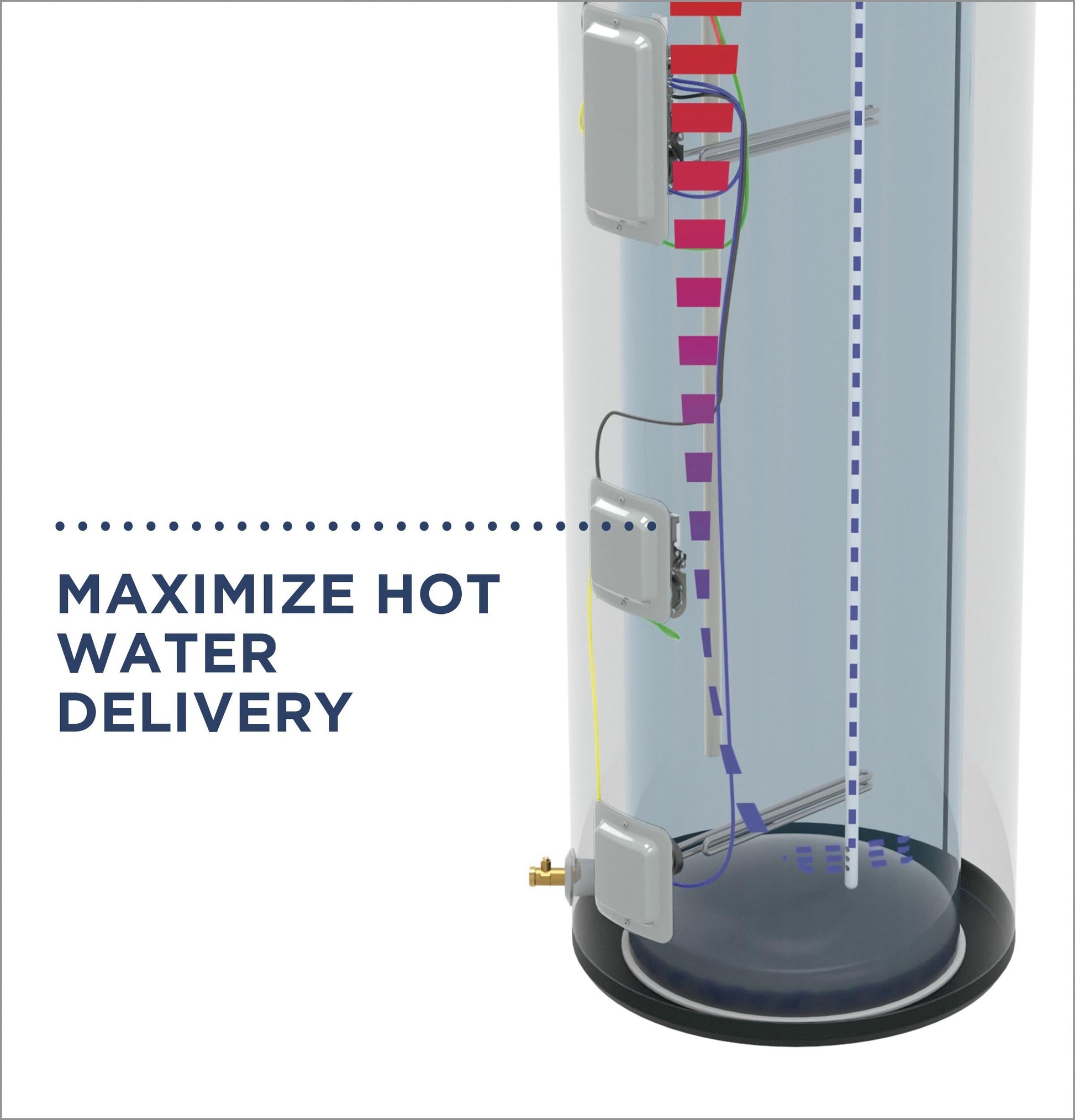

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

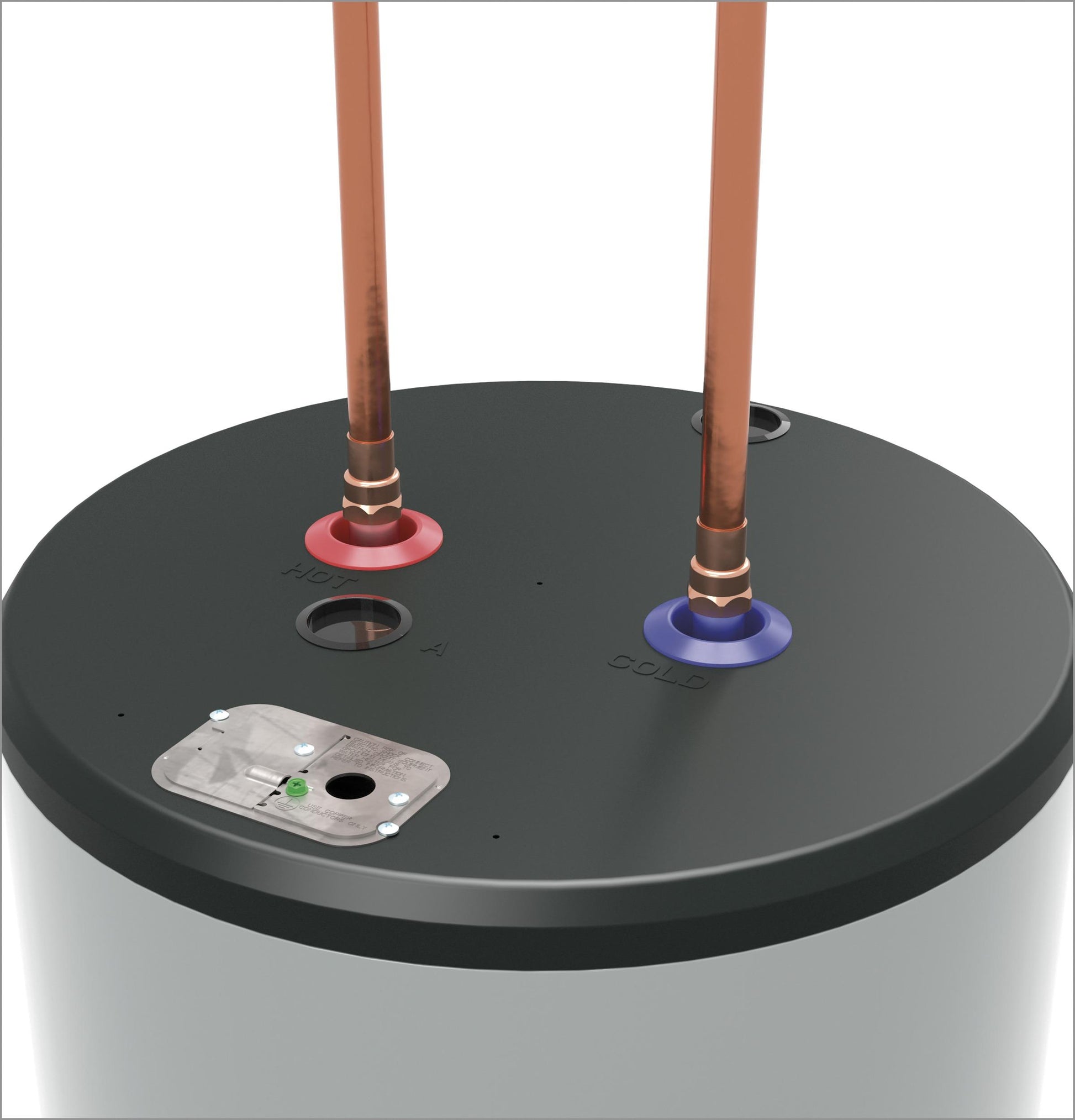

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

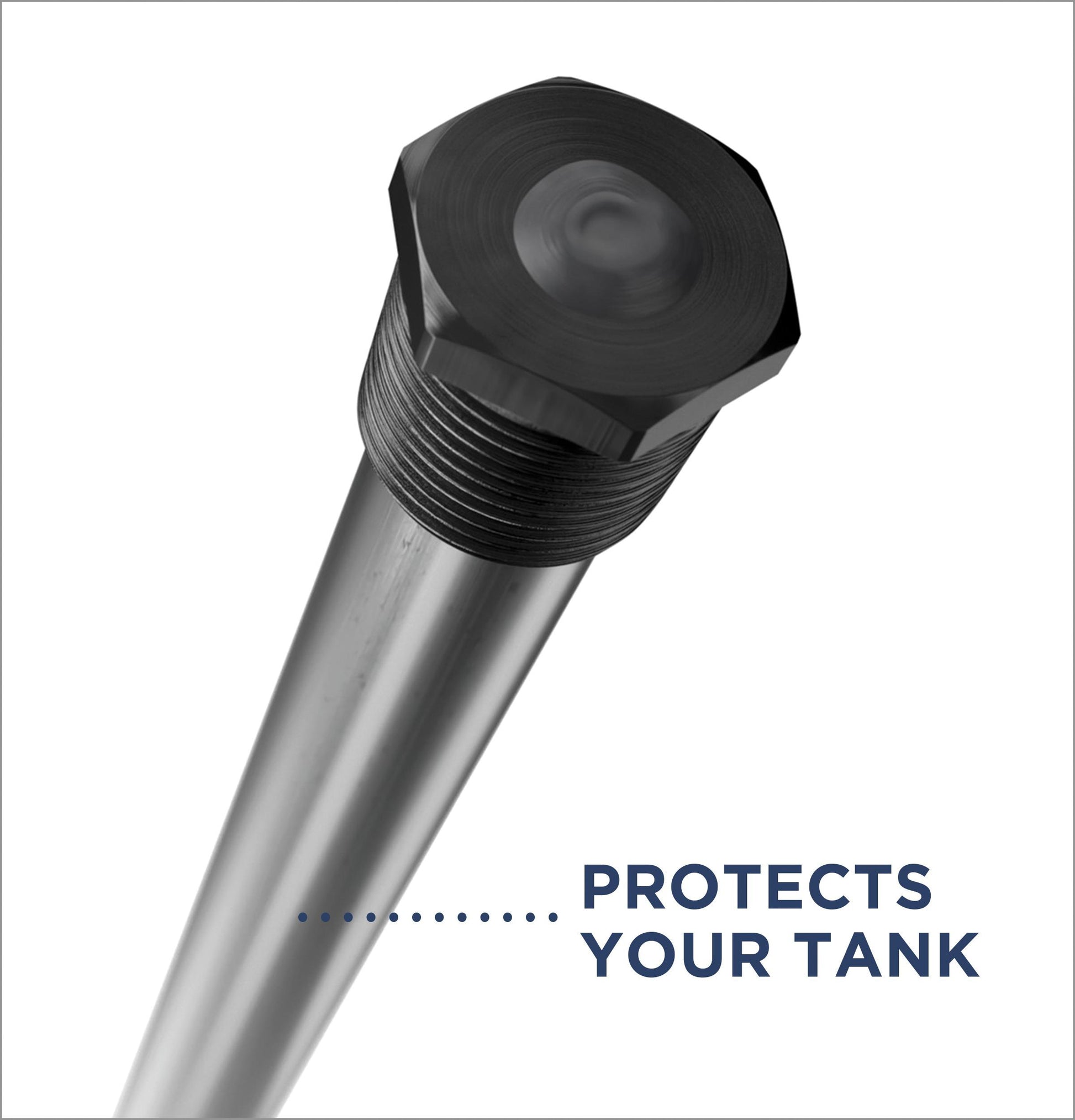

Anode Rod
Durable design offers long-lasting protection against corrosion

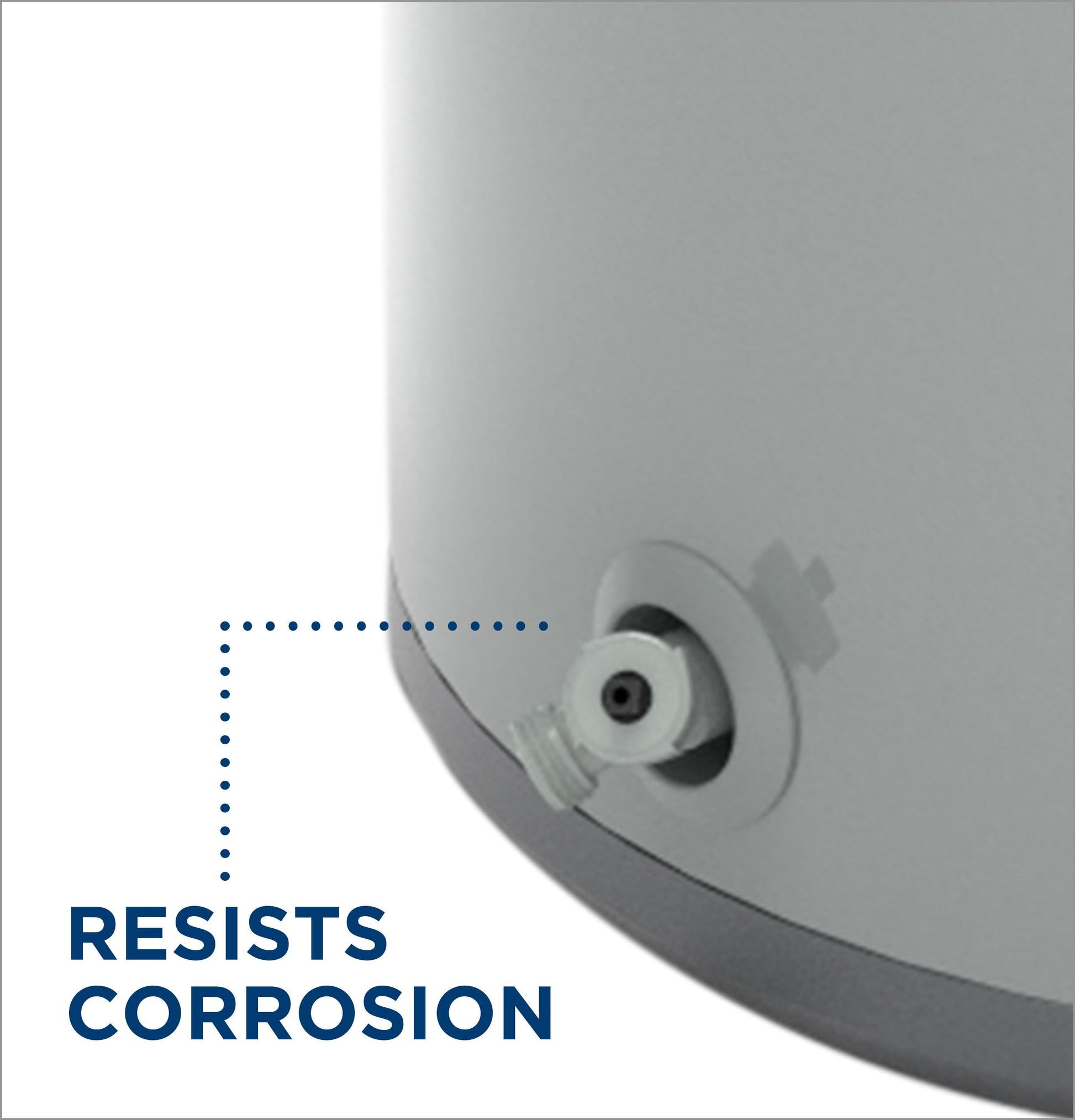

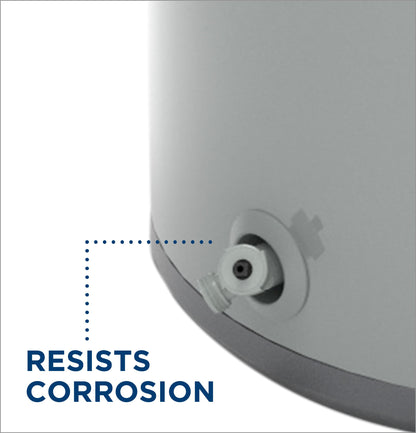

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

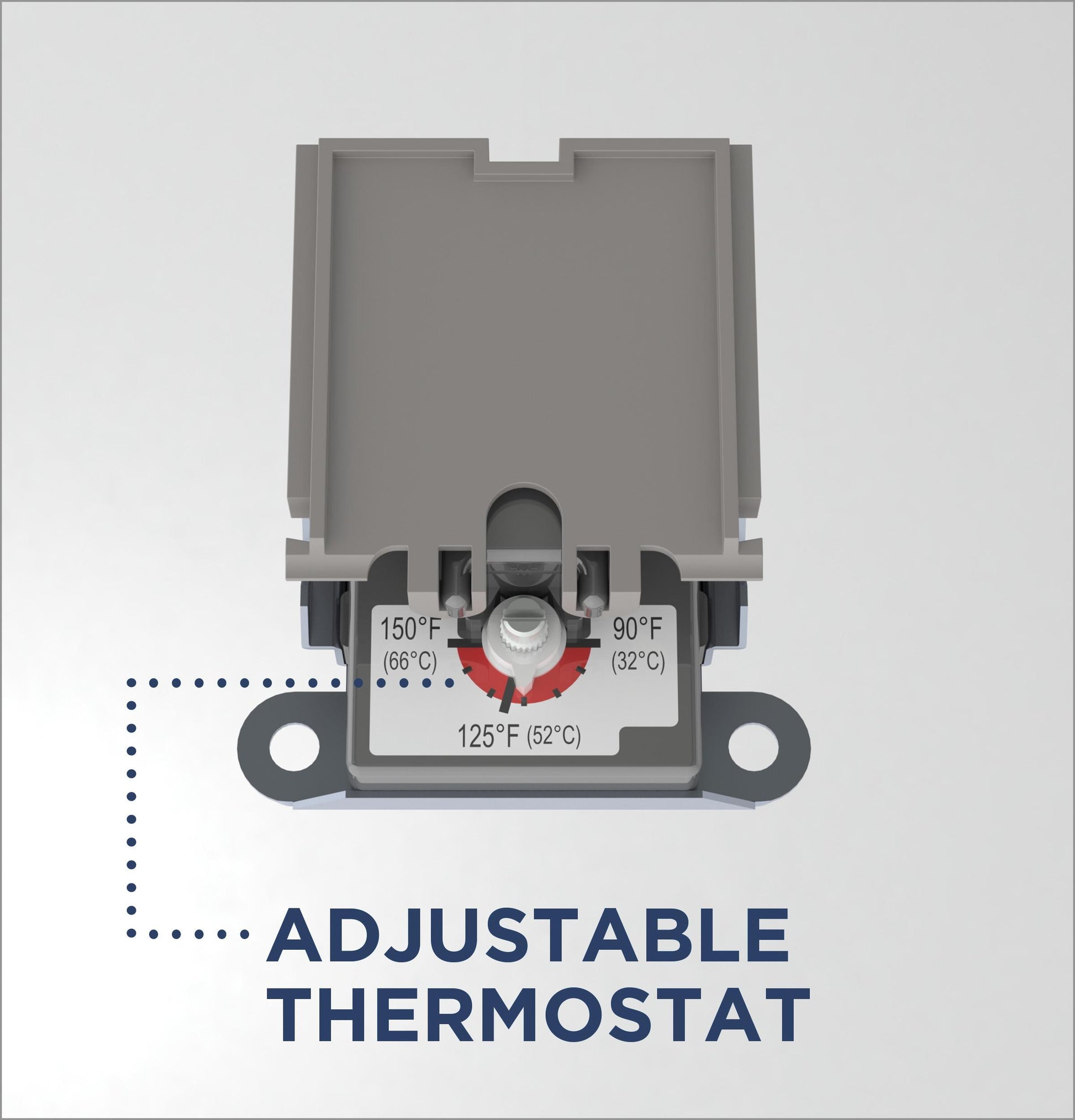

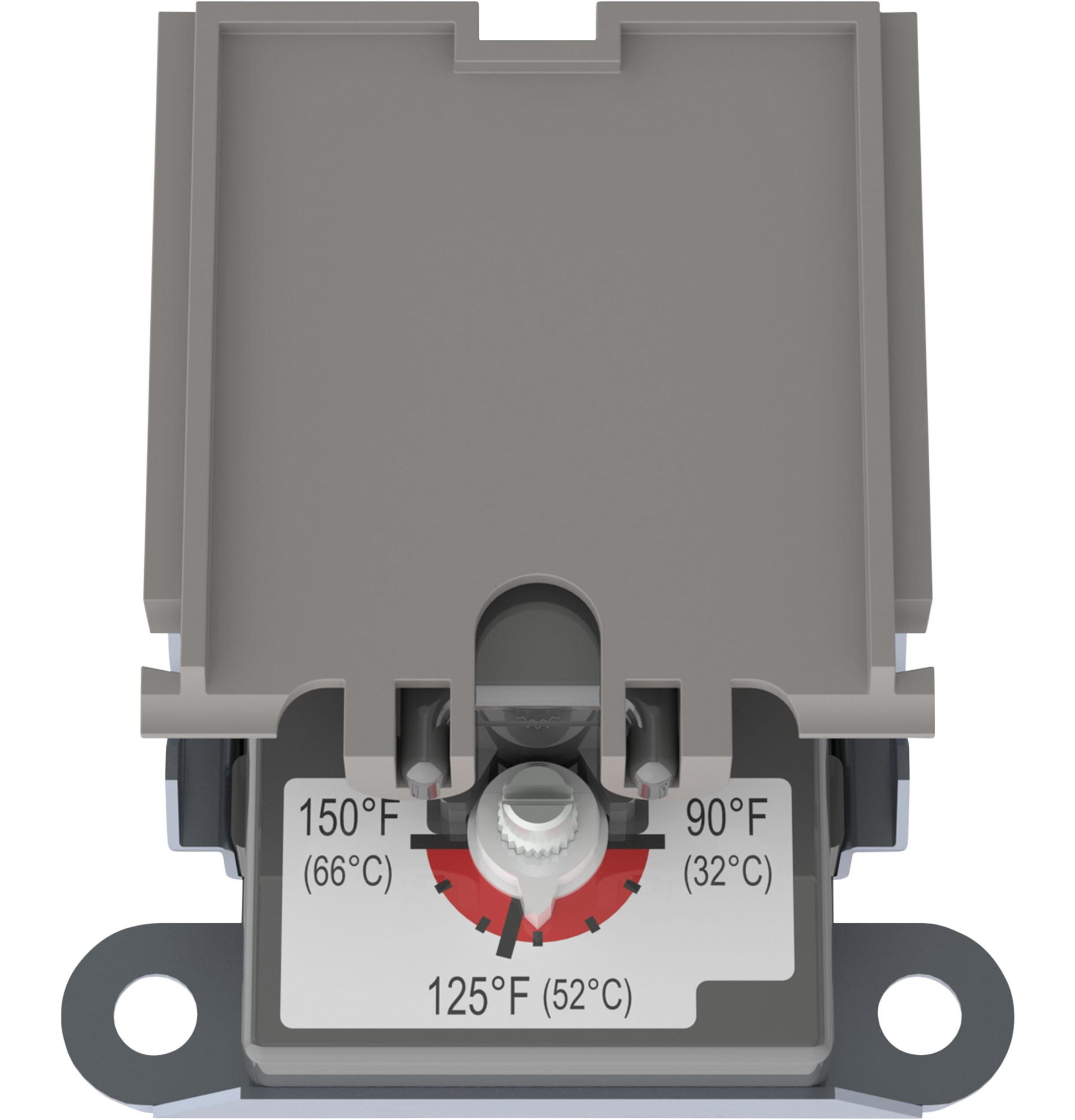

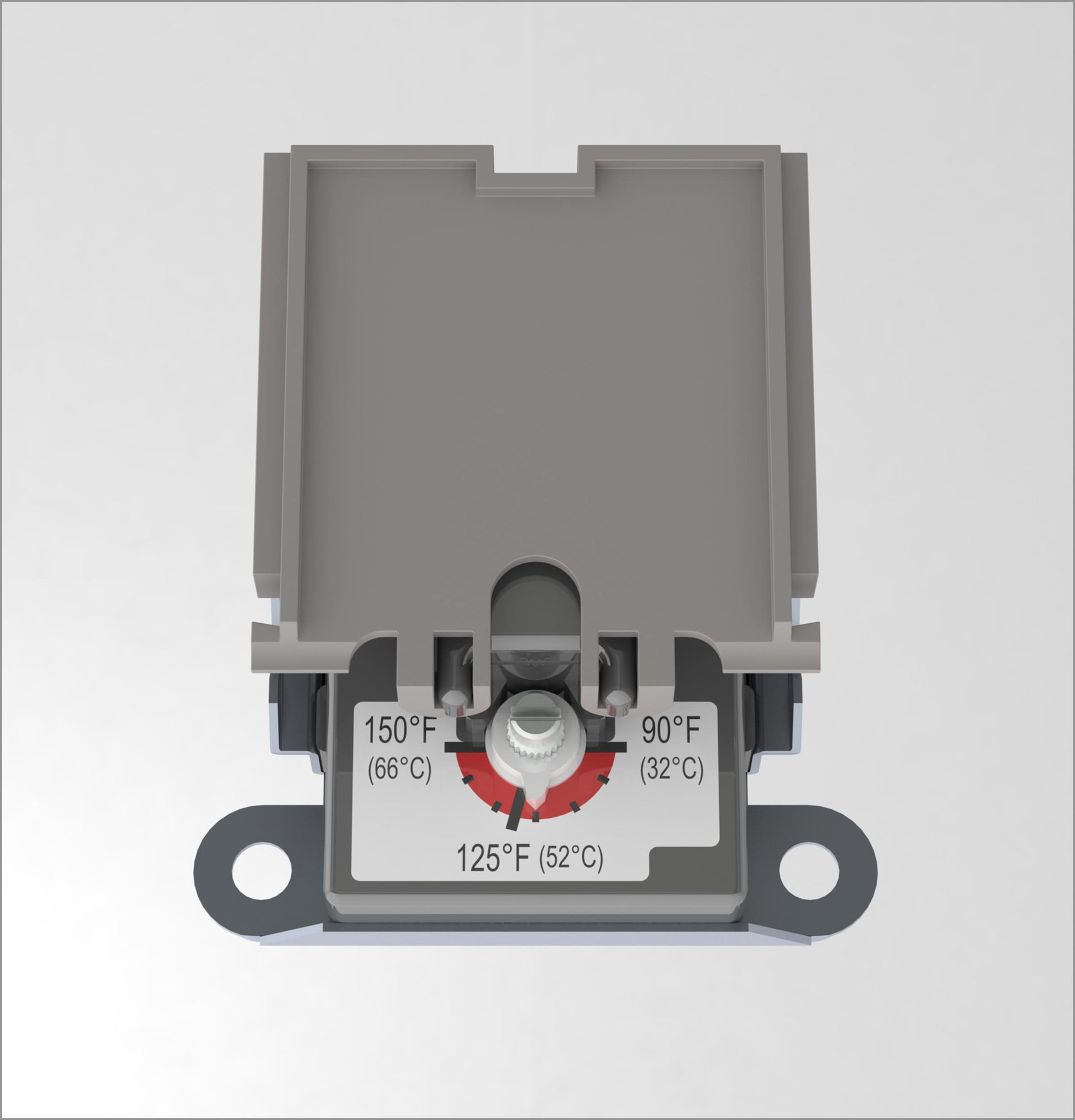

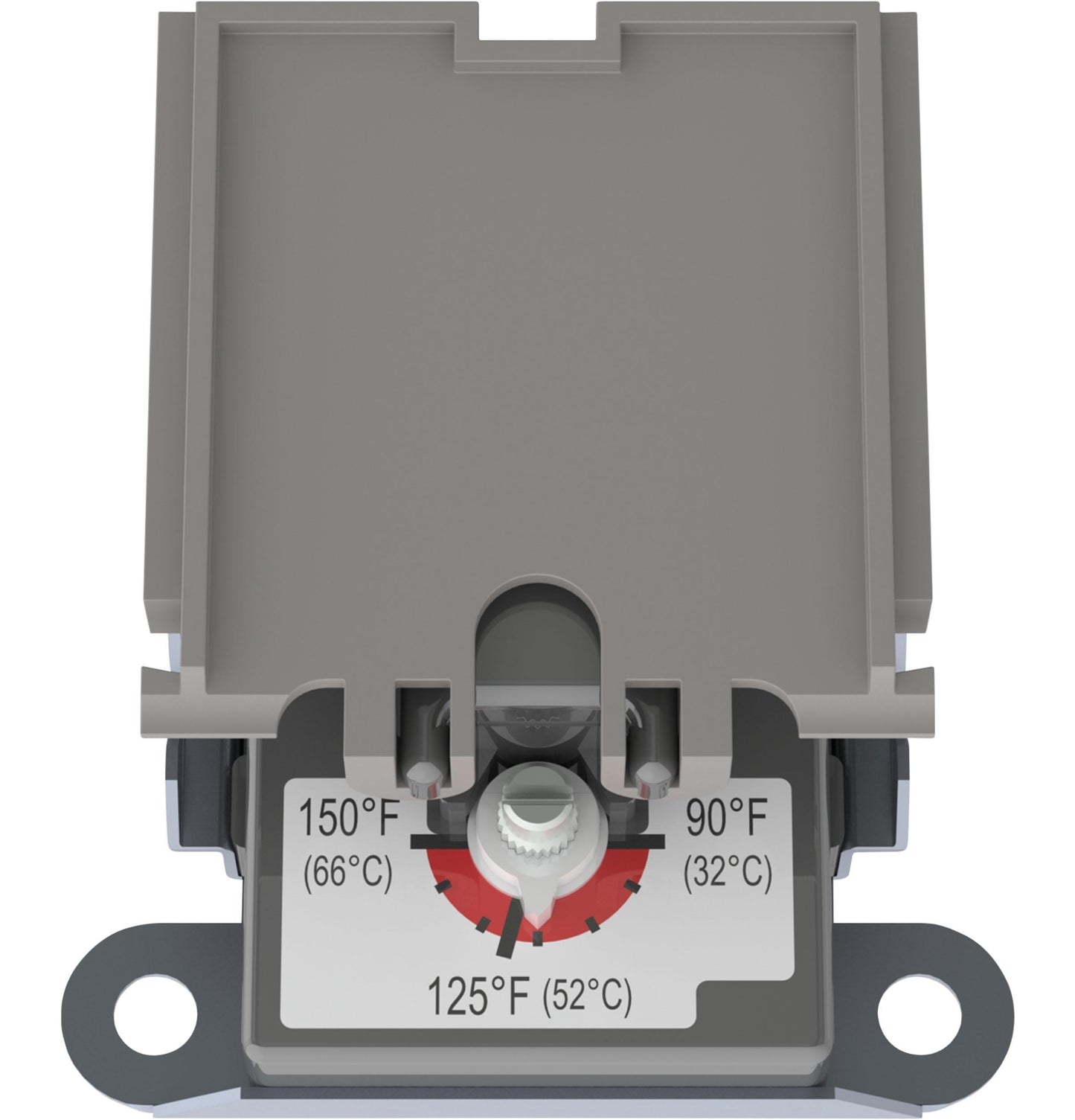

Adjustable Thermostat
Change temperature to your desired setting

CAPACITY
Unit Capacity	50 Gallons
FILTER
App Filter - Tank Warranty	8 year limited
App Filter - Product Type	Water Heaters Electric Standard
App Filter - Tank Diameter	22 in. and above
App Filter - Vacation Mode	No
App Filter - Capacity	Water Heater 50-59 gallons
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
Integrated Energy Factor	0.93
Heating - Electric - Heater Watts	5500/5500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	76 Gallons
Voltage (MAX)	240 V
Electrical Circuit Required	208V/240V 60 Hz Dedicated 30 Amp Min.
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	8-year limited
Labor Warranty	1-year limited
WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	53 in
Approximate Shipping Weight	161 lb
Overall Width	24 in
Overall Height	53 in
Product Height (to top of unit)	51.5 in
Net Weight	150 lb
Product Diameter	24 in
Overall Depth	24 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
FEATURES
Control Type	Thermostat
Temp & Pressure Relief Valve	Yes
Height Description	Short
Heating Element	Copper
Fuel Type	Electric
Configuration	Short
Installation Location	Indoor
Operating Modes	Standard Electric
Rated Storage Capacity	50
Drain Valve Type	Plastic
GPH Recovery @ 90 Degrees F	25.1
Mobile Home Compatible	No
Temperature Setting Factory Default	120° F
Product Type	Electric Thermostat
Family Size	3-5 People
Water Connection Location	Top
Foam Insulation	Yes
Point of Use	No
Temperature Setting	90-150° F Range
Insulation Thickness	2.75 in
