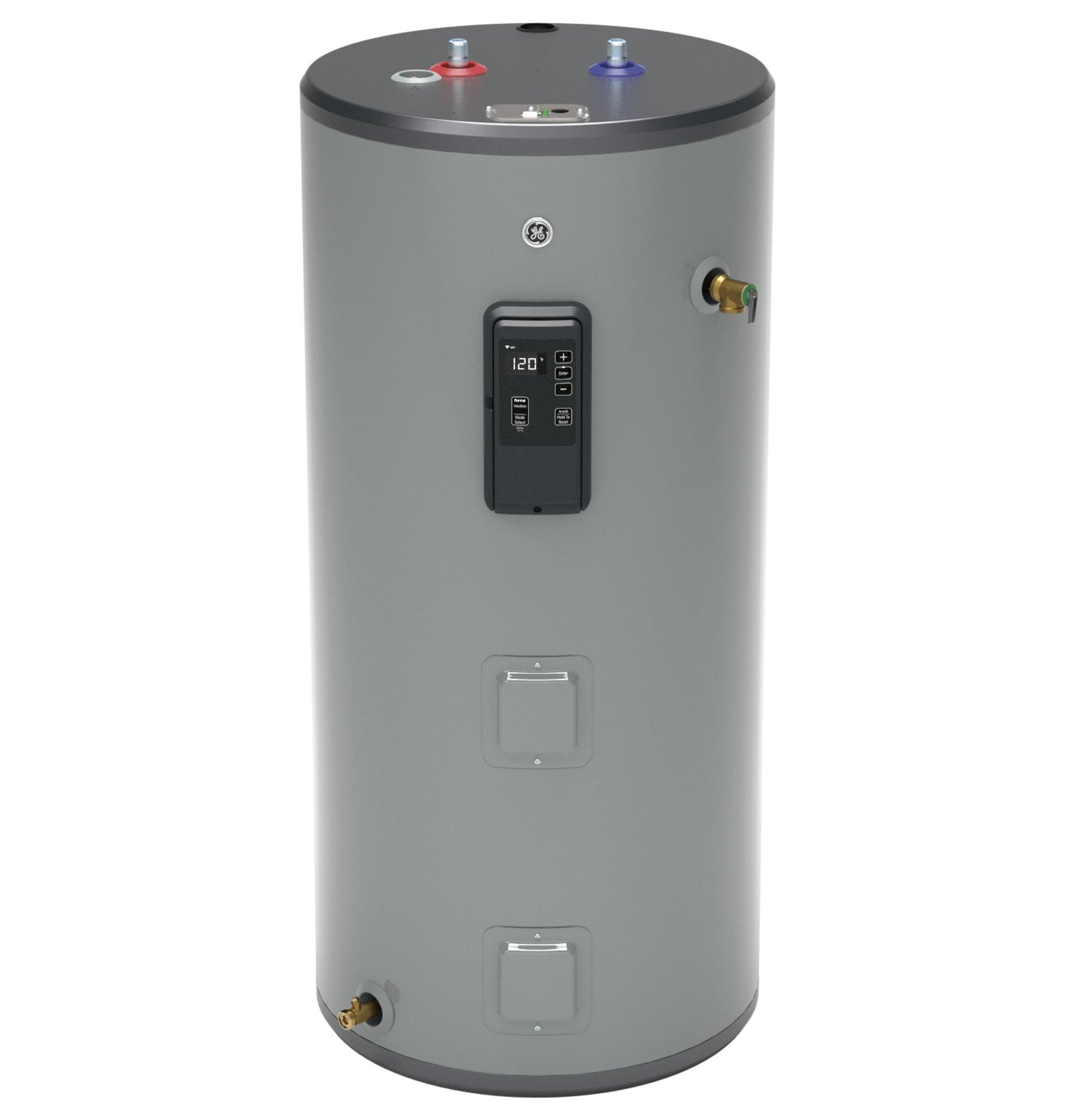

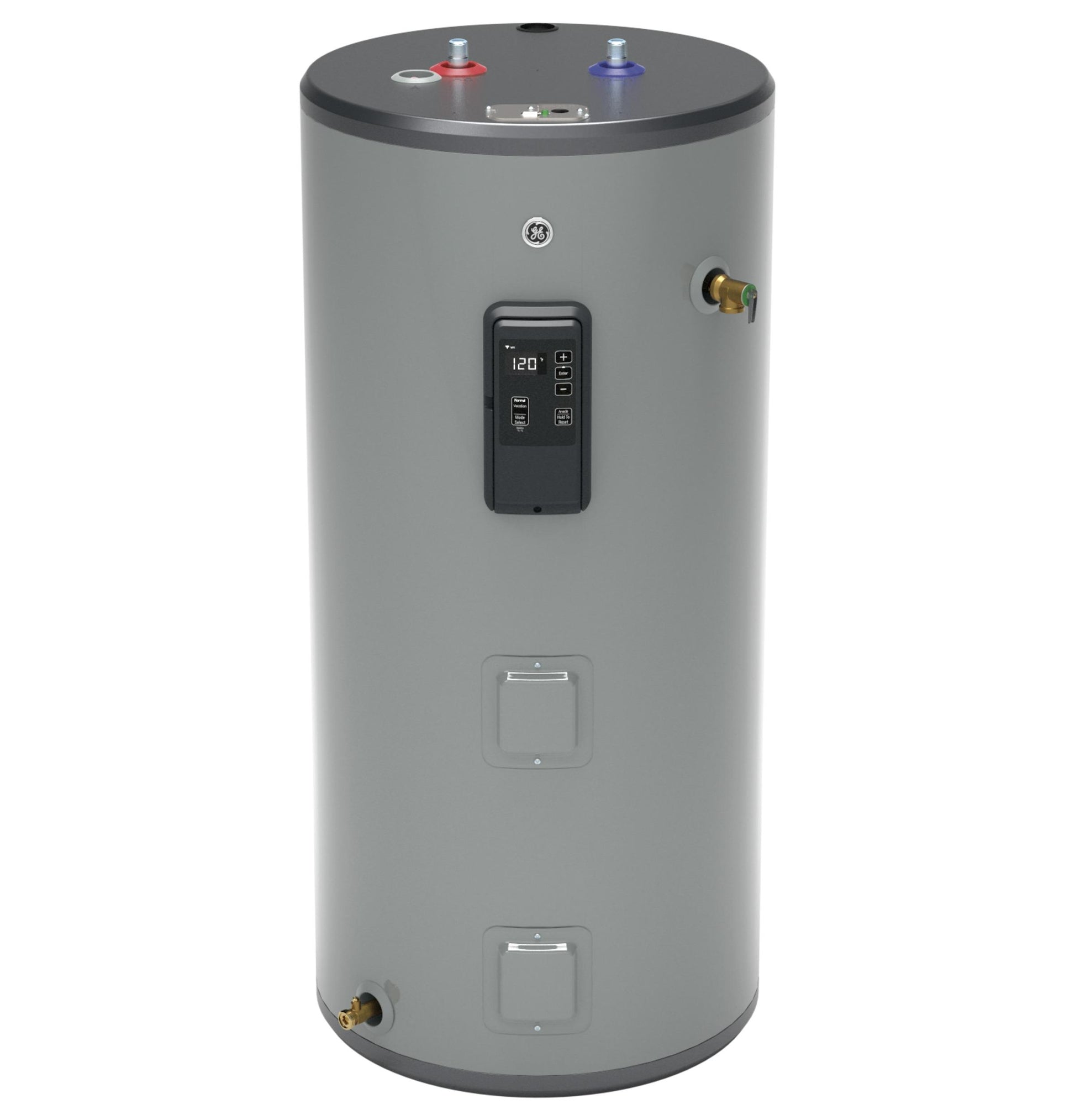

GE50S12BLM GE® Smart 50 Gallon Short Electric Water Heater GE50S12BLM

Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity)

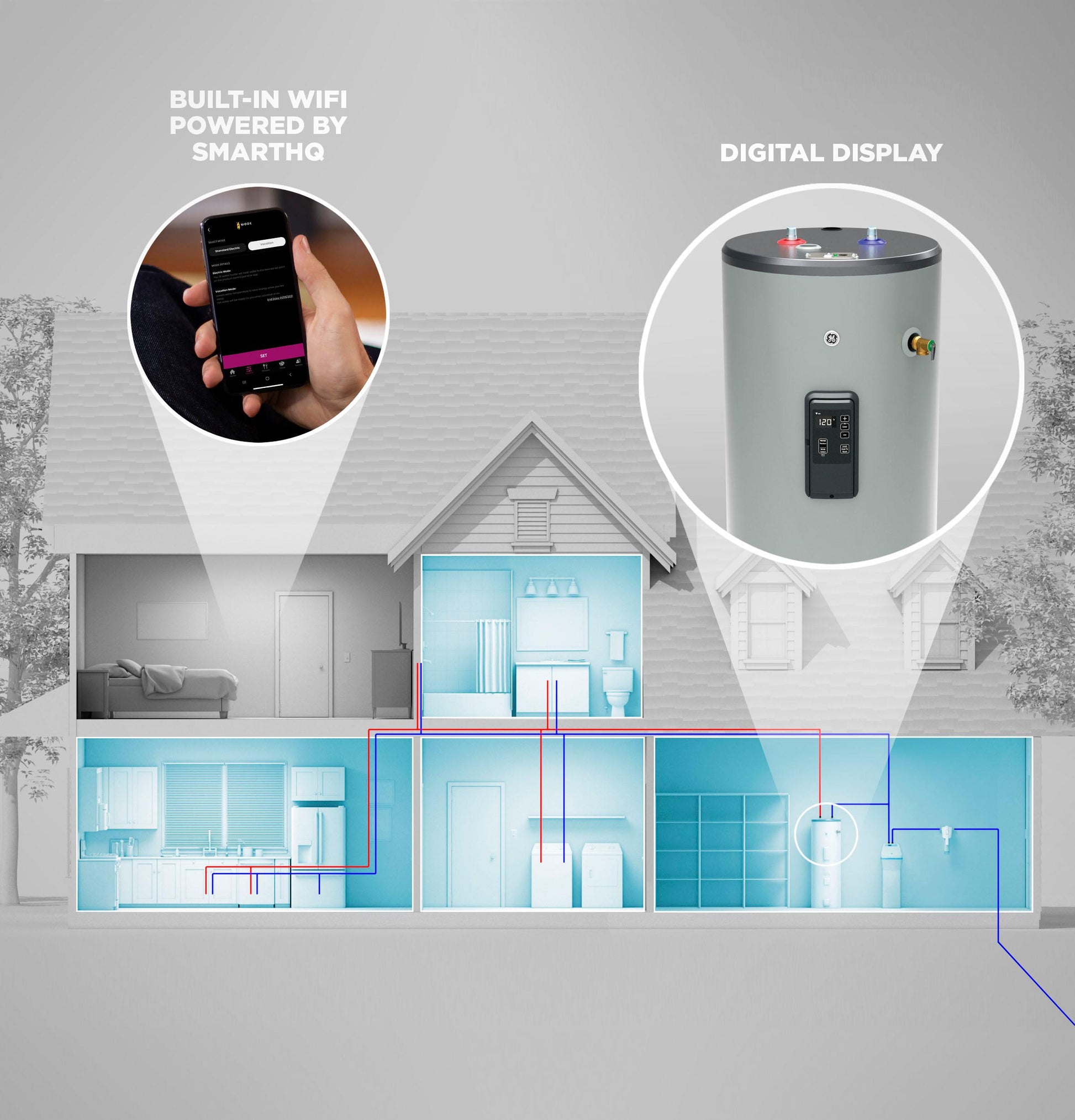

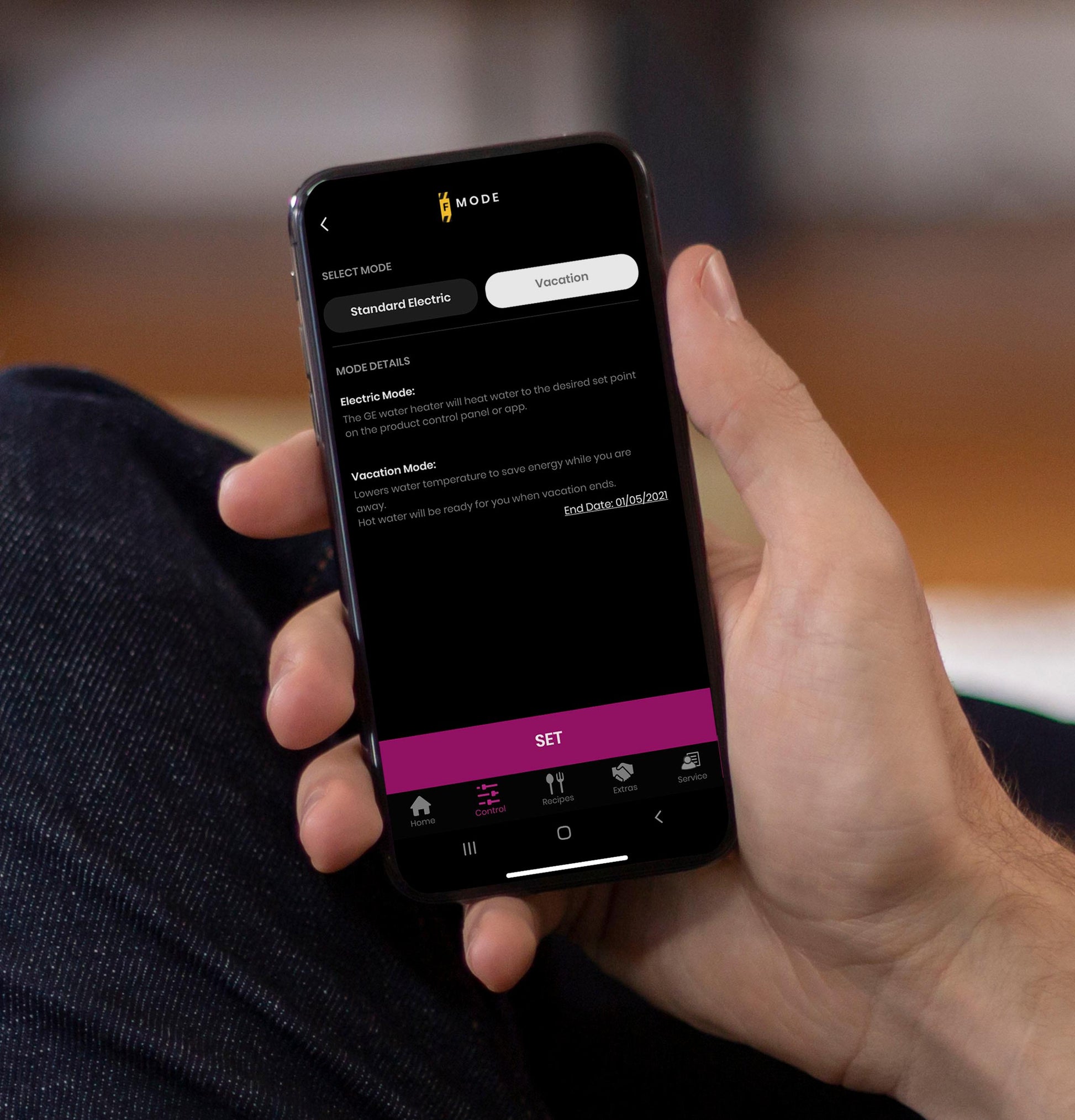

Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

Leading Performance
Live comfortably with this best in class unit that delivers 75 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

Household Size
Provide hot water for the whole family of 3 to 5 persons

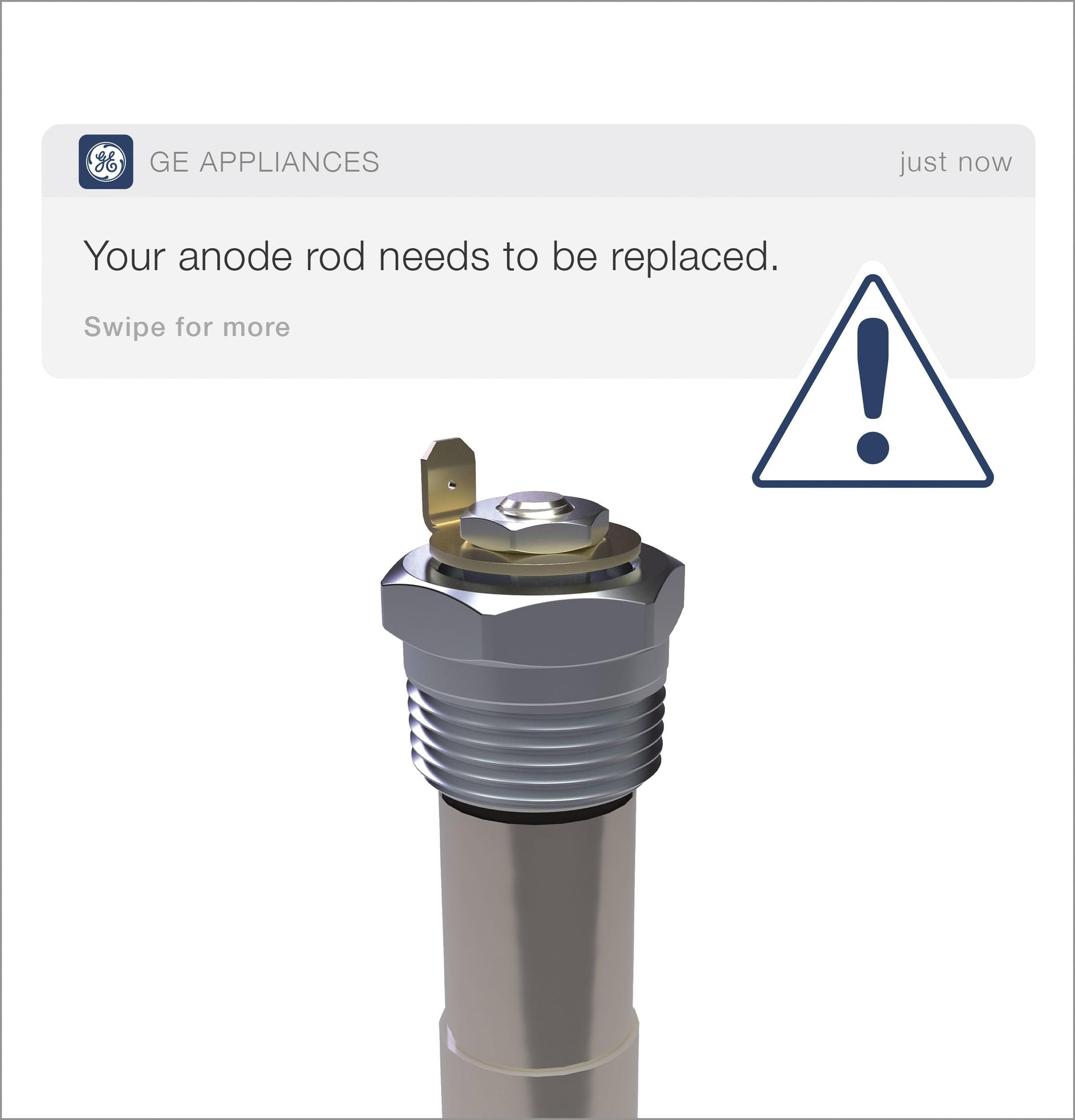

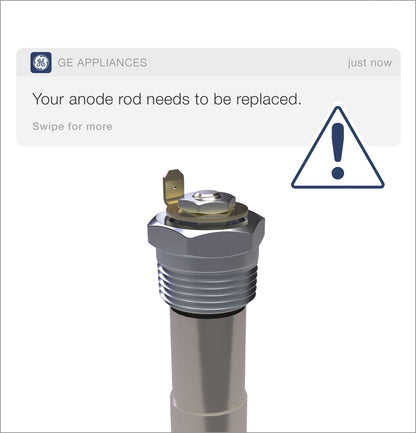

Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank

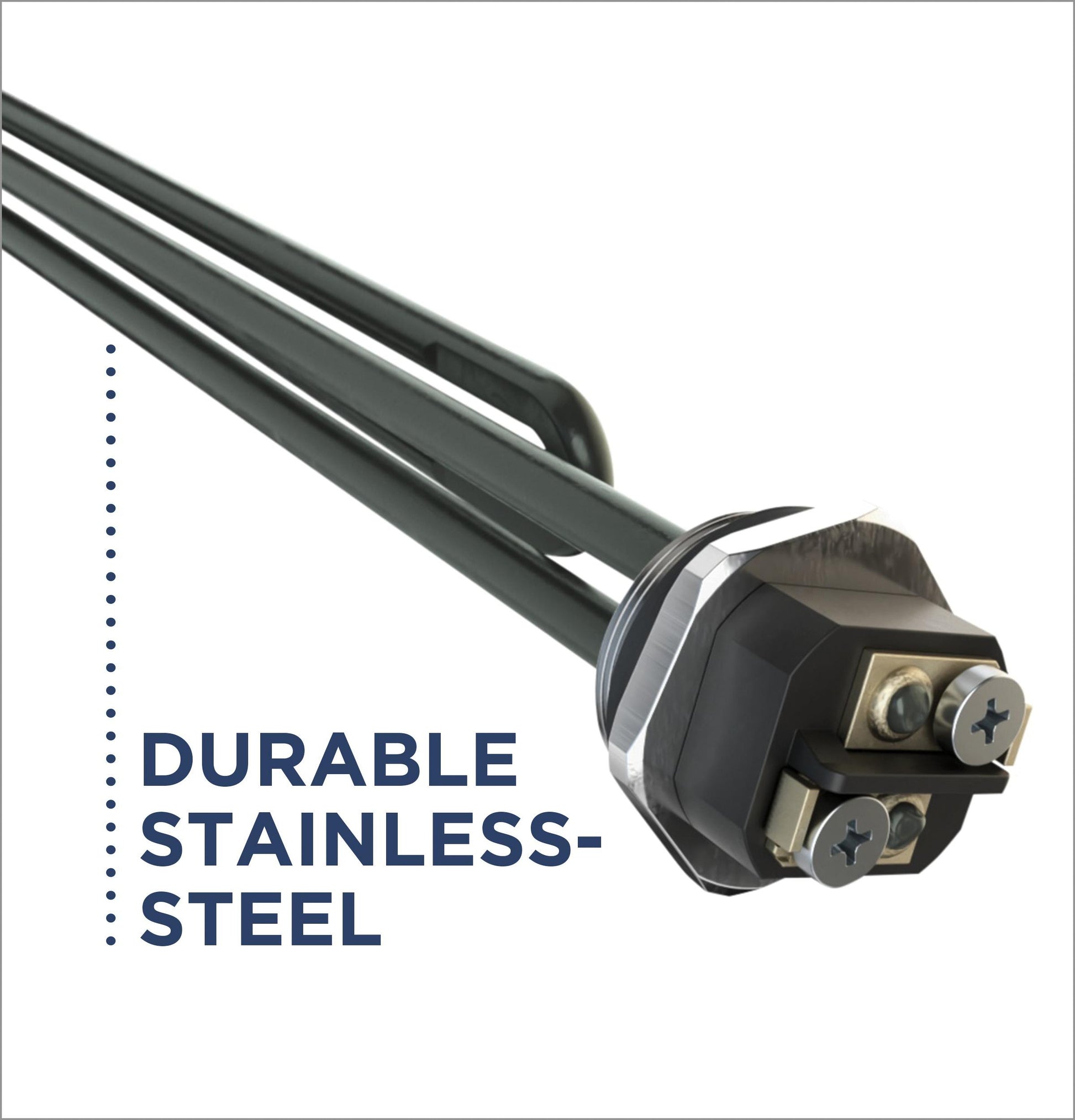

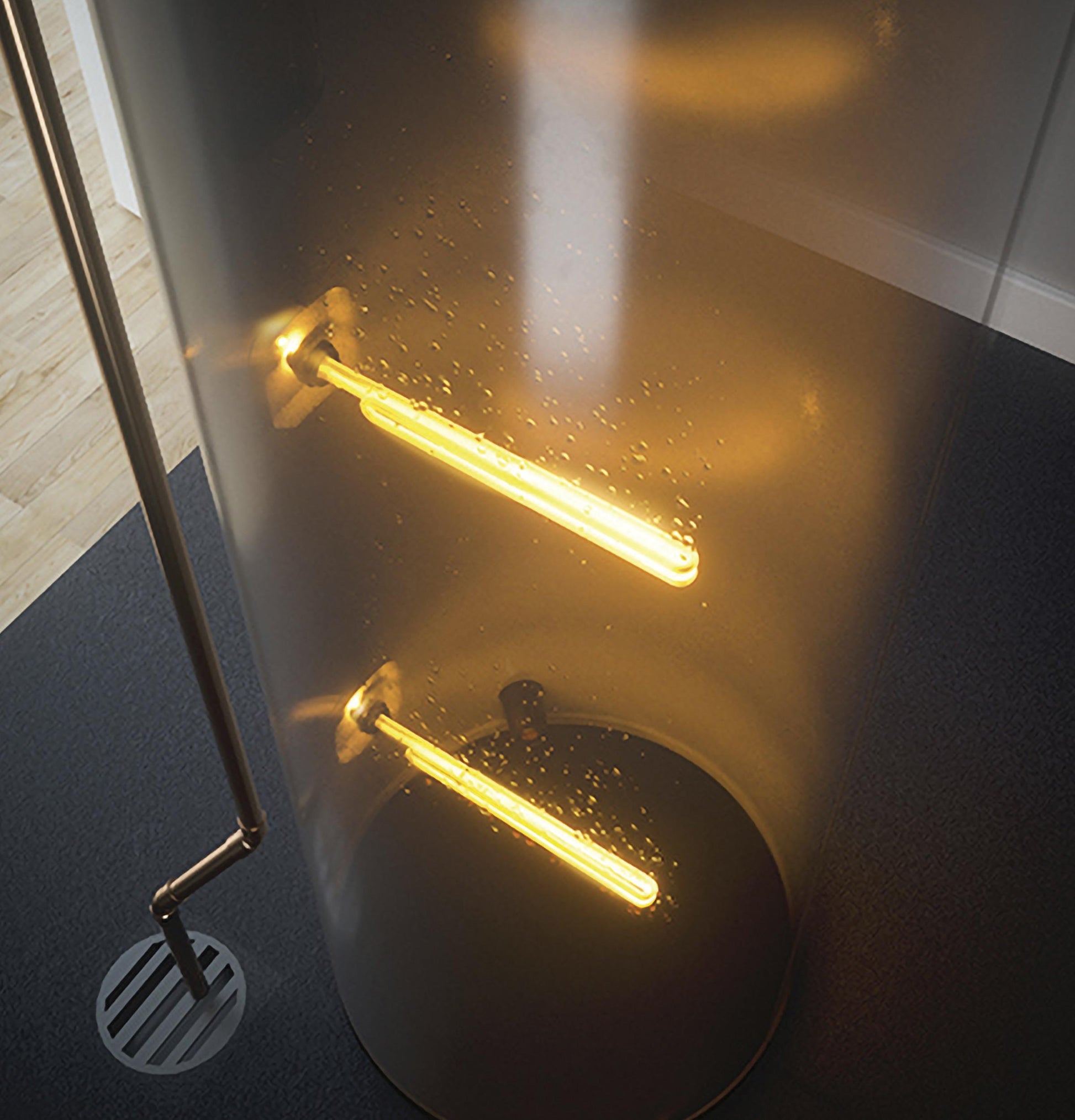

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

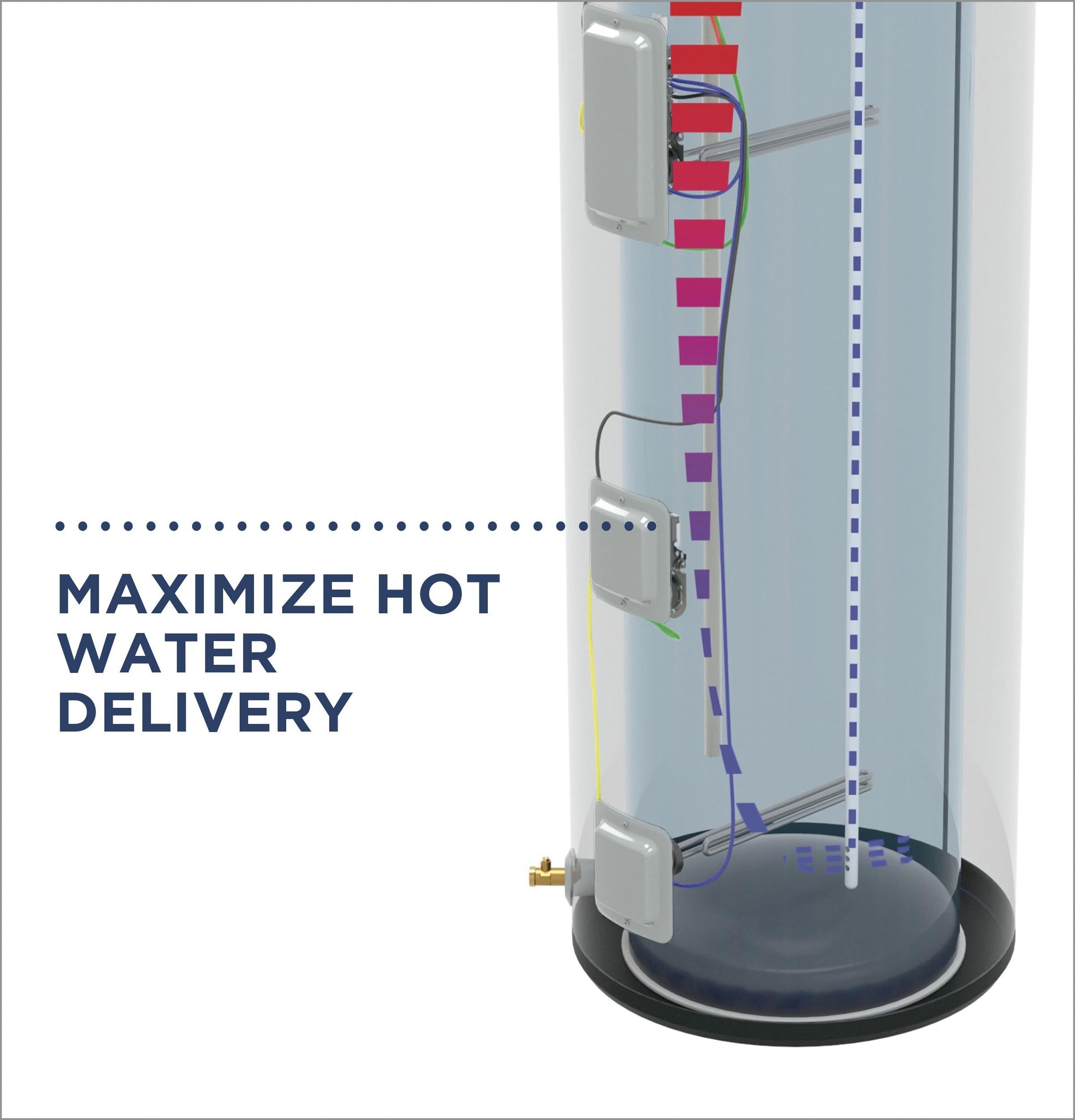

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

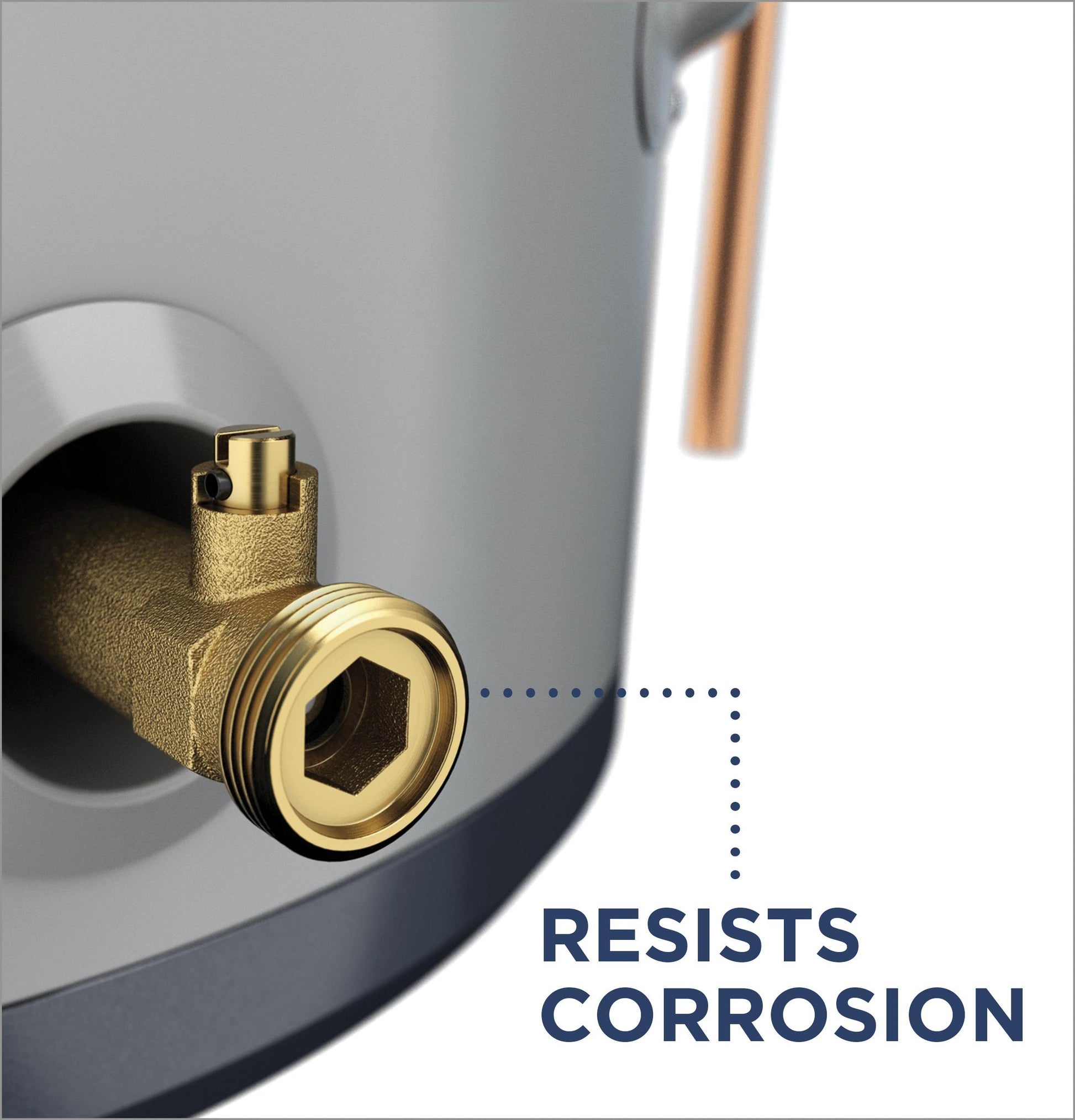

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

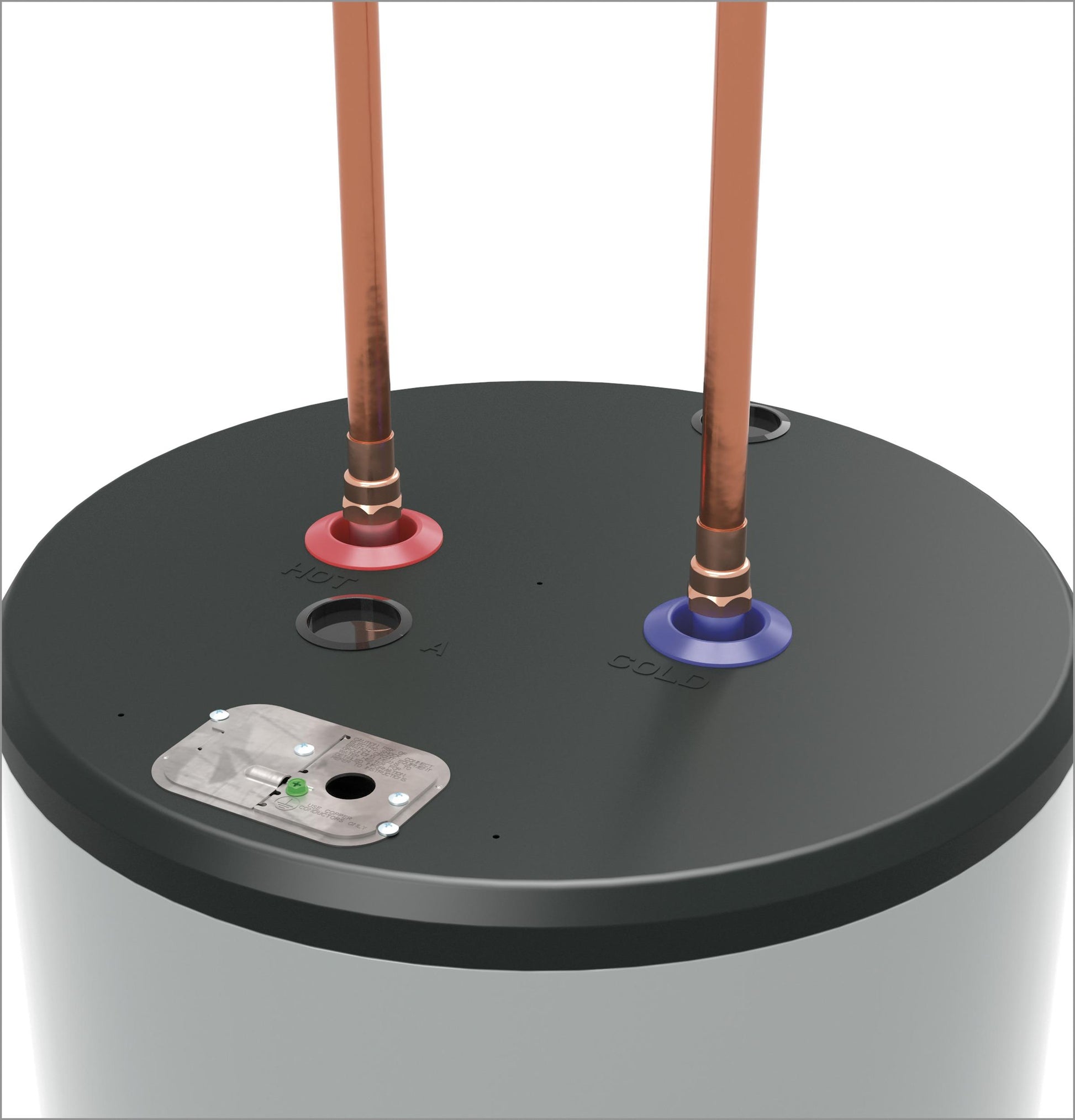

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

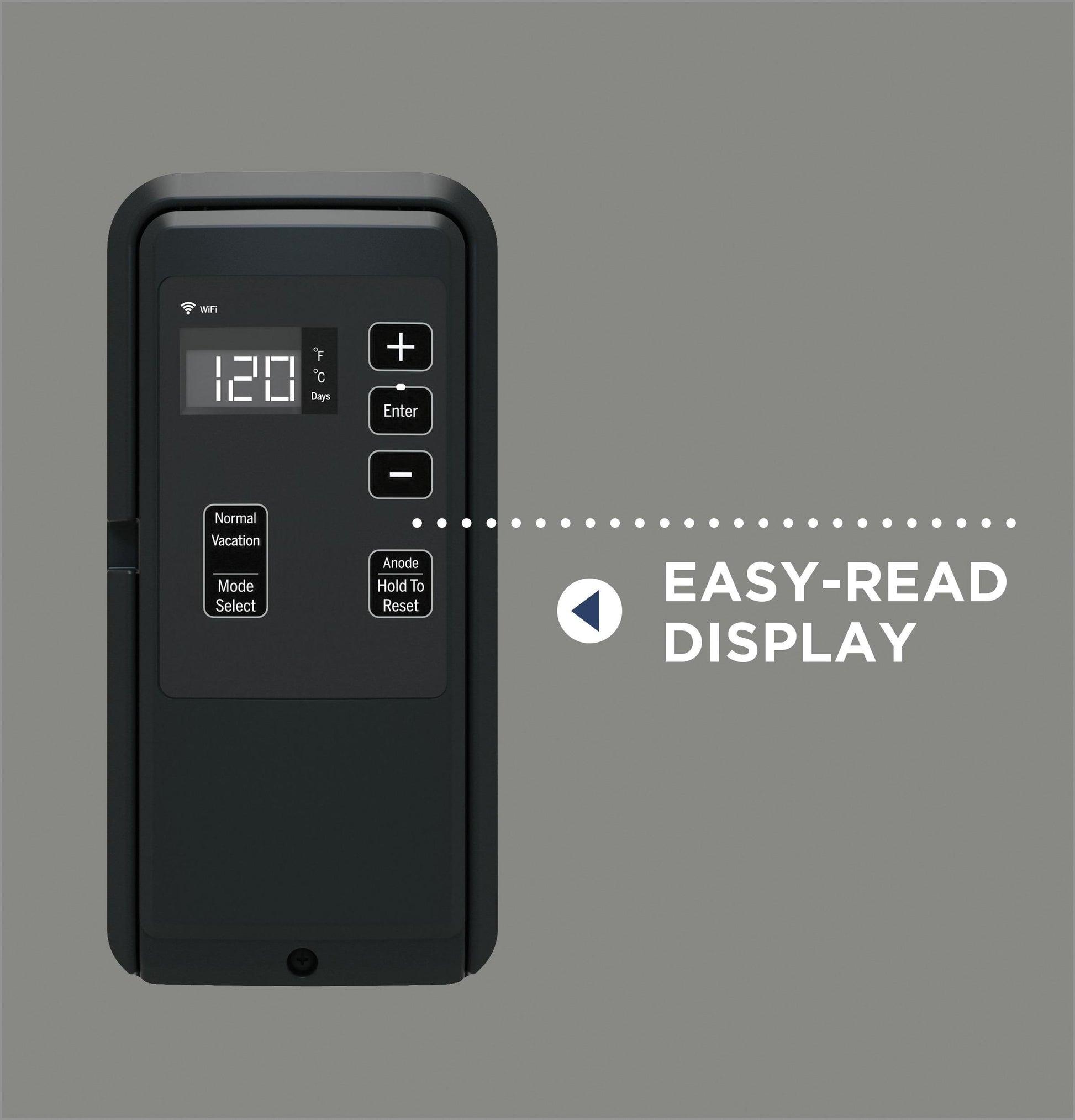

Digital Display
Make easy, accurate adjustments at the touch of a button

CAPACITY
Unit Capacity	50 Gallons
FILTER
App Filter - WiFi Connect	Built-In
App Filter - Product Type	Water Heaters Electric Standard
App Filter - Tank Diameter	22 in. and above
App Filter - Vacation Mode	Yes
App Filter - Capacity	Water Heater 50-59 gallons
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
Integrated Energy Factor	0.93
Heating - Electric - Heater Watts	5500/5500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	75 Gallons
Voltage (MAX)	240 V
Electrical Circuit Required	Dedicated 30 Amp Min.
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	12-year limited
Labor Warranty	1-year limited

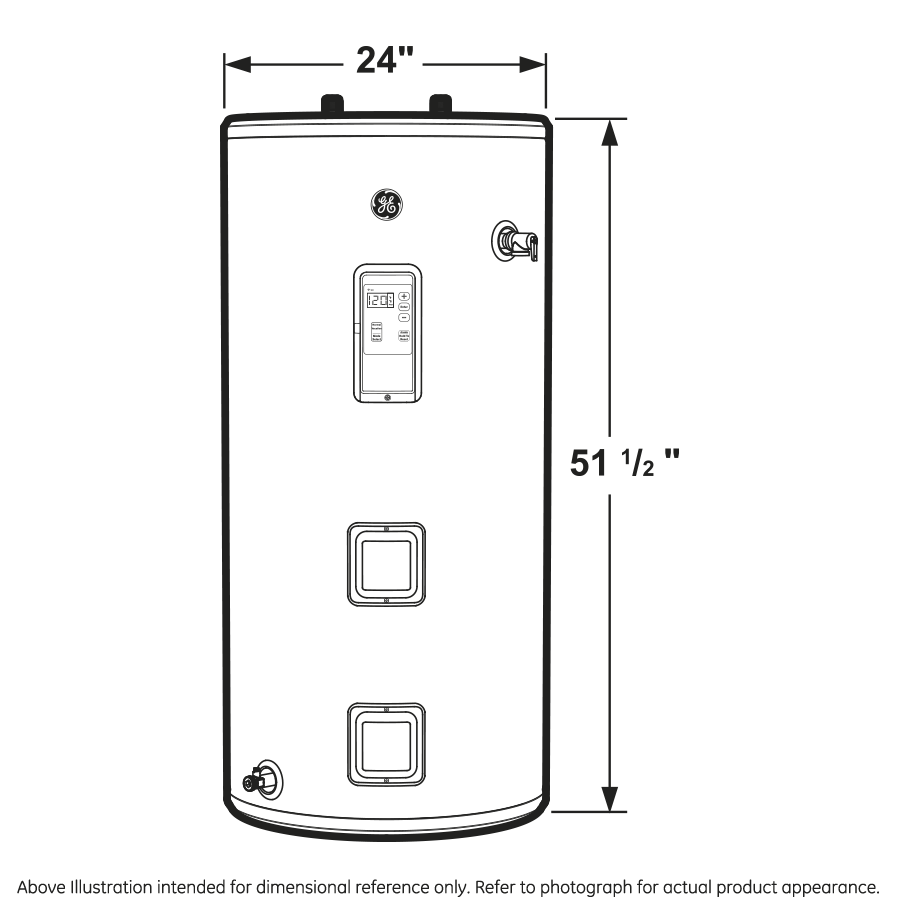

WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	53 in
Approximate Shipping Weight	161 lb
Overall Width	24 in
Overall Height	53 in
Product Height (to top of unit)	51.5 in
Net Weight	150 lb
Product Diameter	24 in
Overall Depth	24 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
FEATURES
Control Type	Electronic with Digital Display
Height Description	Short
Fuel Type	Electric
Configuration	Short
Operating Modes	Normal Vacation
Drain Valve Type	Brass
Temperature Setting Factory Default	120° F
Sensing Anode	Yes
Product Type	Electric Electronic
WiFi Connect	Built-In
Family Size	3-5 People
Water Connection Location	Top
Overheat Protection	Yes
Vacation Setting	Yes
Diagnostic Feedback	Yes
Temperature Setting	100-140° F Range
Connected Capabilities	Amazon Alexa Google Home
