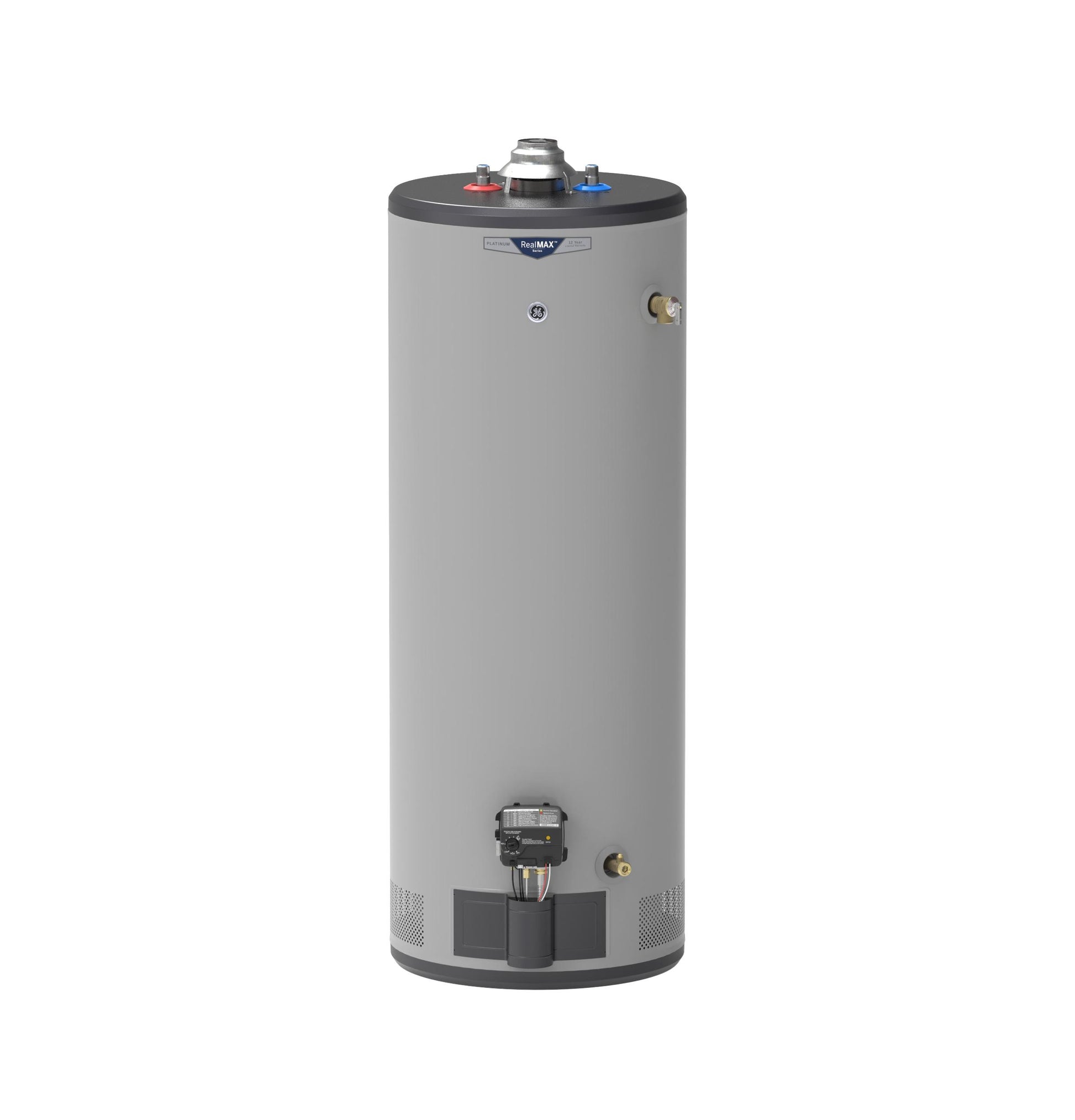

GG50T12BXR GE RealMAX Platinum 50-Gallon Tall Natural Gas Atmospheric Water Heater GG50T12BXR

Household Size
Provide hot water for the whole family of 3 to 5+ persons

Quick Recovery
Quickly replenish hot water with a max-performance 40K burner

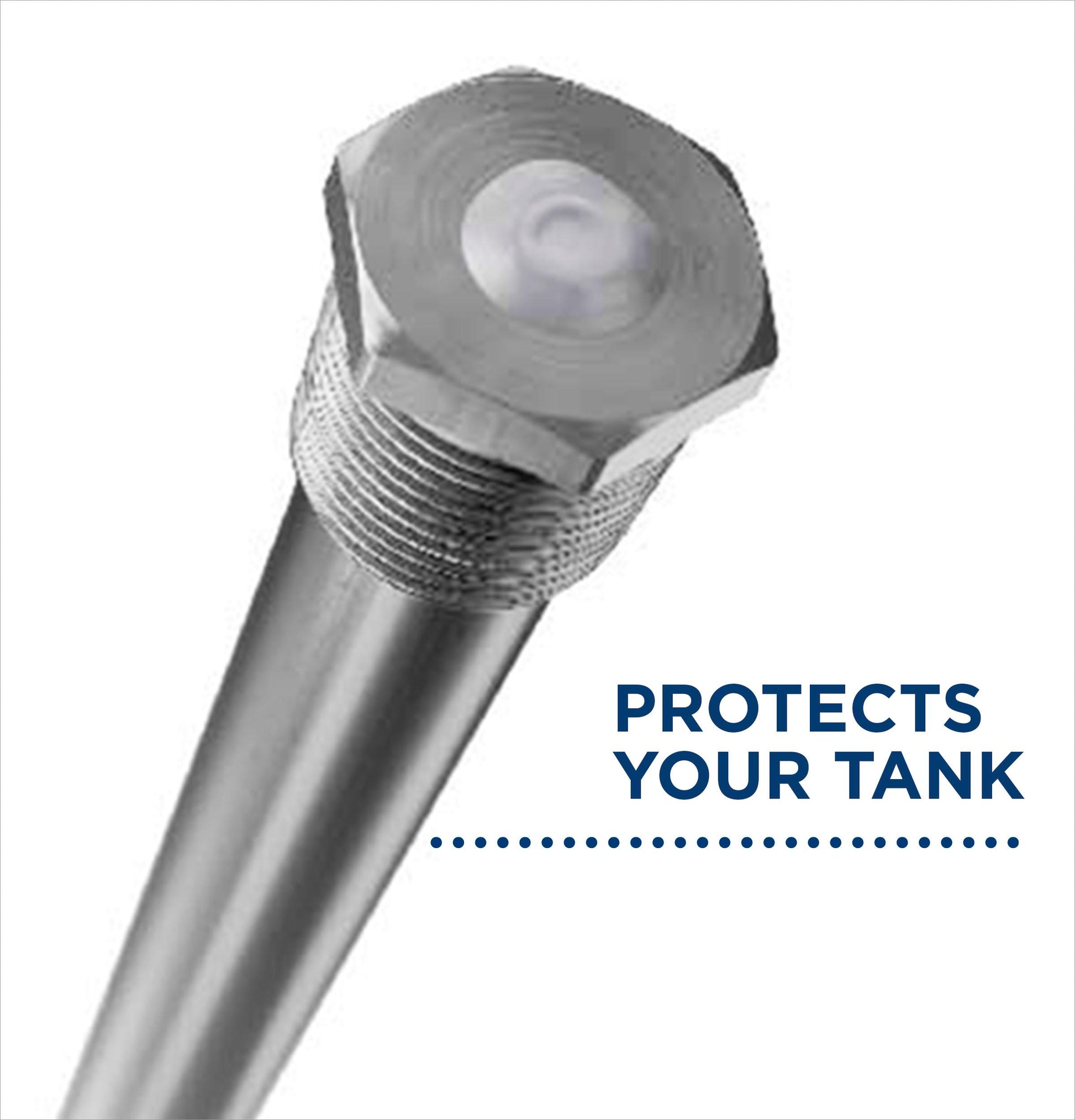

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

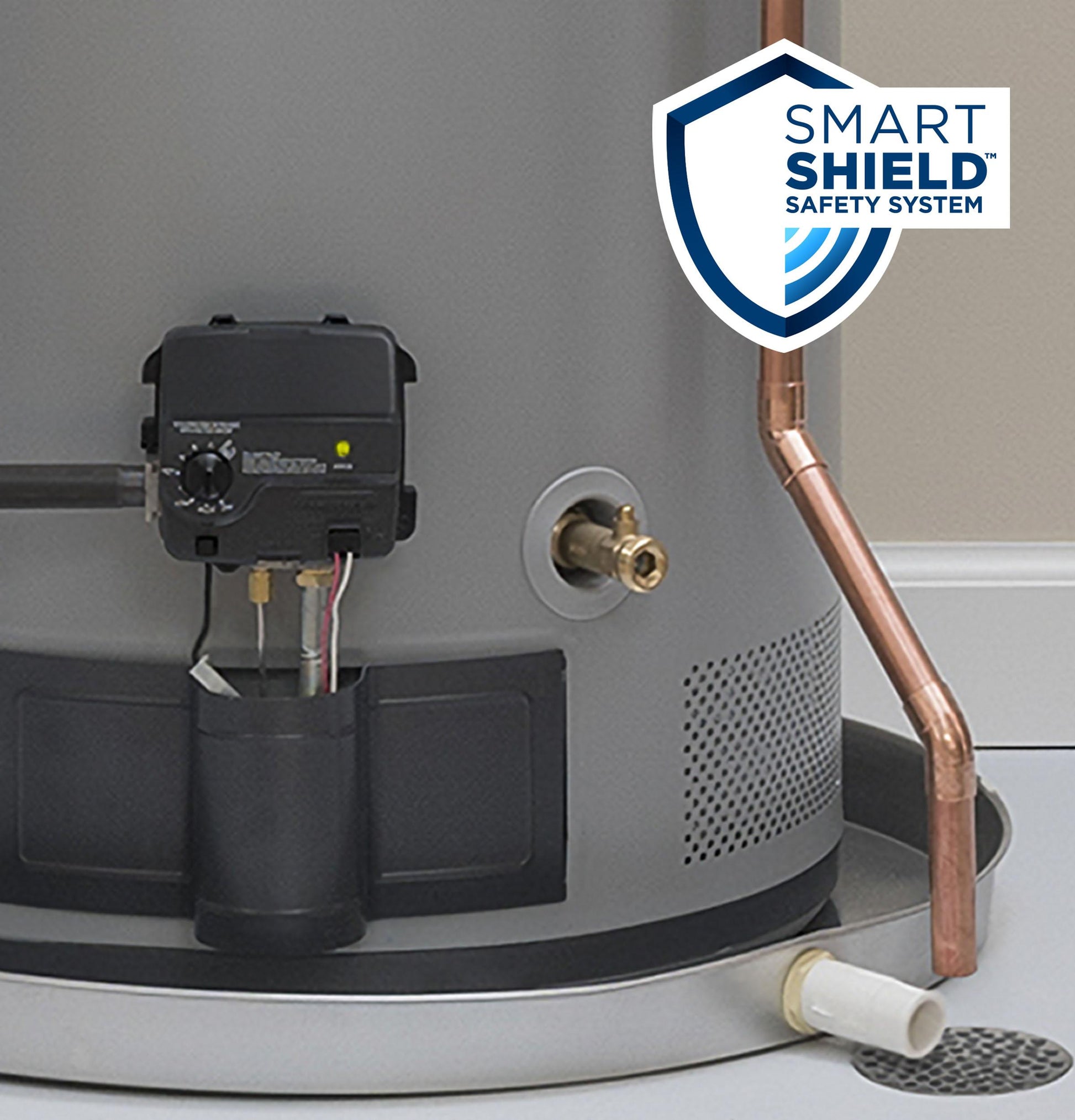

SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

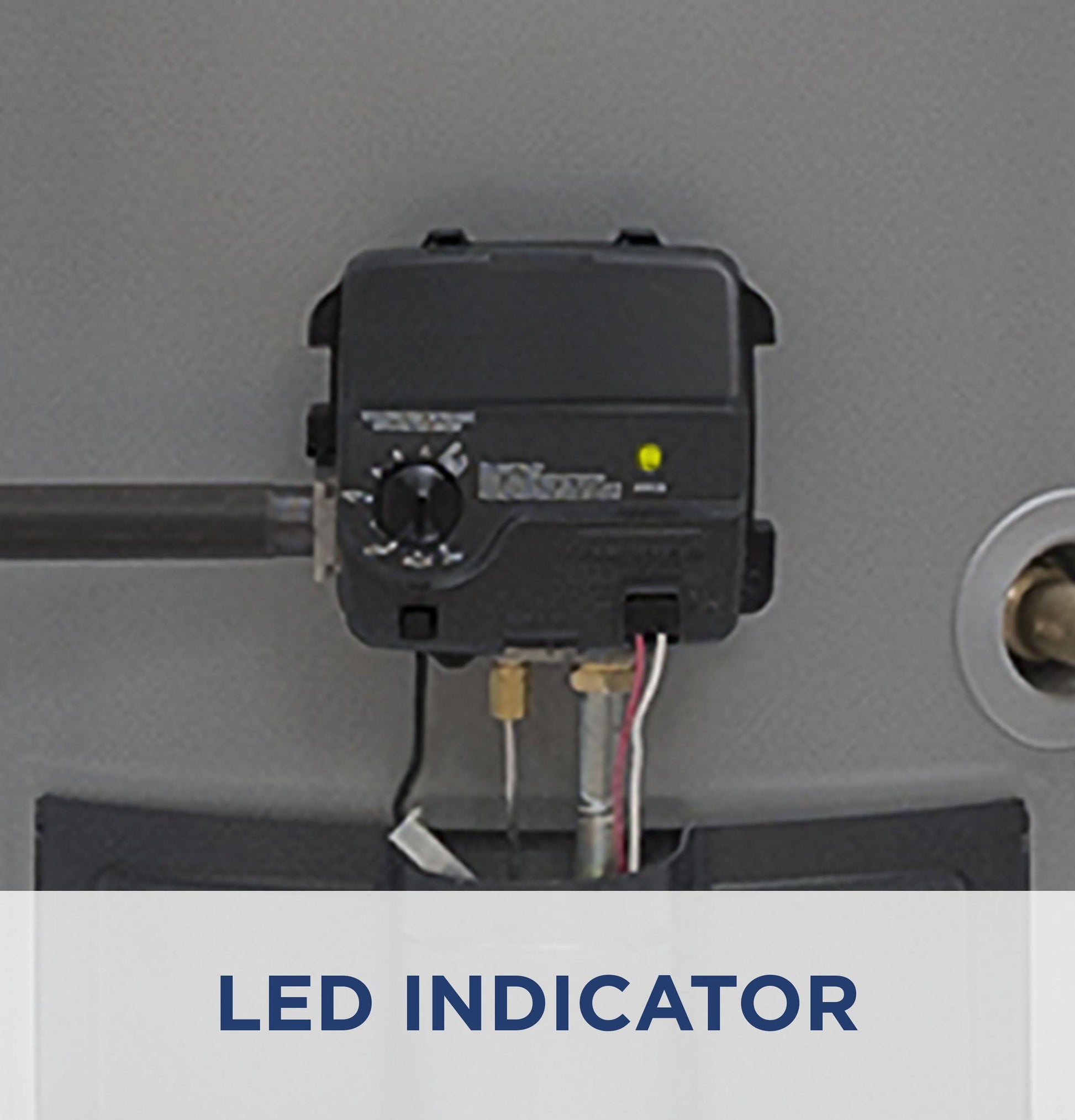

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

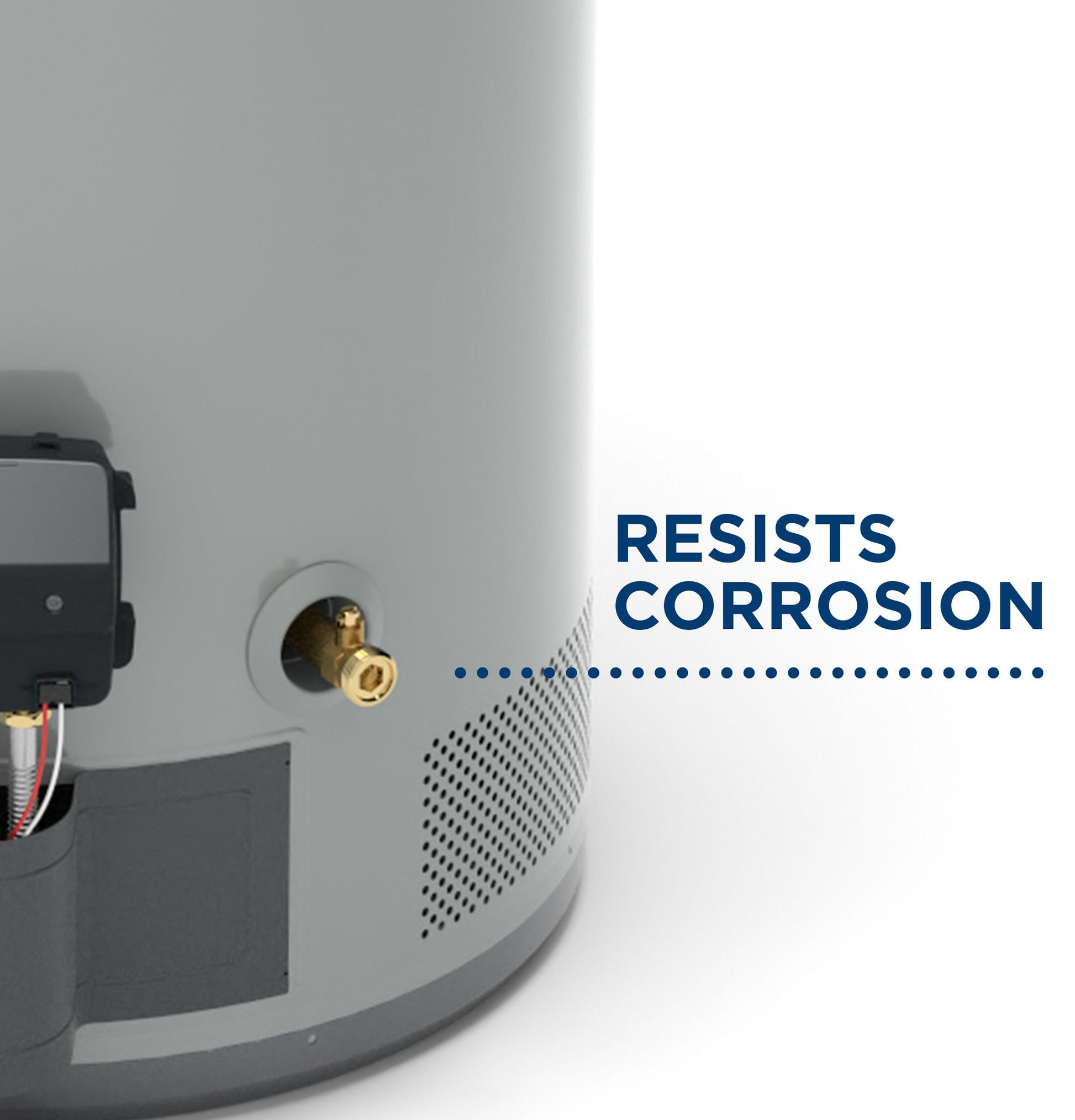

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

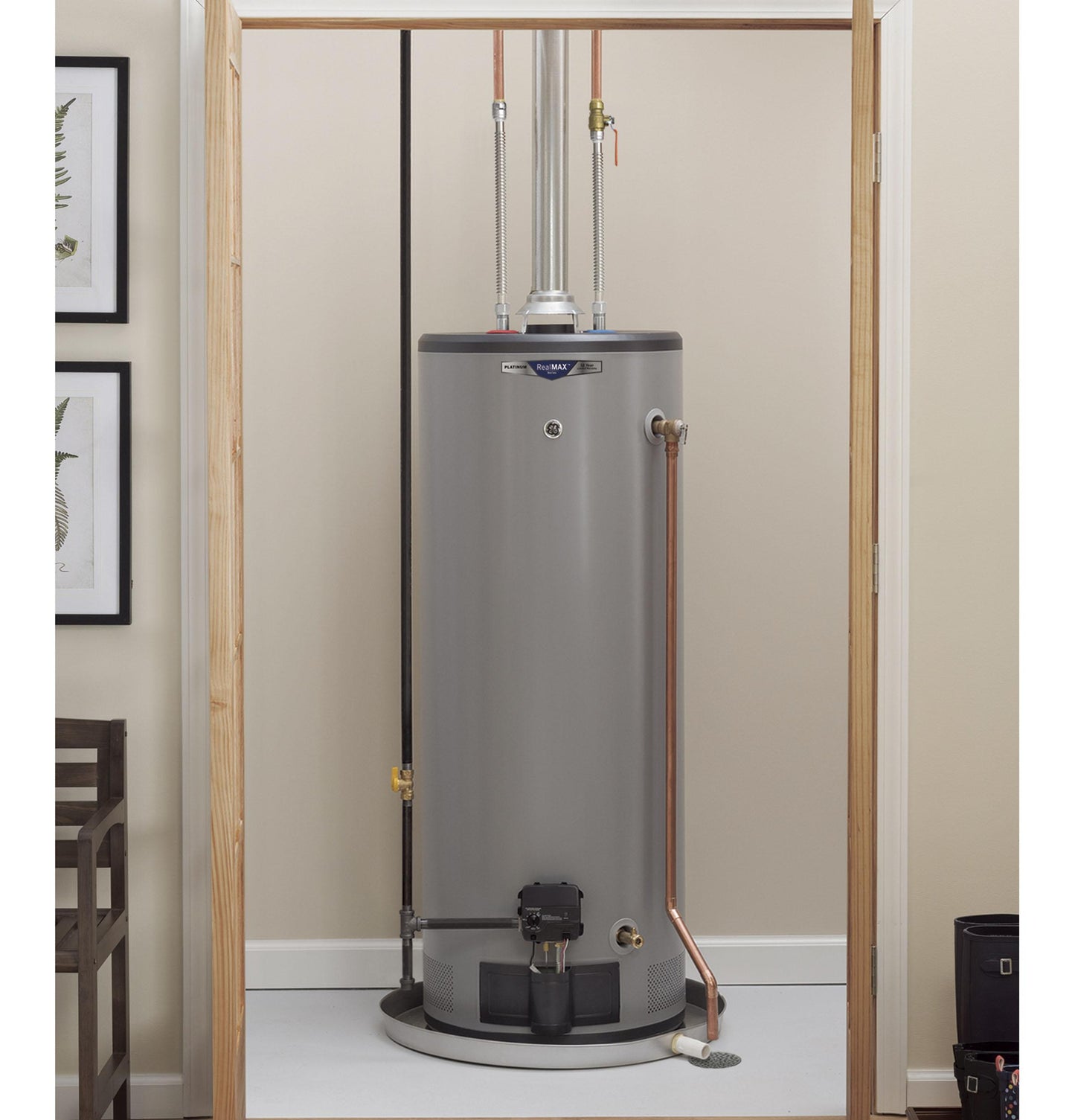

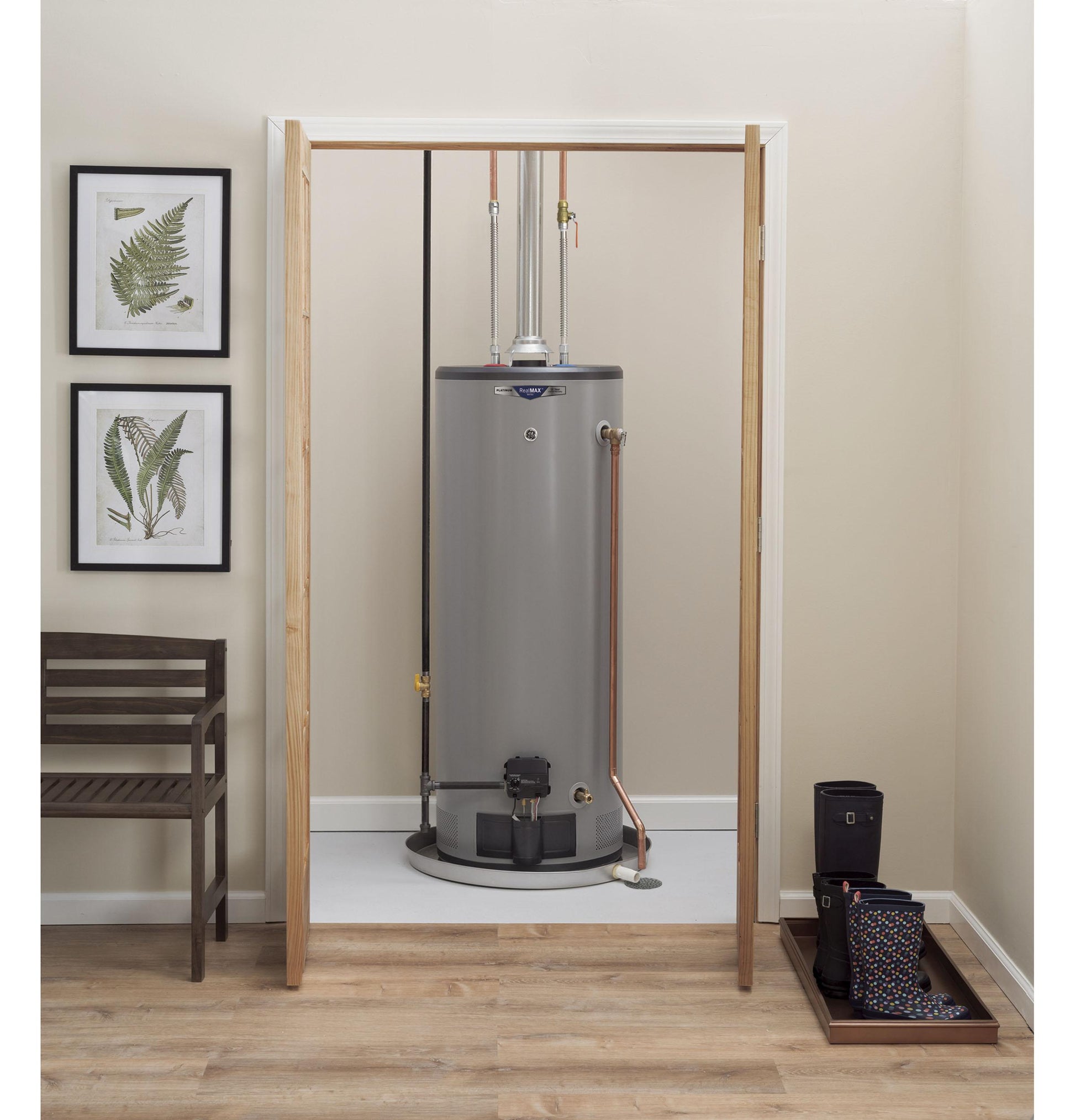

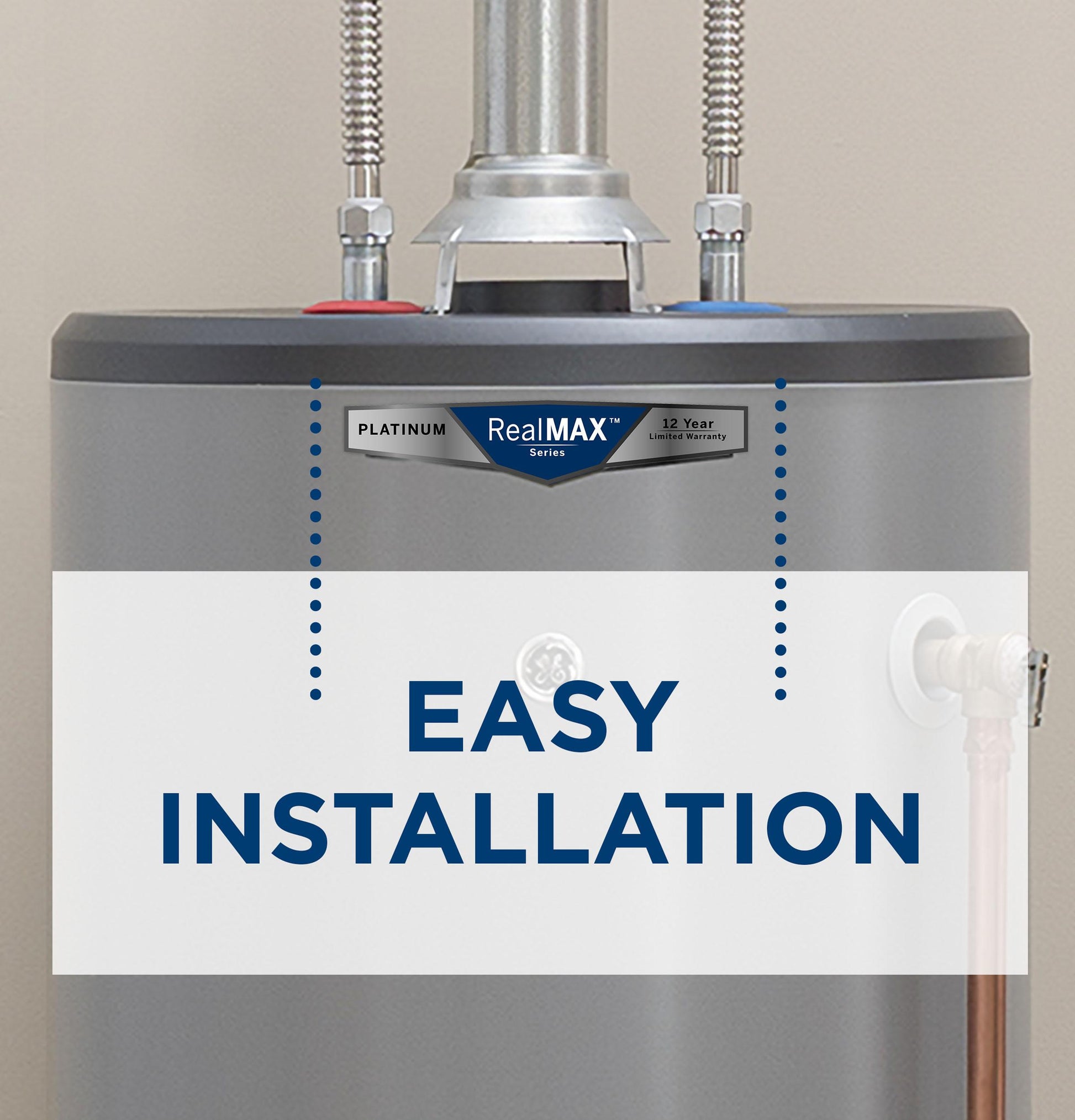

Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections

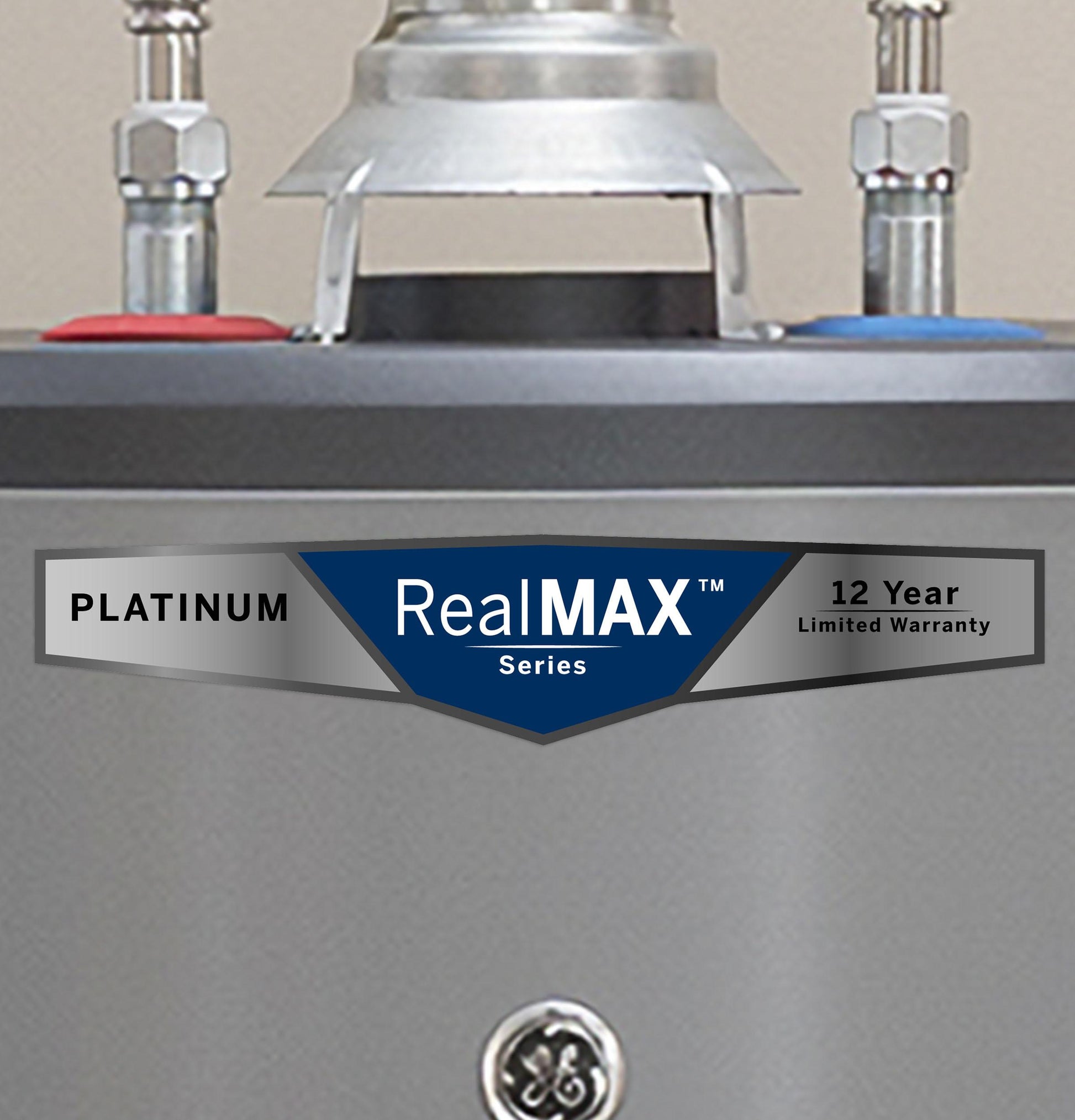

Built-To-Last Warranty
RealMAX Platinum water heaters carry a 12-year tank and parts limited warranty

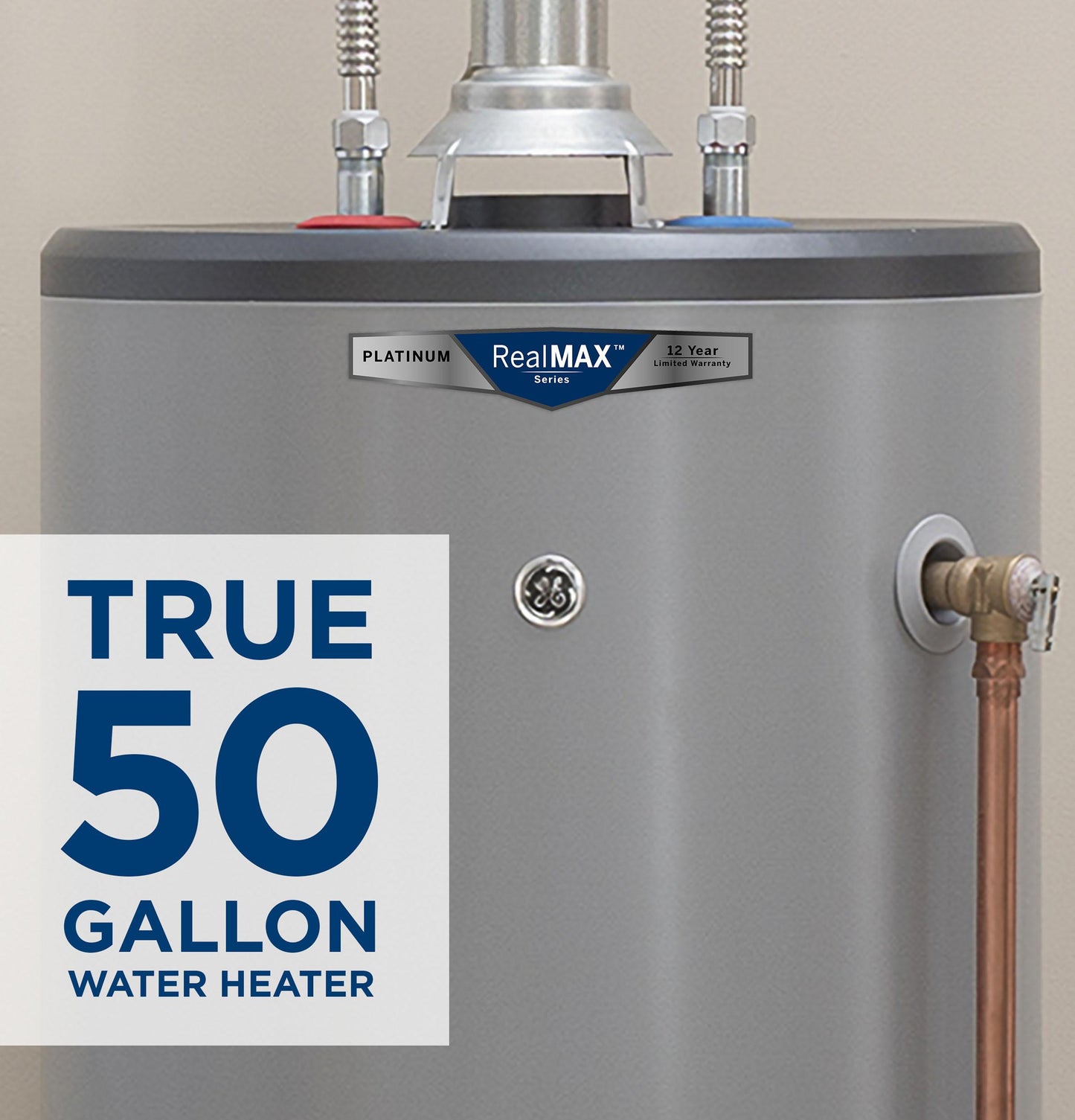

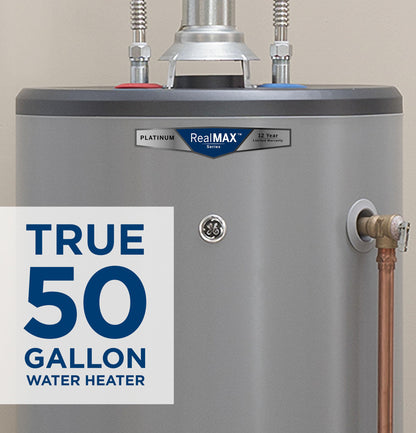

CAPACITY
Unit Capacity	50 Gallons
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
First Hour Delivery GPH	82 gal/hr
Burner BTU Size (k)	40
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	12-year limited
Labor Warranty	1-year limited
WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	59.5 in
Height to Gas Control	11.25 in
Approximate Shipping Weight	169 lb
Overall Width	22 in
Overall Height	61.375 in
Product Height (to top of unit)	58 in
Net Weight	161 lb
Product Diameter	22 in
Overall Depth	22 in
Vent Size	3" Type B Vent
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
FEATURES
FVIR Safety System	Prevents accidental ignition of flammable vapors
Vent	Atmospheric
Controls	LED Indicator
UEF	.64
Temp & Pressure Relief Valve	Yes
Height Description	Tall
Fuel Type	Natural Gas
Pilot Light Window / Button	Yes
Configuration	Tall
Drain Valve Type	Brass
Product Type	Atmospheric Gas
Family Size	3-5 or more People
Bin Testing	High
Water Connection Location	Top
Overheat Protection	Dry Burning Protection
Gas Valve	Self Powered
Anode Rod	Magnesium
Altitude Rating	10100 ft
Temperature Setting	45-160° F Range
