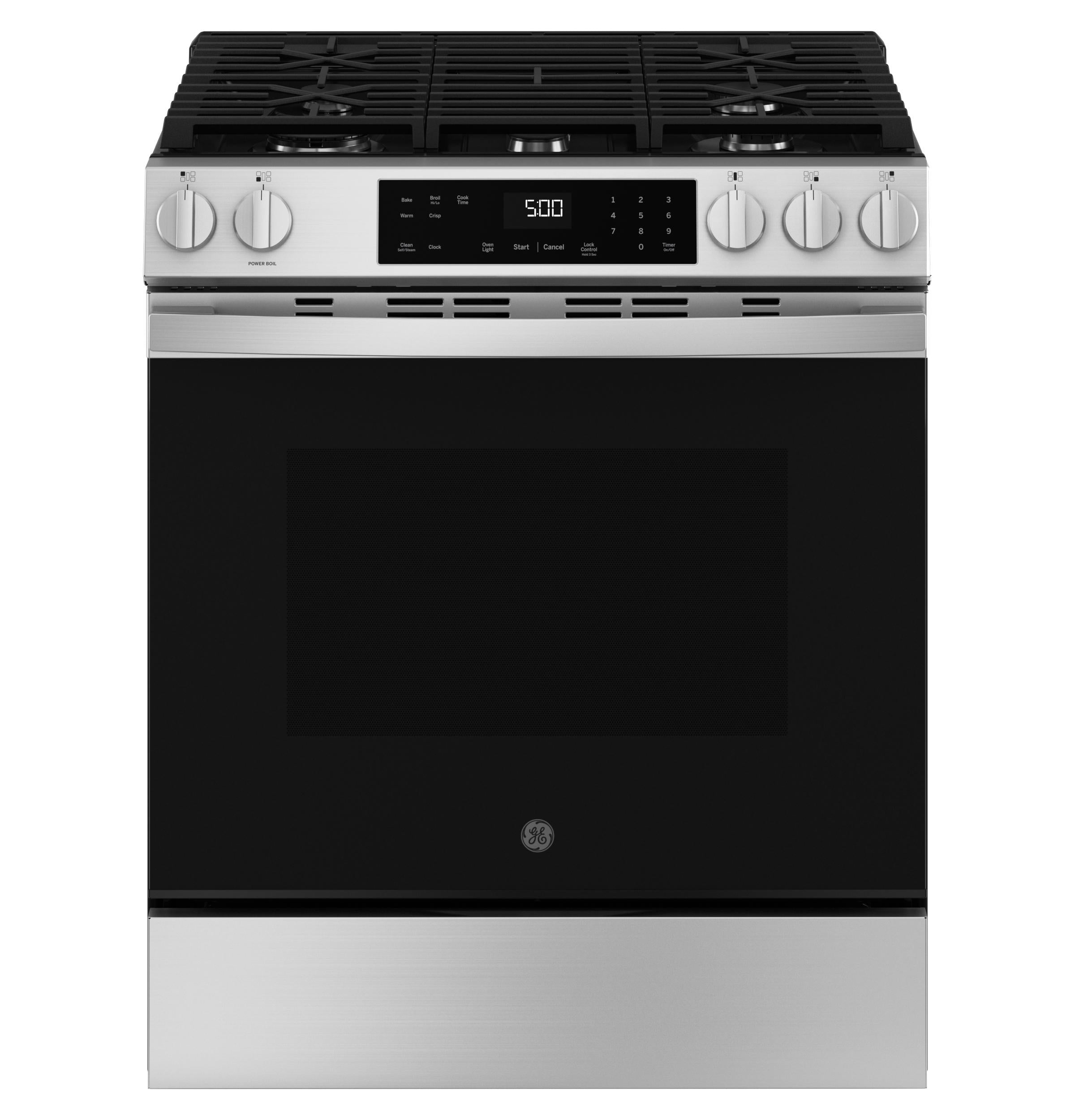

GGS500PVSS GE® 30" Slide-In Front-Control Gas Range with Crisp Mode GGS500PVSS

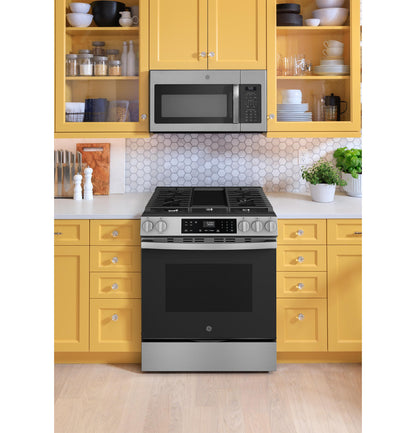

Slide-In Range
Easily upgrade your kitchen with this new slide-in range that is guaranteed to fit into your existing space.

Crisp Mode
Crisp mode uses the bake and broil elements to deliver air-fry like results. Perfect for your favorite fried foods, this mode uses a 2-minute preheat to get to temperature, then delivers fantastic crispy results.

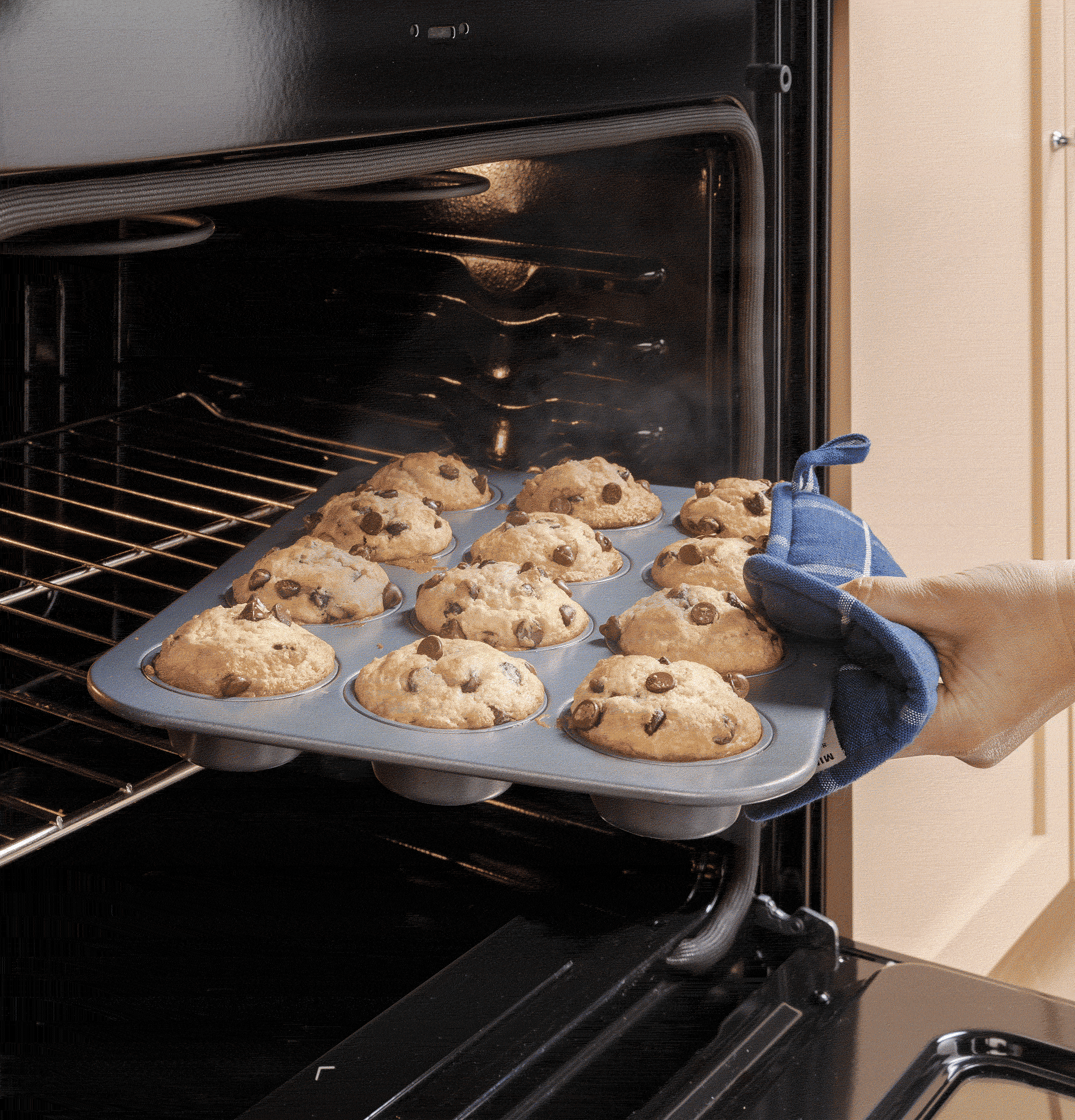

Express Preheat
Get food on the table quicker thanks to a fast preheat oven. In just 7 minutes*, you have a perfectly preheated oven. *Preheats oven in just 7 minutes, bake mode to preheat beep, 350 degrees, one standard rack..

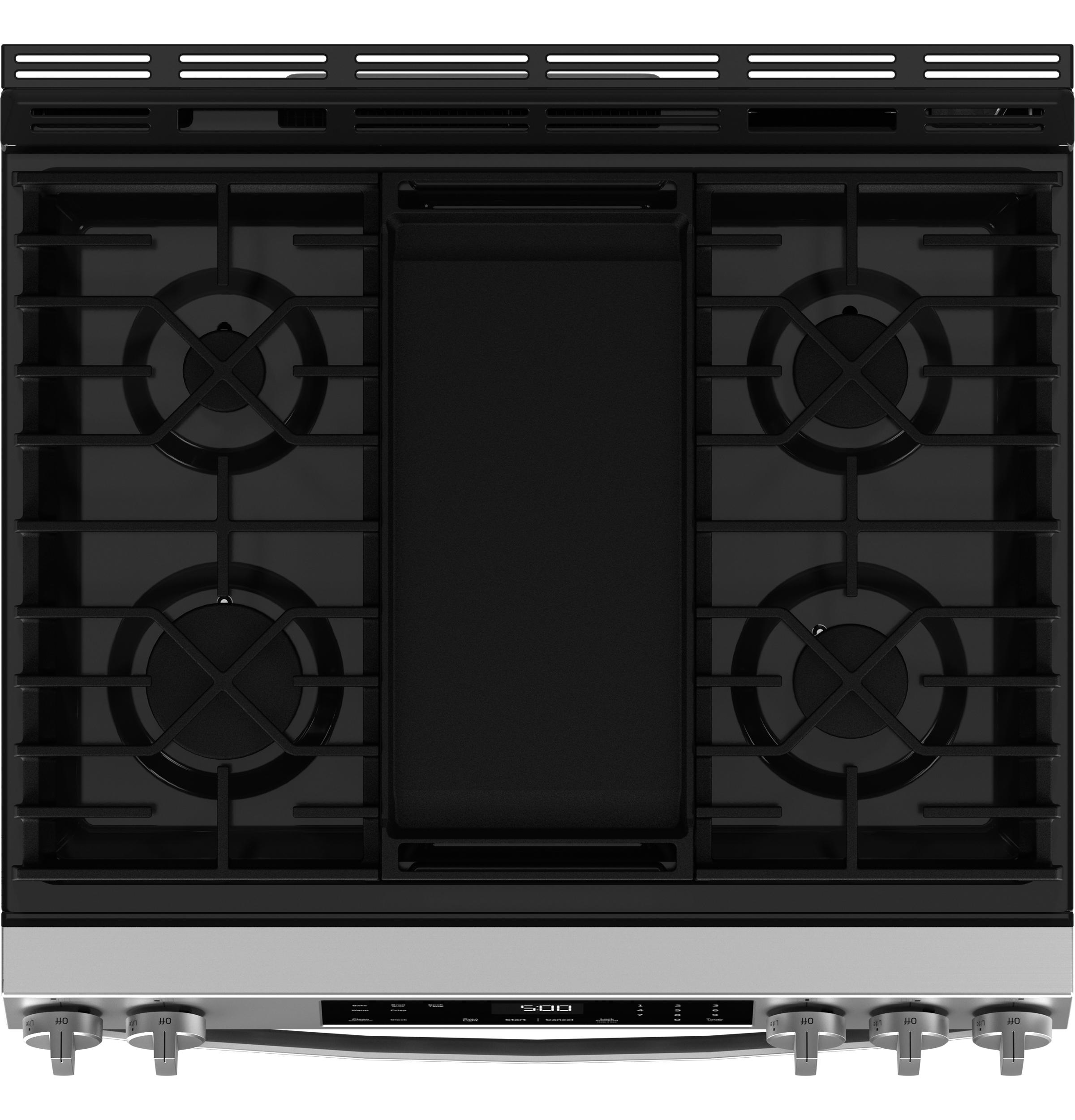

5 Burner Gas
Five powerful gas burners make for an efficient cooking experience on this expansive and flexible cooktop.

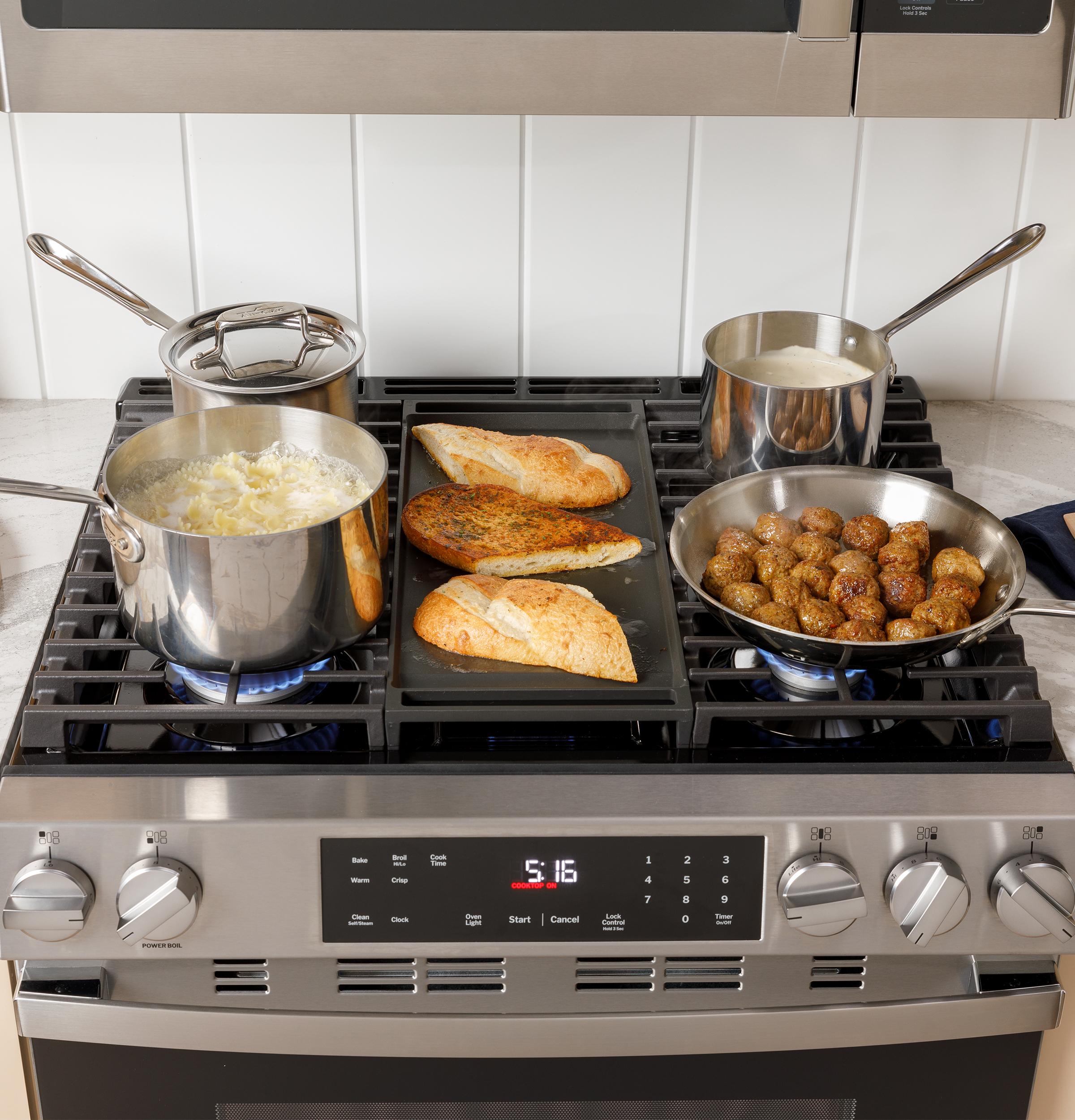

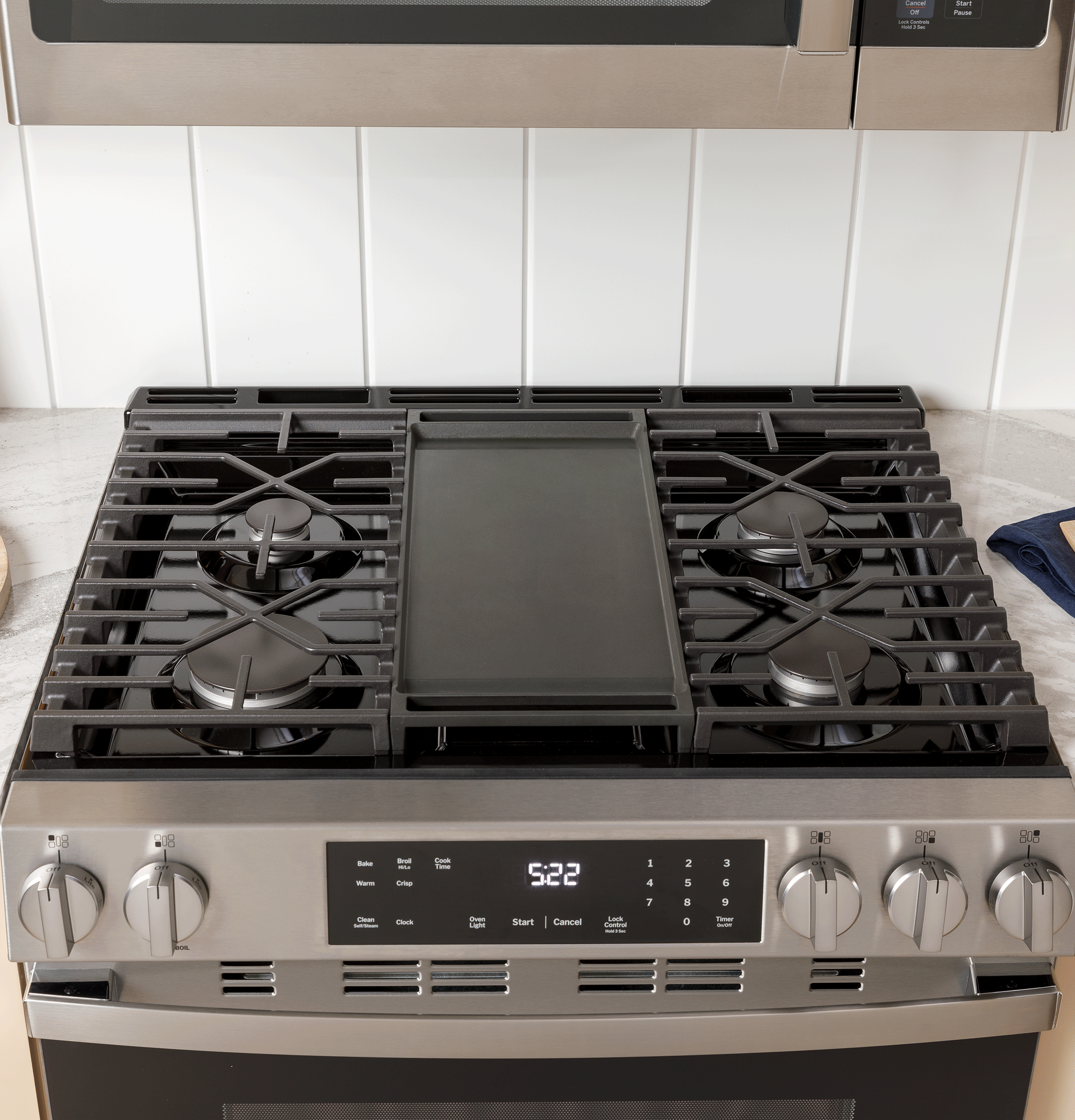

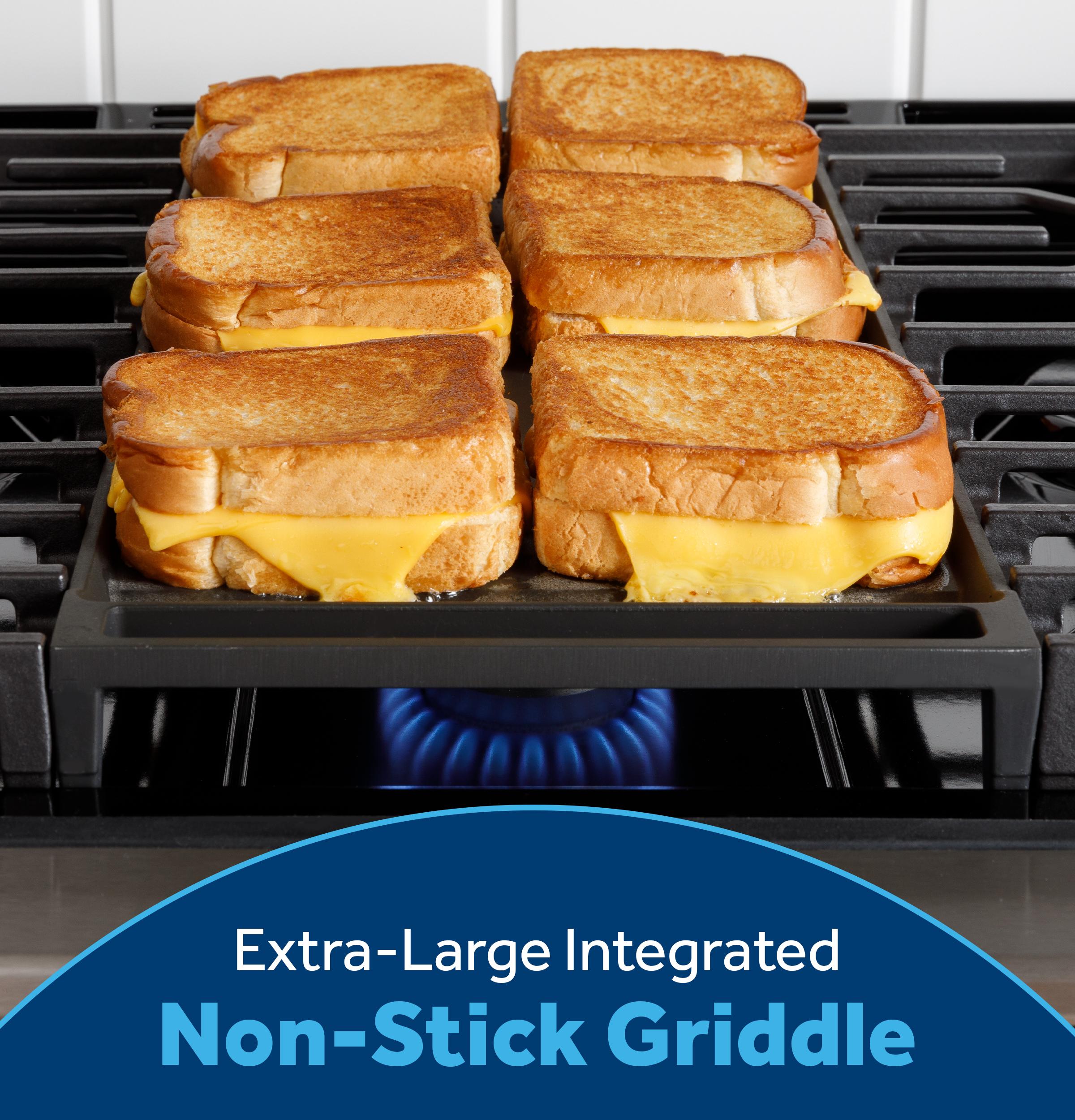

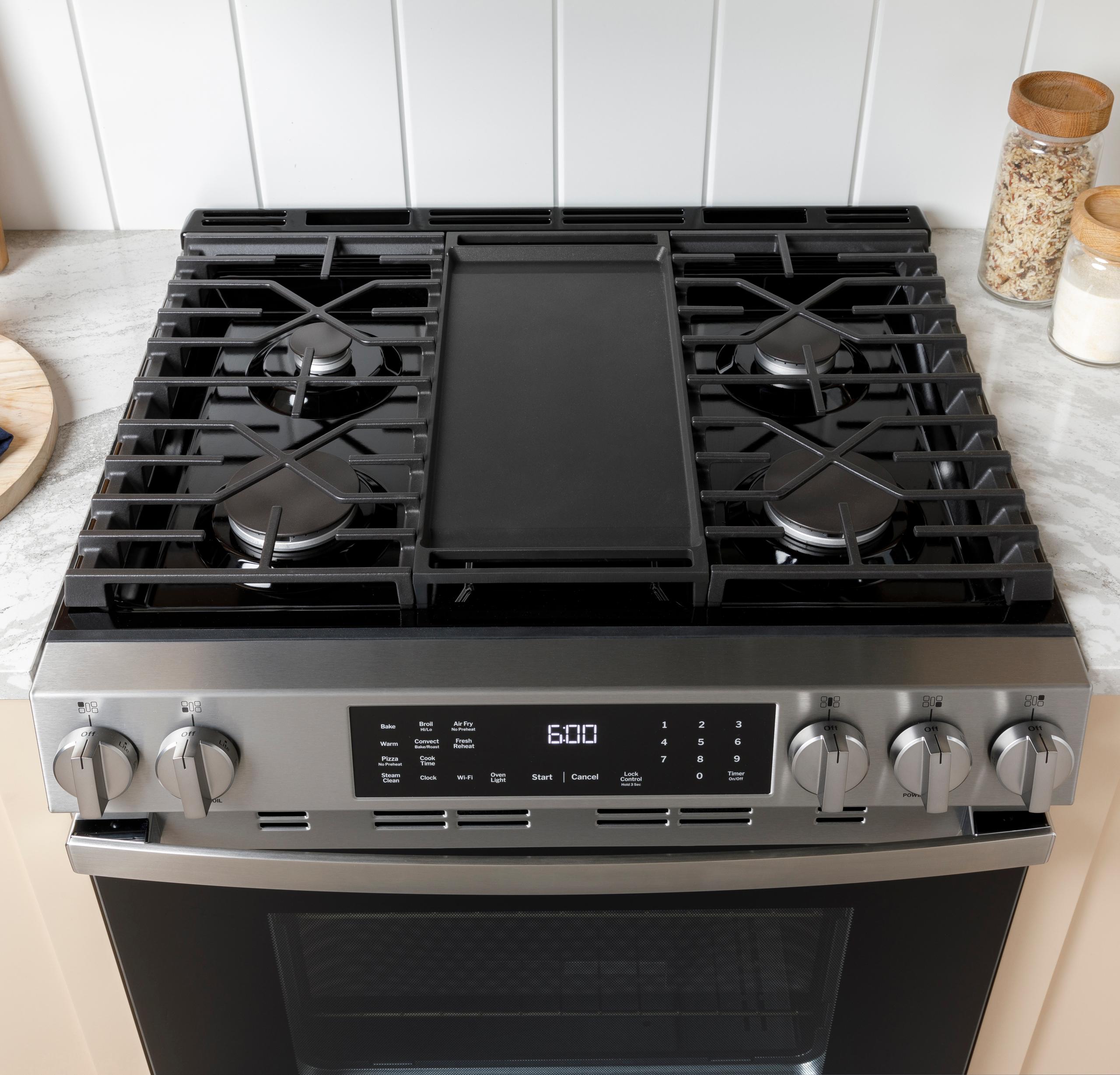

Extra-Large Integrated Griddle
With an integrated griddle that is 20% larger than leading competition, you can cook up to six grilled cheeses at once.

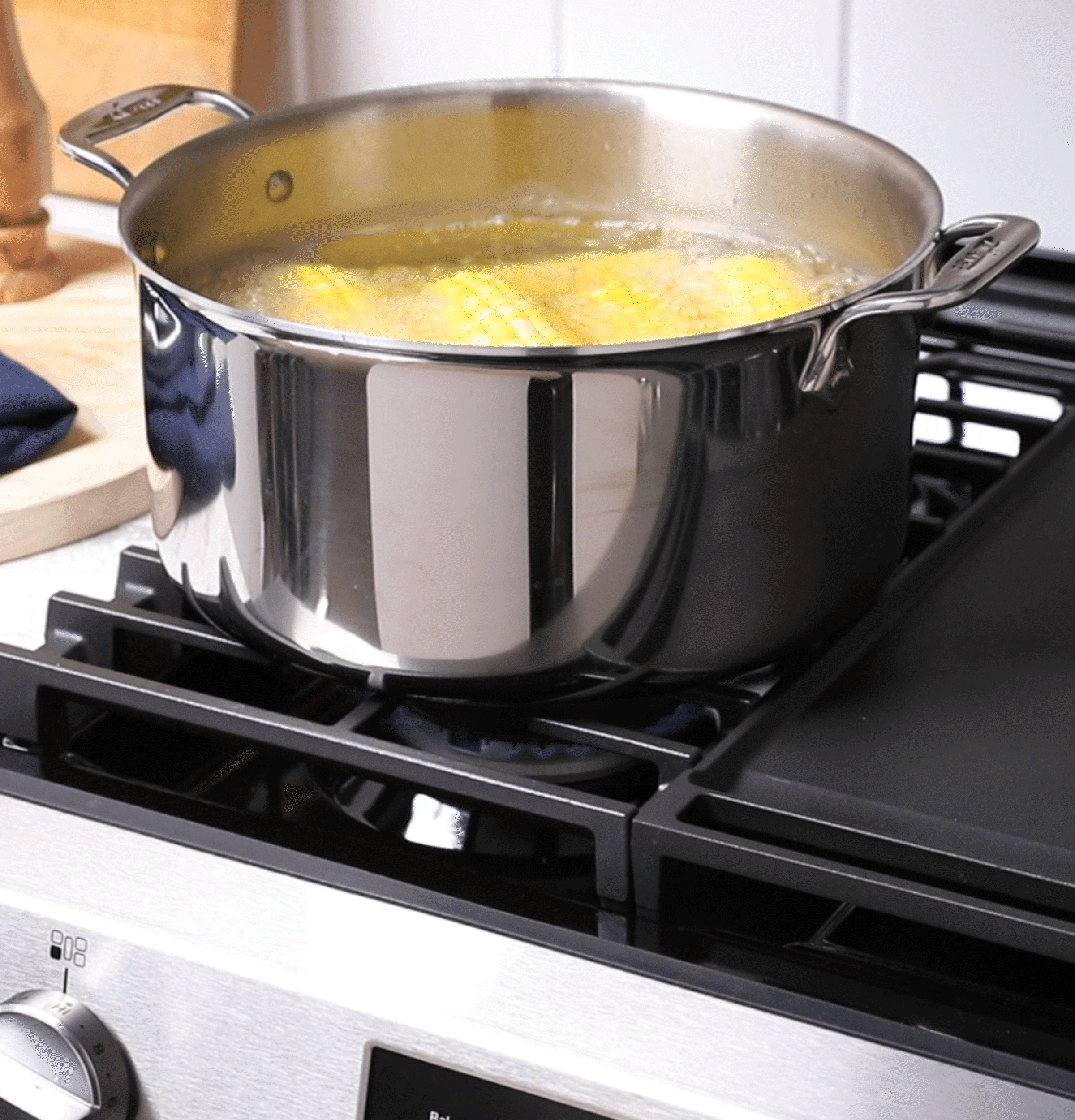

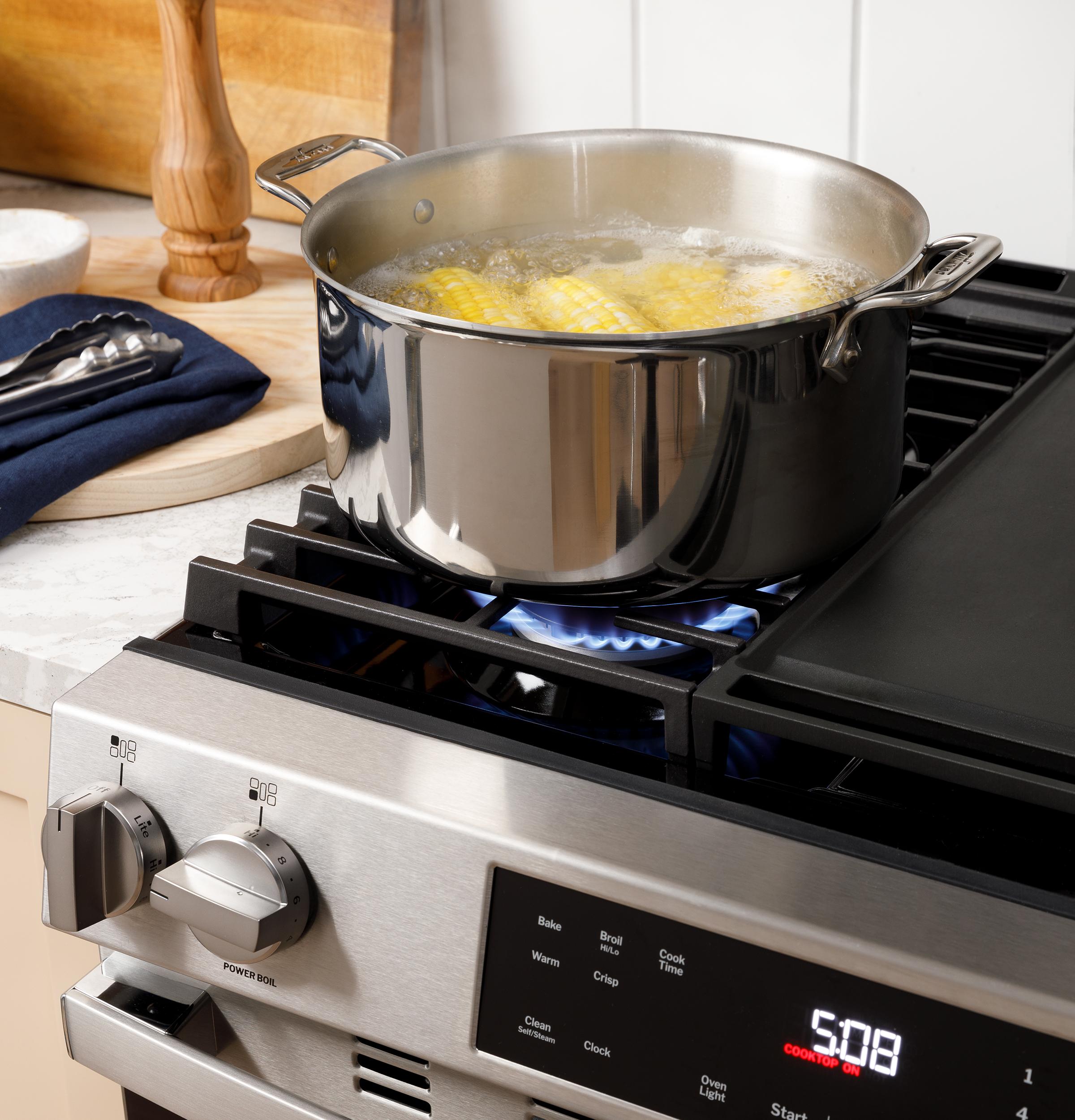

15,000 BTU Power Boil Burner
Boil water faster with a 15,000 BTU Power Boil element that delivers high heat for quick boiling.

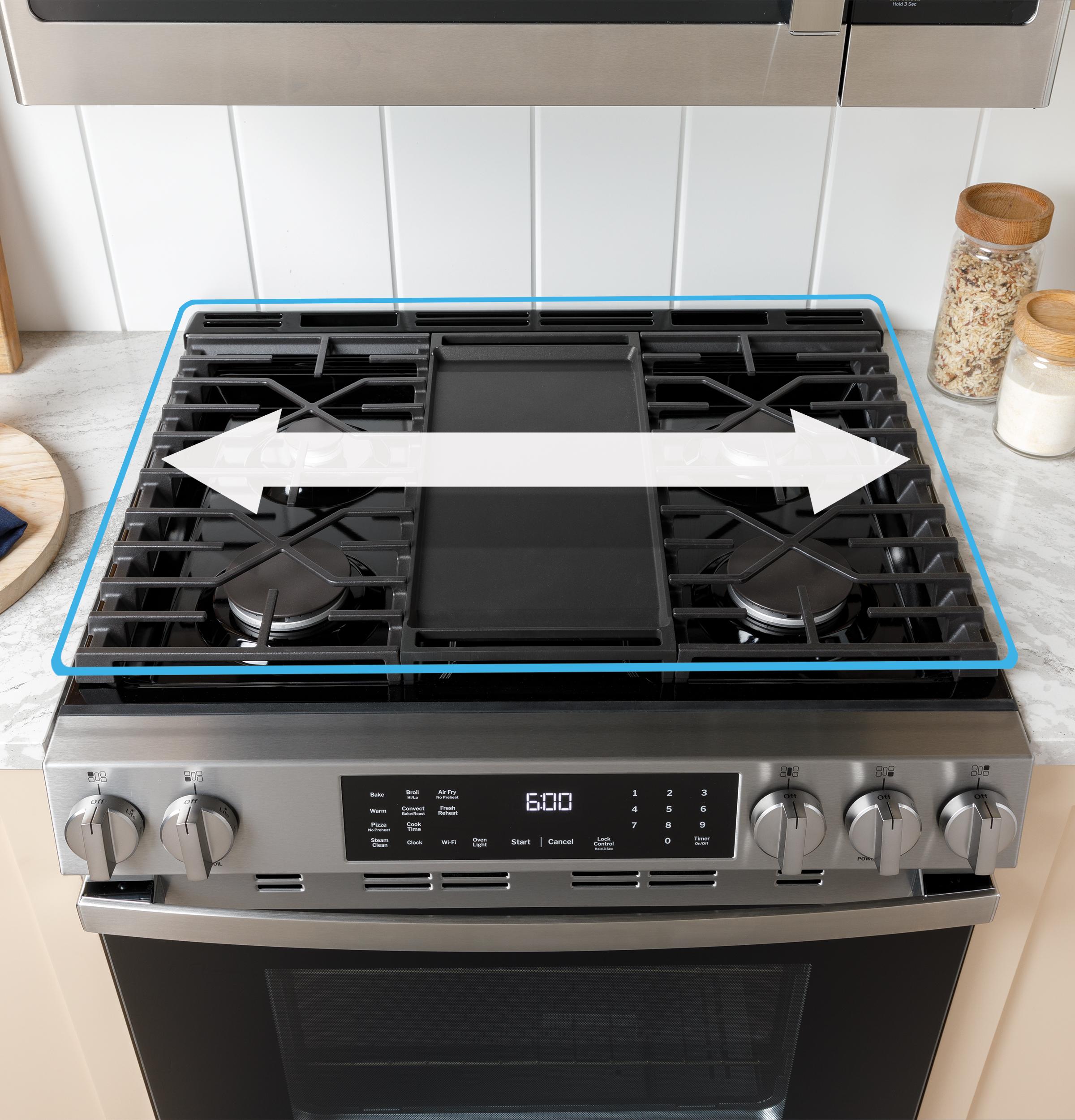

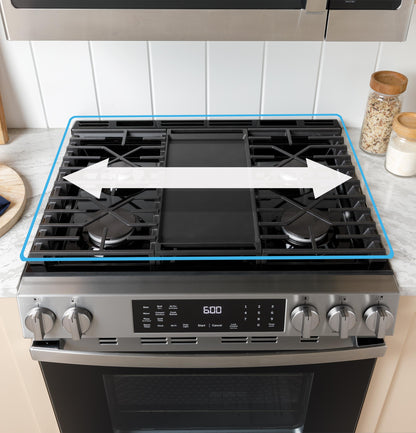

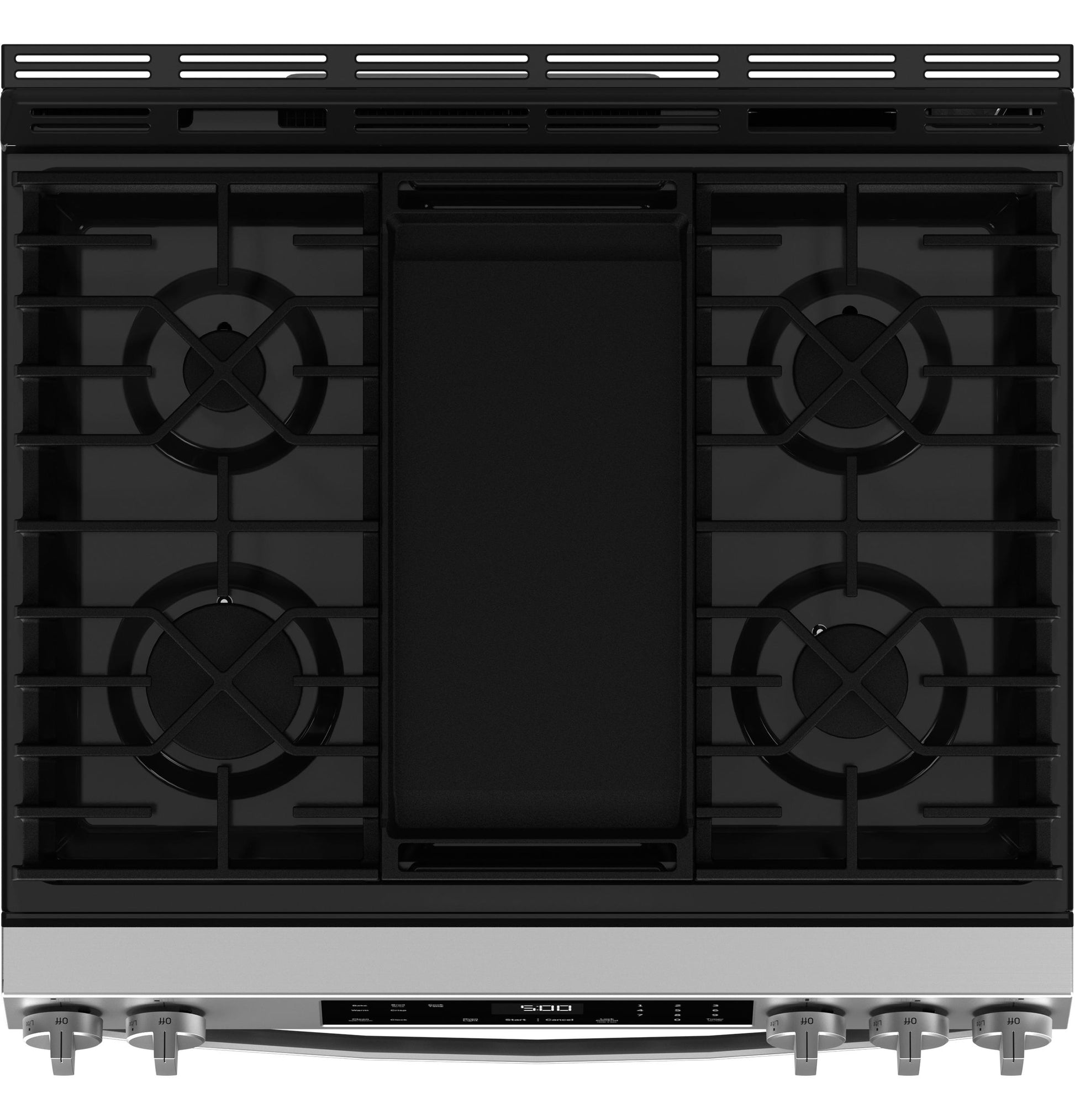

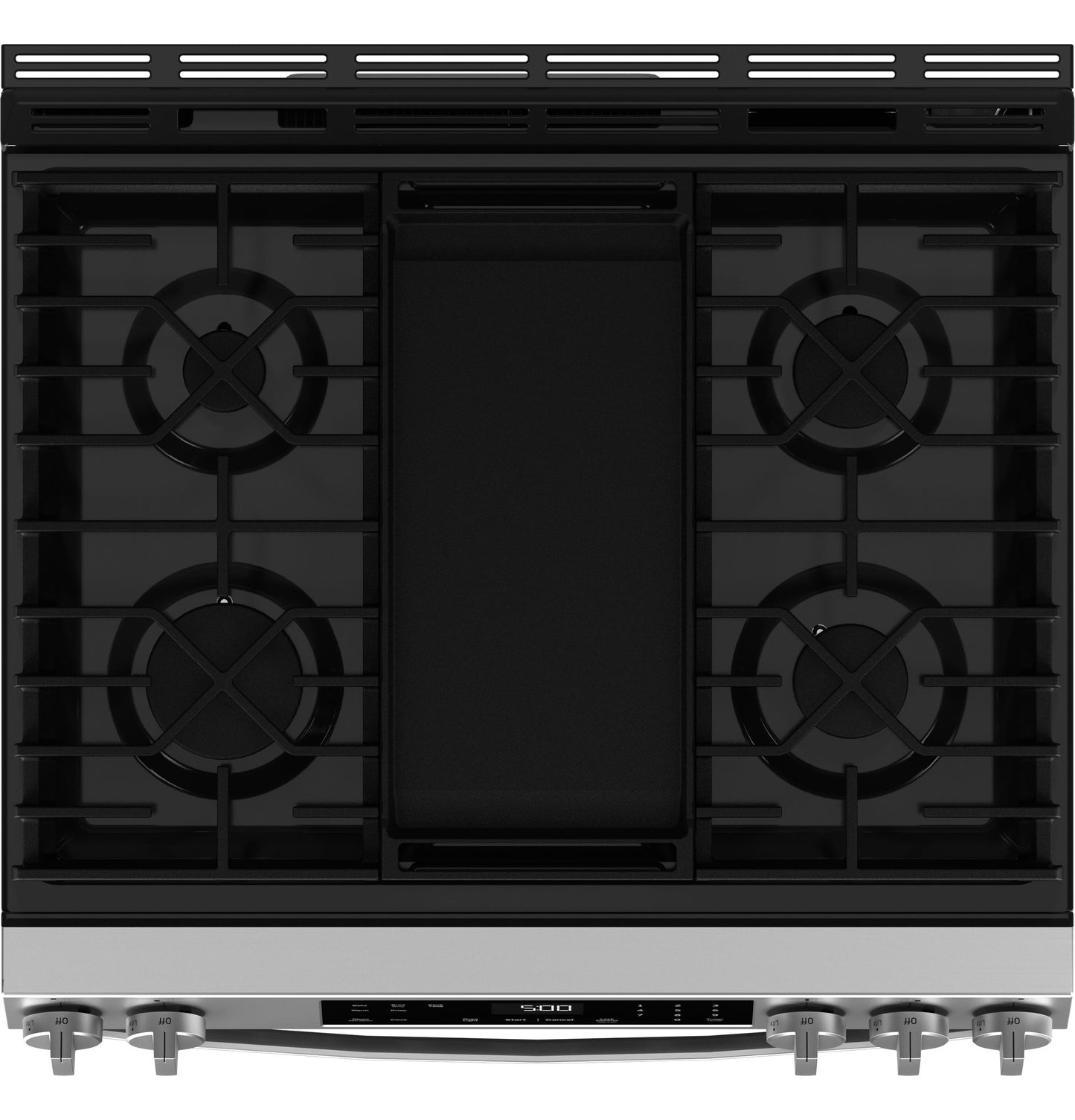

Edge-to-Edge Cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.

Center Oval Burner
Custom cookware and griddles easily fit on this powerful fifth central oval burner that offers a flexible cooking solution.

Precise Simmer Burner
Prepare your delicate dishes over the low, even heat of this precise simmer burner.

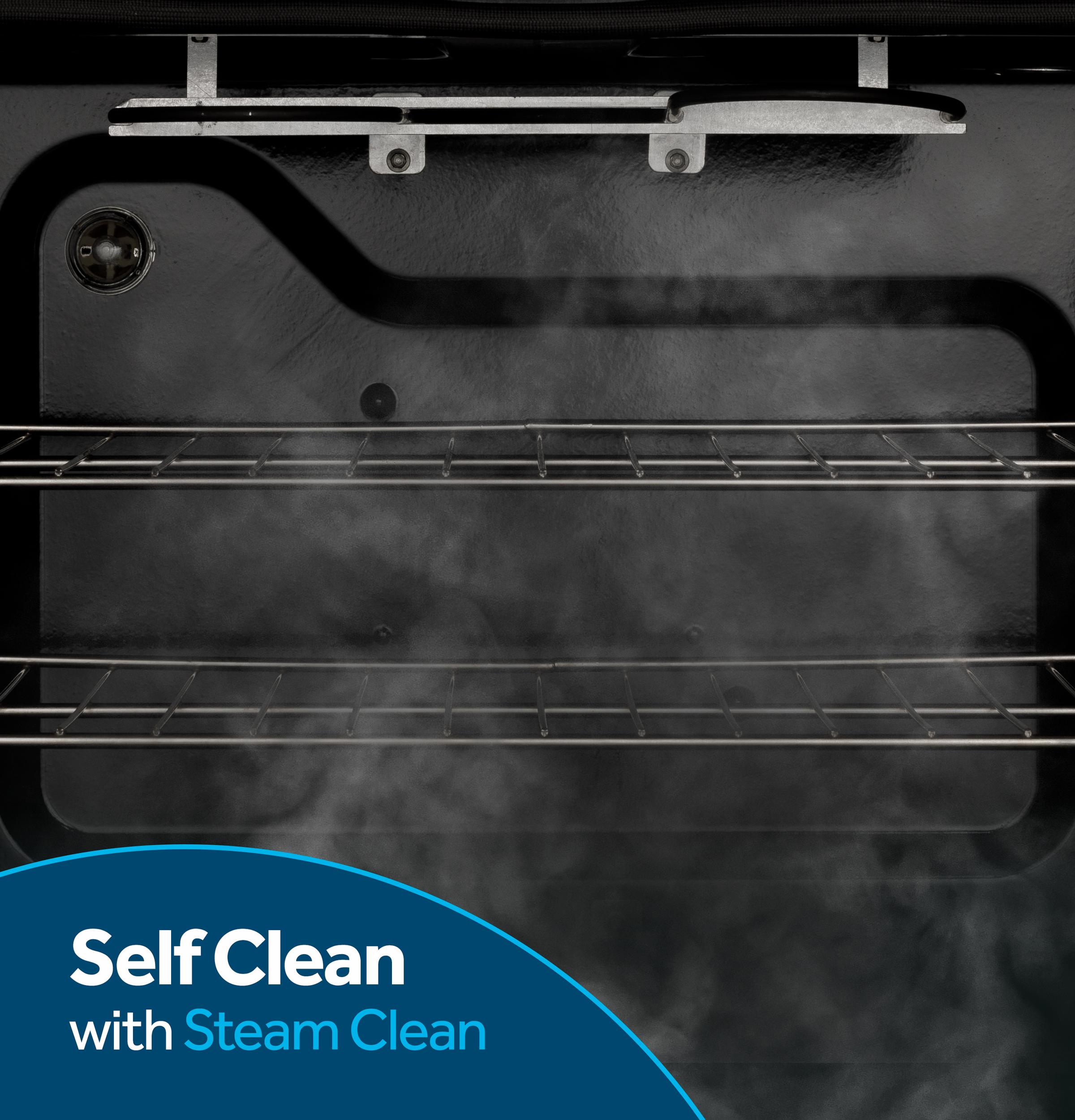

Self-Clean with Steam Clean
Save time and effort by using the self-cleaning function for deep clean situations, or enjoy frequent cleanings without the need for kits or extra steps thanks to the steam clean oven function.

Heavy Duty, Dishwasher-Safe Grates
Enjoy a safe and easy-to-clean solution thanks to these heavy duty, dishwasher-safe grates.

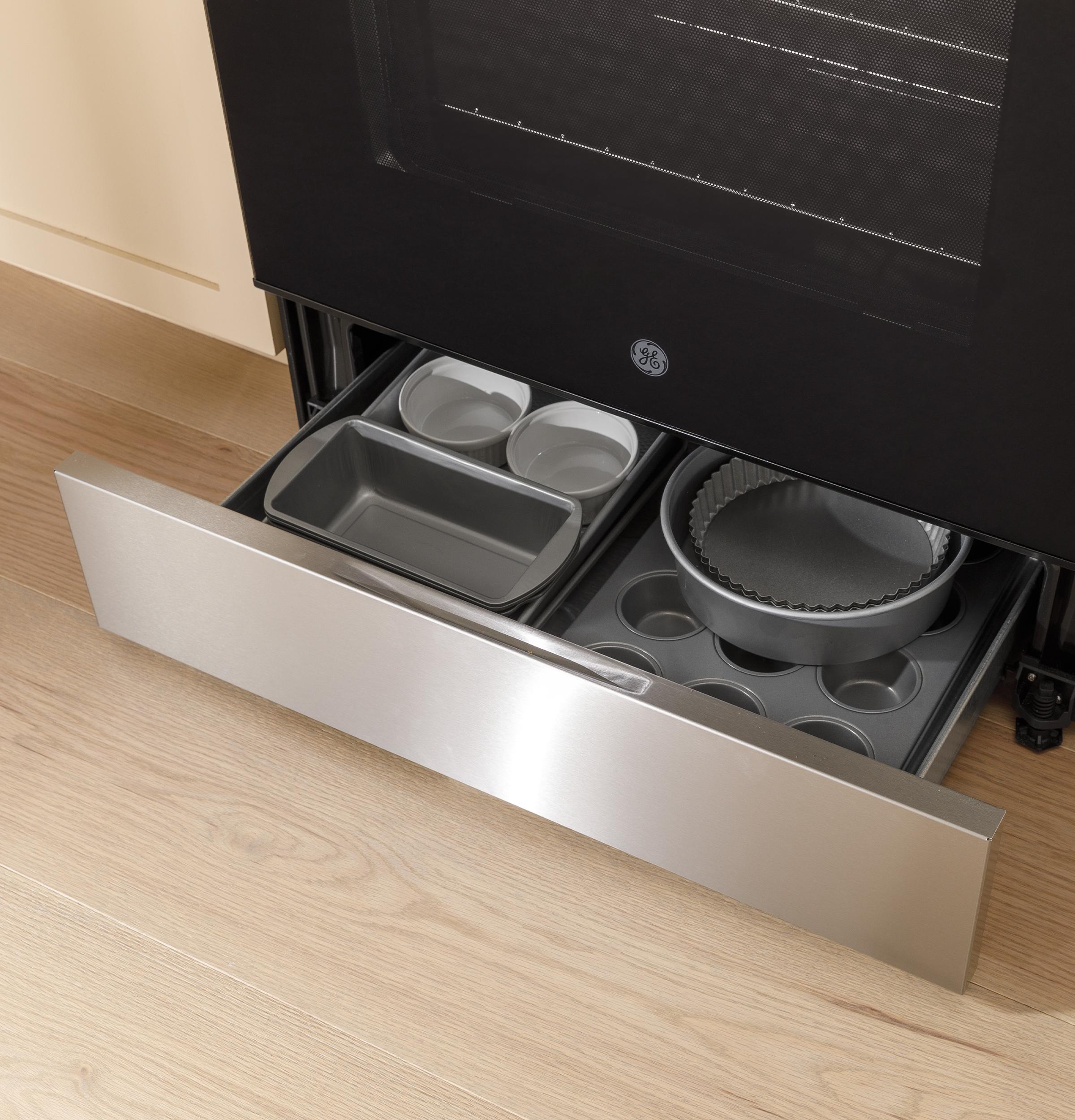

Oven Storage Drawer
This model features a removable oven storage drawer that offers the perfect place to store cookware and other kitchen accessories.

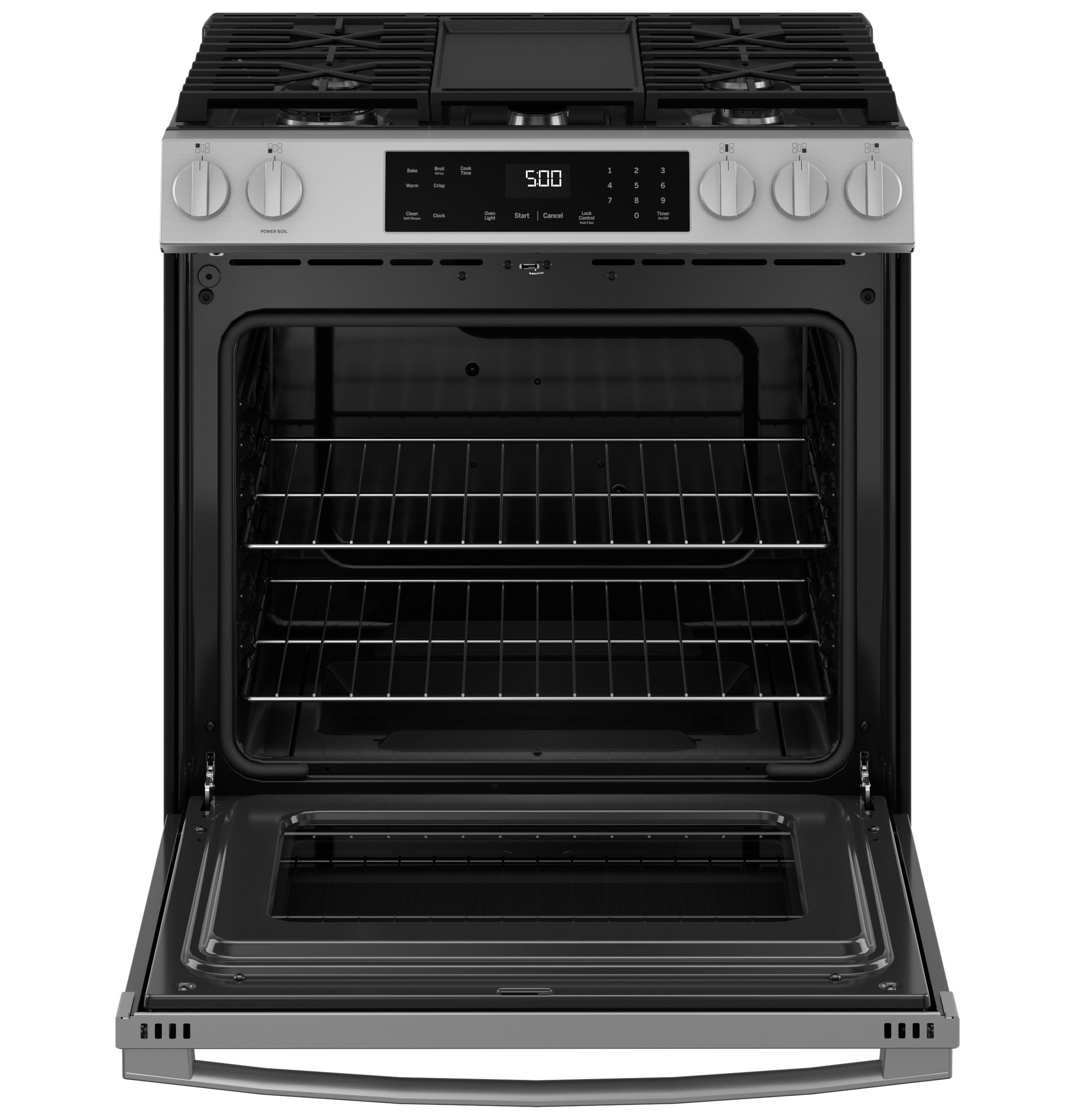

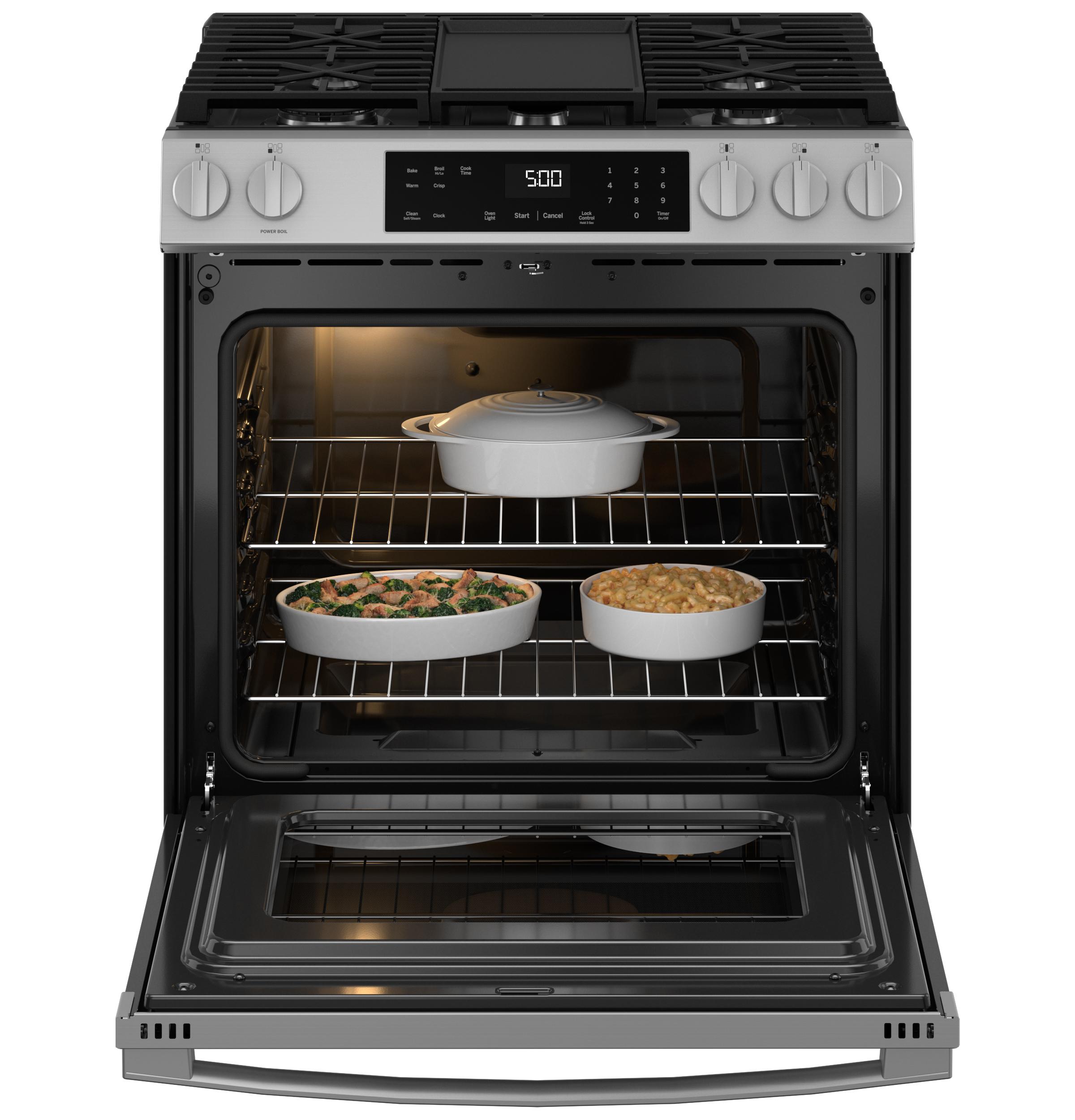

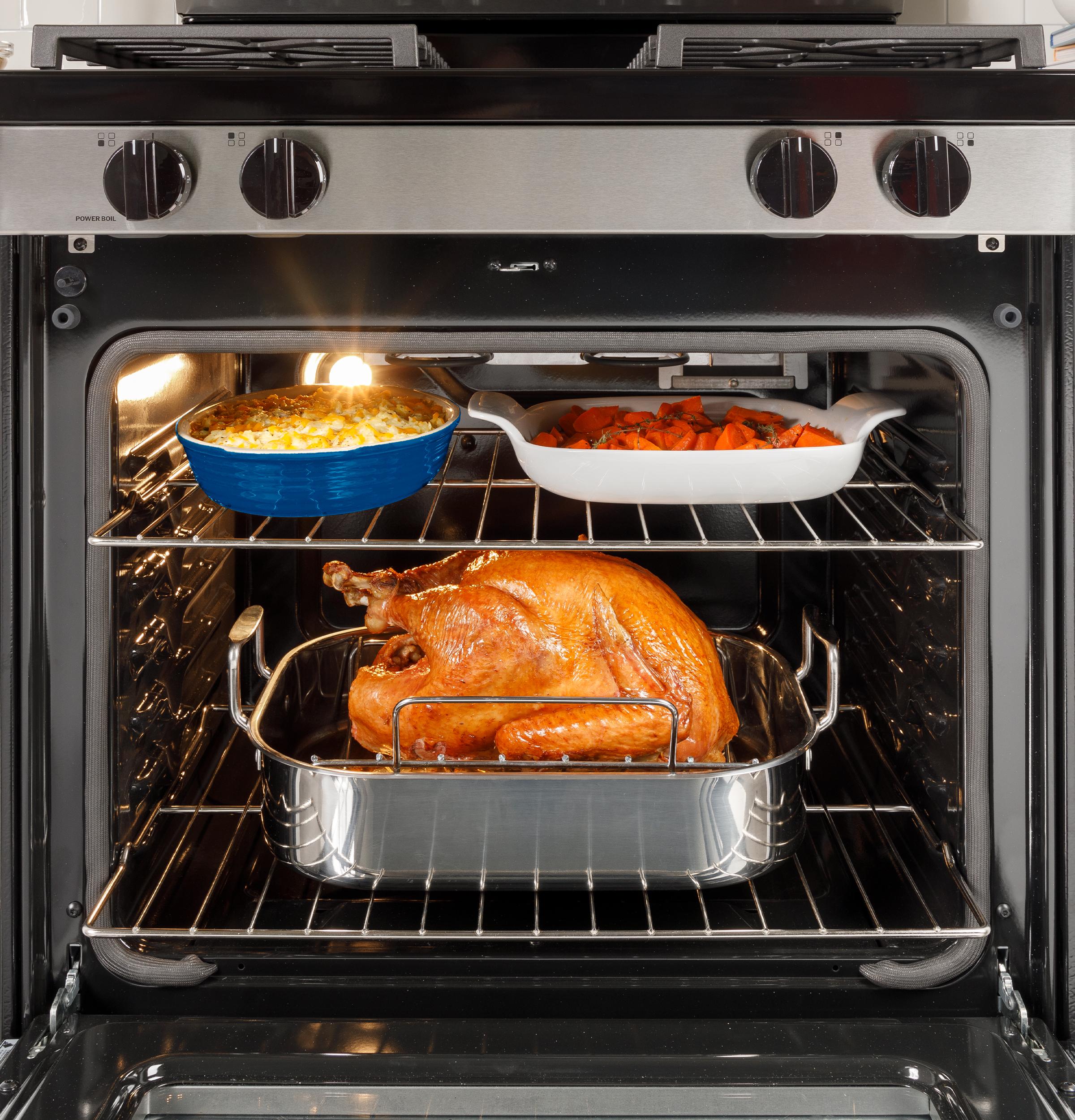

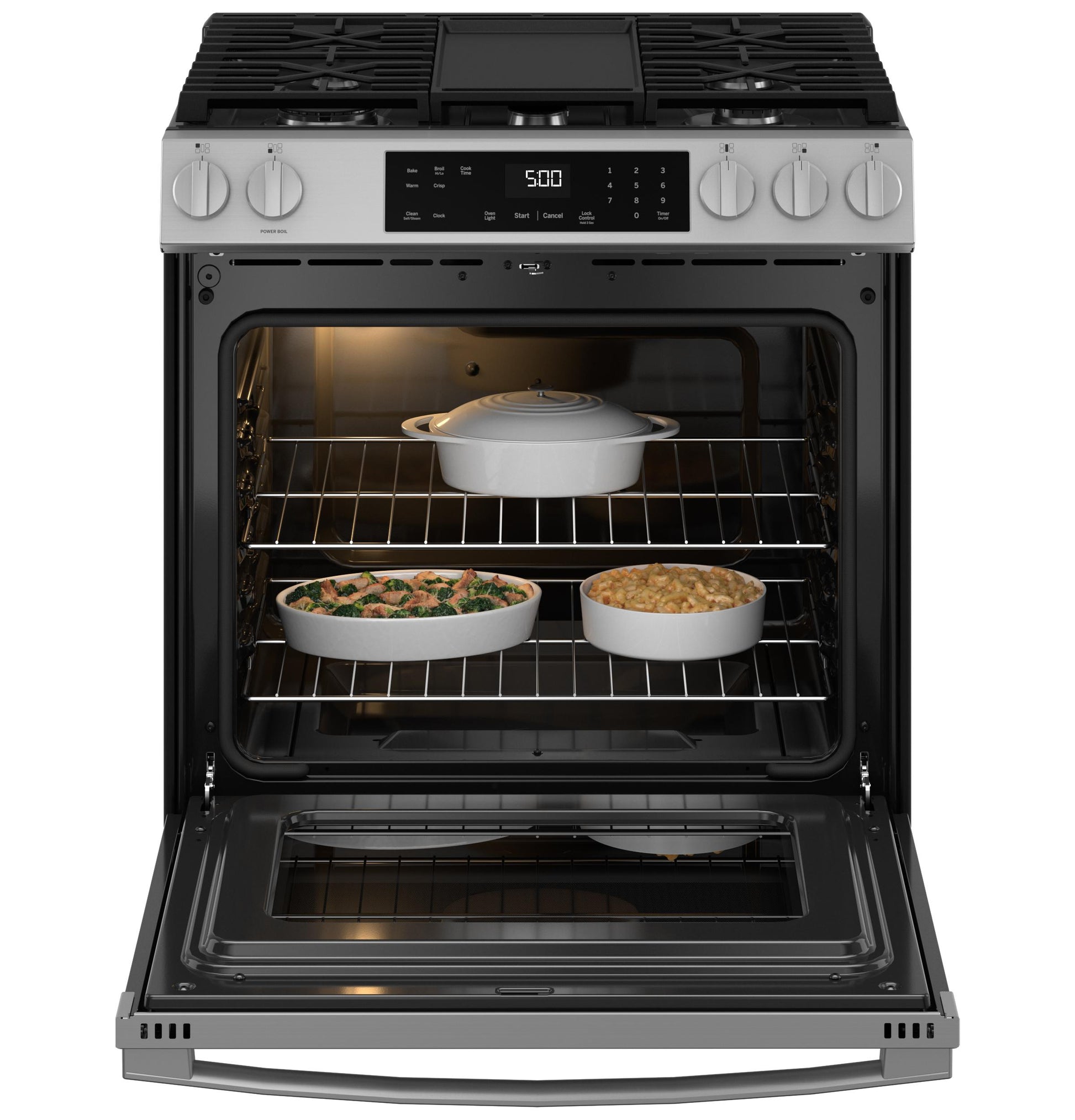

Large Capacity Oven
Cook an entire meal at once with room to spare in this oven with 5.3 cubic foot capacity.

In-Oven Broil
This oven with full coverage broil element means hassle-free meal preparation with simple, in-oven broiling.

Fit Guarantee
Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.

CAPACITY
Total Capacity (cubic feet)	5.3 cu ft
APPEARANCE
Cooktop Burner Grate Color	Matte Black
Oven Door Features	Big View Oven Window
Handle Color	Stainless Steel
Control Knobs	Stainless Steel Appearance
Color Appearance	Stainless Steel
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(2) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Volts/Hertz/Amps	120v; 60Hz; 13A
Top Burner BTU Rating - LP (000's BTU's)	(2) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Broiler Wattage	1175W
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	14.0 Bake
Bake/Broiler BTU Rating - LP (000's BTU's)	14.0 Bake
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Center Grate	Optional - JXGRATE2
Griddle Accessory	Integrated Griddle (Included)
Reversible Griddle/Grill Accessory	Optional - JXGRILL2
Extension Rack	Optional - JXXTNRCK2
LP Conversion Kit	Included
Trim Kit	Optional - JXFILLR1SS/BB
WEIGHTS & DIMENSIONS
Net Weight	163 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	176 lb

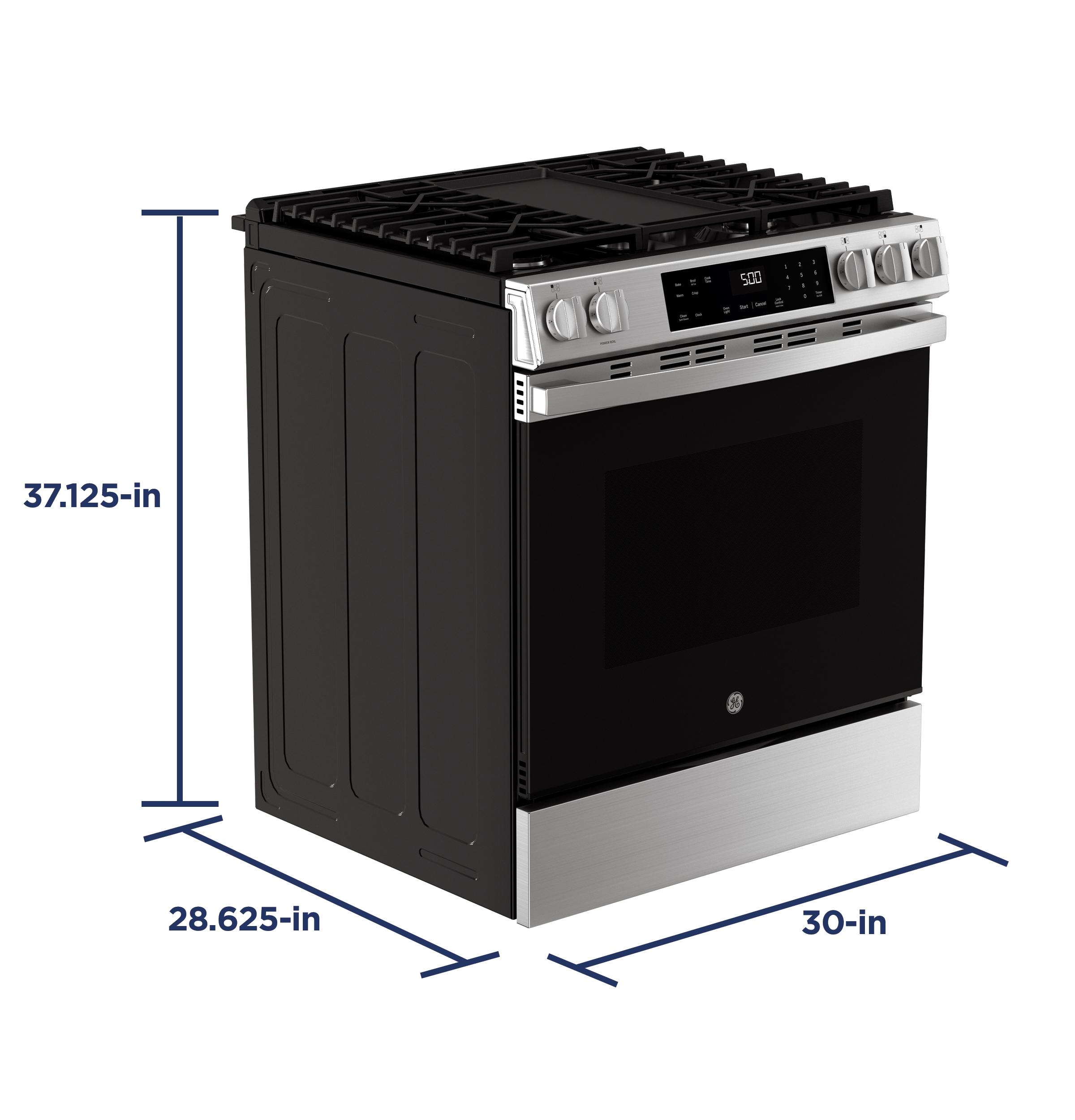

Overall Width	30 in
Cabinet Opening	30 in
Overall Height	37.125 in
Height to Top of Rear Vent Trim	36.625 in
Overall Depth	28.625 in
Depth with Door Open	48.5 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19-1/2 x 20-5/8
FEATURES
Cooking System	Traditional
Ignition System	Electronic
Burner - Right Rear	9,500 BTU
Oven Interior	Black Enamel
Oven Control Features	Certified Sabbath Mode Cook Time In-Oven Broiling Sabbath Mode Timer Warm Mode
Oven Rack Features	2 Nickel Racks
Power Boil Burner	Yes
Burner - Left Rear	5,000 BTU
Oven Cleaning Type	Self-Clean with Steam Clean Option
Griddle	Integrated (Included)
Product Type	Slide-In Single Oven
Heating Element "ON" Indicator Light	Yes
Cooktop Type	Continuous Grates with Griddle
Cooktop Burner Grate Material	Standard Cast
Fuel Type	Natural Gas (factory set)
Burner - Center	8,000 BTU
Interior Oven Light	1 Light

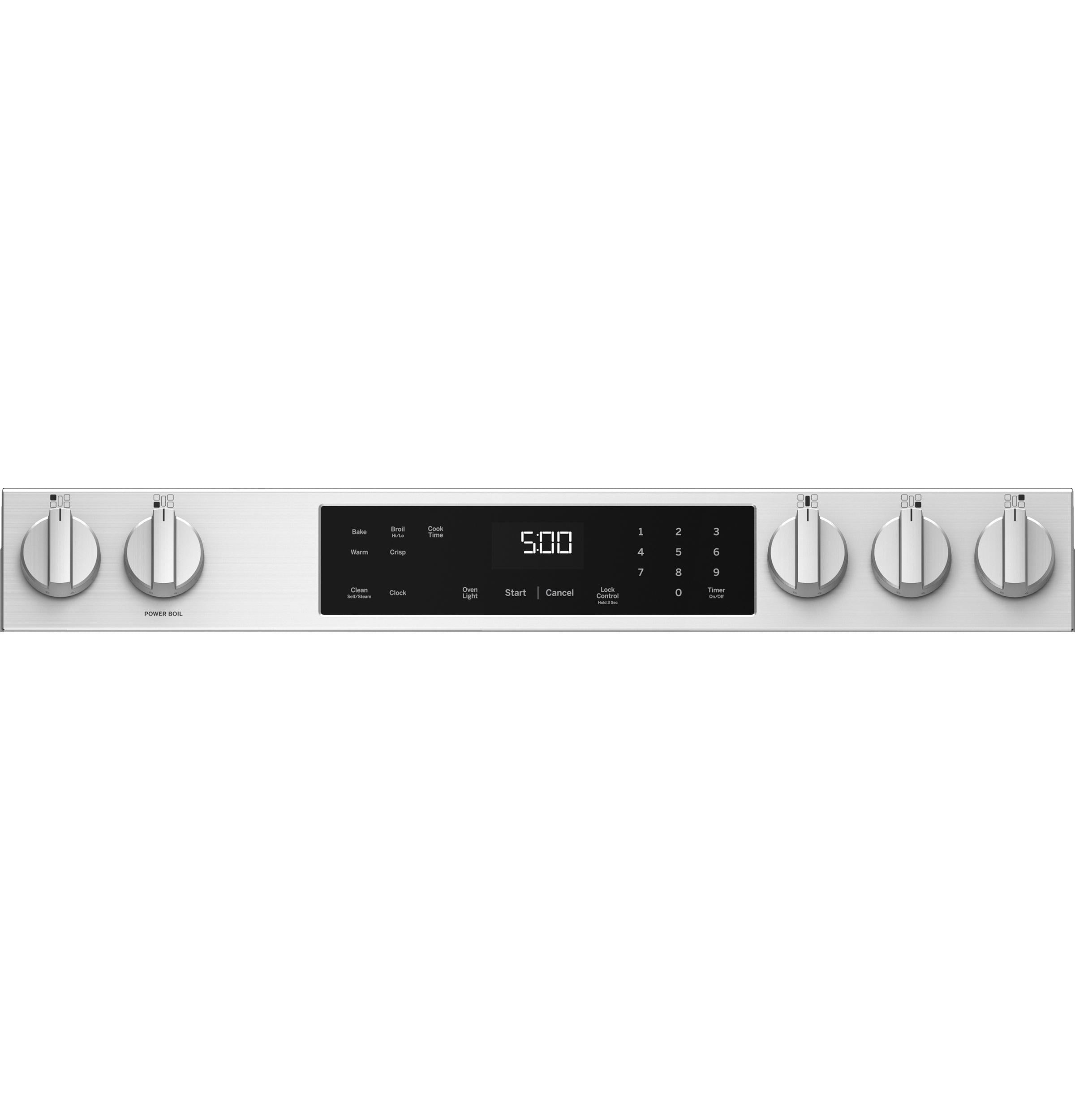

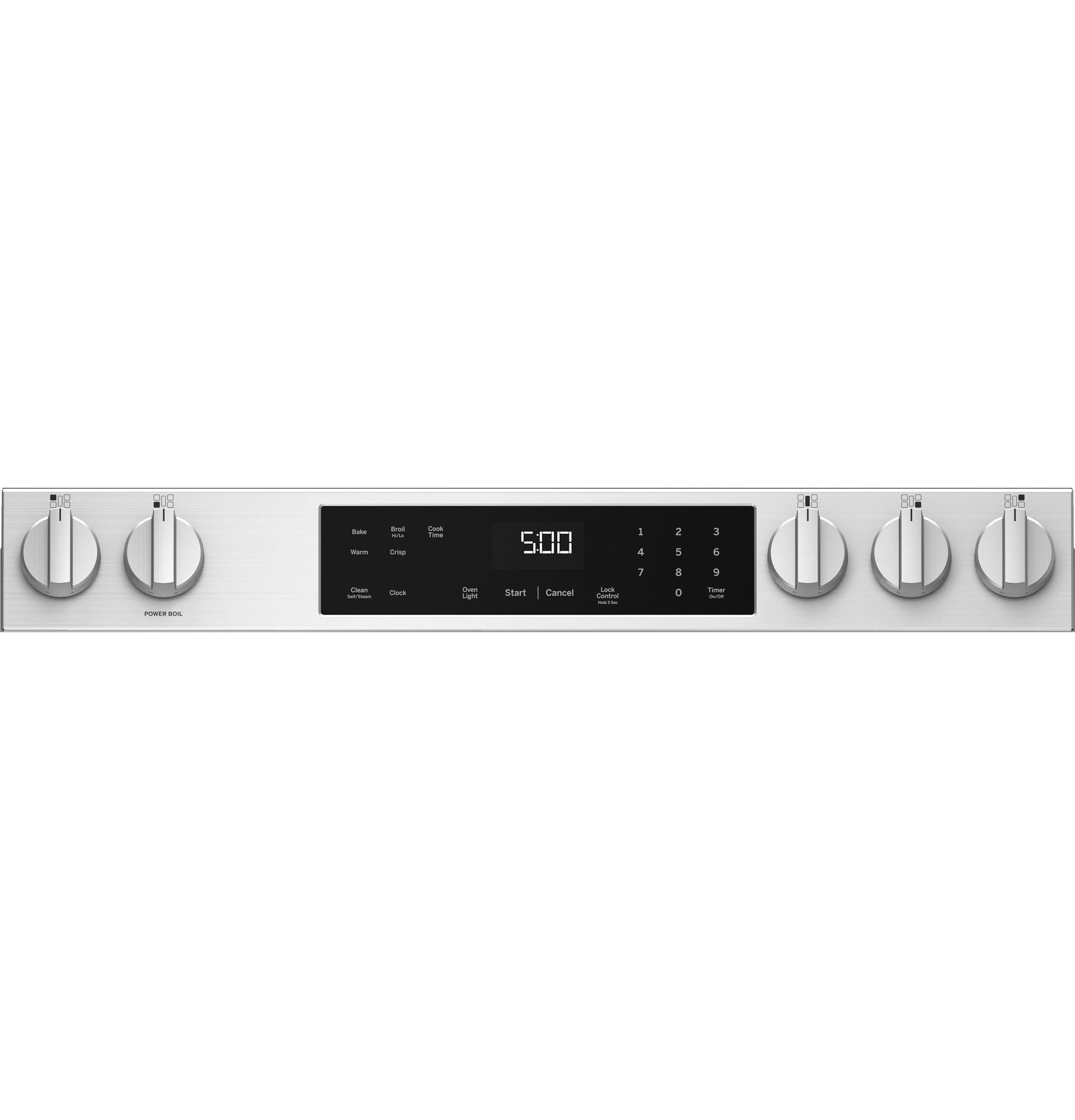

Control Location	Front
Express Preheat	Yes
Control Type	Cap Touch Controls
Burner - Left Front	15,000 BTU Power Boil
Drawer Type	Storage
Hot Surface Indicator Lights	Yes
Sabbath Mode	Yes
Cooking Technology	Traditional
Configuration	Range with Storage Drawer
OU Certified	OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Oven Cooking Modes	Bake Crisp Mode High Broil Low Broil
Cooktop Burner Type	Sealed
Valves (Degree of Turn)	270
Burner - Right Front	9,500 BTU
Cooktop Surface	Black Deep Recessed Edge-to-Edge Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	6
