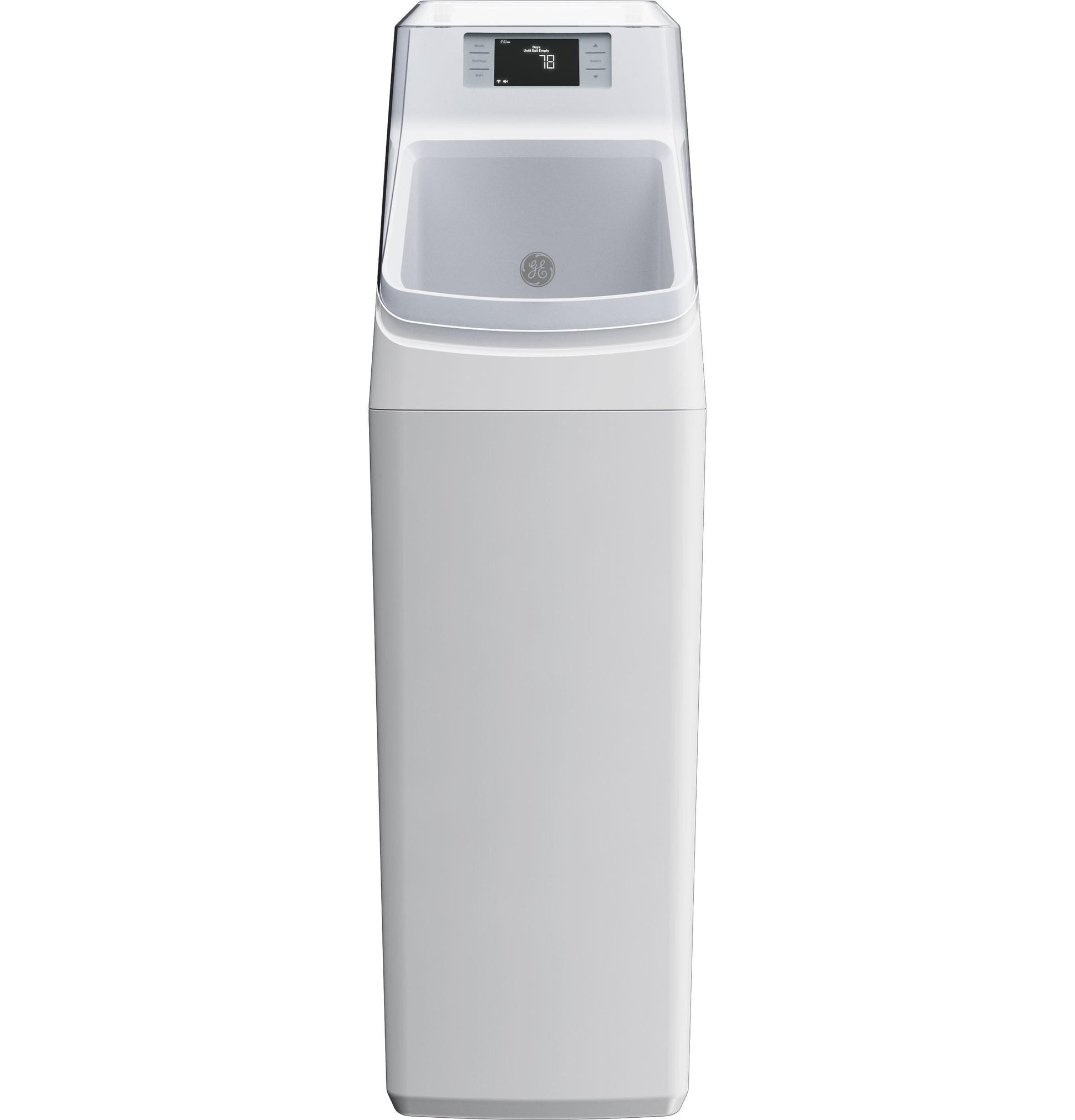

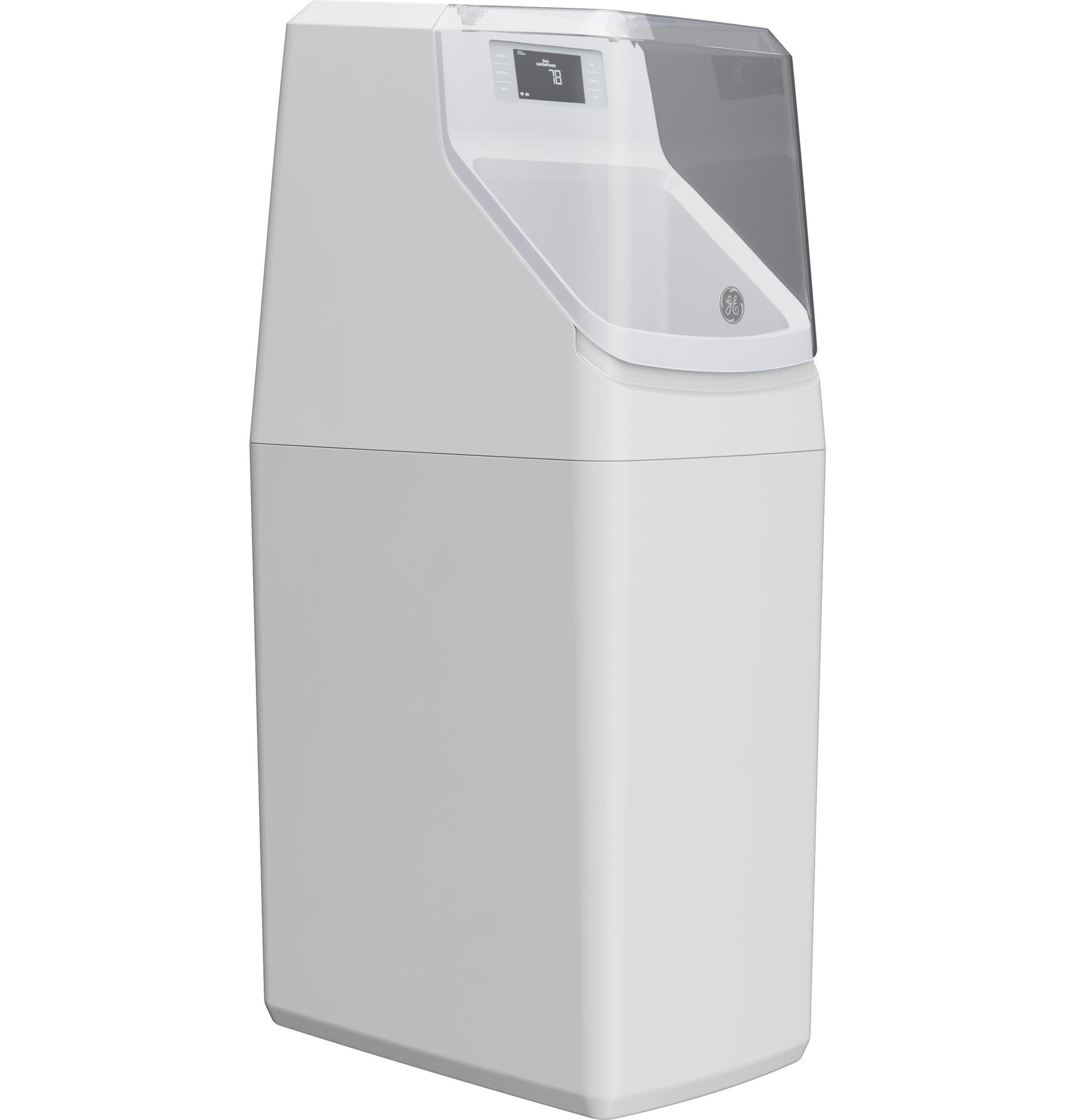

GXSH45W GE® Smart Water Softener 45,000 Grain Capacity

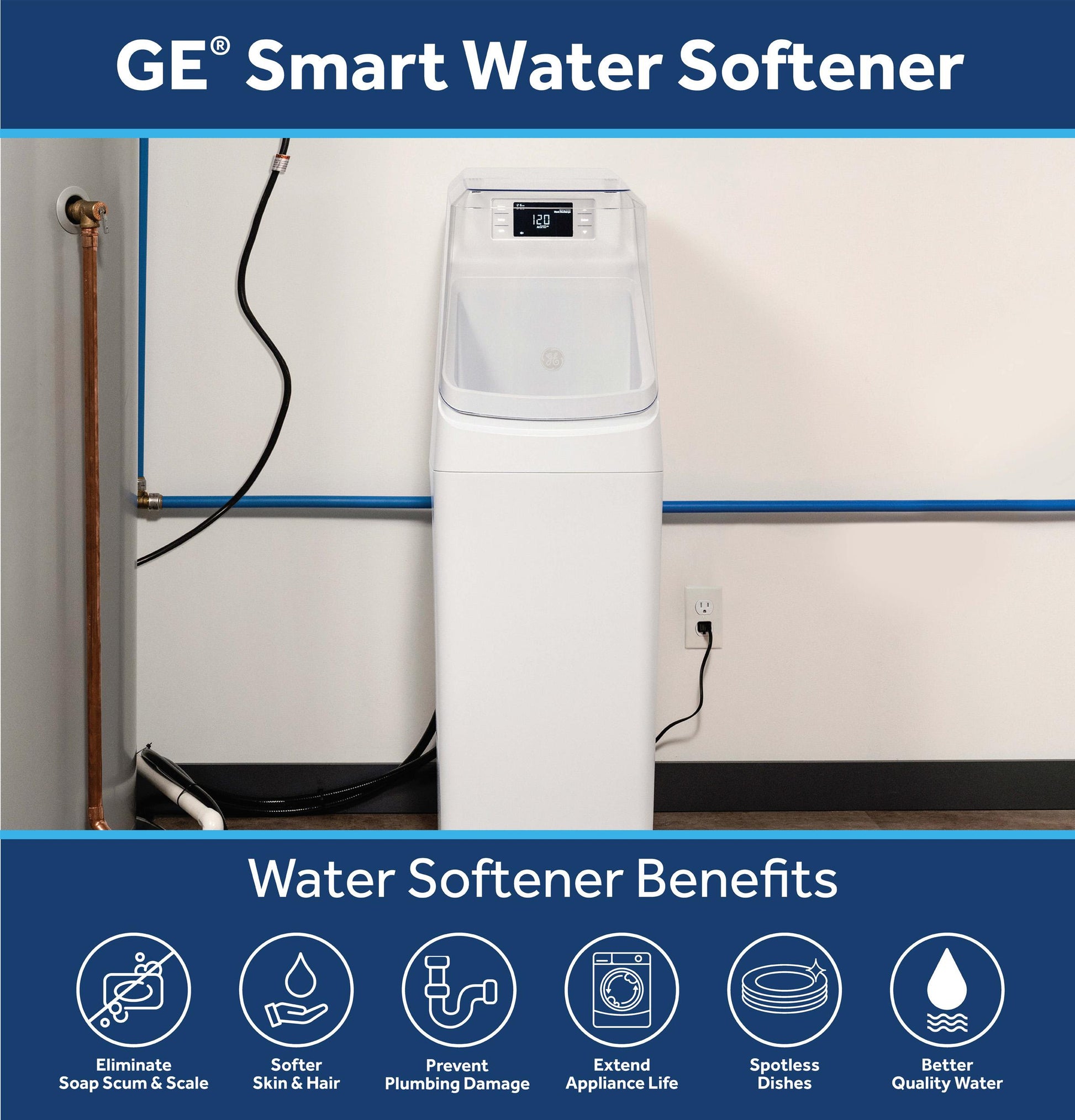

Experience the Difference of Softer Water
This water softener addresses issues caused by hard water. Eliminate soap scum and scale, have softer hair and skin, prevent plumbing damage, extend appliance life, enjoy spotless dishes, and experience better-quality water in your home

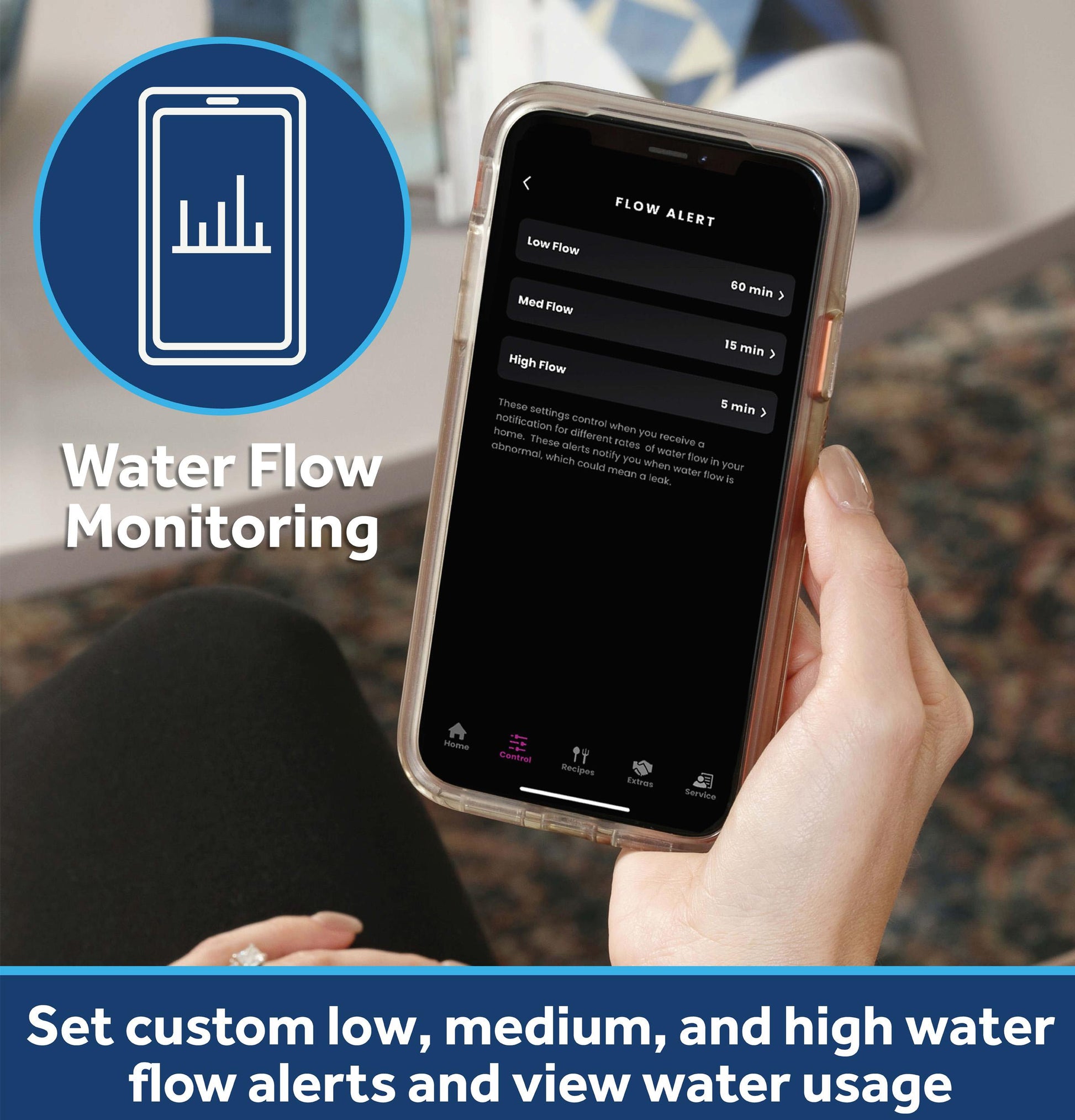

Water Flow Monitoring Powered by SmartHQ
View daily or weekly water softener usage, set custom flow alerts, and receive notifications on your smartphone when there is low, medium, or high continuous water flow.

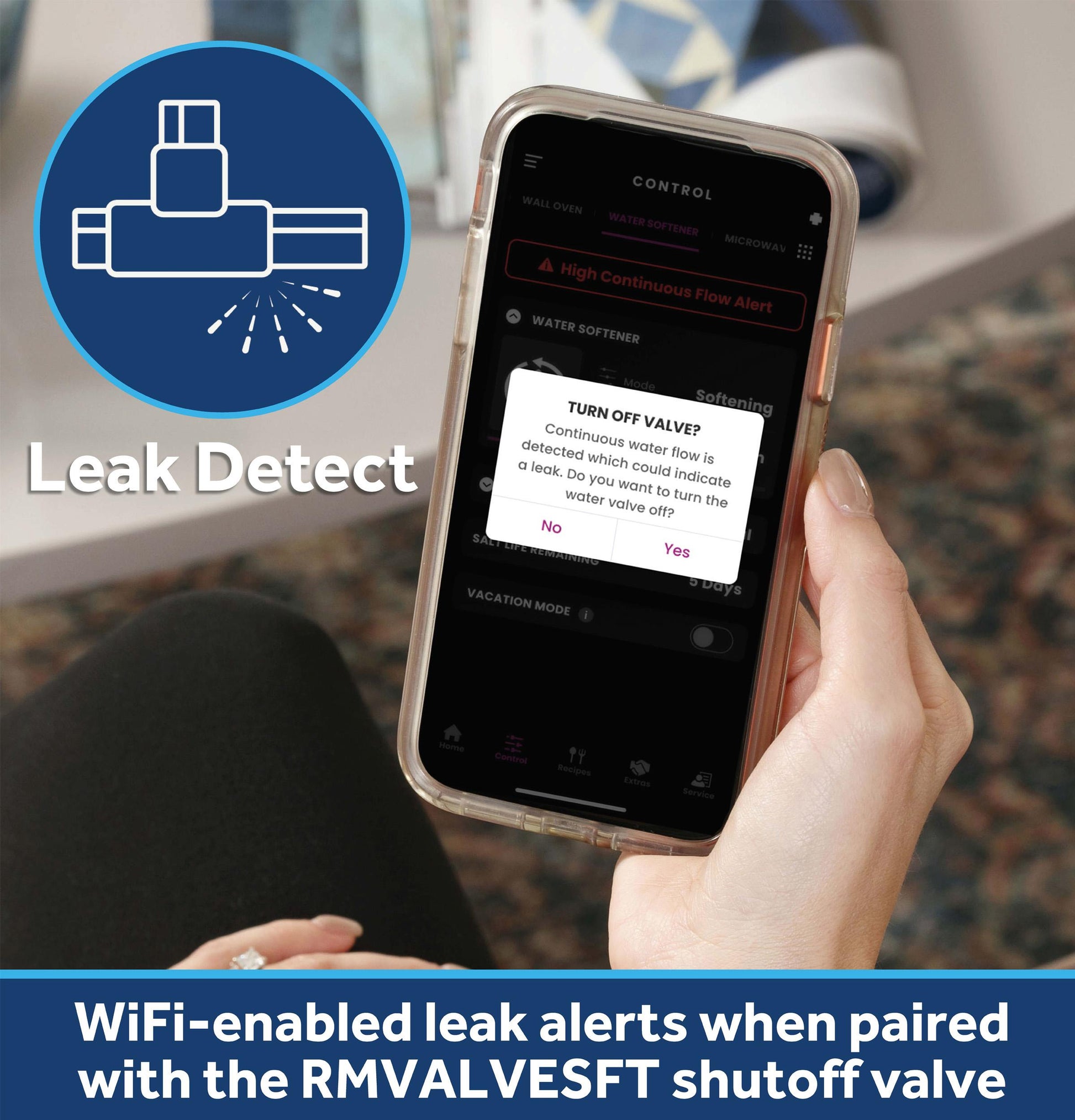

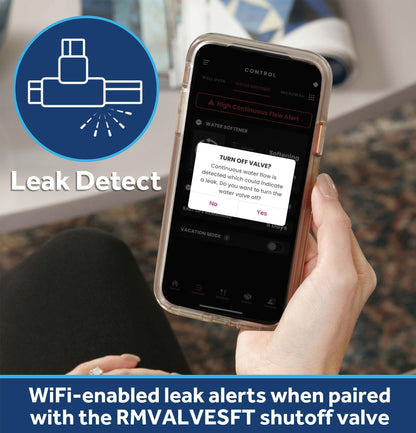

Built-in WiFi with Leak Detect
Powered by SmartHQ, this WiFi-enabled water softener keeps you in control by sending instant alerts to your phone for continuous water flow or when a potential leak is detected when paired with the RMVALVESFT remote water shutoff valve (sold separately).

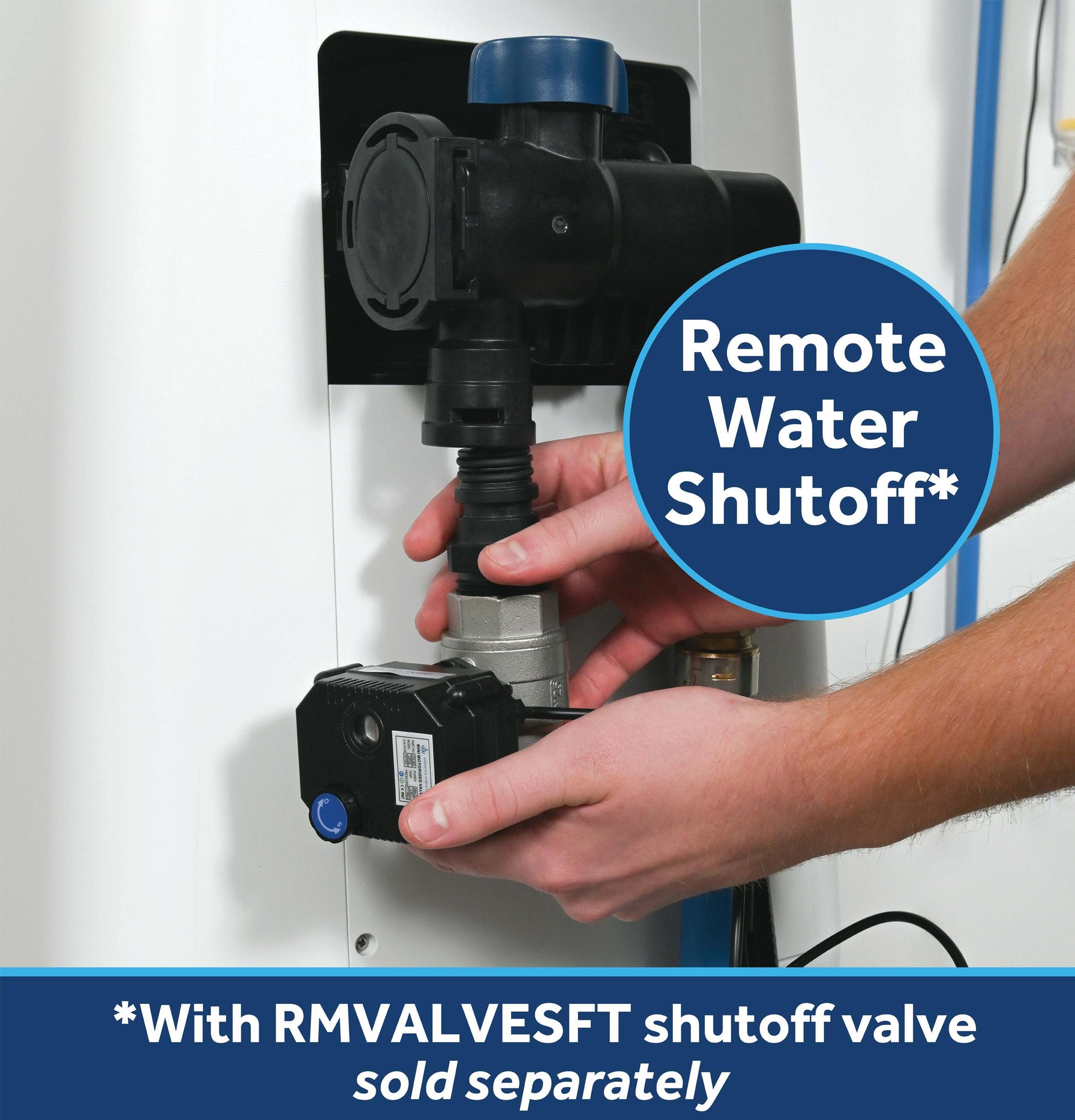

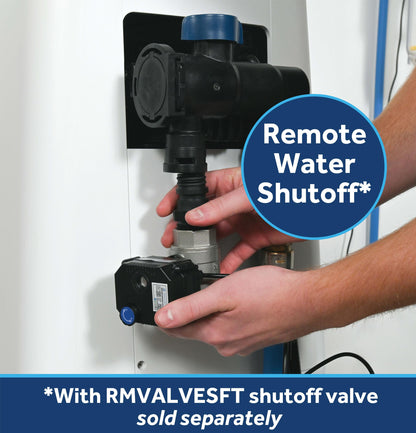

Remote Water Shutoff Valve*
Enjoy complete peace of mind with an optional Smart Water Shutoff Valve to remotely shut water off to your entire house, from anywhere, using your smartphone. *RMVALVESFT shutoff valve sold separately

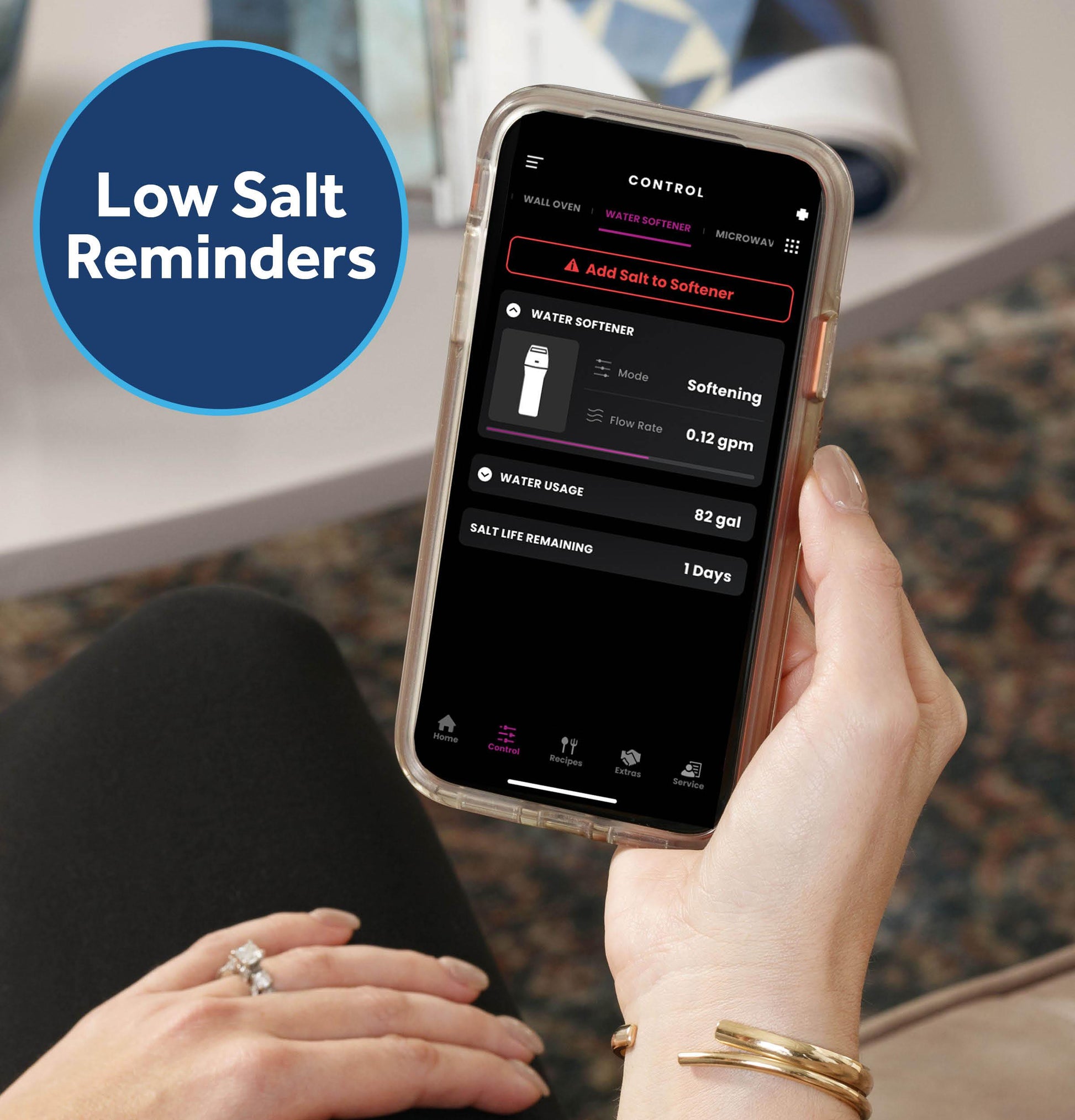

Low Salt Reminder Powered by SmartHQ
Receive an instant notification on your smart phone when your water softener salt level is low.

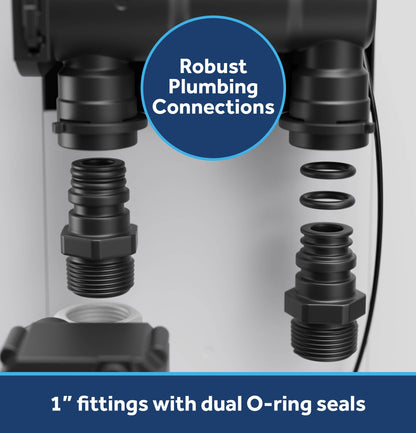

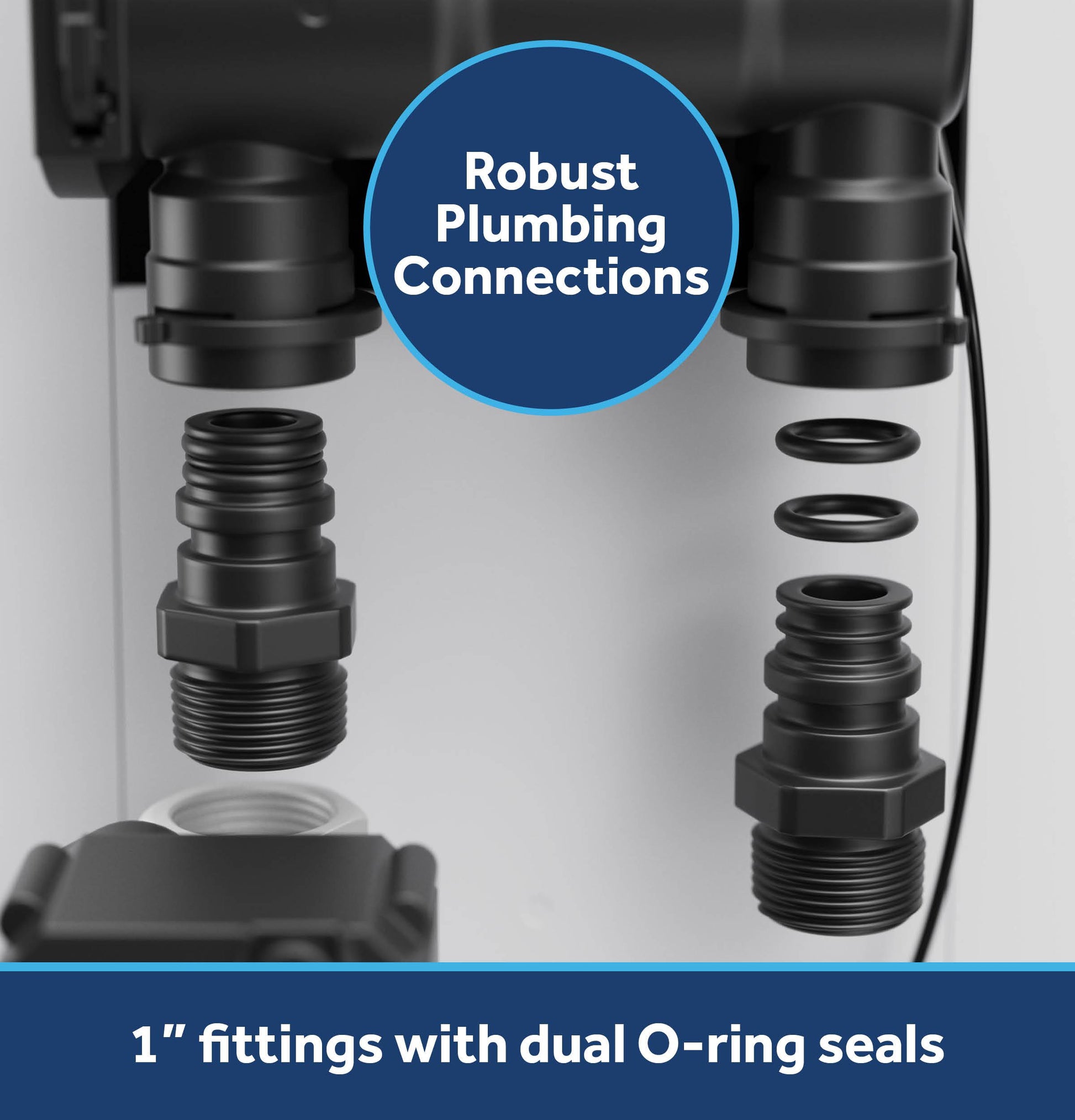

Robust Plumbing Connections
This water softener is designed with 1" plumbing connections with dual O-ring seals for extra protection. Included 1" water softener connectors can conveniently accommodate both 3/4" and 1-1/4" plumbing.

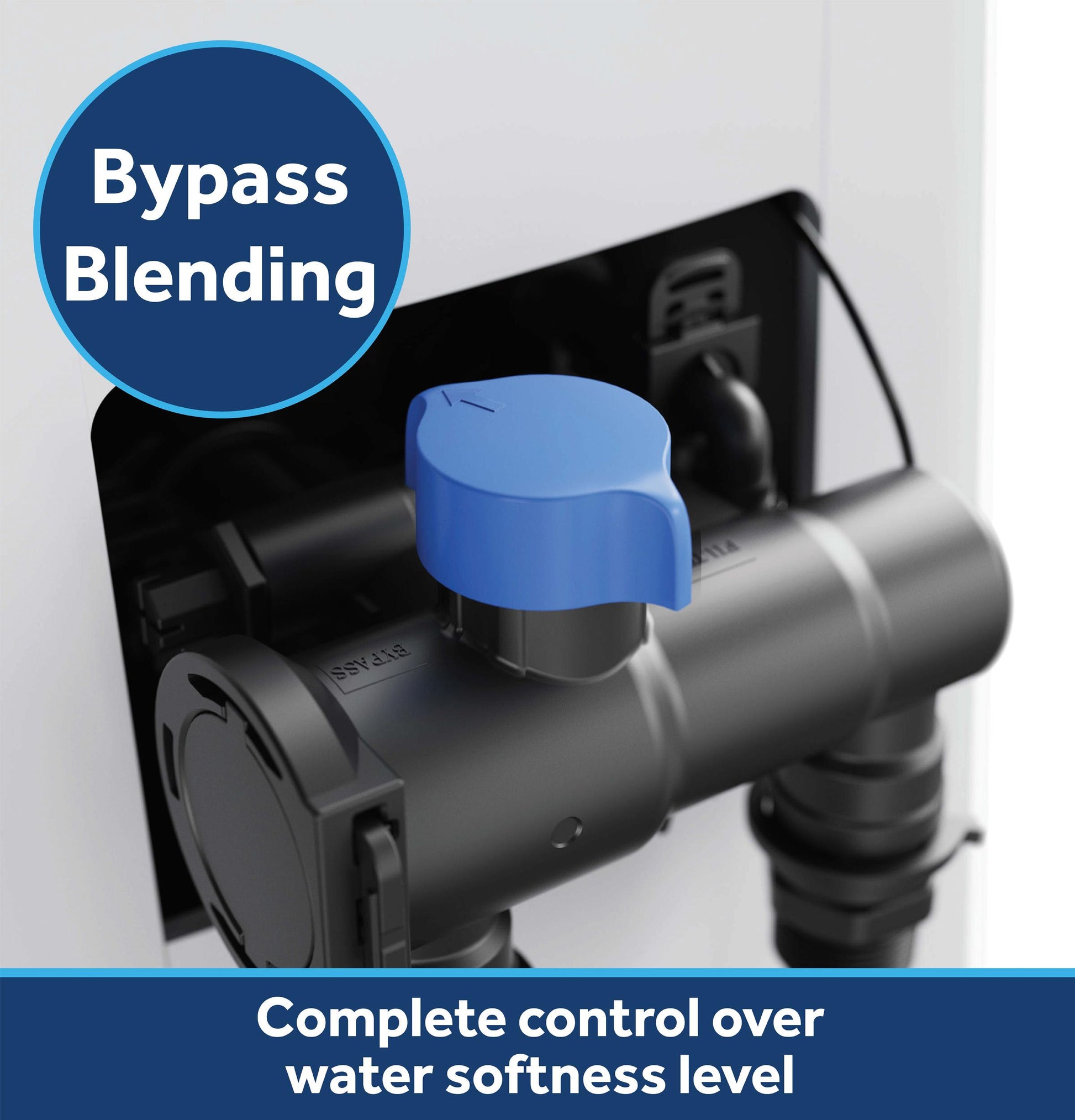

Bypass Blending Control
A custom water bypass blending valve allows you to conveniently control your preferred water softness level or set as complete bypass.

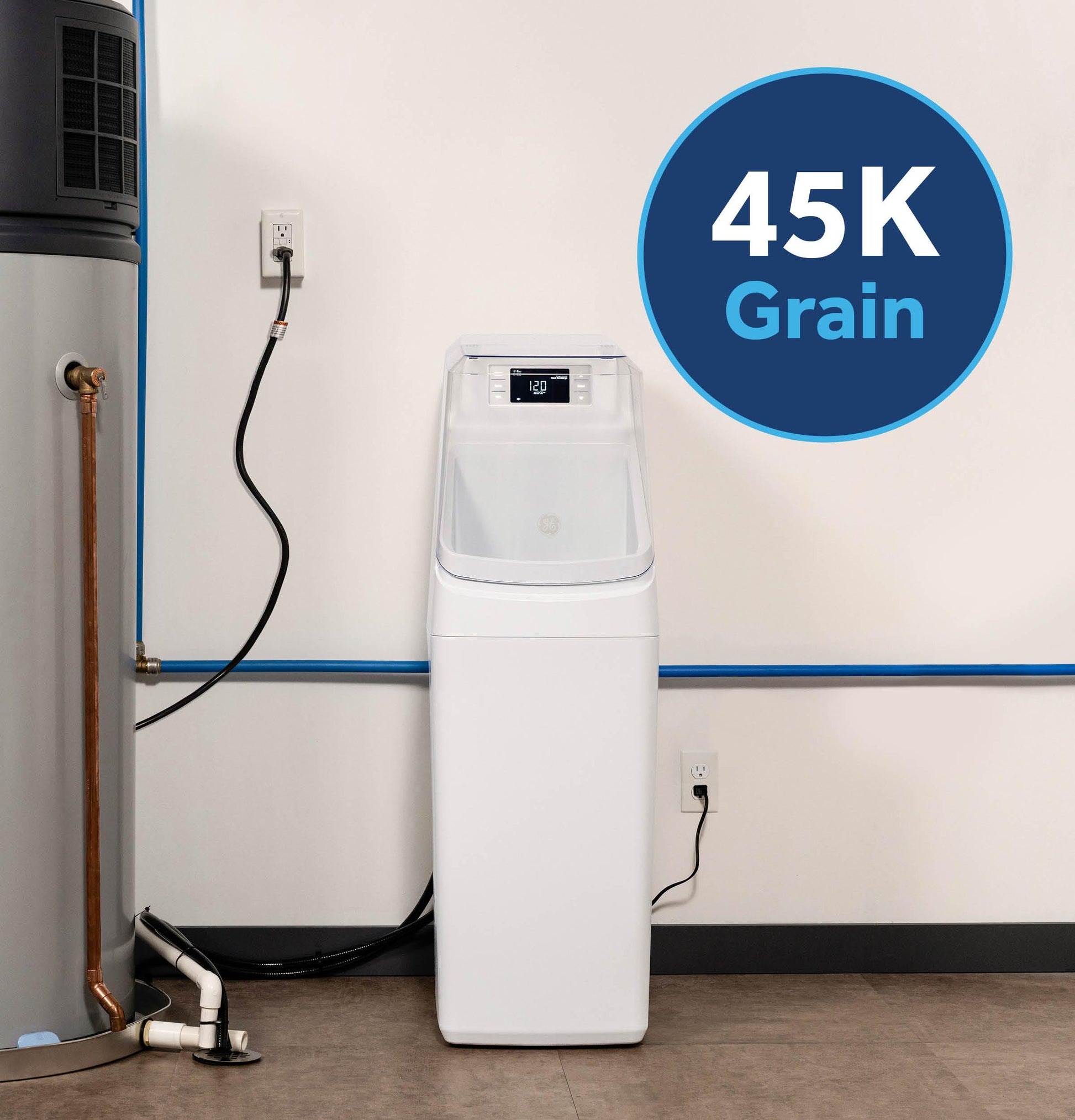

45,000 Grain Capacity
This GE Smart Water Softener can remove 45,000 grains and can accommodate a household family size of up to 6 people.

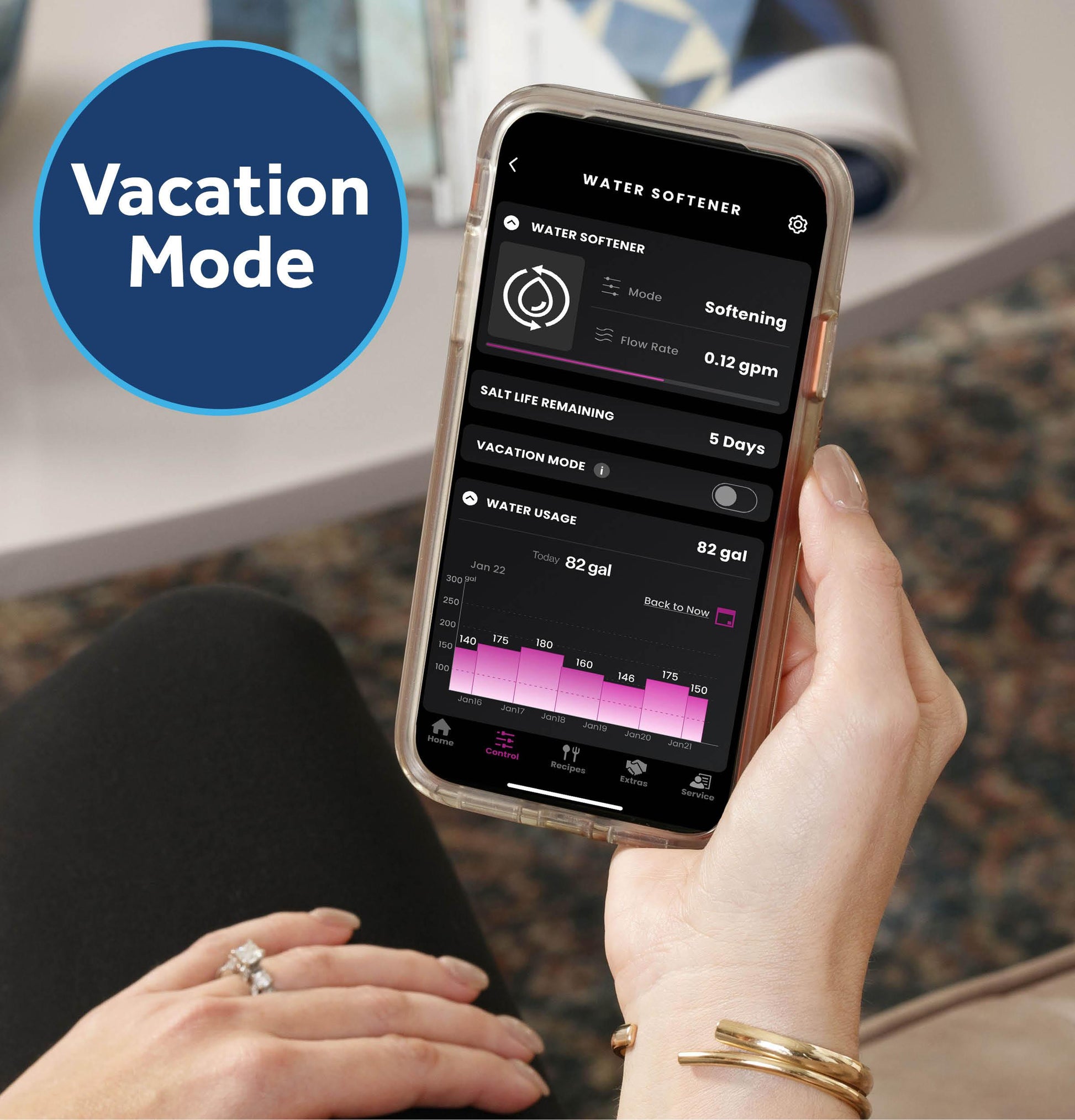

Vacation Mode Powered by SmartHQ
Receive an instant notification on your smartphone when water flow is detected at any flow rate when set on vacation mode.

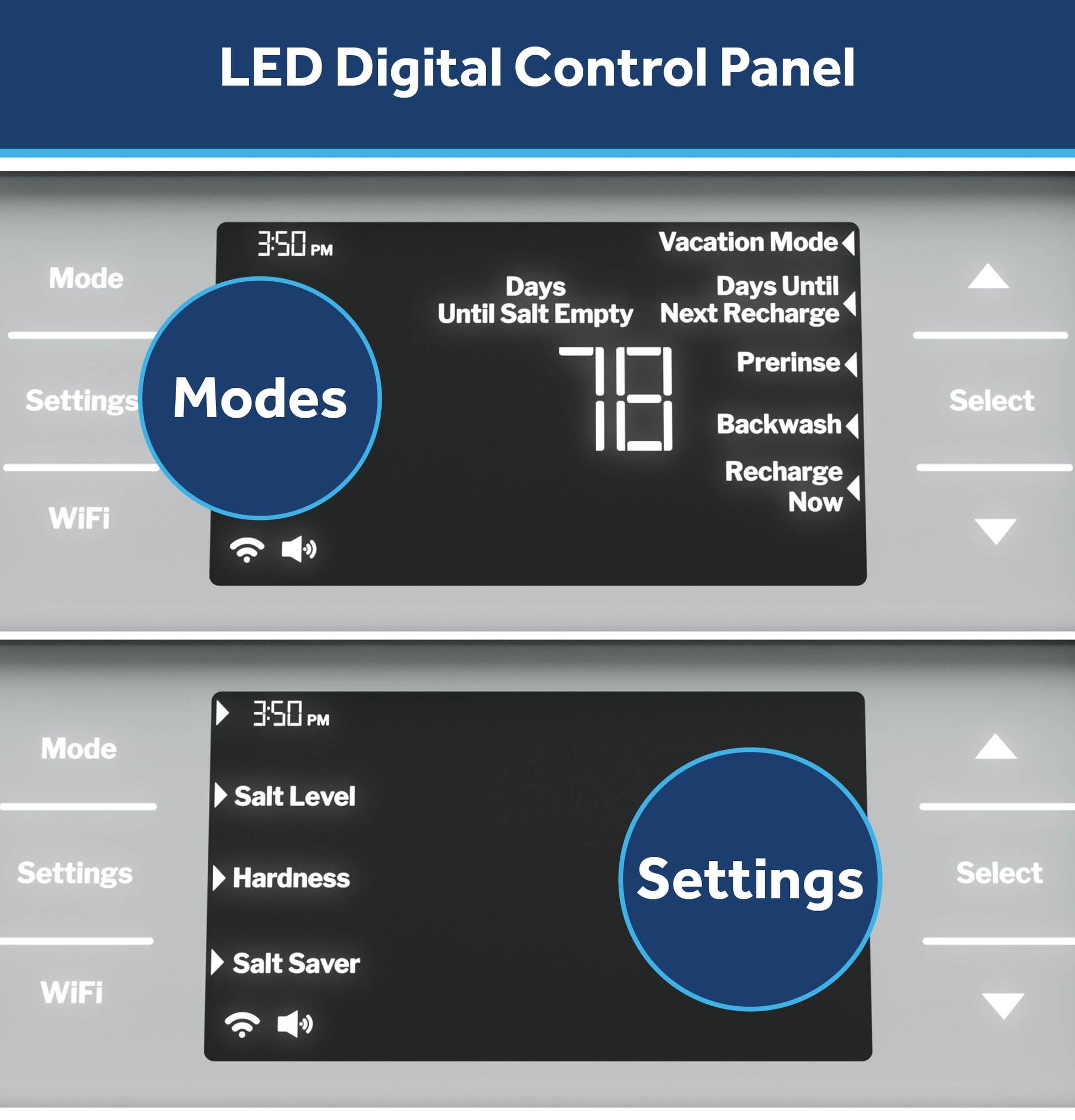

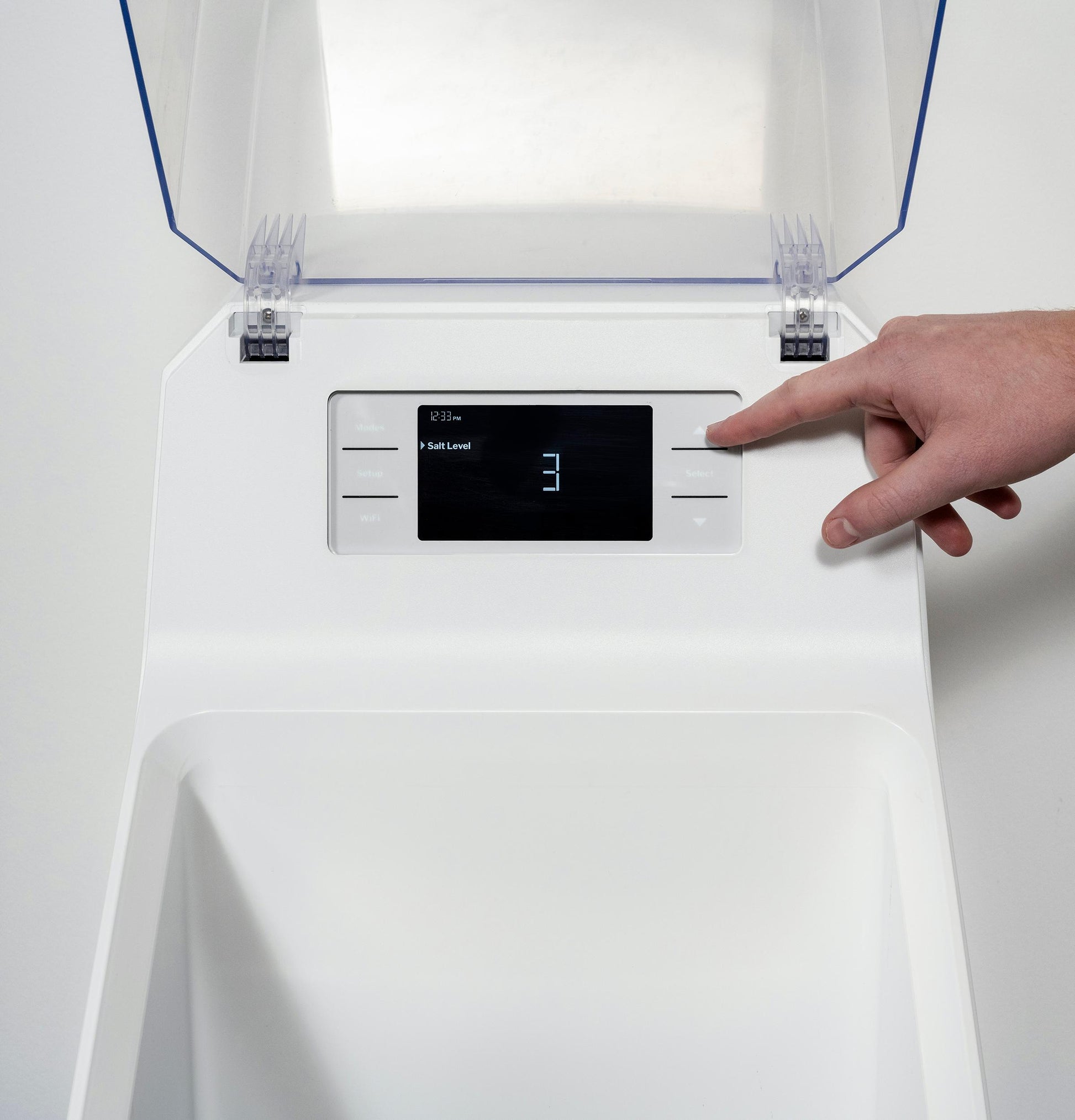

LED Digital Control Panel
This smart water softener allows you to choose what is displayed on your LED Digital Control Panel. Settings include clock adjustment options, Salt Level, Hardness Level, and Salt Saver mode.

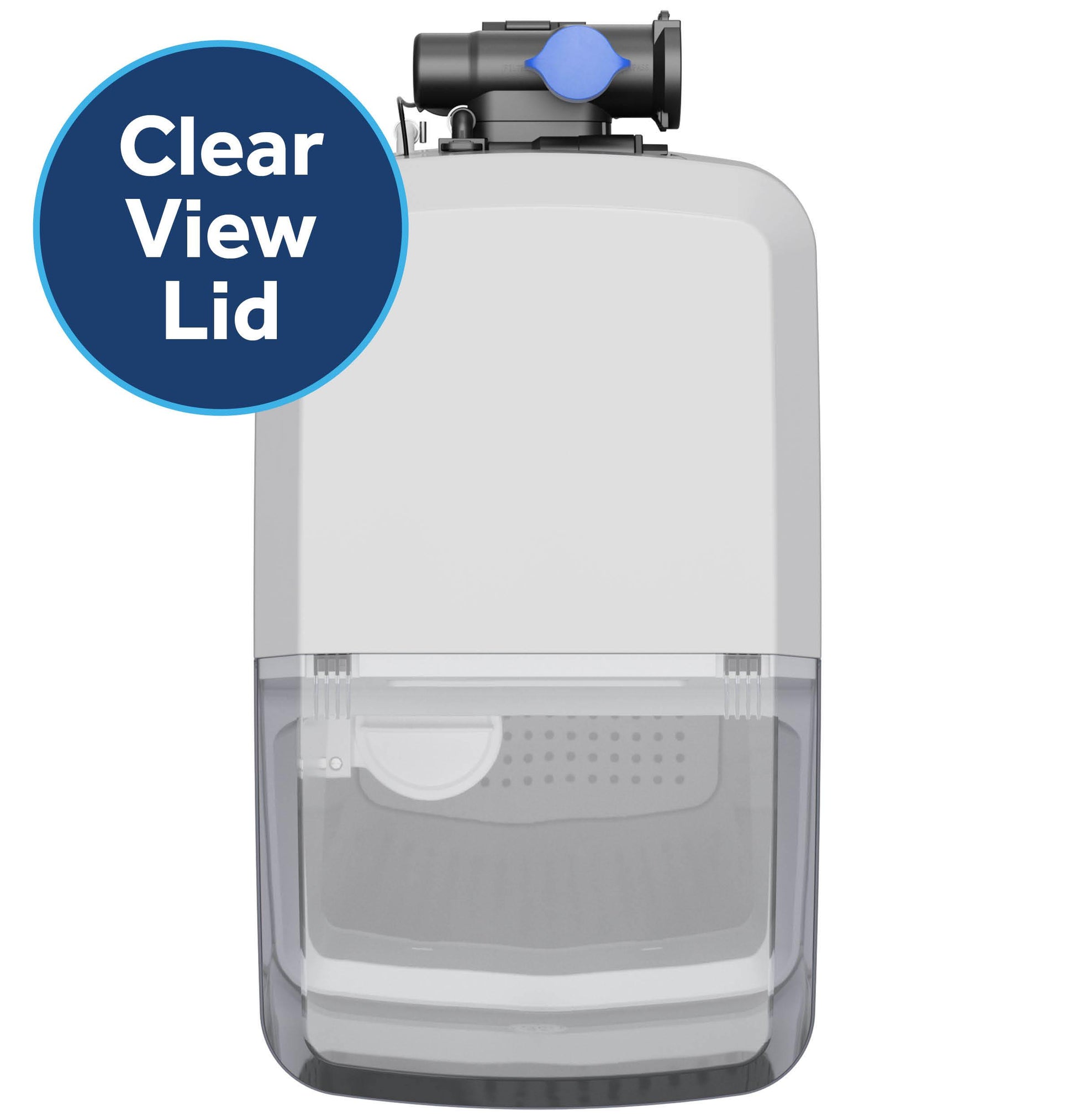

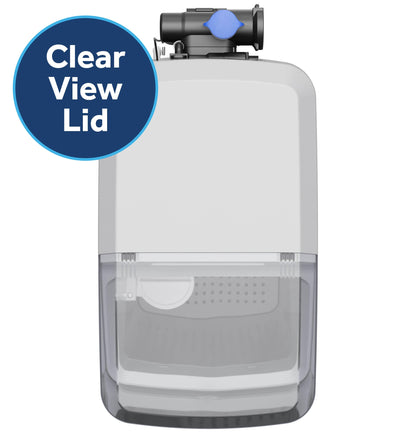

Clear View Lid
The clear lid allows a quick and easy view of the LED display and salt level

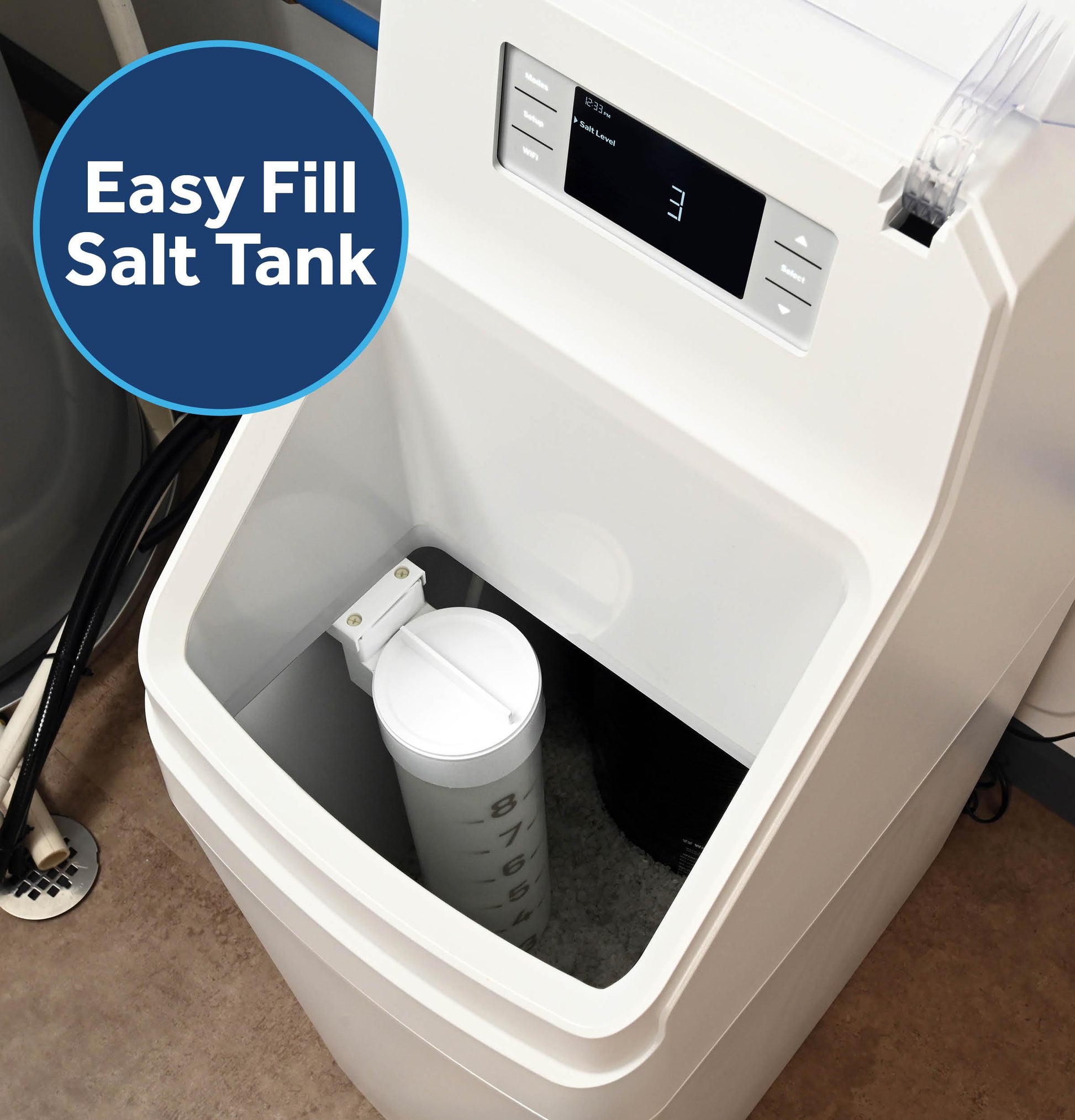

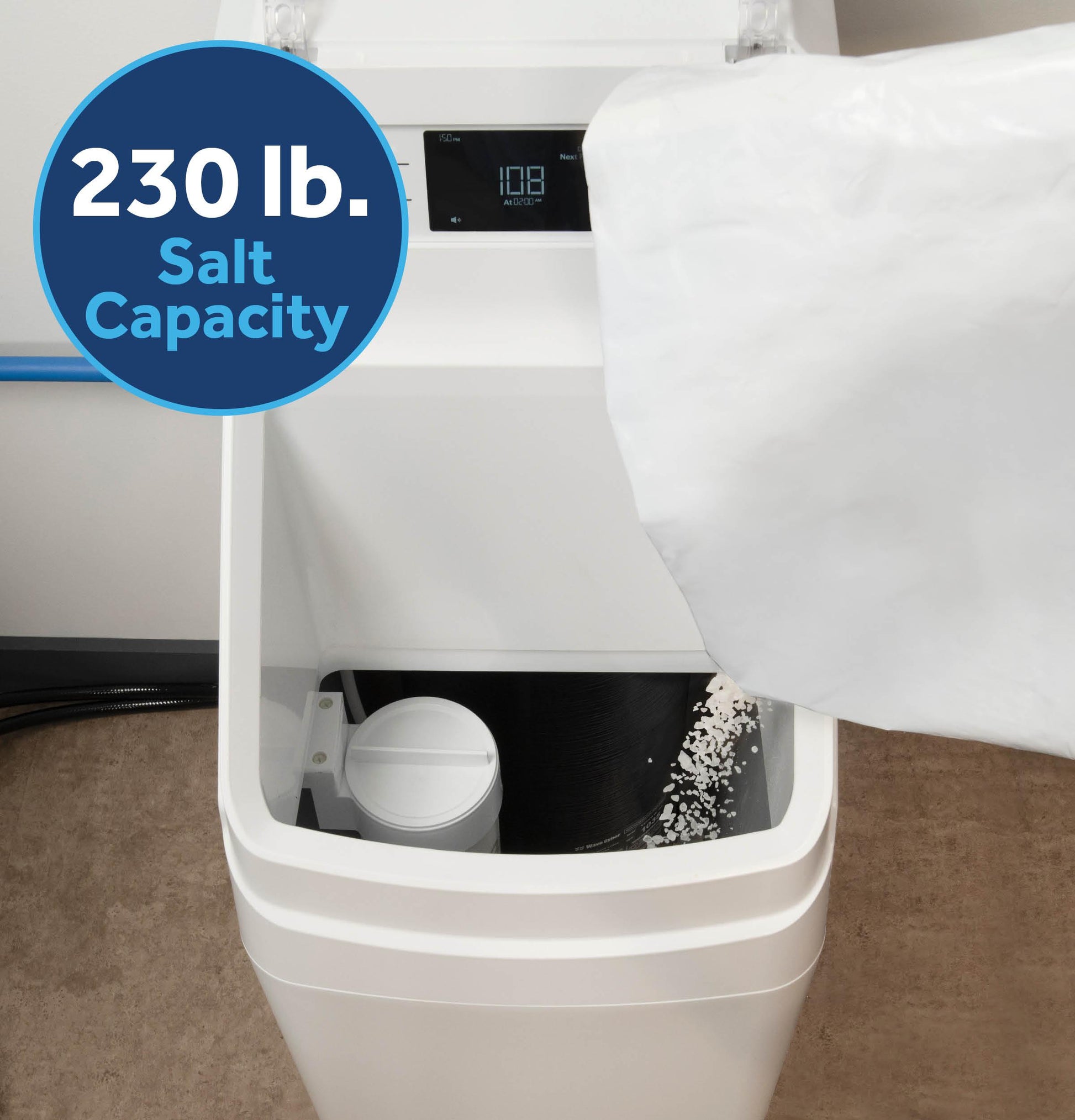

Easy Fill Salt Tank
Easy to fill wide tank for salt replenishment. Salt tank holds 230 lbs. of salt

CAPACITY
Capacity (grains)	45000 gr
APPEARANCE
Color Appearance	White
WARRANTY
Parts Warranty	Limited 1-year entire appliance Limited 10-year resin tank Limited 3-Year Electronic Monitor
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
POWER / RATINGS
Electrical Requirements	120V; 60Hz
ACCESSORIES

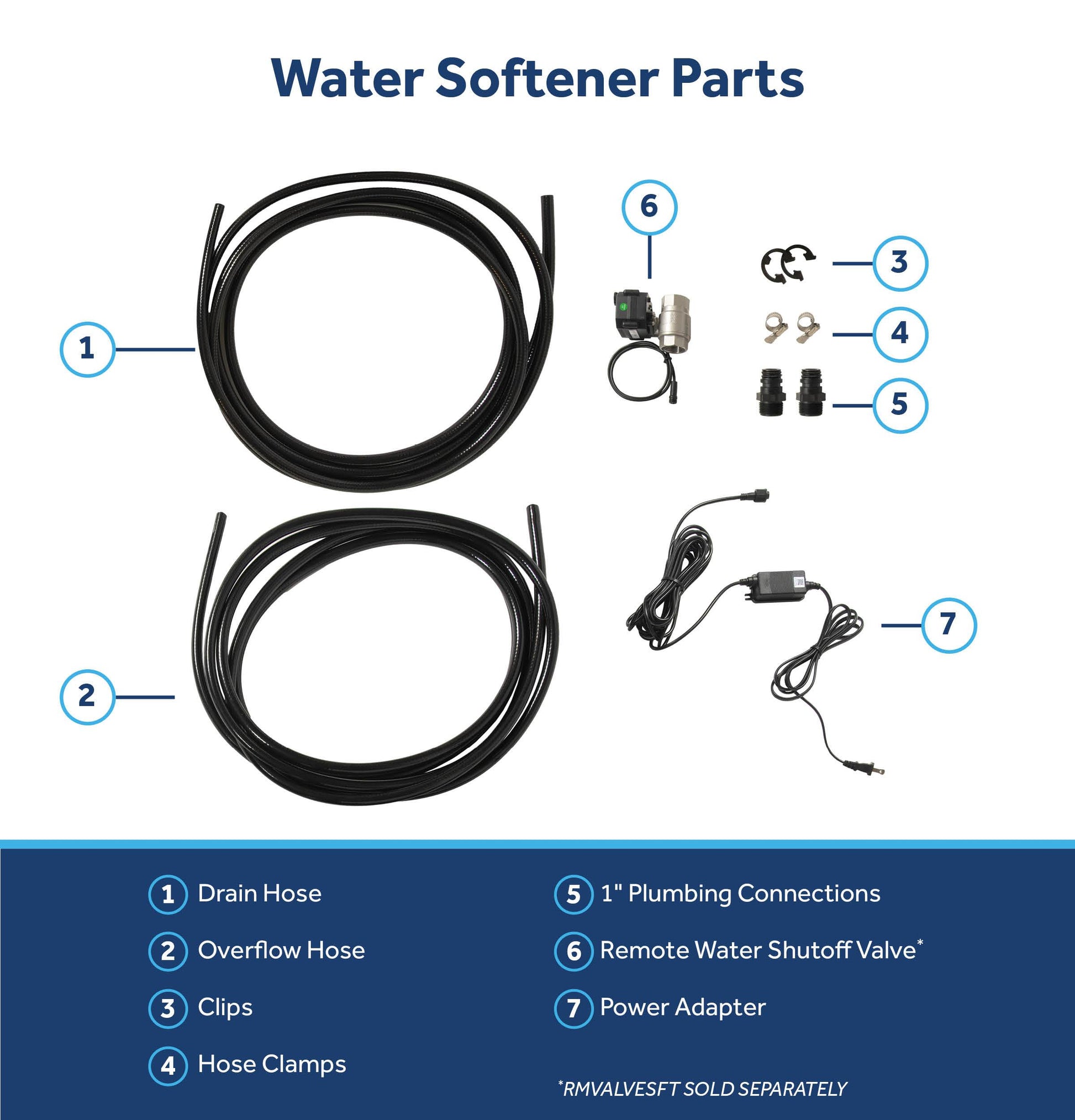

Installation Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	143 lb
Overall Depth	26 in
Overall Width	15 in
Overall Height	51 in
Approximate Shipping Weight	157 lb
FEATURES
System Monitor	Advanced
Resin Tank Size (in.)	10 x 44
Custom Select blending value	Yes
WiFi Connect	Built-In
Product Type	Water Softeners
Control Type	Electronic
Resin Filter Type	Standard Mesh
Regeneration Time (min.)	154 to 246
Style	Sculpted-tall
Salt Storage Capacity	230 lb
Indicator Lights	Salt Days to Empty Salt Saver
Max. Hardness Removal (gpg)	165
Salt Saver button/light	Yes
Valve Type	1"NPT High Flow
Audible Alarm	Yes
Efficiency (grains per lb.-salt)	5090
Resin Quantity (cu.ft.)	1.5
Type	Electronic-Demand Driven
Showroom Power Mode	To Enter Demo Mode, press and hold Modes + Select buttons simultaneously for over 3 seconds until 0000 is displayed Yes
Connected Features	Leak Detection & Remote Water Shutoff (with RMVALVESFT - sold separately) Low Salt Reminders Water Flow Monitoring
Max. Clear Water Iron Reduction (ppm)	3
Permanent Settings Memory	Yes
Plumbing Connection / Pipe Size In & Out (in.)	up to 1-1/4
Service Flow Rate (at 15 psi drop)	9.5
Sediment filter	Yes
