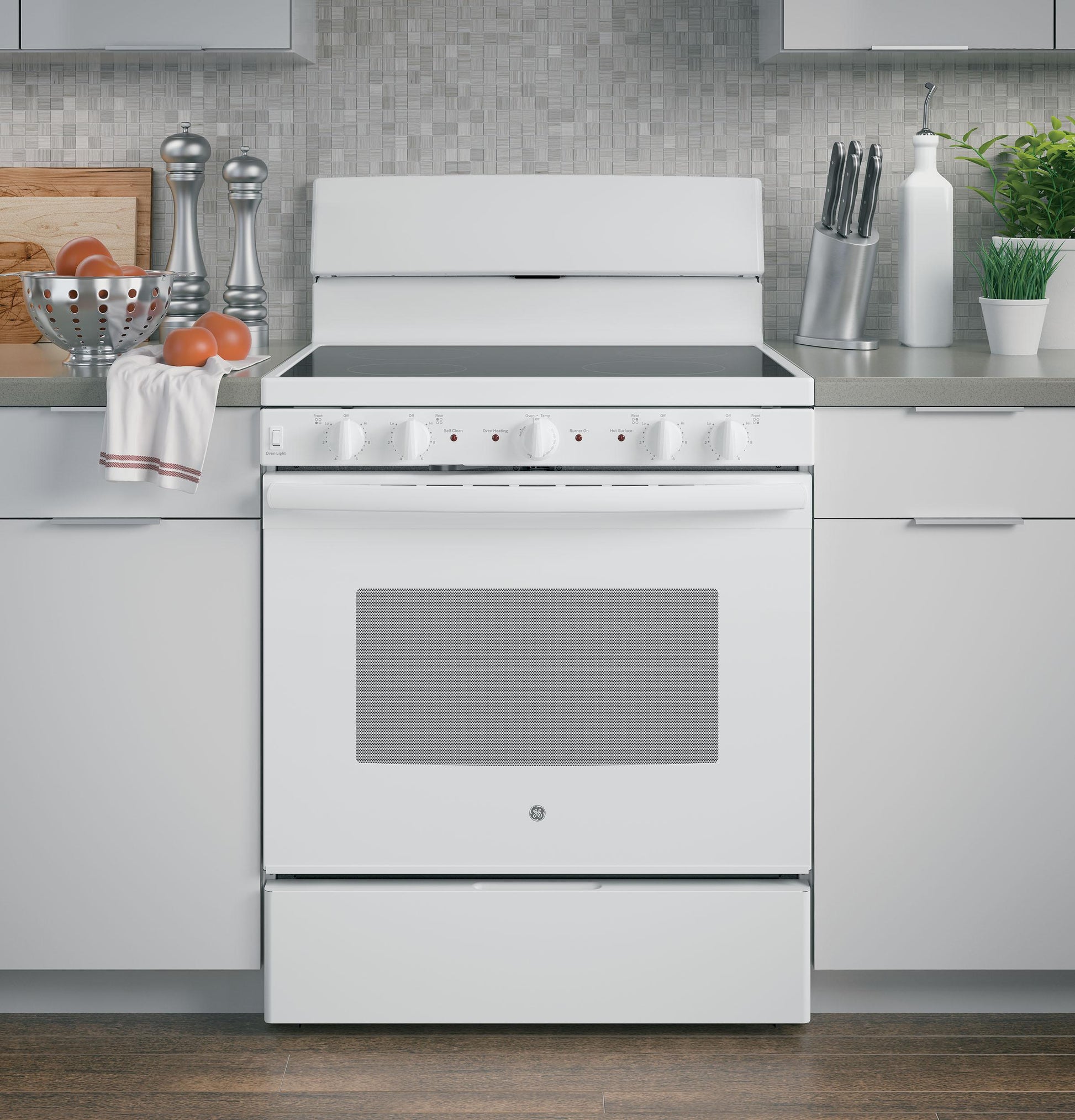

GE 30" Free-standing Electric Radiant Smooth Cooktop Range JB480DMWW

SKU/Model #: JB480DMWW Discontinued

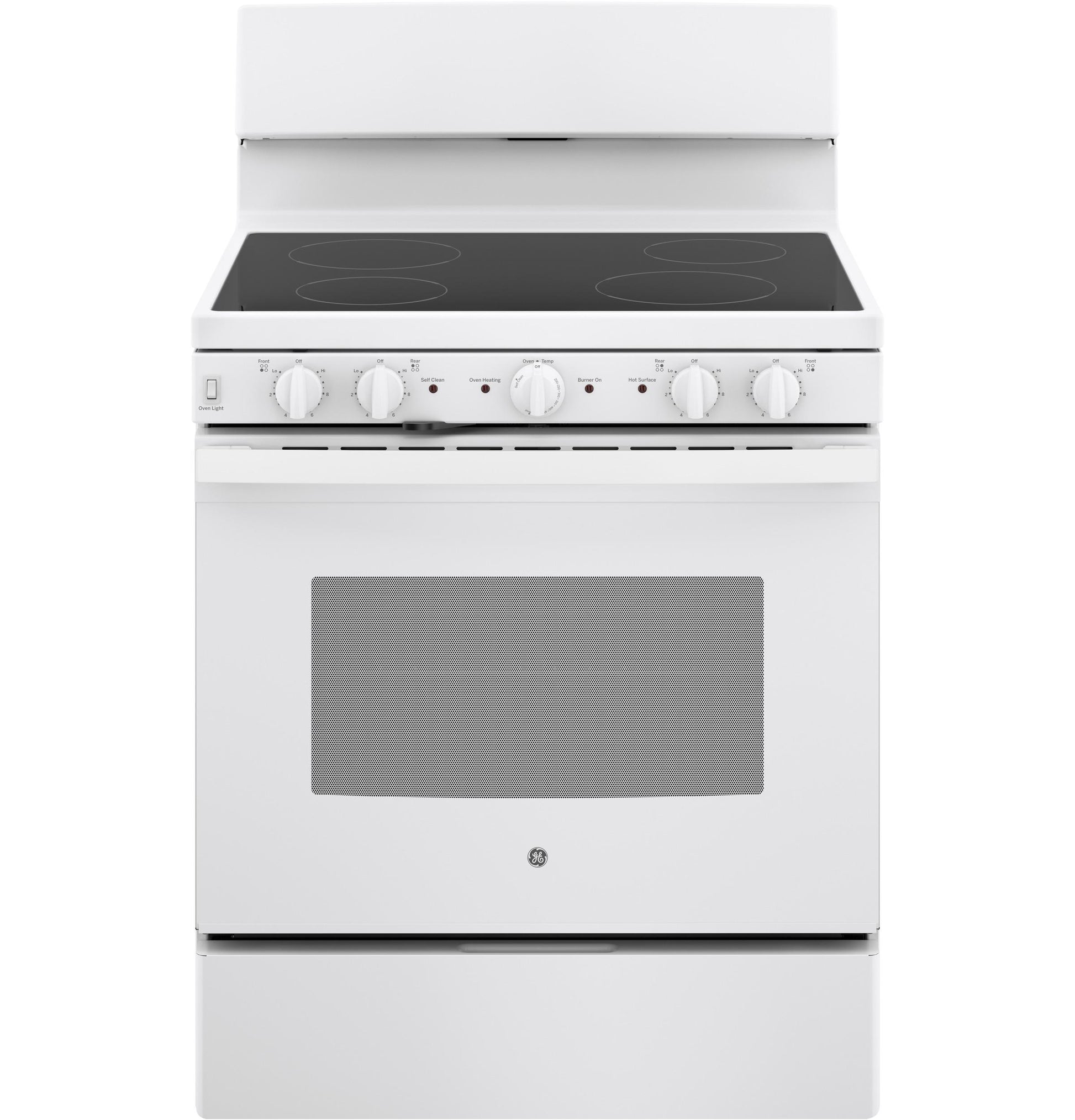

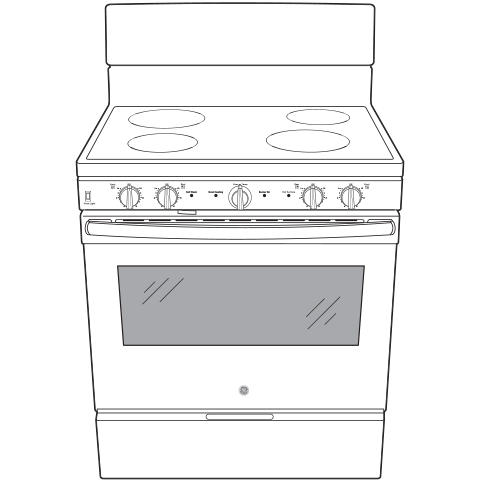

GE 30" Free-standing Electric Radiant Smooth Cooktop Range
Authorized Reseller
SKU/Model #: JB480DMWW
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
GE 30" Free-standing Electric Radiant Smooth Cooktop Range
$853.00
List Price:
Instant Savings:
  • Front controls
  • 5.0 cu. ft. oven capacity
  • Self-clean oven
  • Dual-element Bake
  • Removable full-width storage drawer

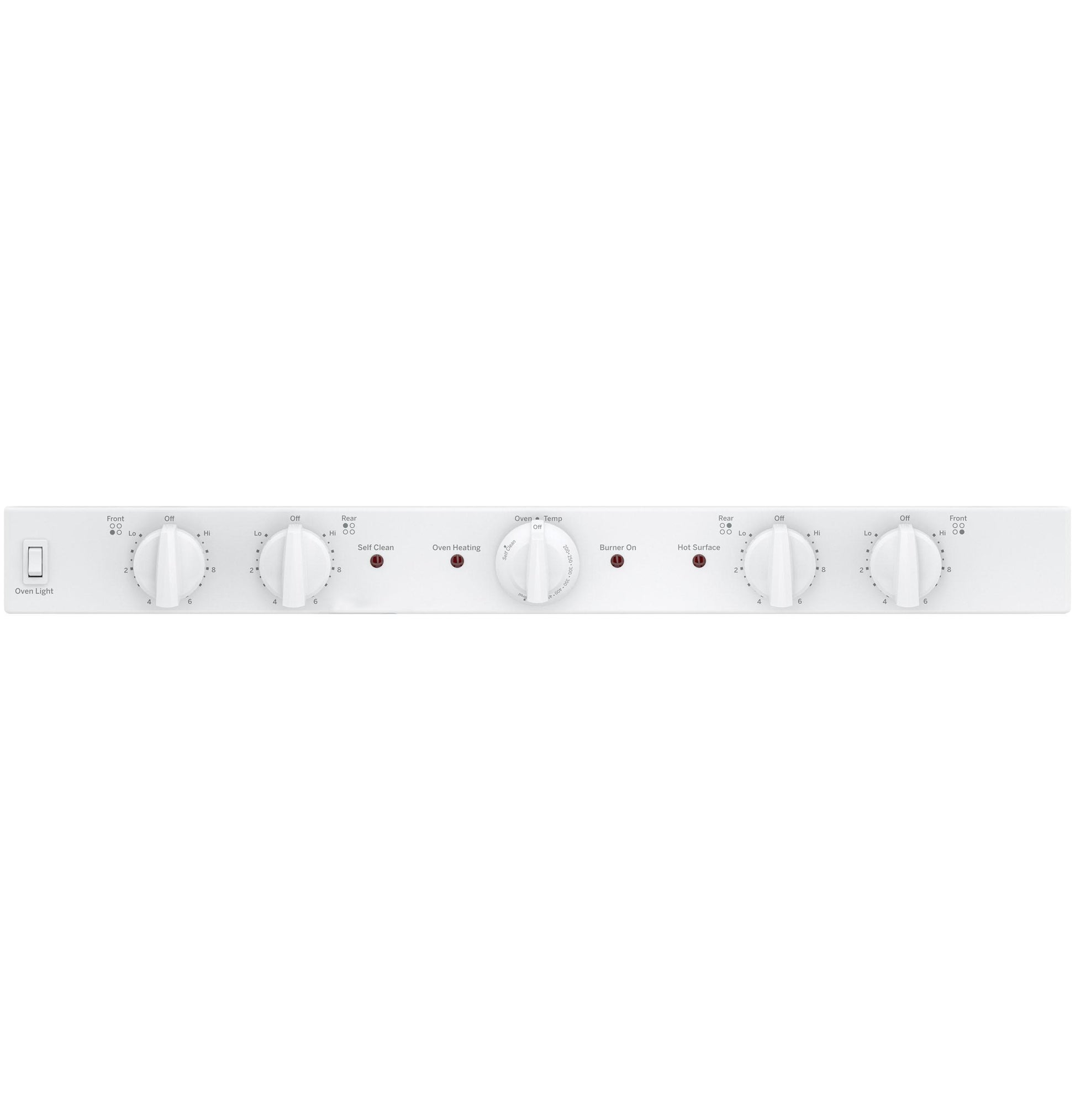

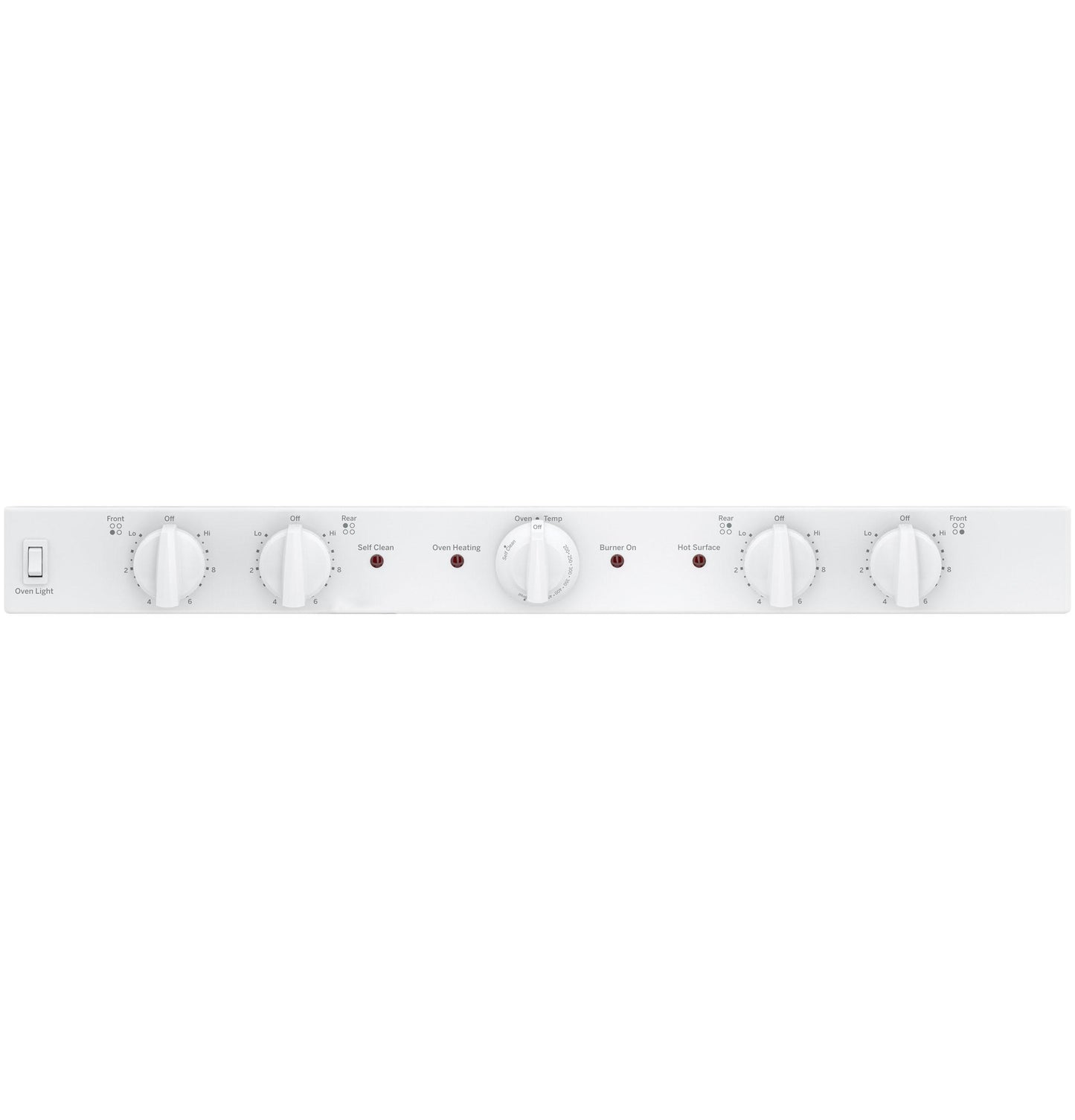

Front controls

Easily-accessible controls make it simple to control the stovetop and oven


5.0 cu. ft. oven capacity

Cook more dishes at once


Self-clean oven

Cleans the oven cavity without the need for scrubbing


Dual-element Bake

Upper and lower elements produce even heat and great results


Removable full-width storage drawer

Large trays and other cookware can be conveniently stored for quick access

CAPACITY
Total Capacity (cubic feet) 5
FILTER
App Filter - Cleaning Type Self-Clean
App Filter - Voltage 240V
App Filter - Cooking Technology Traditional
App Filter - Cabinet Width Cooking 30 in. (Standard)
App Filter - Control Type Rotary knobs
App Filter - Product Type Ranges Free-Standing Single Oven
App Filter - Drawer Type Storage
App Filter - Fuel Type Electric
App Filter - Convection No
App Filter - Cooktop Type Radiant Smoothtop
APPEARANCE
Oven Door Features Big View Oven Window
Glass Door
Handle Color-Matched
Designer Style
Textured Steel Side Panels Yes
Control Knobs Color-Matched
Color Appearance White
POWER / RATINGS
KW Rating at 240V 10.5
Bake Wattage 2585W
Amp Rating at 208V 40
Broiler Wattage 3410W
KW Rating at 208V 7.9
Amp Rating at 240V 40
WARRANTY
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

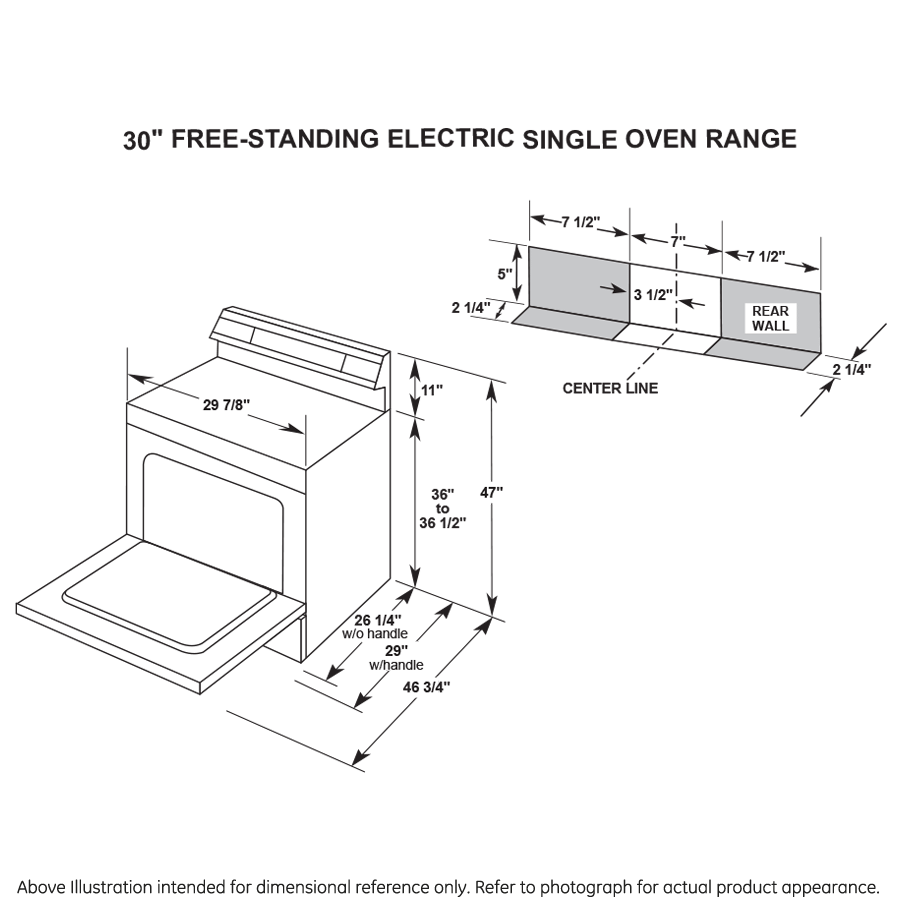

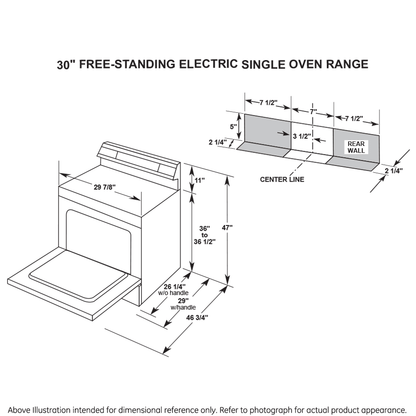

WEIGHTS & DIMENSIONS
Net Weight 141
Depth Without Handle 26.25
Oven Interior Dimensions (W x H x D) (in.) 23-3/4 x 19 x 18-1/2
Height to Cooking Surface (in.) 36 - 36 1/2
Depth with Door Open 46.75
Cabinet Width 30
Approximate Shipping Weight 161
Overall Width 30
Overall Depth 29
Overall Height 47
FEATURES
Configuration Range with Storage Drawer
Oven Features 4-Pass Bake Element
6-Pass Broil Element
Element - Right Front 8" 2000W
Storage Drawer Features Removable Full-Width
Fuel Type Electric
Oven Interior 1 Incandescent Light
Oven Control Features Oven "ON" Light
Self-Cleaning Cycling Light
Cooktop Burner Type Radiant
Smoothtop

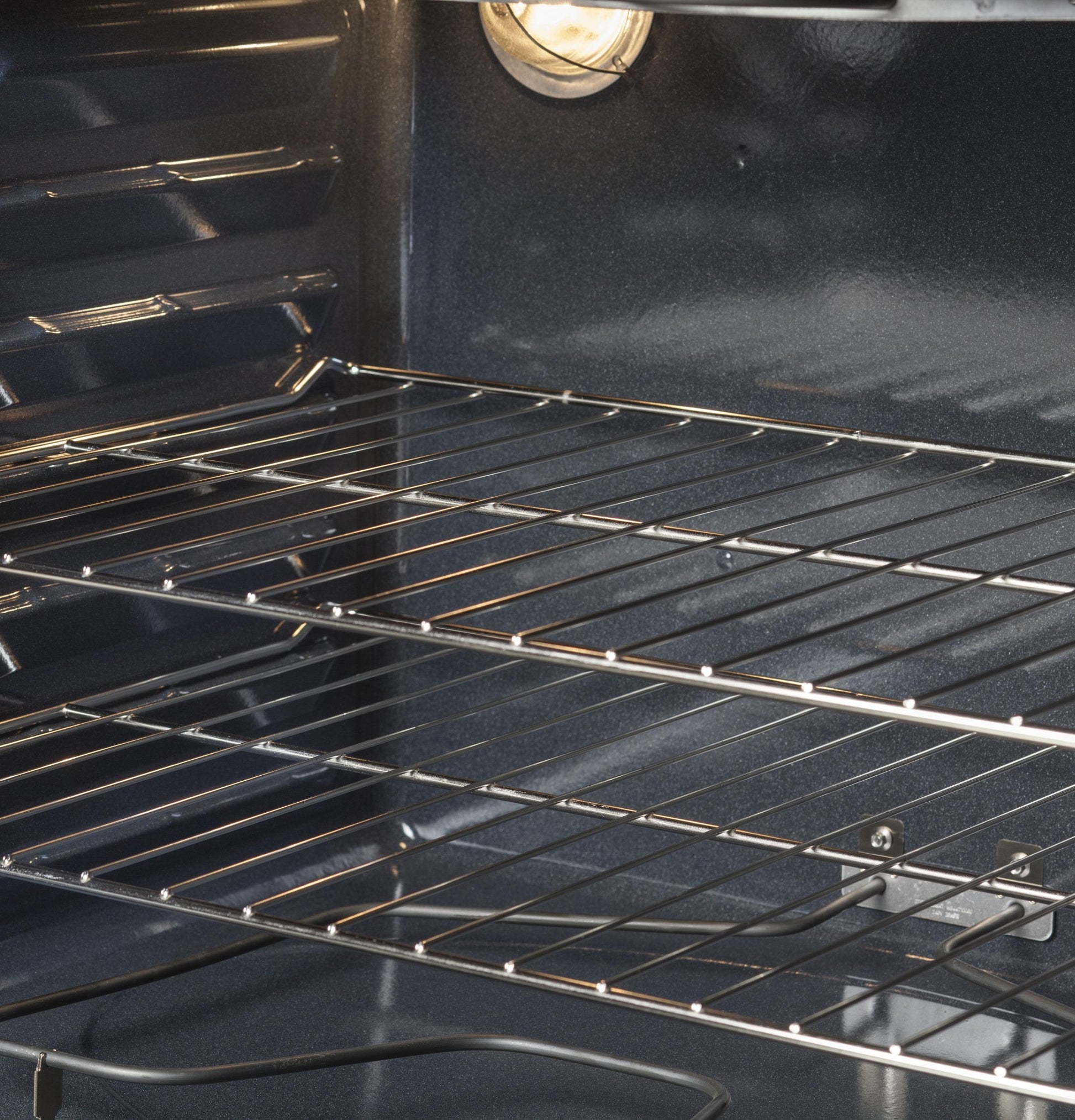

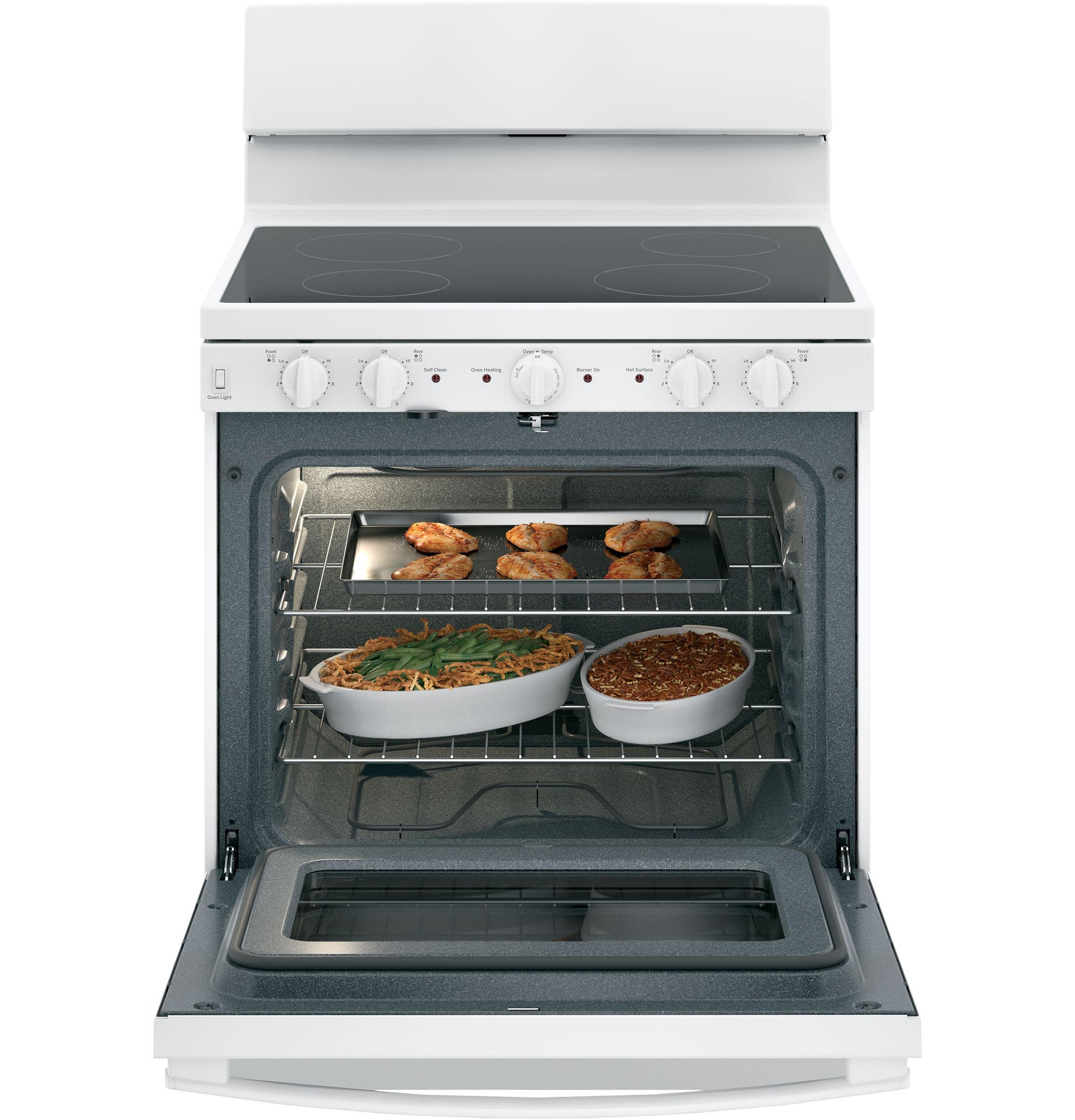

Oven Rack Features 2 Oven Racks
6 Rack Positions
Element - Left Front 6" 1500W
Oven Cleaning Type Self-Clean
Hot Surface Indicator Lights Yes
Product Type Free-Standing Single Oven
Heating Element "ON" Indicator Light Yes

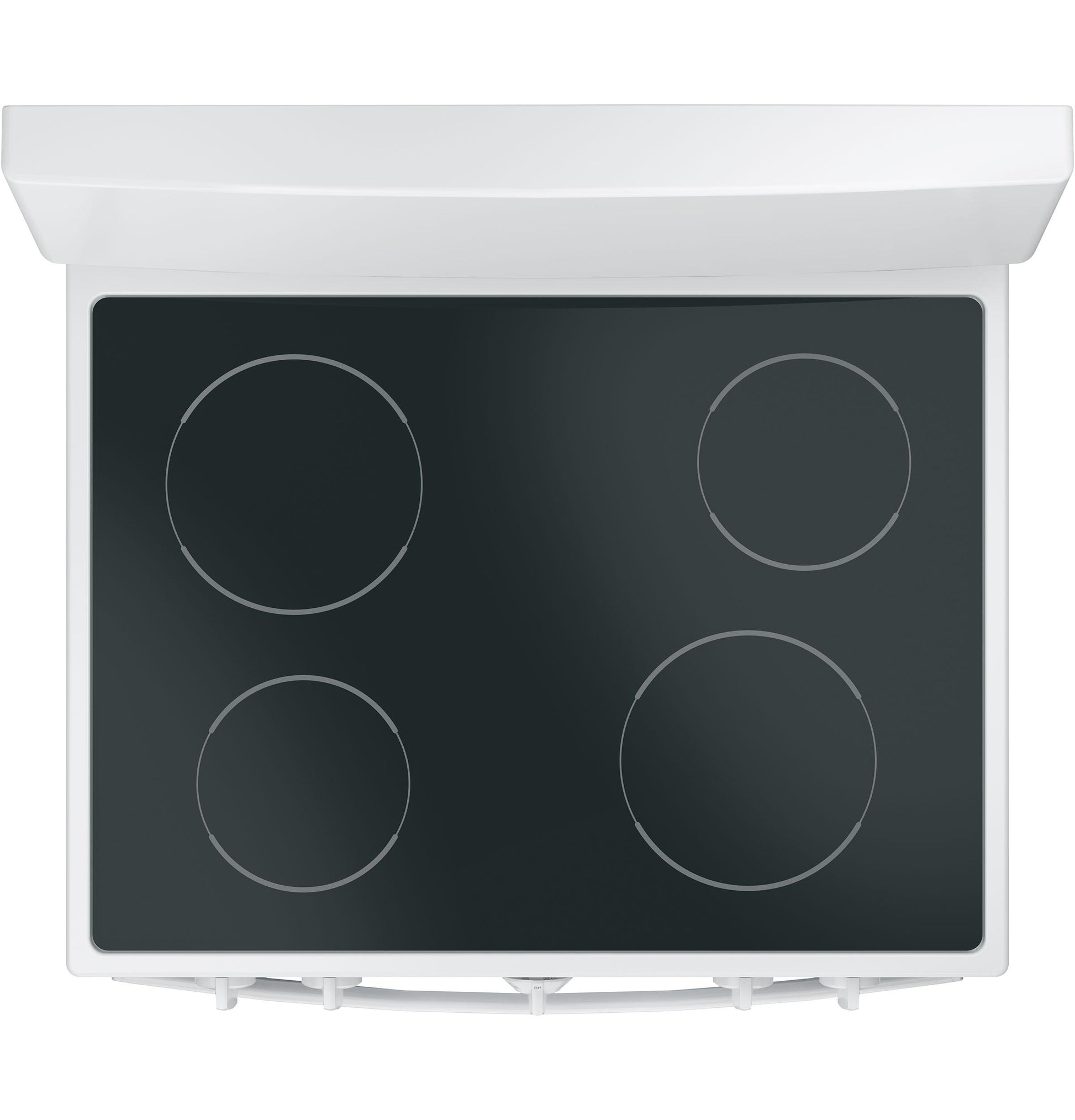

Cooktop Type Radiant Smoothtop
Element - Left Rear 8" 2000W
Element - Right Rear 6" 1500W
Cooktop Surface Black Ceramic Glass
Control Location Front
Drawer Type Storage
Cooking Technology Traditional
