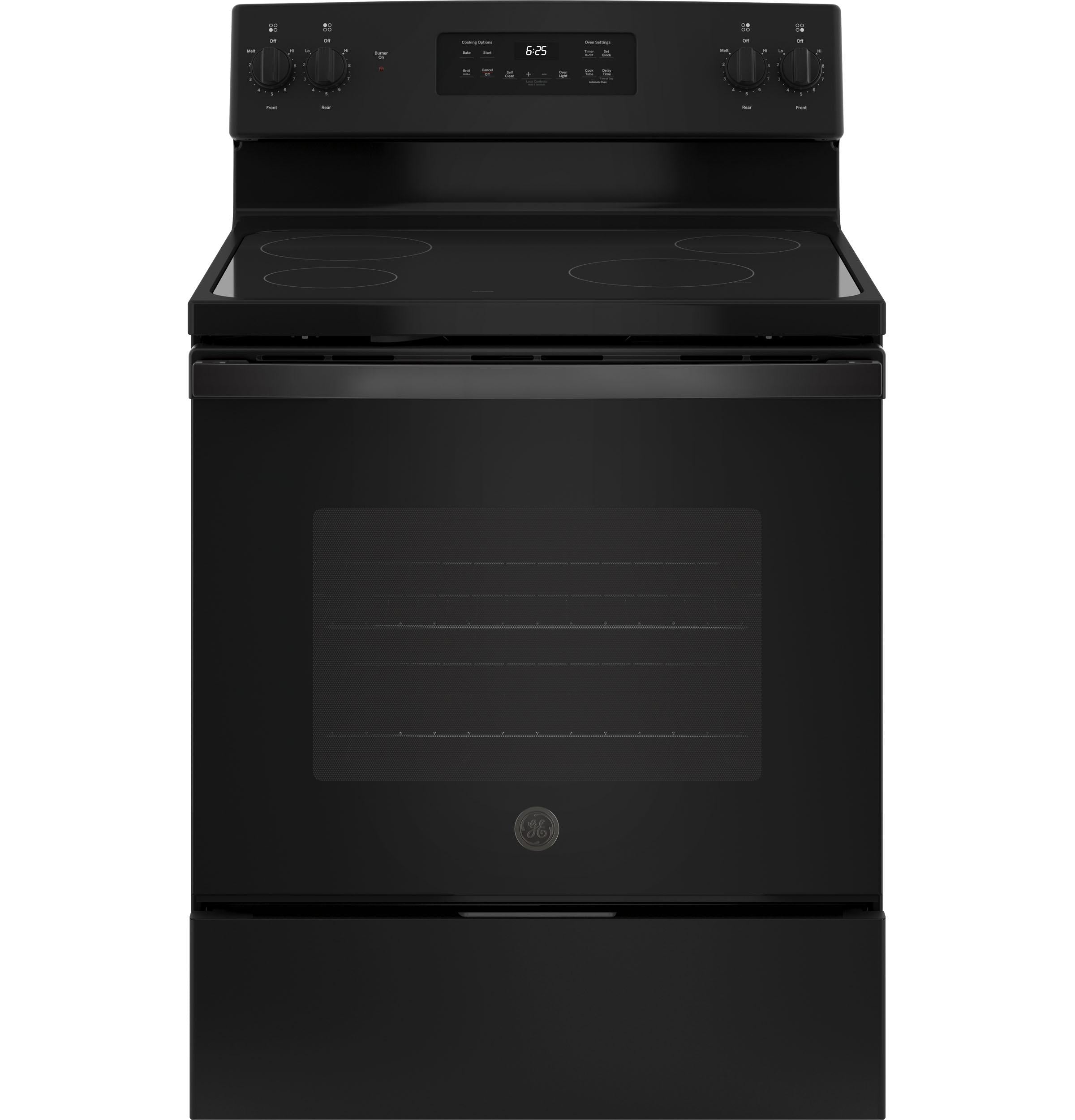

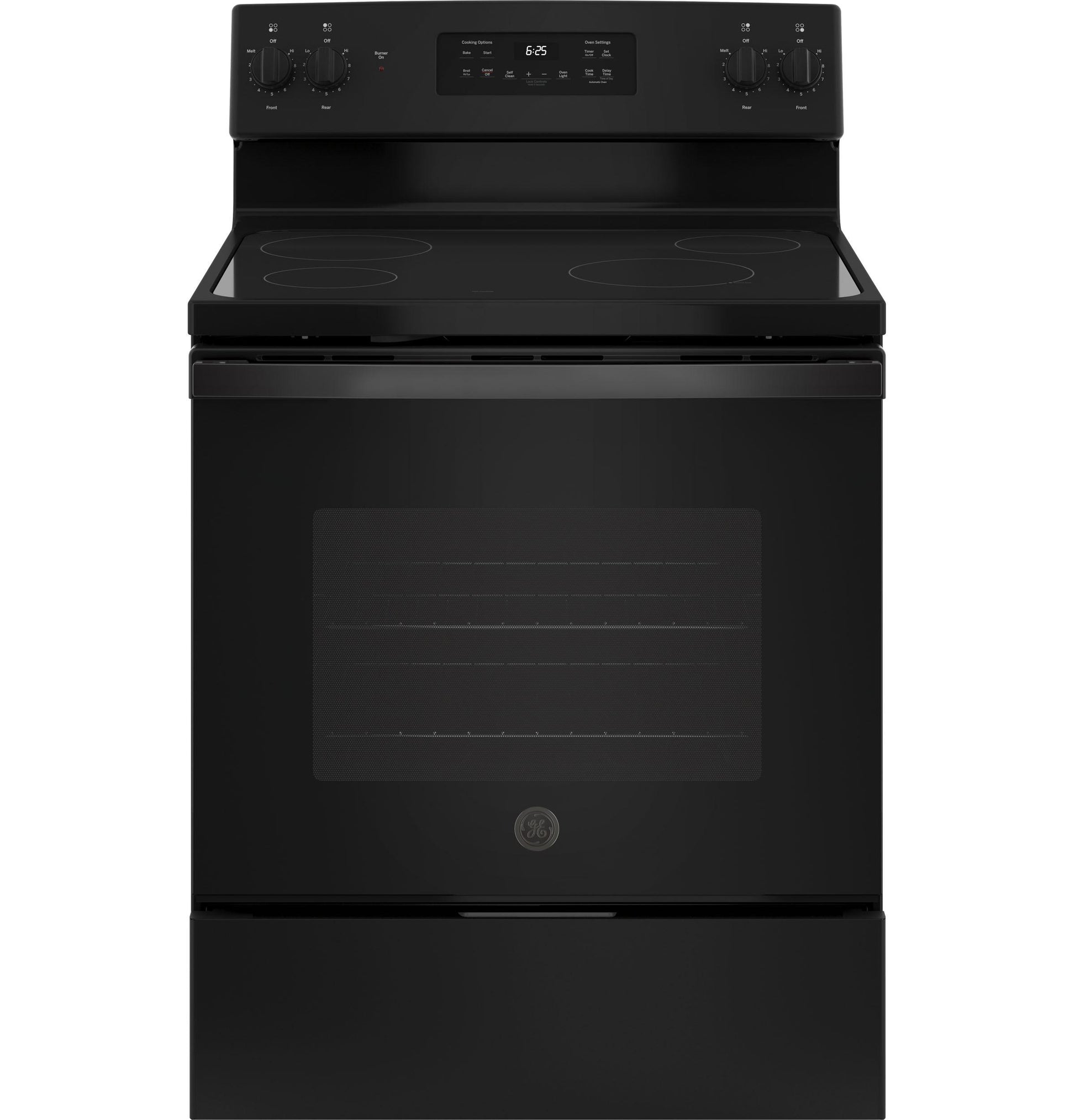

GE® 30" Free-Standing Electric Range JB625DKBB
Discontinued
GE® 30" Free-Standing Electric Range
$764.00
- 8" Power Boil element
- 5.3 cu. ft. oven capacity
- Ceramic glass cooktop
- Self-clean oven
- Removable full-width storage drawer
- Dual-element Bake
8" Power Boil element
Get rapid heat from this powerful 2,500-watt element

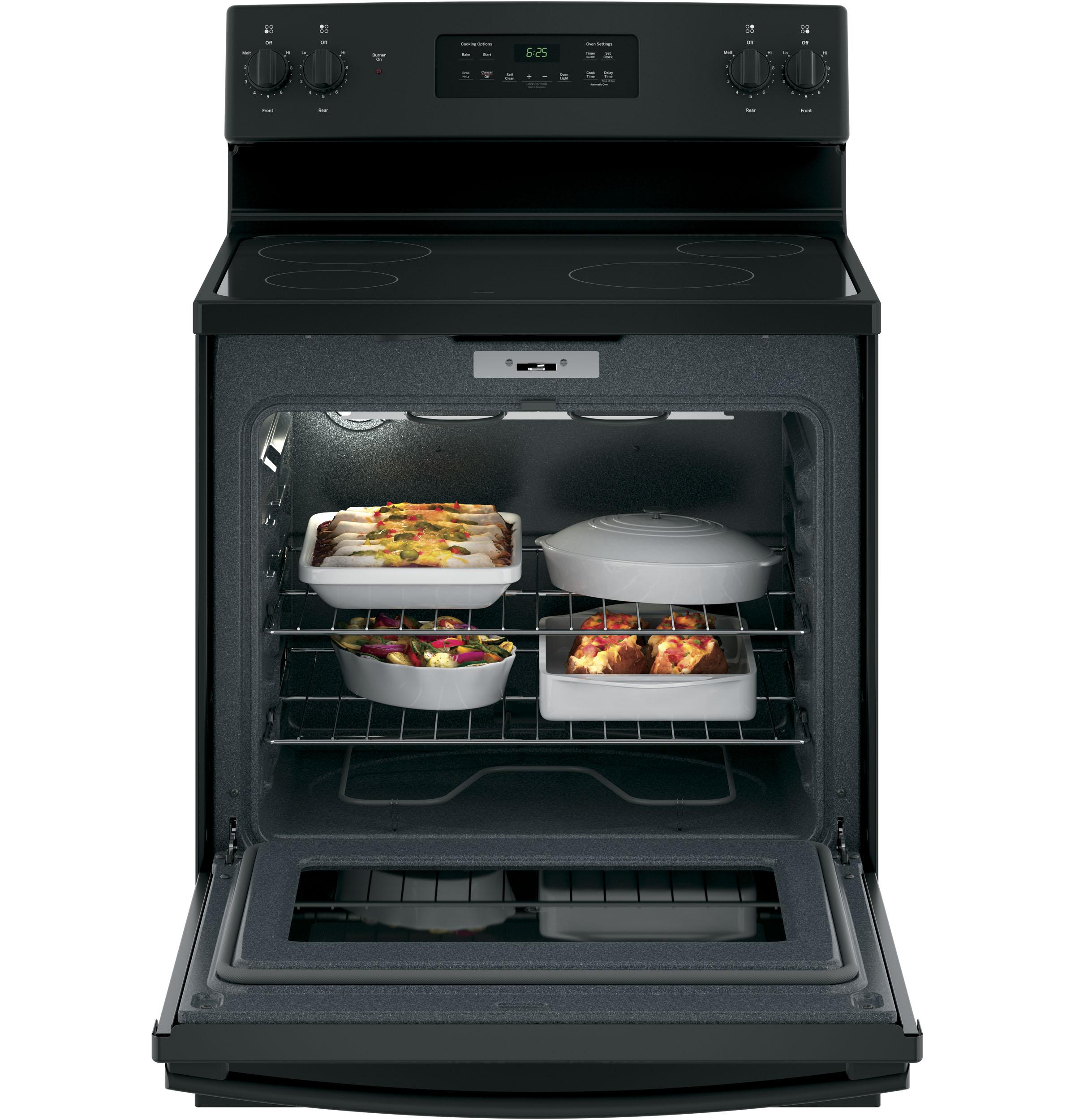

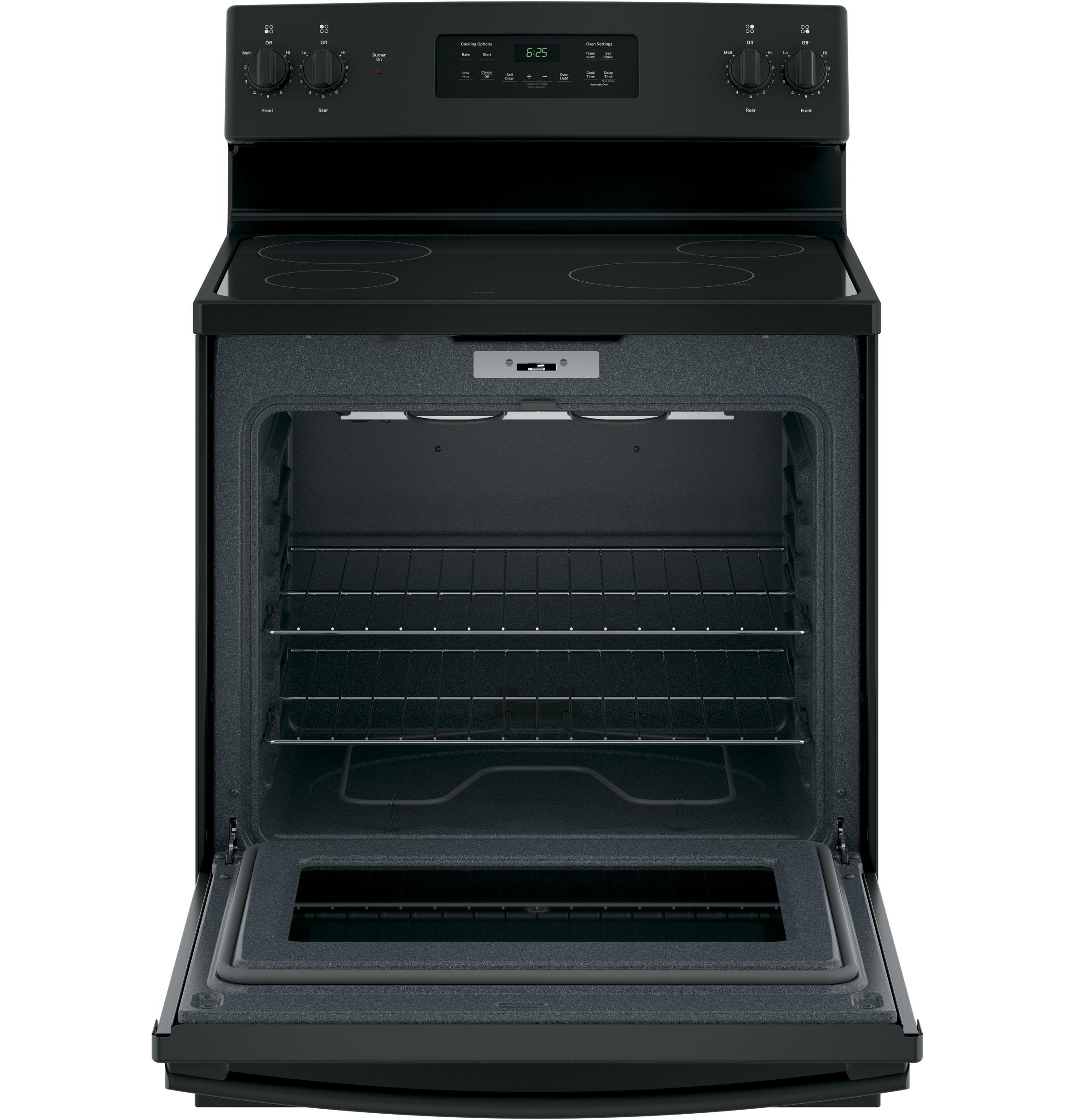

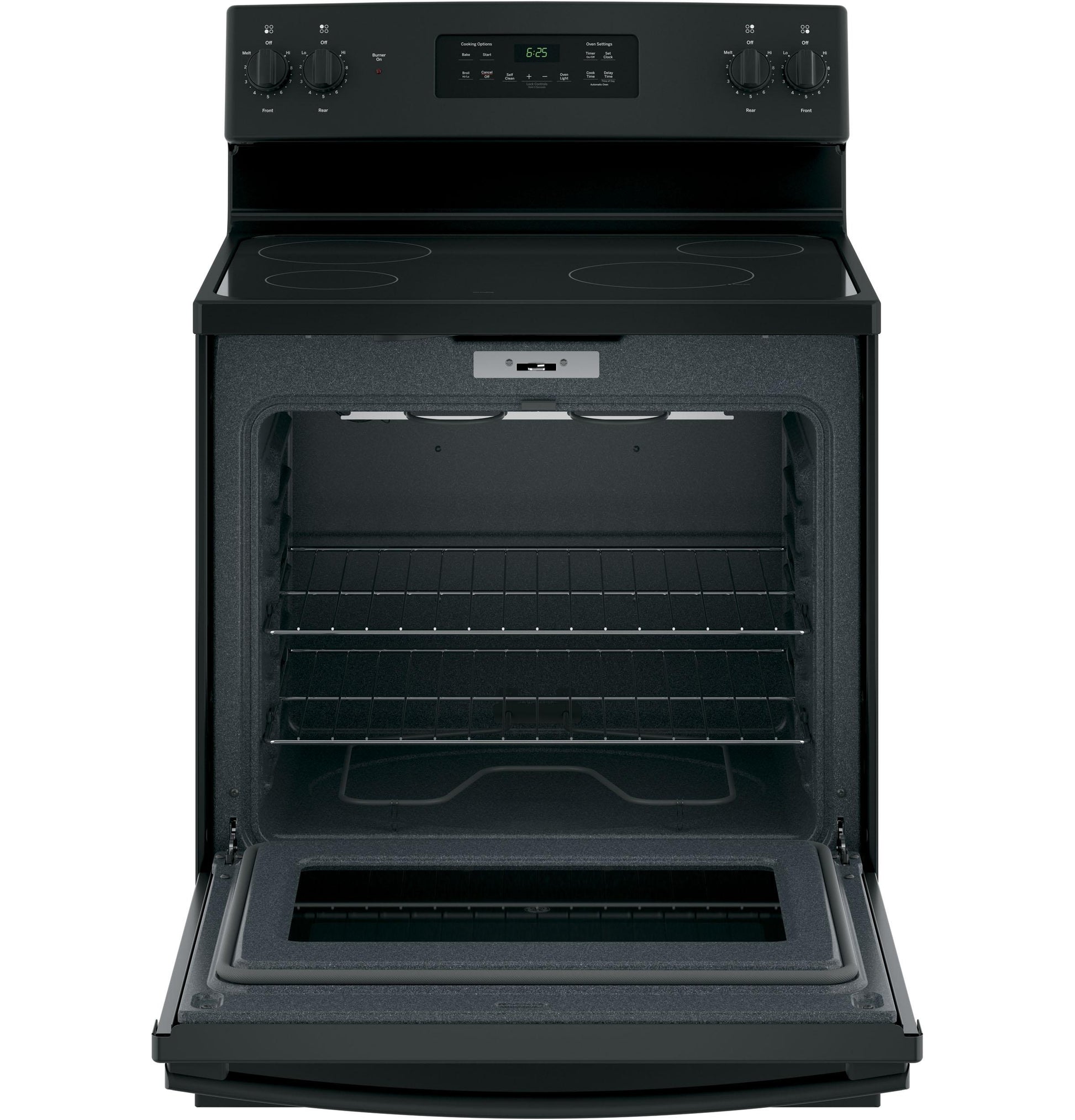

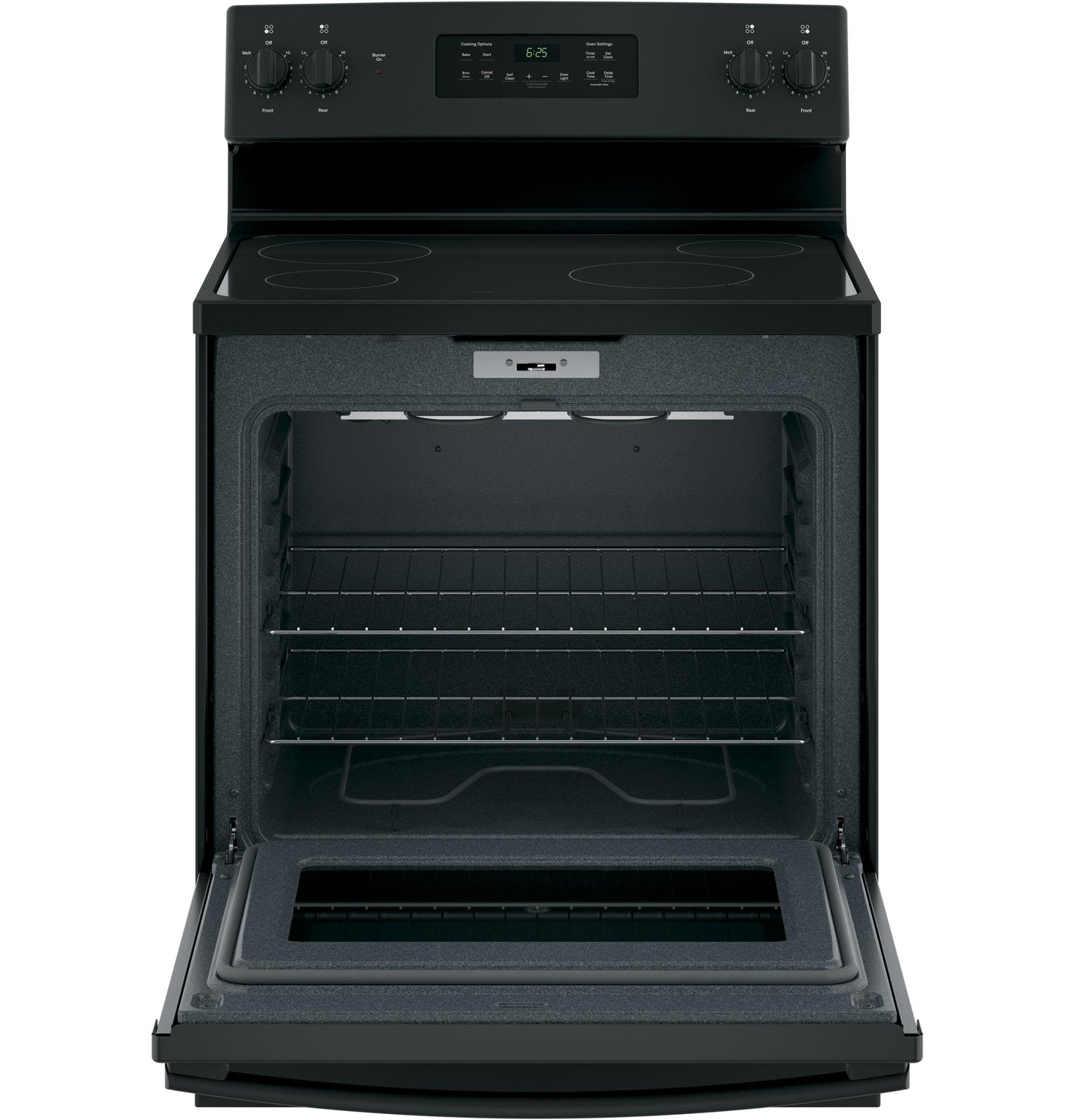

5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once

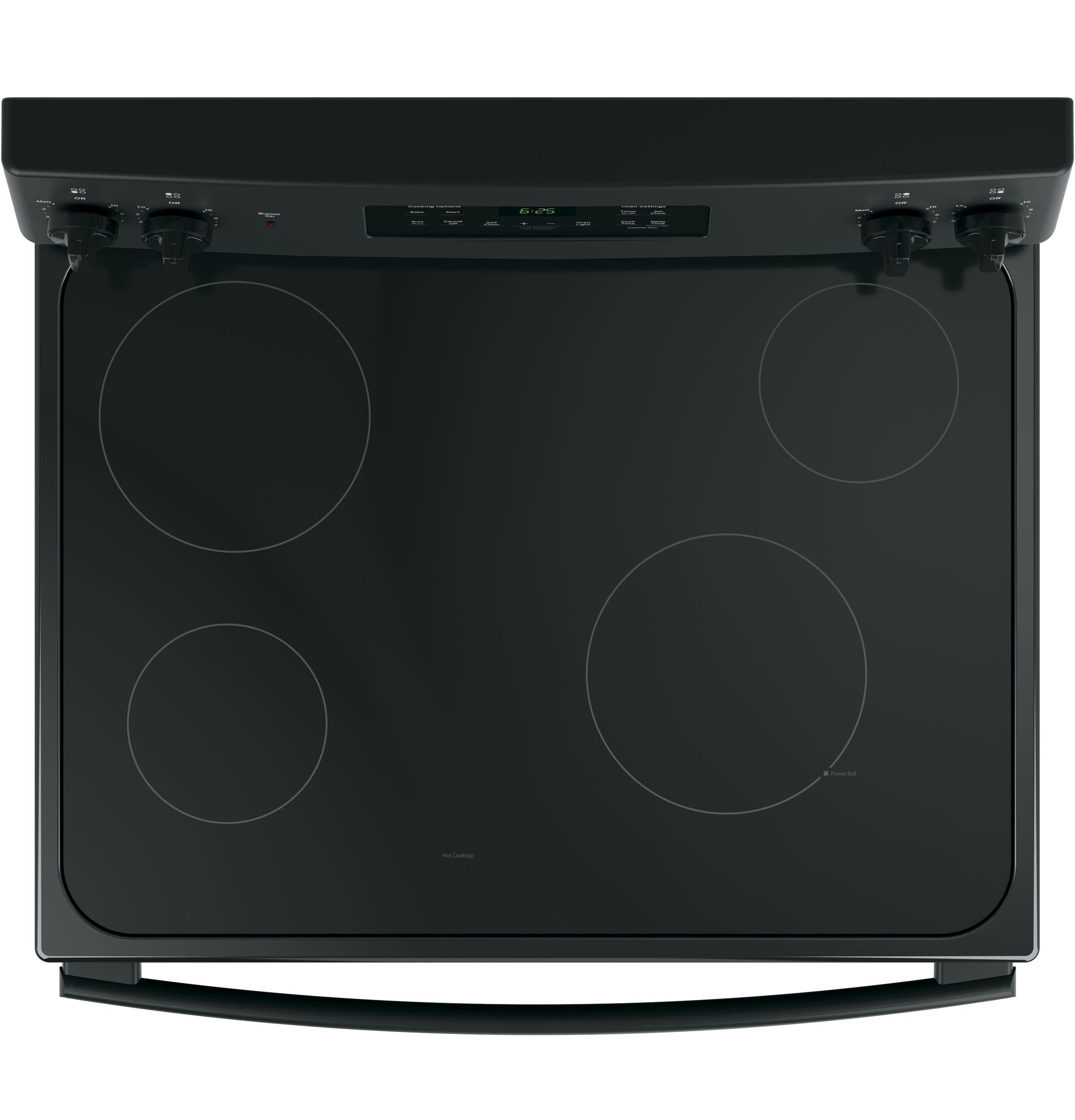

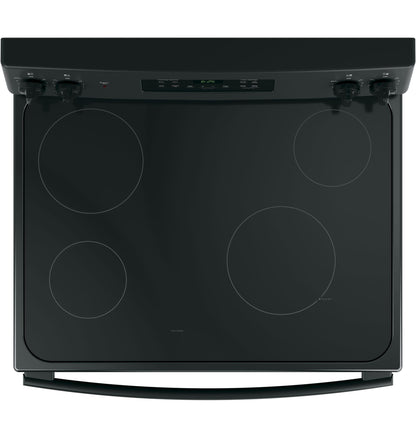

Ceramic glass cooktop
Smooth cooktop easily wipes clean
Self-clean oven
Cleans the oven cavity without the need for scrubbing

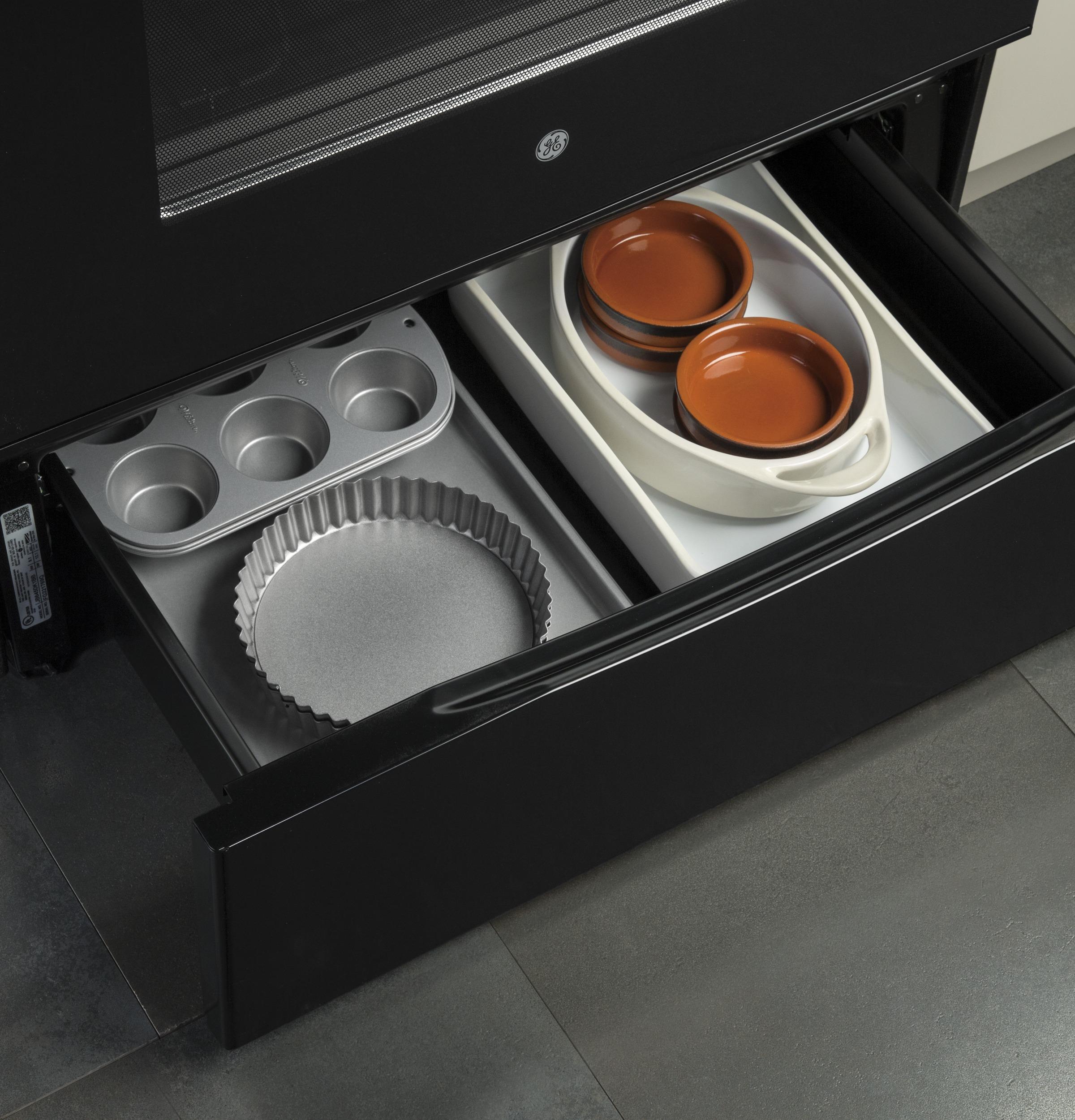

Removable full-width storage drawer
Store cookware or kitchen accessories
Dual-element Bake
Upper and lower elements produce even heat and great results
Get rapid heat from this powerful 2,500-watt element
5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once
Ceramic glass cooktop
Smooth cooktop easily wipes clean
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Removable full-width storage drawer
Store cookware or kitchen accessories
Dual-element Bake
Upper and lower elements produce even heat and great results
CAPACITY | |
Total Capacity (cubic feet) | 5.3 cu ft |
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Control Type | Electronic touchpad |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Fuel Type | Electric |
App Filter - Cooking Technology | Traditional |
App Filter - Convection | No |
App Filter - Drawer Type | Storage |
App Filter - Cleaning Type | Self-Clean |
App Filter - Voltage | 240V |
App Filter - Cooktop Type | Radiant Smoothtop |
APPEARANCE | |
Handle | Designer Style |
Textured Steel Side Panels | Yes |
Oven Door Features | Big View Oven Window Glass Door |
Handle Color | Black |
Control Knobs | Gloss Black |
Color Appearance | Black |
POWER / RATINGS | |
Amp Rating at 208V | 40 |
Broiler Wattage | 3410W |
Amp Rating at 240V | 40 |
KW Rating at 240V | 10.4 |
Bake Wattage | 2585W |
KW Rating at 208V | 7.8 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ACCESSORIES | |
Optional Accessories | WB48X20881 Roller Rack |
Cooktop Cleaning | Cream Included Sponge |
WEIGHTS & DIMENSIONS | |
Net Weight | 159 lb |
Depth Without Handle | 25.5 in |
Height to Cooking Surface (in.) | 35 3/4 - 36 1/2 |
Cabinet Width | 30 in |
Approximate Shipping Weight | 180 lb |
Overall Width | 29.875 in |
Overall Height | 47 in |
Overall Depth | 28 in |
Depth with Door Open | 47.875 in |
Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
FEATURES | |
Cooking System | Traditional |
Storage Drawer Features | Removable Full-Width |
Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off with Override Auto Self Clean Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock & Kitchen Timer Hi / Low Broil Oven "ON" Light Self-Clean Cool Down Time Display Self-Cleaning Cycling Light |

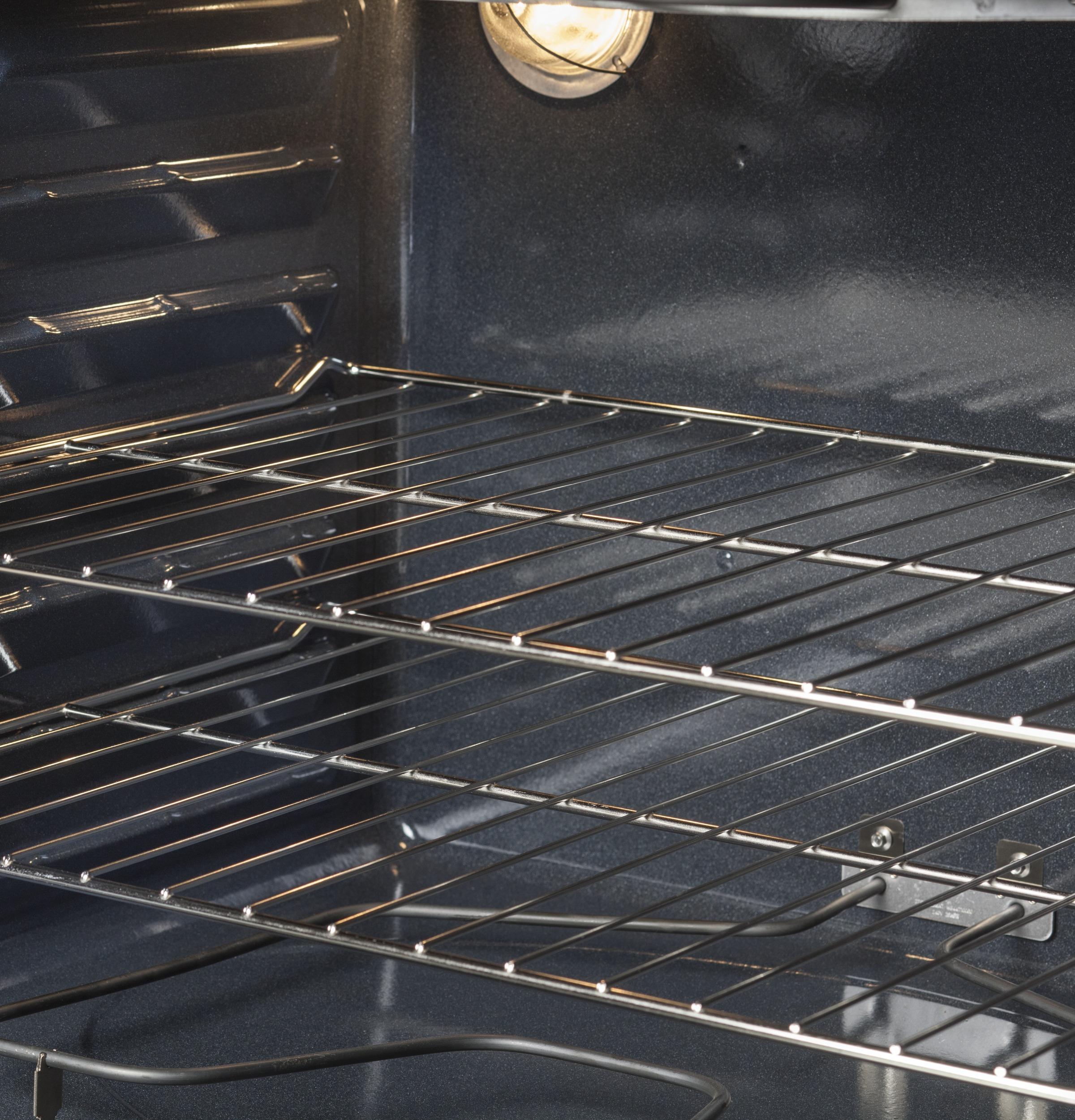

Oven Rack Features | 2 Oven Racks |
Element - Left Front | 6" 1200W |
Oven Cleaning Type | Self-Clean |
Product Type | Free-Standing Single Oven |
Heating Element "ON" Indicator Light | 1 |
Cooktop Type | Radiant Smoothtop |
Fuel Type | Electric |
Element - Right Front | 8" 2500W Power Boil |
Interior Oven Light | 1 Light |

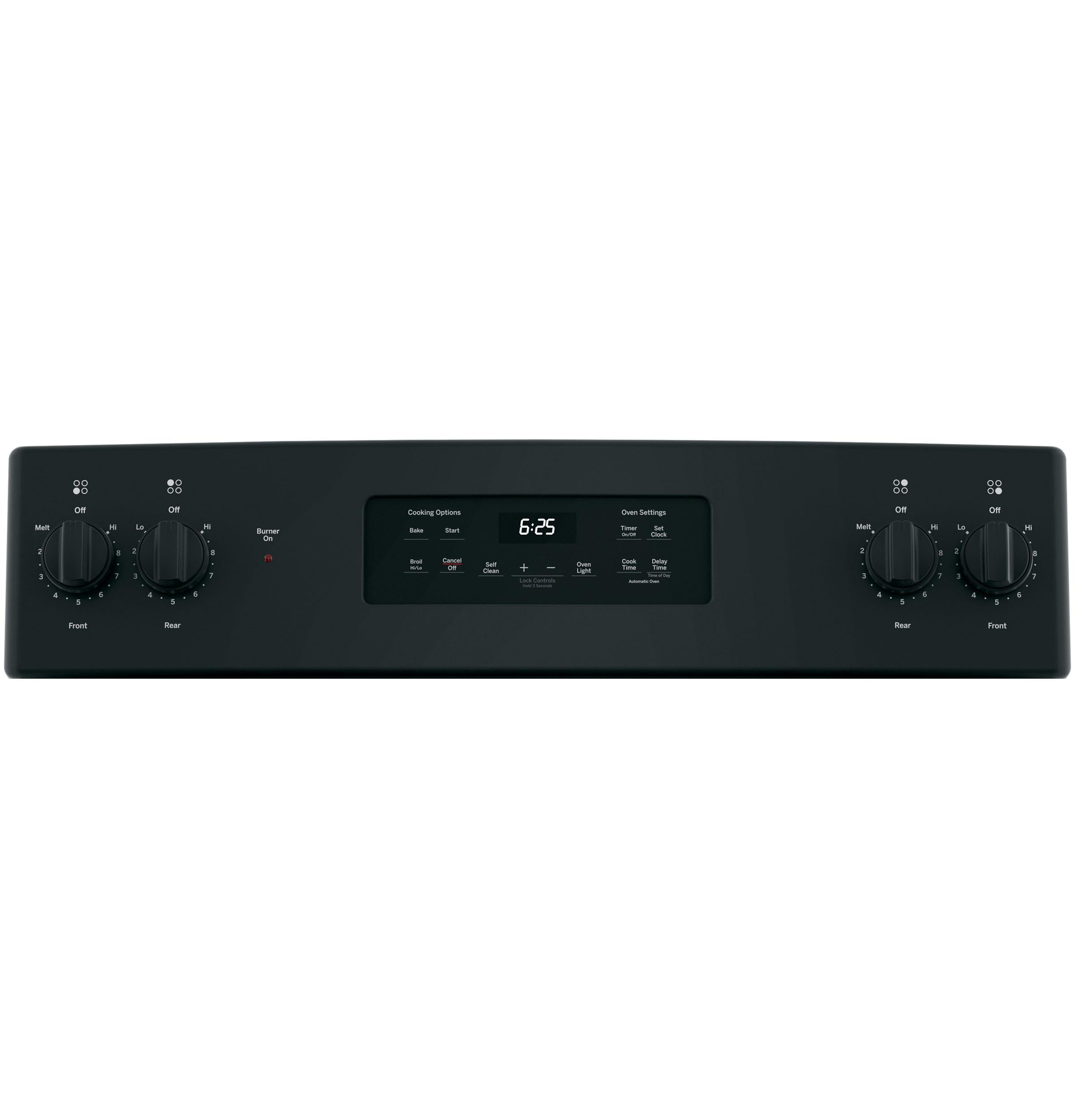

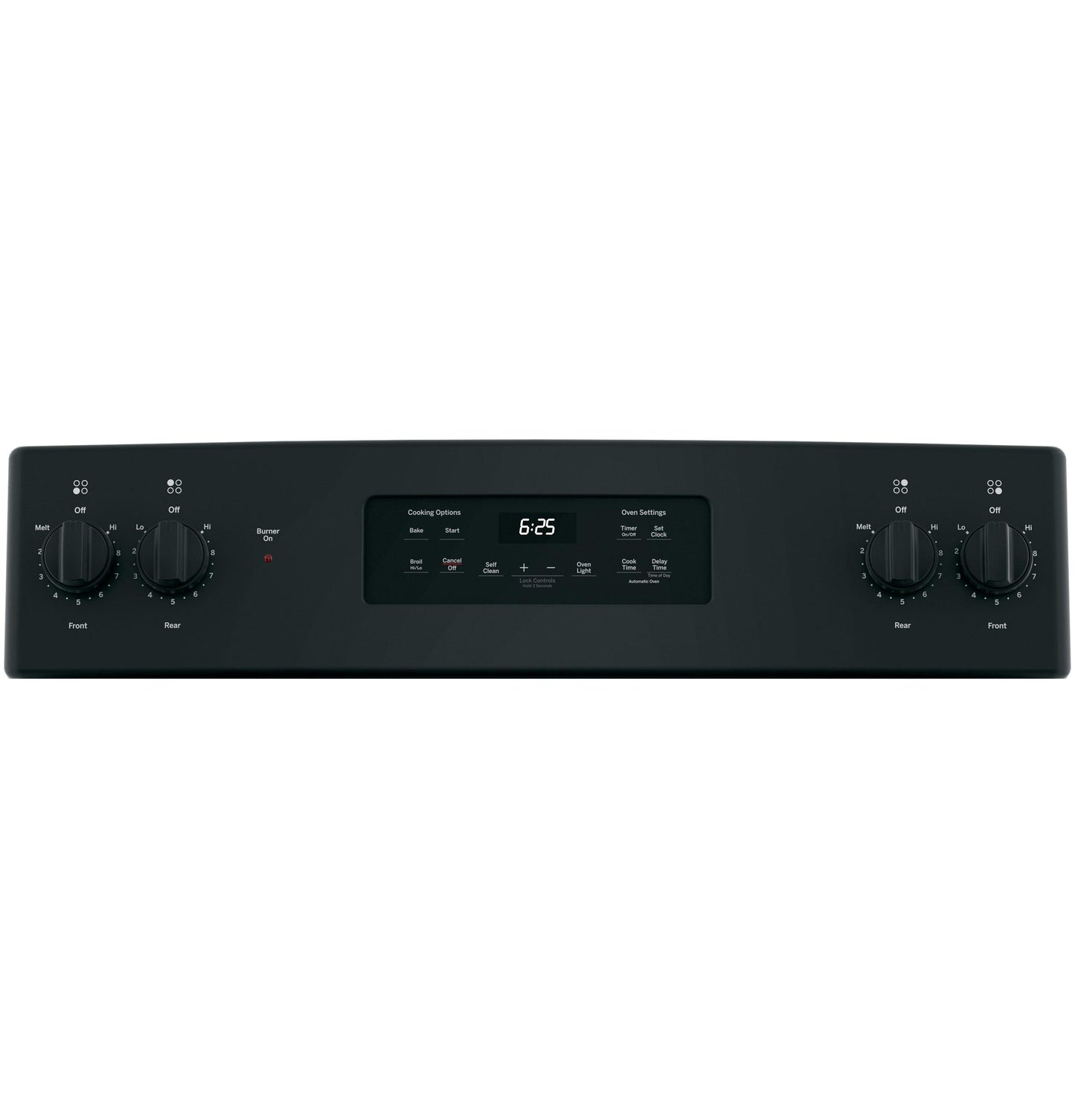

Control Location | Backsplash |
Control Type | Digital Temperature Display Electronic Touchpads |
Drawer Type | Storage |
Hot Surface Indicator Lights | 1 |
Sabbath Mode | Yes |
Element - Left Rear | 8" 2000W |
Cooking Technology | Traditional |
Configuration | Range with Storage Drawer |
Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
Melt Setting | Yes |
OU Certified | No |
Cooktop Burner Type | Radiant Smoothtop |
Element - Right Rear | 6" 1200W |
Cooktop Surface | Black Ceramic Glass One-Piece Upswept |
Oven Rack Positions (Single or Upper/Lower) | 6 |
