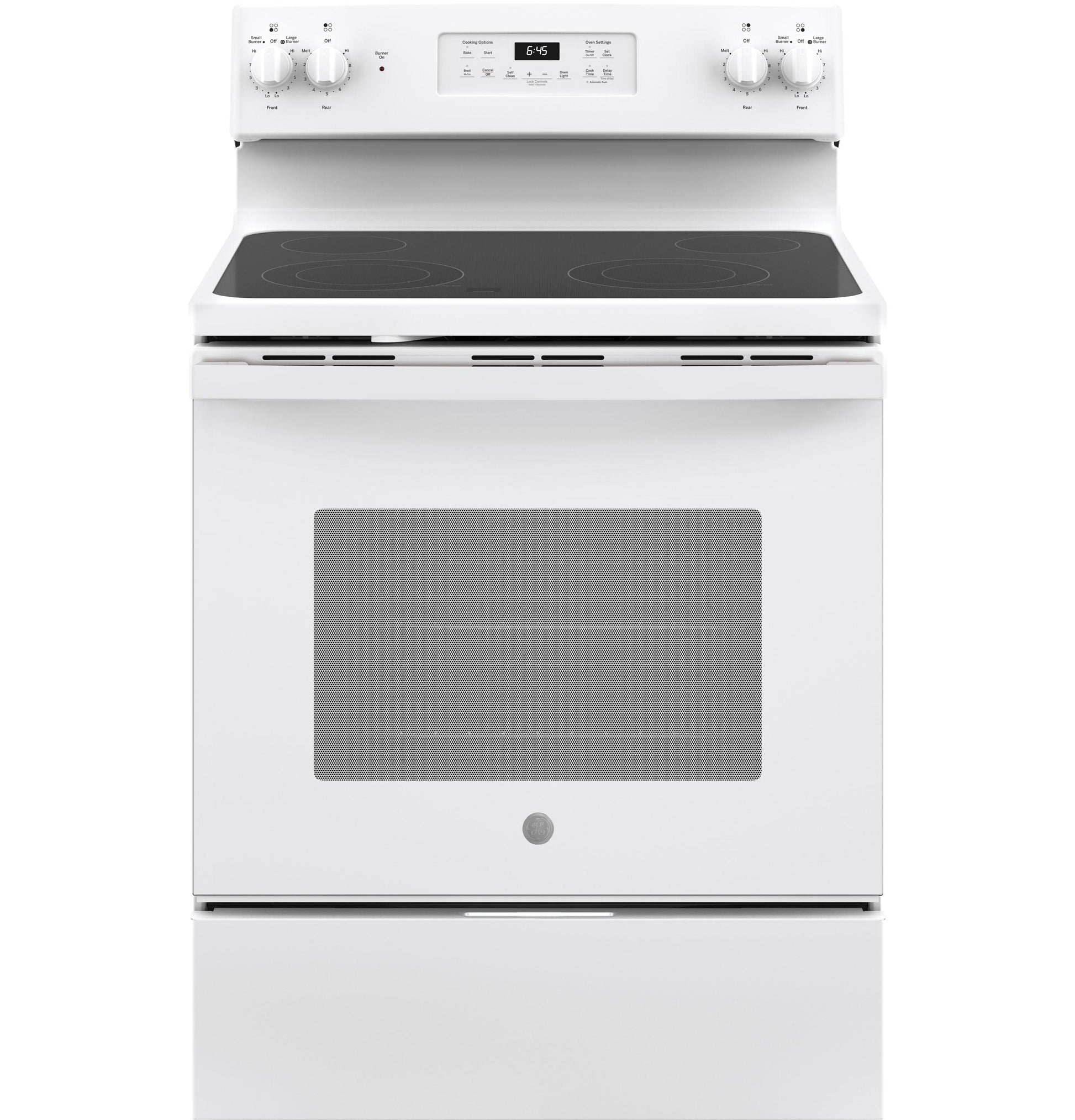

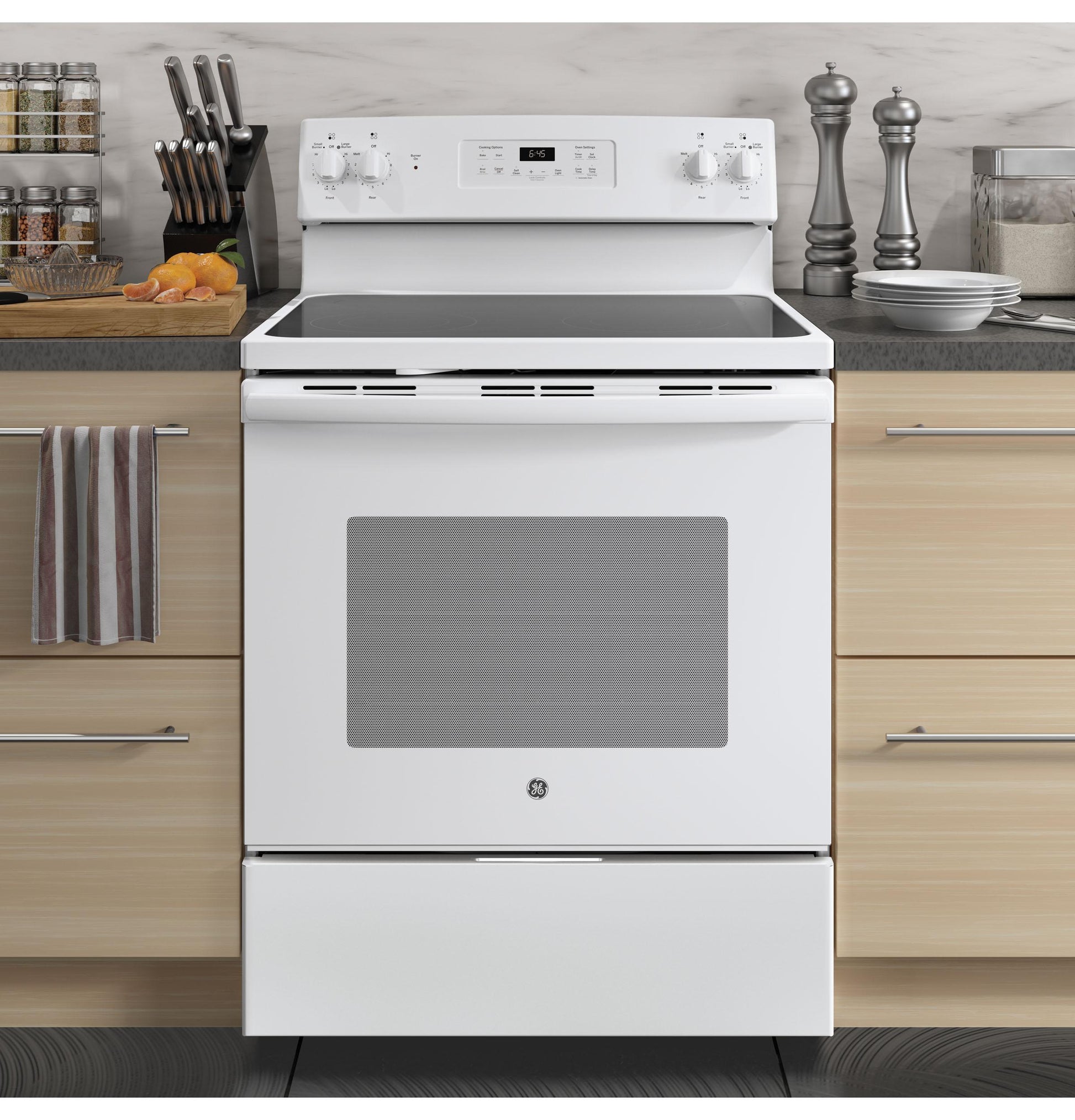

GE® 30" Free-Standing Electric Range JB645DKWW

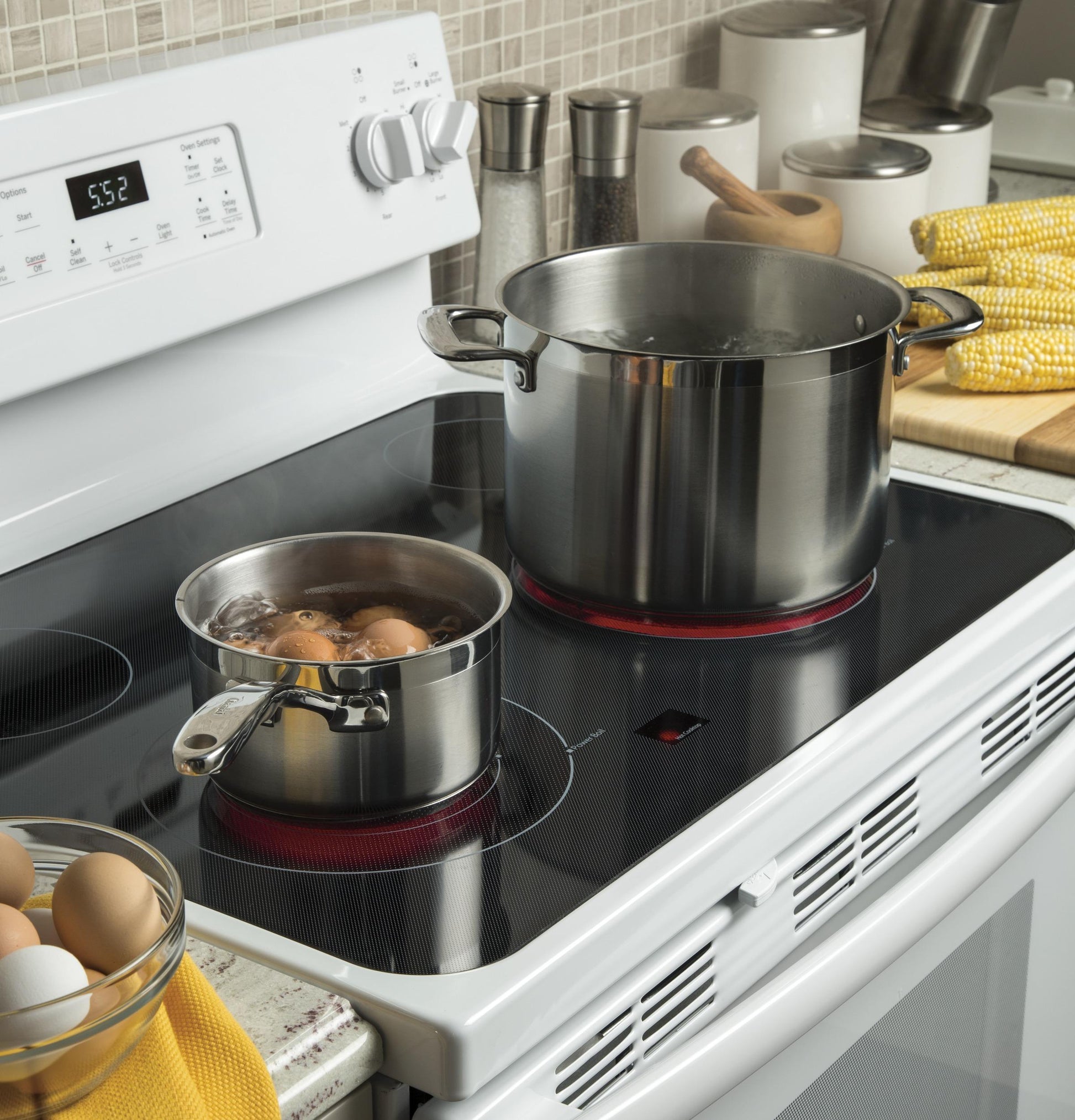

Two 9"/6" Power Boil elements
Two powerful elements boil water 25% faster than standard GE elements and adjust to fit cookware

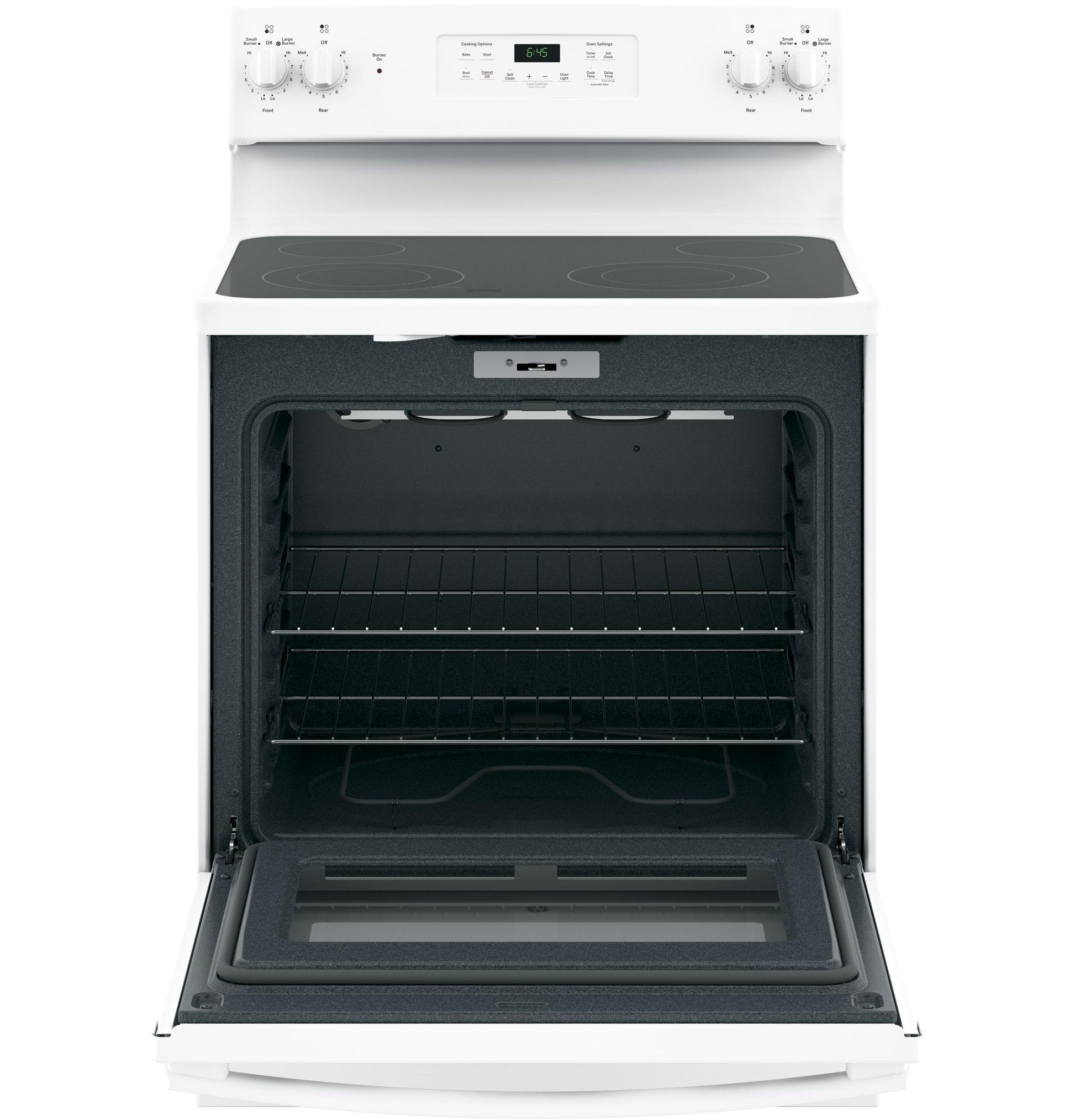

Self-clean oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners

Dual-element Bake
Upper and lower elements produce even heat and great results

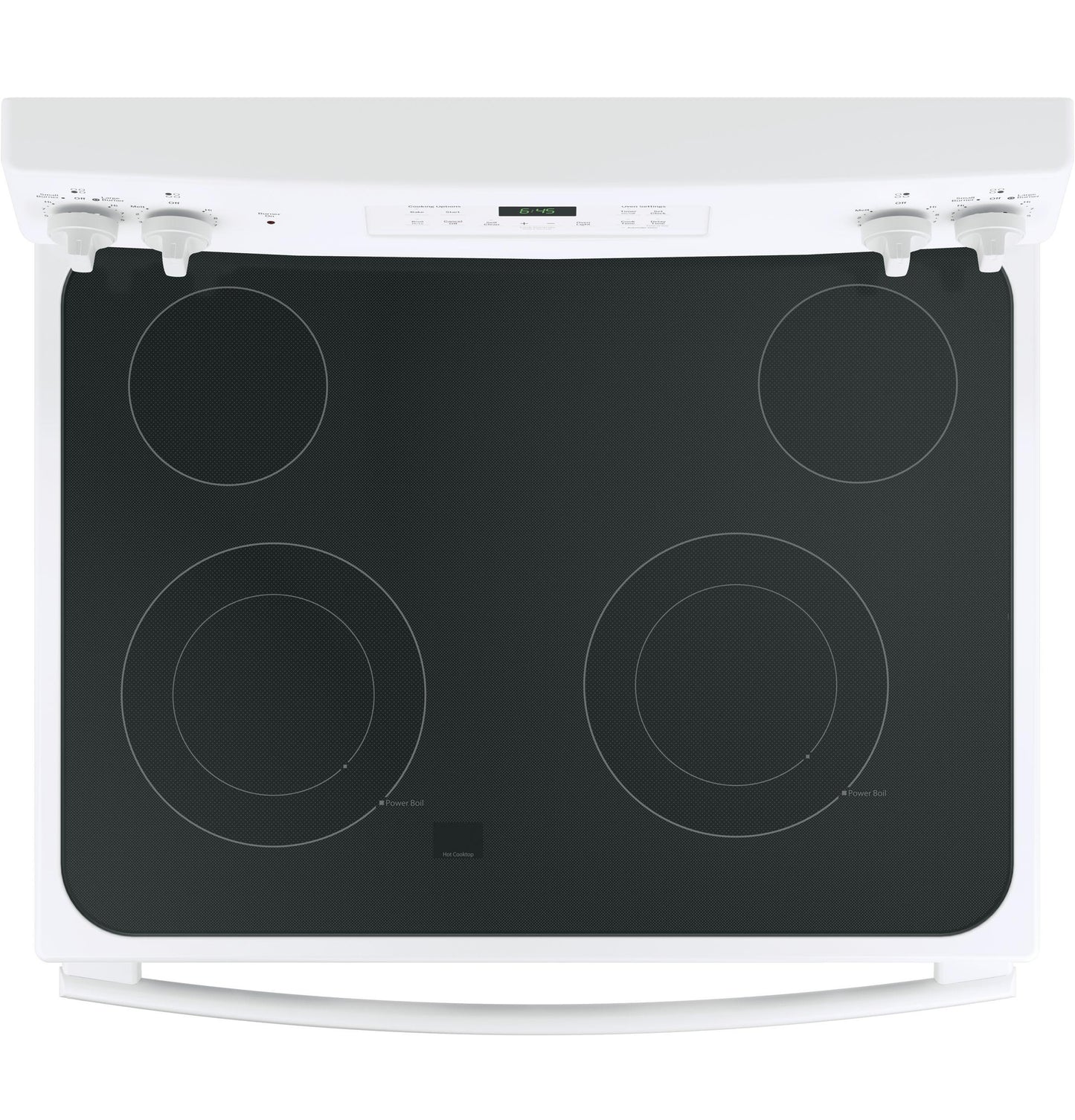

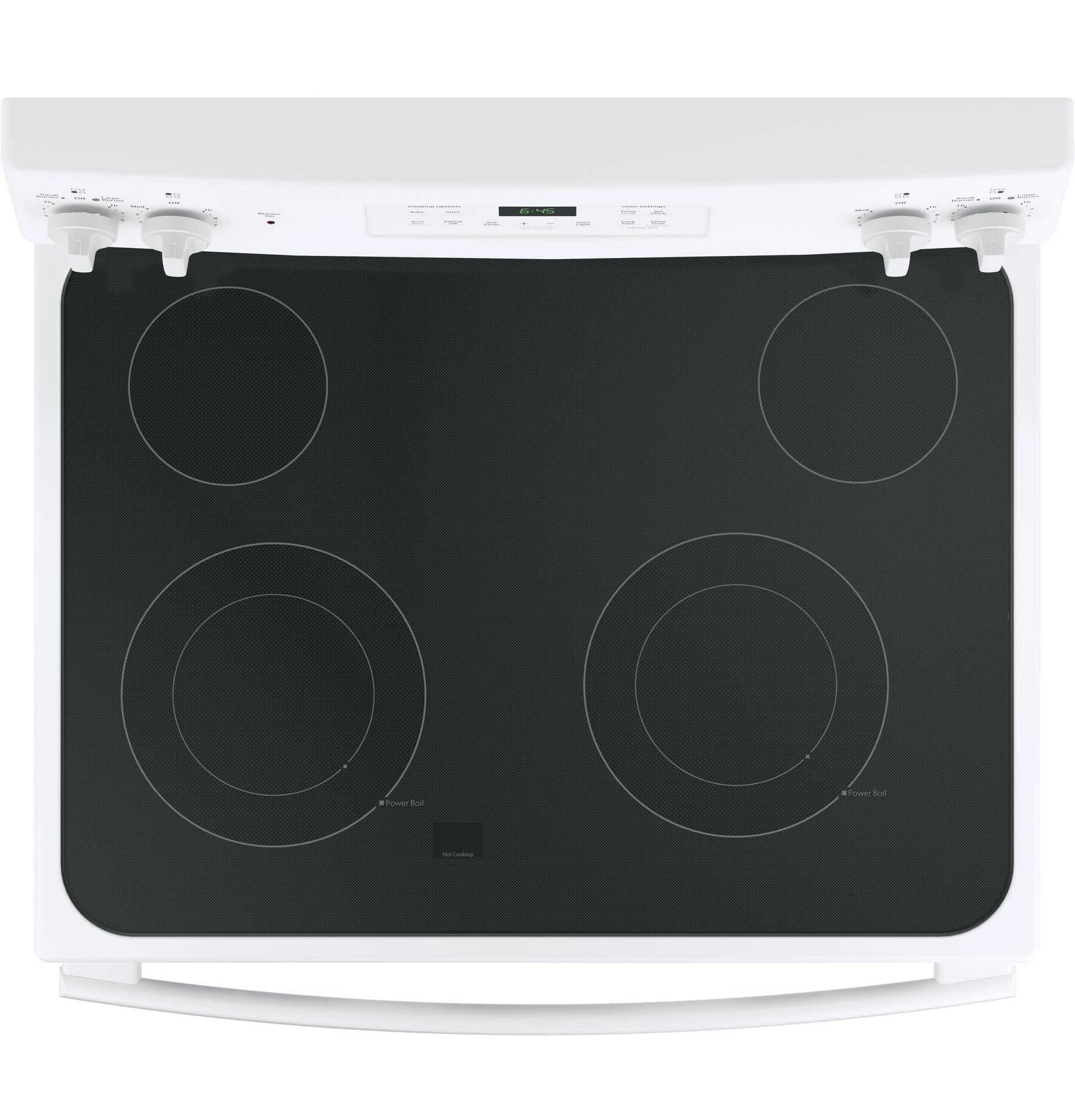

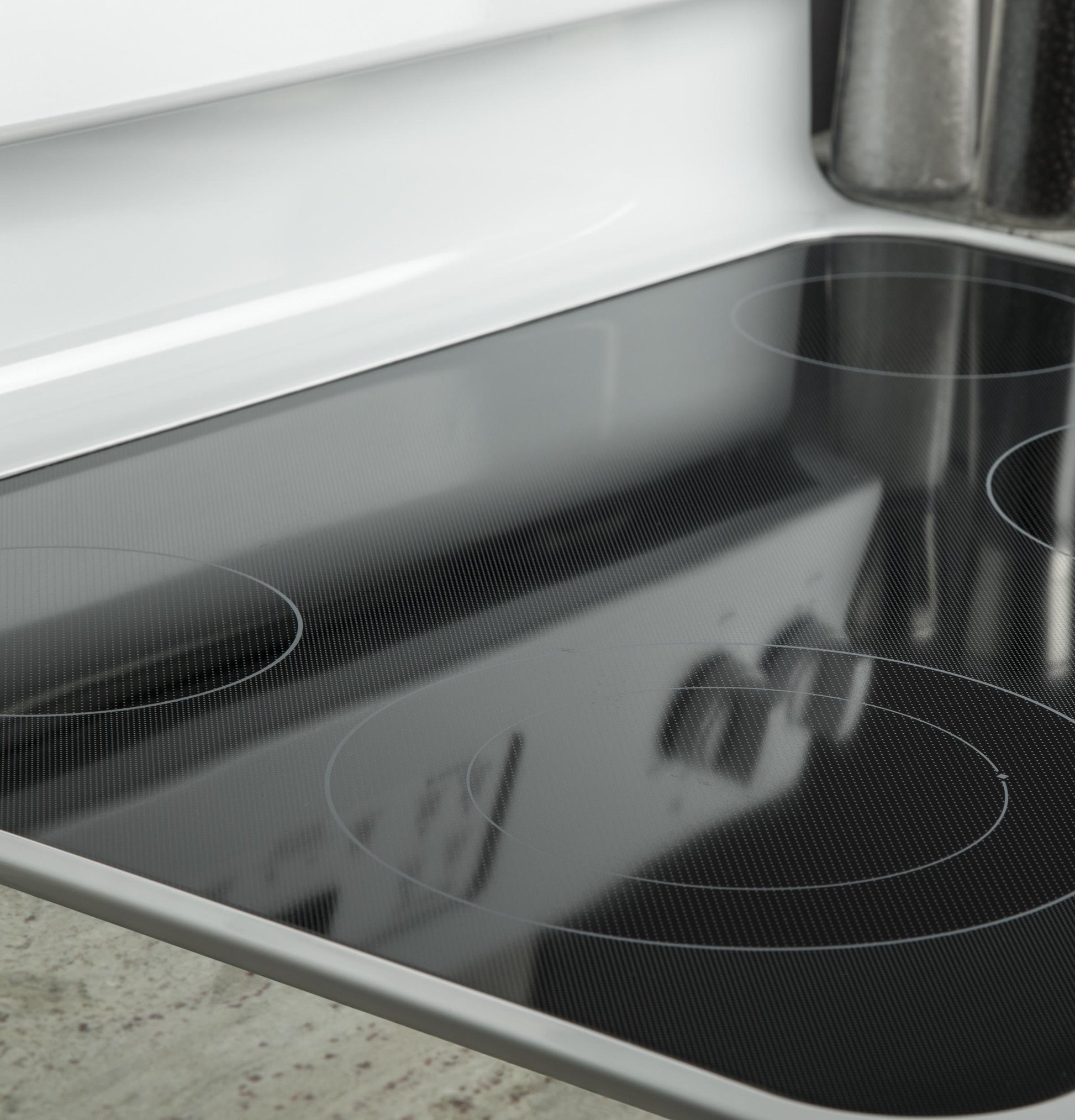

Ceramic glass cooktop
Smooth cooktop easily wipes clean

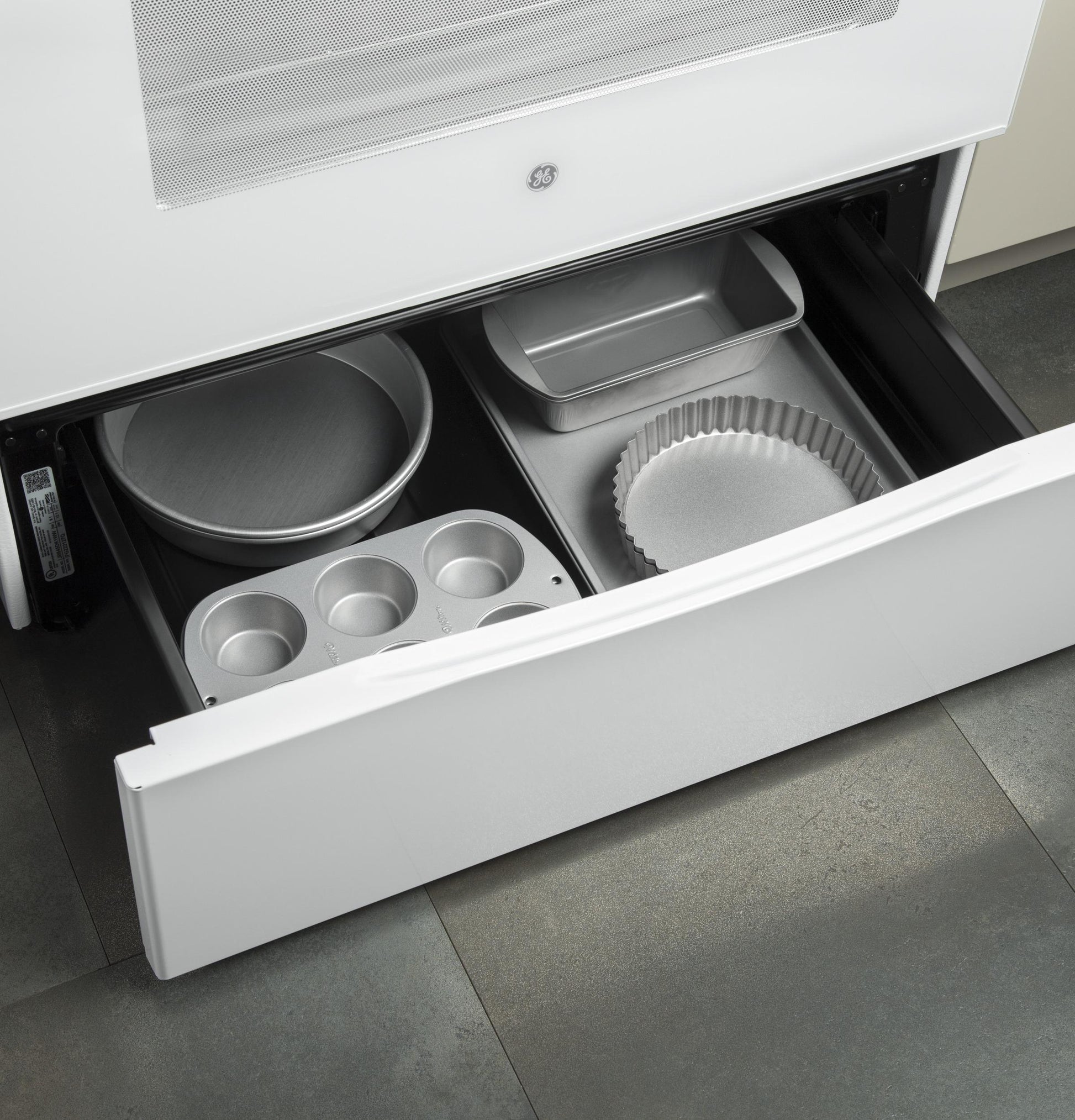

Removable full-width storage drawer
Store cookware or kitchen accessories

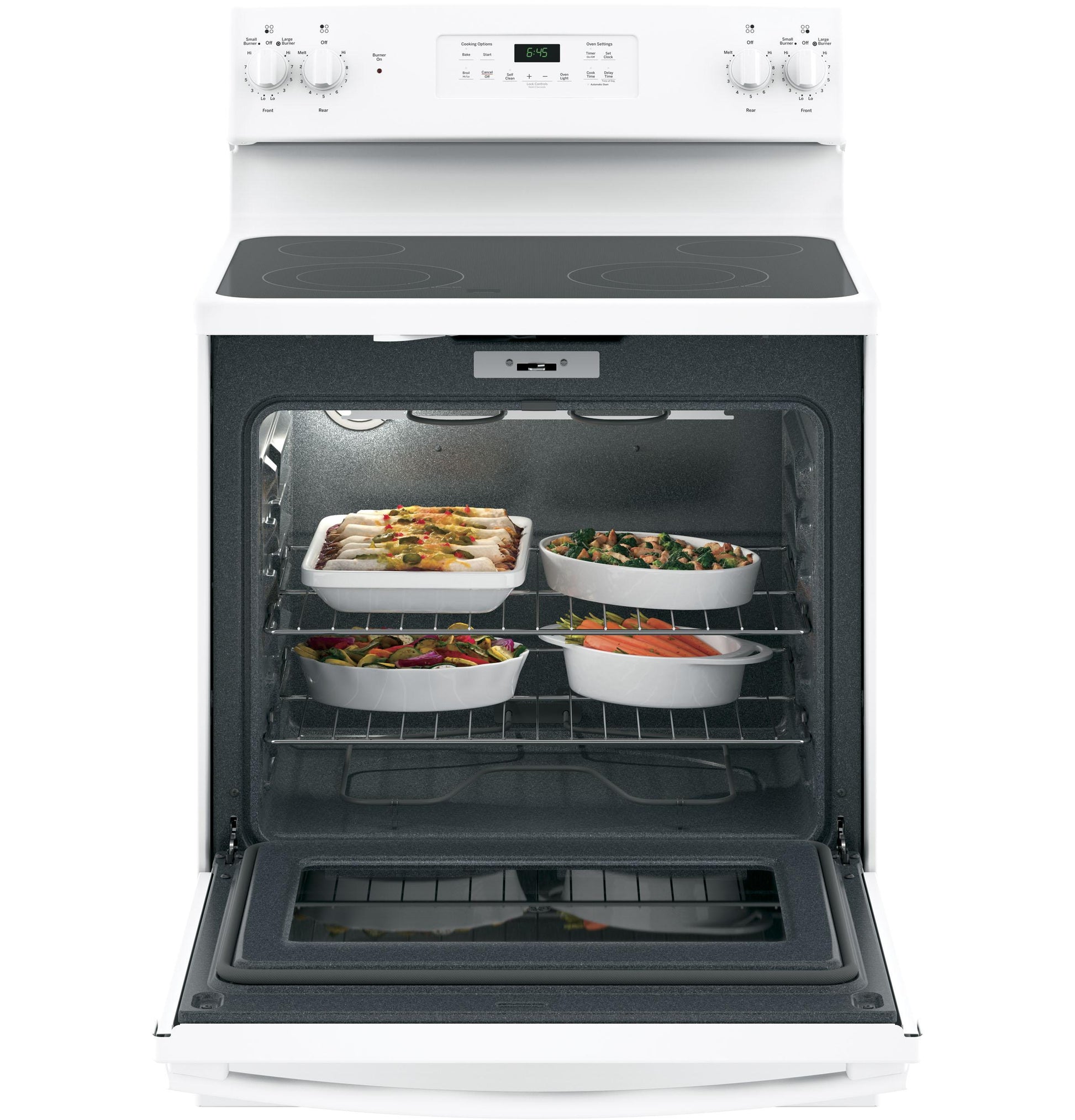

5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once

CAPACITY
Total Capacity (cubic feet)	5.3 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Drawer Type	Storage
App Filter - Cleaning Type	Self-Clean
App Filter - Voltage	240V
App Filter - Cooktop Type	Radiant Smoothtop
APPEARANCE
Handle	Designer Style
Textured Steel Side Panels	Yes
Oven Door Features	Big View Oven Window Glass Door
Handle Color	White
Control Knobs	Gloss White
Color Appearance	White
POWER / RATINGS
Amp Rating at 208V	40
Broiler Wattage	3410W
Amp Rating at 240V	40
KW Rating at 240V	12.1
Bake Wattage	2585W
KW Rating at 208V	9.1
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Optional Accessories	WB48X20881 Roller Rack
Cooktop Cleaning	Cream Included Sponge
WEIGHTS & DIMENSIONS
Net Weight	158 lb
Depth Without Handle	25.5 in
Height to Cooking Surface (in.)	35 3/4 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	179 lb
Overall Width	29.875 in
Overall Height	47 in
Overall Depth	28 in
Depth with Door Open	47.875 in
Oven Interior Dimensions (W x H x D) (in.)	24-1/8 x 19-1/4 x 19-1/2
FEATURES
Cooking System	Traditional
Storage Drawer Features	Removable Full-Width
Oven Control Features	Audible Preheat Signal Auto Oven Shut-Off with Override Auto Self Clean Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock & Kitchen Timer Hi / Low Broil Oven "ON" Light Self-Clean Cool Down Time Display Self-Cleaning Cycling Light

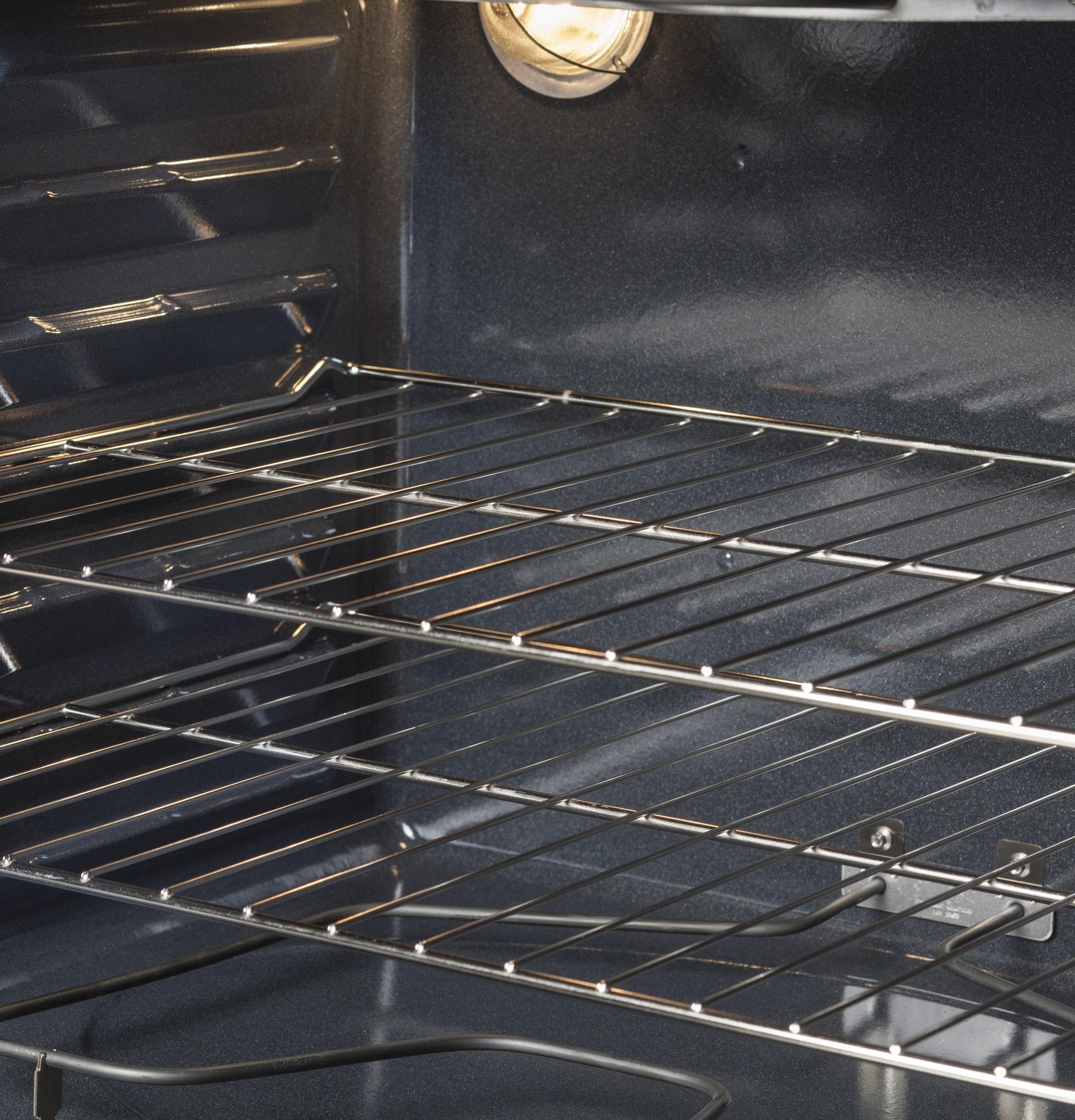

Oven Rack Features	2 Oven Racks
Element - Left Front	9"/6" 3100W Power Boil
Oven Cleaning Type	Self-Clean
Product Type	Free-Standing Single Oven
Heating Element "ON" Indicator Light	1
Cooktop Type	Radiant Smoothtop
Fuel Type	Electric
Element - Right Front	9"/6" 3100W Power Boil
Interior Oven Light	1 Light
Control Location	Backsplash

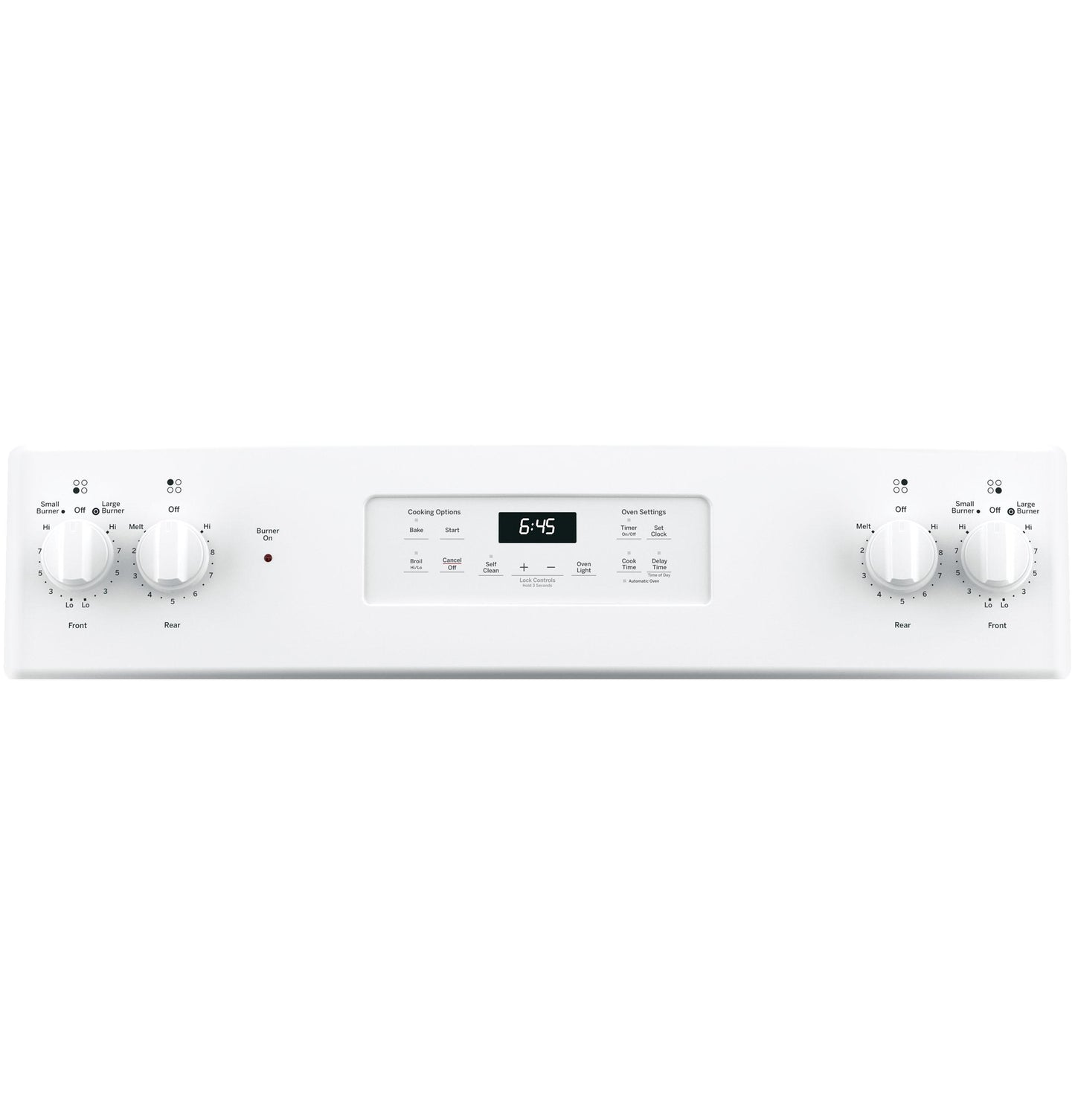

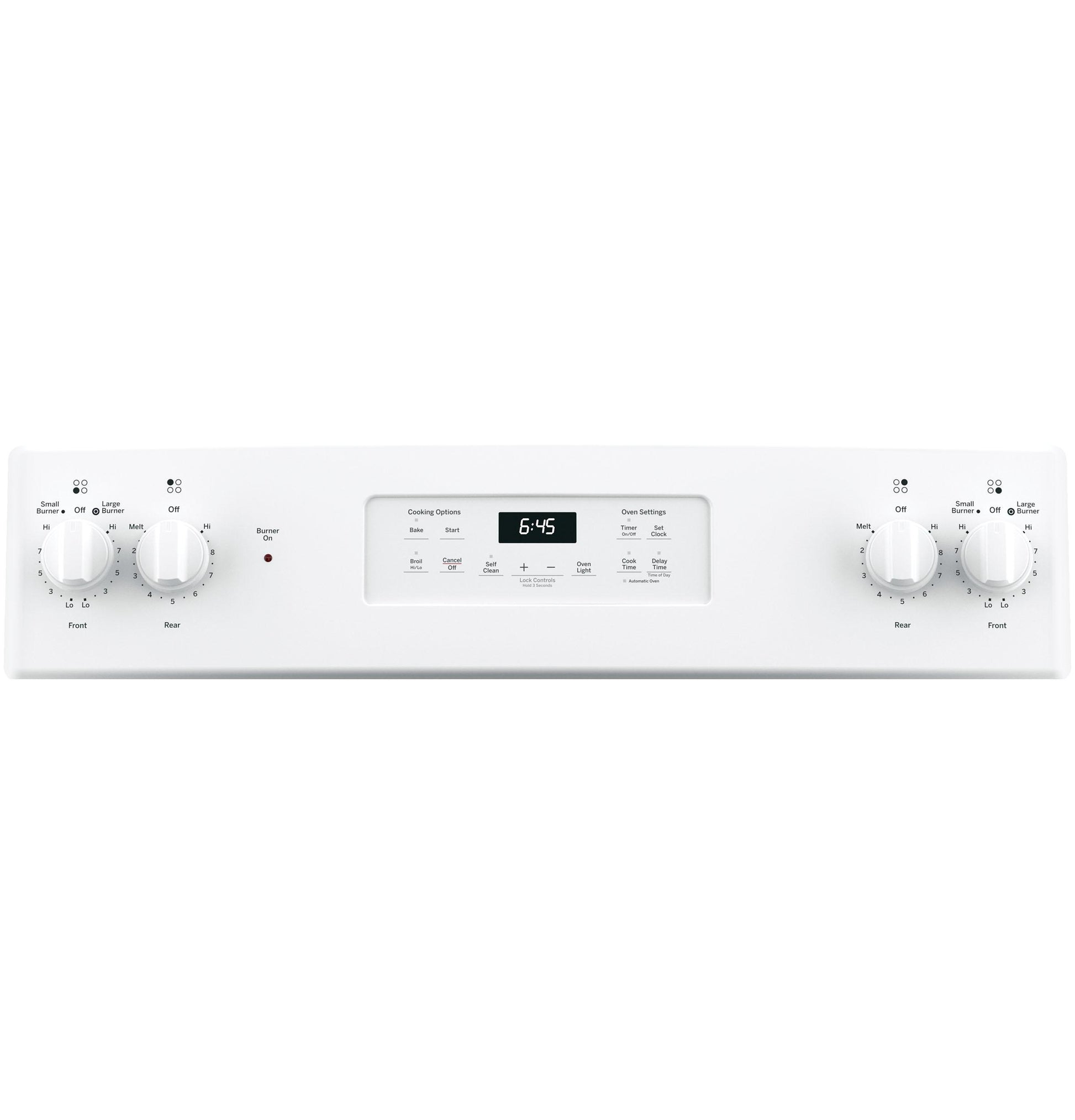

Control Type	Digital Temperature Display Electronic Touchpads
Drawer Type	Storage
Hot Surface Indicator Lights	1
Sabbath Mode	Yes
Element - Left Rear	6" 1200W
Cooking Technology	Traditional
Configuration	Range with Storage Drawer
Oven Features	4-Pass Bake Element 4-Pass Broil Element
Melt Setting	Yes
OU Certified	No
Cooktop Burner Type	Radiant Smoothtop
Element - Right Rear	6" 1200W
Cooktop Surface	One-Piece Upswept White Patterned Ceramic Glass
Oven Rack Positions (Single or Upper/Lower)	6
