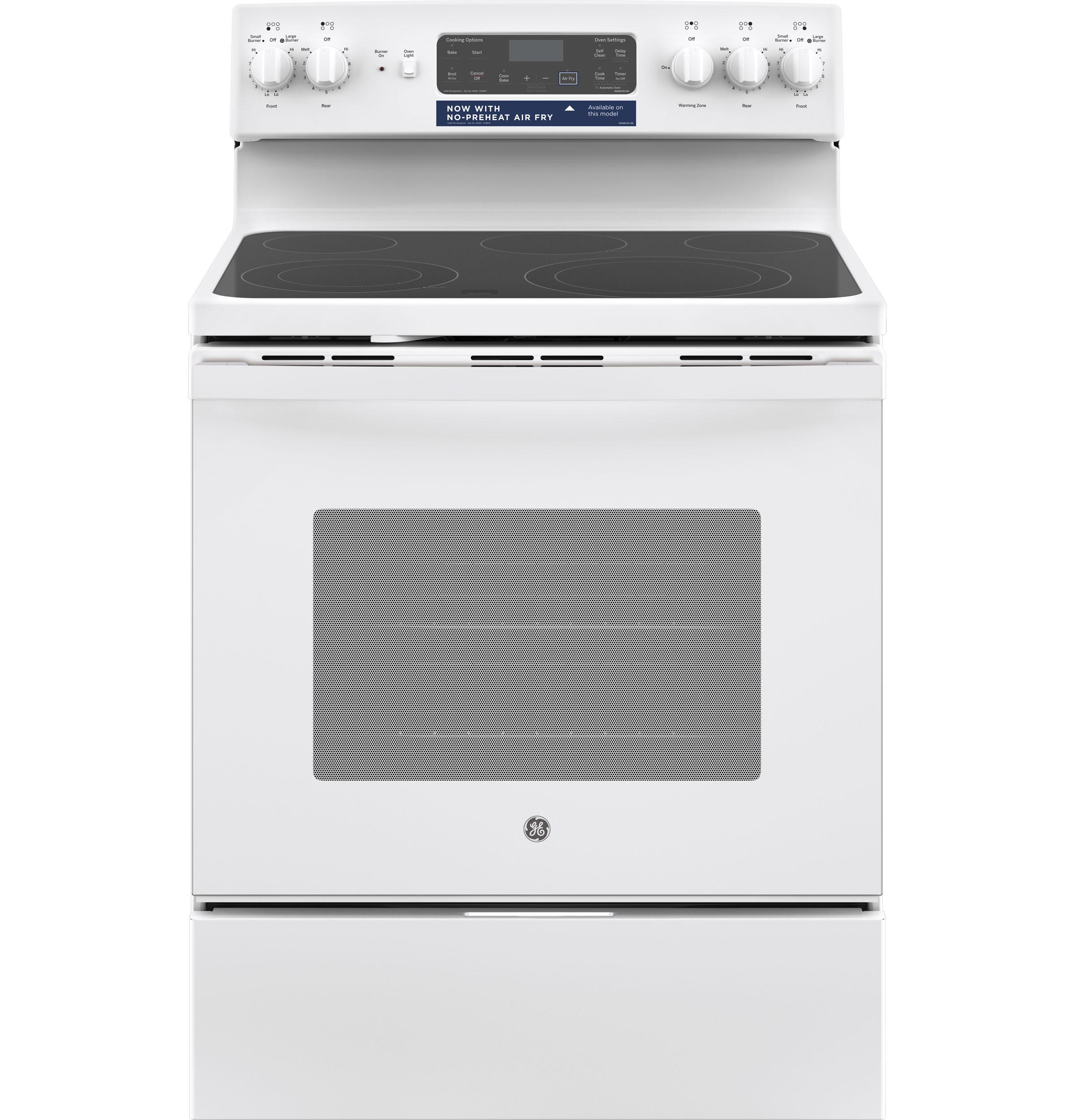

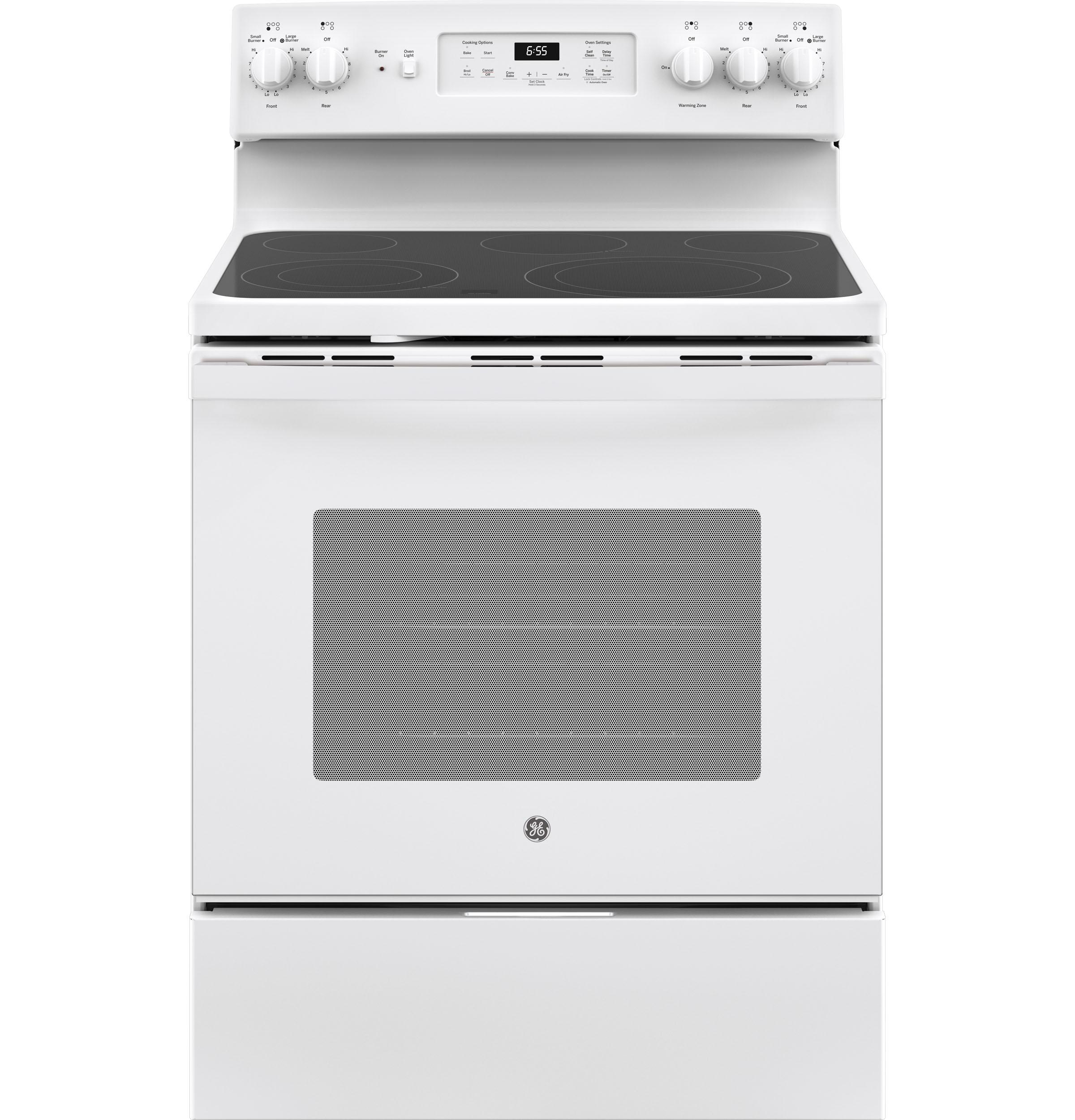

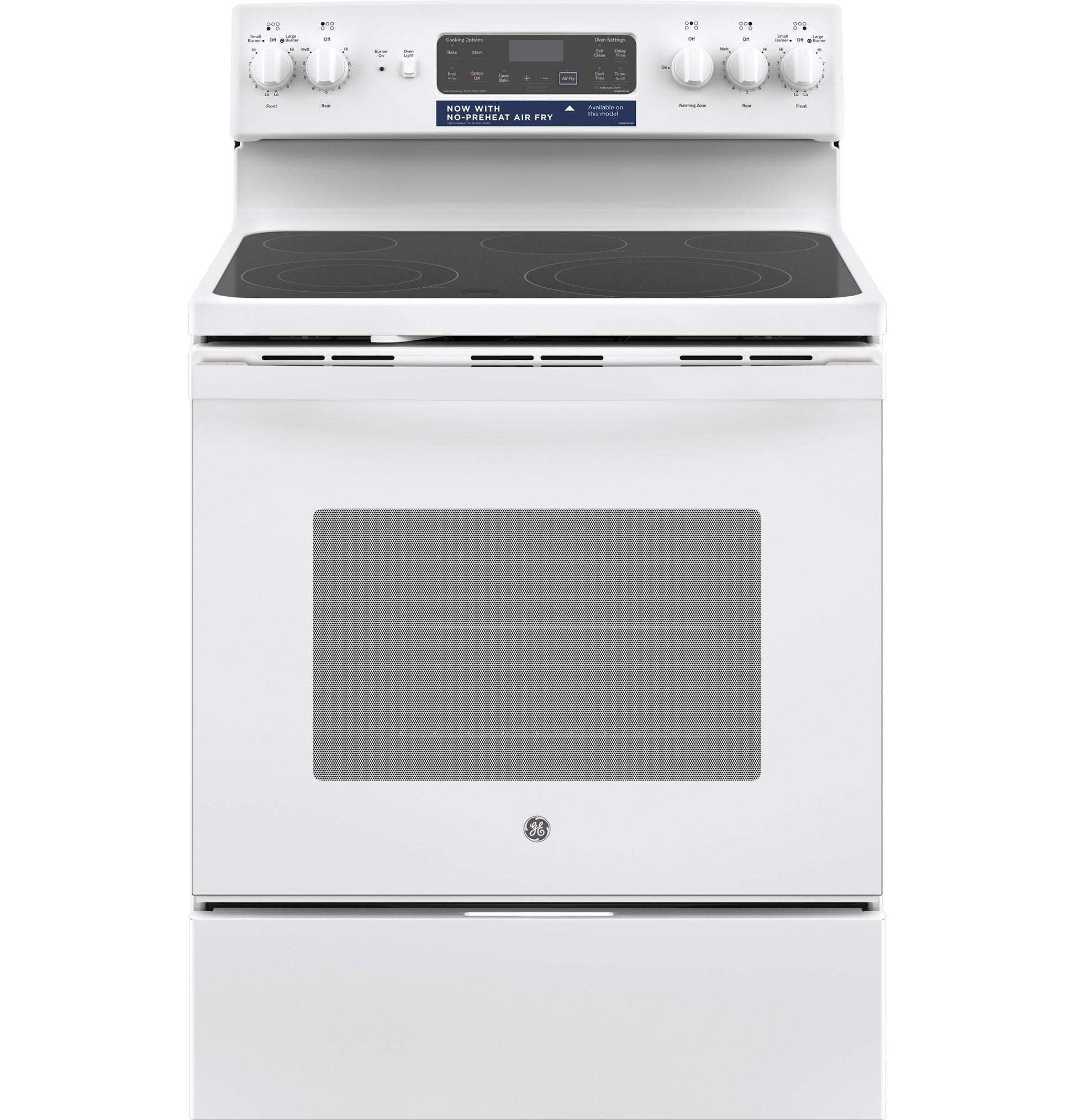

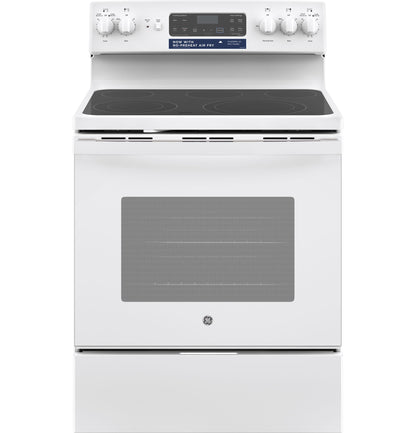

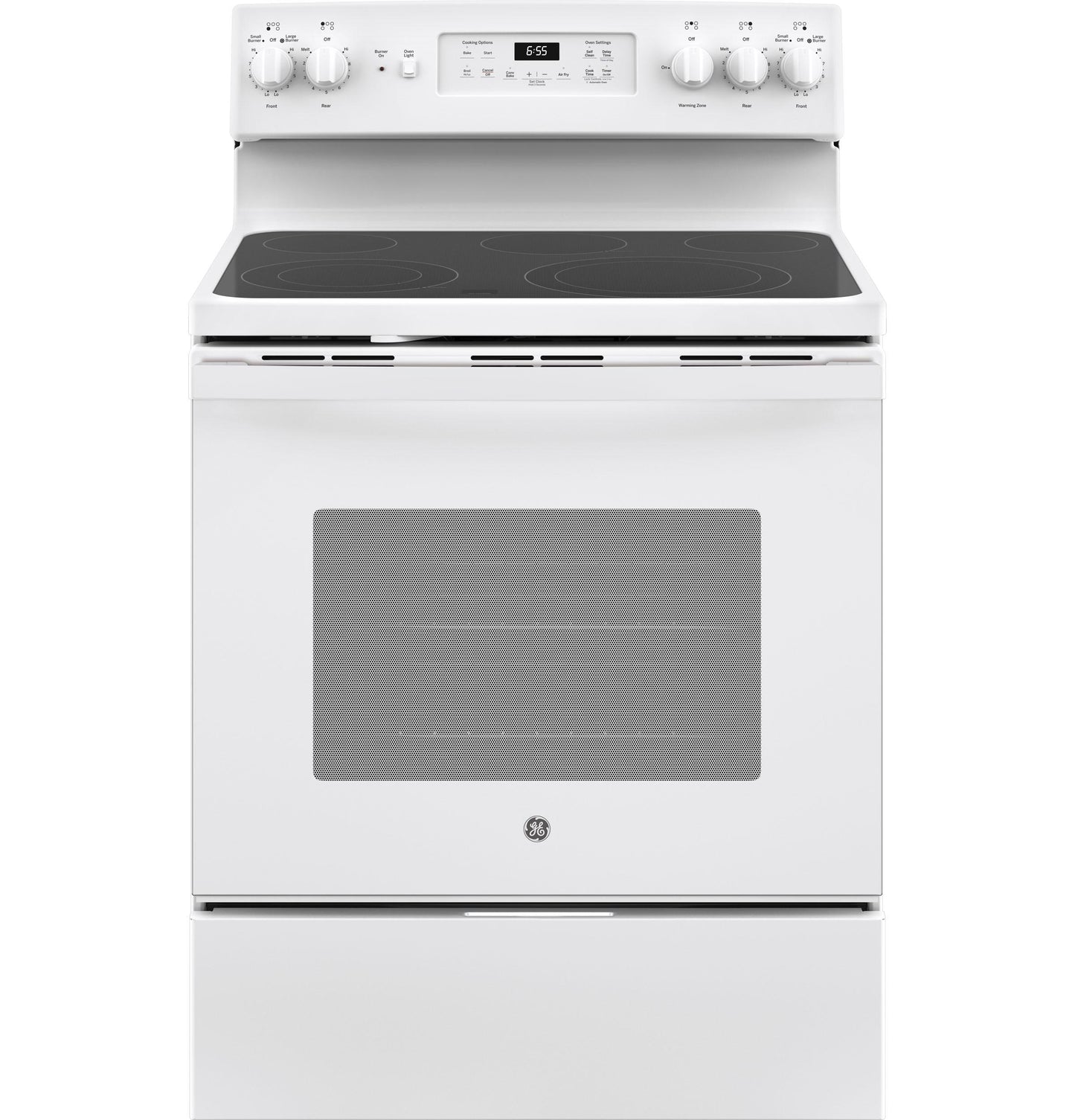

GE® 30" Free-Standing Electric Convection Range JB655DKWW
Discontinued



































- No-Preheat Air Fry
- 12"/9" dual element
- 9"/6" Power boil element
- Convection
- Fifth element warming zone
- Self-clean oven
- Large capacity oven
- Removable storage drawer
- Removable full-width storage drawer
- Delay bake
- Delay clean

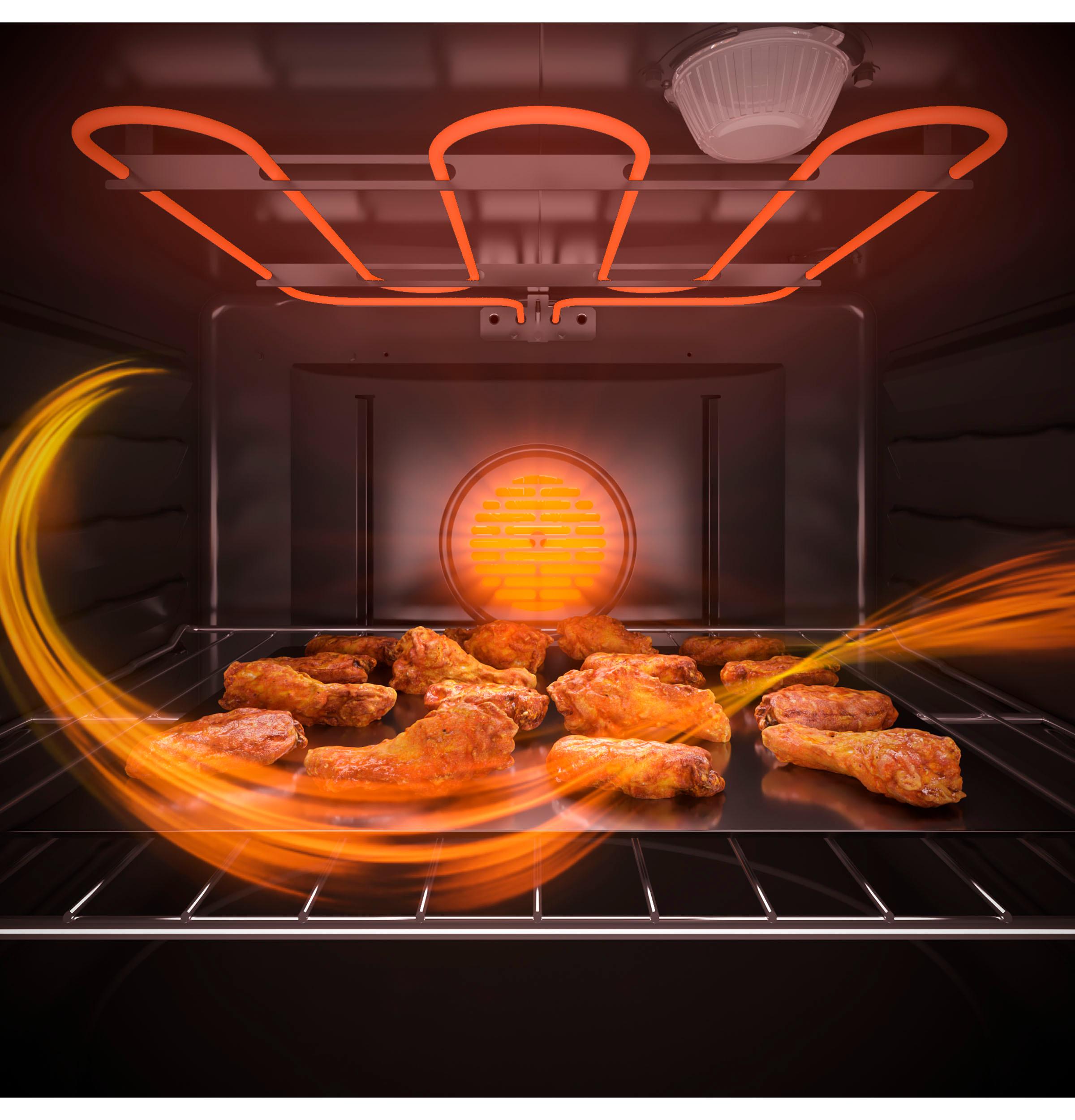

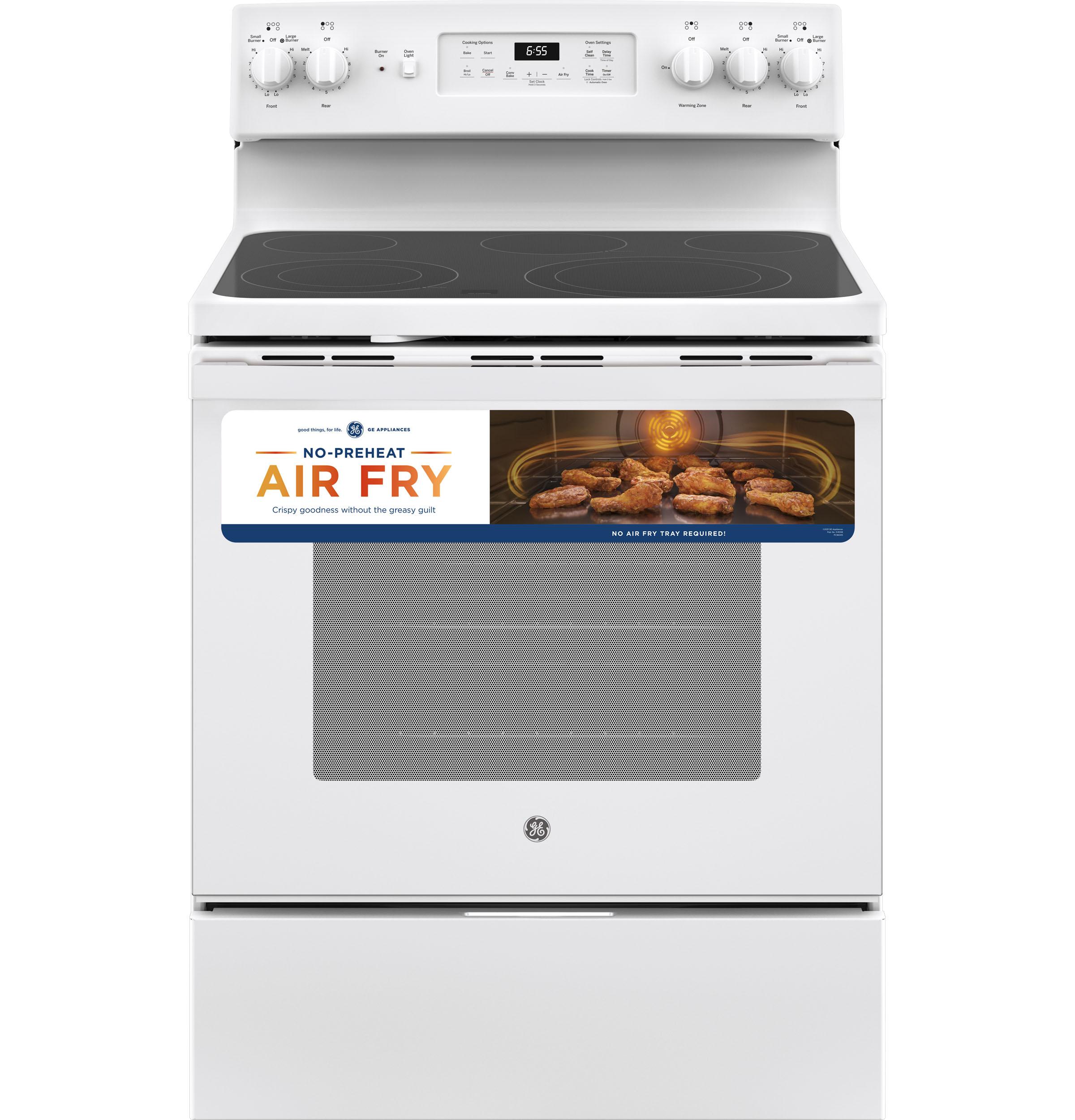

No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

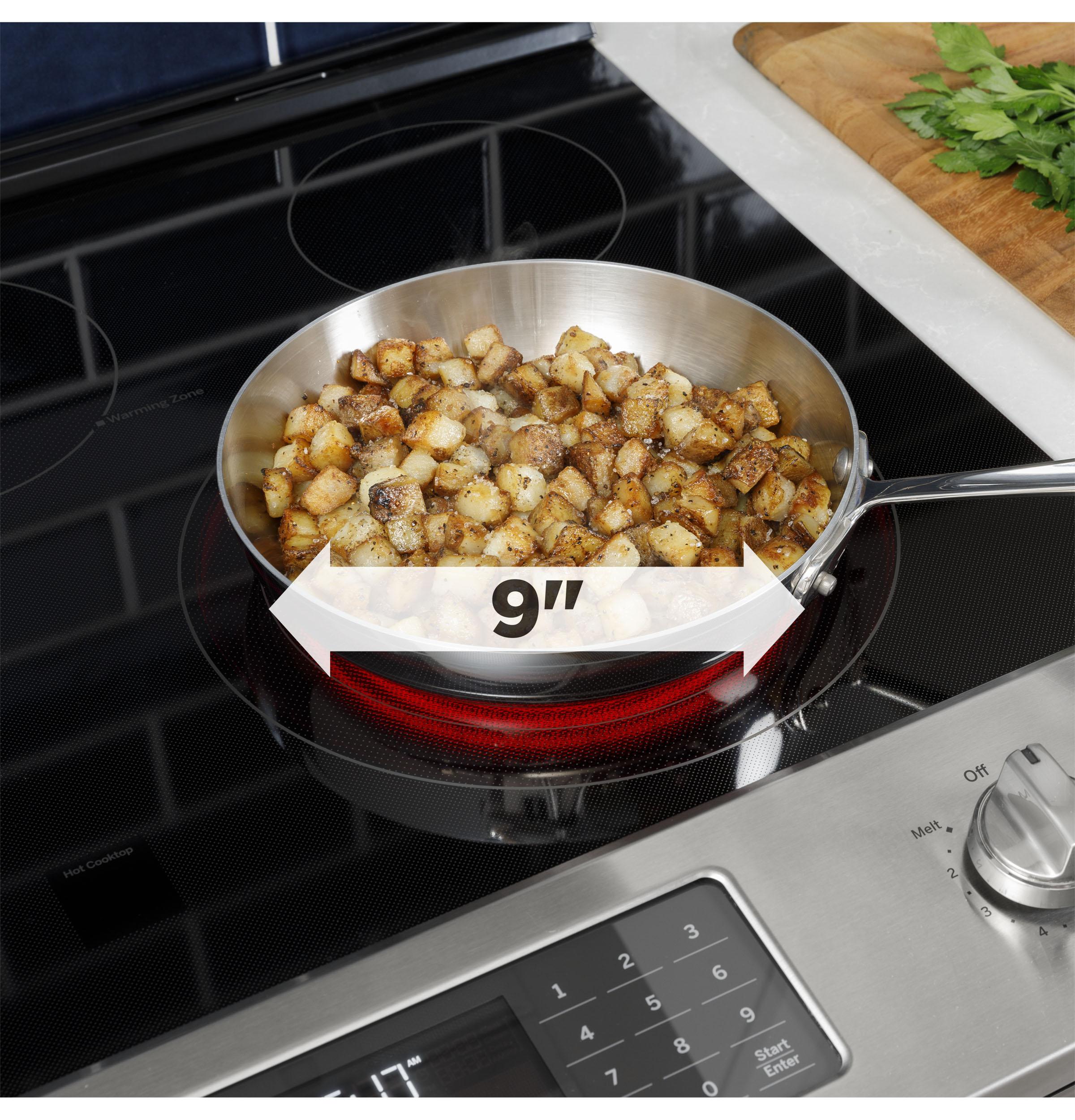

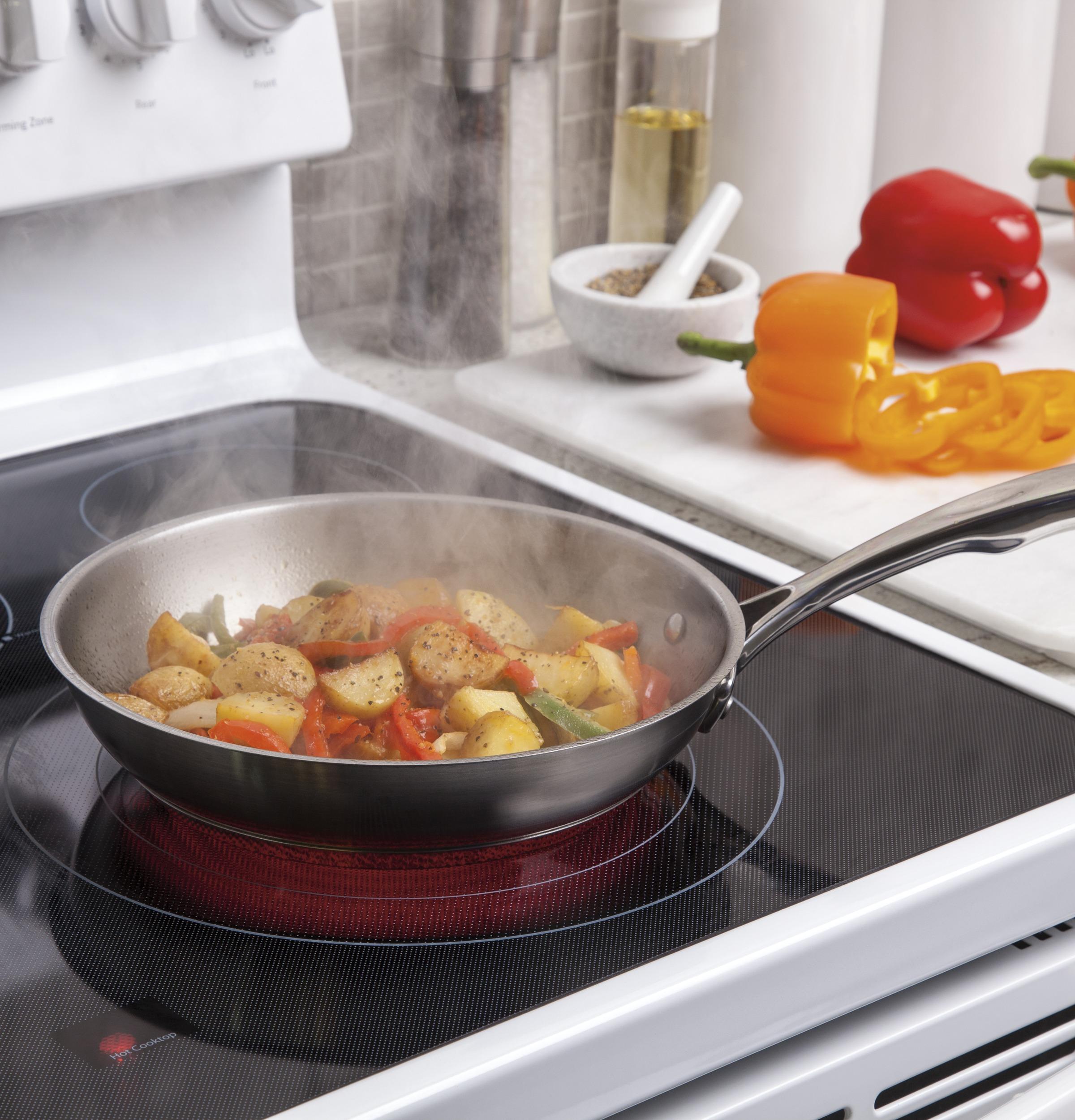

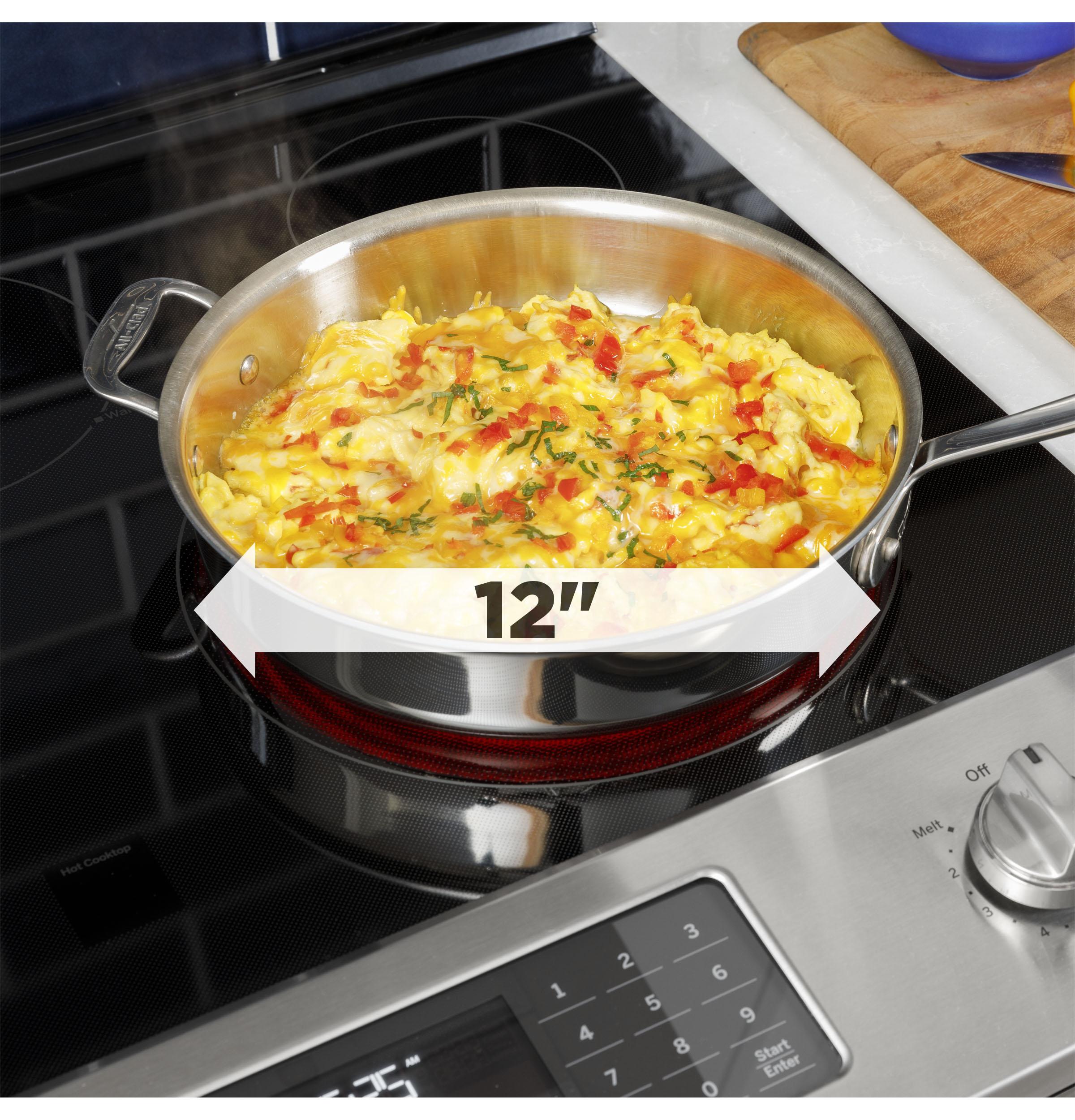

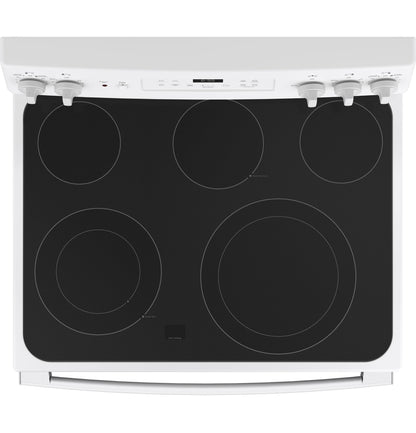

12"/9" dual element
A dual burner cooktop lets you choose between 12-inch and 9-inch electric elements for a more convenient cooking experience

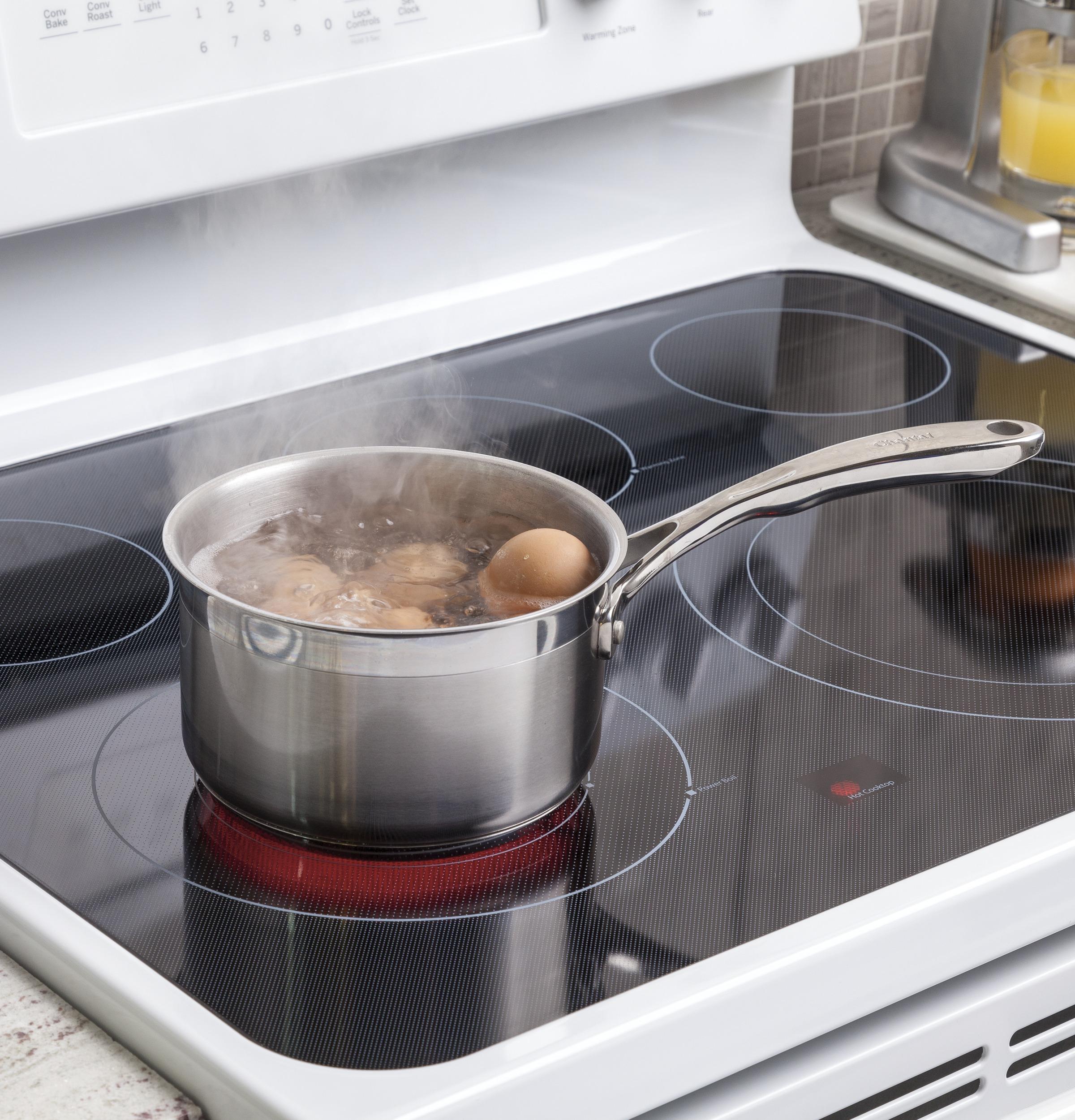

9"/6" Power boil element
A power boiler produces concentrated heat for rapid boiling in a flexible 9-inch/6-inch burner size, so you spend less time waiting and more time cooking

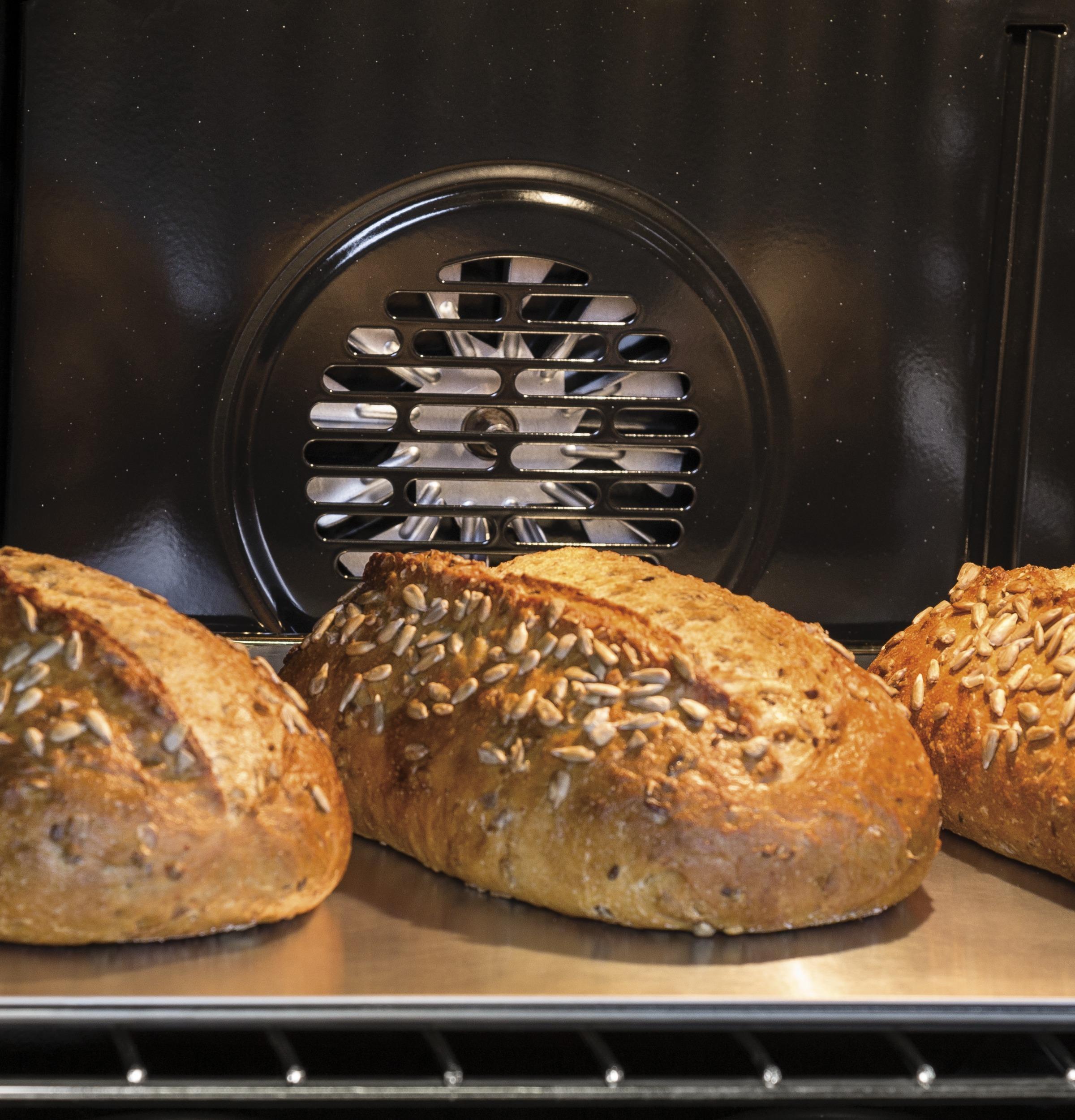

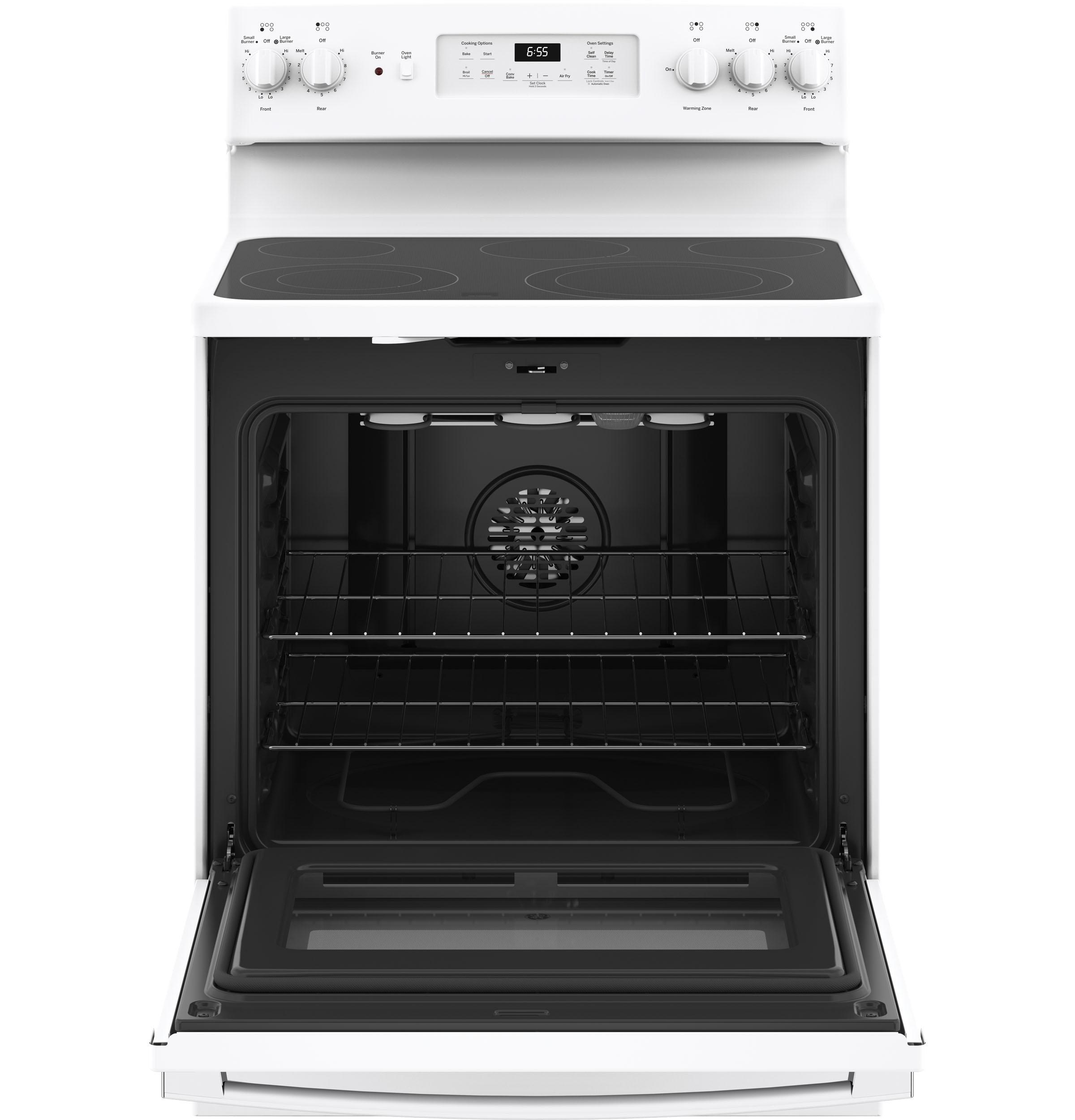

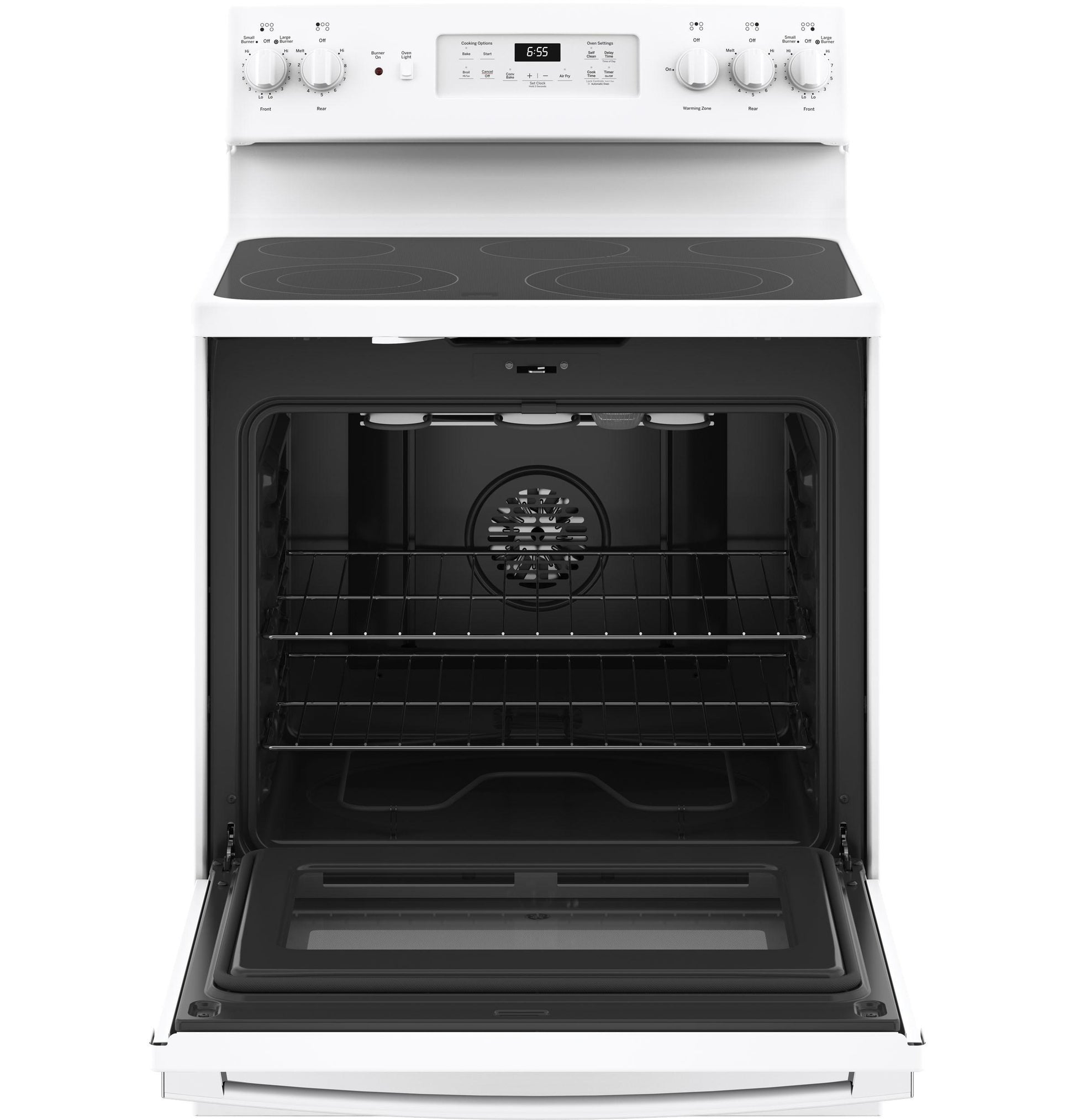

Convection
This convection oven cooks and browns more evenly, using a rear fan to circulate hot air

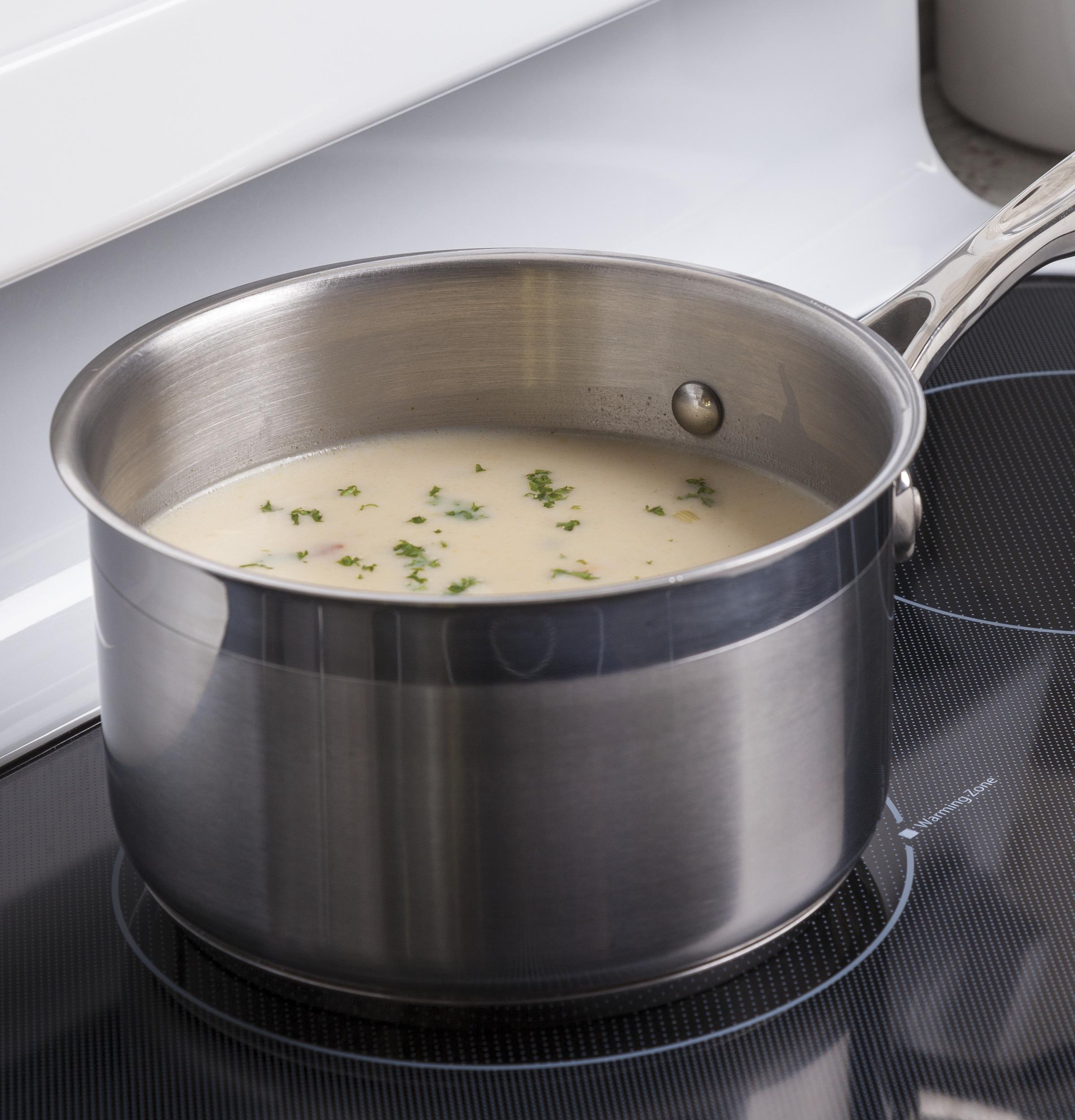

Fifth element warming zone
A convenient low-heat warming zone provides even temperature control for foods on the cooktop
Self-clean oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners

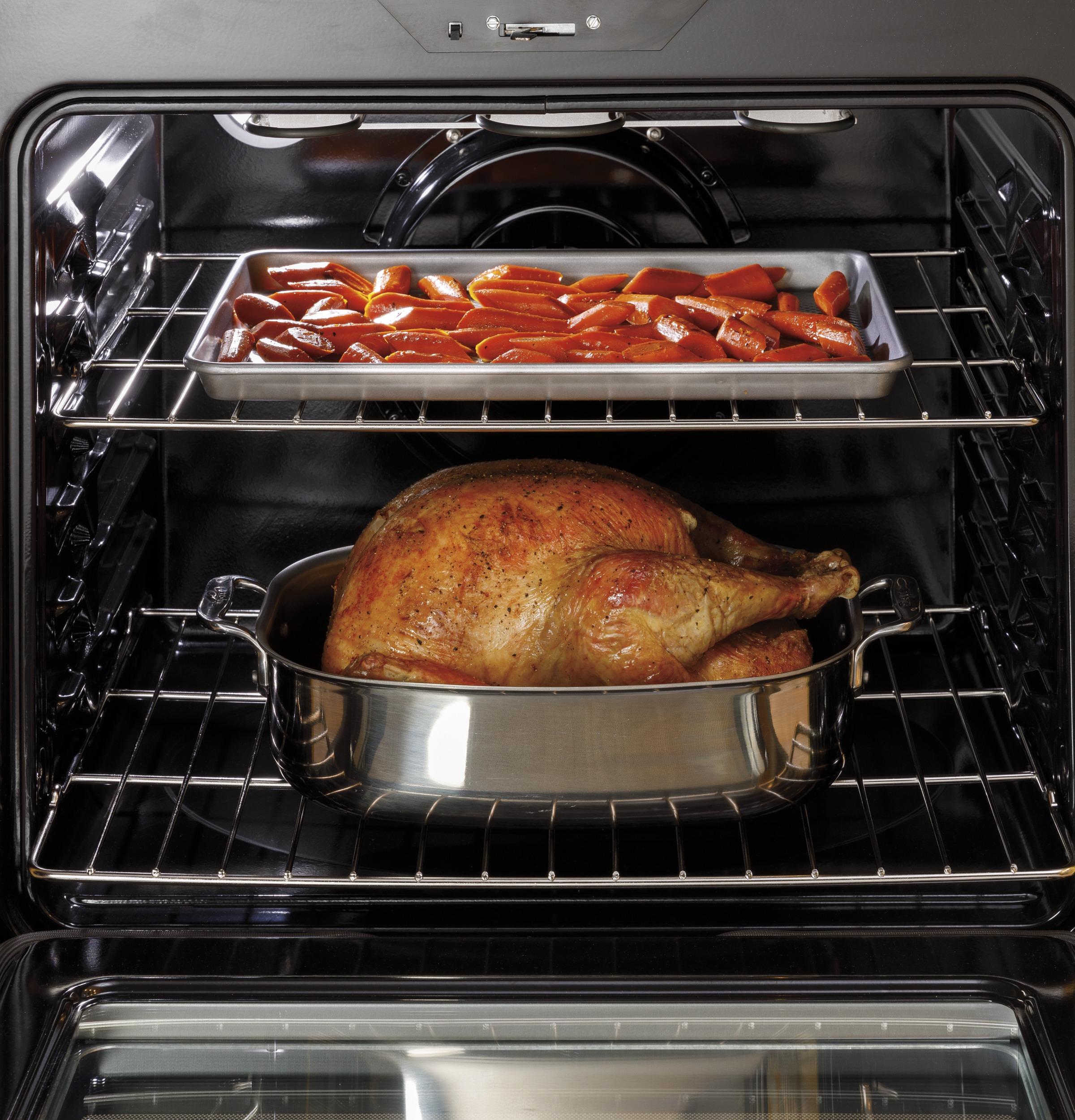

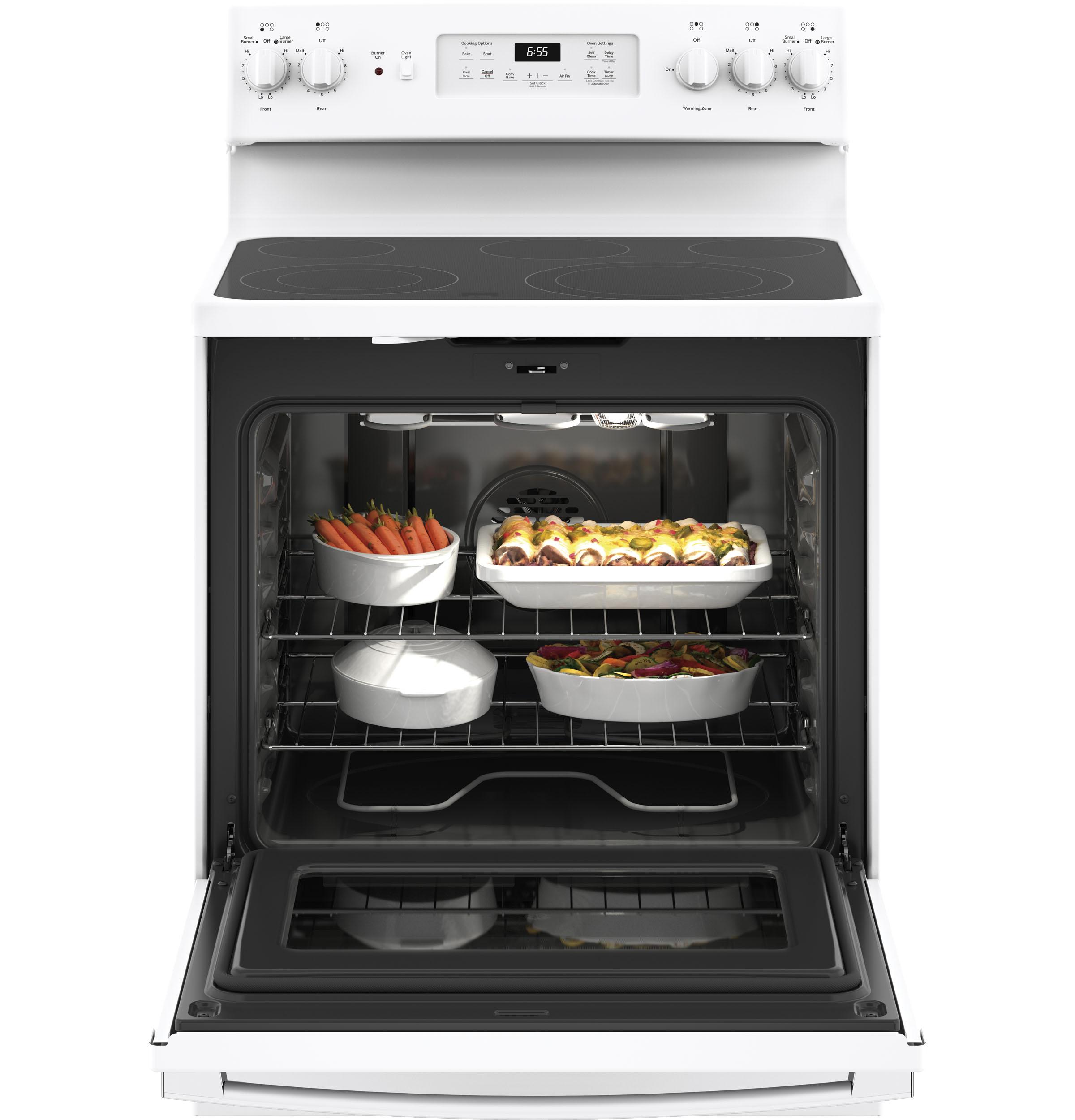

Large capacity oven
Cook an entire meal at once with a 5.3 cubic foot oven which provides enough room for multiple dishes
Removable storage drawer
A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
Removable full-width storage drawer
Store cookware or kitchen accessories
Delay bake
Delay bake technology allows you to set up the oven to start preheating and baking at a later time
Delay clean
Program the oven to start a self-cleaning cycle at a later time
CAPACITY | |
Total Capacity (cubic feet) | 5.3 |
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Control Type | Electronic touchpad |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Fuel Type | Electric |
App Filter - Cooking Technology | Convection |
App Filter - Convection | Yes |
App Filter - Drawer Type | Storage |
App Filter - Cleaning Type | Self-Clean |
App Filter - Voltage | 240V |
App Filter - Cooktop Type | Radiant Smoothtop |
APPEARANCE | |
Handle | Color-Matched Designer Style |
Textured Steel Side Panels | Yes |
Oven Door Features | Big View Oven Window Glass Door |
Control Knobs | Gloss White |
Color Appearance | White |
POWER / RATINGS | |
Amp Rating at 208V | 40 |
Broiler Wattage | 3800W |
Amp Rating at 240V | 40 |
KW Rating at 240V | 12.5 |
Bake Wattage | 2585W |
KW Rating at 208V | 9.3 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ACCESSORIES | |
Optional Accessories | WB48X20881 Roller Rack |
Cooktop Cleaning | Cream Included |
WEIGHTS & DIMENSIONS | |
Net Weight | 151 |
Depth Without Handle | 25.5 |
Height to Cooking Surface (in.) | 35 3/4 - 36 1/2 |
Cabinet Width | 30 |
Approximate Shipping Weight | 171 |
Overall Width | 29.875 |
Overall Height | 47 |
Overall Depth | 28 |
Depth with Door Open | 47.875 |
Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
FEATURES | |
Cooking System | Convection |
Storage Drawer Features | Removable Full-Width |
Element - Center | 6" 80W Warming Zone |

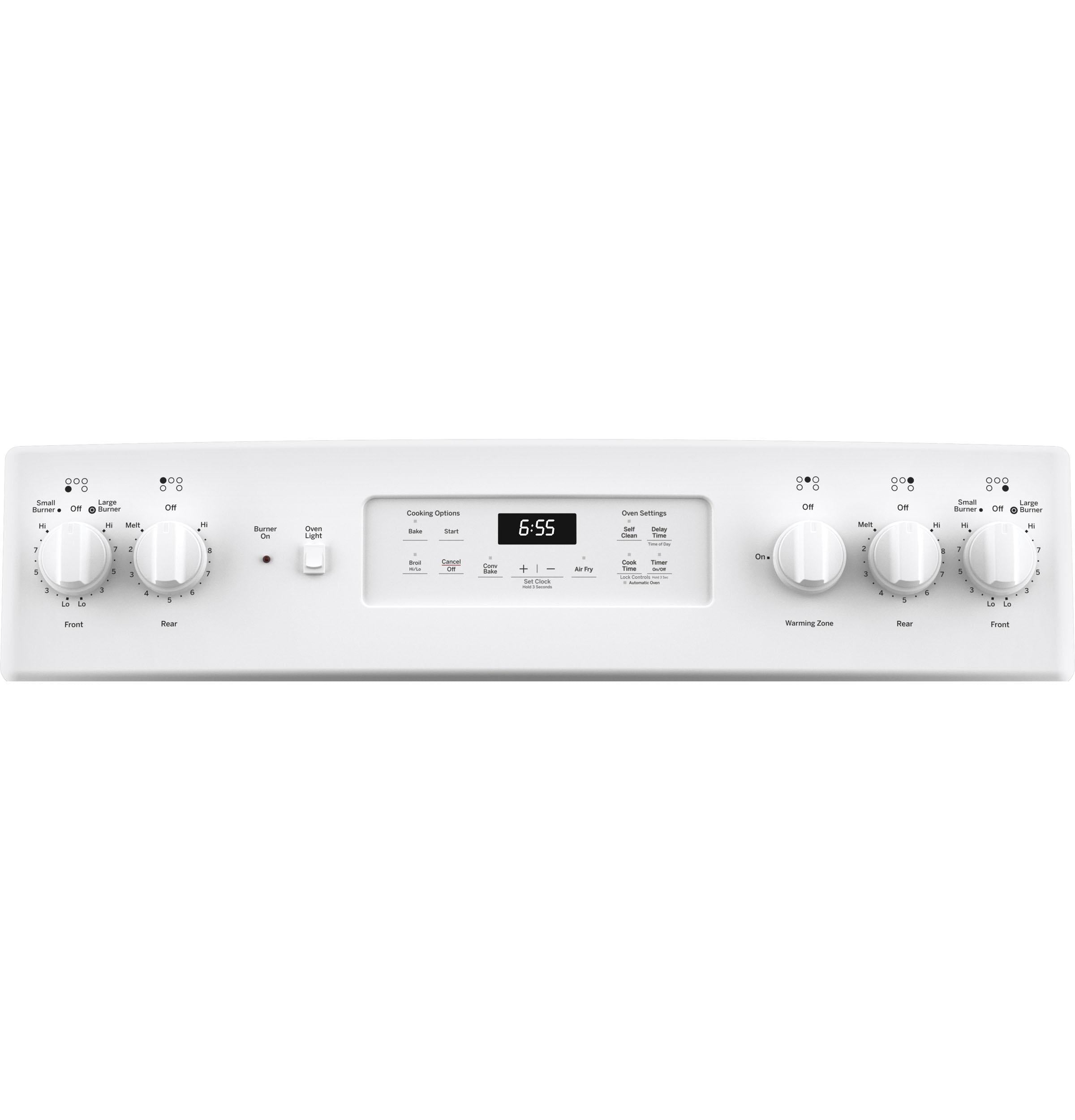

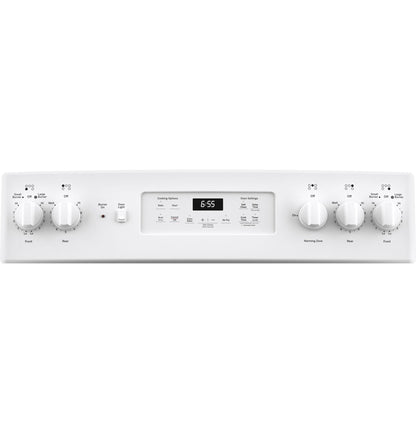

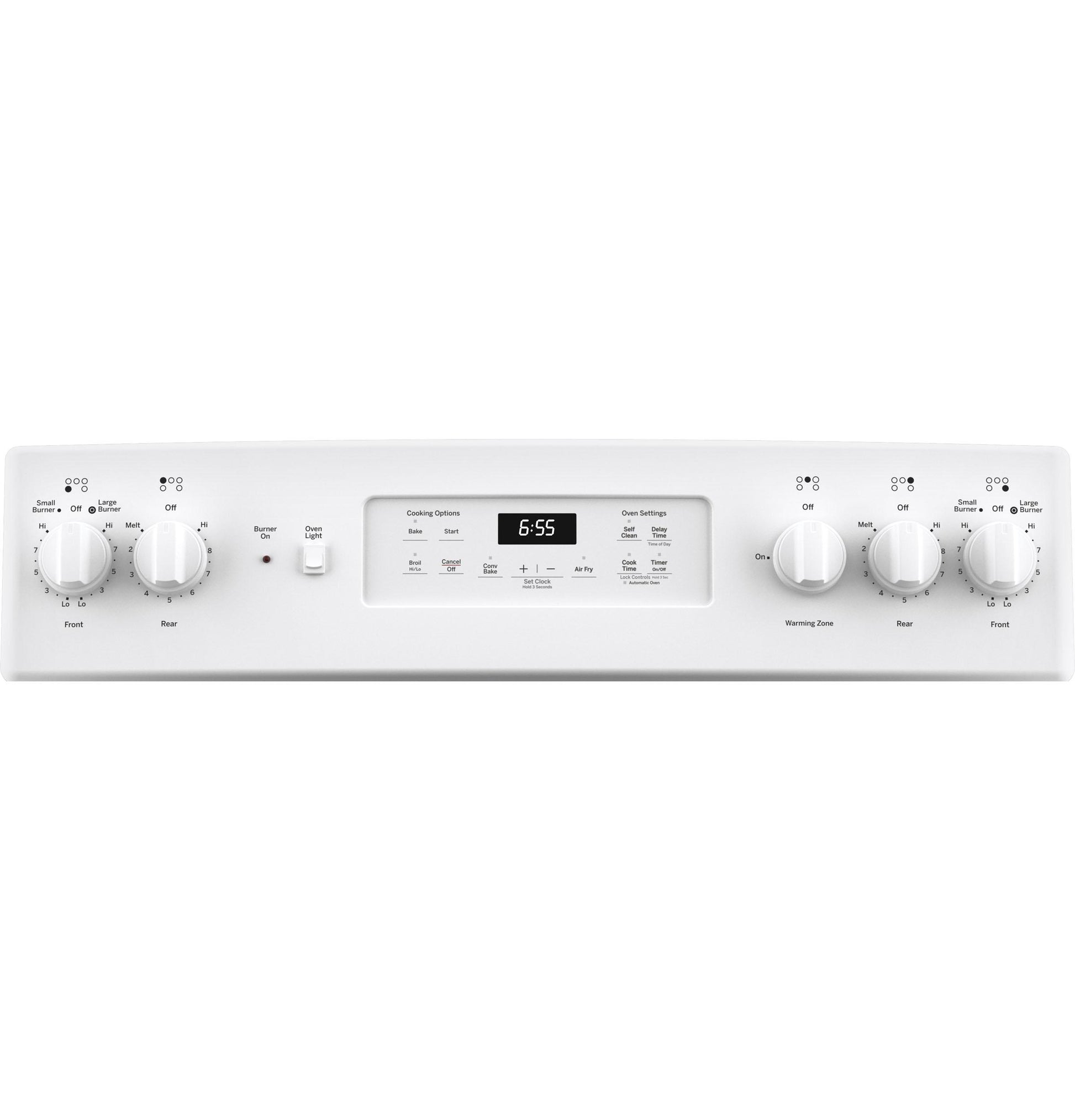

Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off with Override Auto Recipe Conversion Auto Self Clean Convection Bake Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock & Kitchen Timer Hi / Low Broil Oven "ON" Light Self-Clean Cool Down Time Display Self-Cleaning Cycling Light |

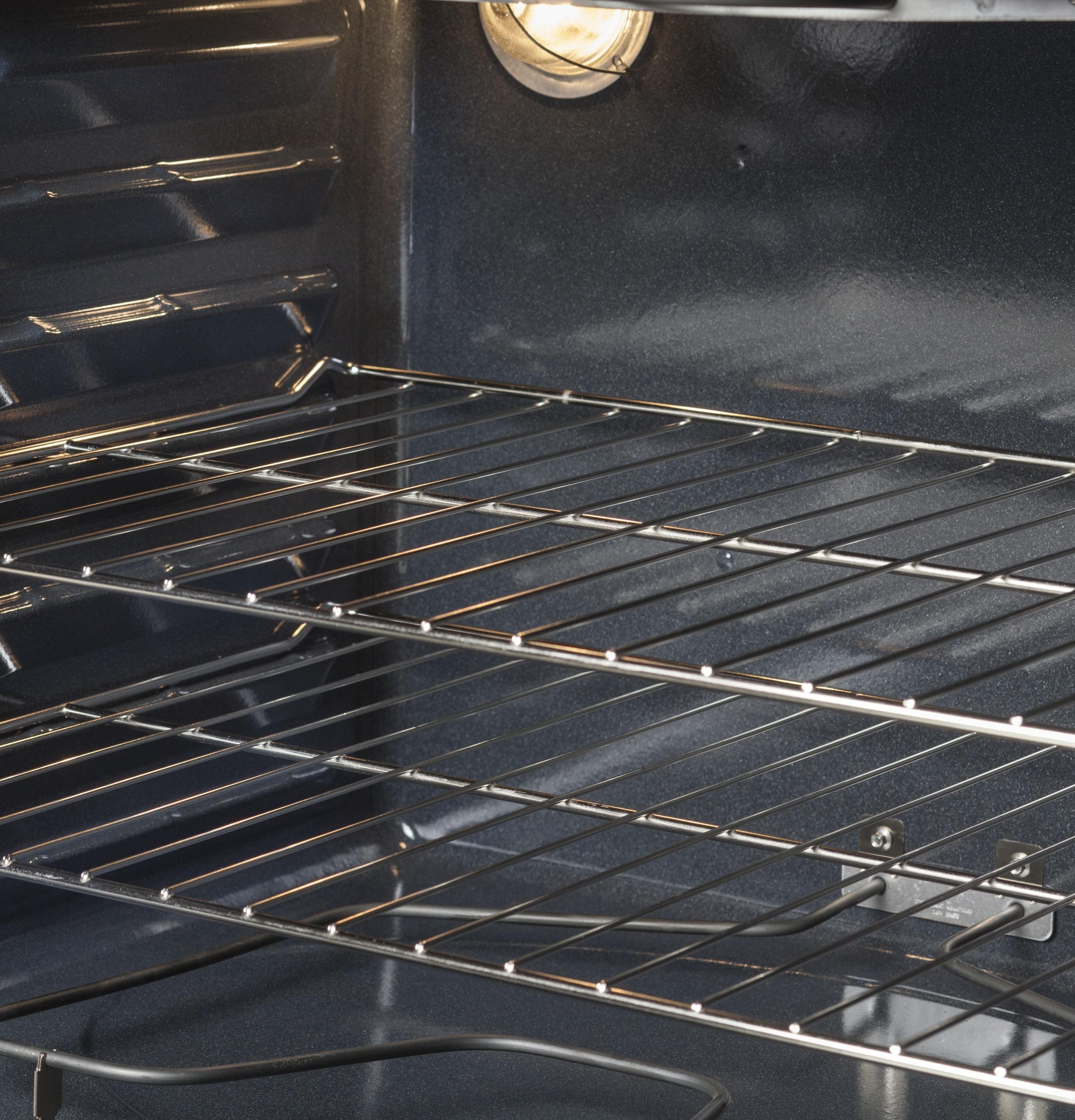

Oven Rack Features | 2 Oven Racks 6 Rack Positions |
Element - Left Front | 9"/6" 3100W Power Boil |
Oven Cleaning Type | Self-Clean |
Product Type | Free-Standing Single Oven |
Heating Element "ON" Indicator Light | 1 |
Cooktop Type | Radiant Smoothtop |
Fuel Type | Electric |
Element - Right Front | 12"/9" 3000W |
Interior Oven Light | 1 Incandescent |
Control Location | Backsplash |
Control Type | Digital Temperature Display Electronic Touchpads |
Drawer Type | Storage |
Hot Surface Indicator Lights | 1 |
Element - Left Rear | 6" 1200W |
Cooking Technology | Convection |
Configuration | Range with Storage Drawer |
Oven Features | 4-Pass Bake Element 6-Pass Broil Element |
Melt Setting | Yes |
Oven Cooking Modes | No Preheat Air Fry |
Cooktop Burner Type | Radiant Smoothtop |
Element - Right Rear | 6" 1200W |

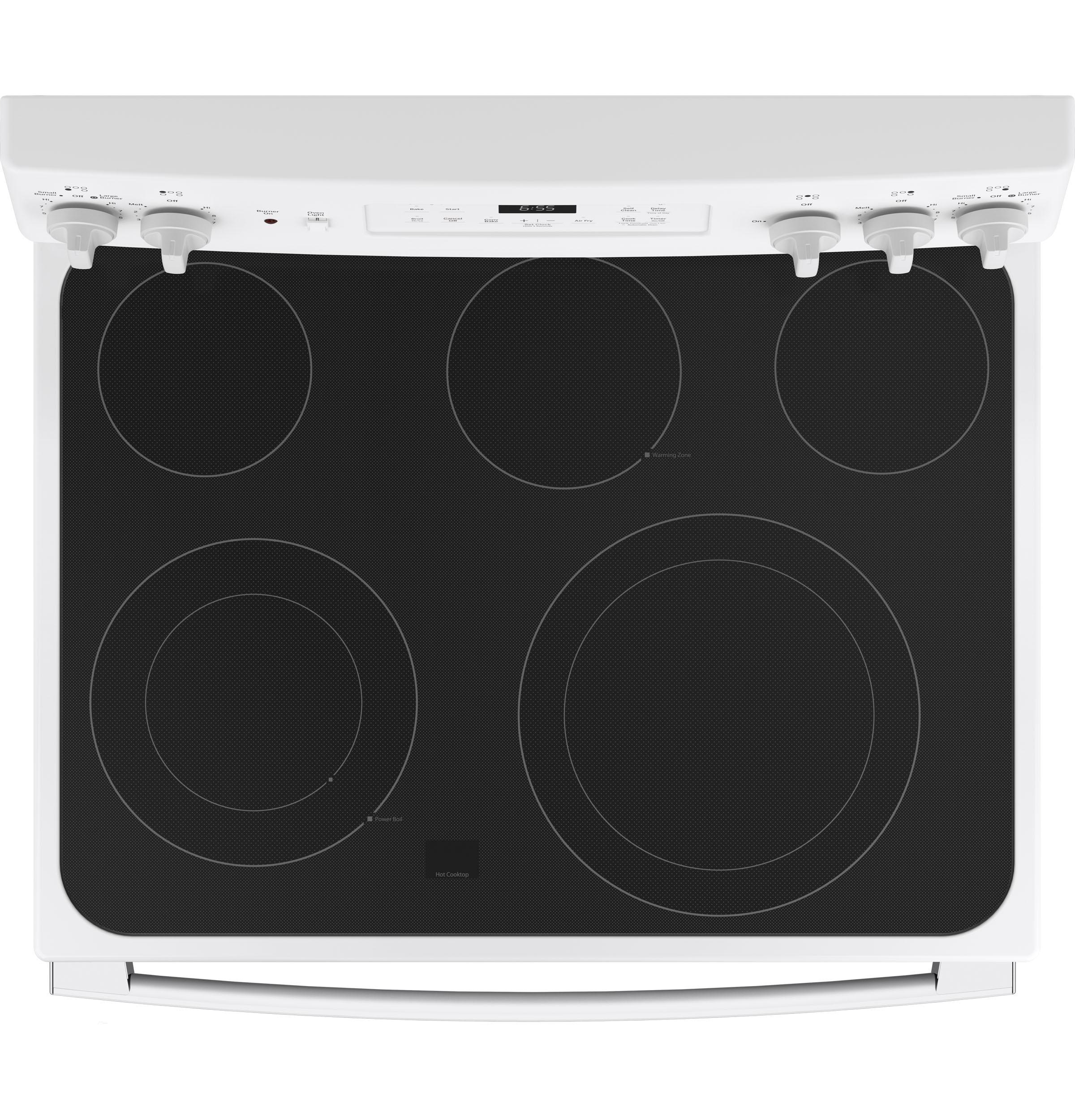

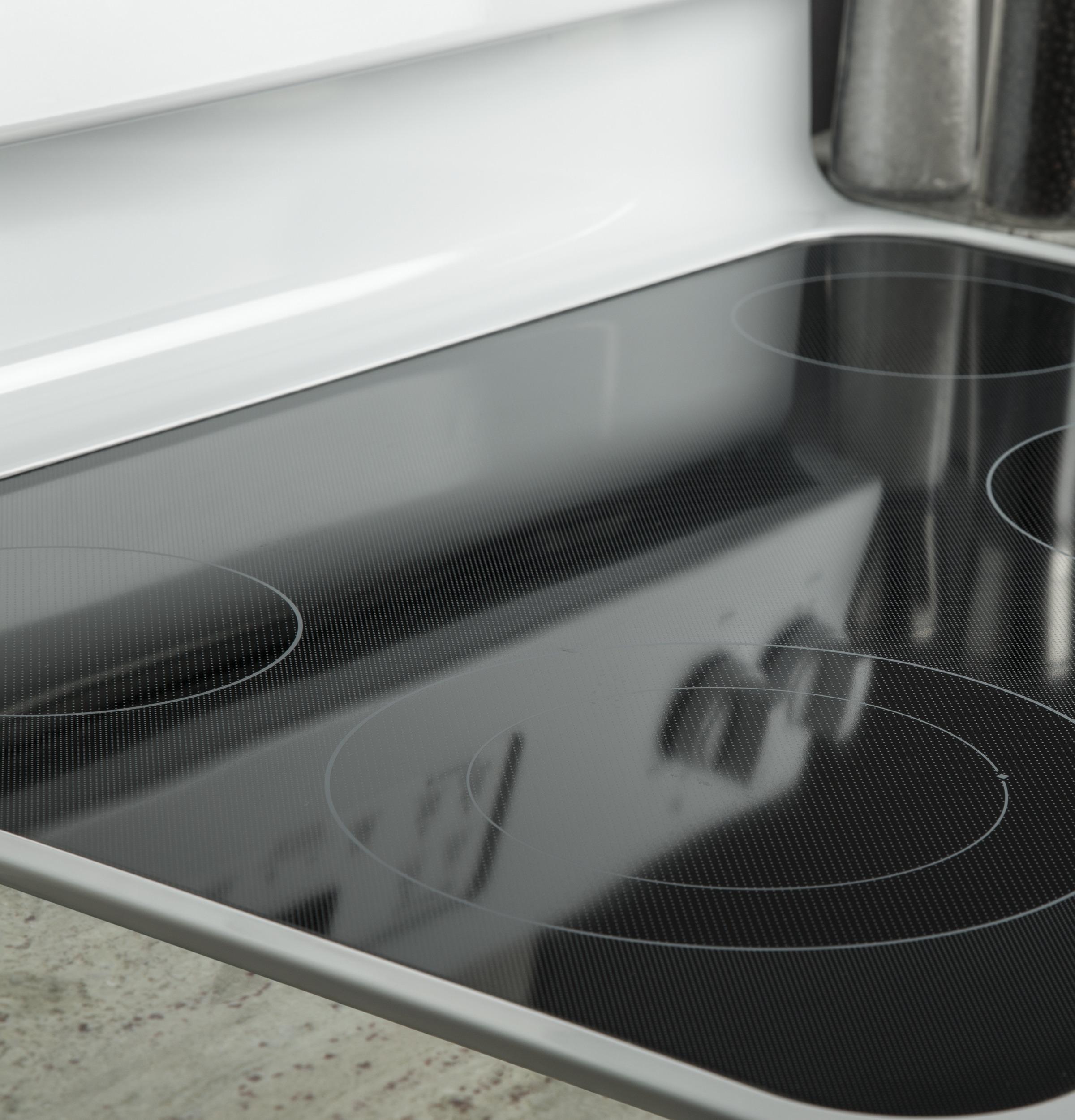

Cooktop Surface | One-Piece Upswept White Patterned Ceramic Glass |
