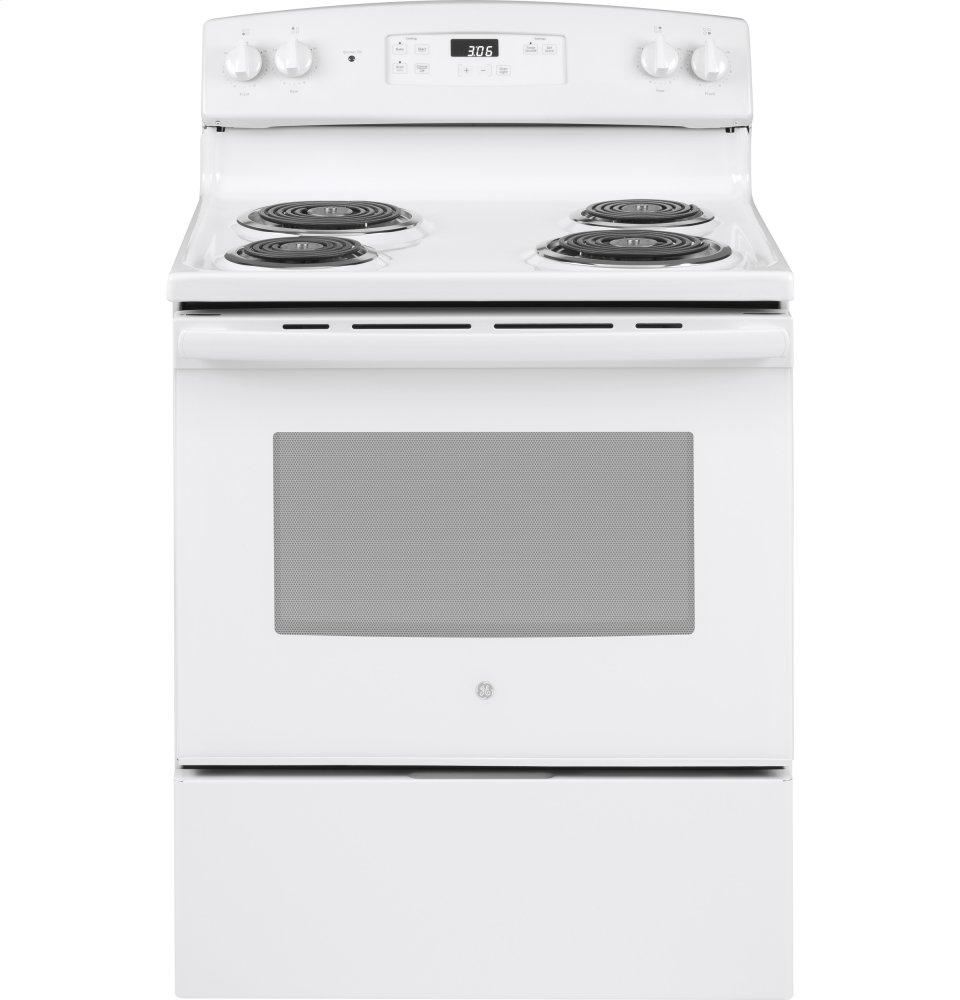

JBS360DMWW GE® ENERGY STAR® 30" Free-Standing Electric Range JBS360DMWW

5.0 cu. ft. oven capacity
Cook more dishes at once

Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

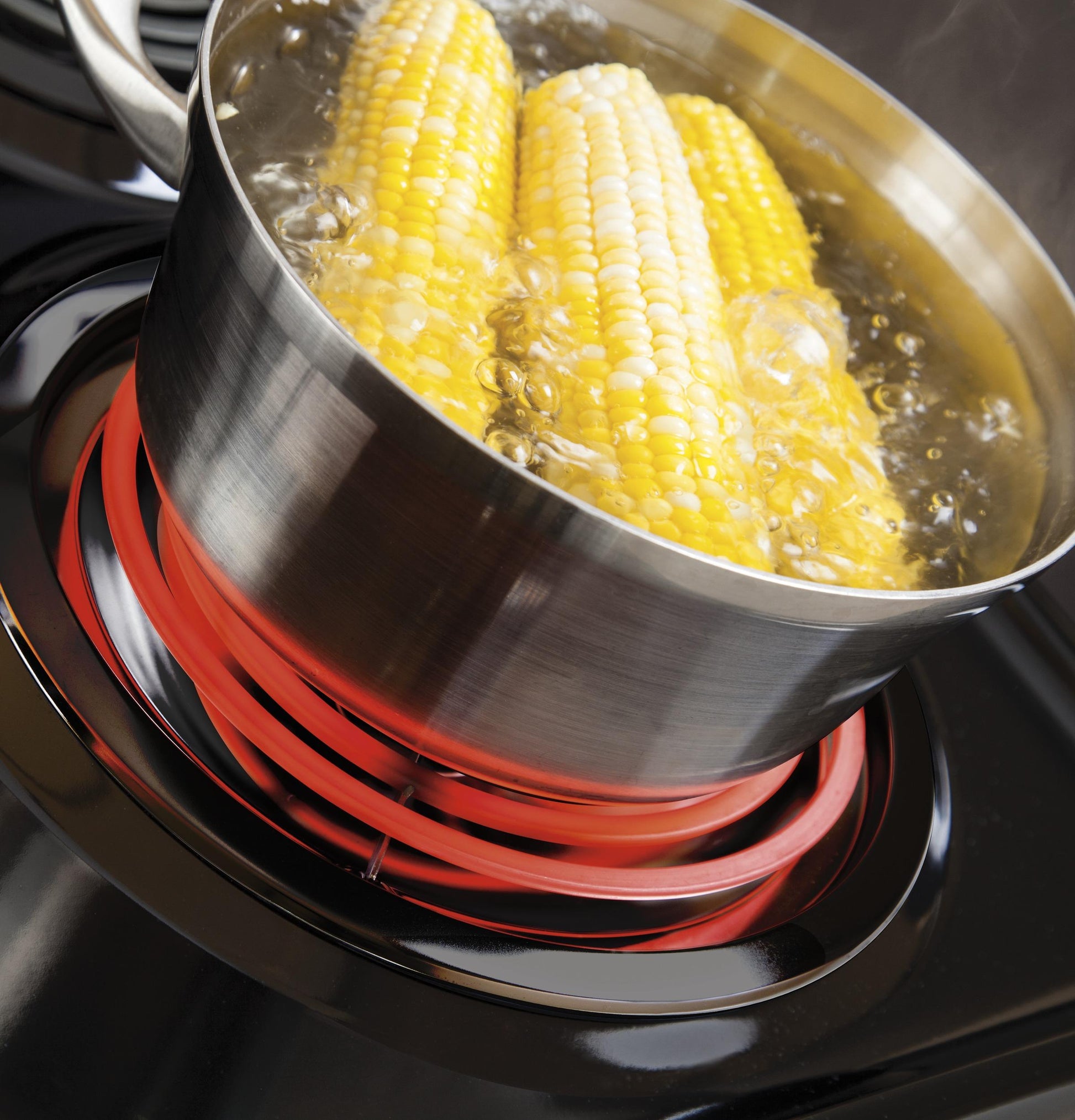

Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety

Electronic clock and timer
Help cooks coordinate meal preparation and cooking

Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access

Dual-element Bake
Upper and lower elements produce even heat and great results

CAPACITY
Total Capacity (cubic feet)	5 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Drawer Type	Storage
App Filter - Cleaning Type	Manual
App Filter - Voltage	240V
App Filter - Cooktop Type	Coil
APPEARANCE
Handle	Designer Style
Textured Steel Side Panels	Yes
Oven Door Features	Big View Oven Window Glass Door
Handle Color	White
Control Knobs	Color-Matched
Color Appearance	White
POWER / RATINGS
Amp Rating at 208V	40
Broiler Wattage	3410W
Amp Rating at 240V	40
KW Rating at 240V	10.2
Bake Wattage	2585W
KW Rating at 208V	7.6
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight	142 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	162 lb
Overall Width	30 in
Overall Height	47 in
Overall Depth	28.75 in
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	23-3/4 x 19 x 18-1/2
FEATURES
Cooking System	Traditional
Storage Drawer Features	Removable Full-Width
Oven Interior	1 Incandescent Light
Oven Control Features	Audible Preheat Signal Auto Oven Shut-Off with Override Control Lock Capability Electronic Clock & Kitchen Timer Hi / Low Broil Oven "ON" Light
Lift-Up Cooktop With Support Rods	Yes

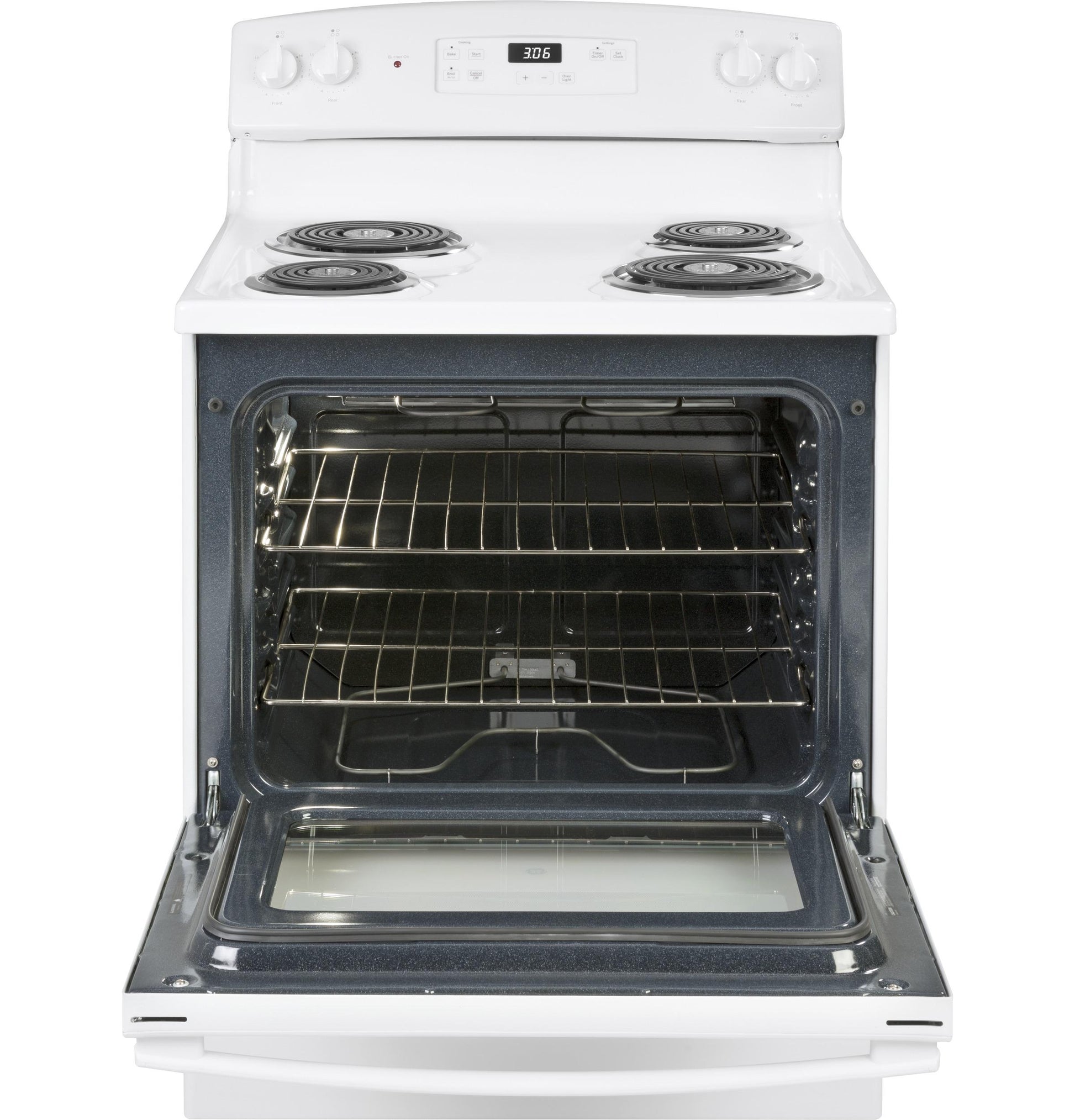

Oven Rack Features	2 Oven Racks

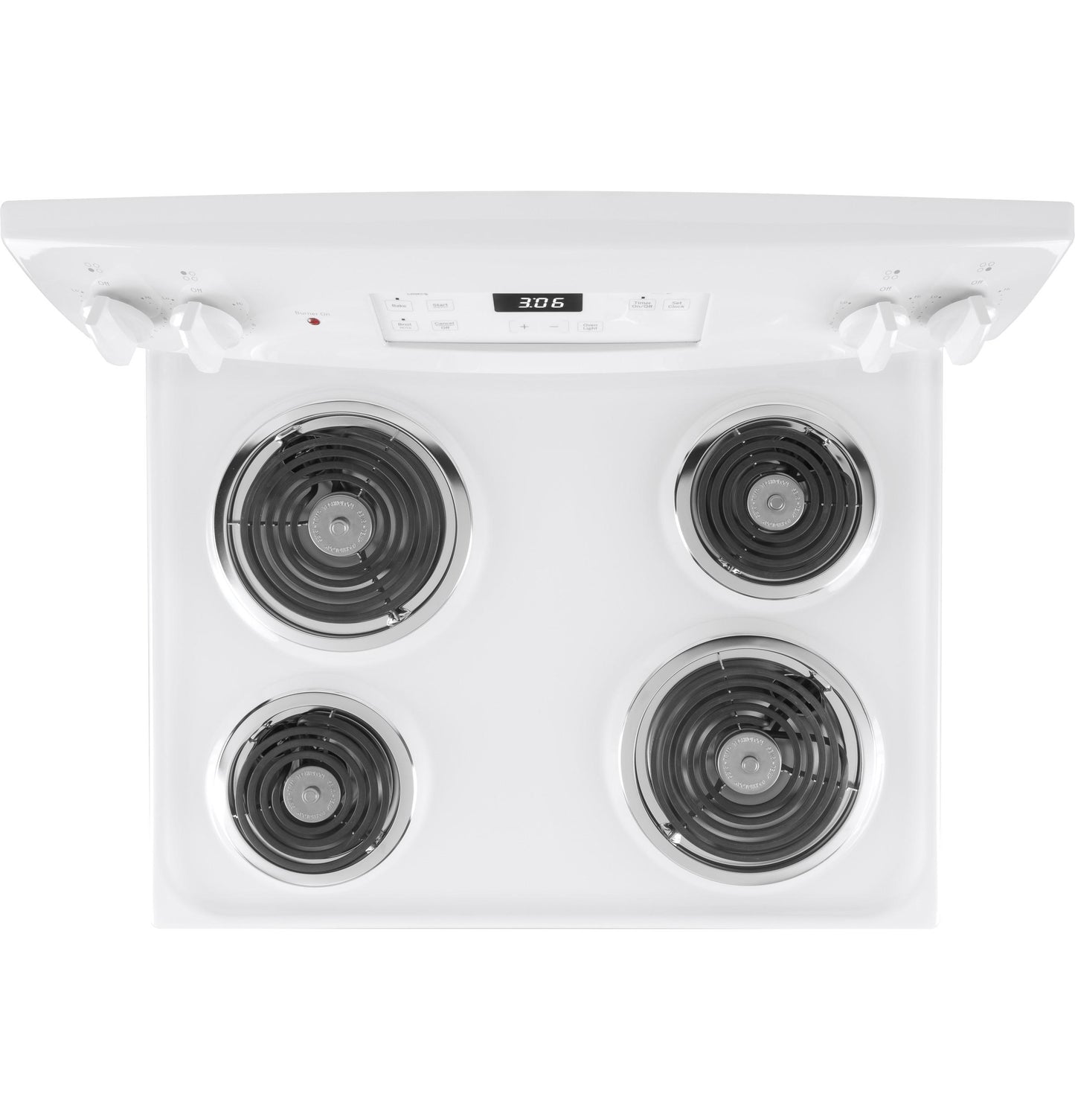

Element - Left Front	6" 1250W Temp Limiting Coil
Oven Cleaning Type	Standard Clean
Product Type	Free-Standing Single Oven
Heating Element "ON" Indicator Light	Yes
Cooktop Type	Coil
Fuel Type	Electric
Element - Right Front	8" 2400W Temp Limiting Coil

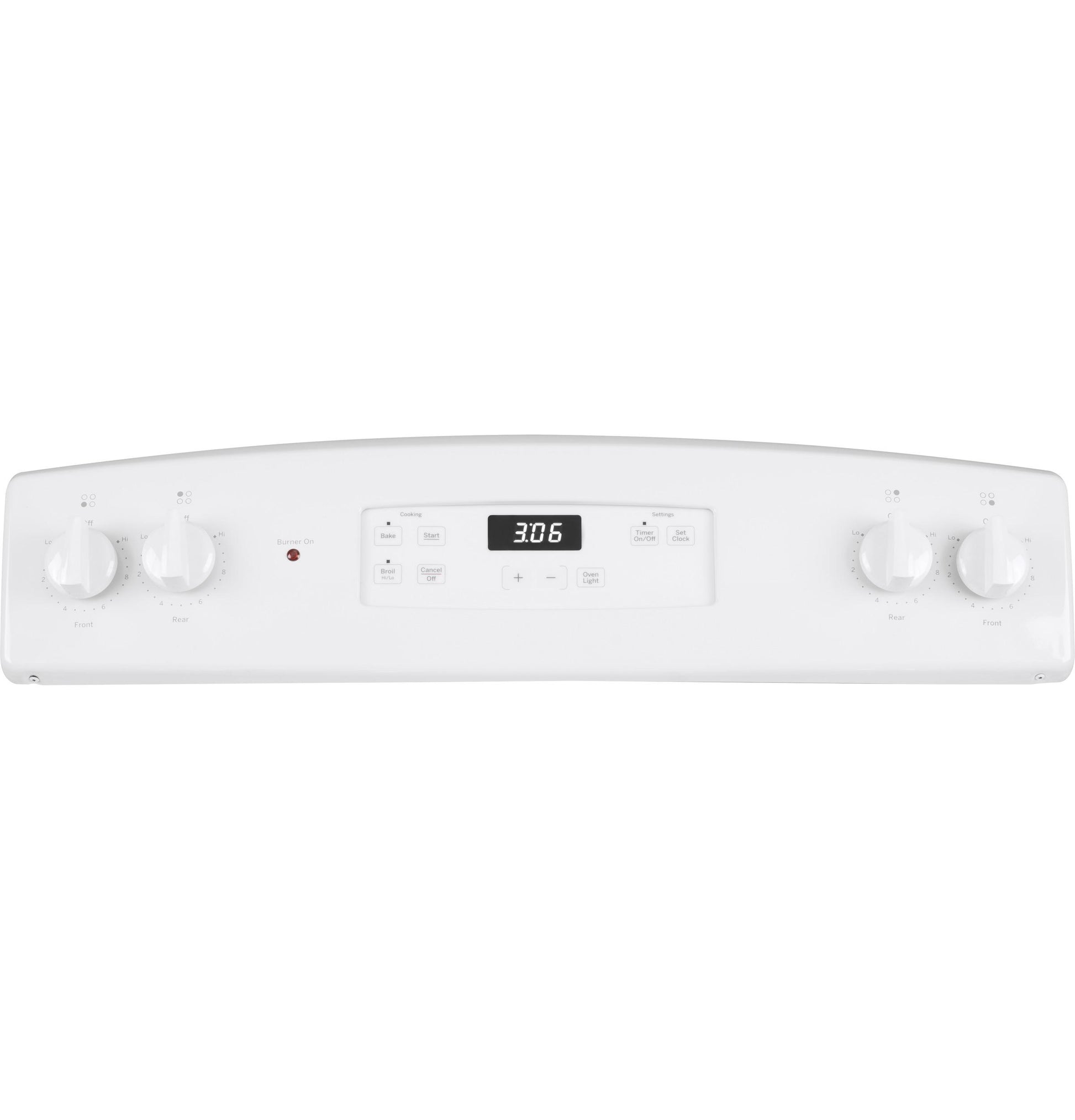

Control Location	Backsplash
Control Type	Digital Temperature Display Electronic Touchpads
Drawer Type	Storage
Sabbath Mode	Yes
Element - Left Rear	8" 2400W Temp Limiting Coil
Cooking Technology	Traditional
Configuration	Range with Storage Drawer
Oven Features	4-Pass Bake Element 4-Pass Broil Element
Removable One-Piece Drip Bowls	Chrome
OU Certified	No
Cooktop Burner Type	Coil
Element - Right Rear	6" 1250W Temp Limiting Coil
Cooktop Surface	One-Piece Upswept Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	6
