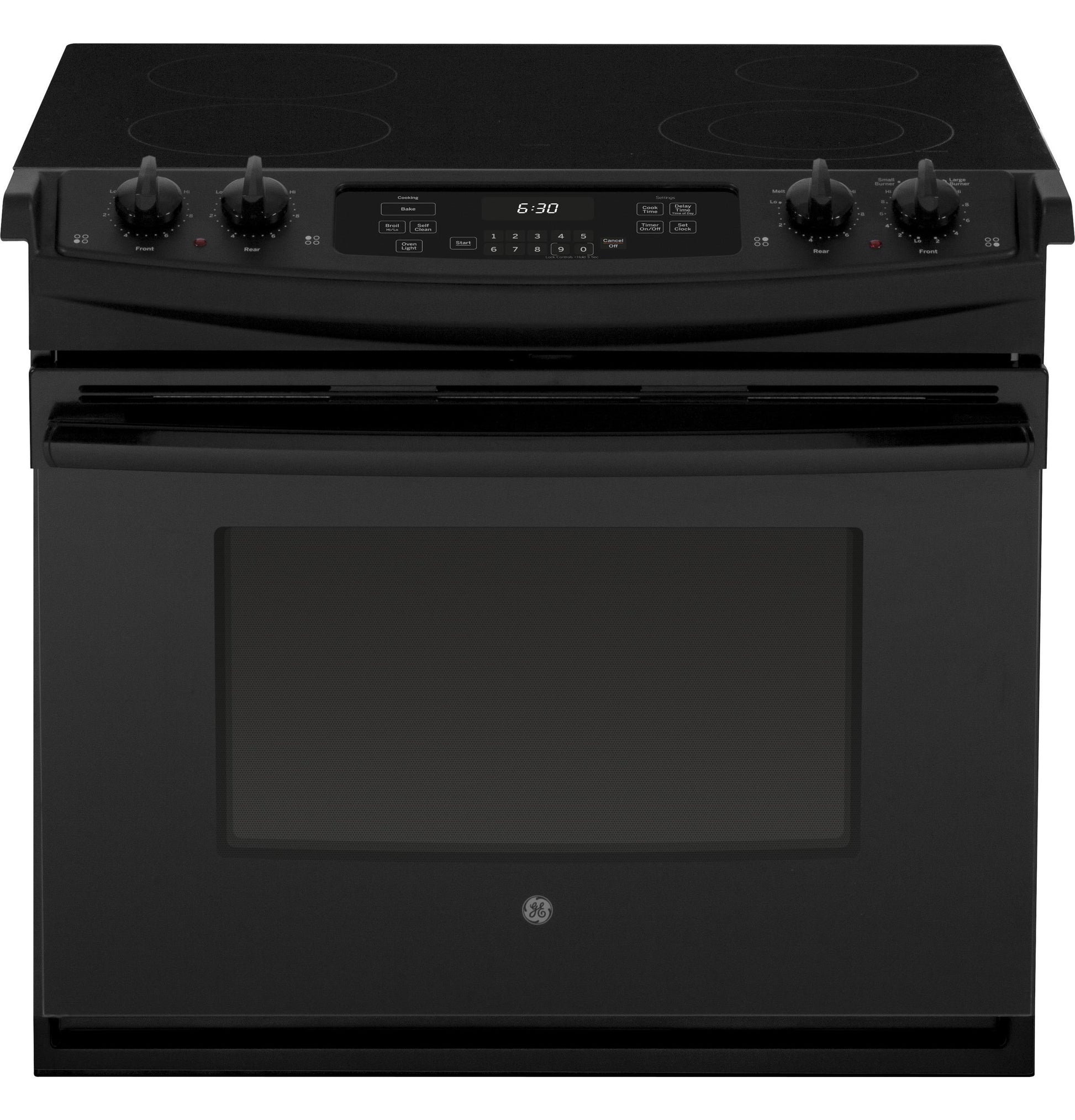

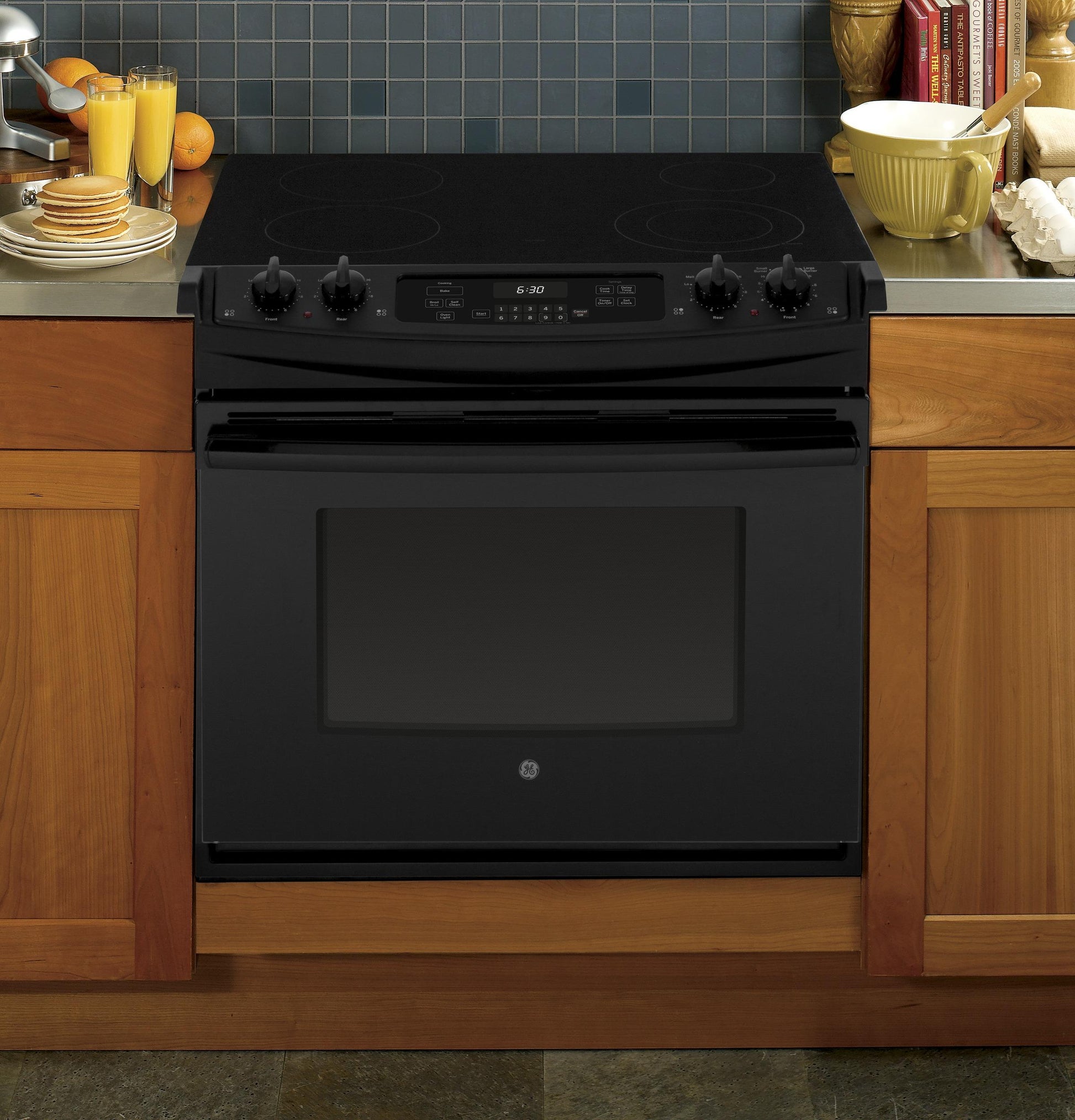

GE® 30" Drop-In Electric Range JD630DFBB

9"/6" Power Boil element
Produces rapid, powerful heat

Self-clean oven
Cleans the oven cavity without the need for scrubbing

Ceramic glass cooktop
Smooth cooktop easily wipes clean

Black gloss oven interior
Enjoy a clean and sleek appearance

Dual-element Bake
Upper and lower elements produce even heat and great results

Electronic oven controls
Electronic touch pads are easy to operate

CAPACITY
Total Capacity (cubic feet)	4.4 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Drop-In
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Cleaning Type	Self-Clean
App Filter - Cooktop Type	Radiant Smoothtop
APPEARANCE
Handle	Designer Style
Installation	Flush Appearance
Oven Door Features	Big View Oven Window Glass Door
Handle Color	Black
Control Knobs	Color-Matched Weighted
Color Appearance	Black on Black
POWER / RATINGS
Amp Rating at 208V	40
Broiler Wattage	3420W
Amp Rating at 240V	40
KW Rating at 240V	11.9
Bake Wattage	3410W
KW Rating at 208V	8.9
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Cooktop Cleaning	Cream Included Sponge
WEIGHTS & DIMENSIONS
Net Weight	158 lb
Depth Without Handle	25.75 in
Cabinet Width	30 in
Approximate Shipping Weight	179 lb
Overall Width	31.25 in
Cabinet Opening	30 in
Overall Height	27 in
Overall Depth	28.5 in
Depth with Door Open	44.625 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 17-1/2 x 18-1/4
Cooktop Width	31.25 in
FEATURES
Oven Control Features	Audible Preheat Signal Auto Oven Shut-Off with Override Certified Sabbath Mode Control Lock Capability C° or F° Programmable Delay Bake Option With Cook & Hold Electronic Clock & Kitchen Timer
Oven Rack Features	2 Oven Racks
Element - Left Front	8" 2000W
Oven Cleaning Type	Self-Clean
Product Type	Drop-In
Heating Element "ON" Indicator Light	2
Cooktop Type	Radiant Smoothtop
Fuel Type	Electric
Element - Right Front	9"/6" 3000W Power Boil
Interior Oven Light	1 Incandescent
Control Location	Front
Control Type	Digital Temperature Display Electronic Touchpads
Hot Surface Indicator Lights	4
Sabbath Mode	Yes
Element - Left Rear	8" 2000W
Cooking Technology	Traditional
Oven Features	6-Pass Bake Element 6-Pass Broil Element
Melt Setting	Yes
OU Certified	No
Cooktop Burner Type	Radiant Smoothtop
Element - Right Rear	6" 1200W
Cooktop Surface	Black Ceramic Glass Overhanging Cooktop
Oven Rack Positions (Single or Upper/Lower)	7
Self-Clean Oven Door Lock	Automatic
