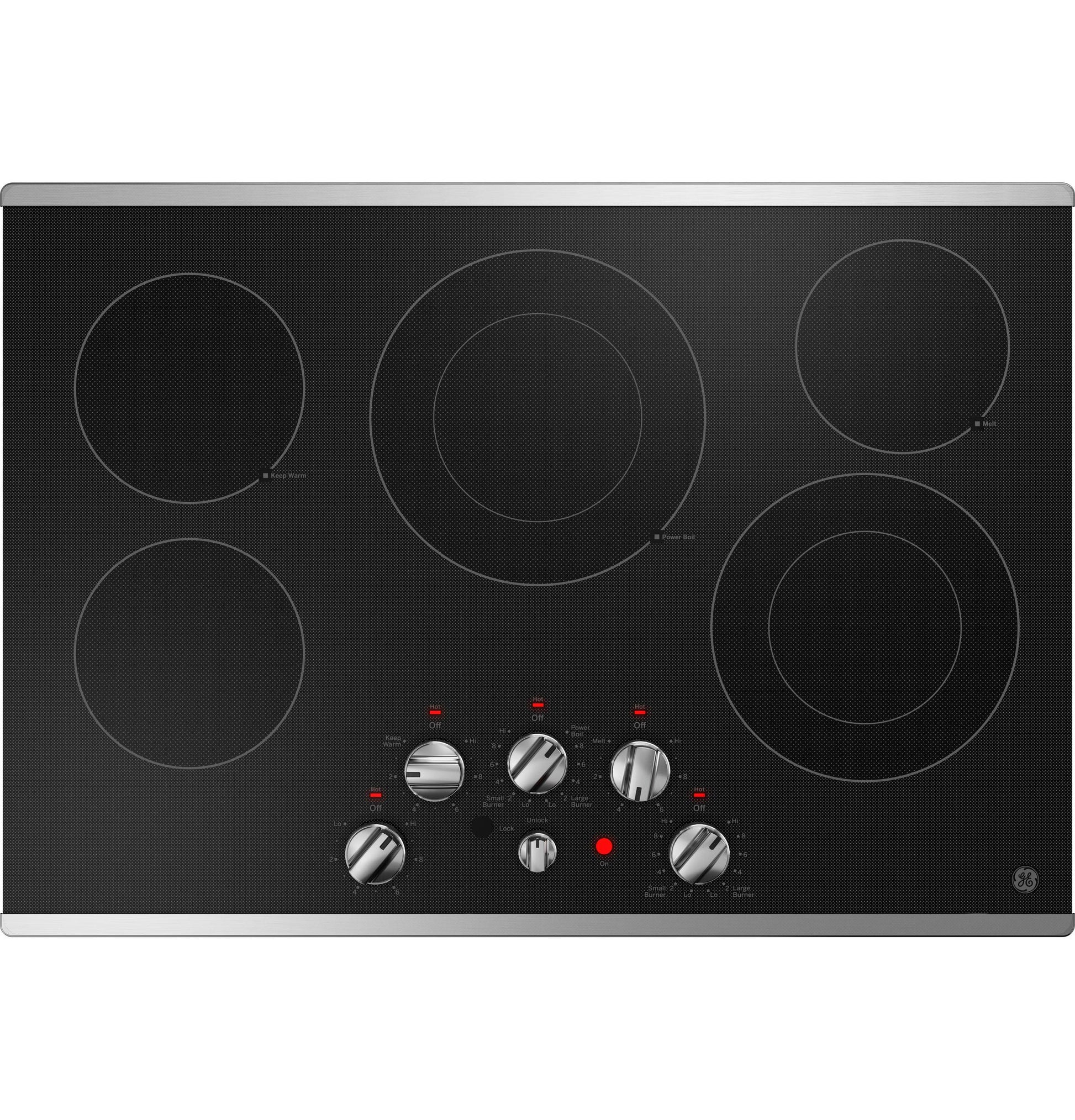

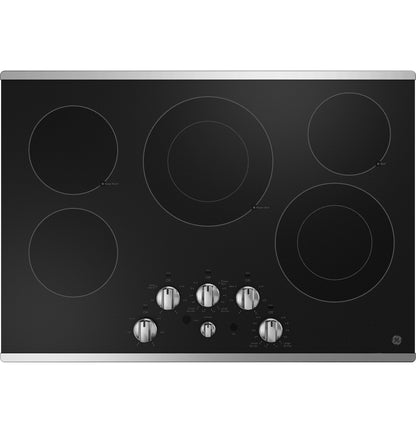

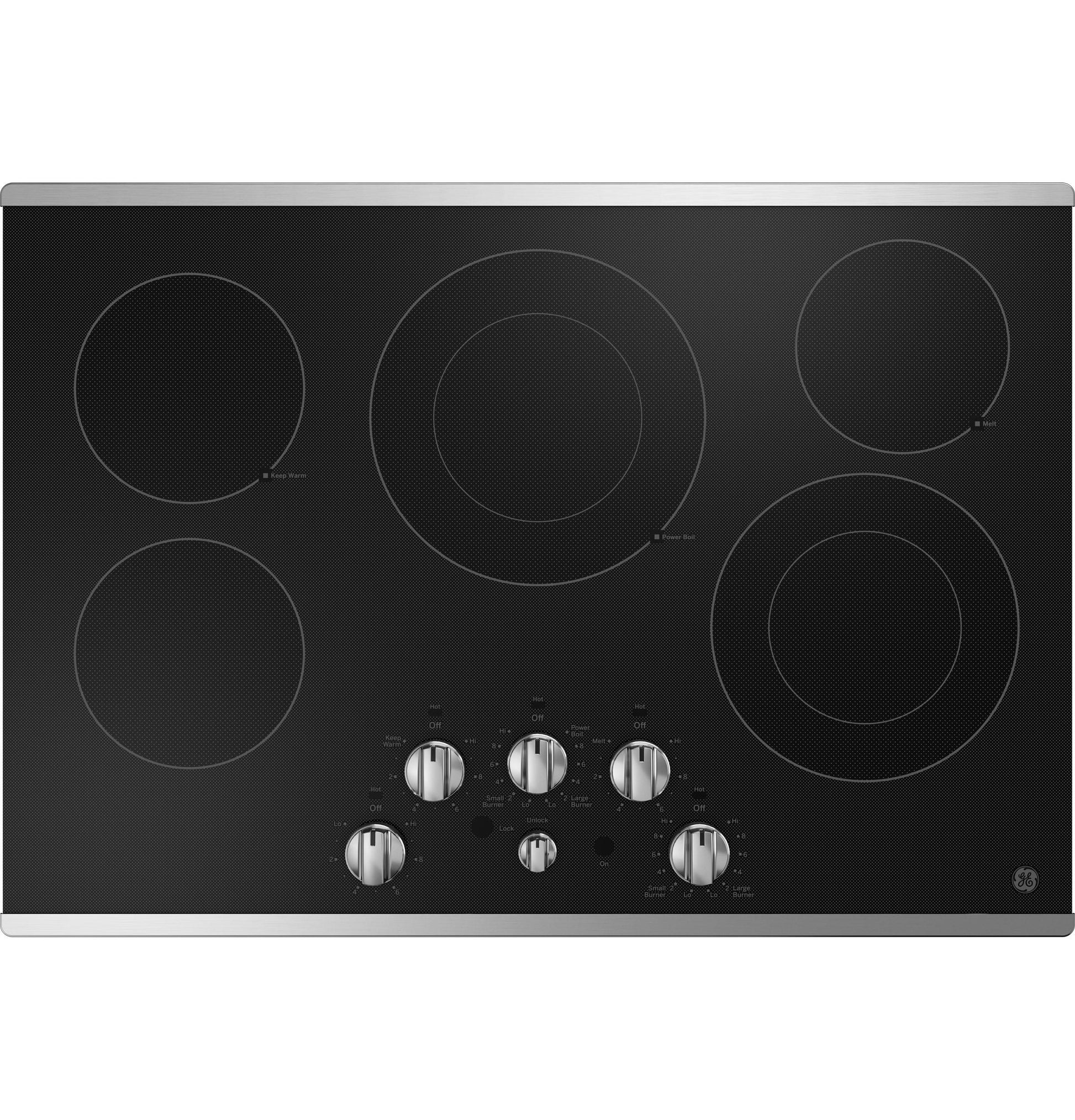

JEP5030STSS GE® 30" Built-In knob Control Electric Cooktop JEP5030STSS
When Will I Get My Order?
- Easy Clean Surface
- Power Boil on Dual-Ring Element (3,100W)
- Additional Power Boil Dual-Ring Element (2,200W)
- Keep Warm Setting
- Control Lock
- Hot Surface Indicator Lights
- Fit Guarantee
- Flexible Cooktop
- Melt Setting

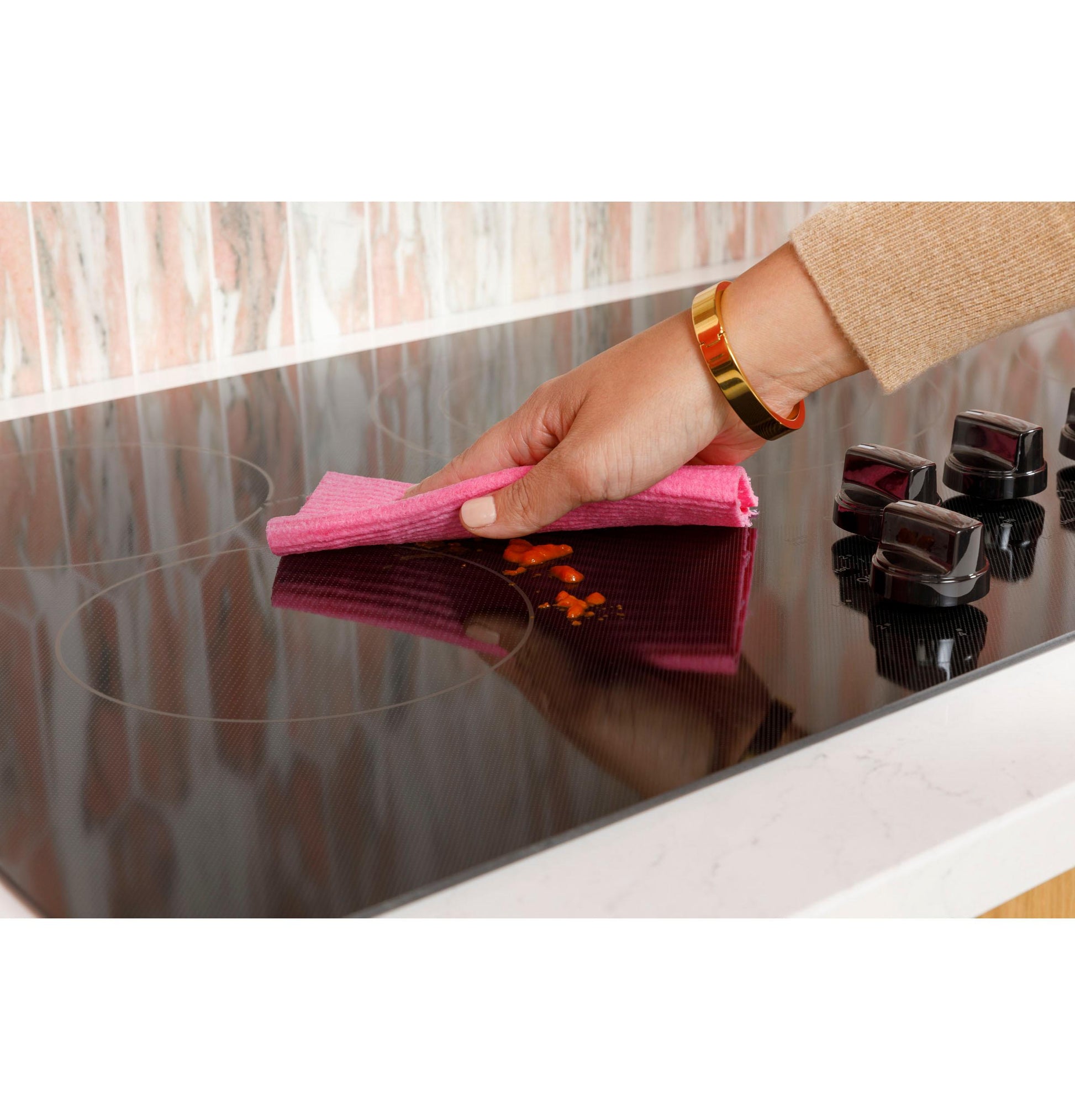

A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

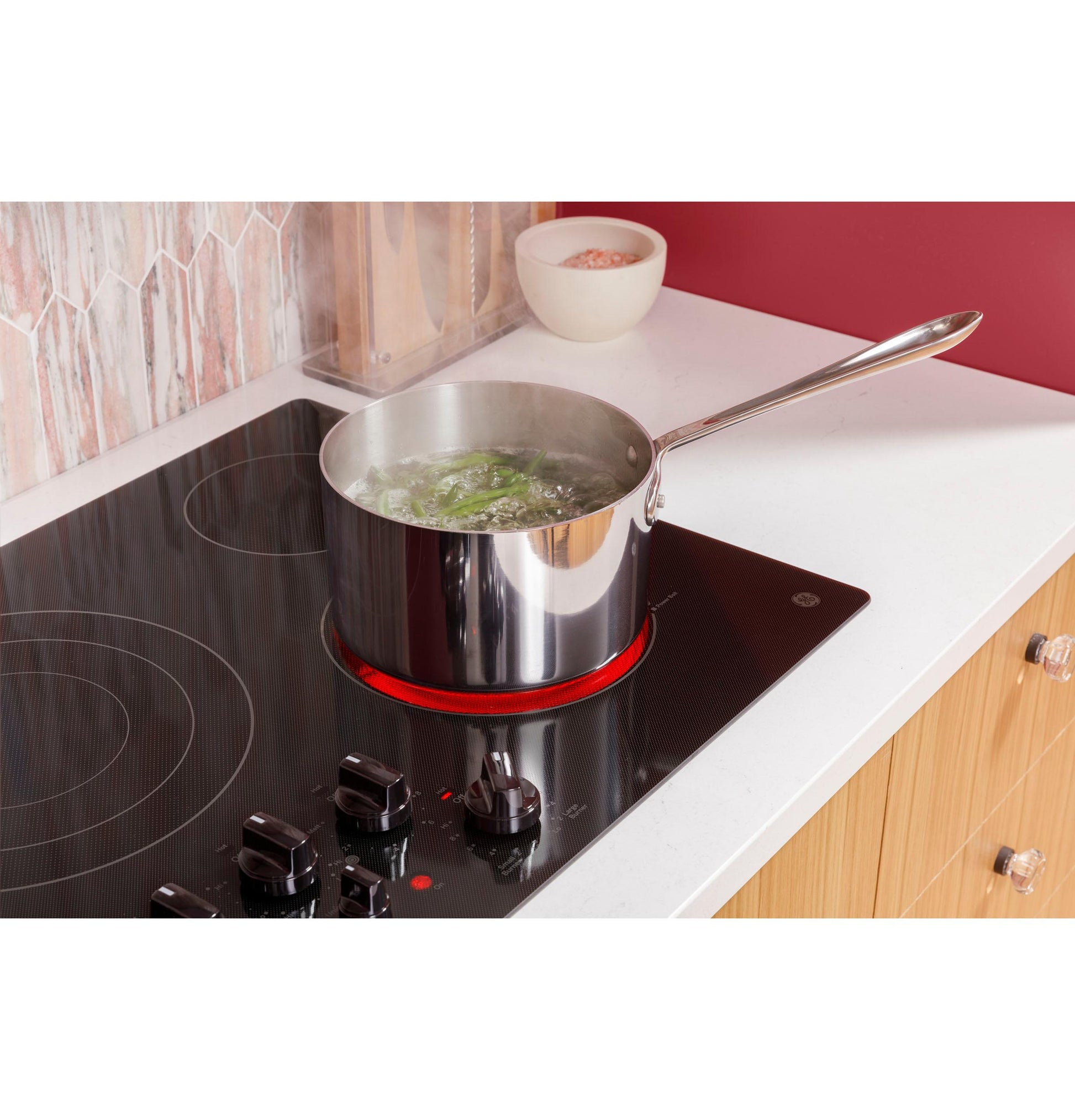

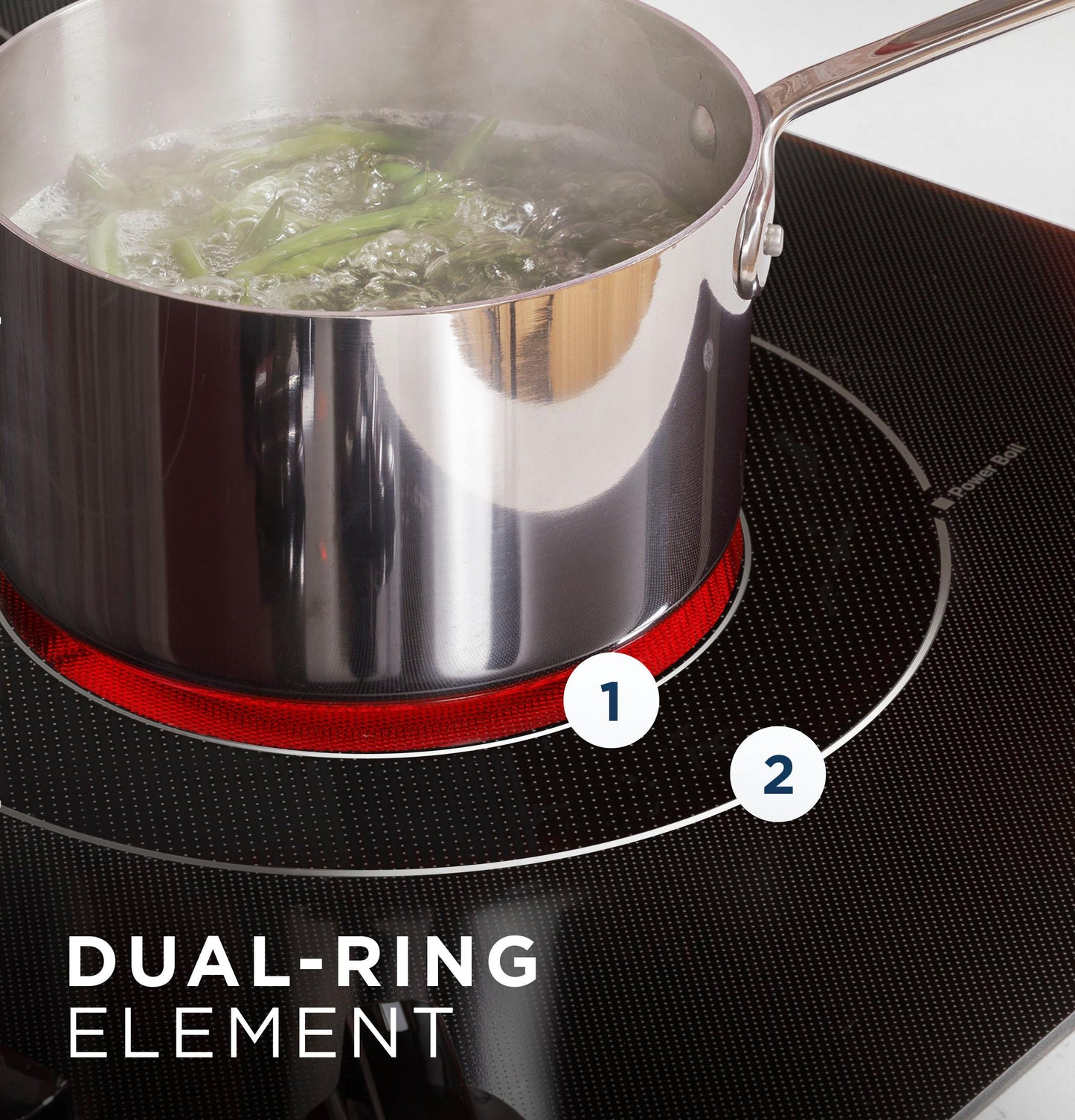

Power Boil on Dual-Ring Element (3,100W)
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element
Additional Power Boil Dual-Ring Element (2,200W)
Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

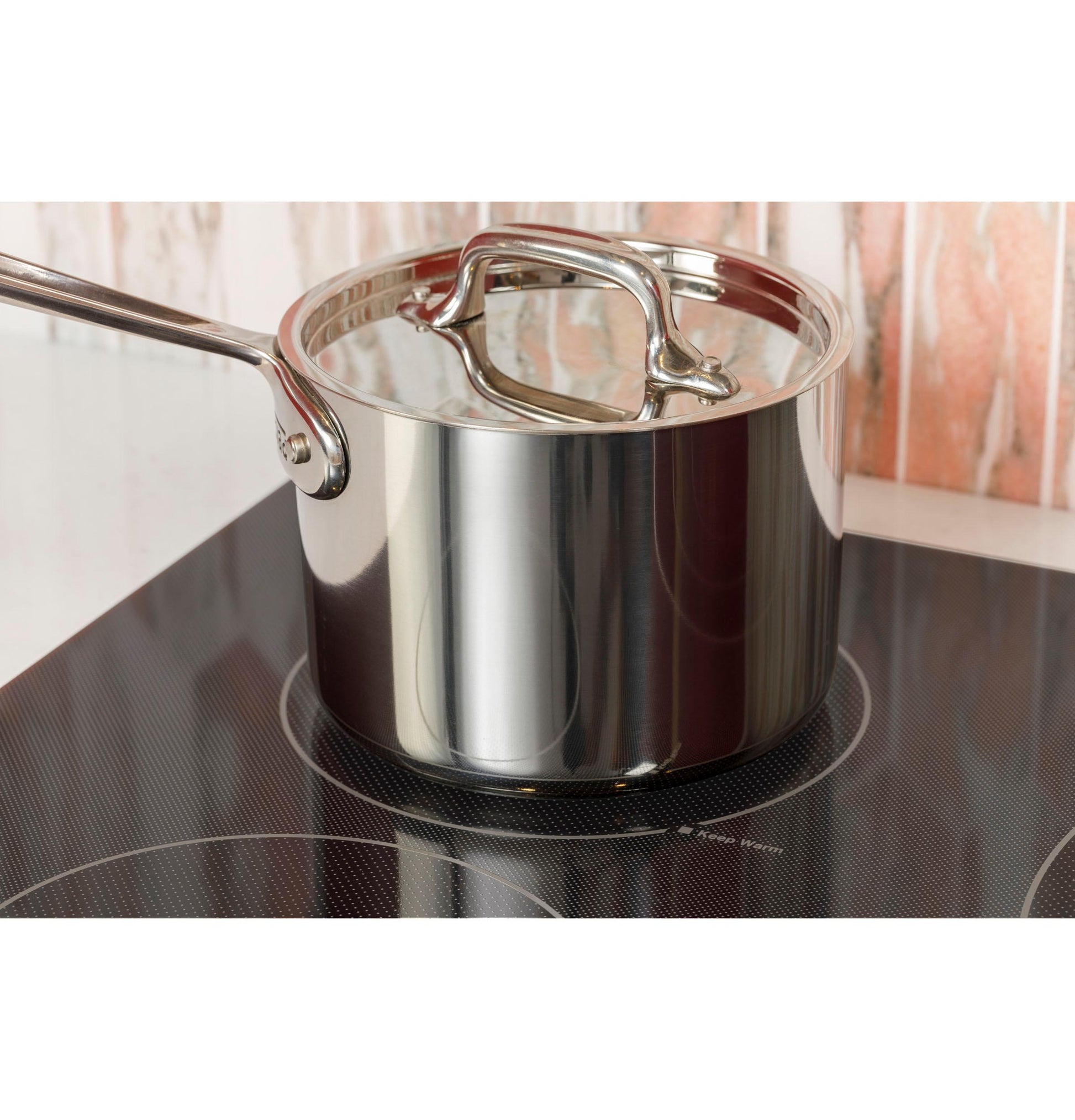

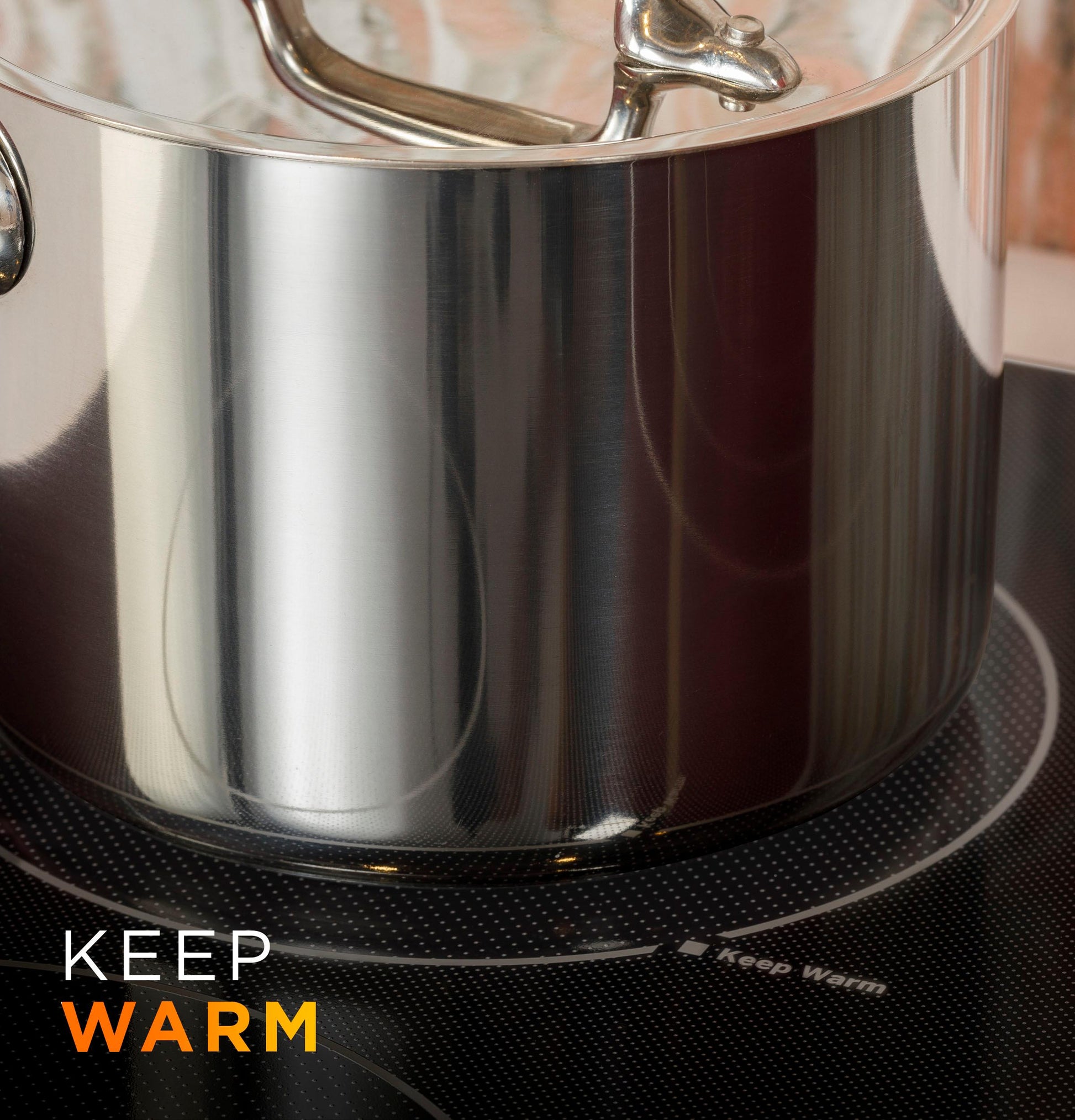

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

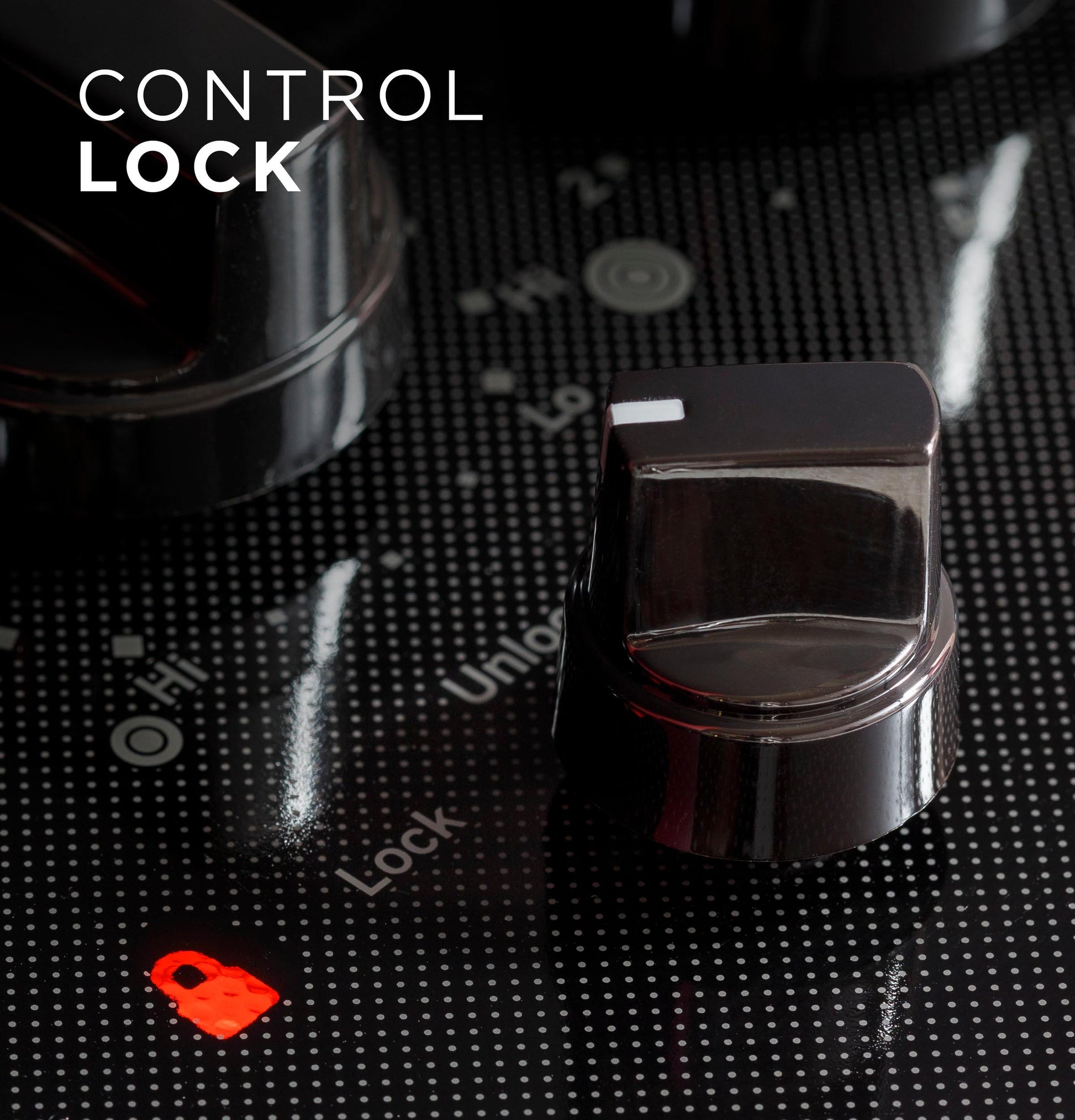

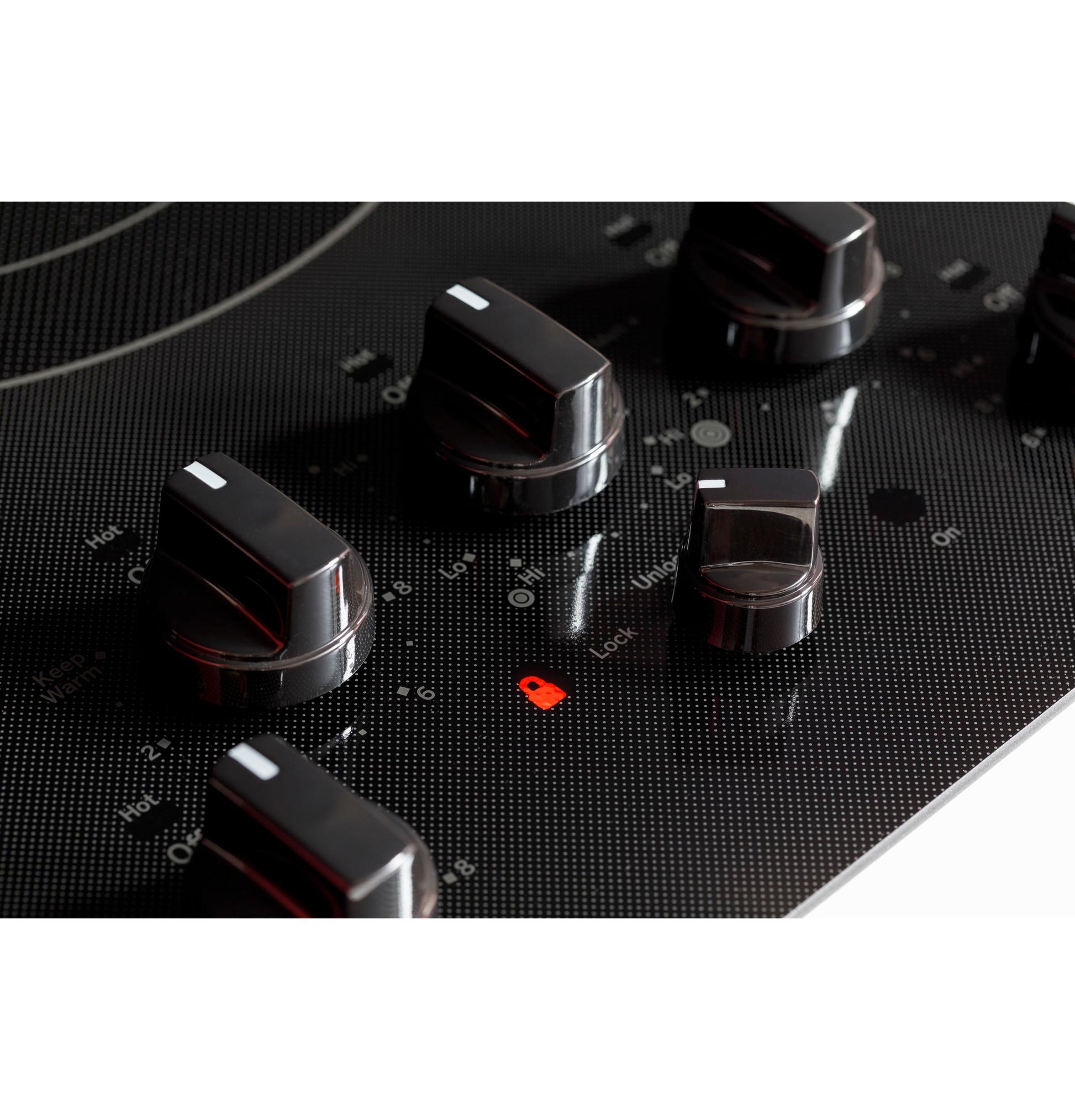

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

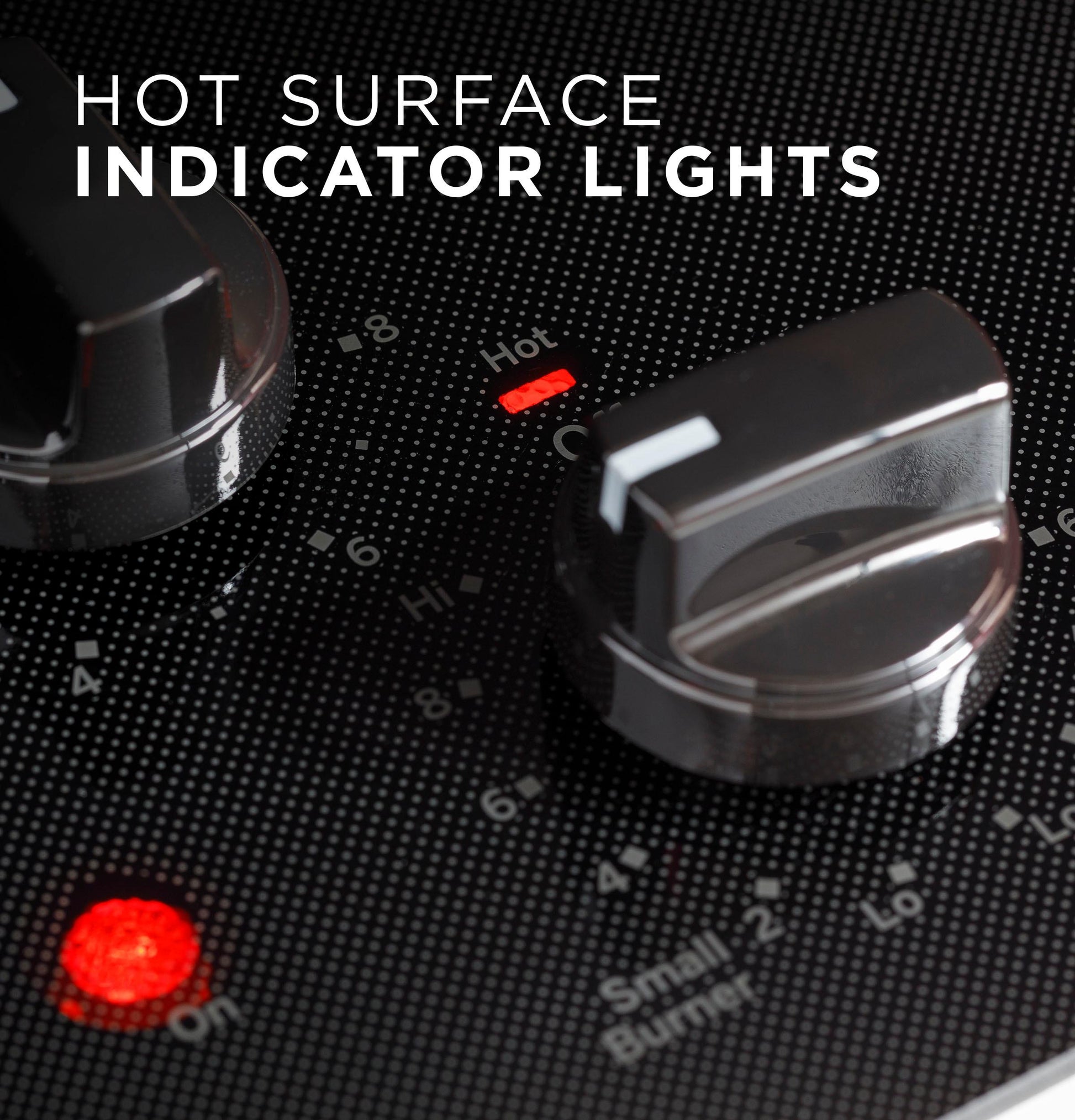

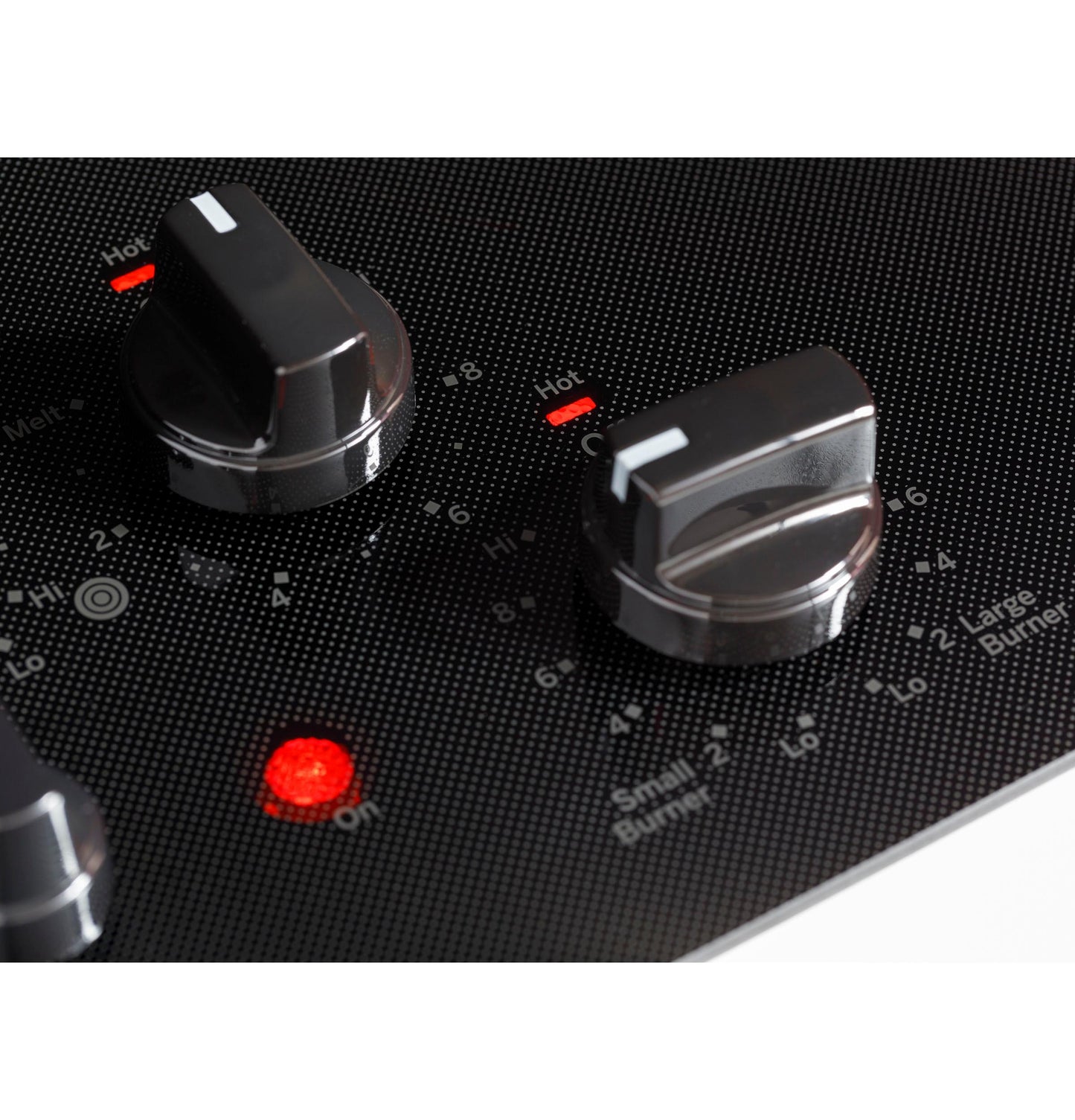

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

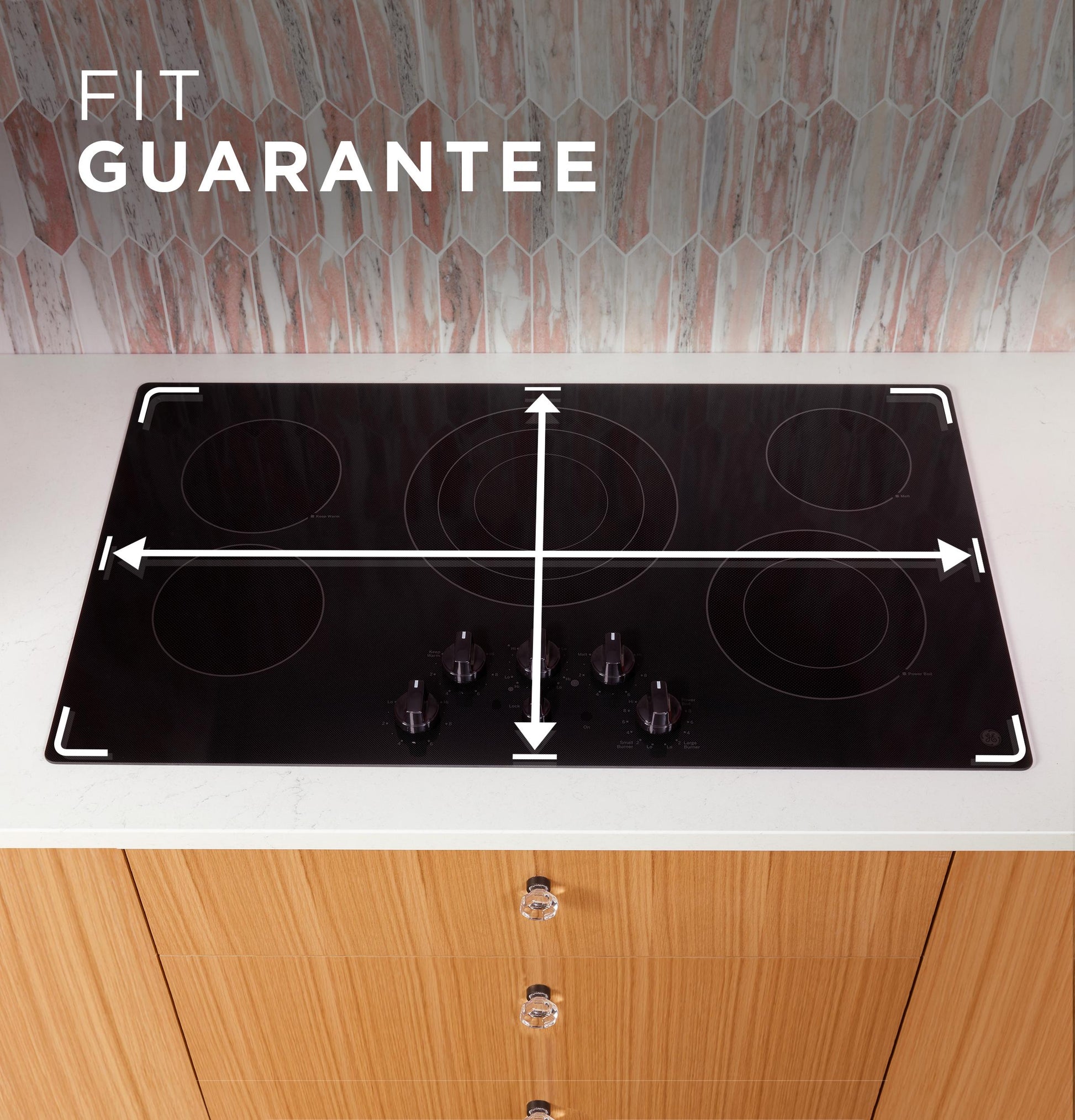

Fit Guarantee
This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100

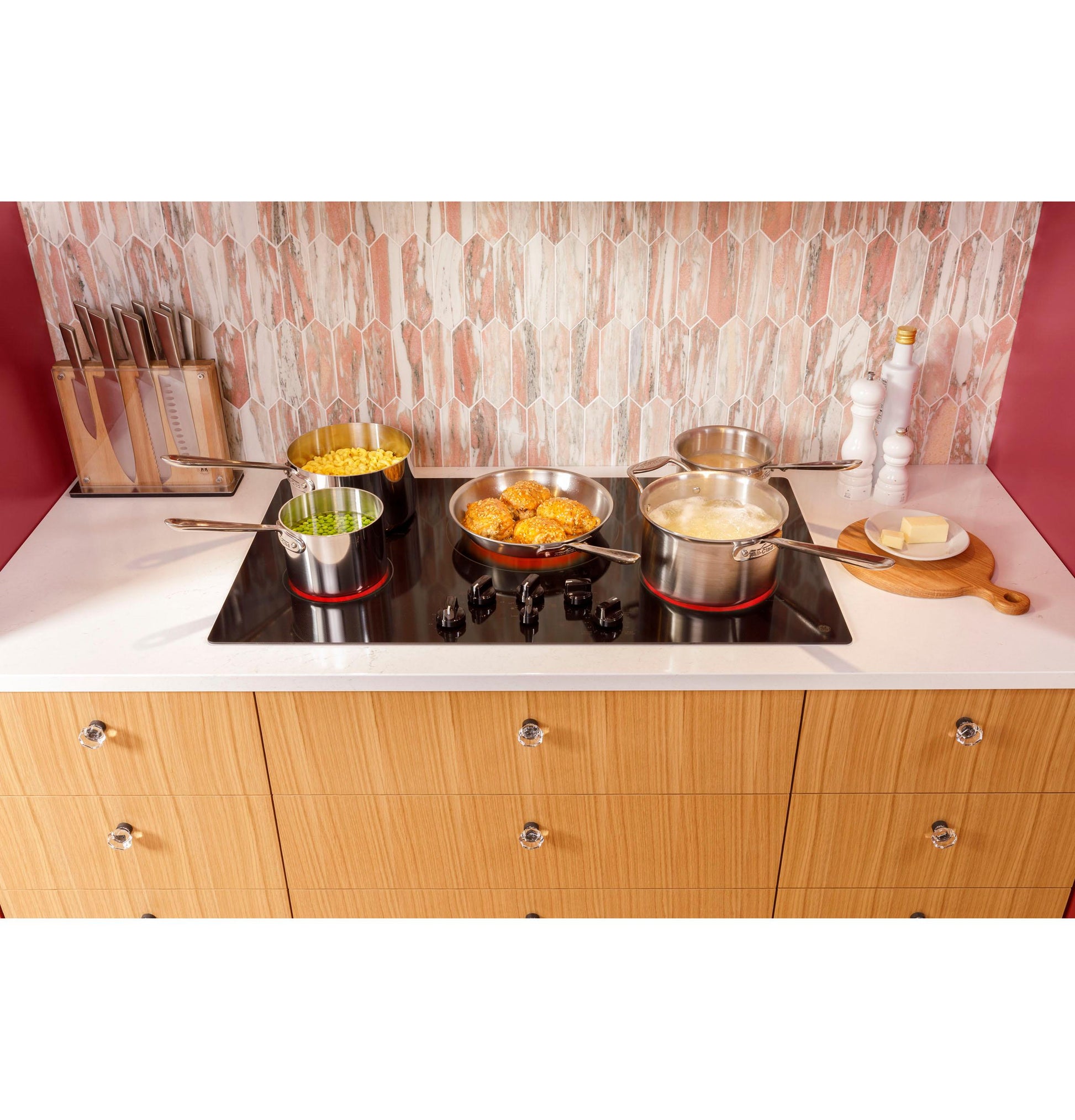

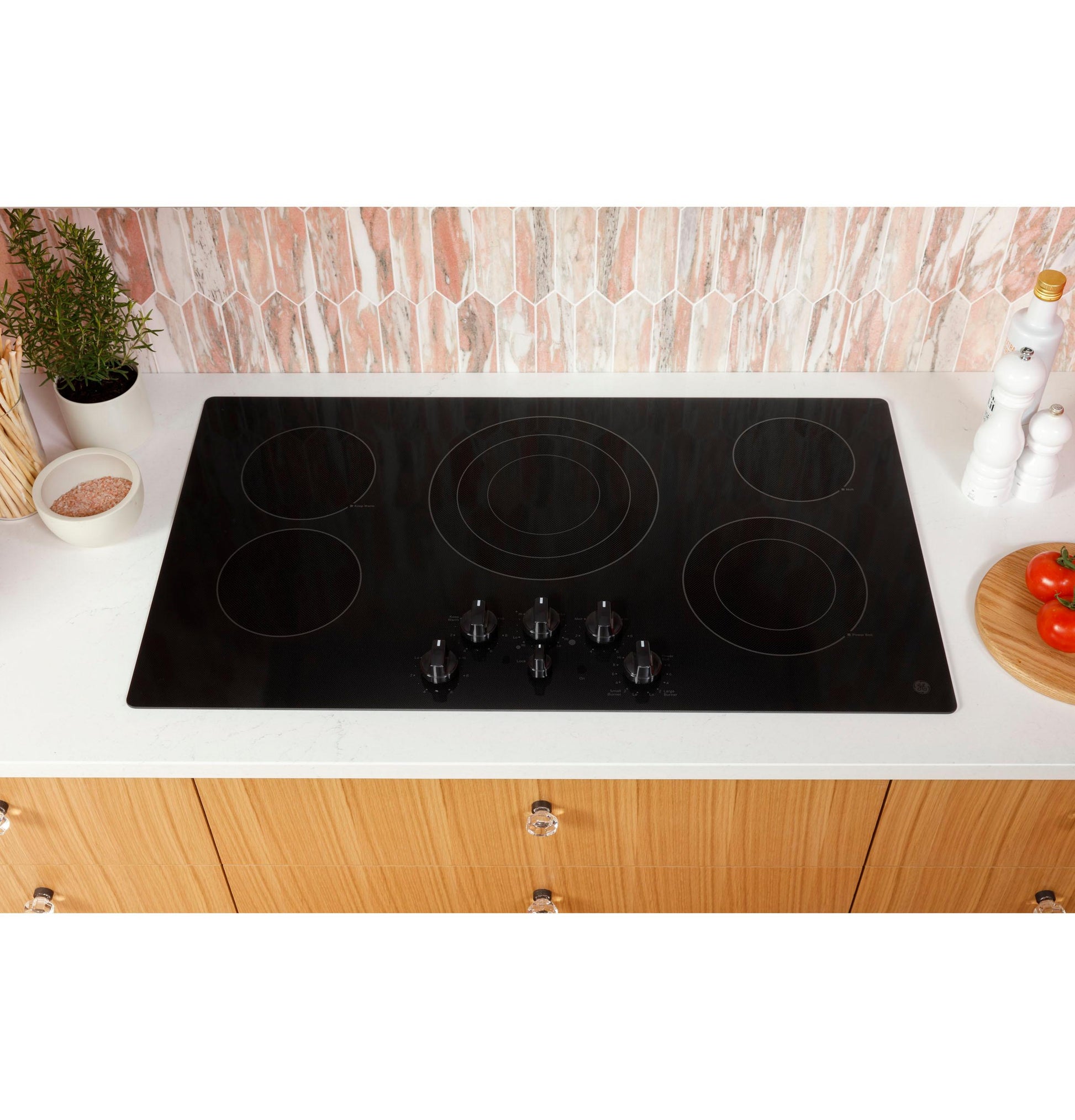

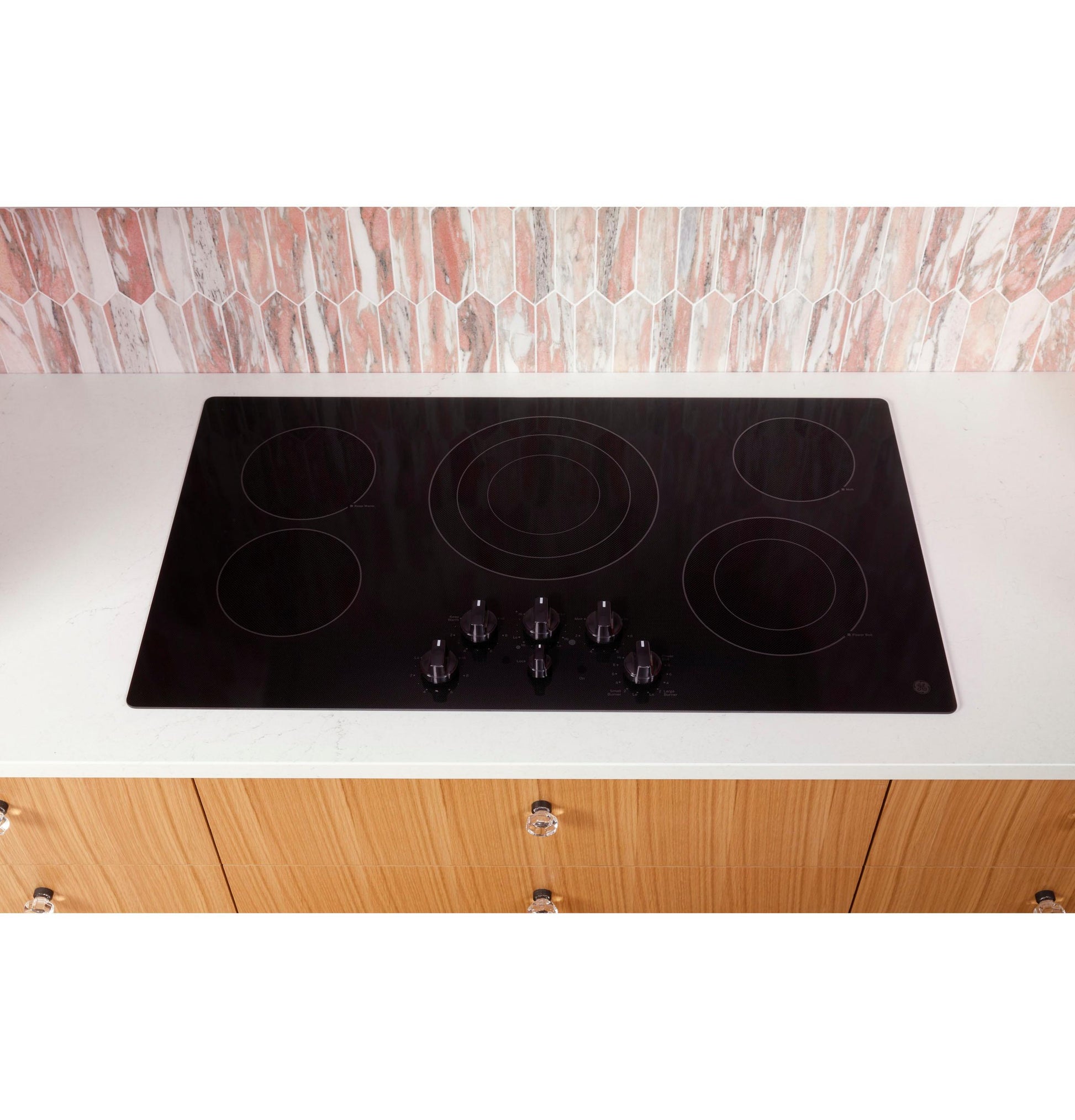

Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Cooktop Type | Radiant Smoothtop |
App Filter - Fuel Type | Electric |
App Filter - SyncBurners | Yes |
App Filter - Control Type | Digital touch |
APPEARANCE | |
Frame Color / Material | Stainless Steel |
Control Knobs | Stainless Steel Appearance |
POWER / RATINGS | |
Recommended Circuit Breaker (Amps) at 240V | 40 |
Max. Connected Load (kW) at 240V | 9.6 |
Max. Current Draw (Amps) at 240V | 40.0 |
Max. Connected Load (kW) at 208V | 7.2 |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Max. Current Draw (Amps) at 208V | 34.6 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |

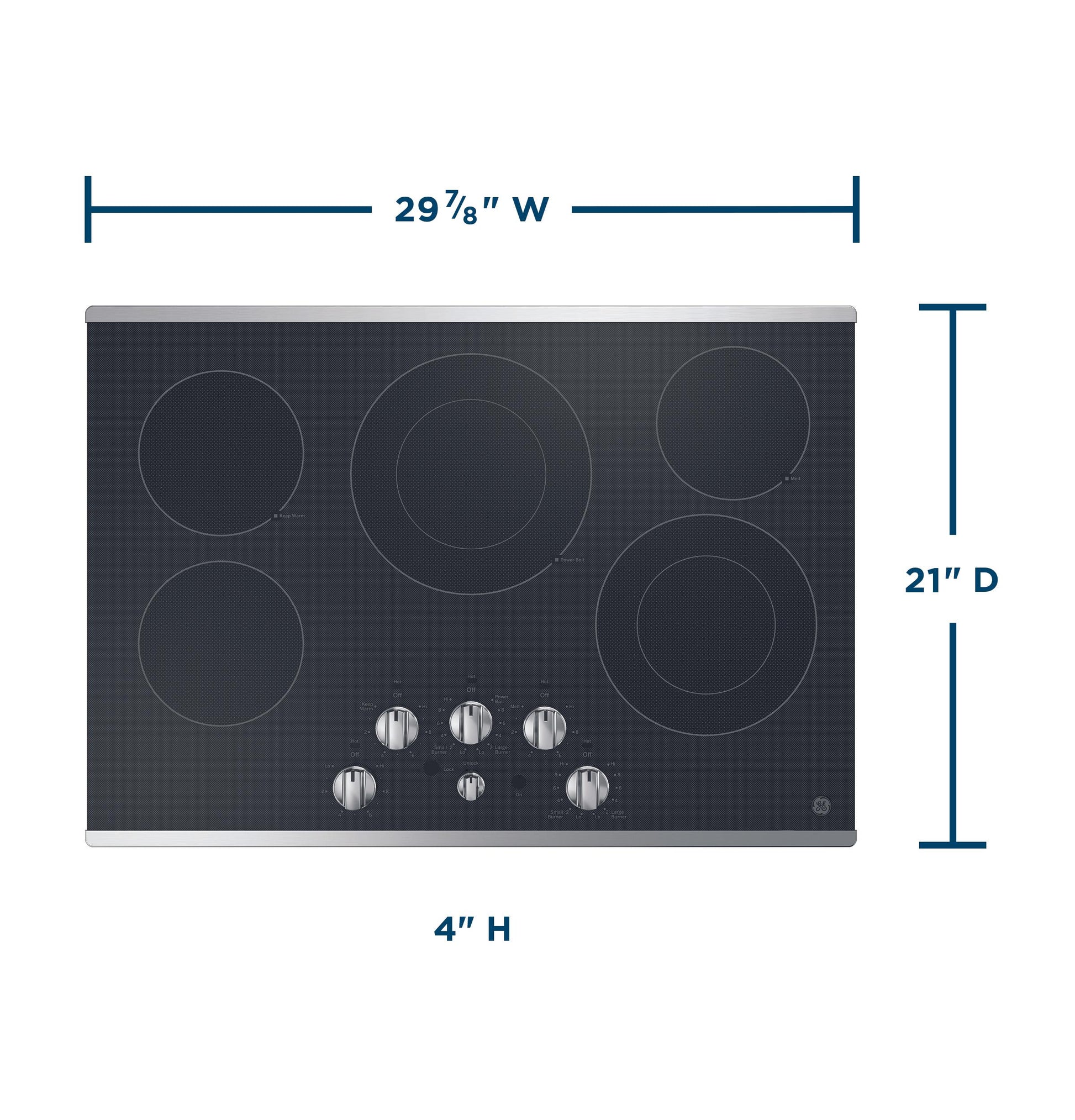

WEIGHTS & DIMENSIONS | |
Cooktop Size | 30 in |
Overall Height | 3.25 in |
Cutout Depth (in) | 19 5/8 in |
Cabinet Width | 30 in |
Approximate Shipping Weight | 40 lb |
Overall Width | 29.875 in |
Net Weight | 35 lb |
Cutout Width (in) | 28-1/2 |
Overall Depth | 21.5 in |
FEATURES | |
Filler trim kit | JXTR32B (not included) |
Cooktop Burner Type | 5 Ribbon Smoothtop |
Melt Setting | Yes |
Fuel Type | Electric |
Power Boil Burner | Yes |
Element - Left Front | 7" 1500W |
Indicator Lights | 5 Hot Surface Red Surface Element "ON" |
Dual Ring Burners | Yes |
Element - Right Front | 8"/5" 2200W Dual-ring |

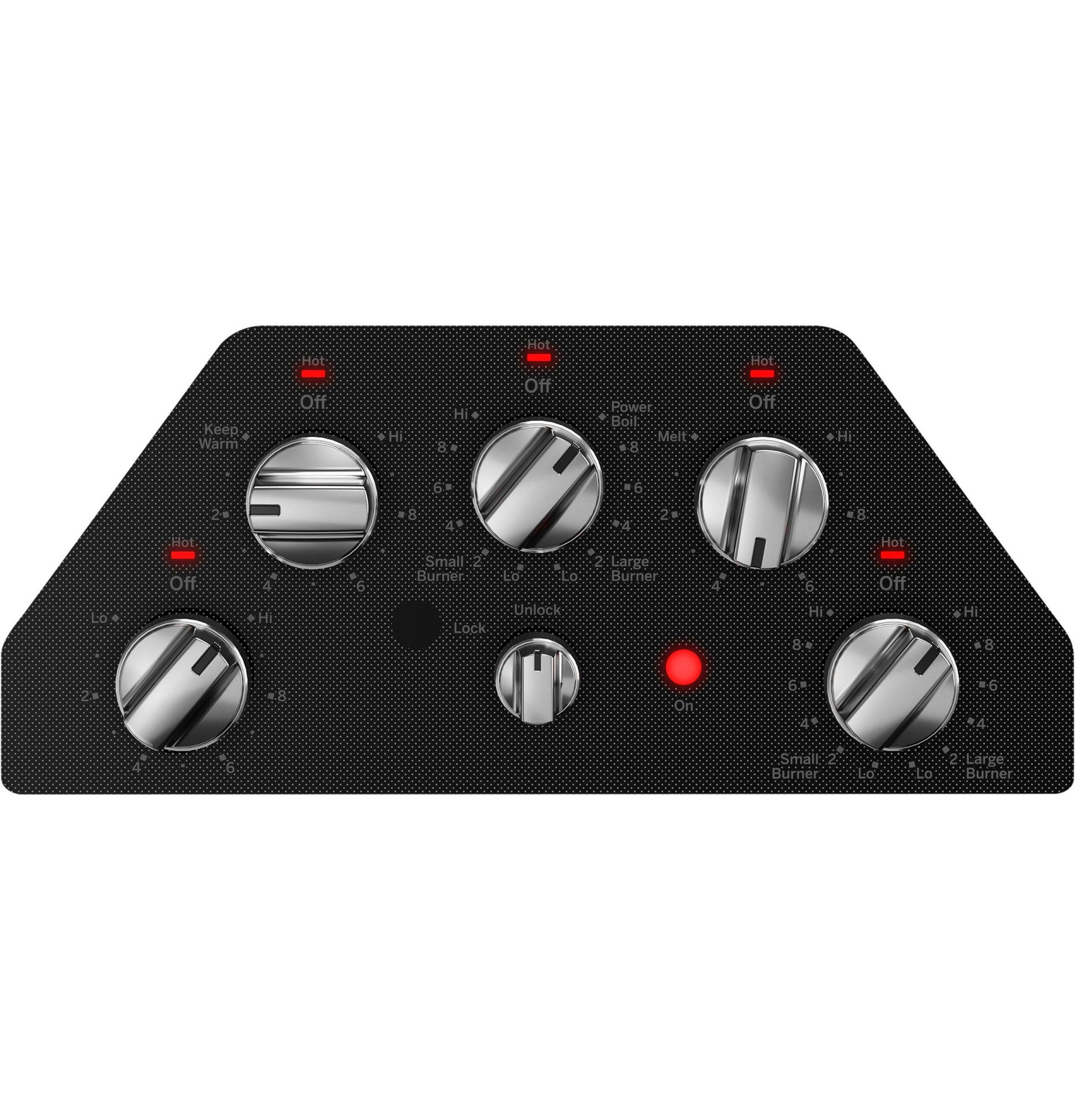

Control Location | Front Center |
Cooktop Type | Radiant Smoothtop |
Cooktop Control Features | Keep-Warm Setting Melt Setting |
Timer | Yes |
Element - Left Rear | 7" 1500W (Keep Warm) |

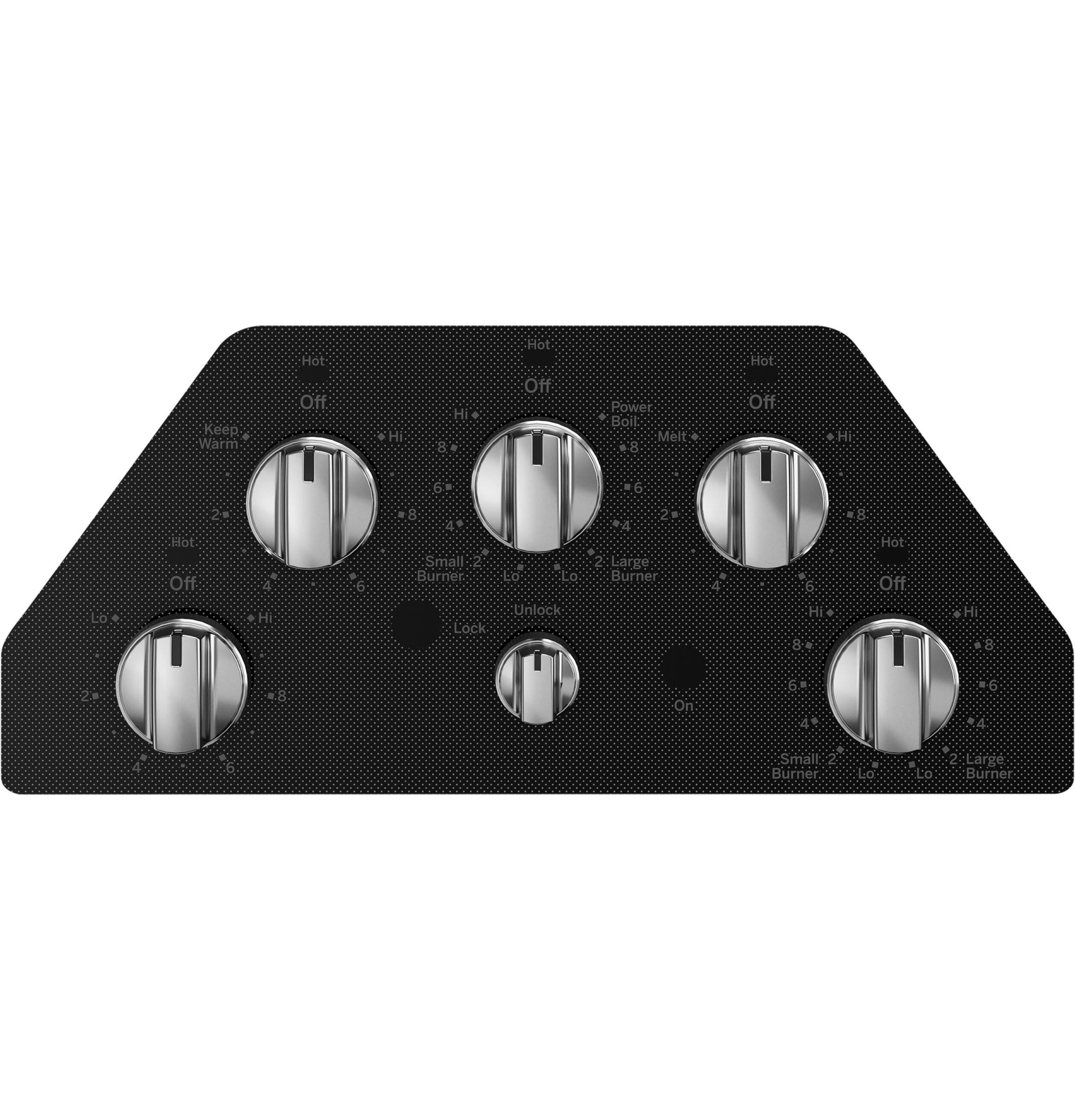

Control Type | Knob (Infinite switch) |
Element - Center | 9"/6" 3100W Dual Ring Power Boil |
Element - Right Rear | 6" 1200W (Melt) |
Product Type | Cooktop |
