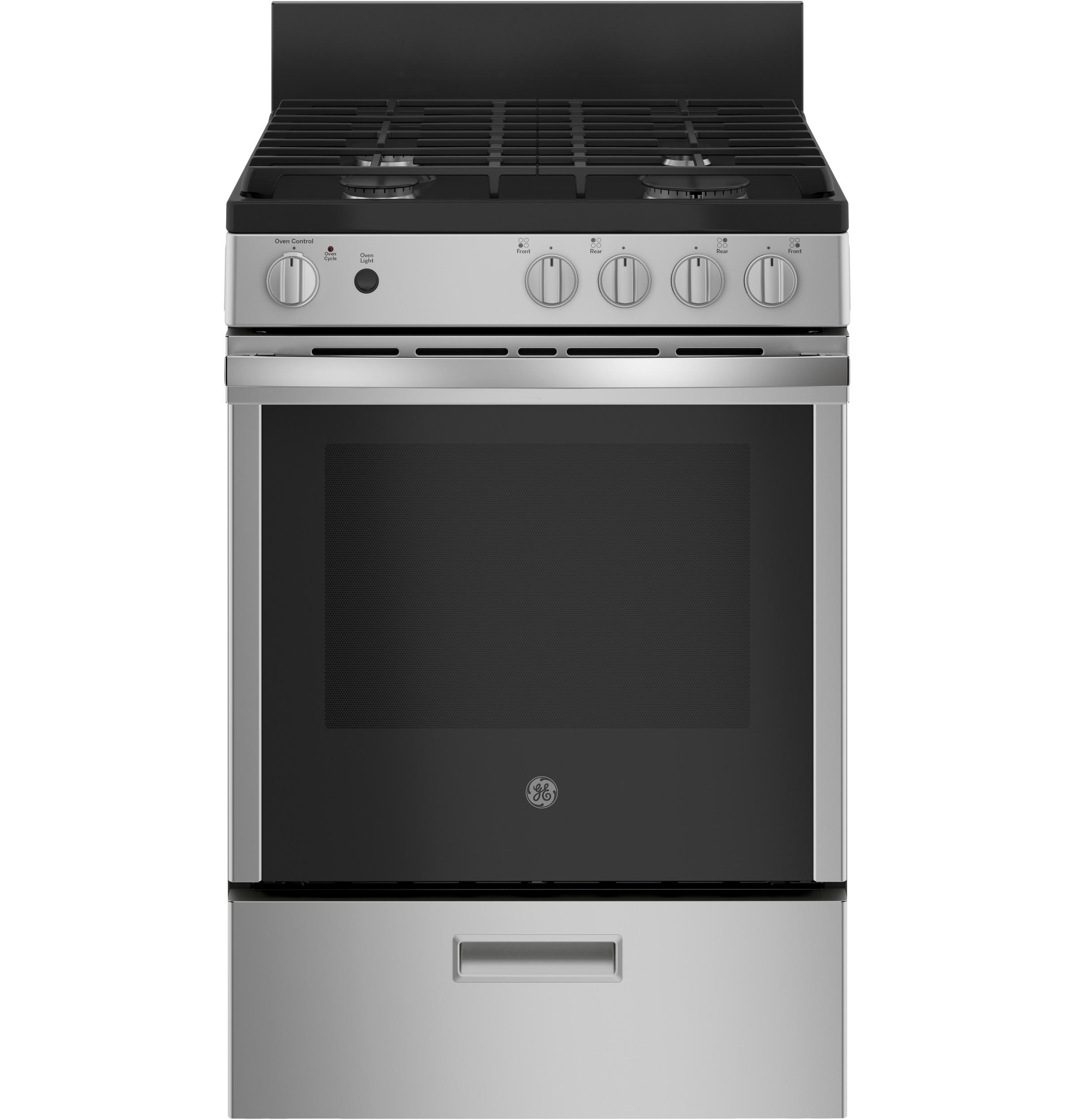

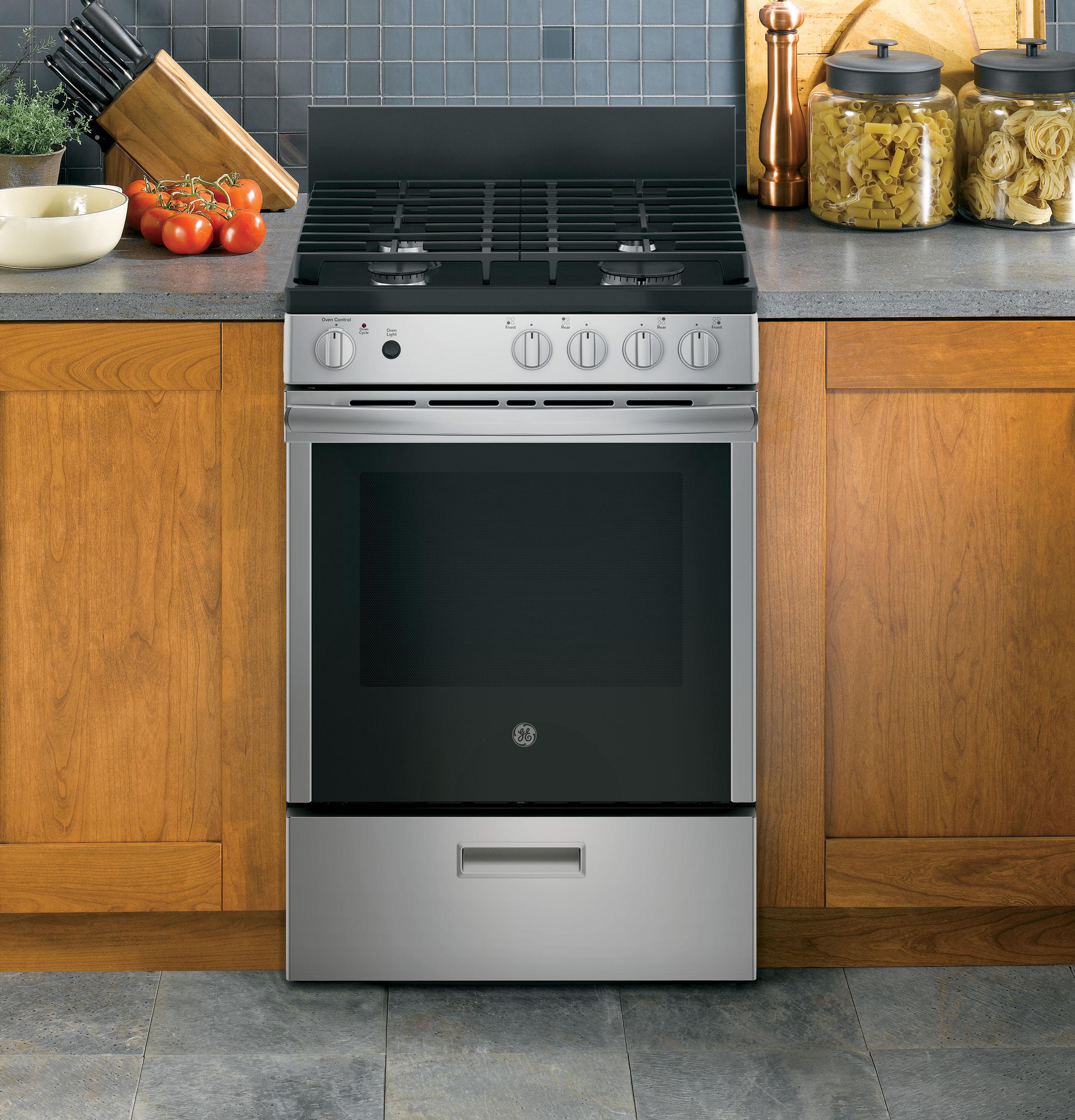

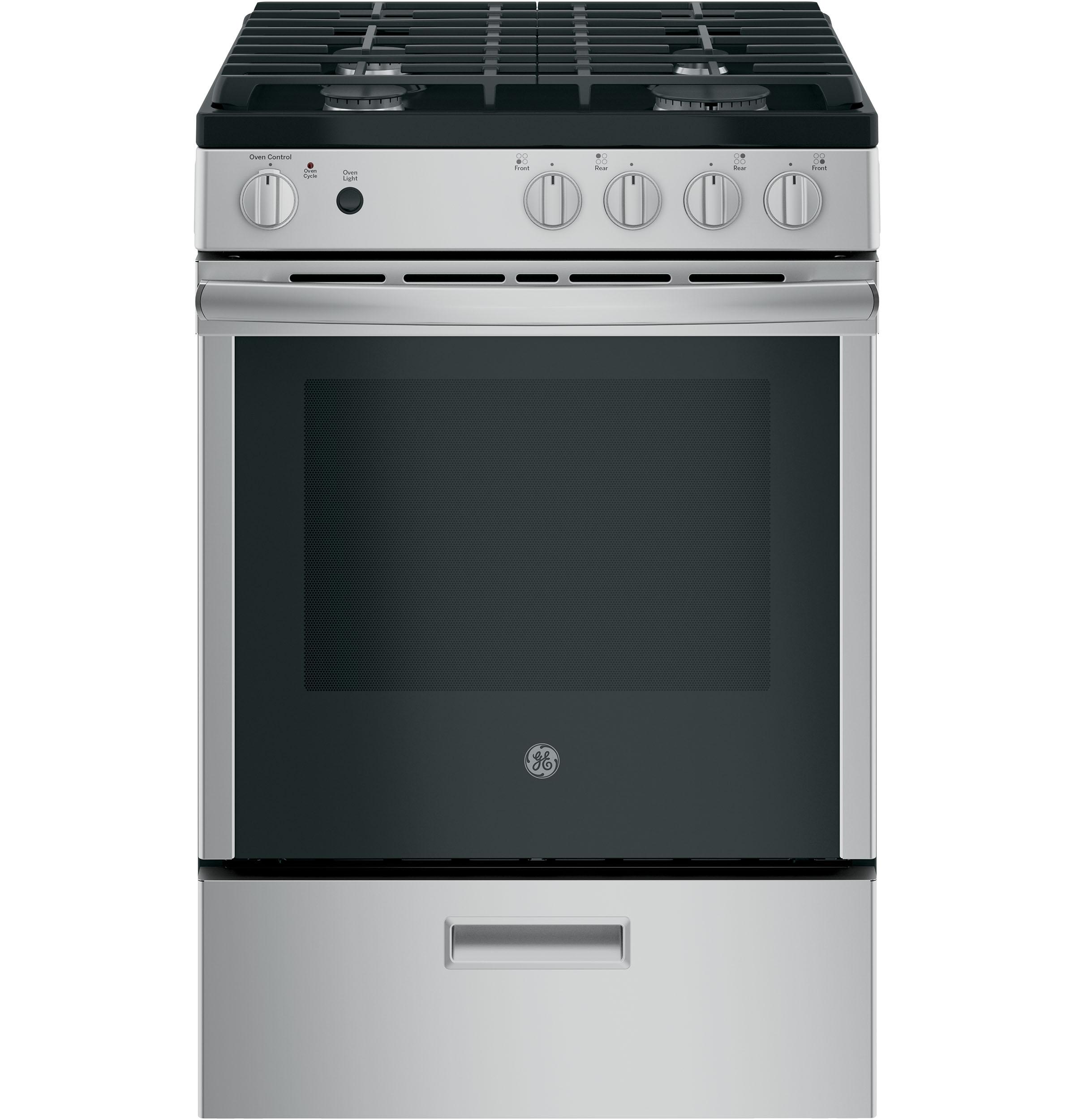

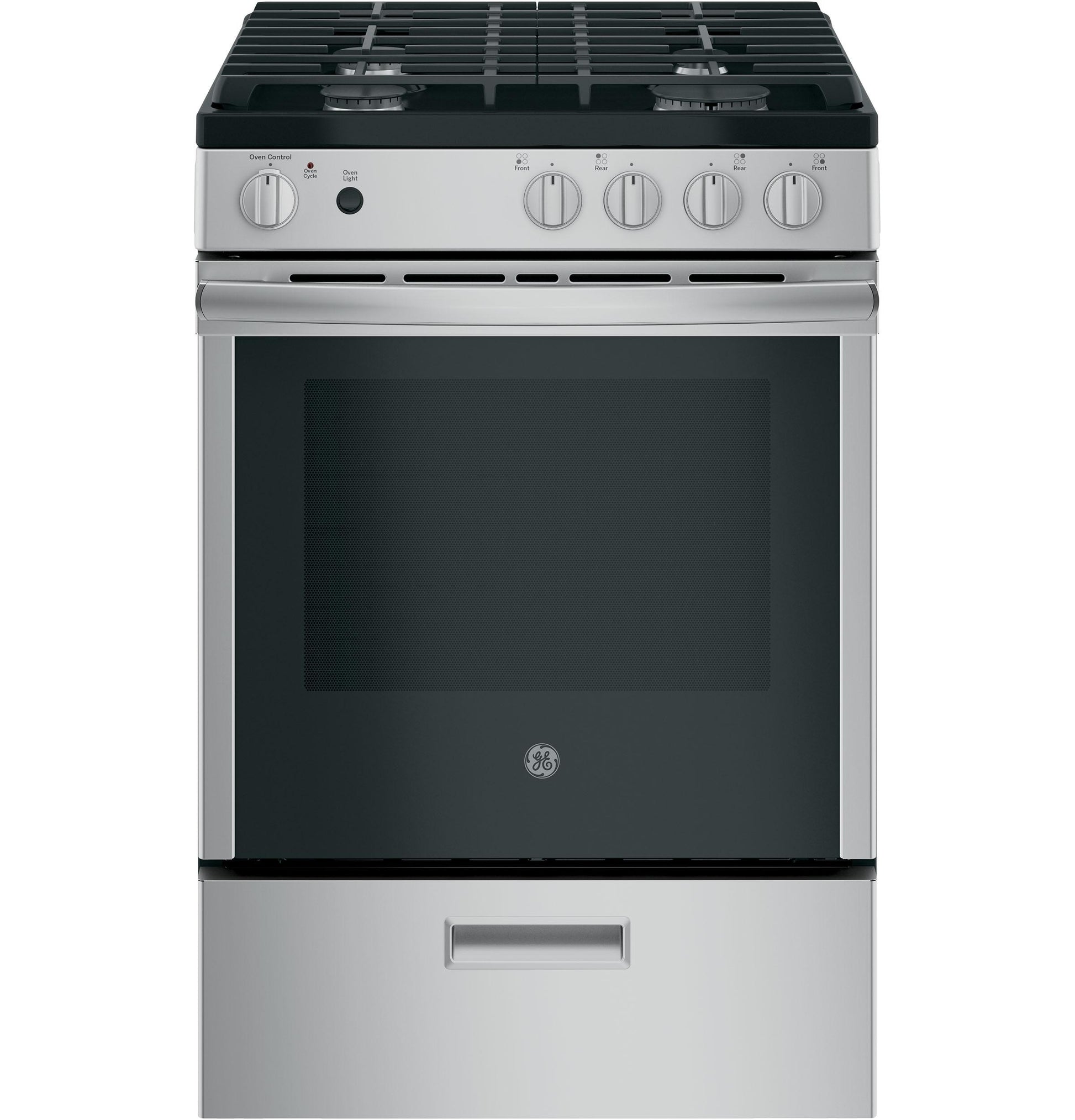

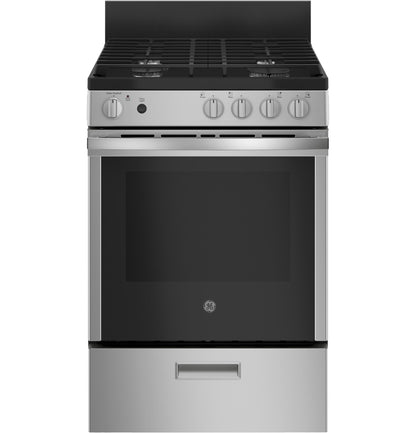

JGAS640RMSS GE® 24" Steam Clean Free-Standing/Slide-in Gas Range JGAS640RMSS

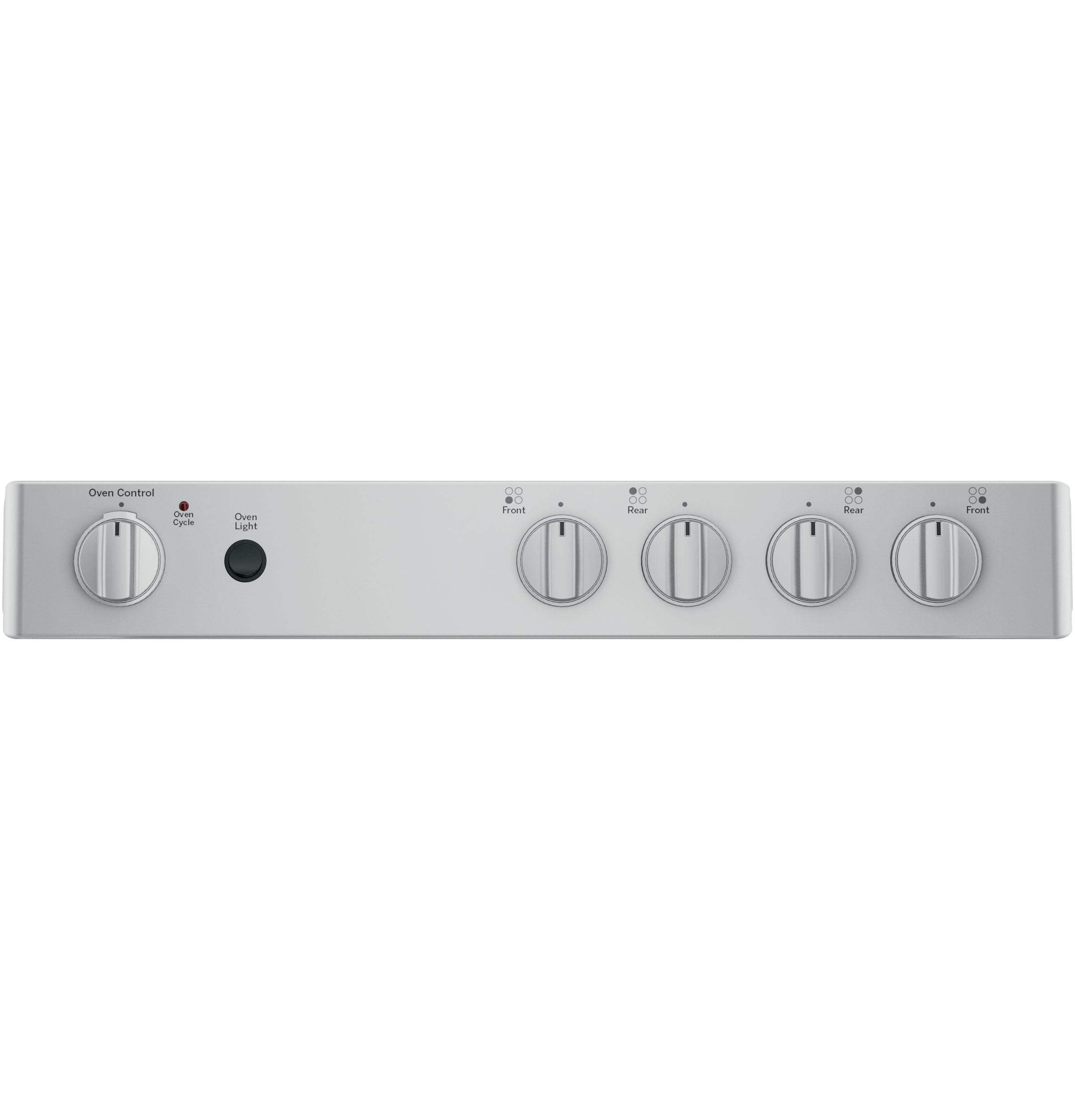

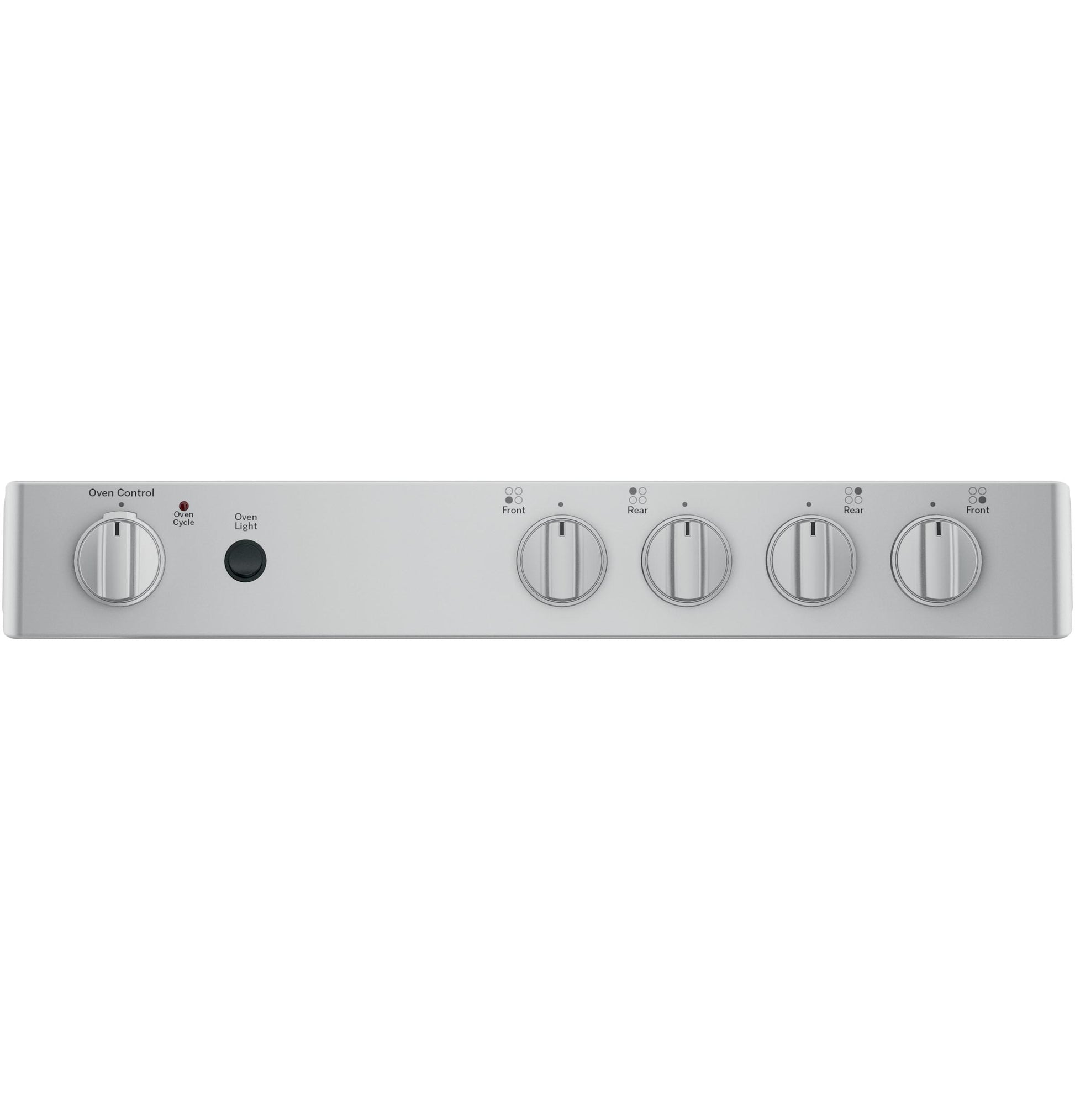

Front controls
Easily-accessible controls make it simple to control the stovetop and oven

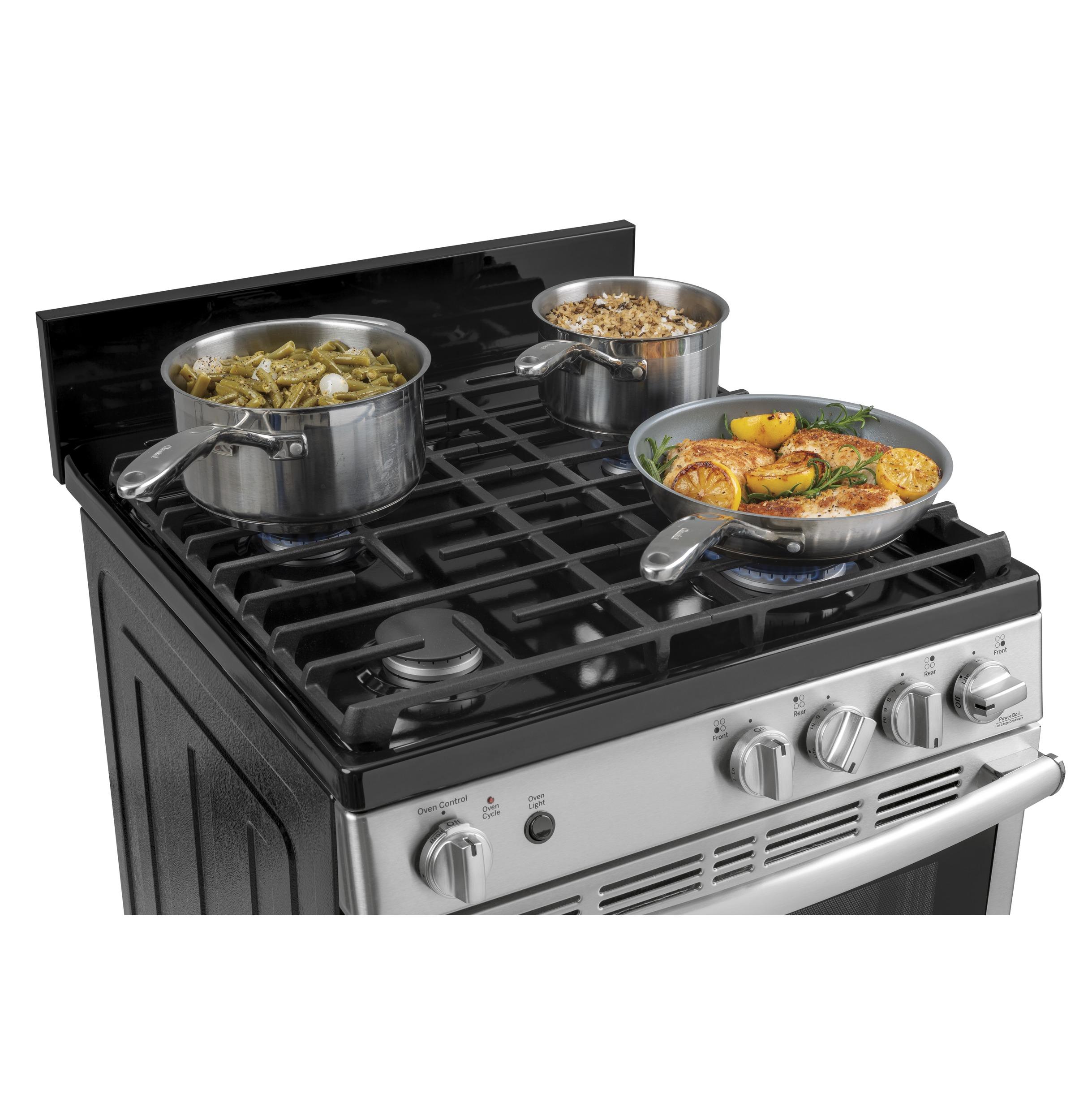

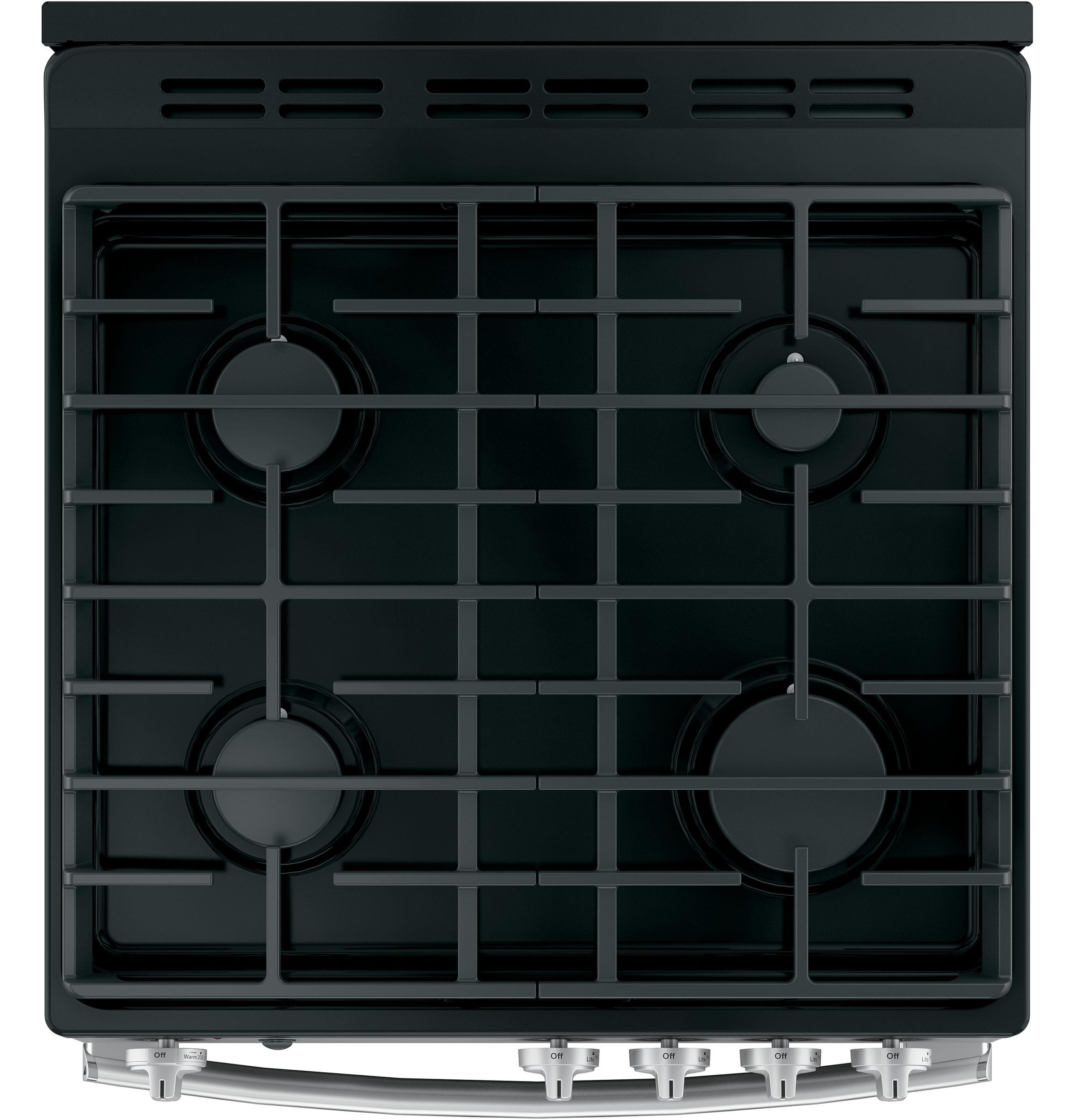

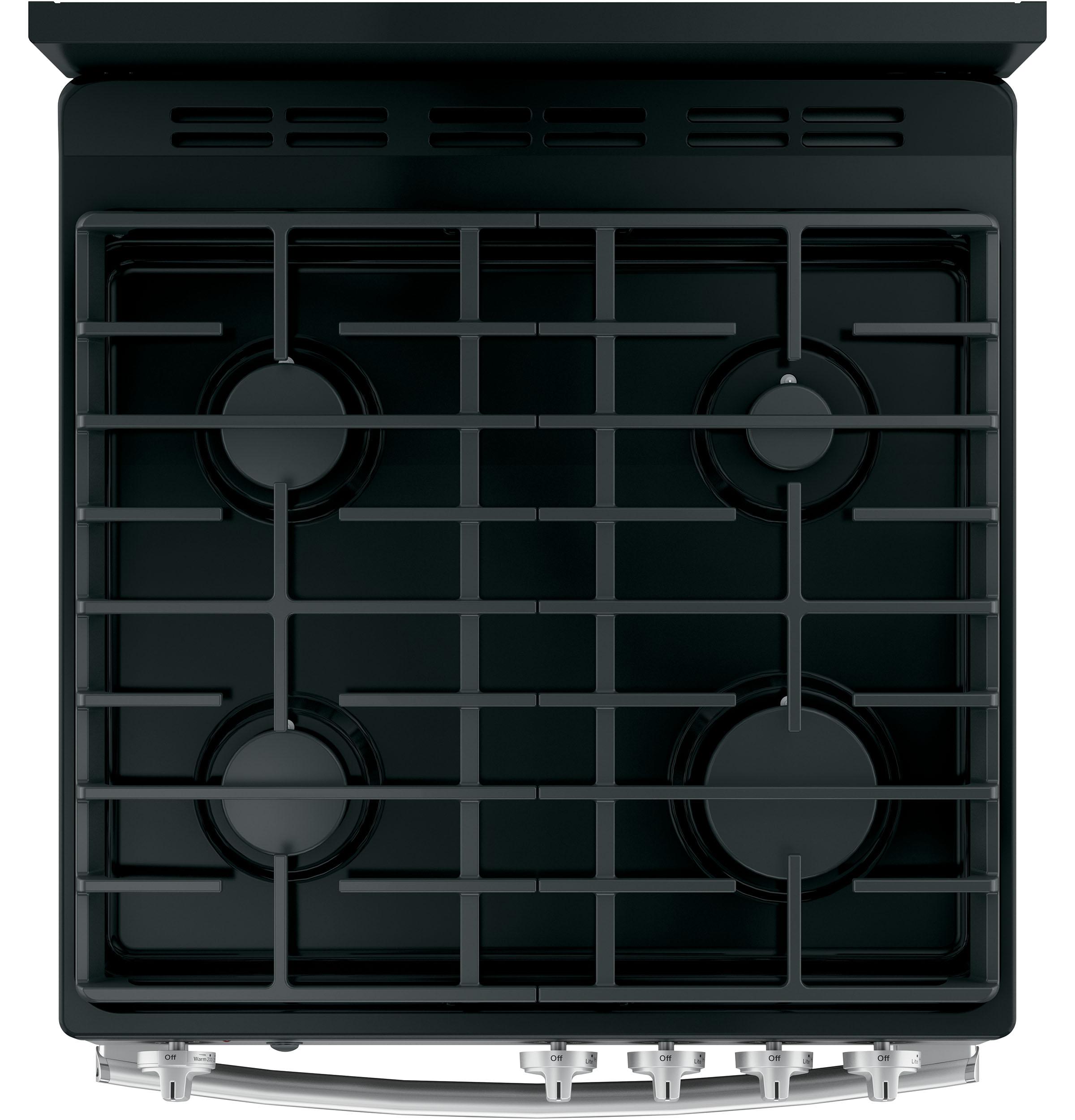

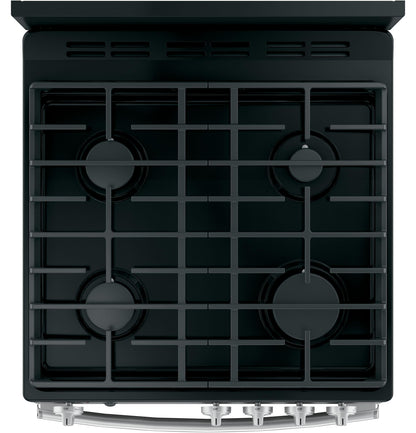

Edge-to-edge cooktop with heavy-cast grates
Enjoy the versatility of a large cooking surface on the stove that can handle lots of cookware combinations

In-oven broil
Healthy meals are hassle-free with in-oven broiling

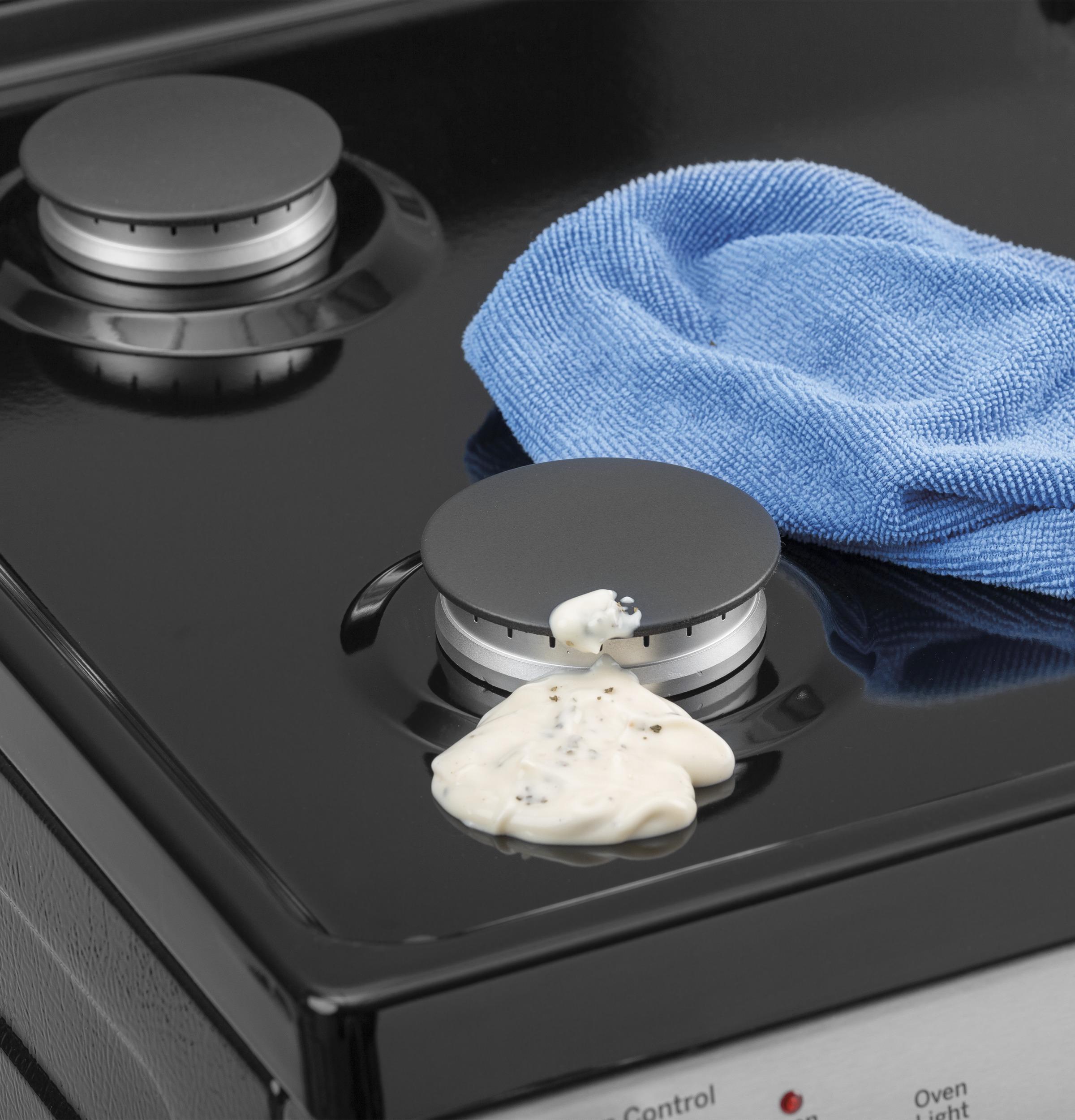

Sealed cooktop burners
Contains spills and make cleaning quick and easy

Steam clean
The power of steam eliminates oven scrubbing with just a 30-minute cycle

Modular backguard
Versatile design gives you the option of a traditional look, or flip down to create a slide-in appearance

CAPACITY
Total Capacity (cubic feet)	2.9 cu ft
FILTER
App Filter - Cabinet Width	Cooking 24 in.
App Filter - Control Type	Rotary knobs
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Gas
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Cleaning Type	Manual
App Filter - Cooktop Type	Standard Grates
APPEARANCE
Handle	Designer Style
Oven Door Features	Oven Window
Handle Color	Stainless Steel
Control Knobs	Stainless Steel
Door Swing	Pull-Down
Color Appearance	Stainless Steel/Black
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 15.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps	120V ; 60Hz ; 15A
Top Burner BTU Rating - LP (000's BTU's)	(1) 15.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	13.0
Bake/Broiler BTU Rating - LP (000's BTU's)	13.0
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Optional Backguard	Included
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	107 lb
Depth Without Handle	25.875 in
Height to Cooking Surface (in.)	36 1/4 +/- 1/4

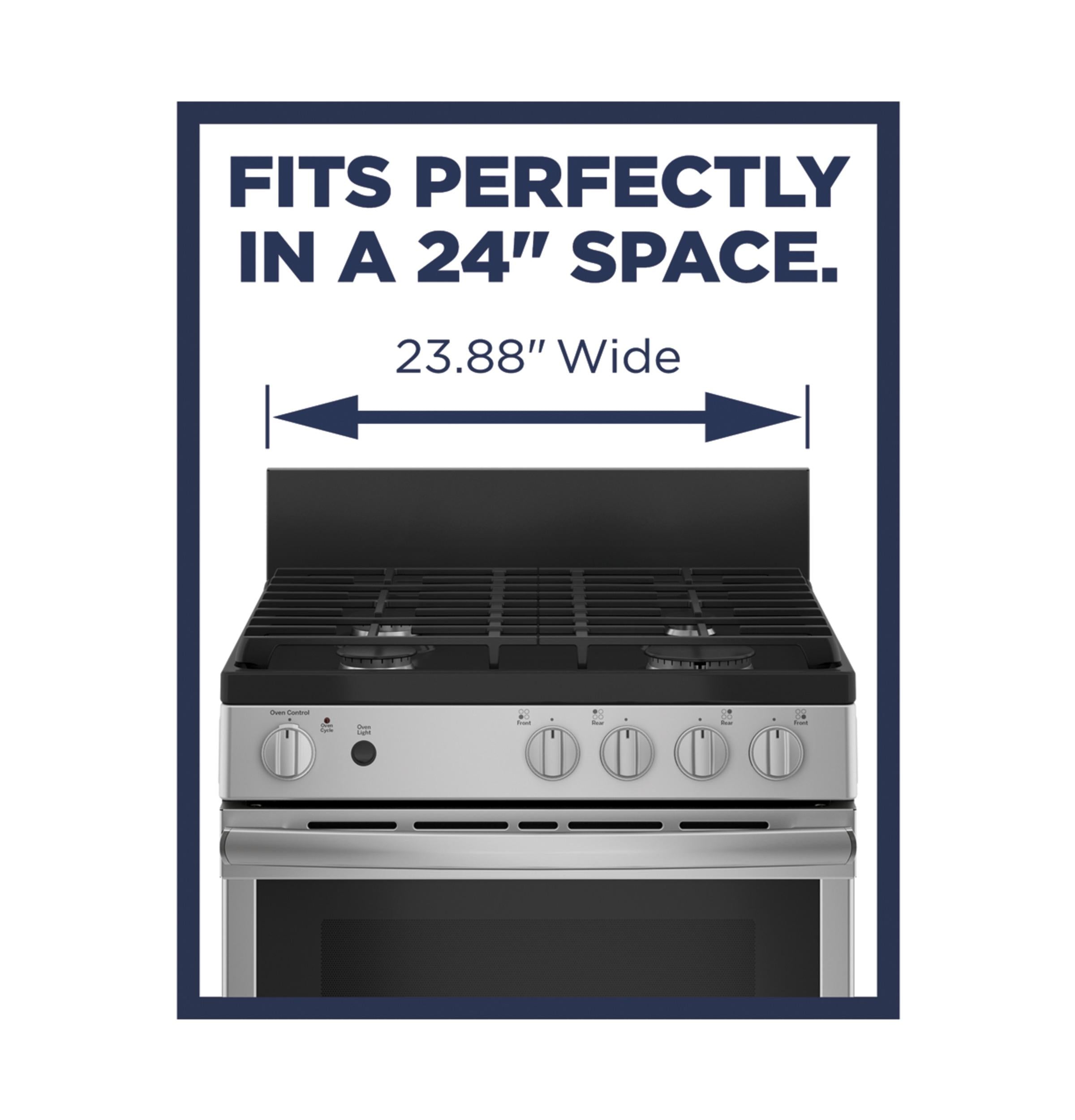

Cabinet Width	24 in
Approximate Shipping Weight	120 lb

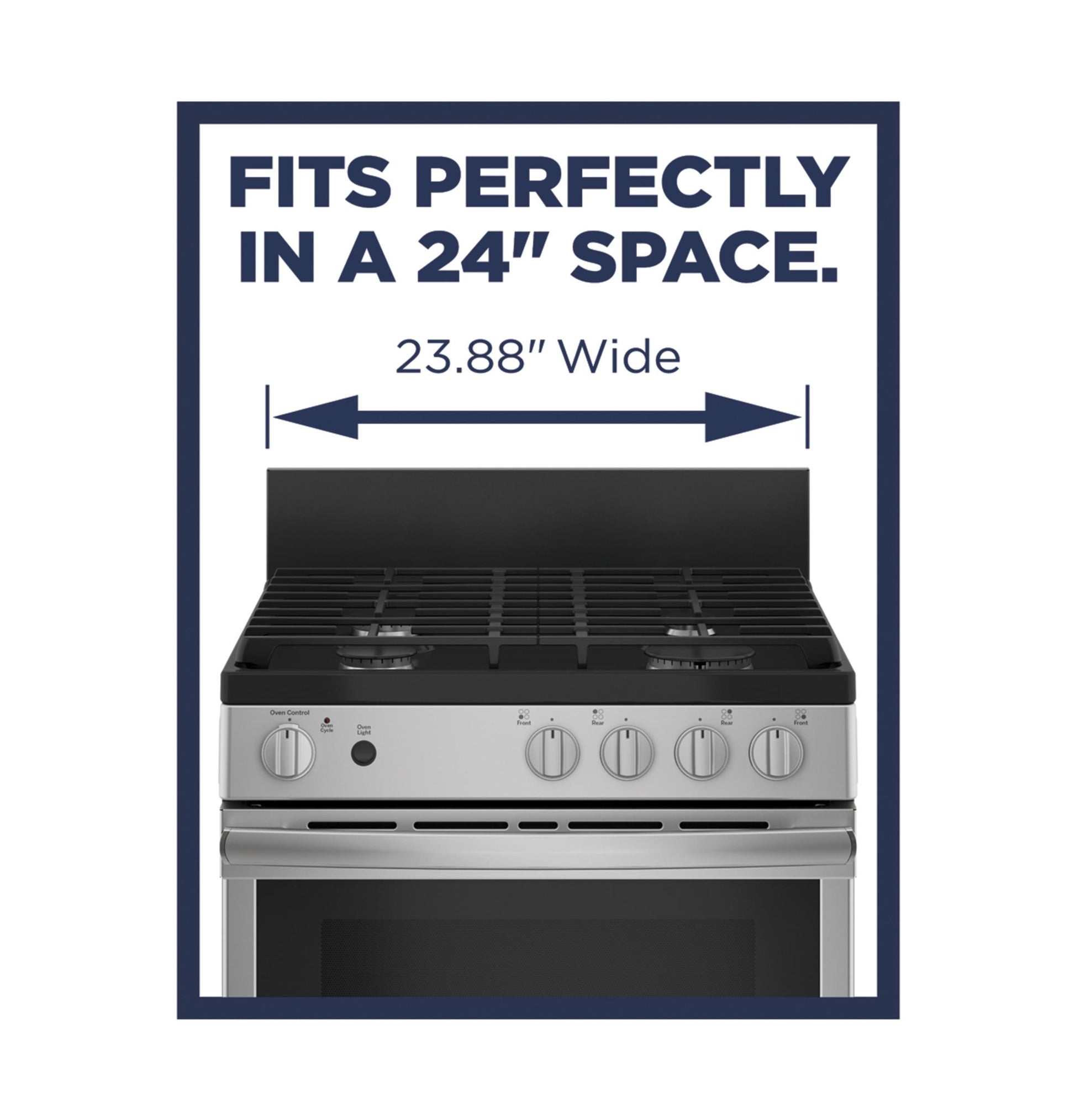

Overall Width	24 in
Overall Height	41 in
Overall Depth	28.125 in
Depth with Door Open	45.625 in
Oven Interior Dimensions (W x H x D) (in.)	19 x 15-3/8 x 17-1/8
FEATURES
Ignition System	Electronic
Burner - Right Rear	5,000 BTU
Oven Interior	1 Incandescent Light Blue Gray

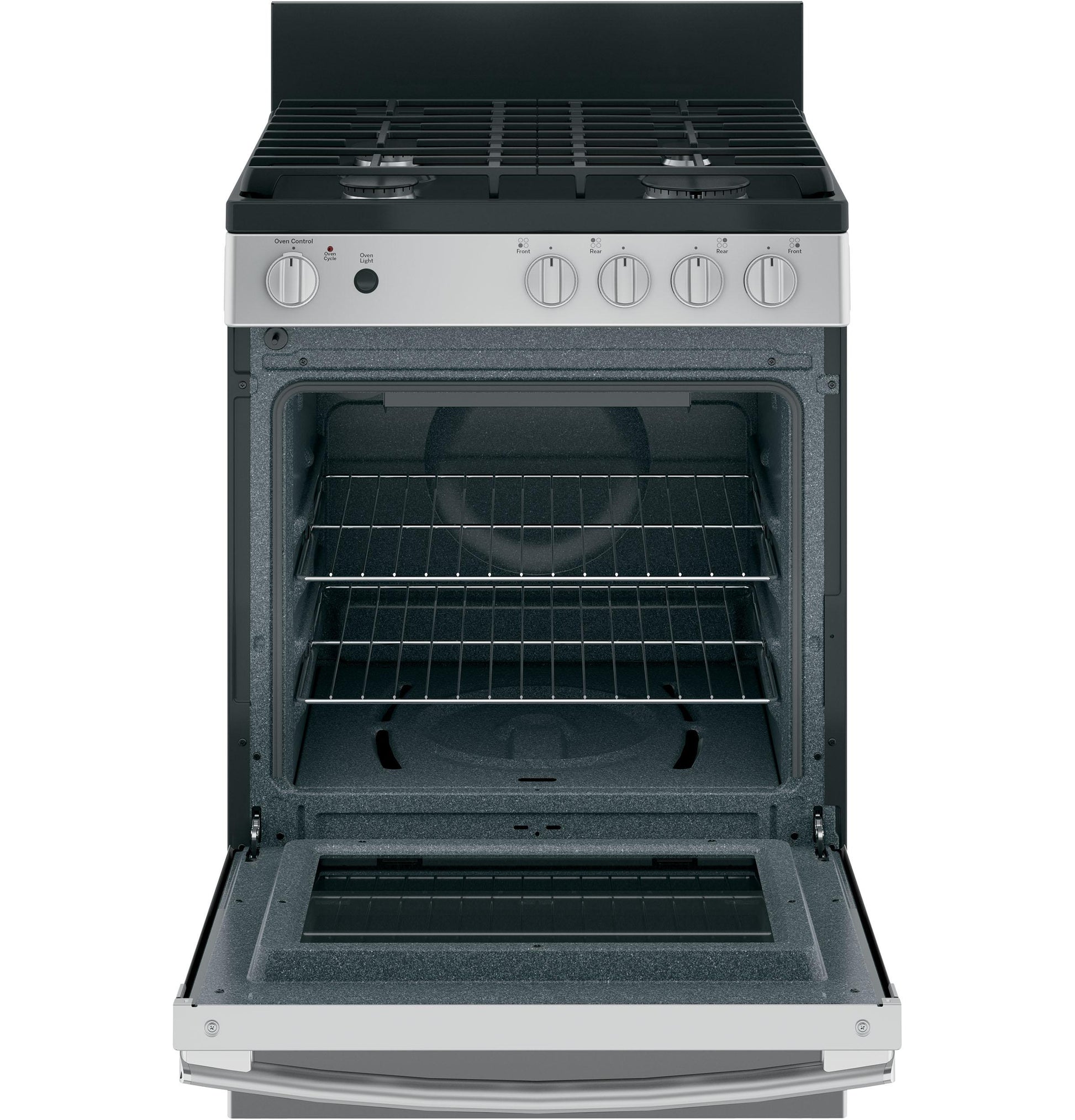

Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	9,500 BTU
Oven Cleaning Type	Standard Clean
Product Type	Free-Standing Single Oven
Cooktop Type	Standard Grates
Cooktop Burner Grate Material	Cast-Iron
Fuel Type	Natural Gas
Control Location	Front
Control Type	Rotary knobs
Burner - Left Front	9,500 BTU
Drawer Type	Lower Storage Drawer
Sabbath Mode	Yes
Leveling System	4 Leveling Legs
Cooking Technology	Traditional
Configuration	Range with In Oven Broil
OU Certified	No
Oven Cooking Modes	Bake Broil
Cooktop Burner Type	Sealed
Valves (Degree of Turn)	270
Burner - Right Front	15,000 BTU
Cooktop Surface	Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	4
