GE® 30" Free-Standing Gas Range JGB635DEKWW
Discontinued

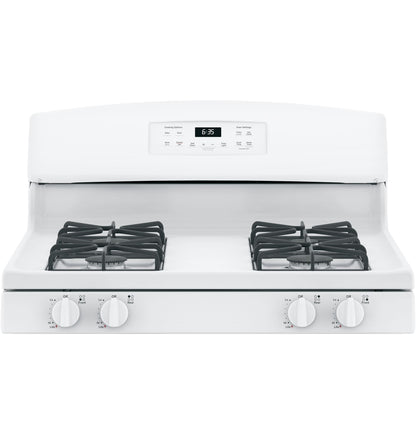

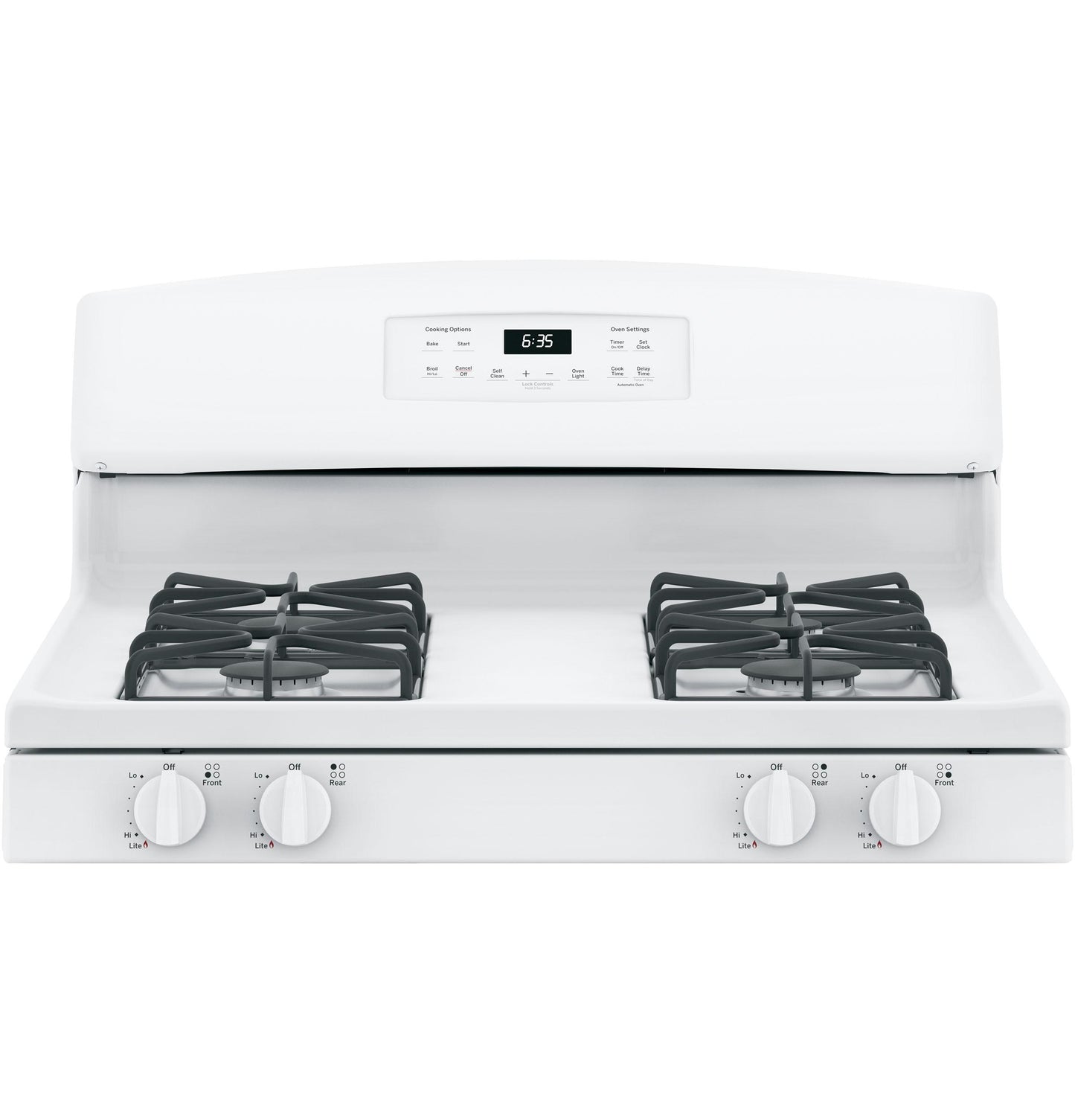

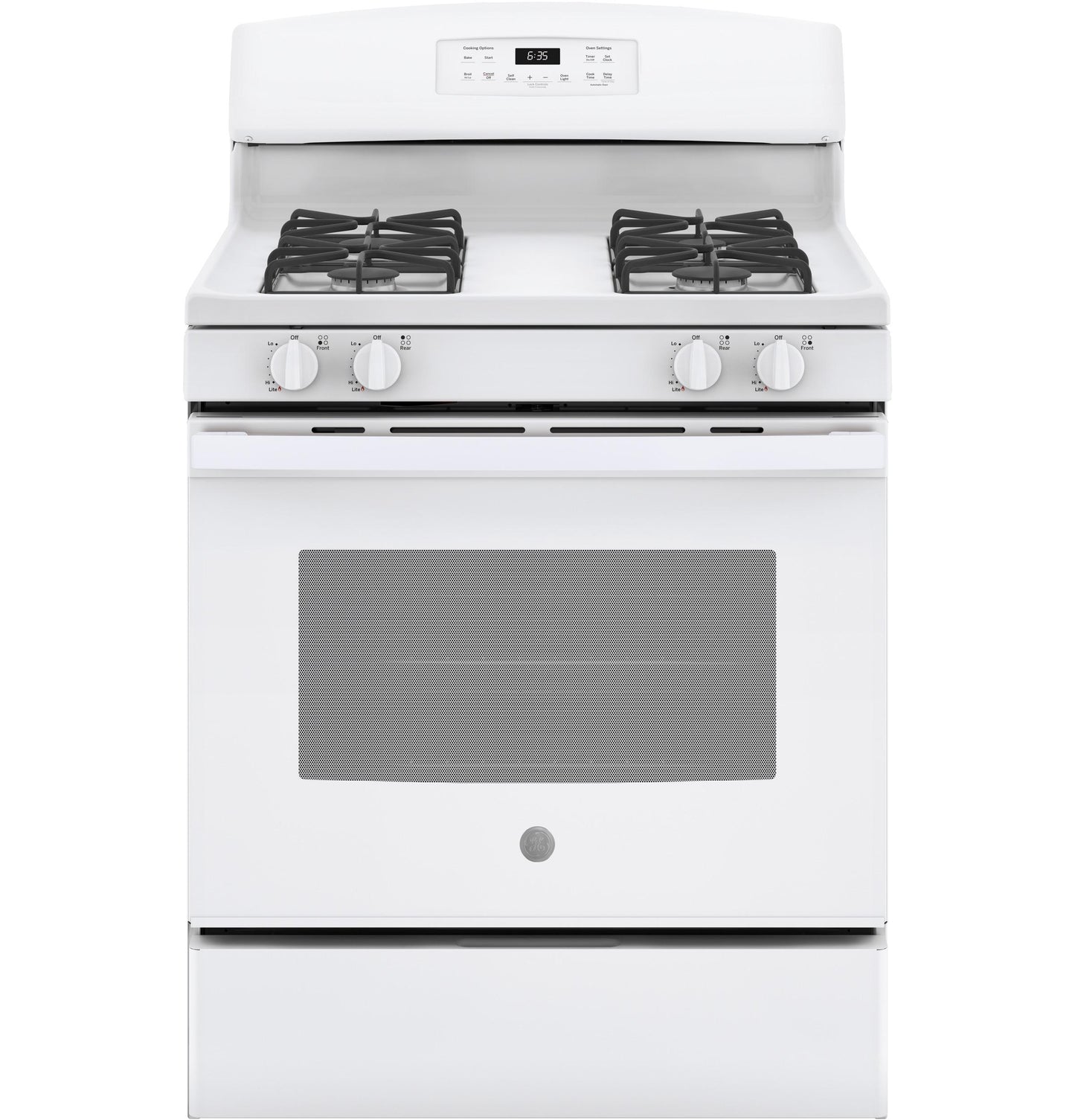

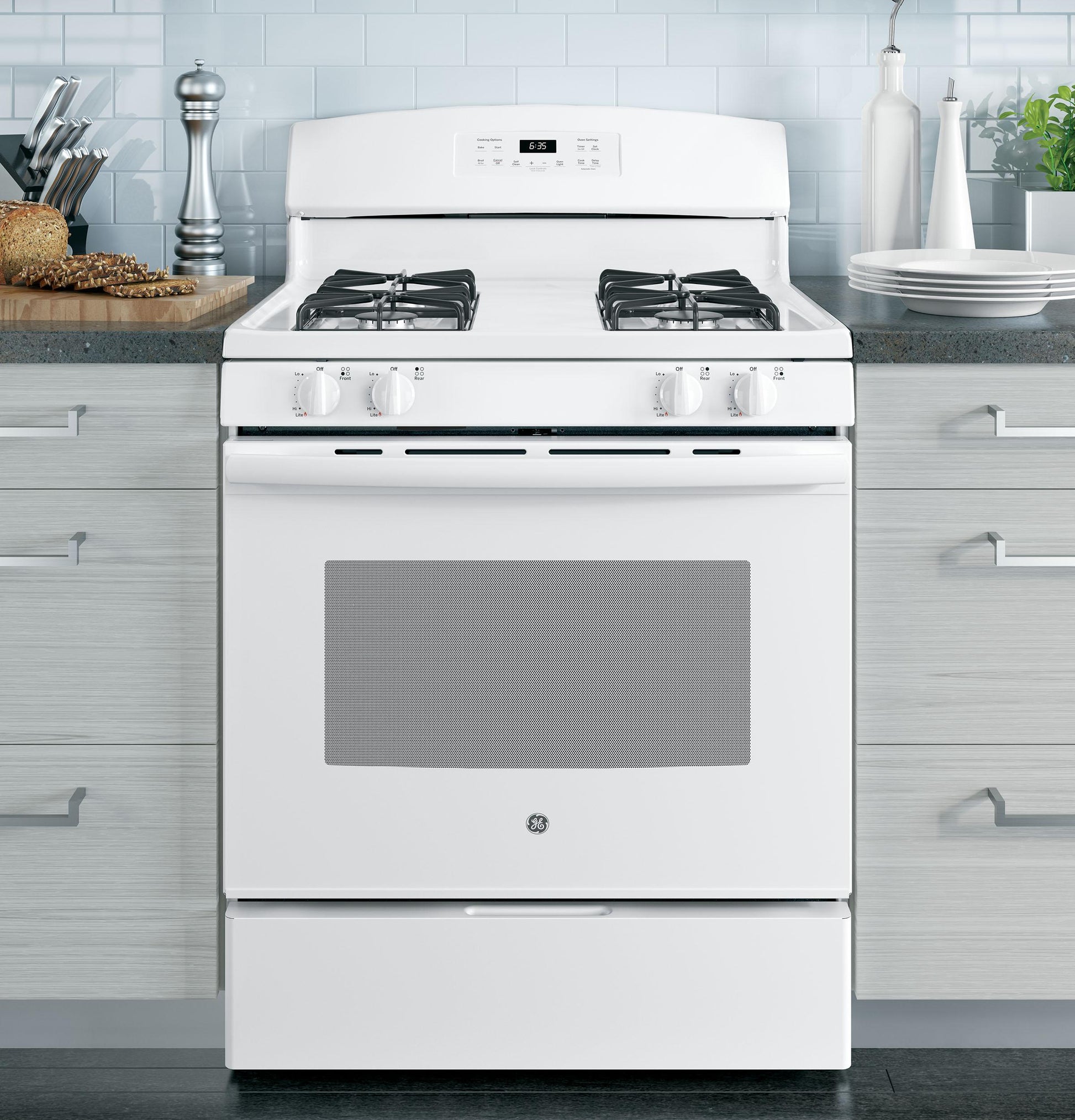

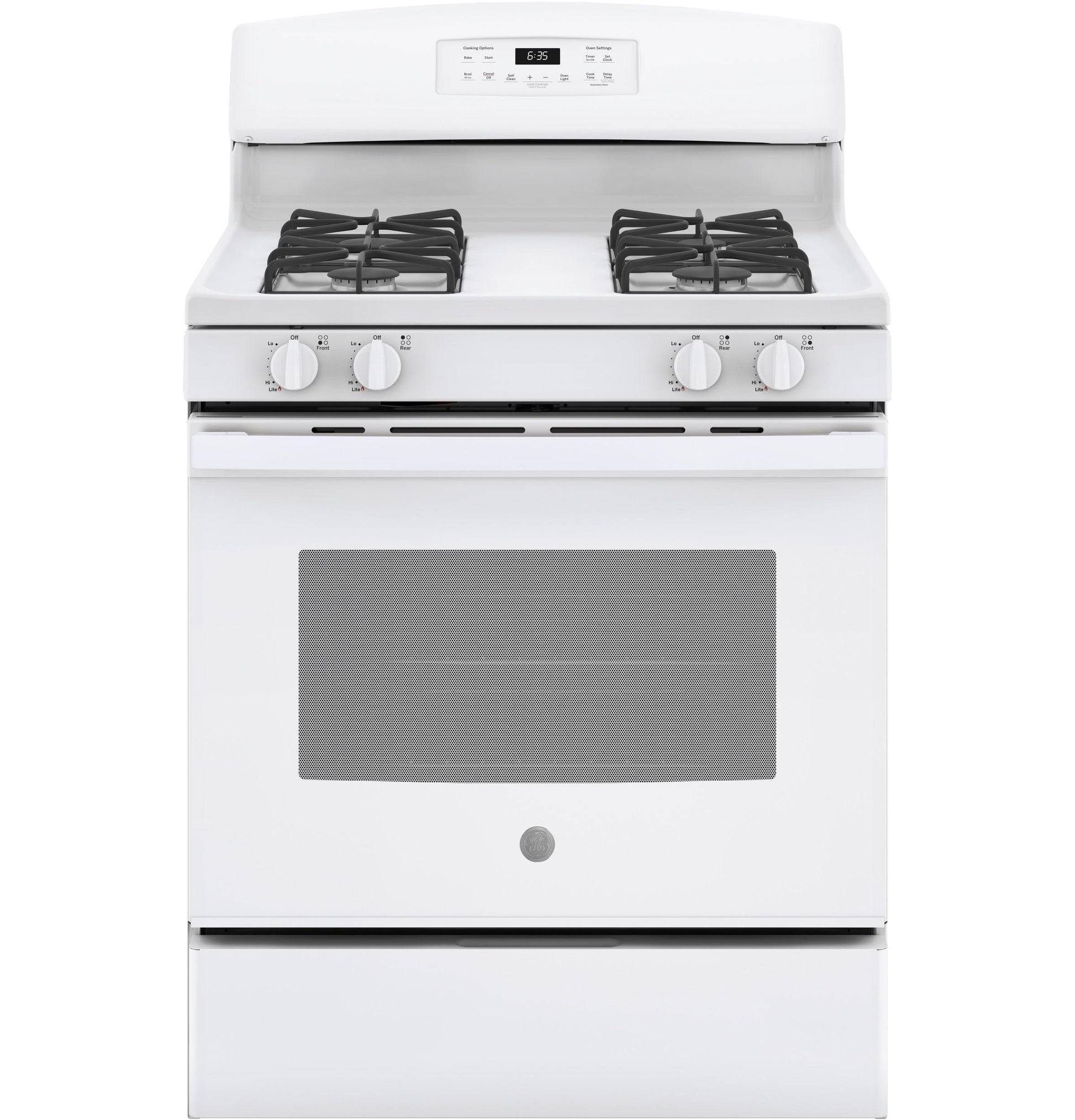

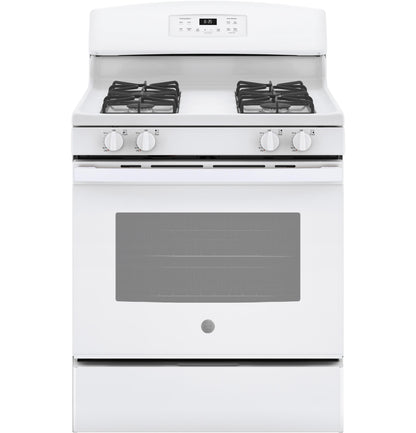

GE® 30" Free-Standing Gas Range
Authorized Reseller
Product Details
- 13,000 BTU burner
- Black matte steel grates
- Precise Simmer burner
- Self-clean oven
- 5.0 cu. ft. oven capacity

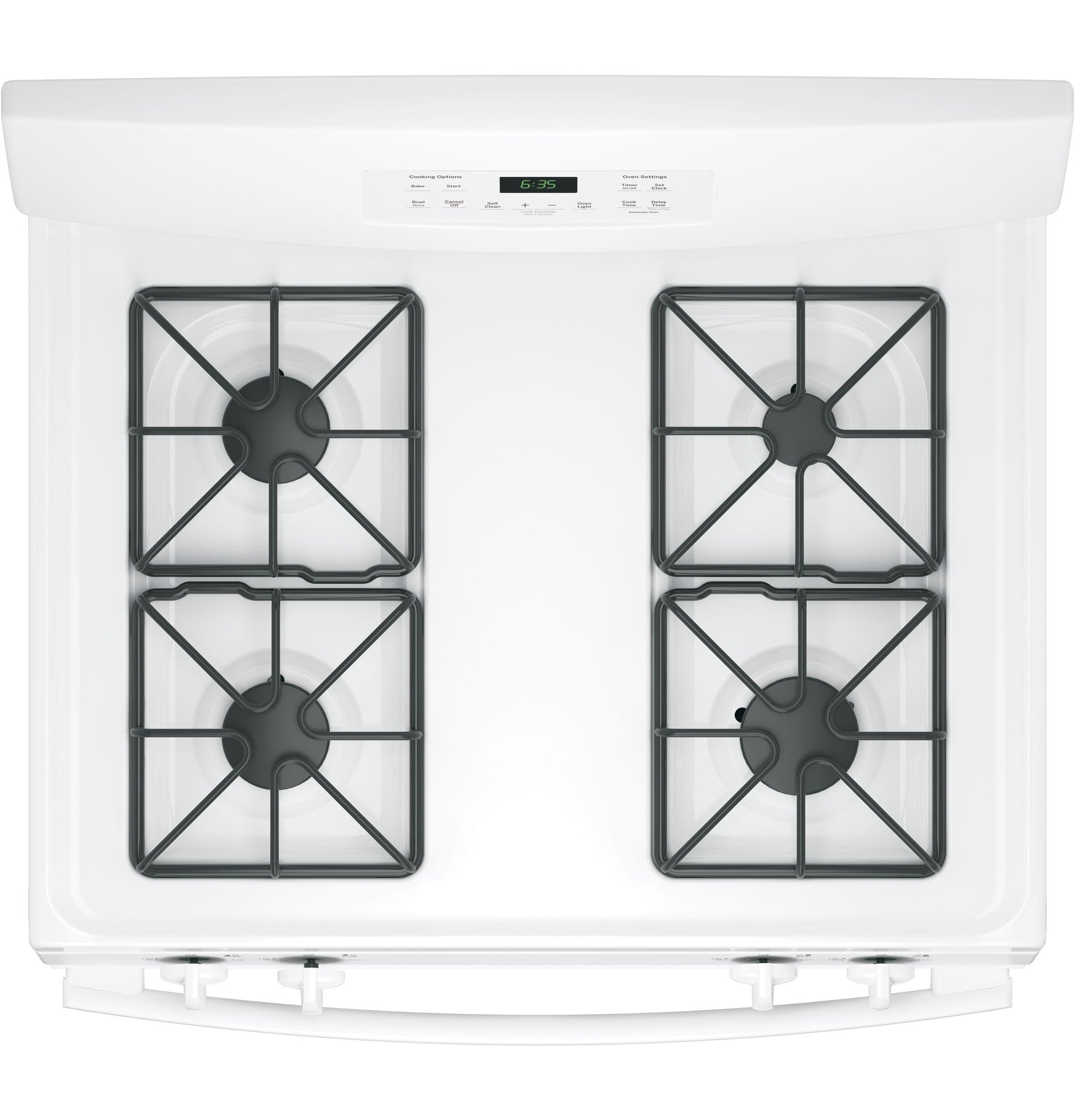

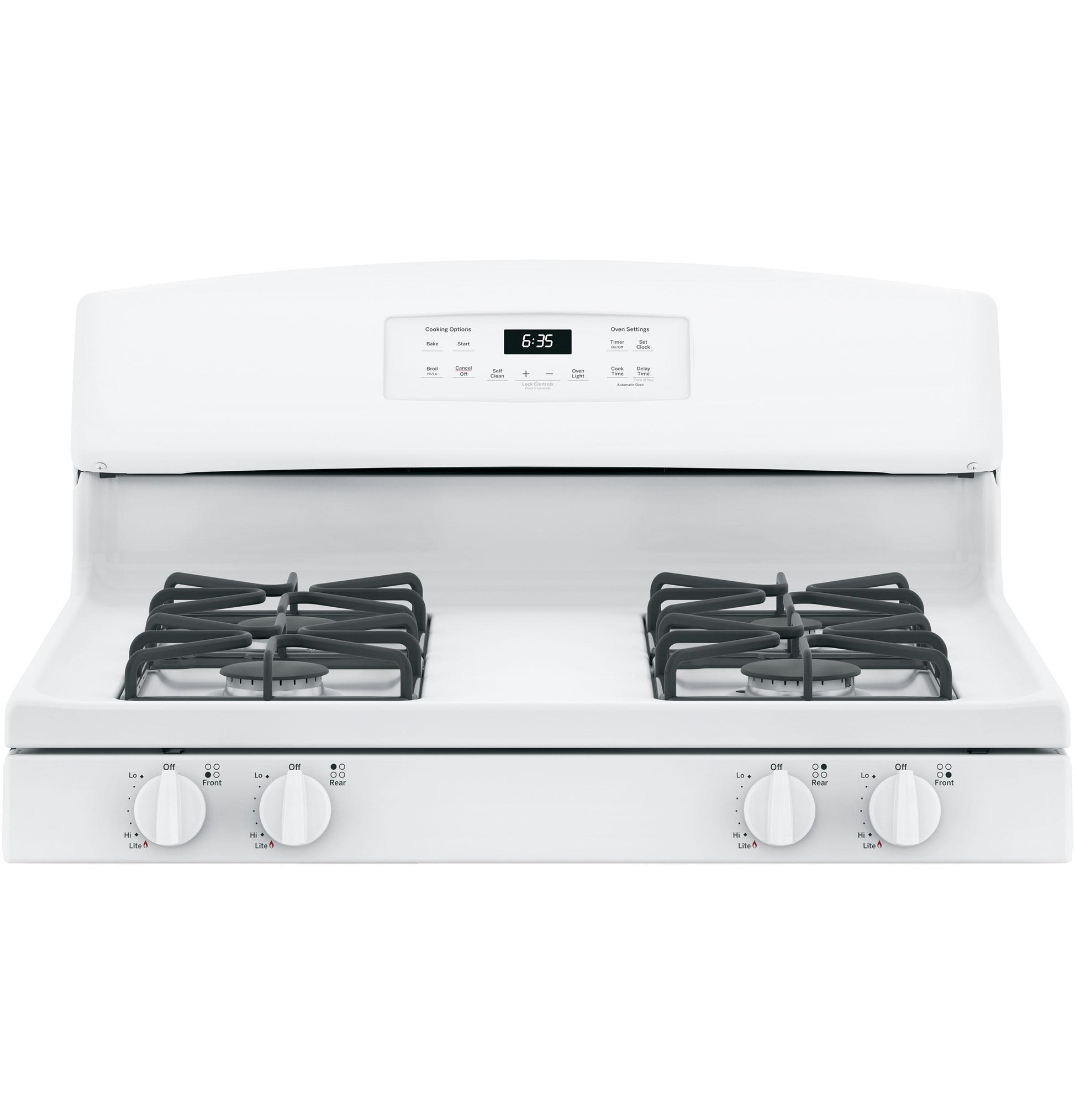

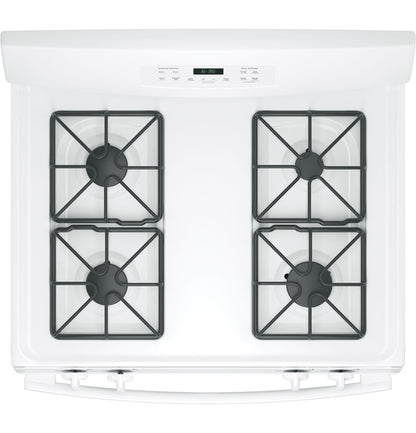

- Sealed cooktop burners
- In-oven broil

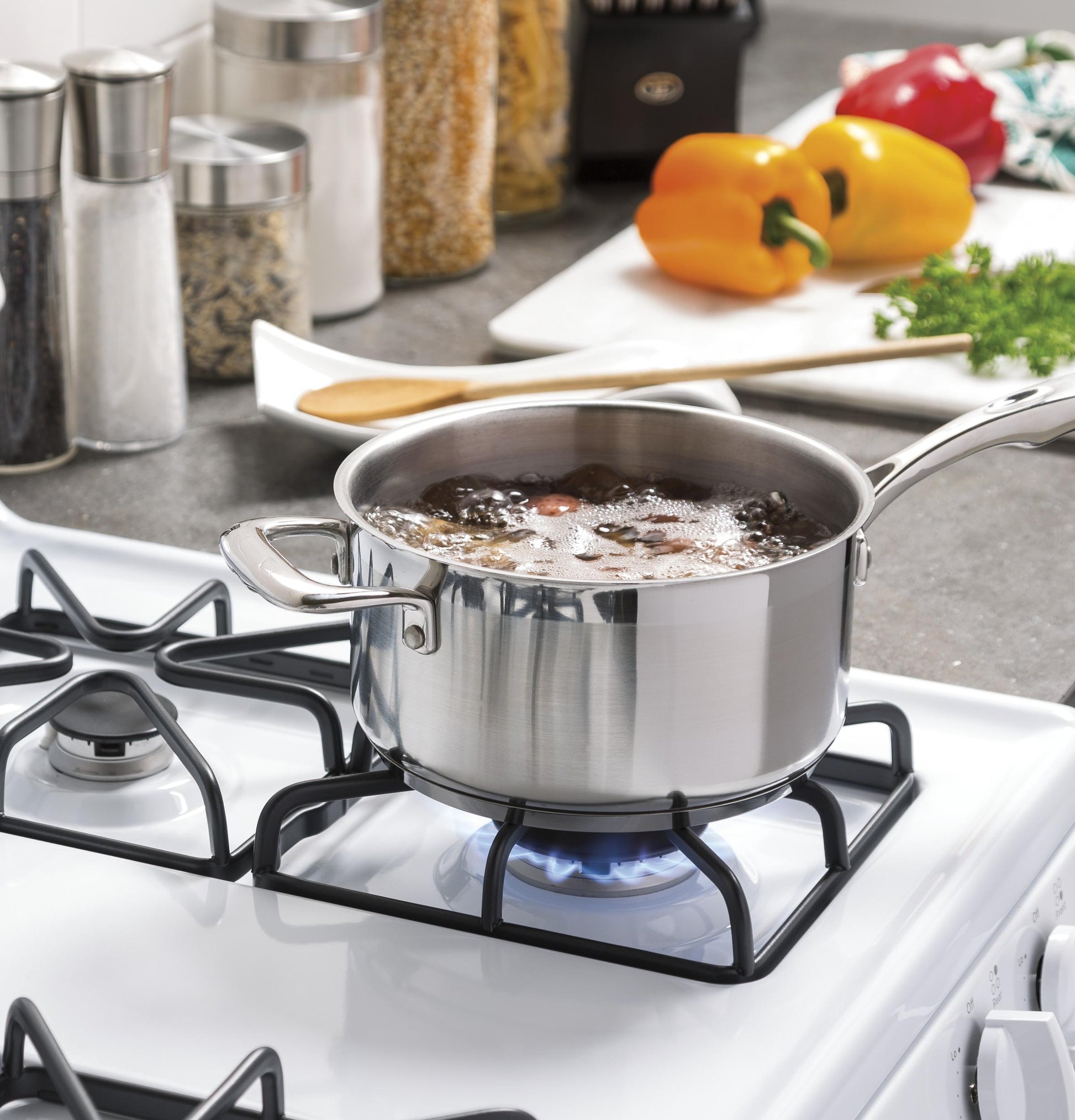

13,000 BTU burner
Delivers a wide range of heat output ideal for most cooking requirements

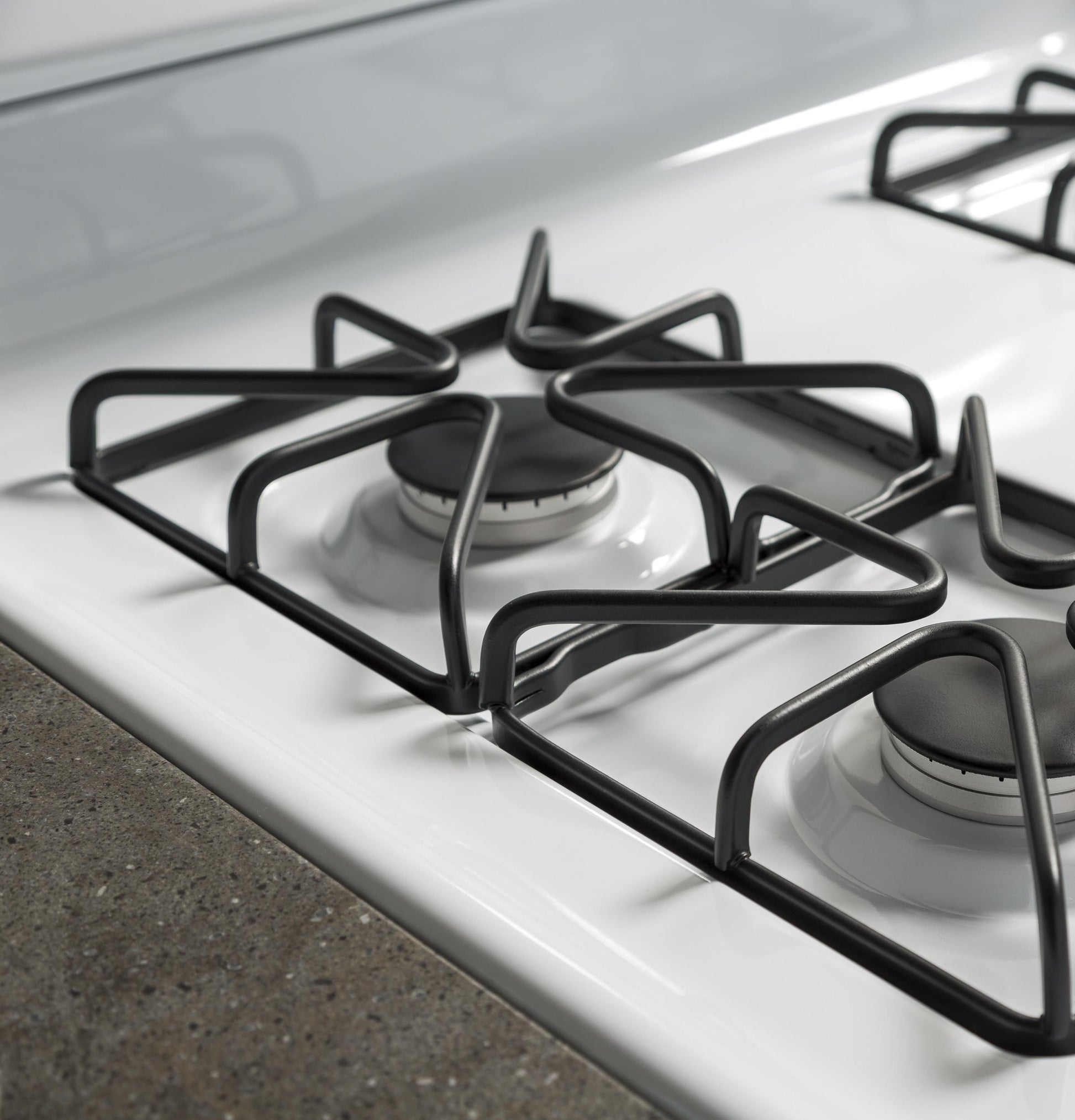

Black matte steel grates
Enjoy a high-end look with a durable, matte coating

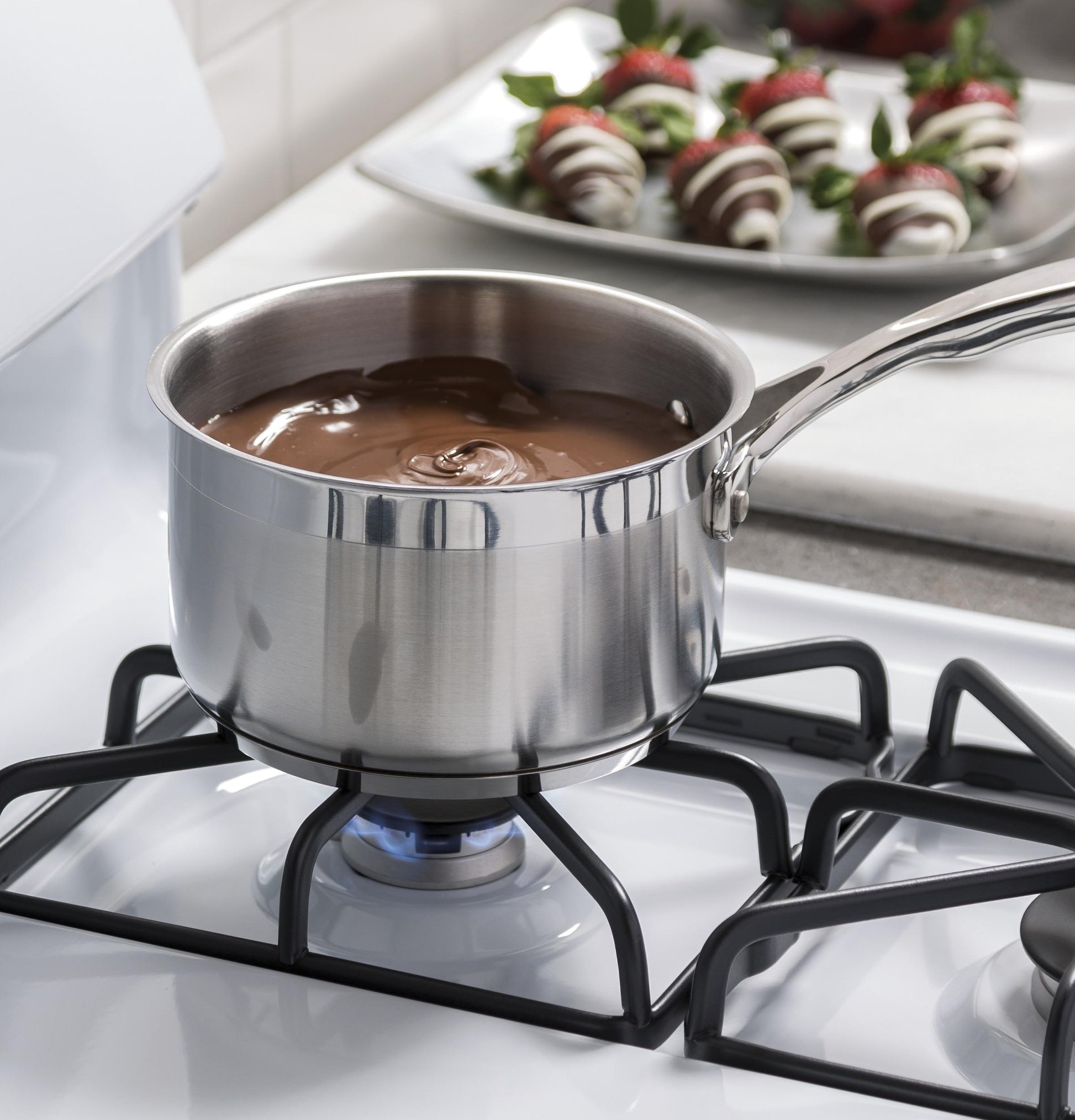

Precise Simmer burner
Delicate foods don't burn with low, even heat

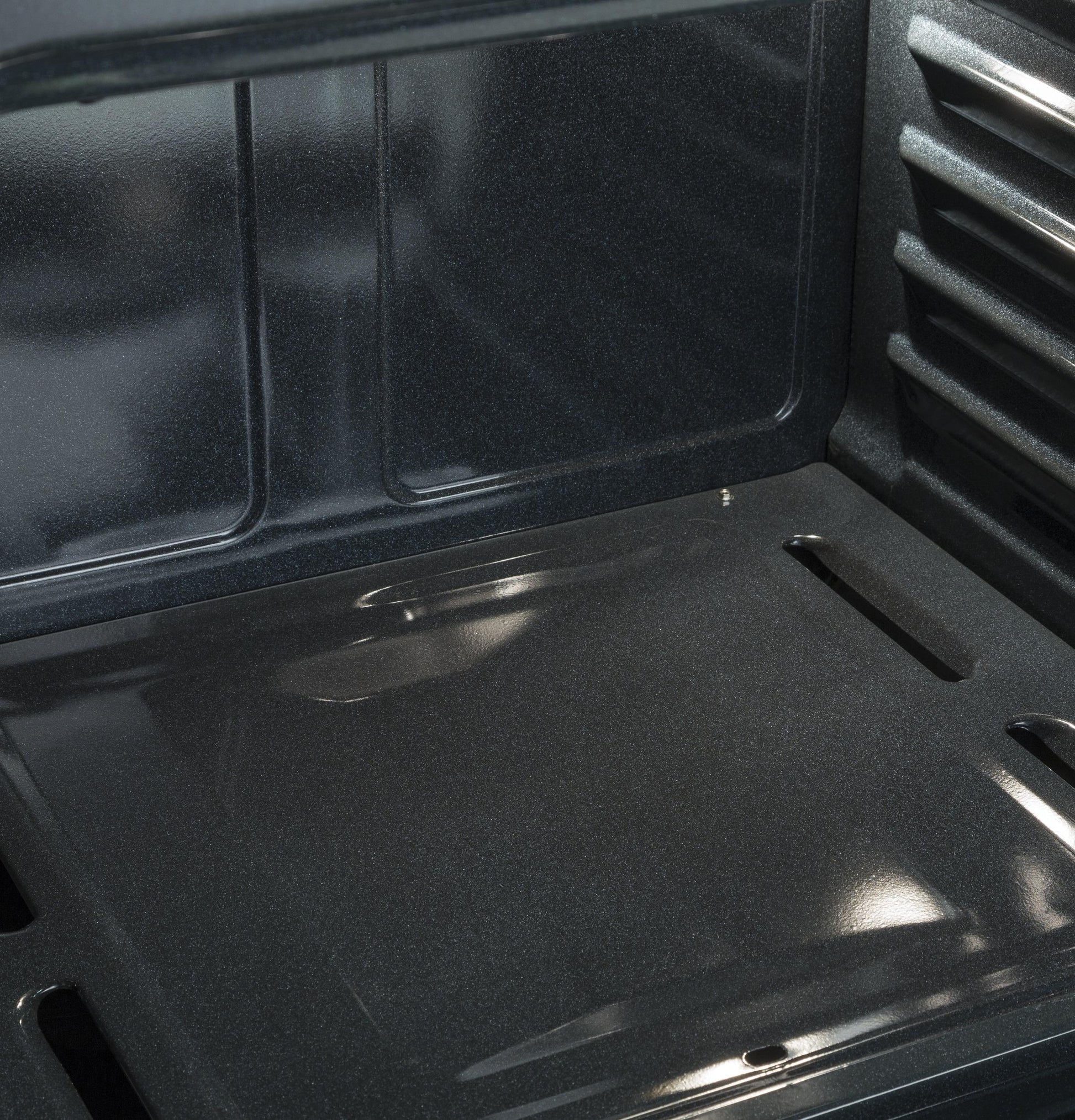

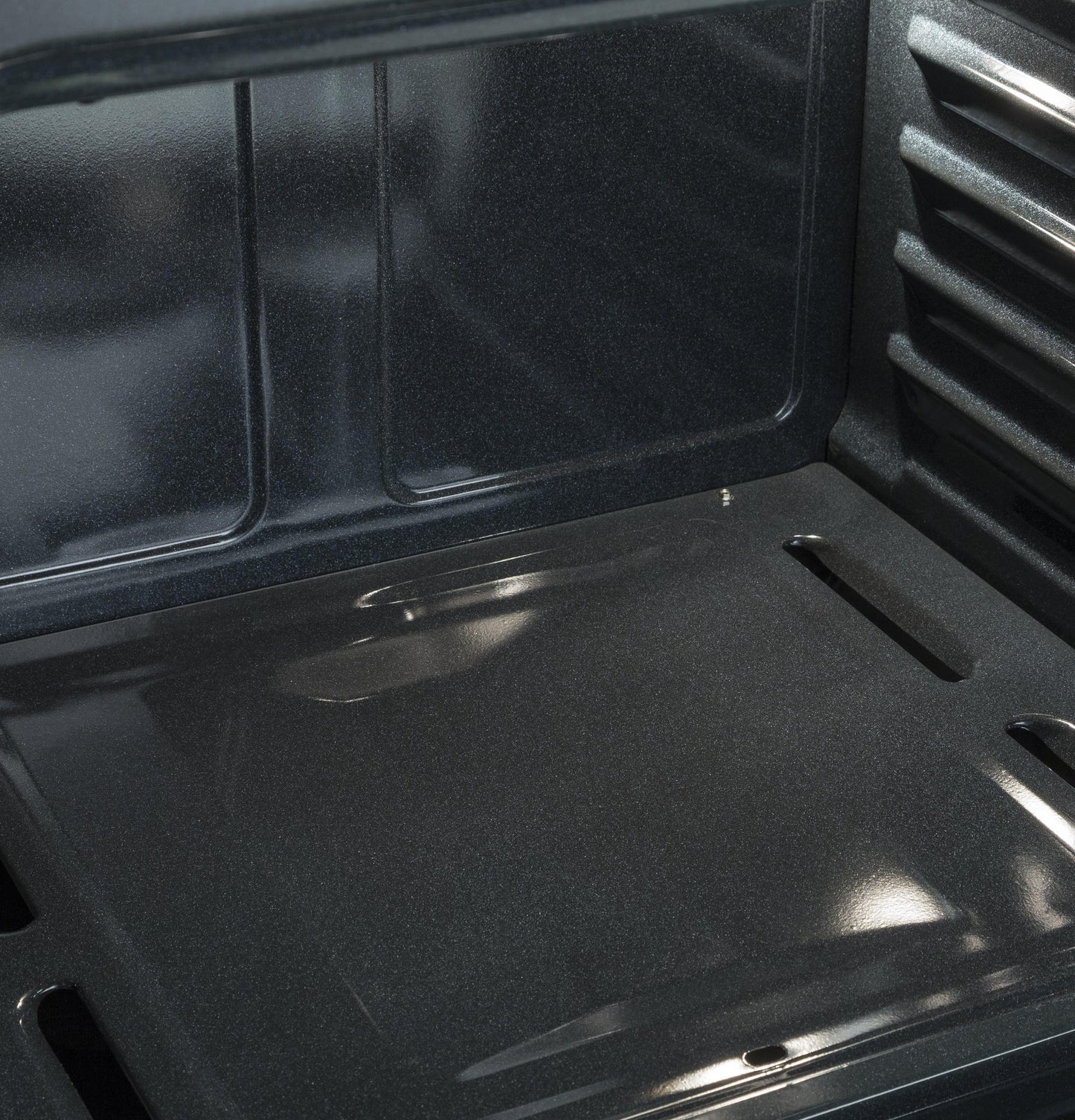

Self-clean oven
Cleans the oven cavity without the need for scrubbing

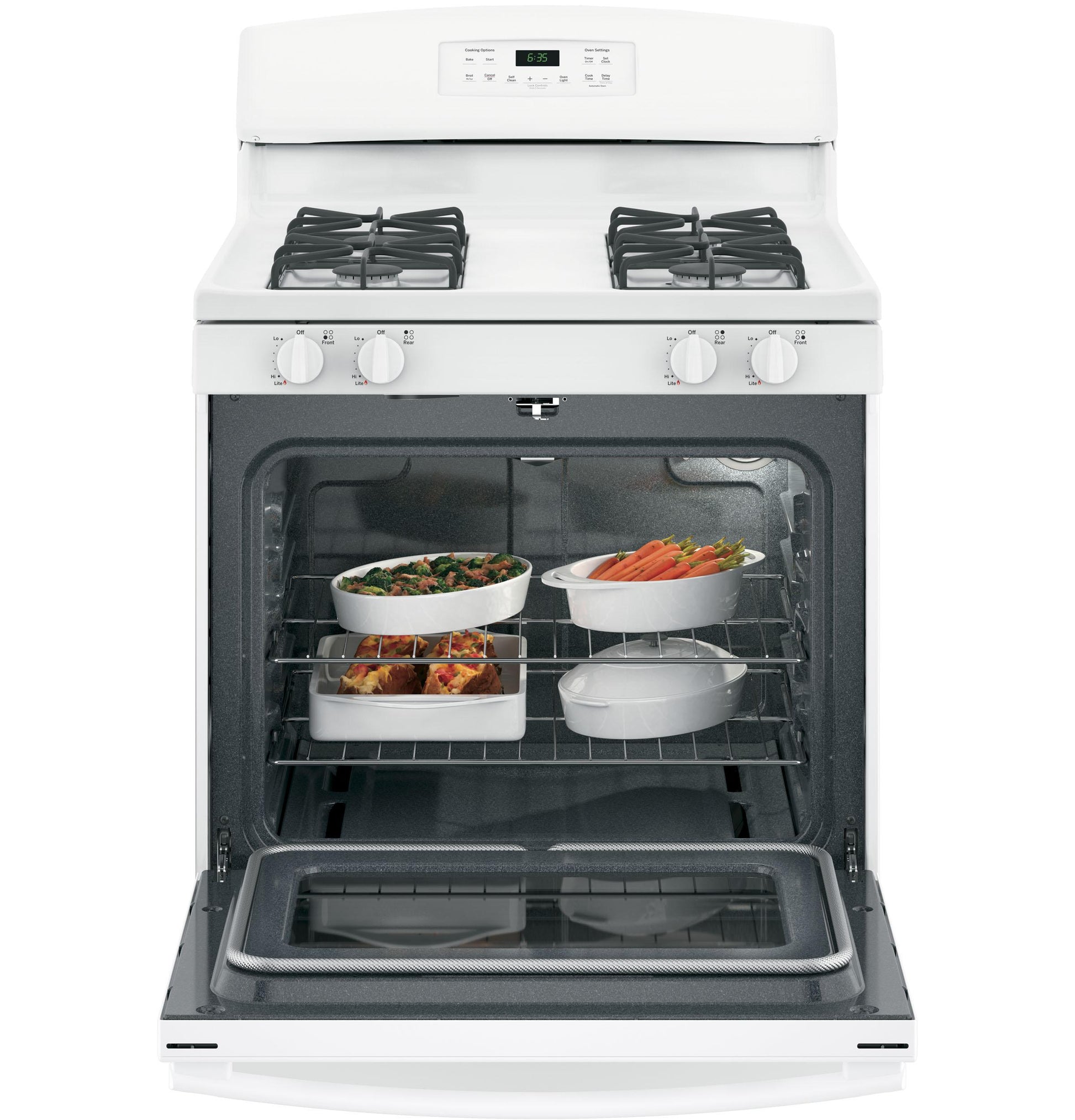

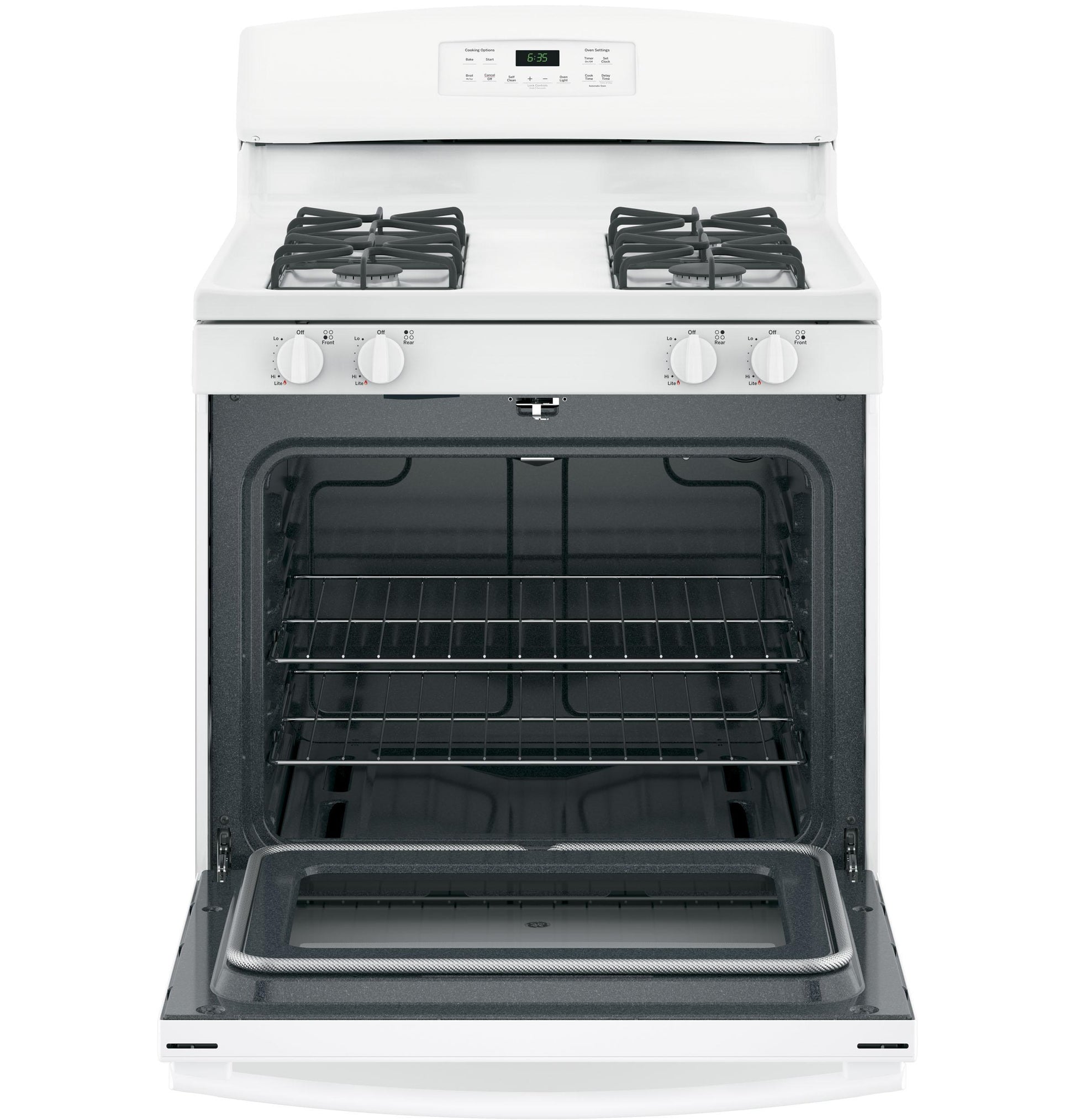

5.0 cu. ft. oven capacity
Cook more dishes at once

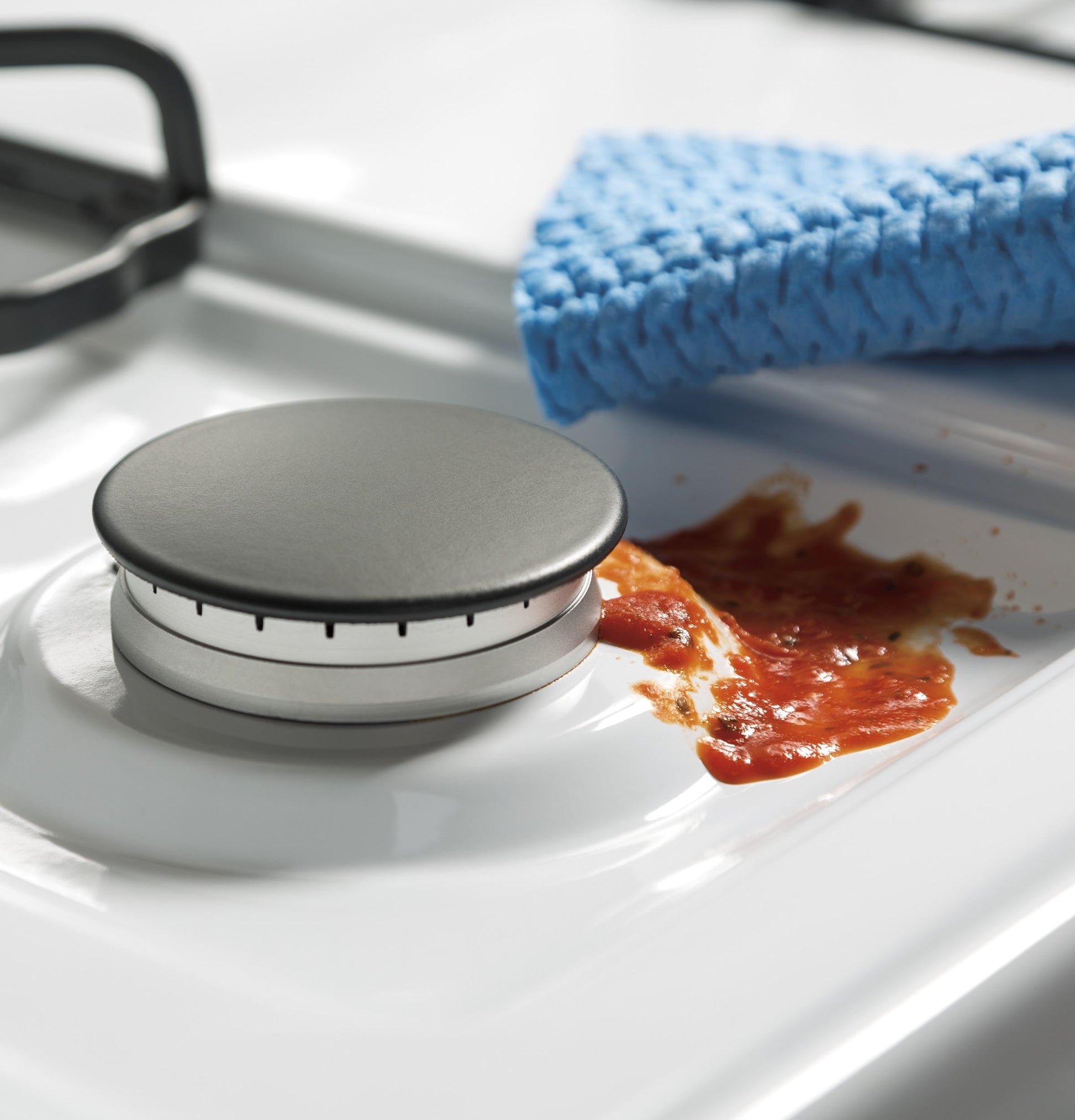

Sealed cooktop burners
Contains spills and make cleaning quick and easy
In-oven broil
Healthy meals are hassle-free with in-oven broiling
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Voltage | 120V |
| App Filter - Cooktop Type | Standard Grates |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Gloss White |
| Color Appearance | White |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/4 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Width | 30 in |
| Overall Height | 46.25 in |
| Overall Depth | 28.75 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Steel |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Control Type | Electronic Touch |
| Burner - Left Front | 9,500 BTU |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | No |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 13,000 BTU |
| Cooktop Surface | One-Piece Upswept Porcelain-Enamel White |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
