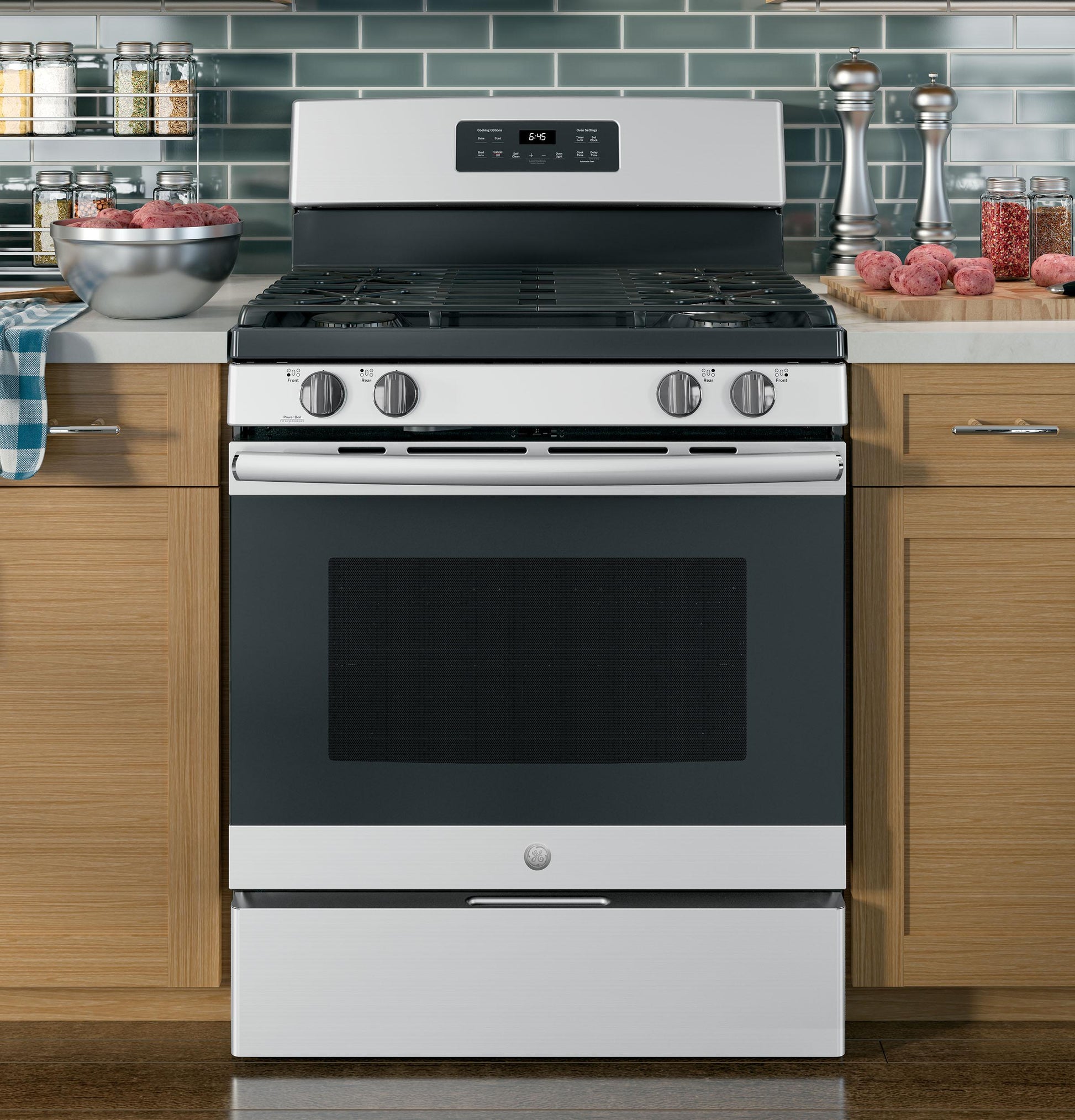

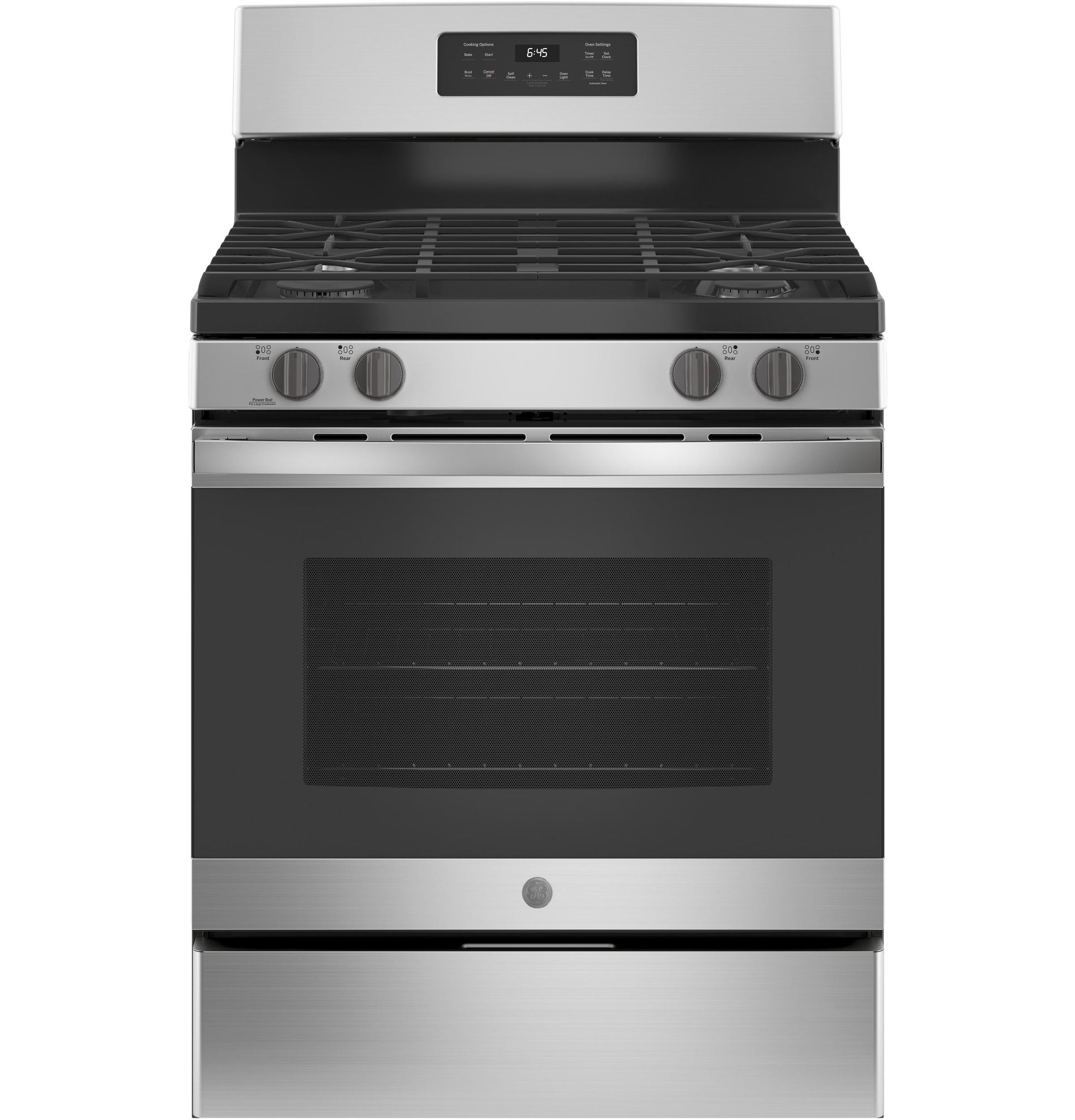

GE® 30" Free-Standing Gas Range JGB645SEKSS
Discontinued
Product Details
- Two-piece continuous edge-to-edge cooktop
- 15,000 BTU Power Boil Burner
- Precise Simmer burner
- Self-clean oven
- Heavy duty, dishwasher-safe grates
- 5.0 cu. ft. oven capacity
- Sealed cooktop burners
- Deep-recessed cooktop
- Spend Less Time Cleaning Up

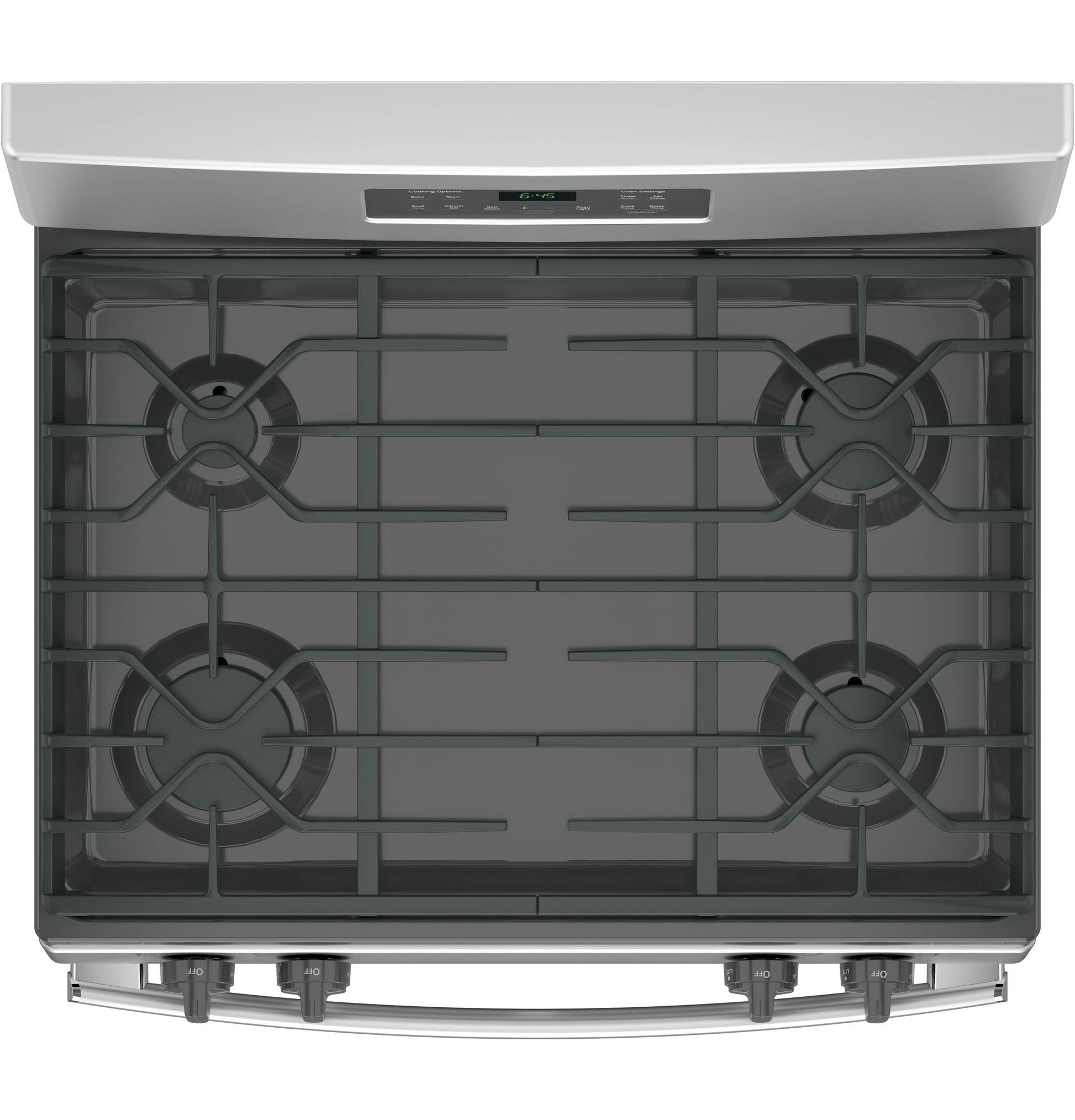

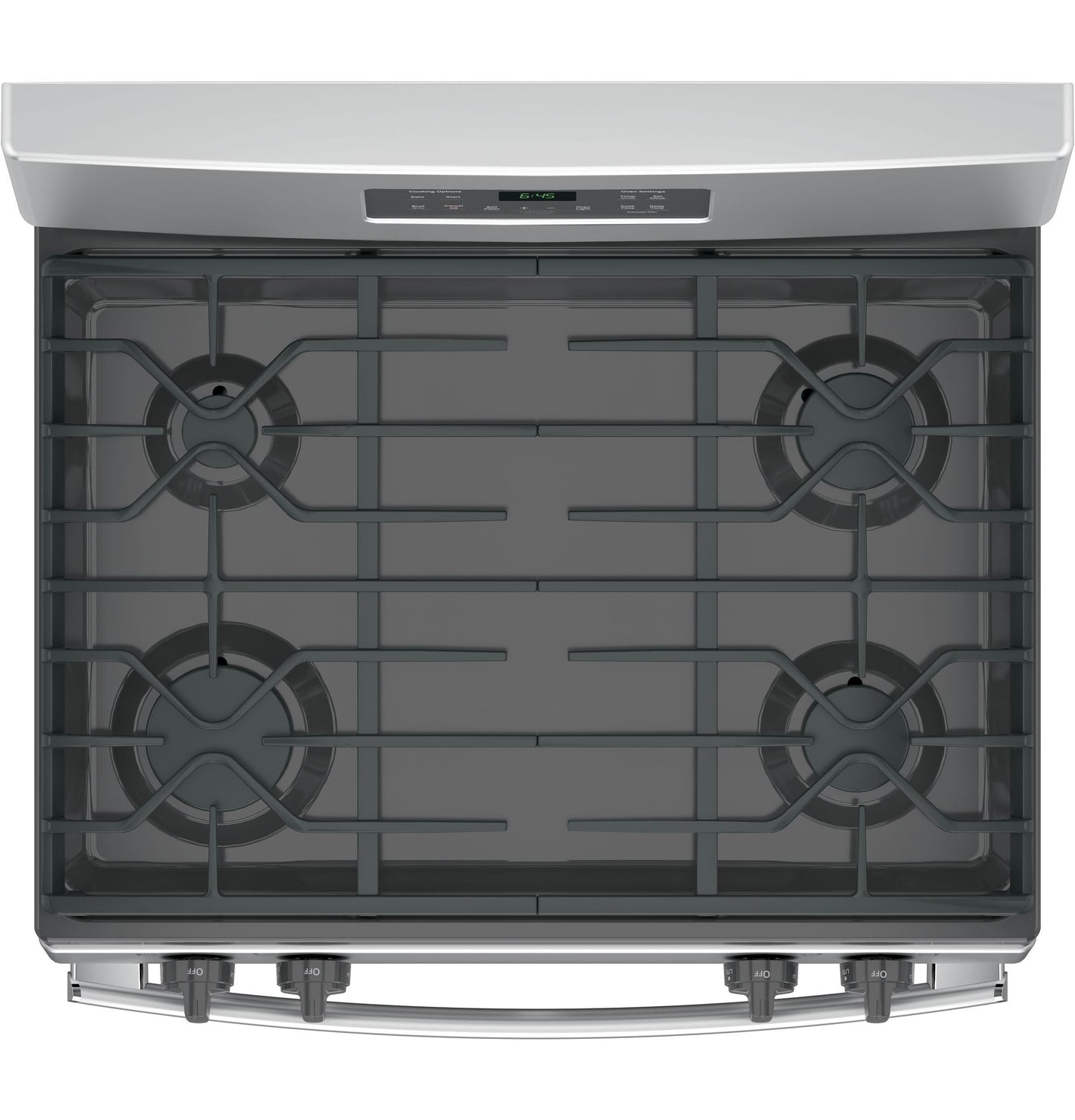

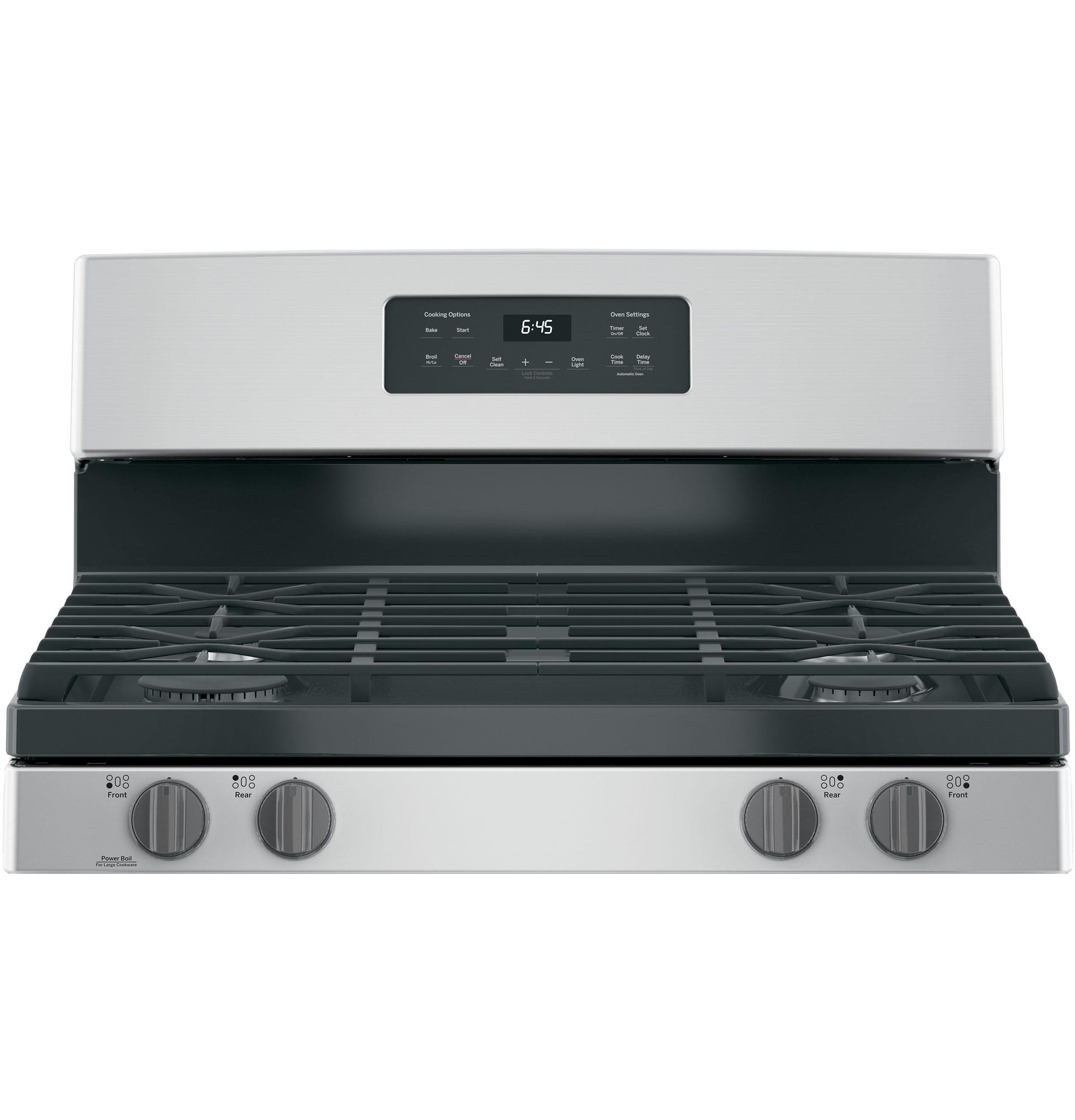

Two-piece continuous edge-to-edge cooktop
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

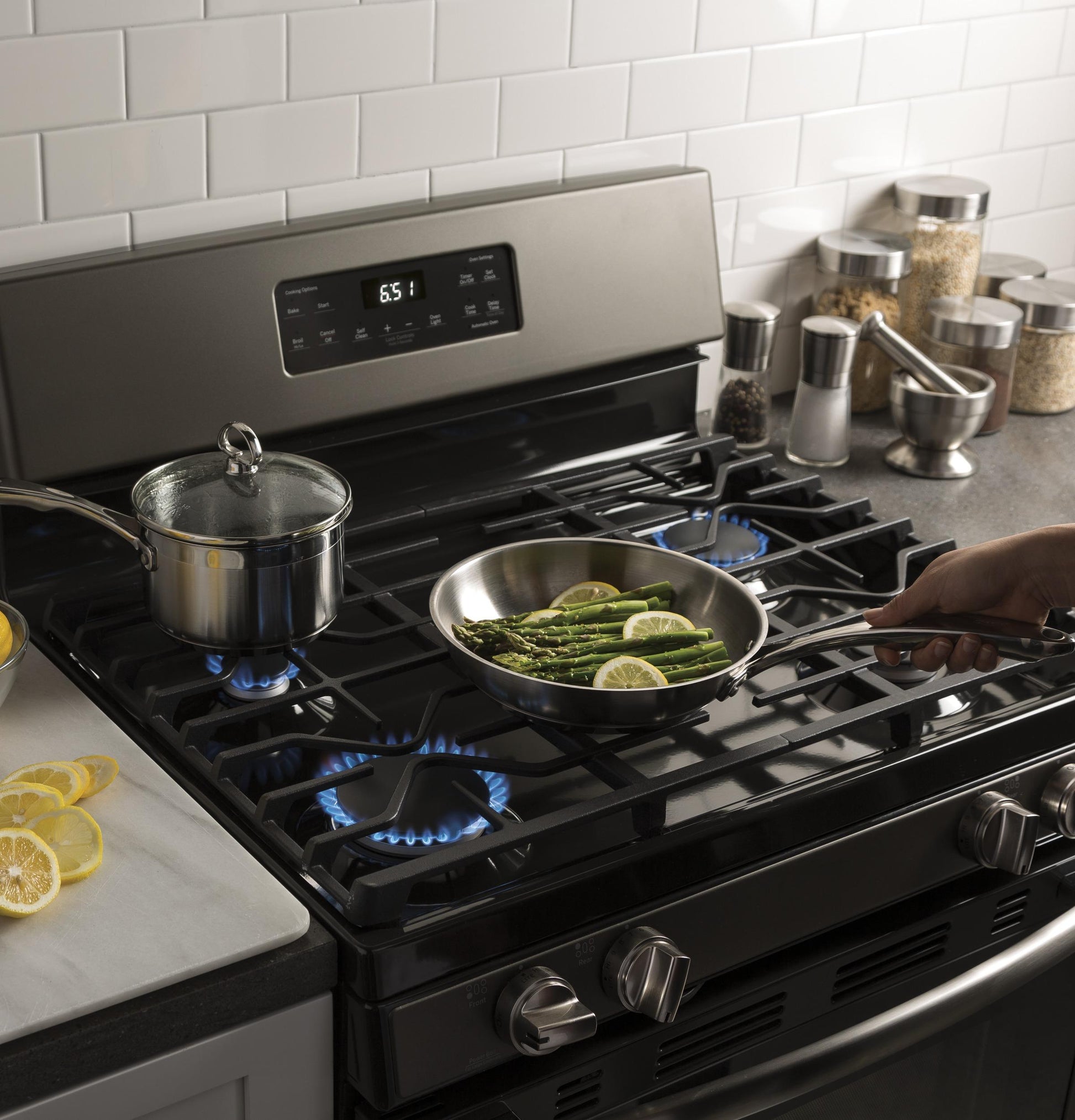

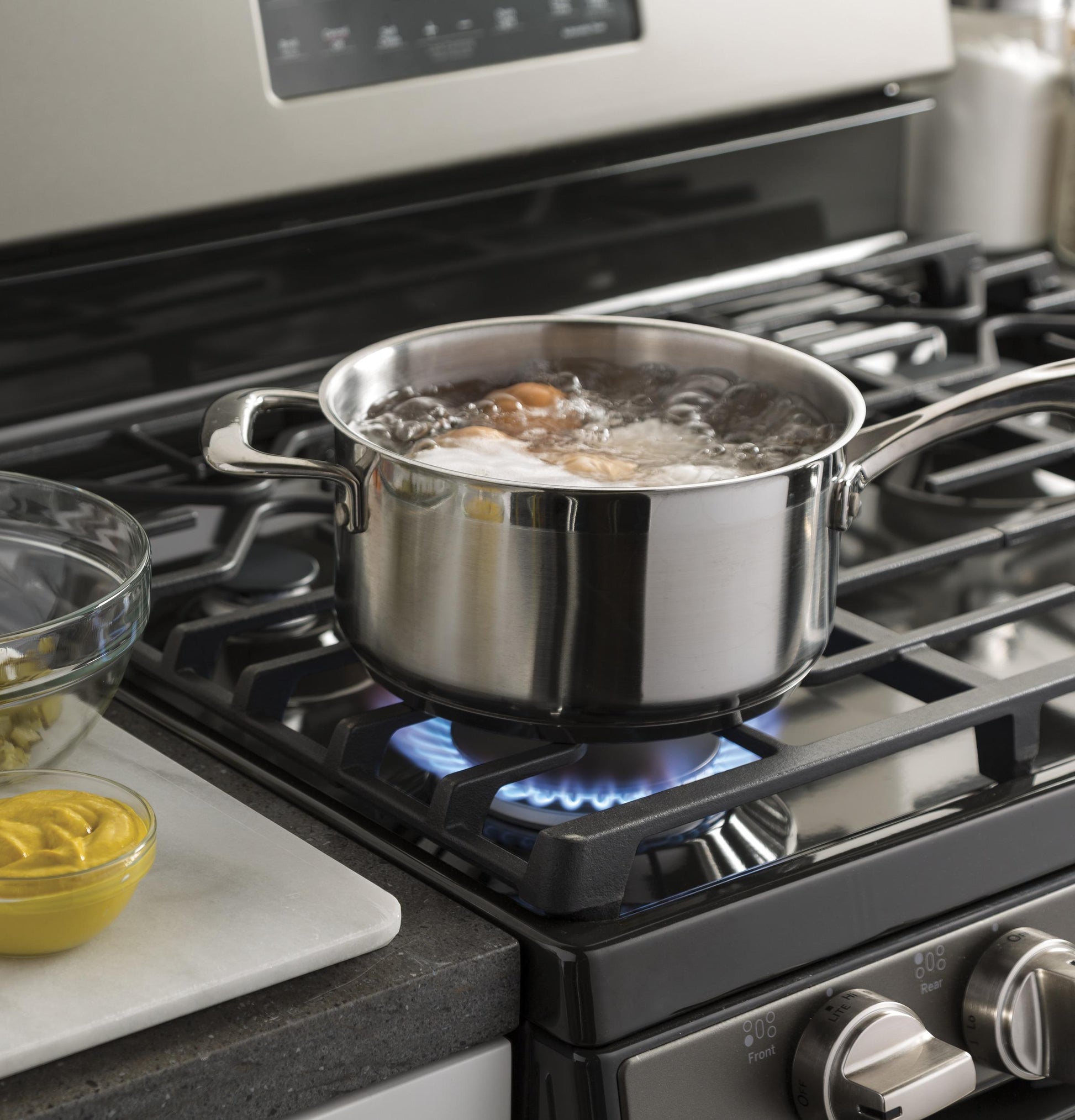

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

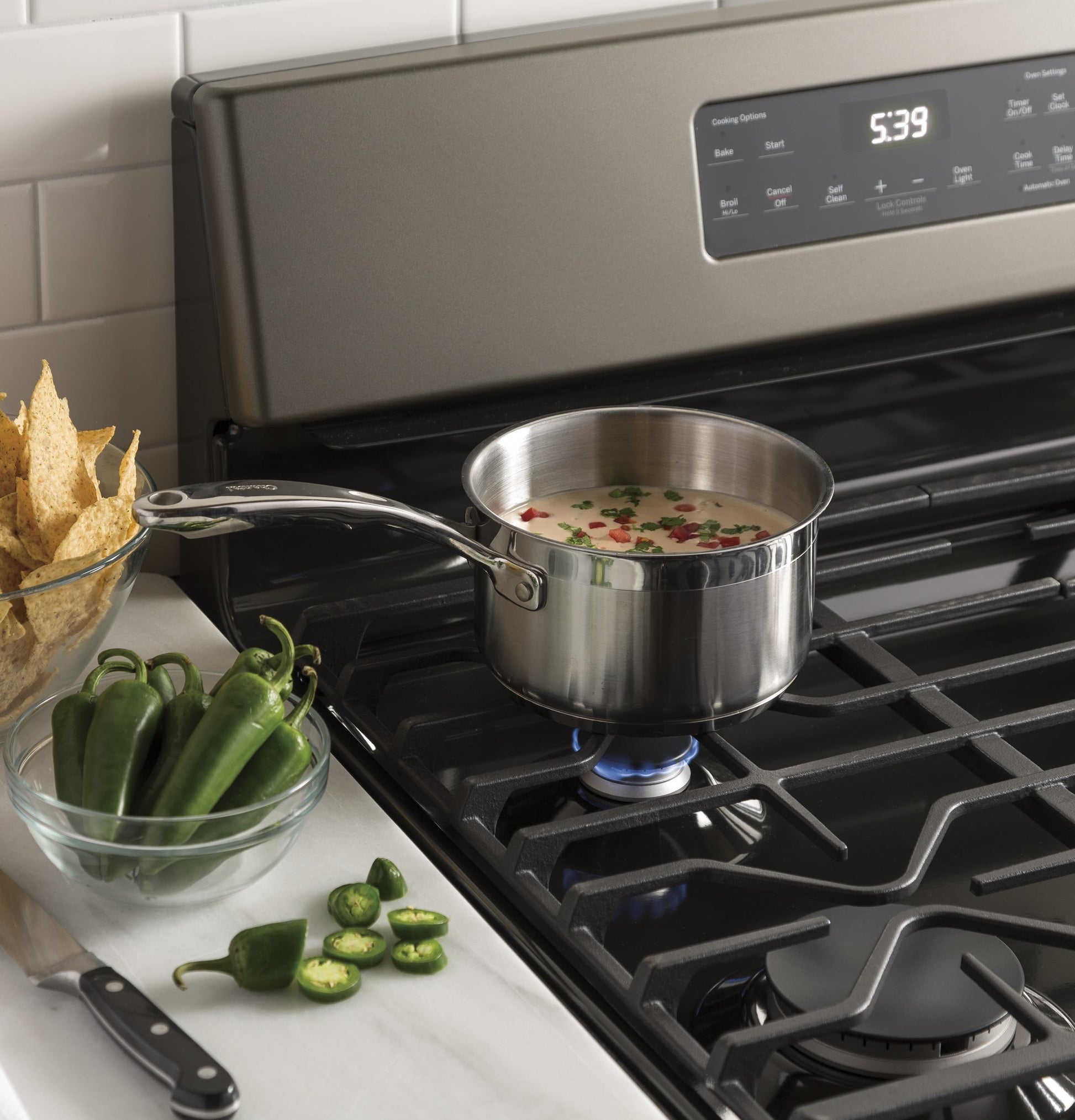

Precise Simmer burner
Delicate foods don't burn with low, even heat

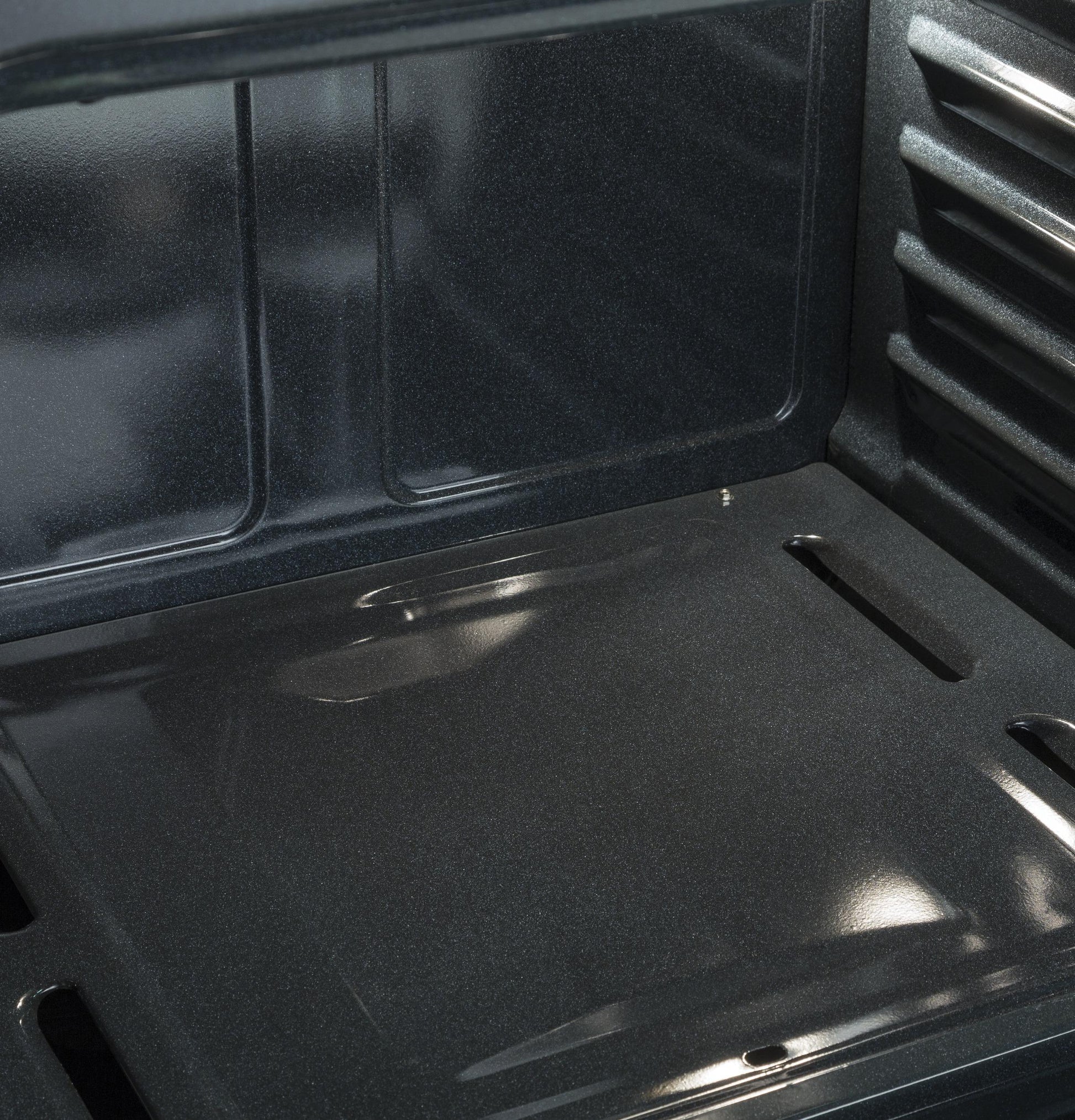

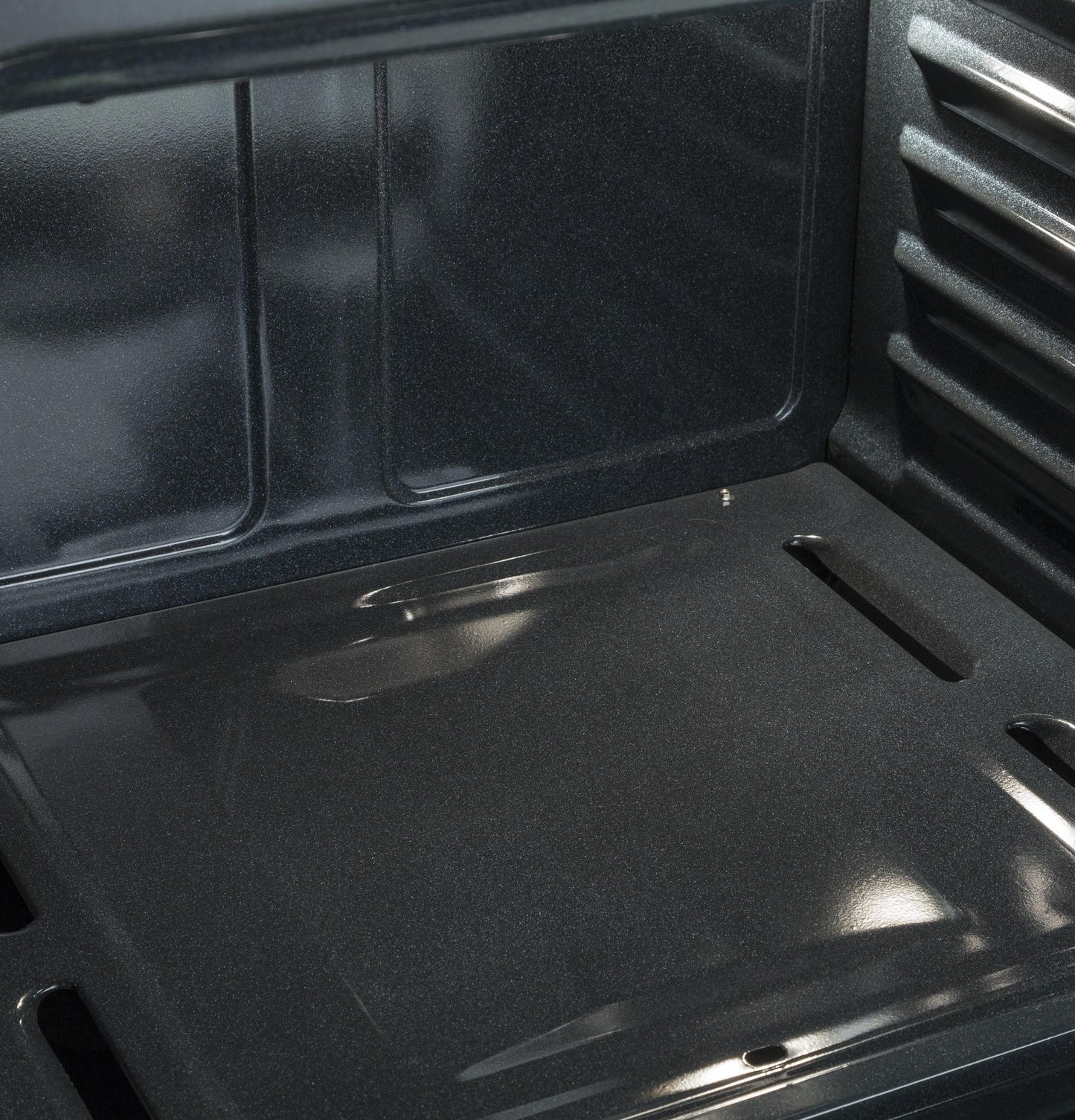

Self-clean oven
Cleans the oven cavity without the need for scrubbing

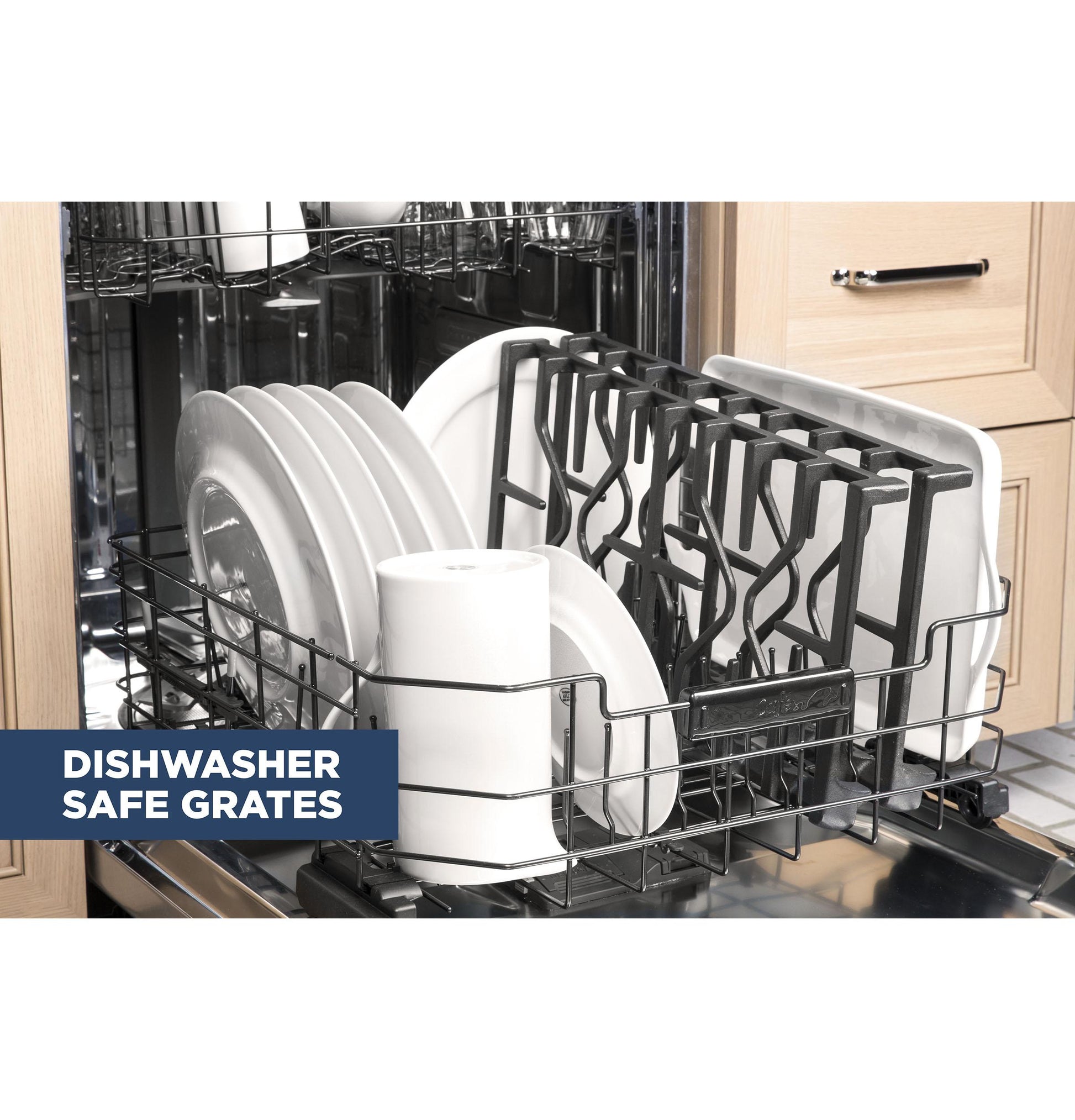

Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher

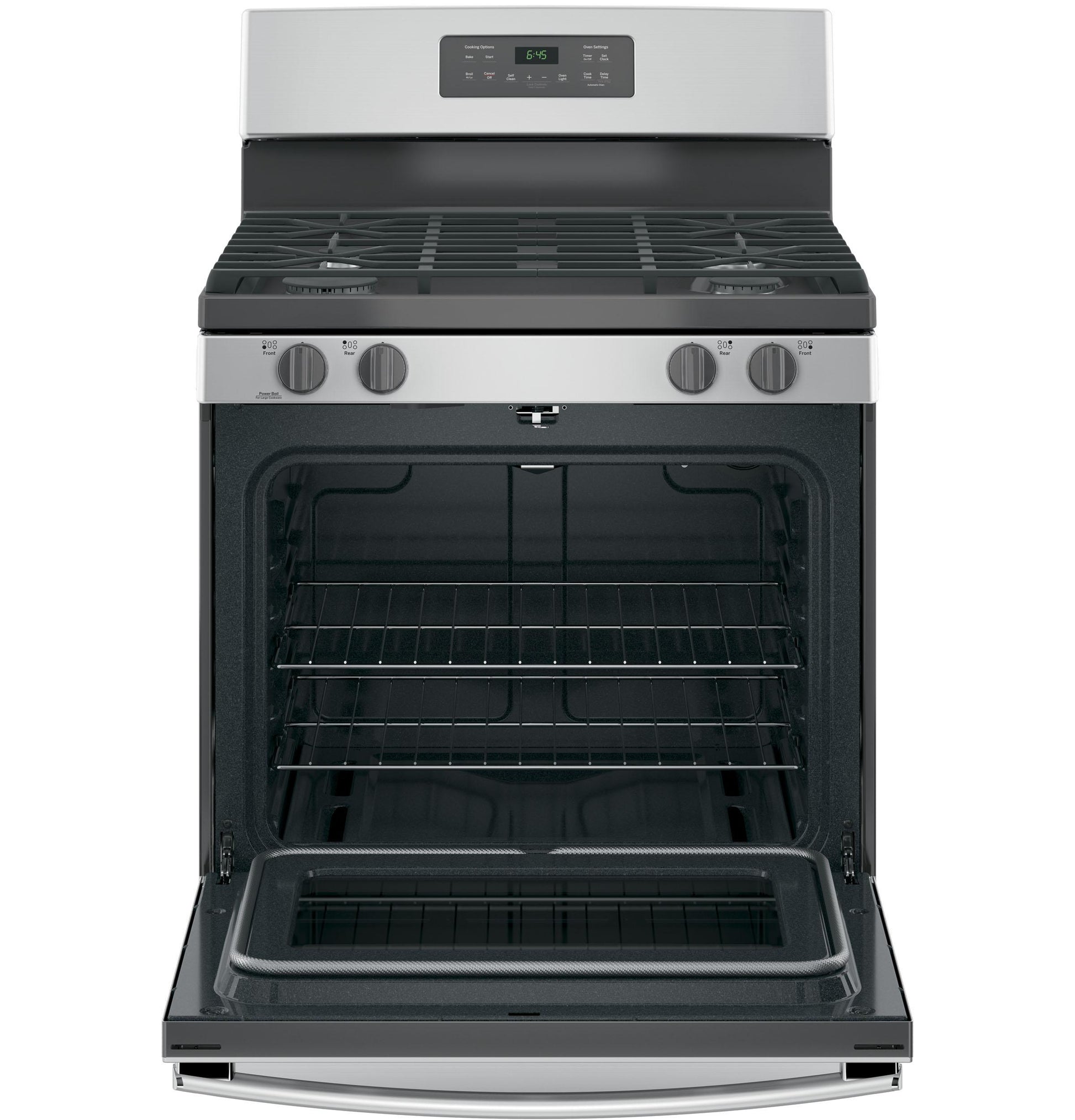

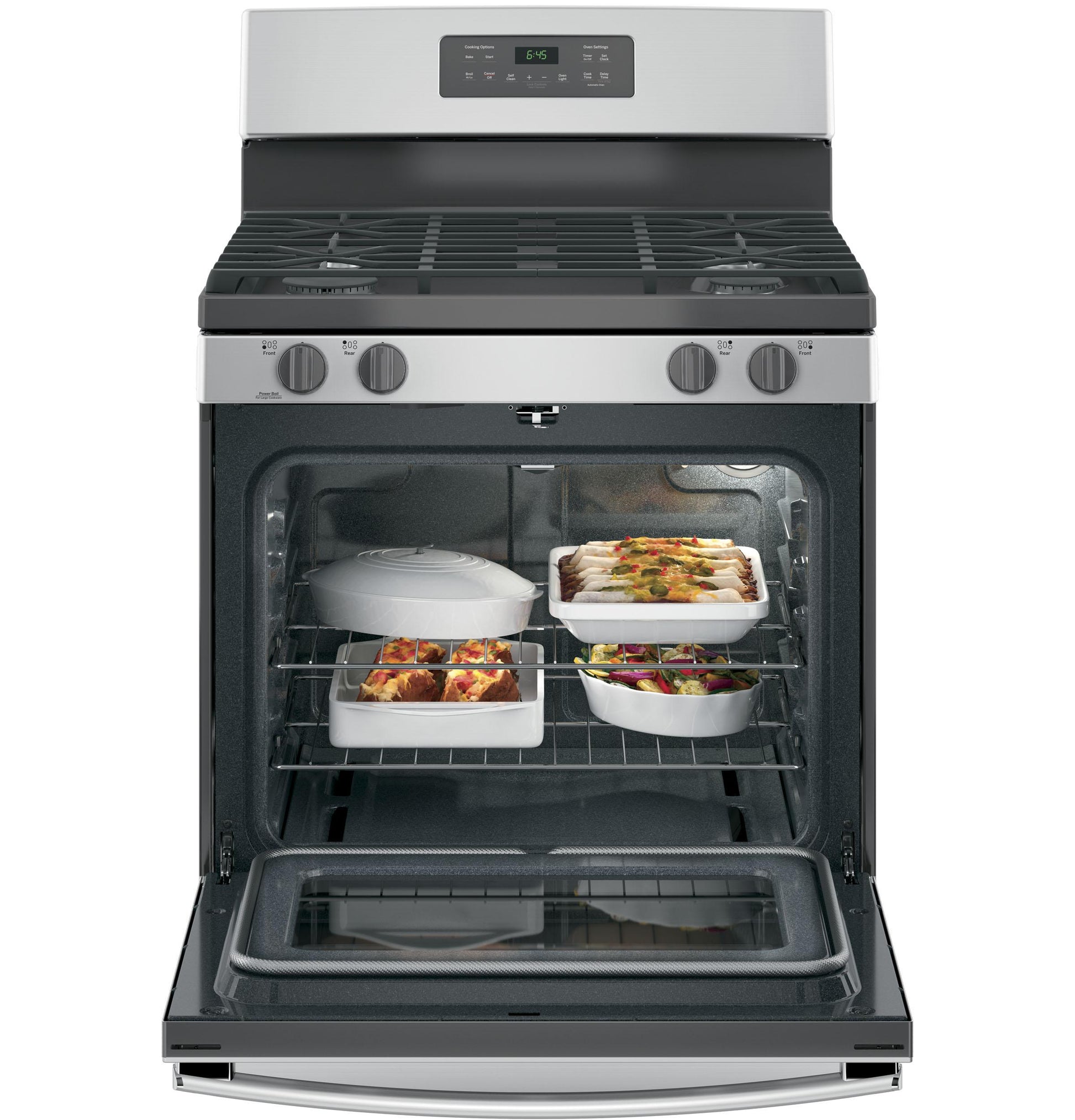

5.0 cu. ft. oven capacity
Cook more dishes at once
Sealed cooktop burners
Contains spills and make cleaning quick and easy
Deep-recessed cooktop
Contains spills for quick and easy cleaning
Sealed cooktop burners
Contains spills and make cleaning quick and easy
Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Voltage | 120V |
| App Filter - Cooktop Type | Continuous Grates |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Dark Gray |
| Color Appearance | Stainless Steel/Gray |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (1) 9.5; (1) 15.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Width | 30 in |
| Overall Height | 47.25 in |
| Overall Depth | 28.75 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas (factory set) |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 15,000 BTU |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | No |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
