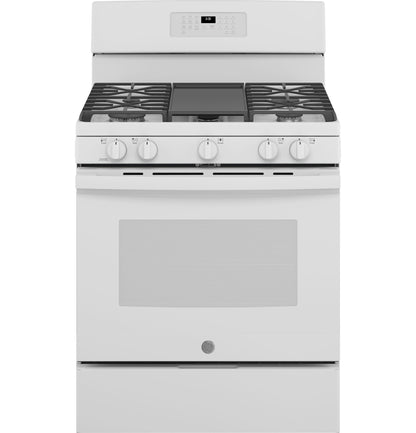

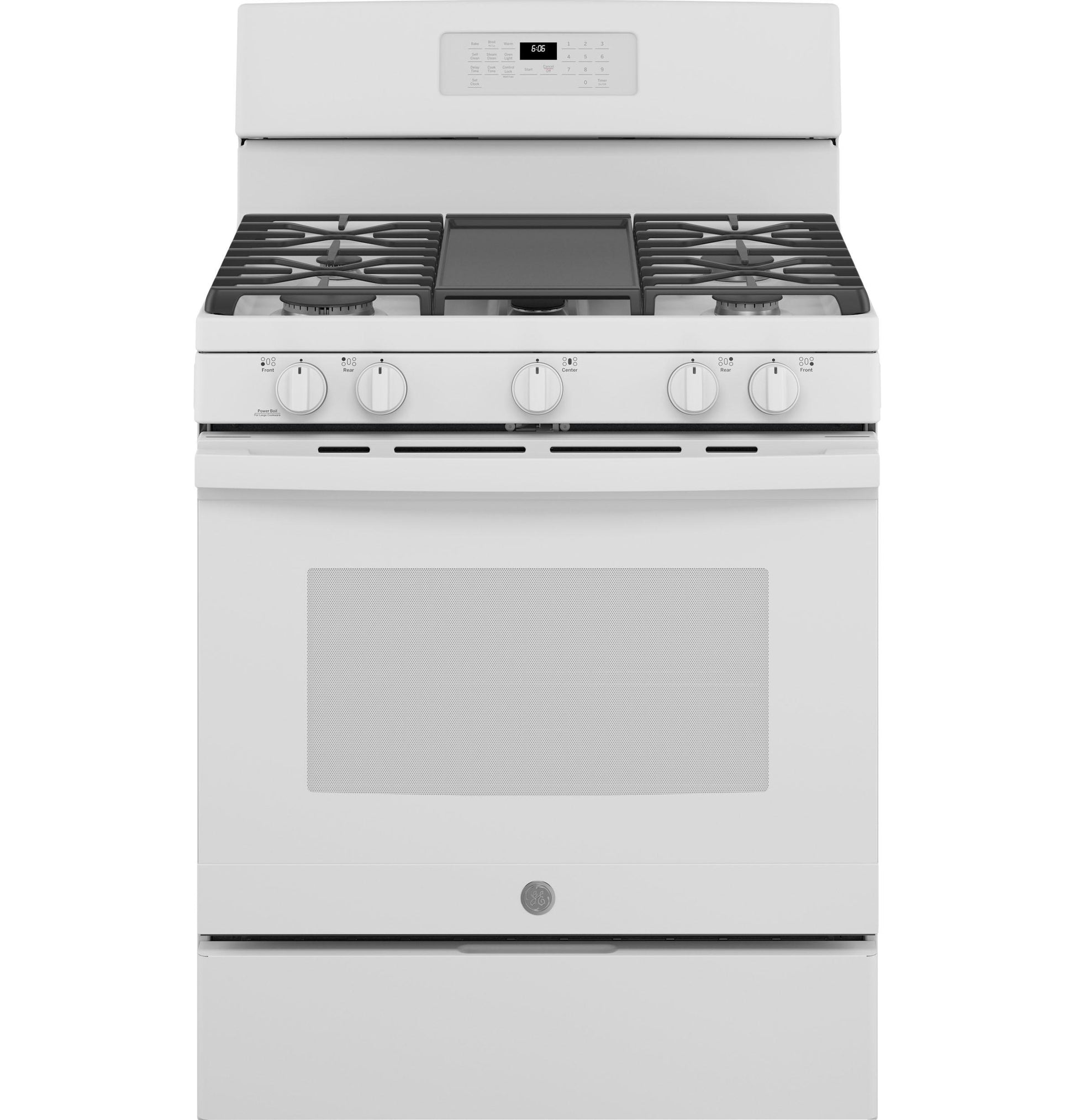

GE® 30" Free-Standing Gas Range JGB660DPWW
Discontinued
- Edge-to-edge cooktop
- Power boil burner
- Center oval burner
- Precise simmer burner
- Self-clean oven
- Large capacity oven
- Heavy duty, dishwasher-safe grates
- Removable storage drawer
- Delay bake
- Enhanced Shabbos Mode

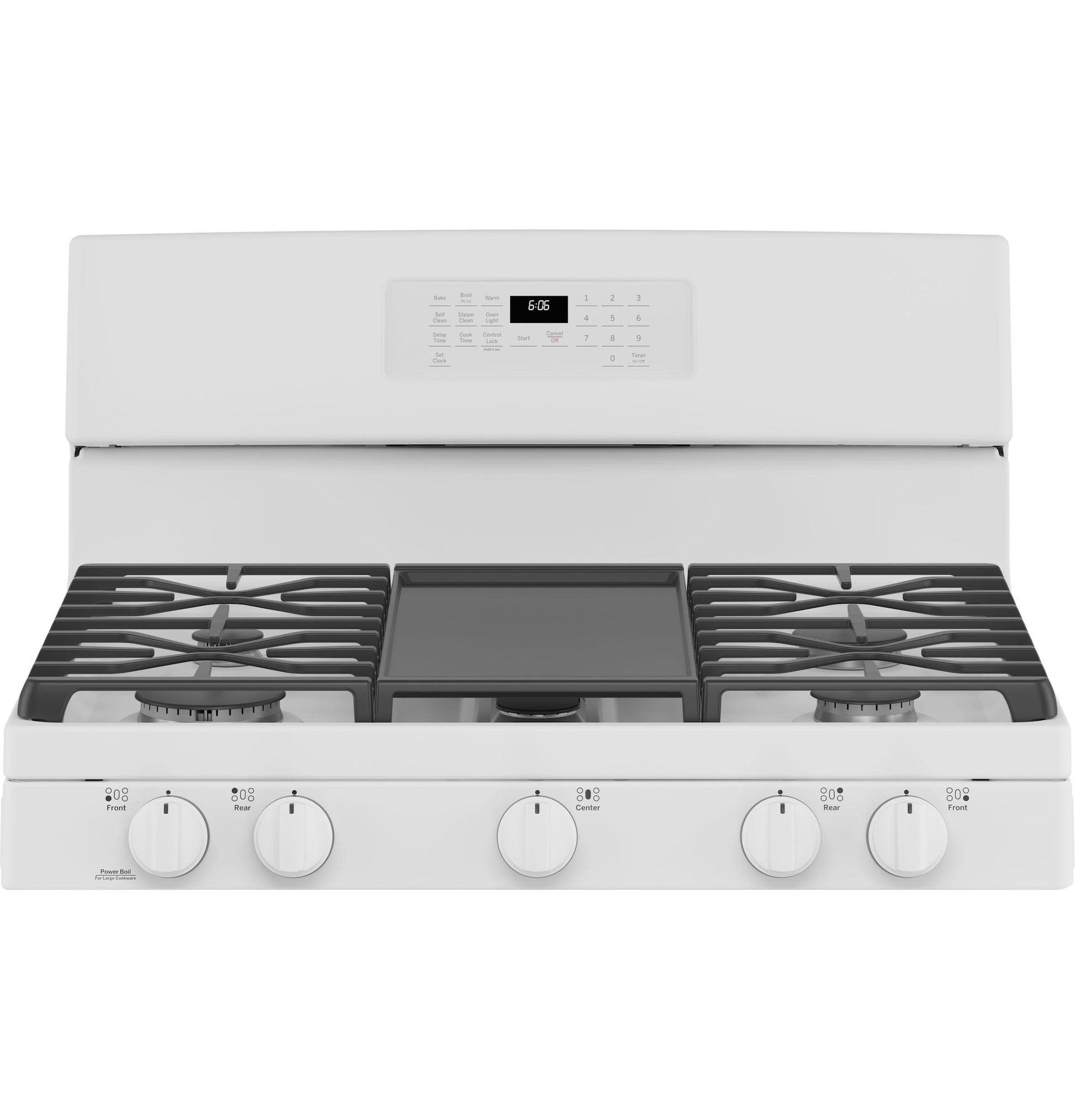

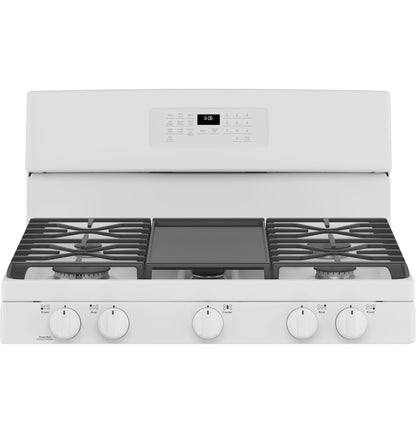

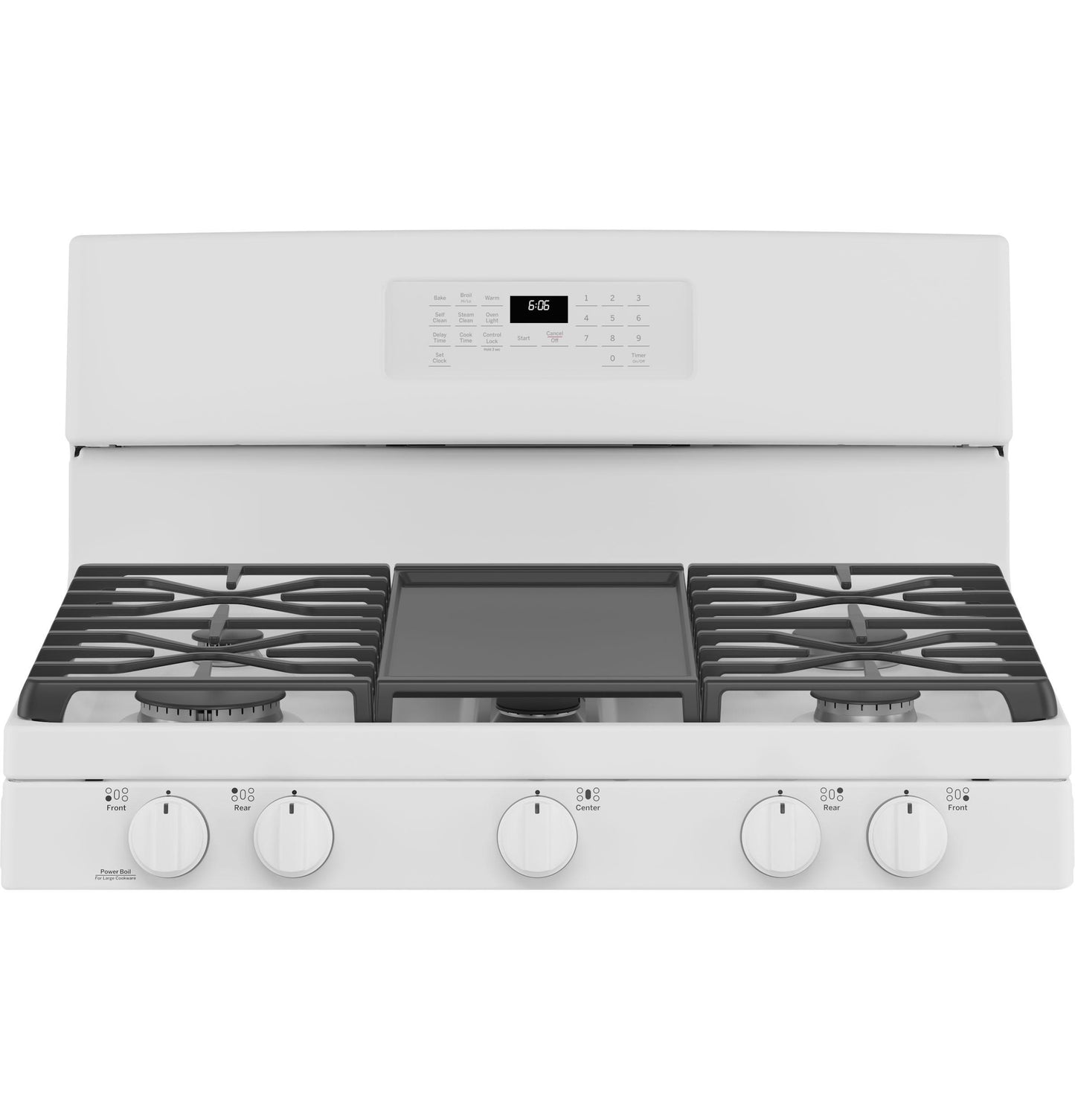

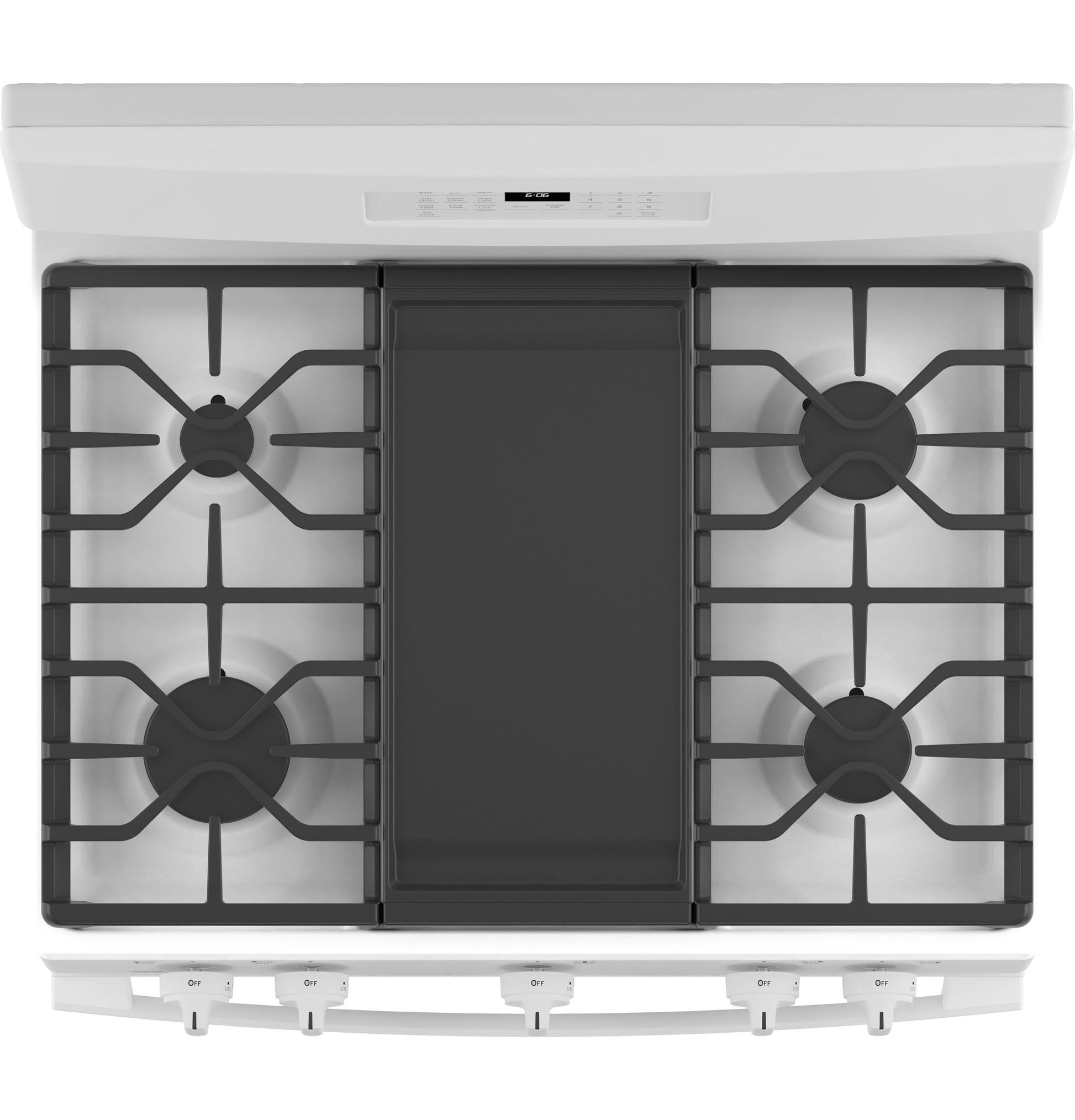

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Power boil burner
This 18,000-BTU power boil element produces intense heat to boil water fast
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn
Self-clean oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners

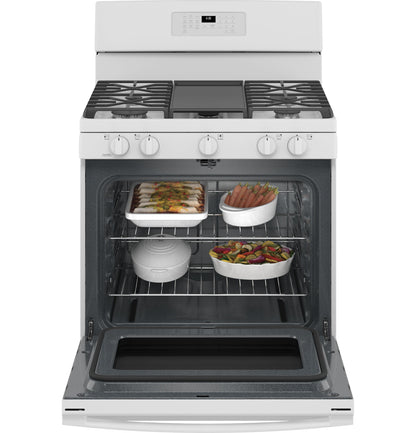

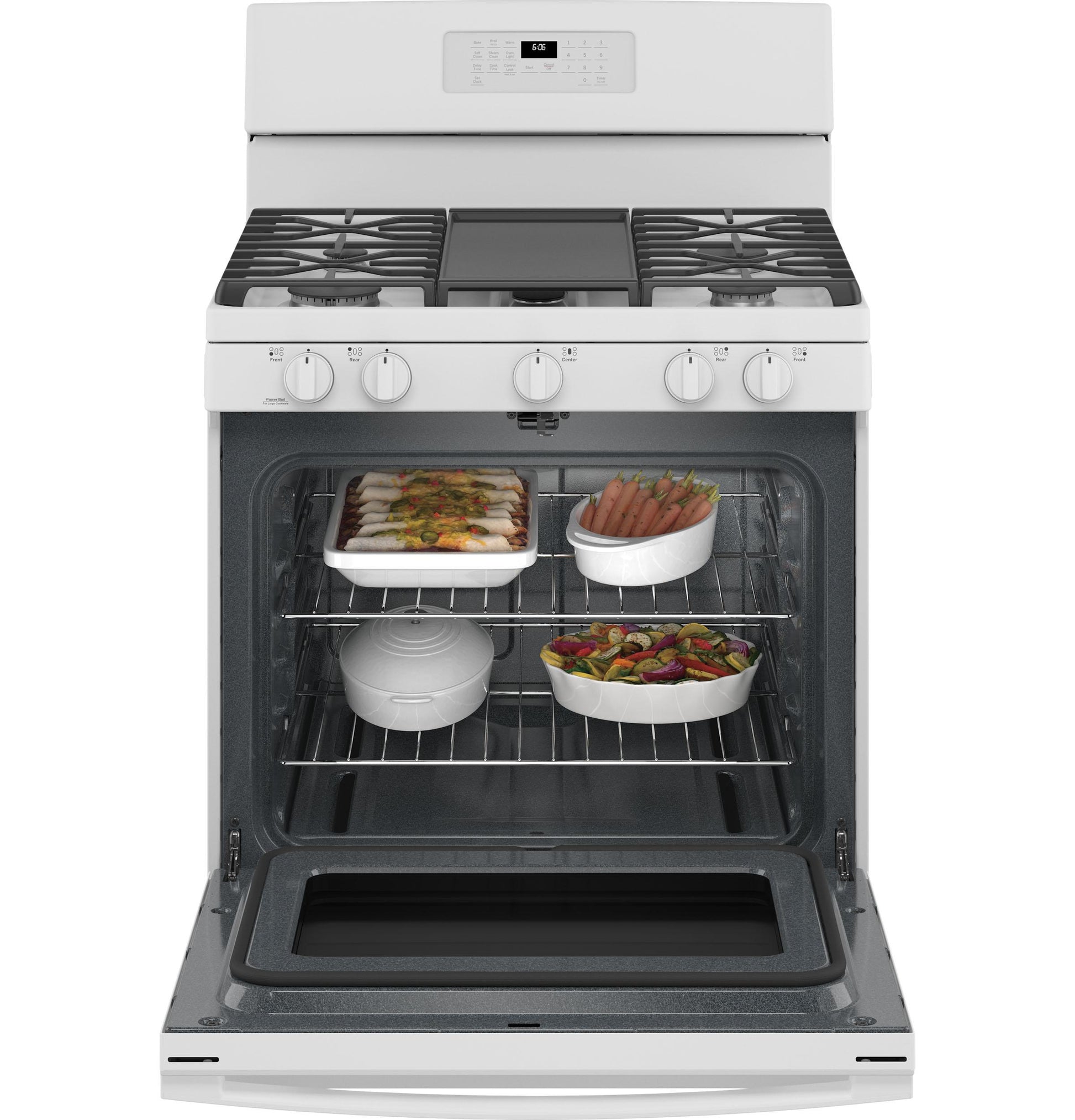

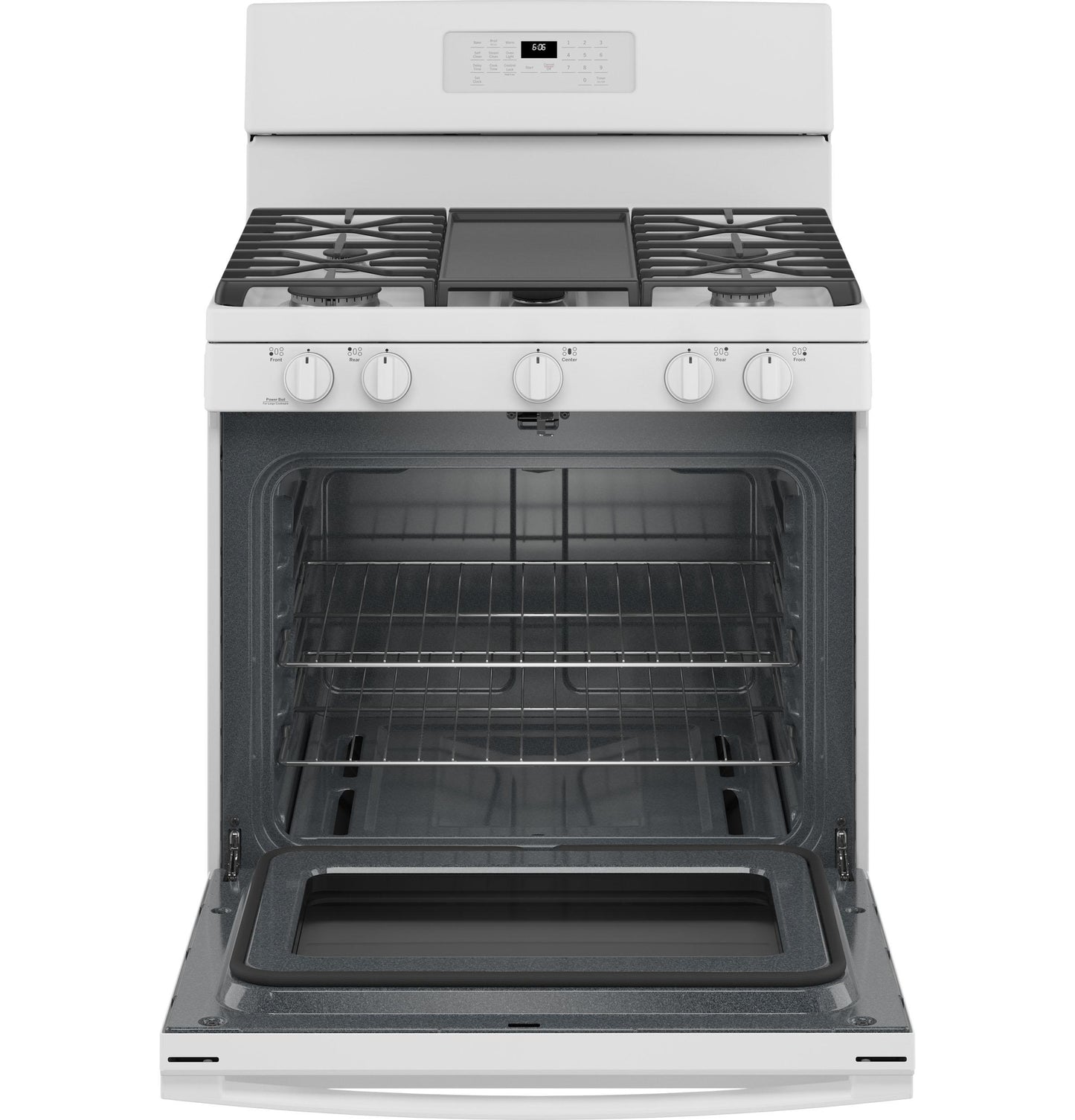

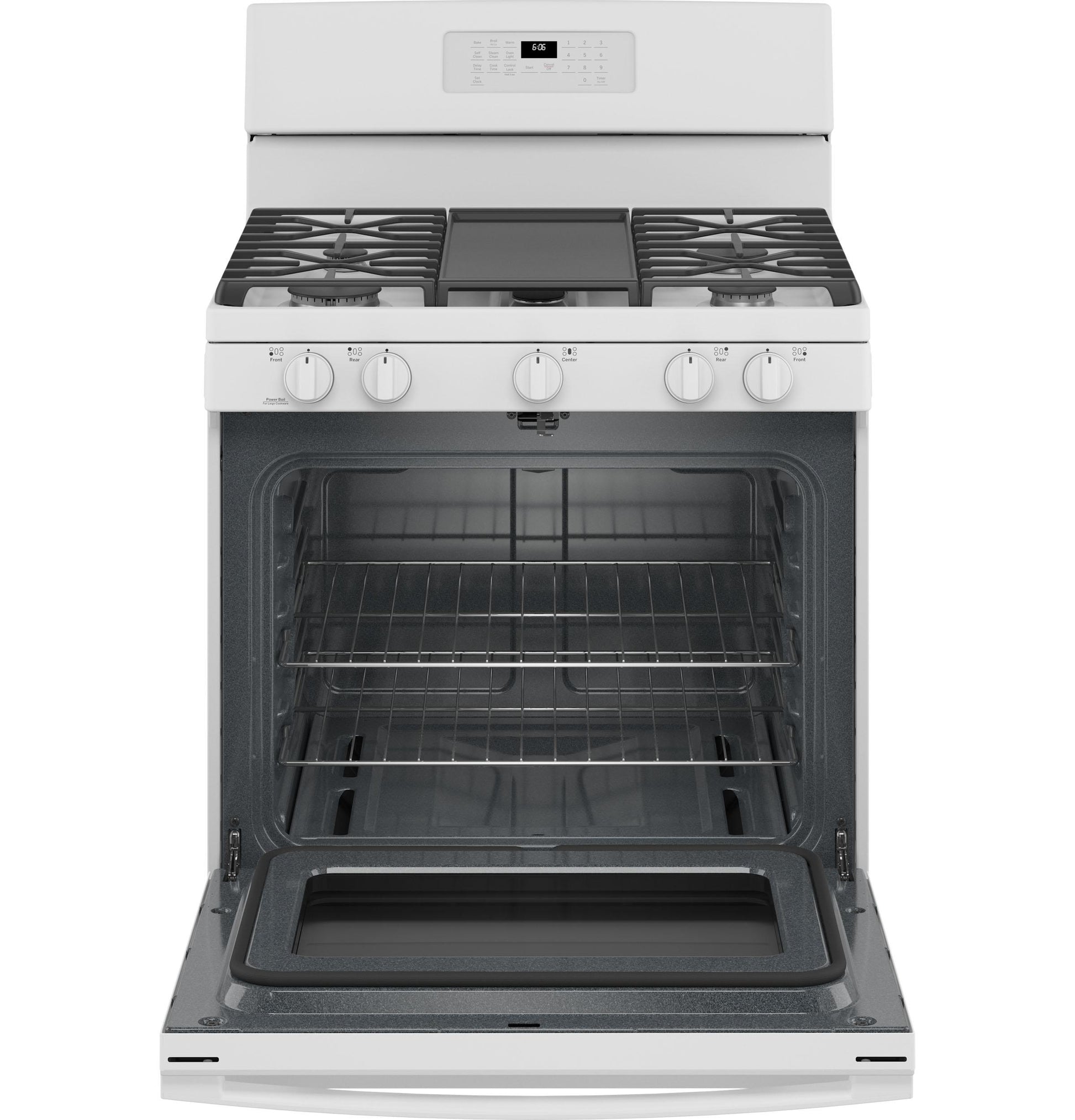

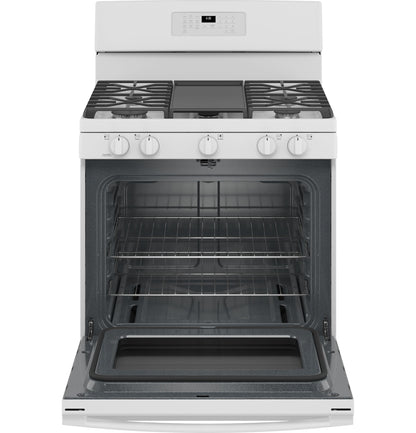

Large capacity oven
Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes
Heavy duty, dishwasher-safe grates
These cooktop grates can be cleaned one of two ways ™ either in the dishwasher, or on the bottom of a self-clean oven
Removable storage drawer
A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
Delay bake
Delay bake technology allows you to set up the oven to start preheating and baking at a later time
Enhanced Shabbos Mode
The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)
| CAPACITY | |
| Total Capacity (cubic feet) | 5 |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Cooktop Type | Continuous Grates |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | Color-Matched |
| Control Knobs | Color-Matched |
| Color Appearance | White |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional) |
| Grates | JXGRATE1 (Optional) |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 190 |
| Depth Without Handle | 26.25 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 |
| Approximate Shipping Weight | 210 |
| Overall Width | 30 |
| Overall Height | 47.25 |
| Overall Depth | 28.75 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option Sabbath Mode |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Griddle | WB31X24738 Integrated Non-Stick (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Incandescent |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Digital Temperature Display Electronic Oven Controls Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Drawer Type | Storage |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| OU Certified | Enhanced Shabbos Mode (when used with Shabbos Keeper, sold separately, visit www.zmantechnologies.com for details) |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Color-Matched Edge-to-Edge One-Piece Upswept Porcelain-Enamel |
