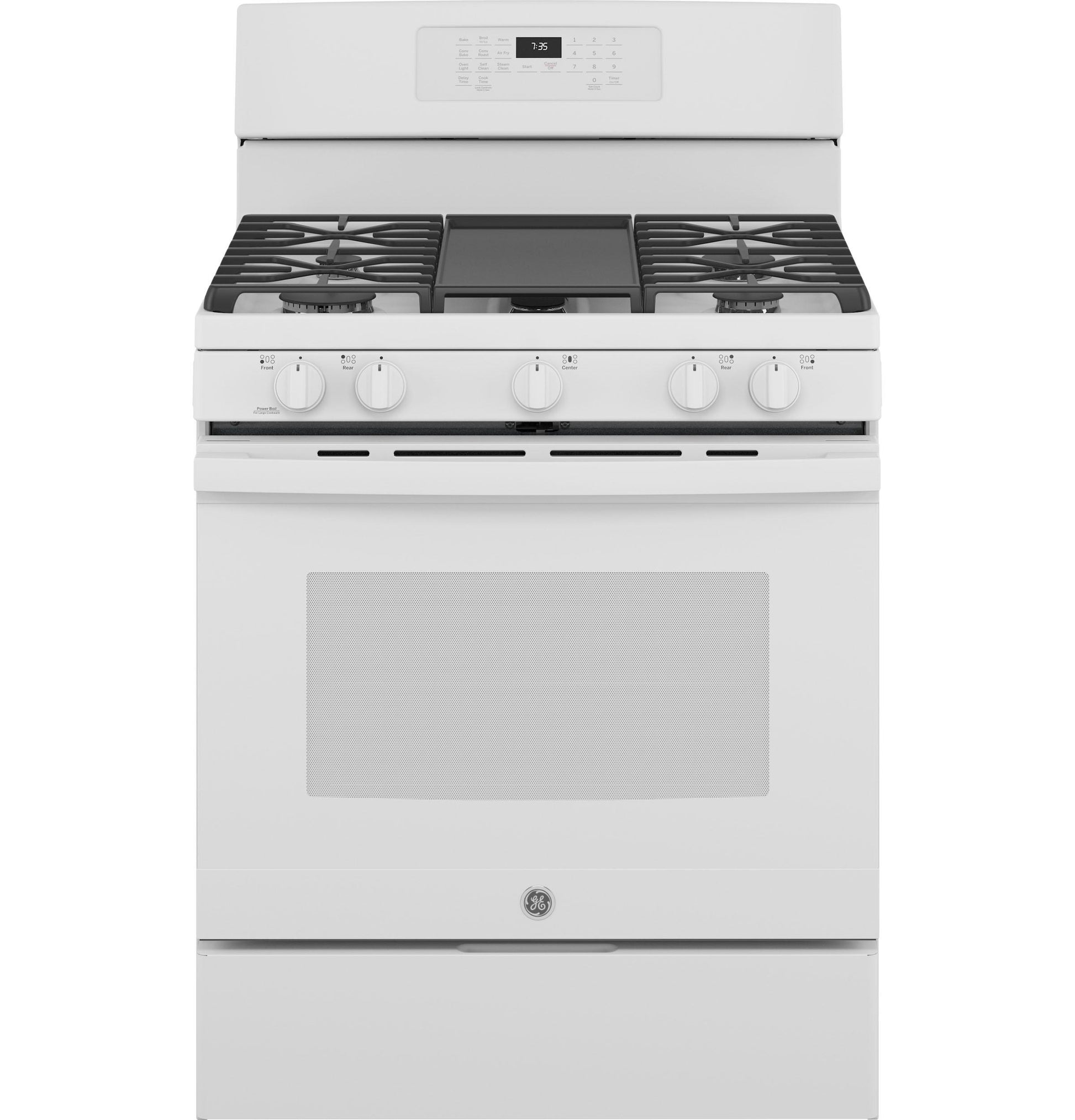

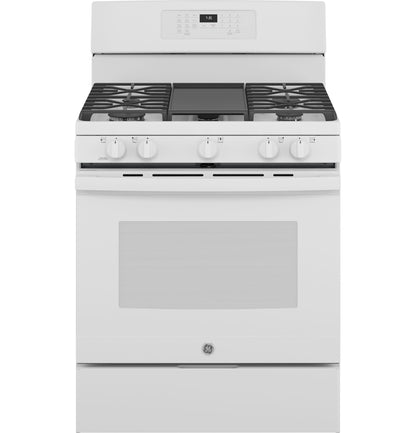

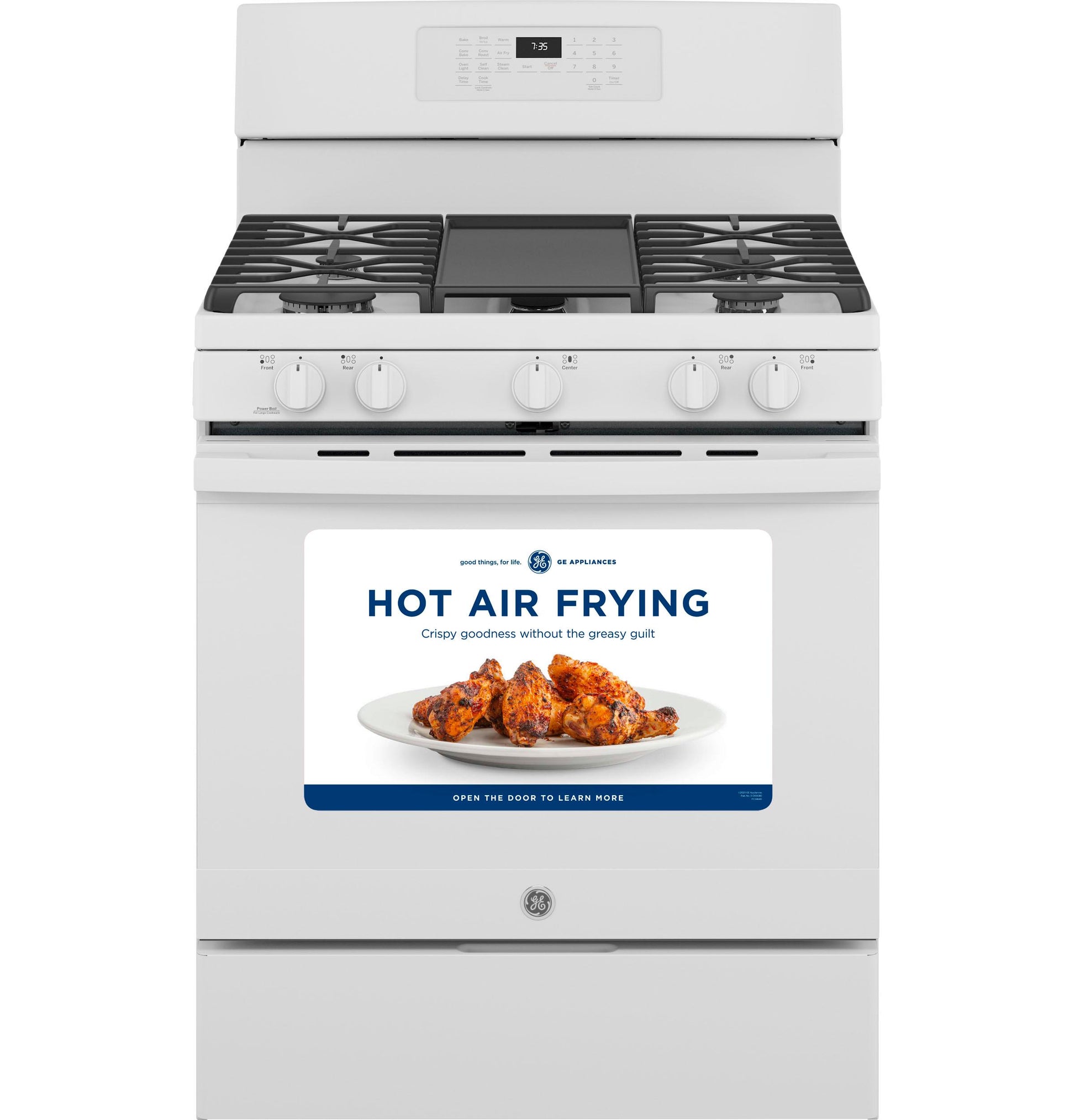

JGB735DPWW GE® 30" Free-Standing Gas Convection Range with No Preheat Air Fry JGB735DPWW

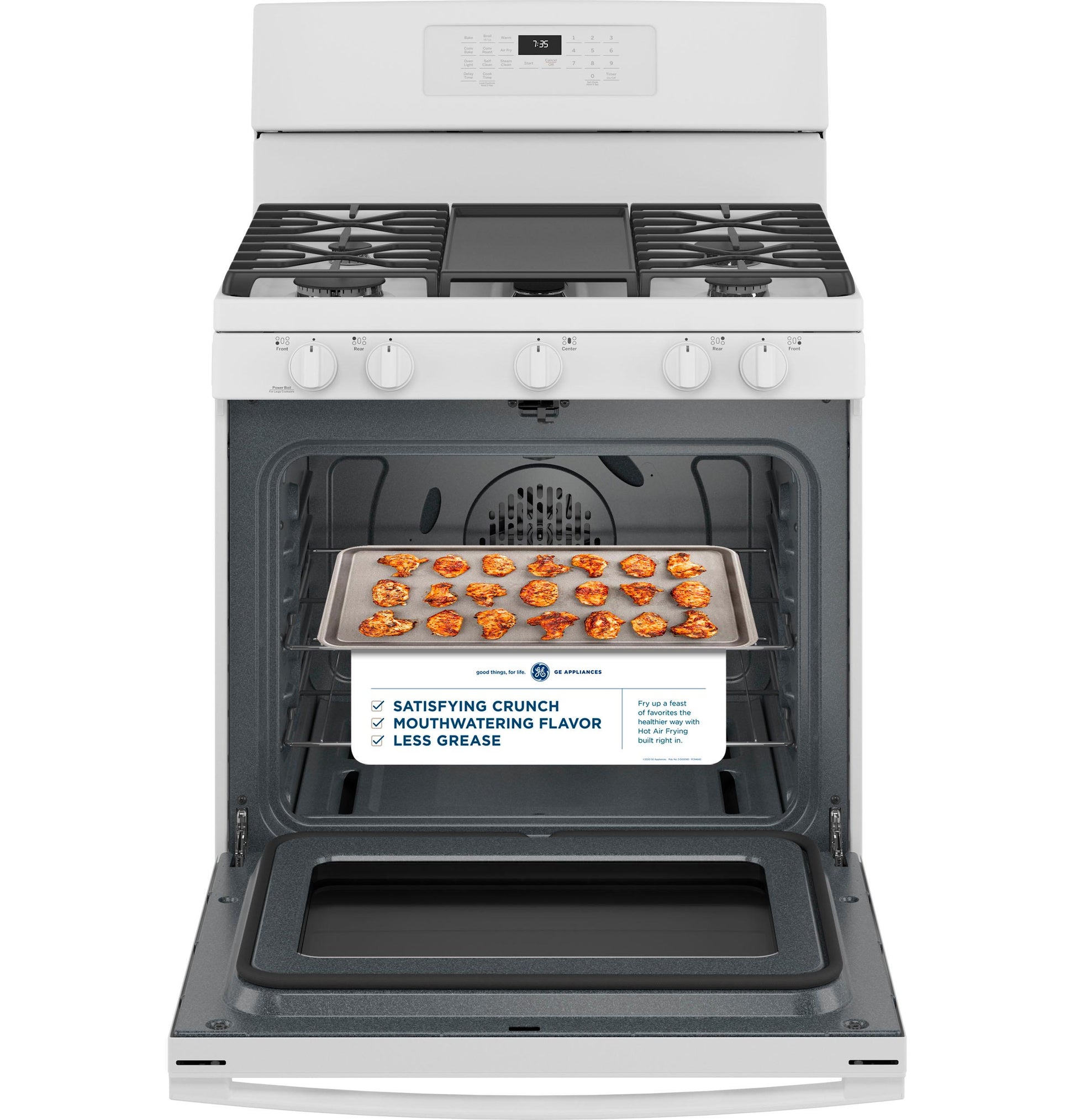

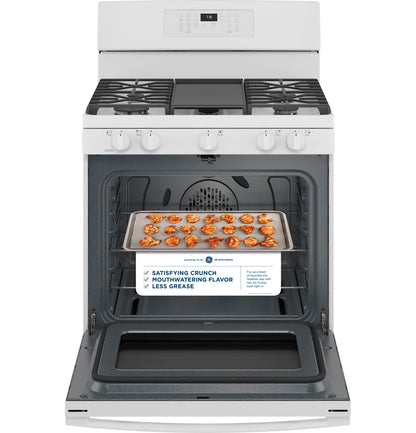

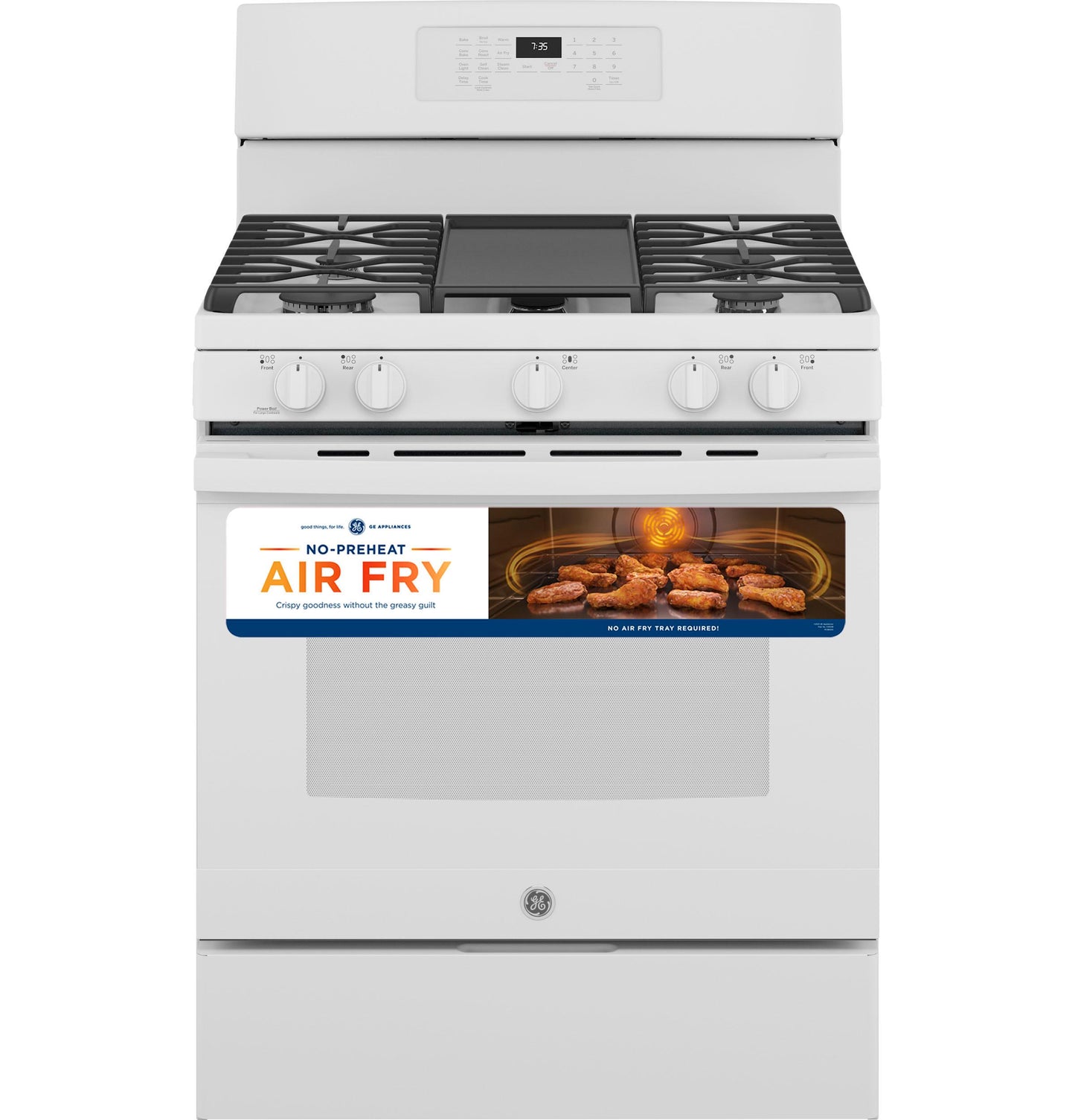

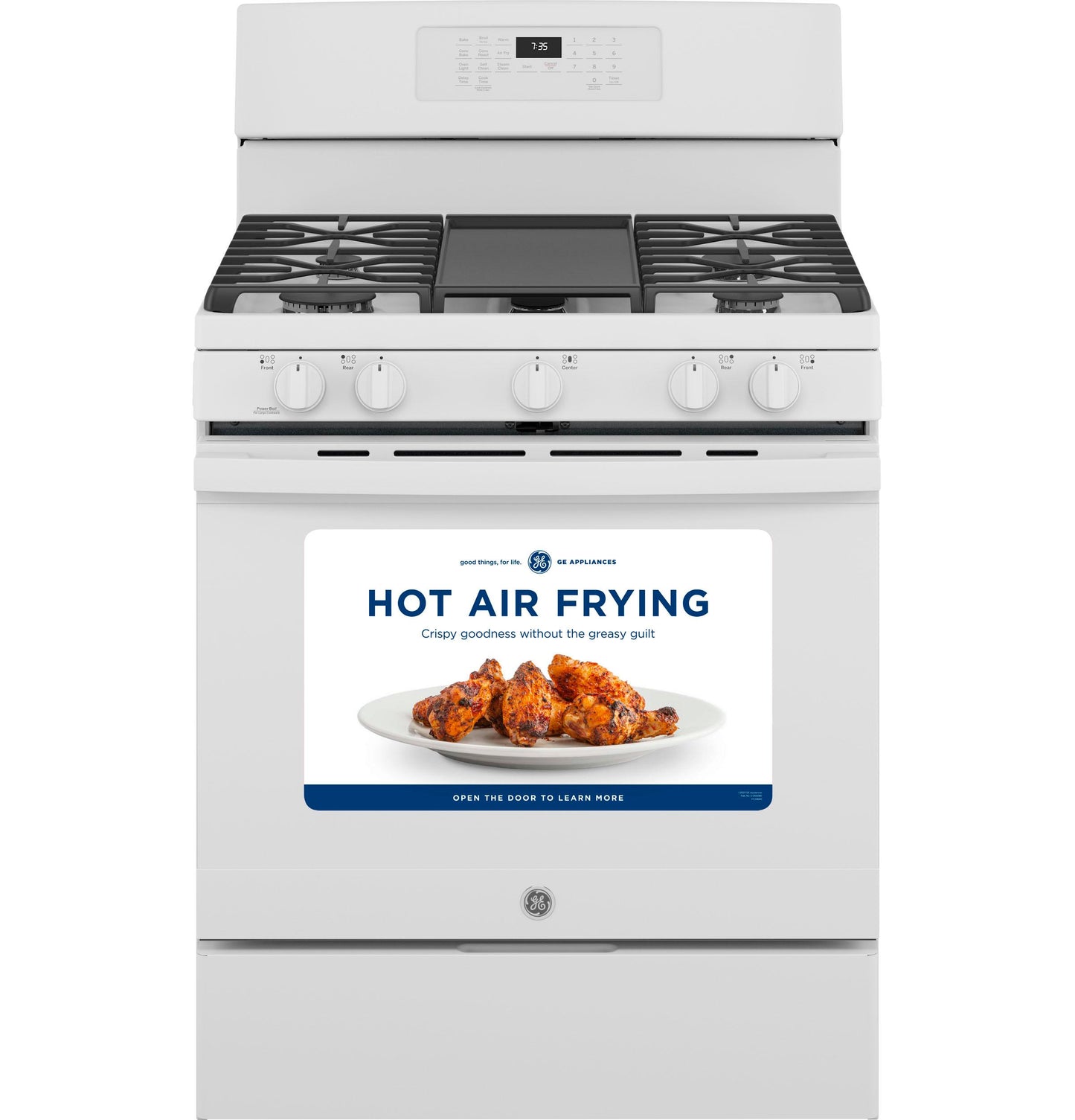

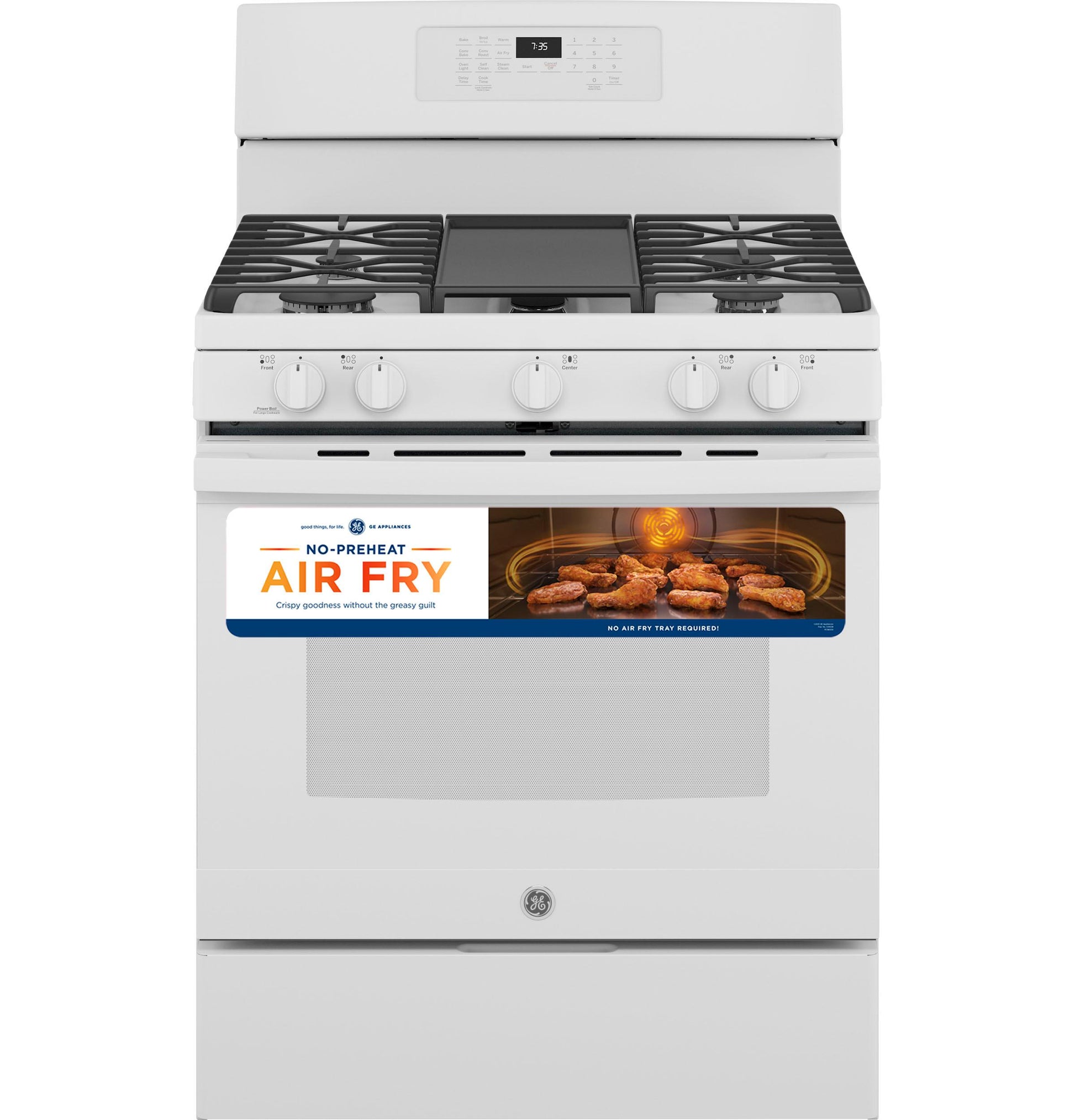

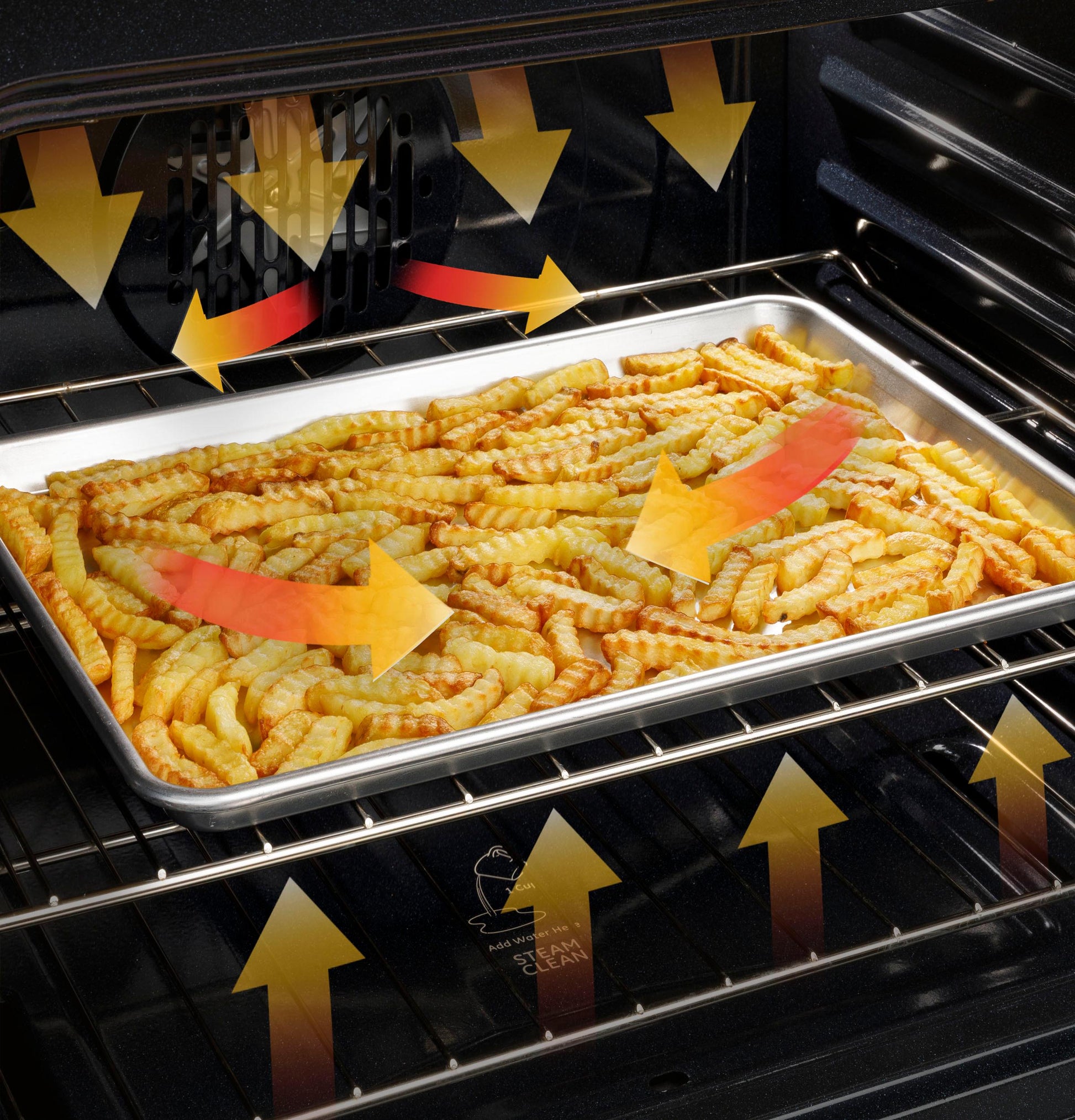

No Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

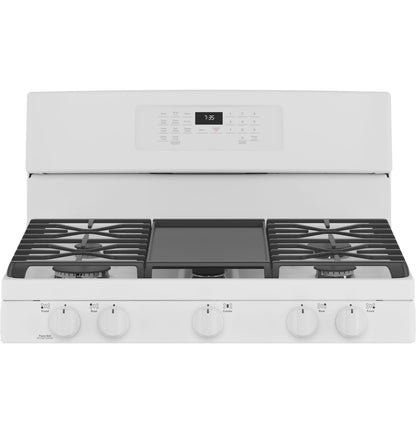

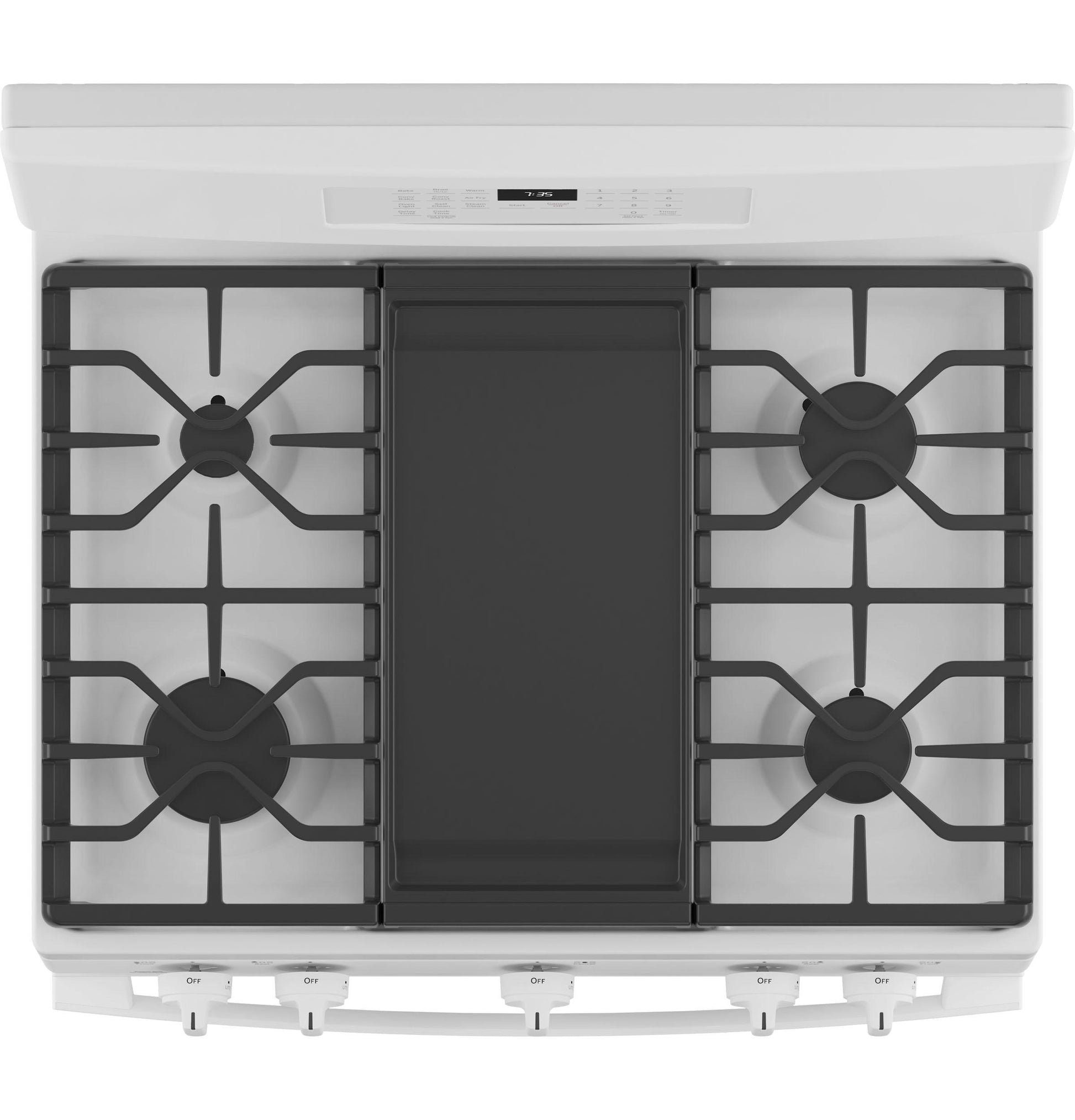

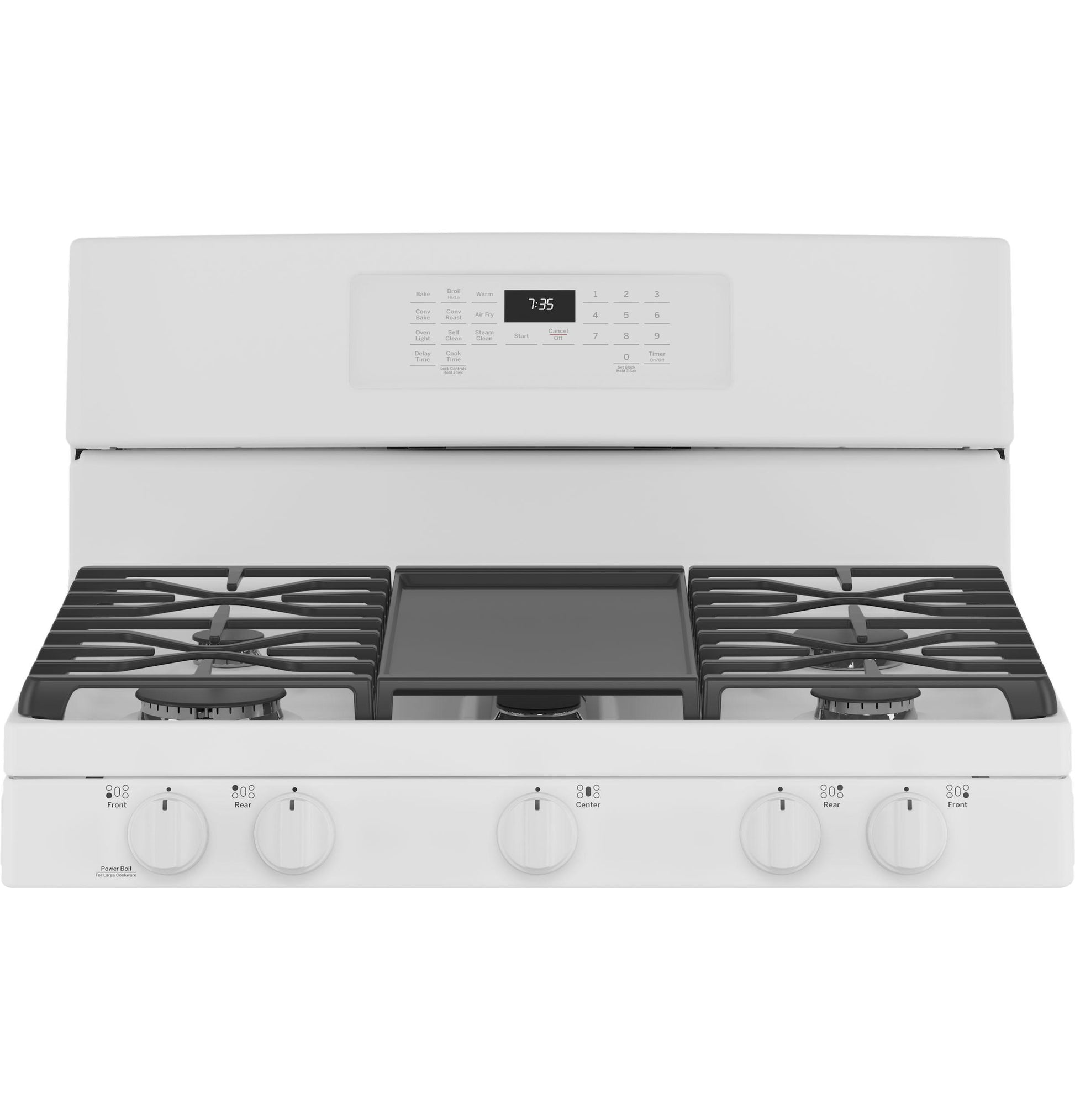

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

Integrated griddle
This integrated griddle leads the industry in size and quality, so you can cook a lot of food at once

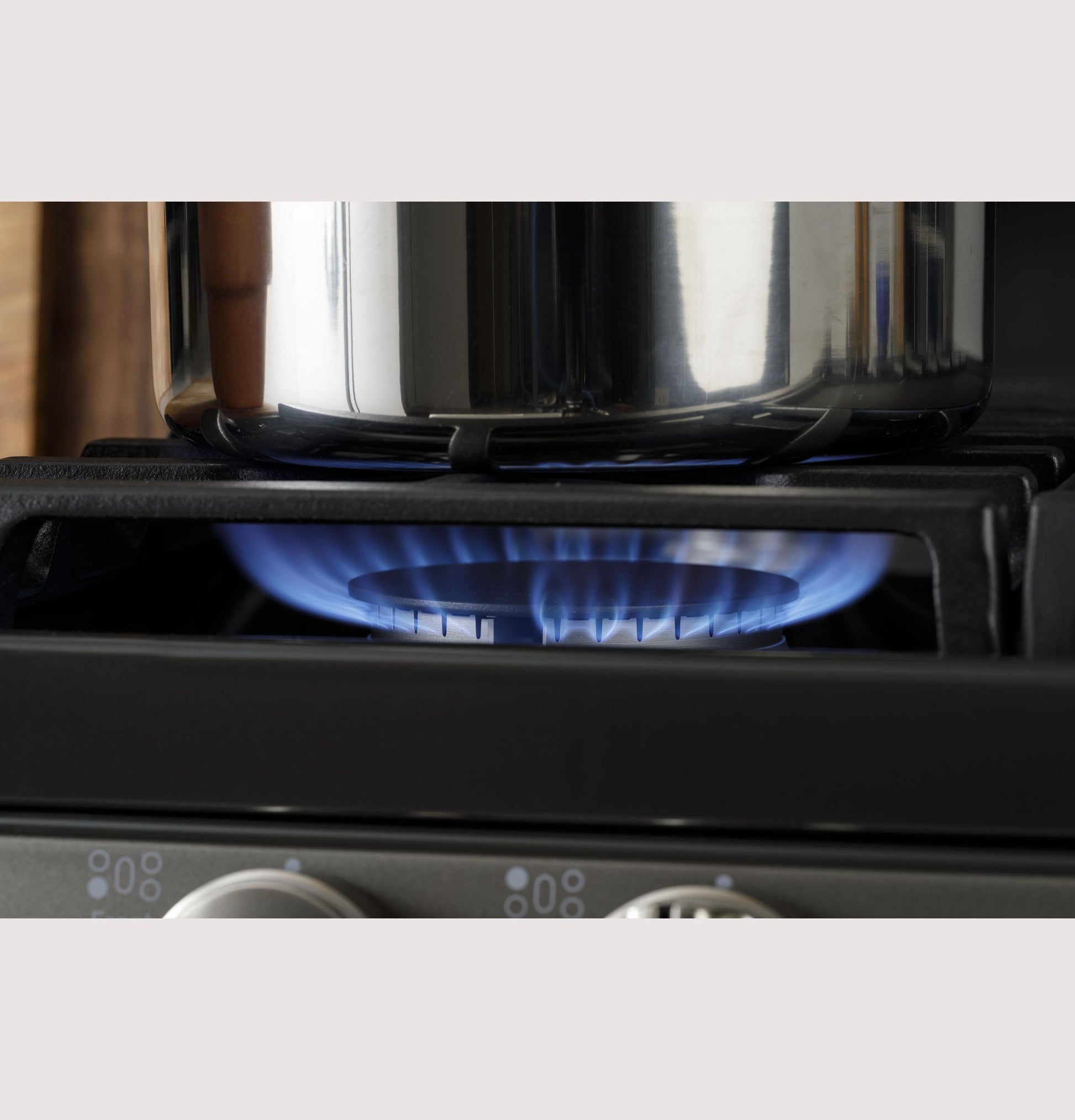

Power boil burner
This 18,000-BTU power boil element produces intense heat to boil water fast

Precise Simmer Burner
This burner setting provides low, even heat so delicate dishes don't burn

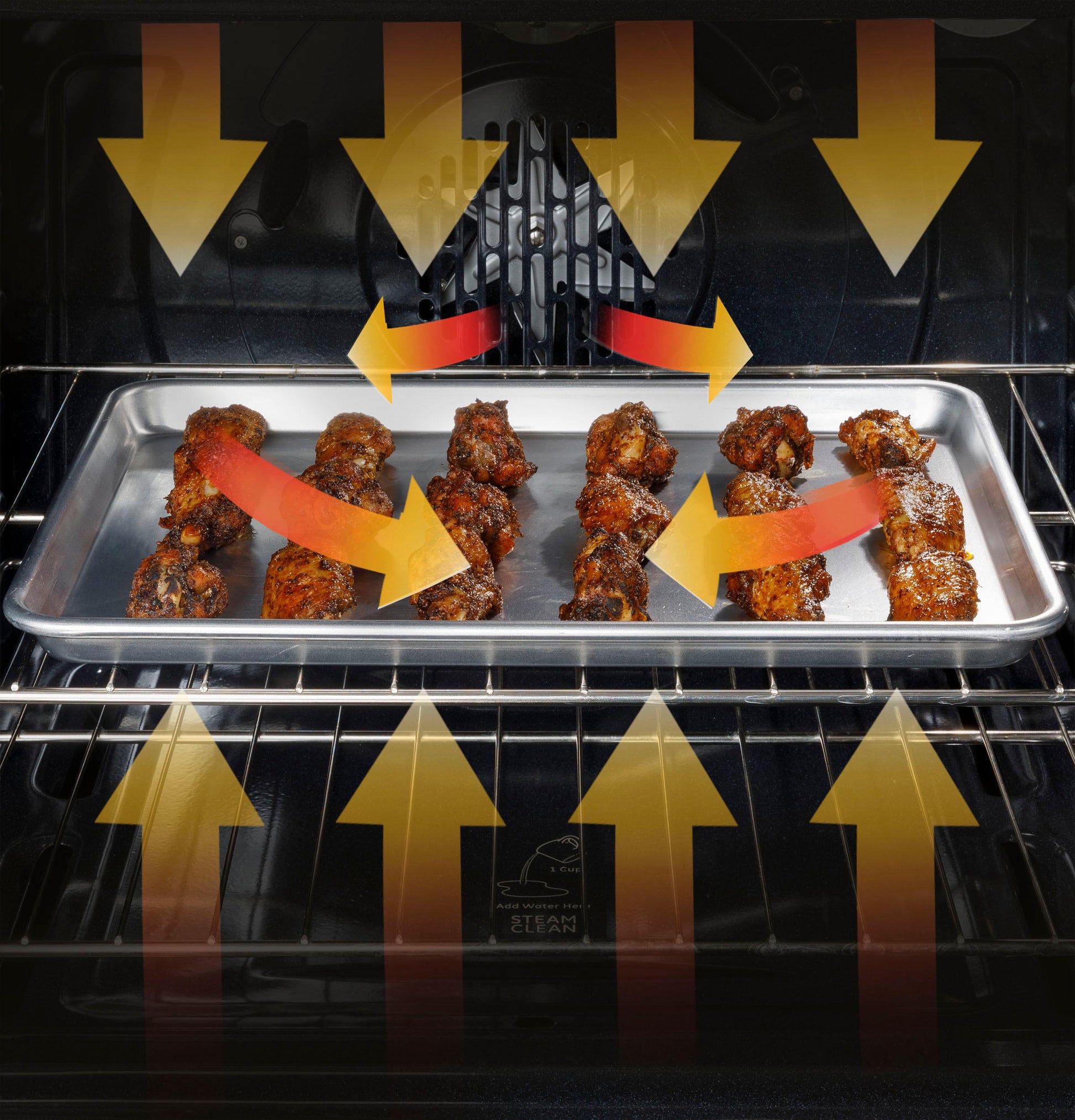

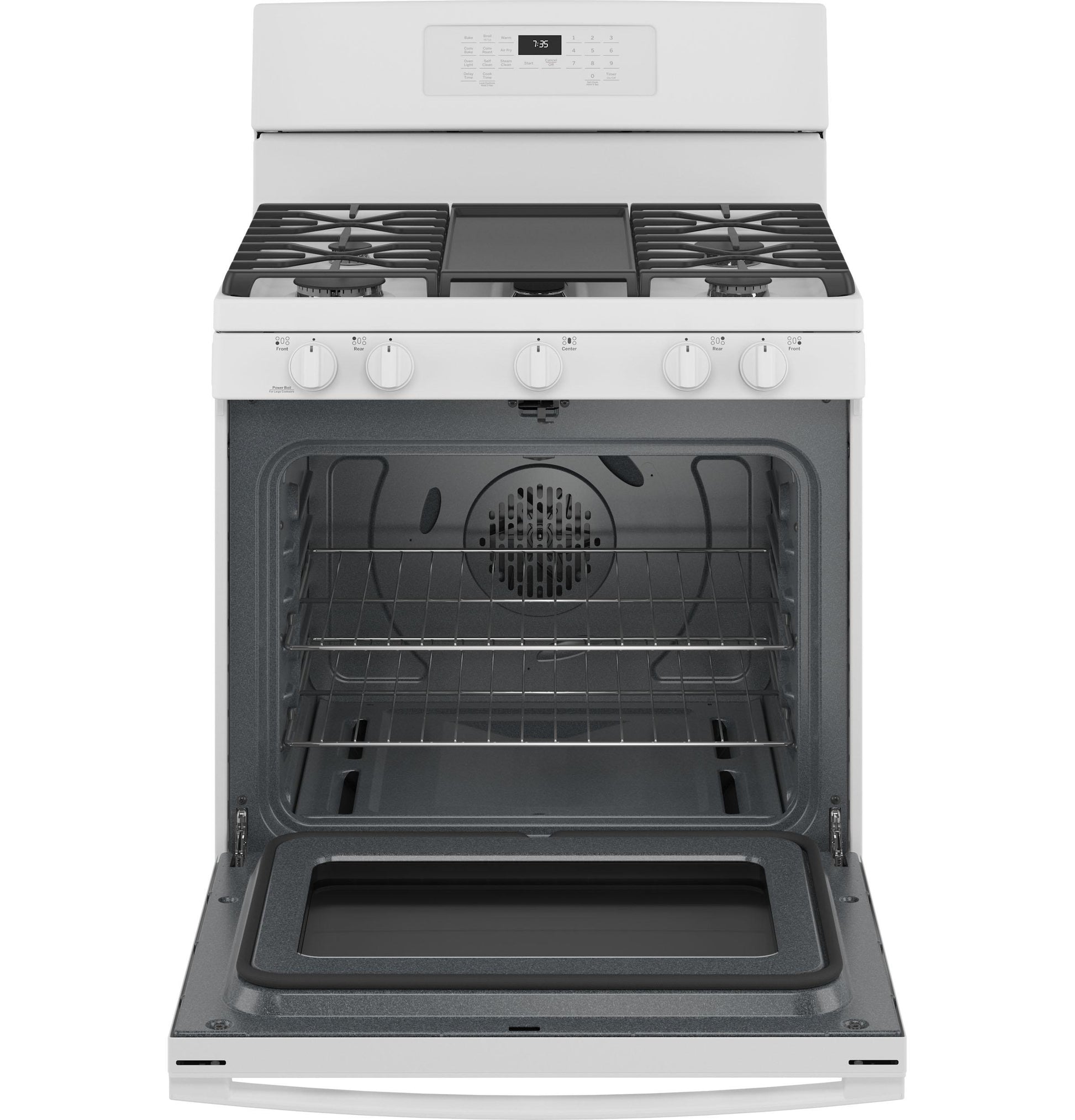

Convection
This gas convection oven cooks and browns more evenly, using a rear fan to circulate hot air

Self-clean with steam clean
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor

Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware

Heavy duty, dishwasher-safe grates
These cooktop grates can be cleaned one of two ways - either in the dishwasher, or on the bottom of a self-clean oven

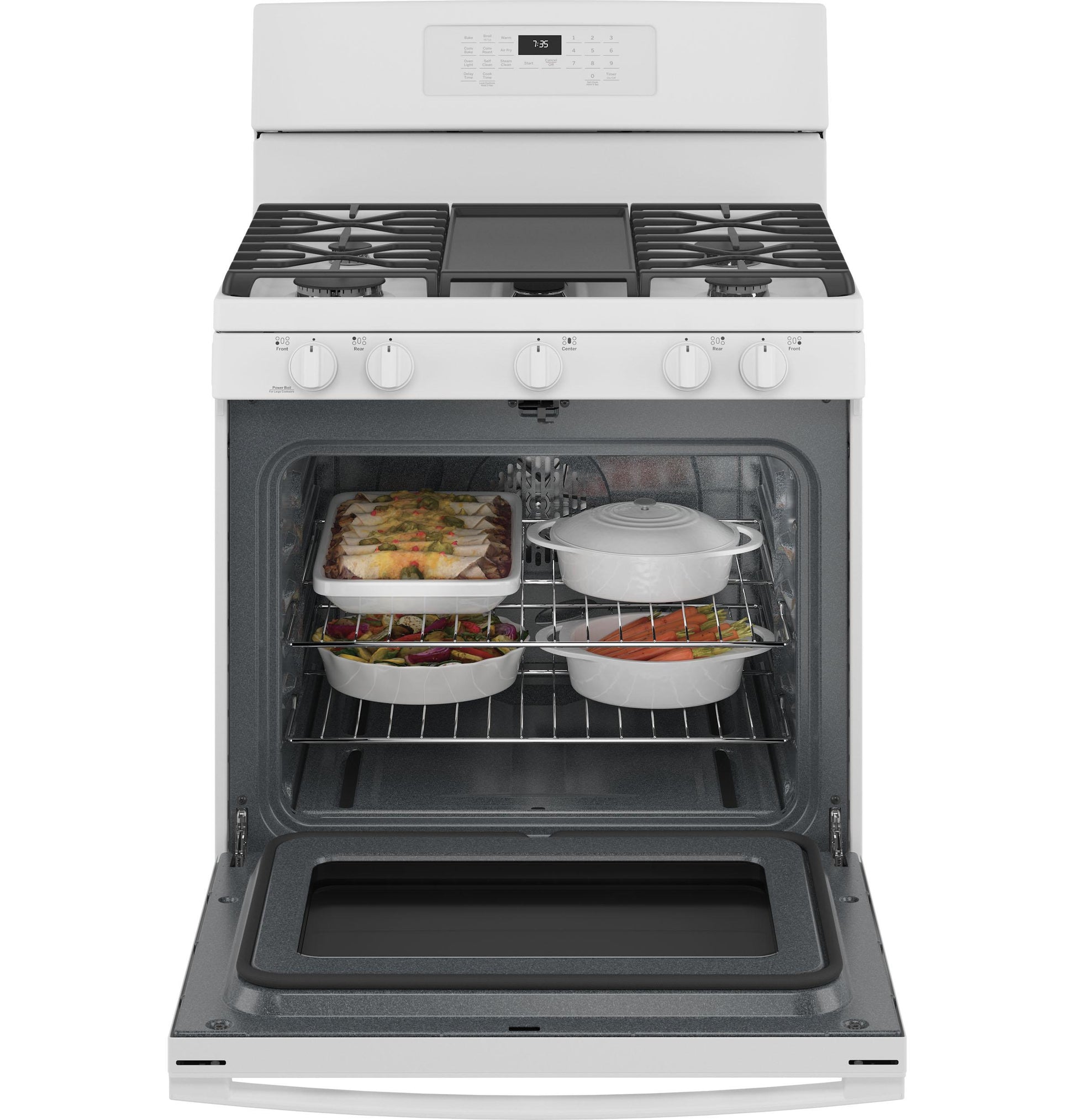

Large capacity oven
Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes

Optional roller rack
An optional roller rack which makes removing heavy or odd-size cookware easy and safe

Removable storage drawer
A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen

Enhanced Shabbos Mode
The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

CAPACITY
Total Capacity (cubic feet)	5 cu ft
Capacity (Cu. Ft.)	5.0
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Gas
App Filter - Cooking Technology	Convection
App Filter - Convection	Yes
App Filter - Edge-to-Edge Cooktop	Yes
App Filter - Drawer Type	Storage
App Filter - Cleaning Type	Steam and Self-Clean
App Filter - Cooktop Type	Continuous Grates with Griddle
APPEARANCE
Cooktop Burner Grate Color	Matte Black
Oven Door Features	Big View Oven Window
Handle Design	Designer Style
Handle Color	White
Control Knobs	Color-Matched
Color Appearance	White
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 12.0 Broiler
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Optional Accessories	WB48X21543 Roller Rack
Center Grate	Optional - JXGRATE1
Griddle Accessory	Integrated (Included)
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	190 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	221 lb
Overall Width	30 in
Overall Height	47.25 in
Overall Depth	28.75 in
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19 x 19
FEATURES
Ignition System	Electronic
Burner - Right Rear	12,000 BTU
Oven Control Features	Audible Preheat Signal Auto Self Clean Delay Bake Option Sabbath Mode
Oven Rack Features	2 Oven Racks
Burner - Left Rear	5,000 BTU Precise Simmer
Oven Cleaning Type	Self-Clean with Steam Clean Option
Griddle	Integrated Non-Stick (Included)
Product Type	Free-Standing Single Oven
Cooktop Type	Continuous Grates with Griddle
Cooktop Burner Grate Material	Heavy Cast Iron
Fuel Type	Natural Gas (factory set)
Burner - Center	10,000 BTU Oval
Interior Oven Light	1 Auto Incandescent
Control Type	Electronic Touch
Burner - Left Front	18,000 BTU Power Boil
Drawer Type	Storage
Sabbath Mode	Yes
Cooking Technology	Convection
Configuration	Range with Storage Drawer
OU Certified	OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Oven Cooking Modes	Convection Bake No Preheat Air Fry
Cooktop Burner Type	Sealed
Burner - Right Front	9,500 BTU
Cooktop Surface	Color-Matched Edge-to-Edge One-Piece Upswept Porcelain-Enamel
