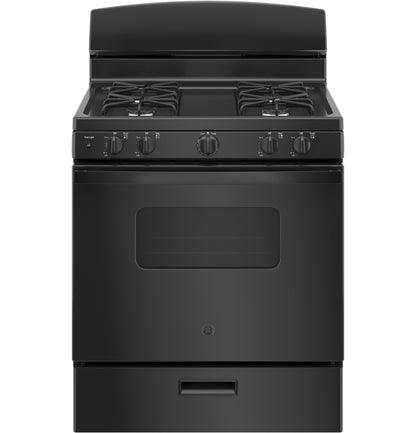

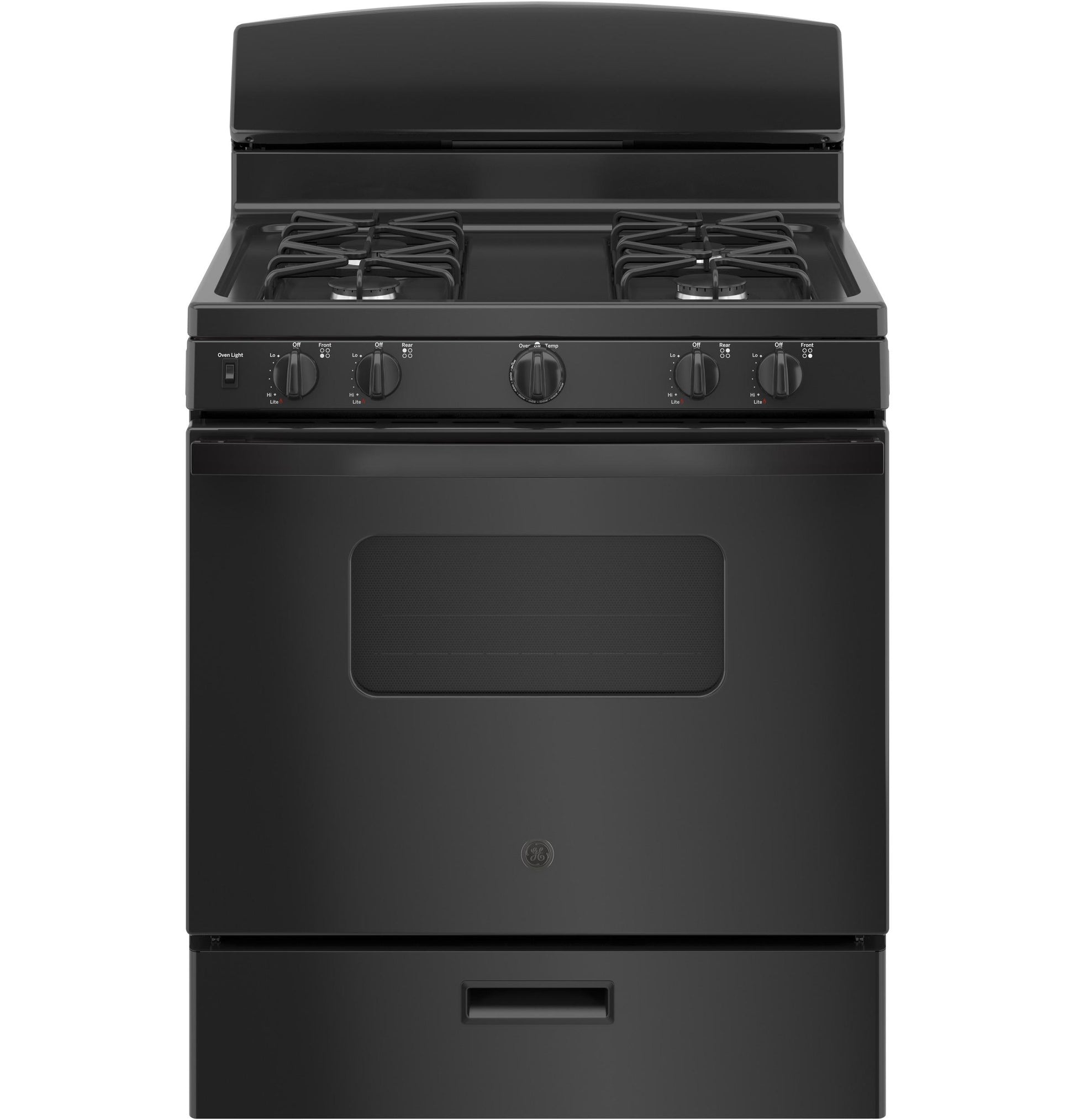

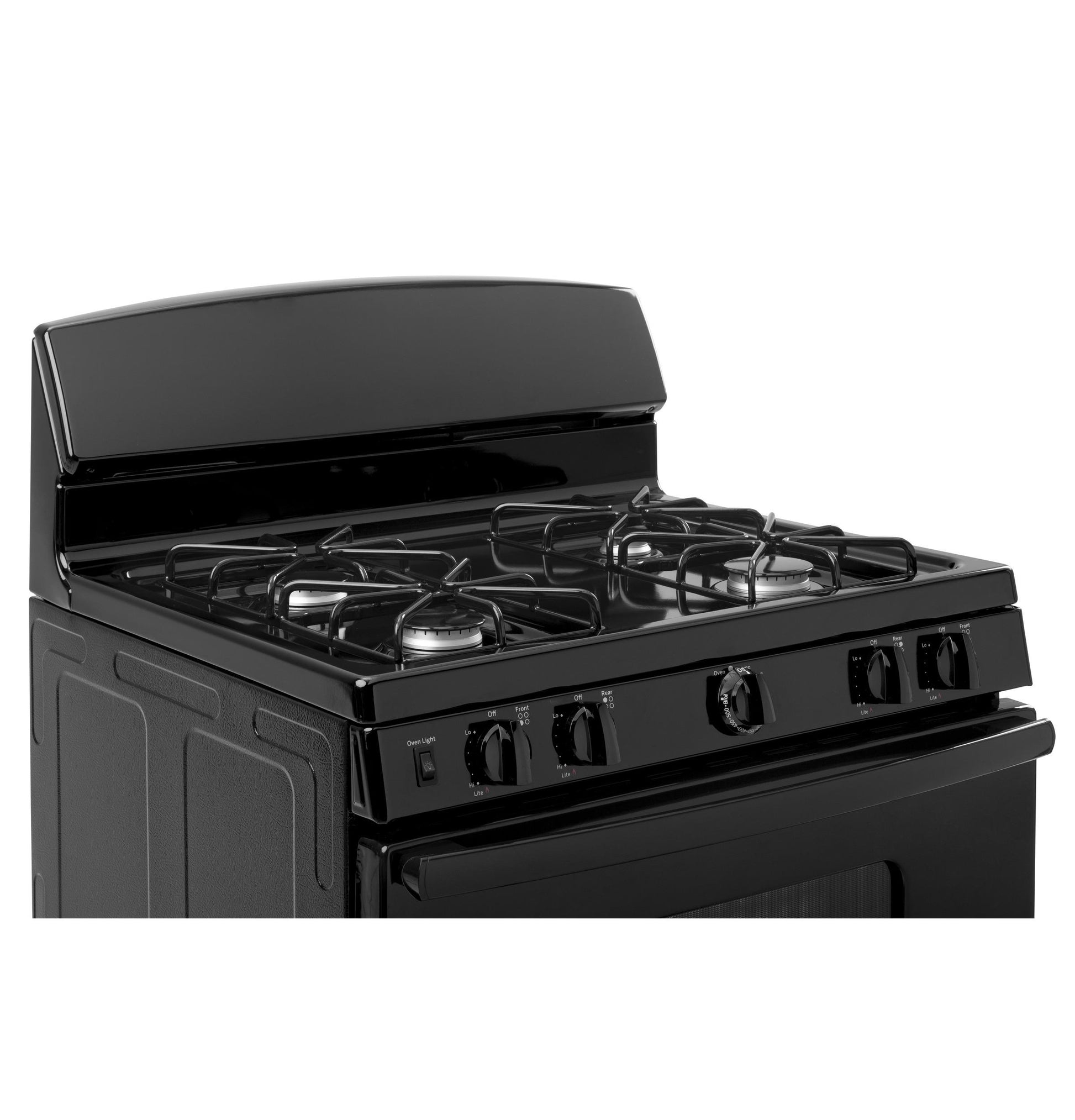

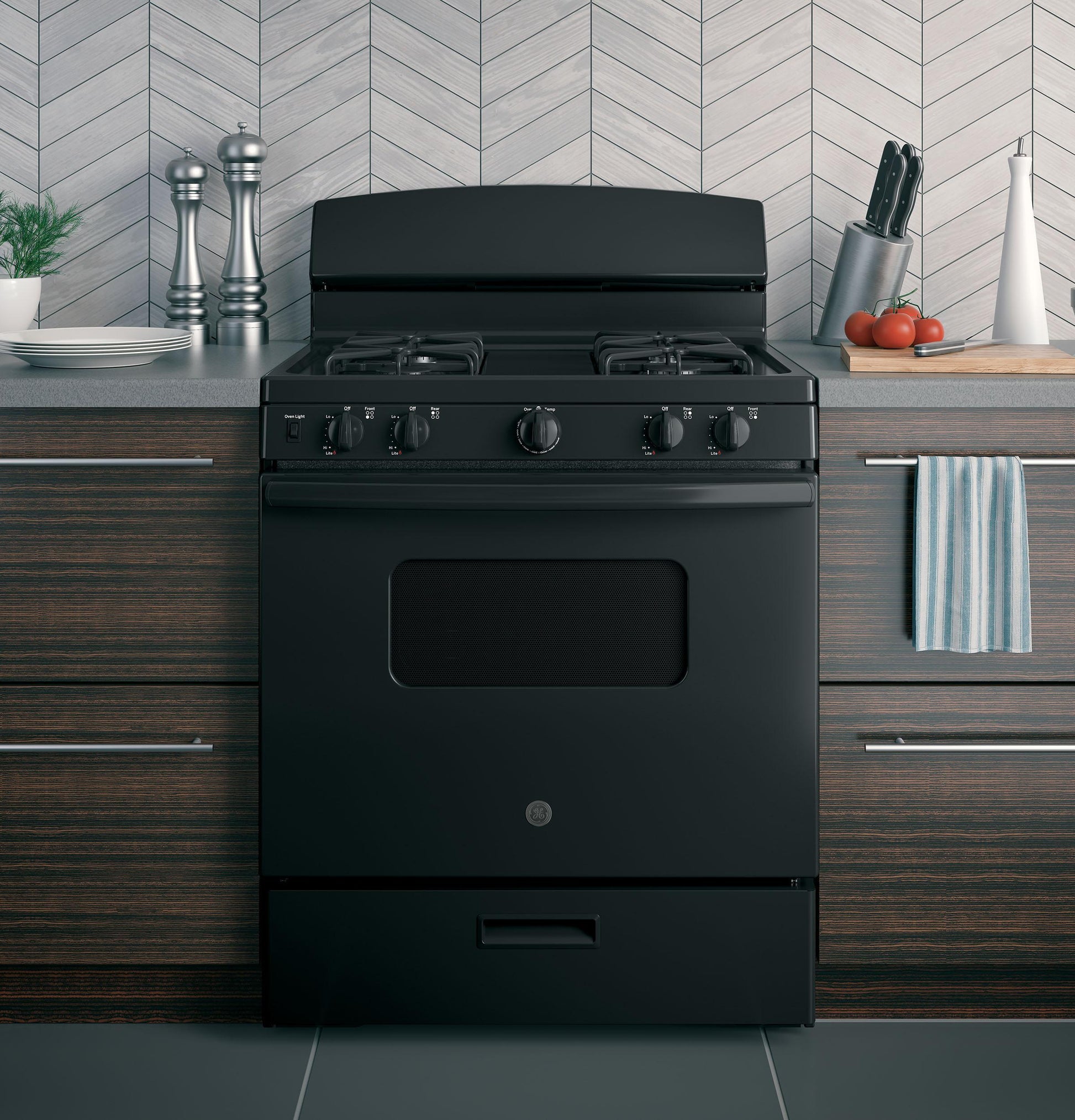

JGBS10DEMBB GE® 30" Free-Standing Front Control Gas Range JGBS10DEMBB

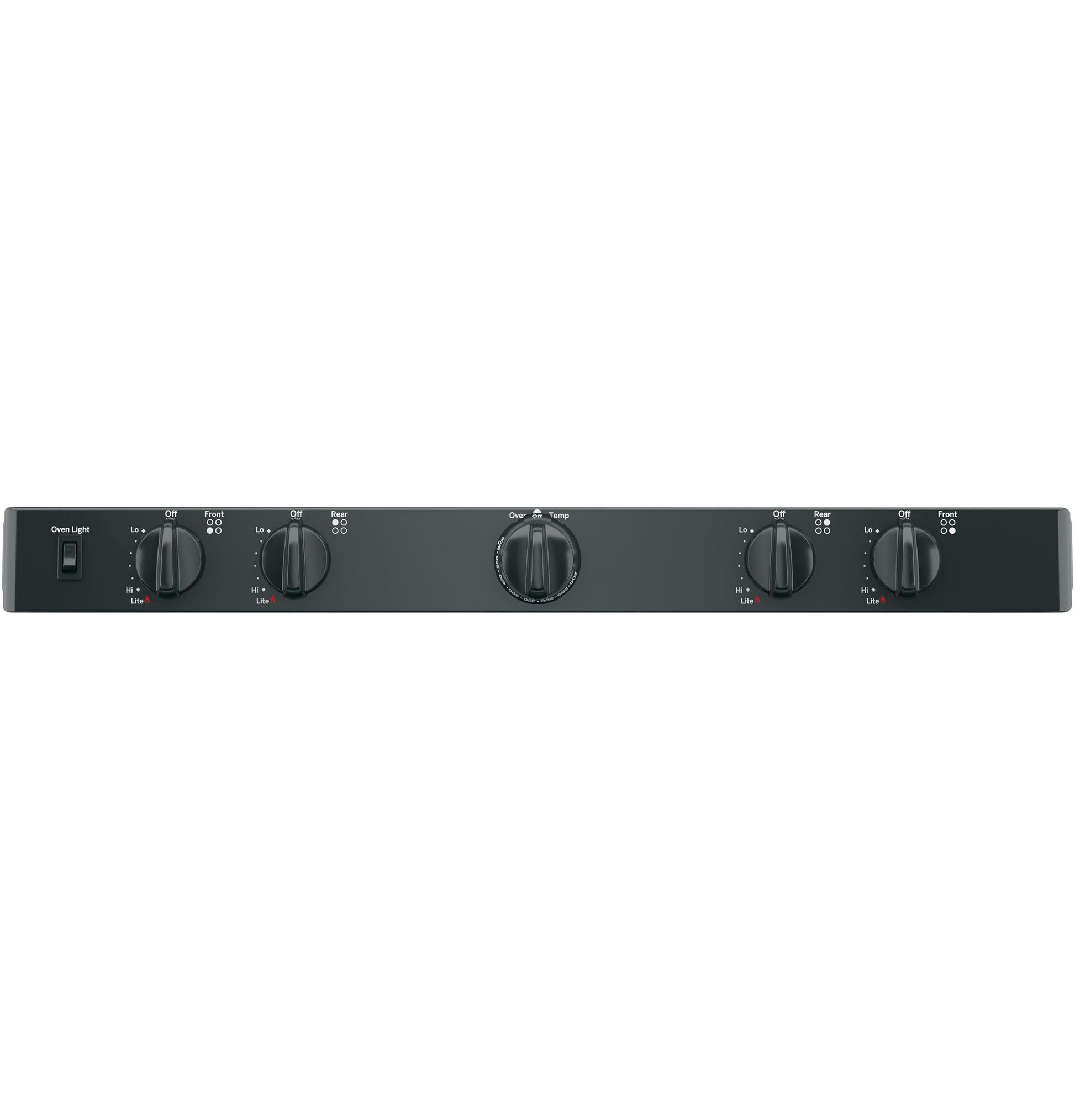

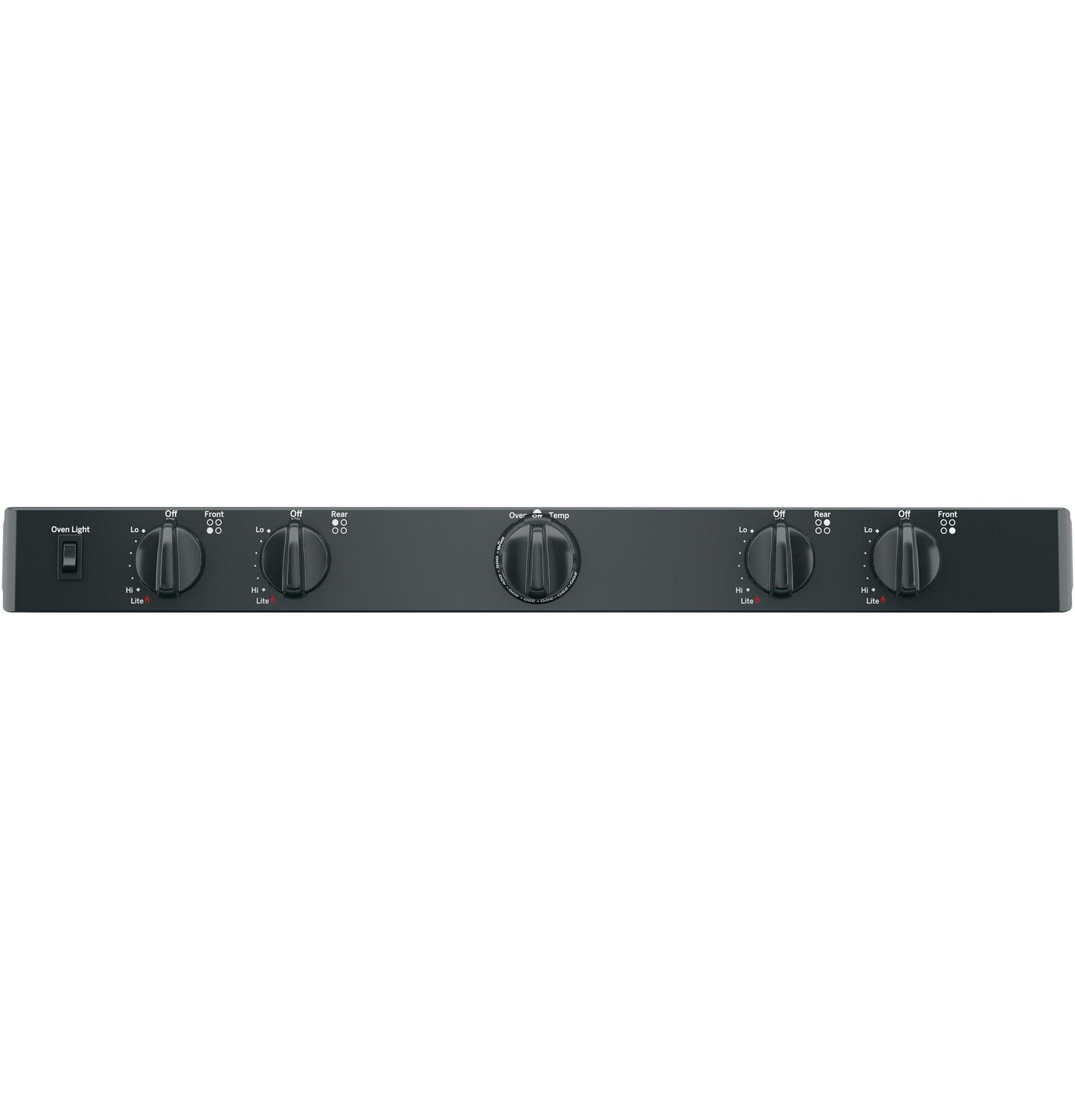

Front controls
Easily-accessible controls make it simple to control the stovetop and oven

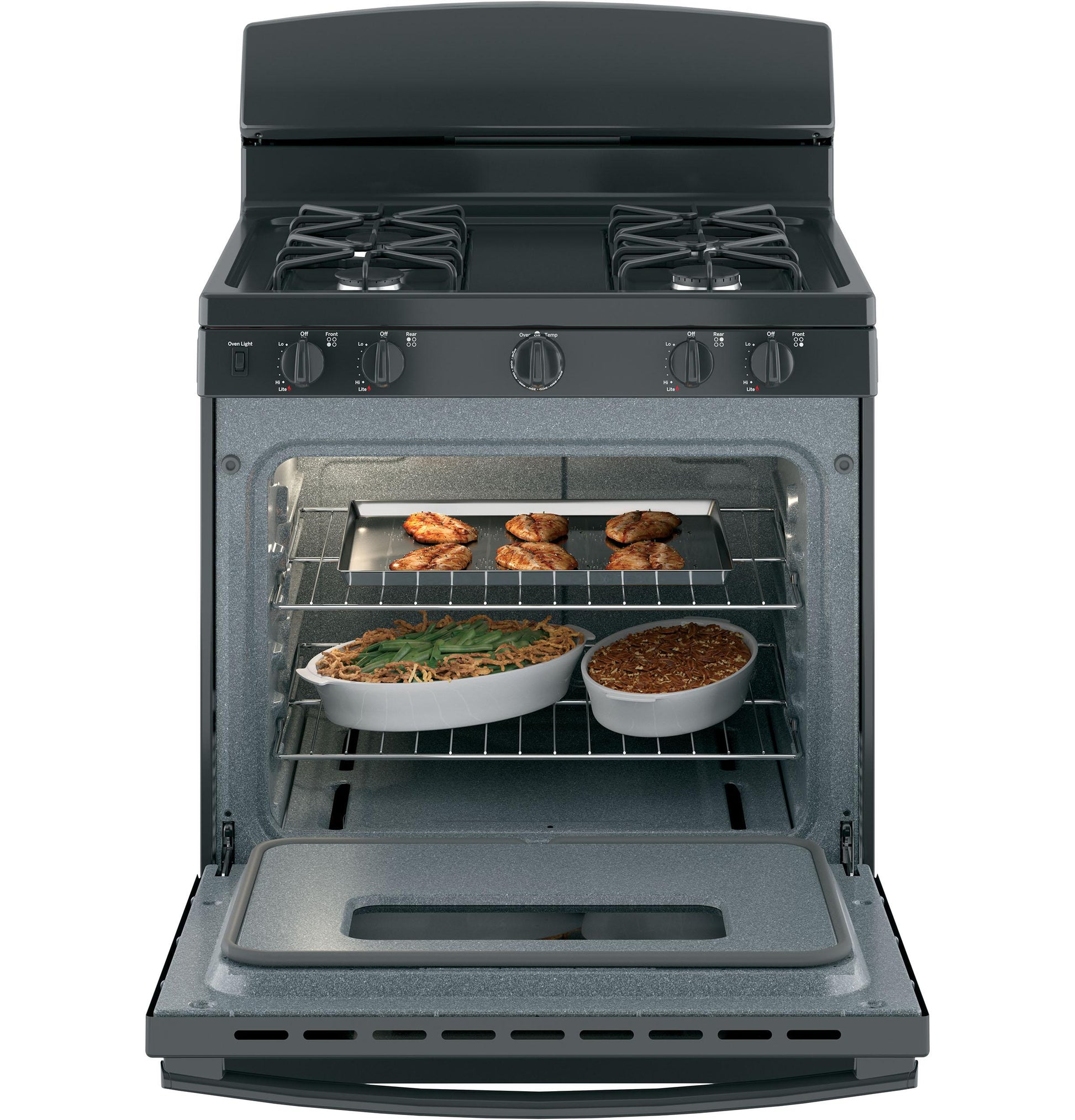

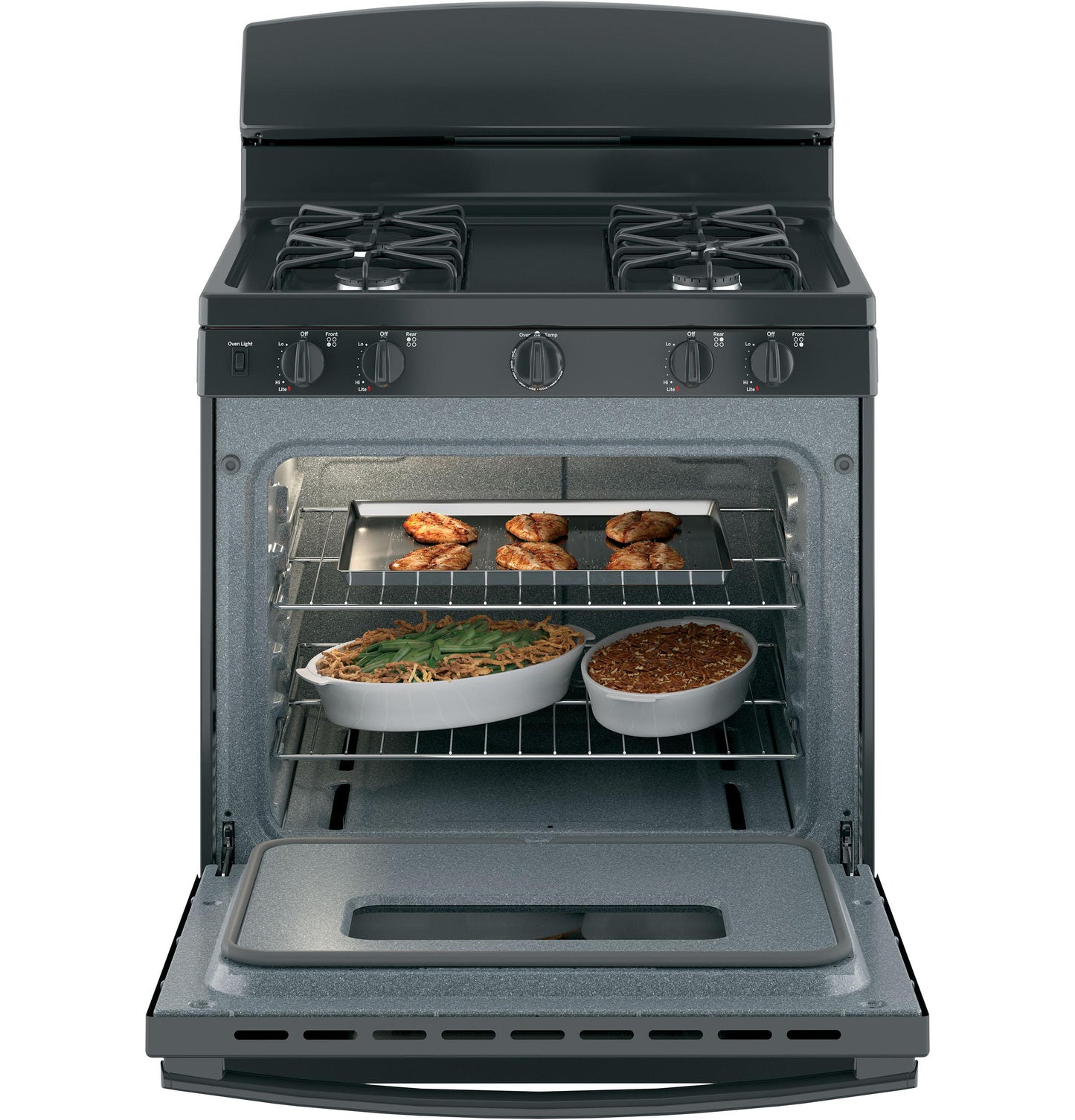

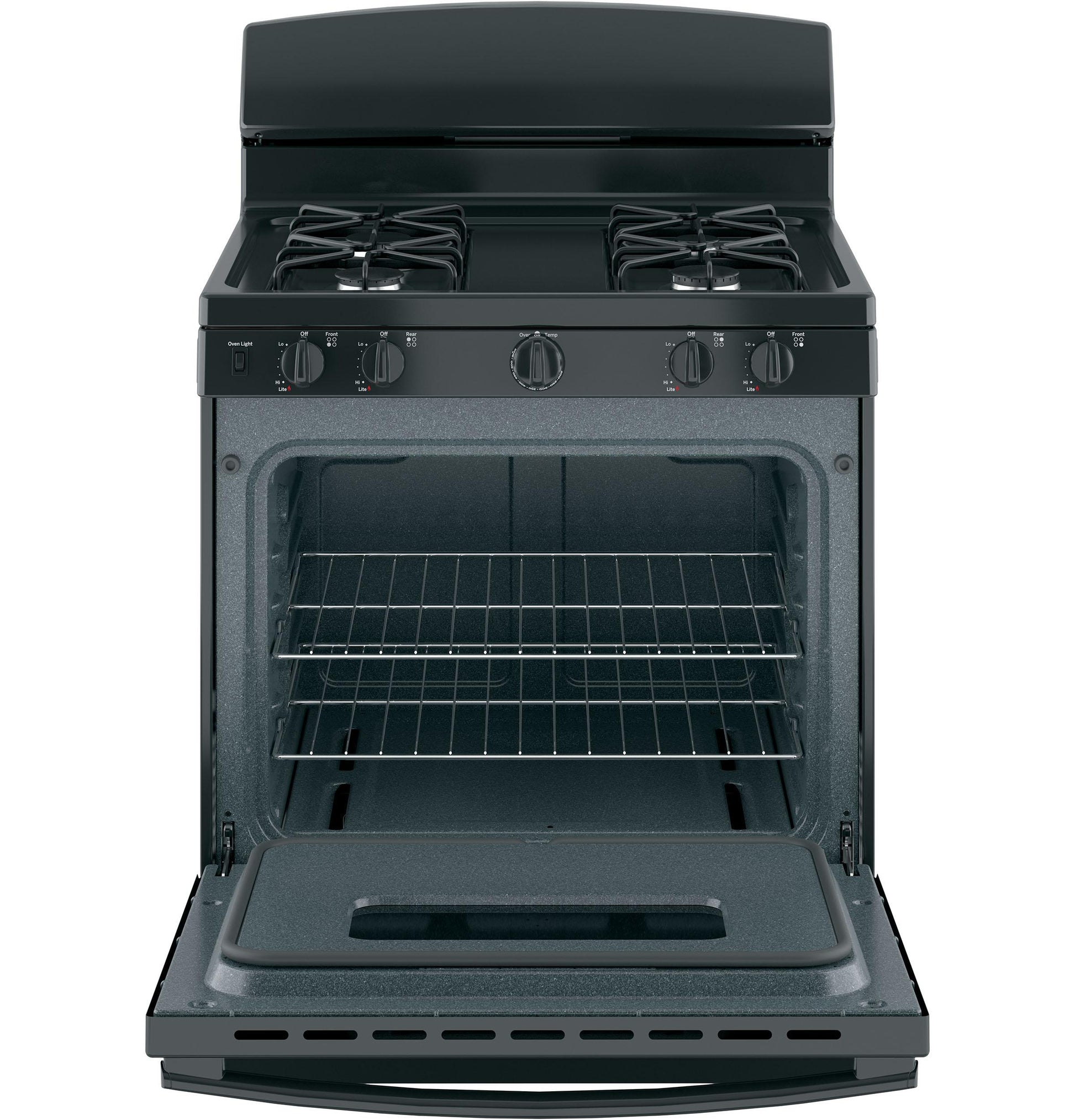

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once

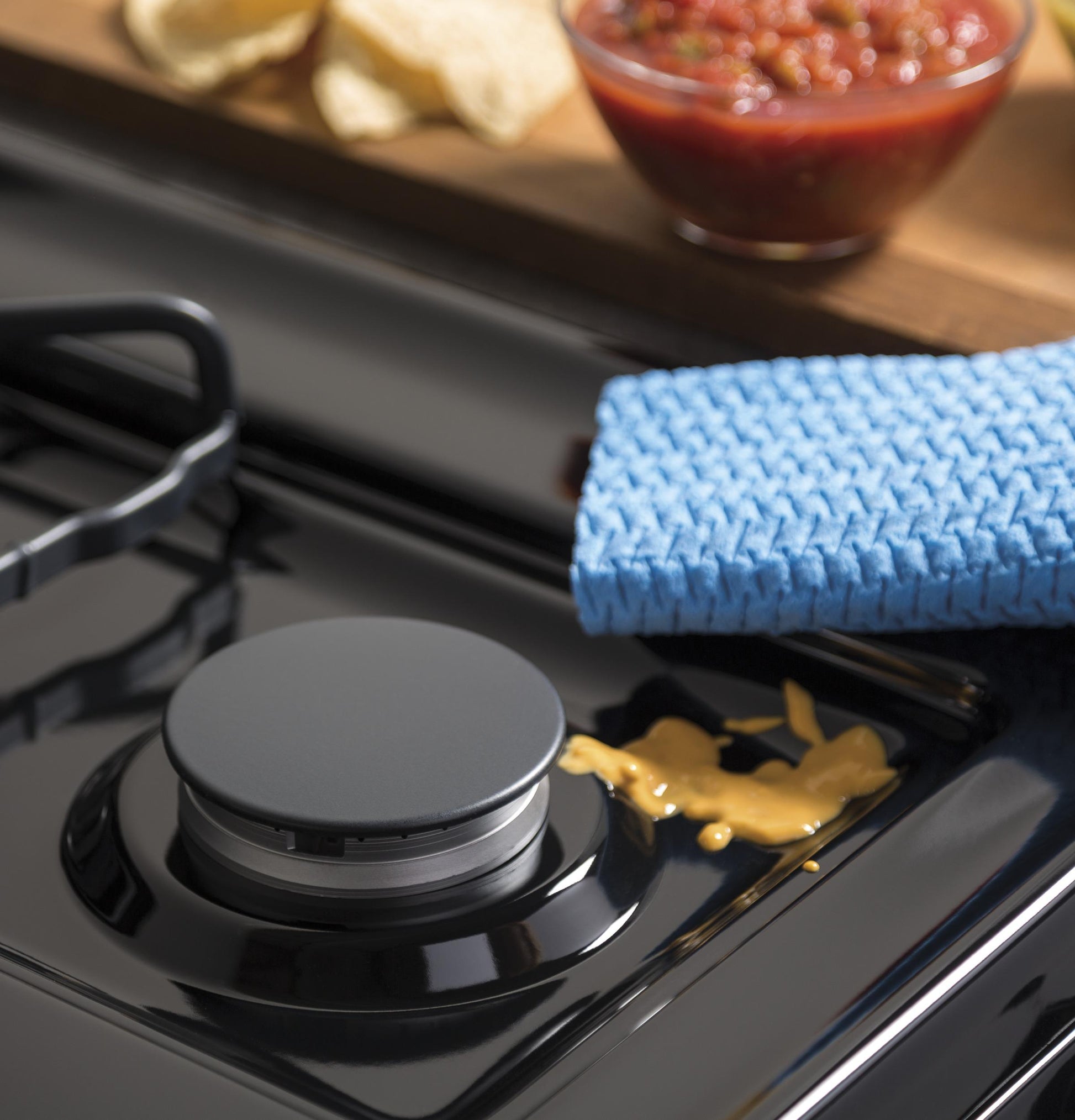

Sealed cooktop burners
Contains spills and make cleaning quick and easy

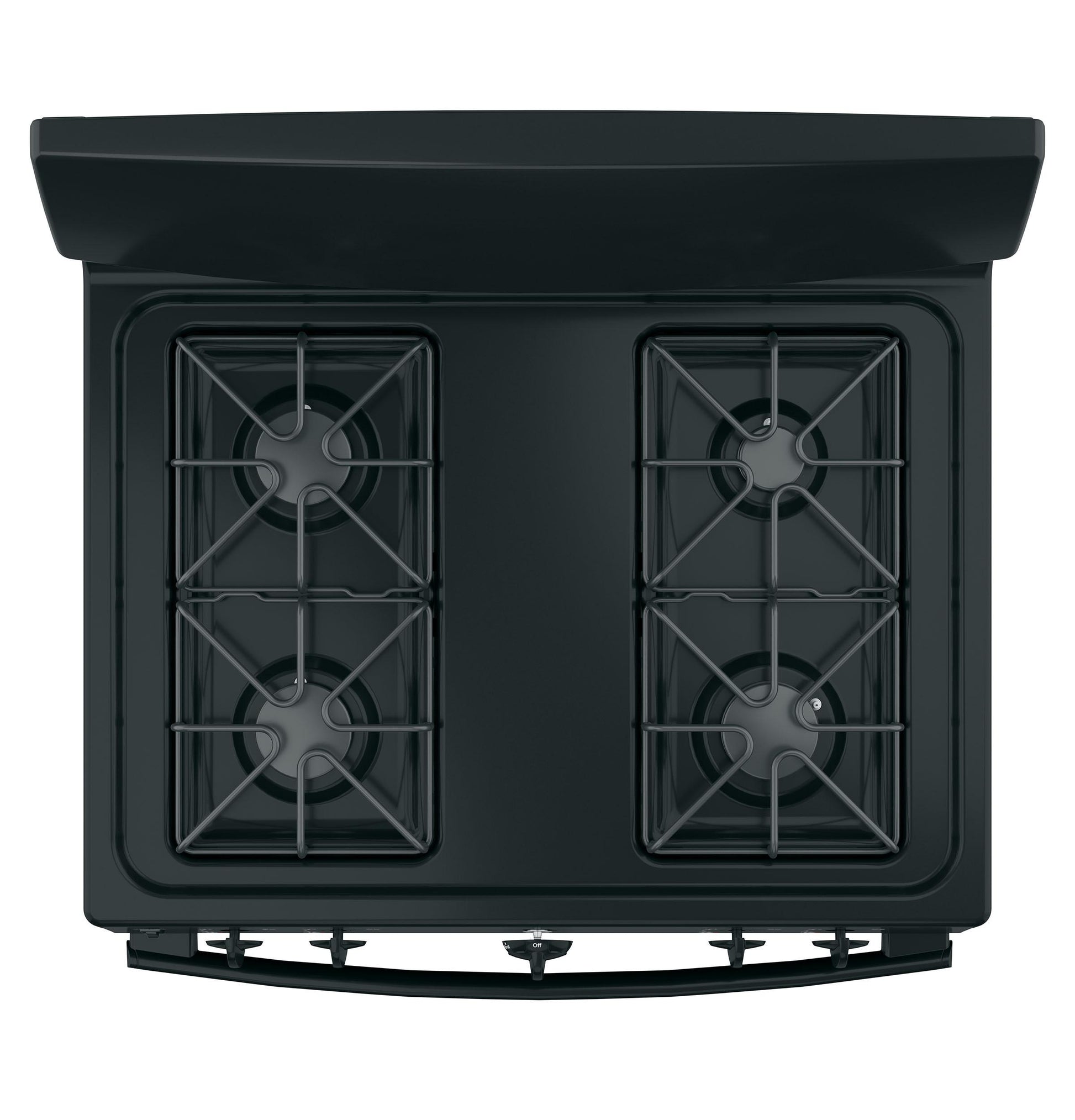

Heavy-duty grates
Durable grates are easy to clean and can hold a wide variety of cookware on the stove

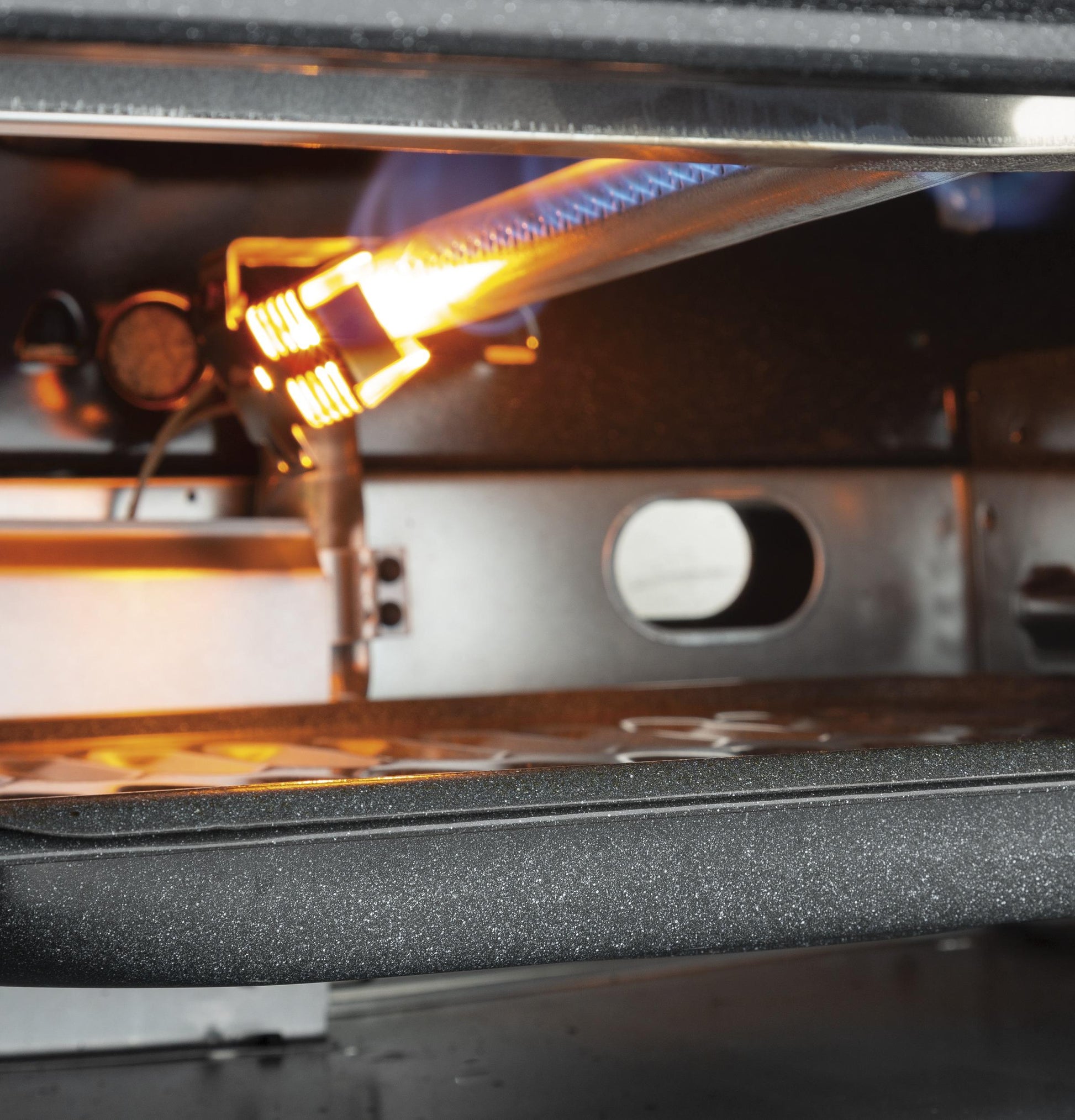

Broil option
A versatile heating element allows for more cooking options in the oven

Standard clean oven
Smooth surface makes cleaning by hand easier

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Rotary knobs
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Gas
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Drawer Type	Broiler
App Filter - Cleaning Type	Manual
App Filter - Voltage	120V
App Filter - Cooktop Type	Standard Grates
APPEARANCE
Cooktop Burner Grate Color	Black Gloss
Handle	Designer Style
Oven Door Features	Oven Window
Control Knobs	Gloss Black
Color Appearance	Black
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 13.0; (2) 9.5, (1) 5.0
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(2) 9.5; (1) 13.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0 Bake / 18.0 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 16.0 Broiler
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	145 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	165 lb
Overall Width	30 in
Overall Height	46.25 in
Overall Depth	28.75 in
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
FEATURES
Ignition System	Electronic
Burner - Right Rear	5,000 BTU Precise Simmer
Oven Interior	1 Incandescent Light
Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	9,500 BTU
Oven Cleaning Type	Standard Clean
Slide - Out Broiler Drawer	Drop Down Door
Product Type	Free-Standing Single Oven
Cooktop Type	Standard Grates
Cooktop Burner Grate Material	Heavy Steel
Fuel Type	Natural Gas (factory set)
Control Location	Front
Burner - Left Front	9,500 BTU
Drawer Type	Broiler
Sabbath Mode	Yes
Cooking Technology	Traditional
Configuration	Range with Broiler Drawer
OU Certified	No
Cooktop Burner Type	Sealed
Valves (Degree of Turn)	140
Burner - Right Front	13,000 BTU
Cooktop Surface	Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	6
