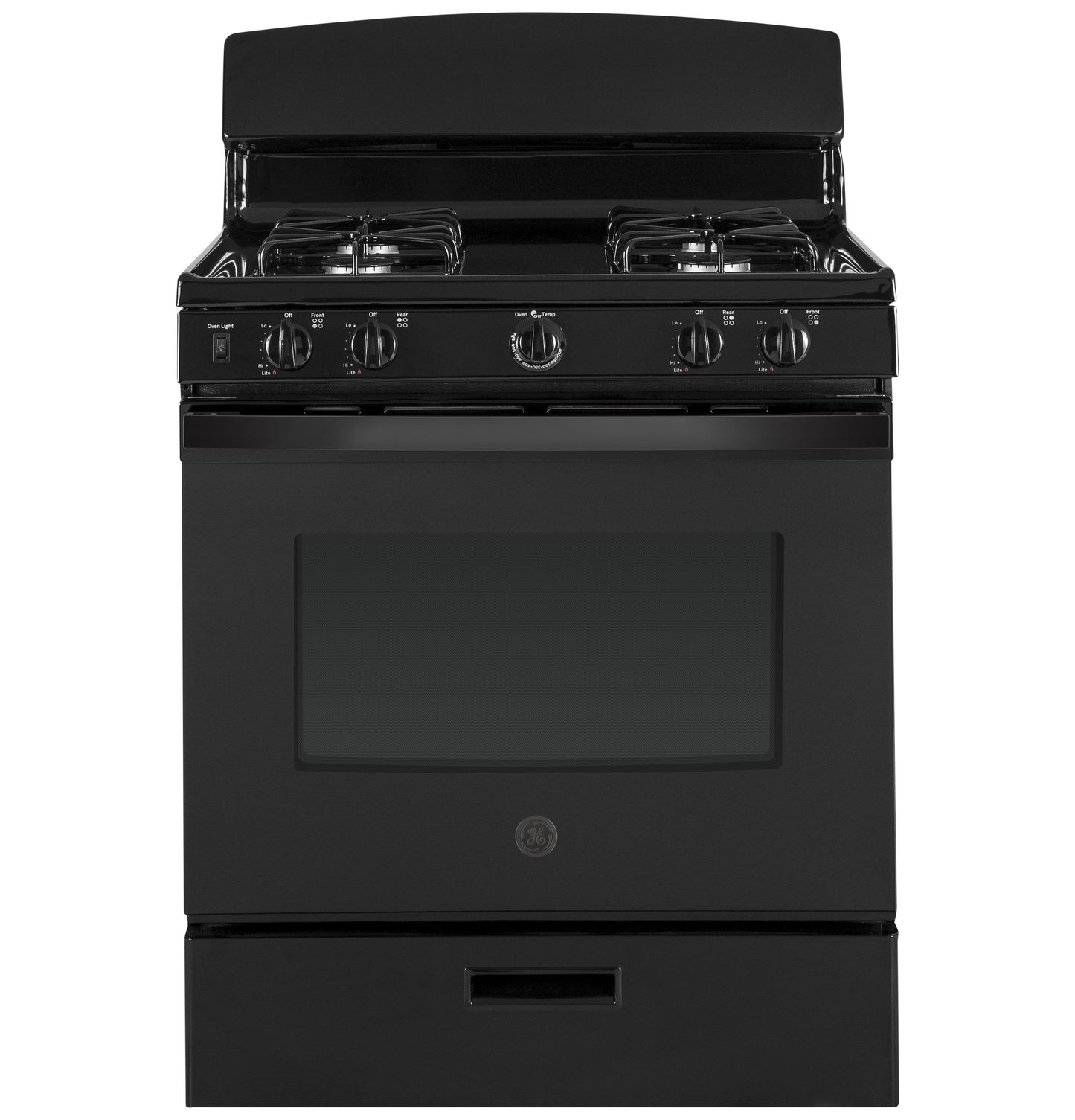

JGBS30DEKBB GE® 30" Free-Standing Gas Range JGBS30DEKBB

13,000 BTU burner
Delivers a wide range of heat output ideal for most cooking requirements

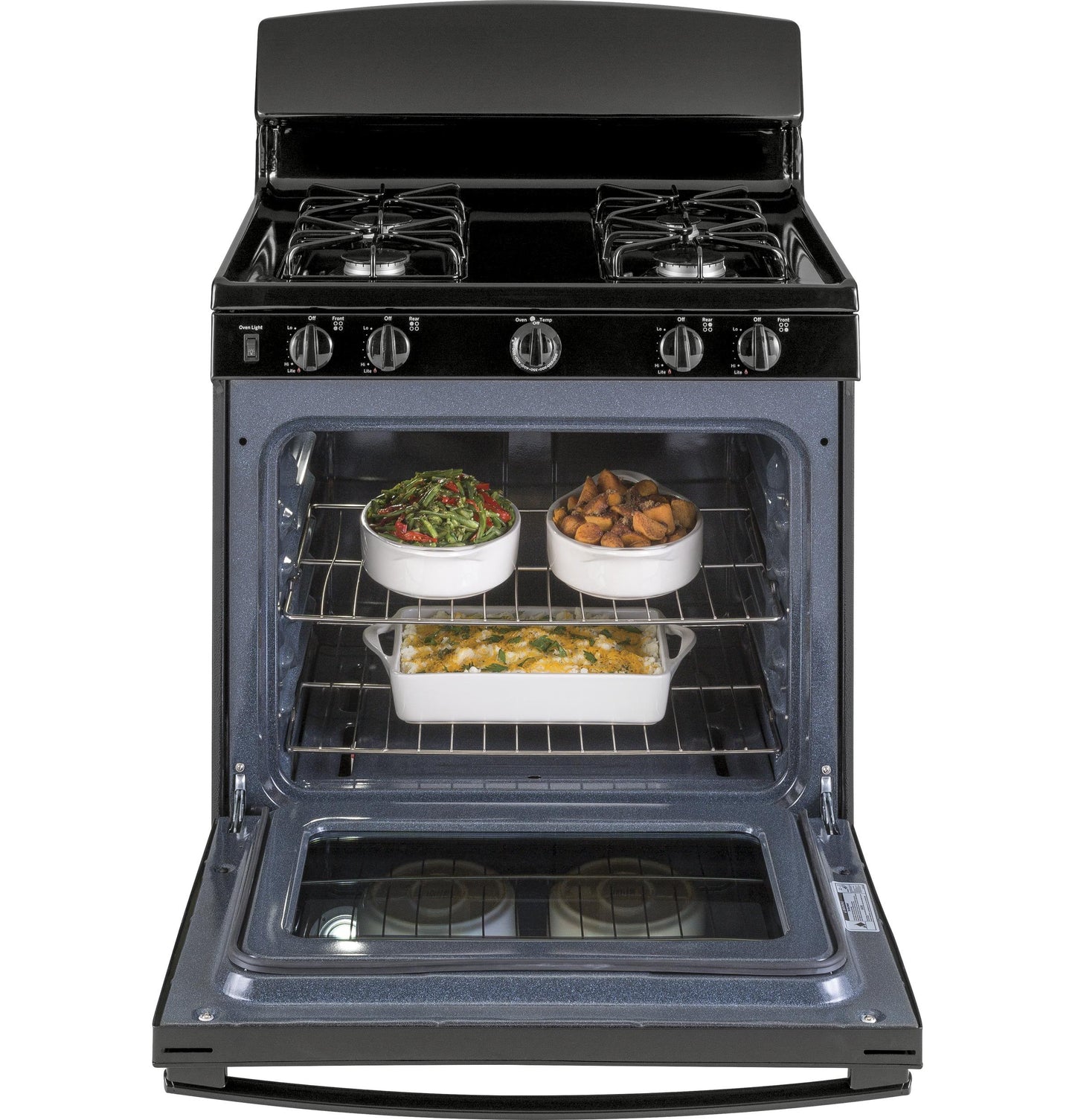

Big view window
Large, clear window makes checking food easy

Precise Simmer burner
Delicate foods don't burn with low, even heat

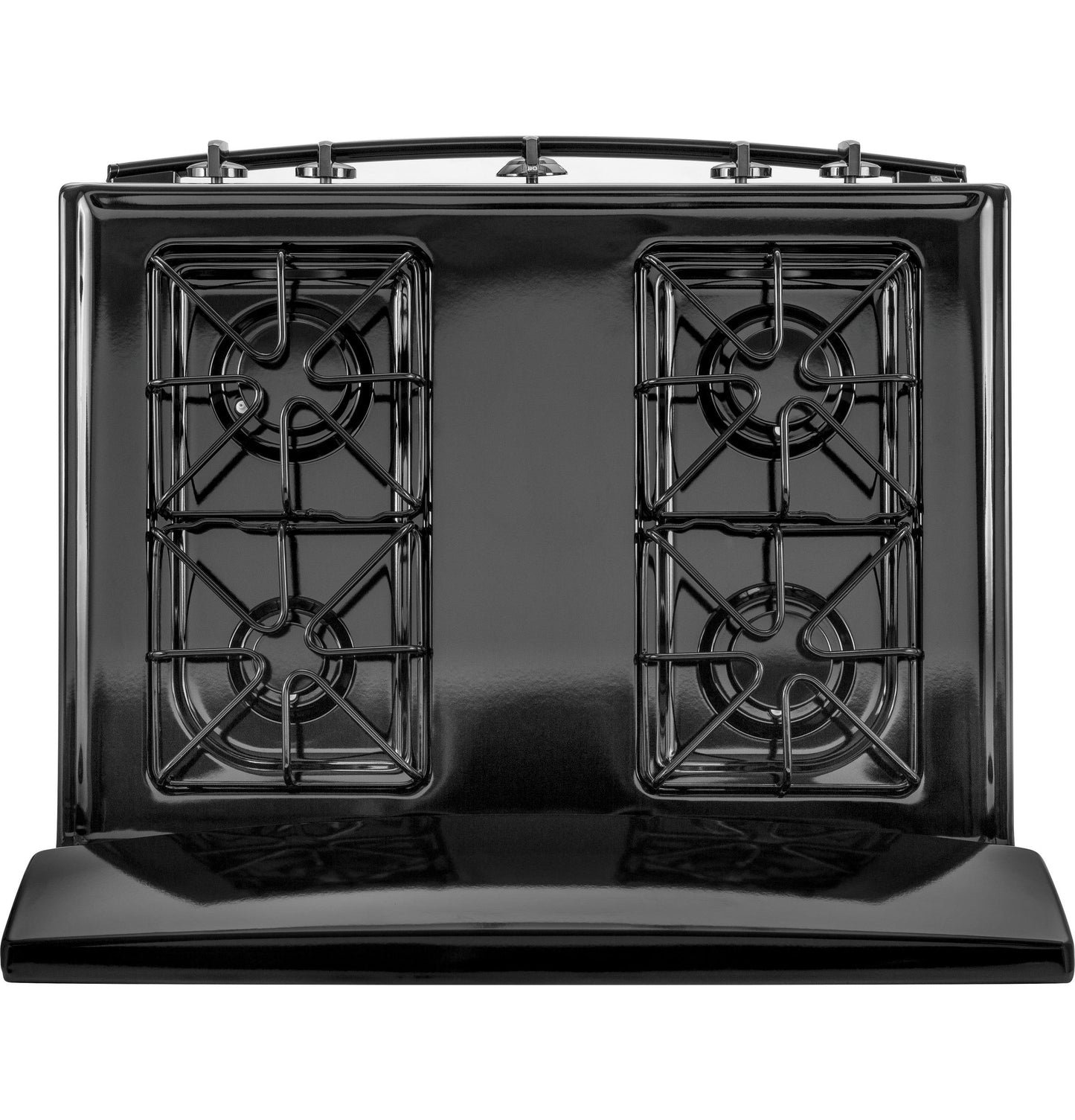

Sealed cooktop burners
Contains spills and make cleaning quick and easy

Black gloss steel grates
Easily wipe away messes from a smooth, glossy surface

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once

Sealed cooktop burners
Contains spills and make cleaning quick and easy

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
FILTER
App Filter - Cleaning Type	Manual
App Filter - Voltage	120V
App Filter - Cooking Technology	Traditional
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Drawer Type	Broiler
App Filter - Fuel Type	Gas
App Filter - Convection	No
App Filter - Cooktop Type	Standard Grates
APPEARANCE
Cooktop Burner Grate Color	Black Gloss
Oven Door Features	Big View Oven Window
Handle	Designer Style
Control Knobs	Gloss Black
Handle Color	Black
Color Appearance	Black
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 13.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(1) 12.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0 Bake
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	149 lb
Depth Without Handle	26.25 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Height to Cooking Surface (in.)	36 - 36 1/4
Depth with Door Open	46.25 in
Cabinet Width	30 in
Approximate Shipping Weight	171 lb
Overall Width	30 in
Overall Depth	28.75 in
Overall Height	46.25 in
FEATURES
Configuration	Range with Broiler Drawer
Ignition System	Electronic
Burner - Right Rear	5,000 BTU
Interior Oven Light	1 Incandescent
Fuel Type	Natural Gas (factory set)
OU Certified	No
Cooktop Burner Type	Sealed

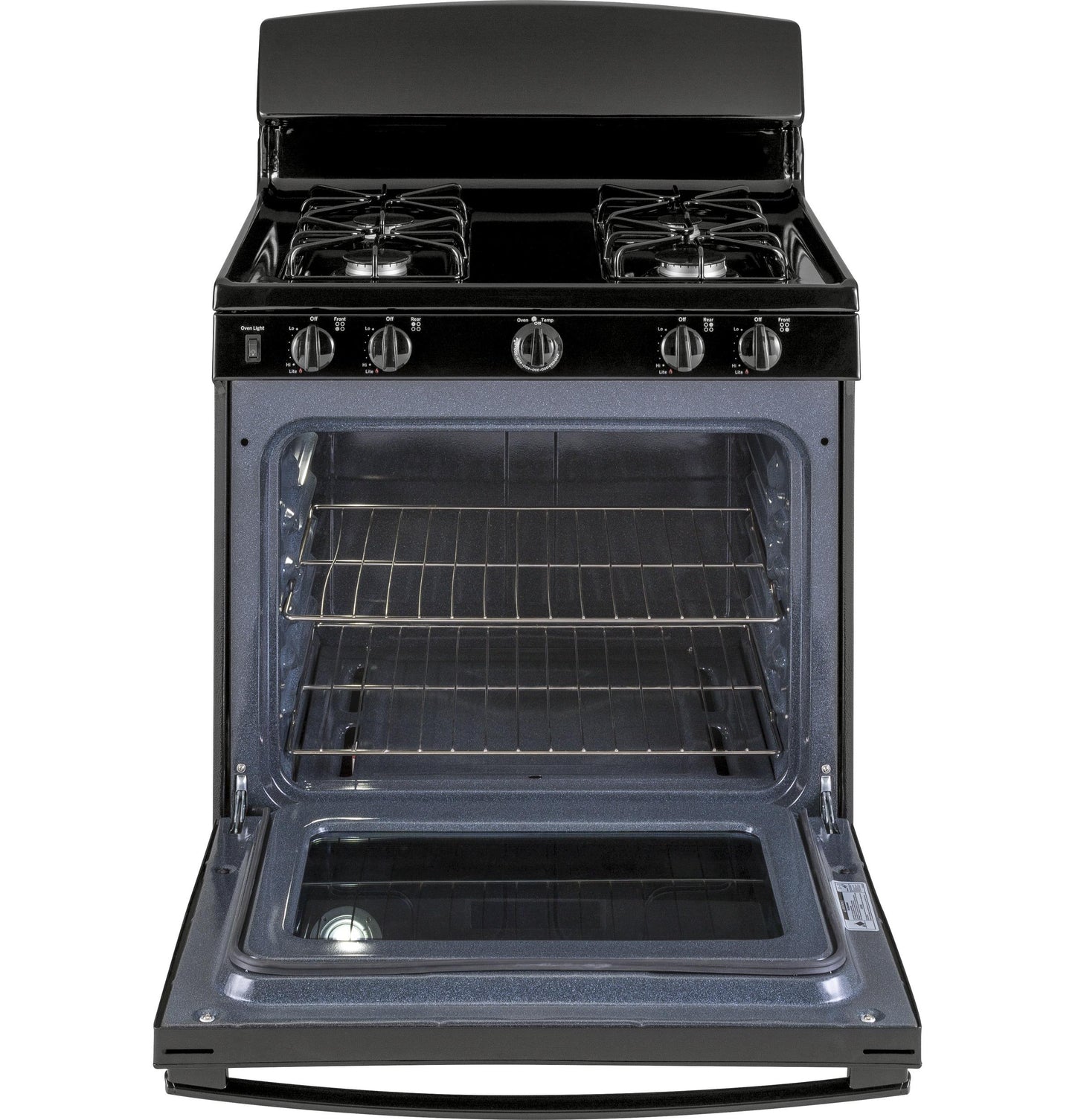

Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	9,500 BTU
Oven Cleaning Type	Standard Clean
Product Type	Free-Standing Single Oven
Cooktop Type	Standard Grates
Cooktop Burner Grate Material	Heavy Steel
Sabbath Mode	Yes
Burner - Right Front	13,000 BTU
Cooktop Surface	Black One-Piece Upswept Porcelain-Enamel
Burner - Left Front	9,500 BTU

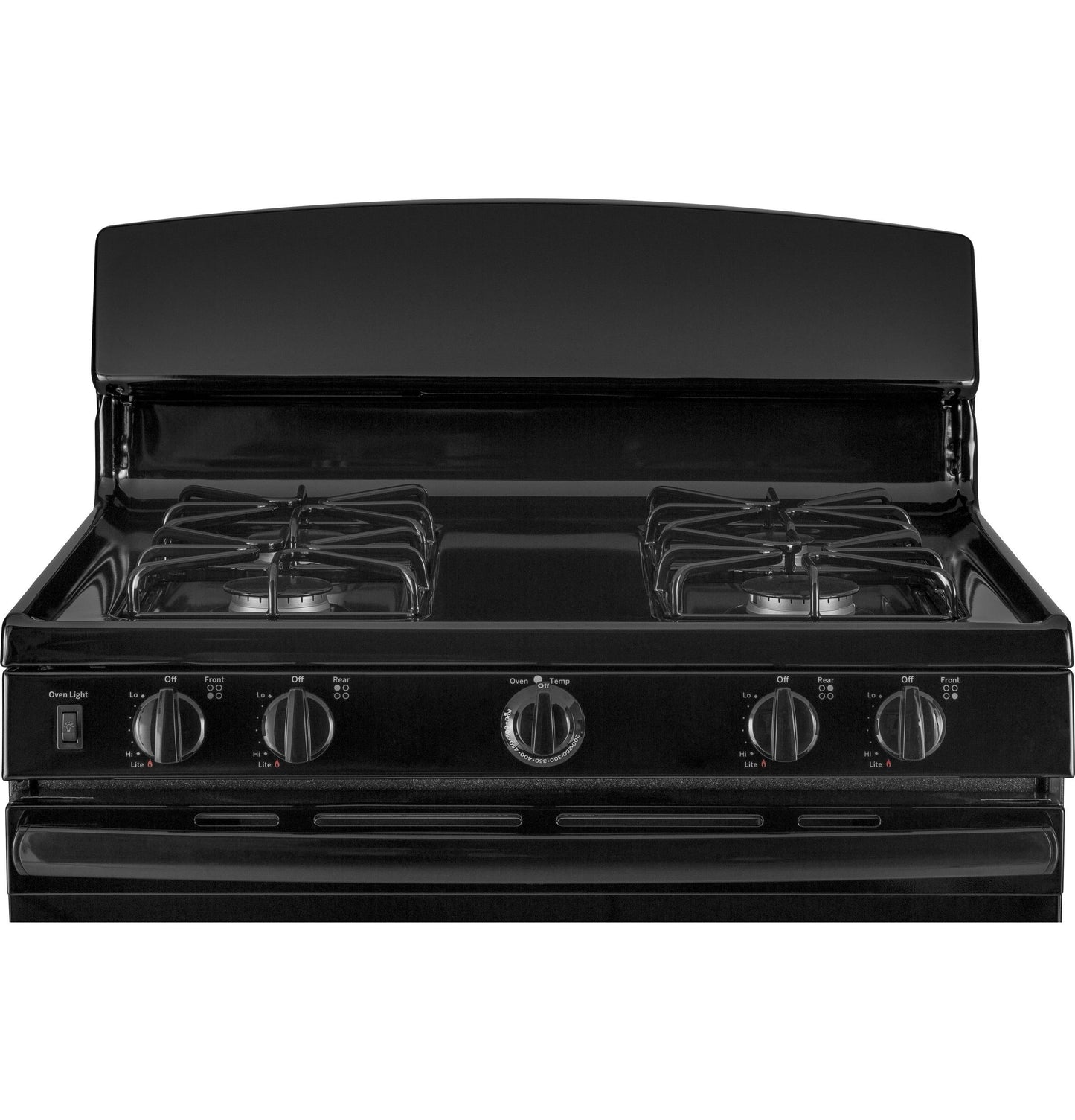

Control Location	Front
Drawer Type	Broiler
Oven Rack Positions (Single or Upper/Lower)	6
Control Type	Knob
Cooking Technology	Traditional
