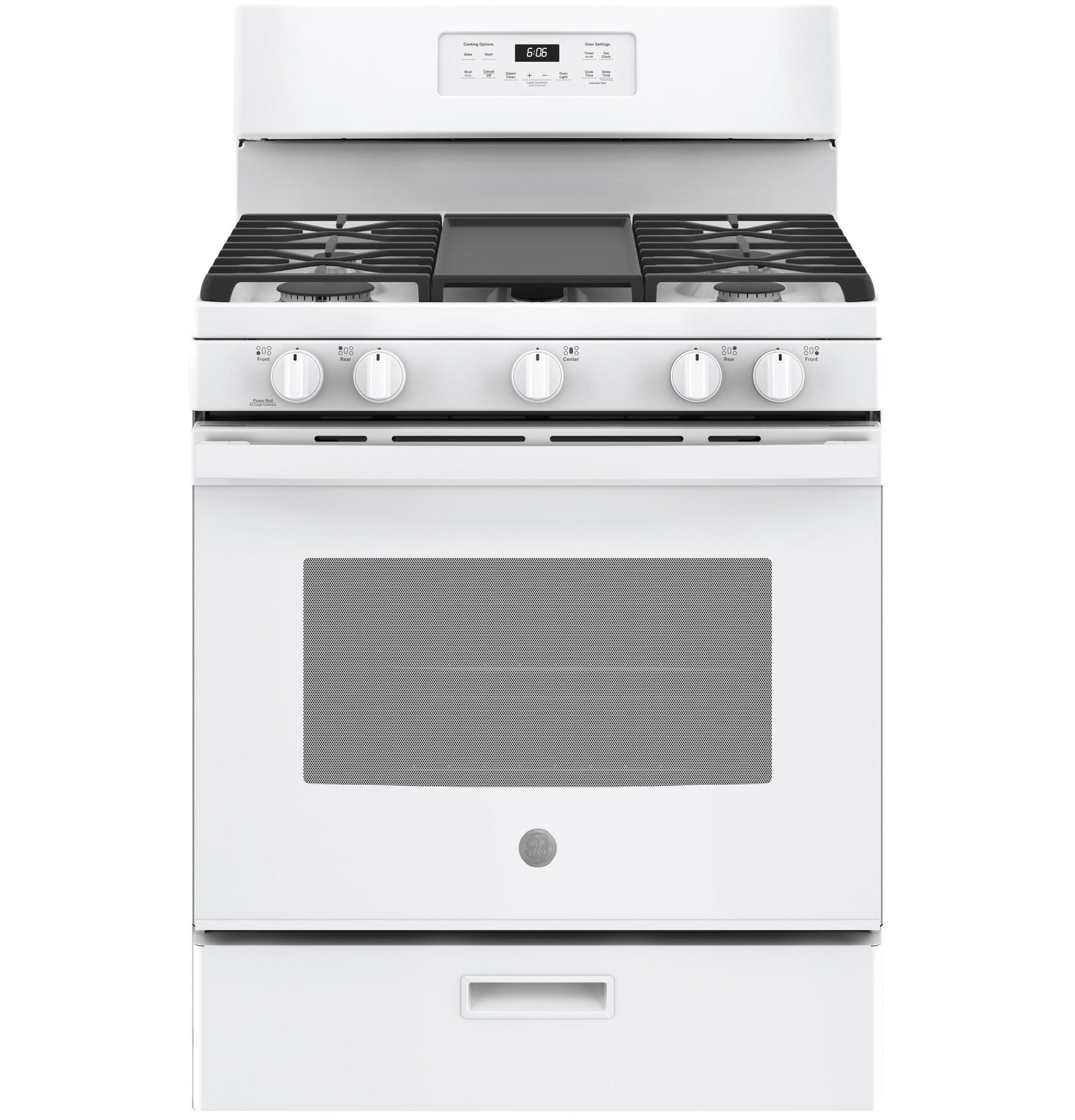

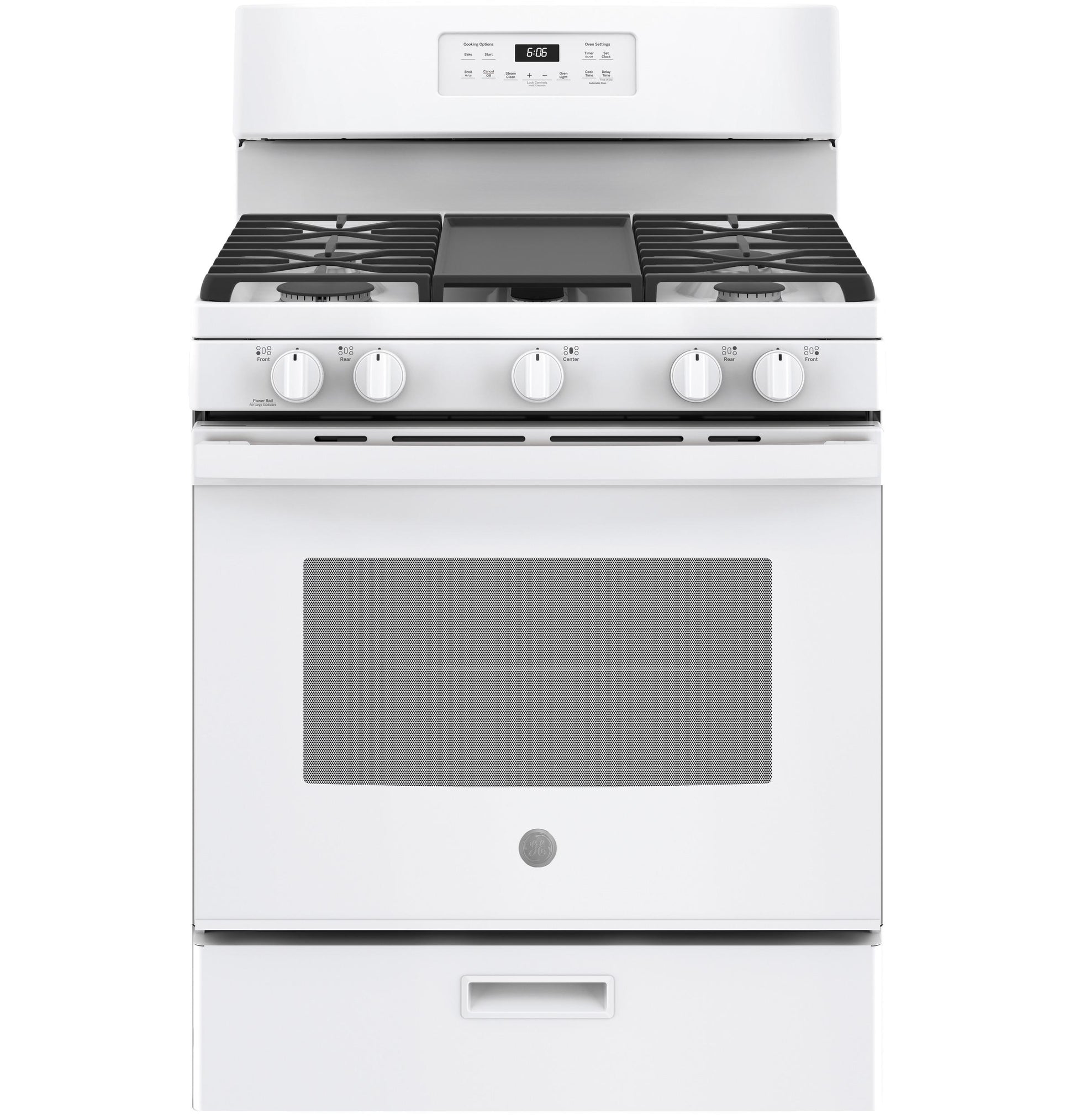

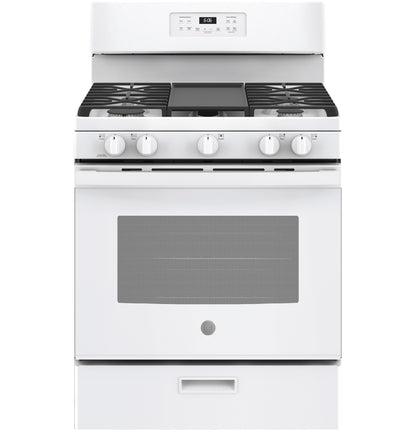

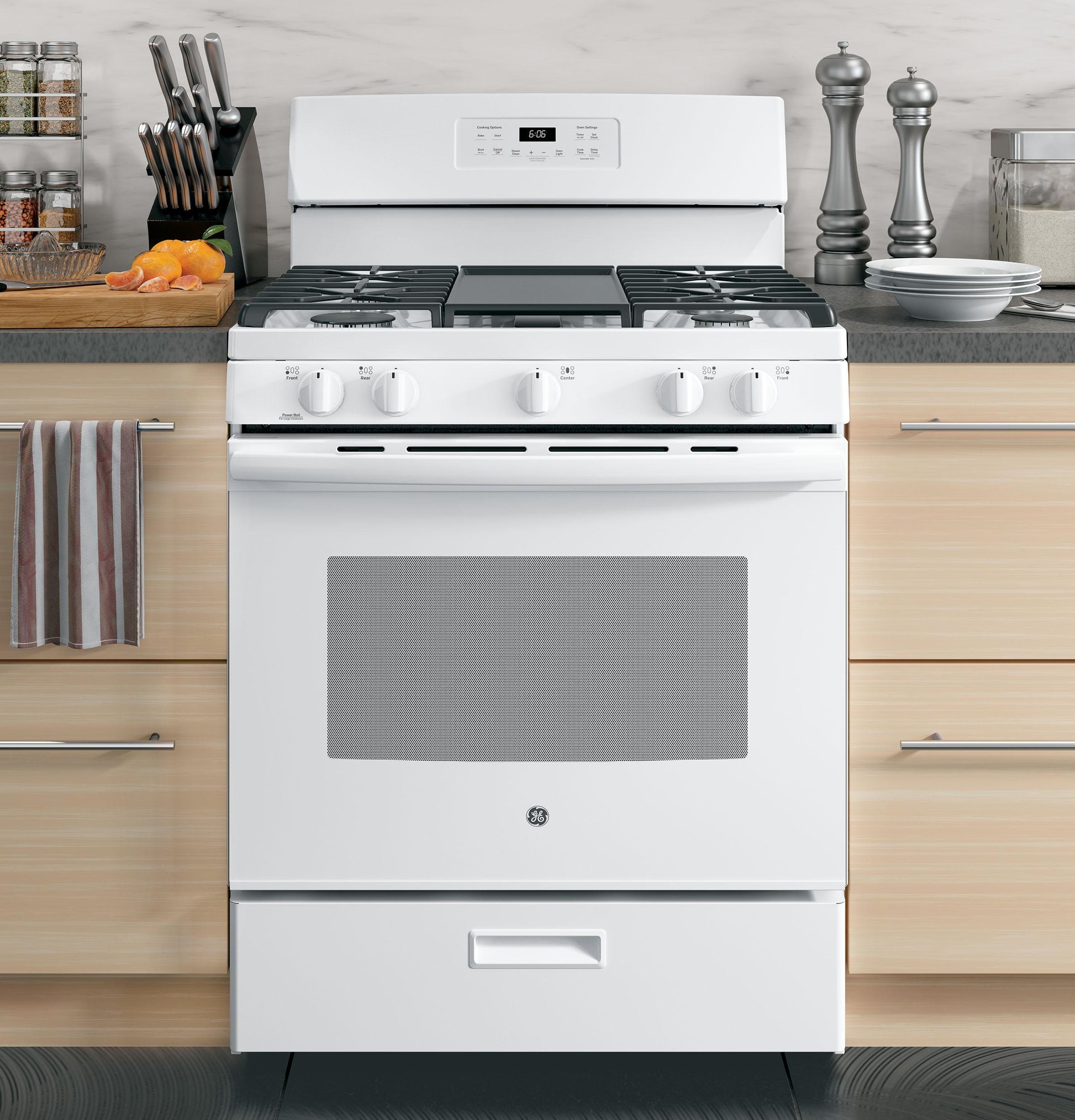

JGBS66DEKWW GE® 30" Free-Standing Gas Range JGBS66DEKWW

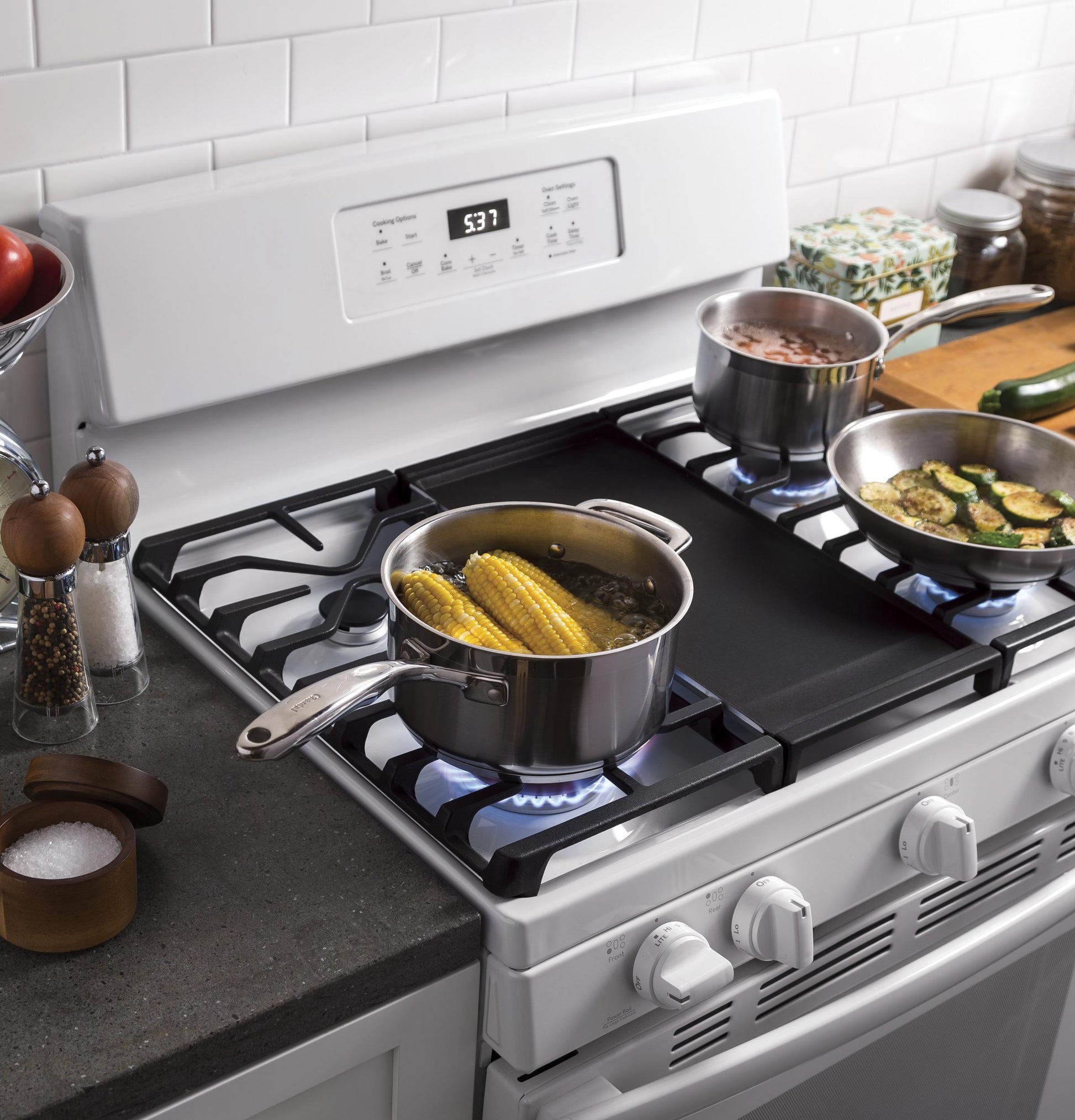

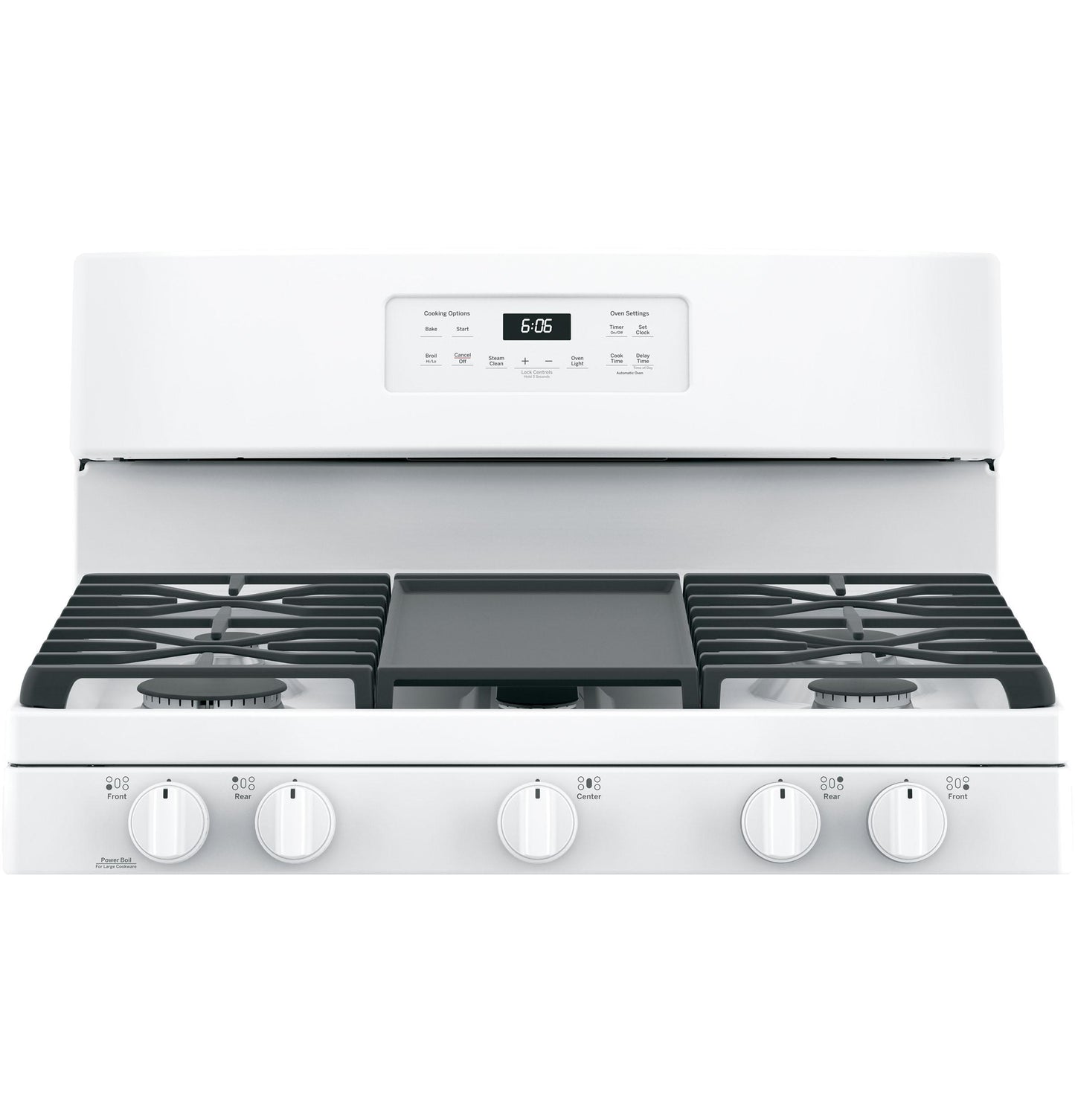

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

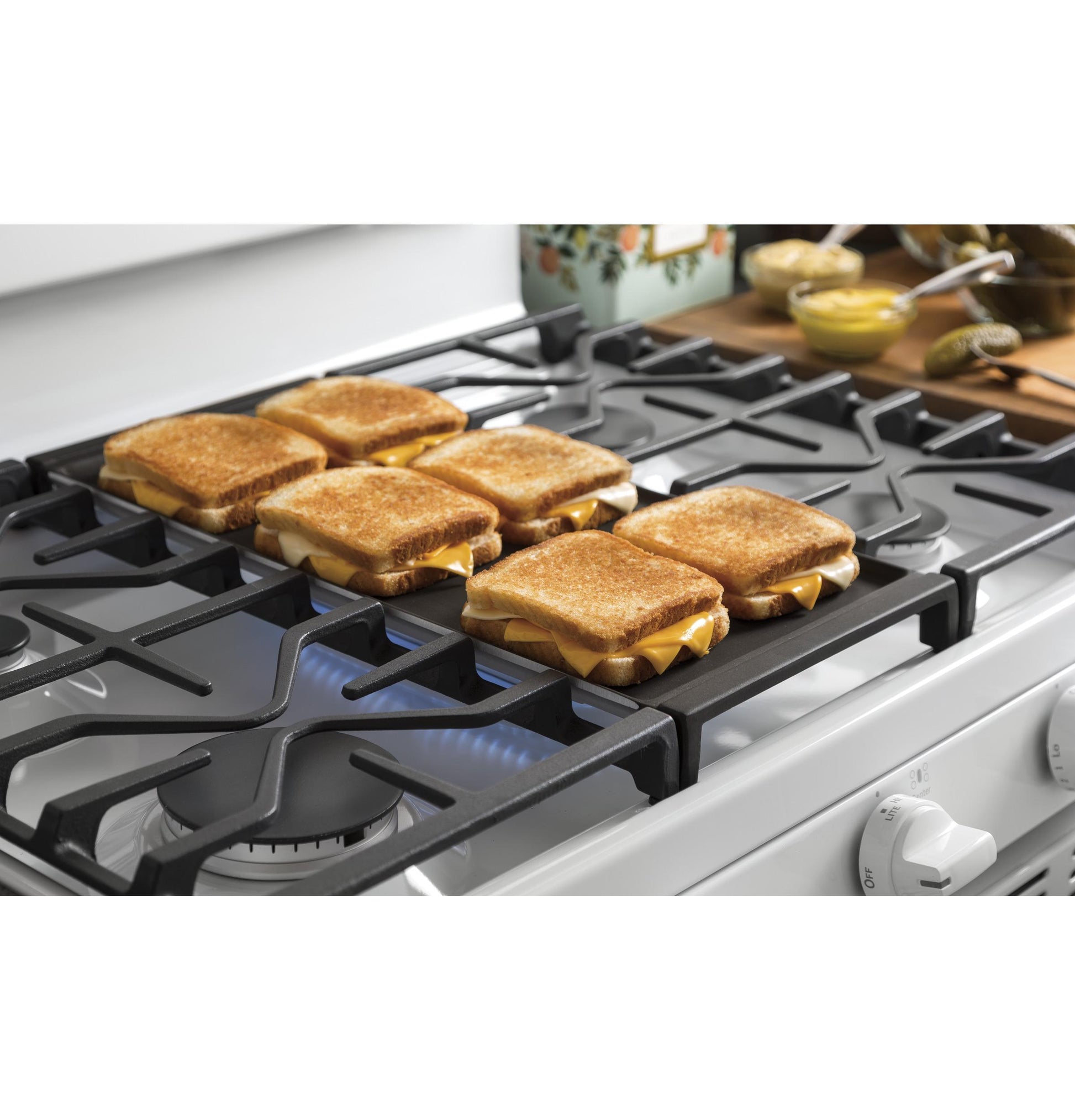

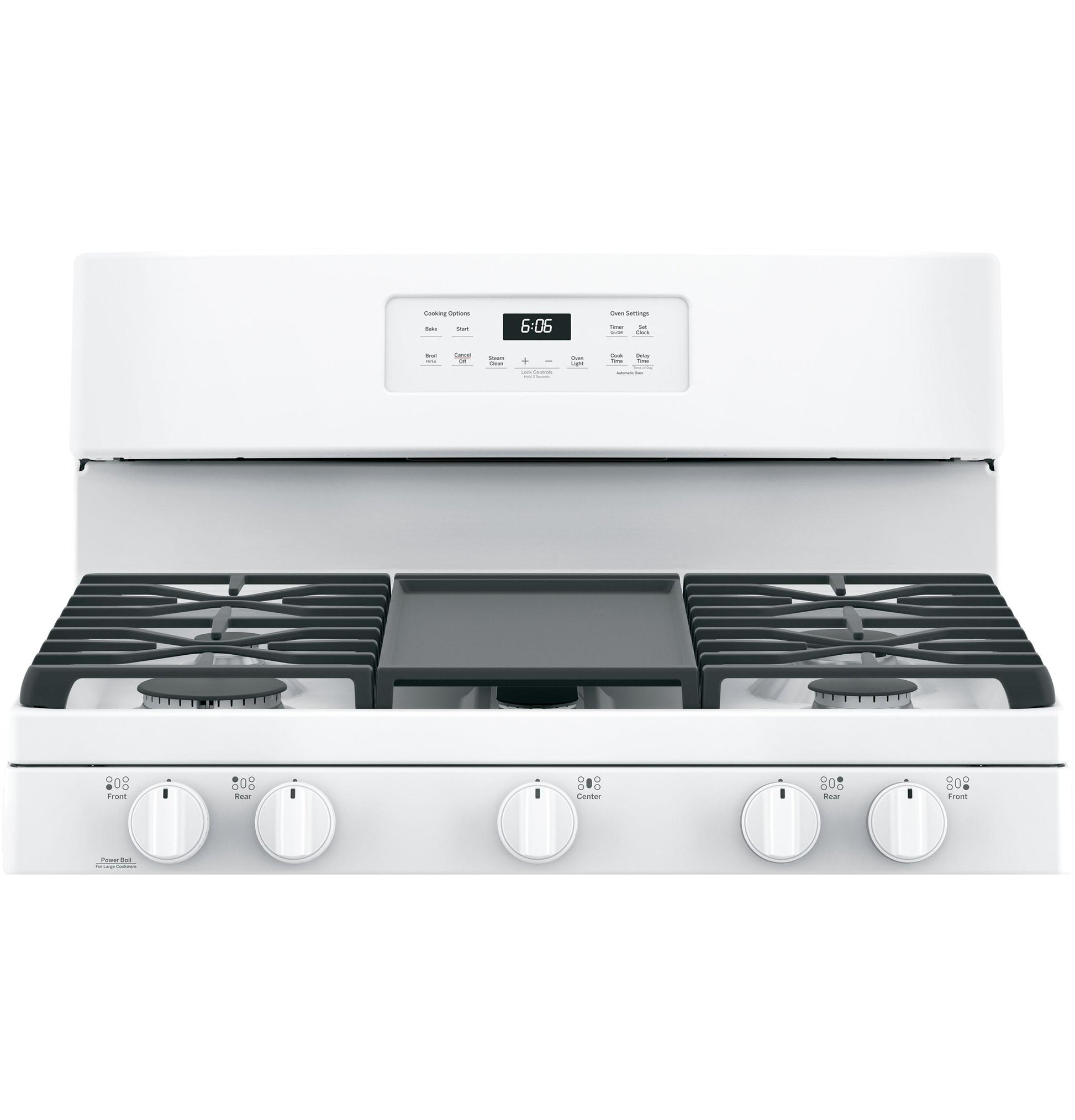

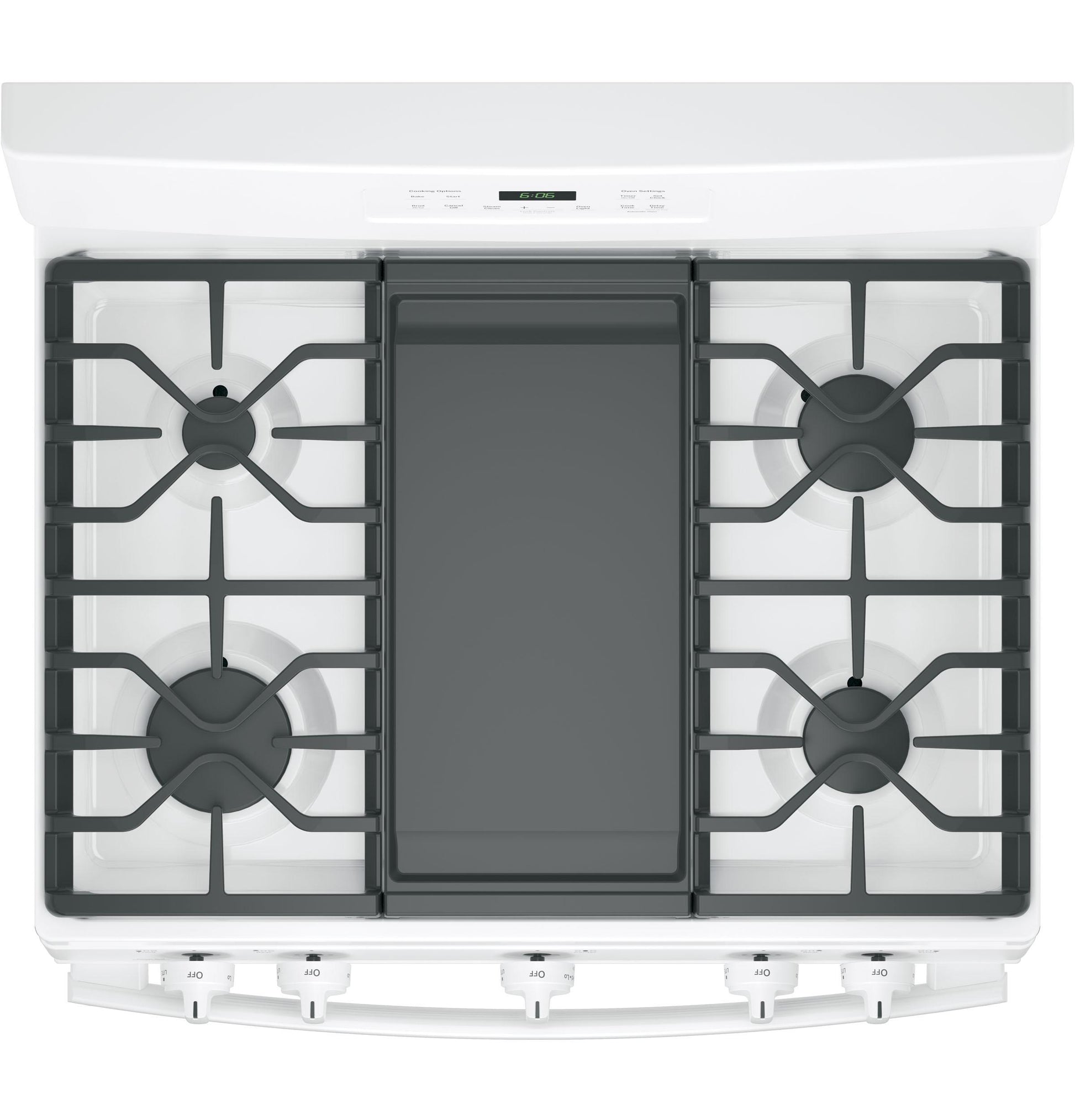

Extra-large integrated griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

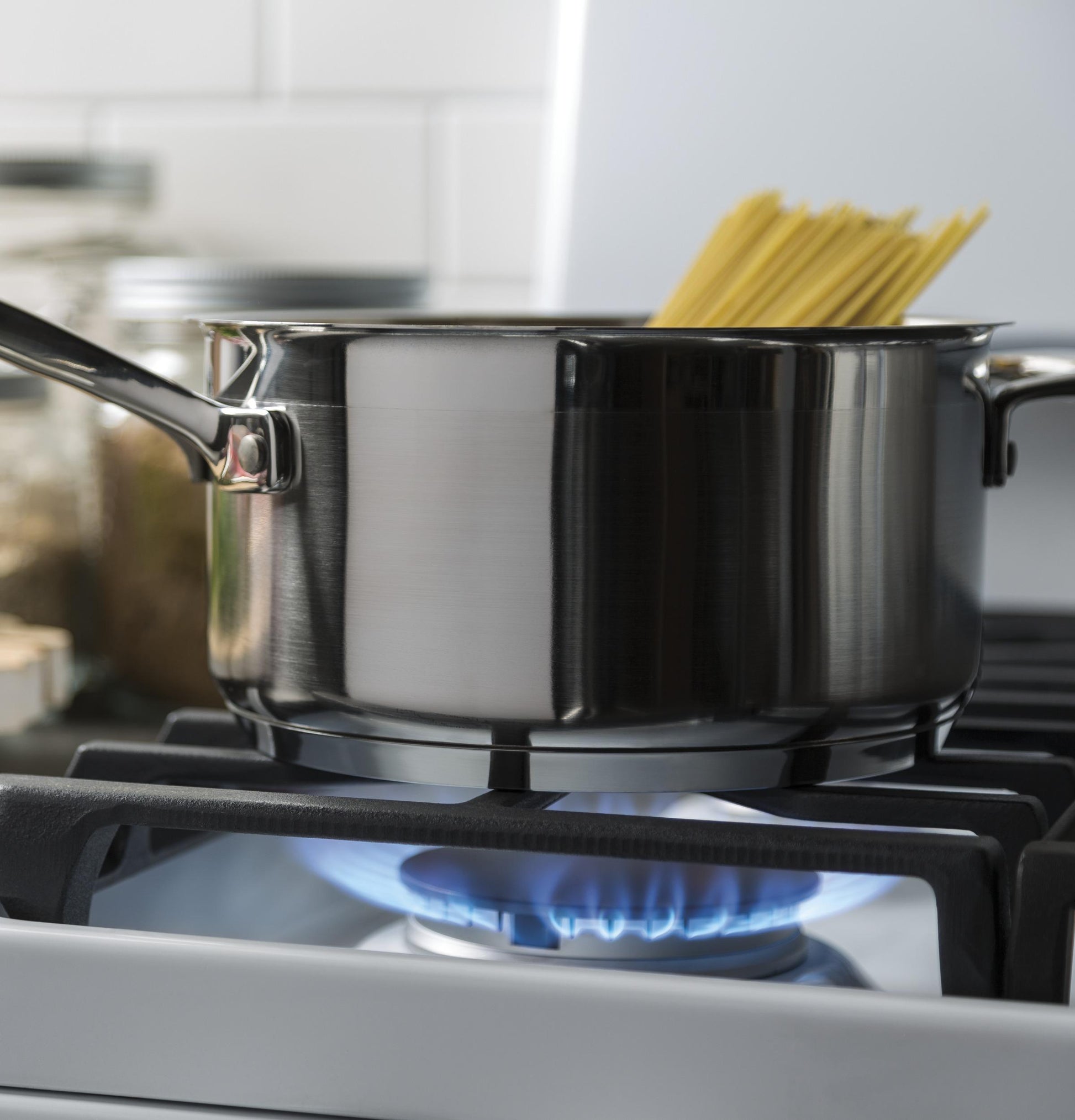

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

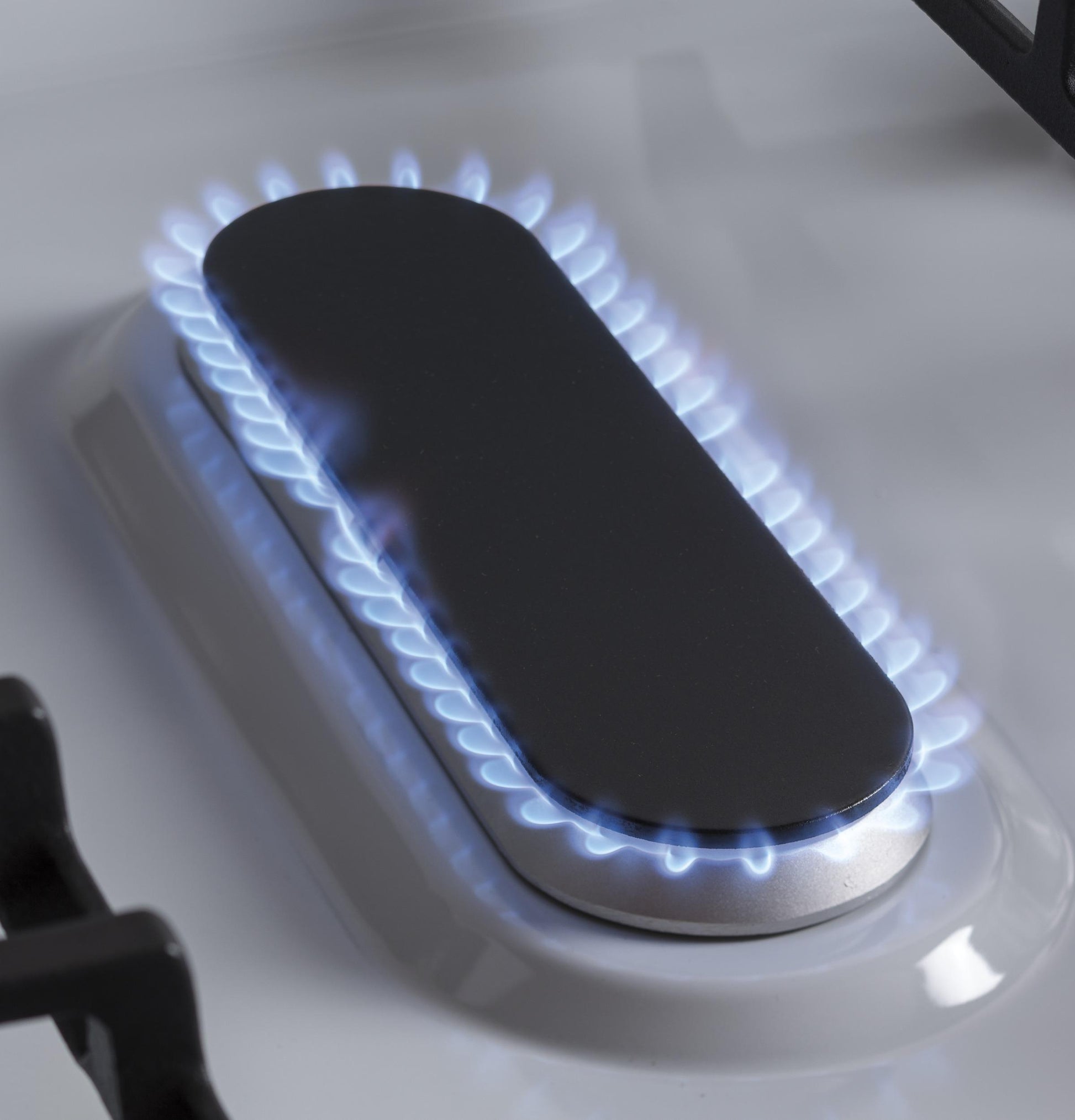

Center oval burner
Large oval fifth burner is ideal for griddle cooking

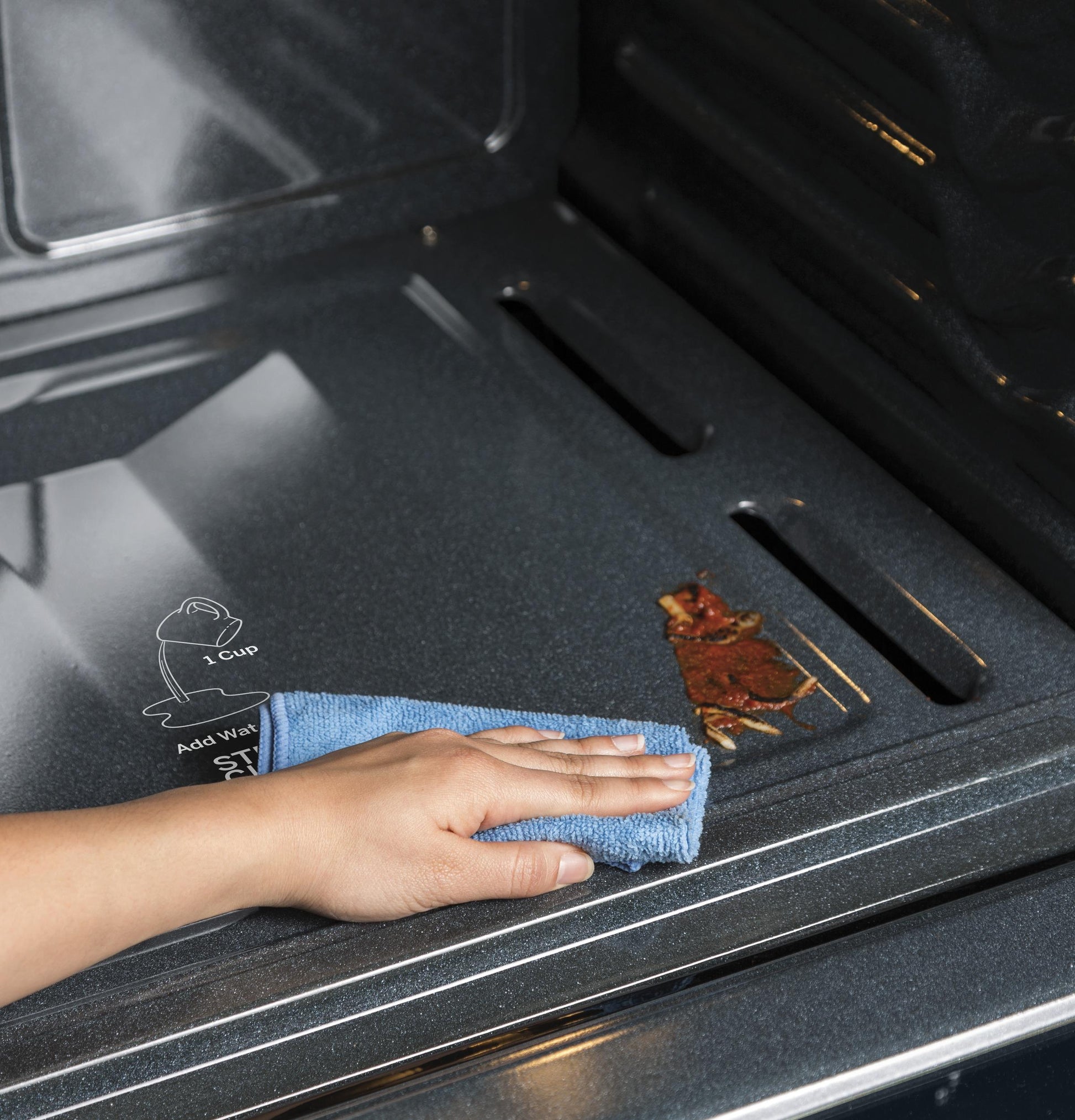

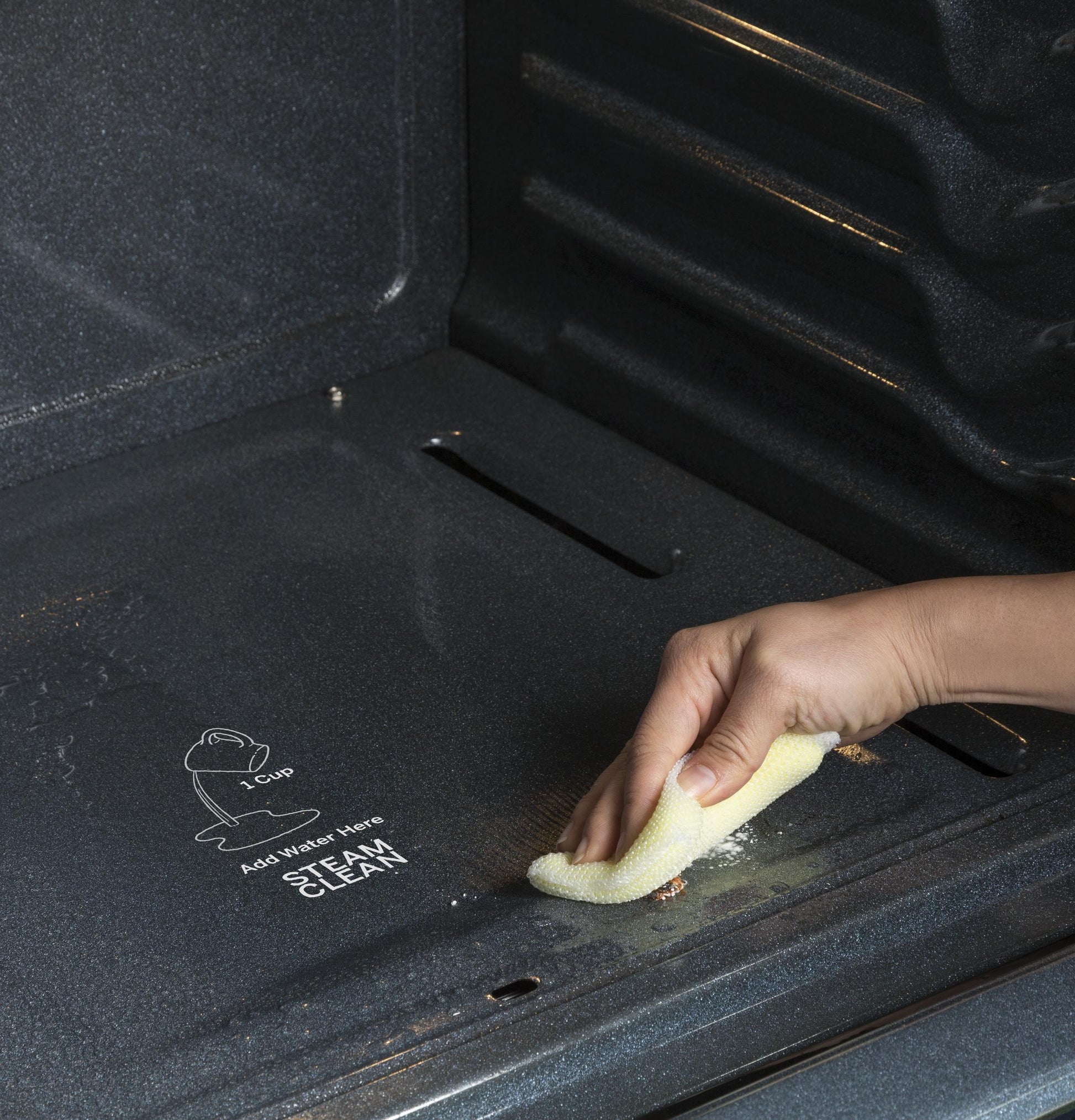

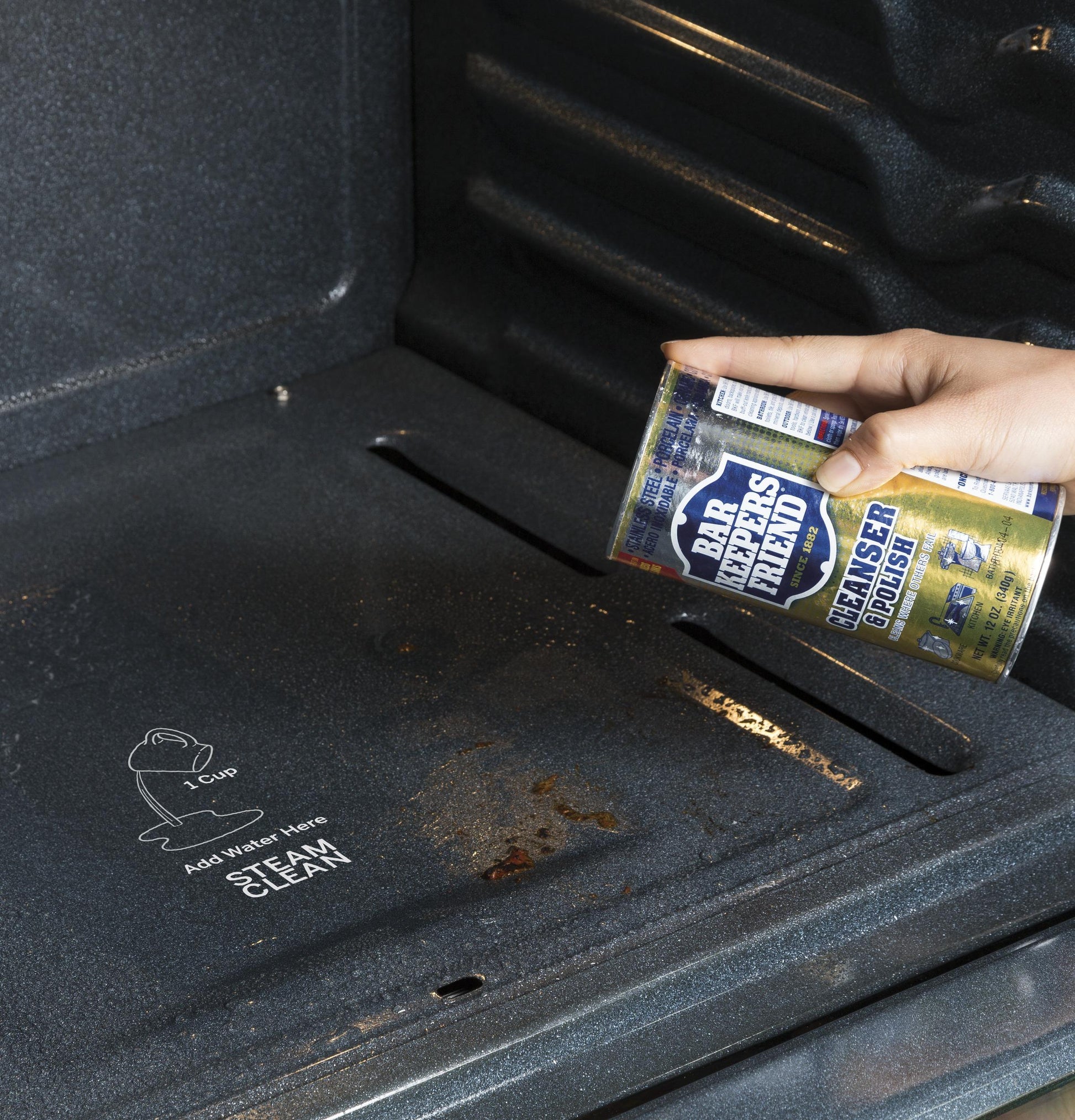

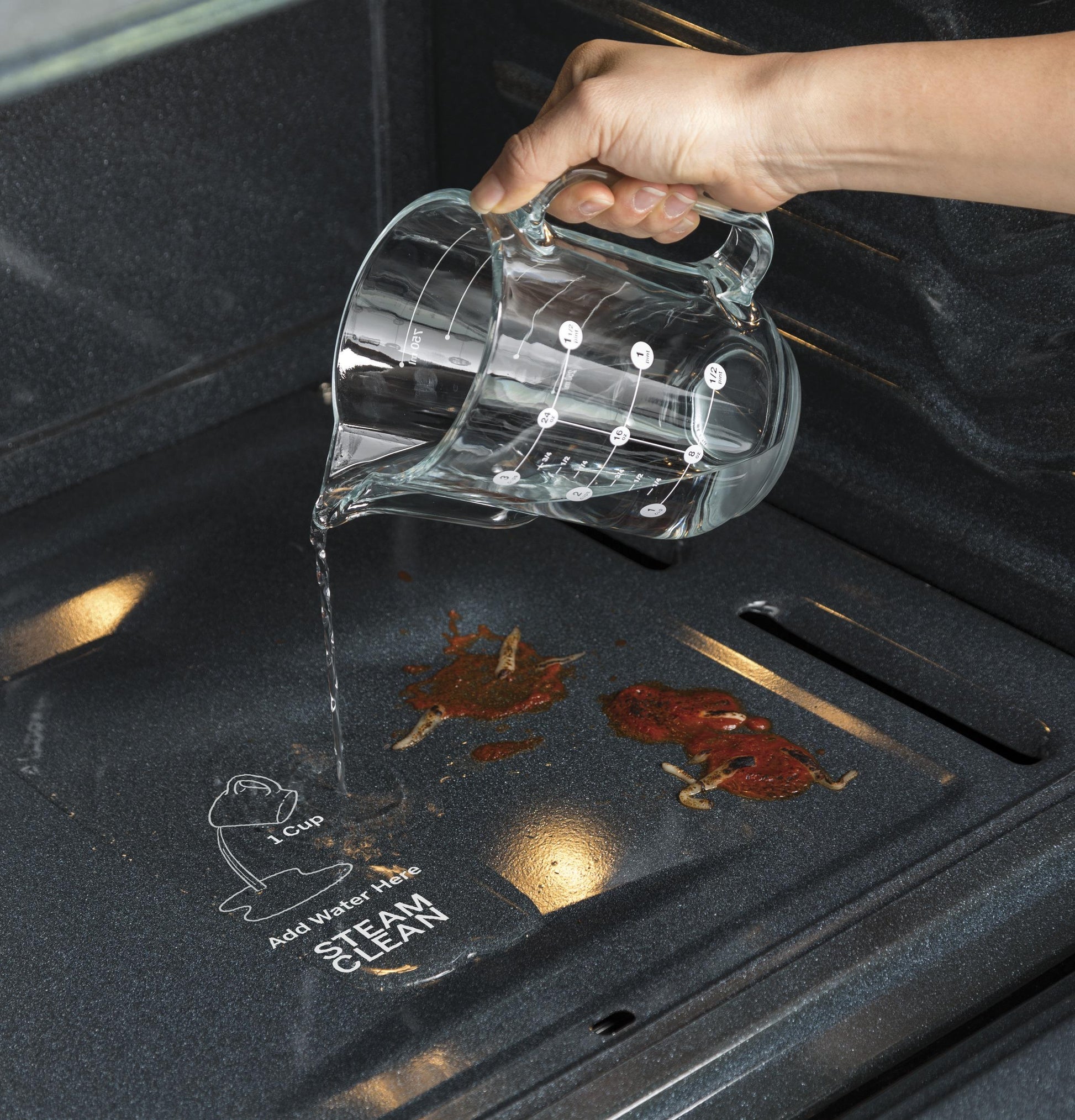

Steam clean
Save time and effort by steam-cleaning the oven after cooking. No special water, kits or extra steps required.

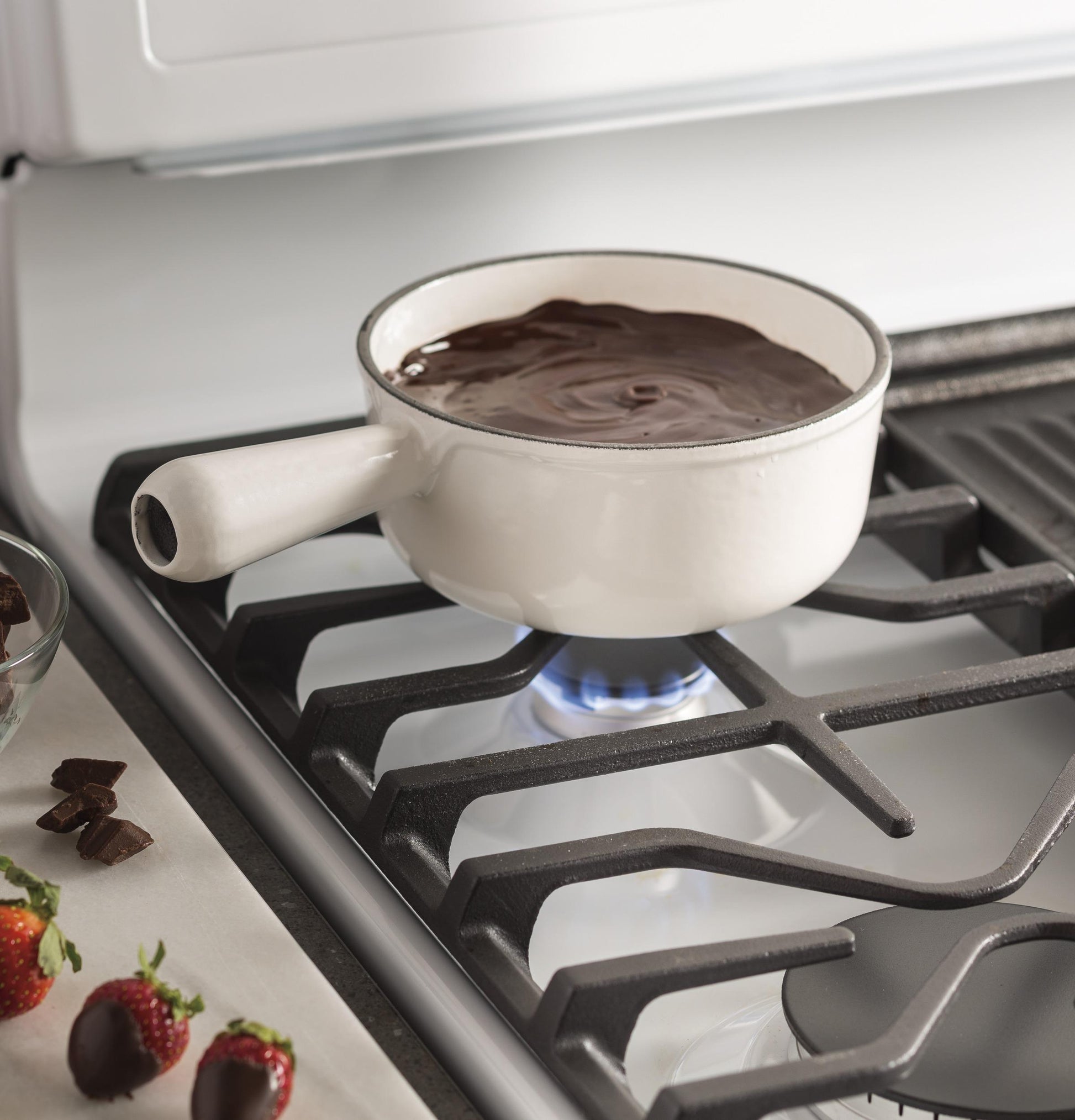

Precise Simmer burner
Delicate foods don't burn with low, even heat

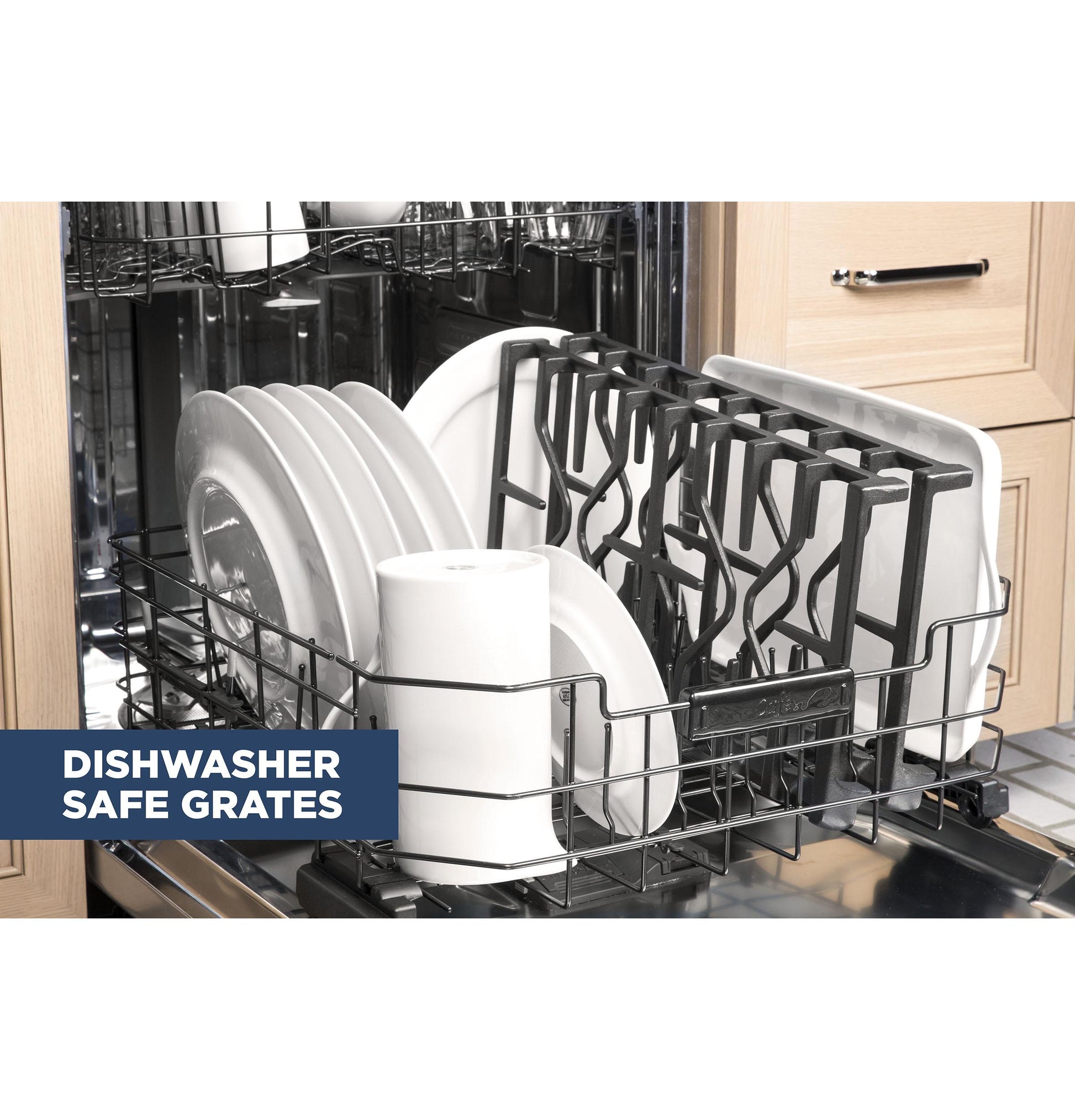

Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher

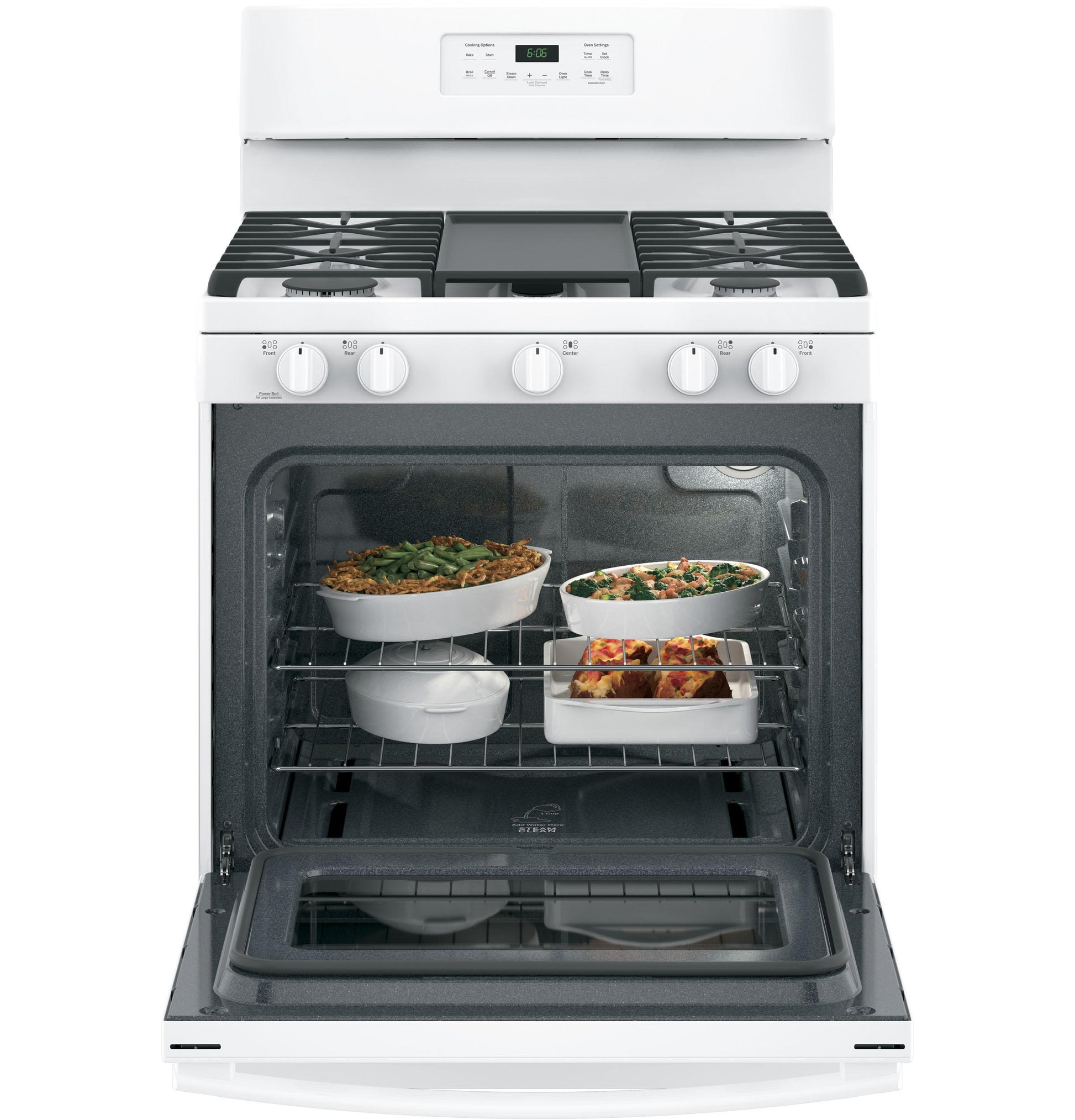

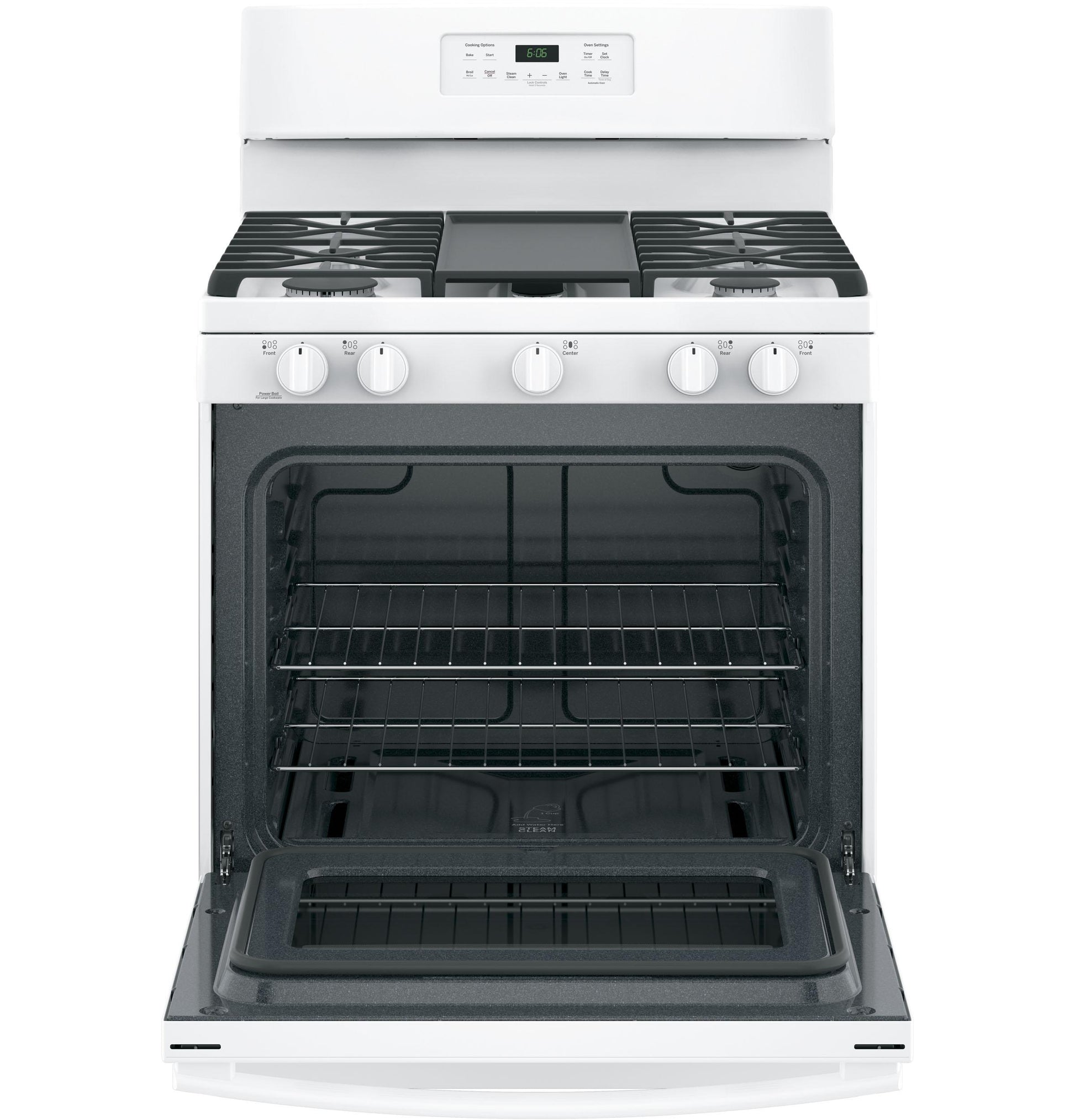

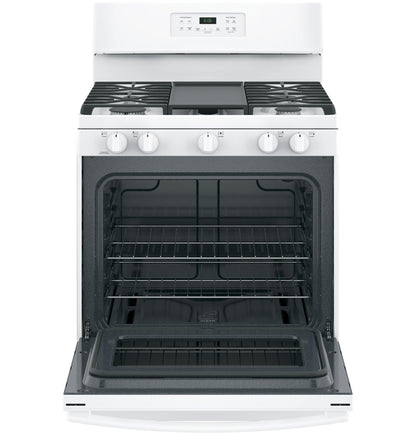

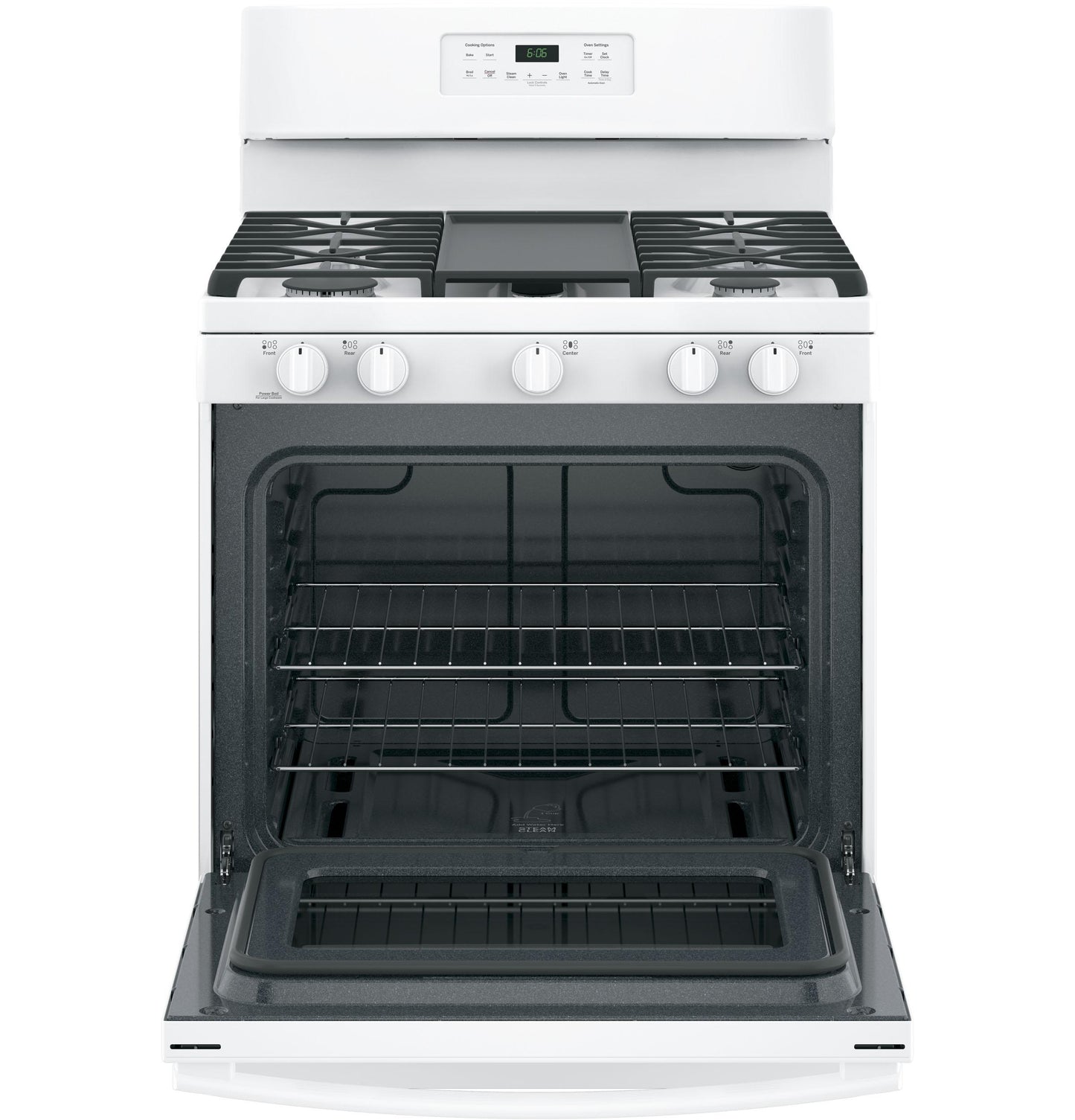

5.0 cu. ft. oven capacity
Cook more dishes at once

Sealed cooktop burners
Contains spills and make cleaning quick and easy

Deep-recessed cooktop
Contains spills for quick and easy cleaning

Flexible broiling
Broil in any size cookware with a flexible broiling element that can be set to hi or low based on your broiling needs

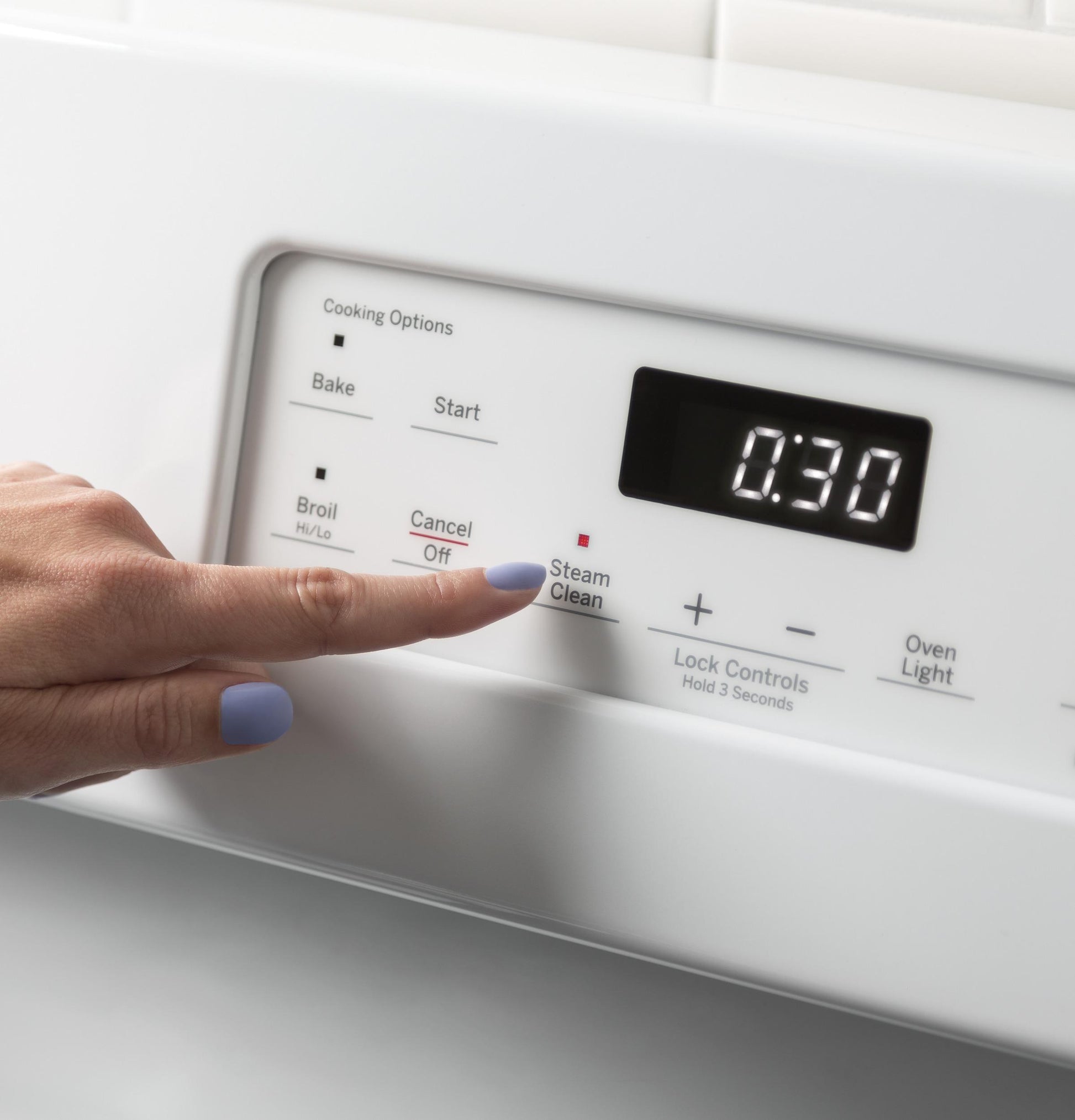

Electronic clock and timer
Help cooks coordinate meal preparation and cooking

CAPACITY
Total Capacity (cubic feet)	5 cu ft
FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Control Type	Electronic touchpad
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Gas
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Edge-to-Edge Cooktop	Yes
App Filter - Drawer Type	Broiler
App Filter - Cleaning Type	Steam and Manual
App Filter - Voltage	120V
App Filter - Cooktop Type	Continuous Grates with Griddle
APPEARANCE
Cooktop Burner Grate Color	Matte Black
Handle	Designer Style
Oven Door Features	Big View Oven Window
Control Knobs	Gloss White
Color Appearance	White
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
Volts/Hertz/Amps	120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0 Bake / 18.0 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 16.0 Broiler
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Center Grate	Optional - JXGRATE1
Griddle Accessory	Integrated Griddle (Included)
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	150 lb
Depth Without Handle	26.25 in
Height to Cooking Surface (in.)	36 - 36 1/2
Cabinet Width	30 in
Approximate Shipping Weight	172 lb
Overall Width	30 in
Overall Height	47.25 in
Overall Depth	28.75 in
Depth with Door Open	46.25 in
Oven Interior Dimensions (W x H x D) (in.)	24 x 19 x 19
FEATURES
Ignition System	Electronic
Burner - Right Rear	12,000 BTU
Oven Control Features	Audible Preheat Signal Auto Oven Shut-Off Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability
Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	5,000 BTU Precise Simmer
Oven Cleaning Type	Steam Clean
Griddle	Integrated (Included)
Product Type	Free-Standing Single Oven
Cooktop Type	Continuous Grates with Griddle
Cooktop Burner Grate Material	Heavy Cast Iron
Fuel Type	Natural Gas (factory set)
Burner - Center	10,000 BTU Oval
Interior Oven Light	1 Incandescent
Control Location	Front
Cooktop Burner Grate Features	Continuous Grates
Control Type	Electronic Touch
Burner - Left Front	15,000 BTU
Drawer Type	Broiler
Sabbath Mode	Yes
Cooking Technology	Traditional
Configuration	Range with Broiler Drawer
OU Certified	Embedded OU/CRC Enhanced Shabbos Mode
Cooktop Burner Type	Sealed
Burner - Right Front	9,500 BTU
Cooktop Surface	Edge-to-Edge One-Piece Upswept Porcelain-Enamel White
Oven Rack Positions (Single or Upper/Lower)	6
