JGP5030DLBB GE® 30" Built-In Gas Cooktop with 5 Burners and Dishwasher Safe Grates JGP5030DLBB

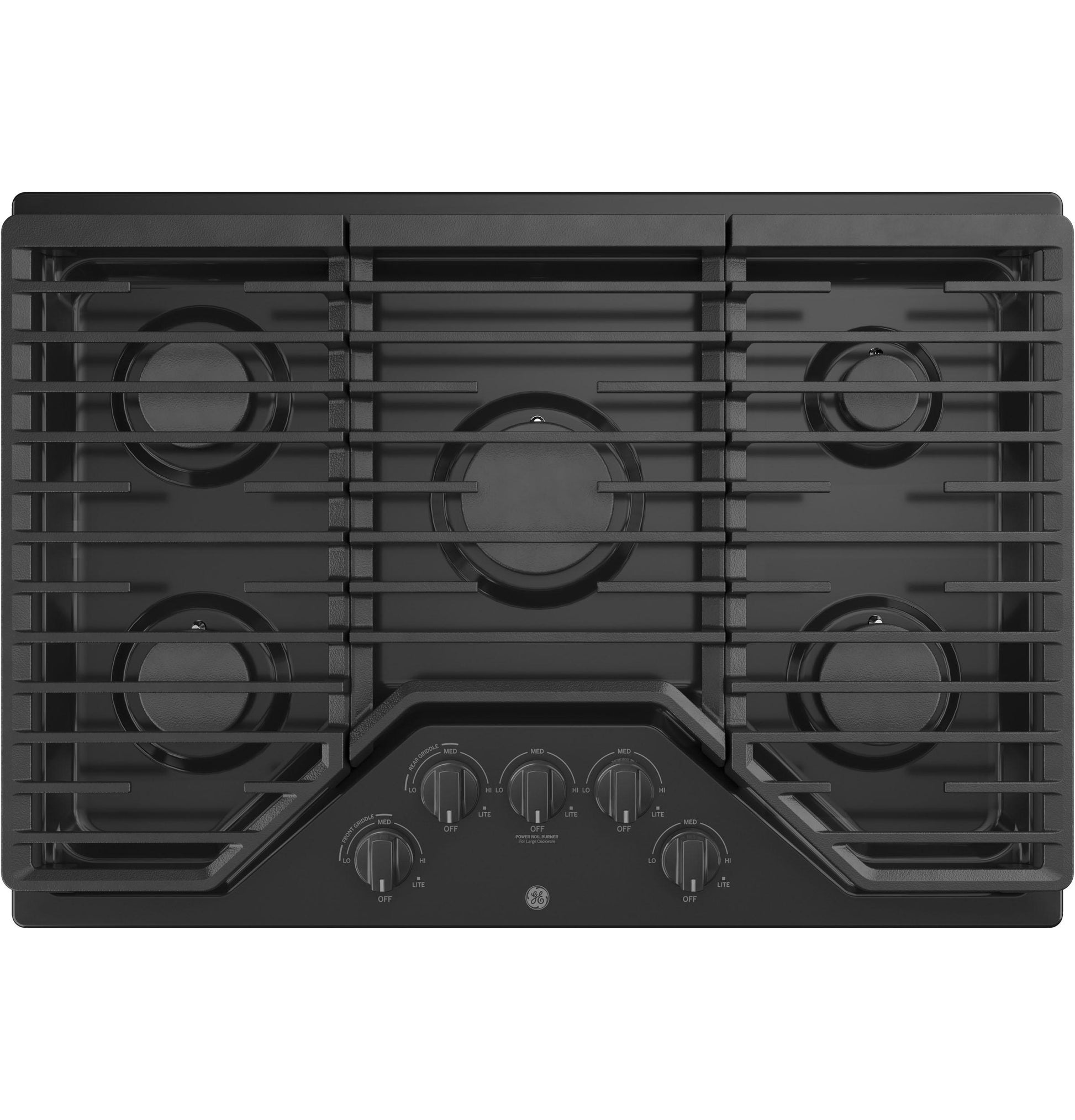

30" cooktop with 5 burners
Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners

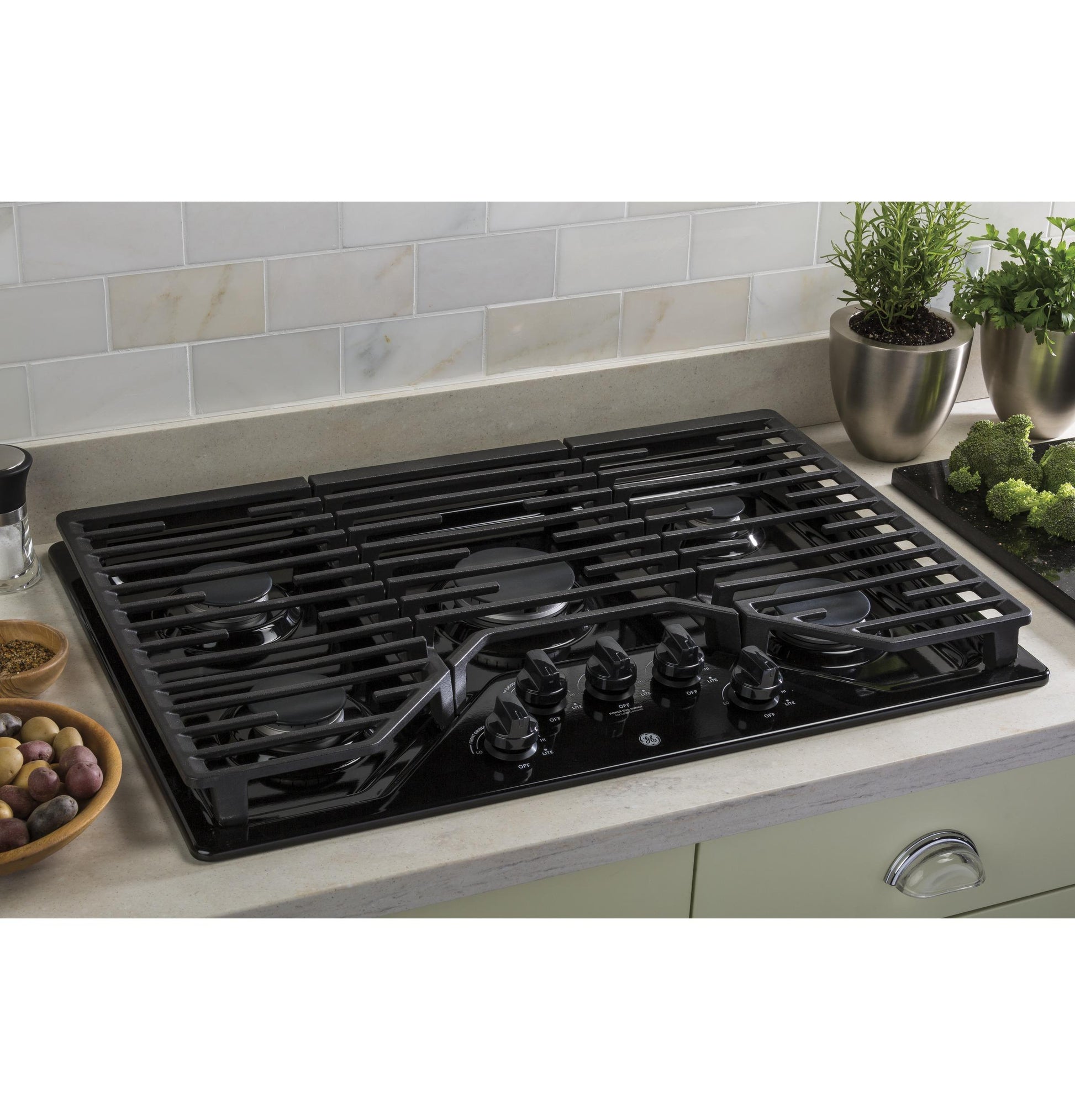

Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware

More Cooking, Less Cookware
Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites

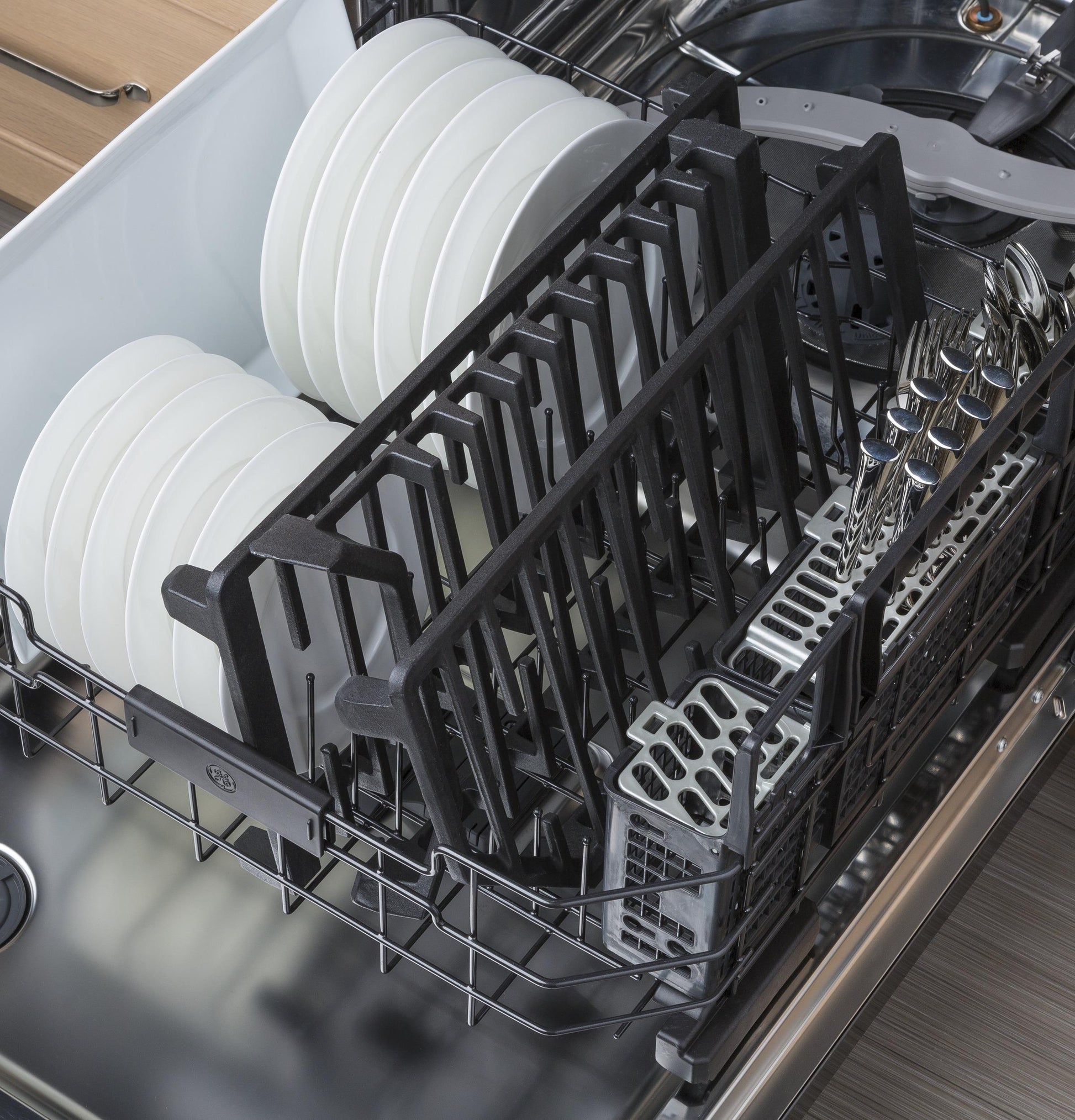

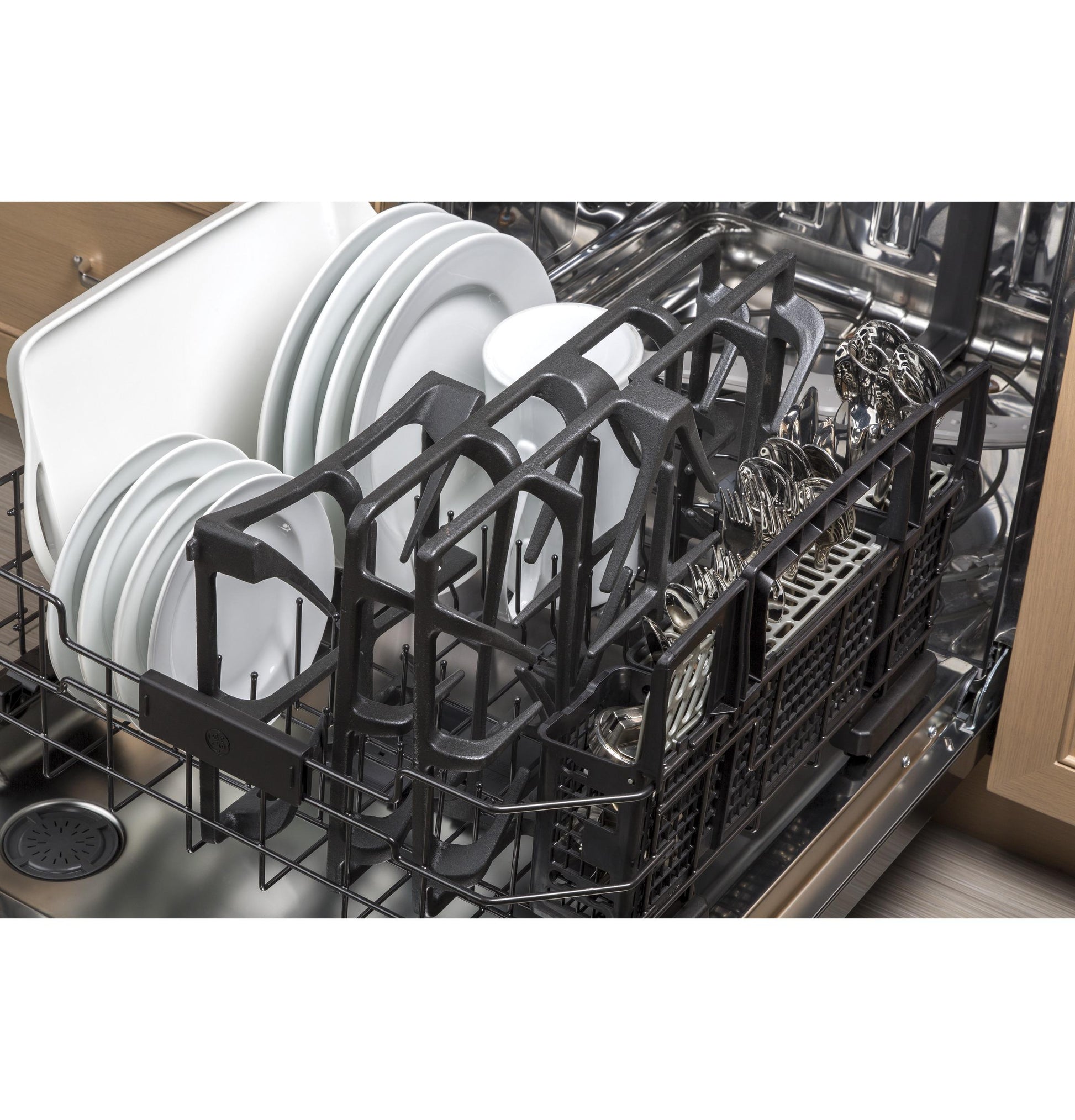

Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

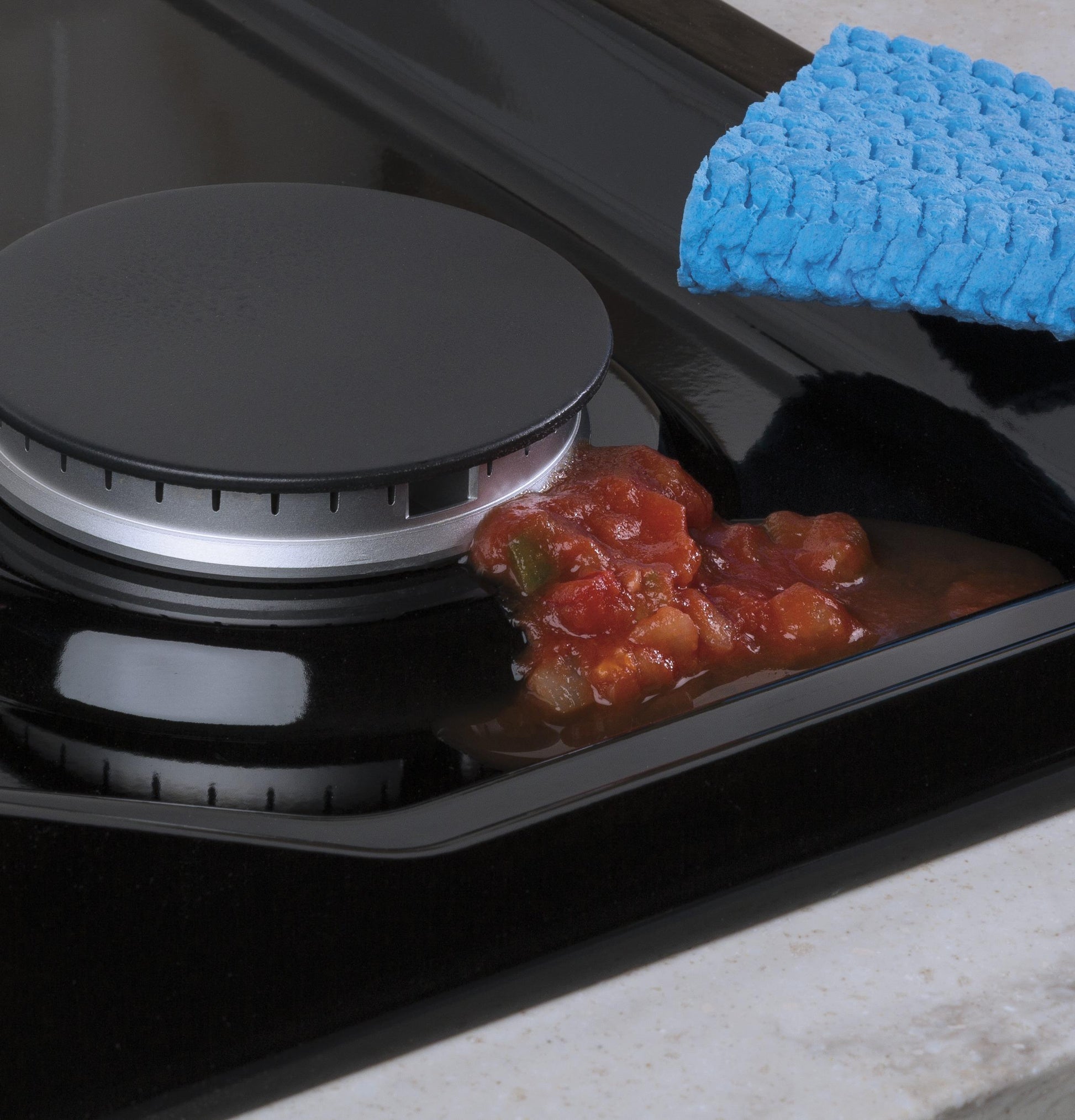

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy

Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling

Precise Simmer Burner
Protect delicate foods with low, even heating

MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Cooktop Type	Continuous Grates
App Filter - Fuel Type	Gas
App Filter - Control Type	Rotary knobs
APPEARANCE
Color Appearance	Black
Cooktop Burner Grate Color	Matte Black
Control Knobs	Dishwasher Safe Gloss Black
POWER / RATINGS
Burner BTU Ratings (000's/BTU) - LP Gas	(1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps	120V; 60Hz; 5A
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Overall Height	5.5 in
Cutout Depth (in)	19 5/8 in
Cabinet Width	30 in
Approximate Shipping Weight	48 lb
Overall Width	30 in
Net Weight	42 lb
Cutout Width (in)	28-1/2
Overall Depth	21 in
FEATURES
Cooktop Burner Type	5 Sealed
Valves (Degree of Turn)	270
Burner - Right Rear	5,000 BTU
Burner - Right Front	12,000 BTU
Fuel Type	Natural Gas (factory set)
Power Boil Burner	Yes
Control Location	Front Center
Cooktop Type	Continuous Grates
Ignition System	Electronic
Burner - Center	15,000 BTU Power Boil
Cooktop Surface	Black Deep Porcelain-Enamel
Burner - Left Rear	9,500 BTU
Control Type	Knob
Cooktop Burner Grate Material	Heavy Cast
Cooktop Burner Grate Features	Continuous Grates Dishwasher Safe Edge-to-Edge Grates
Griddle	Cast Iron JXGRIDL230 Optional
Burner - Left Front	9,500 BTU
