JGP5036DLBB GE® 36" Built-In Gas Cooktop with 5 Burners and Dishwasher Safe Grates JGP5036DLBB
- 36" Cooktop with 5 Burners
- Maximize Your Cooking Space
- More Cooking, Less Cookware
- Dishwasher-Safe Grates
- Start Cooking Faster with Power Boil
- Precise Simmer Burner
- Spend Less Time Cleaning Up
- MAX Burner System
- Fit Guarantee

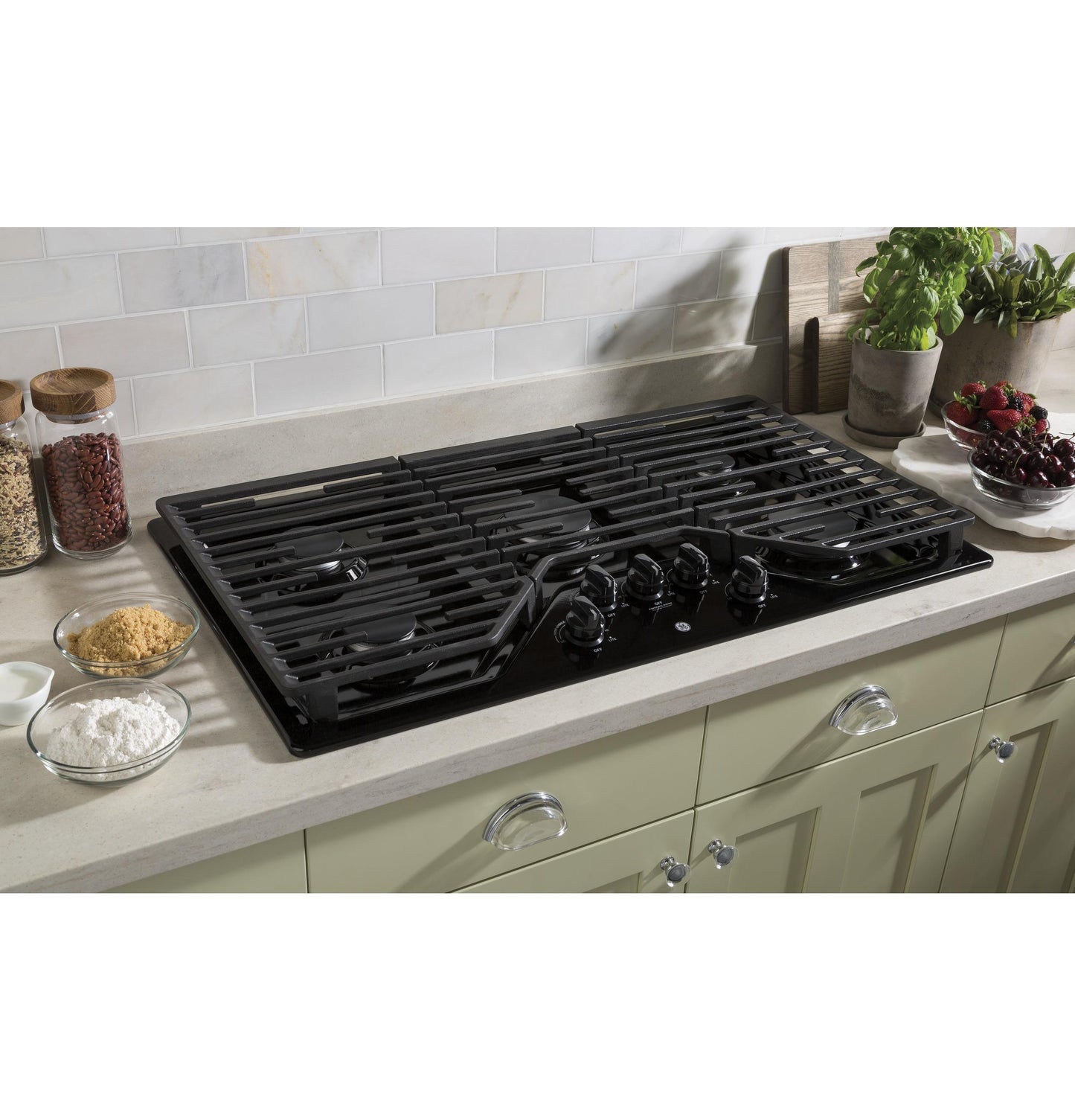

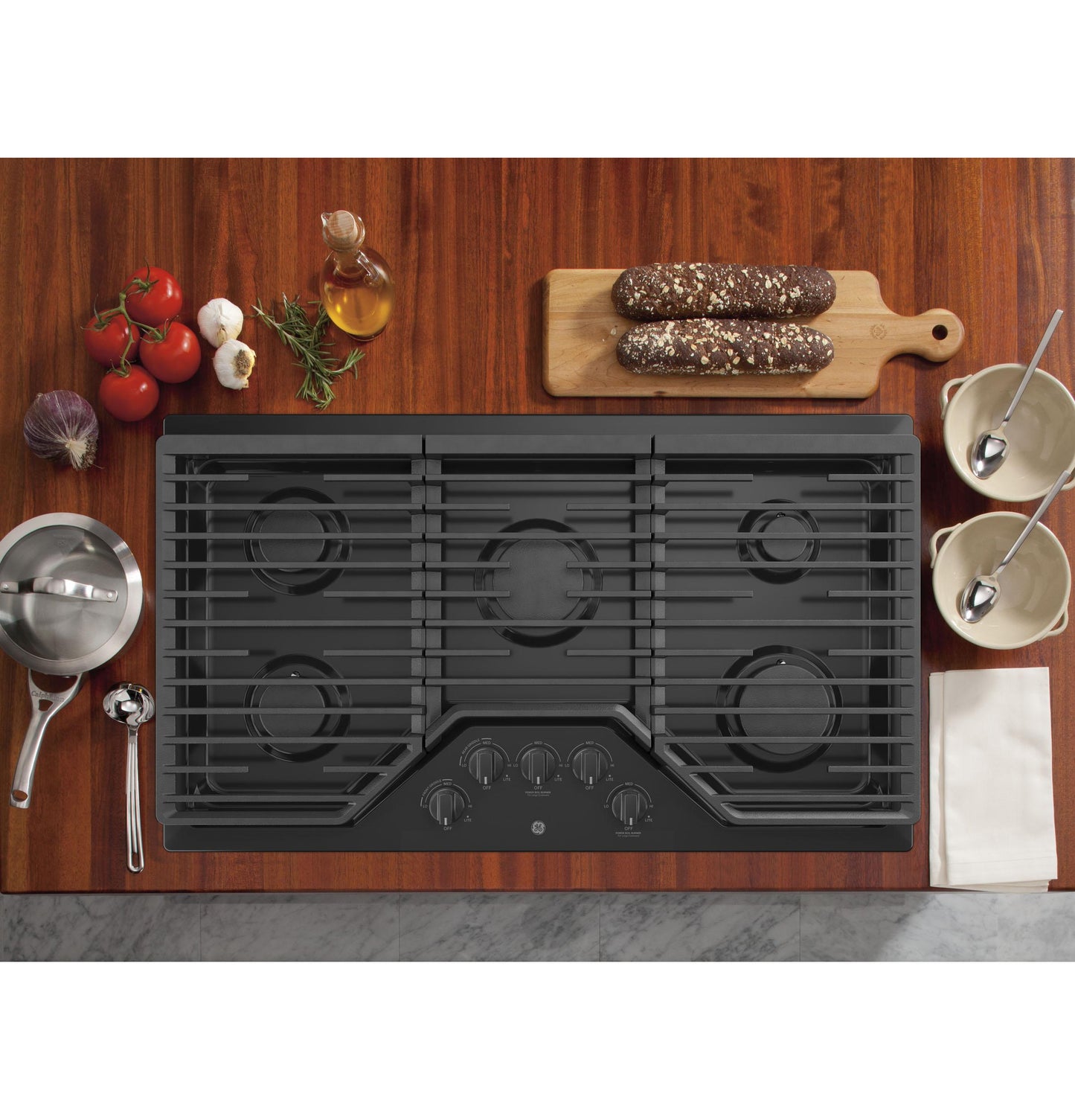

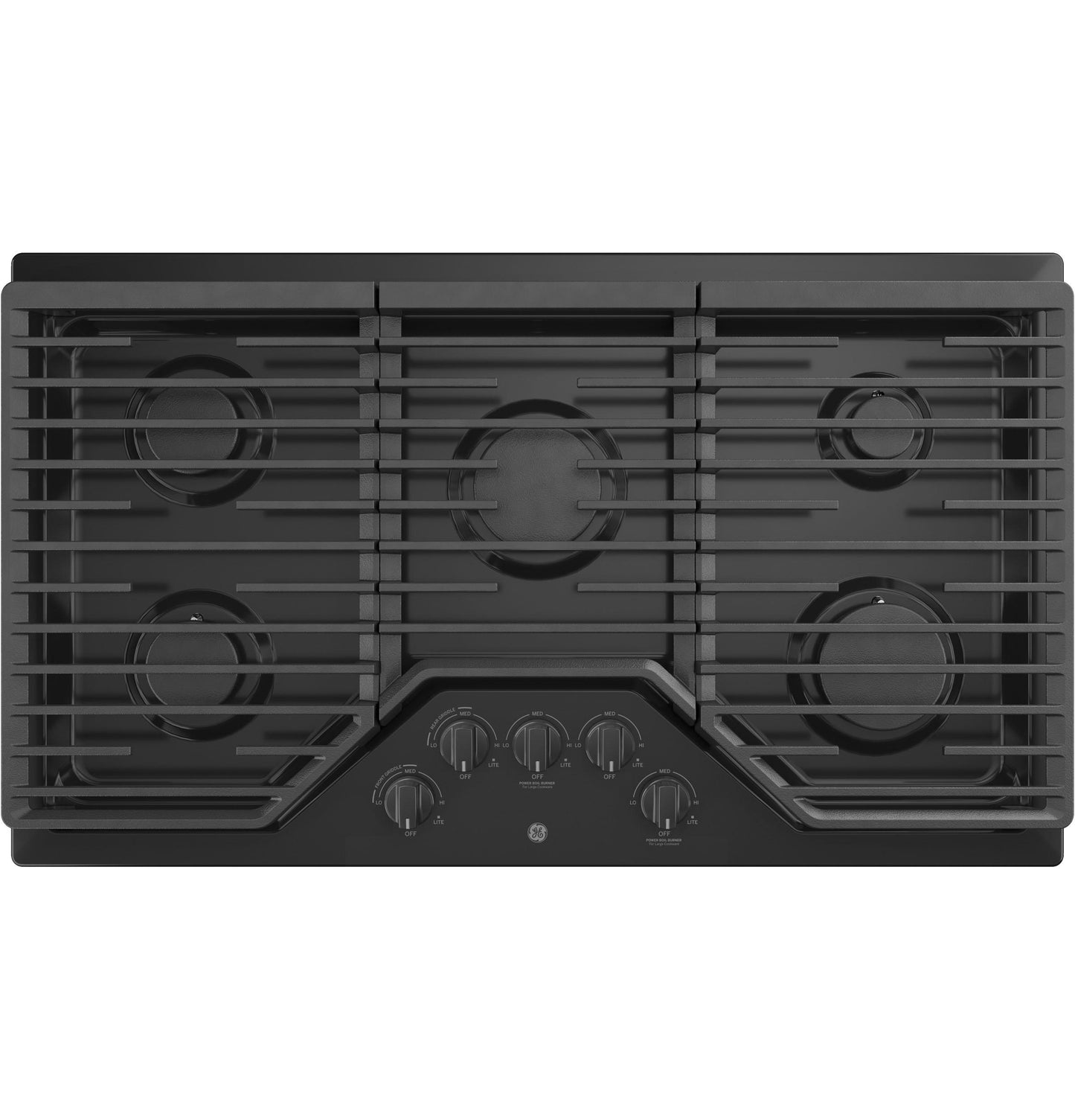

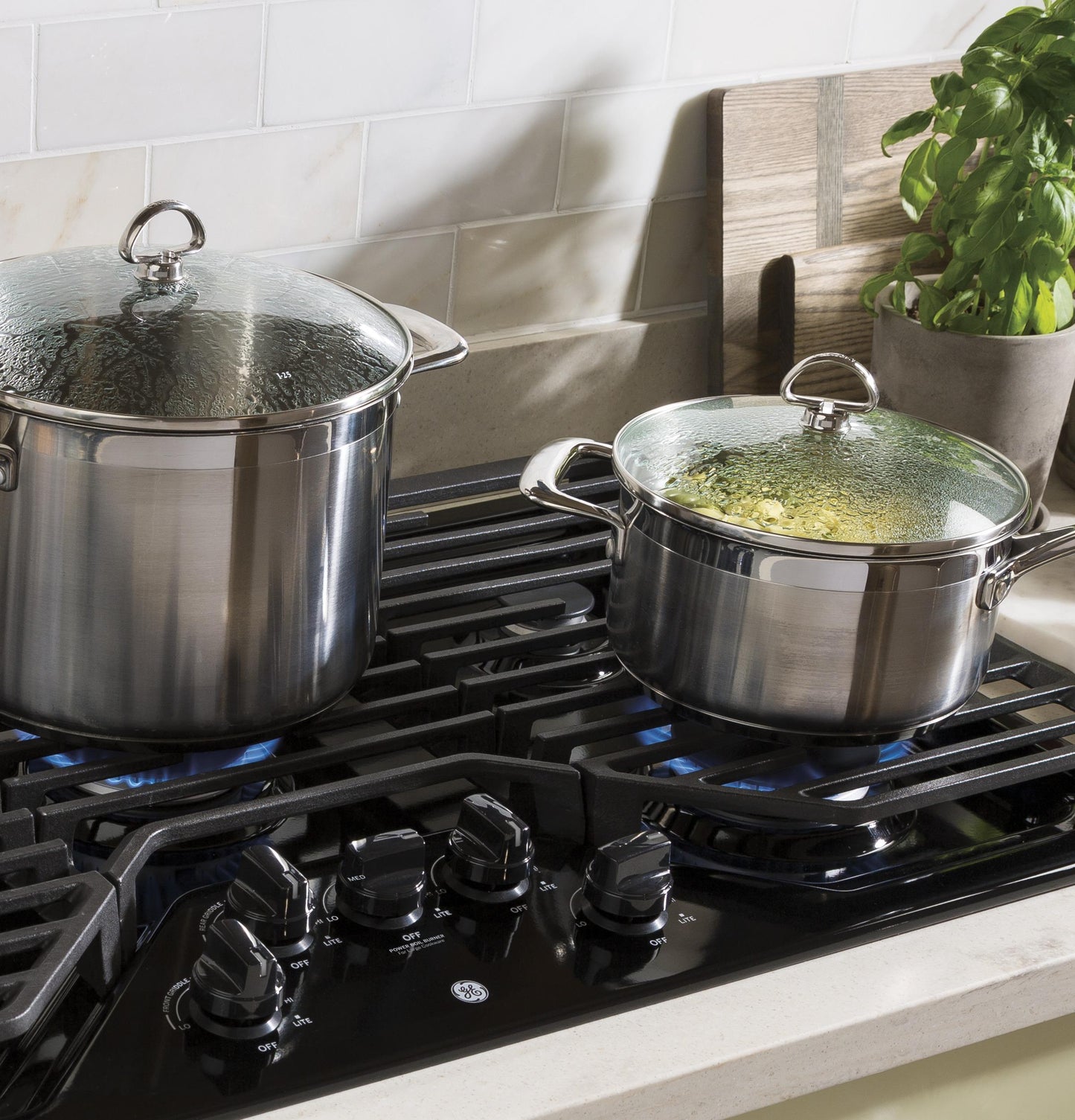

Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners
Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware
More Cooking, Less Cookware
Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites

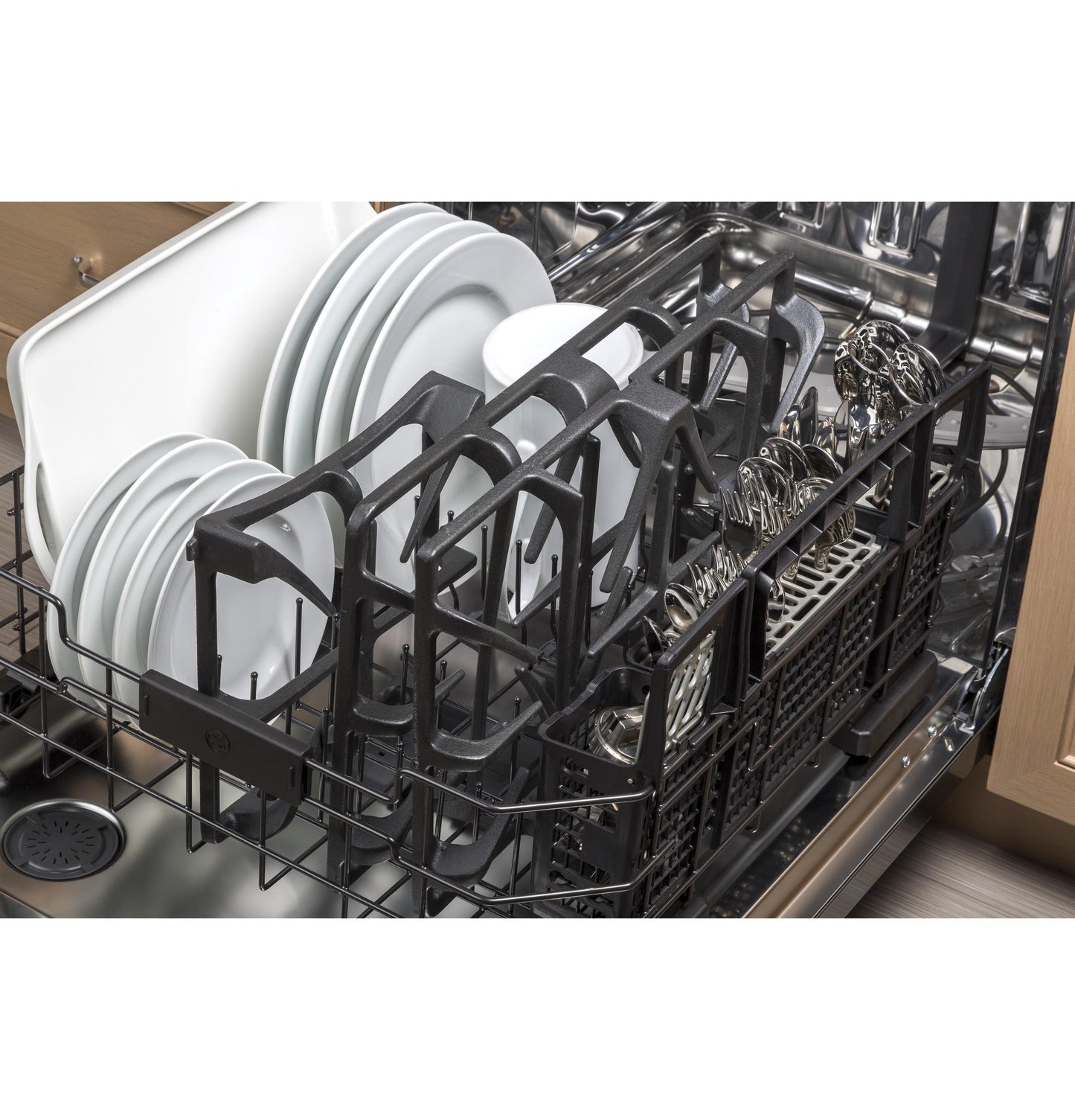

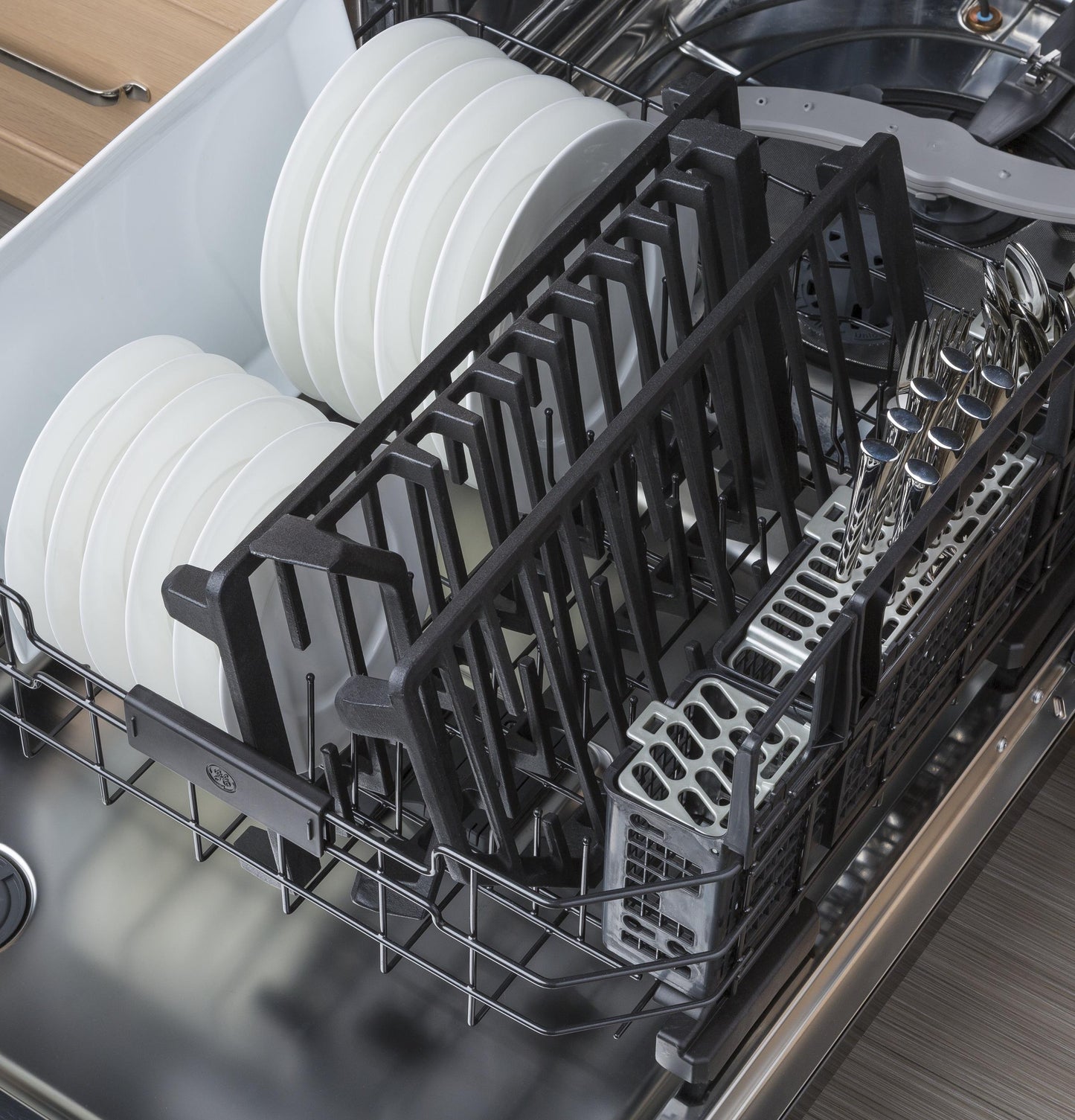

Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

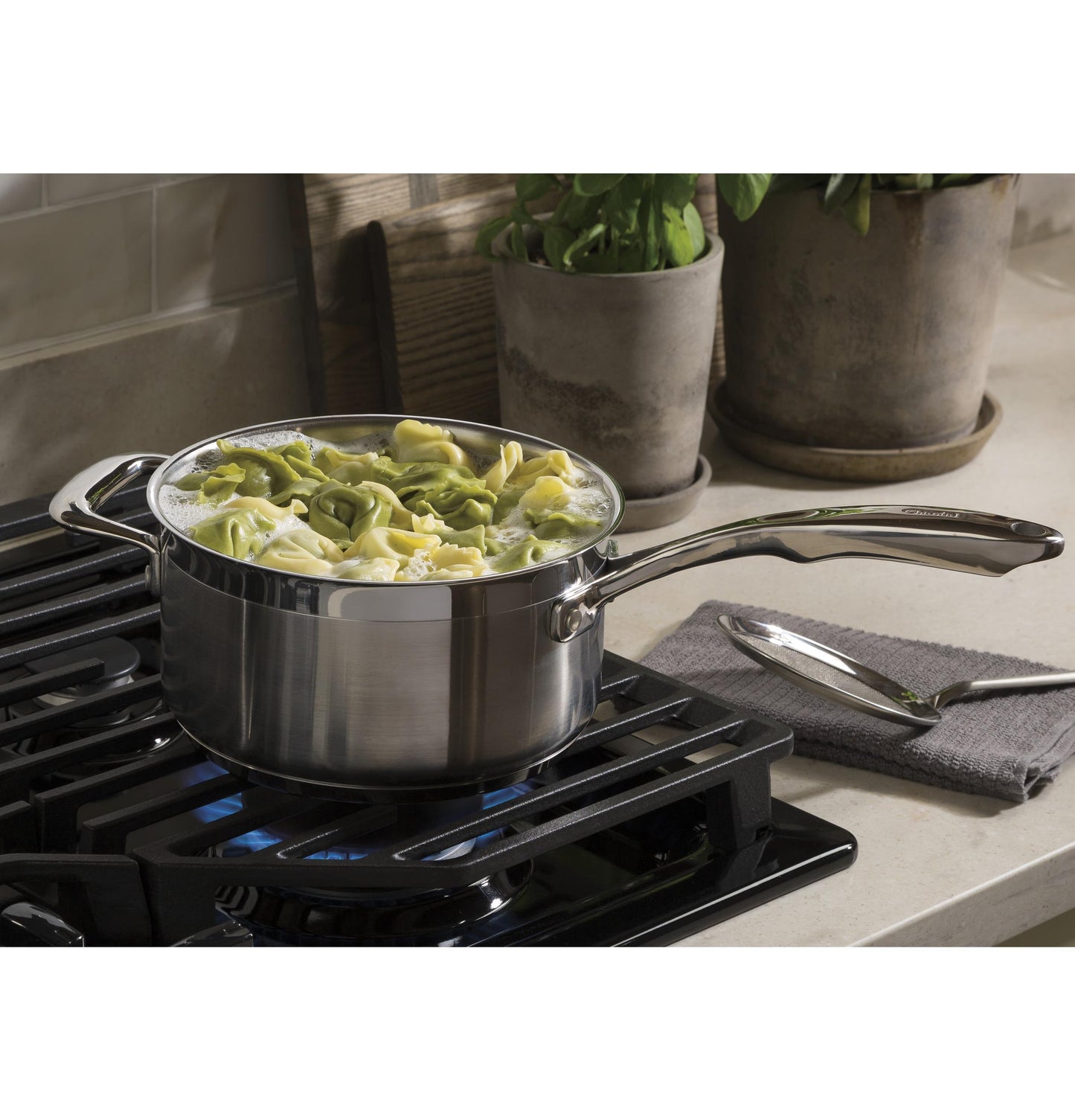

Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling

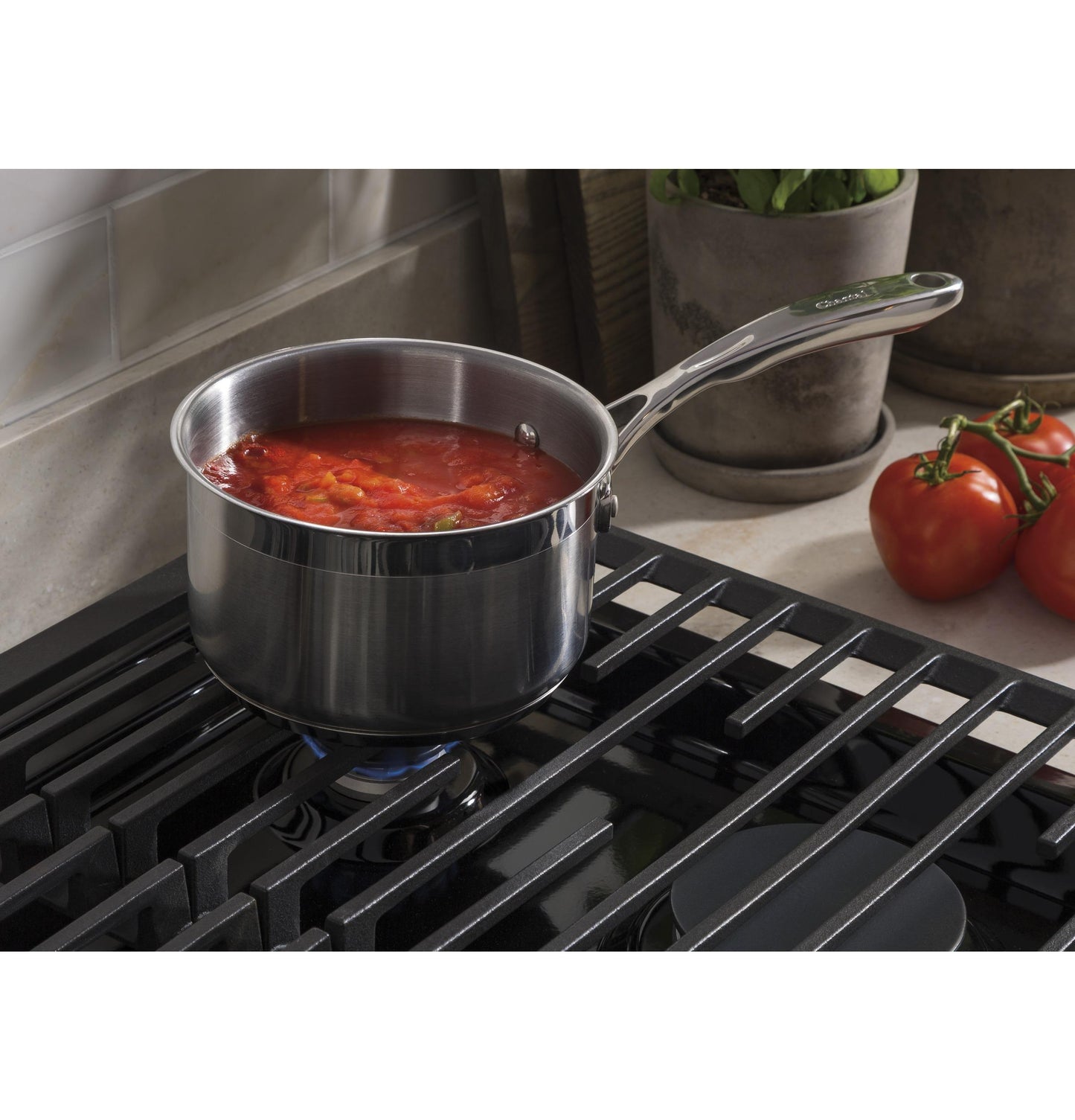

Precise Simmer Burner
Protect delicate foods with low, even heating

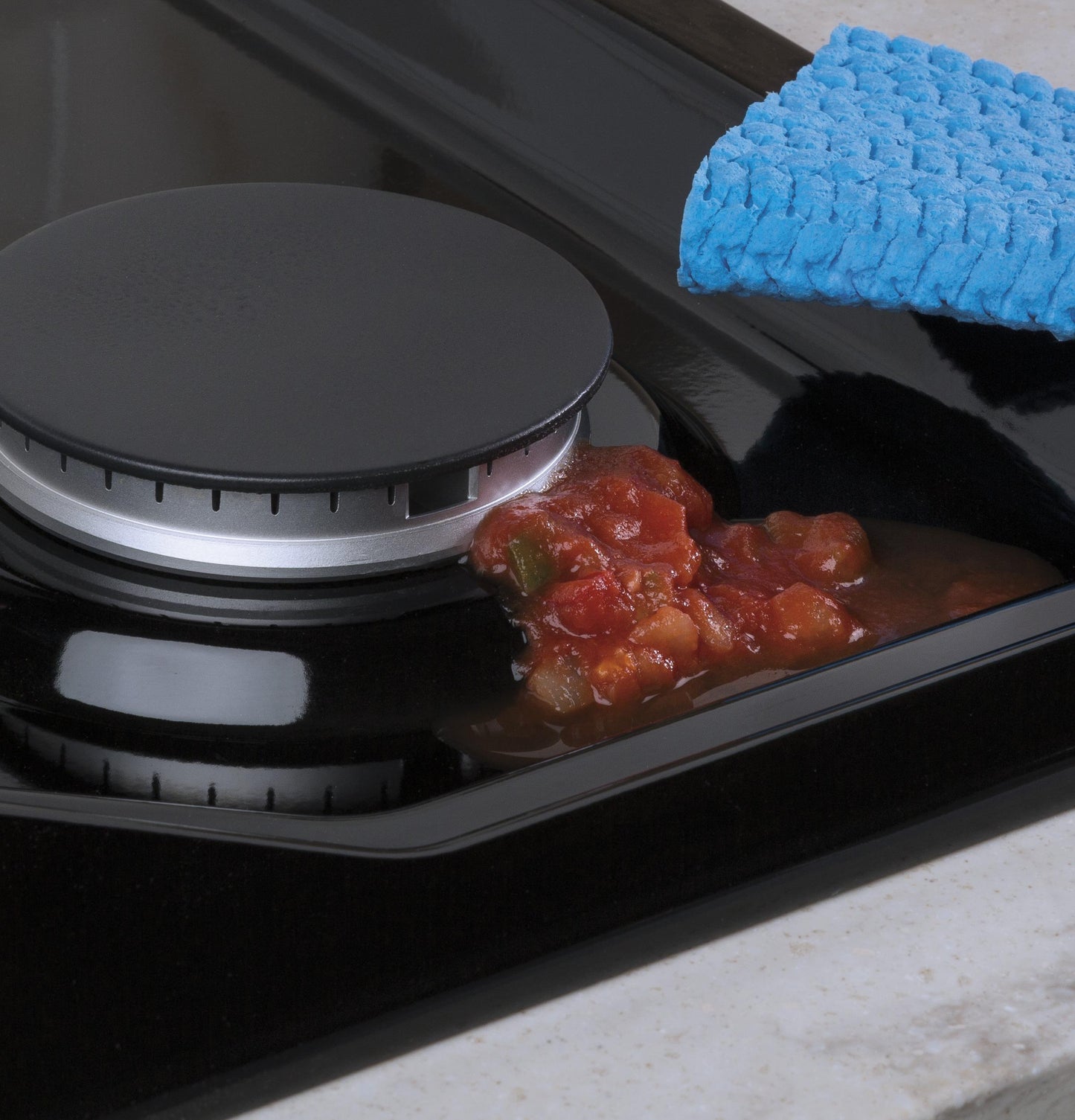

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

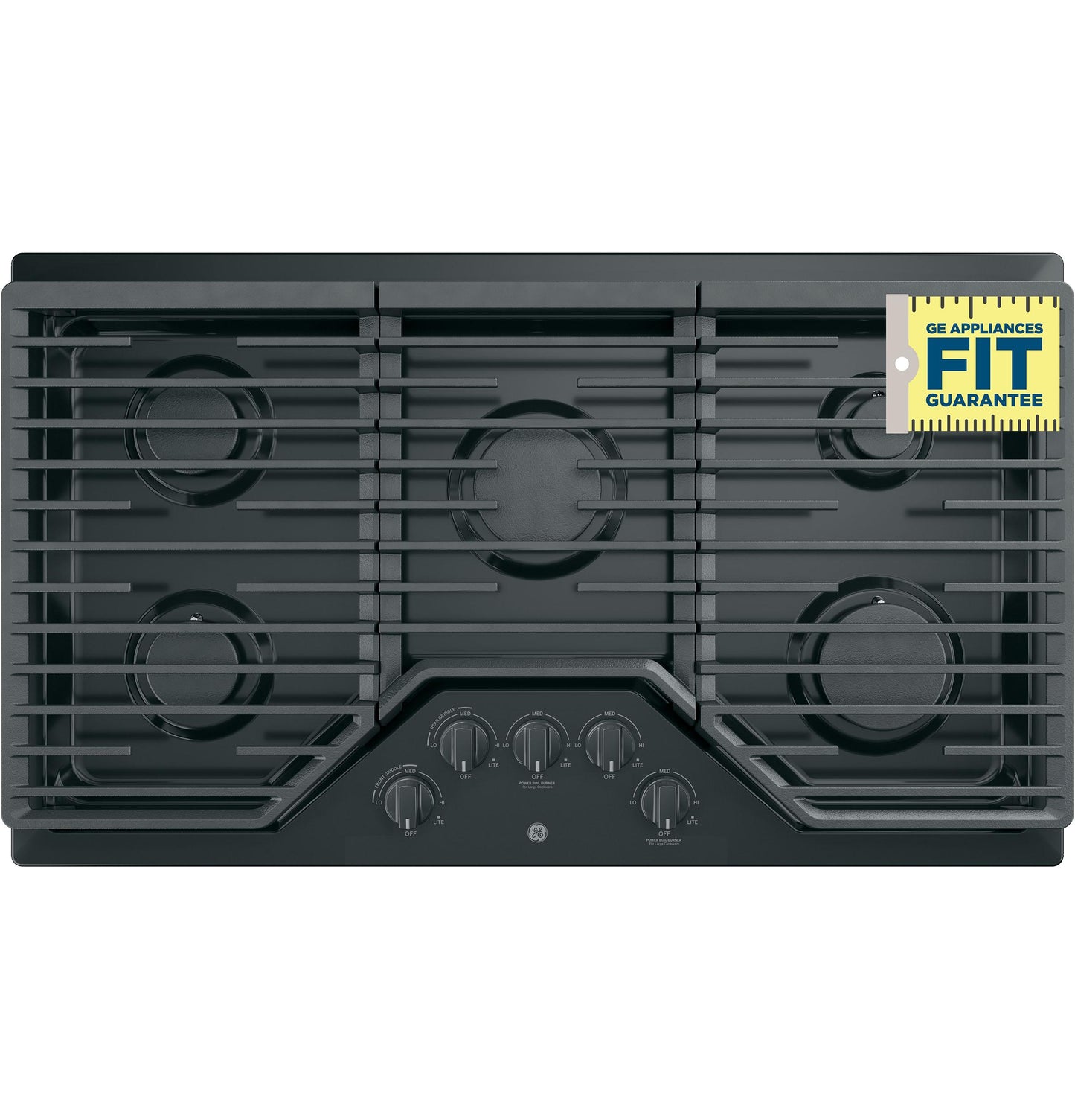

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
FILTER | |
App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Cooktop Type | Continuous Grates |
App Filter - Fuel Type | Gas |
App Filter - Control Type | Rotary knobs |
APPEARANCE | |
Color Appearance | Black |
Cooktop Burner Grate Color | Matte Black |
Control Knobs | Dishwasher Safe Gloss Black |
POWER / RATINGS | |
Burner BTU Ratings (000's/BTU) - LP Gas | (2) 15.0; (2) 9.5; (1) 5.0 |
Burner BTU Ratings (000's/BTU) - Natural Gas | (2) 15.0; (2) 9.5; (1) 5.0 |
Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Overall Height | 5.5 in |
Cutout Depth (in) | 19 1/8 in |
Cabinet Width | 36 in |
Approximate Shipping Weight | 46 lb |
Overall Width | 36 in |
Net Weight | 40 lb |
Cutout Width (in) | 33-7/8 |
Overall Depth | 21 in |
FEATURES | |
Cooktop Burner Type | 5 Sealed |
Valves (Degree of Turn) | 270 |
Burner - Right Rear | 5,000 BTU |
Burner - Right Front | 15,000 BTU Power Boil |
Fuel Type | Natural Gas (factory set) |
Power Boil Burner | Yes |

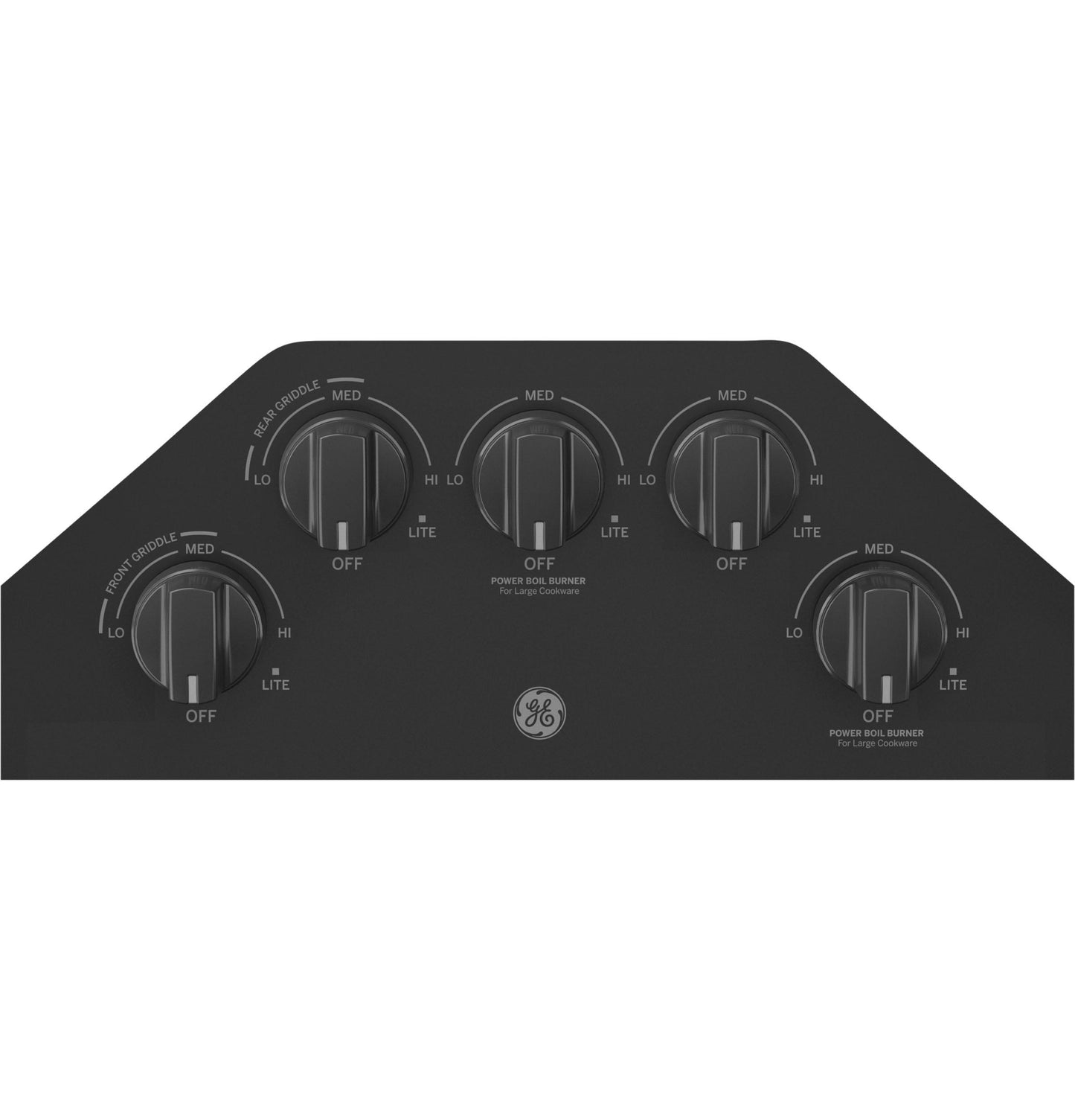

Control Location | Front Center |
Cooktop Type | Continuous Grates |
Ignition System | Electronic |
Burner - Center | 15,000 BTU Power Boil |
Cooktop Surface | Black Deep Porcelain-Enamel |
Burner - Left Rear | 9,500 BTU |
Control Type | Knob |
Cooktop Burner Grate Material | Heavy Cast |
Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe Edge-to-Edge Grates |
Griddle | Cast Iron JXGRIDL236 Optional |
Burner - Left Front | 9,500 BTU |
