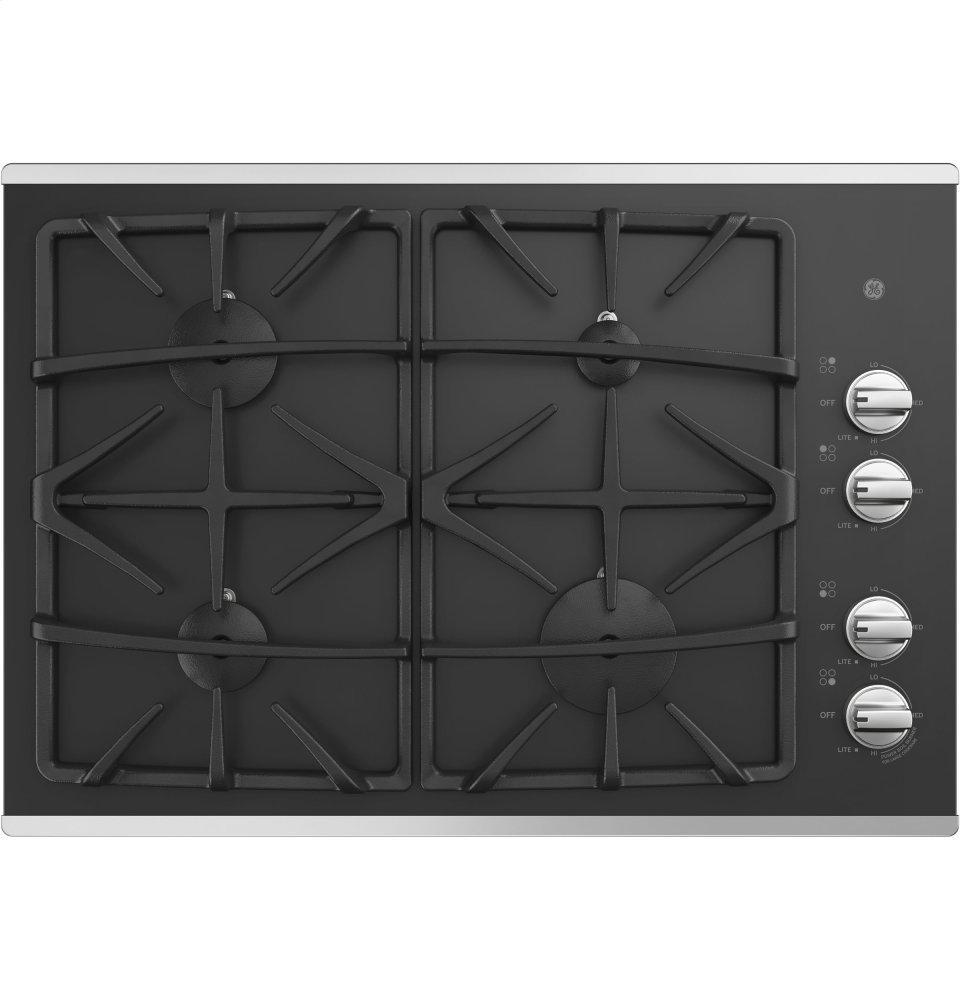

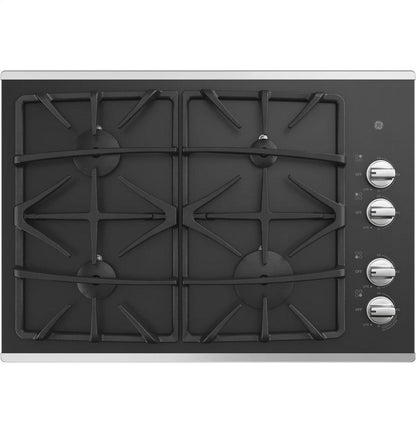

GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates JGP5530SLSS
Discontinued- Gas on Glass Cooktop
- Spend Less Time Cleaning Up
- Maximize Your Cooking Space
- Dishwasher-Safe Grates
- Start Cooking Faster with Power Boil
- Precise Simmer Burner
- Fit Guarantee

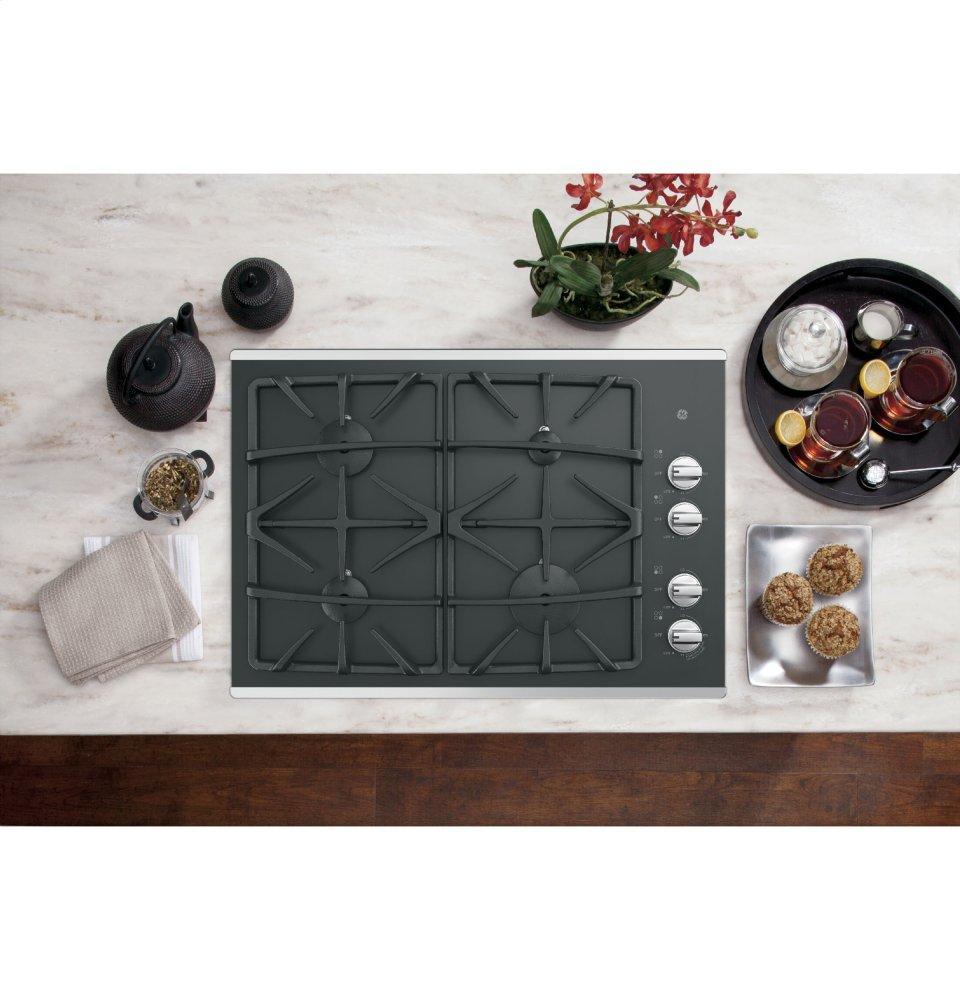

Gas on Glass Cooktop
Sleek and easy to clean cooking surface

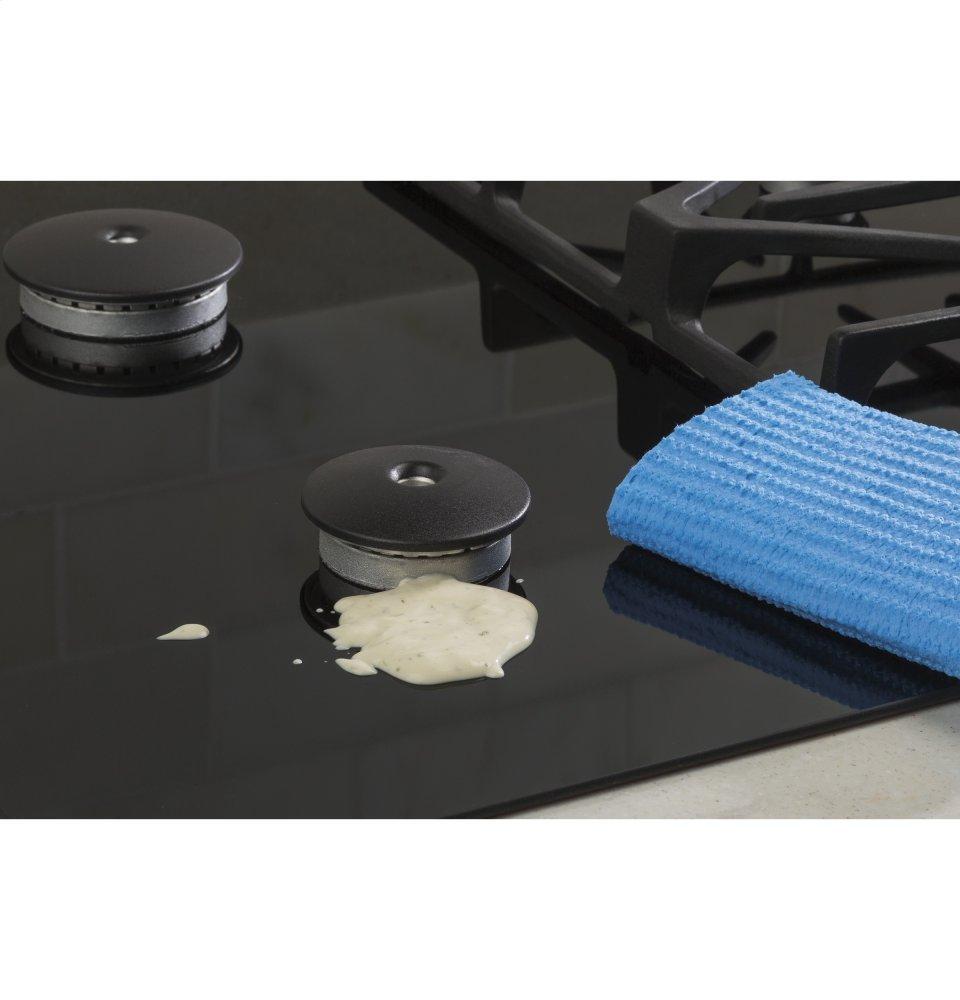

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy

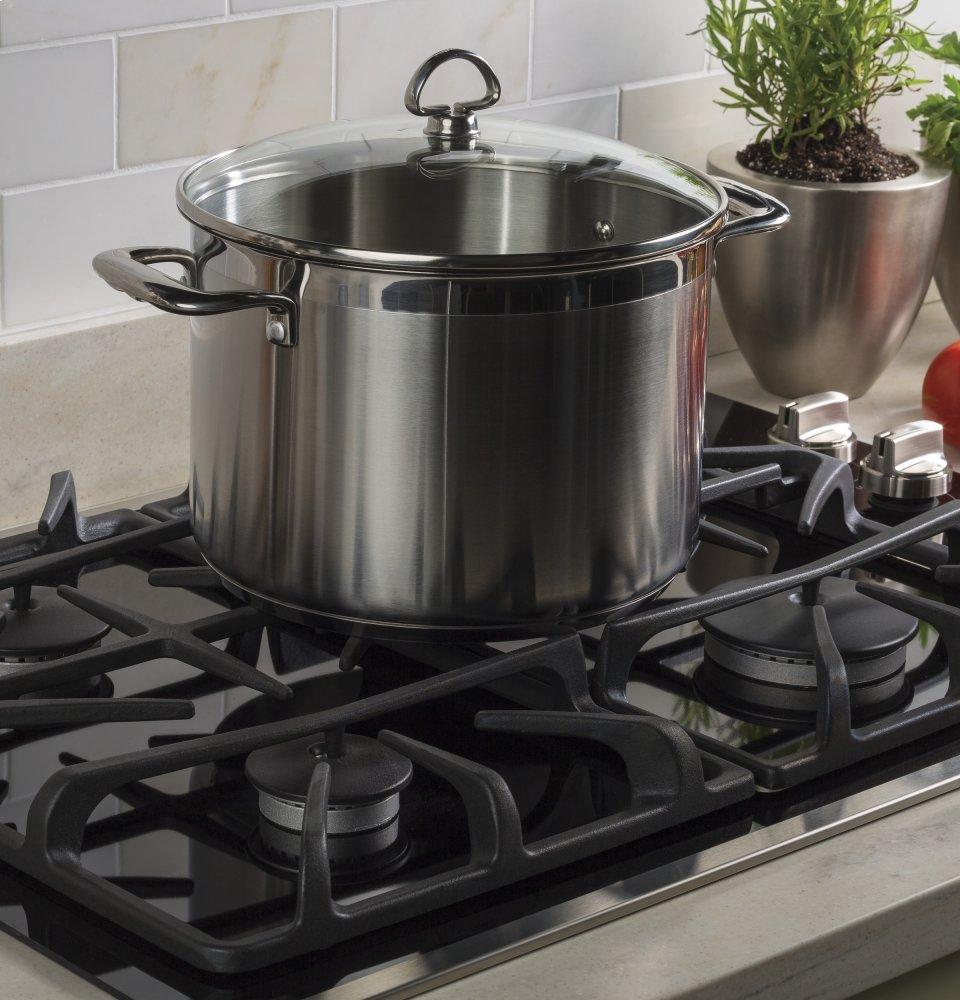

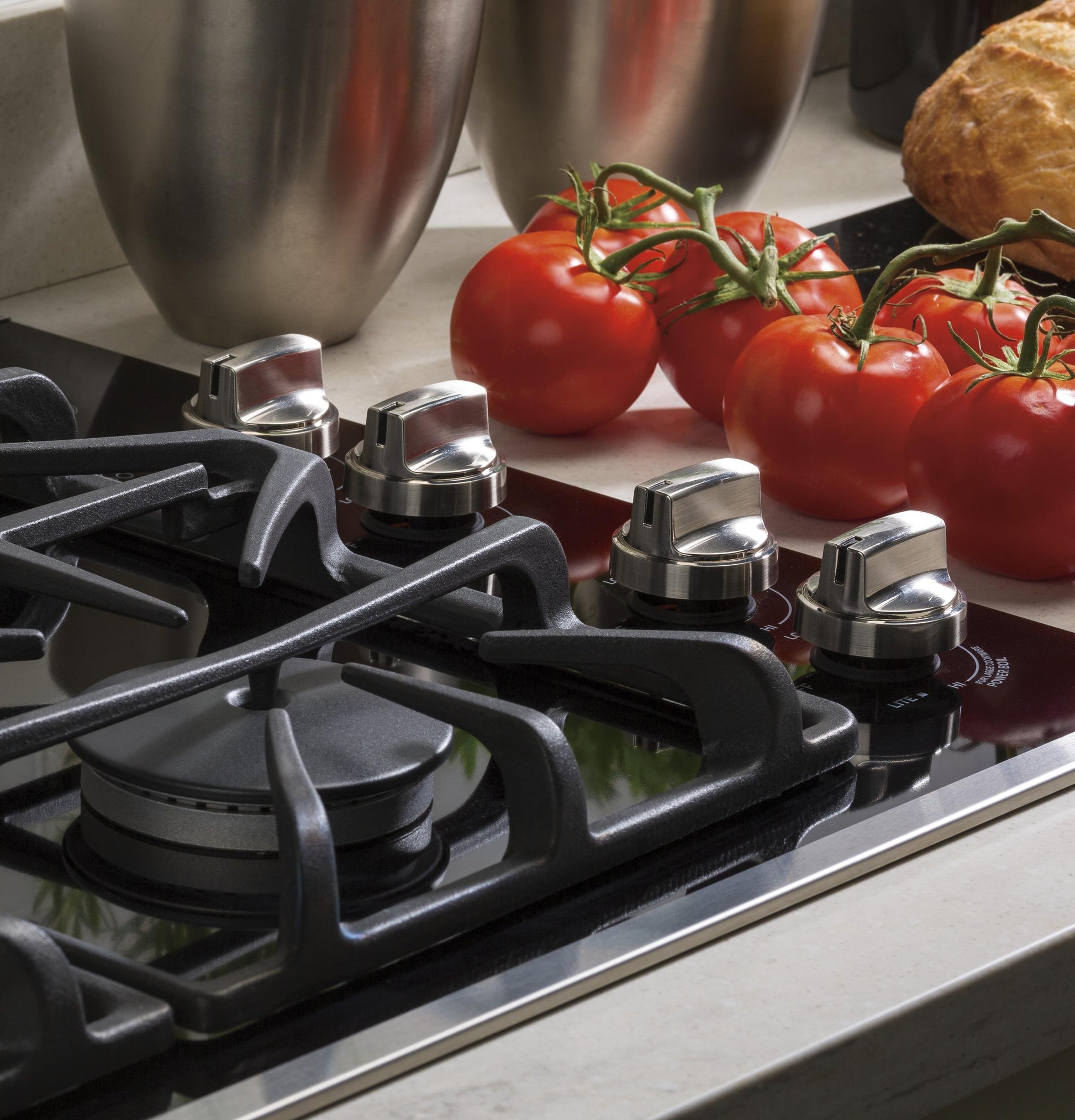

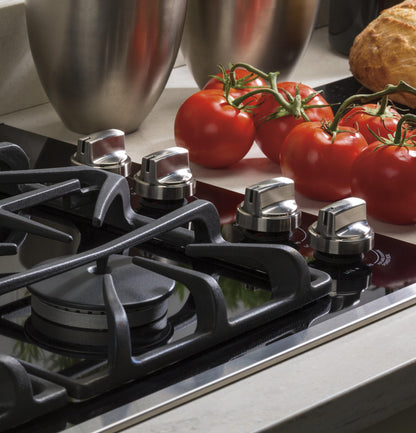

Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware

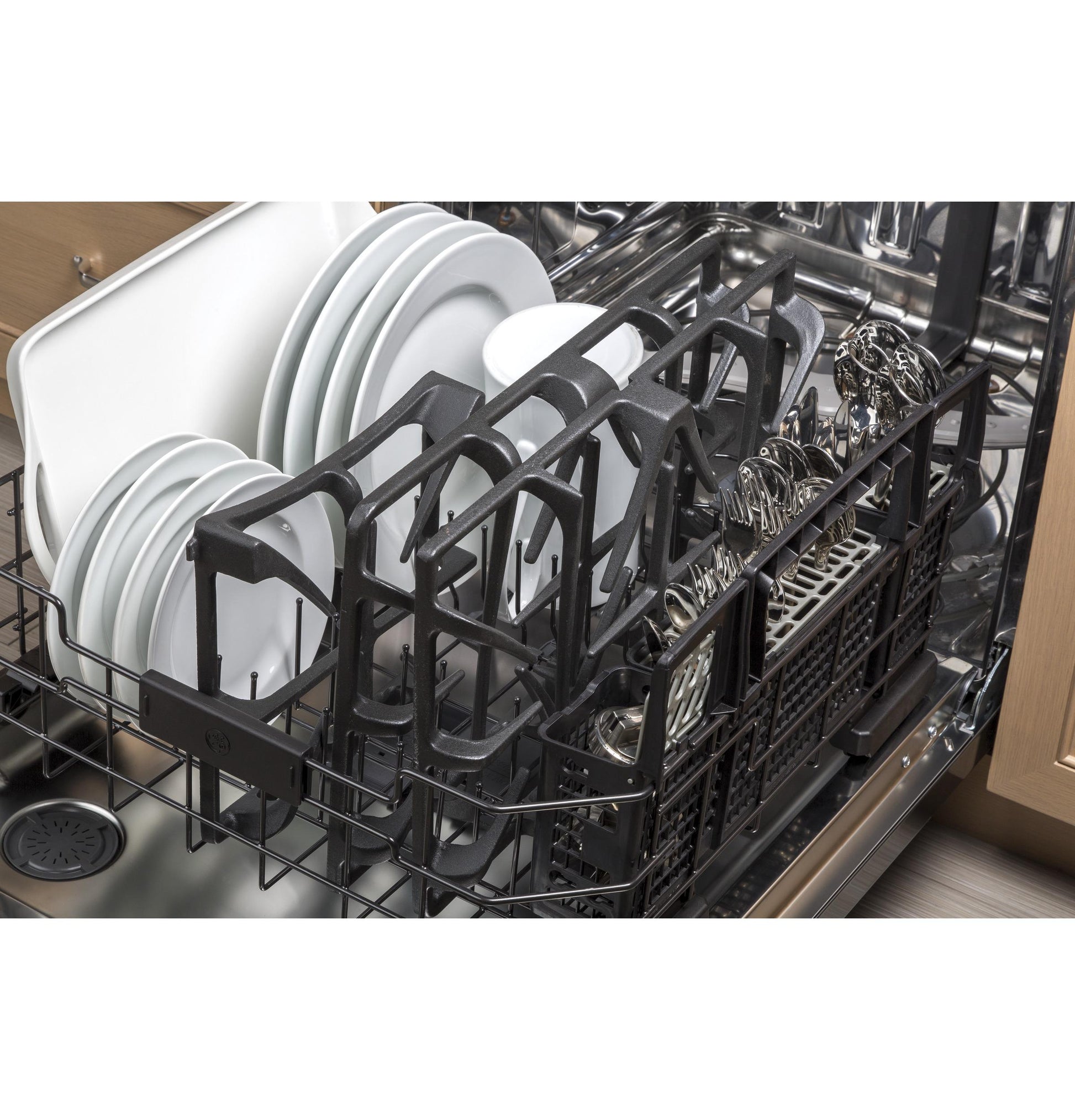

Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

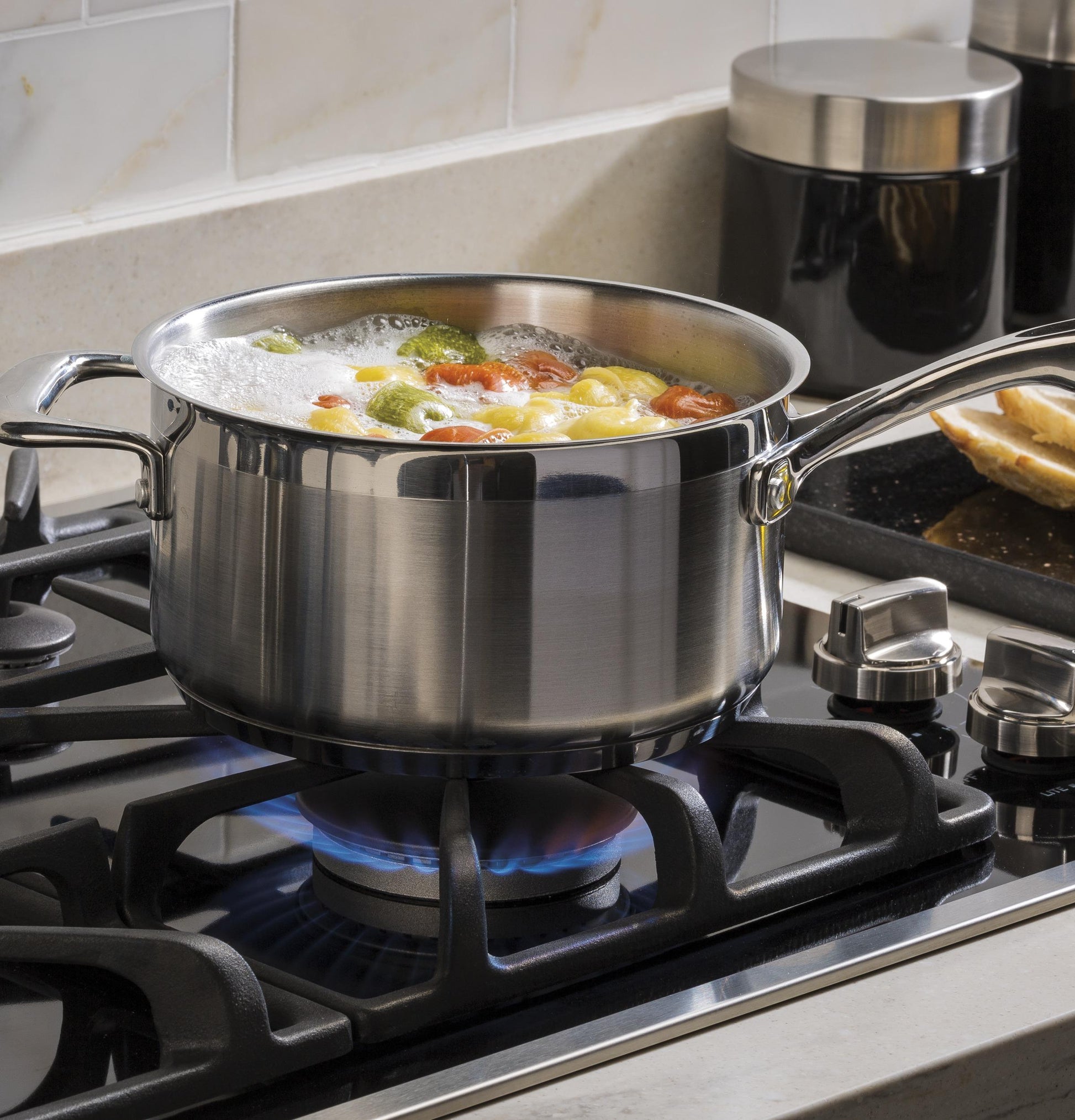

Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling

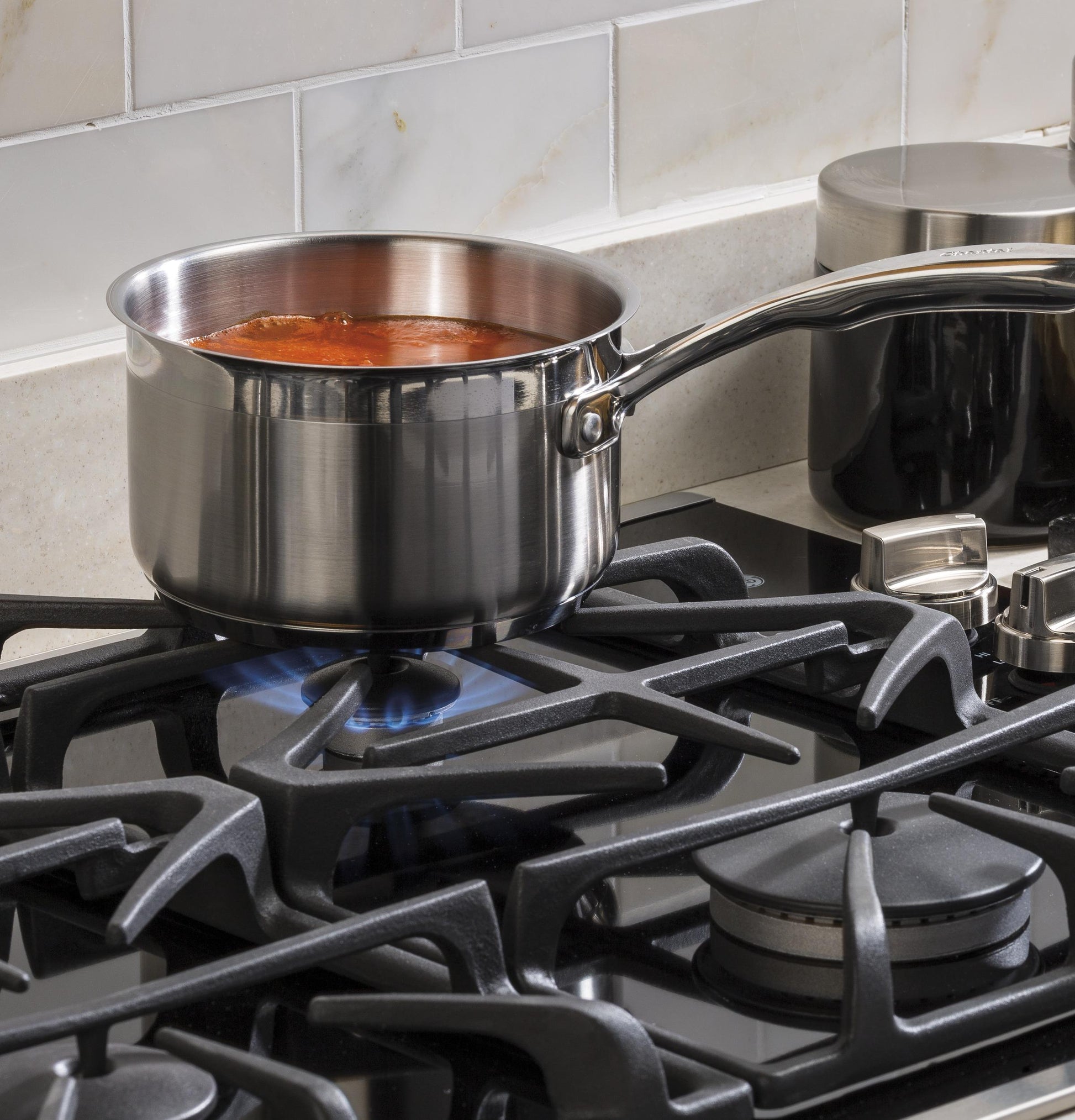

Precise Simmer Burner
Protect delicate foods with low, even heating

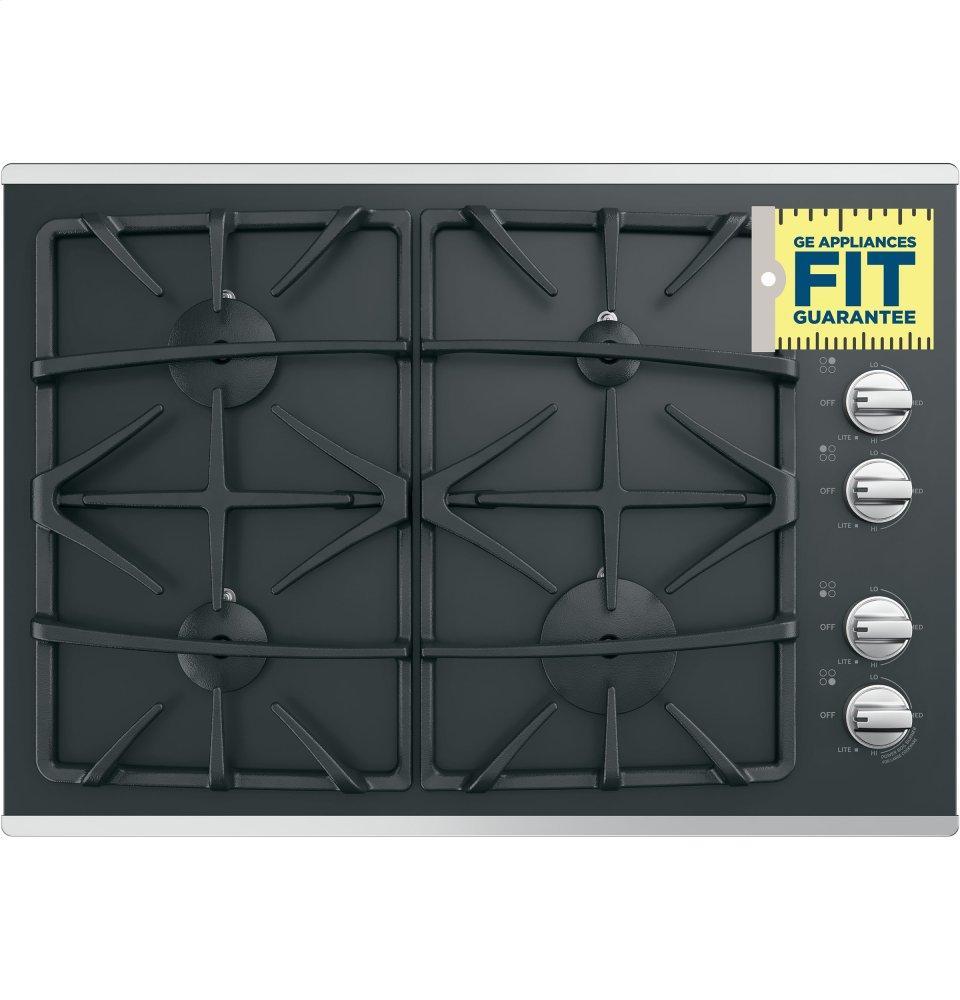

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
FILTER | |
App Filter - Control Type | Rotary knobs |
App Filter - Cooktop Type | Continuous Grates |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Fuel Type | Gas |
APPEARANCE | |
Control Knobs | Dishwasher Safe Stainless Steel Appearance |
Cooktop Burner Grate Color | Matte Black |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Burner BTU Ratings (000's/BTU) - LP Gas | (1) 13.0; (1) 9.1; (1) 8.1; (1) 6.0 |
Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 11.0; (1) 9.1; (1) 6.0 |
Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Cooktop Cleaning | Cream (WB64X5027) |
LP Conversion Kit | Included |
WEIGHTS & DIMENSIONS | |
Net Weight | 42.0 |
Overall Depth | 21.25 |
Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
Overall Width | 30.0 |
Overall Height | 5.5 |
Approximate Shipping Weight | 48.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 15,000 BTU Power Boil |
Burner - Left Rear | 11,000 BTU |
Cooktop Burner Type | 4 Sealed |
Burner - Right Rear | 6,000 BTU |
Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe Matte Black |
Valves (Degree of Turn) | 270 |
Fuel Type | Natural Gas (factory set) |
Cooktop Surface | Black Gas-On-Glass Ceramic |
Burner - Left Front | 9,100 BTU |
Cooktop Burner Grate Material | Deluxe Cast |

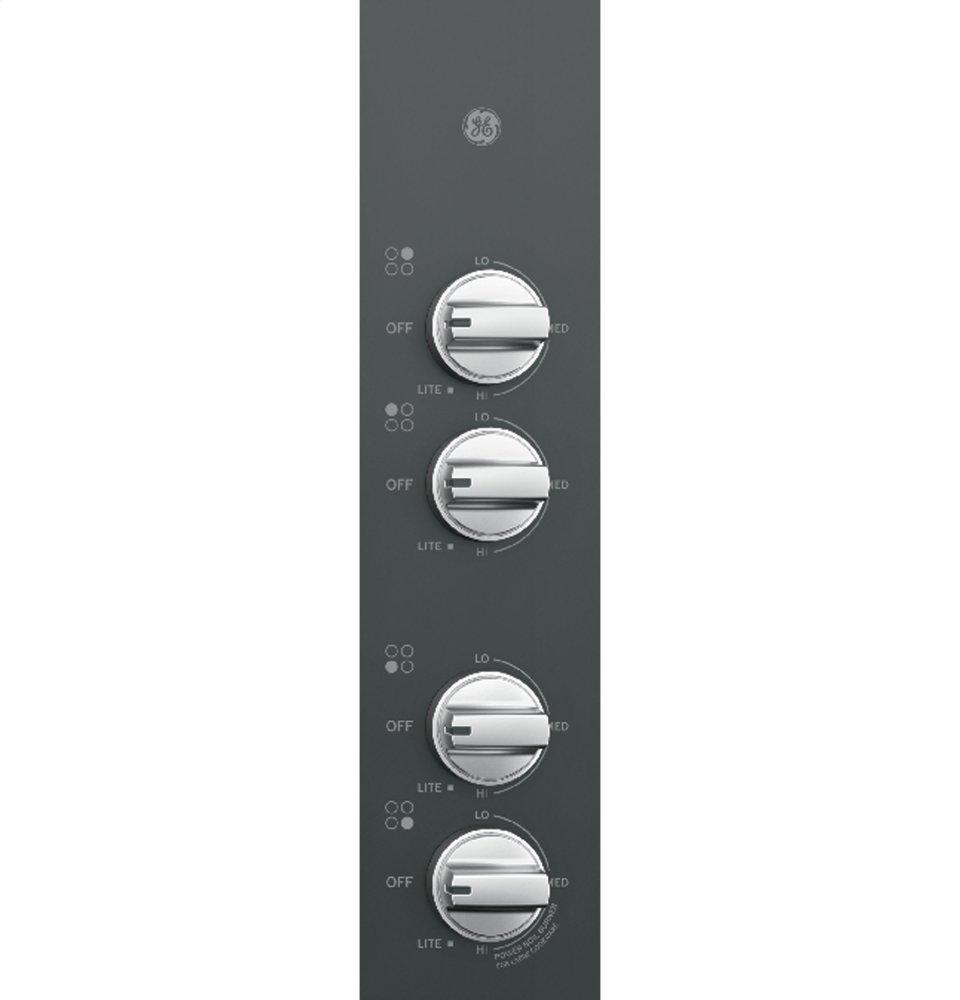

Control Type | Knob |
Ignition System | Electronic |
Cooktop Type | Continuous Grates |
Control Location | Right Side |
