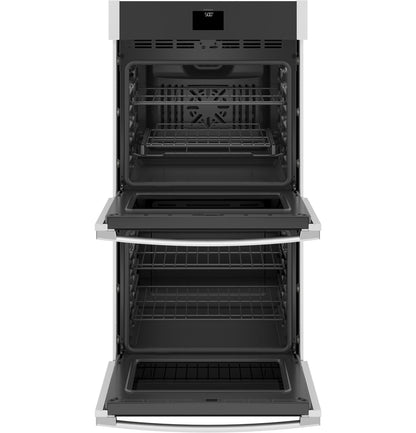

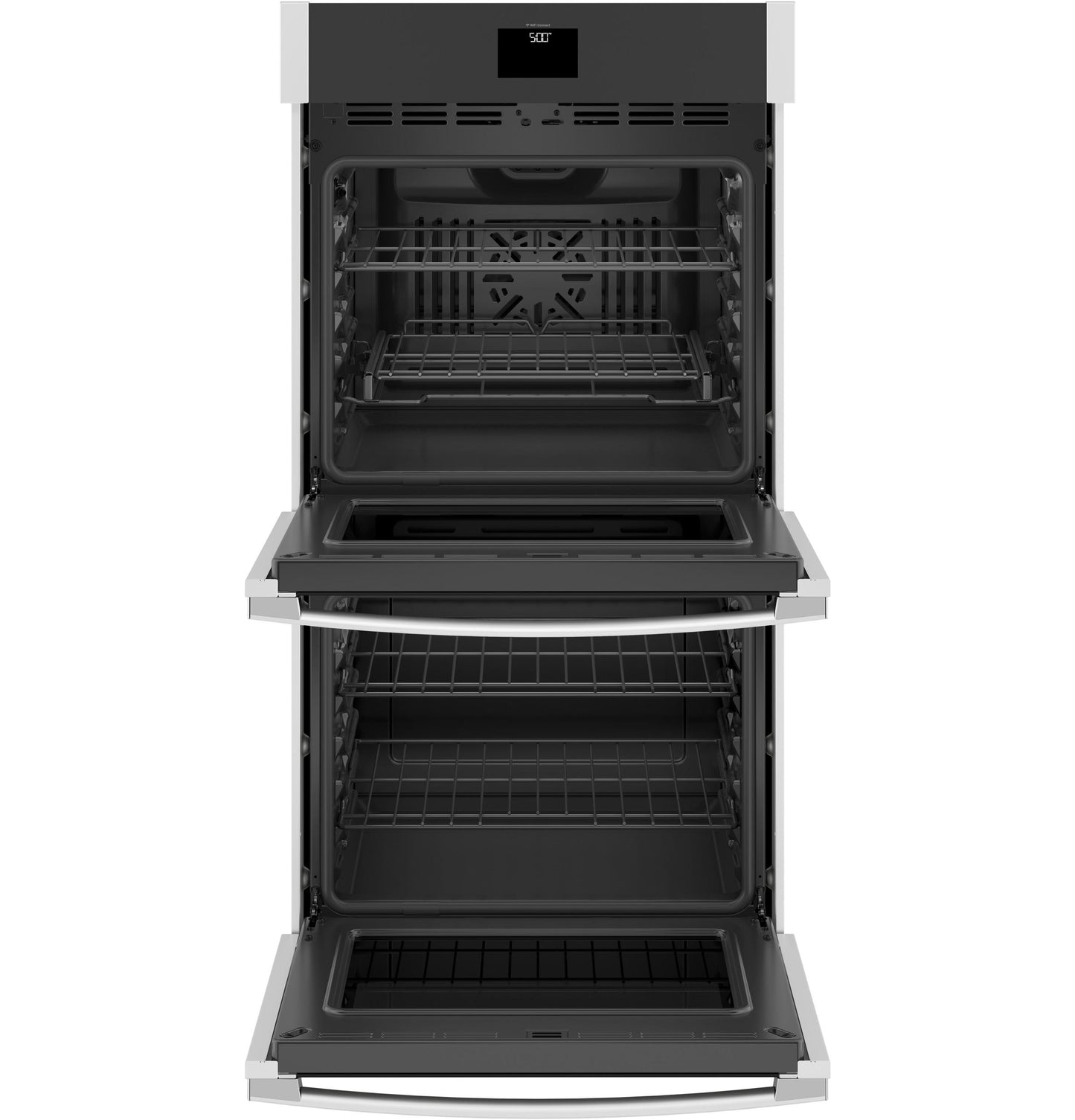

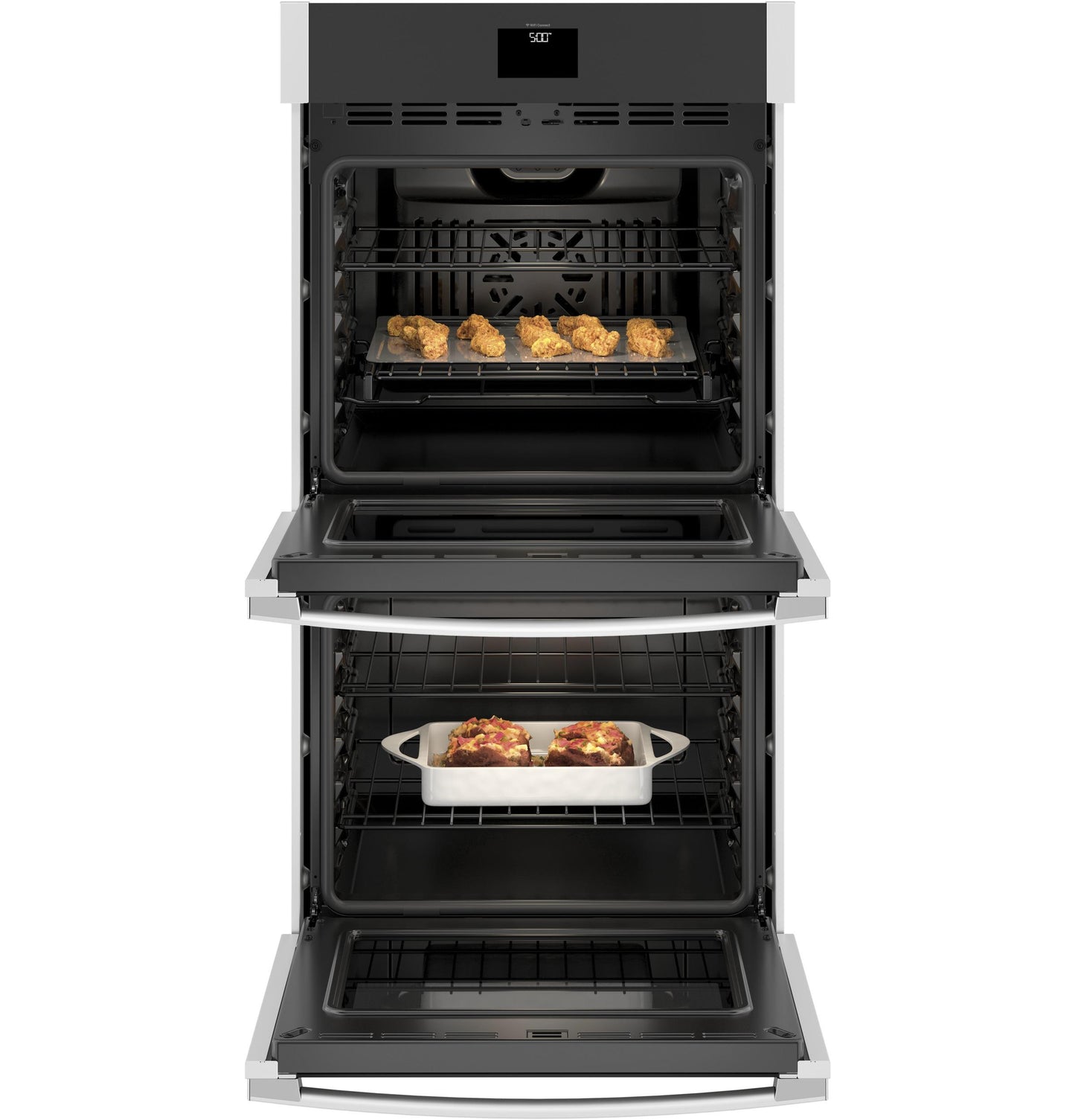

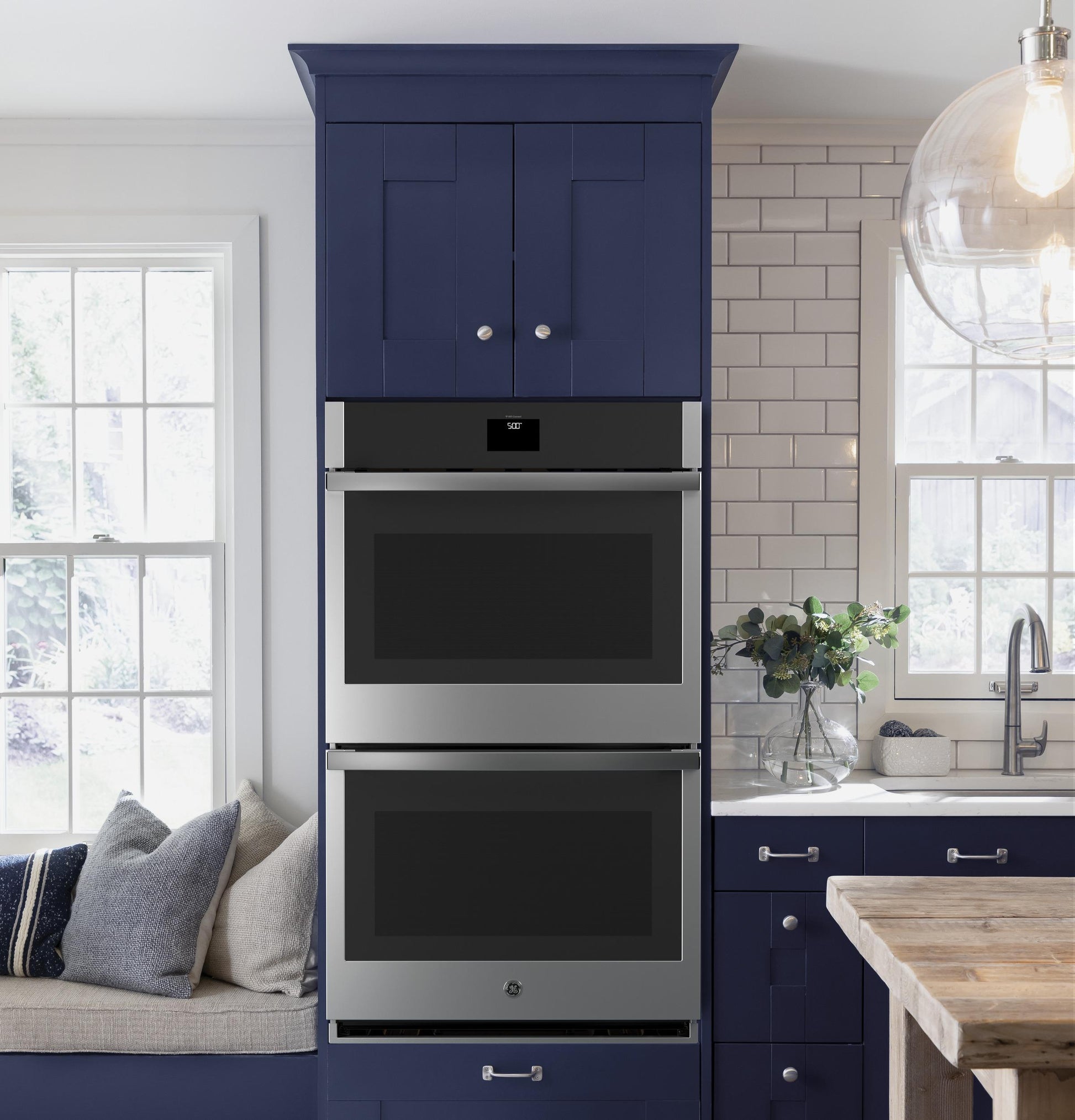

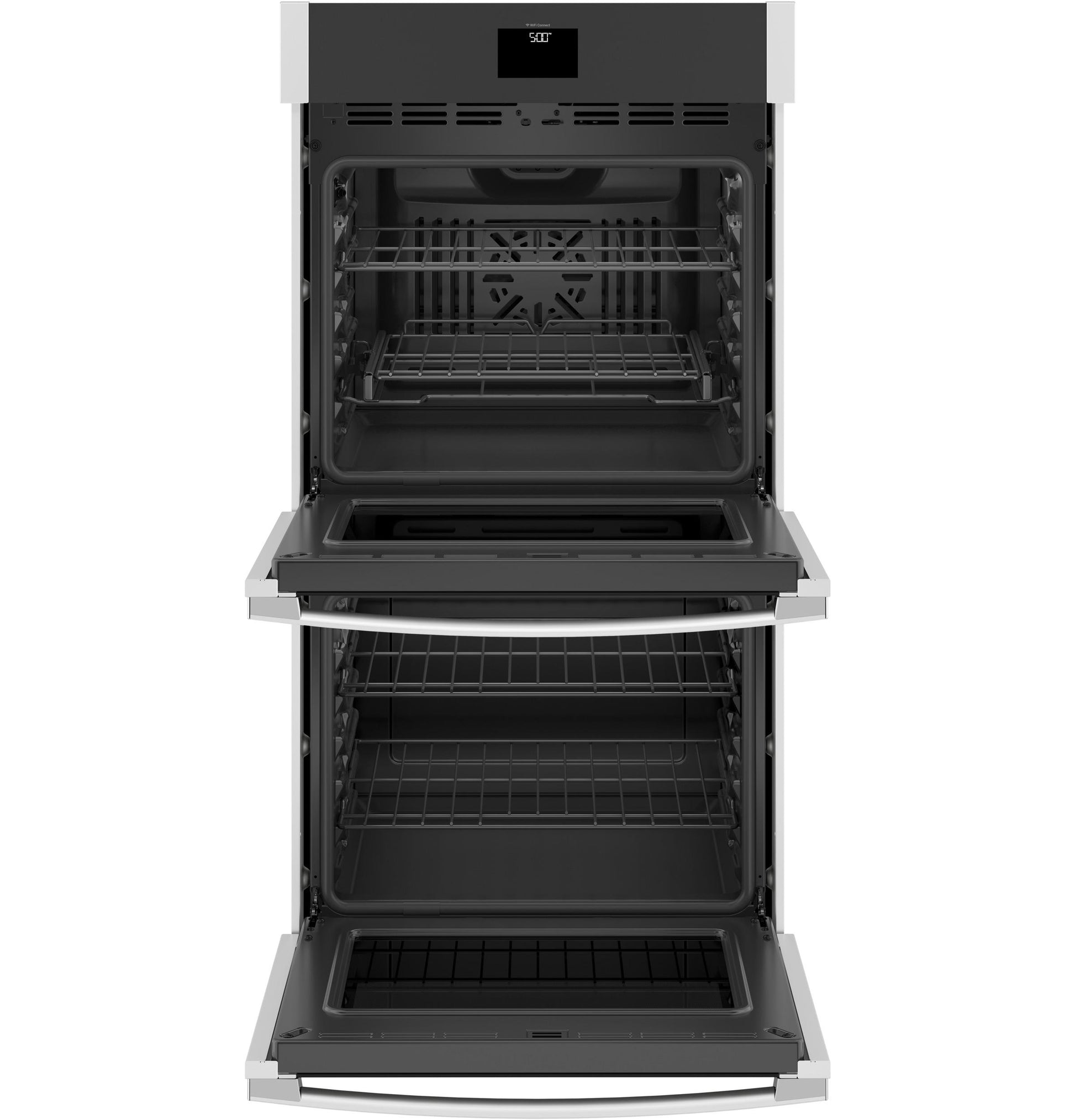

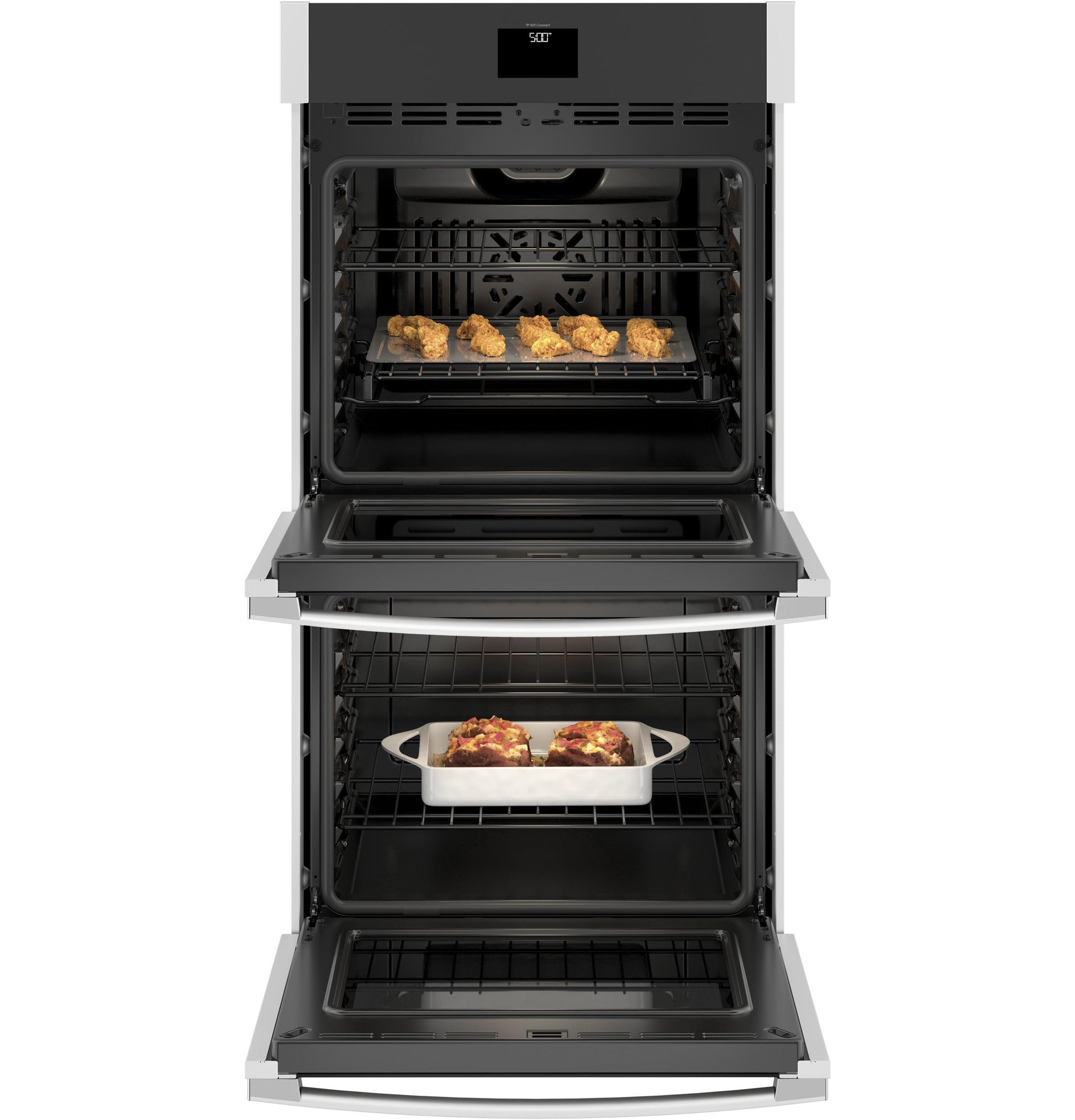

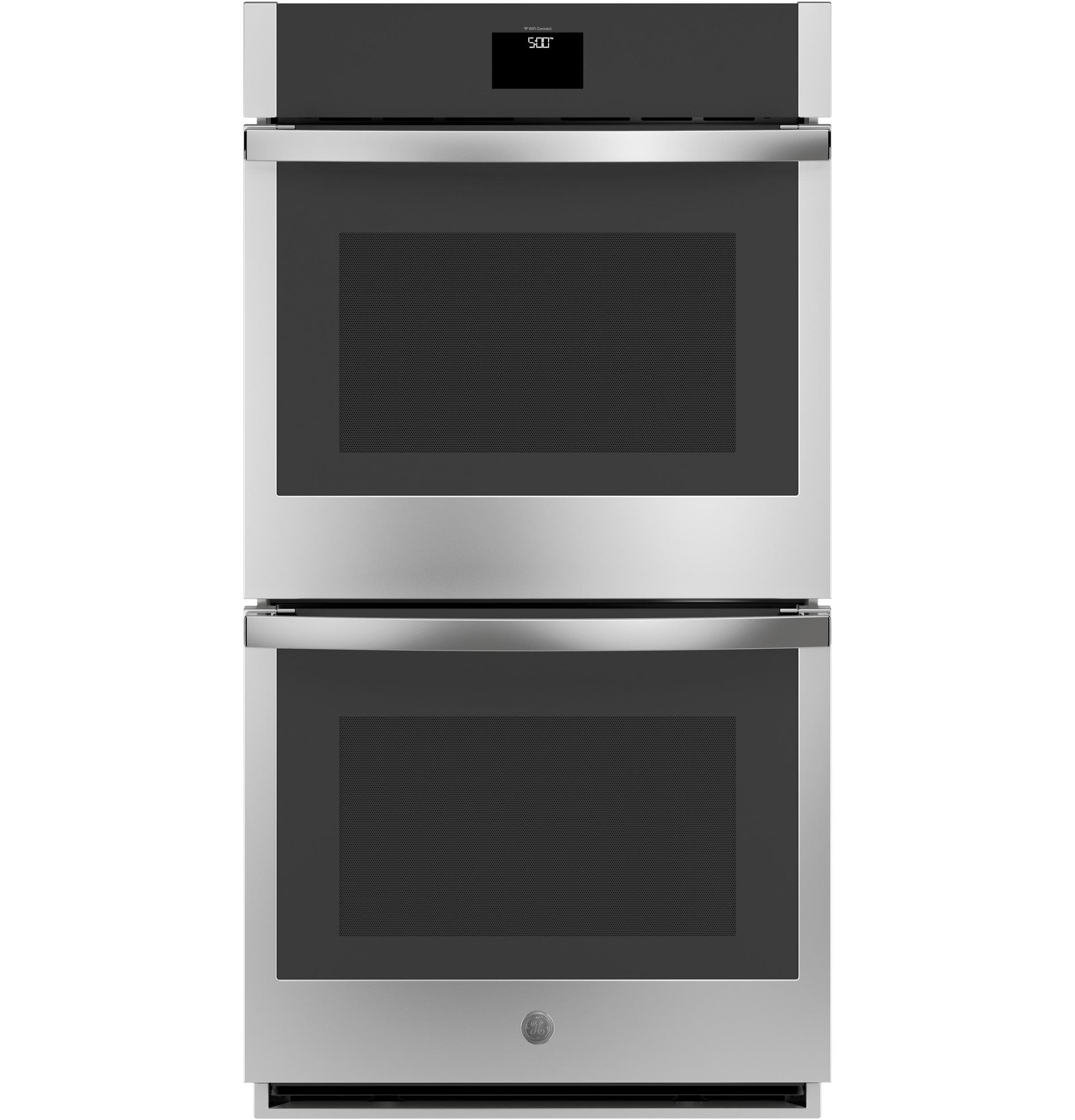

GE® 27" Smart Built-In Convection Double Wall Oven JKD5000SNSS

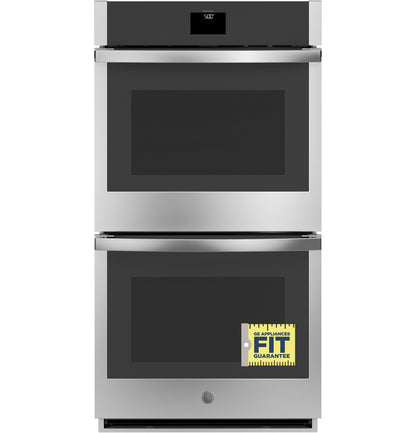

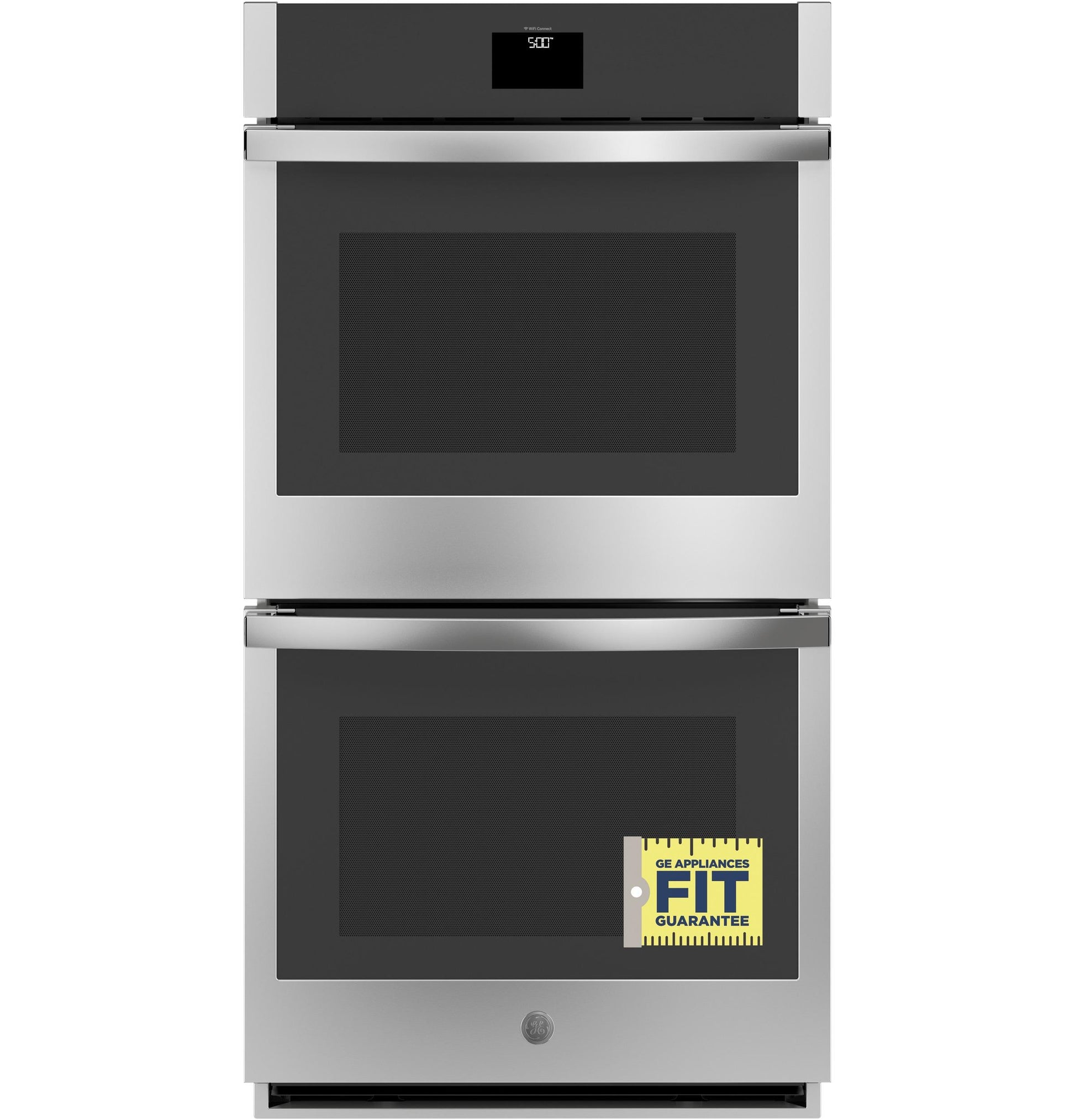

Fit Guarantee
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

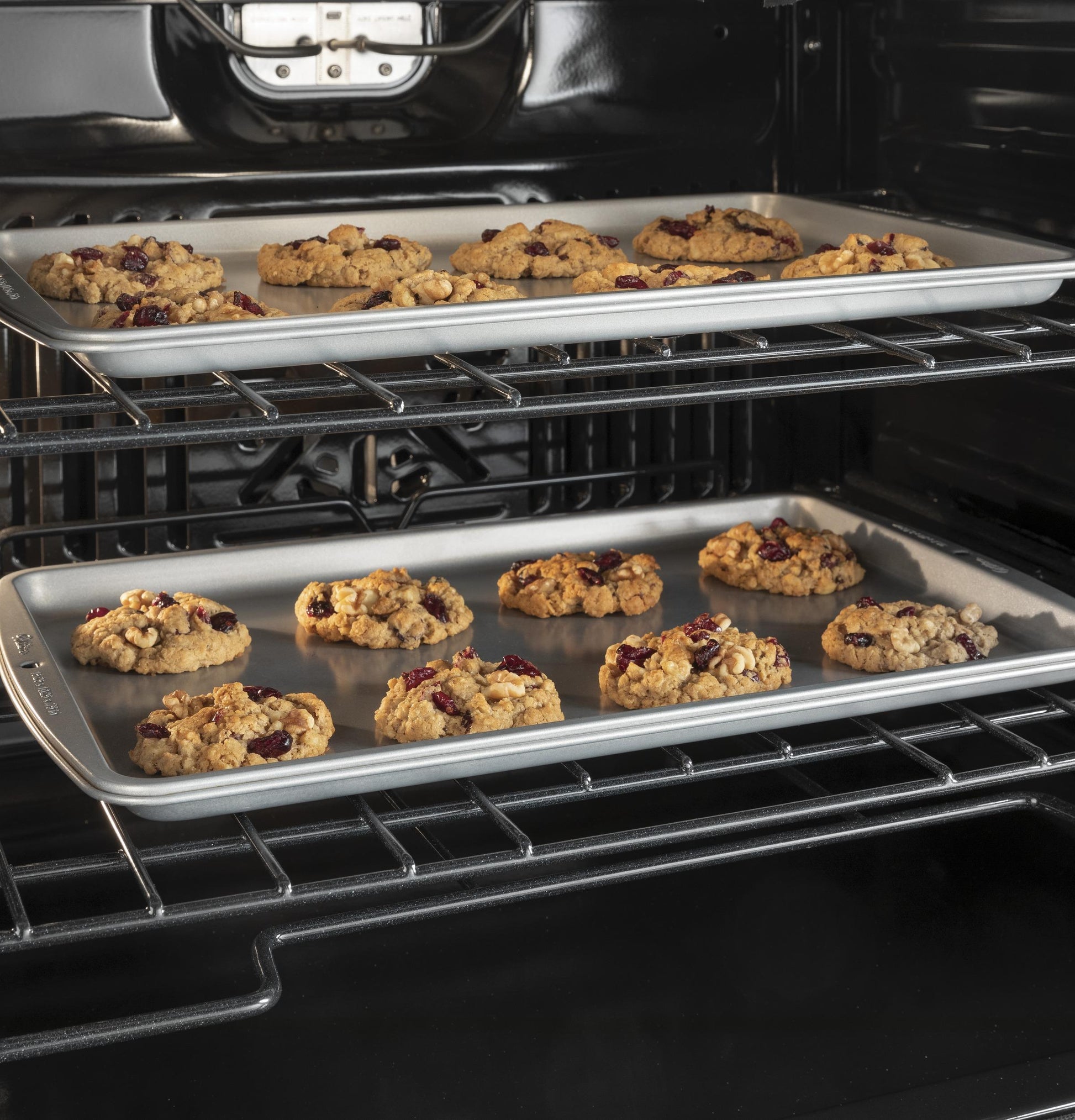

True European Convection
Achieve faster and more even results with a convection fan and third heating element that circulates air for more efficient cooking

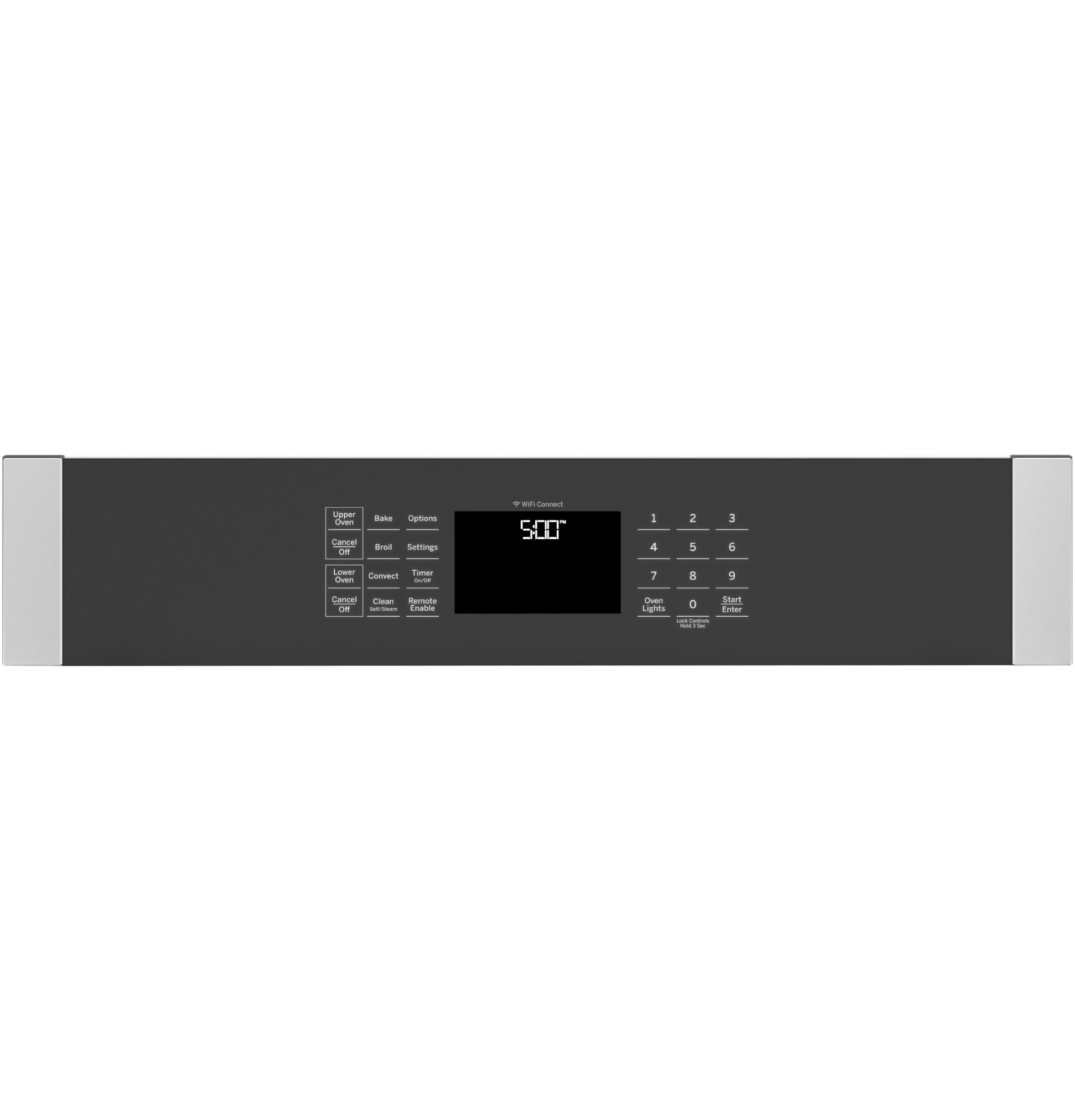

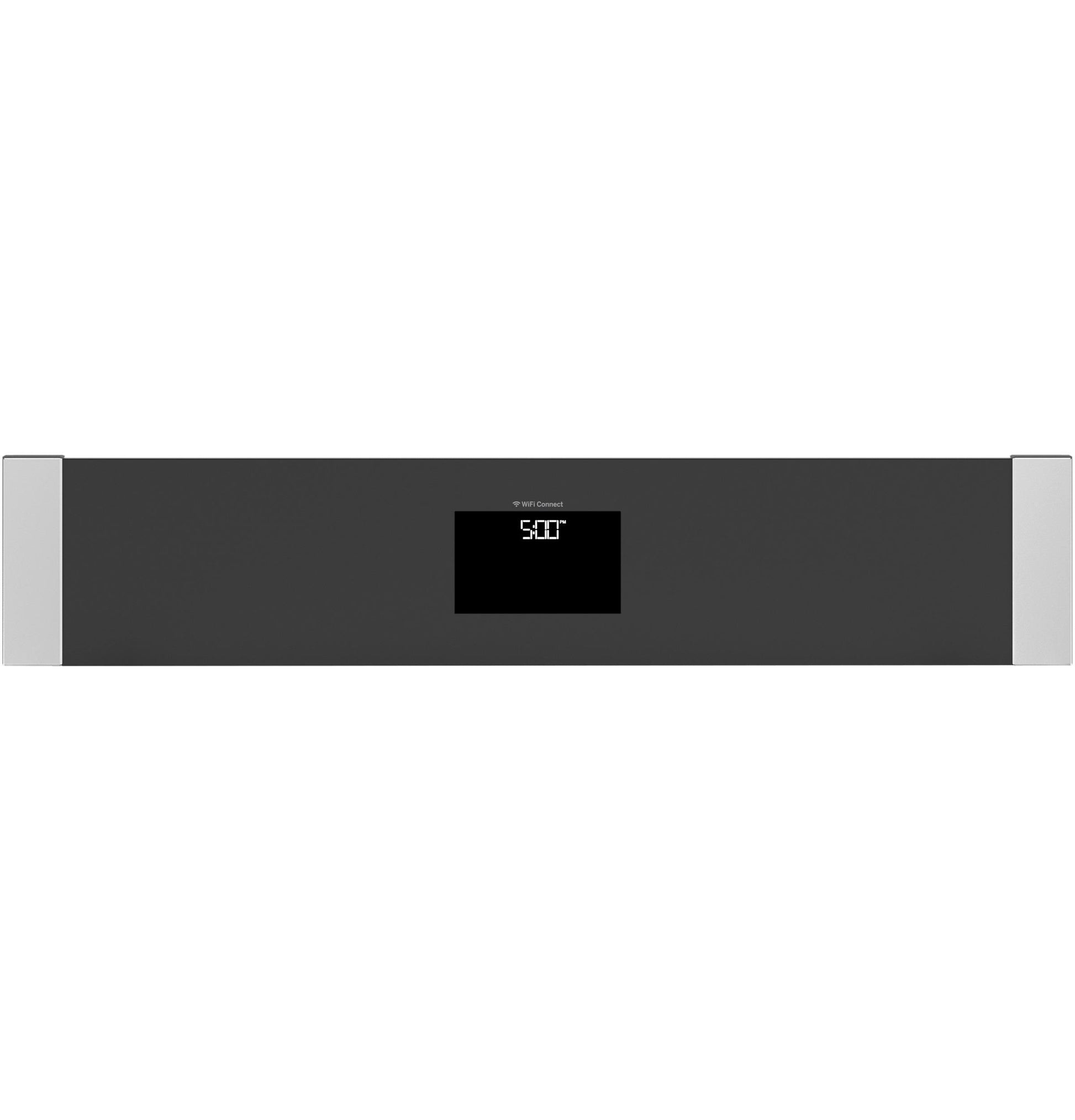

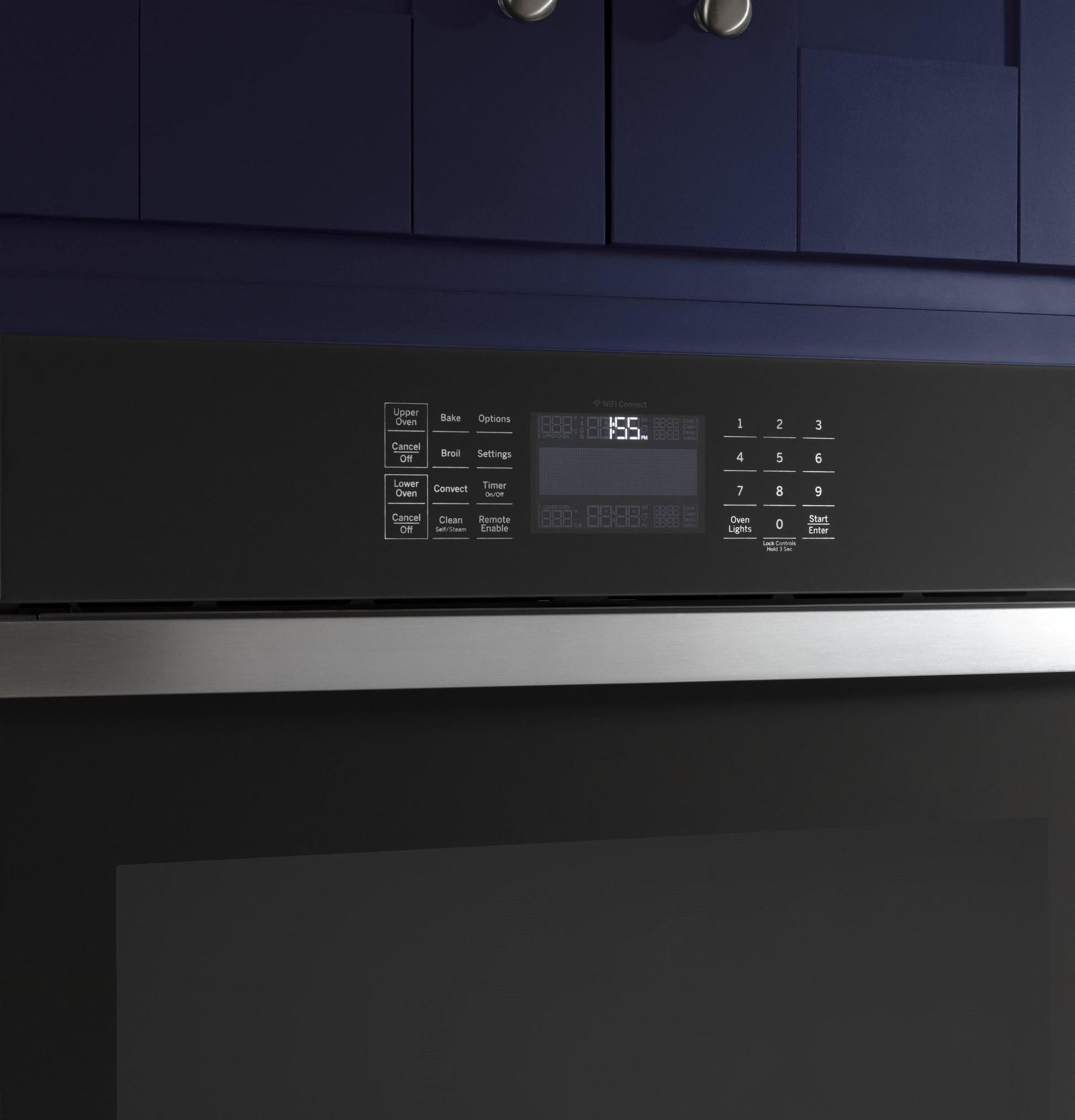

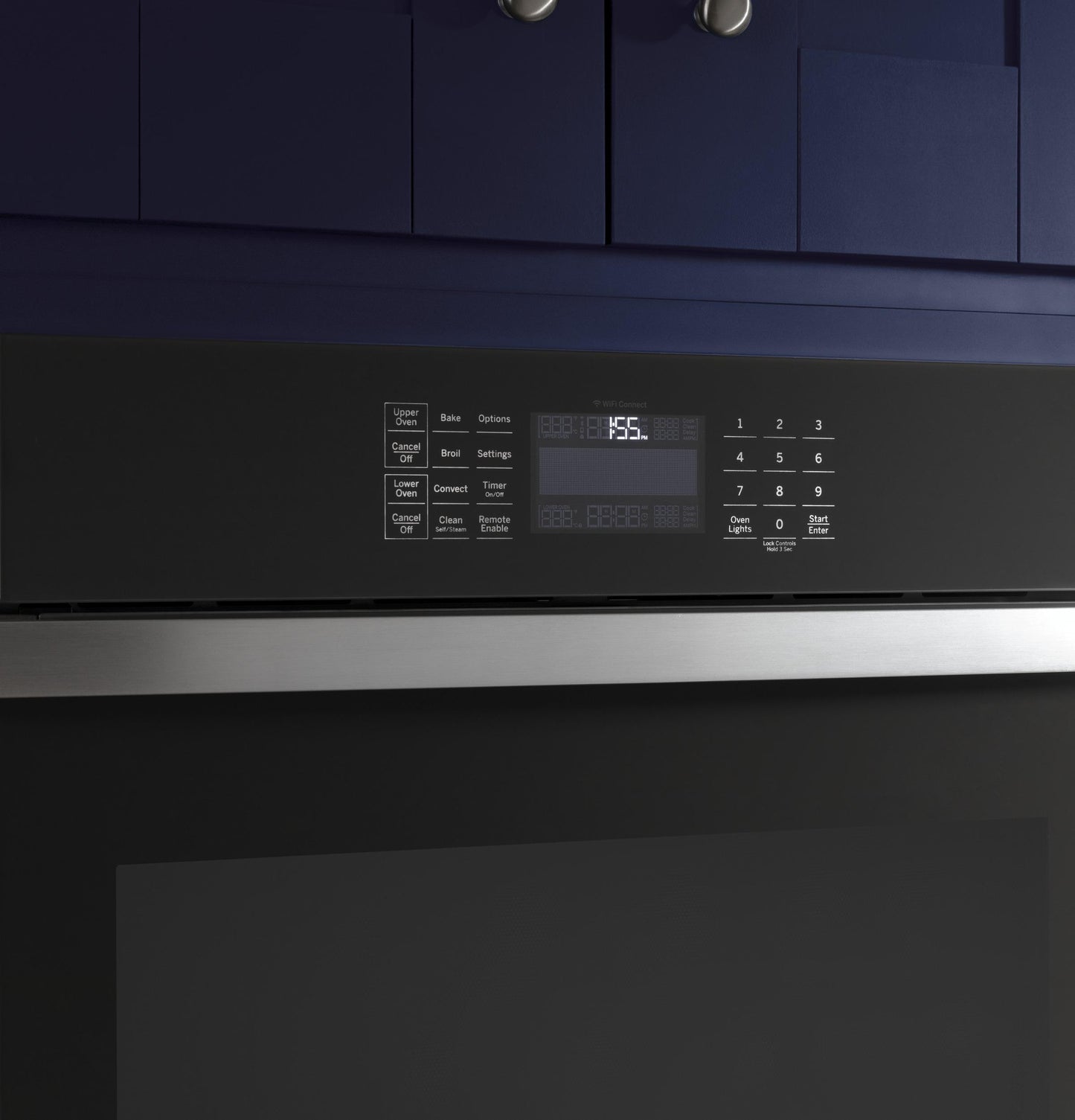

Hidden backlit LCD control
Easy to use display that illuminates controls when you're ready to cook

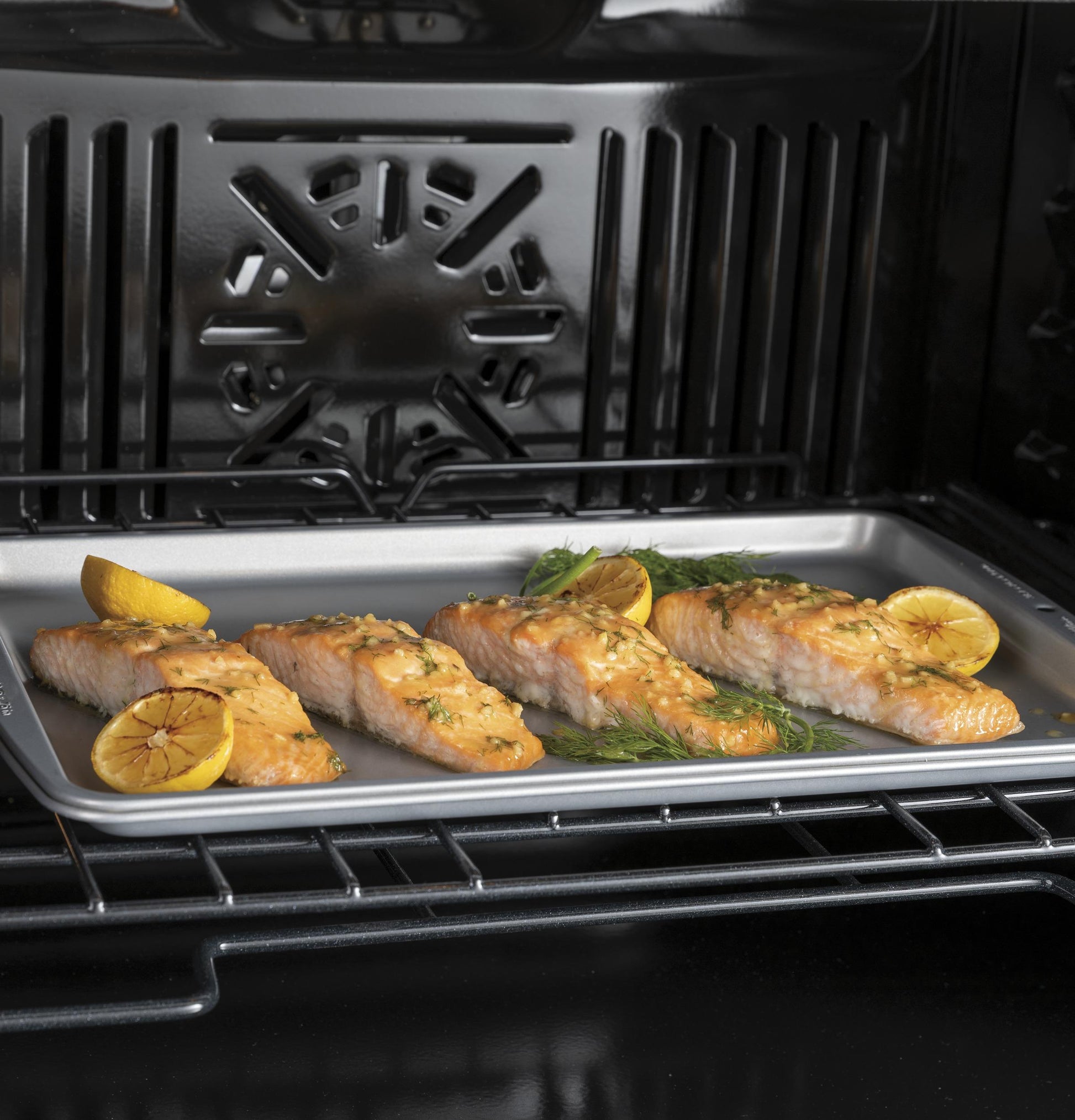

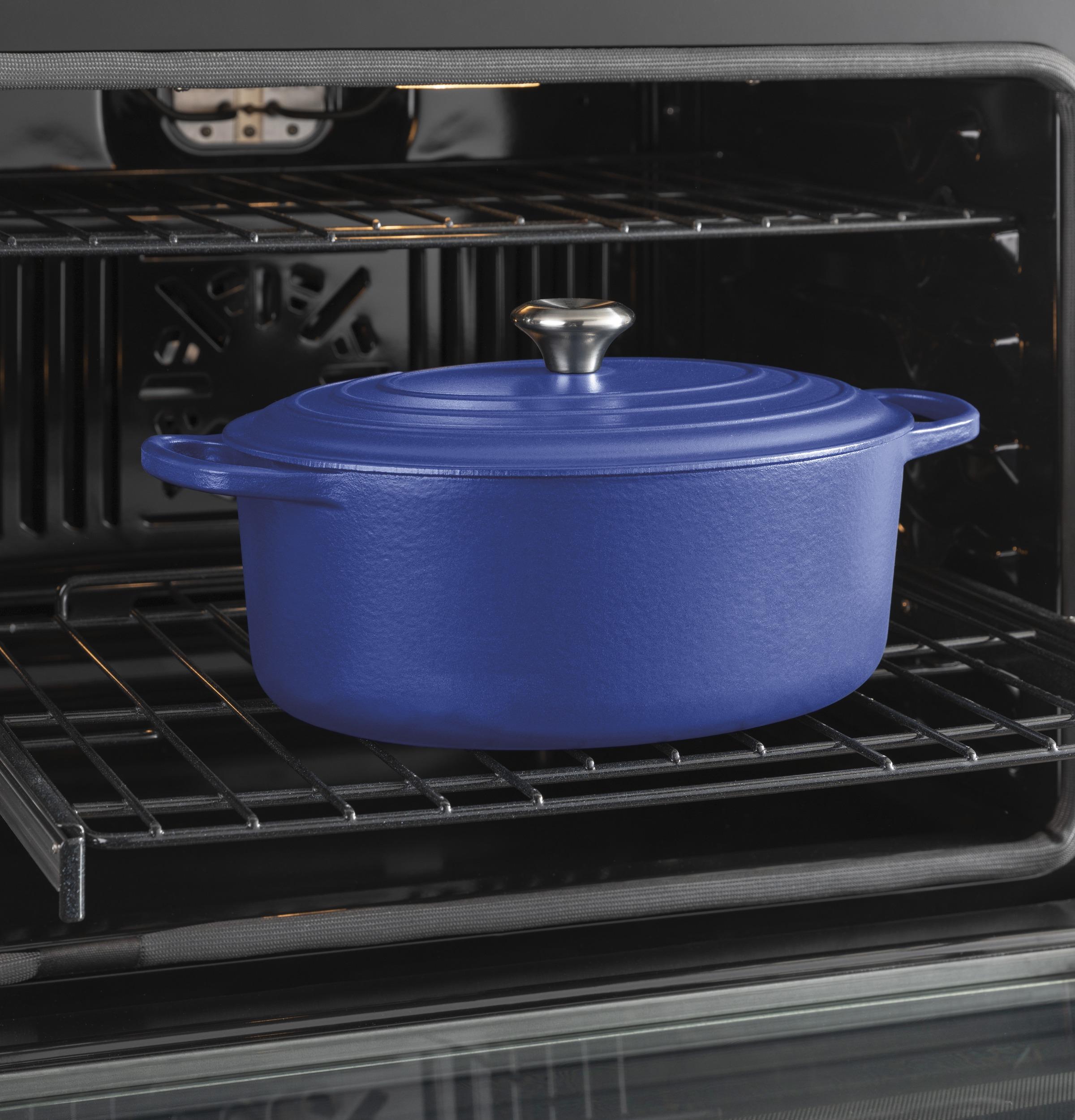

Never-scrub, heavy-duty smooth glide roller racks
Easily remove even the heaviest dishes with a roller rack that's engineered to glide seamlessly out of the oven

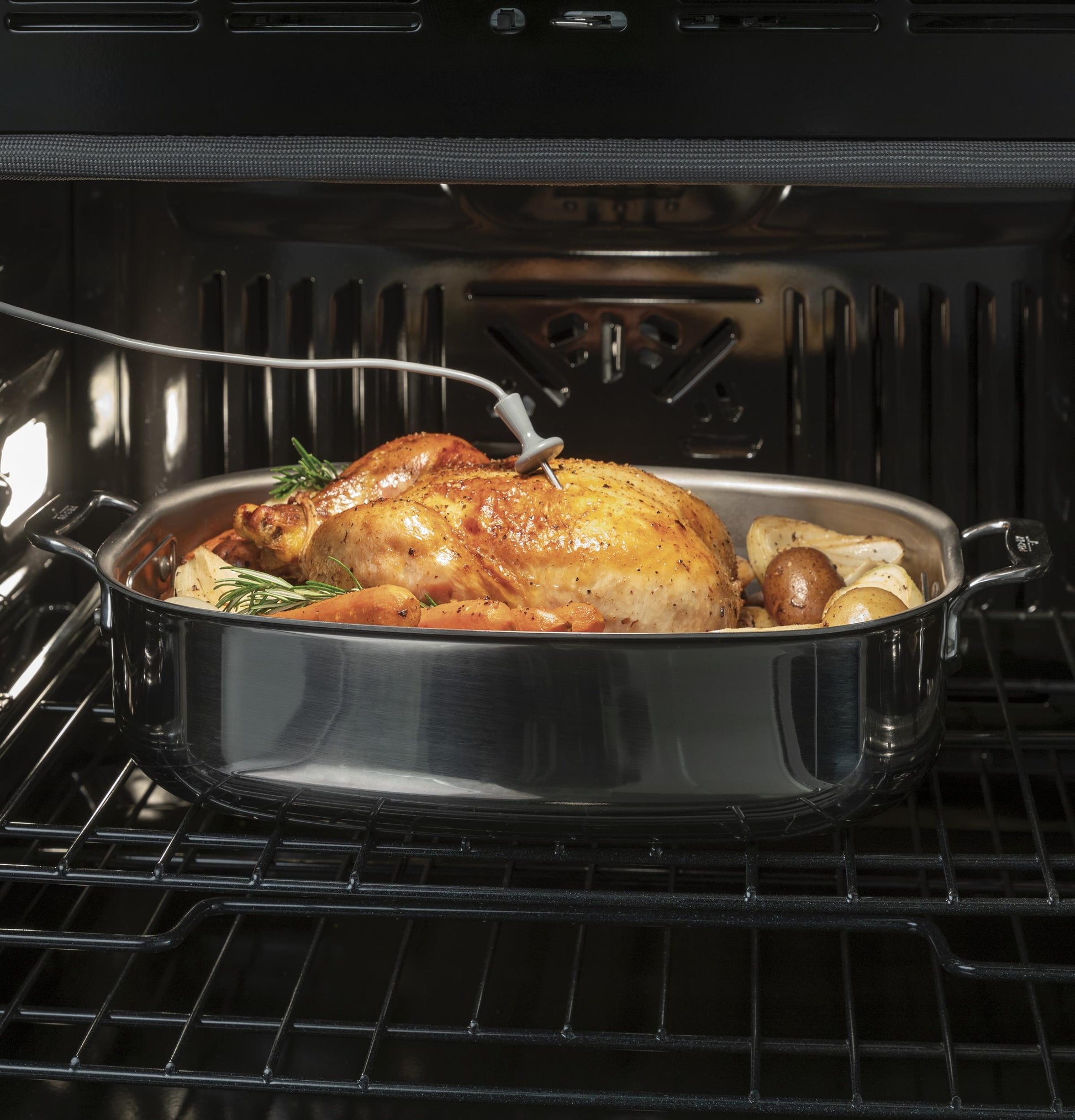

Precision temperature probe
Internal probe allows monitoring of roasts and meats to assure they are thoroughly and accurately cooked without opening the oven door

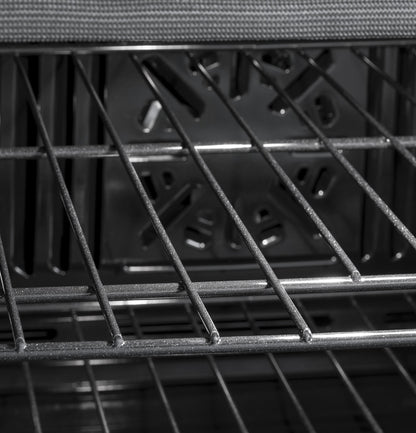

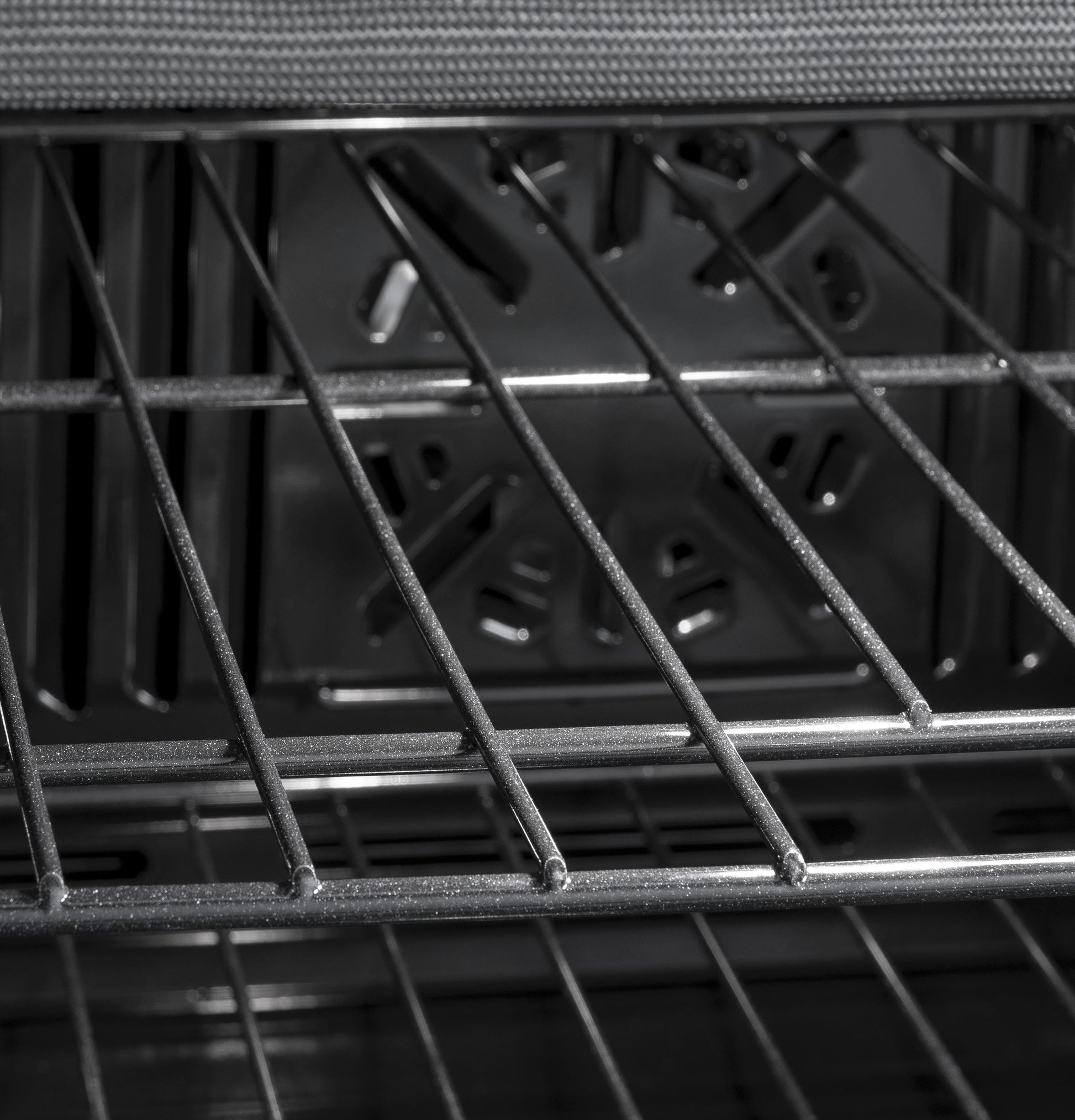

Never scrub, heavy-duty racks
Say goodbye to scrubbing thanks to never scrub heavy-duty racks, engineered to withstand a self clean cycle

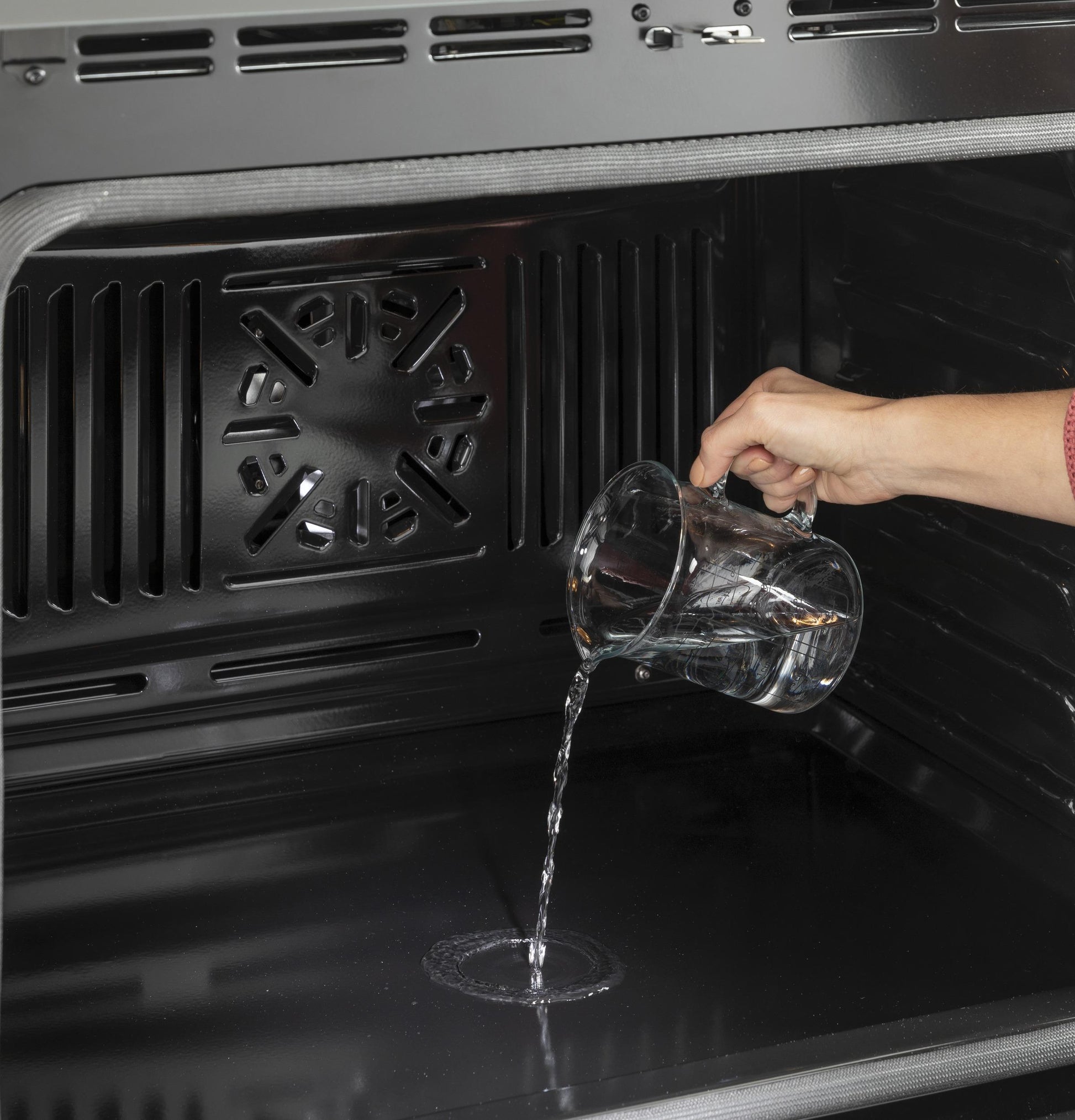

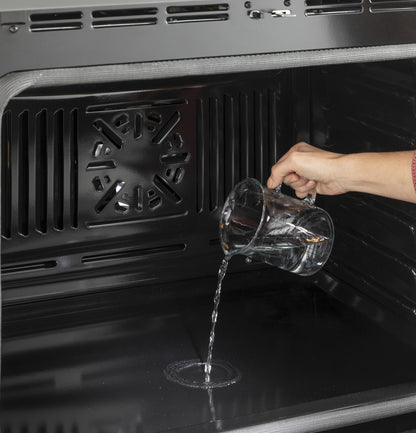

Self-Clean with optional Steam Clean
Cleaning the oven interior has never been easier, with two cleaning options to fit your lifestyle

Anywhere control with remote notifications
Save time by conveniently preheating and monitoring your oven from anywhere using the SmartHQ App

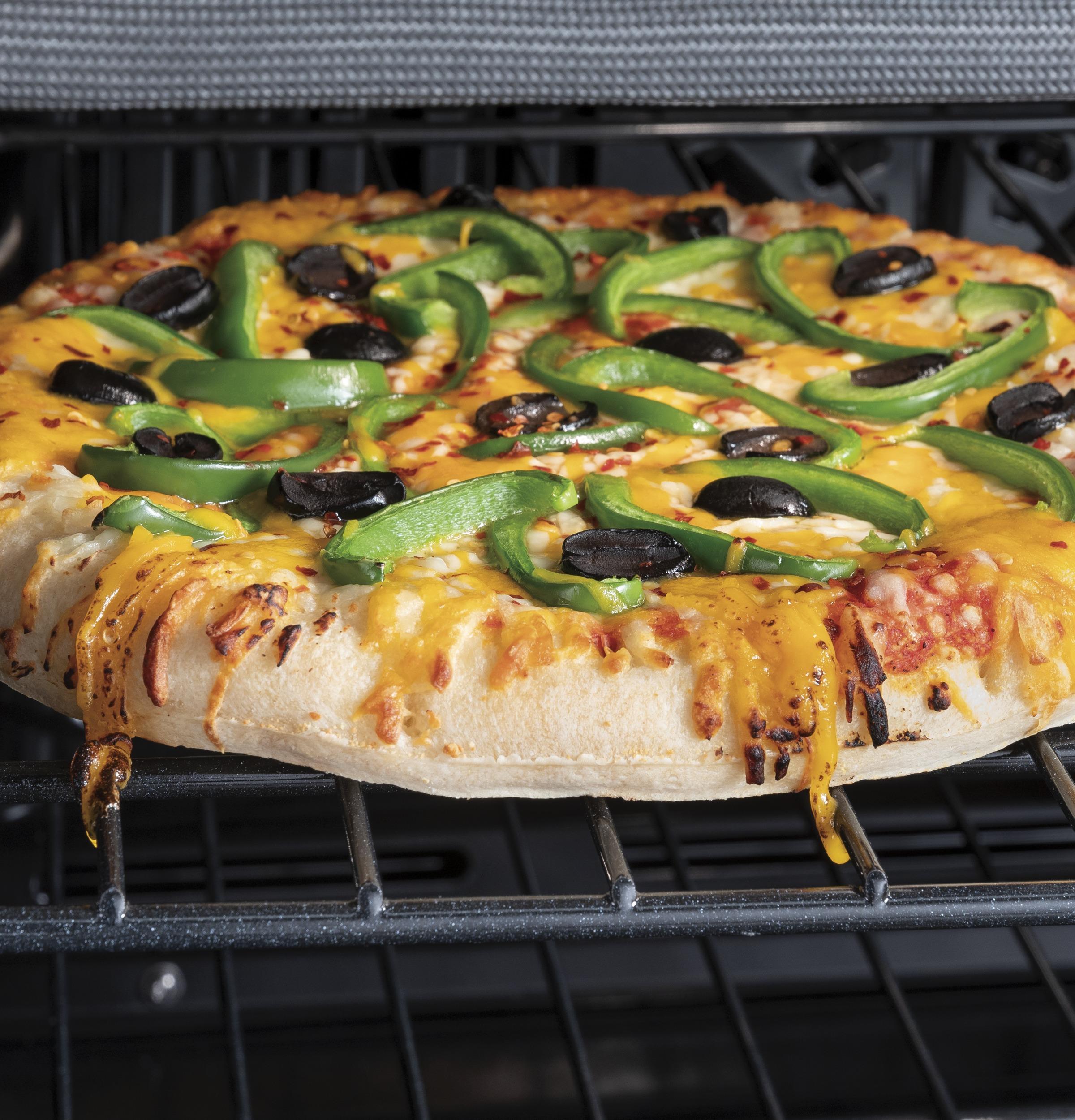

10-pass hidden bake element
Even baking and quick cleanup are assured, with 10-pass element that heats a large cooking area and is hidden for an easy-to-wipe surface

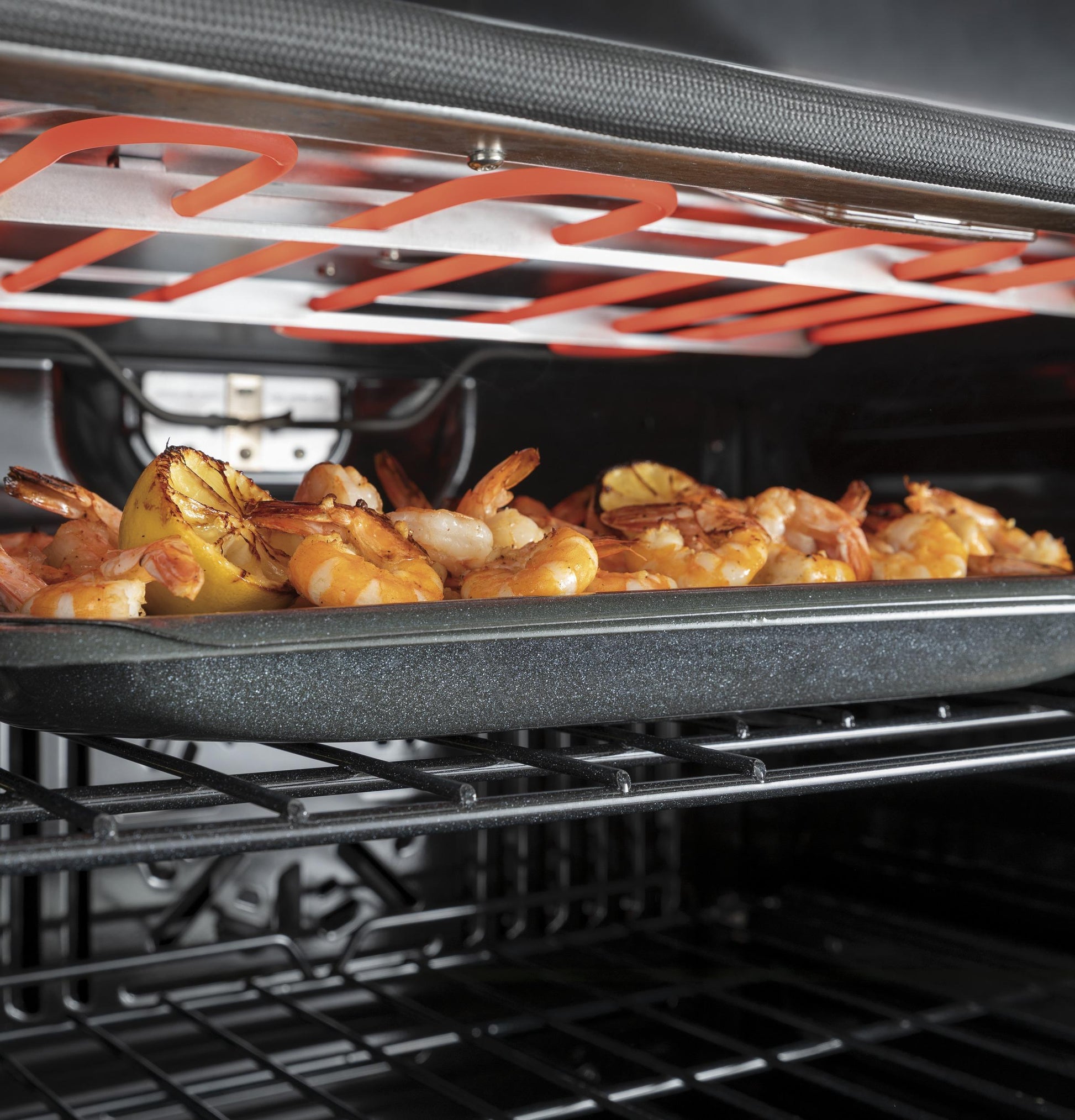

8-pass broil element
Get full broil coverage and even browning from edge to edge

CAPACITY
Total Capacity (cubic feet)	8.6 cu ft
Capacity (Cu. Ft.)	4.3 Upper / 4.3 Lower
FILTER
App Filter - Product Type	Wall Oven Double
App Filter - Convection	Yes
App Filter - Cleaning Type	Steam and Self-Clean
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Convection Traditional
App Filter - Control Type	Electronic touchpad
App Filter - WiFi Connect	Built-In
App Filter - Cabinet Width	Cooking 27 in.
APPEARANCE
Oven Door Features	Big View Oven Window
Handle Color	Brushed Stainless
Color Appearance	Stainless Steel
Installation	Above Warming Drawer Side-by-Side
Handle	Designer Style
POWER / RATINGS
Bake Wattage	2600W
Convection Wattage	2400W
KW Rating at 240V	7.2
Amp Rating at 208V	30
Broiler Wattage	3400W
Amp Rating at 240V	30
KW Rating at 208V	5.4
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ACCESSORIES
Optional Accessories	UXWORXR27 - 27" Never Scrub Roller Rack
WEIGHTS & DIMENSIONS
Overall Depth	26.625 in
Cabinet Width	27 in
Net Weight	220 lb
Oven Interior Dimensions (upper)	21-1/2 x 17-1/4 x 20
Overall Width	26.75 in
Cutout Dimensions (w x h x d) (in.)	25-1/4 x 50-1/8 x 23-1/2
Oven Interior Dimensions (lower)	21-1/2 x 17-1/4 x 20
Approximate Shipping Weight	241 lb
Overall Height	51.125 in
FEATURES
WiFi Connect	Built-In
Oven Cooking Modes	Convection Bake Convection Bake Multi-Rack Convection Roast Thermal Bake Thermal Broil Hi/Lo
Fuel Type	Electric
Product Type	Double Oven
Oven Interior	2 Halogen Interior Oven Lights (Both Ovens) Black Gloss Finish Hidden Bake
Cooking Technology	Convection Upper; Traditional Lower
Oven Features	10-Pass Bake Element 8-Pass Broil Element Closed Door Broiling
Cleaning Time	Variable with Delay Clean Option
Configuration	Double Oven
Oven Rack Positions (Single or Upper/Lower)	6 / 6
Oven Control Features	12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Temperature Probe Warm Mode
Sabbath Mode	Yes
Oven Rack Features	1 Self-Clean Roller Rack 3 Self-Clean Heavy-Duty Flat Oven Racks Embossed Rack Positions (Both Ovens)
Self-Clean Oven Door Lock	Automatic
Cooking System	Traditional (Lower) True European Convection (Upper)
Control Type	Backlit Electronic Glass Touch Controls White LCD Display
Connected Capabilities	Amazon Alexa Fresco IFTTT Innit Sonos The Google Assistant
OU Certified	No
Oven Cleaning Type	Self-Clean with Steam Clean Option
