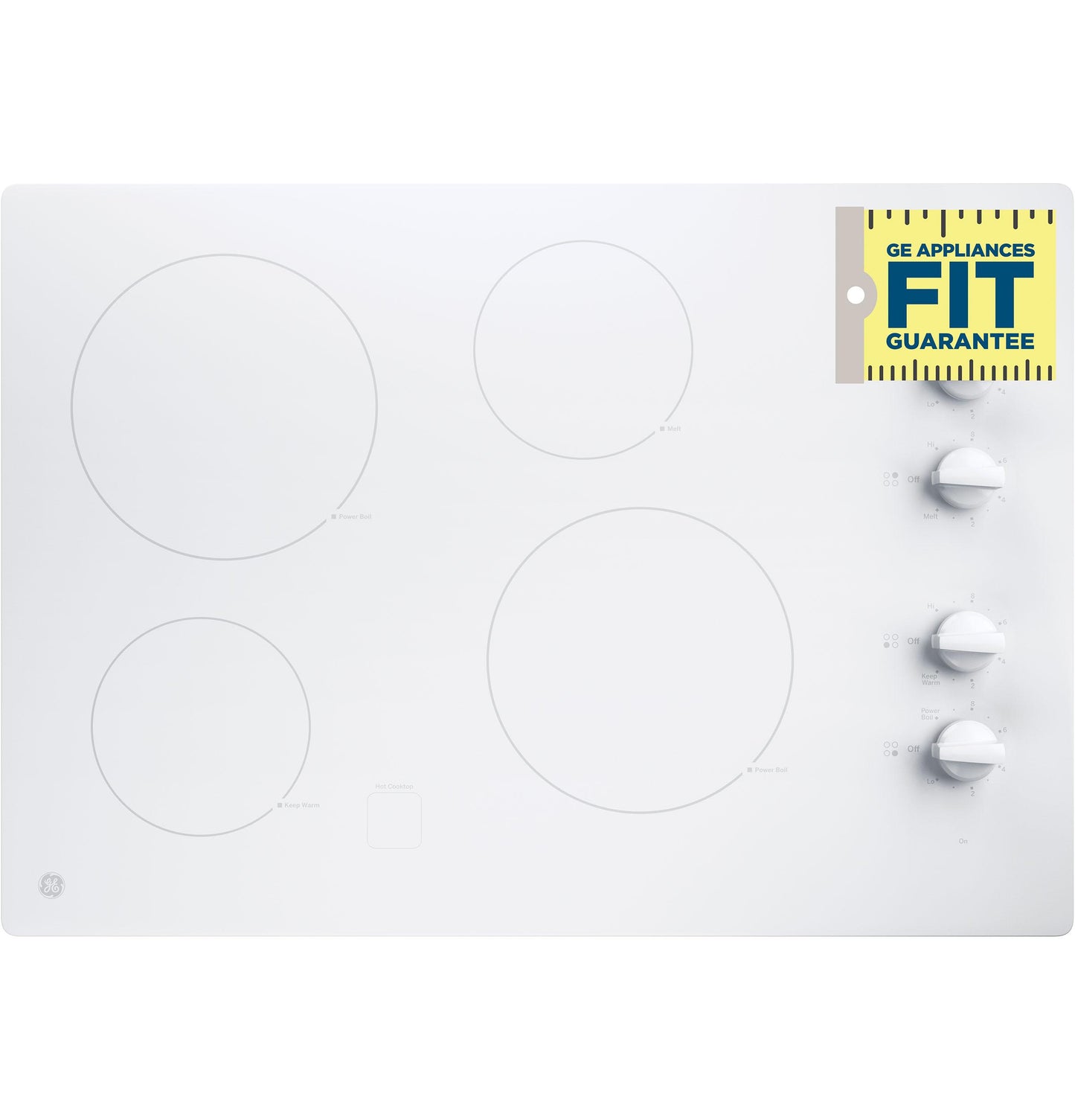

GE® 30" Built-In Knob Control Electric Cooktop JP3030TJWW

Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface

Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements

Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting

Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

Cooktop "On" indicator light
A light lets you know when an element is active

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Cooktop Type	Radiant Smoothtop
App Filter - Fuel Type	Electric
App Filter - Control Type	Rotary knobs
APPEARANCE
Color Appearance	True White
Frameless	Yes
Control Knobs	Color-Matched Gloss White
POWER / RATINGS
Recommended Circuit Breaker (Amps) at 240V	40
Max. Connected Load (kW) at 240V	7.4
Max. Current Draw (Amps) at 240V	30.8
Max. Connected Load (kW) at 208V	5.6
Recommended Circuit Breaker (Amps) at 208V	30
Max. Current Draw (Amps) at 208V	26.7
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Cooktop Size	30 in
Overall Height	4 in
Cutout Depth (in)	19-5/8
Cabinet Width	30 in
Approximate Shipping Weight	43 lb
Overall Width	29.75 in
Net Weight	37 lb
Cutout Width (in)	28-1/2
Overall Depth	20.875 in
FEATURES
Dishwasher Safe Knobs	Yes
Filler trim kit	JXTR32W
Cooktop Burner Type	4 Ribbon Smoothtop
Melt Setting	Yes
Fuel Type	Electric
Element - Left Front	6" 1200W
Indicator Lights	4 Hot Surface Red Surface Element "ON"
Element - Right Front	8" 2500W Power Boil
Control Location	Right Side
Cooktop Type	Radiant Smoothtop
Cooktop Surface	True White Ceramic Glass
Cooktop Control Features	Keep-Warm Setting Melt Setting
Element - Left Rear	8" 2500W Power Boil
Control Type	Knob (Infinite switch)
Element - Right Rear	6" 1200W
