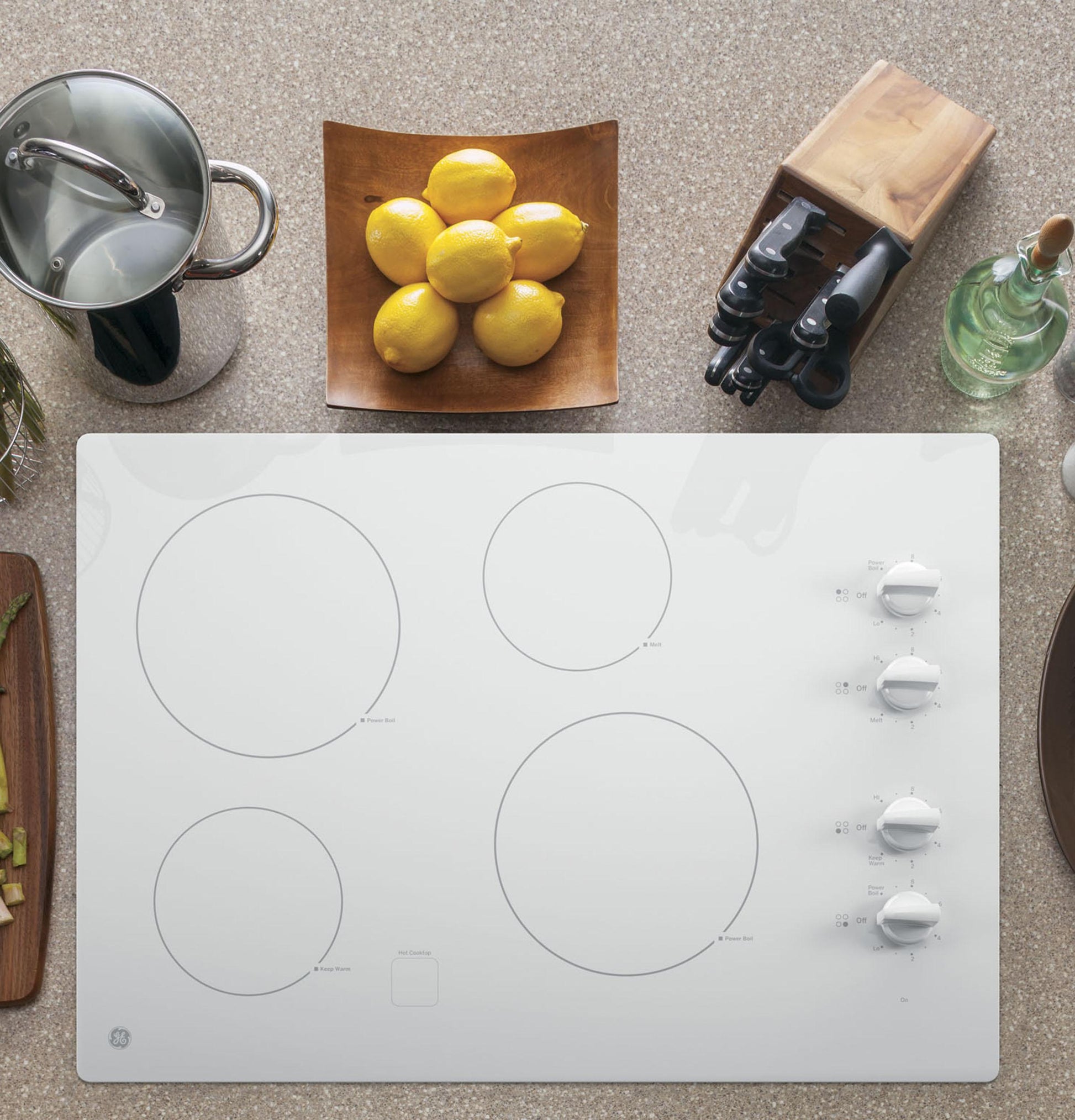

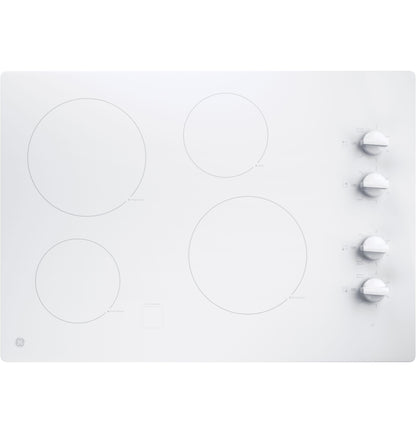

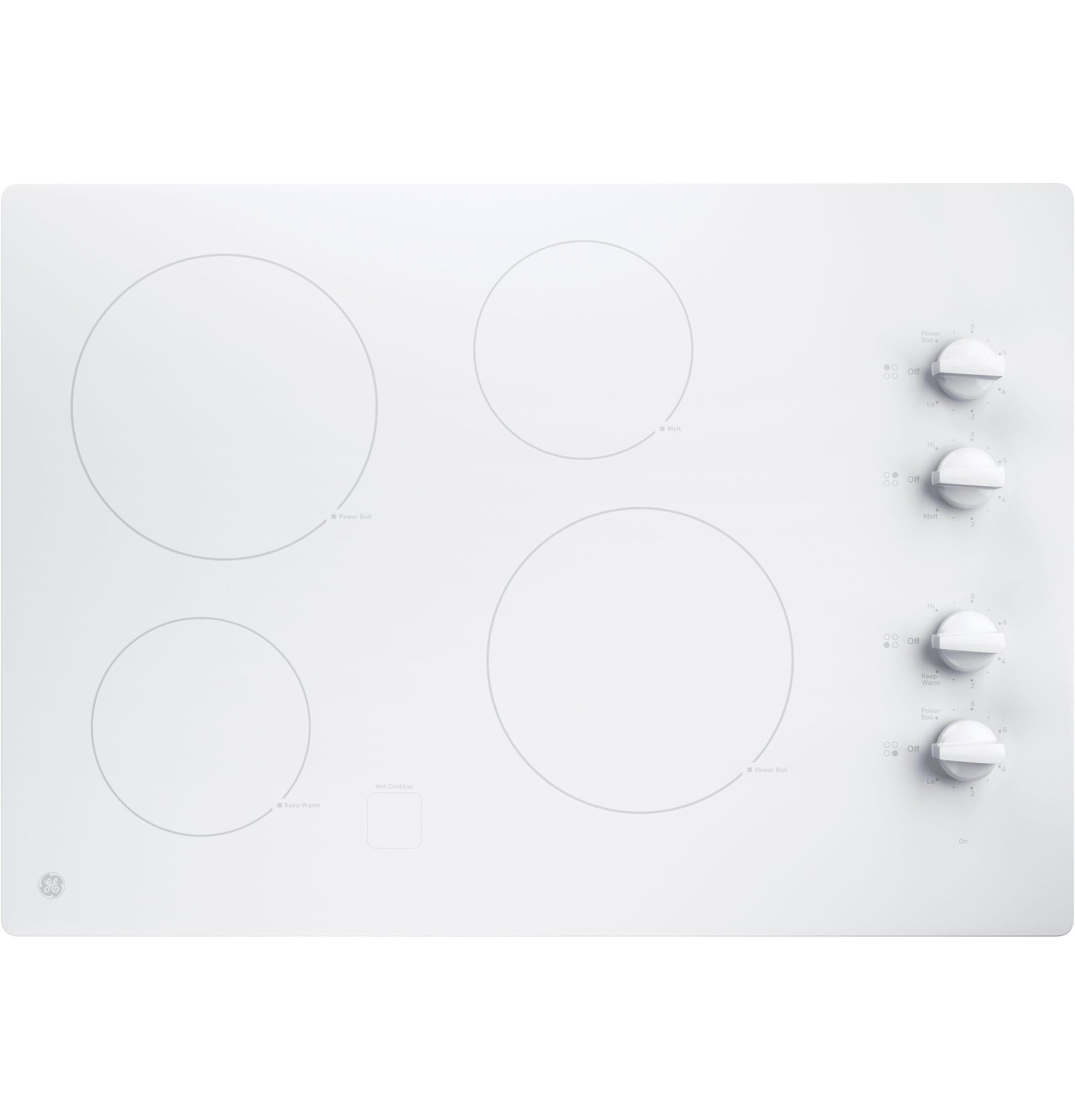

GE® 30" Built-In Knob Control Electric Cooktop JP3030TWWW
Authorized Reseller
GE® 30" Built-In Knob Control Electric Cooktop JP3030TWWW
D&S April Sale Price: $629.10
Product Details
- Four radiant cooking elements
- Power Boil Elements
- Keep Warm Setting
- Melt Setting

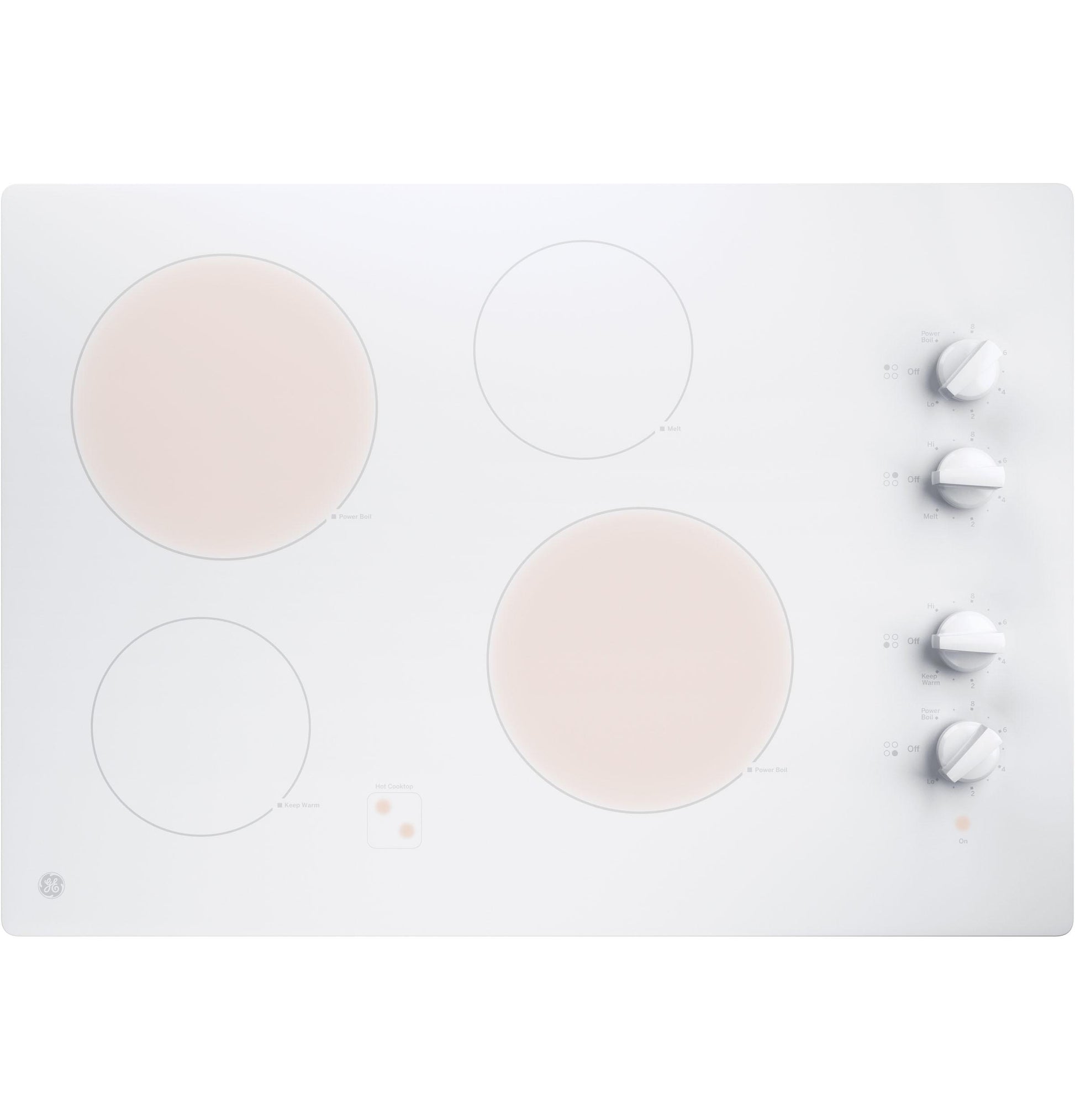

- Hot surface indicator lights
- Cooktop "On" indicator light
- Fit Guarantee
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active

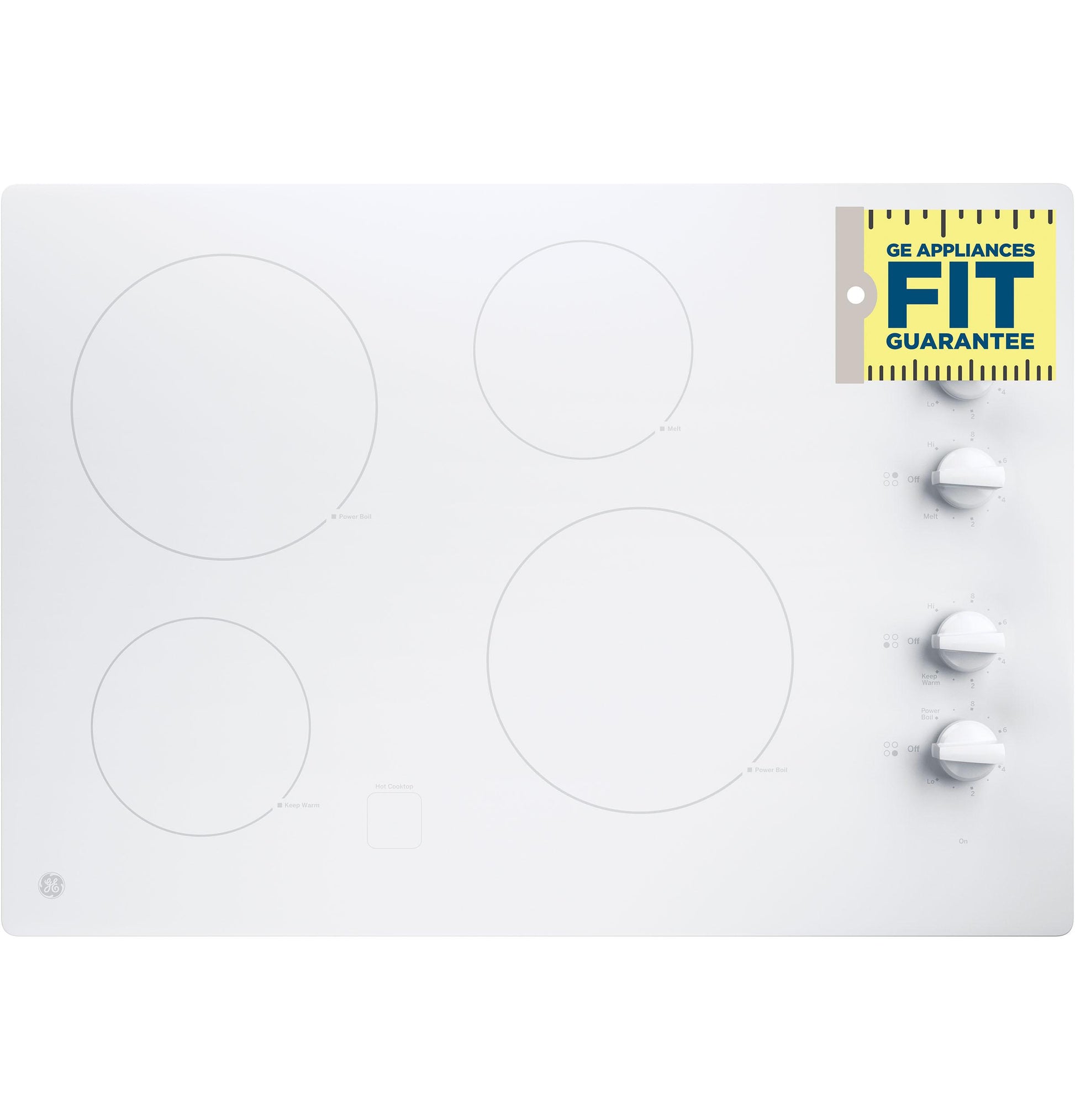

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
| APPEARANCE | |
| Color Appearance | White |
| Frameless | Yes |
| Control Knobs | Gloss White |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.4 |
| Max. Current Draw (Amps) at 240V | 30.8 |
| Max. Connected Load (kW) at 208V | 5.6 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 26.7 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 30 in |
| Overall Height | 4 in |

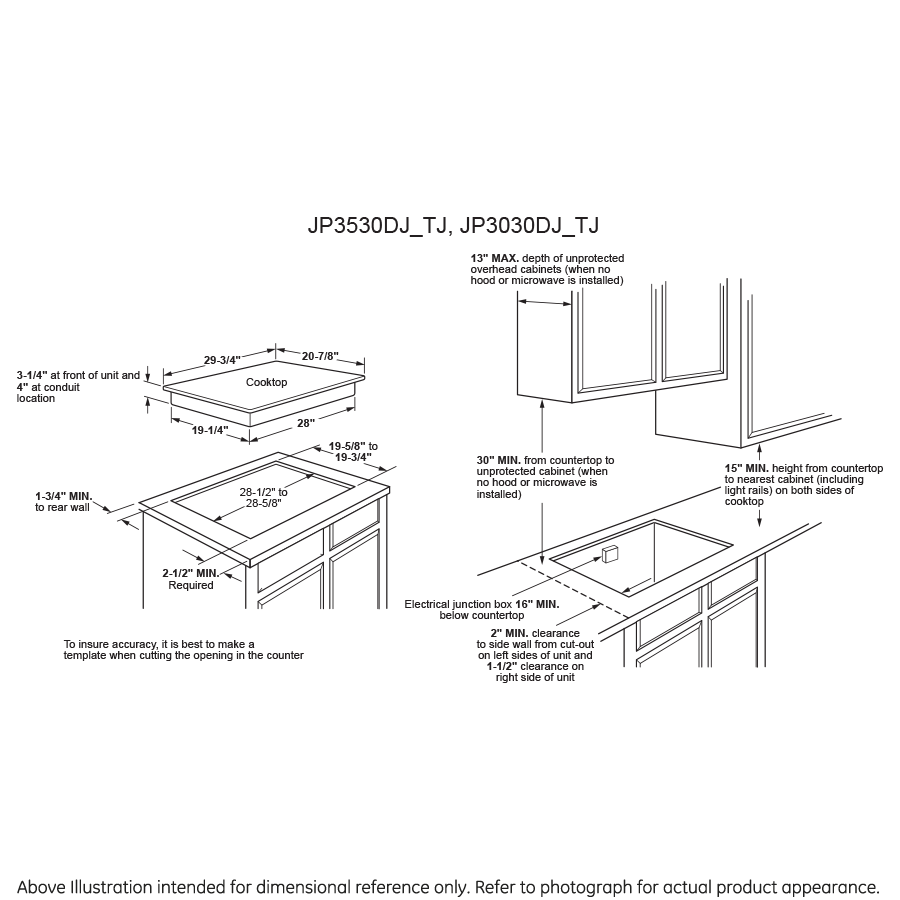

| Cutout Depth (in) | 19-5/8 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Overall Width | 29.75 in |
| Net Weight | 37 lb |
| Cutout Width (in) | 28-1/2 |
| Overall Depth | 20.875 in |
| FEATURES | |
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32W |
| Cooktop Burner Type | 4 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 6" 1200W |
| Indicator Lights | 4 Hot Surface Red Surface Element "ON" |
| Element - Right Front | 8" 2500W Power Boil |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | True White Ceramic Glass |
| Cooktop Control Features | Keep-Warm Setting Melt Setting |
| Element - Left Rear | 8" 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6" 1200W |
