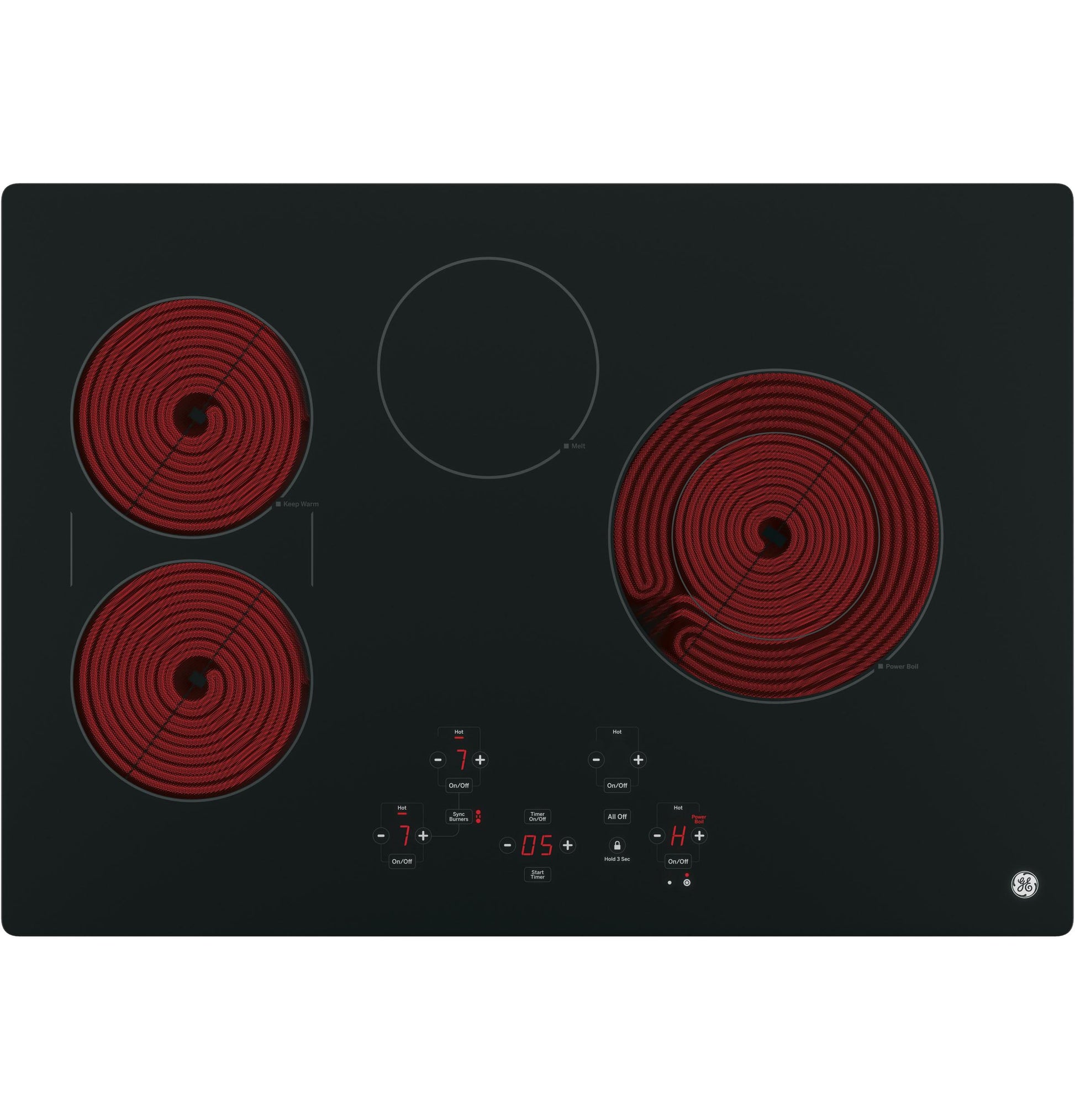

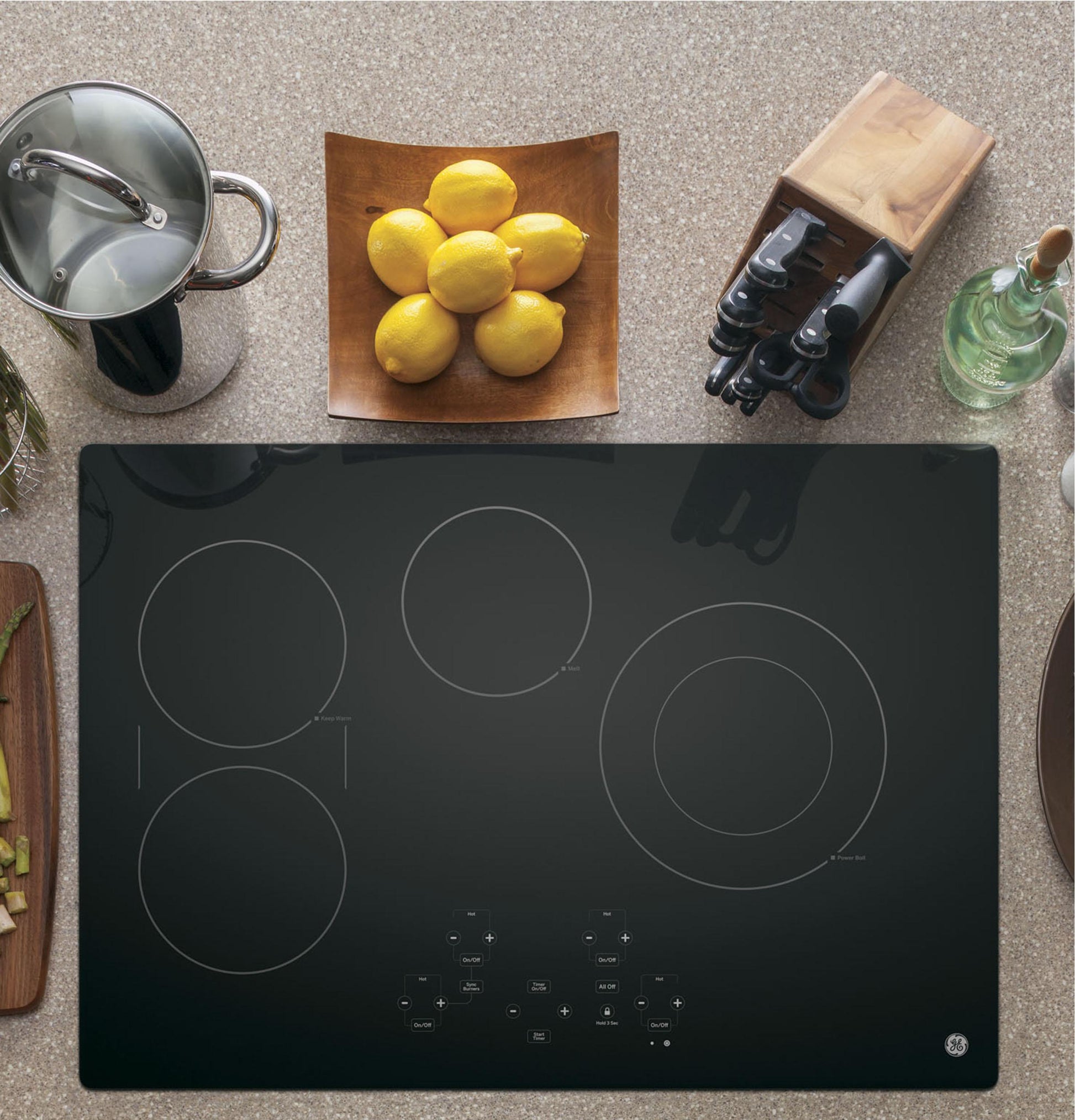

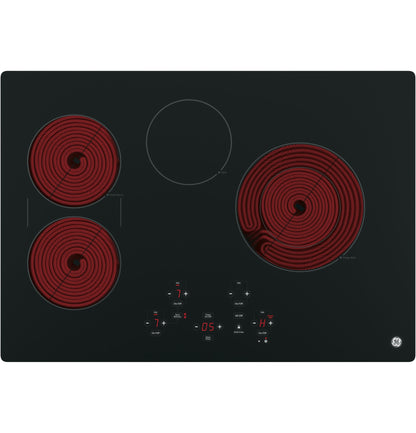

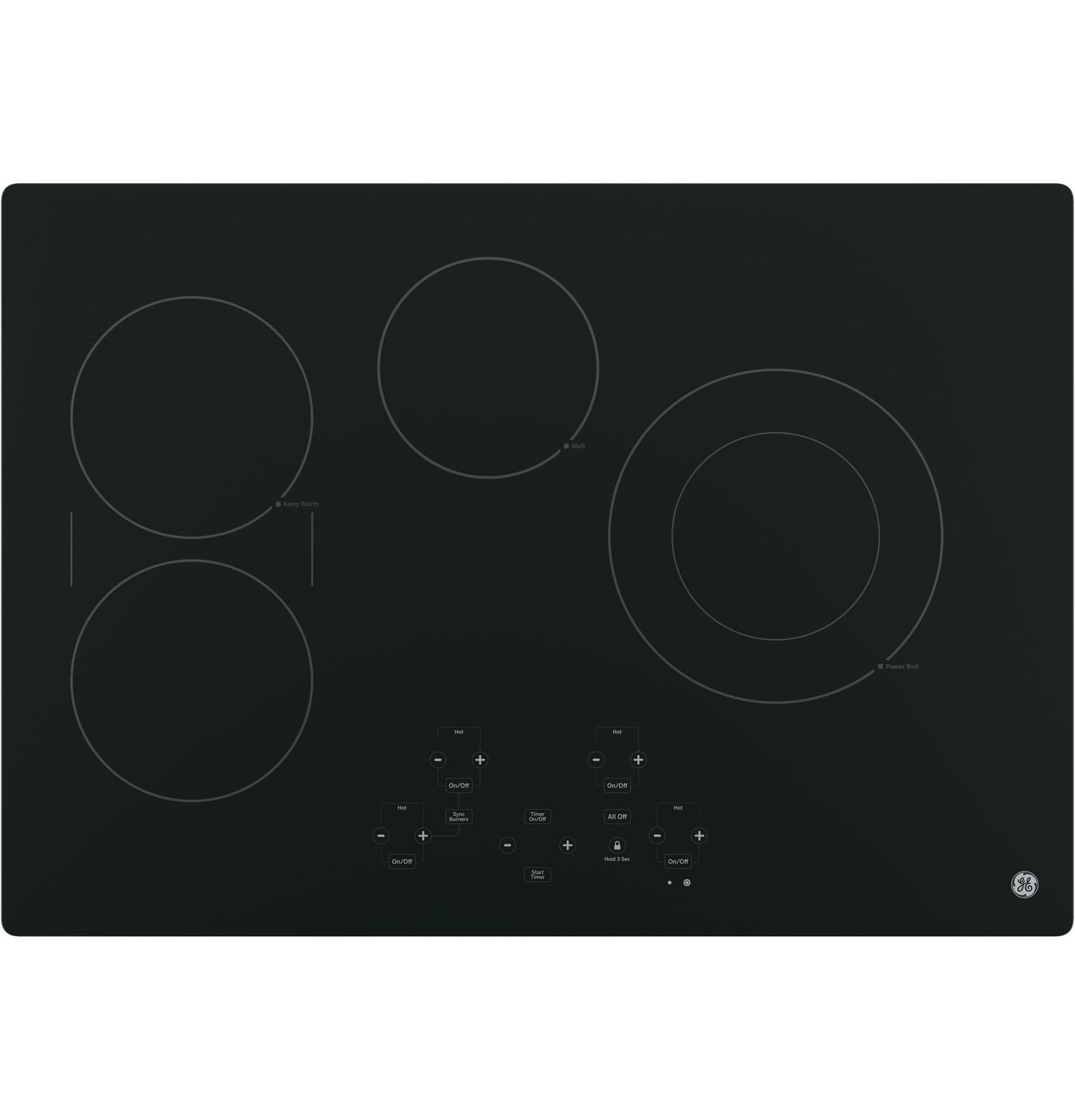

GE® 30" Built-In Touch Control Electric Cooktop JP5030DJBB
Discontinued
Product Details
- Four radiant cooking elements
- Digital Touch Controls
- Power Boil Dual-Ring Element
- SyncBurners
- Kitchen timer
- Keep Warm Setting
- Melt Setting
- Control lock capability
- Red LED with Black Glass Surface
- Hot surface indicator lights
- Fit Guarantee
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Digital Touch Controls
Accurately control your heating on a surface that's easy to clean
Power Boil Dual-Ring Element
Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling
SyncBurners
Evenly heat large cookware (griddles) with two 7" synchronized elements you can control with the touch of a button
Kitchen timer
Helps coordinate meal preparation and cooking
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Red LED with Black Glass Surface
Achieve a modern look that complements the entire kitchen
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

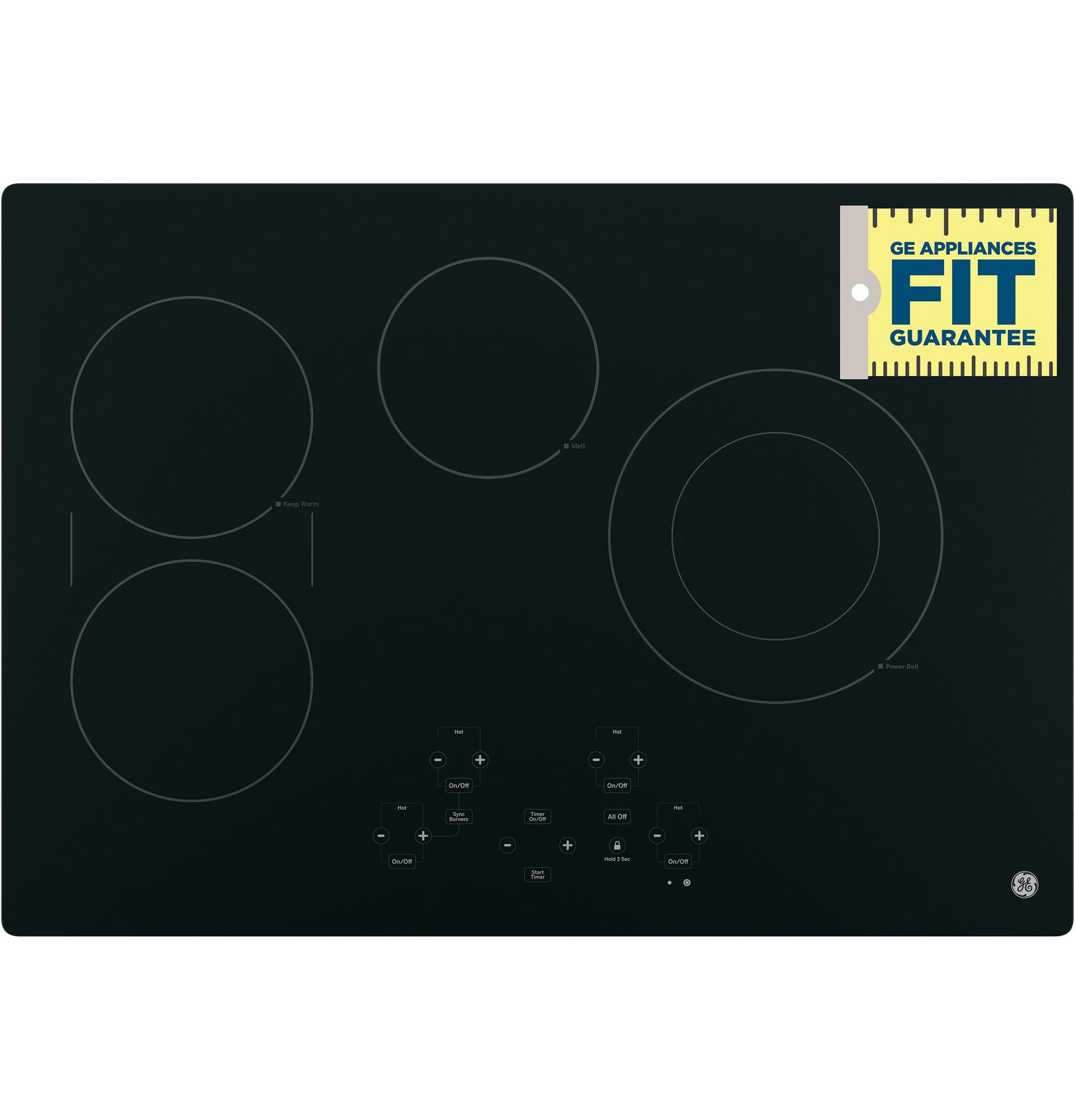

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
| FILTER | |
| App Filter - SyncBurners | Yes |
| App Filter - Control Type | Digital touch |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Fuel Type | Electric |
| APPEARANCE | |
| Frame Color / Material | Stainless Steel |
| Frameless | Yes |
| Color Appearance | Black on Black |
| POWER / RATINGS | |
| Max. Current Draw (Amps) at 208V | 26.4 |
| Max. Current Draw (Amps) at 240V | 30.4 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Connected Load (kW) at 240V | 7.3 |
| Max. Connected Load (kW) at 208V | 5.5 |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 38.0 |
| Cooktop Size | 30.0 |
| Overall Depth | 20.875 |
| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
| Overall Width | 29.75 |
| Overall Height | 5.5625 |
| Approximate Shipping Weight | 44.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Cooktop Burner Type | 4 Ribbon Smoothtop |
| Filler trim kit | JXTR32B (not included) |
| Cooktop Control Features | All-Off Control Control Lock Capability Keep-Warm Setting Kitchen timer Melt Setting Sync-Burners Capability |
| Element - Left Front | 7" 1500W |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Cooktop Surface | Black Ceramic Glass |
| Indicator Lights | 4 Hot Surface Red Setting Level Indicators Surface Element "ON" |
| Control Type | Electronic Touch |
| Element - Right Front | 9"/6" 3100W Power Boil |
| Cooktop Type | Radiant Smoothtop |
| Control Location | Front Center |
| Element - Right Rear | 6" 1200W |
| Timer | Yes |
| Element - Left Rear | 7" 1500W |
