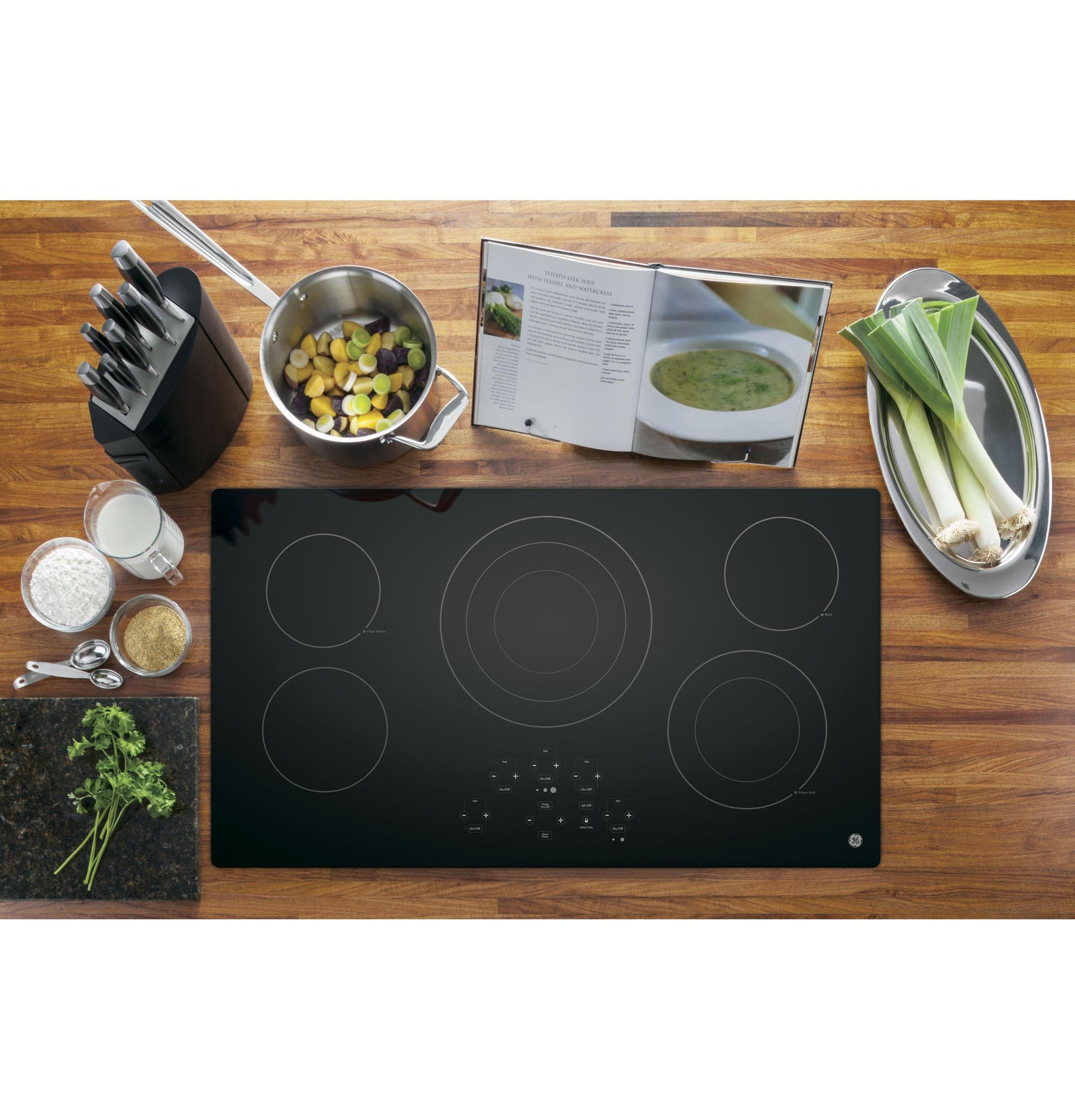

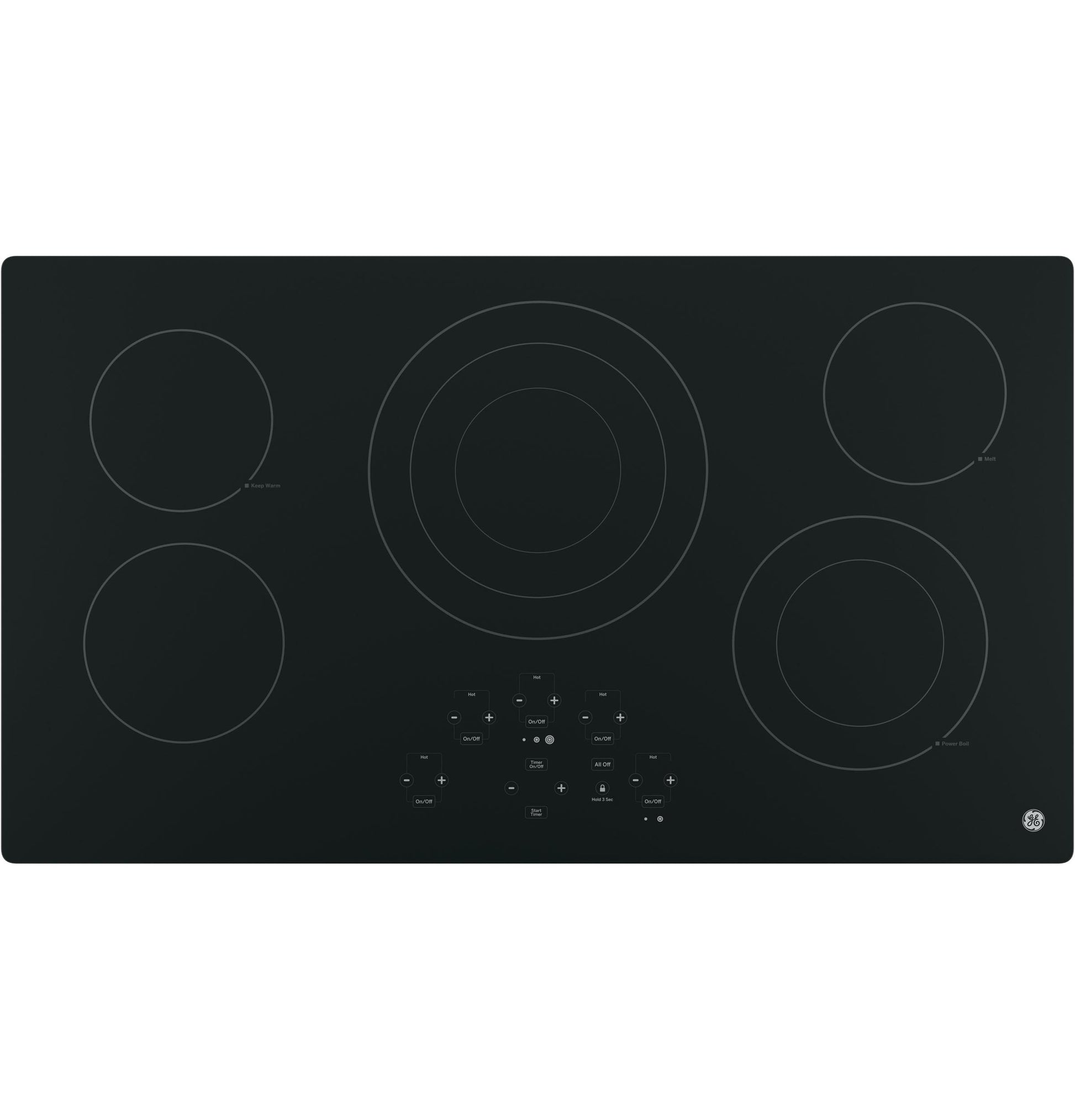

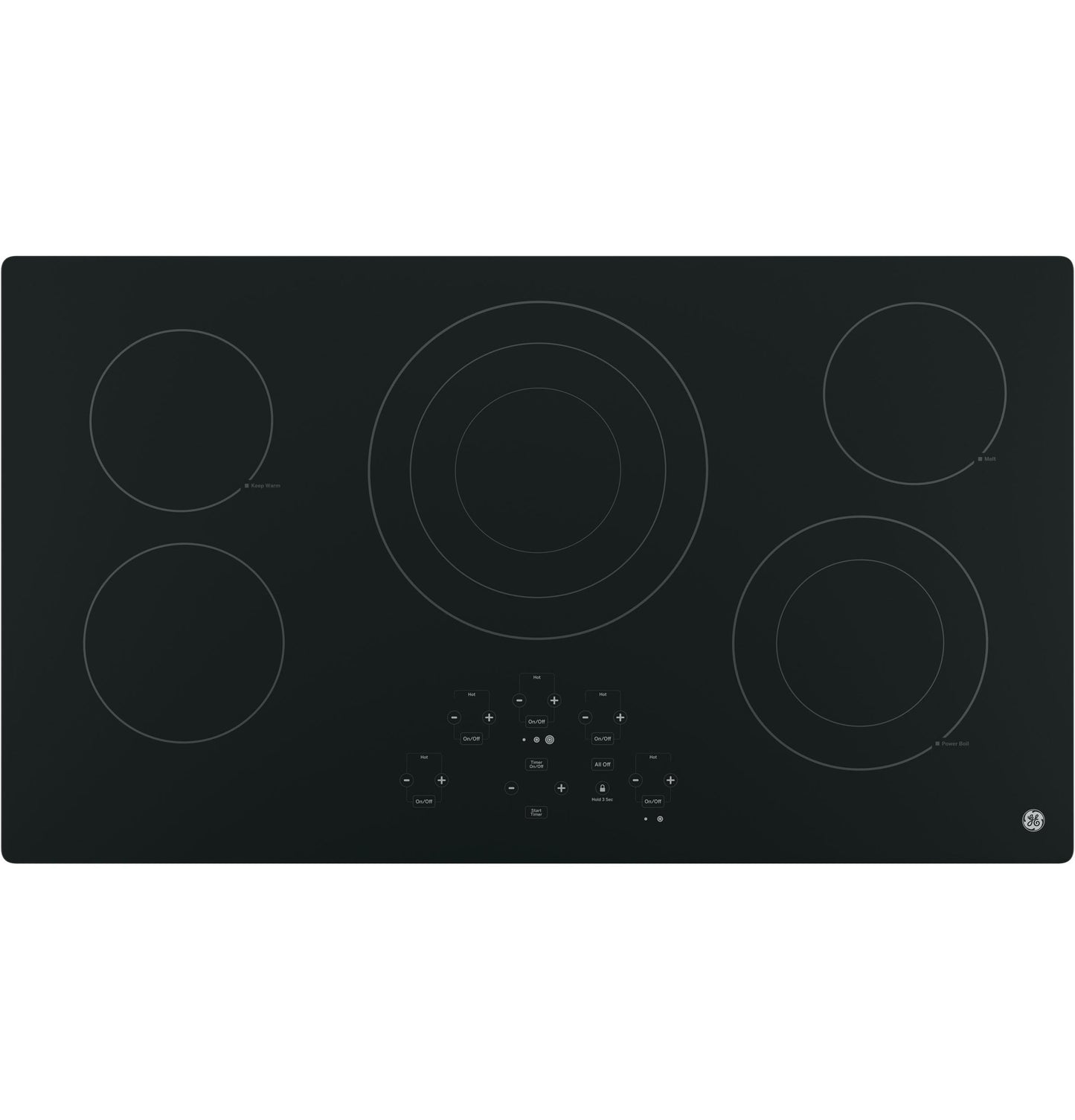

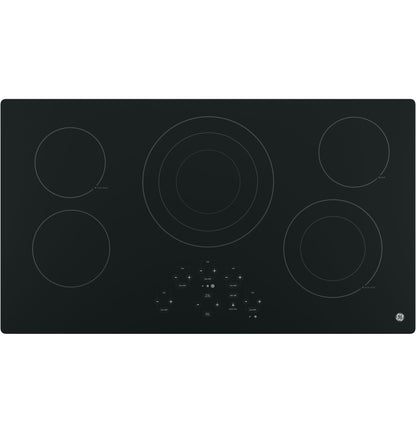

GE® 36" Built-In Touch Control Electric Cooktop JP5036DJBB
Discontinued
GE® 36" Built-In Touch Control Electric Cooktop JP5036DJBB
Discontinued
Product Details
- Five radiant cooking elements
- Digital Touch Controls
- Power Boil Tri-Ring Element
- Power Boil Dual-Ring Element
- Kitchen timer
- Keep Warm Setting
- Melt Setting
- Control lock capability
- Red LED with Black Glass Surface
- Hot surface indicator lights
- Fit Guarantee

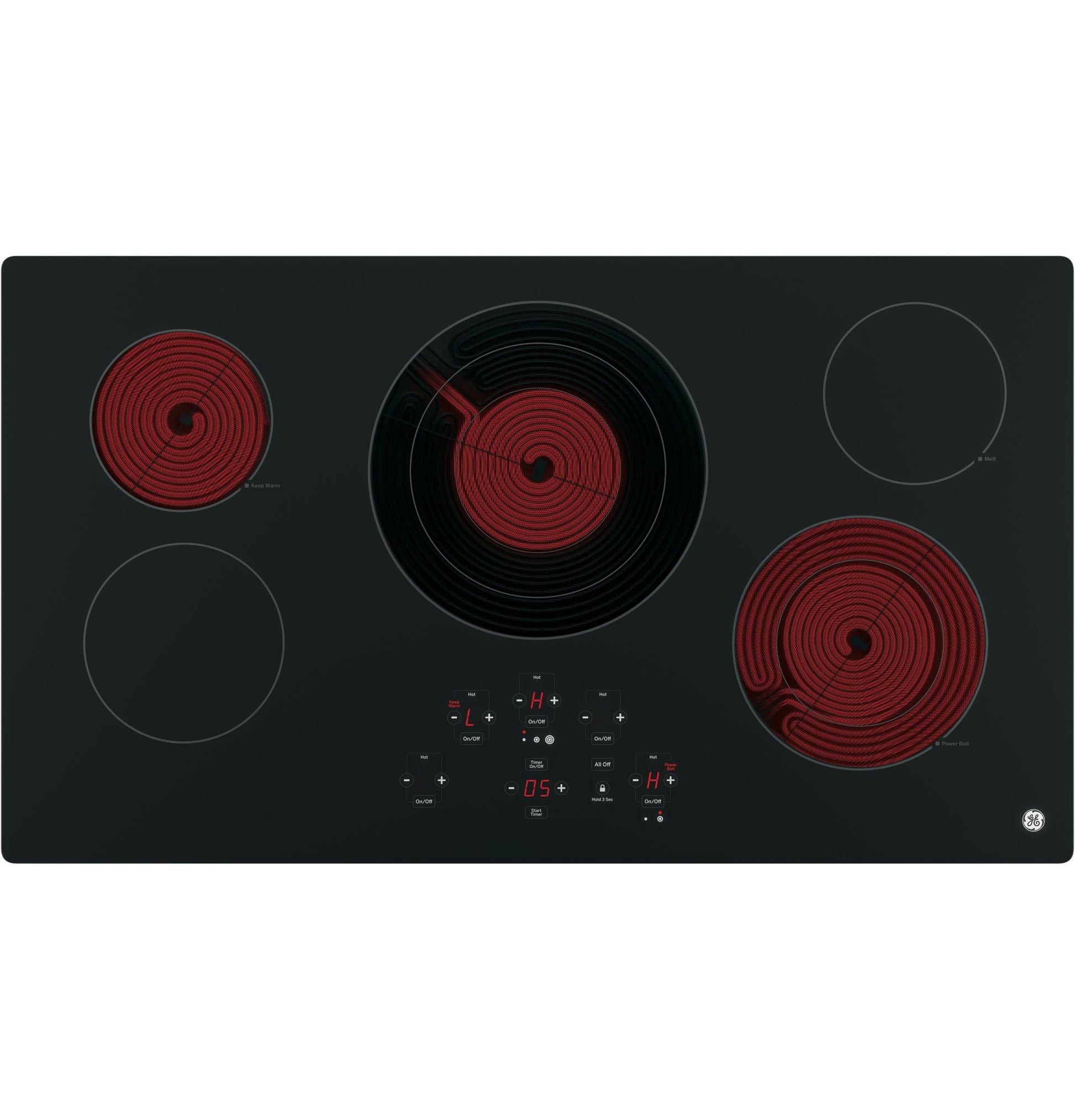

Five radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Digital Touch Controls
Accurately control your heating on a surface that's easy to clean
Power Boil Tri-Ring Element
Use different pan sizes on this 3,000-watt flexible element
Power Boil Dual-Ring Element
Use different pan sizes on this 2,400-watt flexible element
Kitchen timer
Helps coordinate meal preparation and cooking
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Red LED with Black Glass Surface
Achieve a modern look that complements the entire kitchen
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

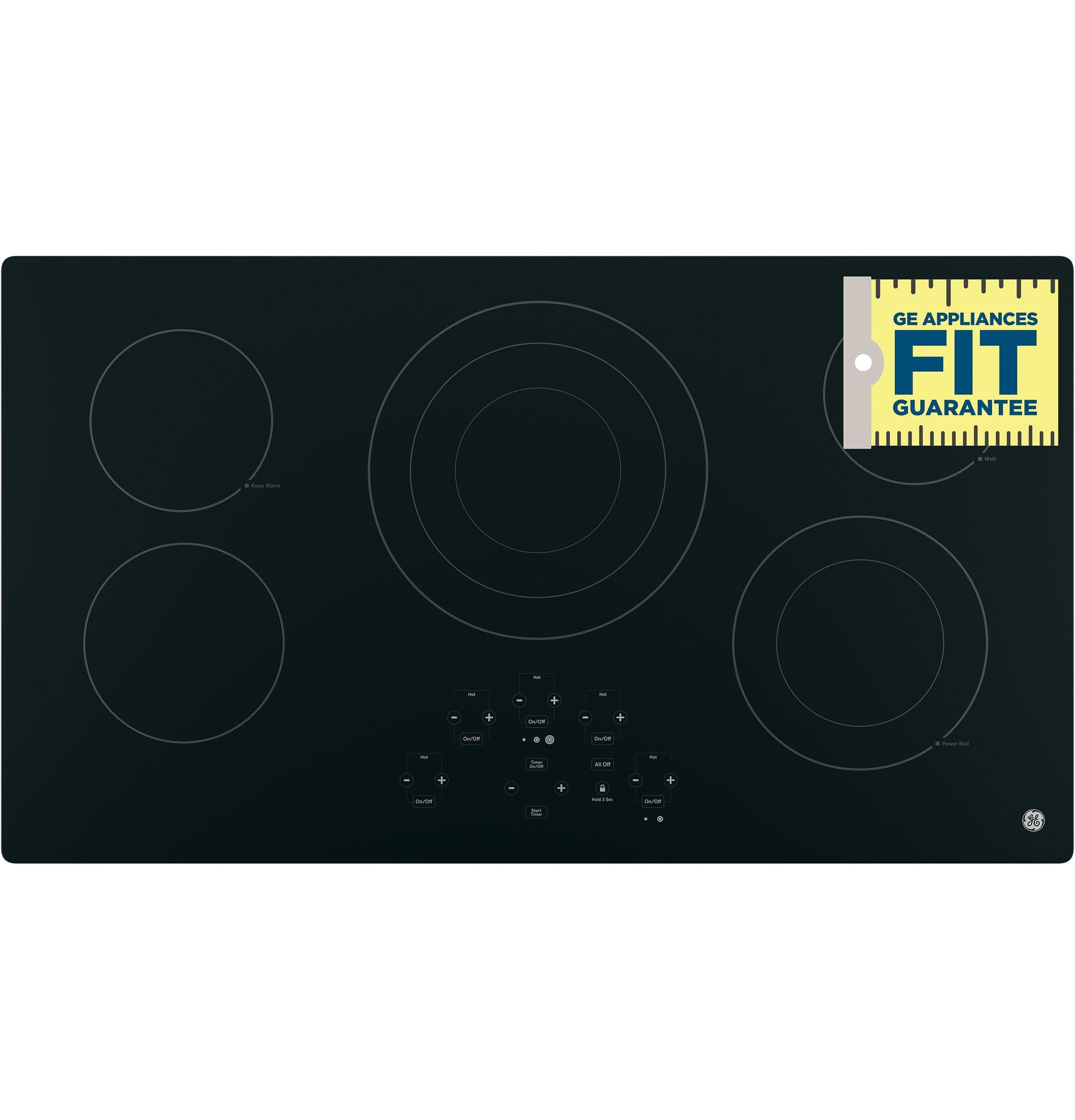

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
| FILTER | |
| App Filter - Cabinet Width | Cooking 36 in. |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Fuel Type | Electric |
| App Filter - Control Type | Digital touch |
| APPEARANCE | |
| Frame Color / Material | Stainless Steel |
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.3 |
| Max. Current Draw (Amps) at 240V | 38.8 |
| Max. Connected Load (kW) at 208V | 7.0 |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 33.6 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 36 |
| Overall Height | 5.5625 |
| Cabinet Width | 36 |
| Approximate Shipping Weight | 57 |
| Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
| Overall Width | 36 |
| Net Weight | 46 |
| Overall Depth | 20.375 |
| FEATURES | |
| Cooktop Burner Type | 5 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 7" 1500W |
| Indicator Lights | 5 Hot Surface Red Setting Level Indicators Surface Element "ON" |
| Element - Right Front | 8"/5" 2400W Power Boil |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | All-Off Control Control Lock Capability Keep-Warm Setting Kitchen timer Melt Setting |
| Timer | Yes |
| Element - Left Rear | 6" 1200W |
| Control Type | Electronic Touch |
| Element - Center | 12"/9"/6" 3000W Tri-ring |
| Element - Right Rear | 6" 1200W |
