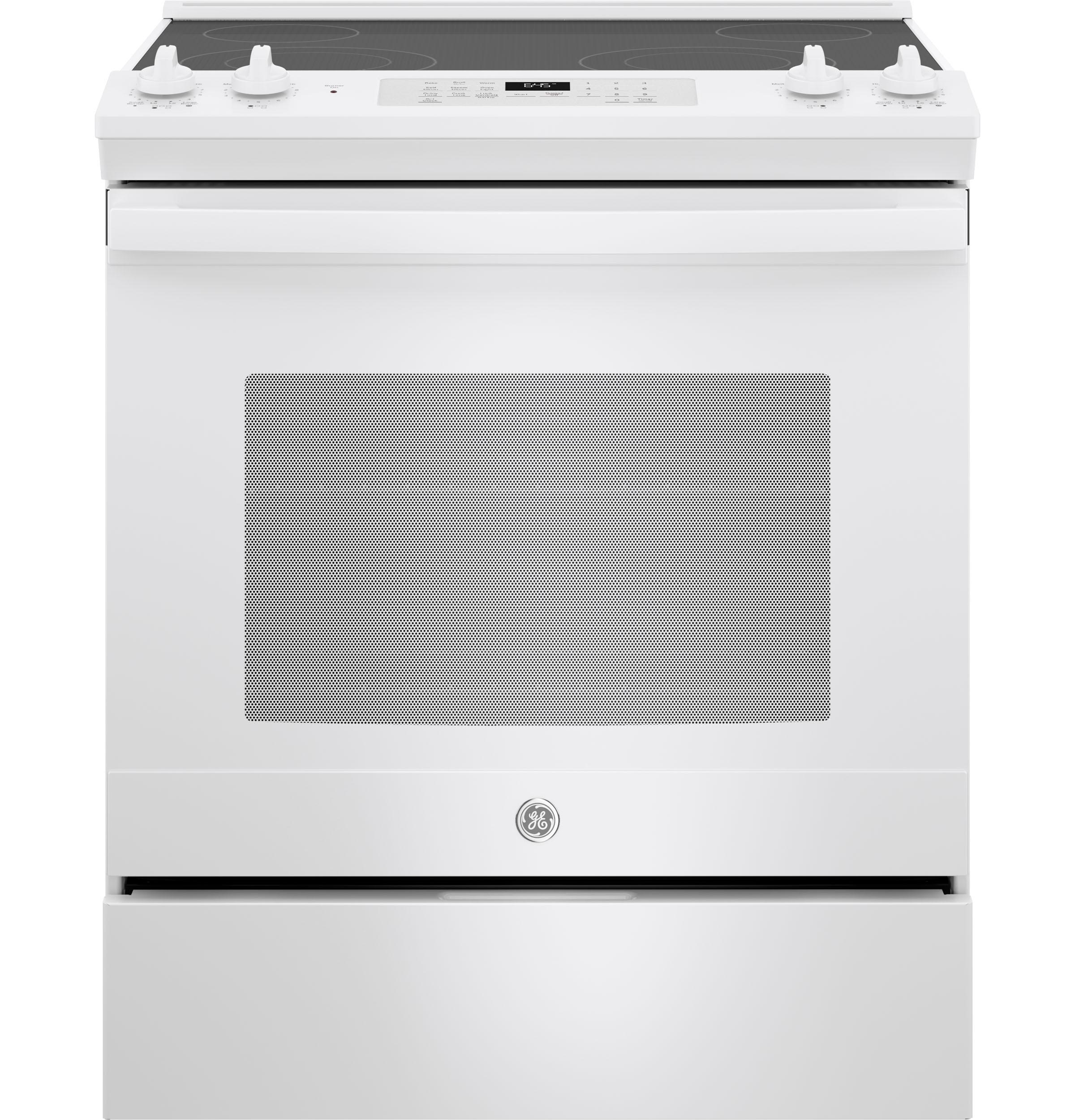

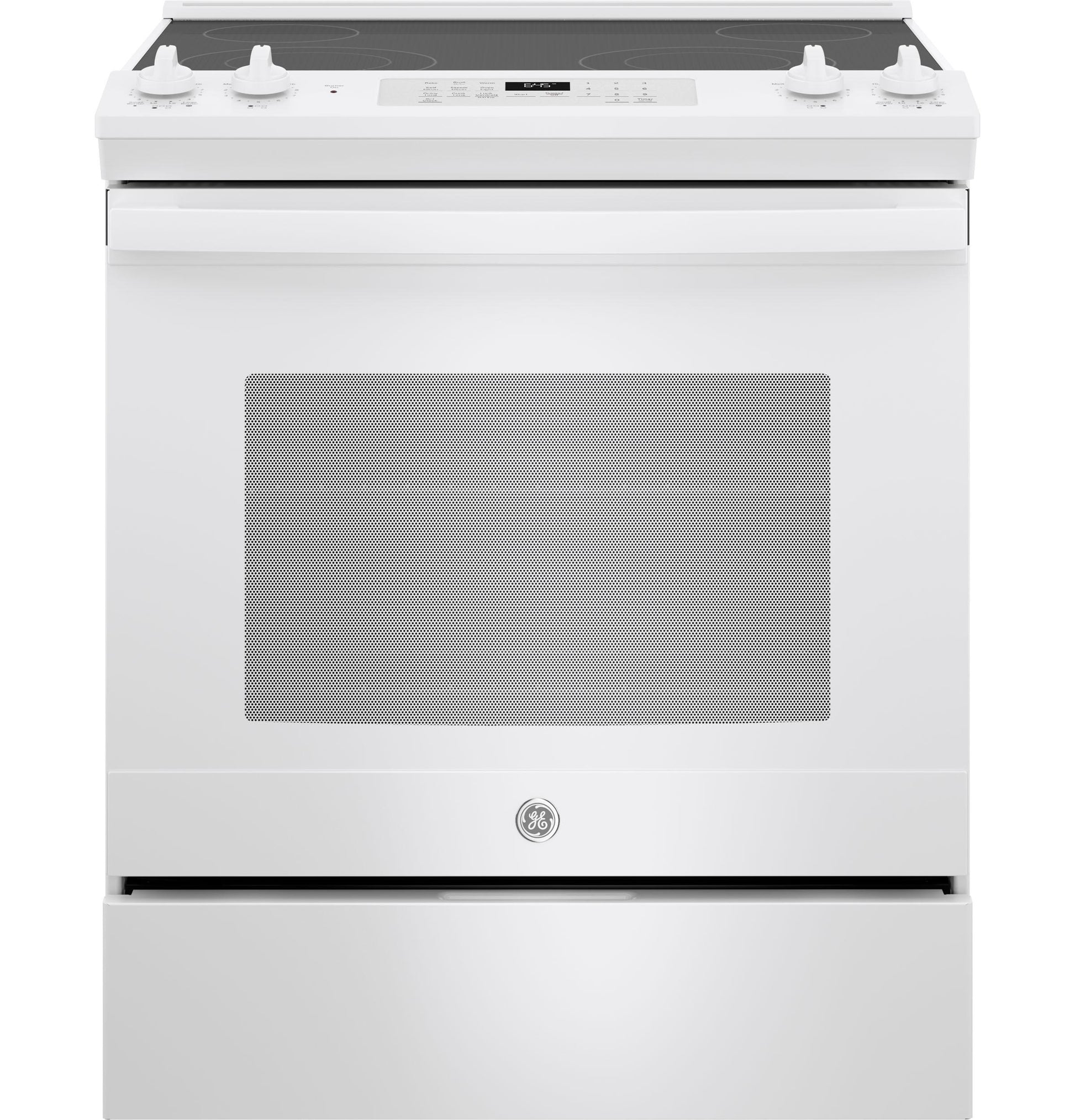

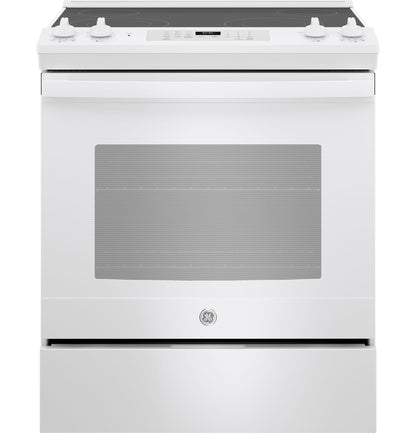

GE® 30" Slide-In Electric Range JS645DLWW
Discontinued- Fit Guarantee
- Two 9"/6" 3100W Power Boil elements
- Self-clean oven
- 5.3 cu. ft. oven capacity
- Dual-element bake
- Finished sides
- Removable full-width storage drawer
- Stainless steel knobs
- White LED
Fit Guarantee
Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

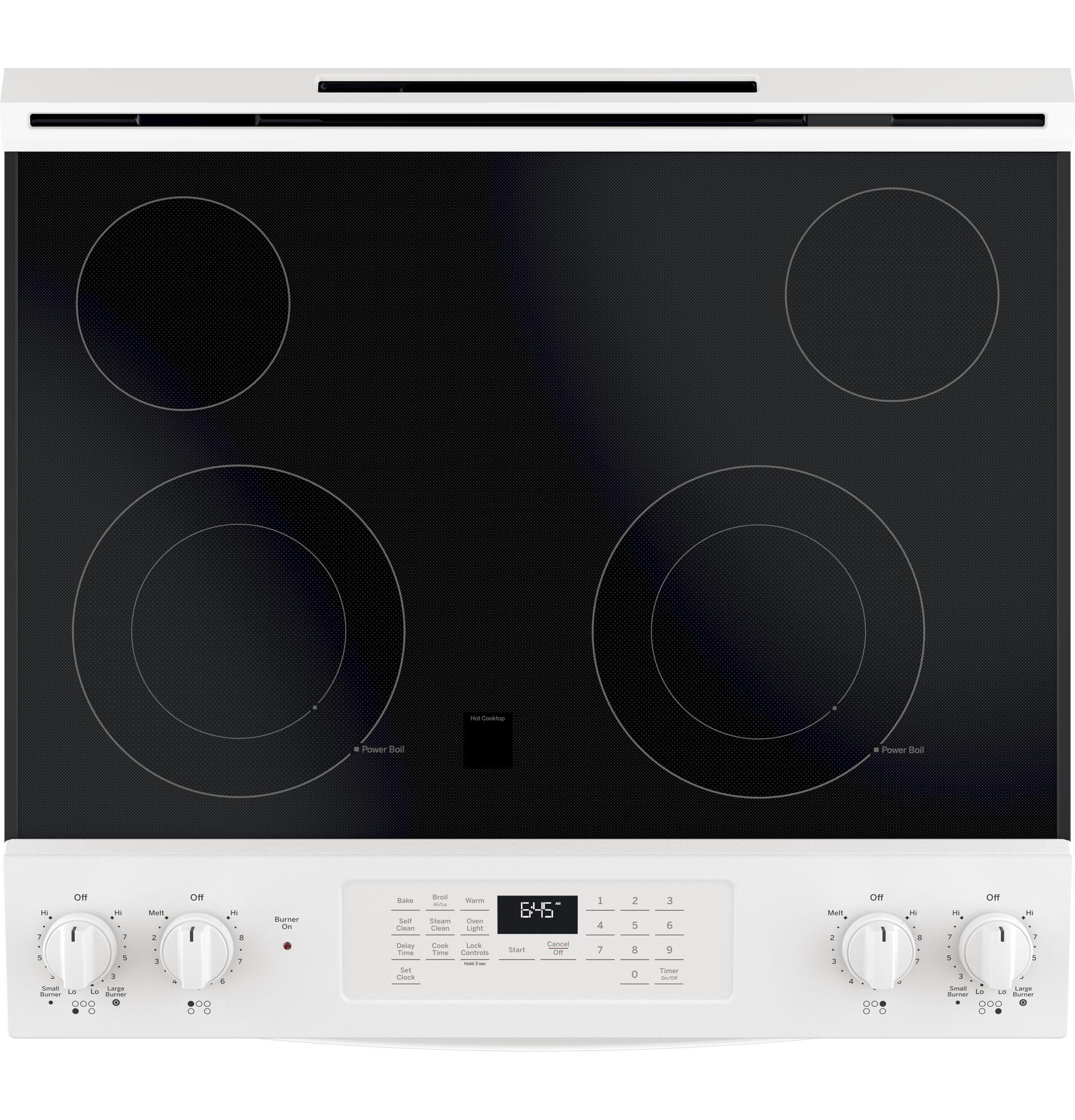

Two 9"/6" 3100W Power Boil elements
Two powerful elements boil water 25% faster than standard GE elements and adjust to fit cookware

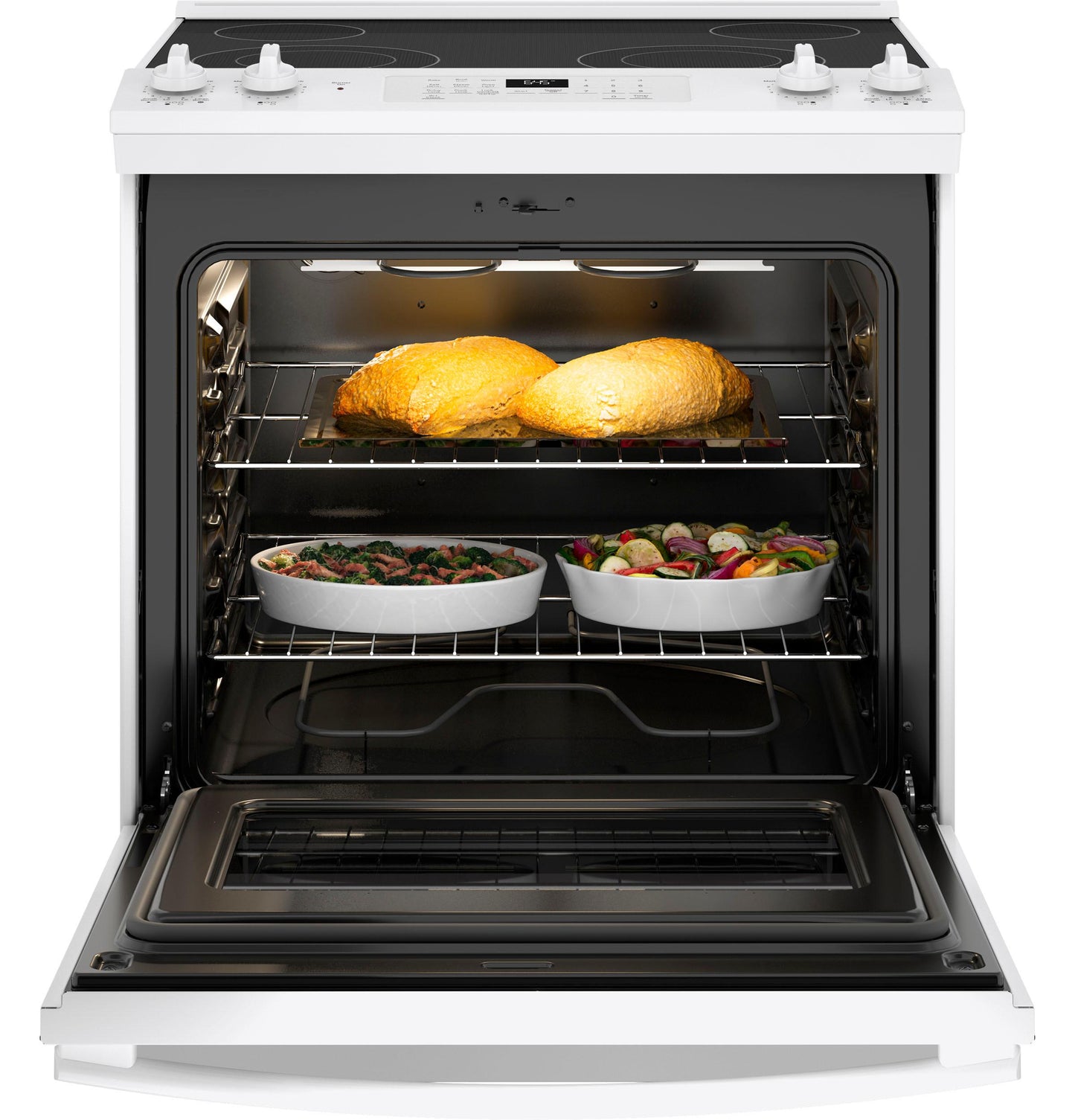

Self-clean oven
Cleans the oven cavity without the need for scrubbing

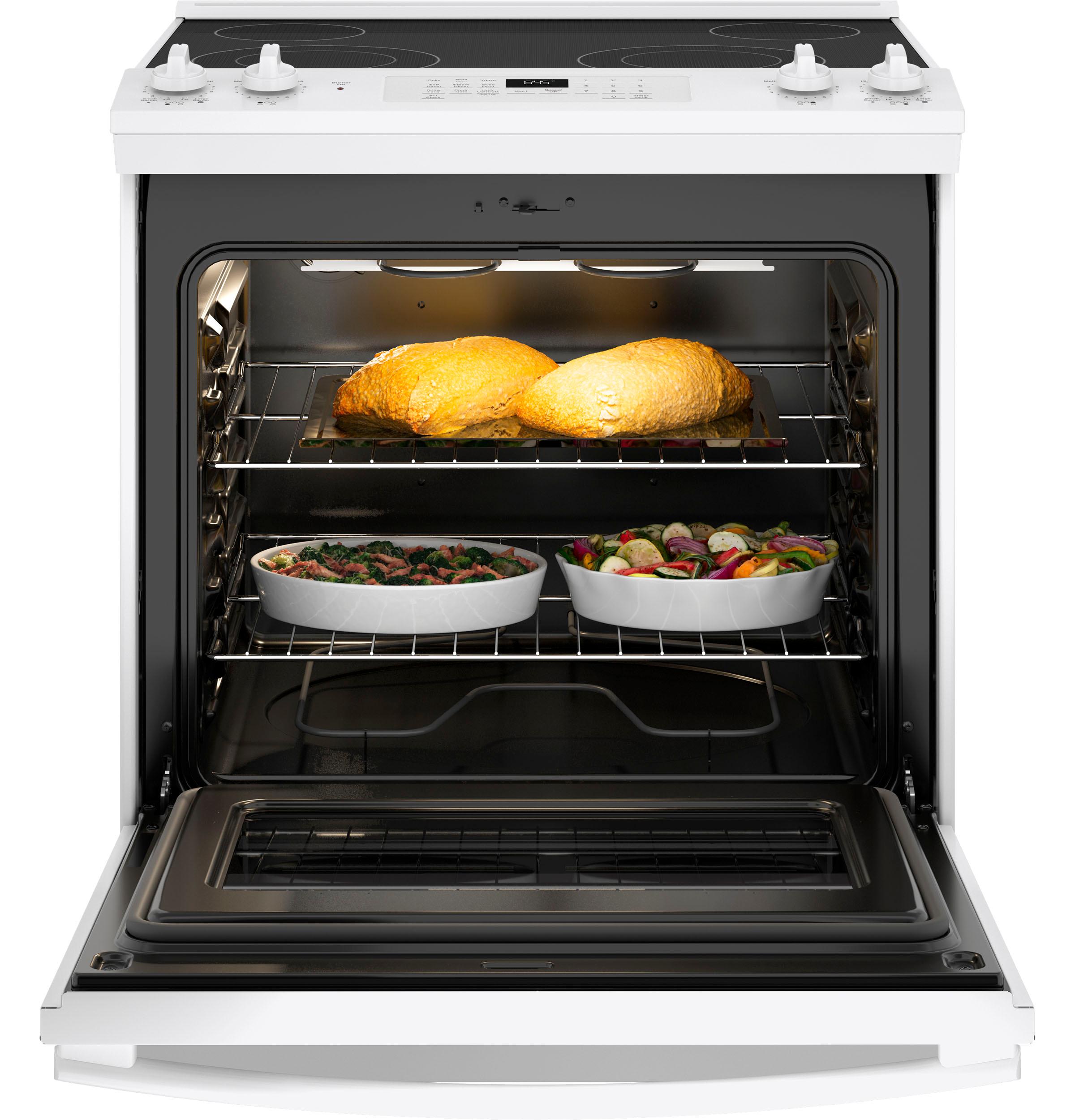

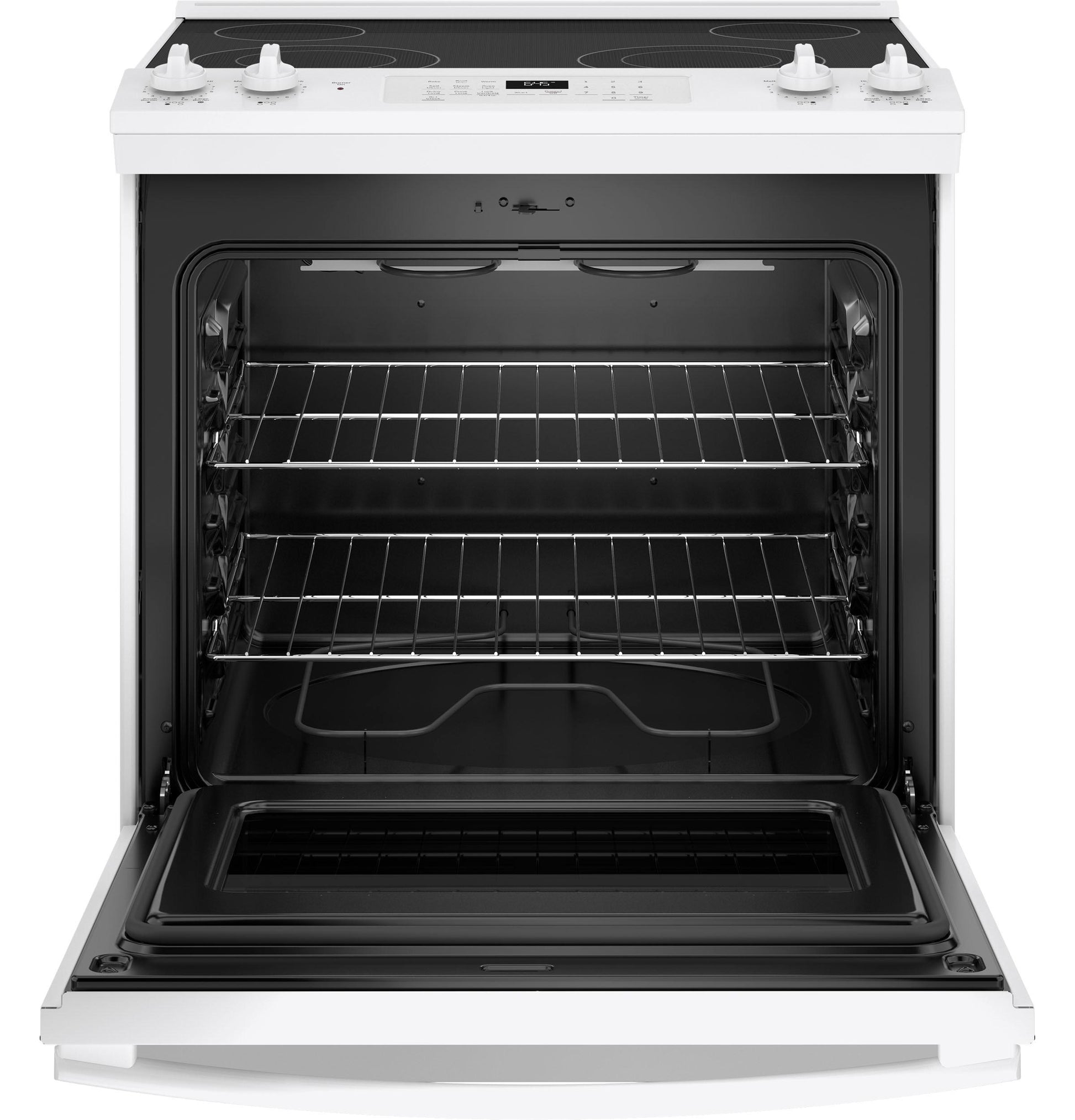

5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once

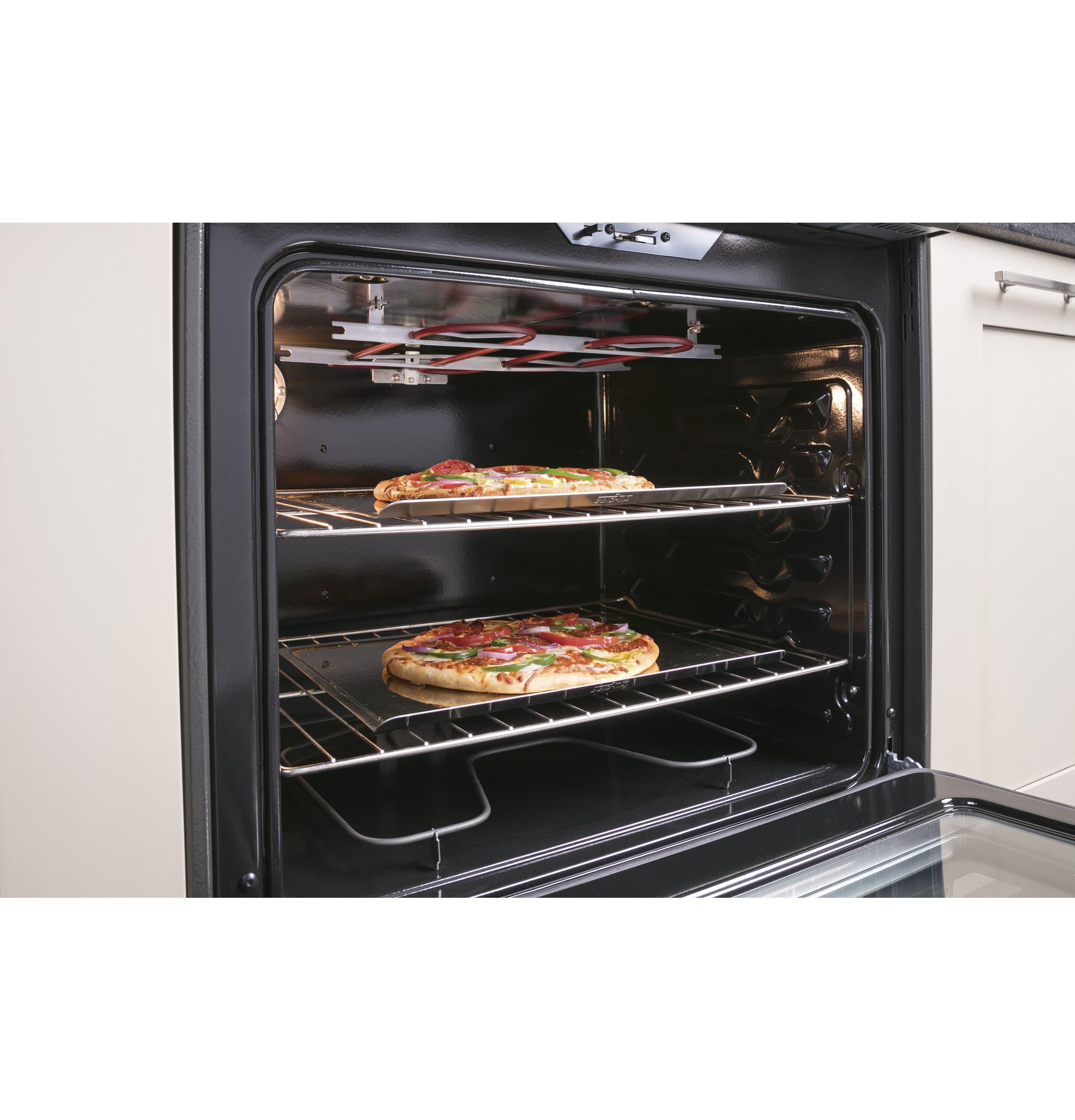

Dual-element bake
Upper and lower elements produce even heat and great results

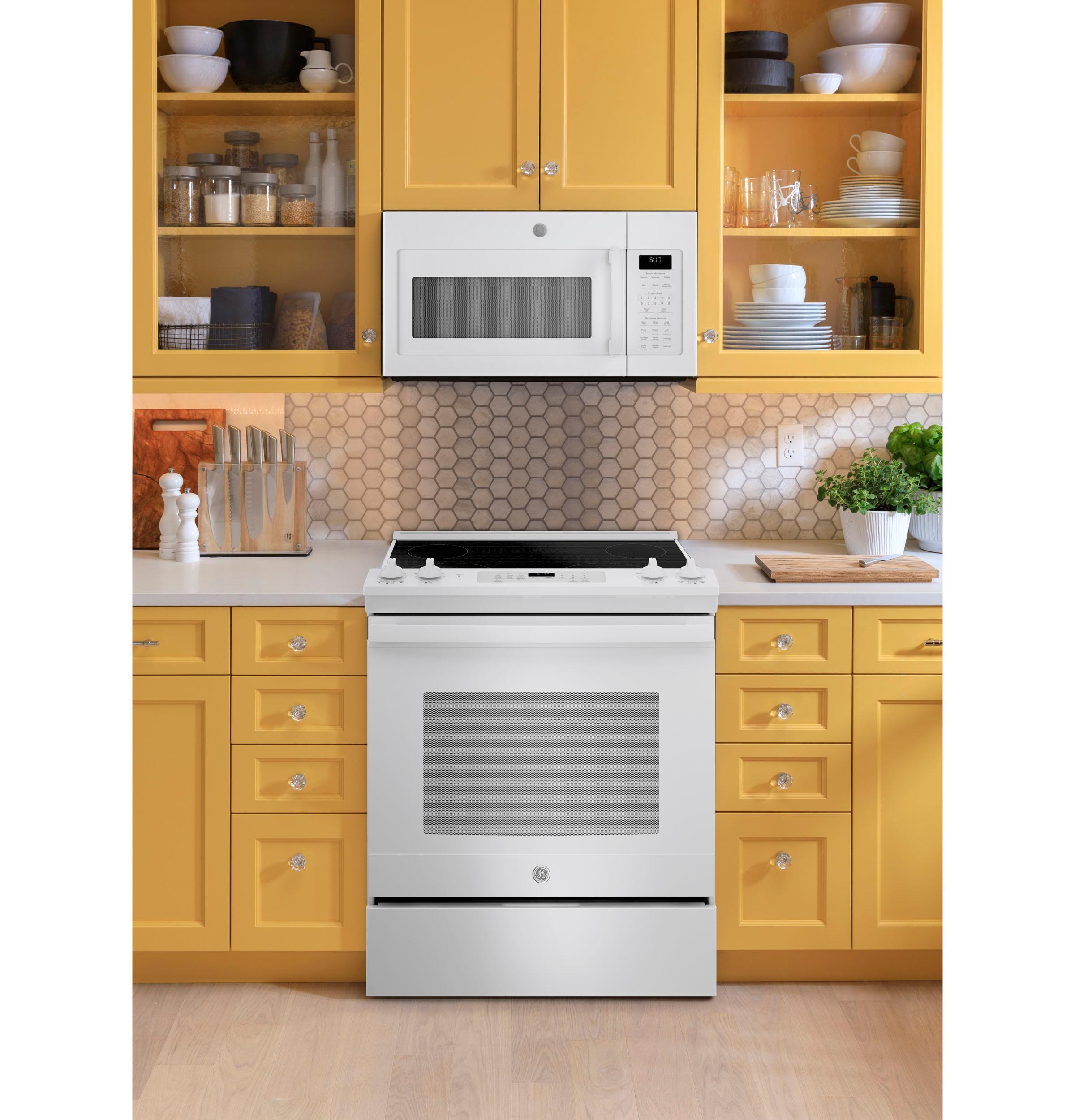

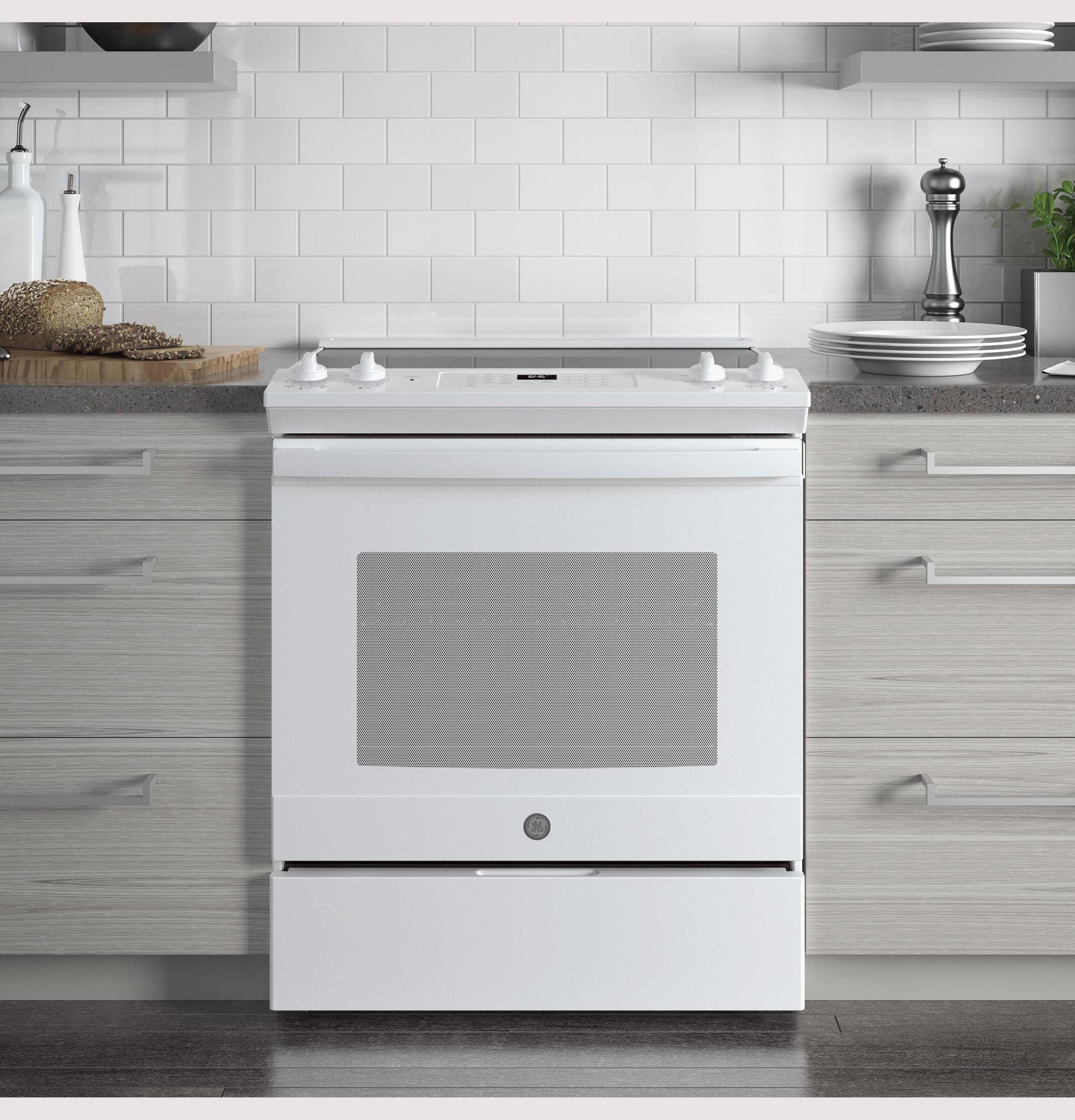

Finished sides
Attractive look allows for installation flexibility in any kitchen
Removable full-width storage drawer
Store cookware or kitchen accessories

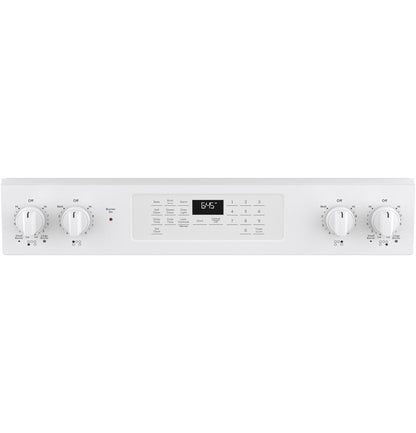

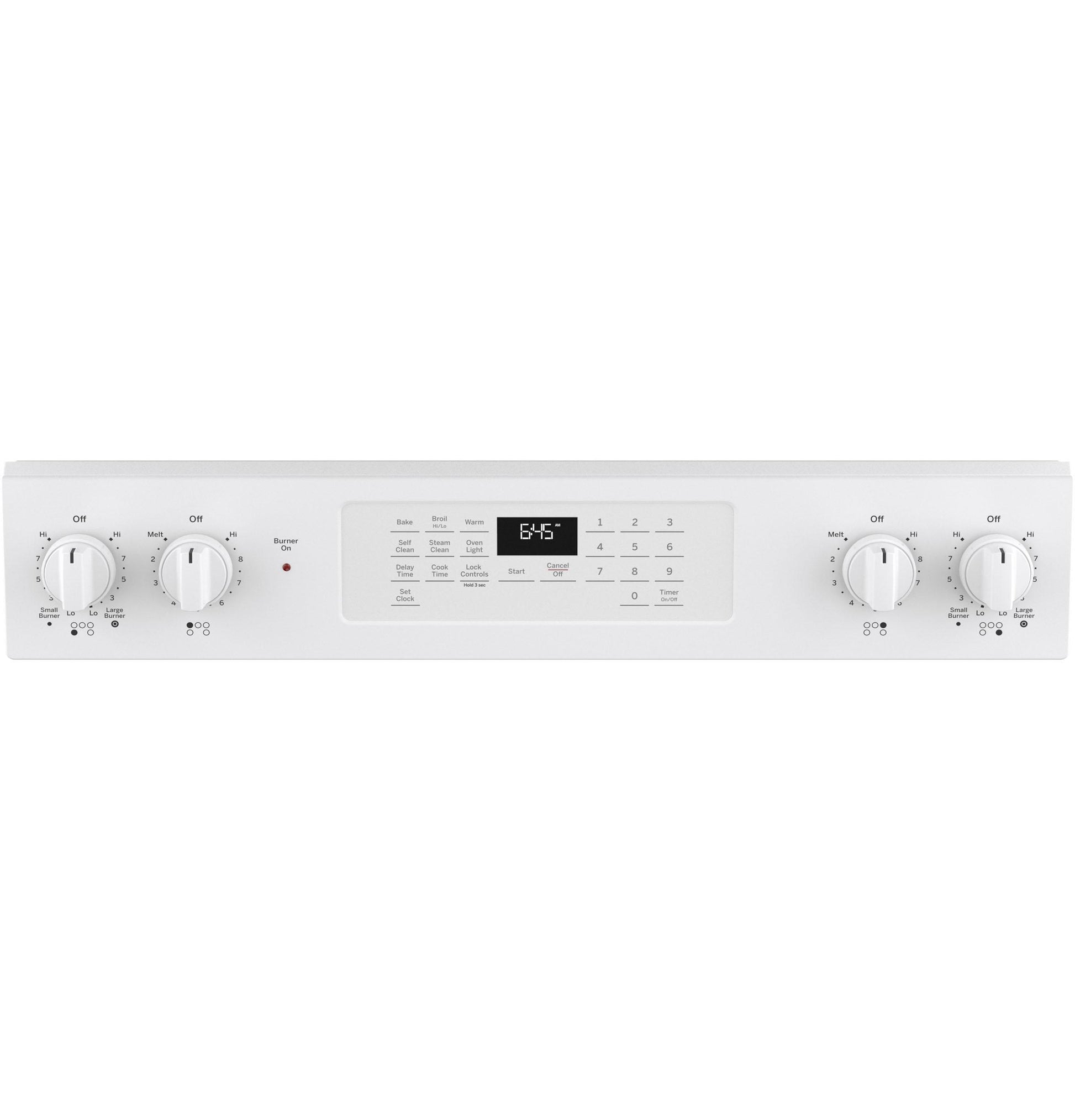

Stainless steel knobs
A professional look and a robust feel make these knobs a joy to use
White LED
Crisp light makes it easy to monitor the display from across the kitchen
CAPACITY | |
Total Capacity (cubic feet) | 5.3 |
FILTER | |
App Filter - Cleaning Type | Self-Clean |
App Filter - Control Type | Electronic touchpad |
App Filter - Drawer Type | Storage |
App Filter - Cooktop Type | Radiant Smoothtop |
App Filter - Voltage | 240V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Slide-In Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Control Knobs | Color-Matched |
Handle | Color-Matched |
Textured Steel Side Panels | Yes |
Oven Door Features | Big View Oven Window Clearview Glass Door |
Color Appearance | White |
POWER / RATINGS | |
KW Rating at 208V | 9.1 |
Bake Wattage | 2585W |
KW Rating at 240V | 12.1 |
Broiler Wattage | 3410W |
Amp Rating at 208V | 40 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Trim Kit | JXFILLR1BB Optional |
Cooktop Cleaning | Cream Included Sponge |
Optional Accessories | WB48X20881 Roller Rack |
WEIGHTS & DIMENSIONS | |
Net Weight | 157.0 |
Height to Cooking Surface (in.) | 36 |
Depth Without Handle | 27.375 |
Overall Depth | 28.25 |
Depth with Door Open | 48.25 |
Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/4 x 19-1/2 |
Overall Width | 29.875 |
Overall Height | 37.25 |
Approximate Shipping Weight | 178.0 |
Cabinet Width | 30.0 |
Height to Top of Rear Vent Trim | 37.25 |
FEATURES | |
Oven Cleaning Type | Self-Clean |
Hot Surface Indicator Lights | 1 |
Cooktop Burner Type | Radiant Smoothtop |
Oven Interior | Black |
Element - Left Front | 9"/6" 3100W Power Boil |
Sabbath Mode | Enhanced Shabbos Mode (when used with Shabbos Keeper, sold separately, visit www.zmantechnologies.com for details) |

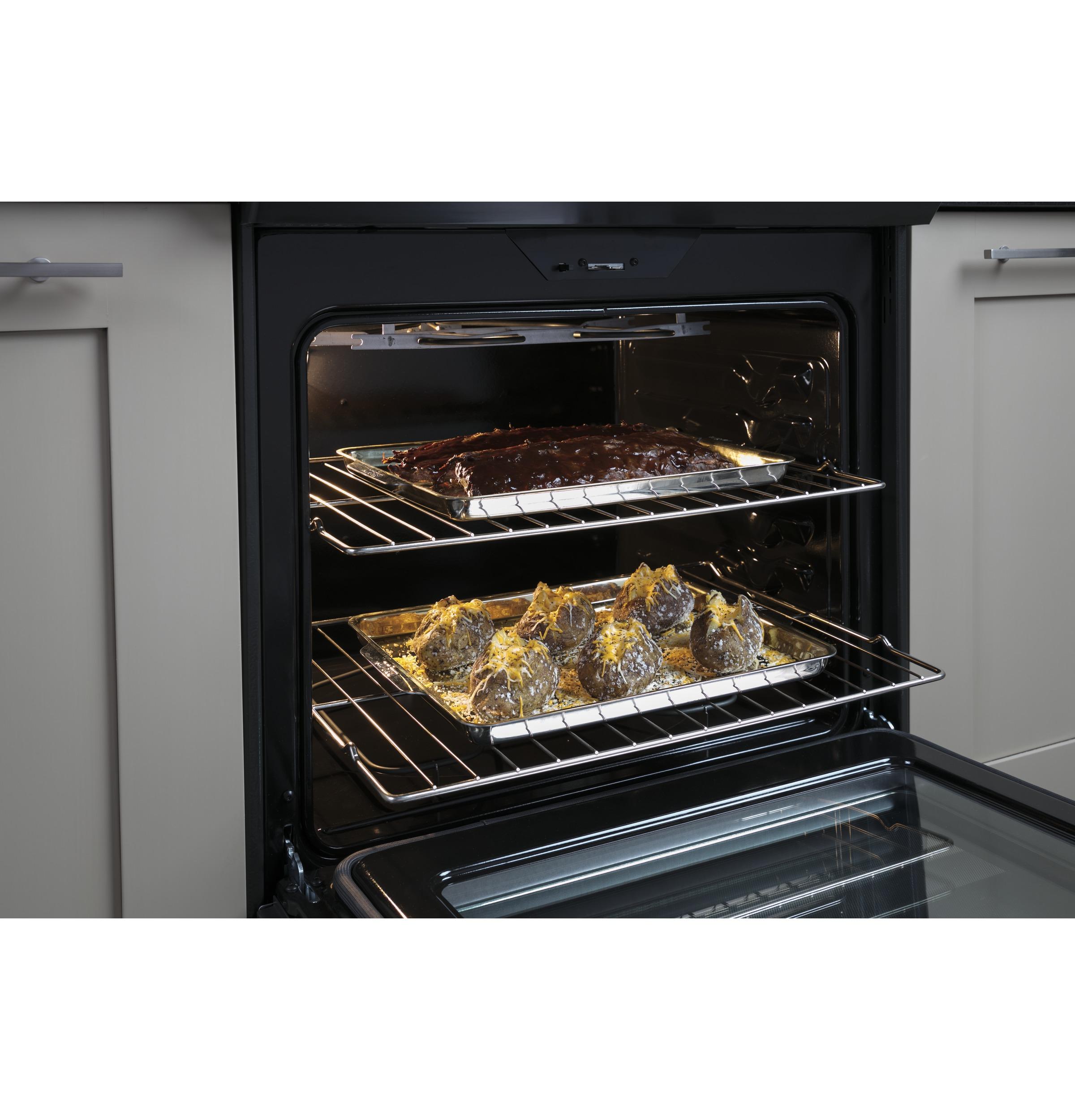

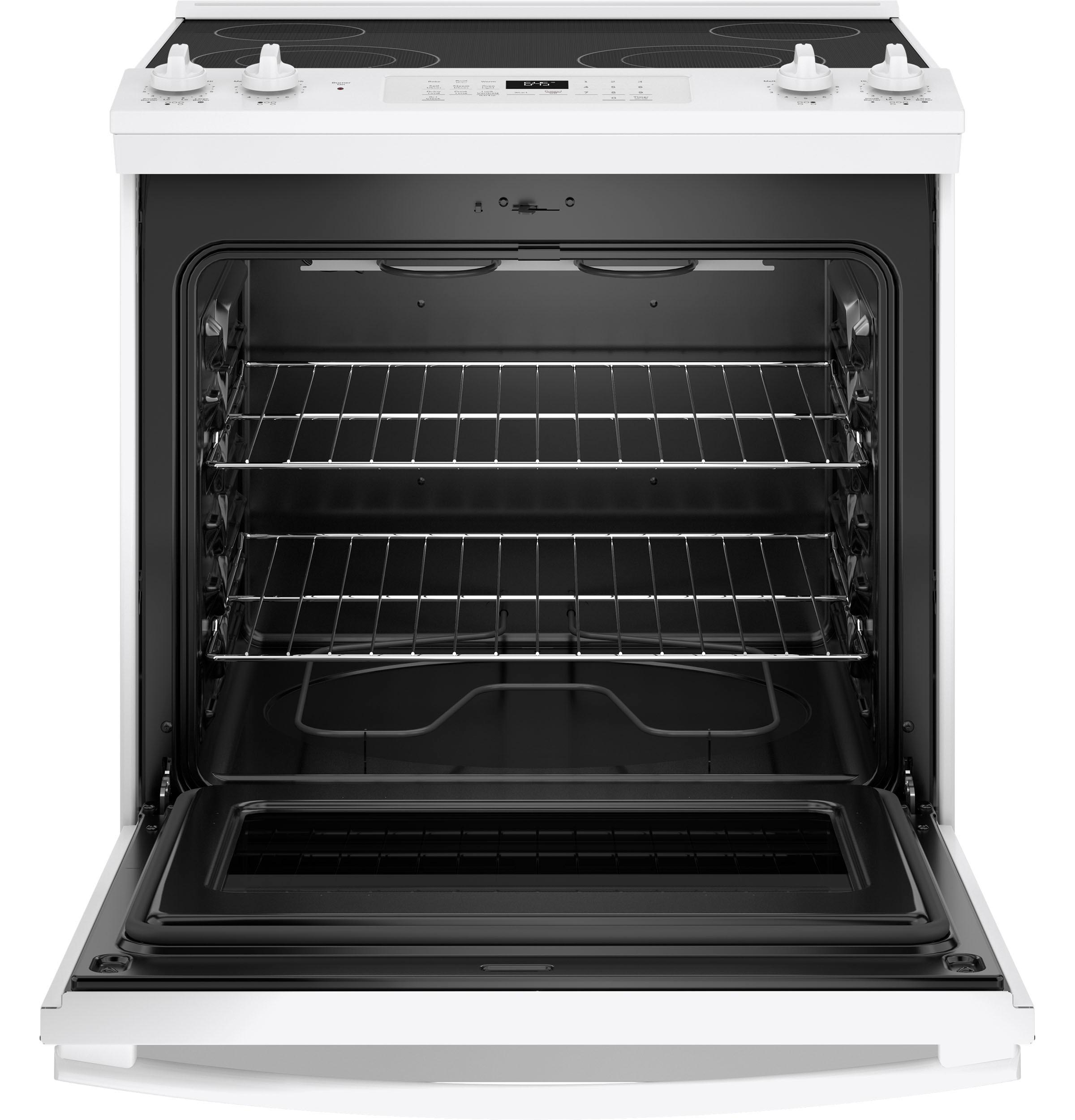

Oven Rack Features | 2 Oven Racks 6 Rack Positions |
Melt Setting | Yes |
Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
Fuel Type | Electric |
Cooking Technology | Traditional |
Cooktop Surface | Gray Patterned Ceramic Glass |
Configuration | Range with Storage Drawer |

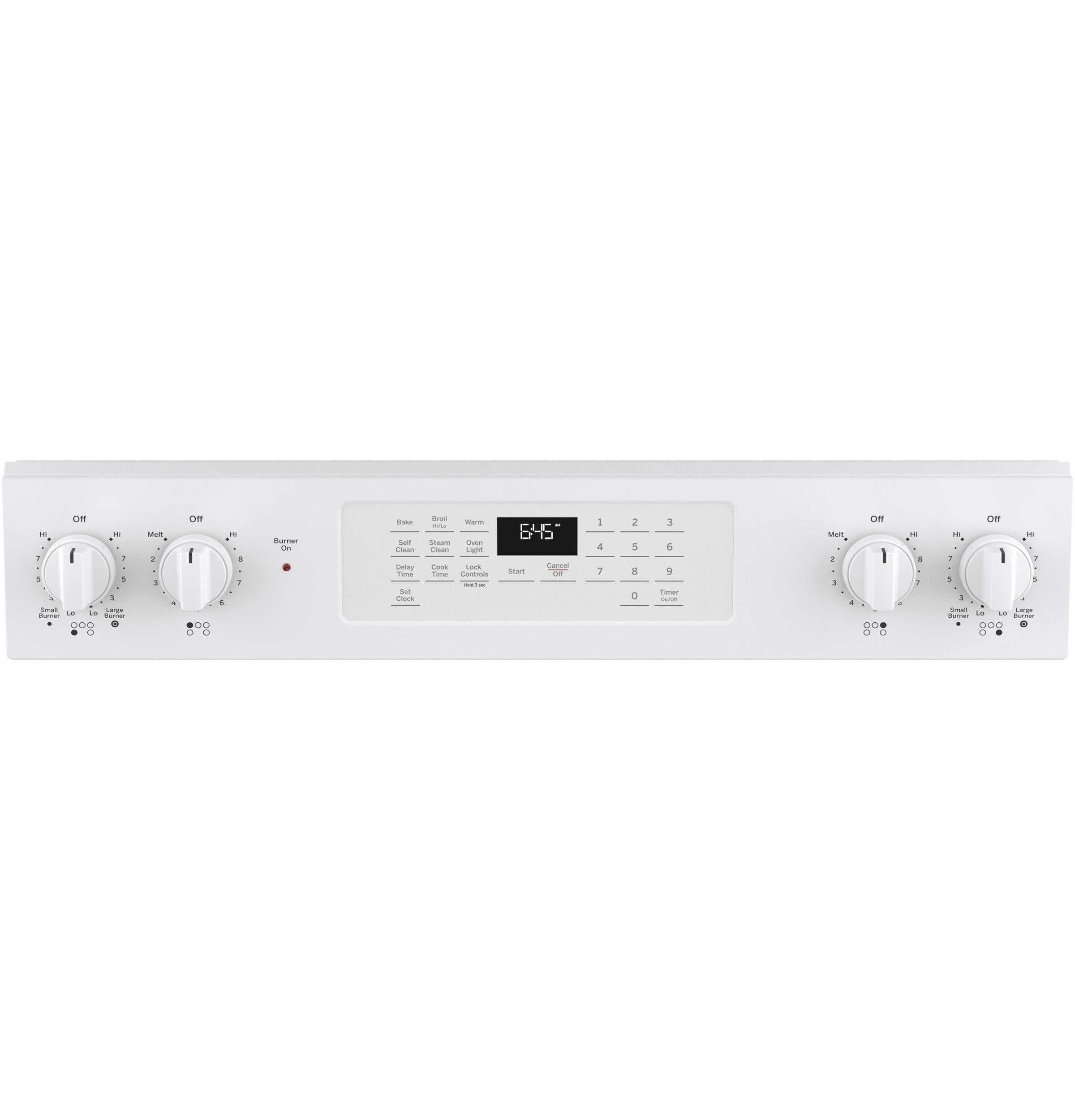

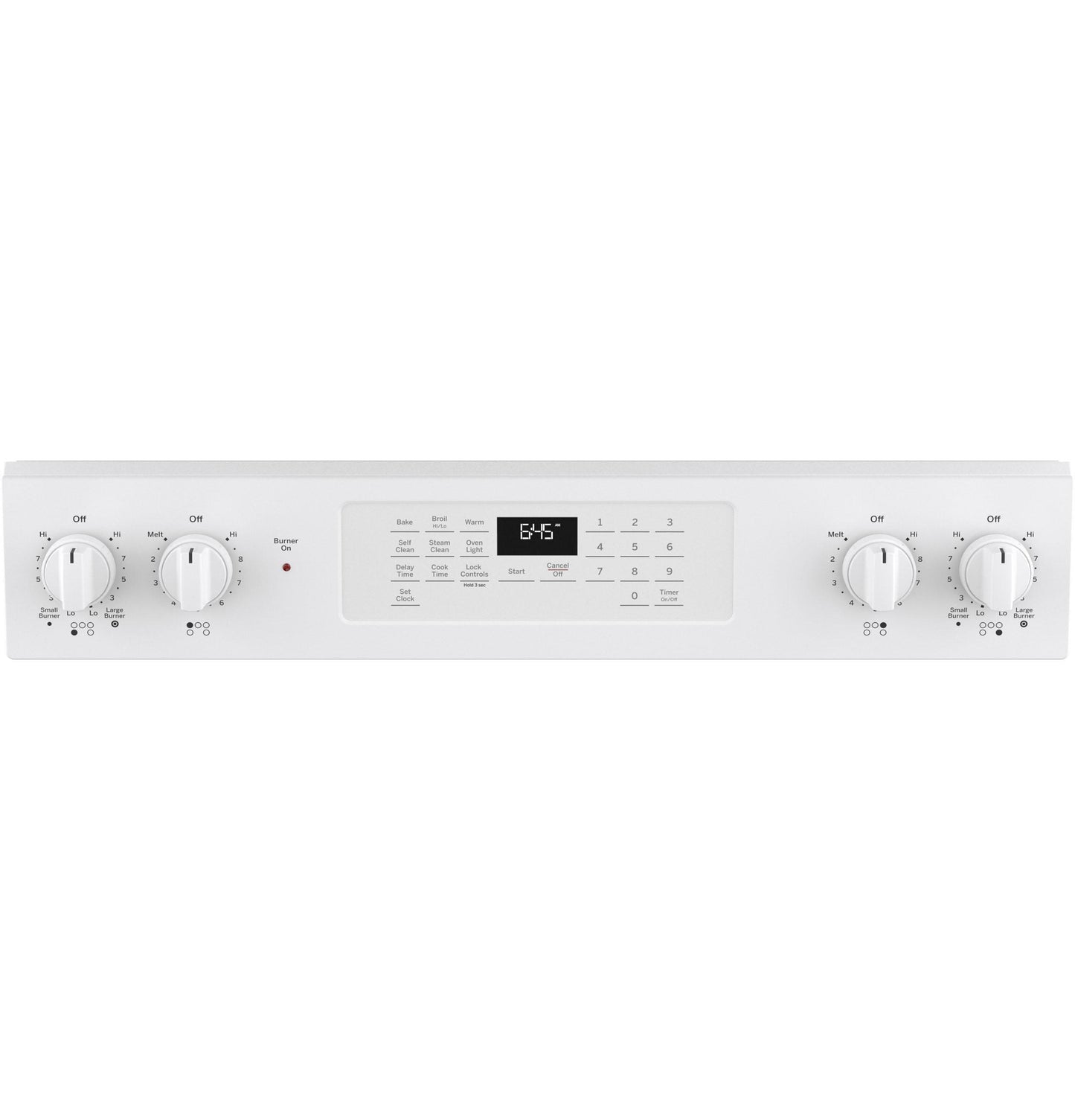

Control Type | Digital Temperature Display Electronic Touchpads |
Element - Right Front | 9"/6" 3100W Power Boil |
Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability C° or F° Programmable Delay Bake Option (Time Bake) Electronic Clock & Kitchen Timer Hi / Low Broil Oven "ON" Light |
Product Type | Slide-In Single Oven |
Drawer Type | Storage |
Interior Oven Light | 1 Light |
Cooktop Type | Radiant Smoothtop |
Control Location | Front |
Element - Right Rear | 6" 1200W |
Storage Drawer Features | Removable Full-Width |
Heating Element "ON" Indicator Light | 1 |
Element - Left Rear | 6" 1200W |
