- Charcoal filter replacement for microwaves with behind the door grille
- 1.6 cu. ft. capacity
- Convenience cooking controls
- Weight and time defrost
- Turntable On/Off
- Two-speed, 300-CFM venting system
- Versatile microwave power levels for perfect cooking
Charcoal filter replacement for microwaves with behind the door grille
Easily install your new charcoal odor filter
1.6 cu. ft. capacity
1000 Watts (IEC-705 test procedure)

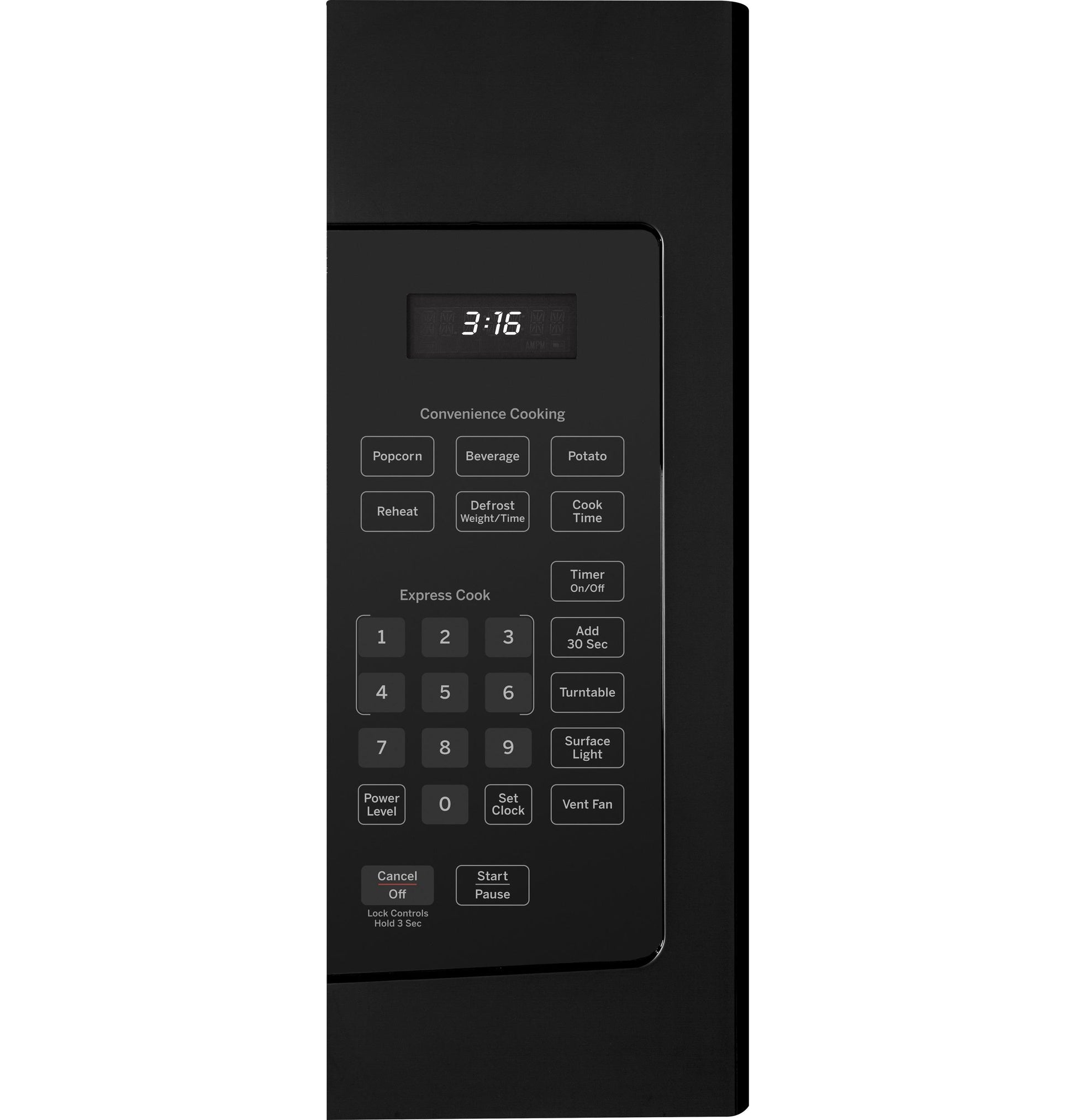

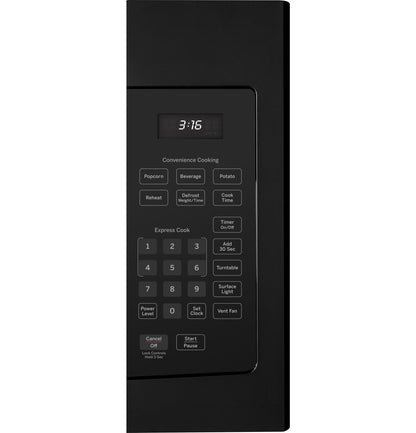

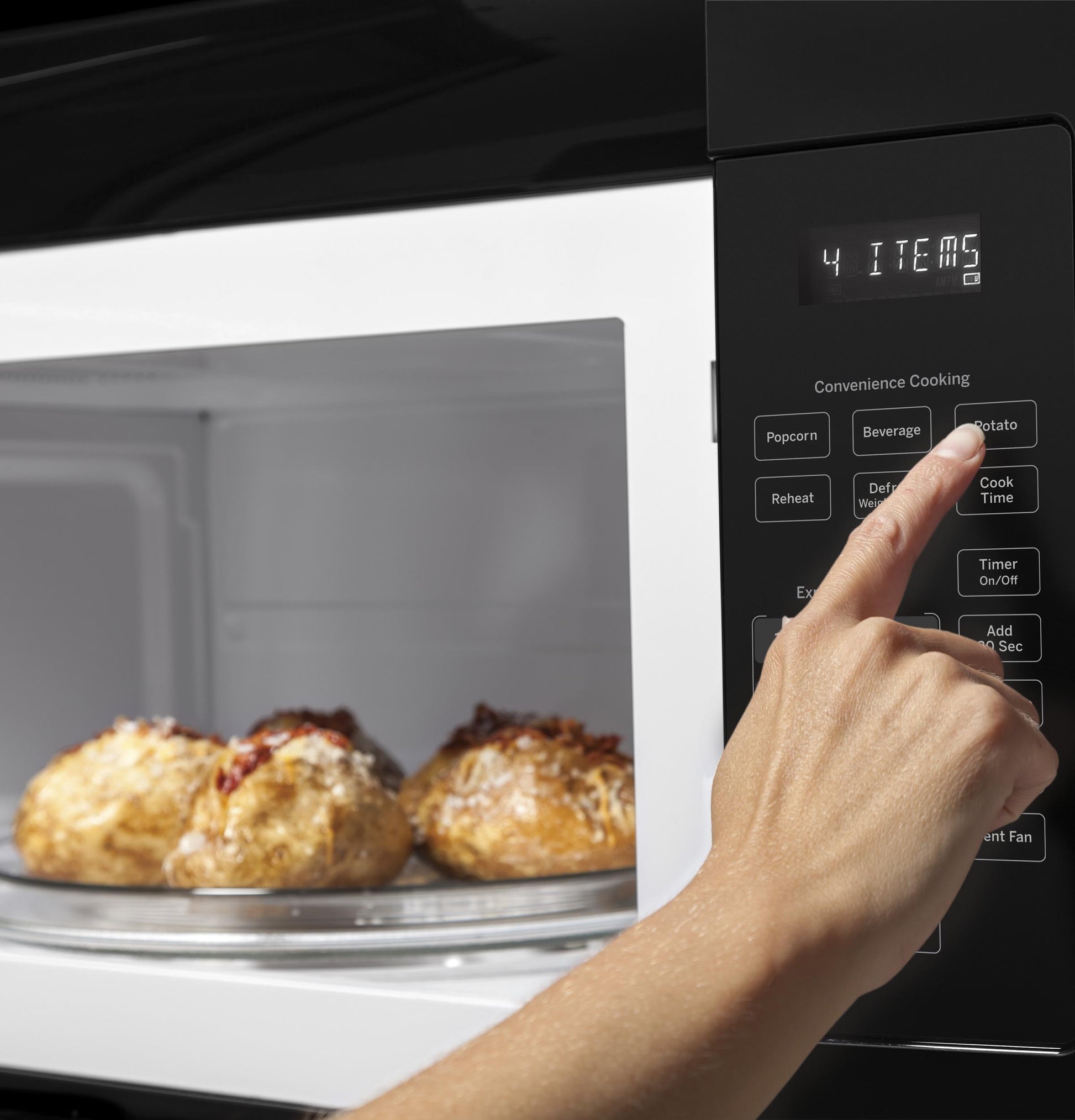

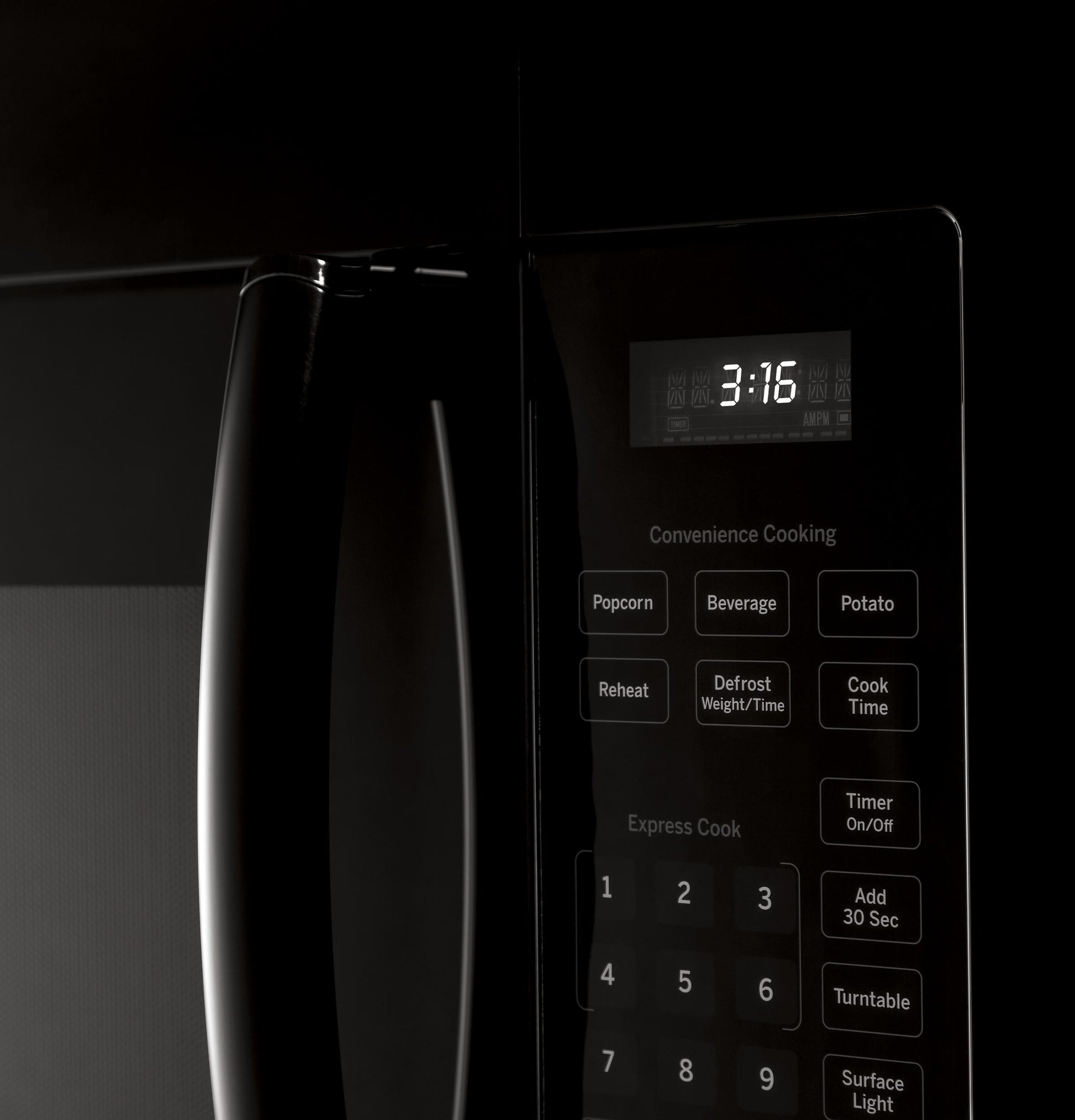

Convenience cooking controls
Simplify your cooking with pre-programmed settings that automatically adjust time and power for specific foods

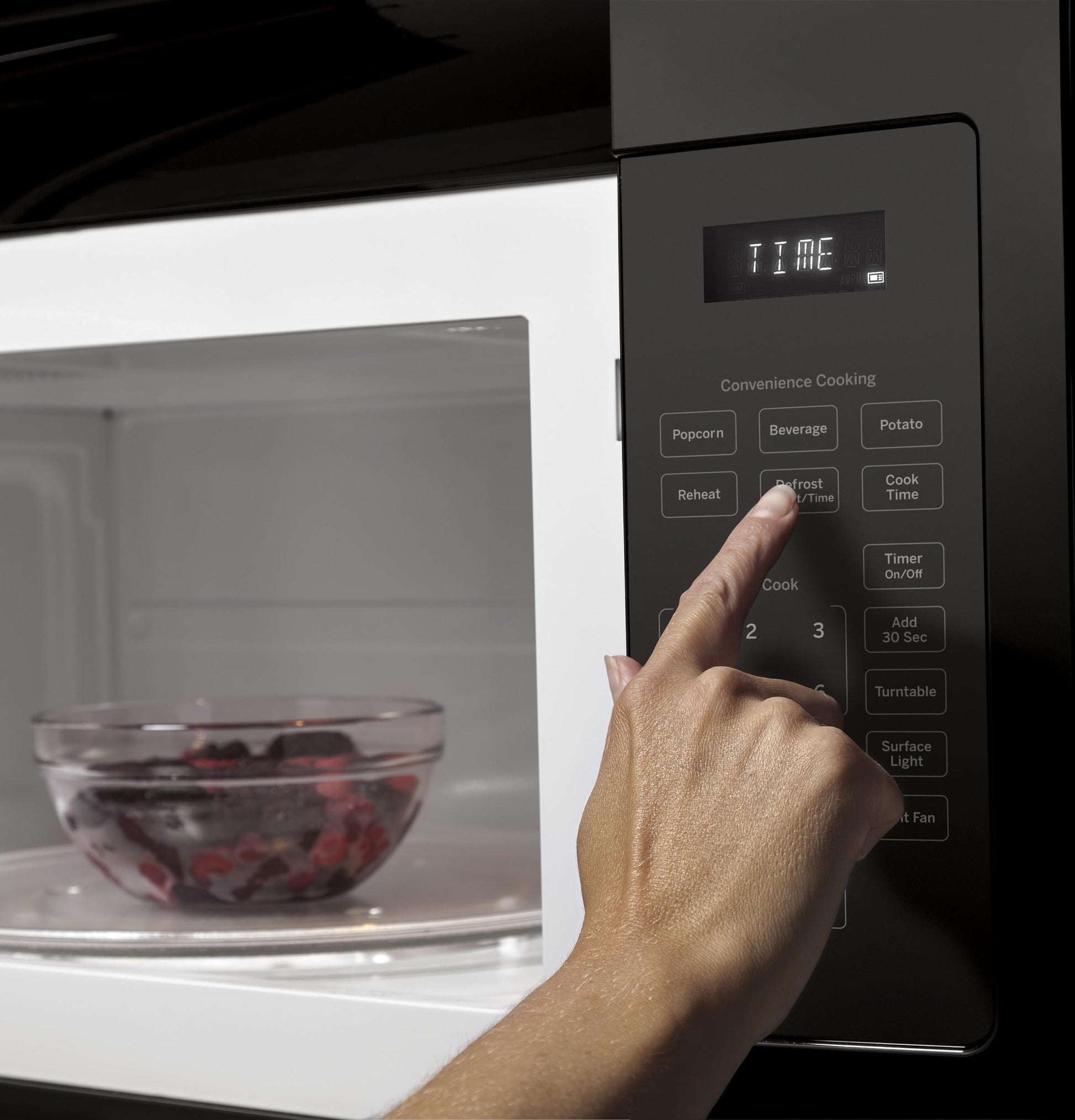

Weight and time defrost
Enter food weight for automatic settings, or choose your own defrost time

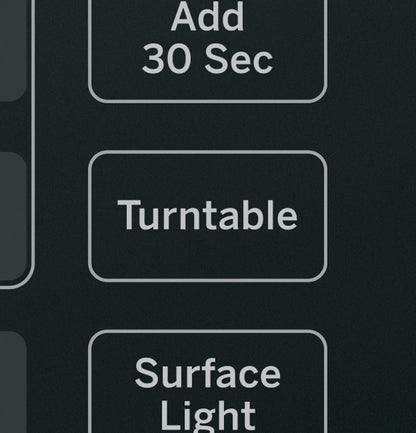

Turntable On/Off
Enjoy versatile cooking with the turntable on/off feature, perfect for evenly heating larger or oddly shaped dishes.
Two-speed, 300-CFM venting system
Removes smoke, steam and odors
Versatile microwave power levels for perfect cooking
Experience customized cooking with adjustable power levels, from quick high-heat for veggies and beverages to gentle low-heat for defrosting and delicate sauces
Easily install your new charcoal odor filter
1.6 cu. ft. capacity
1000 Watts (IEC-705 test procedure)
Convenience cooking controls
Simplify your cooking with pre-programmed settings that automatically adjust time and power for specific foods
Weight and time defrost
Enter food weight for automatic settings, or choose your own defrost time

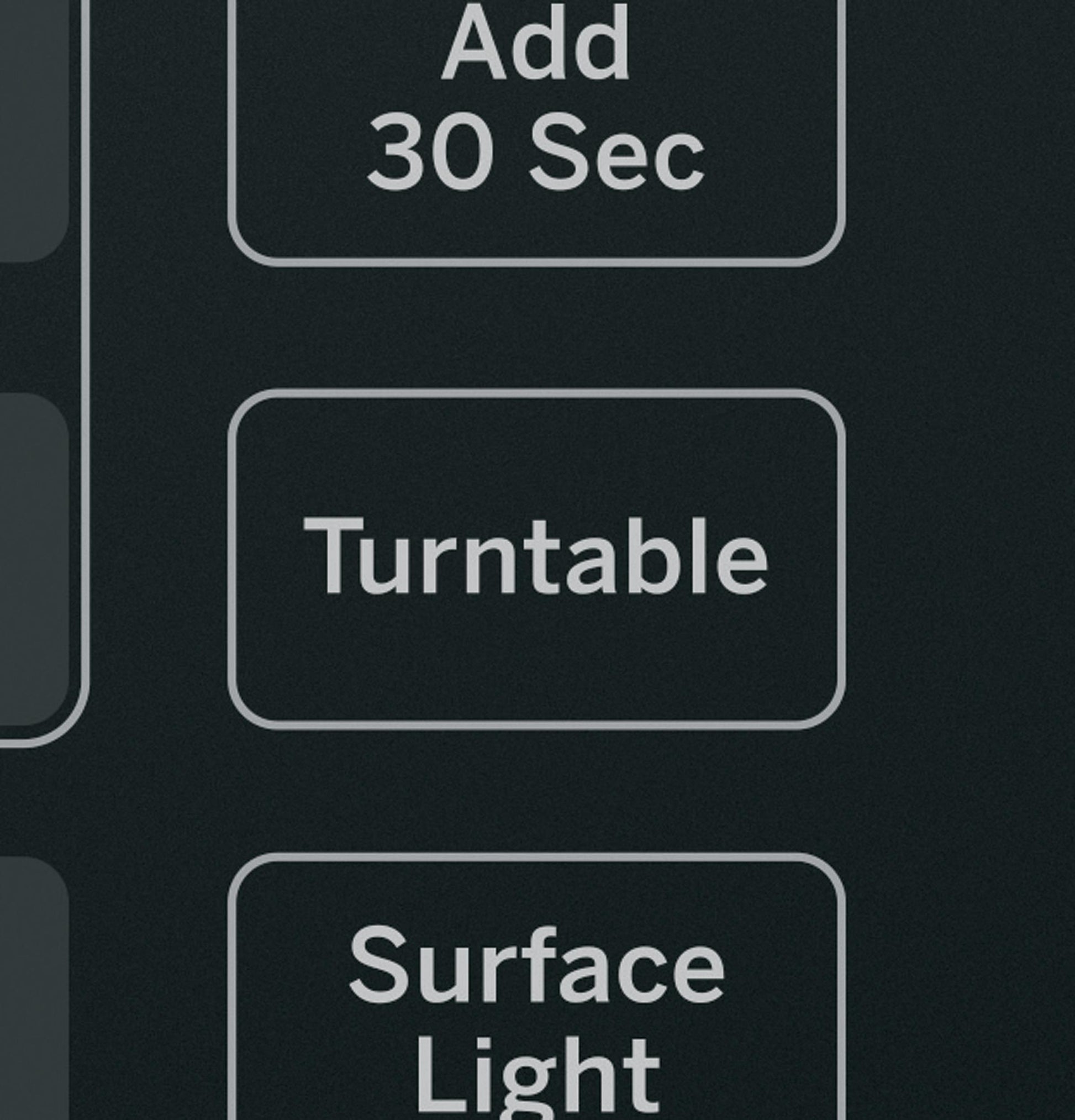

Turntable On/Off
Enjoy versatile cooking with the turntable on/off feature, perfect for evenly heating larger or oddly shaped dishes.
Two-speed, 300-CFM venting system
Removes smoke, steam and odors
Versatile microwave power levels for perfect cooking
Experience customized cooking with adjustable power levels, from quick high-heat for veggies and beverages to gentle low-heat for defrosting and delicate sauces
CAPACITY | |
Total Capacity (cubic feet) | 1.6 cu ft |
Vent CFM | 300 |
FILTER | |
App Filter - Control Type | Electronic touchpad |
App Filter - Wattage | 1000 to 1099 |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Microwave Over-the-Range |
App Filter - Capacity | Microwave Medium (1.5 - 1.8 cu. ft.) |
App Filter - Voltage | 120V |
App Filter - Convection | No |
App Filter - Venting Type | External |
App Filter - Cooking Technology | Microwave Only |
APPEARANCE | |
Door Swing | Hinges on Left |
Handle Color | Black |
Oven Door Features | Oven Window |
Installation | Easy Mount |
Door Color | Black |
Case Color | Black |
Color Appearance | Black |
POWER / RATINGS | |
Input Volts/Hertz | 120/60 |
Electrical Input - 120V Amperage | 15 |
Electrical Input - 120V Watts | 1580 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ECONOMICAL / QUIET | |
Non-Vented | Recirculating (Factory Set - Filter Included) |
Venting Type | Convertible to External Venting |
ACCESSORIES | |
Optional Side Filler Panel Kit | JX36BBB |
Optional Kits | 15" Bump Out Kit - JX15BUMPBB |
Recirculating Charcoal Filter Kit | JX81C or WB02X33061 (Included) |
WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 63 lb |
Cabinet Width | 30 in |
Net Weight | 63 lb |
Depth with Door Open | 39 in |
Overall Width | 29.875 in |
Cutout Width (in) | 30 |
Cutout Depth (in) | 13 |
Cutout Height (in) | 16.5 |
Overall Depth | 15.5625 in |
Overall Height | 16.125 in |
Cavity (W x H x D) | 18-13/16 x 9-1/4 x 14-13/32 |
FEATURES | |
Display Type | LED |
Electronic Digital Display with Clock | Yes |
Display Screen Size (Diagonal Length) | 2.01 |
Cooking Modes | Microwave |
Express Cook | 1-6 Minutes |
Control Location | Side Controls |
Style | Over-The-Range |
Microwave Watts (IEC-705) | 1000 W |
Turntable On / Off | Yes |
Power Levels | 10 |
Control Type | Electronic Touch |
Cooktop Lighting | Bright/Night/Off |
Control Features | Add 30 Seconds Cancel/Off Lock Controls Power Level Set Clock Start/Pause Surface Light Timer On/Off Turntable On/Off Vent Fan |
Product Type | Over-the-range Microwave |
Microwave Convenience Cooking Controls | Beverage Cook Time Defrost: Weight/Time Popcorn Potato Reheat |
Turntable | Glass |
Cooking Technology | Microwave |
Exhaust Fan | 2-Speed 300-CFM |
Vent | Back Front Top |
Turntable Size | 12.75 in |
Interior Oven Light | Incandescent |
