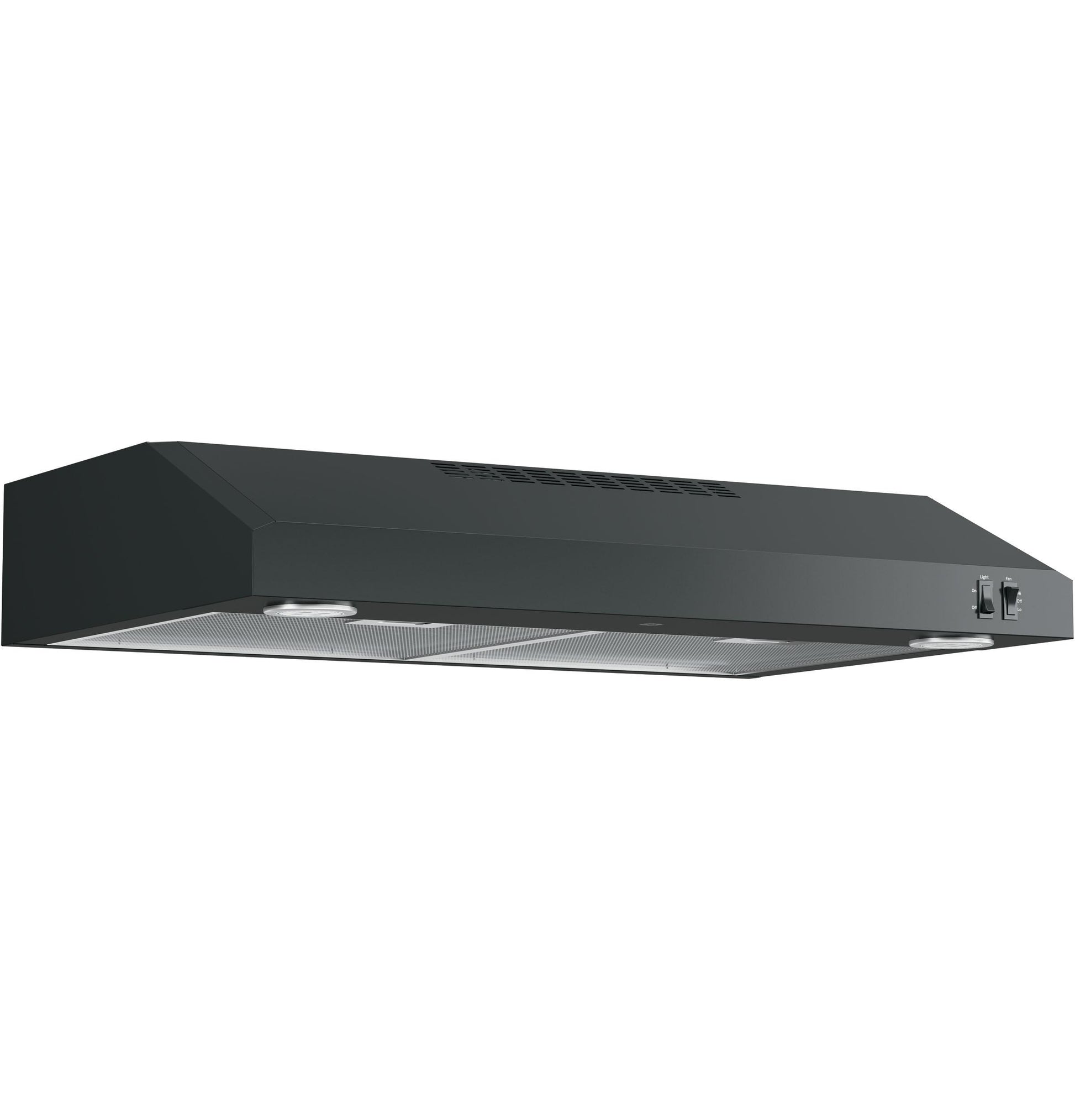

JVX5305DJBB GE® 30" ENERGY STAR Certified Under The Cabinet Hood JVX5305DJBB

Easy installation
10 minutes or less by one person

Two-speed, 270-CFM venting system
Removes smoke, grease, odors and moisture

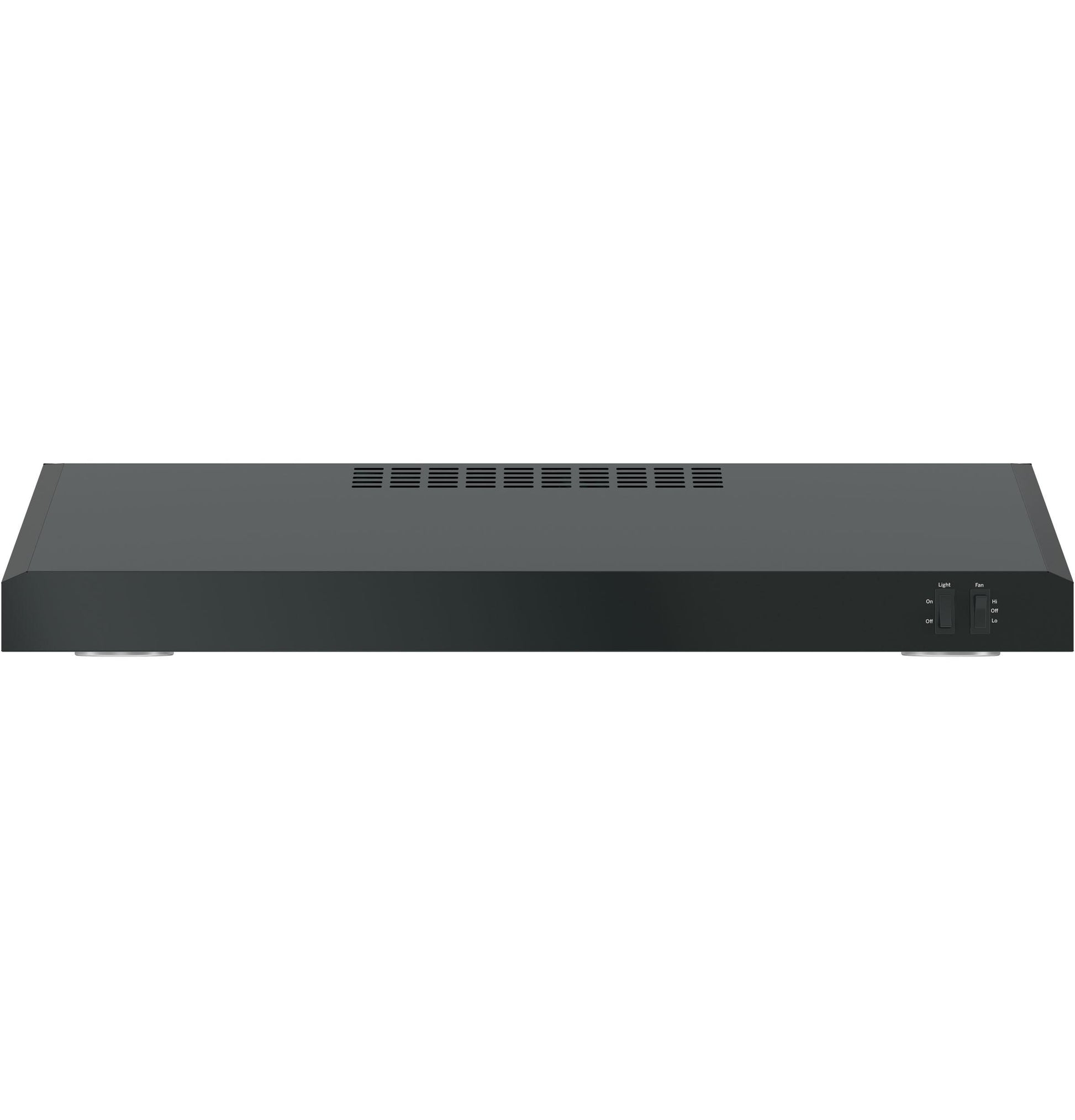

Front controls
Enjoy easy access and a subtle appearance

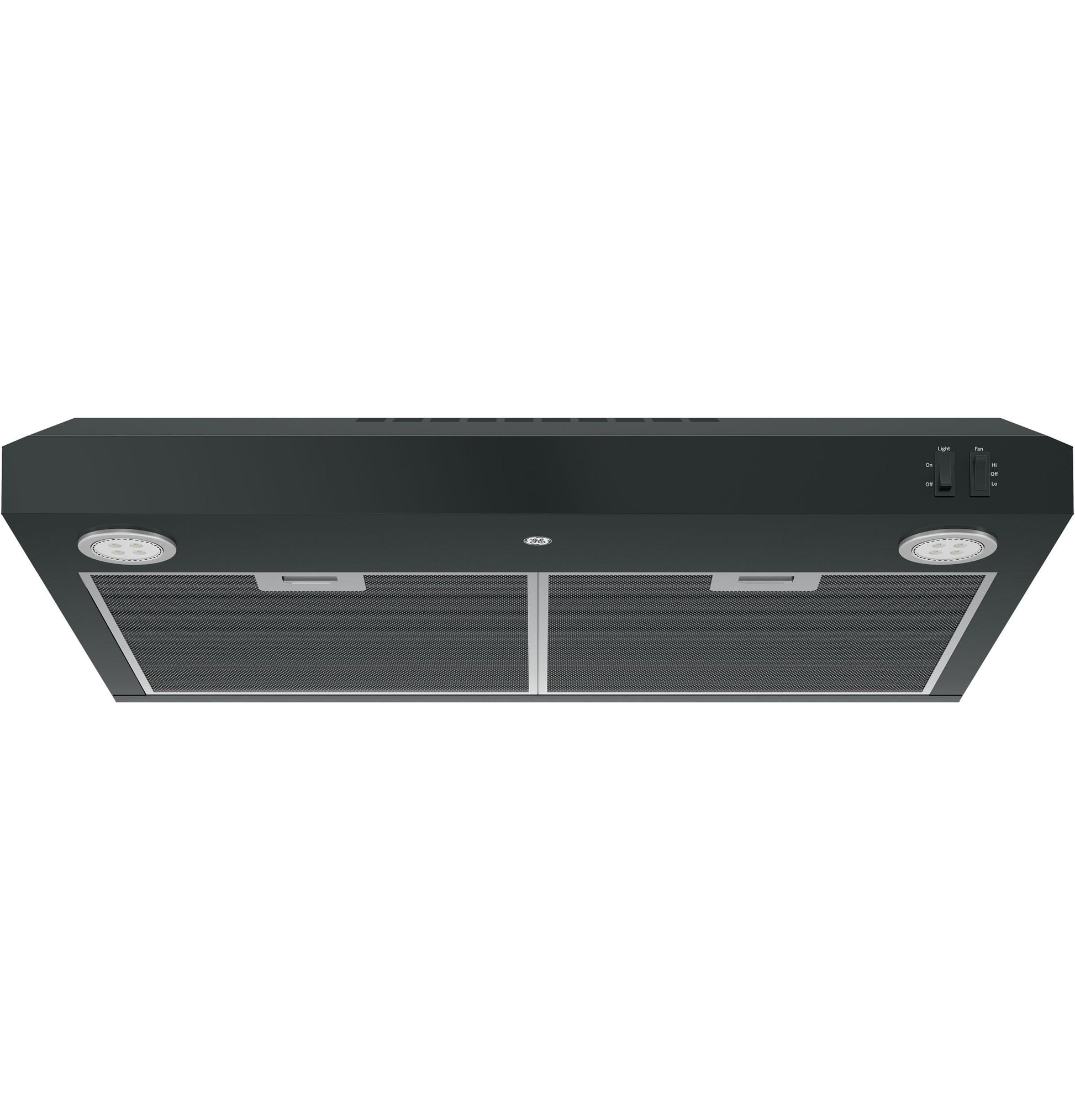

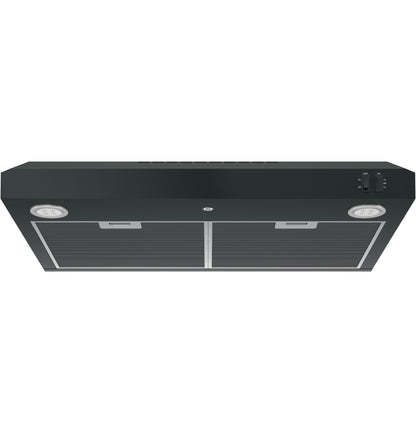

Dual LED lighting
Choose bright light while cooking - bulbs included

Convertible venting options
Select recirculating or external venting

Vertical and rear exhaust
Exhausts from the top or rear of the hood

Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

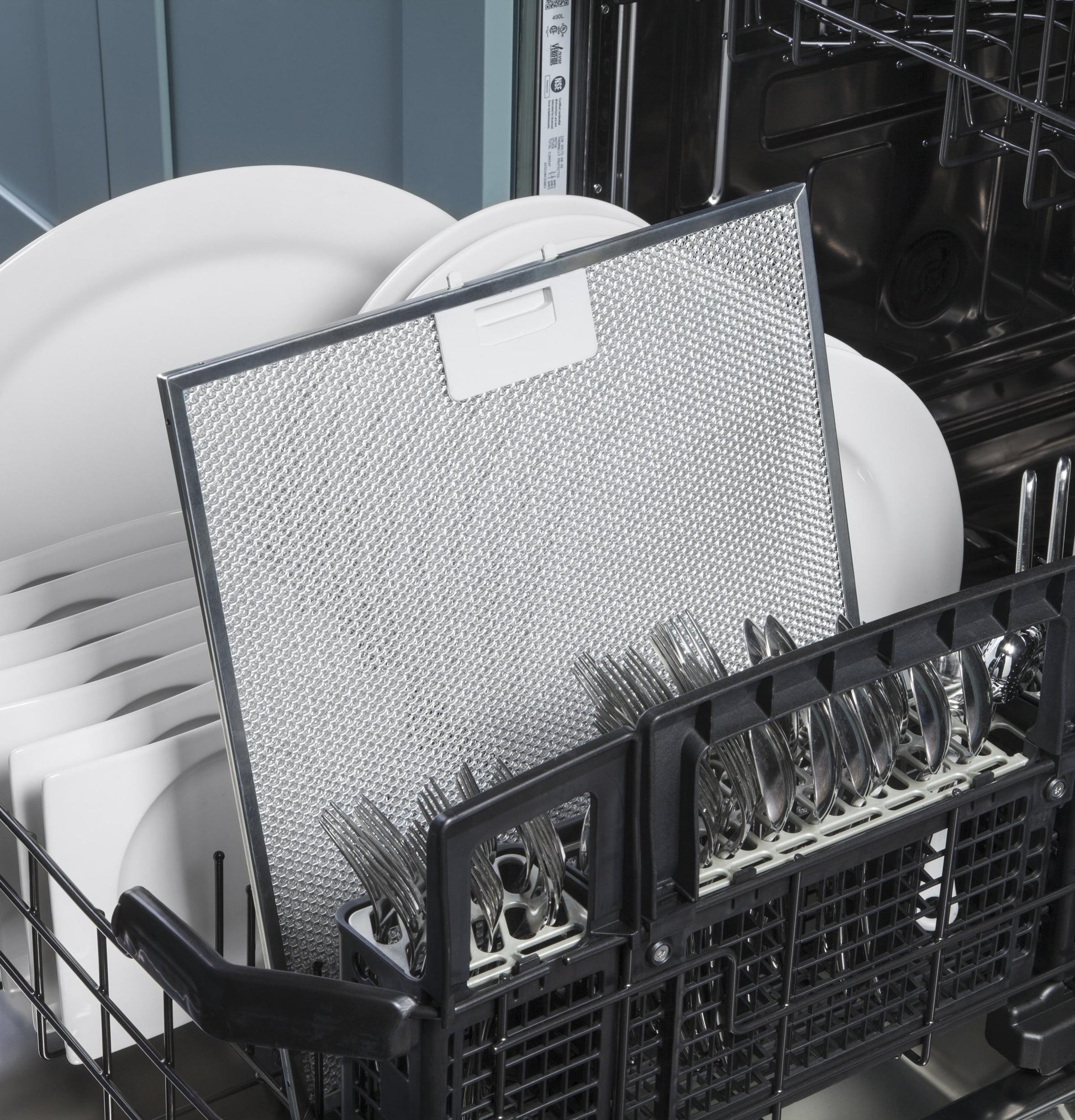

Dishwasher safe filter
Filters grease and is dishwasher-safe

FILTER
App Filter - Hood Type	Under Cabinet Hoods
App Filter - Venting Type	Convertible
App Filter - Cabinet Width	Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color	Black
Material	Metal
Color Appearance	Black
POWER / RATINGS
Electrical Requirements	120V ; 60Hz ; 1.0A
Amp Rating at 120V	1.0
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type	Convertible
ACCESSORIES
Optional Accessories	JXCF55 - Charcoal Filter JXHC1 - Power Cord Kit
WEIGHTS & DIMENSIONS
Cabinet Width	30 in
Net Weight	20 lb
Overall Depth	20 in
Approximate Shipping Weight	27 lb
Overall Height	5.5 in
Overall Width	29.875 in
FEATURES
Cooktop Lighting	2 LED
Fan Speed Control	2-Speed
Max CFM	270
Ducting	Vertical or Horizontal; 7" Round
Light Controls	On/Off
Filter Cleaning	Dishwasher Safe
CFM/ Sones Rating	100/1.5 (Low Speed) 270/4.5 (High Speed)
Exhaust Options	Recirculating Vented to Outside
Product Type	Under Cabinet Hood
Control Type	Rocker Switch
Control Location	Front
Removable Grease Filter(s)	Yes
