PDT145SGLBB GE Profile™ ENERGY STAR® 18" ADA Compliant Stainless Steel Interior Dishwasher with Sanitize Cycle PDT145SGLBB

ADA Compliant with Low-Profile Installation
Great for 34" counter top heights and raised subfloors

3-Level Wash
Expect exceptionally clean table-ready dishes with powerful wash arms

Autosense Cycle
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time

Piranha™ hard food disposer with removable filter
To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

Sanitize option (NSF Certified)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes

Quiet Package
dBA 47, dramatically reduces the sound of washing the dishes

FILTER
App Filter - Cabinet Width	Dish Compact 18 in.
App Filter - Stainless Steel Interior	Yes
App Filter - Product Type	Dish Built-In Top Control
App Filter - WiFi Connect	Optional
App Filter - Food Disposer	Yes
App Filter - Bottle Wash	No
APPEARANCE
Handle	Pocket Handle
Handle Color	Black
Door Style	Full-Length Flat Door
Color Appearance	Black
Handle Design	Recessed
POWER / RATINGS
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)	240
Electrical Requirements	120V ; 60 Hz ; 8.9 A
Calrod Heater Watts	1100
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Insulation Mastic
Quiet Package	47 dBA
Outer Wrap	U-Blanket
Motor Type	Single Speed
Quiet Features	Sealed Toe Kick Tub Collar Trim
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	32.5 in
Cutout Height (in)	32 1/2 in
Cutout Width (in)	18 in
Overall Depth	22.5 in
Cabinet Width	18 in
Net Weight	72 lb
Overall Width	17.75 in
Approximate Shipping Weight	85 lb
Overall Height	32.5 in
Cutout Depth (in)	24 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	23.125 in
FEATURES
Wash System	3-Level Standard
Sensor	Clean Sensor
Lower Rack	1 Rack handle Nylon
Leveling System	Leveling Legs
Number of Place Settings	8
Dishwasher Options	Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost
Latch	Center Pull
Number of Options	5
Style	Built-In Top Control Spacemaker
Water Filtration System	3-Stage Manual Clean Filtration
Rack Features	1 Piece Mid Silverware Basket w/ 1 Cell Cover 1 Plastic Utility Shelf - Upper Ball-Tipped Tines Fold-Down Tines - Lower Stem Safe
Dishwasher Cycles	AutoSense Heavy Wash Light Wash
RV Ready	Yes
Dispenser	Rinse Aid with Indicator and Adjustment
WiFi Connect	Optional (Requires part no. PBX23W00Y0)

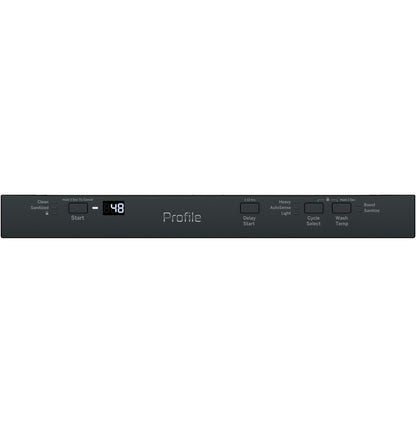

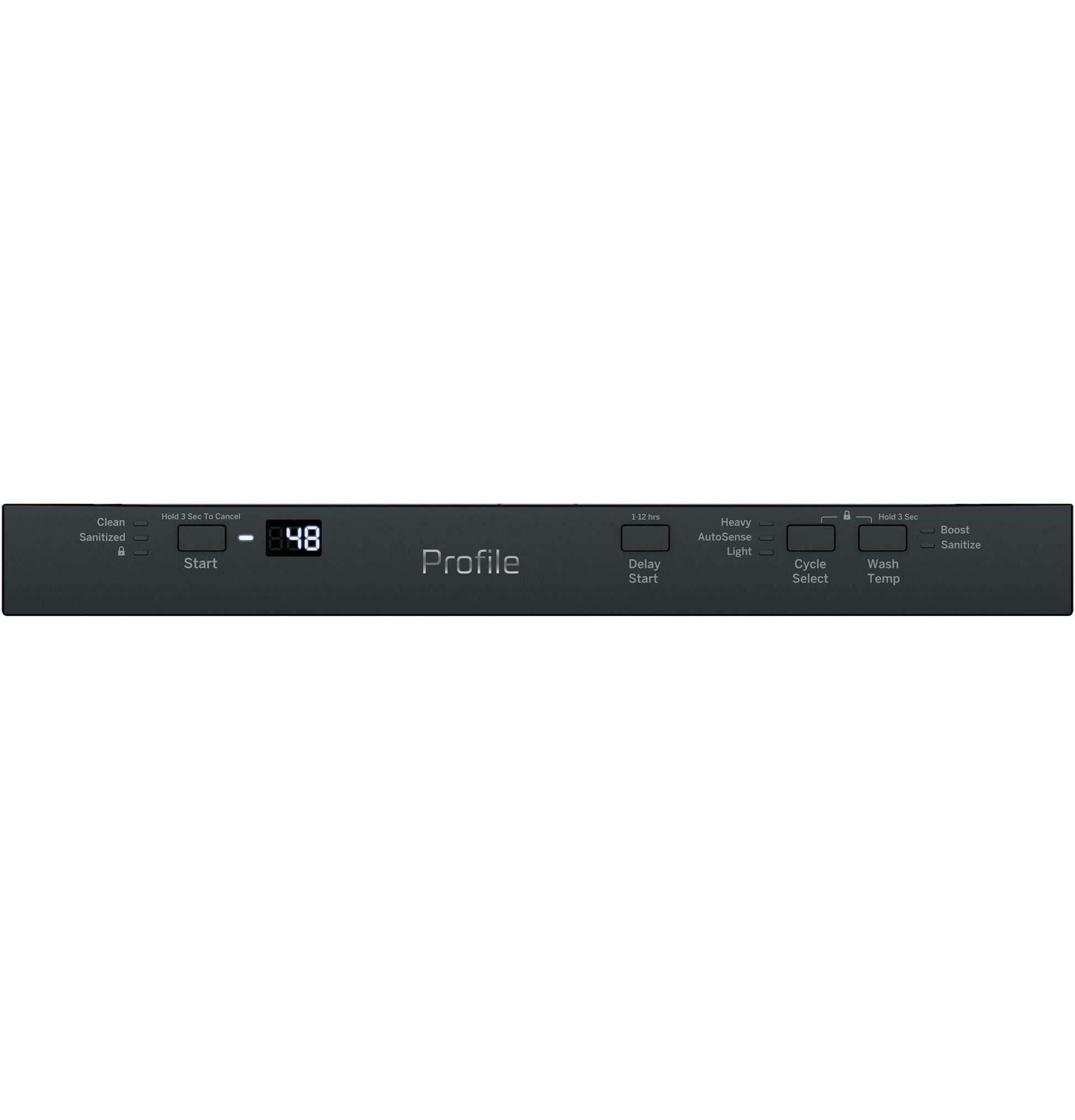

Control Type	4 Pushbuttons Fully Integrated Electronic Top Controls
Racking System	Gray
Dishwasher Drying Features	Condensate Dry
Wash Arms	2 with Upper Nozzle
Wash System Features	Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha™ Hard Food Disposer
Exterior Style	18" Wide
Connected Capabilities	Amazon Alexa IFTTT Sonos The Google Assistant
Upper Rack	1 Rack handle Adjustable Nylon
Dishwasher Control Features	3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad
Number of Cycles	3
Tub and Door Liner	Stainless Steel
