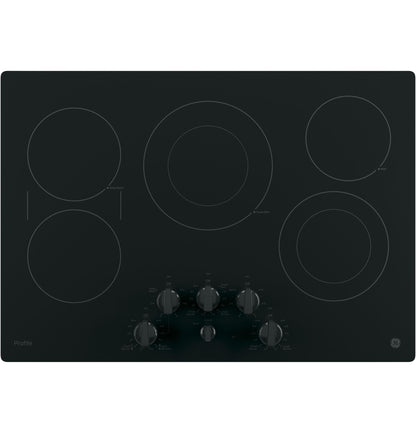

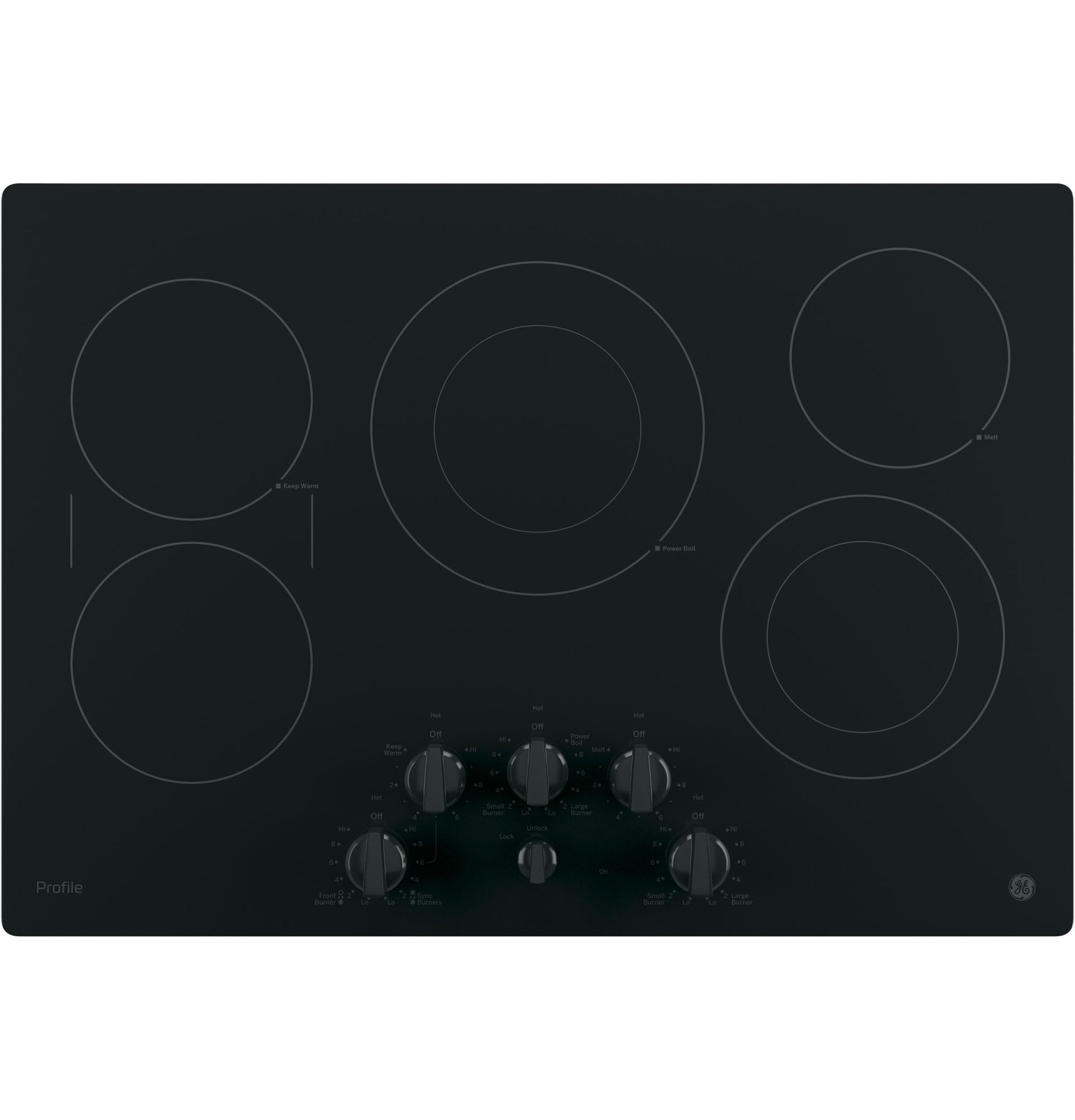

GE Profile™ 30" Built-In Knob Control Electric Cooktop PP7030DJBB
Discontinued- Five radiant cooking elements
- Power Boil Dual-Ring Element
- SyncBurner
- 2nd Power Boil Dual-Ring Element
- Keep Warm Setting
- Melt Setting
- Control lock capability
- Red LED backlit knobs with black glass surface
- Hot surface indicator lights
- Cooktop "On" indicator light
- Fit Guarantee

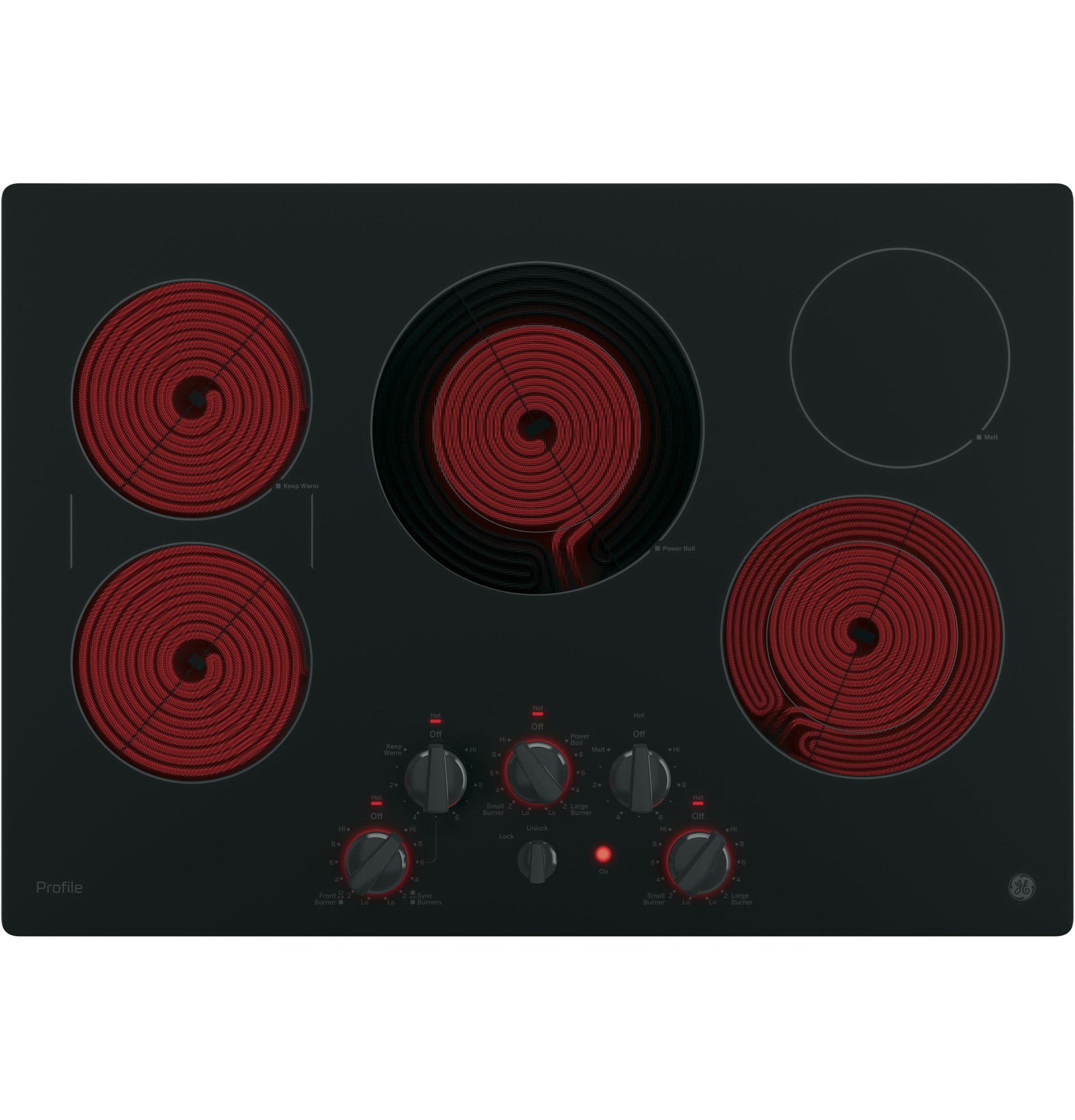

Five radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Dual-Ring Element
Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling
SyncBurner
Evenly heat large cookware (griddles) with two 7" synchronized elements you can control with the touch of a button
2nd Power Boil Dual-Ring Element
Use different pan sizes on this 2,200-watt flexible element
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Red LED backlit knobs with black glass surface
Achieve a modern look with the convenience of knob controls
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active

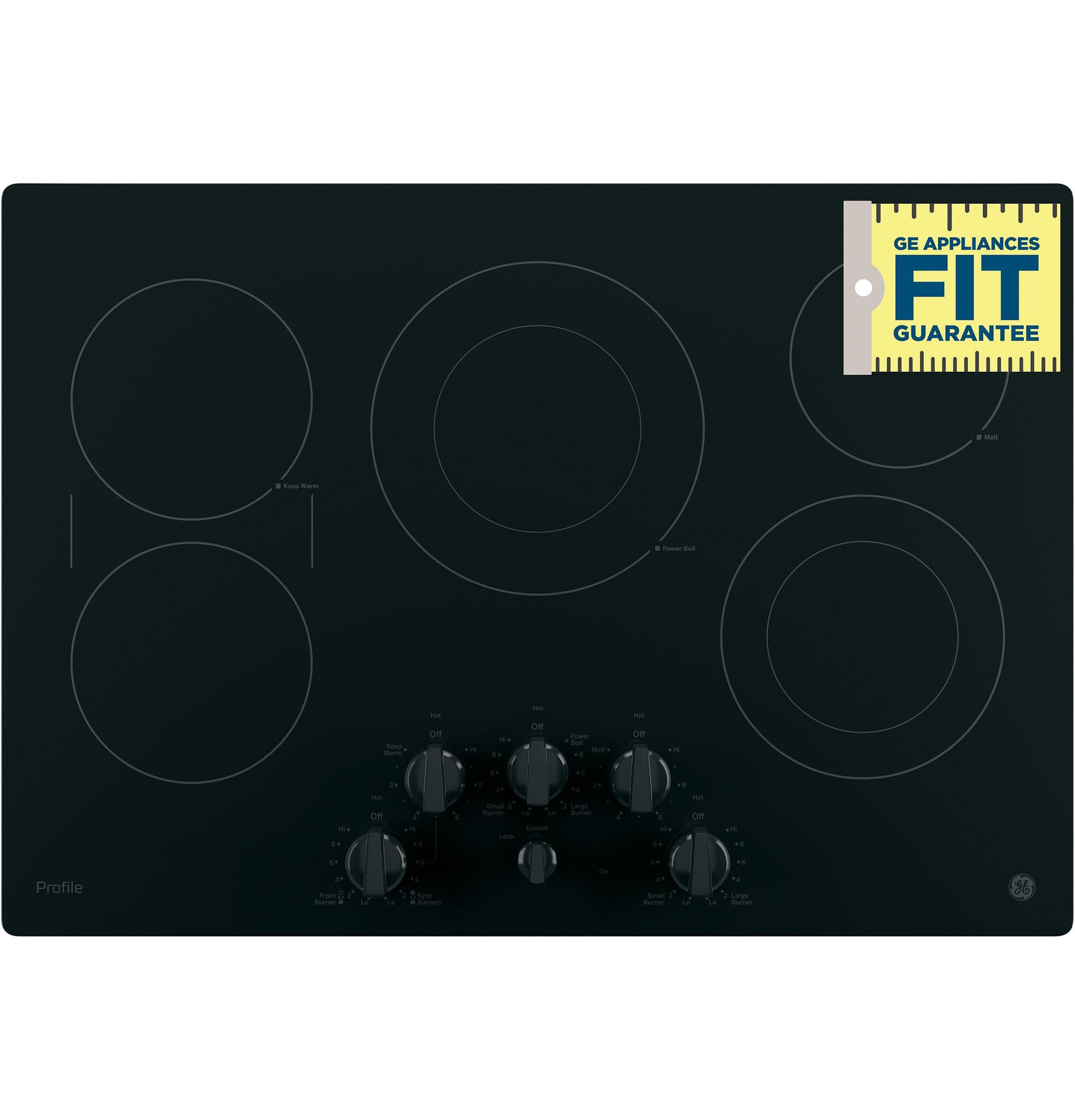

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
FILTER | |
App Filter - SyncBurners | Yes |
App Filter - Control Type | Rotary knobs |
App Filter - Cooktop Type | Radiant Smoothtop |
App Filter - Backlit Knobs | Yes |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Control Knobs | Gloss Black |
Frameless | Yes |
Color Appearance | Black on Black |
POWER / RATINGS | |
Max. Current Draw (Amps) at 208V | 34.3 |
Max. Current Draw (Amps) at 240V | 39.6 |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Max. Connected Load (kW) at 240V | 9.5 |
Max. Connected Load (kW) at 208V | 7.1 |
Recommended Circuit Breaker (Amps) at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 41.0 |
Cooktop Size | 30.0 |
Overall Depth | 20.875 |
Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
Overall Width | 29.75 |
Overall Height | 5.5625 |
Approximate Shipping Weight | 47.0 |
Cabinet Width | 30.0 |
FEATURES | |
Cooktop Burner Type | 5 Ribbon Smoothtop |
Filler trim kit | JXTR32B |
Cooktop Control Features | Control Lock Capability Keep-Warm Setting Melt Setting Sync-Burners Capability |
Element - Center | 9"/6" 3100W Power Boil |
Element - Left Front | 7" 1500W |
Melt Setting | Yes |
Fuel Type | Electric |
Cooktop Surface | Black Ceramic Glass |
Indicator Lights | 5 Hot Surface Red Surface Element "ON" |
Control Type | Backlit Knob LED |
Element - Right Front | 8"/5" 2200W Dual |
Cooktop Type | Radiant Smoothtop |
Control Location | Front Center |
Element - Right Rear | 6" 1200W |
Element - Left Rear | 7" 1500W |
Dishwasher Safe Knobs | Yes |
