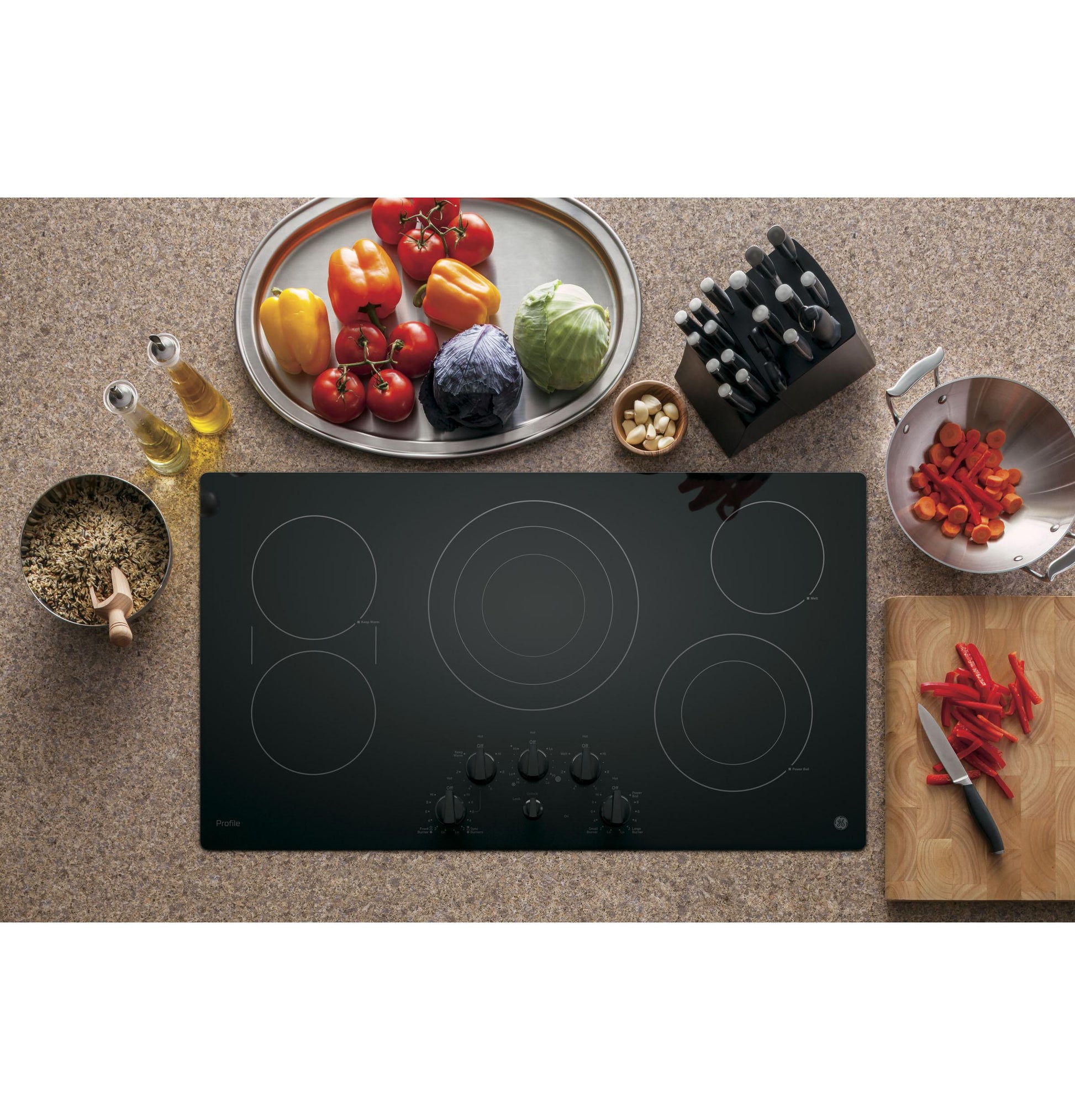

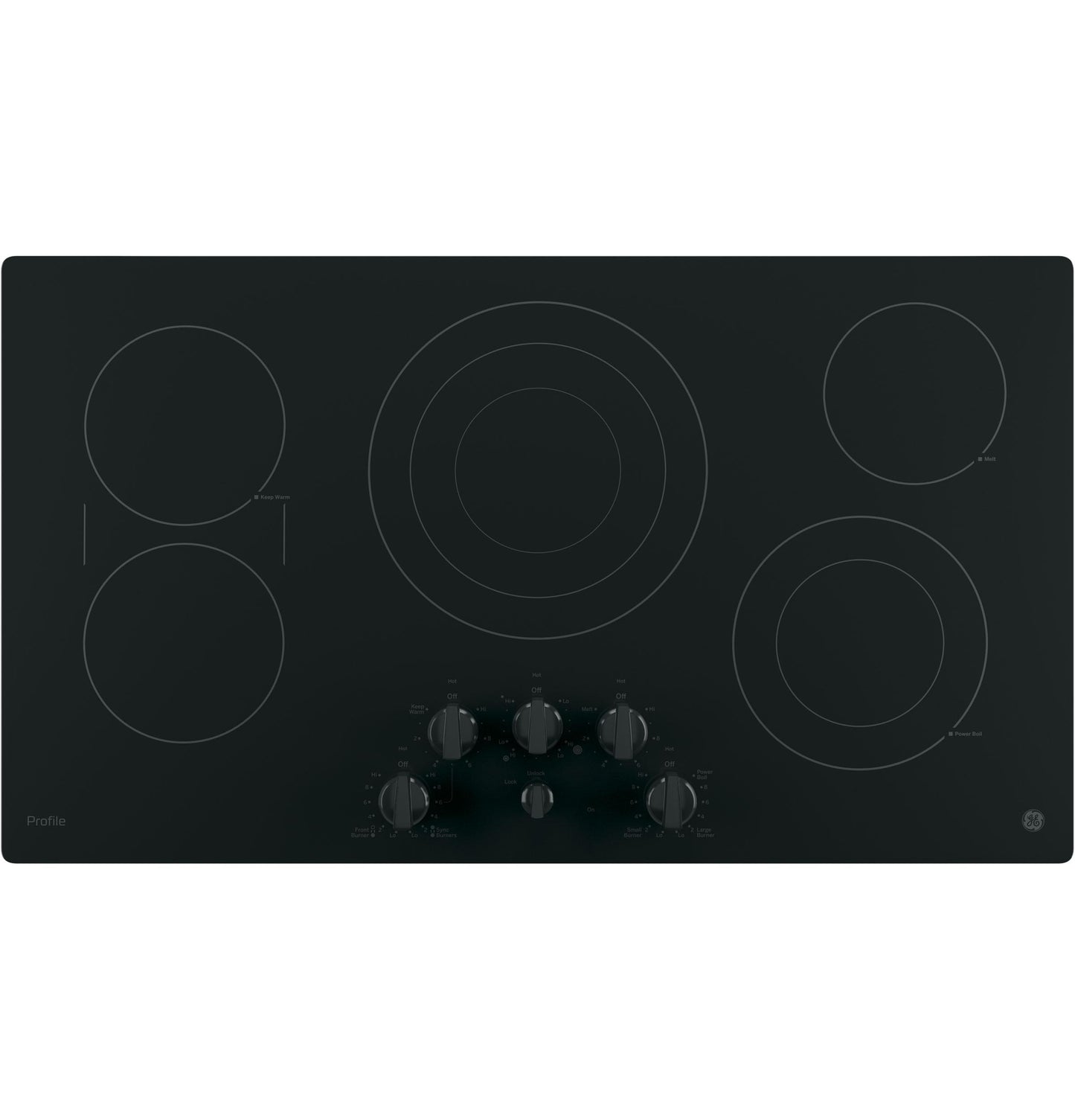

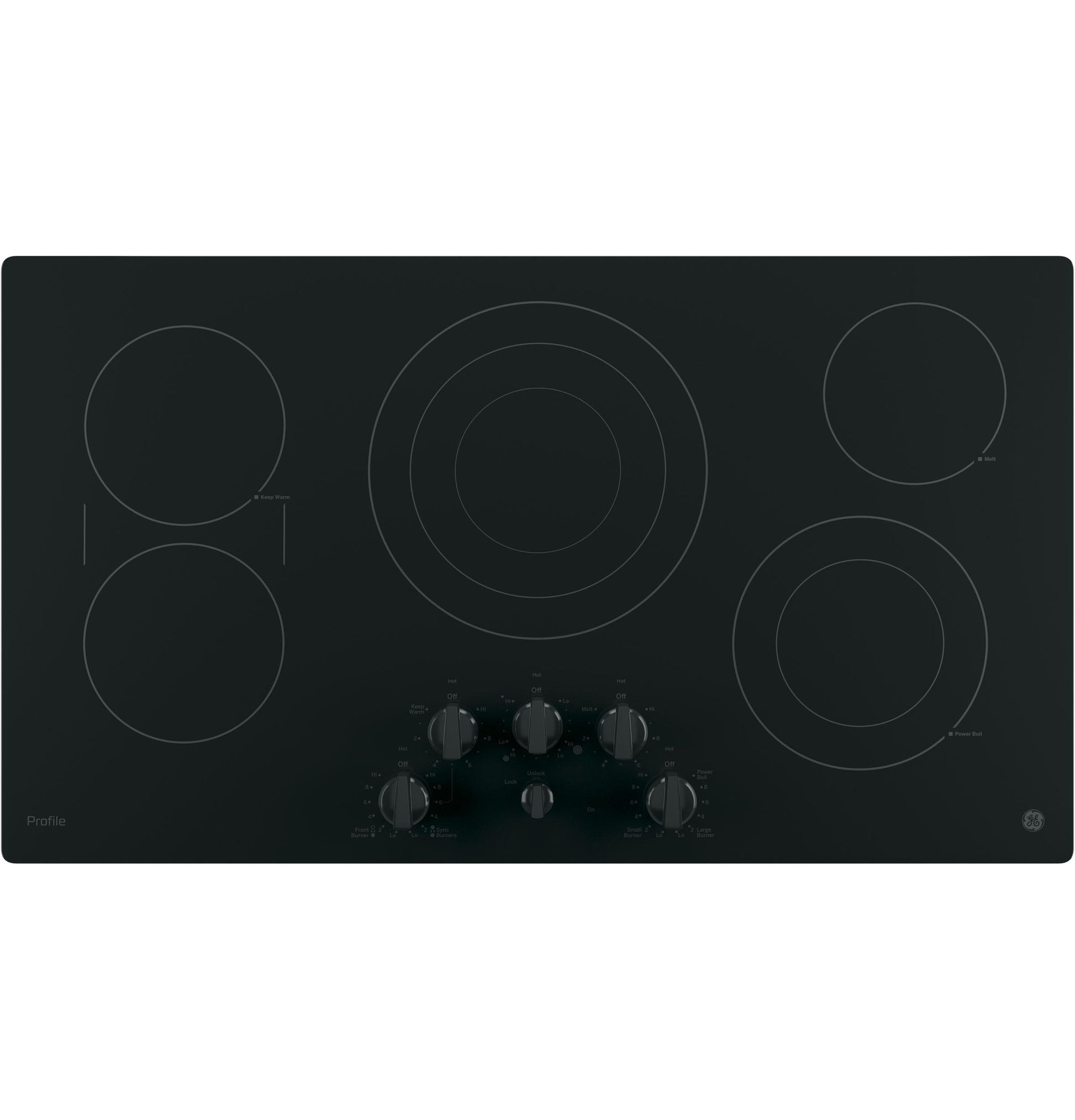

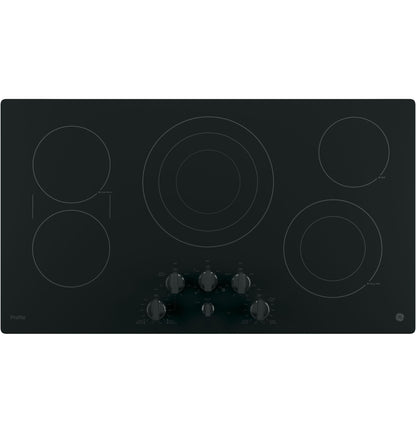

GE Profile™ 36" Built-In Knob Control Cooktop PP7036DJBB
Discontinued- Five radiant cooking elements
- Power Boil Tri-Ring Element
- Power Boil Dual-Ring Element
- SyncBurner
- Keep Warm Setting
- Melt Setting
- Control lock capability
- Red LED backlit knobs with black glass surface
- Hot surface indicator lights
- Cooktop "On" indicator light
- Fit Guarantee

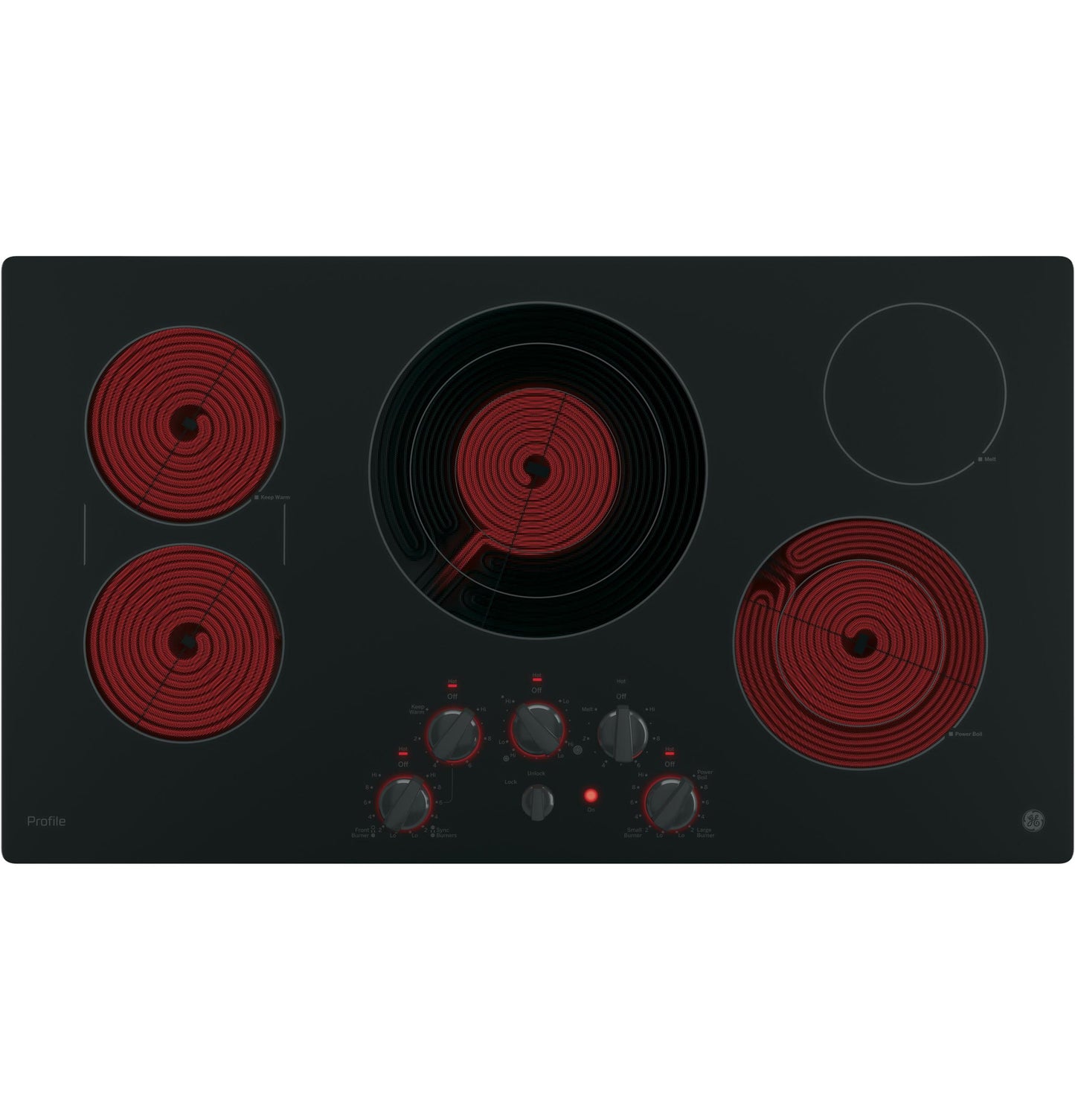

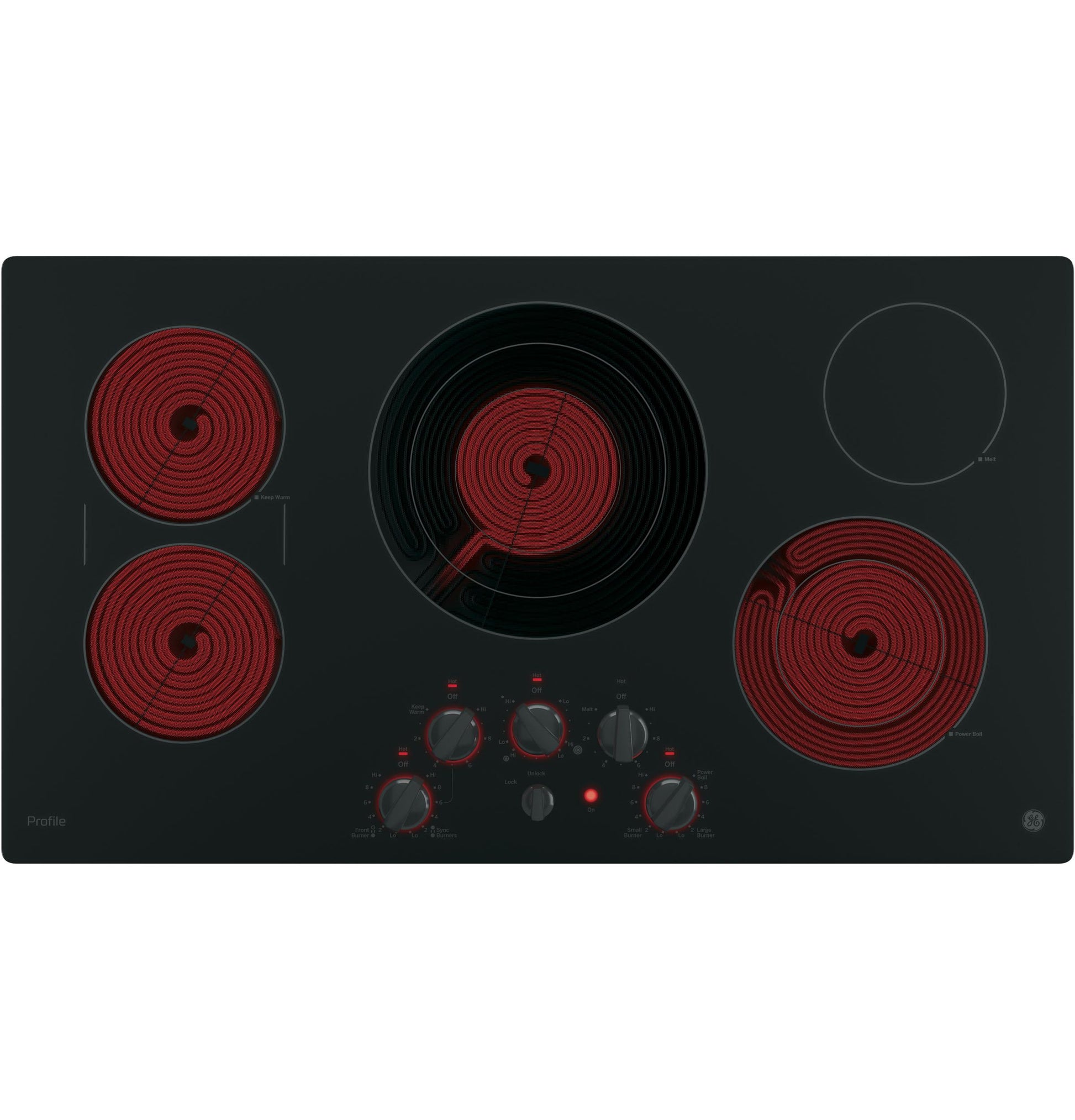

Five radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Tri-Ring Element
Use different pan sizes on this 3,000-watt flexible element

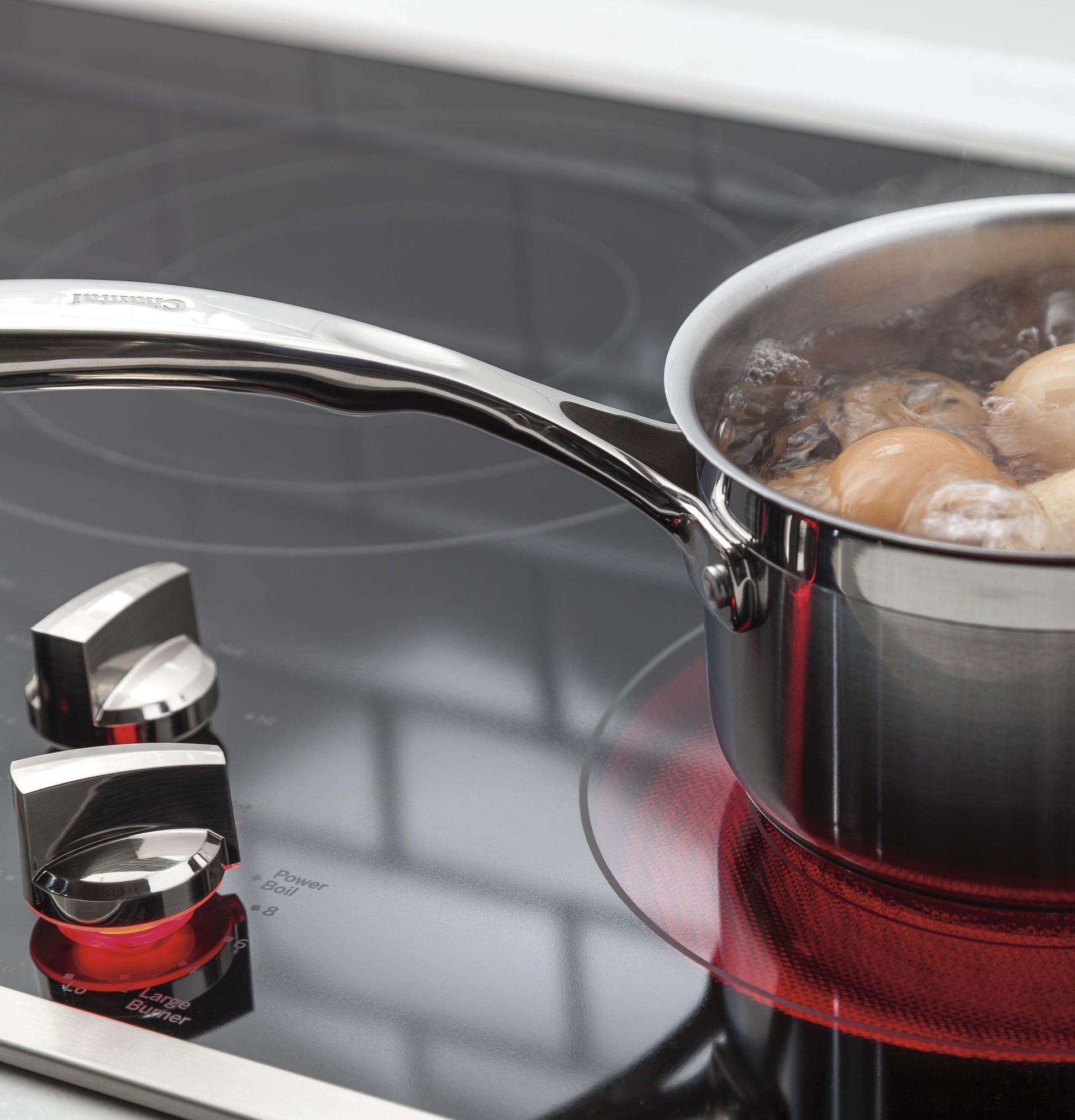

Power Boil Dual-Ring Element
Use different pan sizes on this 2,400-watt flexible element that produces concentrated heat for rapid boiling

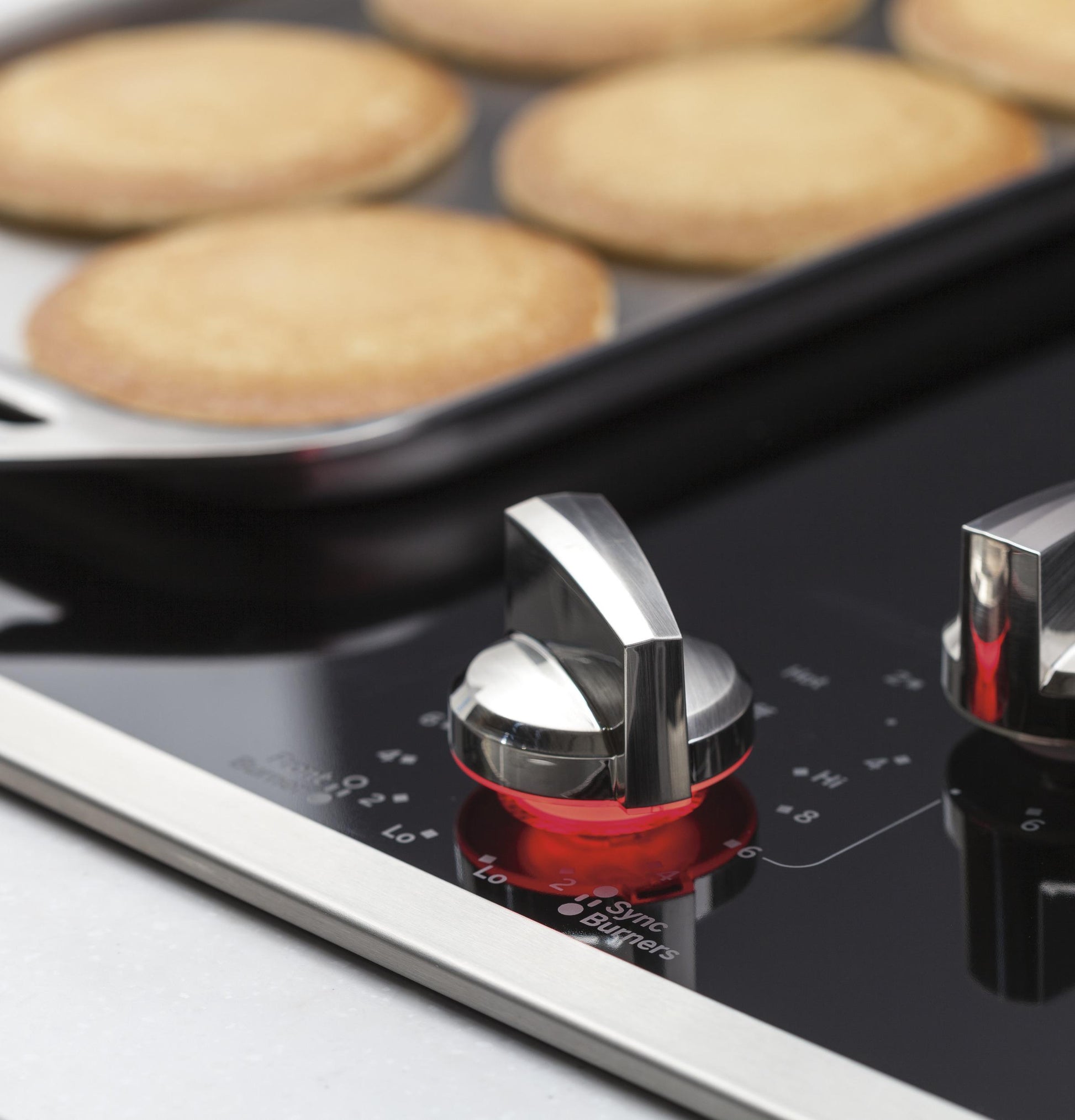

SyncBurner
Evenly heat large cookware (griddles) with two 7" synchronized elements you can control with the touch of a button

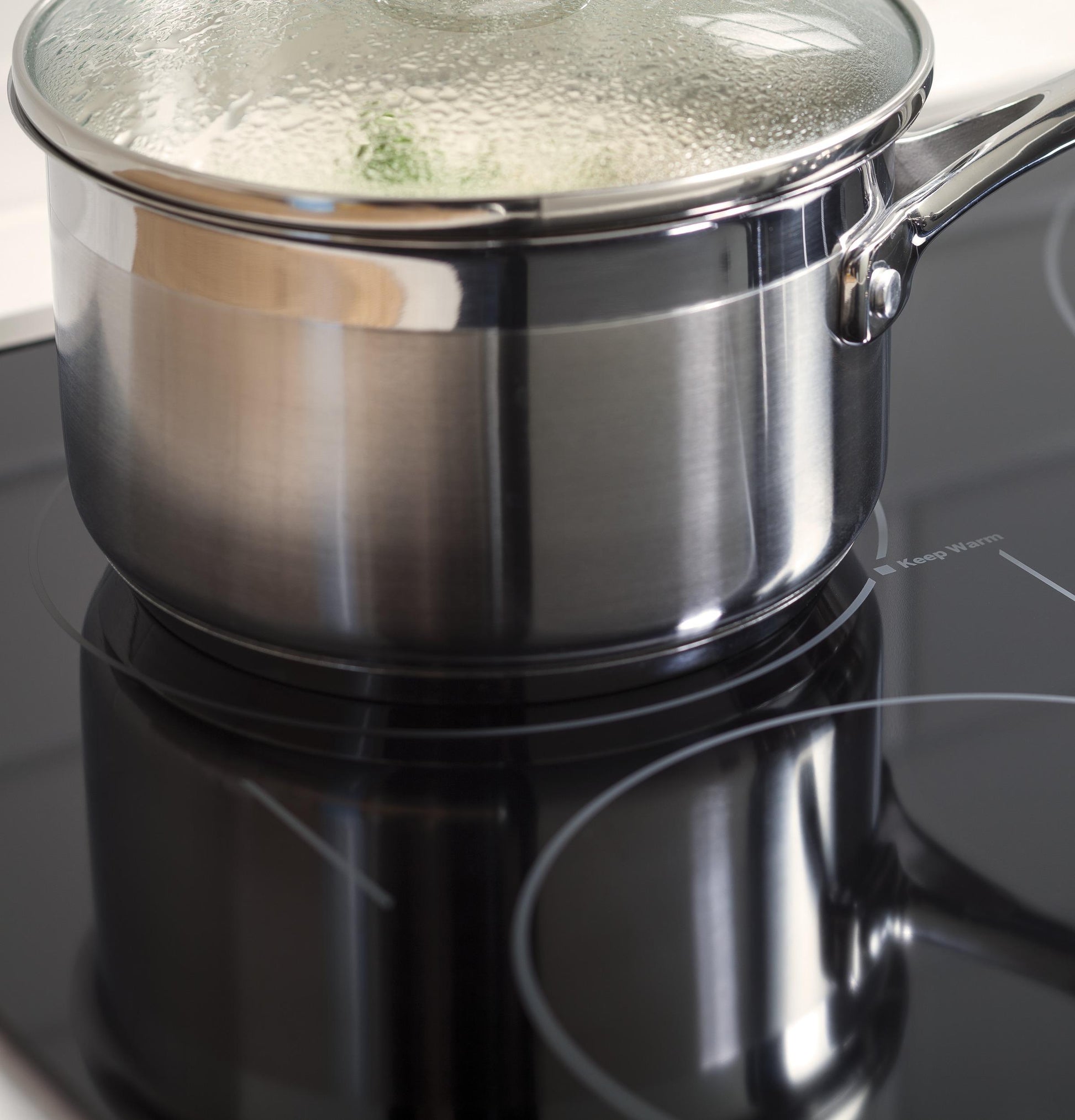

Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

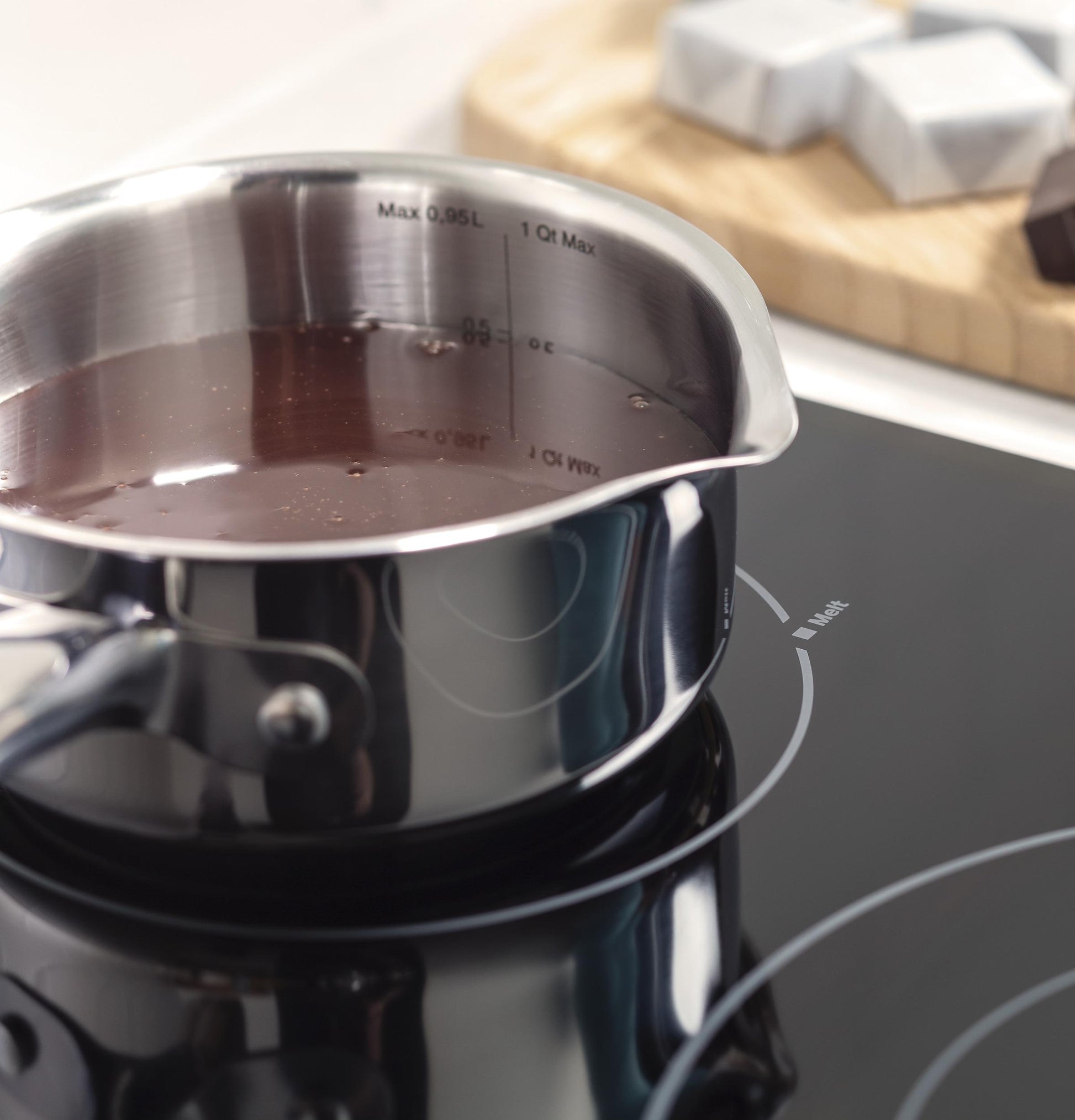

Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting

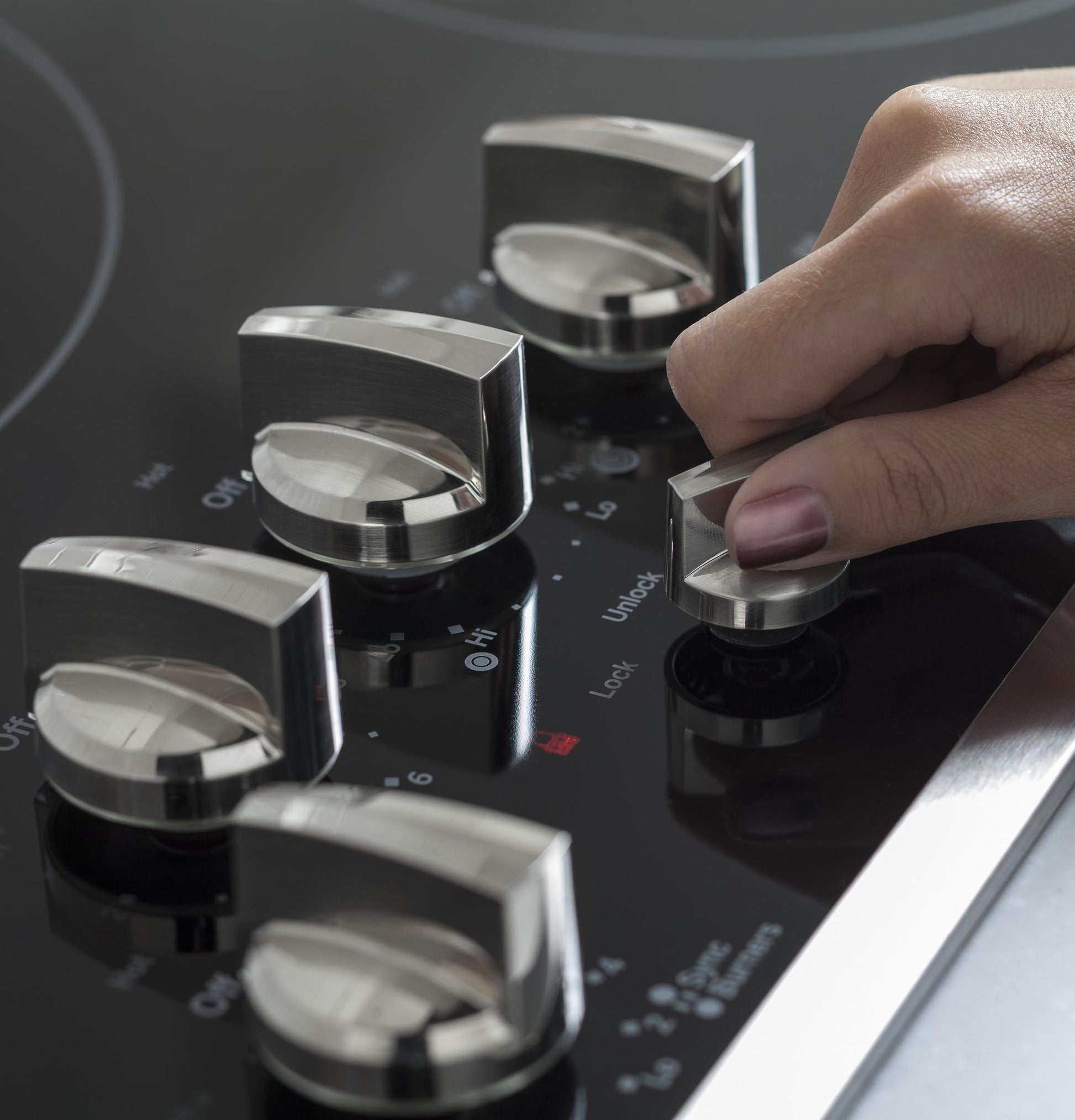

Control lock capability
Protects against unintended activation

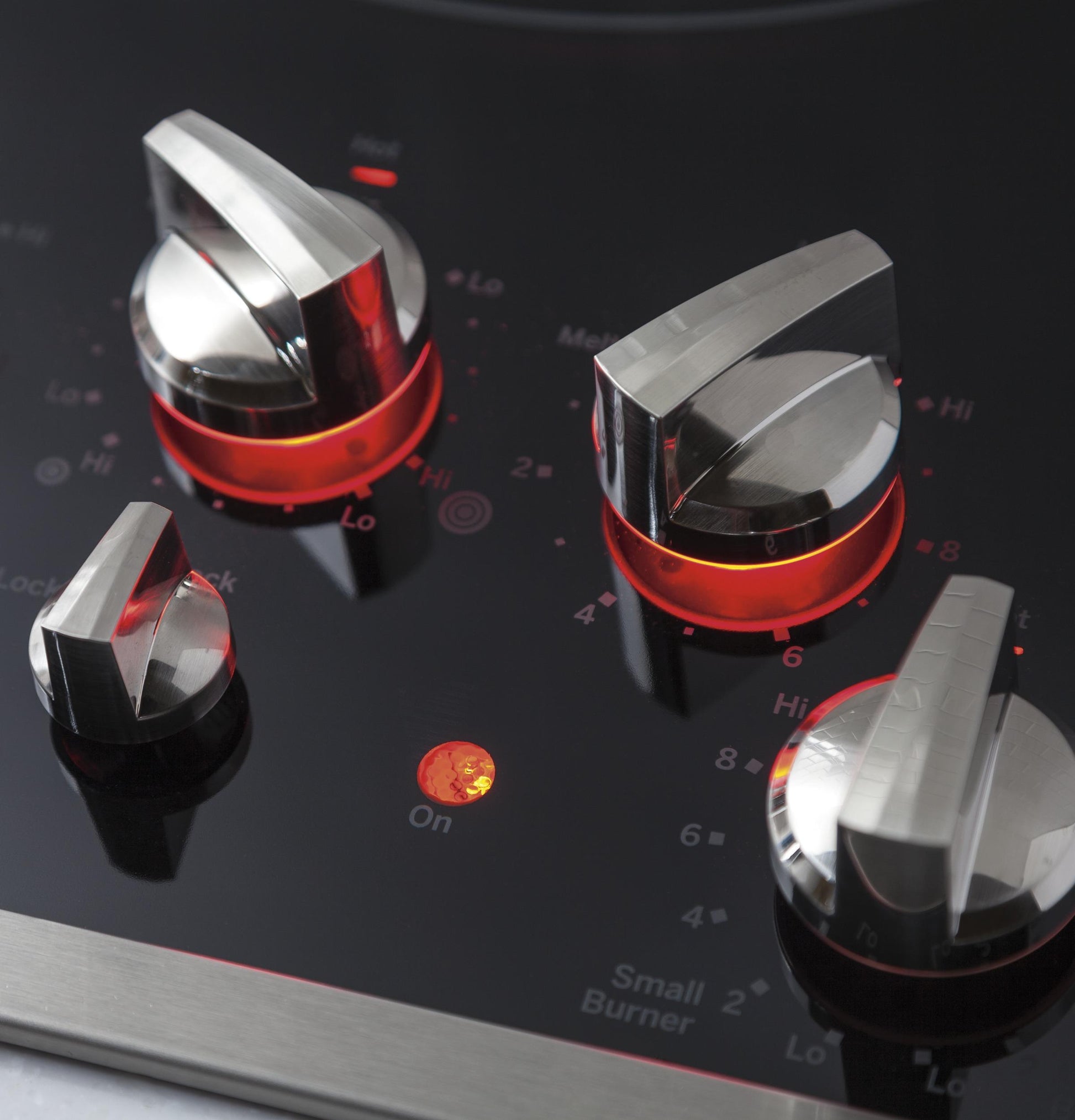

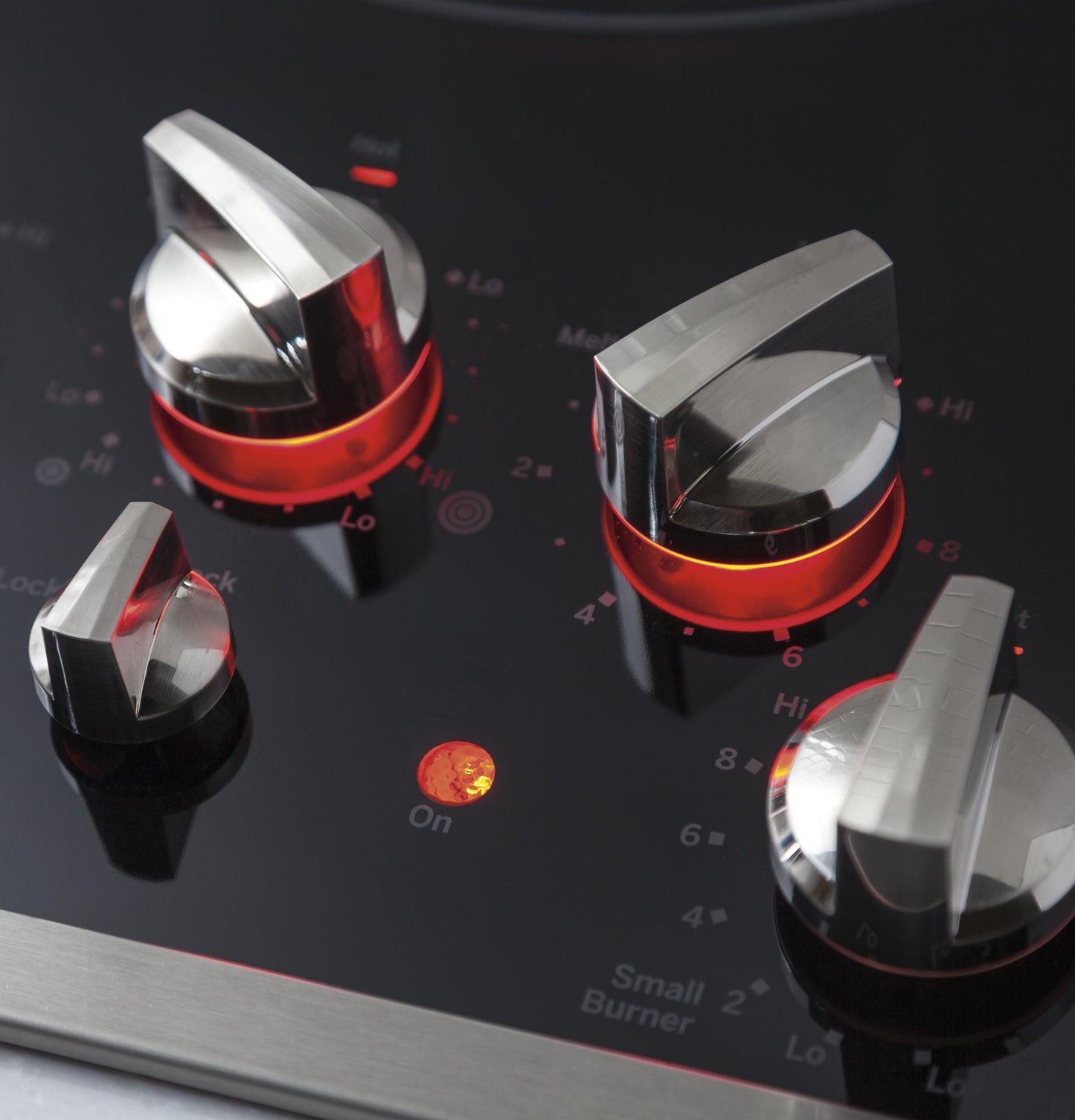

Red LED backlit knobs with black glass surface
Achieve a modern look with the convenience of knob controls
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active

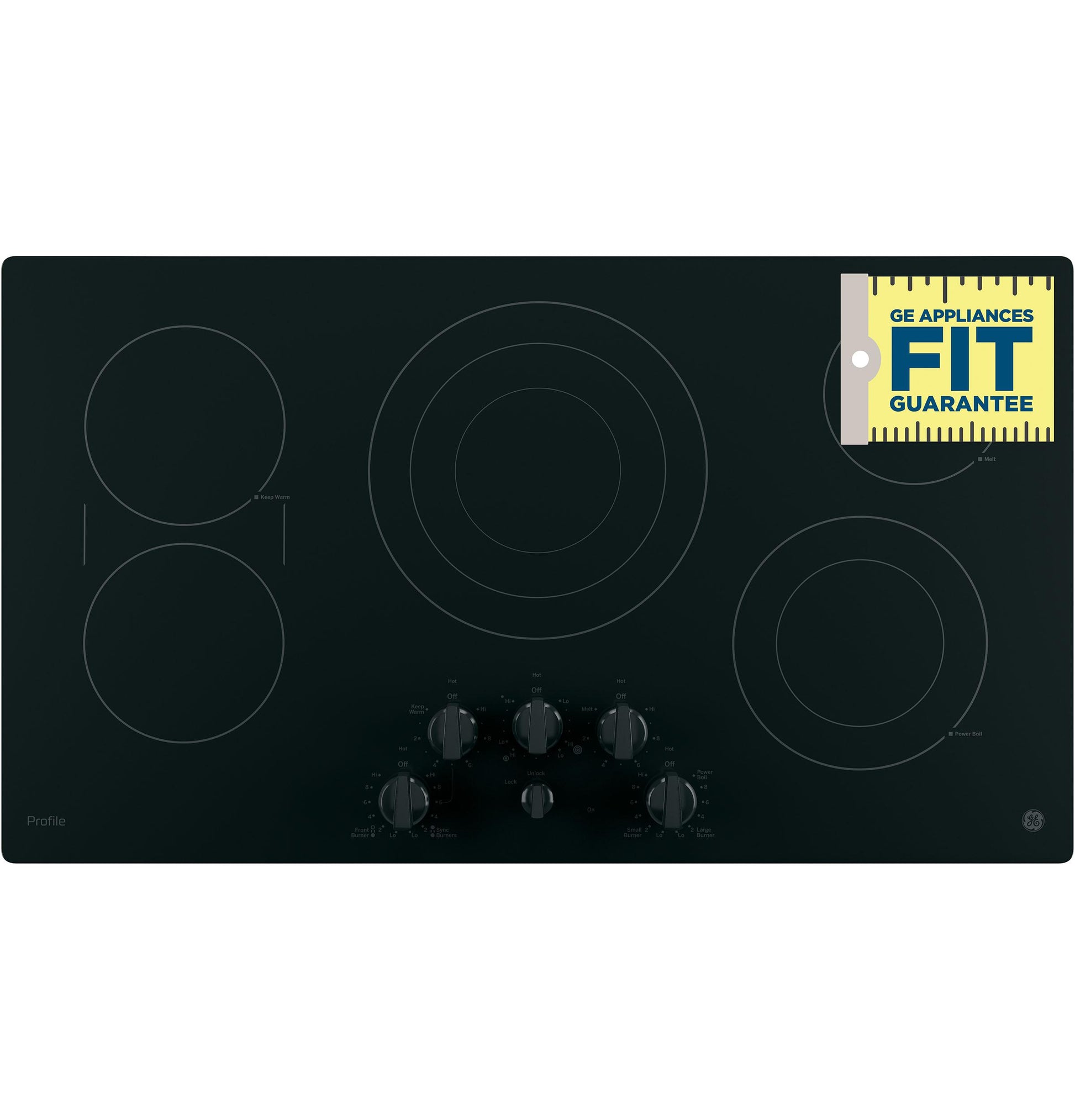

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
FILTER | |
App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Backlit Knobs | Yes |
App Filter - Cooktop Type | Radiant Smoothtop |
App Filter - Fuel Type | Electric |
App Filter - SyncBurners | Yes |
App Filter - Control Type | Rotary knobs |
APPEARANCE | |
Color Appearance | Black |
Frameless | Yes |
Control Knobs | Gloss Black |
POWER / RATINGS | |
Recommended Circuit Breaker (Amps) at 240V | 40 |
Max. Connected Load (kW) at 240V | 9.6 |
Max. Current Draw (Amps) at 240V | 40.0 |
Max. Connected Load (kW) at 208V | 7.2 |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Max. Current Draw (Amps) at 208V | 34.7 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Cooktop Size | 36 |
Overall Height | 5.5625 |
Cabinet Width | 36 |
Approximate Shipping Weight | 53 |
Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
Overall Width | 36 |
Net Weight | 46 |
Overall Depth | 20.375 |
FEATURES | |
Dishwasher Safe Knobs | Yes |
Cooktop Burner Type | 5 Ribbon Smoothtop |
Melt Setting | Yes |
Fuel Type | Electric |
Element - Left Front | 7" 1500W |
Indicator Lights | 5 Hot Surface Red Surface Element "ON" |
Element - Right Front | 8"/5" 2400W Power Boil |
Control Location | Front Center |
Cooktop Type | Radiant Smoothtop |
Cooktop Surface | Black Ceramic Glass |
Cooktop Control Features | Control Lock Capability Keep-Warm Setting Melt Setting Sync-Burners Capability |
Element - Left Rear | 7" 1500W |
Control Type | Backlit Knob LED |
Element - Center | 12"/9"/6" 3000W Tri-ring |
Element - Right Rear | 6" 1200W |
