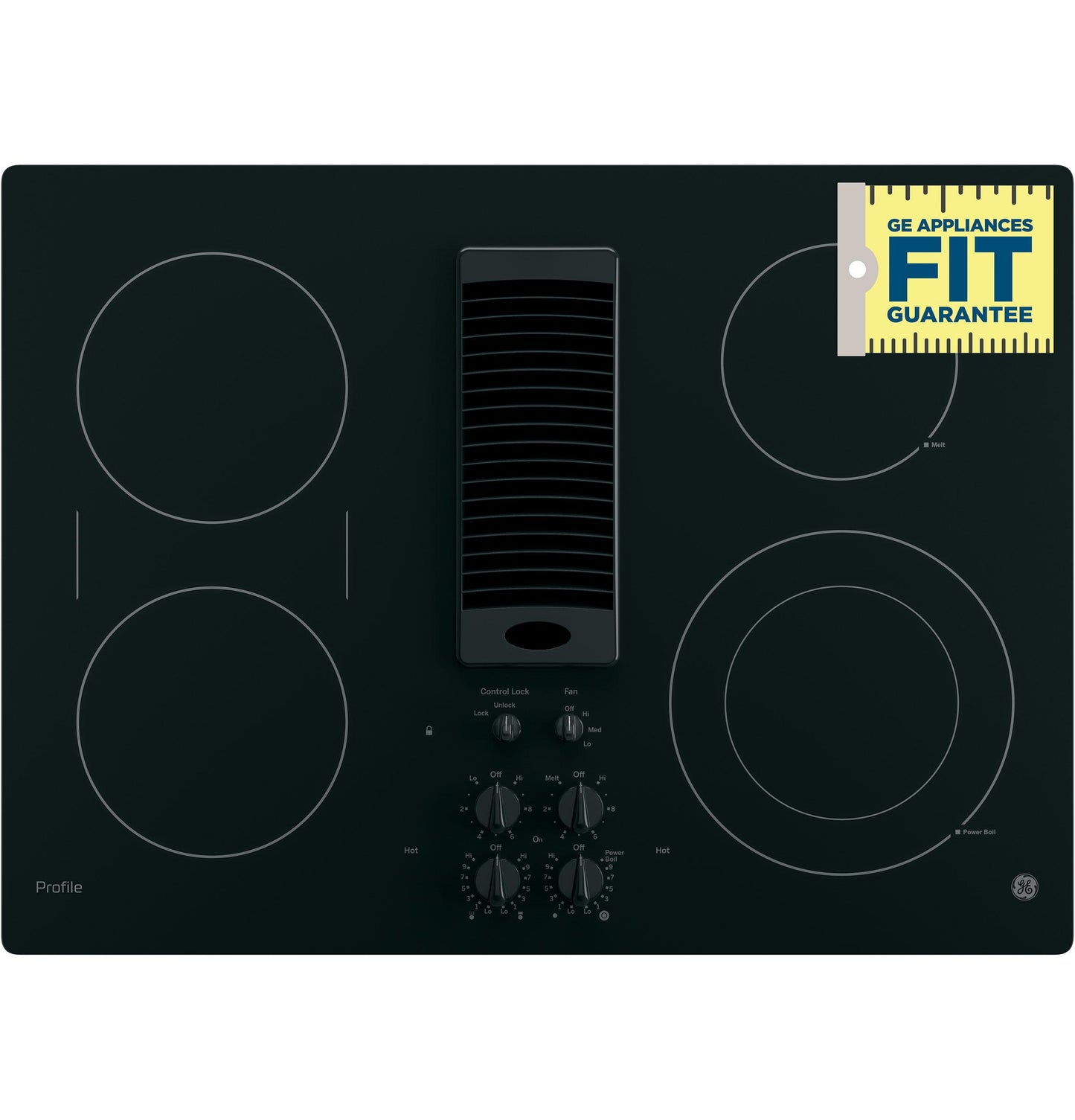

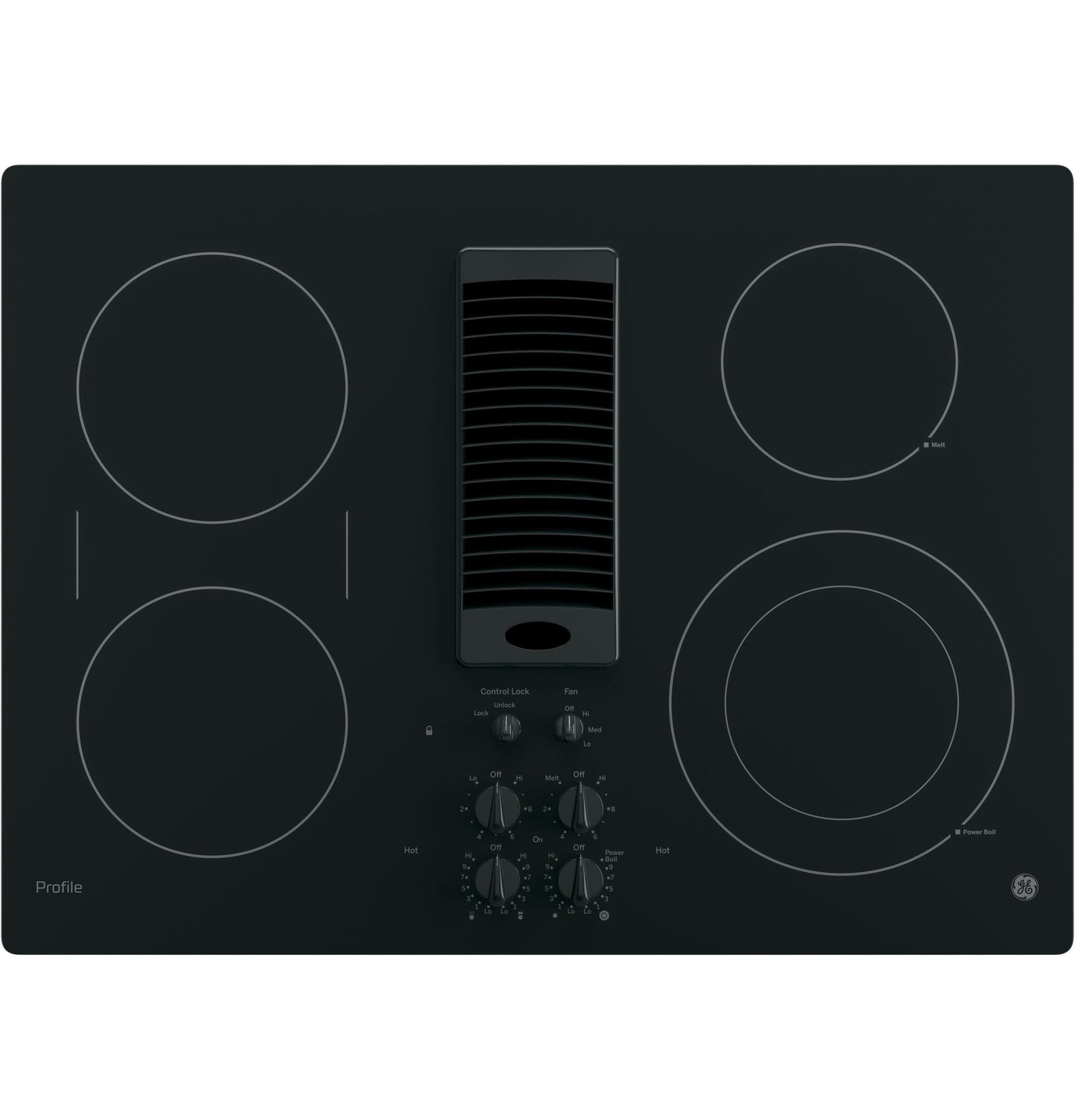

GE Profile™ 30" Downdraft Electric Cooktop PP9830DRBB
Chat to see when this product will become available
Product Details
- Fit Guarantee
- Four radiant cooking elements
- 9"/6" Power Boil element
- Bridge Element
- Downdraft exhaust
- Control lock capability
- Knob controls with black glass surface
- Hot surface indicator lights
- Cooktop "On" indicator light
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
9"/6" Power Boil element
Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat

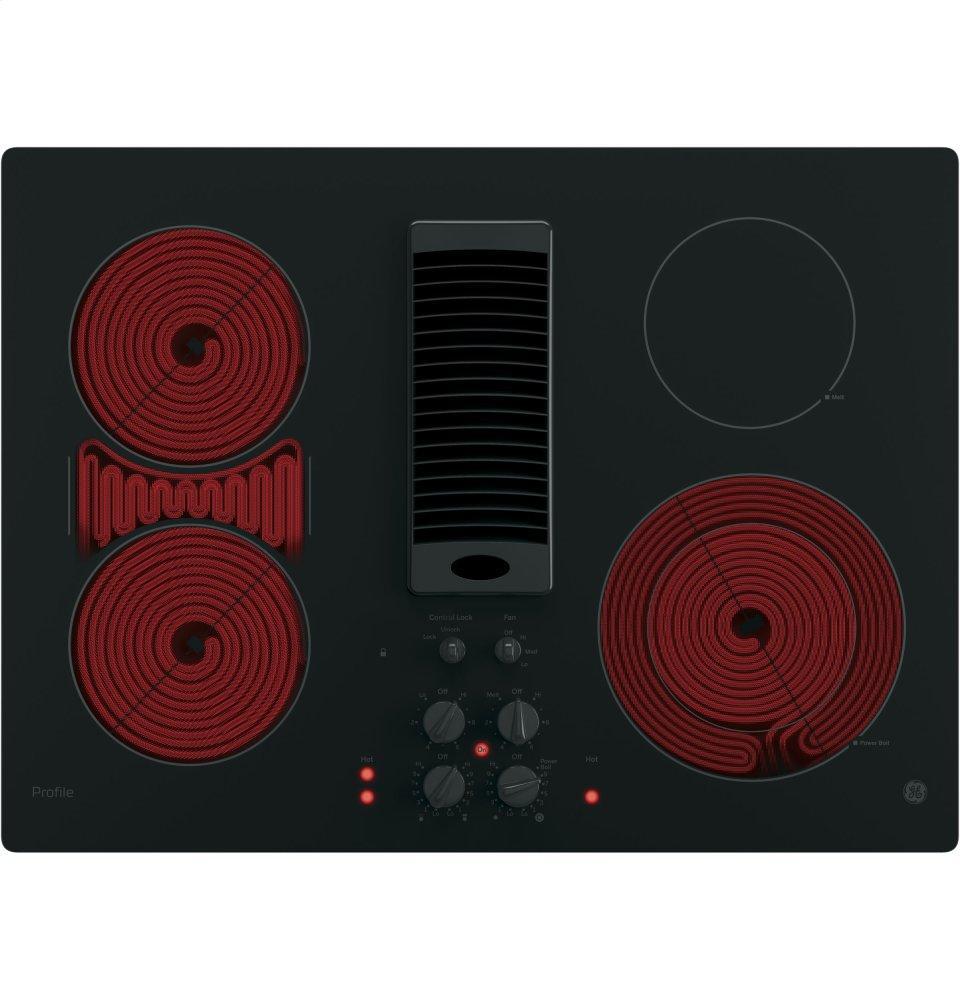

Bridge Element
Combines cooking elements into one cooking area

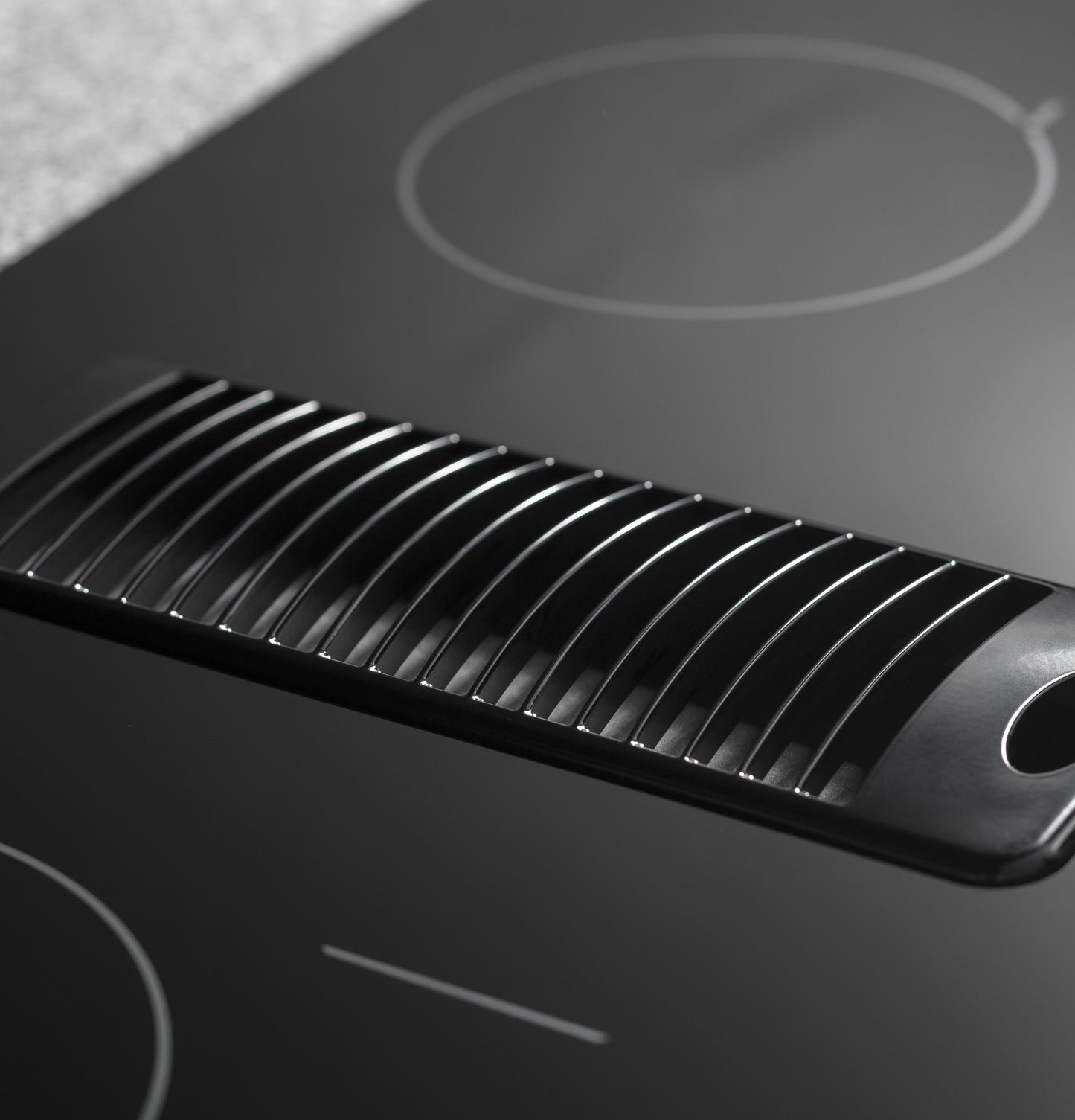

Downdraft exhaust
Powerful exhaust system effectively pulls smoke and steam out of the kitchen

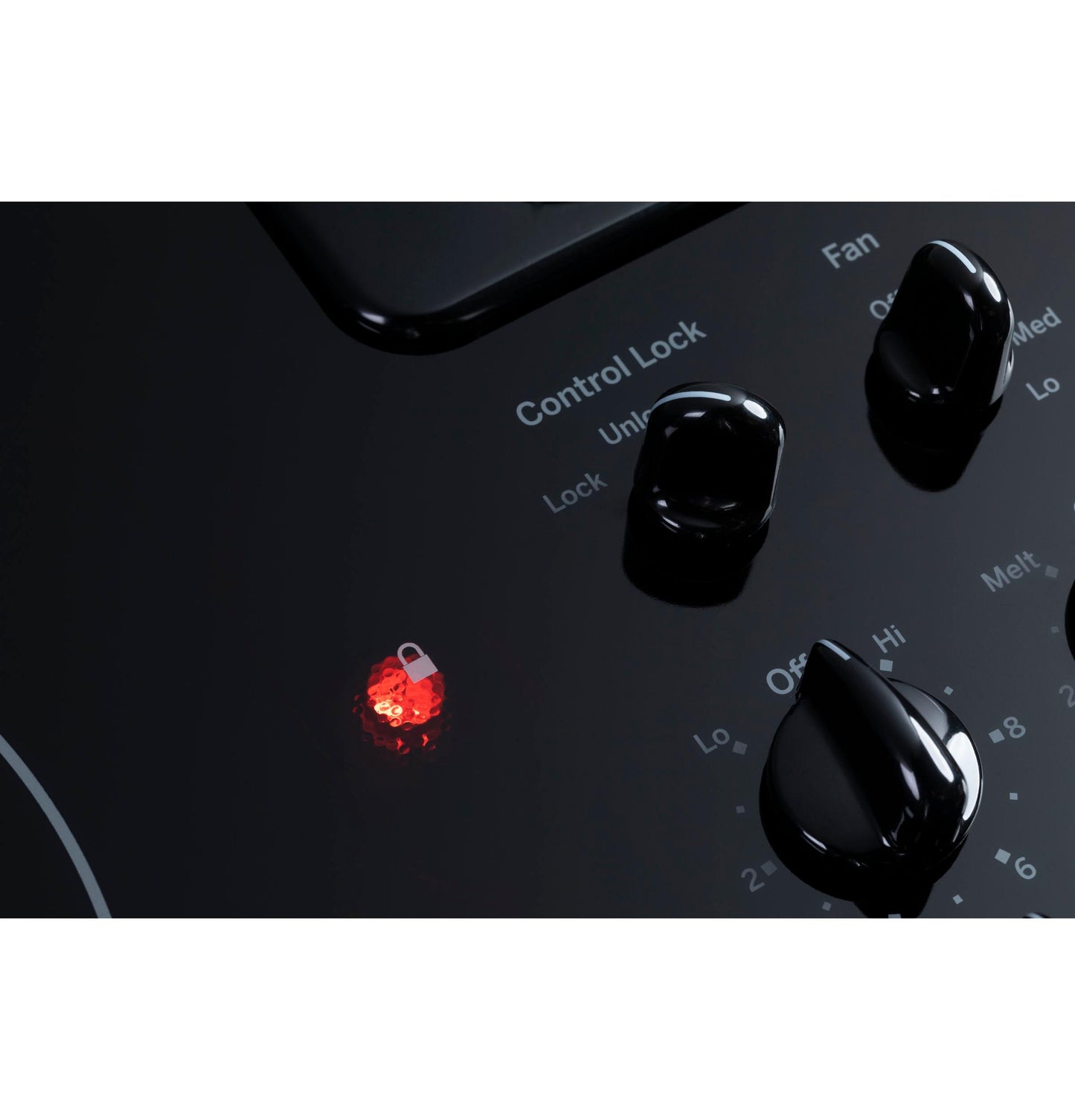

Control lock capability
Protects against unintended activation

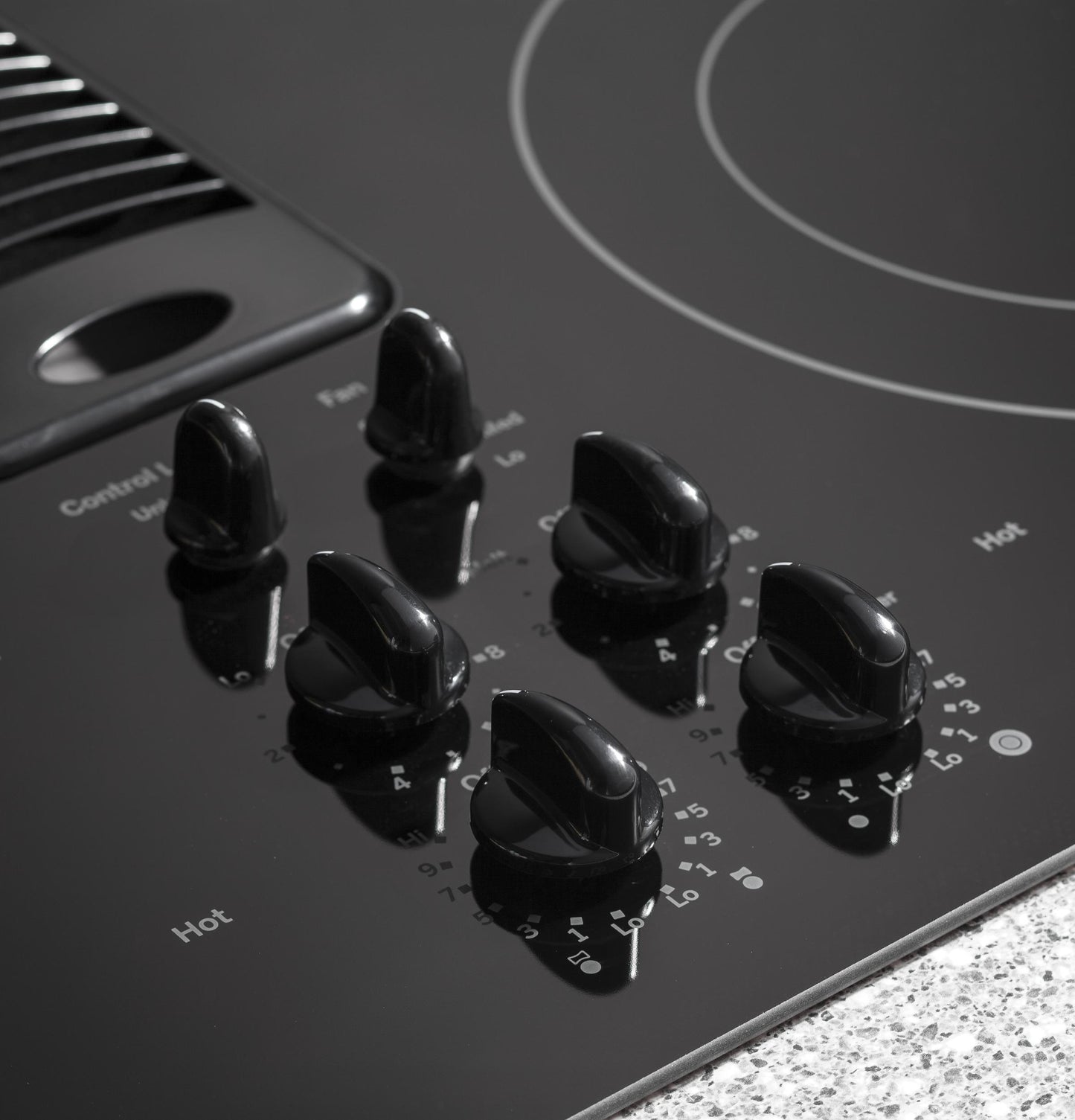

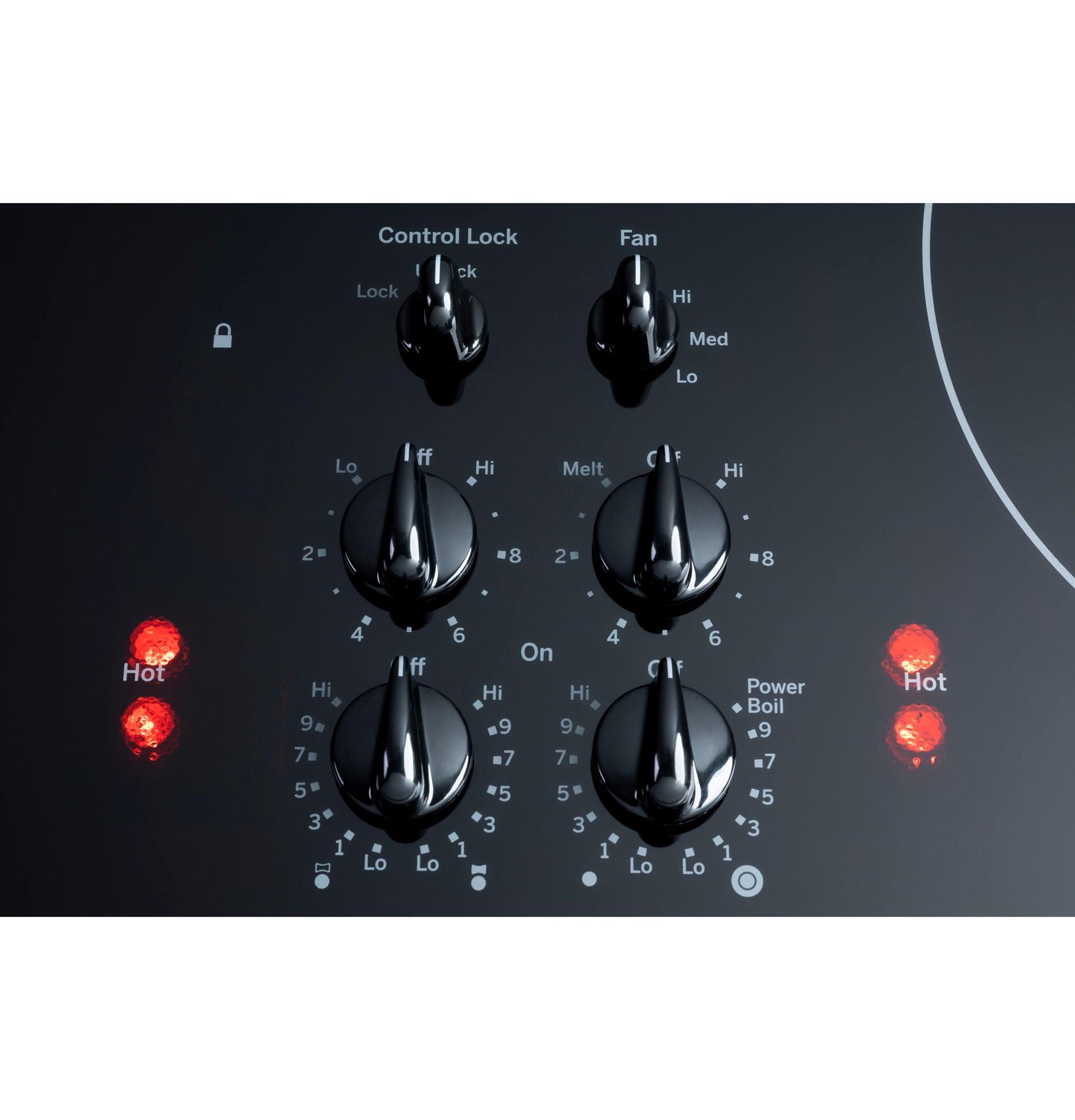

Knob controls with black glass surface
Achieve a modern look with the convenience of knob controls

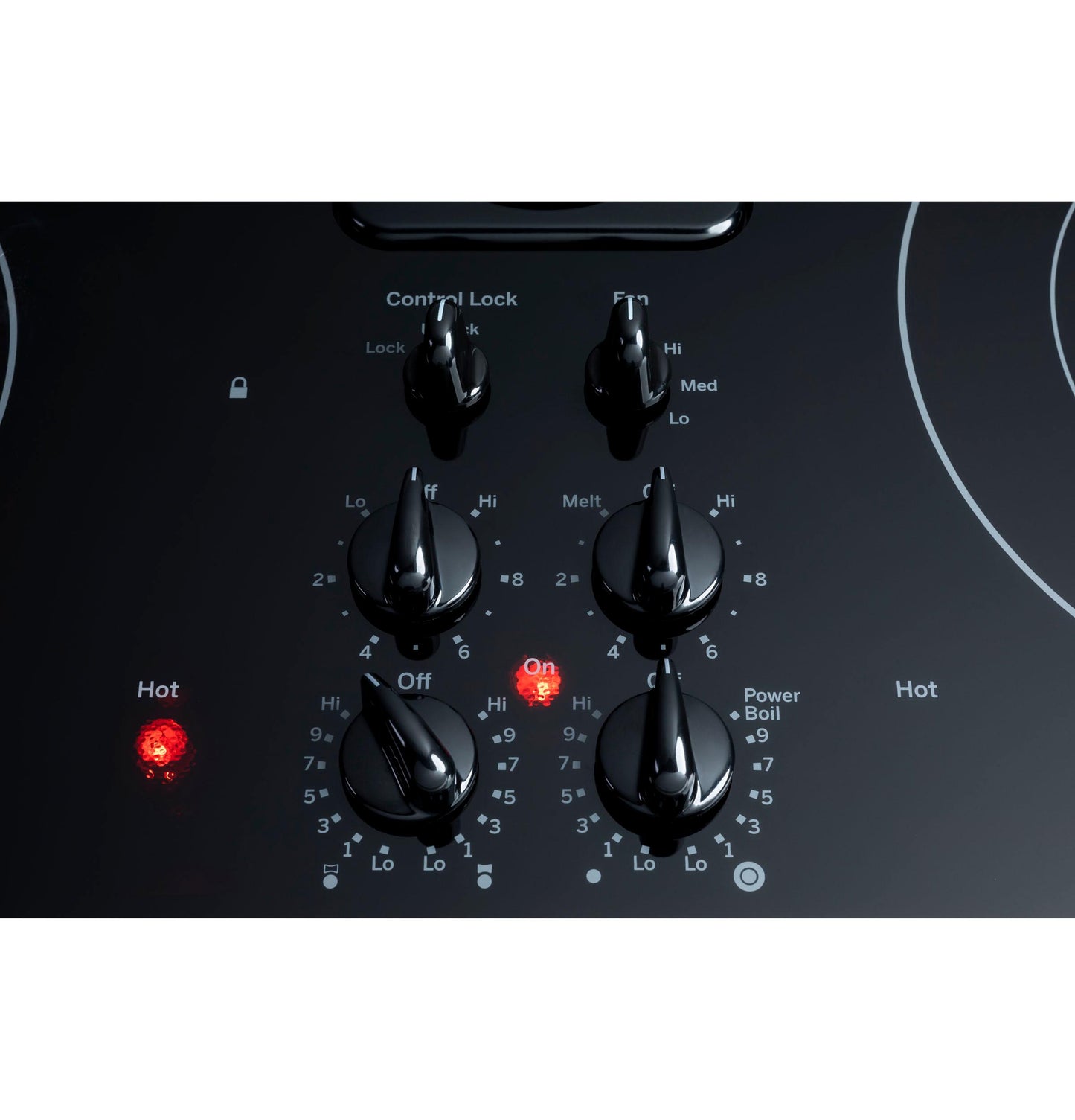

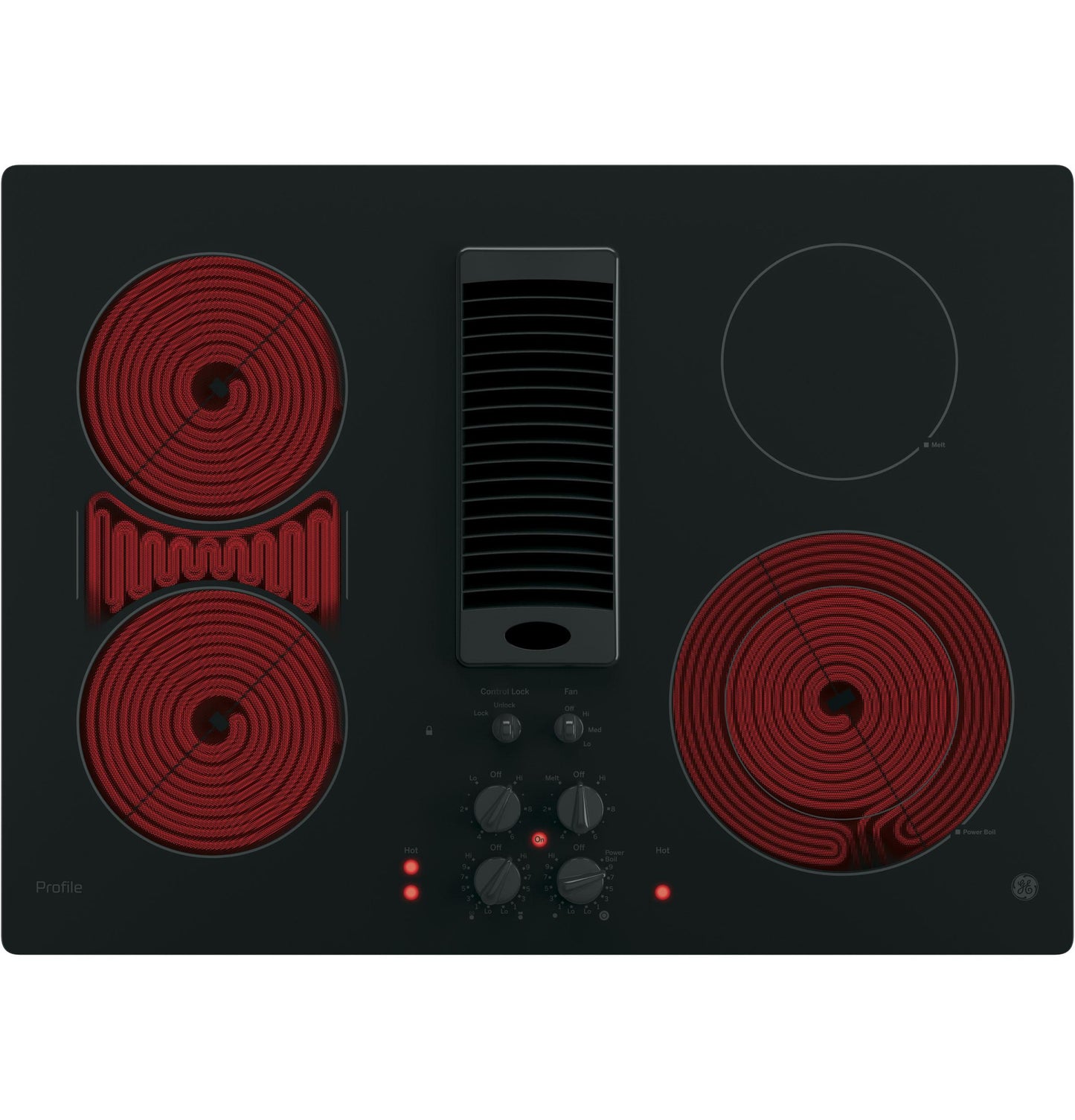

Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
| APPEARANCE | |
| Color Appearance | Black |
| Frameless | Yes |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| POWER / RATINGS | |
| KW Rating at 208V | 6.9 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 9.1 |
| Amp Rating at 208V | 40 |
| ACCESSORIES | |
| Optional Accessories | Alternate Installation Kit (WB01X24570) |
| Cooktop Cleaning | WX10X10020 |
| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 30 in |
| Overall Height | 21.875 in |
| Cutout Depth (in) | 20-5/8 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 60 lb |
| Overall Width | 29.75 in |
| Net Weight | 45 lb |
| Cutout Width (in) | 28-7/8 |
| Overall Depth | 2.5 in |
| FEATURES | |
| Bridge Element | 800W (4400W Total) |
| Cooktop Burner Type | Ribbon |
| Fuel Type | Electric |
| Element - Left Front | 7" 1800W |
| Indicator Lights | 4 Hot Surface Surface Element "ON" |
| Element - Right Front | 9"/6" 3000W Power Boil |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| Cooktop Control Features | Control Lock Capability |
| Element - Left Rear | 7" 1800W |
| Control Type | Infinite Heat Rotary |
| Downdraft Vent Fan Speeds | 3 |
| CFM/ Sones Rating | 400/ 7.0 (High Speed) |
| Element - Right Rear | 6" 1500W |
