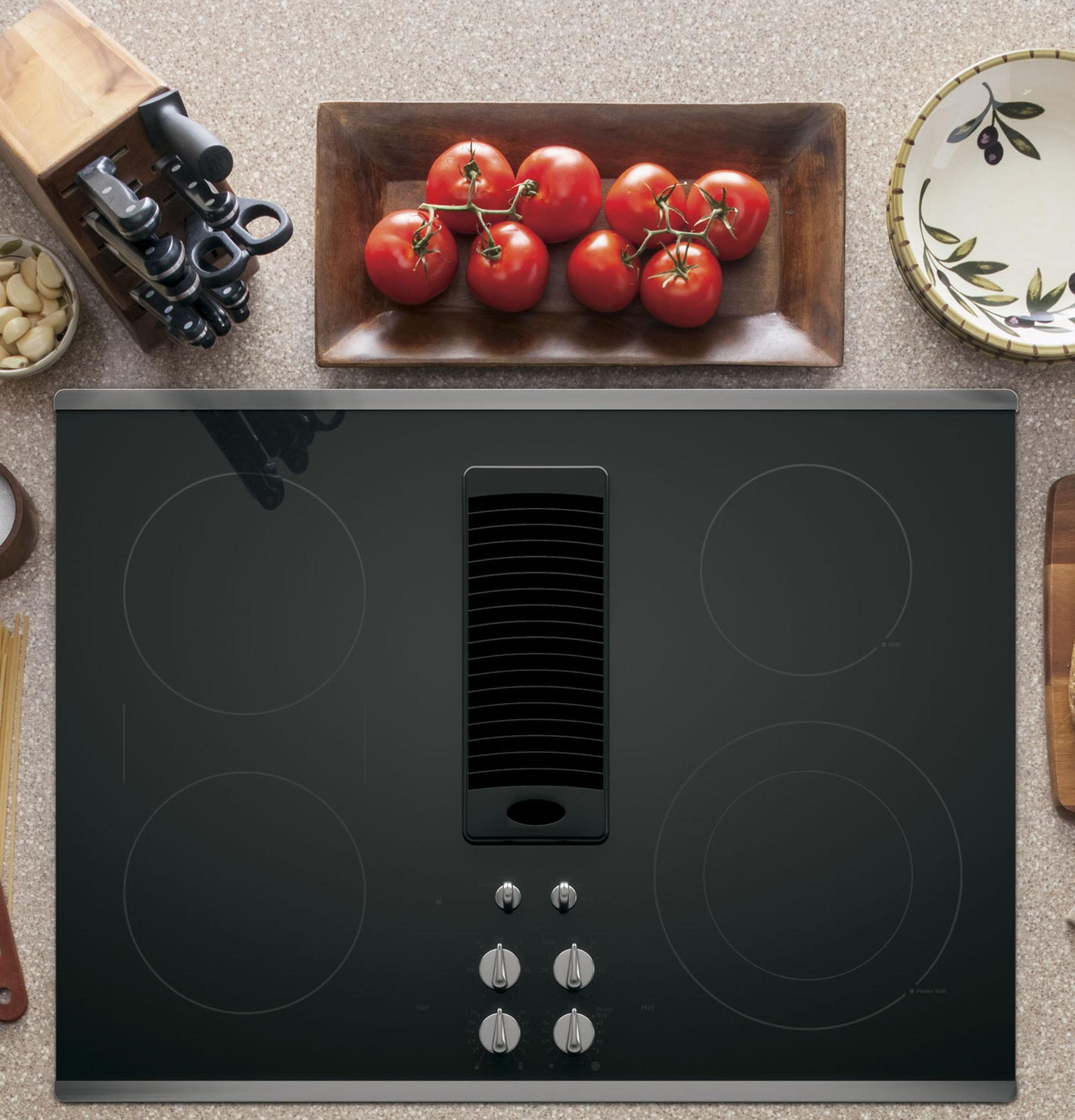

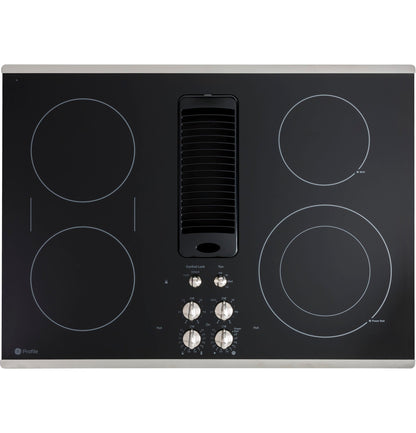

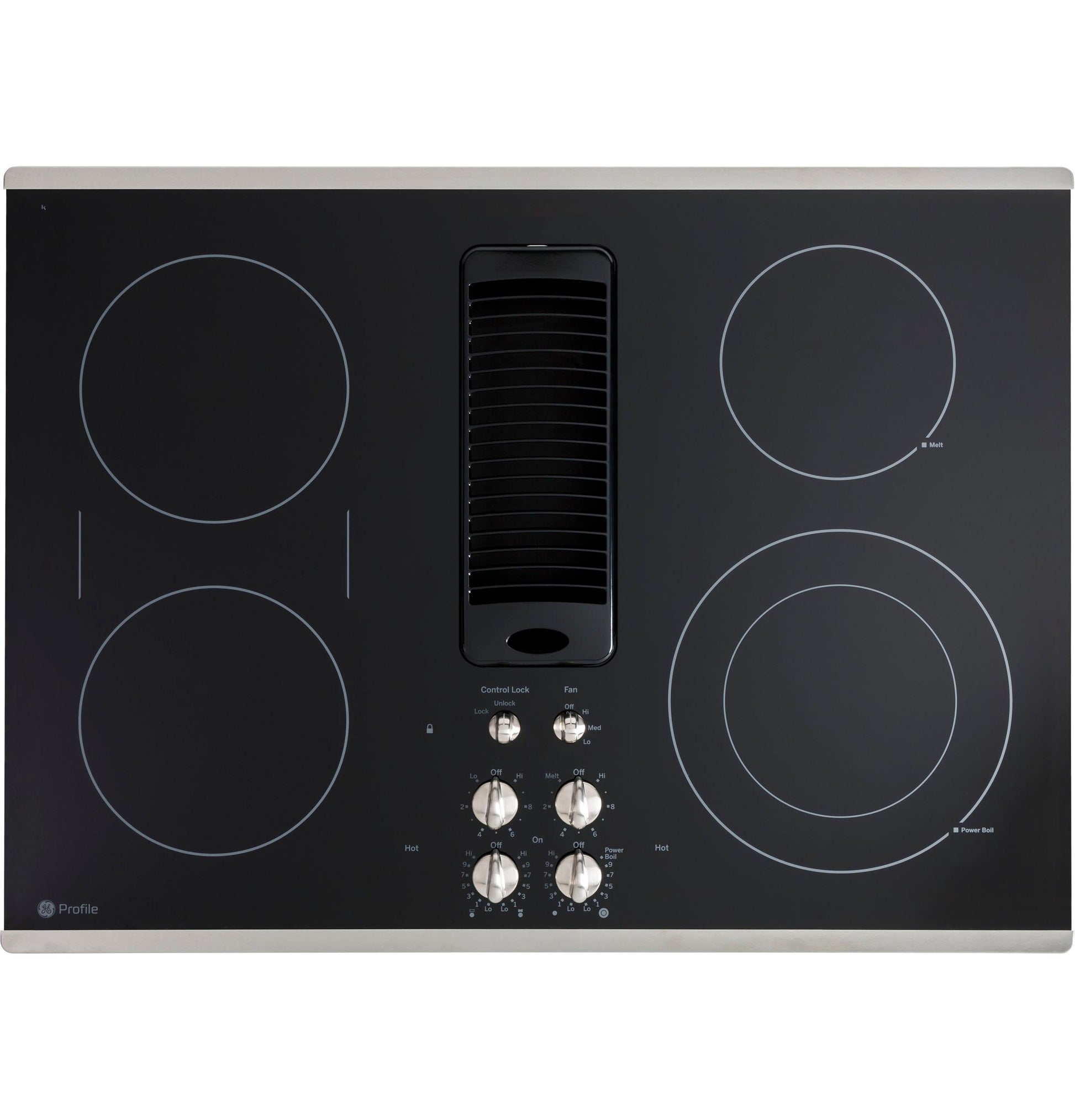

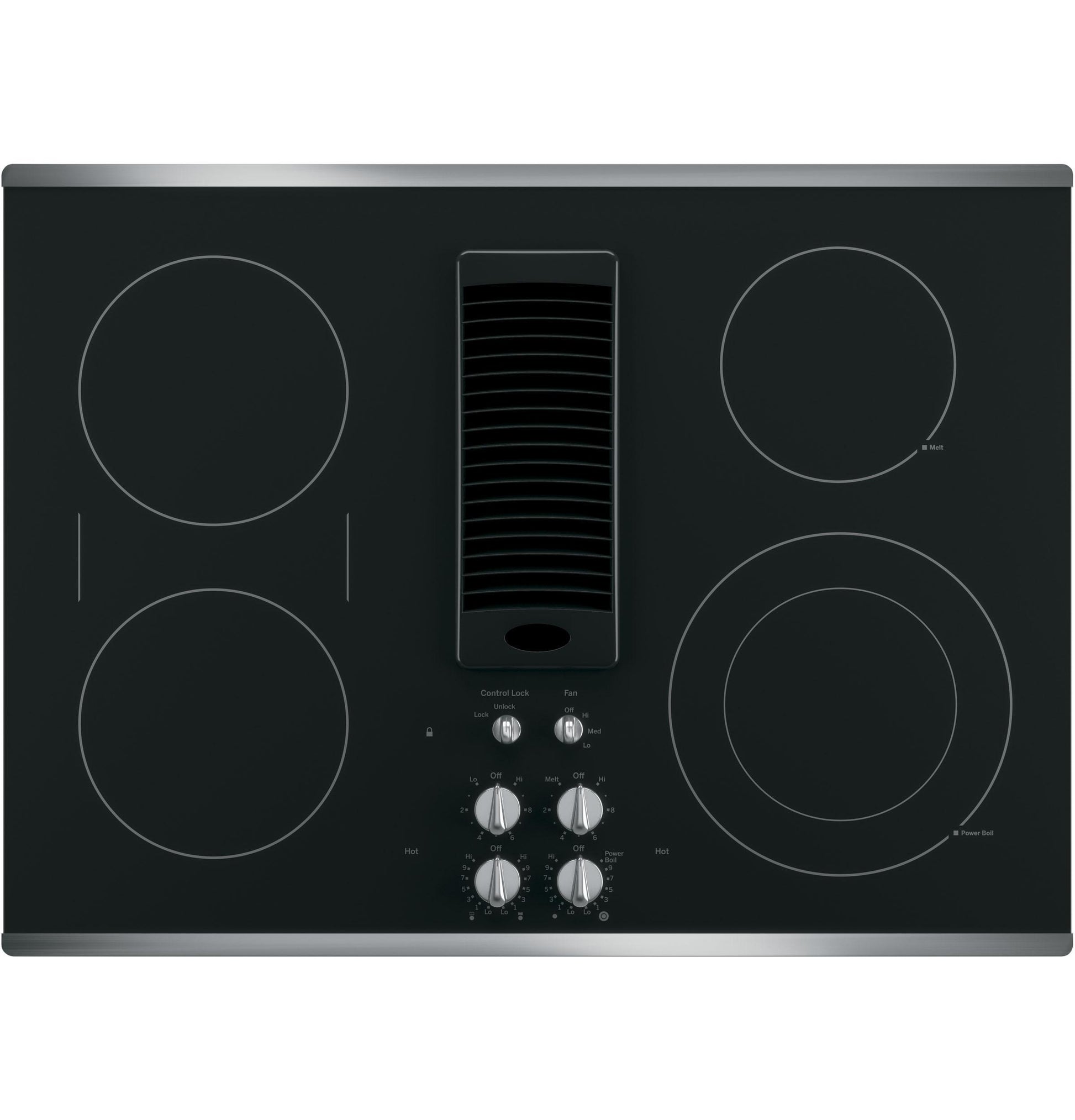

PP9830SRSS GE Profile™ 30" Downdraft Electric Cooktop PP9830SRSS

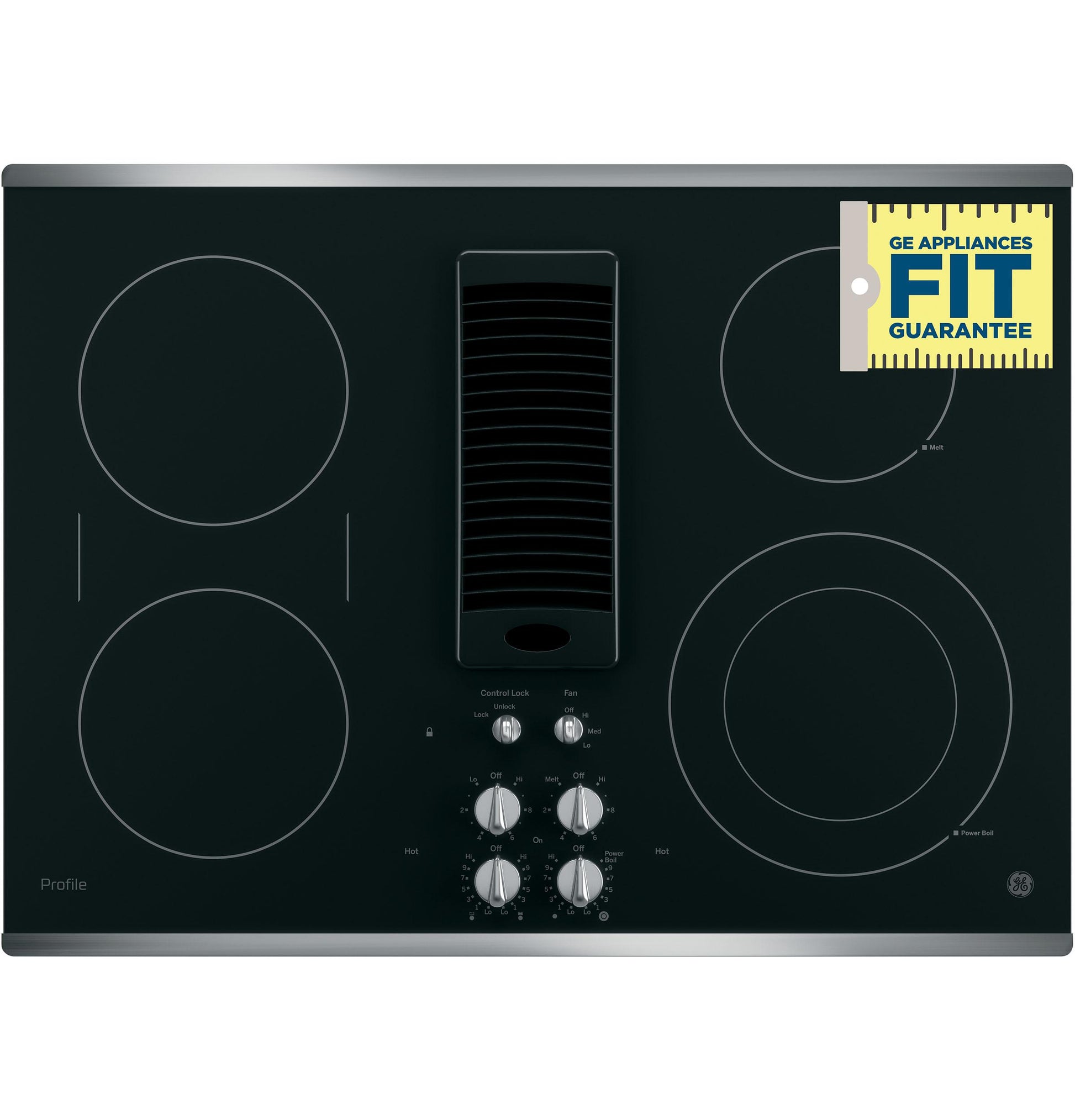

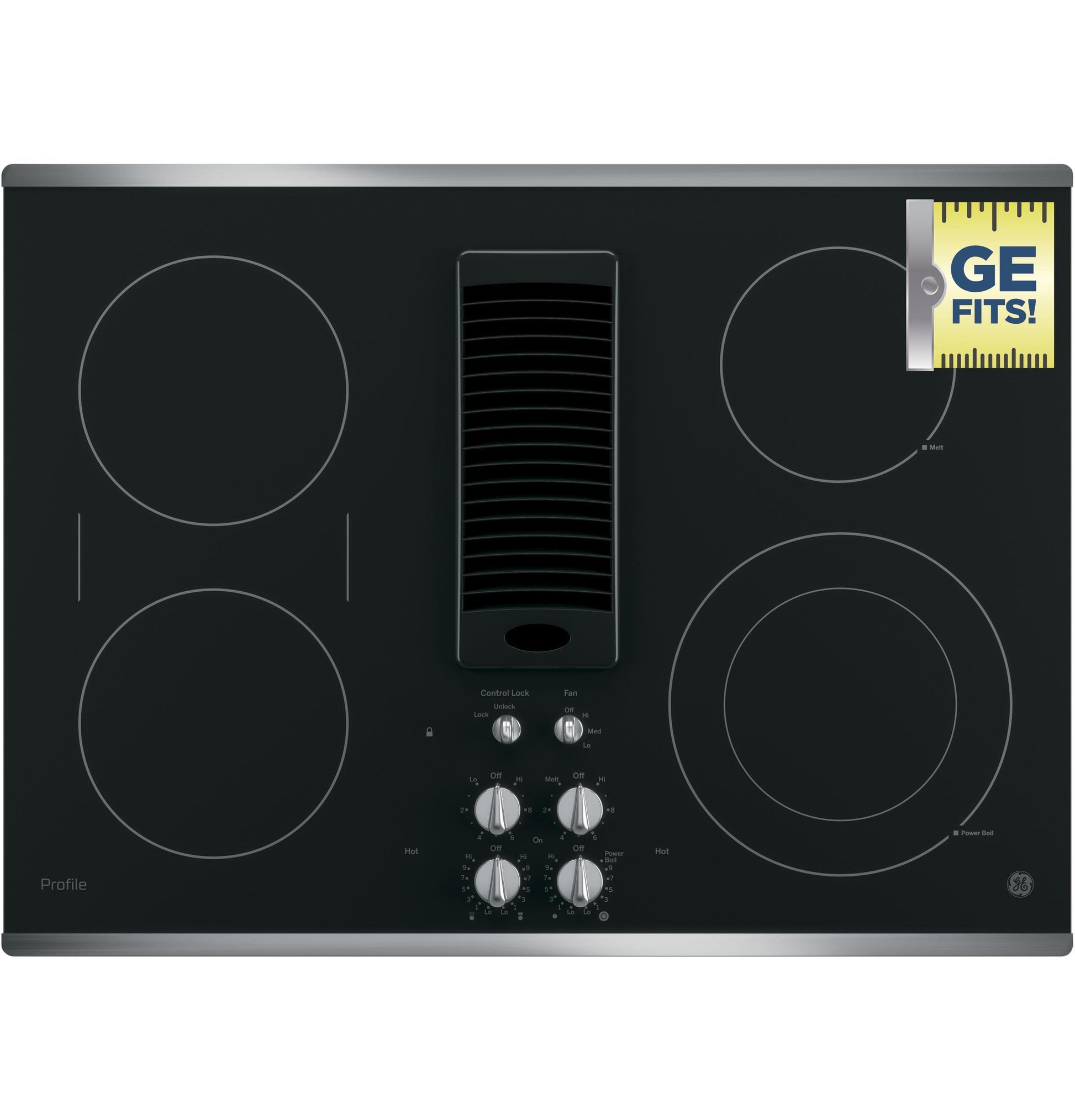

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

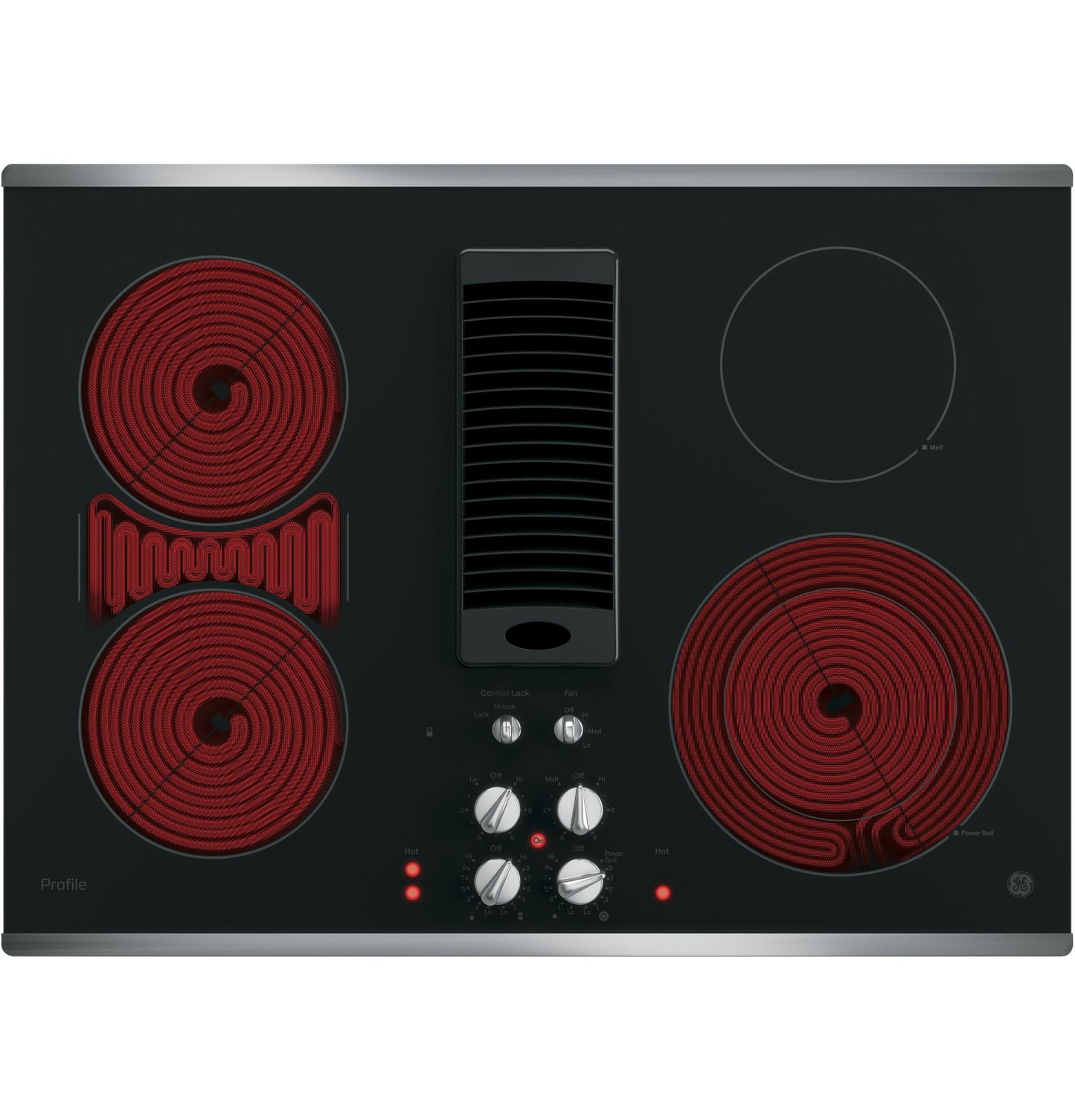

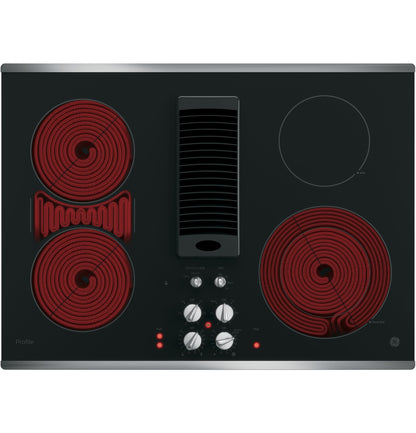

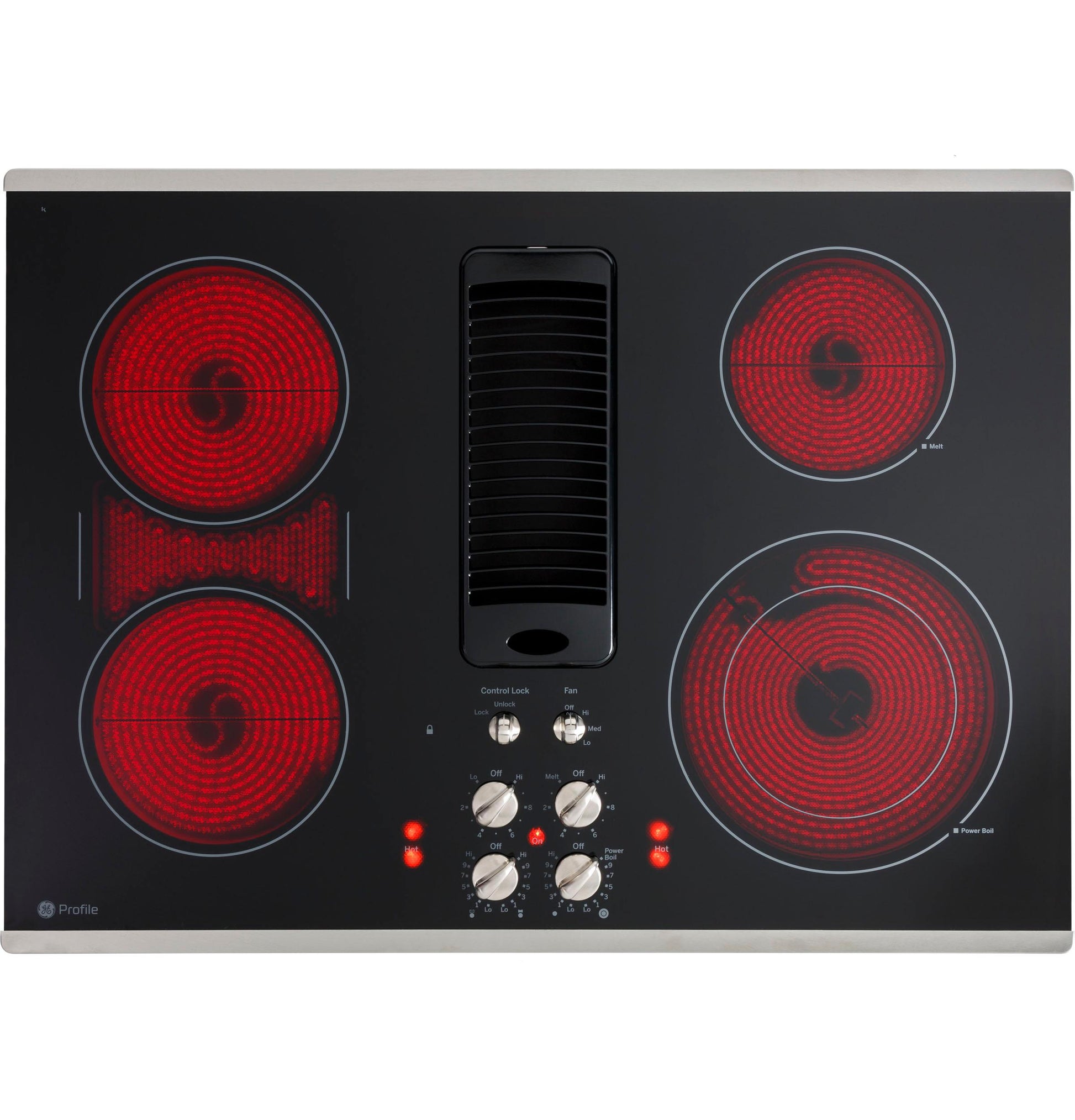

Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface

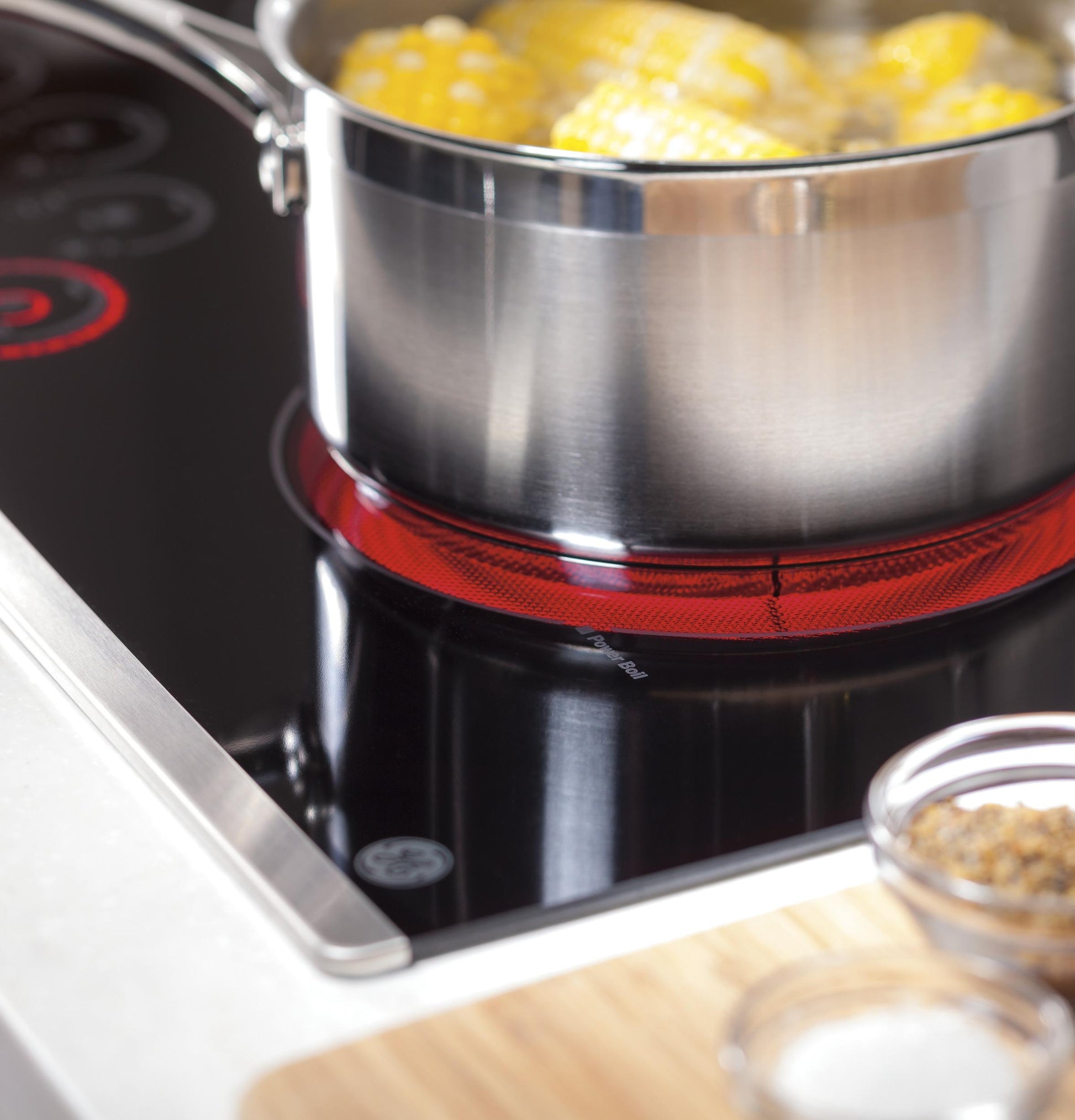

9"/6" Power Boil element
Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat

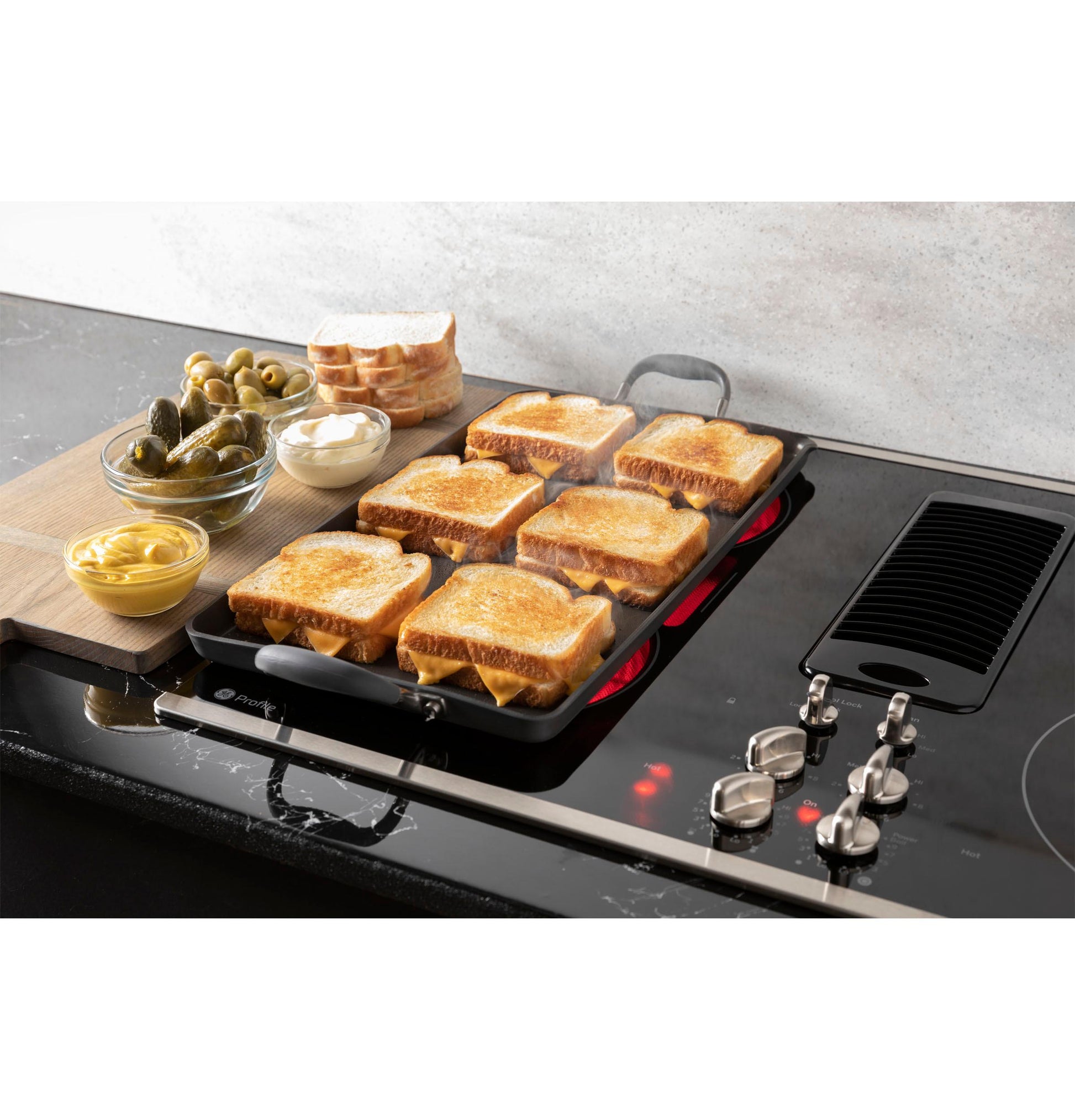

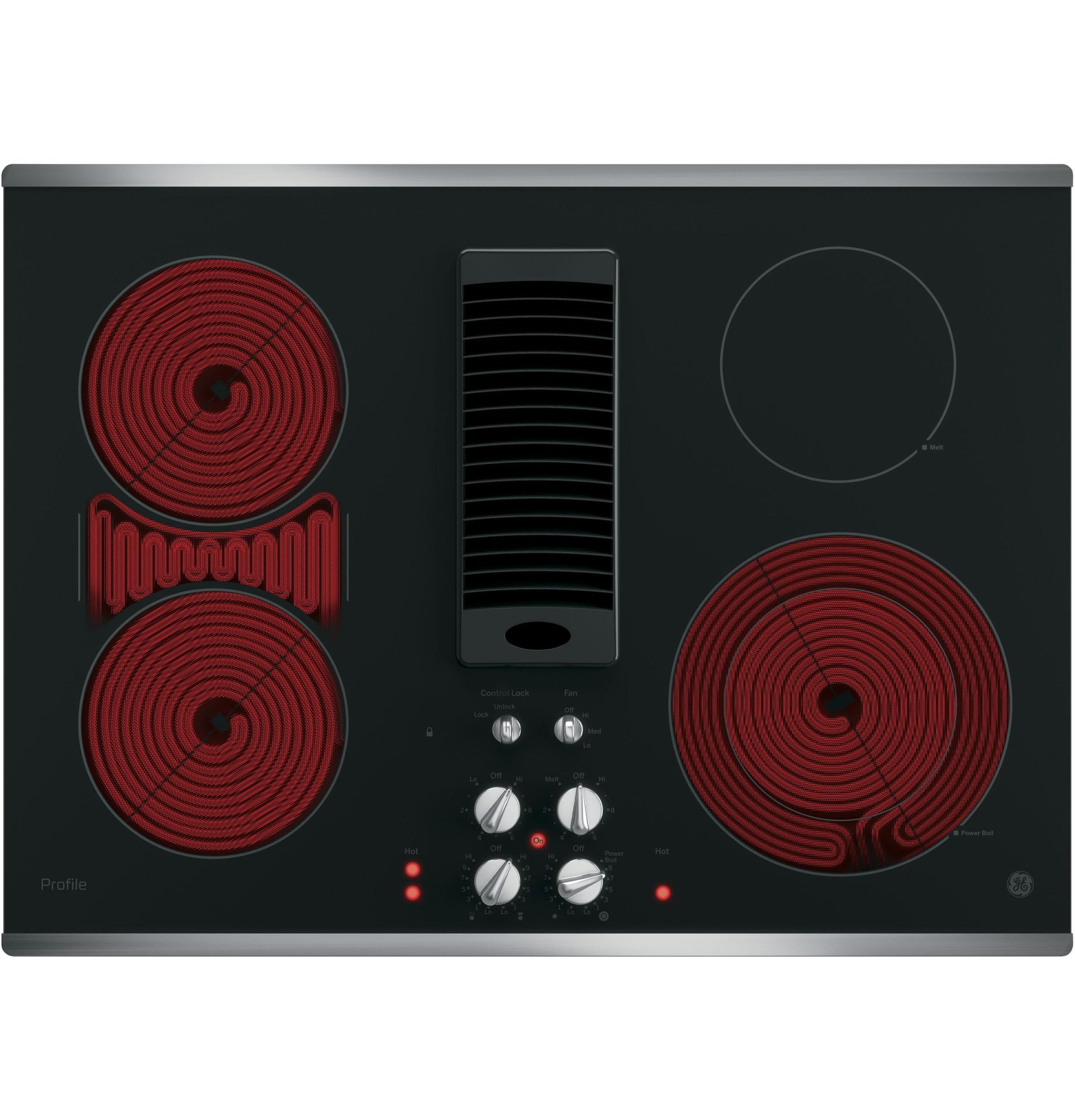

Bridge Element
Combines cooking elements into one cooking area

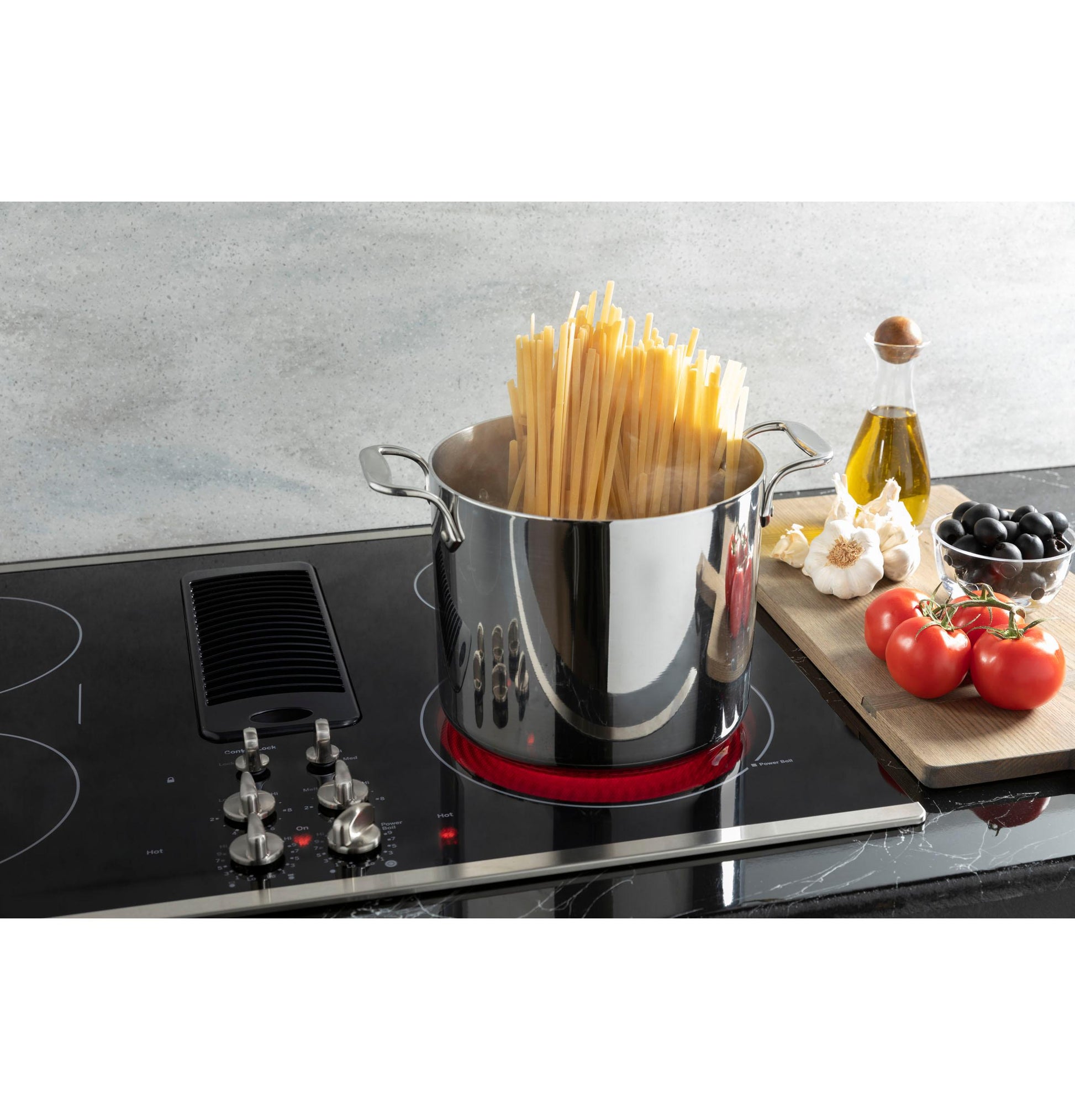

Downdraft exhaust
Powerful exhaust system effectively pulls smoke and steam out of the kitchen

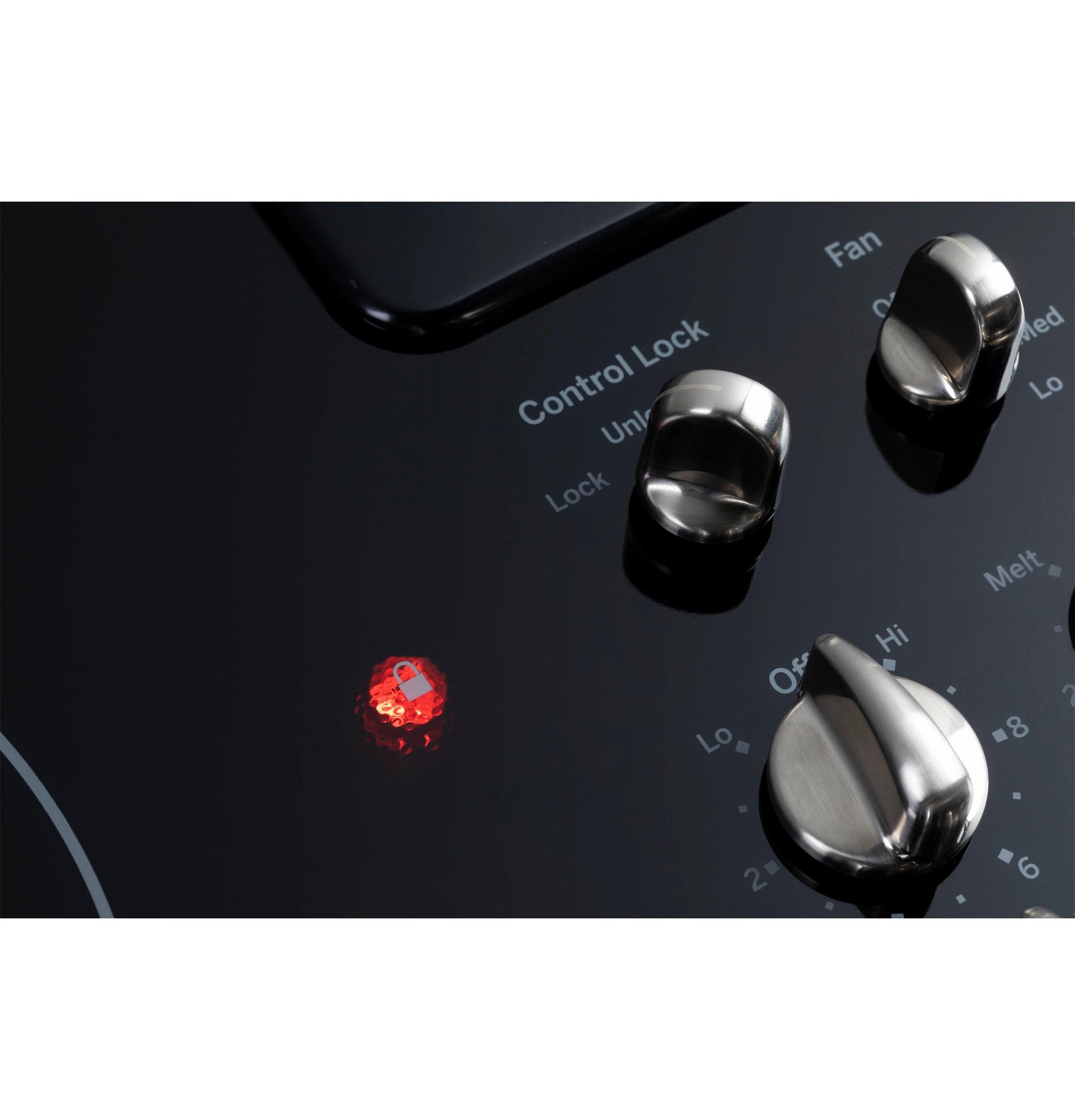

Control lock capability
Protects against unintended activation

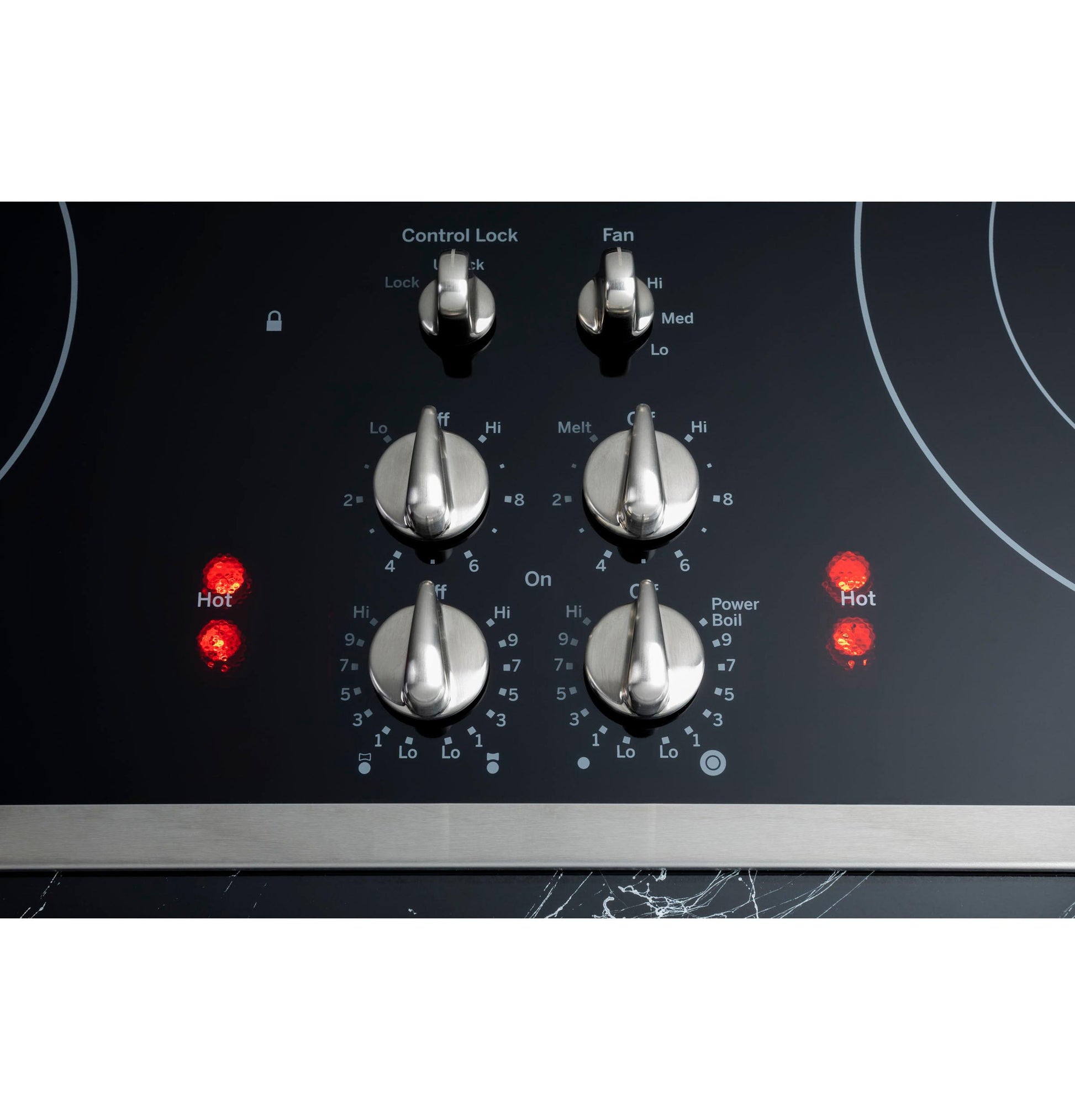

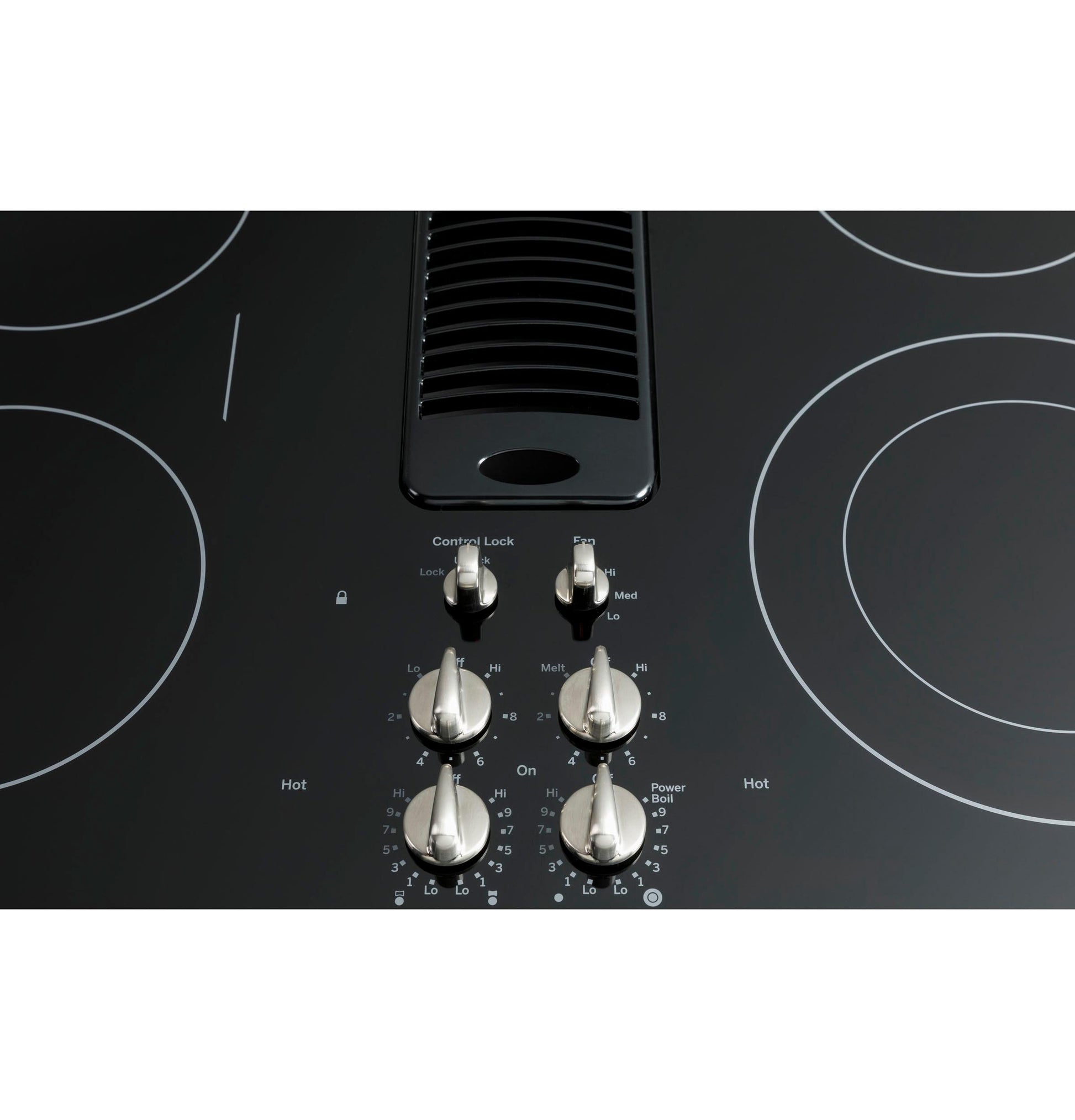

Knob controls with black glass surface
Achieve a modern look with the convenience of knob controls

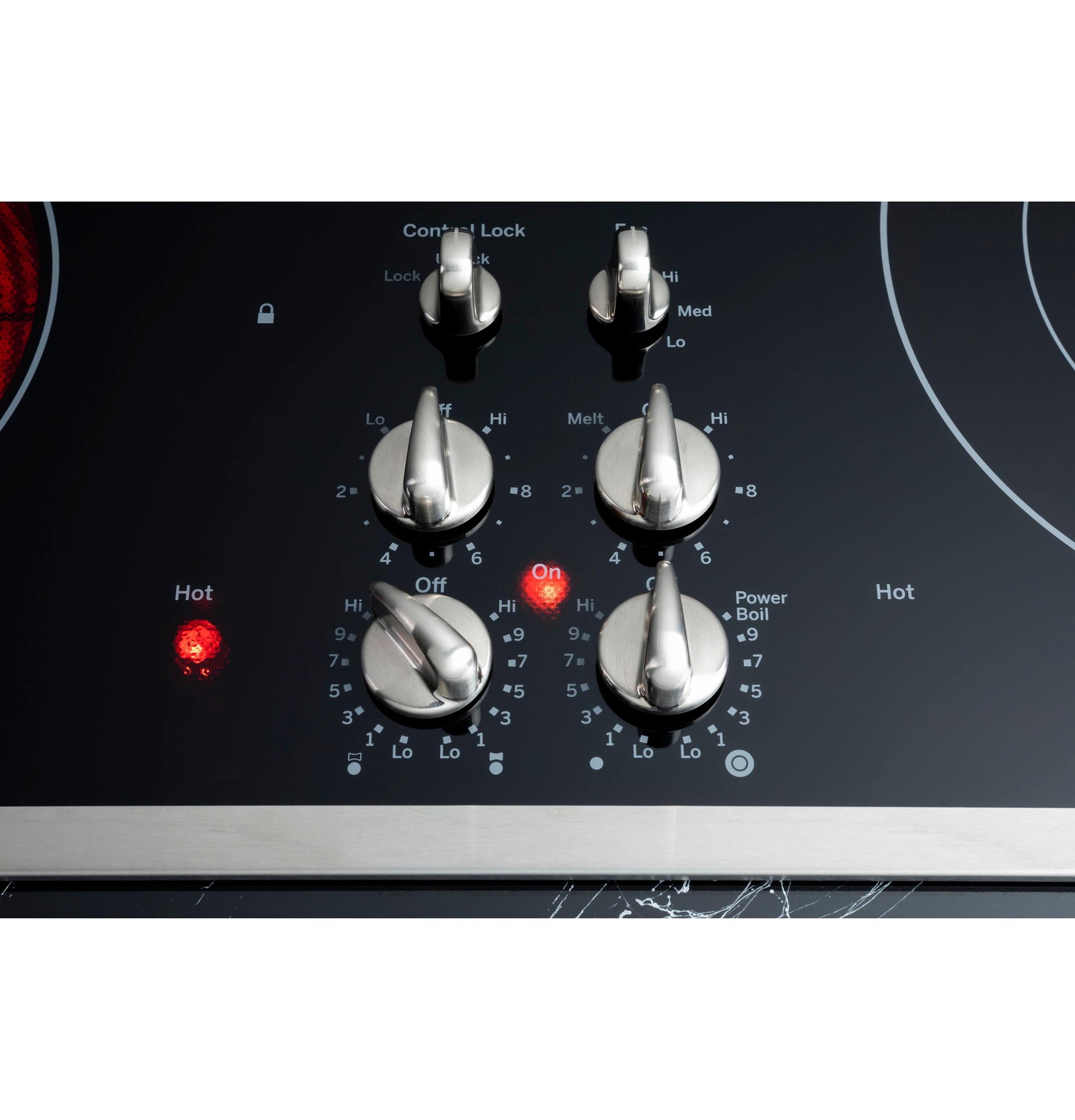

Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

Cooktop "On" indicator light
A light lets you know when an element is active

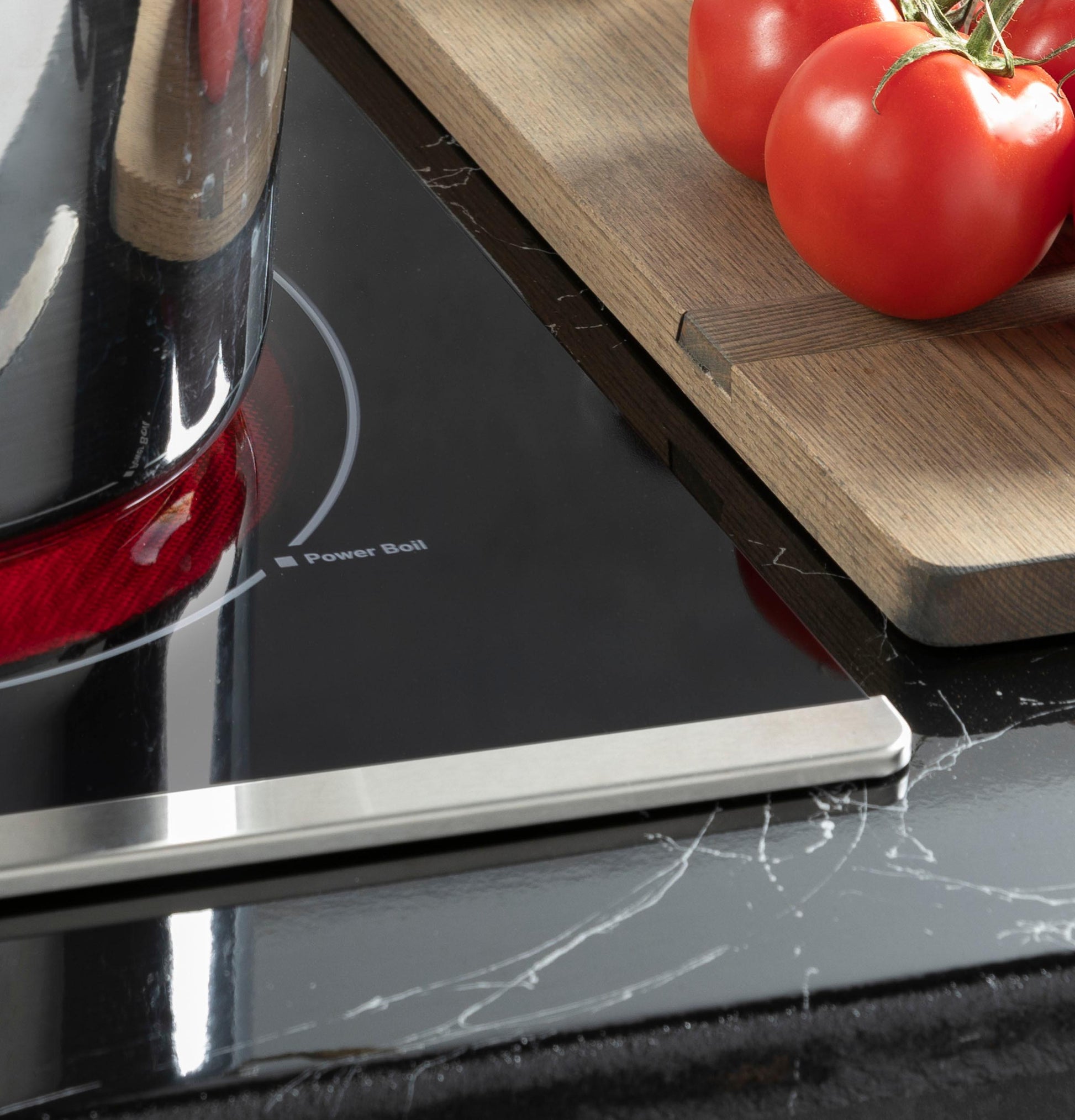

Stainless steel trim
Complement other stainless steel appliances in the kitchen with this touch of elegance

APPEARANCE
Frame Color / Material	Stainless Steel
Color Appearance	Stainless Steel
Frameless	Yes
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
POWER / RATINGS
KW Rating at 208V	6.9
Amp Rating at 240V	40
KW Rating at 240V	9.1
Electrical Requirements	208/240V ; 60Hz ; 40A
Amp Rating at 208V	40
ACCESSORIES
Optional Accessories	Alternate Installation Kit (WB01X24570)
Cooktop Cleaning	WX10X10020
WEIGHTS & DIMENSIONS
Cooktop Size	30 in
Overall Height	21.9375 in
Cutout Depth (in)	20 5/8 in
Cabinet Width	30 in
Approximate Shipping Weight	60 lb
Overall Width	29.875 in
Net Weight	45 lb
Cutout Width (in)	28-7/8
Overall Depth	2.5625 in
FEATURES
Bridge Element	800W (4400W Total)
Cooktop Burner Type	Ribbon
Fuel Type	Electric
Power Boil Burner	Yes
Element - Left Front	7" 1800W
Indicator Lights	4 Hot Surface Surface Element "ON"
Dual Ring Burners	Yes
Element - Right Front	9"/6" 3000W Power Boil
Control Location	Front Center
Cooktop Type	Radiant Smoothtop
Cooktop Surface	Black Patterned Glass Ceramic with Stainless Steel Trim
Cooktop Control Features	Control Lock Capability
Element - Left Rear	7" 1800W
Control Type	Infinite Heat Rotary
Downdraft Vent Fan Speeds	3
CFM/ Sones Rating	400/ 7.0 (High Speed)
Element - Right Rear	6" 1500W
Product Type	Cooktop
