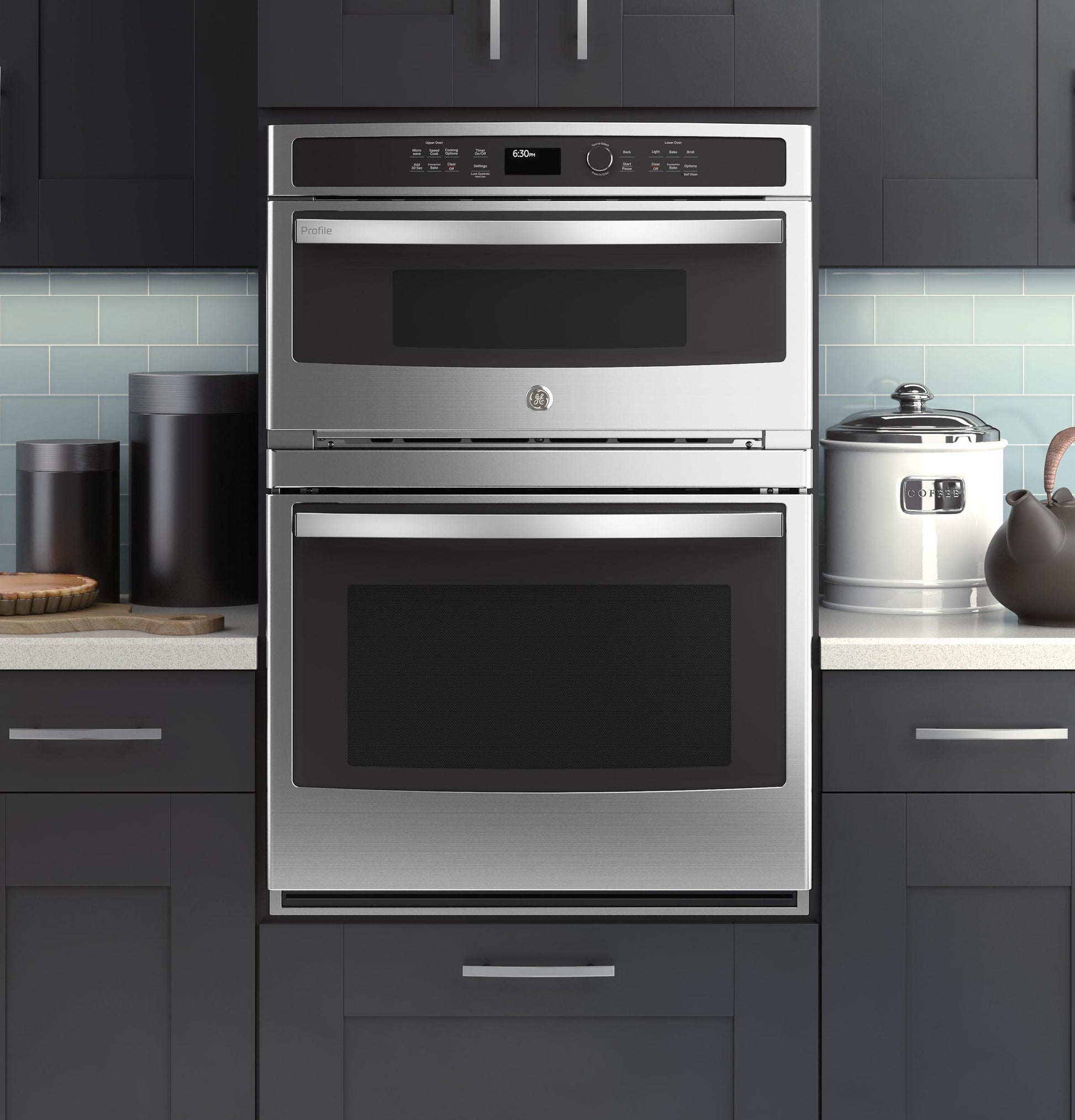

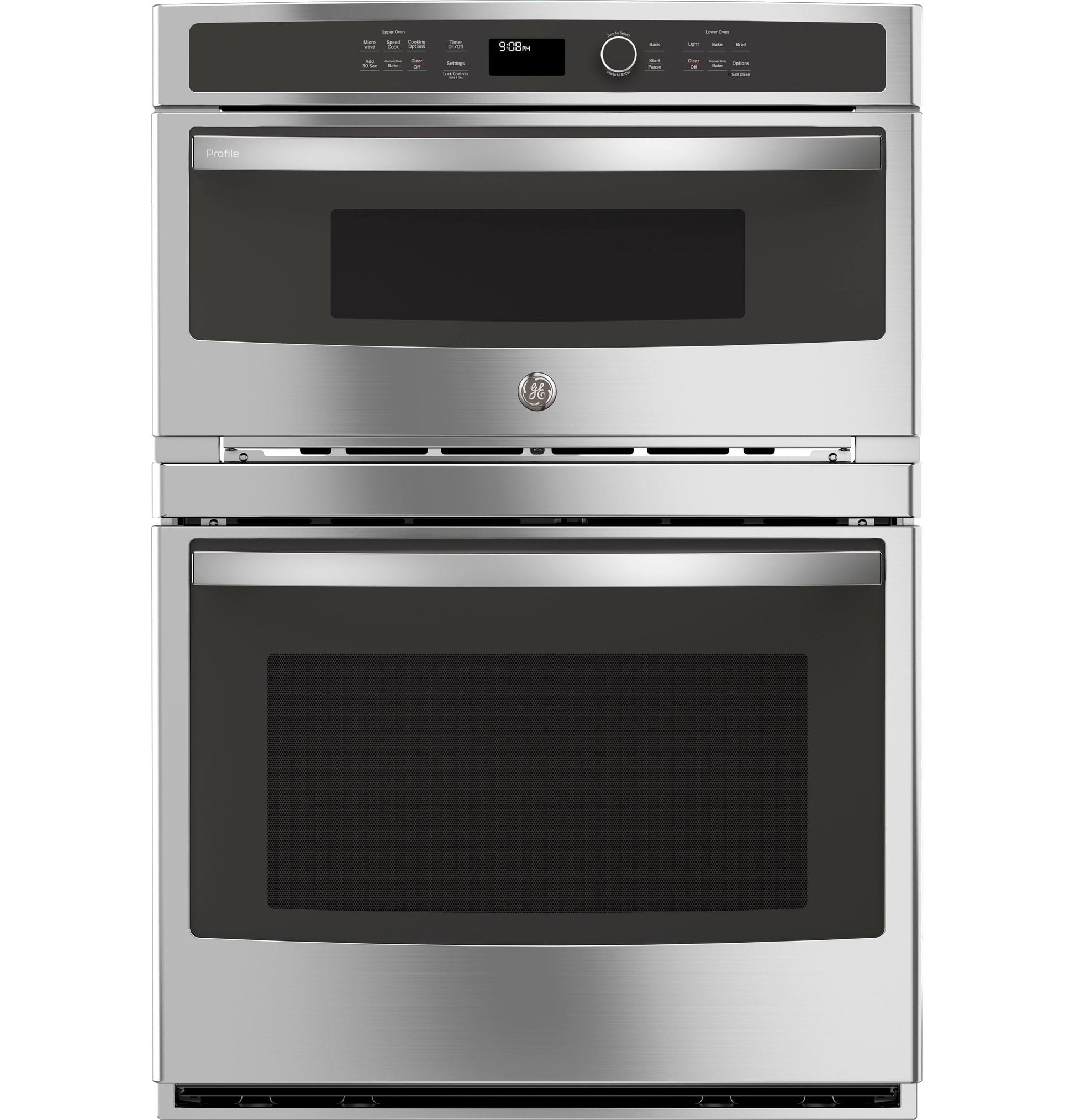

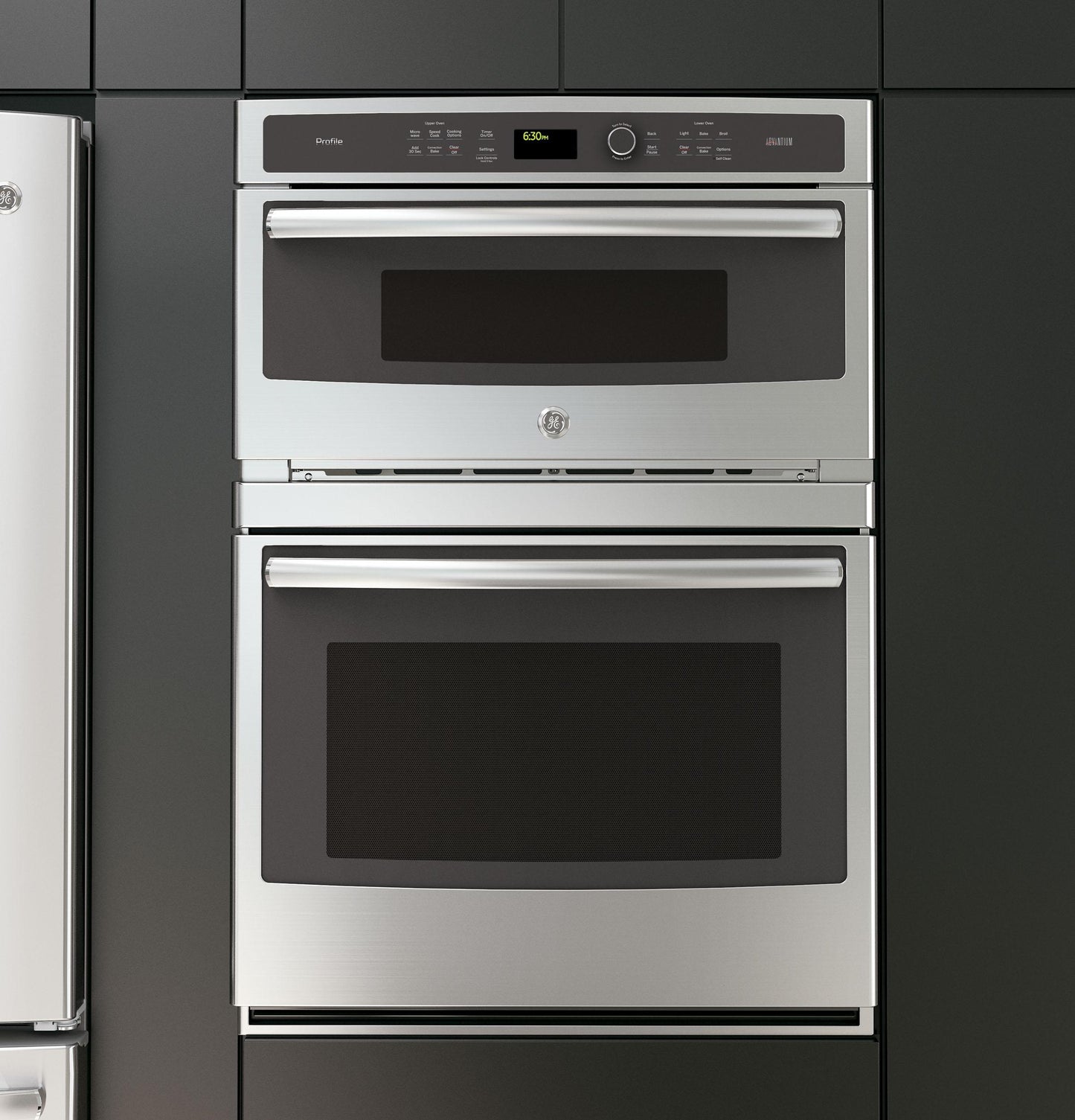

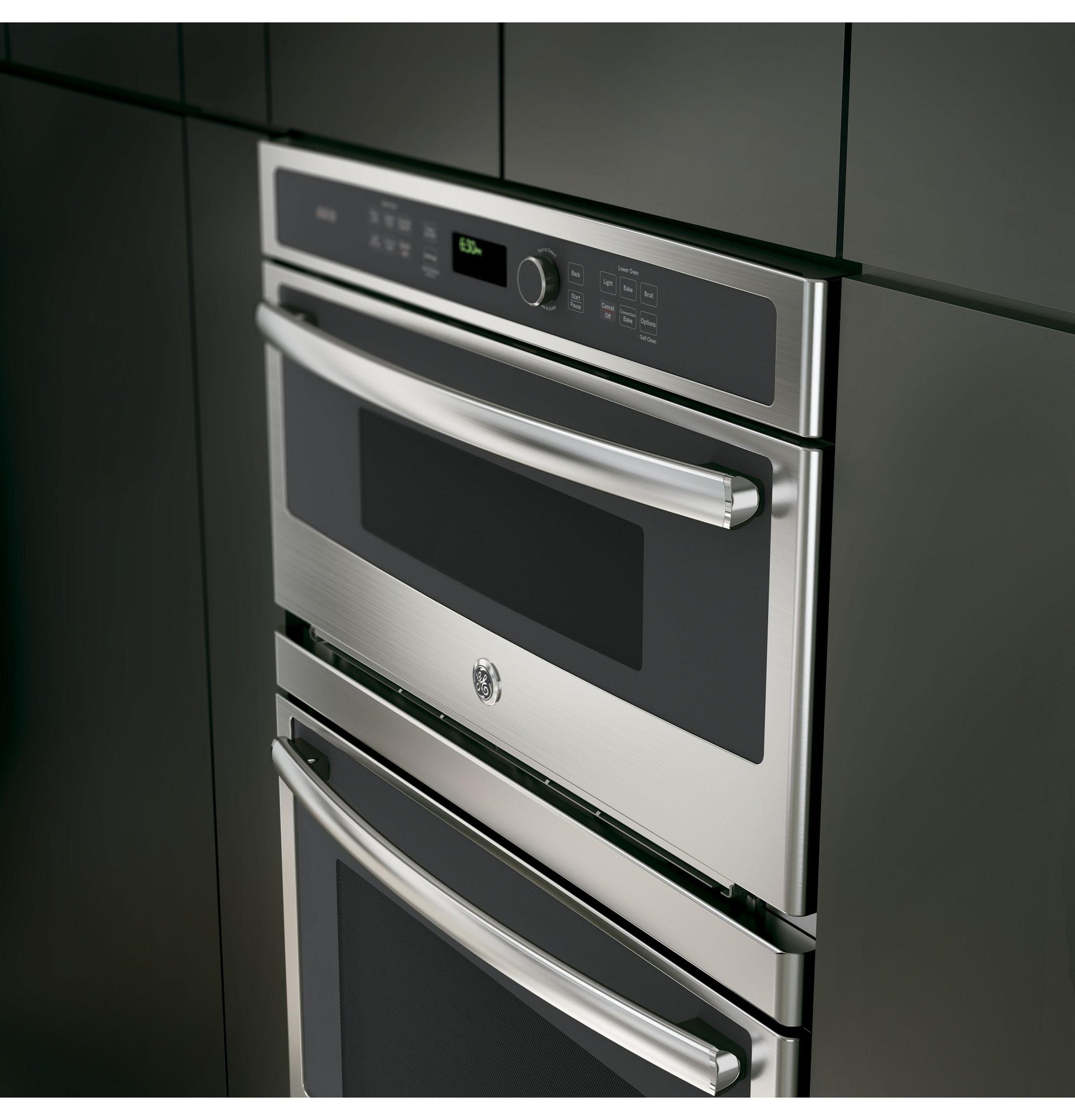

PT9800SHSS GE Profile™ 30 in. Combination Double Wall Oven with Convection and Advantium® Technology PT9800SHSS

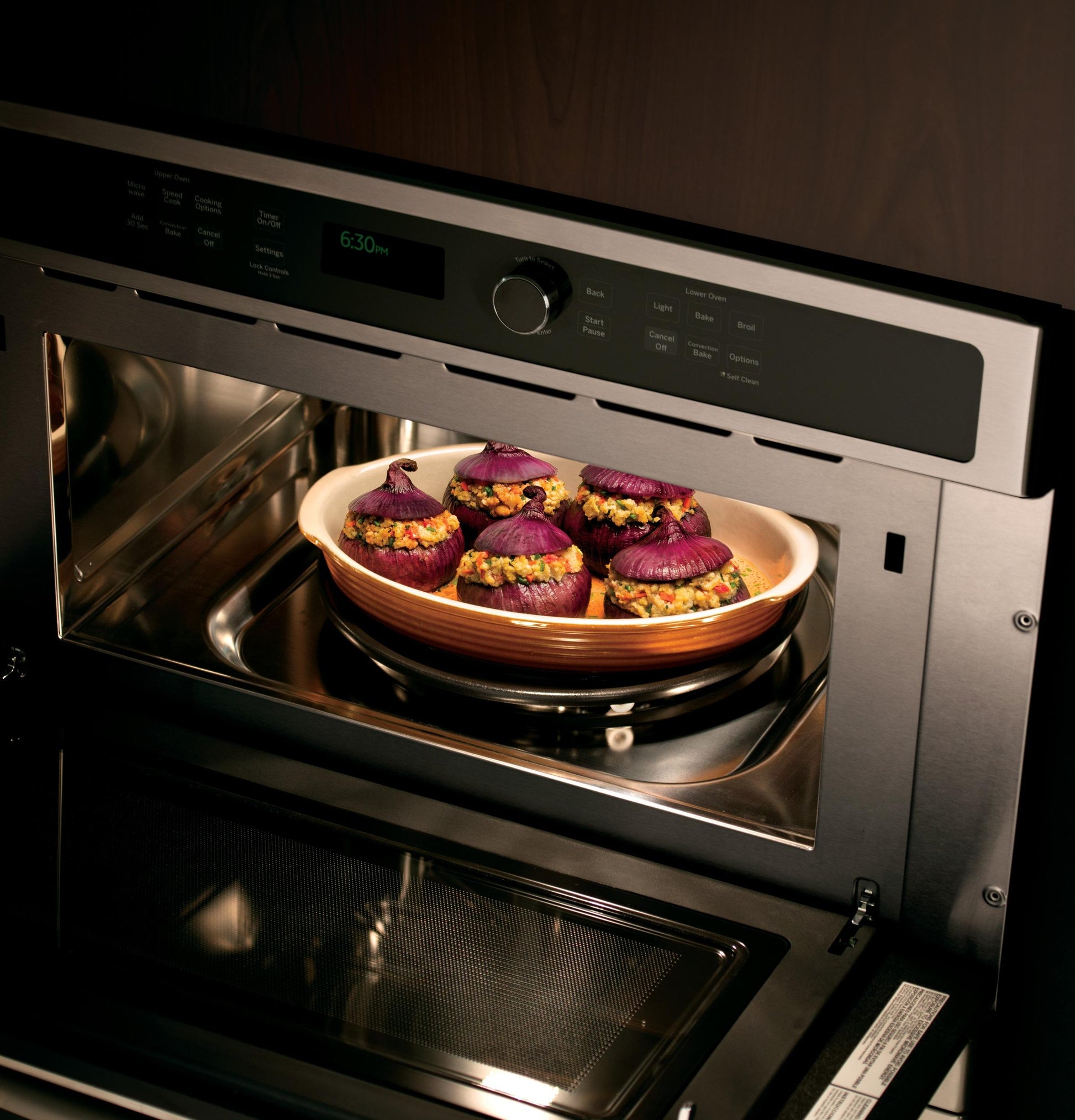

Speedcook oven 120V (upper oven)
Enjoy oven-quality results two- to four- times faster than a conventional oven

No Preheat Options
Save time with Speed Cook options that eliminate the need for preheating

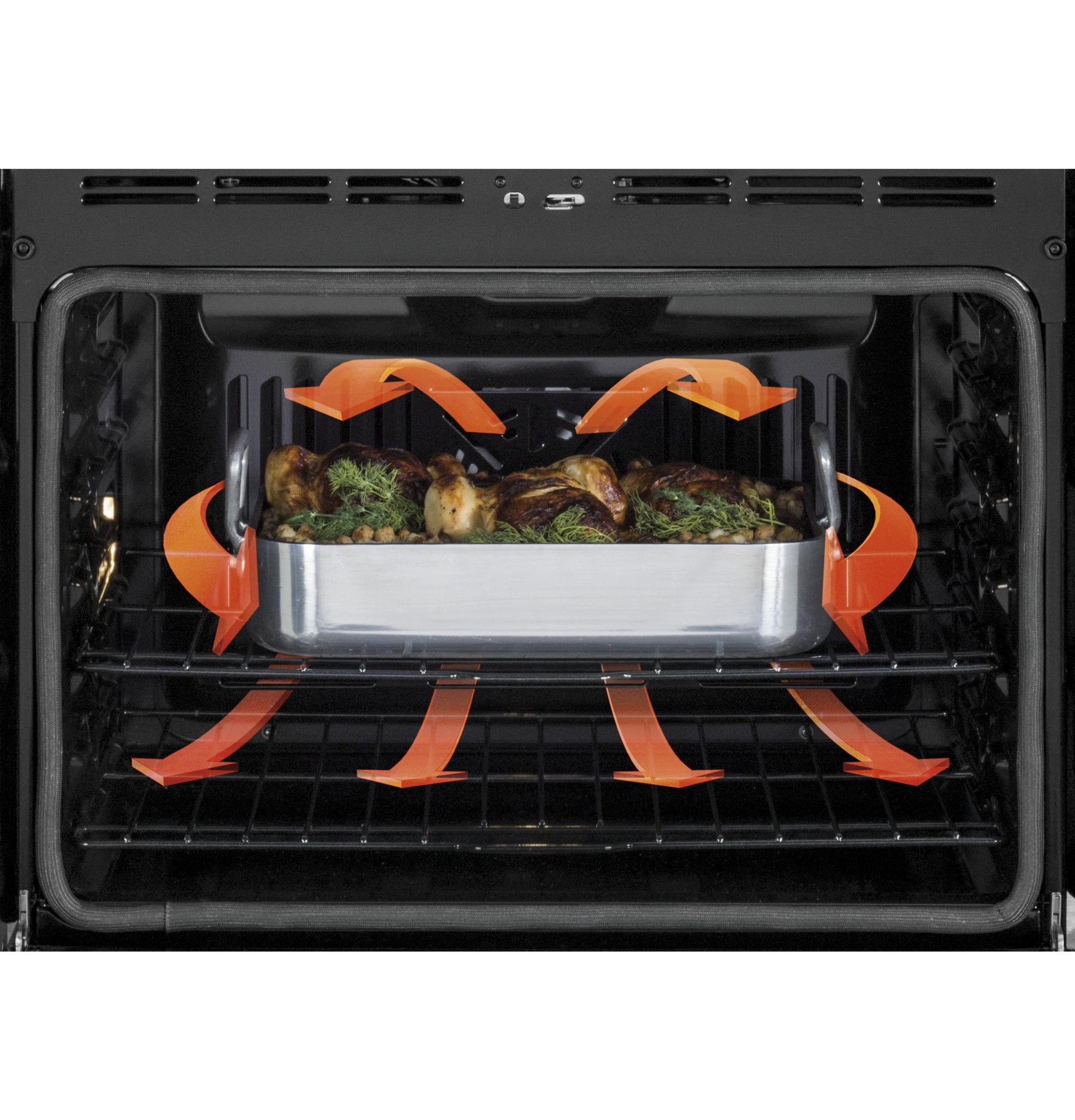

True European Convection (lower oven)
Achieve delicious results from a third heating element and fan combination

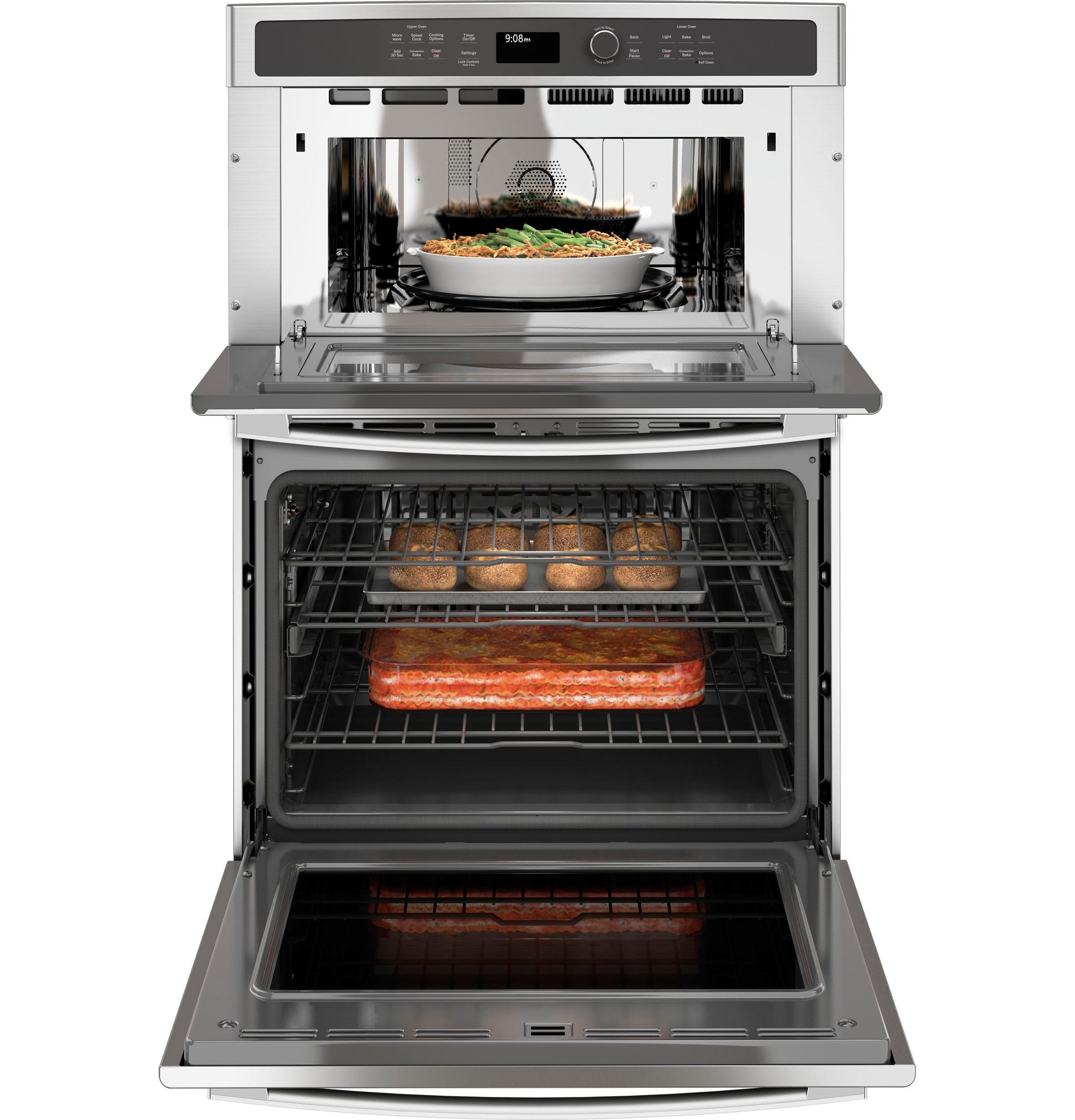

Multiple cooking functions
Expand your cooking versatility with an all in one oven

Over 175 preprogrammed menu selections (upper oven)
Preprogrammed selections make meals easy

Self-clean with Steam Clean option (lower oven)
Clean your oven the way you want

Never-scrub, heavy-duty roller rack (lower oven)
Easily access items with a rack that glides smoothly

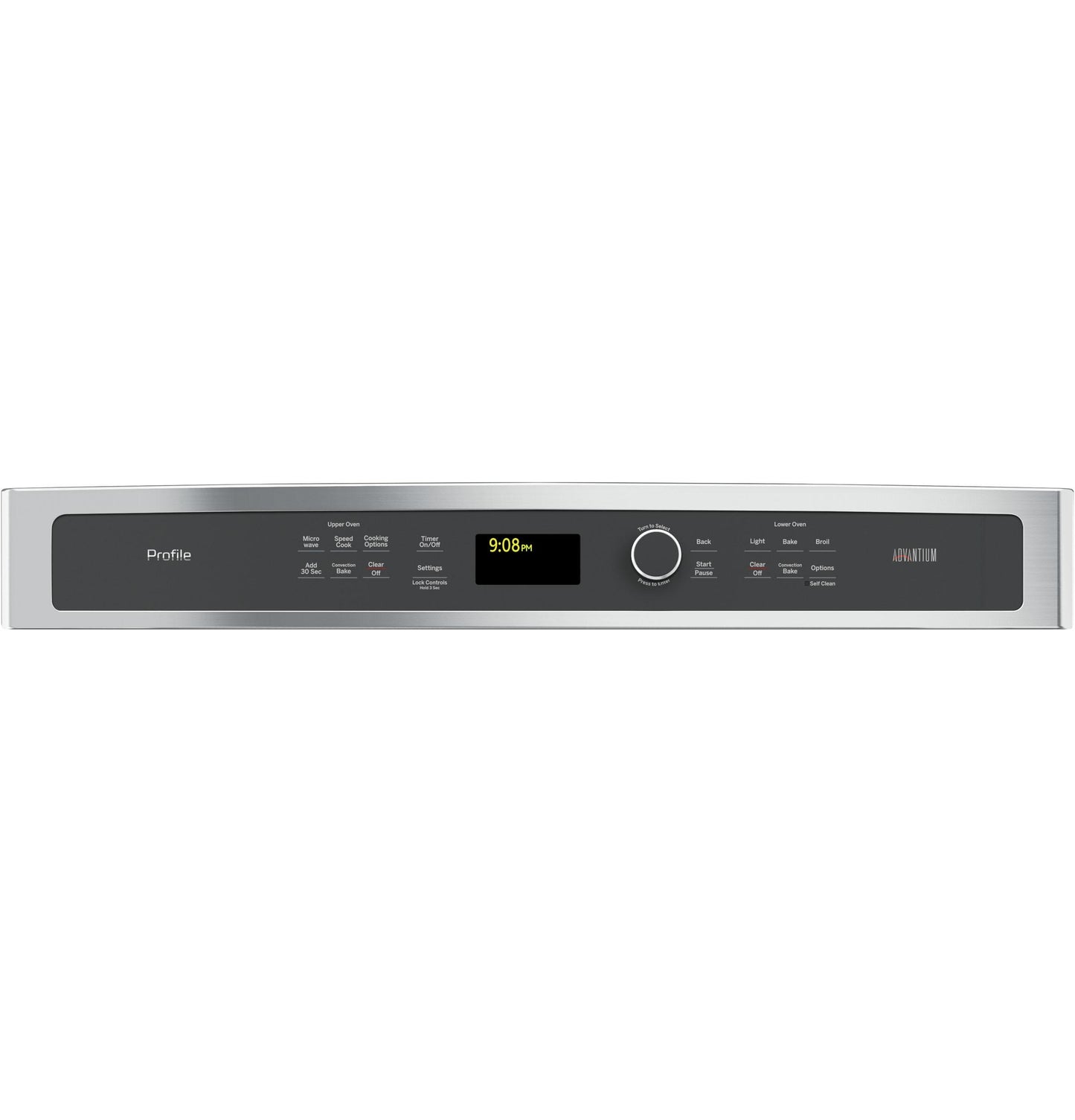

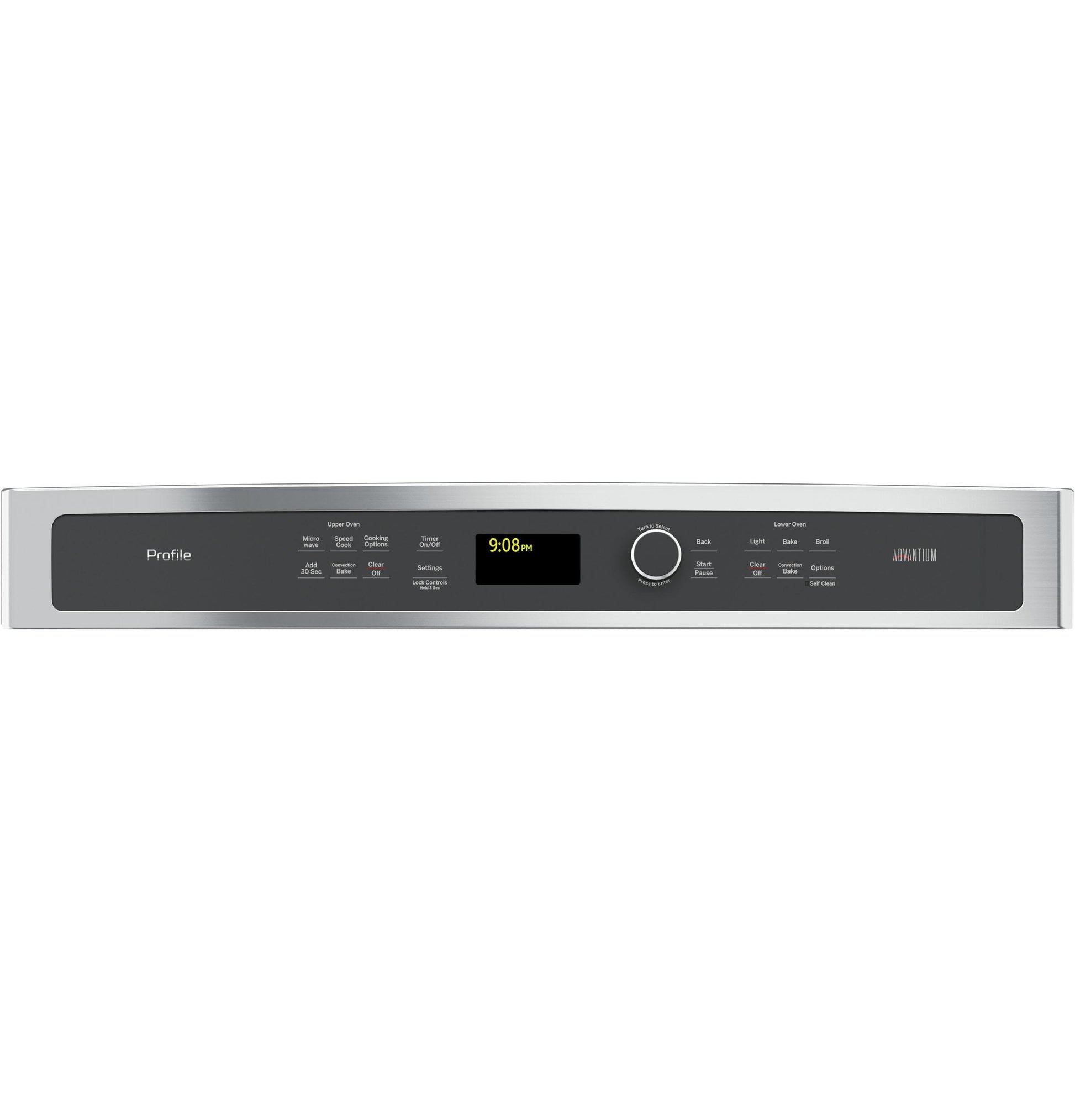

Glass touch controls
Set temperatures quickly and clean with little effort

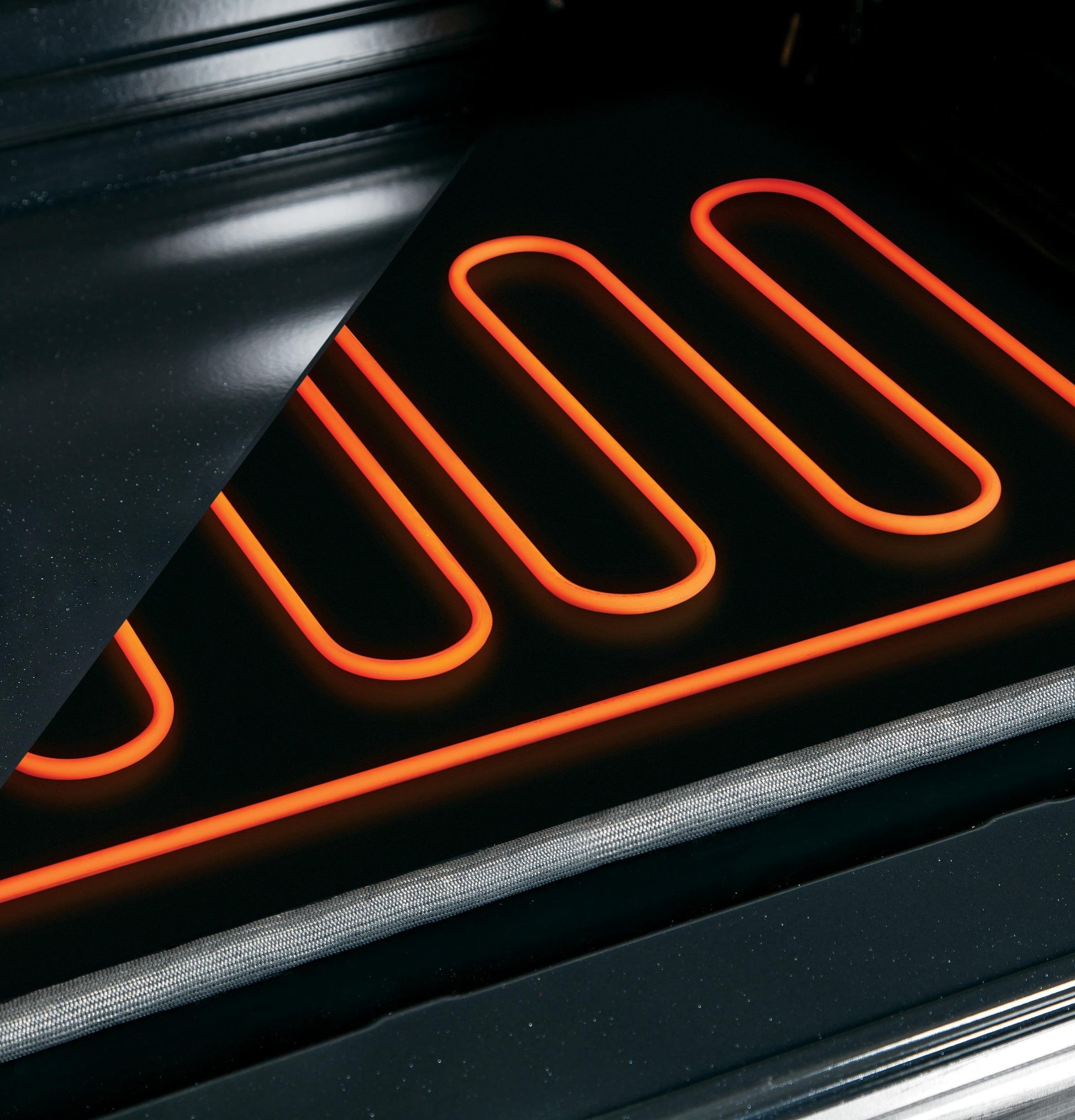

10-pass bake element (lower oven)
Even baking is assured with heat that covers more surface area

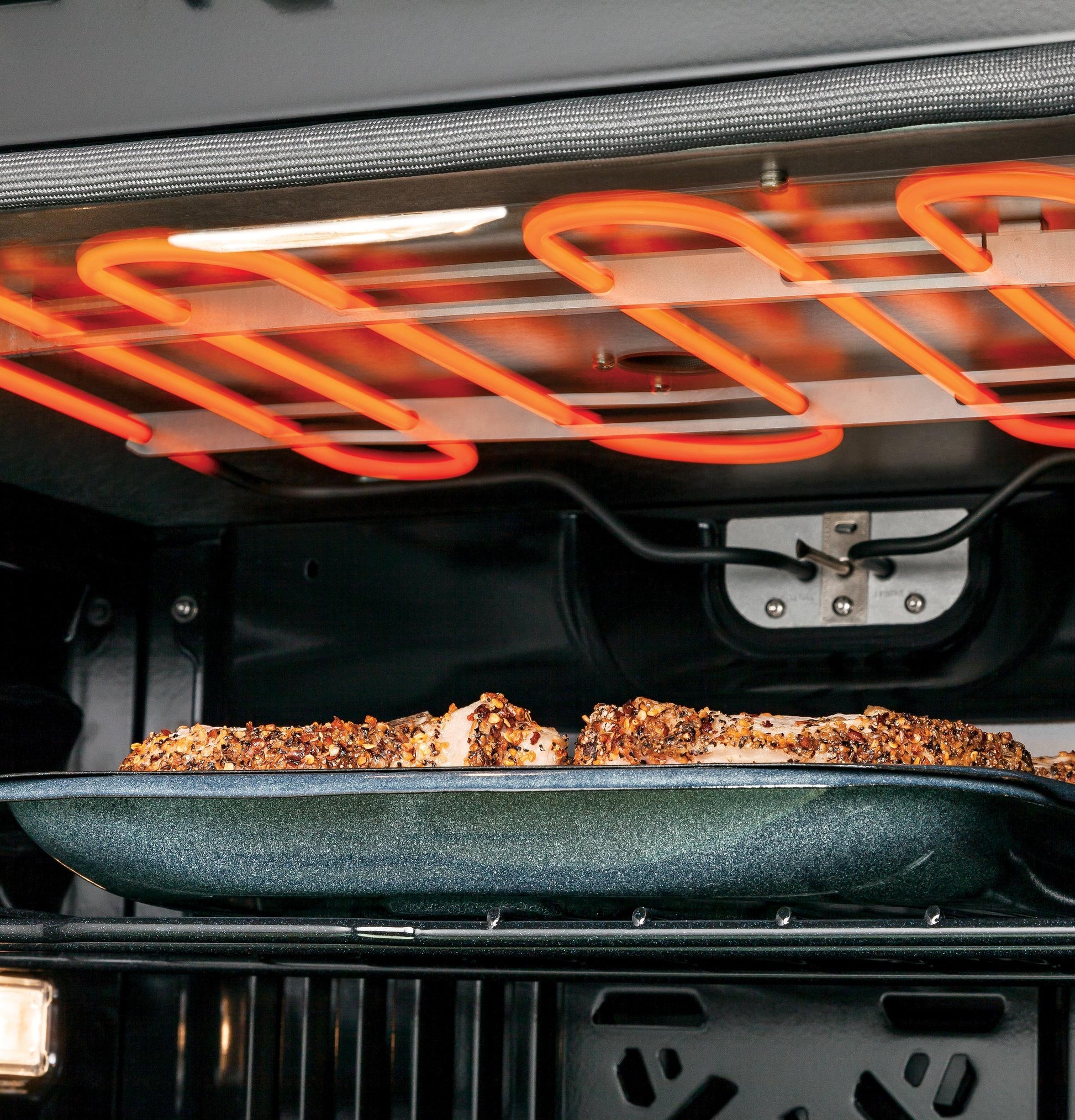

8-pass broil element (lower oven)
Get full broil coverage and even browning from edge to edge

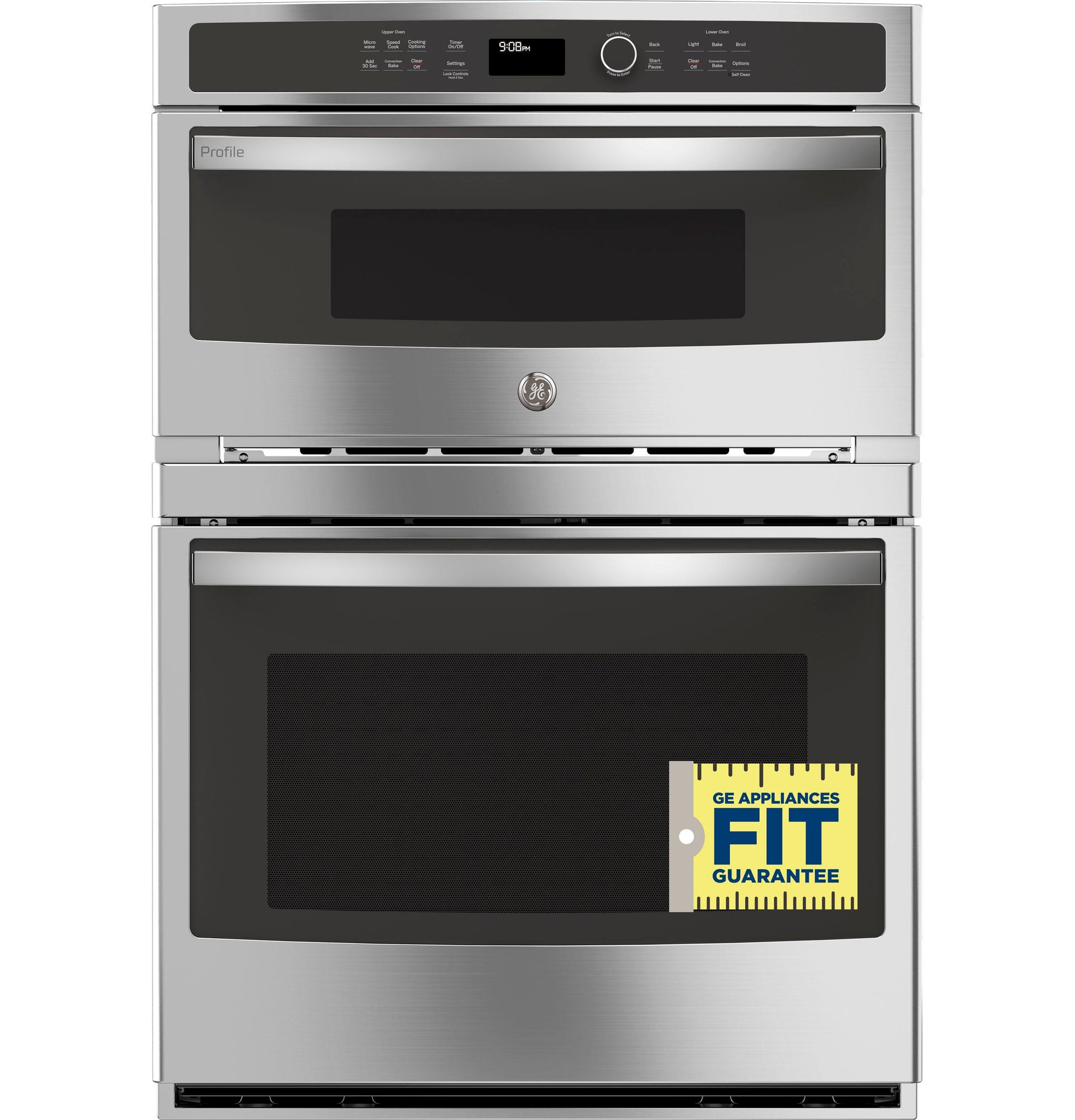

Fit Guarantee
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

CAPACITY
Capacity (Cu. Ft.)	1.7 Upper / 5.0 Lower
FILTER
App Filter - Product Type	Wall Oven Microwave Oven Combination
App Filter - Cooking Technology	Advantium
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Convection	Yes
App Filter - Cleaning Type	Steam and Self-Clean
APPEARANCE
Handle Color	Stainless Steel
Installation	Above Warming Drawer
Oven Door Features	Big Clear View Oven Window (Lower)
Color Appearance	Stainless Steel
Handle Design	Designer Style
POWER / RATINGS
Bake Wattage	2850W
Electrical Requirements	208/240V ; 60Hz ; 30A
Amp Rating at 208V	30
Broiler Wattage	3400W
Convection Wattage	2400W
KW Rating at 240V	7.2
Amp Rating at 240V	30
KW Rating at 208V	5.4
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
Cookbook	Yes
WEIGHTS & DIMENSIONS
Overall Depth	26.75 in
Cabinet Width	30 in
Oven Interior Dimensions (lower)	25 x 17-3/8 x 20-1/4
Overall Width	29.75 in
Oven Interior Dimensions (upper)	20-1/16 x 8-1/2 x 17
Cutout Height (in)	42.25 in
Net Weight	215 lb
Approximate Shipping Weight	235 lb
Cutout Depth (in)	23.5
Overall Height	43.375 in
Cutout Width (in)	28.625 in
Cutout Dimensions (w x h x d) (in.)	28-5/8 x 42-1/4 x 23-1/2
FEATURES
Microwave Watts (IEC-705)	1000 W
Fuel Type	Electric
Oven Interior	1 Halogen Interior Oven Light (Upper) 2 Halogen Interior Oven Lights (Lower) Hidden Bake
Oven Features	10-Pass Bake Element 8-Pass Broil Element
Configuration	Double Oven
Advantium Cooking Modes	Convection Bake (Upper) Microwave (Upper) Proof (Upper) Speedcook (Upper) Warm (Upper)
Vent	Not Vented
Turntable Size	16 in
Product Type	Double Oven Microwave Oven Combination
Oven Rack Features	1 Self-Clean Heavy-Duty Roller Rack 2 Self-Clean Heavy-Duty Oven Racks Ladder-Rack Positions (Lower)
Cooking Technology	Advantium
Self-Clean Oven Door Lock	Automatic (Lower)
Baking/Speed Cook Pan	Porcelain (Upper)
Interior Oven Light	Halogen
Control Type	Dial Glass Touch
Style	Built-In
Cooking System	True European Convection (Lower)
Sabbath Mode	Yes
Oven Cooking Modes	Convection Bake (Lower Oven) Convection Bake Multi/Single Rack (Lower) Convection Broil (Lower) Convection Roast (Lower Oven)
OU Certified	No
Microwave Sensor Cooking Controls	Cook Defrost Express Reheat
Oven Cleaning Type	Self-Clean with Steam Clean Option (Lower)
Cleaning Time	Variable with Delay Clean Option (Lower)
Oven Rack Positions (Single or Upper/Lower)	6
Program Cooking	Over 175 Programmed Menu Selections
Oven Control Features	Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability C° or F° Programmable Defrost Mode Delay Clean Option Delay Start Electronic Clock & Kitchen Timer Hi / Low Broil Proof Mode Temperature Probe Warm Mode
Power Levels	10
