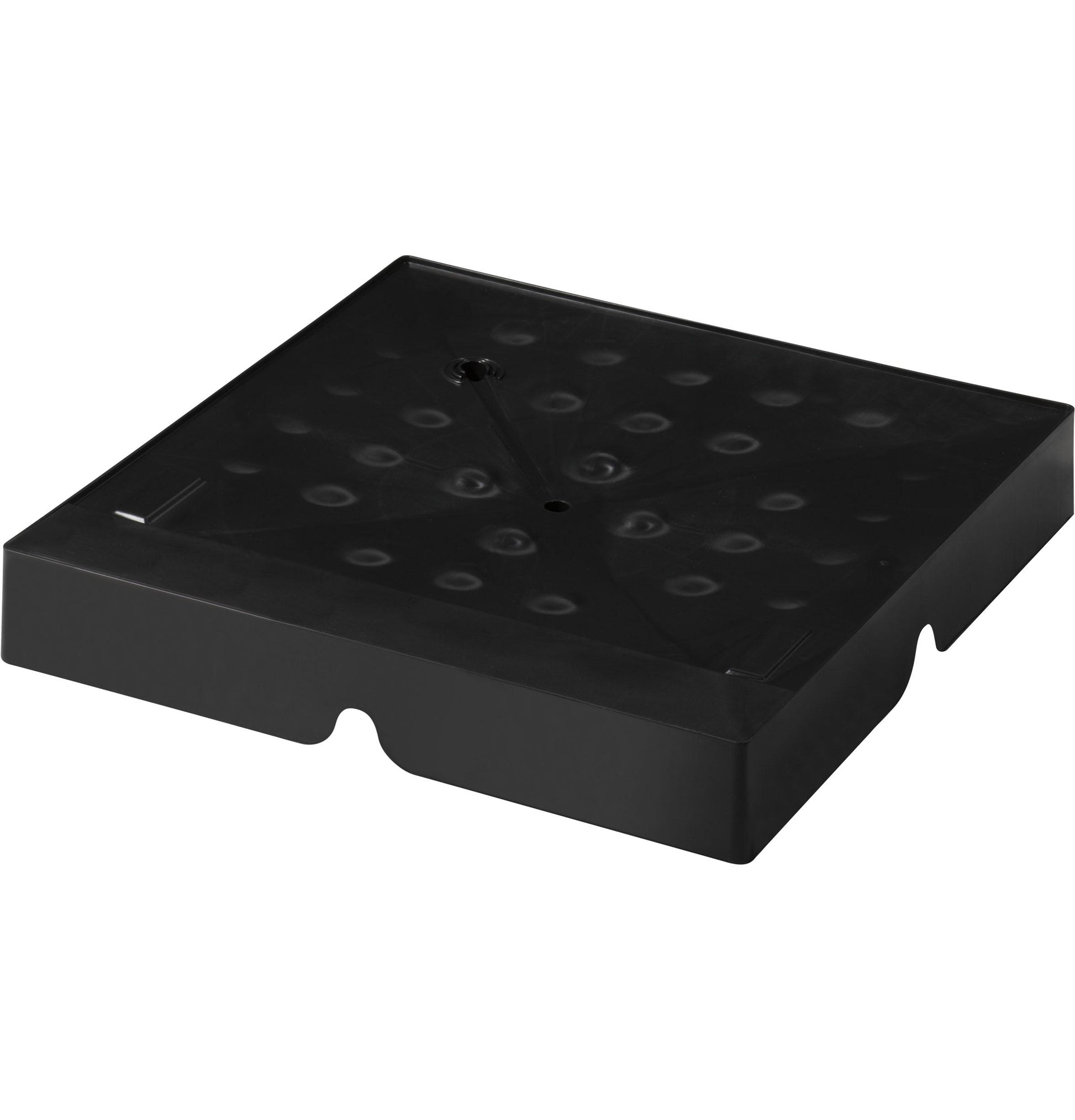

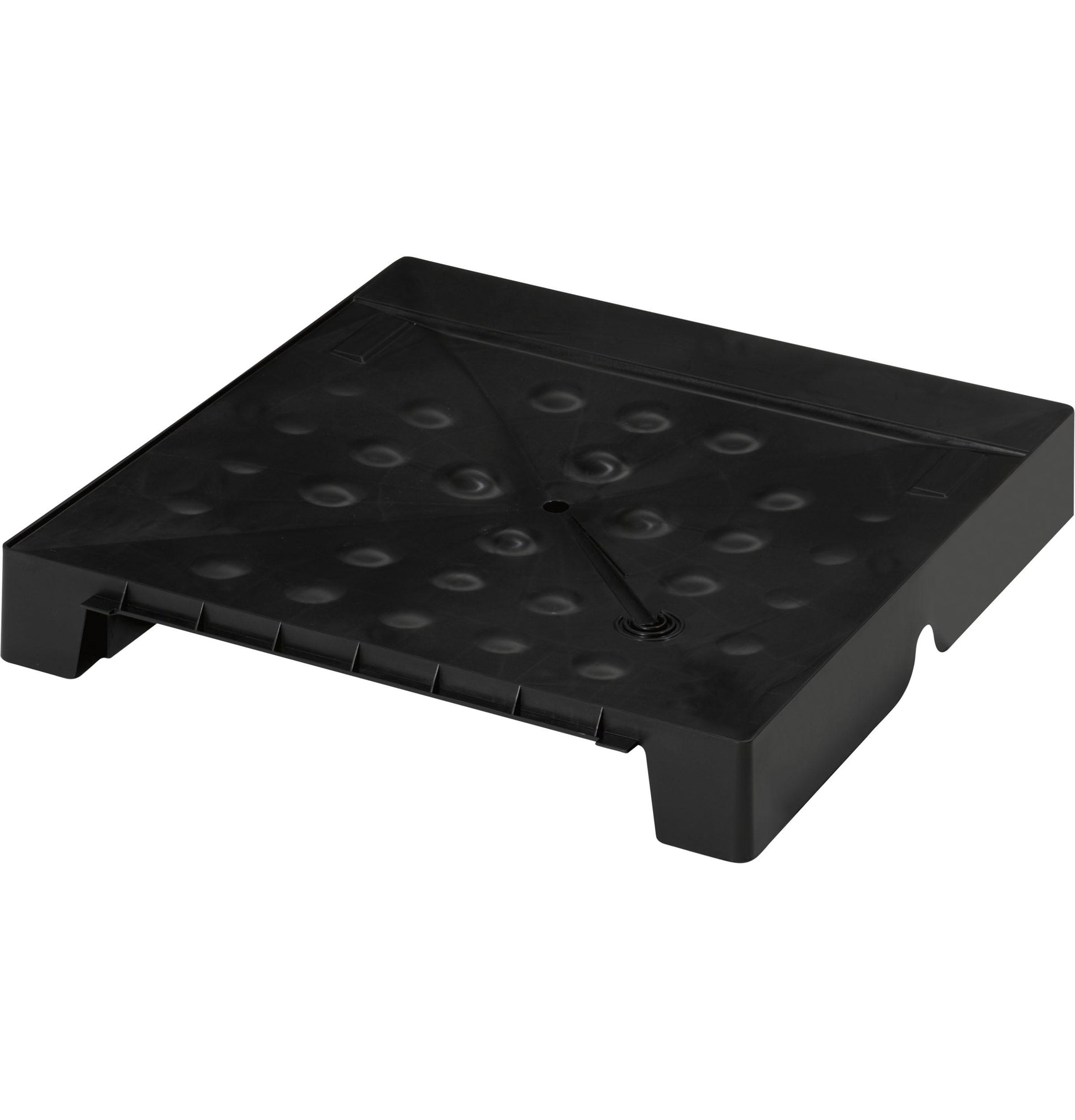

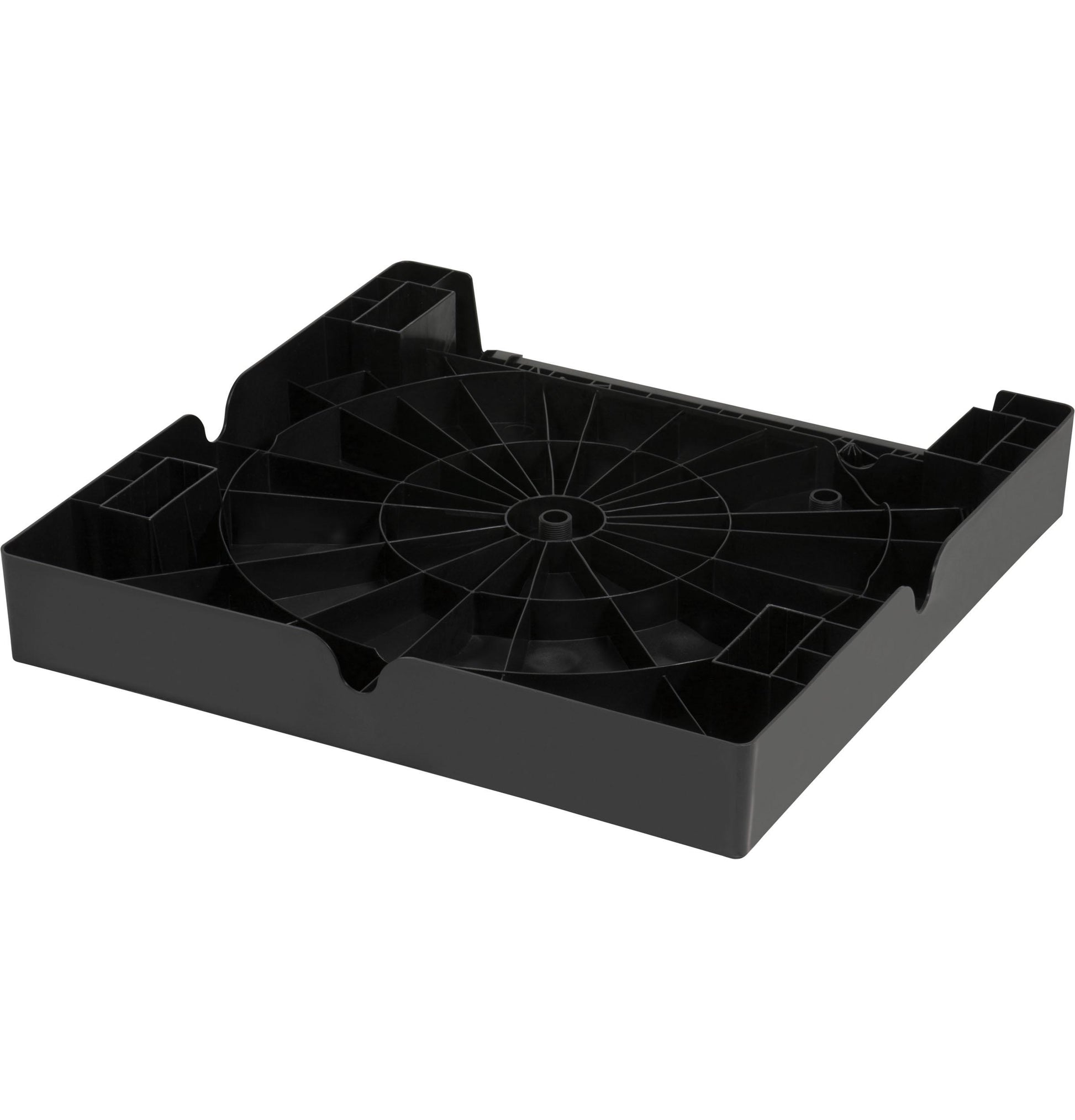

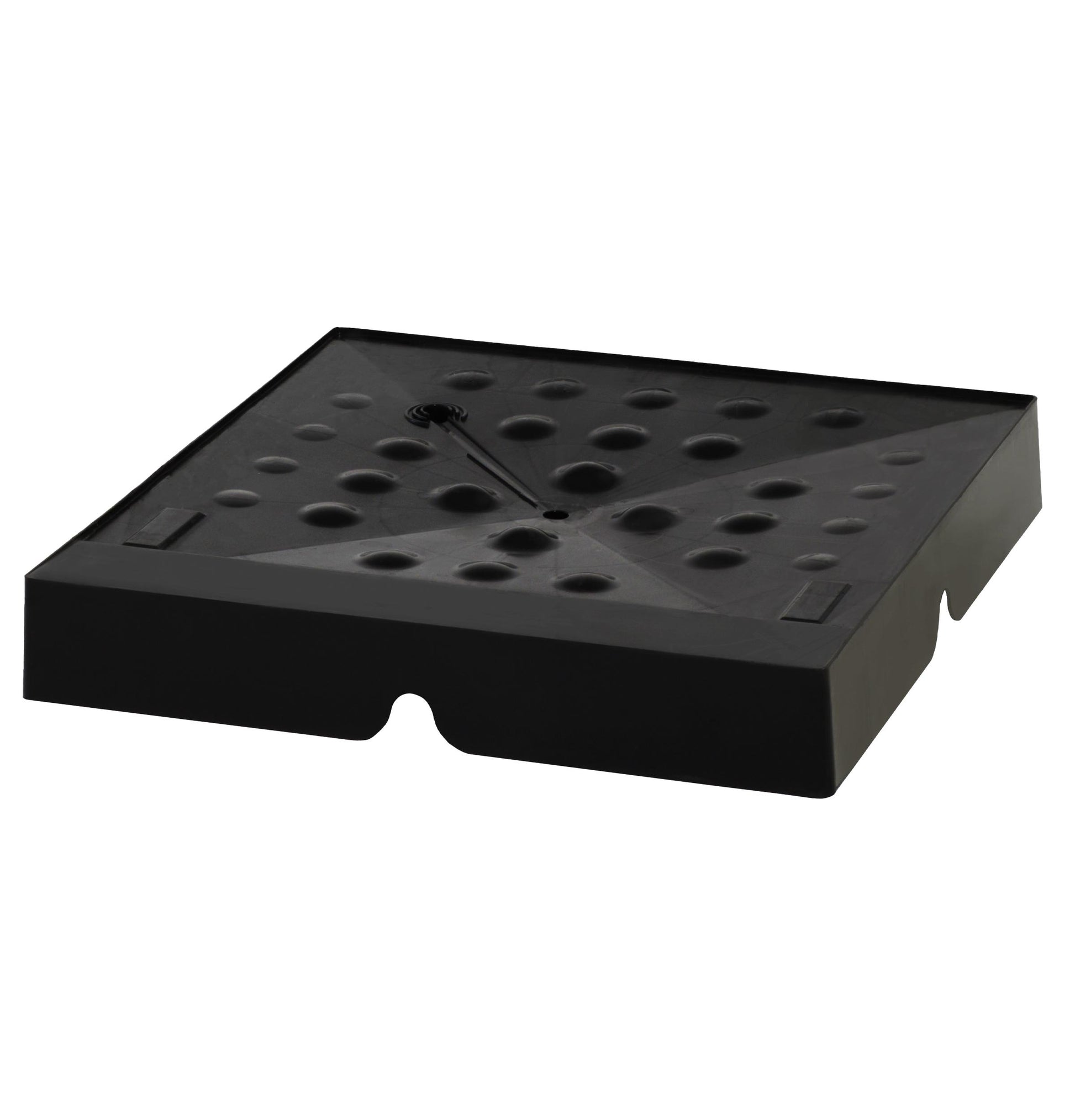

Ge Appliances RAVDPLAT Insta-Platform™ RAVDPLAT

Required for installation of AZ95 & AZ9V Vertical Zoneline Air Conditioners with the following plenums & adapter kits:
RAVWPT9,RAVWPT15,RAVWPT15B,RAVTRANS2,RAVTRANS3,RAVTRANS4

3-Way Chassis Access
3-way access to all sides for easy installation, cleaning and servicing unit

Lightweight & rustproof
Lightweight and moisture-resistant platform in SMC Engineered Resin supports the unit, safely contains condensate water and provides drainage for the chassis

Slide in design
A patent-pending low-friction surface with a self locating feature makes it a very easy to slide the unit in from the front and allows perfect positioning

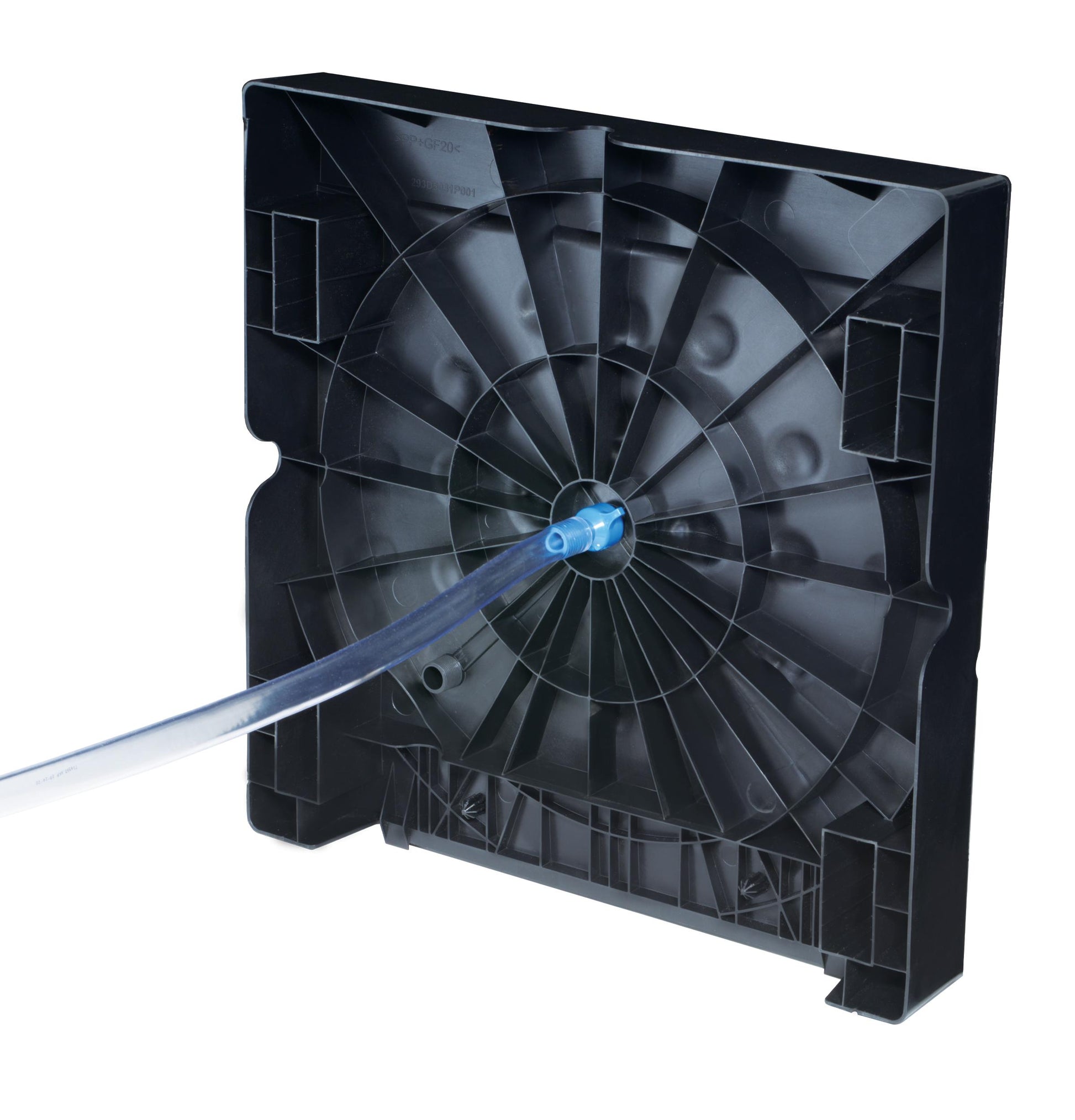

Exclusive Fast Connect Plumbing
Thoughtful design enables platform build and rough plumbing completed in only minutes

Flexible drain routing
Versatile platform allows the primary and secondary drain fittings to be installed before the chassis, making drain install a breeze! If installed on the floorlevel, the primary drain can be setup on 3 sides. If installed off the floor, the primary drain be be setup in any direction

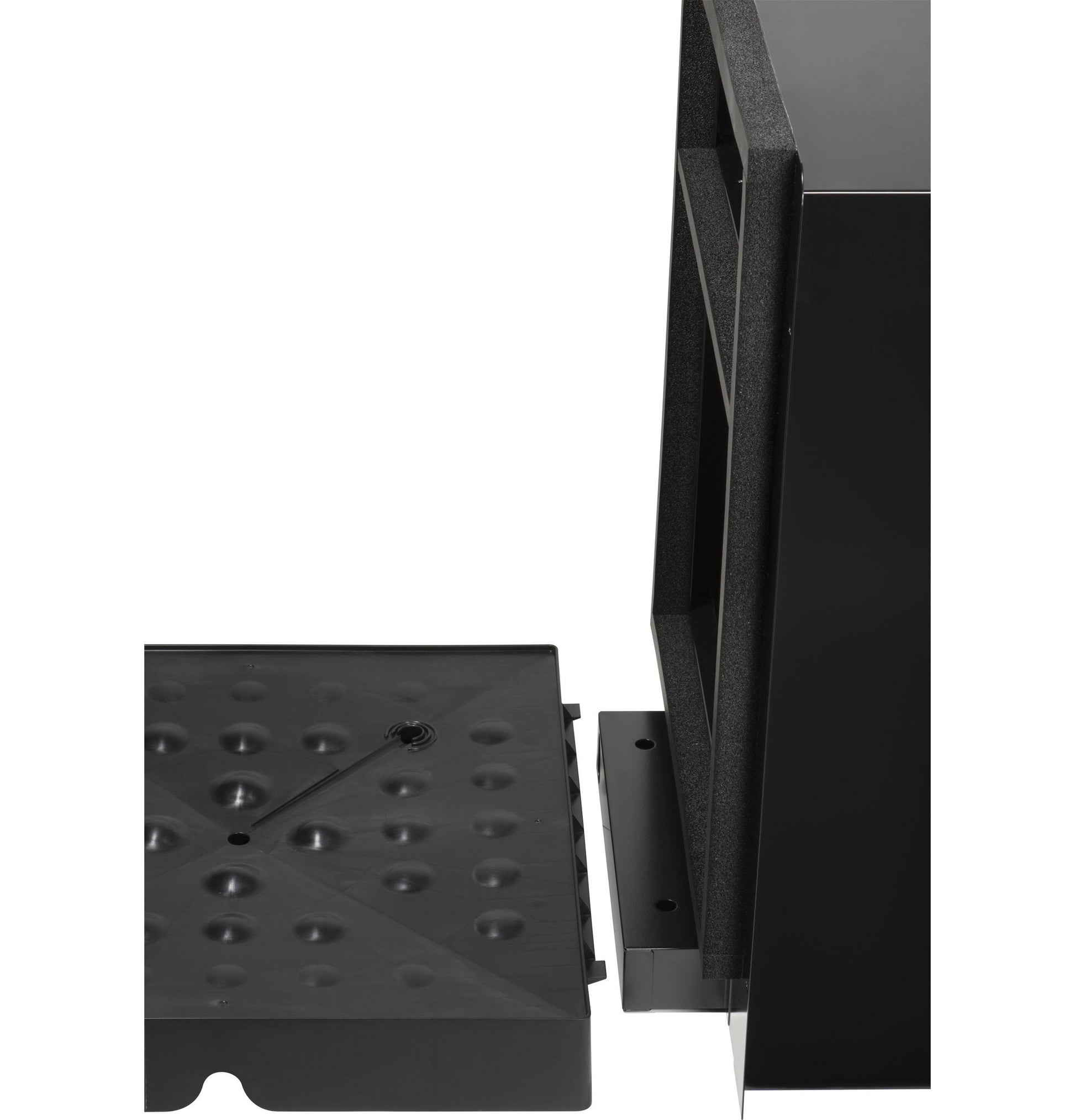

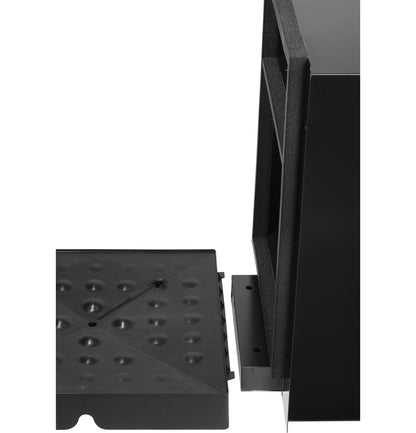

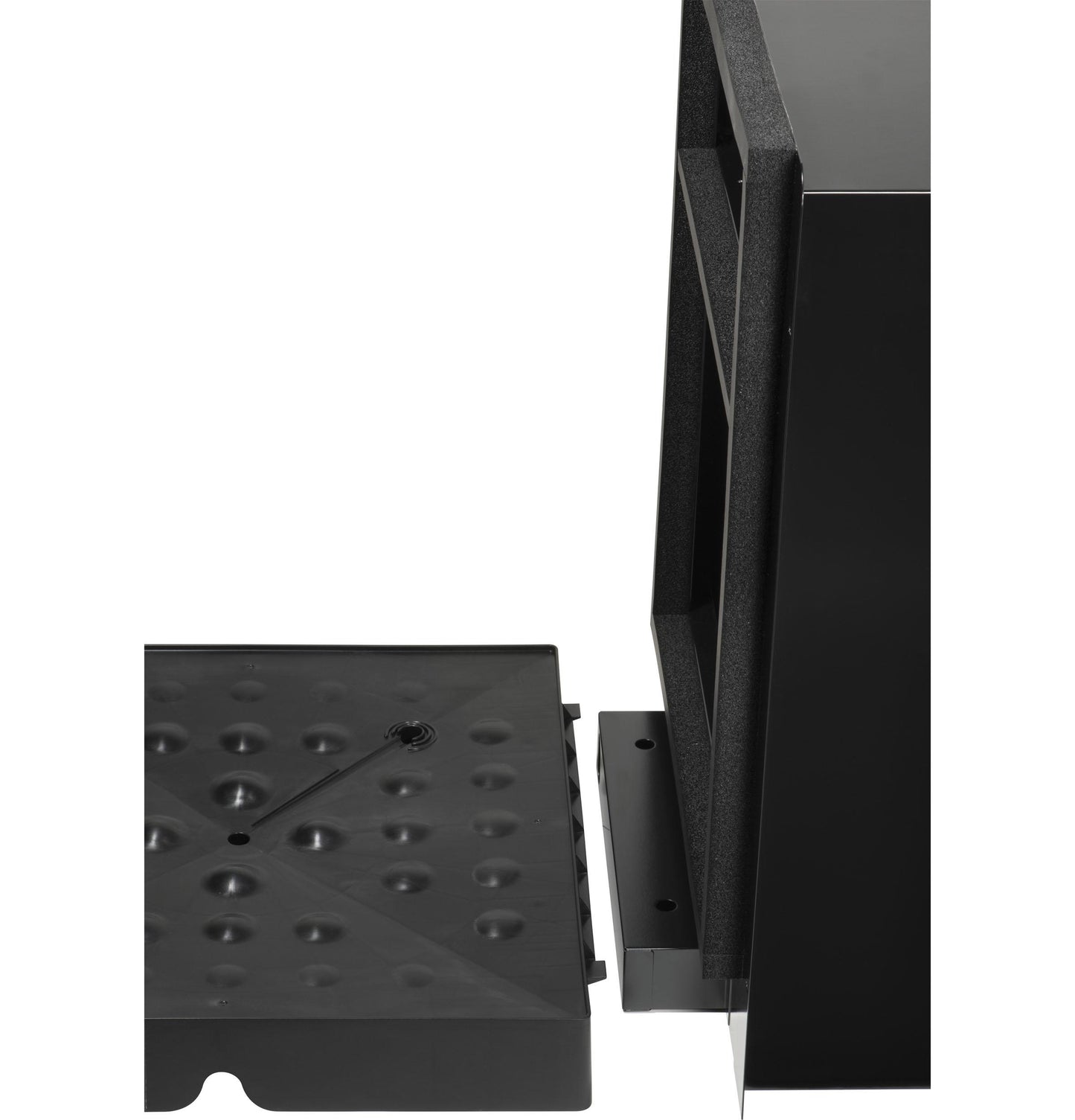

Integrated Design
Fully integrates with wall plenum, the platform keeps the unit in place at all times, protects gasket and gives a robust installation for the lifetime of product. Simply accommodates custom length with 2x4 legs Eliminates need for a customized platform construction on site

Self-Aligning Lock in Place System
Perfect fit and mistake proof when the chassis is placed on the platform

APPEARANCE
Color Appearance	Black
WEIGHTS & DIMENSIONS
Overall Width	23.97 in
Approximate Shipping Weight	7 lb
Overall Height	3.61 in
Net Weight	6 lb
Overall Depth	24.54 in
