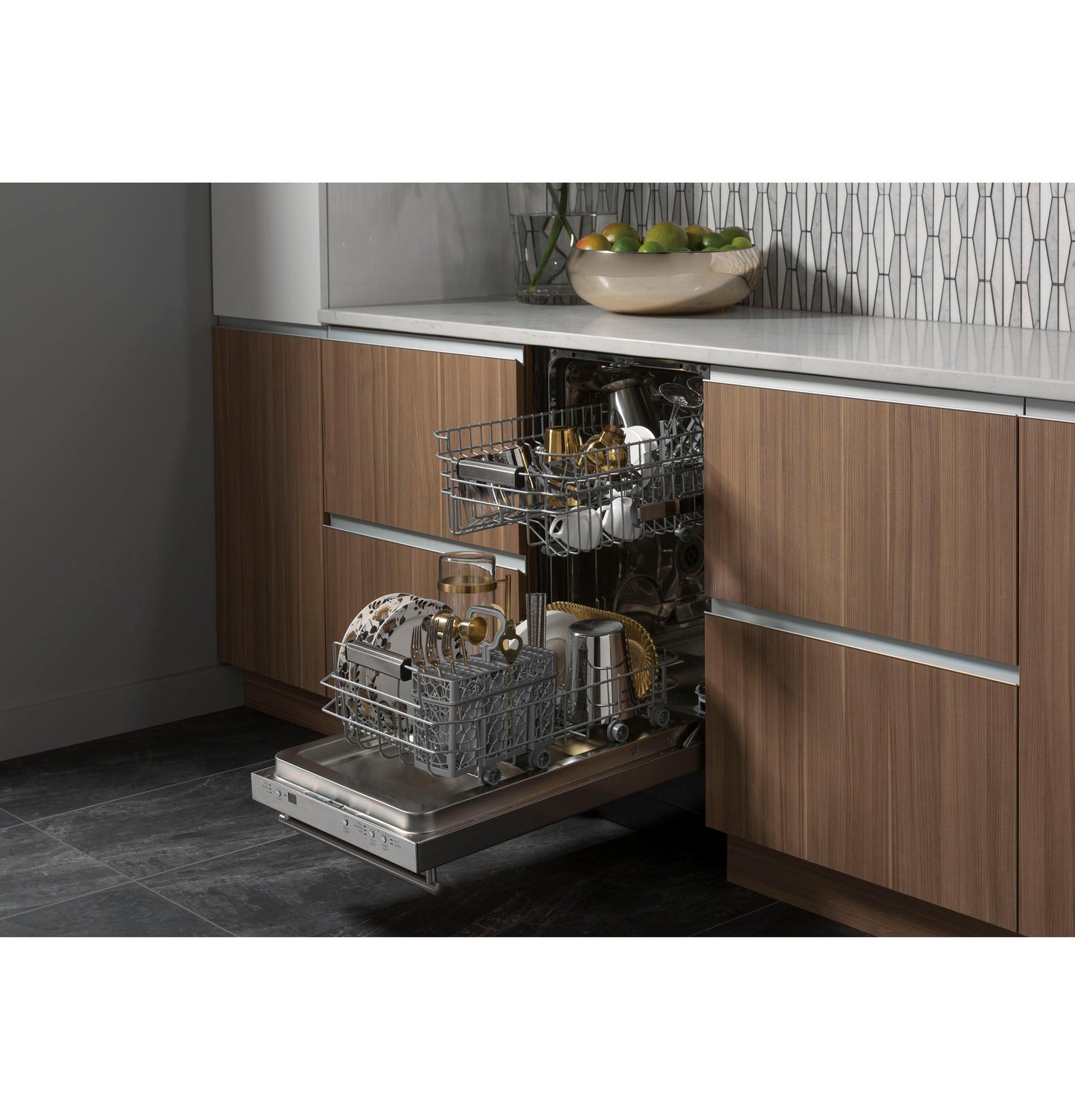

Ge Appliances UDT165SIVII 18" Panel-Ready Dishwasher

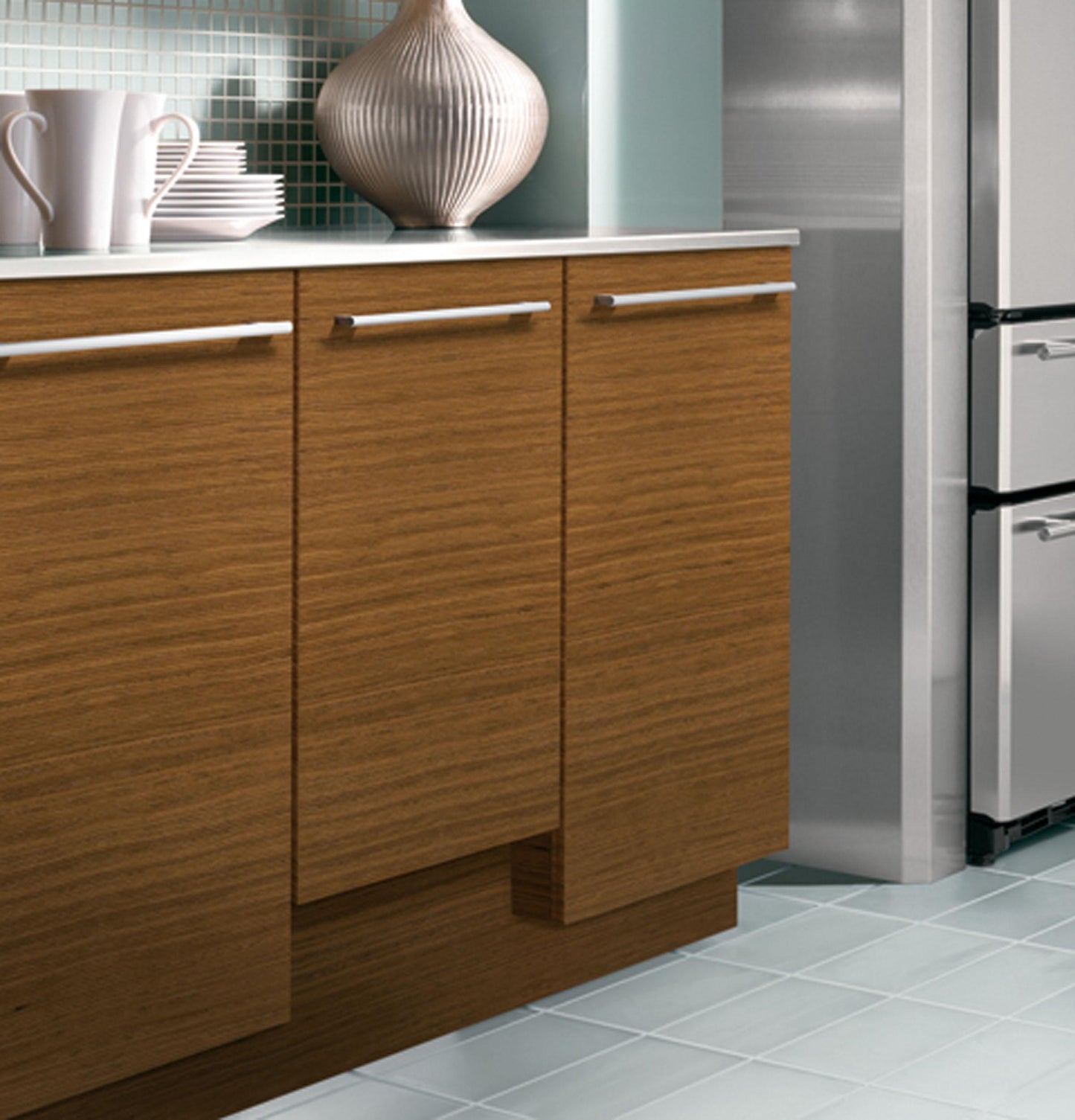

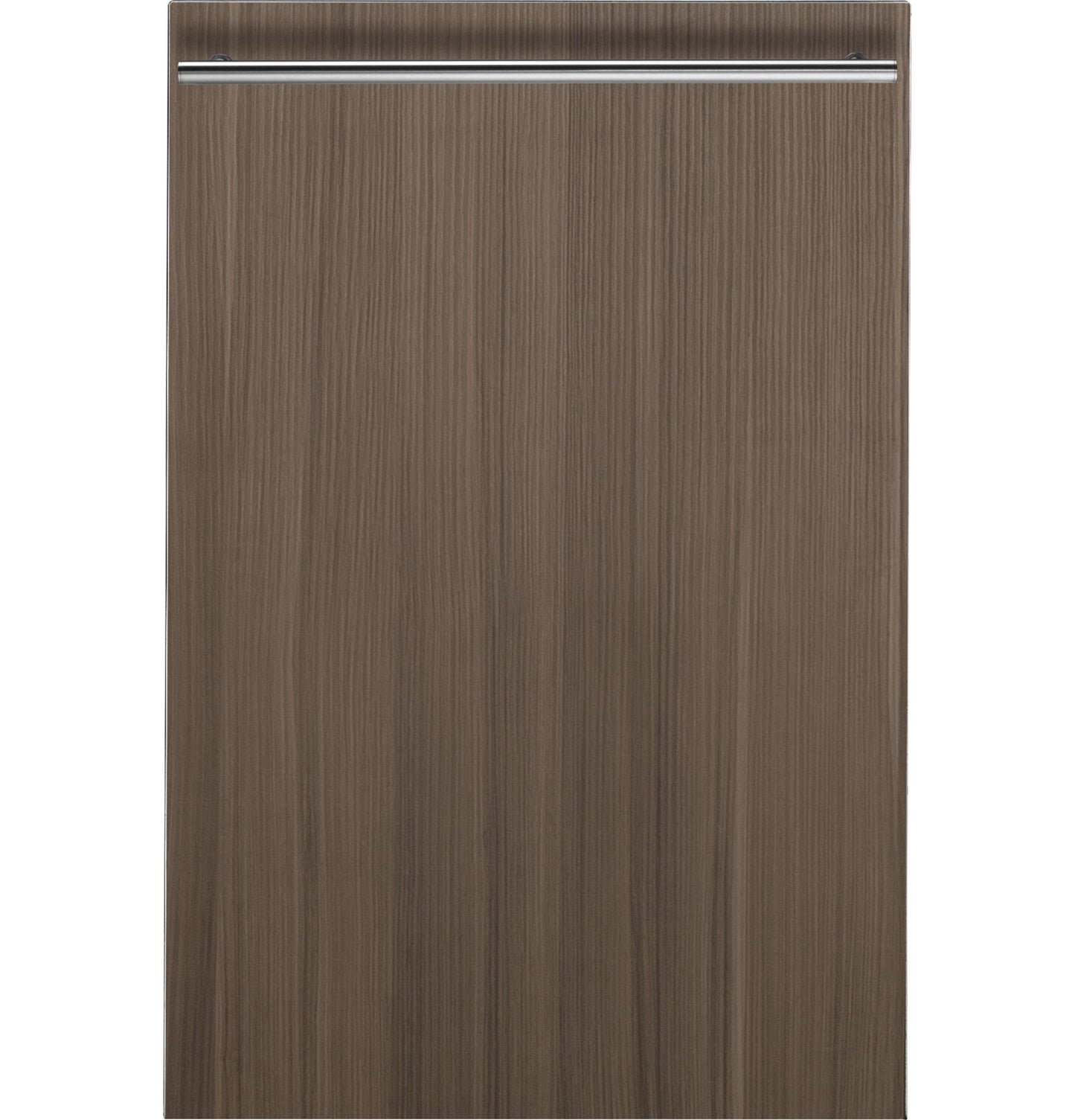

Custom Panel Model
Designed for personalization with customer-supplied cabinet-compatible panel and custom handle

Hidden, Integrated Electronic Controls
Allow easy activation of wash cycles: heavy wash, light wash and Auto Sense

Three-Level Wash System
Provides effective, yet quiet cleaning power

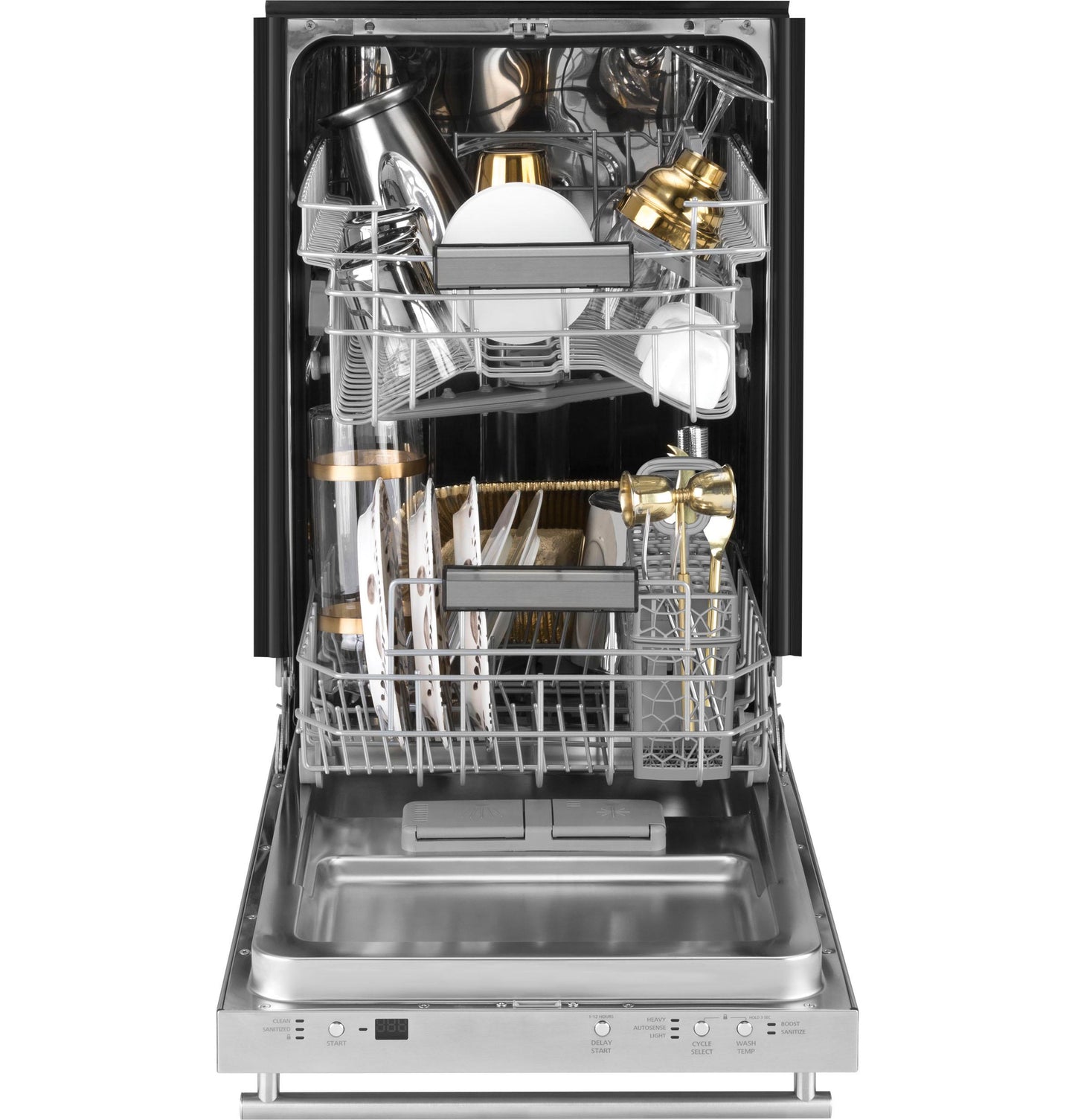

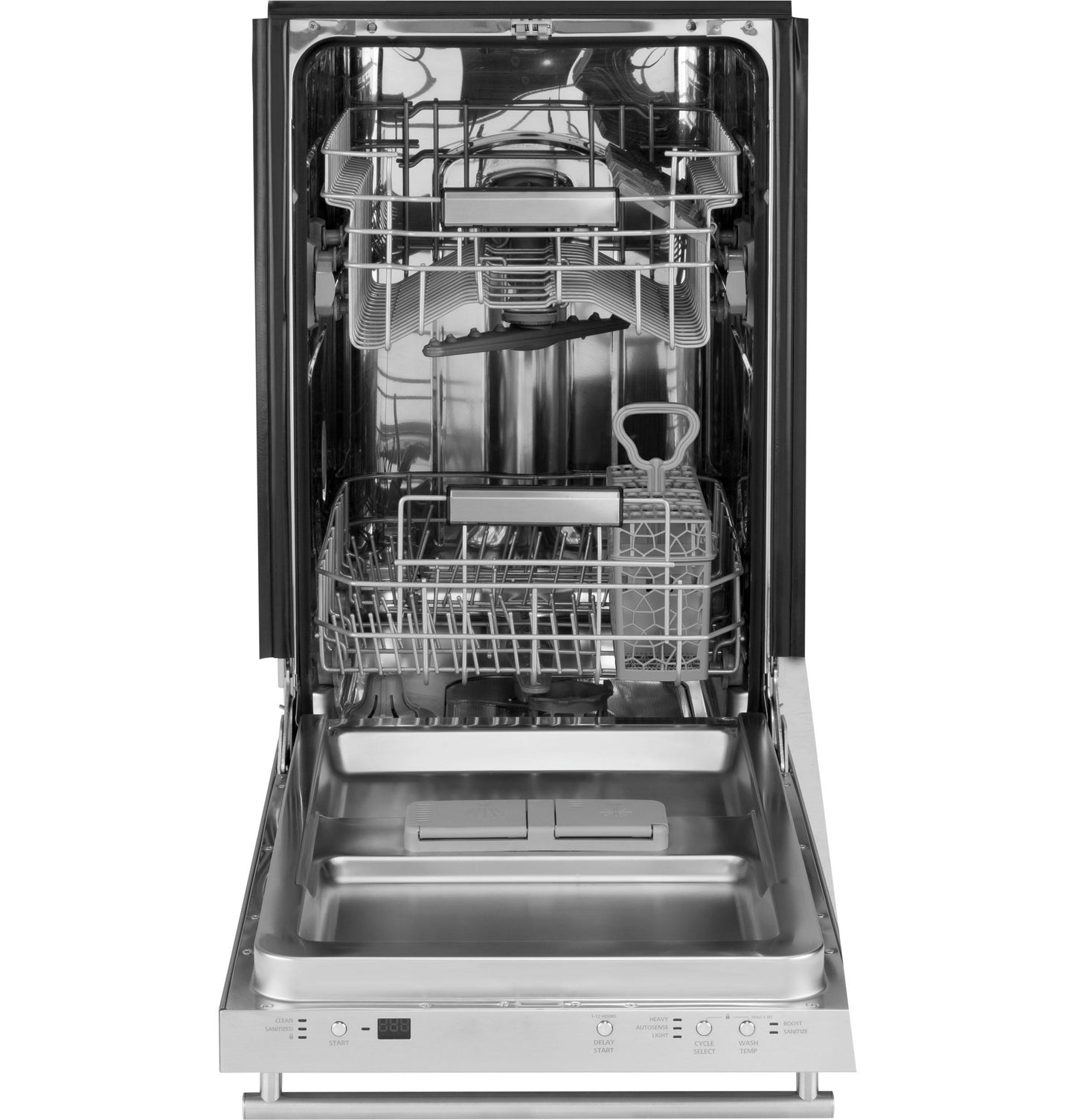

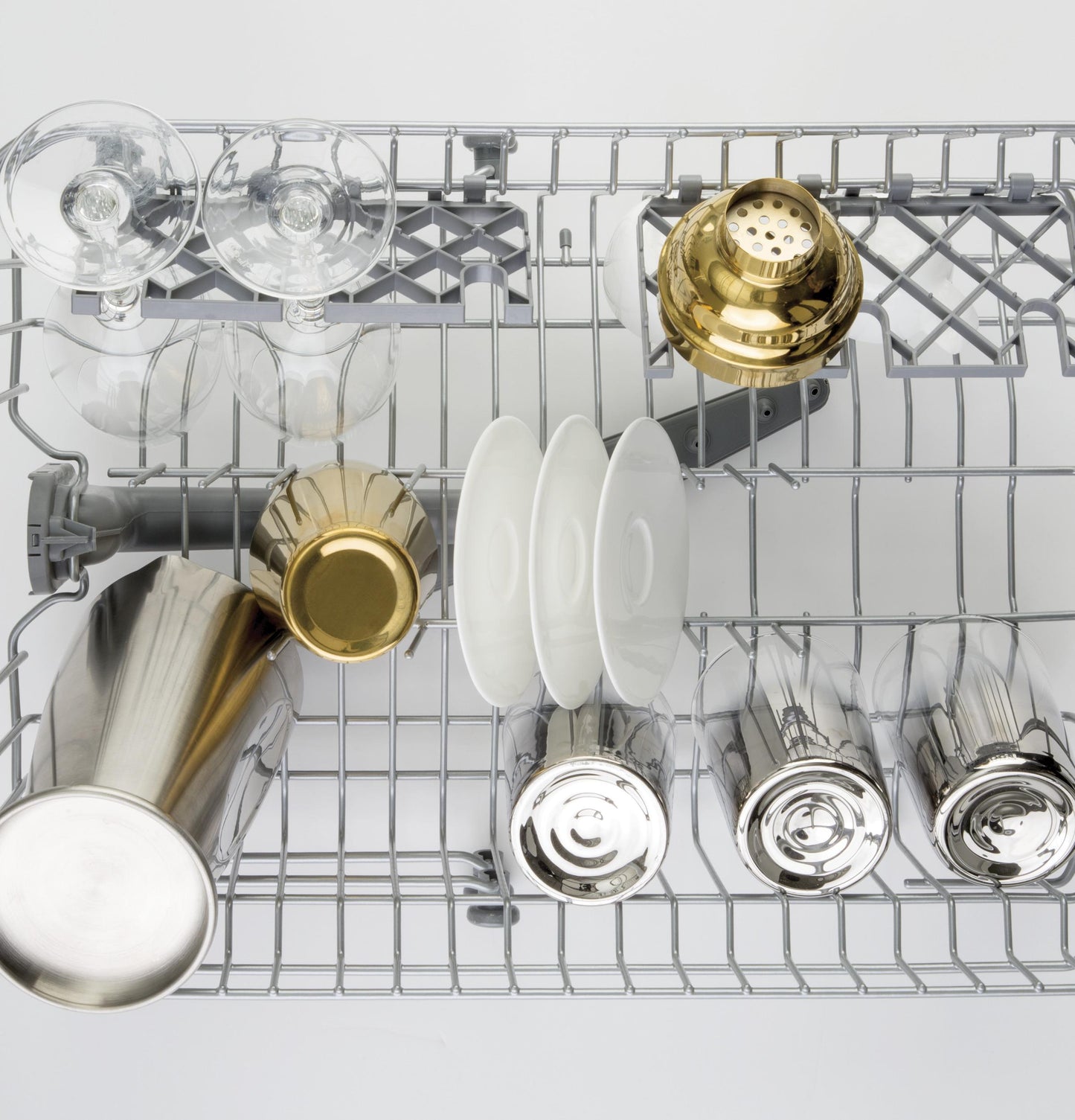

Nylon Gray Racks with Ball-Tipped Tines
Provide plenty of space and loading flexibility

Piranha™ Hard Food Disposer
Grinds food into small particles that are washed away

47 dbA
Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance

APPEARANCE
Door Panel Color	Custom Panel Required
Panel Capability	Integrated
Door Appearance	Fully integrated door for custom panels
Color Appearance	Custom Panel and Handle Required
Handle Design	Handle required
Design Style	European Stainless Steel
POWER / RATINGS
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)	240
Hertz	60
Electrical Requirements	120V ; 60Hz ; 10A
Watts	1200
Calrod Heater Watts	1100
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Insulation Mastic
Quiet Package	47 dBA
Outer Wrap	U-Blanket
Motor Type	Single Speed
Quiet Features	Sealed Toe Kick Tub Collar Trim

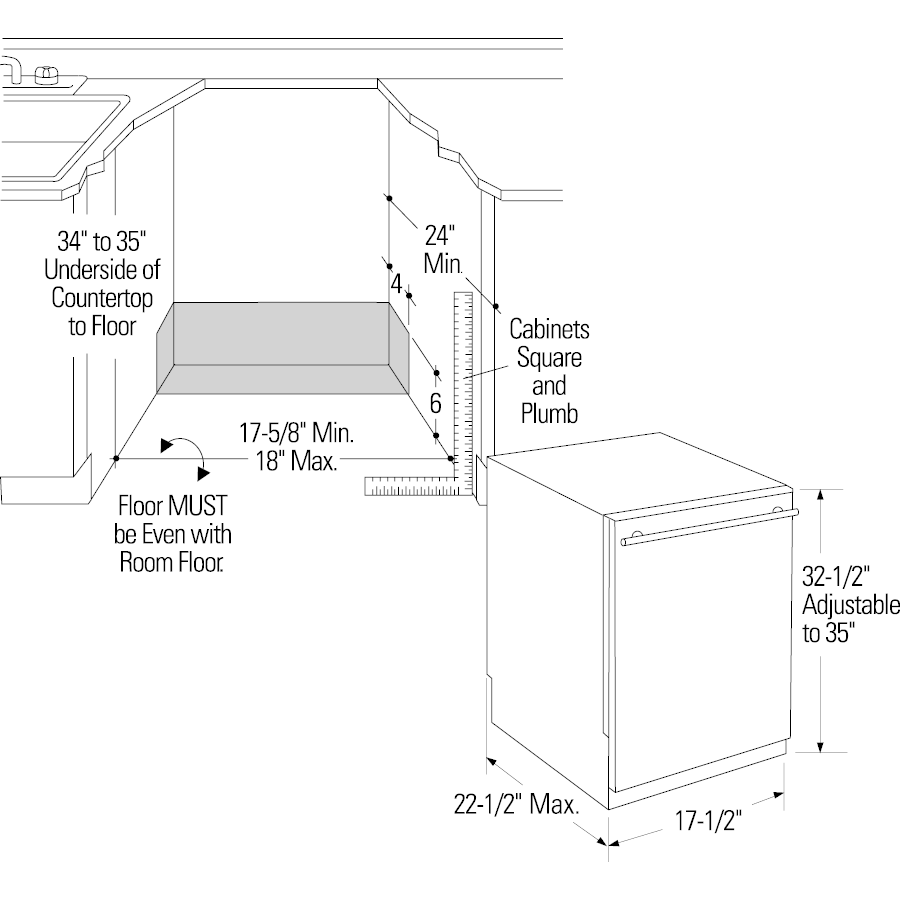

WEIGHTS & DIMENSIONS
Cabinet Depth	24 in
Height w/ Legs Retracted - Minimum Height	32.375 in
Cutout Height (in)	32 1/2 in
Cutout Width (in)	17 3/4 in
Overall Depth	23 in
Cabinet Width	18 in
Net Weight	71 lb
Overall Width	18 in
Depth Without Handle	23 in
Approximate Shipping Weight	84 lb
Overall Height	32.375 in
Cutout Depth (in)	23.625 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	23.125 in
FEATURES
Wash System	3-Level Standard
Sensor	Clean Sensor
Lower Rack	1 Rack handle Nylon
Leveling System	Leveling Legs
OU Certified	No
Number of Place Settings	8
Custom Panel Ready	Integrated Panels
Dishwasher Options	Automatic Hot Start Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost
Latch	Pull with Handle
Number of Options	5
Style	Built-In Top Control
Water Filtration System	3-Stage Manual Clean Filtration
Collection	EcoBalance
Rack Features	1 Piece Mid Silverware Basket w/ 1 Cell Cover 1 Plastic Utility Shelf - Upper Ball-Tipped Tines Fold-Down Tines - Lower
Racking Material	Nylon
Floor Protection	Yes
Dishwasher Cycles	AutoSense Heavy Wash Light Wash
Dispenser	Rinse Aid with Indicator and Adjustment
Control Type	4 Pushbuttons Fully Integrated Electronic Top Controls
Dishwasher Drying Features	Condensate Dry
Wash Arms	2 with Upper Nozzle
Wash System Features	Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha™ Hard Food Disposer
Exterior Style	Custom Panel
Product Type	Built-In
Upper Rack	1 Rack handle Adjustable Nylon
Dishwasher Control Features	3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad
Number of Cycles	3
Tub and Door Liner	Stainless Steel
Sabbath Mode	Yes
