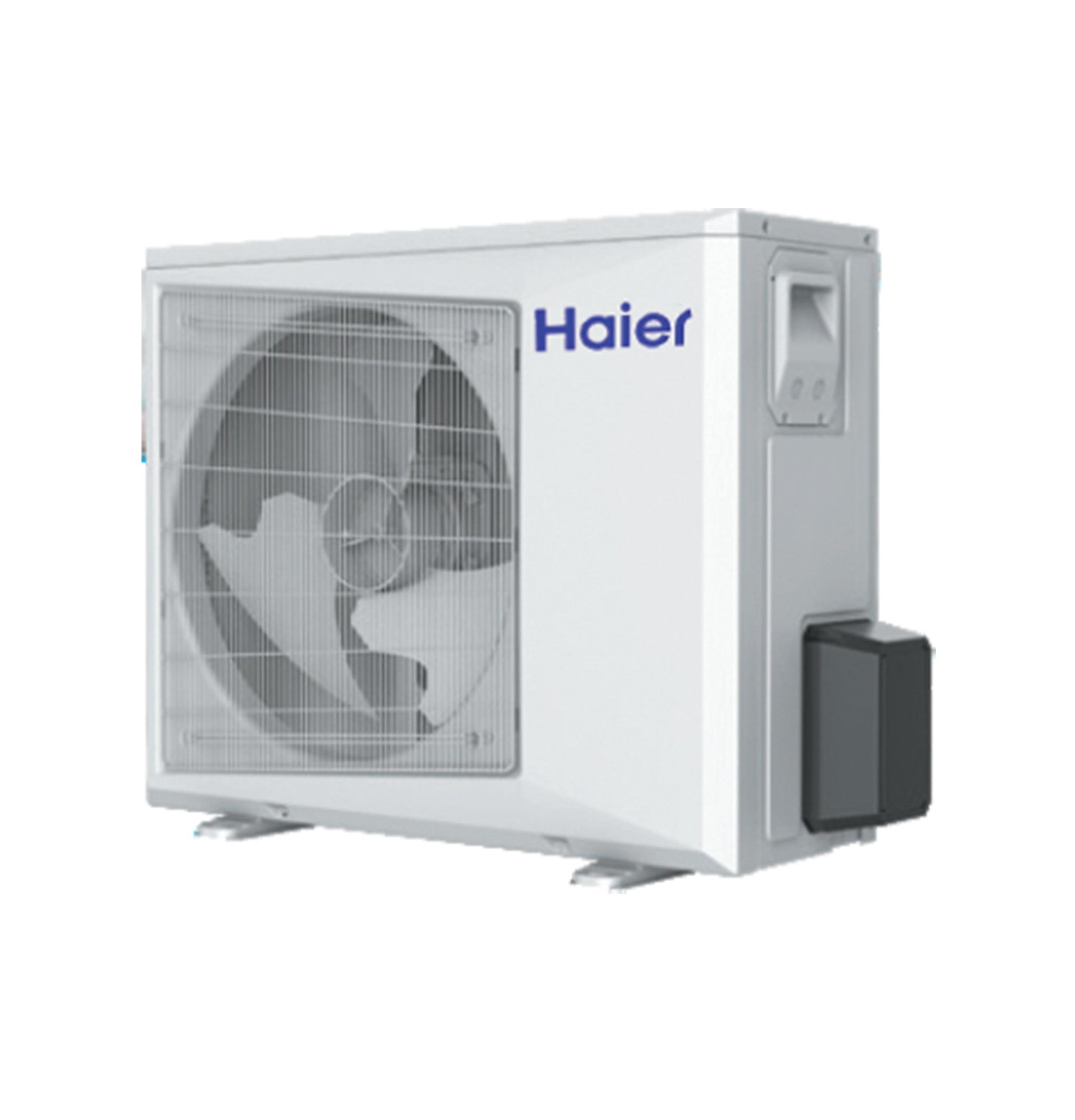

Ge Appliances UUC118WCDA 208-230V 18,000 BTU Side Discharge Air Conditioner Condensing Unit

Compact Size
Side-discharge configuration is perfect for installation in limited space

Light Weight
Easier contractor equipment transportation and installation

Quiet Operation
Sound-dampening features produce operation at noise levels as low as 52dB

24V System
Compatible with many 24VAC thermostat

AHRI Matching Indoor Coil
Independent 3rd party coil match available

See specification book for full heating, cooling, and system details

CAPACITY
Cooling BTUH (MAX)	17500 Btu
APPEARANCE
Color Appearance	White
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	10-Year registered limited parts warranty 5-Year limited parts warranty
Labor Warranty	No Warranty
POWER / RATINGS
Cooling Rated Capacity BTU/Hr	17,500
Hertz	60
Electrical Requirements	208/230V
Minimum Circuit Amp	10
WEIGHTS & DIMENSIONS
Net Weight	105.8 lb
Suction O.D. Refrigerant Line	1/2"
Liquid O.D. Refrigerant Line	1/4"
Overall Depth	15 in
Factory Charge (pounds)	4.6999998092651 lb
Overall Width	36 in
Overall Height	27.625 in
Approximate Shipping Weight	105.8 lb
FEATURES
Style	Side-Discharge
Refrigerant Type	R410A
Maximum Line Length (Ft/M)	82/25
Series	Side-Discharge
Maximum Height (Ft/m)	33/10
Temperature Range - Cooling Mode	50-115 F (10-46 C)
Unit Type	Indoor
SEER	14.5
Compressor Type	Rotary
Maximum Fuse Size A	15
EER	12
Fan Speed RPM	890
Outdoor Noise Level	55 dBA
Outdoor Airflow CFM	2012
CFM with Rated Coils	620
Aspen Model	C(A,C,E)24B44+TDR
Product Type	Multi Zone Single Zone
