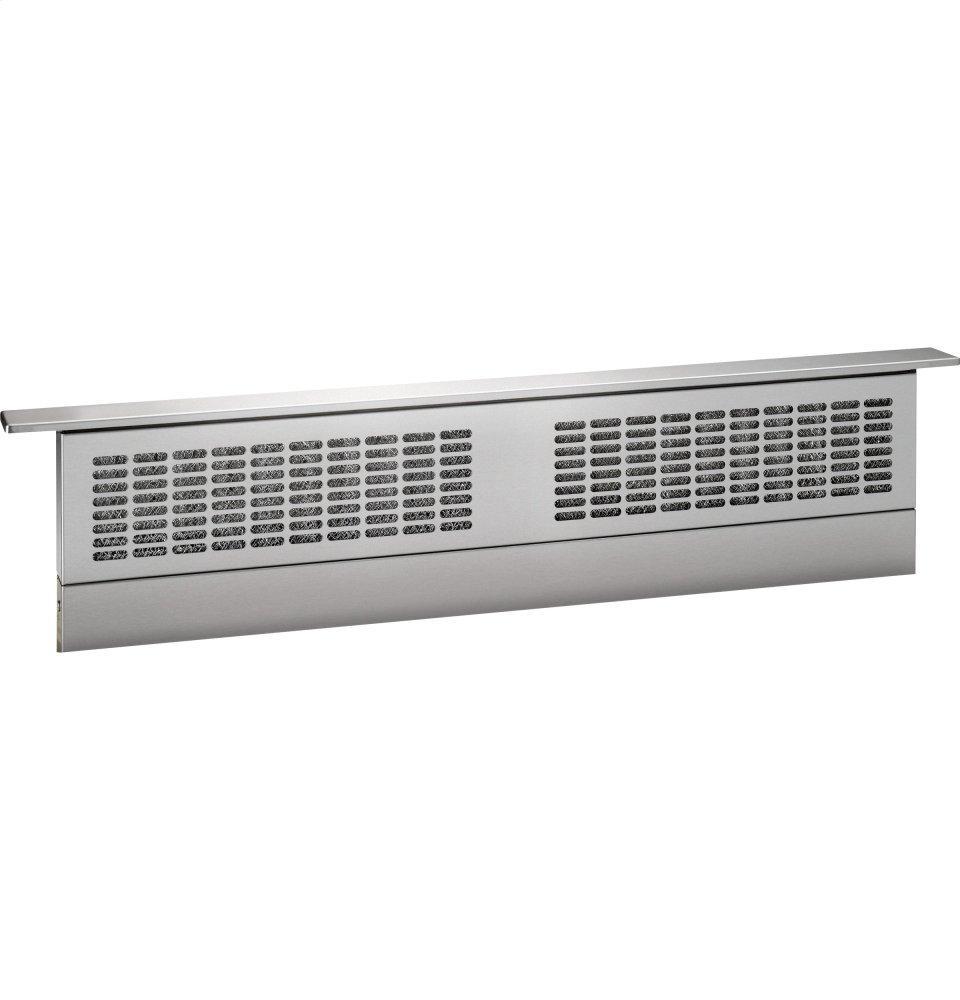

Universal 36" Telescopic Downdraft System UVB36SKSS
Discontinued![Universal 36" Telescopic Downdraft System](http://dshomeappliances.com/cdn/shop/products/MEAAQLXSTHPA.jpg?v=1678798920&width=960)
- 370-CFM venting system
- Four-speed fan control
- Telescopic hood
- Separate remote raise/lower switch
370-CFM venting system
Effectively remove smoke, grease, odor and moisture
370-CFM venting system
Effectively remove smoke, grease, odor and moisture
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
Telescopic hood
Raises over cooktop surface and retracts when not in use
Telescopic hood
Raises over cooktop surface and retracts when not in use
Separate remote raise/lower switch
Separate remote raise/lower switch
FILTER | |
App Filter-Multi Brand | GE Monogram |
App Filter - Hood Type | Telescopic downdraft |
App Filter - Venting Type | External |
App Filter - Cabinet Width | Vent 36 in. |
APPEARANCE | |
Color Appearance | Stainless Steel |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
POWER / RATINGS | |
Amp Rating at 120V | 4.0 |
ACCESSORIES | |
Duct Extension | 100 ft. |
WEIGHTS & DIMENSIONS | |
Cabinet Width | 36 |
Net Weight | 59 |
Overall Depth | 9.5 |
Approximate Shipping Weight | 74 |
Telescoping Height | 8.5 |
Overall Height | 27 |
Overall Width | 36 |
FEATURES | |
Fan Speed Control | 4-Speed |
Optional Blower Mount Capabilities | Yes |
Separate Remote Raise/Lower Switch | Yes |
CFM/ Sones Rating | 140/2.5 (Working Speed) 370/9.0 (High Speed) |
Exhaust Options | 3-1/4" x 10" Rectangular Duct Downdraft Minimum 6" Round Duct Capability Vented to Outside |
Product Type | Telescopic Downdraft |
Control Type | Electronic Remote Control |
Telescopic Assembly | Stainless Steel |
Cover Plate | Stainless Steel |
Removable Grease Filter(s) | Mesh Yes |
