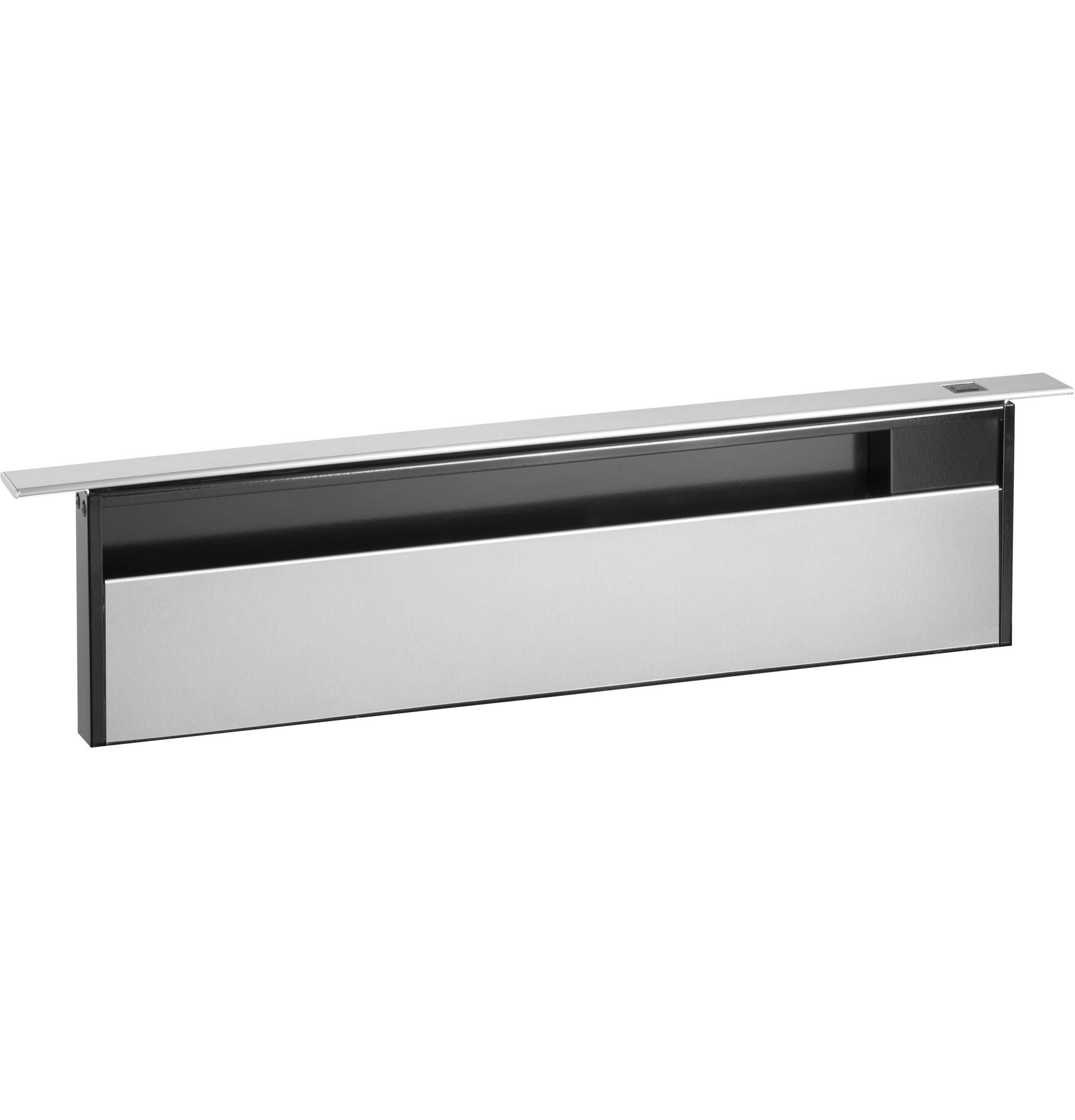

Ge Appliances UVD6301SPSS Universal 30" Telescopic Downdraft System UVD6301SPSS

500 CFM Exhaust Fan
Efficiently remove smoke, grease, odors and moisture from the air thanks to a downdraft kitchen exhaust vent with a 500-CFM venting system

Adjustable Fan Speed
Adjust your ventilation with the turn of a knob thanks to a kitchen exhaust fan that can be set to any speed between 0-500 CFM, depending on what you're cooking

Kitchen Exhaust Fan Filters
Minimize clean-up and prevent unpleasant kitchen odor with a removable grease filter that helps cut down on scrubbing

Aluminum Mesh Filters
Cut down on clean up thanks to mesh filters that are quick and easy to remove and are completely dishwasher safe

Hidden Design
Streamline the look of your kitchen with a downdraft range vent that raises over the cooktop surface when needed and then retracts when not in use

FILTER
App Filter-Multi Brand	Cafe GE Monogram
App Filter - Hood Type	Telescopic downdraft
App Filter - Venting Type	External
App Filter - Cabinet Width	Vent 30 in. (Standard)
APPEARANCE
Color Appearance	Stainless Steel
POWER / RATINGS
Electrical Requirements	120V ; 60Hz ; 4.0A
Amp Rating at 120V	4.0
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ACCESSORIES
Duct Extension	100 ft.
WEIGHTS & DIMENSIONS
Cabinet Width	30 in
Net Weight	63 lb
Overall Depth	7 in
Approximate Shipping Weight	67 lb
Telescoping Height	7 in
Overall Height	7 in
Overall Width	30 in
FEATURES
Fan Speed Control	Variable
Max CFM	500
Optional Blower Mount Capabilities	Yes
Downdraft Exhaust (CFM)	500
Exhaust Options	3-1/4" x 10" Rectangular Duct Downdraft Vented to Outside
Product Type	Telescopic Downdraft
Control Type	Rotary-Mechanical
Telescopic Assembly	Stainless Steel
Cover Plate	Stainless Steel
Removable Grease Filter(s)	Mesh Yes
